AG500 DIGITAL ARGB

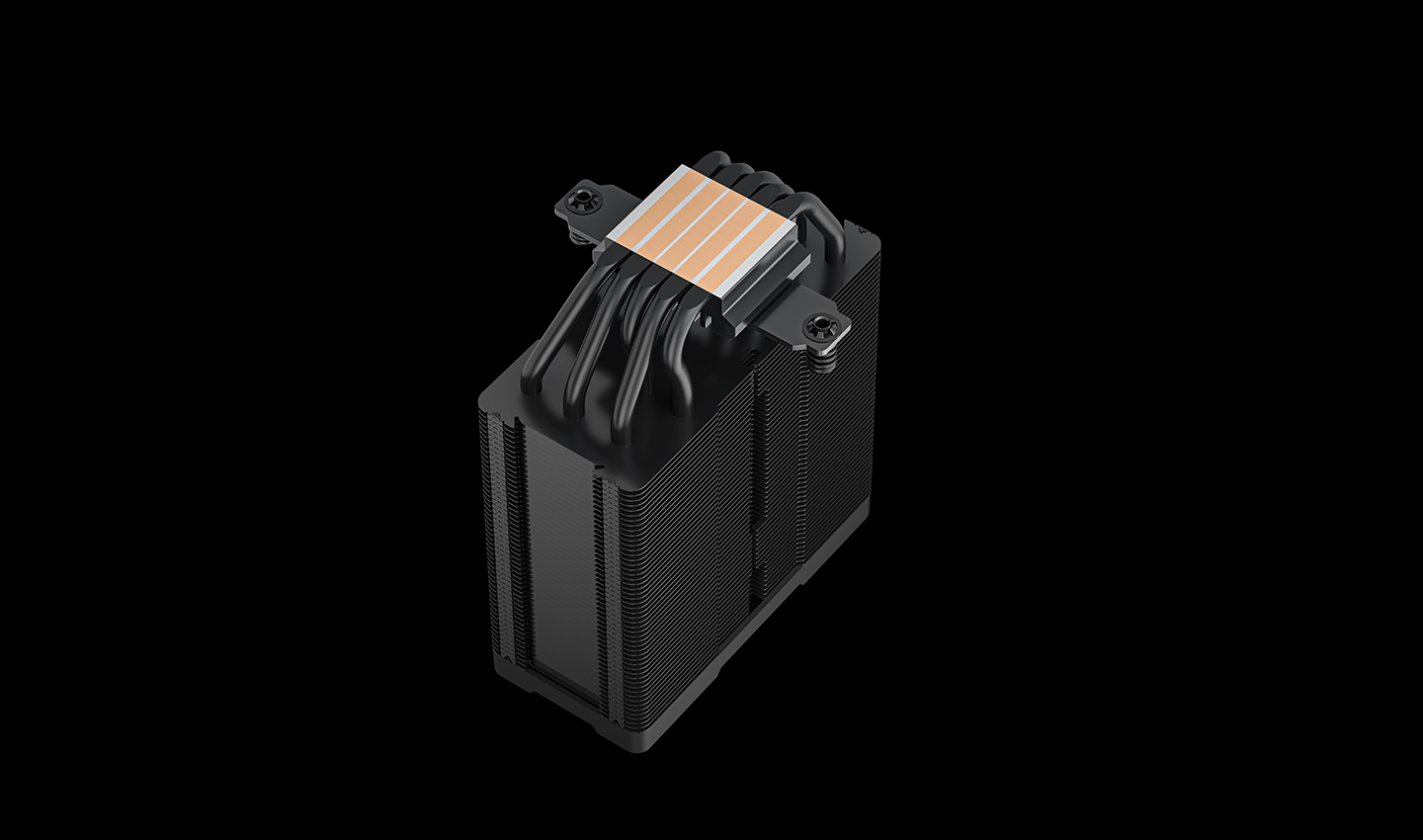

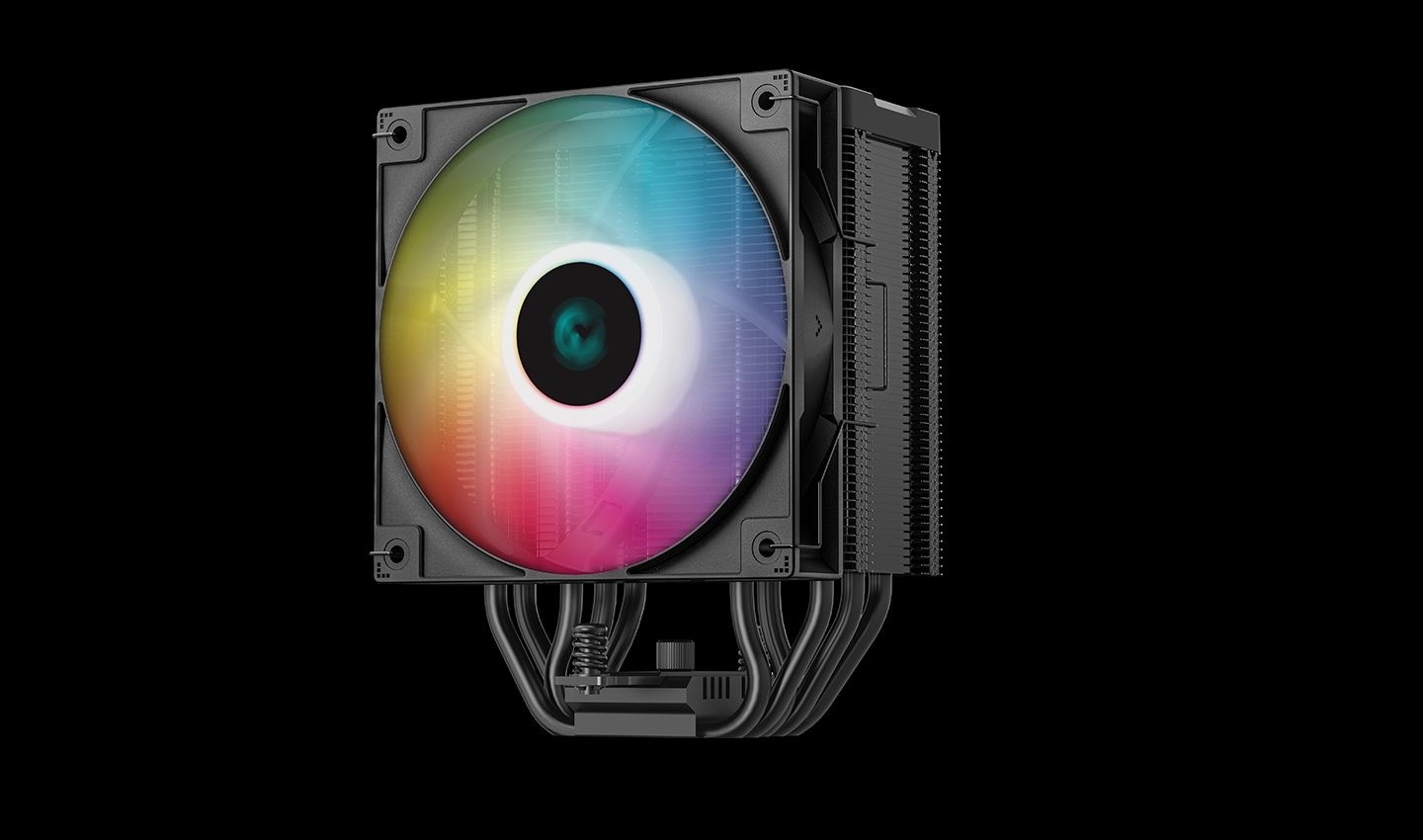

DeepCool is proud to present the AG500 DIGITAL ARGB, a direct-touch five-heatpipe single-tower air cooler with a CPU status display. The integration of a CPU status screen into an affordable, high-performance air cooler provides an obscene amount of value for users of all budgets.
MODEL
AG500 DIGITAL ARGB
MORE THAN AN AIR COOLER
CPU STATUS AT A GLANCE

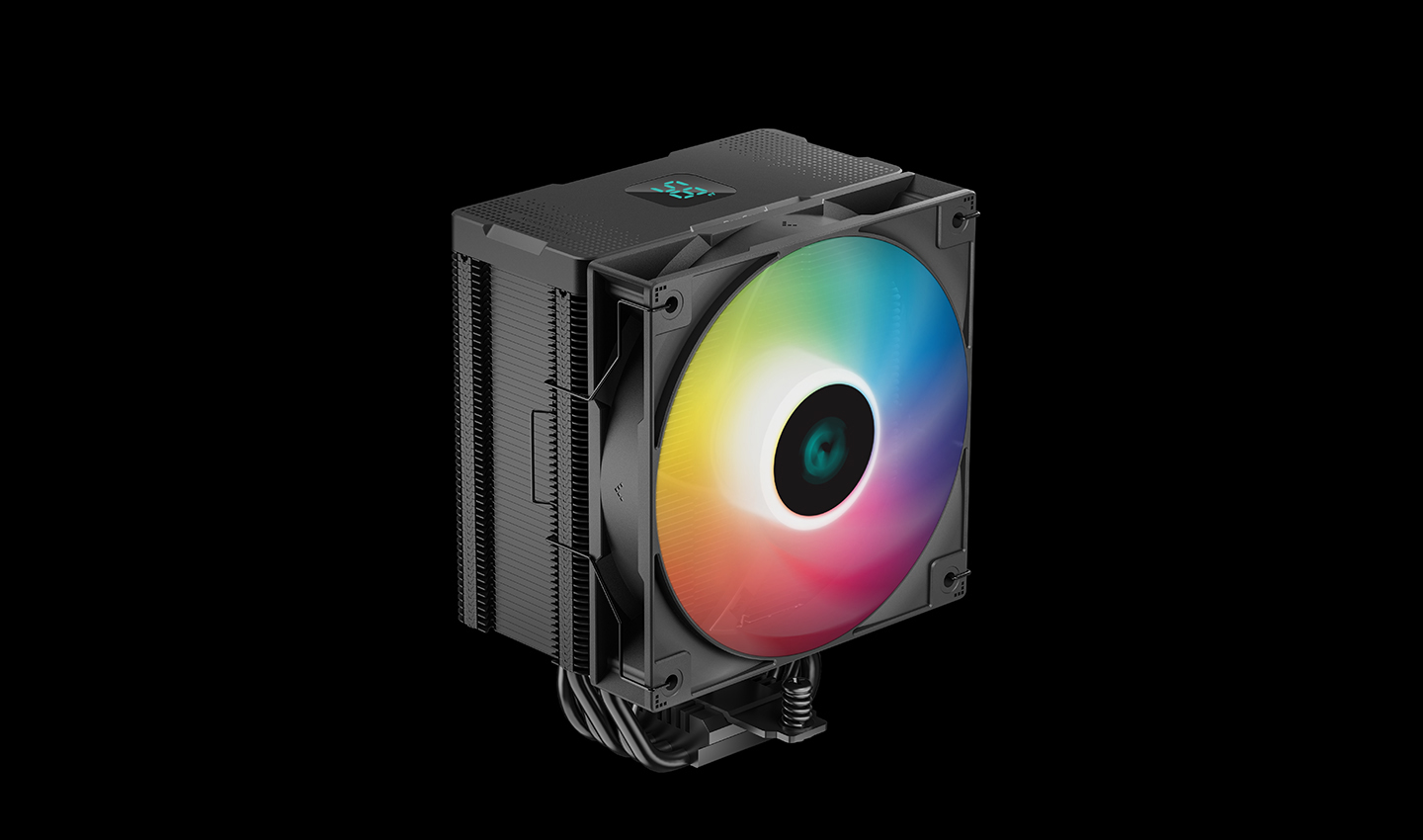

The easy-to-read display provides real-time CPU temperatures and utilization while keeping the clean lines of the cooler. The display will begin to flash once the CPU temperature exceeds 90 °C. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
BRILLIANCE IN DESIGN

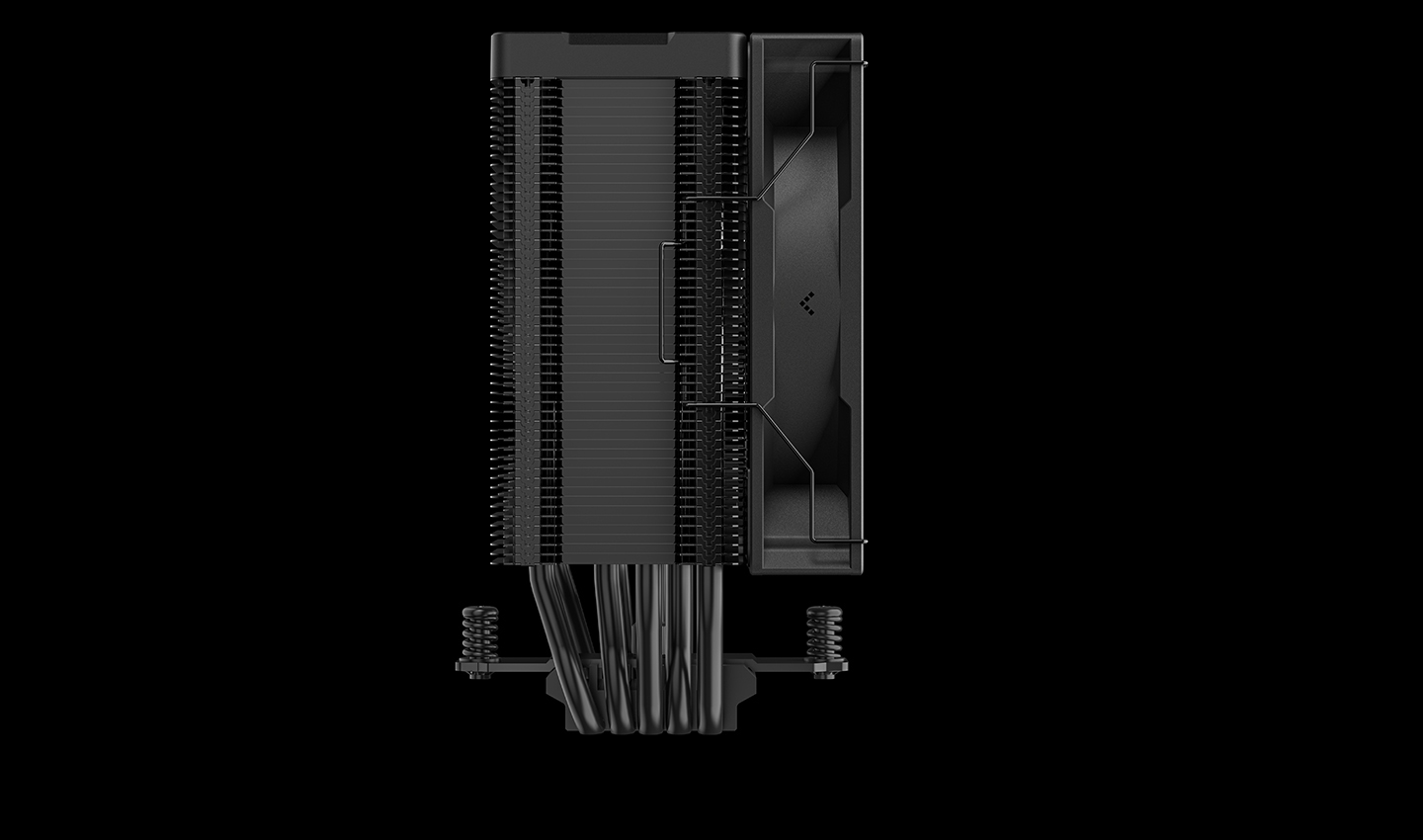

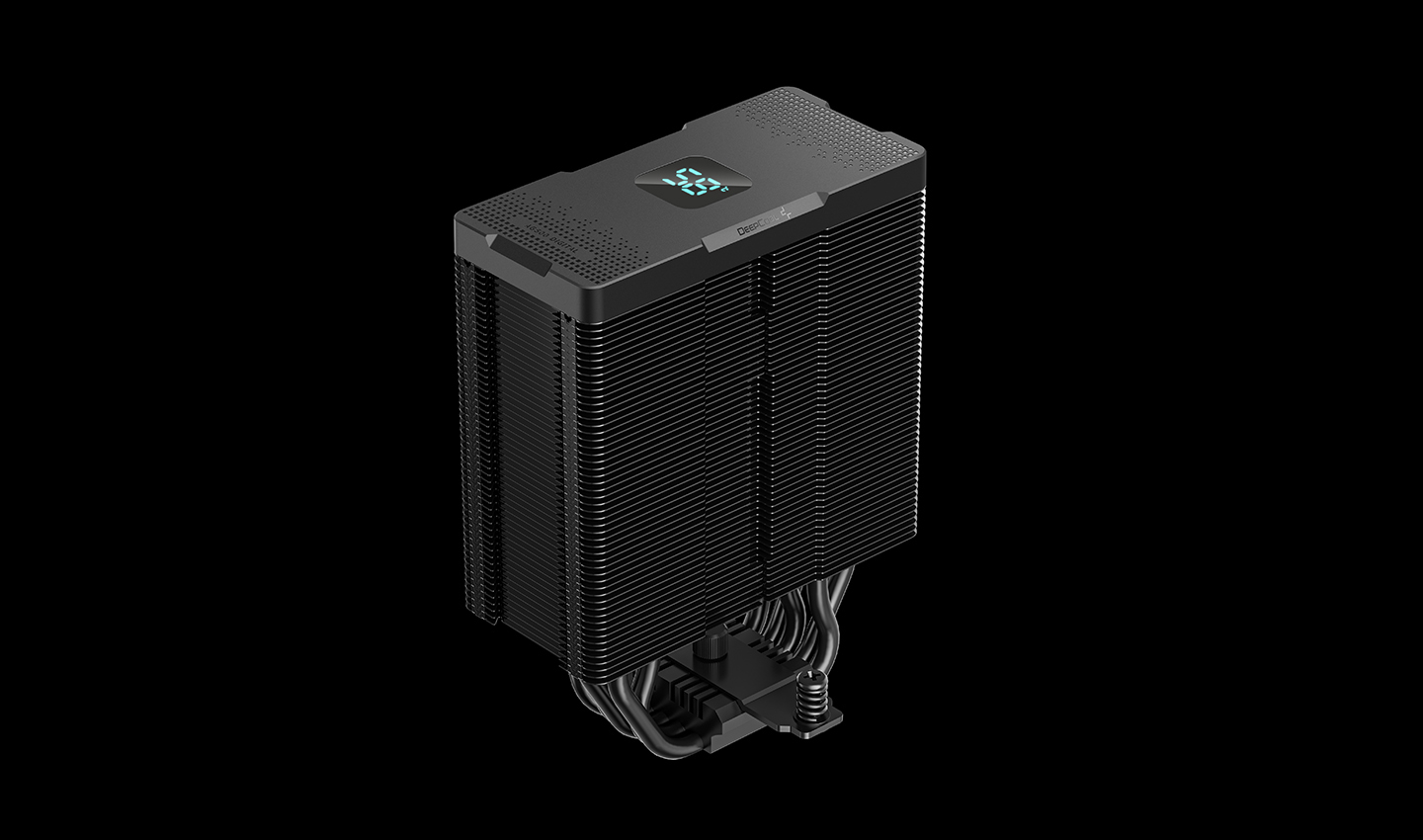

DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. The offset design provides complete, unobstructed clearance for high-profile RGB RAM modules.
BRIGHT, QUIET,
AND CAPABLE

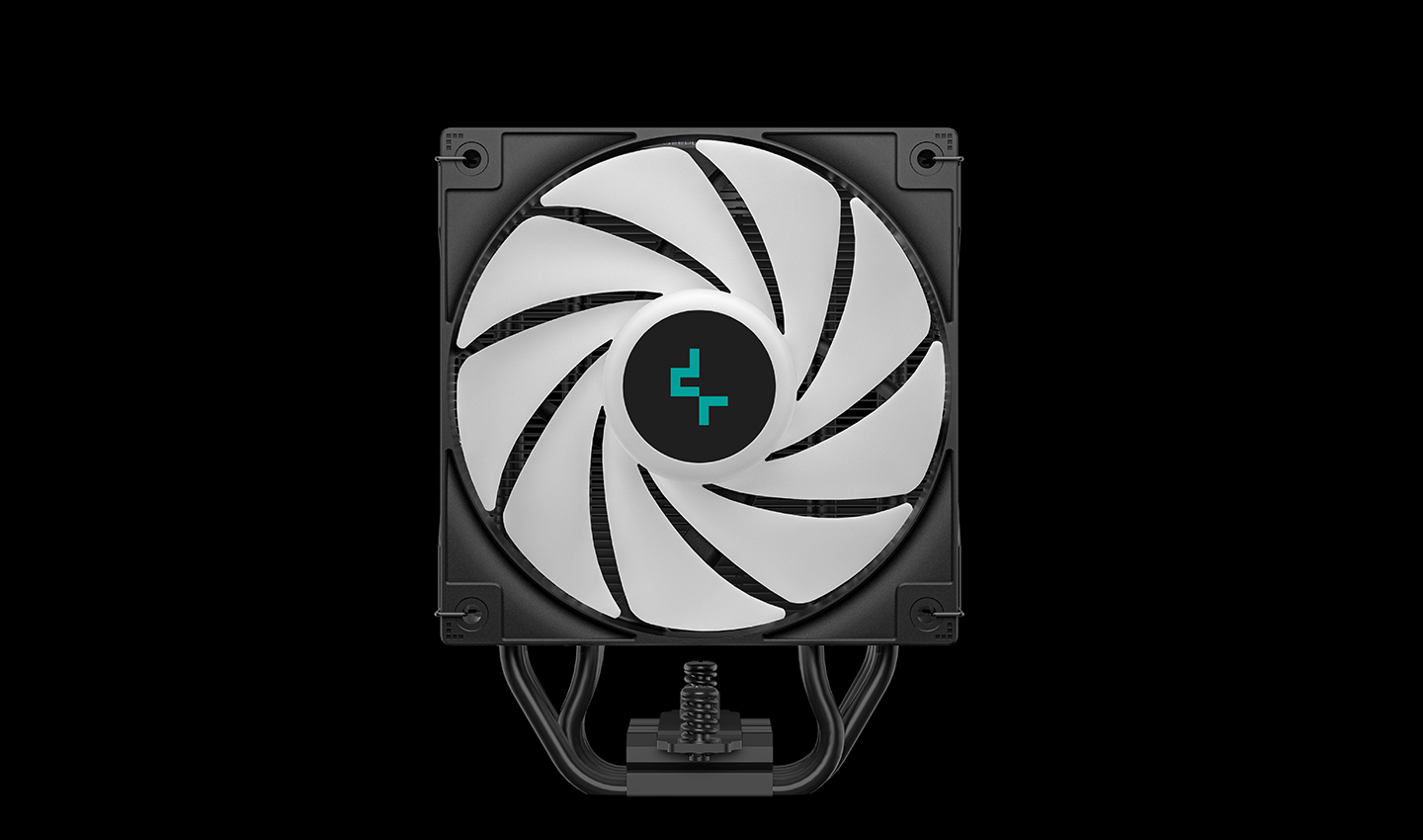

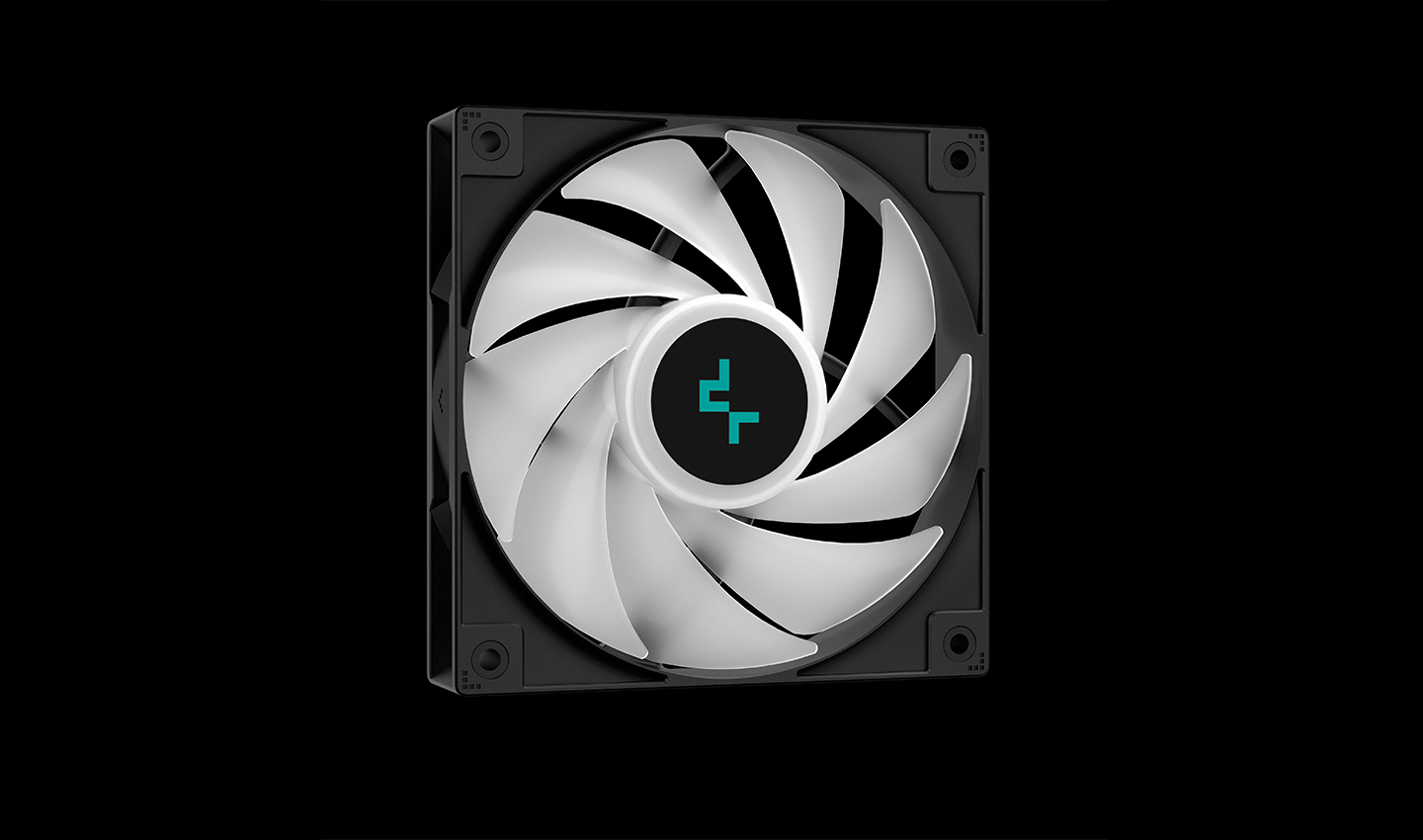

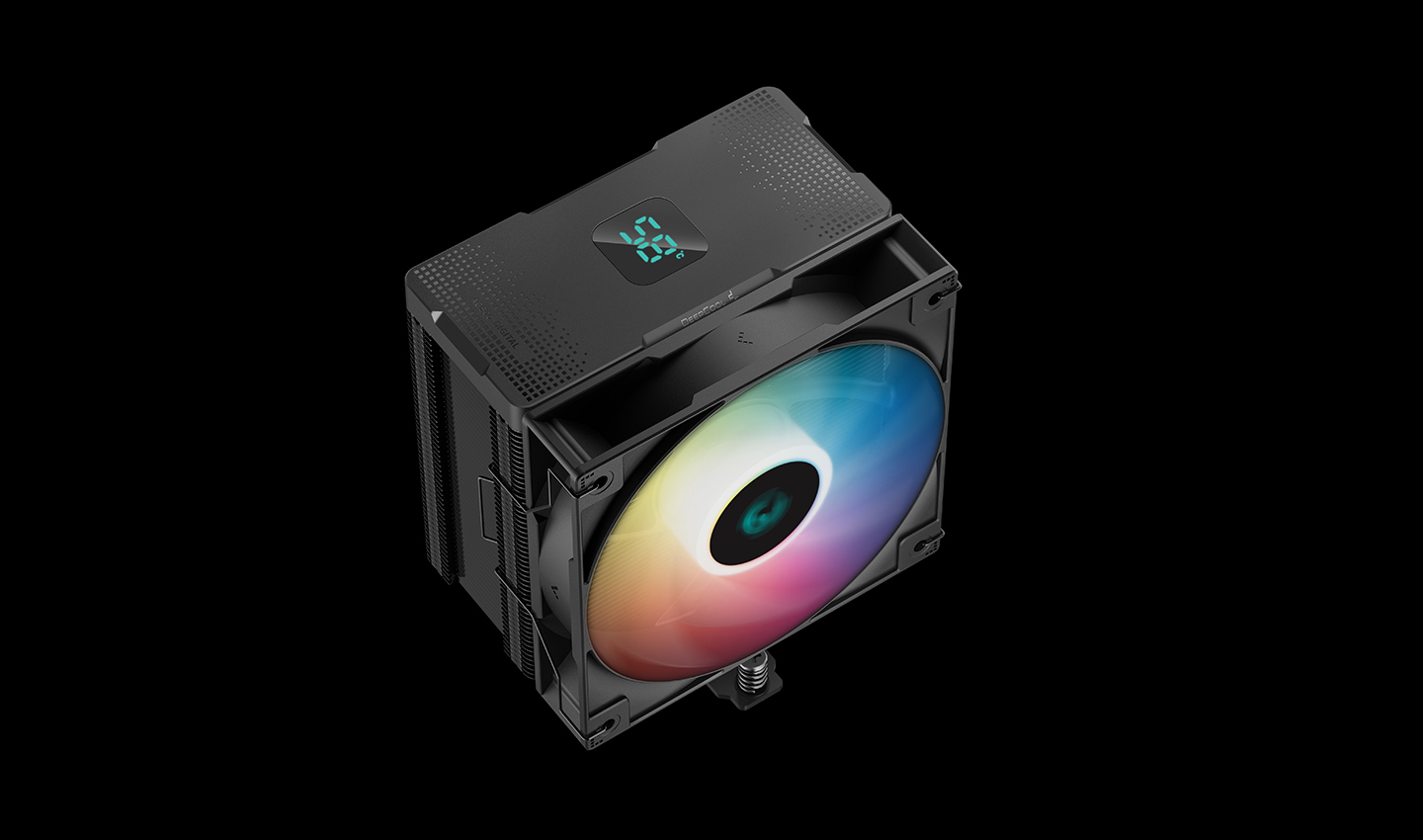

An efficient 120mm hydro-bearing PWM fan ensures great air flow, a low noise level, stable operation, and a longer fan life. The fan hub has been outfitted with bright ARGB LEDs and can be easily synced to ARGB headers on compatible motherboards and software.
300~1950 RPM±10%
Fan Speed
67.88 CFM
Airflow
≤29.4 dB(A)
Noise Level
SIMPLE AND SECURE INSTALLATION

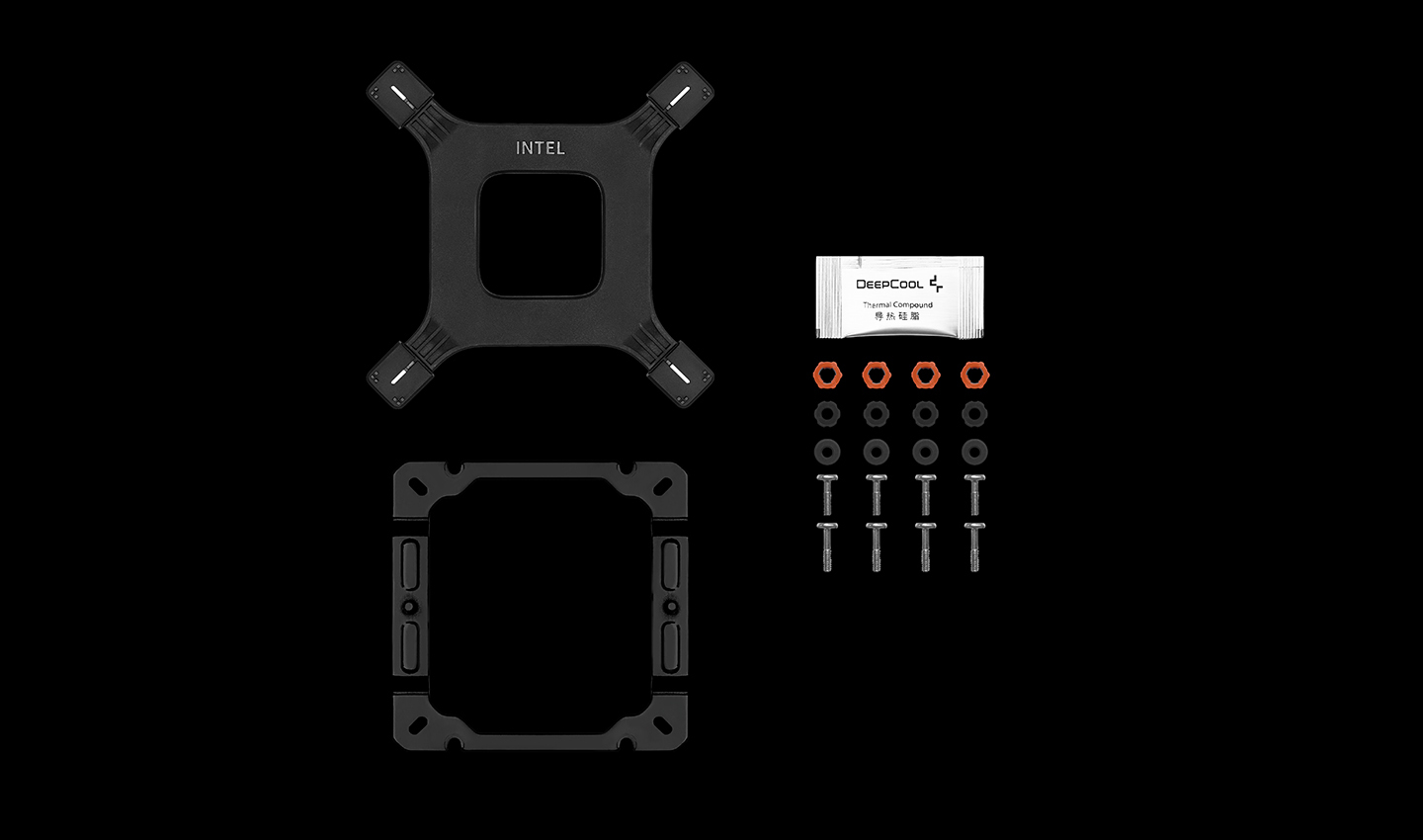

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
INTEL
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions125×95×158 mm(L×W×H)
Heatsink Dimensions120×60×150 mm(L×W×H)
Net Weight845 g
HeatpipeØ6 mm×5 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed300~1950 RPM±10%
Fan Airflow67.88 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤29.4 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.14 A
Fan Power Consumption1.68 W
LED TypeAddressable RGB LED
LED Connector9-pin USB 2.0 and 3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.6 W
EAN6933412728559
P/NR-AG500-BKADMN-G-1
