AG620 BK ARGB V2

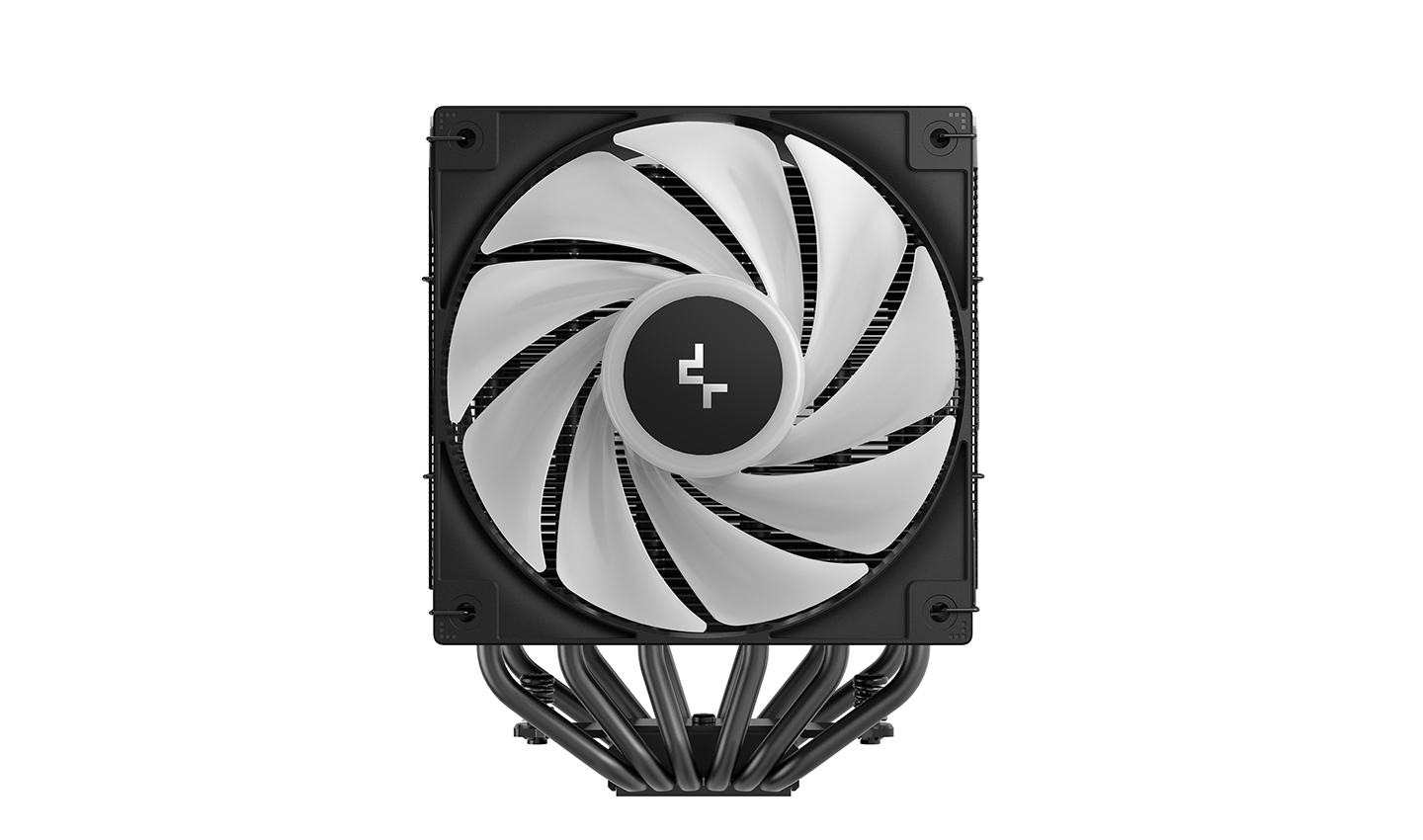

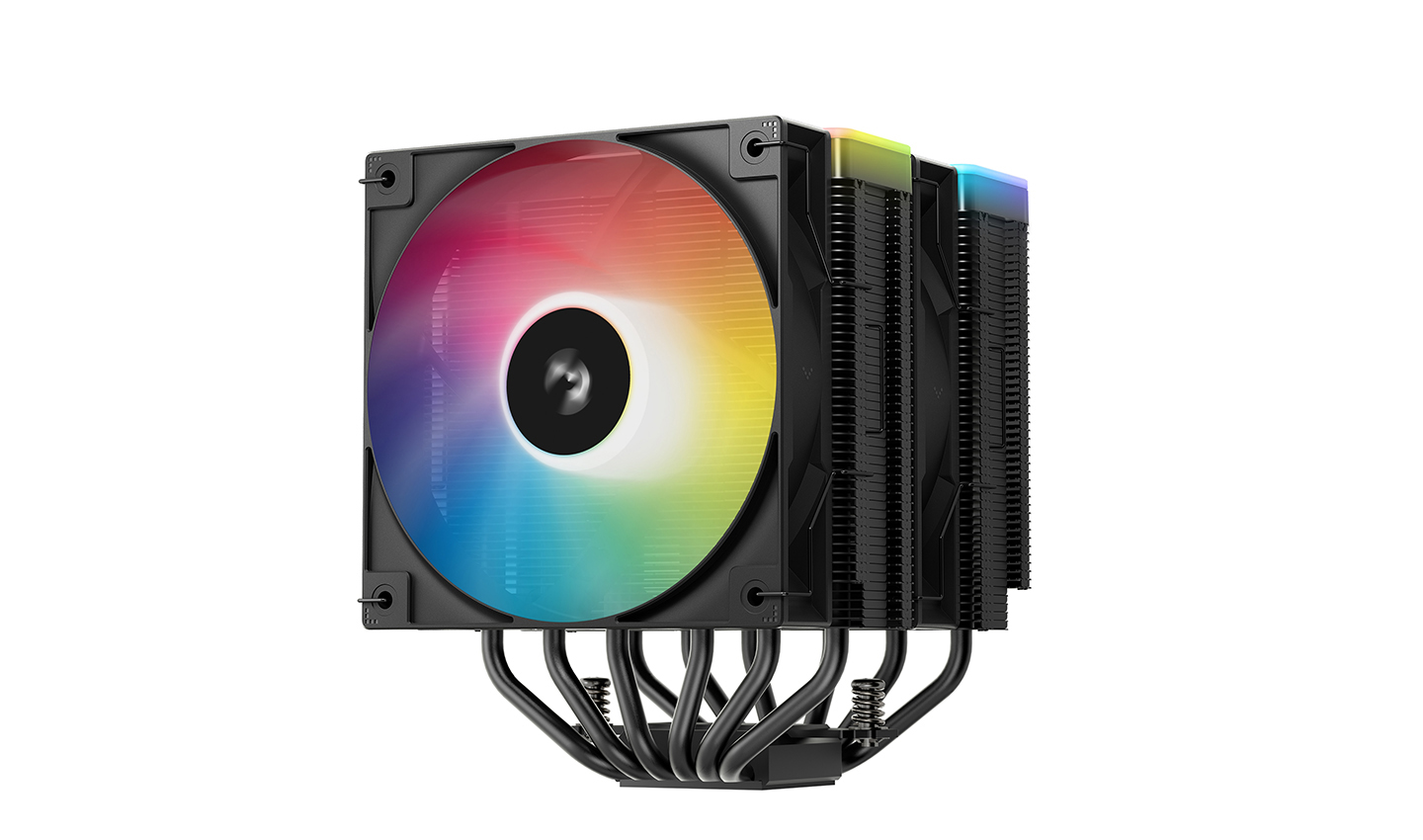

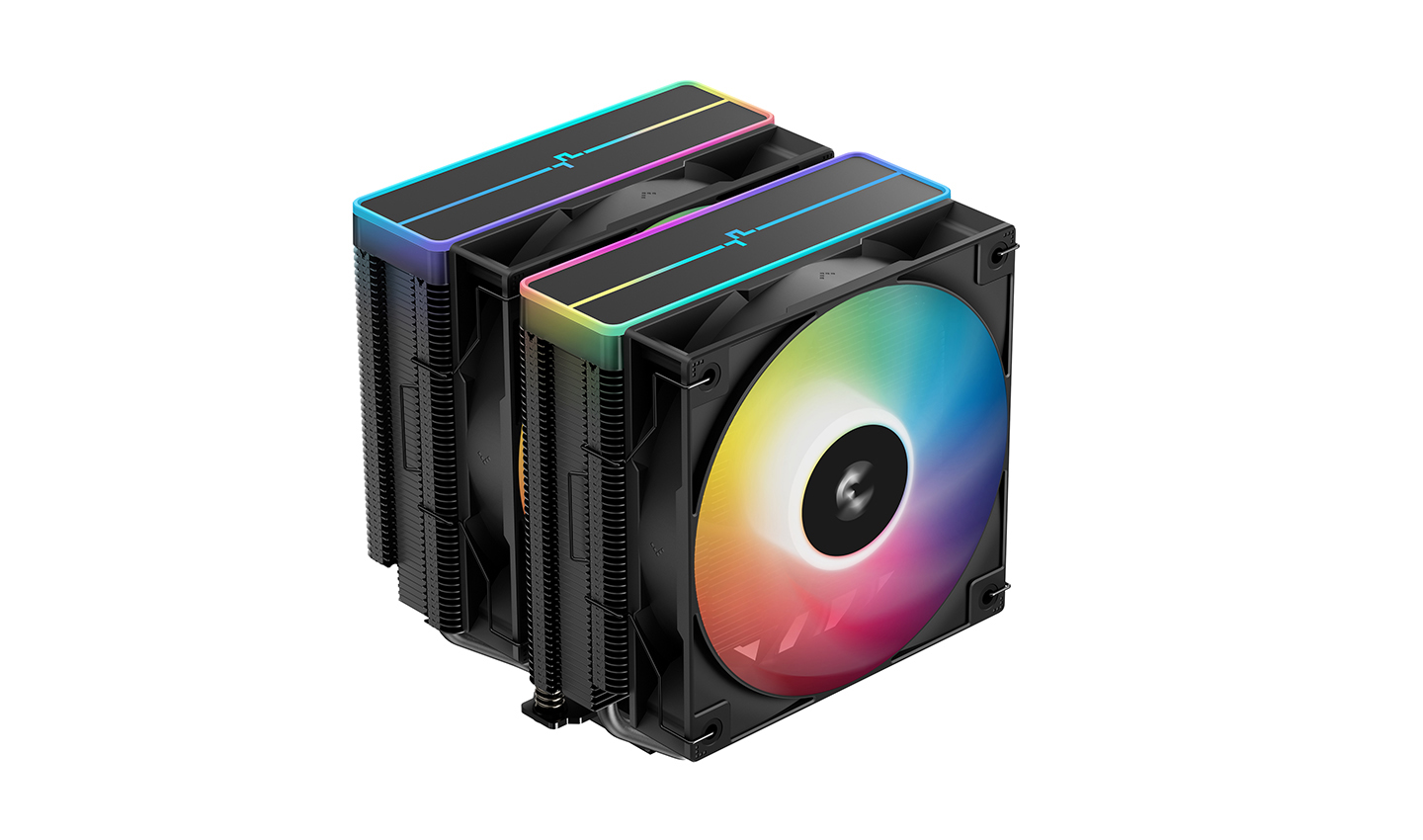

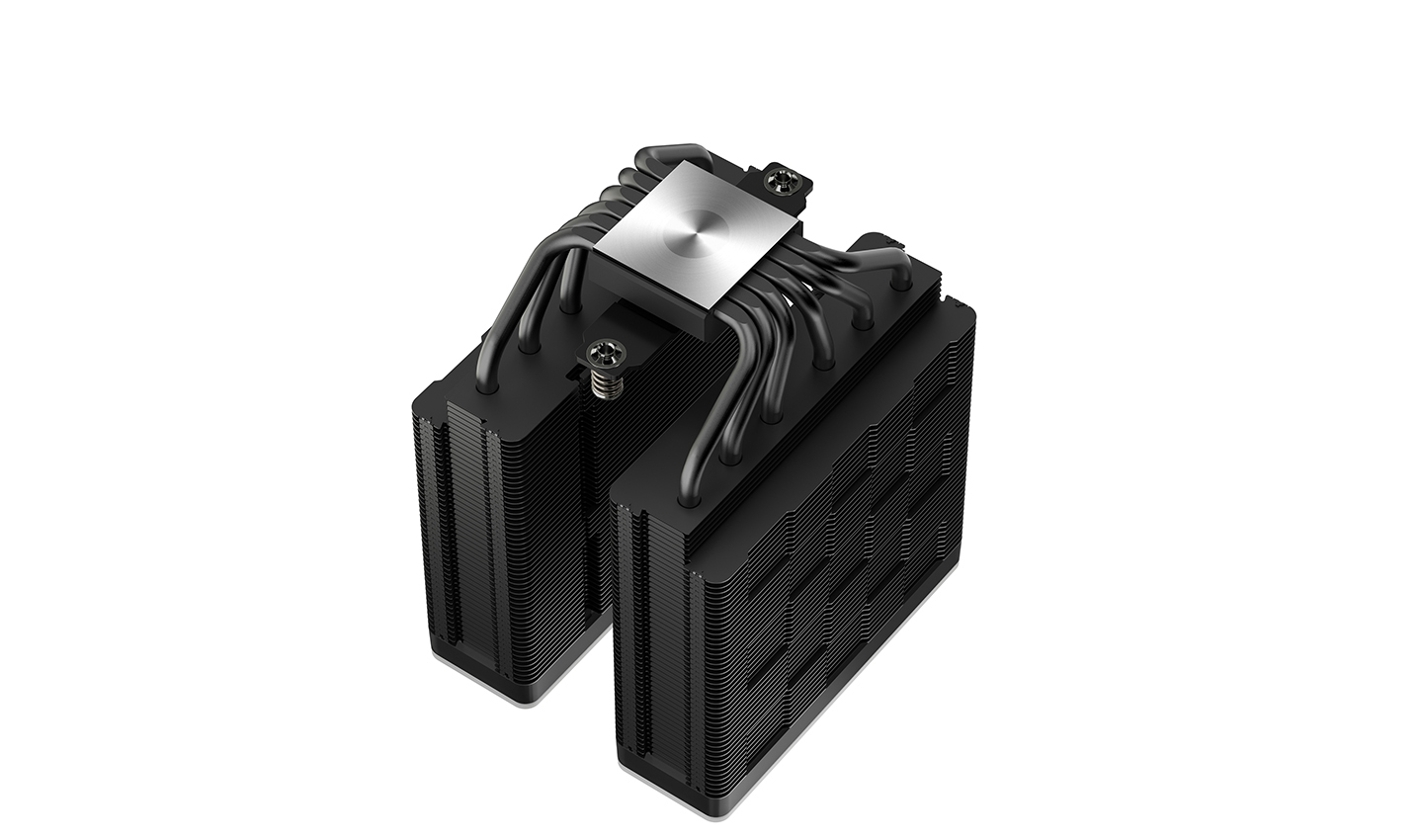

The DeepCool AG620 BK ARGB V2 is an all-black dual-tower CPU cooler focused on high performance efficiency boasting six heat pipes packed in the dense heat sink tower for optimal heat dissipation and paired with two fine-tuned 120mm ARGB PWM fans for powerful cooling.
MODEL
AG620 BK ARGB V2
POWER MEETS GLOW
BRILLIANCE IN DESIGN

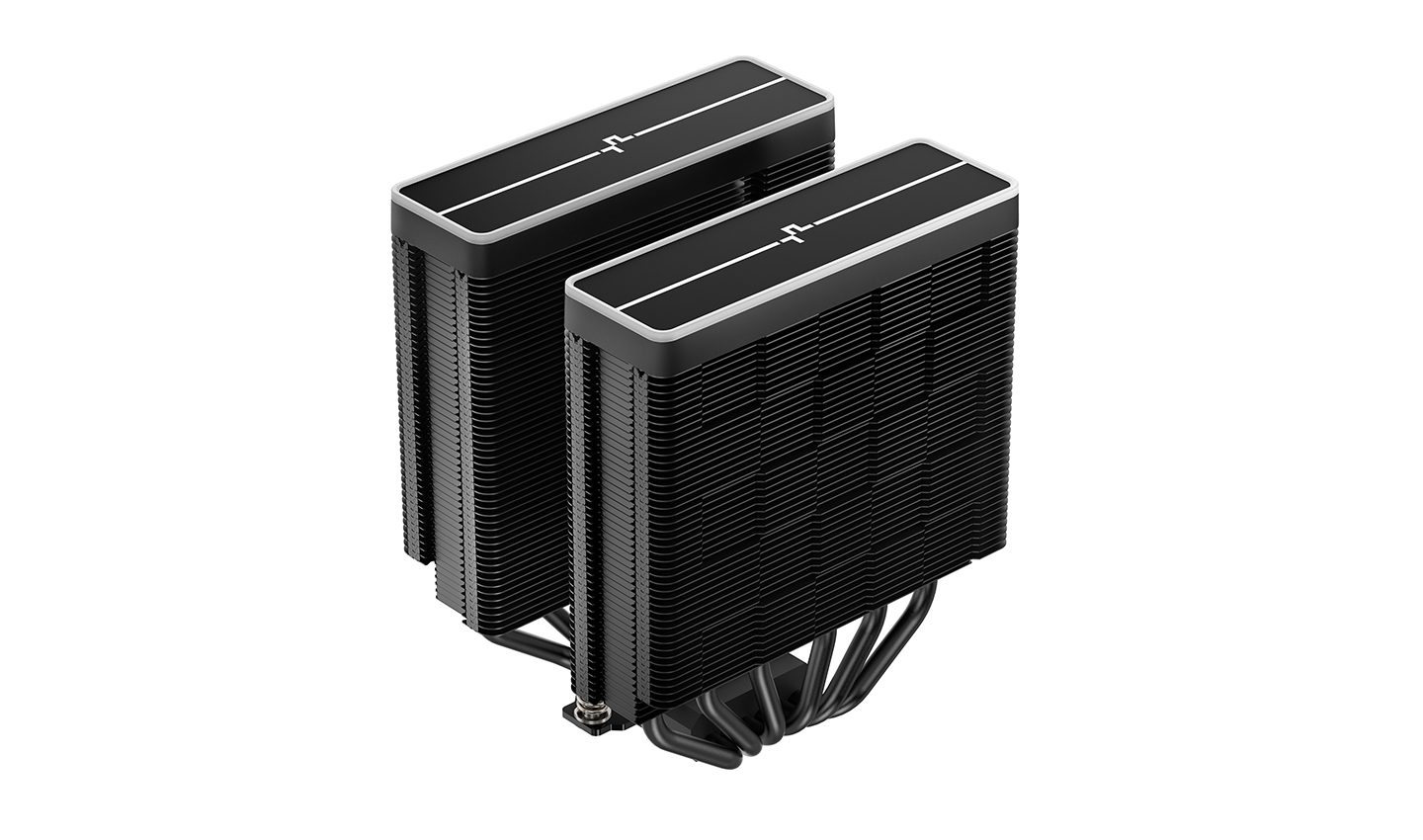

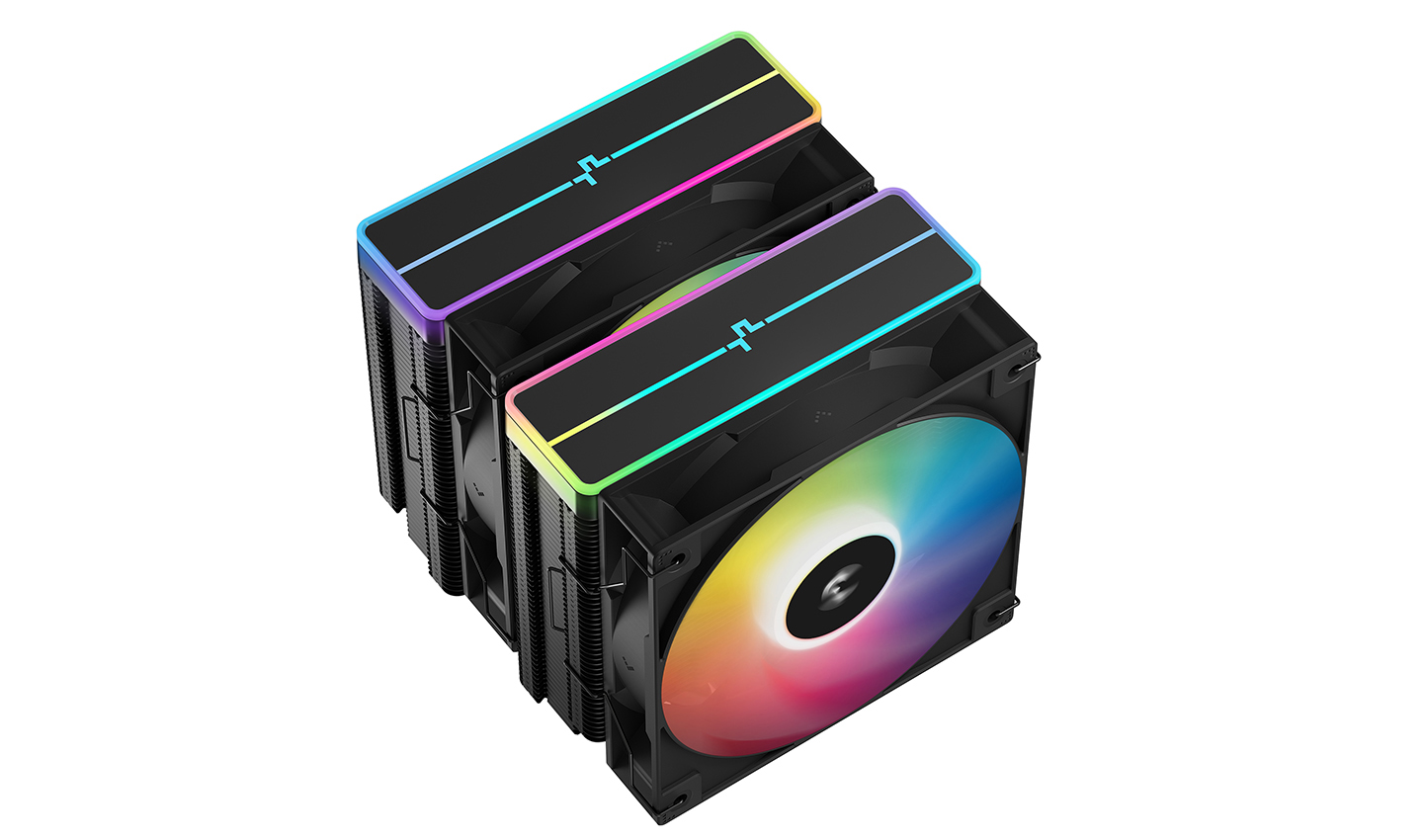

DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. Paired with a unique ARGB top cover and a minimalist translucent logo design, AG620 BK ARGB V2 provides an unprecedented and unique lighting effect.
BRILLIANCE IN DESIGN
DeepCool's recognizable matrix fin stack design is finished in a dark black coating and provides an excellent cost-to-value ratio. Paired with a unique ARGB top cover and a minimalist translucent logo design, AG620 BK ARGB V2 provides an unprecedented and unique lighting effect.
SUBSTANTIAL COOLING POWER

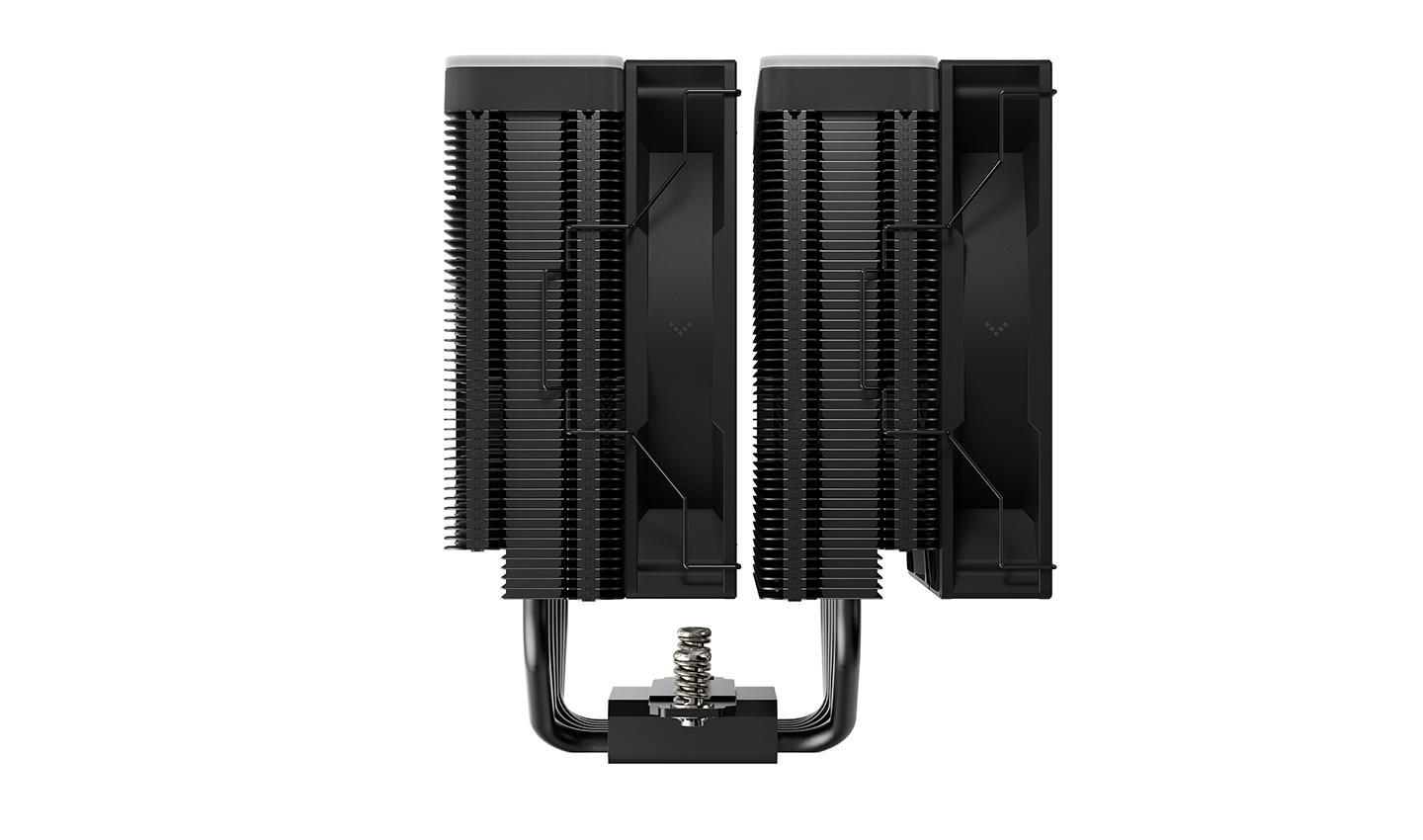

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.
SUBSTANTIAL COOLING POWER
An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.
BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.
This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.
BRIGHT, QUIET, AND CAPABLE

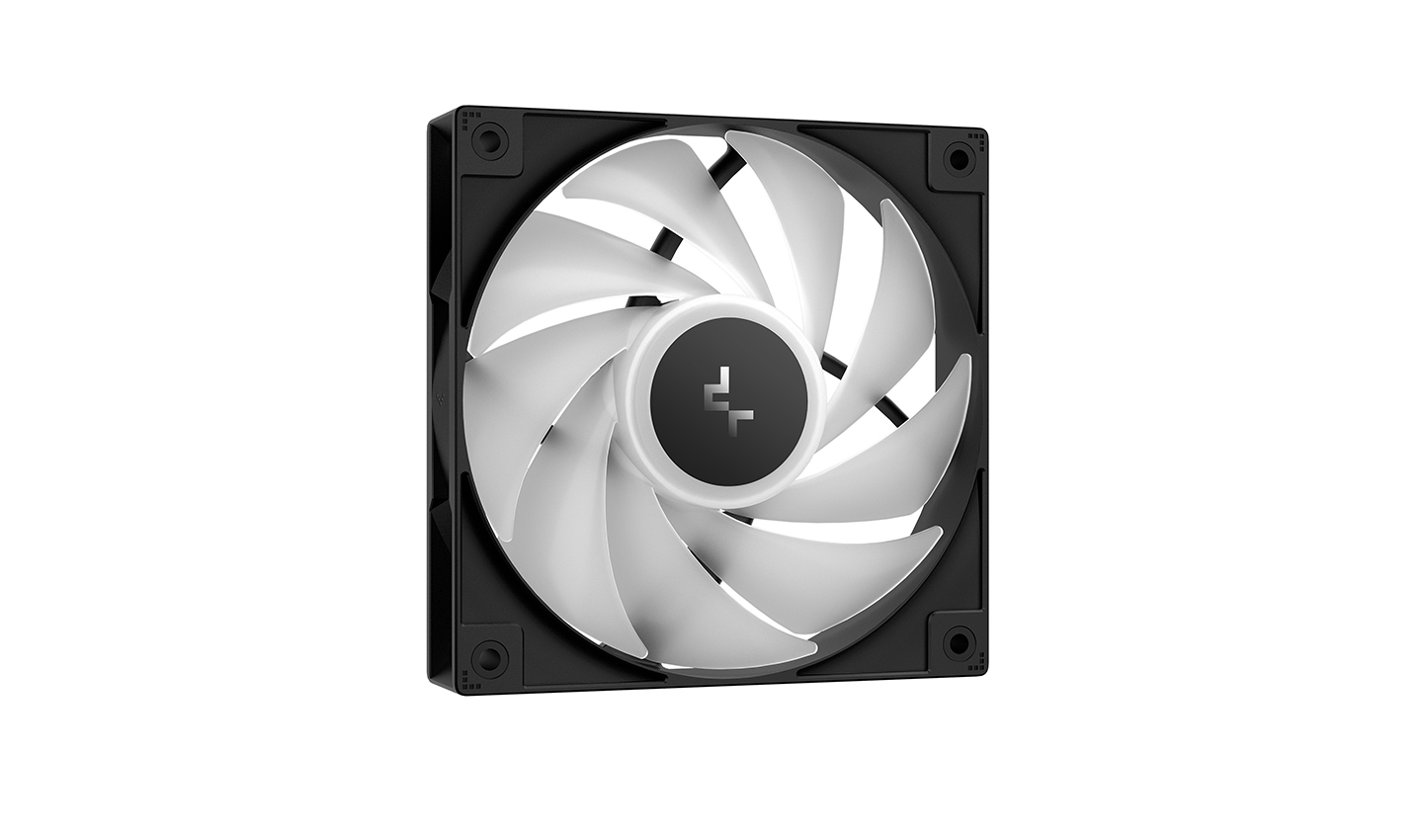

Get the best of both worlds with two fine-tuned 120mm ARGB PWM fans designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.
300~1950 RPM±10%
Fan Speed
67.88 CFM
Airflow
≤29.4 dB(A)
Noise Level
SIMPLE AND SECURE INSTALLATION

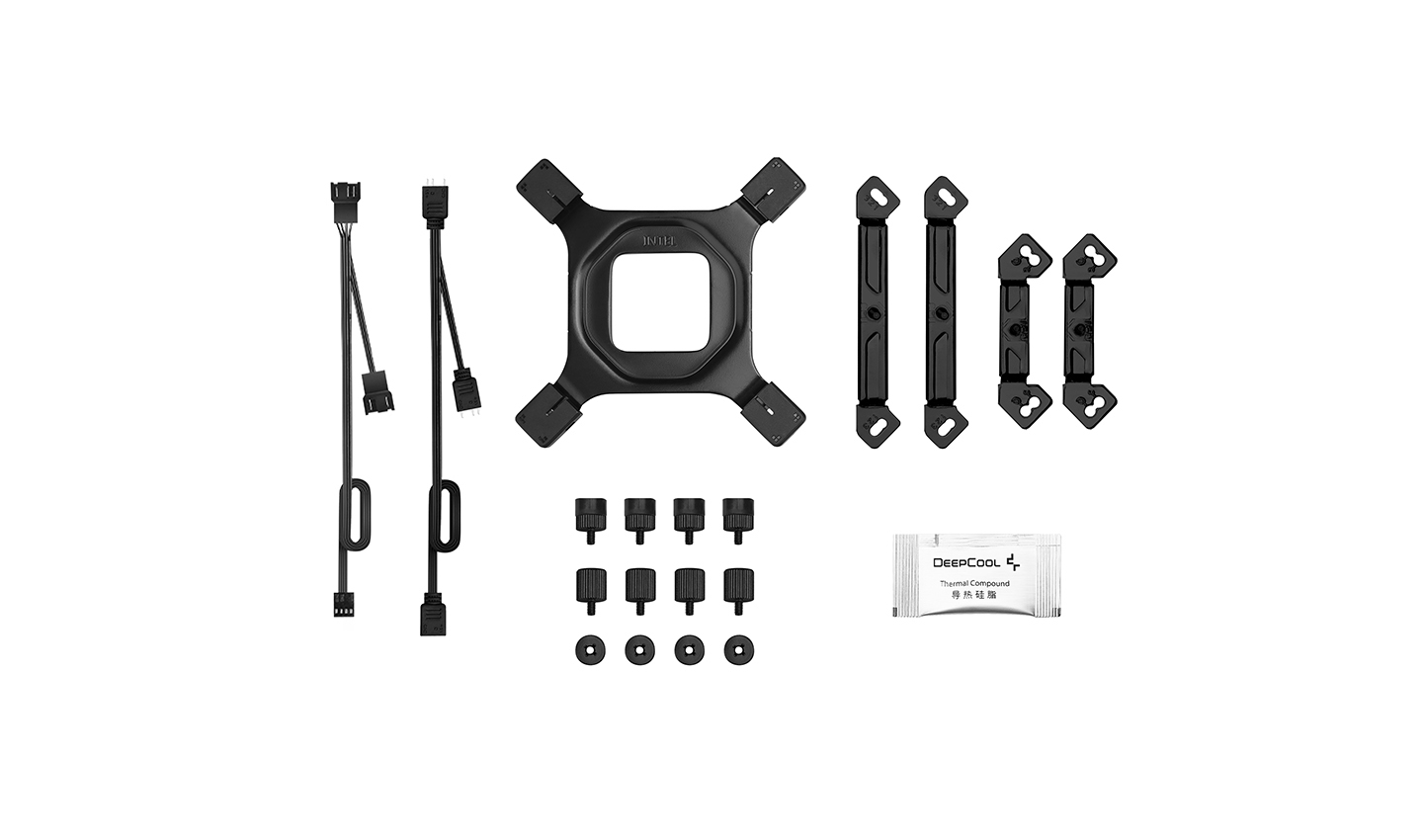

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
LGA1851/1700/1200/115X
INTEL
AM5/AM4
AMD
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×136×161 mm(L×W×H)
Heatsink Dimensions127×110×157 mm(L×W×H)
Net Weight1330 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed300~1950 RPM±10%
Fan Airflow67.88 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤29.4 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.14 A
Fan Power Consumption1.68 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption6.4 W
EAN6933412729242
P/NR-AG620-BKAMMN-GJD
Download
AG620 BK ARGB V2 Manual.pdf
