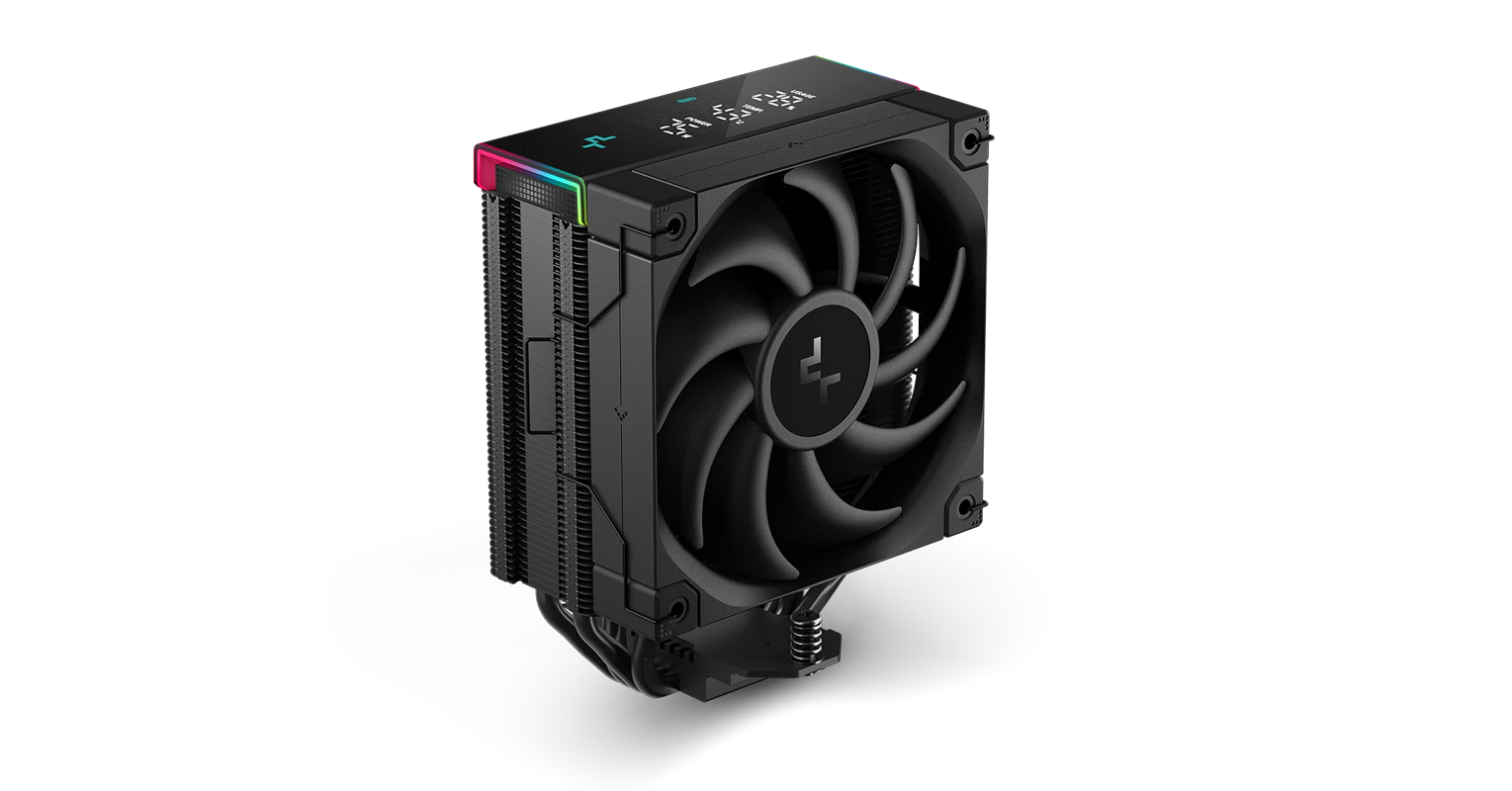

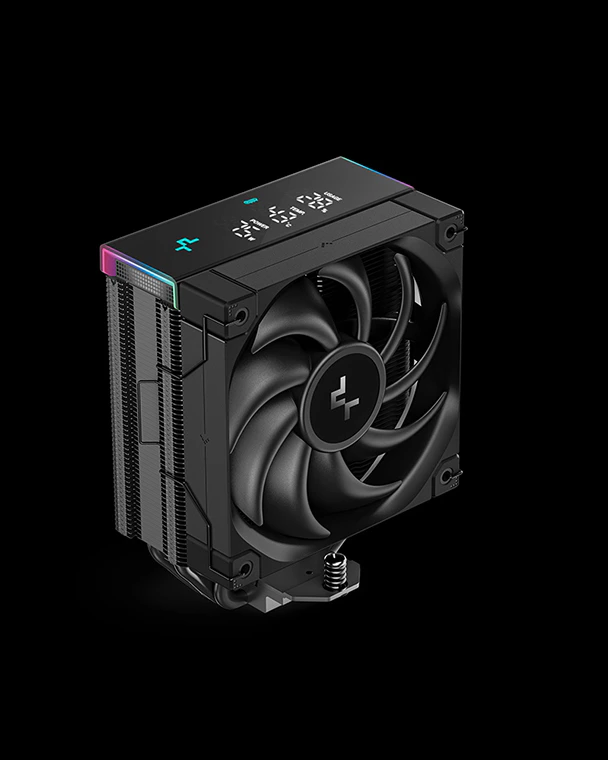

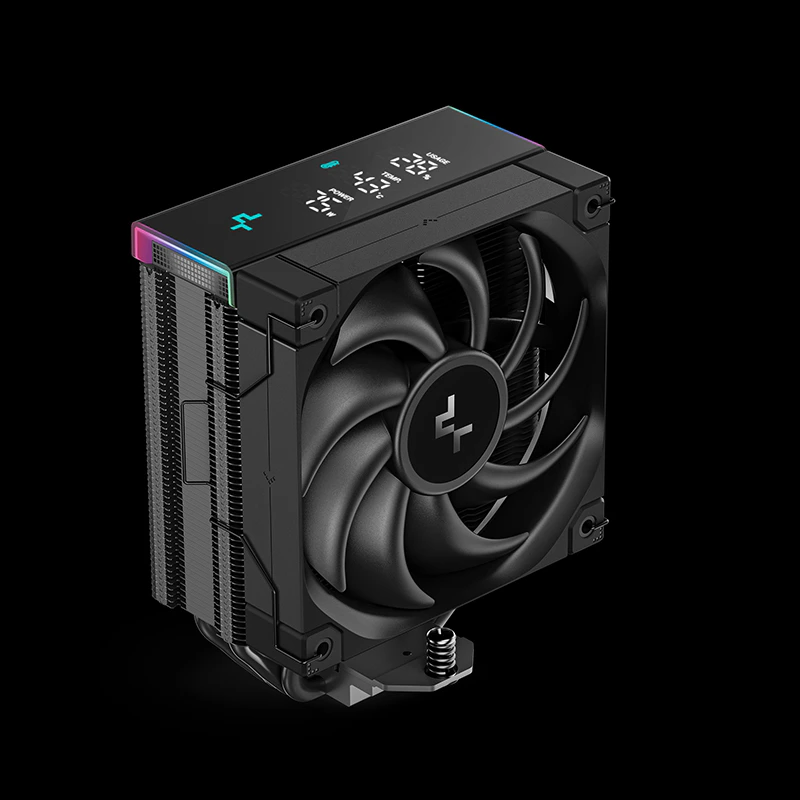

AK400 DIGITAL PRO

DIGITAL COOLERS GO PRO

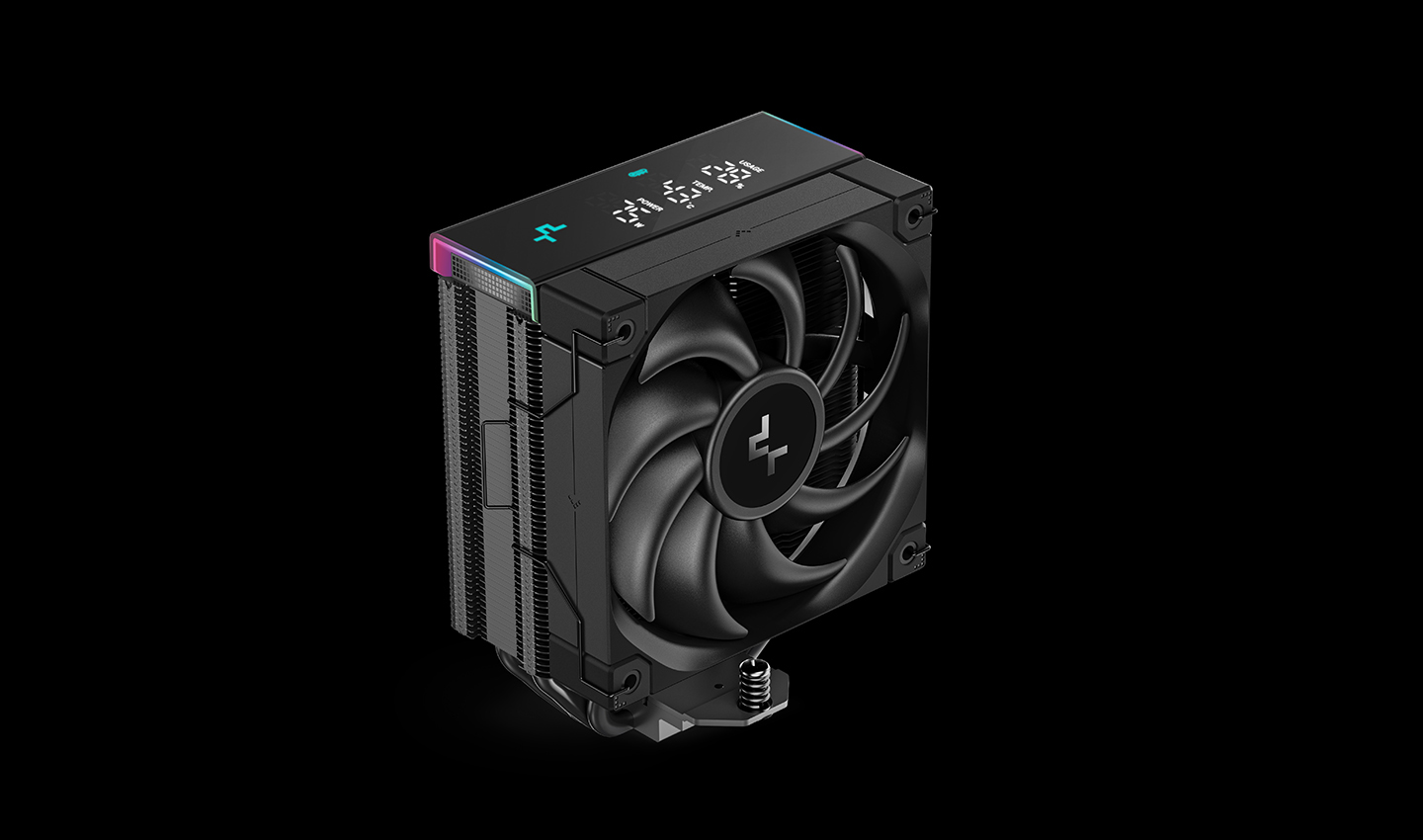

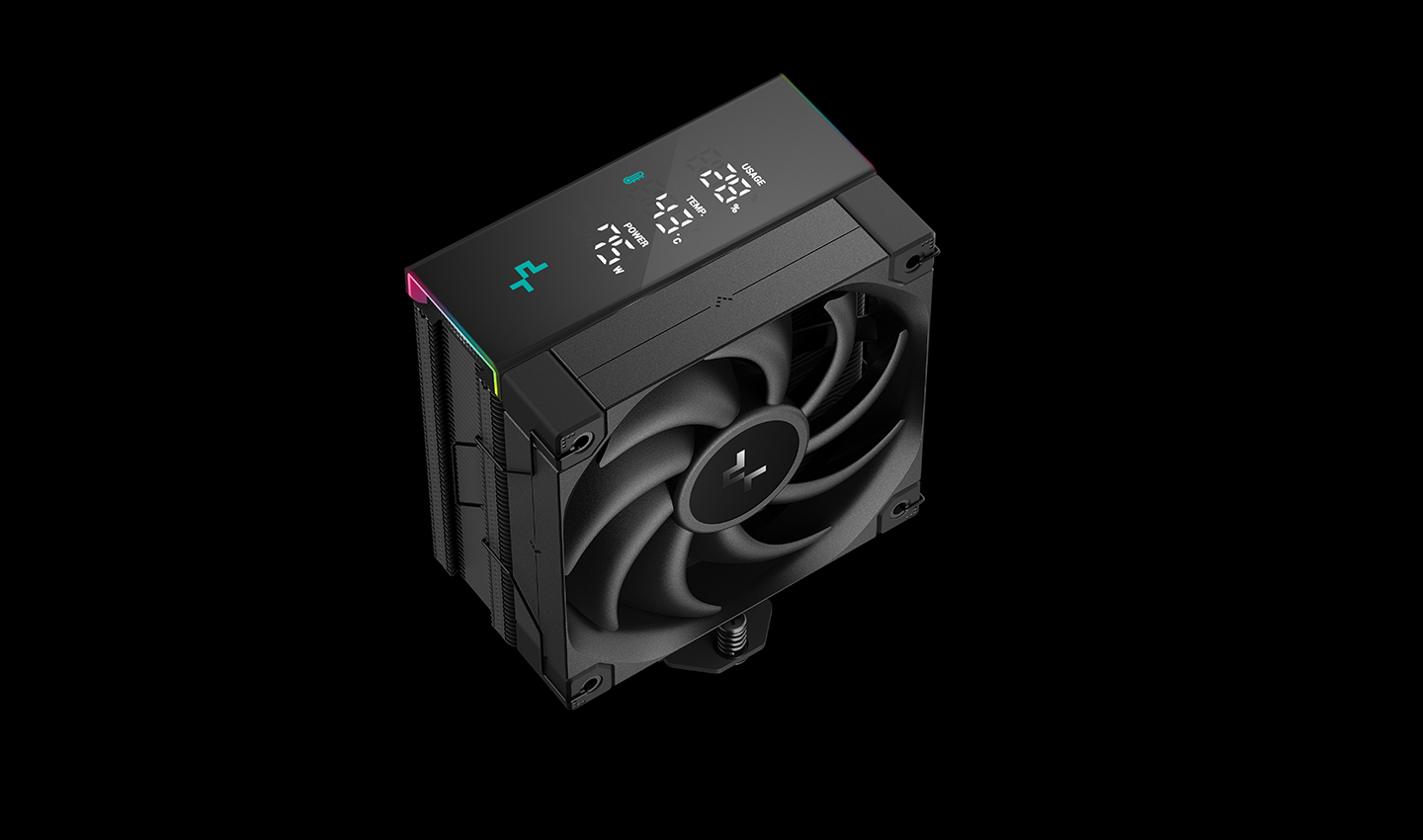

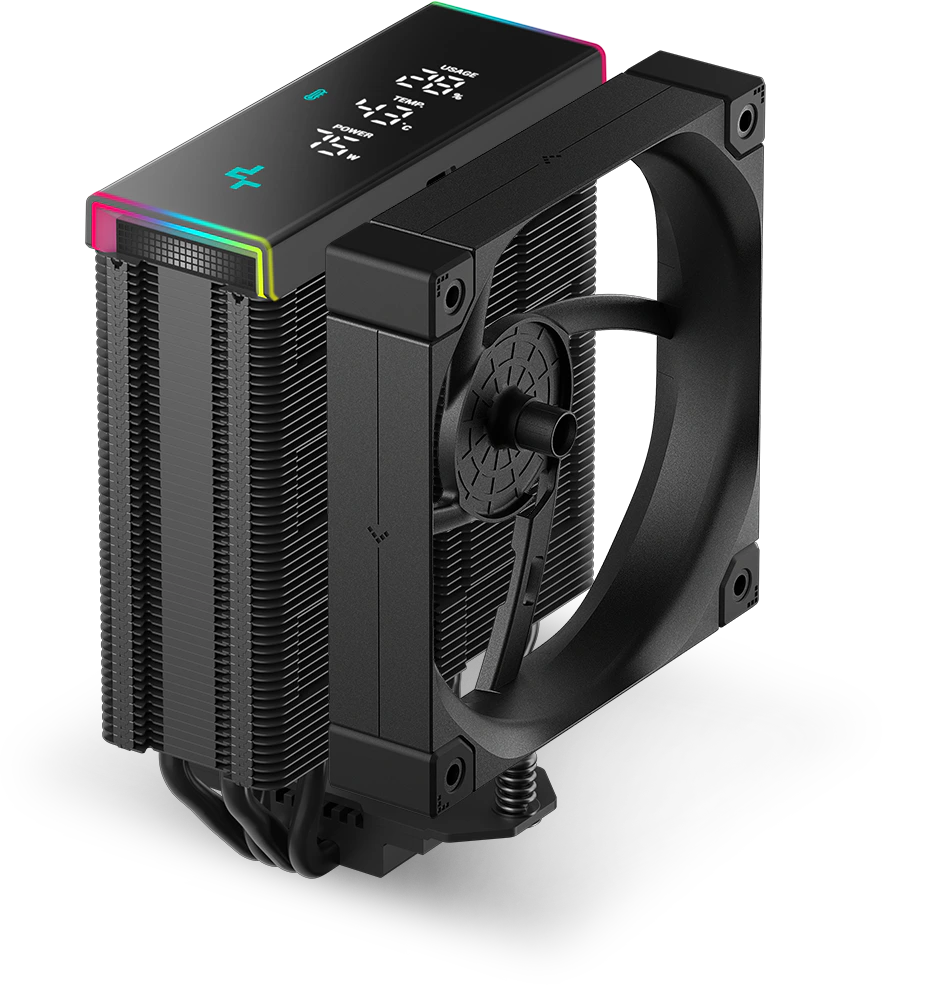

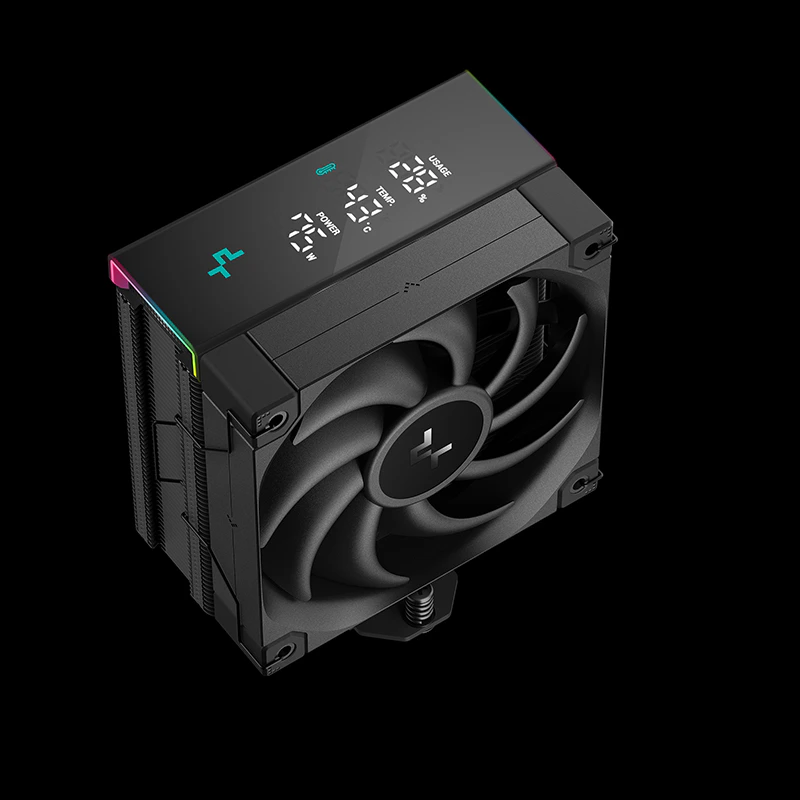

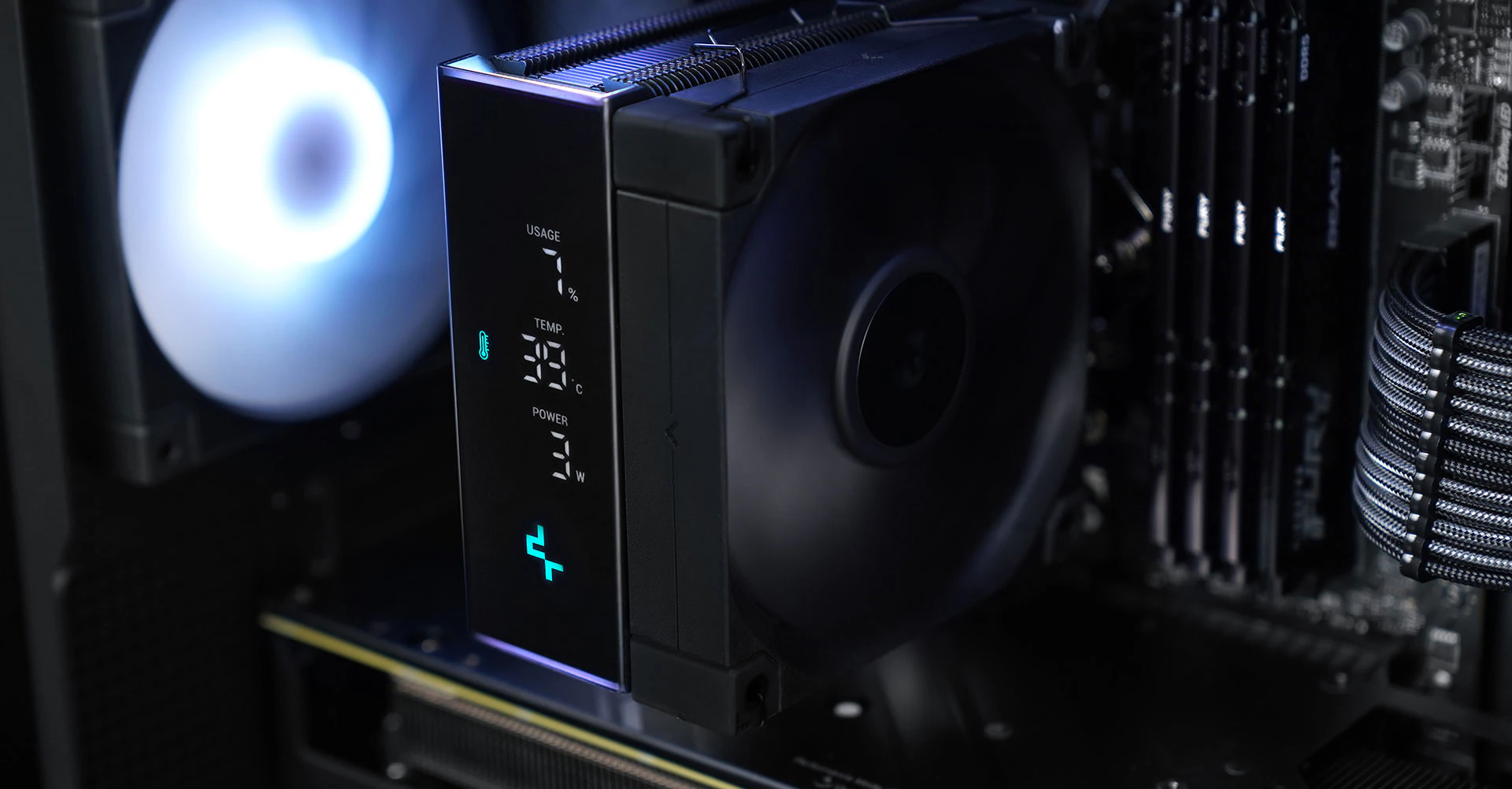

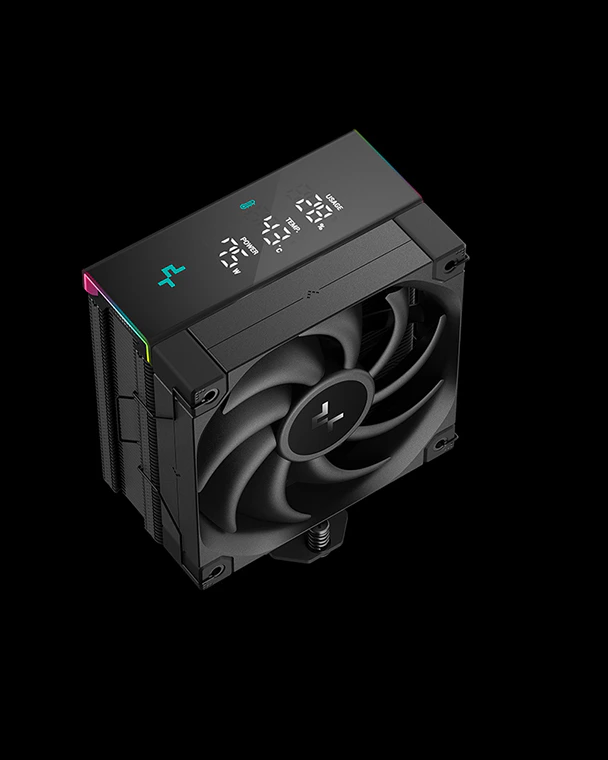

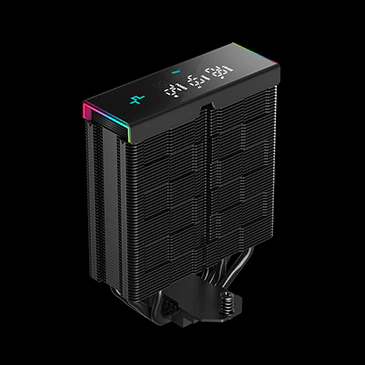

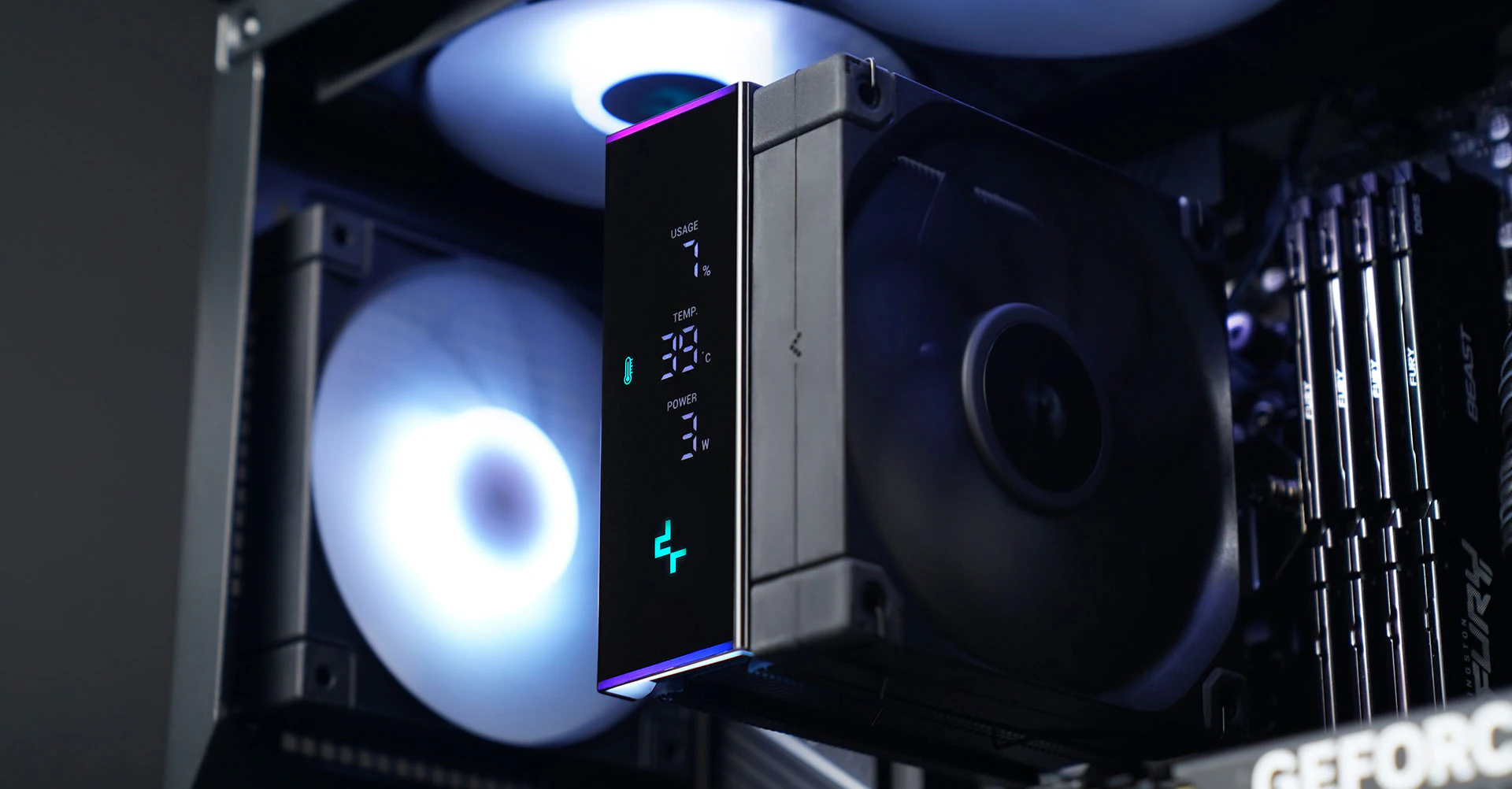

ENHANCED CPU STATUS SCREEN

The sleek and shiny screen of the AK400 DIGITAL PRO has been enhanced to show more than just the temperature; usage and wattage have been added and are displayed at the same time. The display is controlled via DeepCool software and only requires an open USB 2.0 header.

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

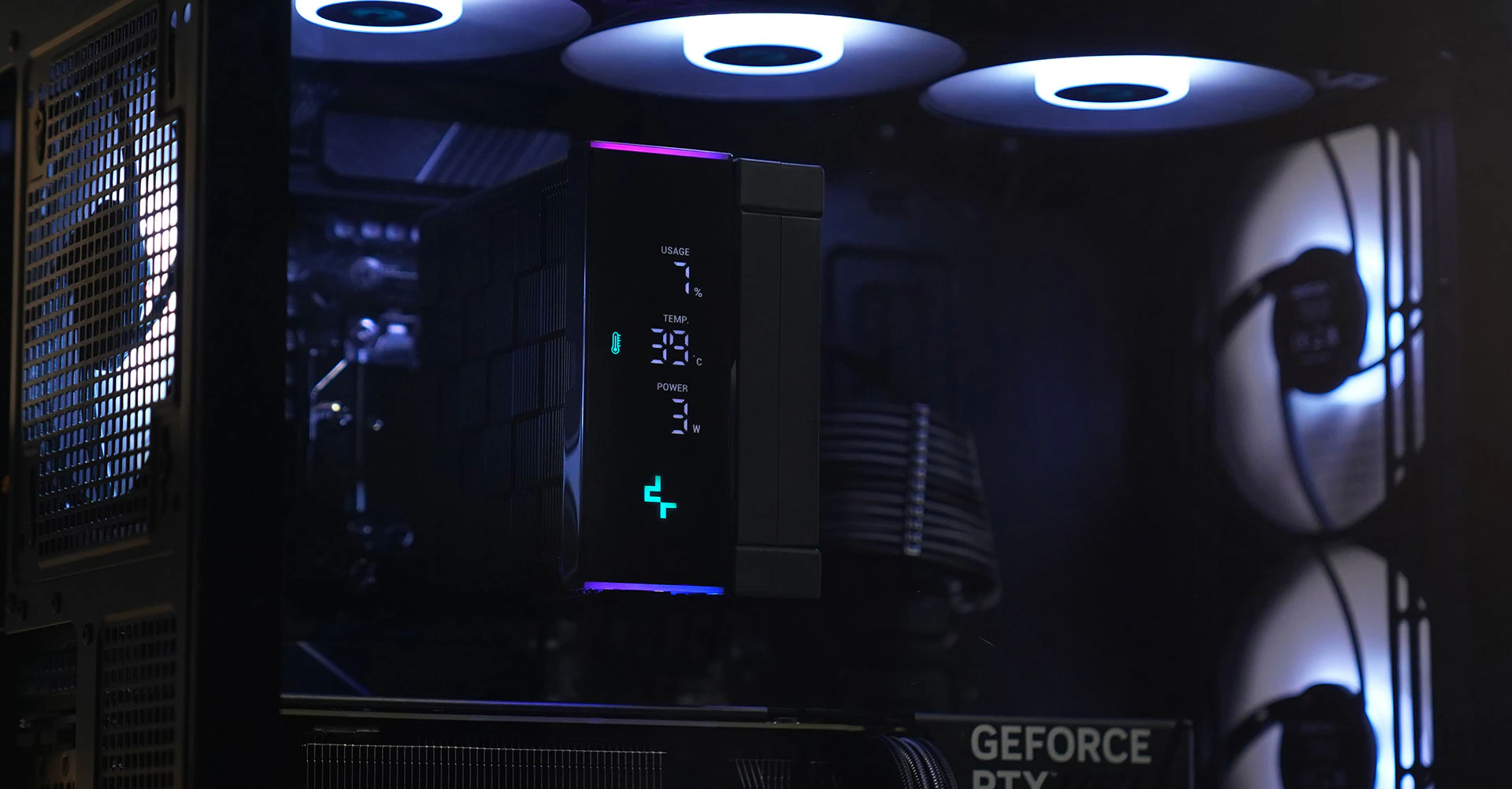

VISUAL TEMPERATURE ALERTS

The temperature warning alert system has also been upgraded to have a color-coded visual indicator: under 80 °C, the indicator will stay green; between 80 and 90°C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.

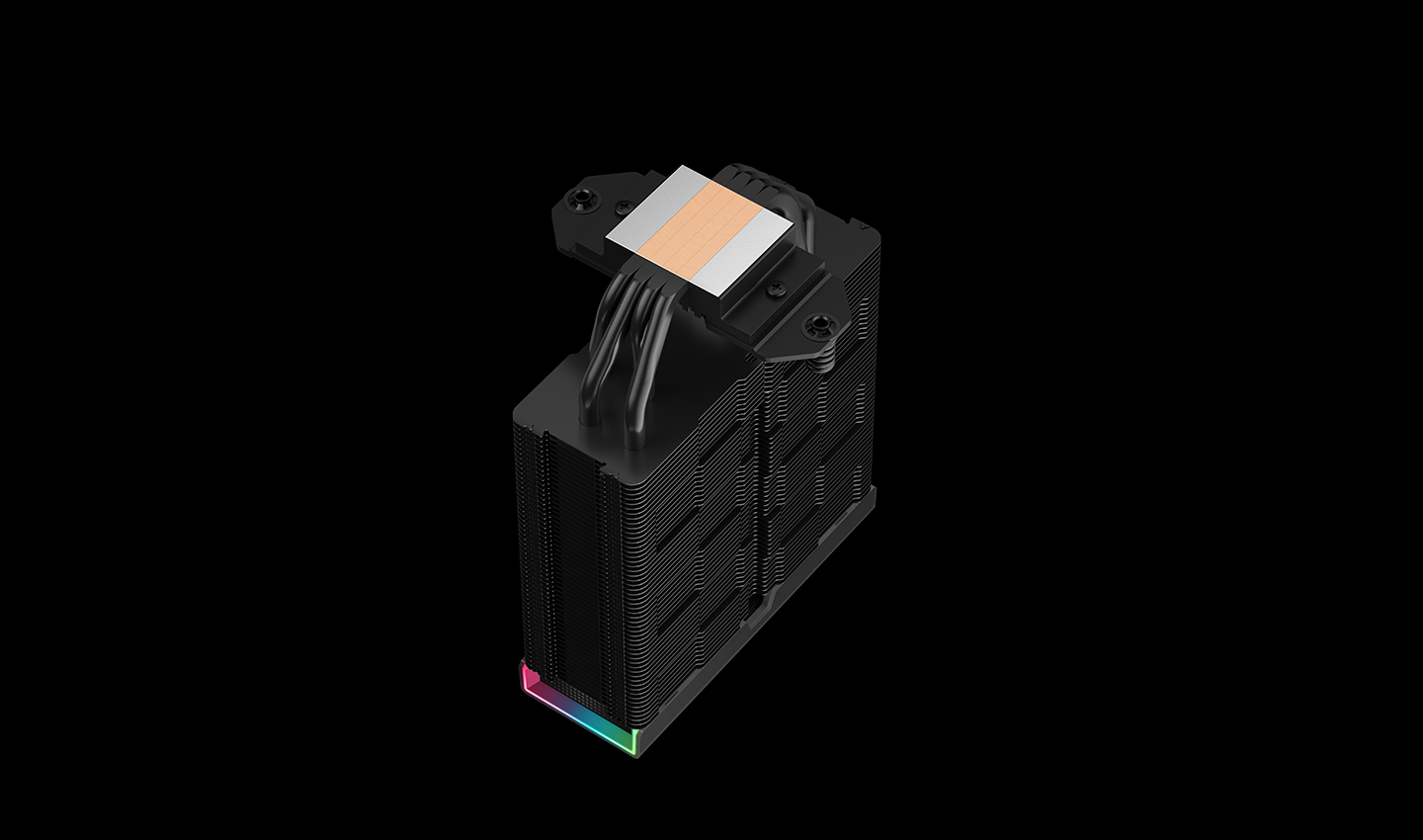

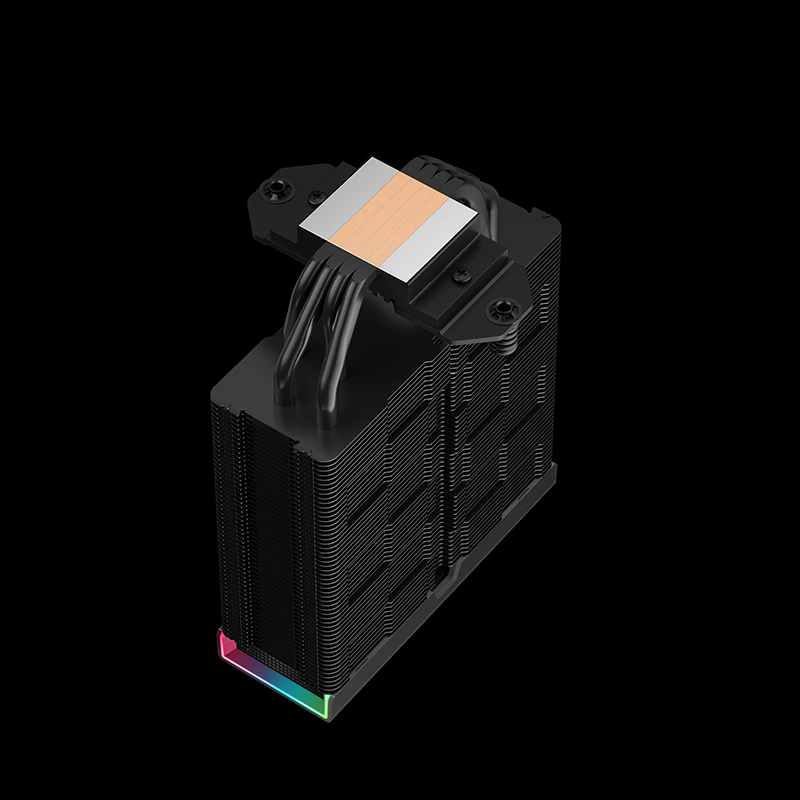

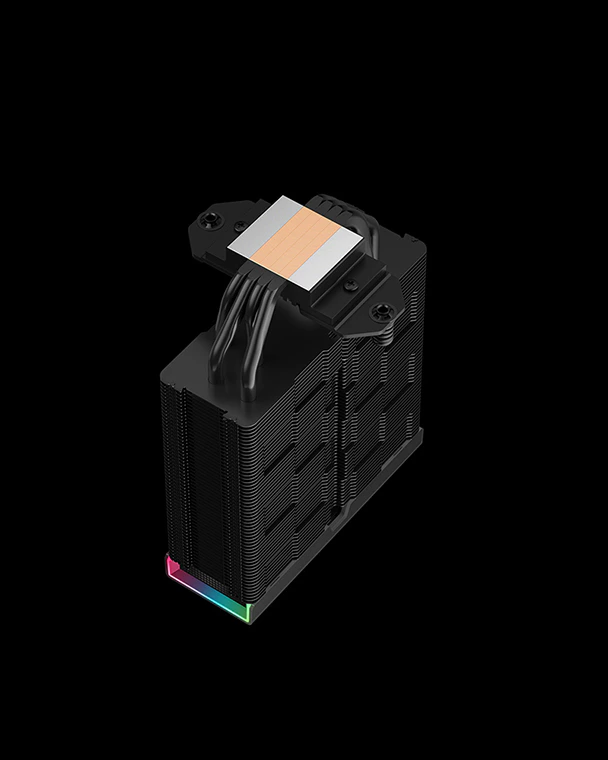

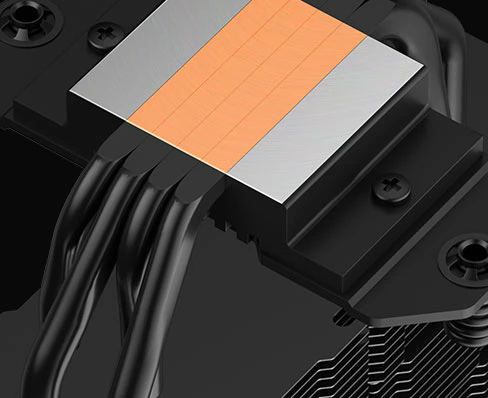

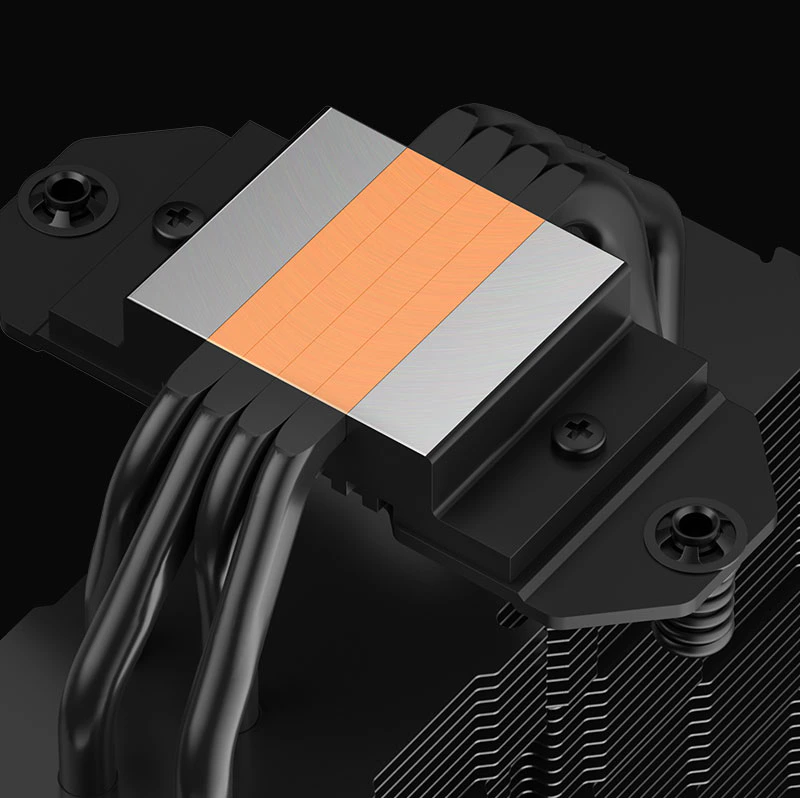

OPTIMIZED COOLING

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves direct-touch heatpipe coldplates. The heatpipes have been optimized and laid out to promote the best possible thermal transfer directly from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.

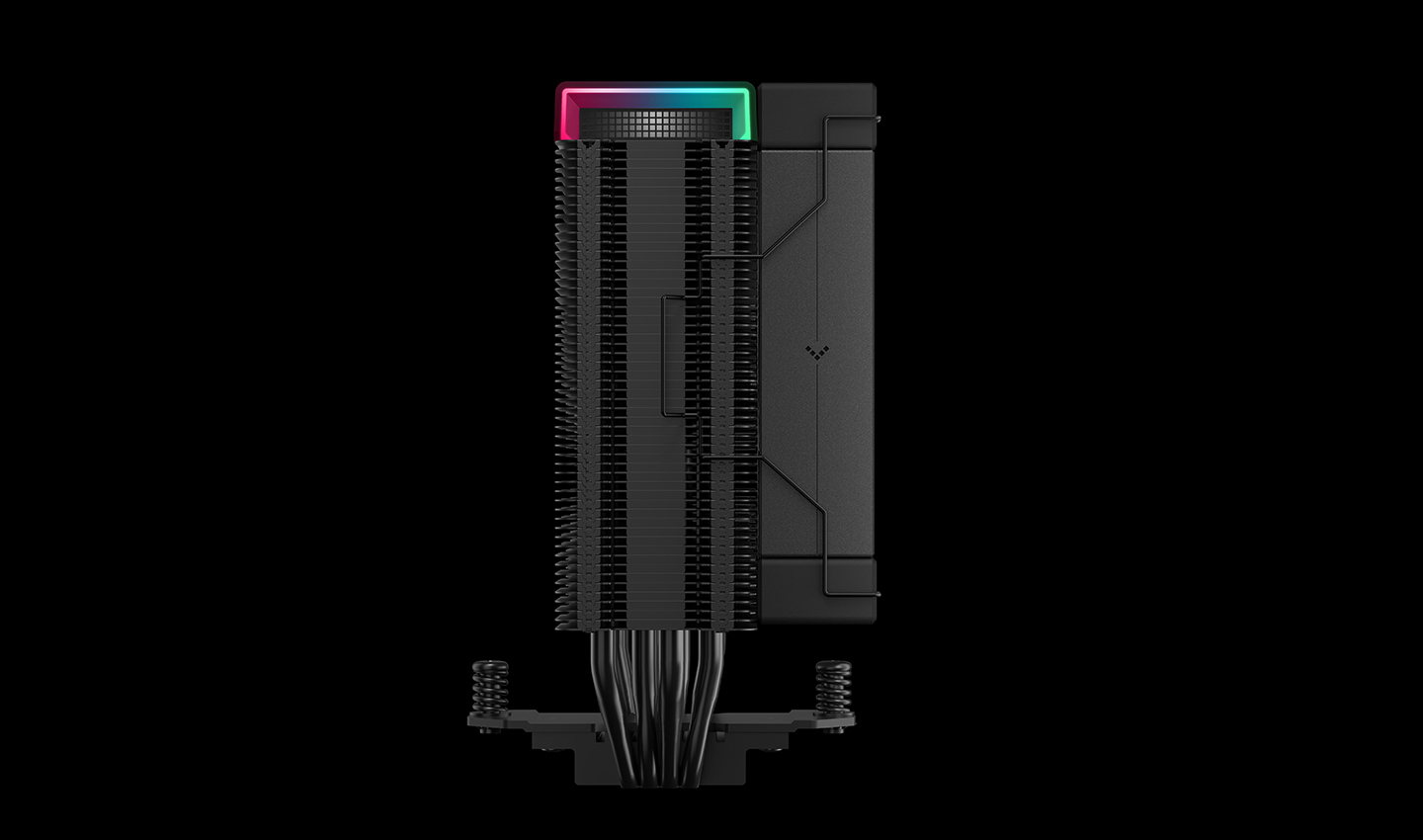

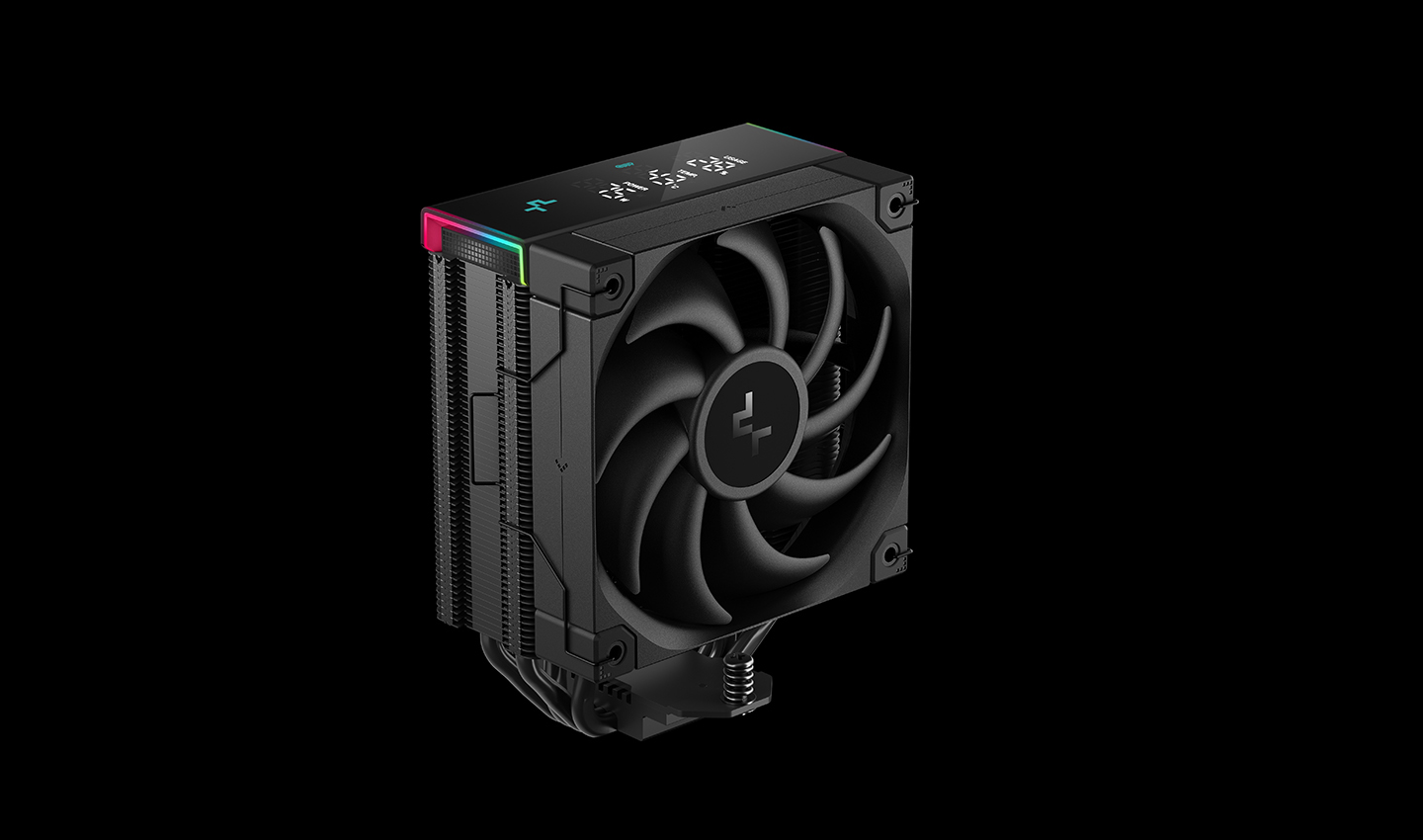

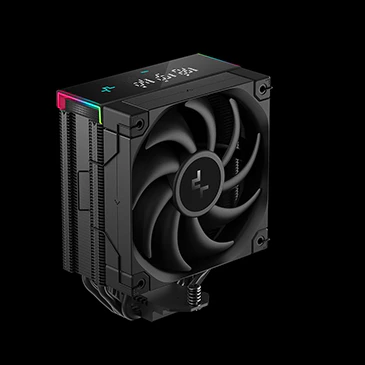

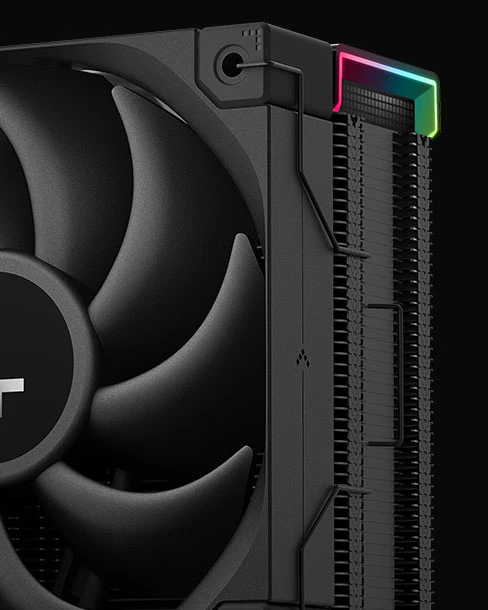

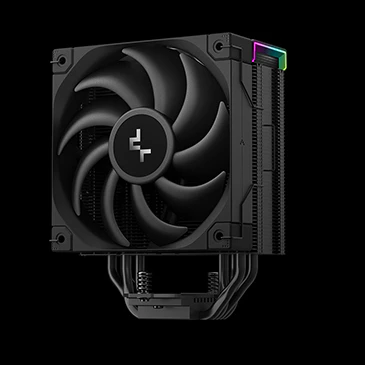

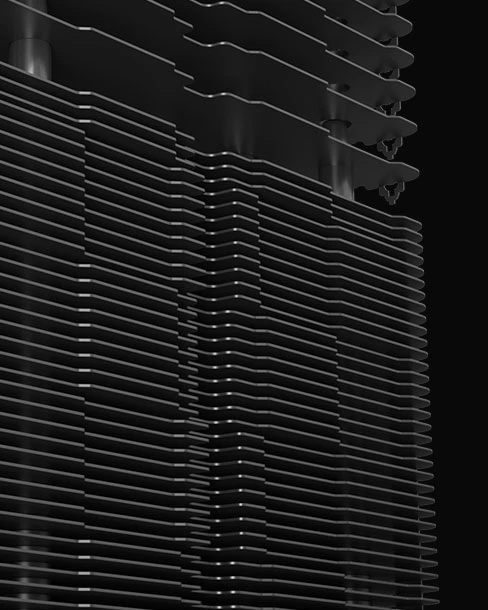

PROVEN AK ZERO DARK DESIGN

An all-black variation of the dominant AK400 high-performance CPU cooler. The same premium-quality materials, featuring four advanced copper heat pipes, a dense matrix pattern tower heat sink, and a silent FDB fan, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.

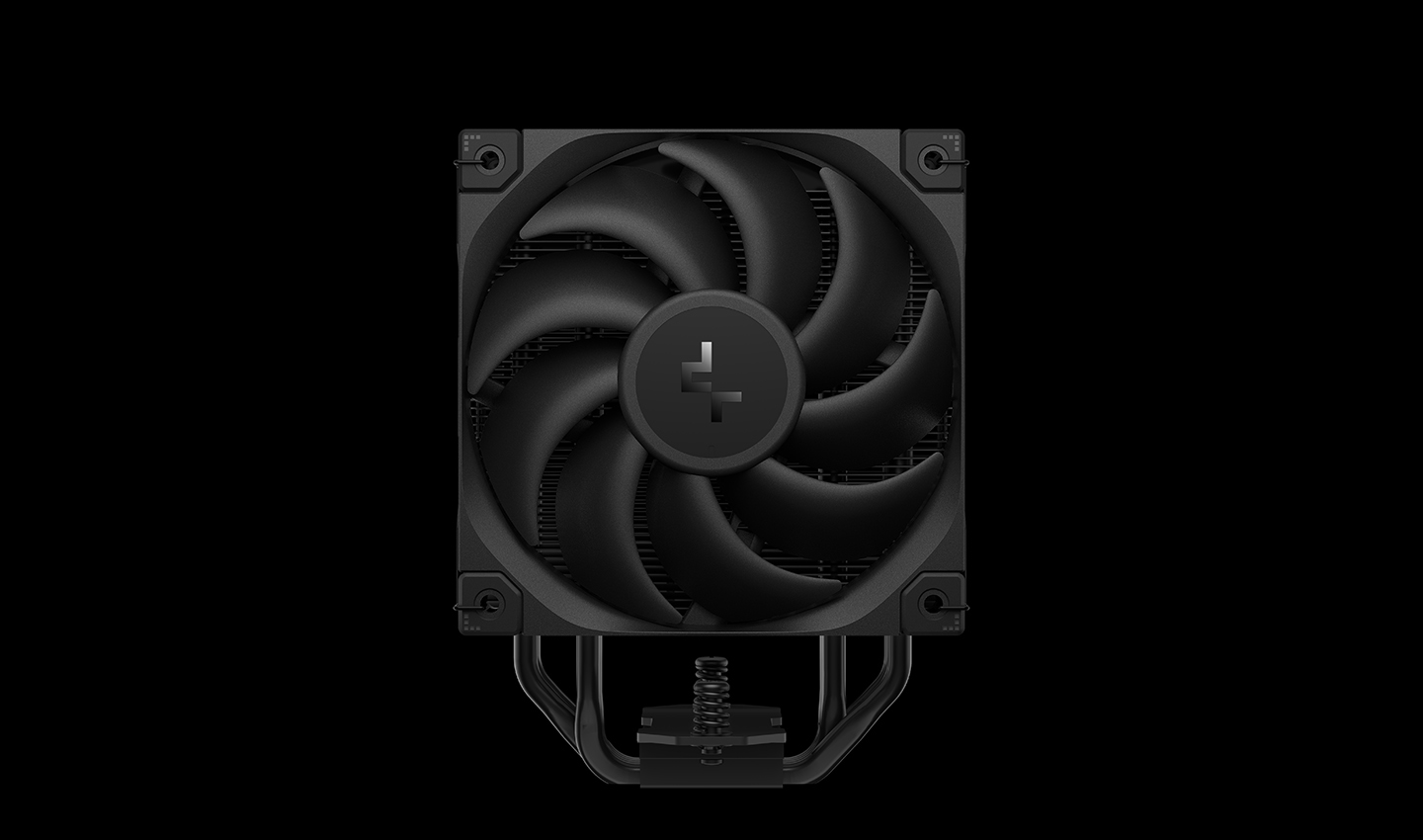

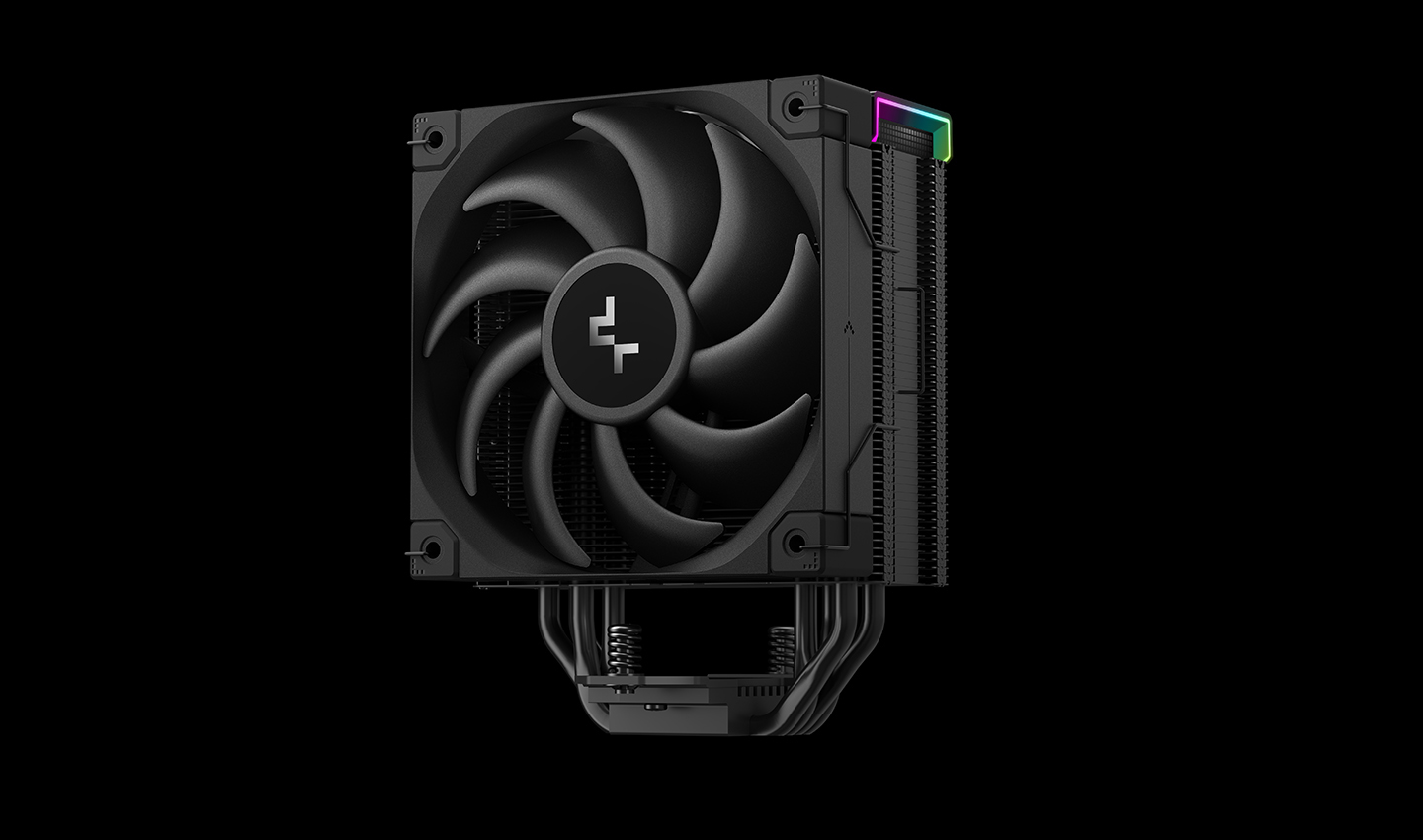

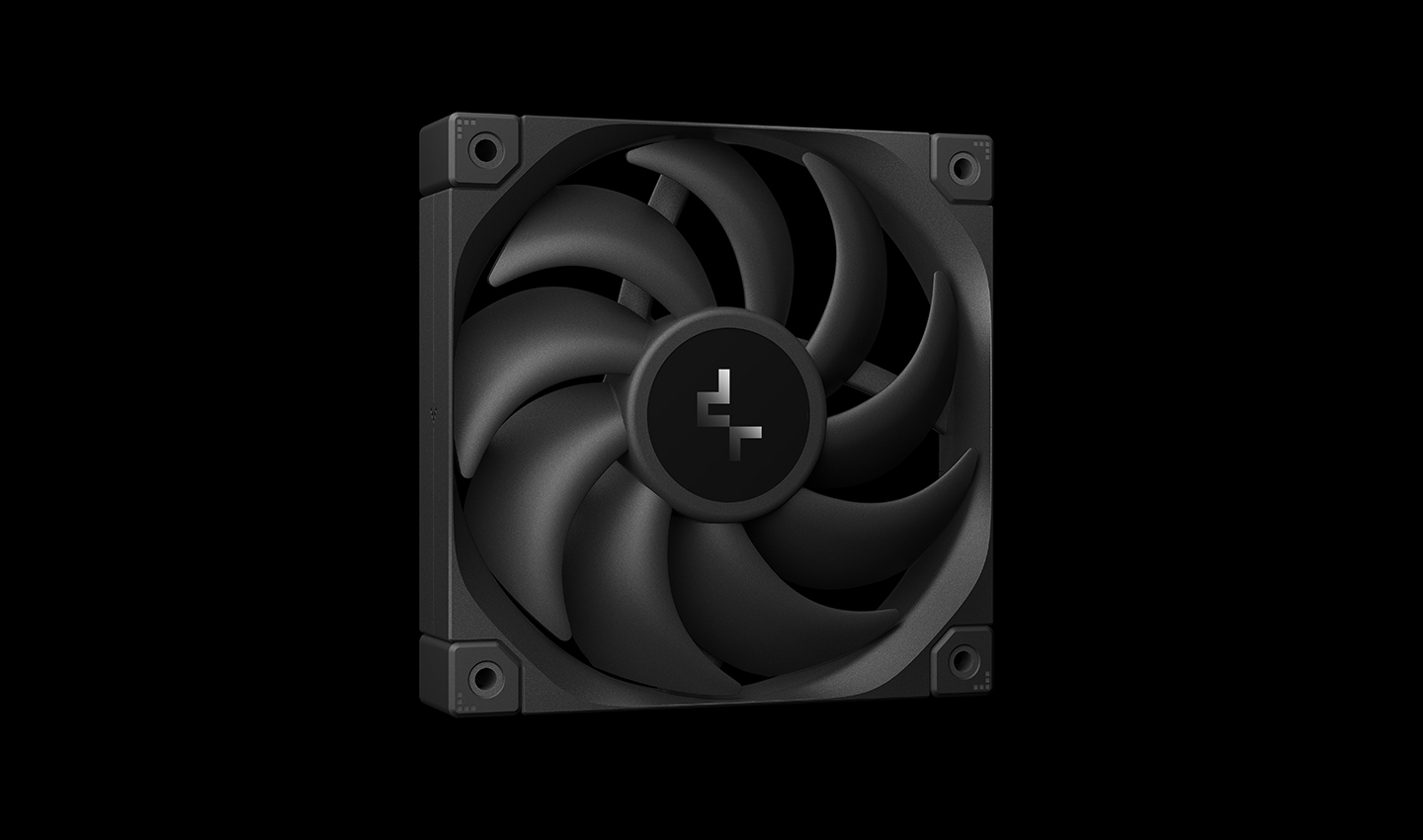

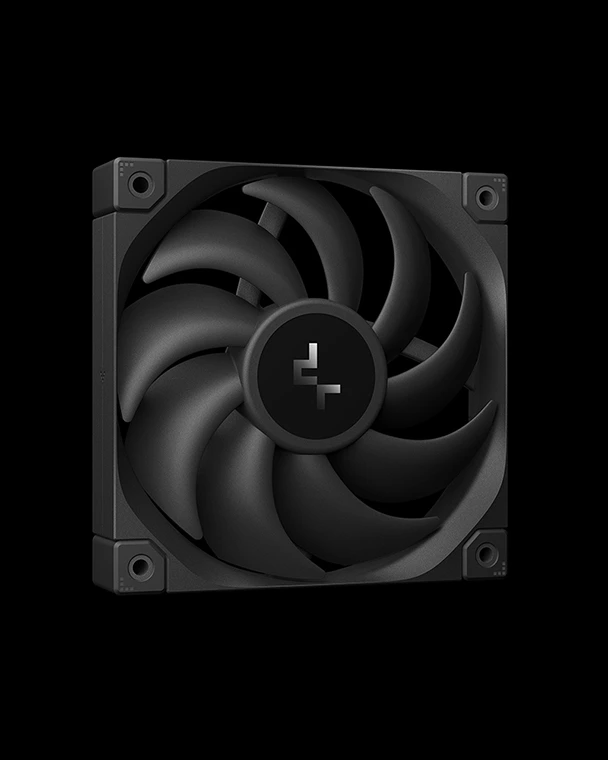

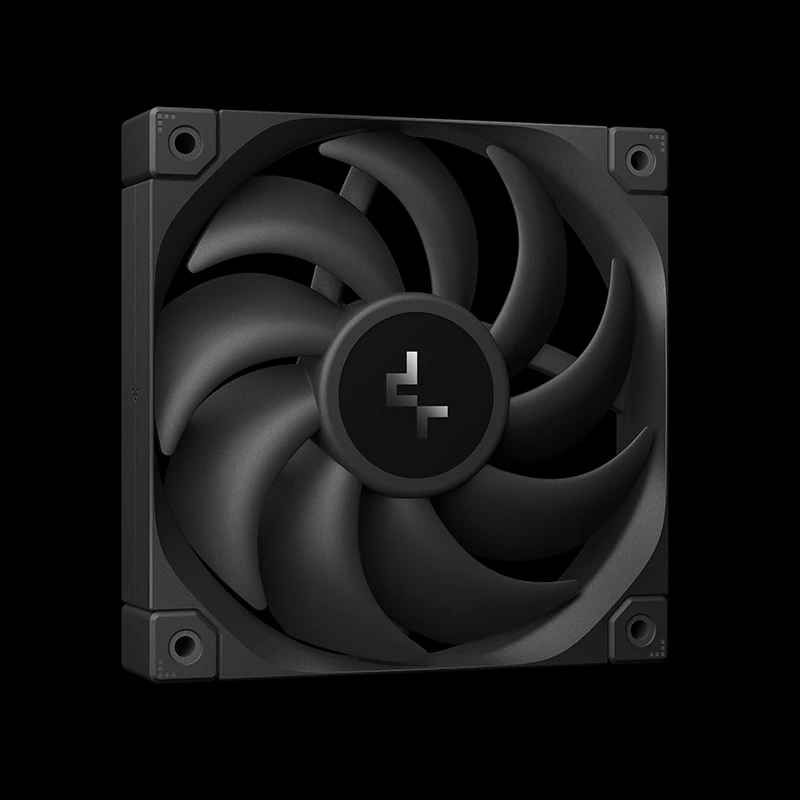

KEEP YOUR COOL

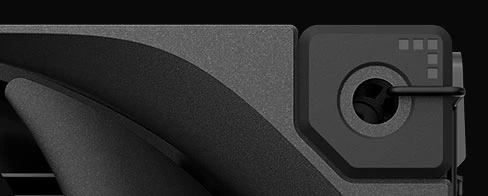

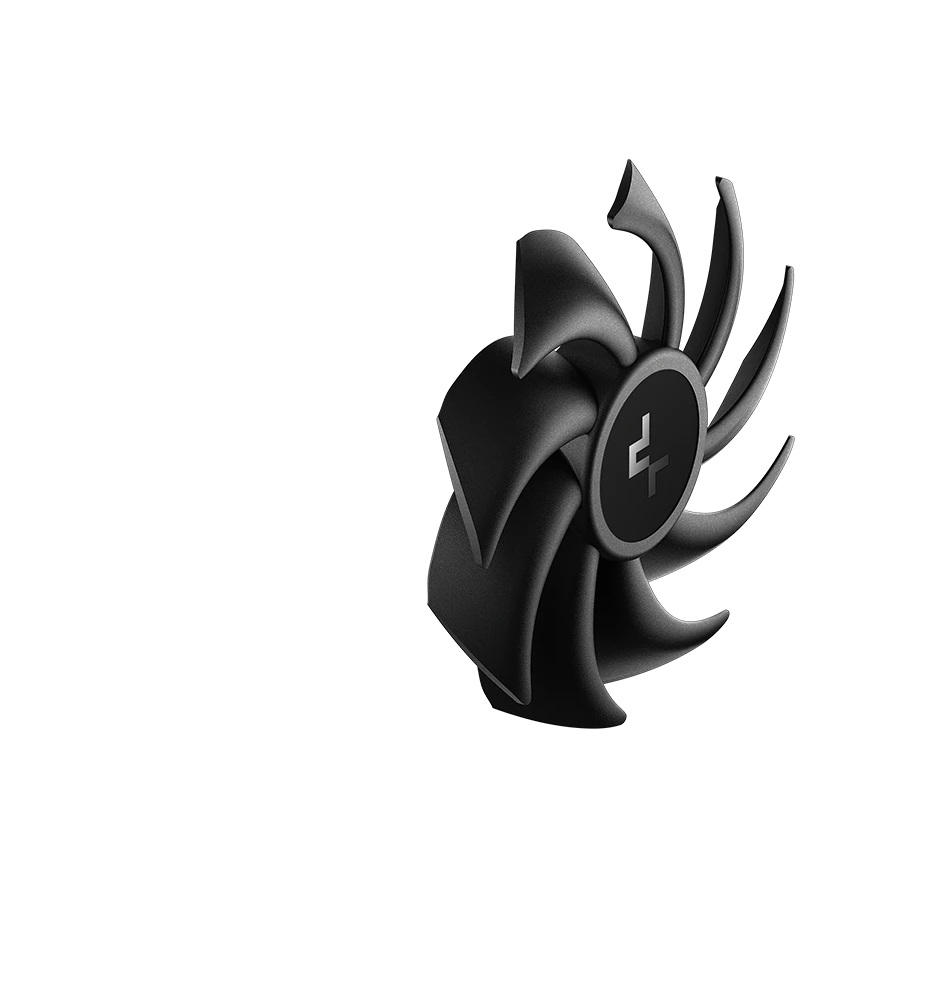

Upgraded to the newly designed FT12 SE fans with a true fluid dynamic bearing, the AK PRO models will get a PWM fan with a blade profile that has been optimized for the perfect balance of airflow and static pressure while minimizing the fan acoustics.

500-1750 RPM±10%

Fan Speed

60.89 CFM

Air Volume

2.91 mmAq

Static Pressure

≤25 dB(A)

Fan Noise

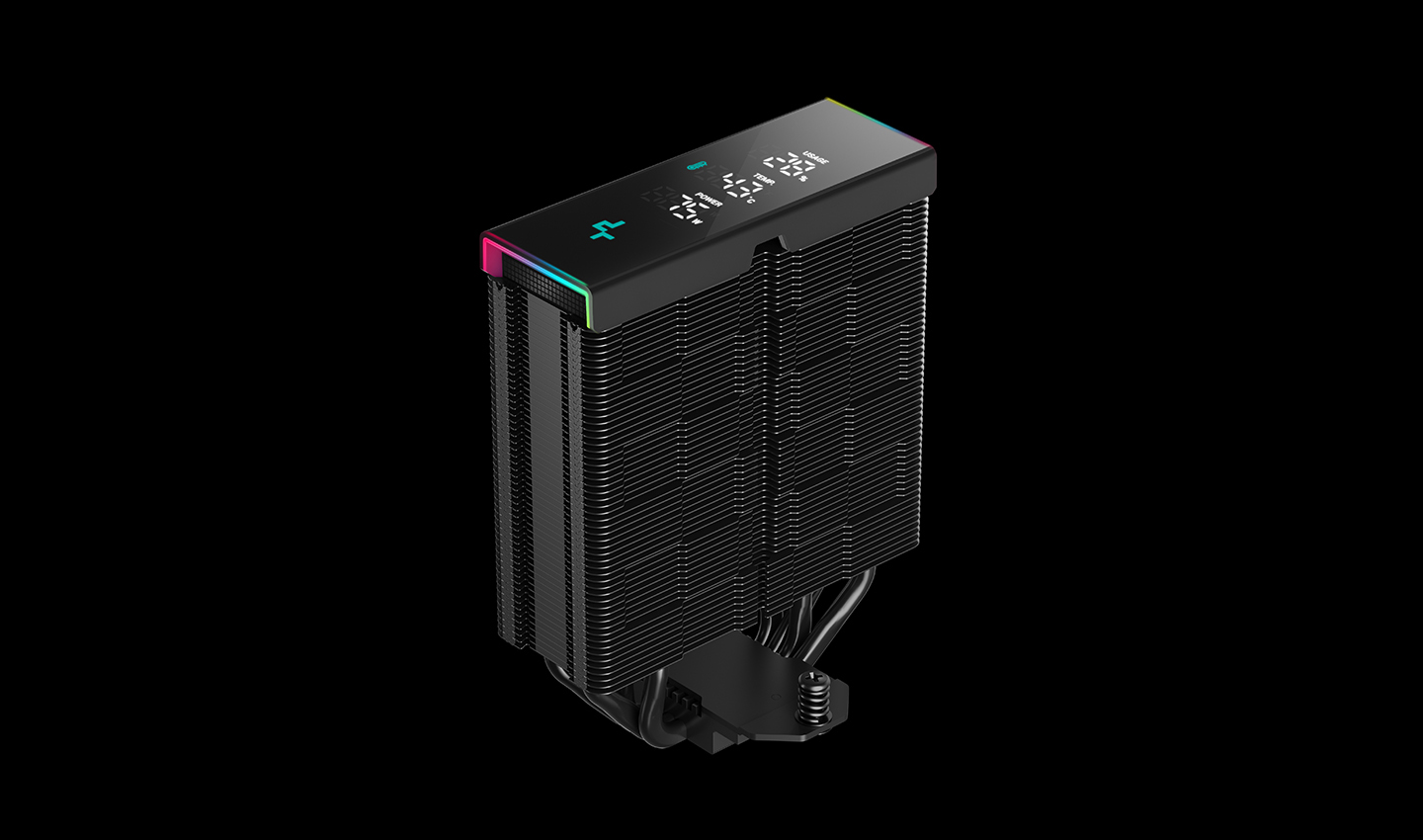

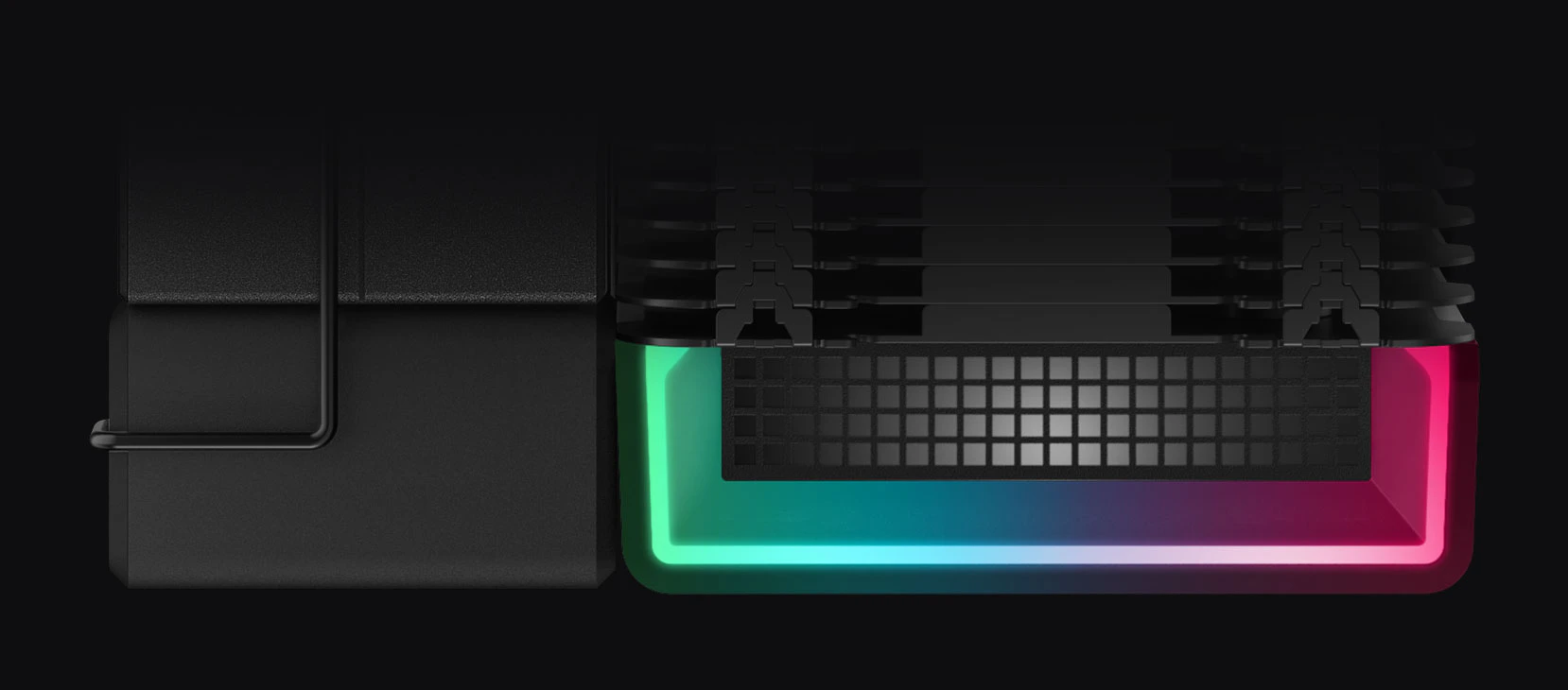

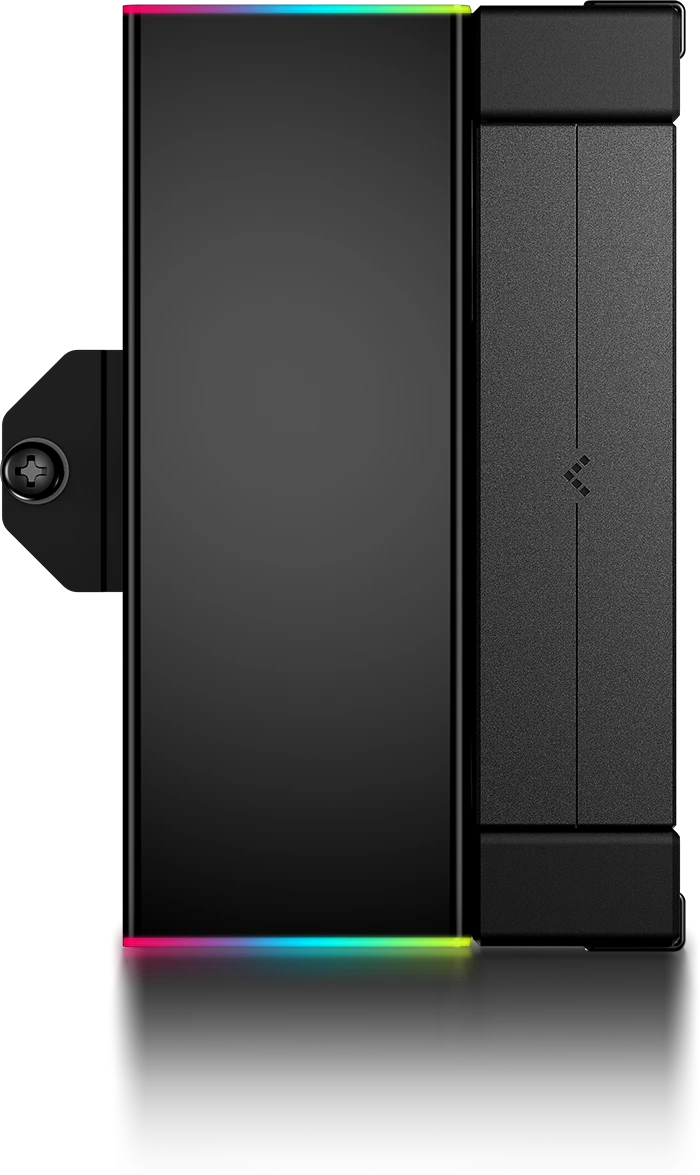

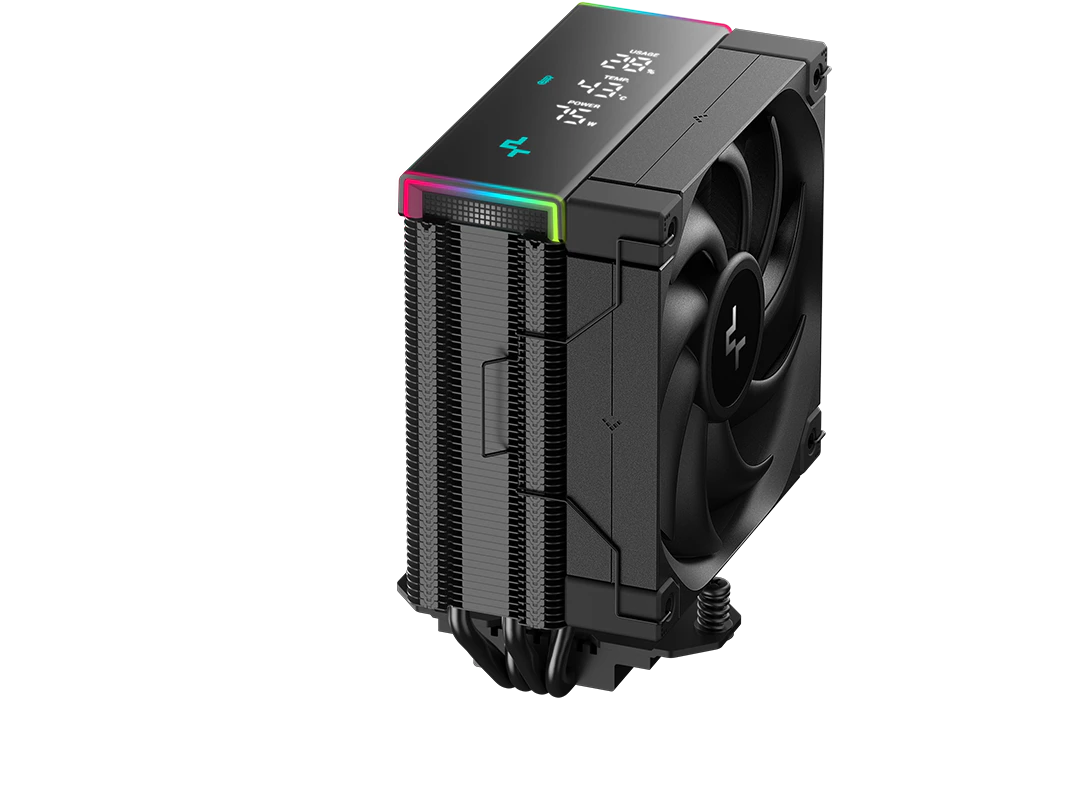

A HINT OF ARGB LIGHTING

Subtle ARGB strips at two of the top panel edges add an understated glow that can be easily synced to compatible ARGB headers of your motherboard.

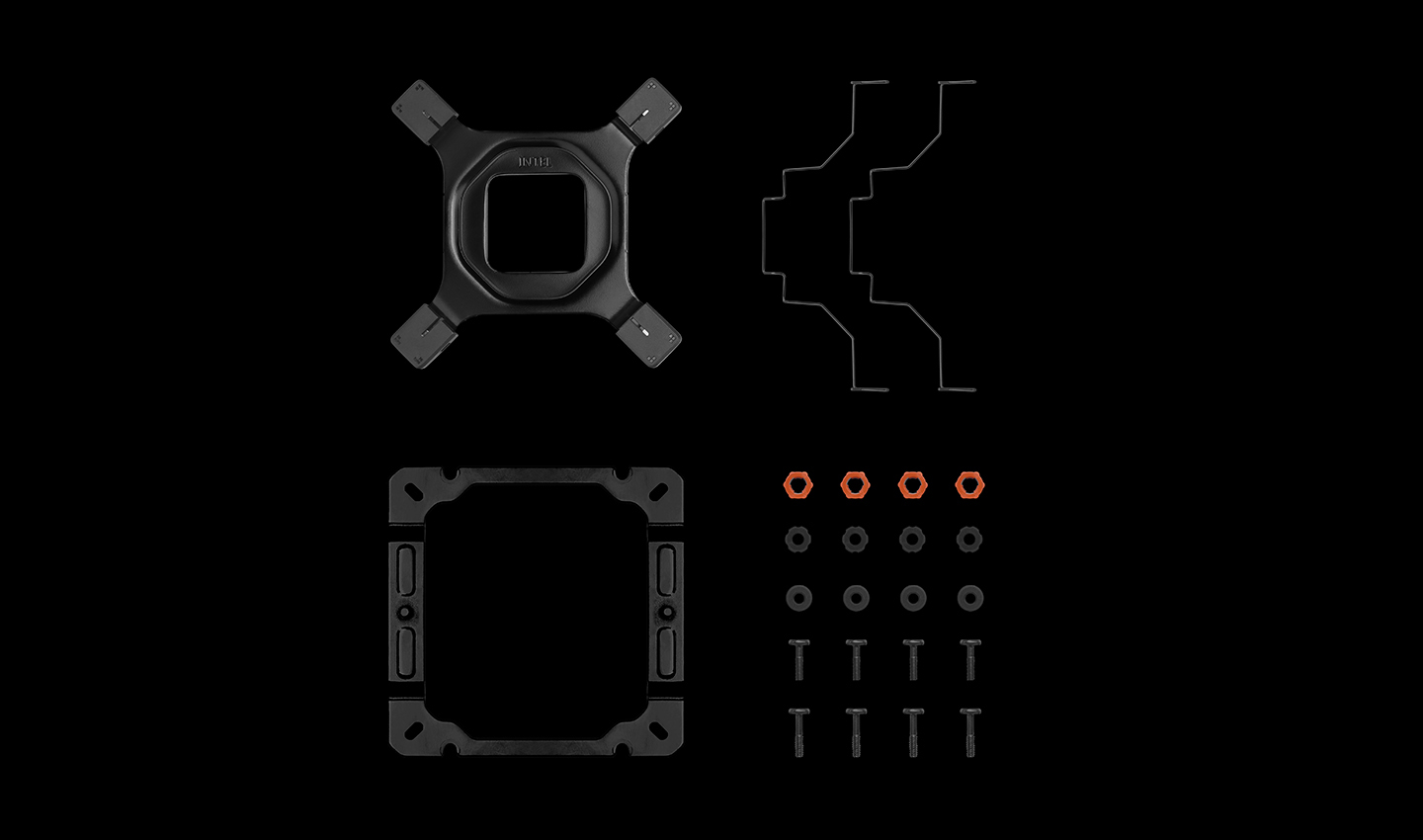

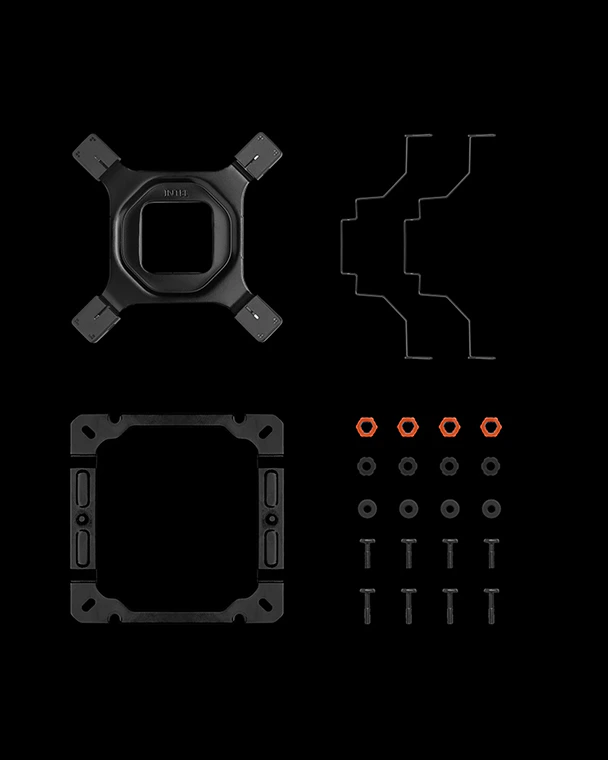

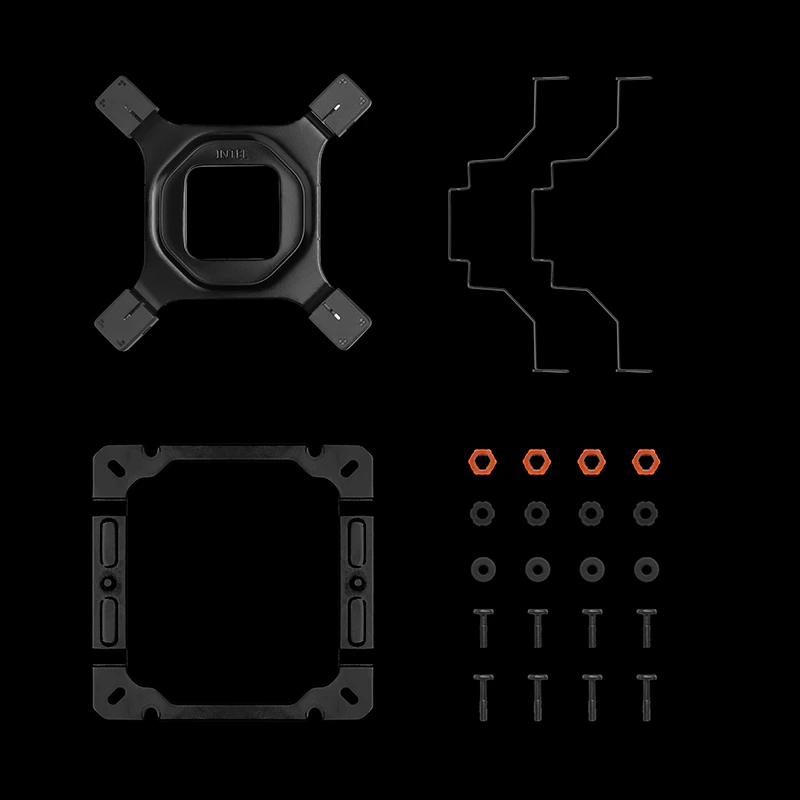

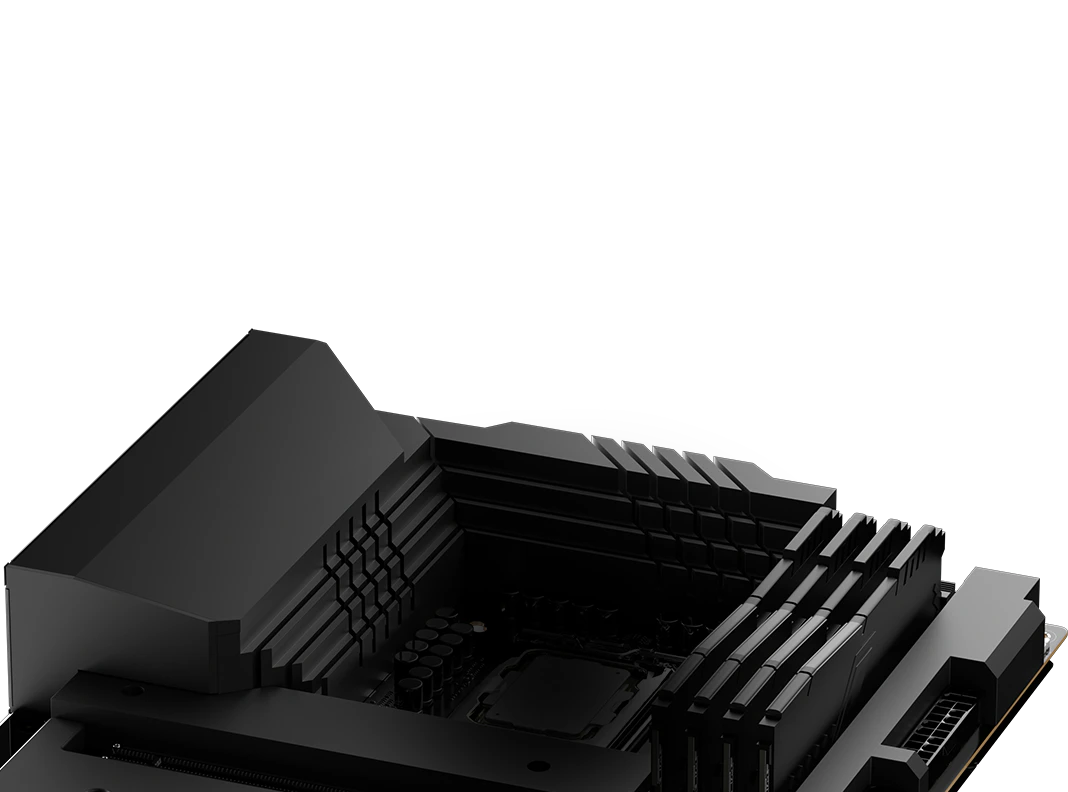

SIMPLIFIED MOUNTING

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.

*High thermal resistance paste is pre-applied

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	126×97×159 mm(L×W×H)
Heatsink Dimensions	120×60×152 mm(L×W×H)
Net Weight	862 g
Heatpipe	Ø6 mm×4 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1750 RPM±10%
Fan Airflow	60.89 CFM
Fan Air Pressure	2.91 mmAq
Fan Noise	≤25 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing

Fan Rated Voltage	12 VDC
Fan Rated Current	0.25 A
Fan Power Consumption	3 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage	5 VDC
LED Power Consumption	4.25 W
EAN	6933412728832
P/N	R-AK400-BKAPMN-G
