AK400 DIGITAL WH

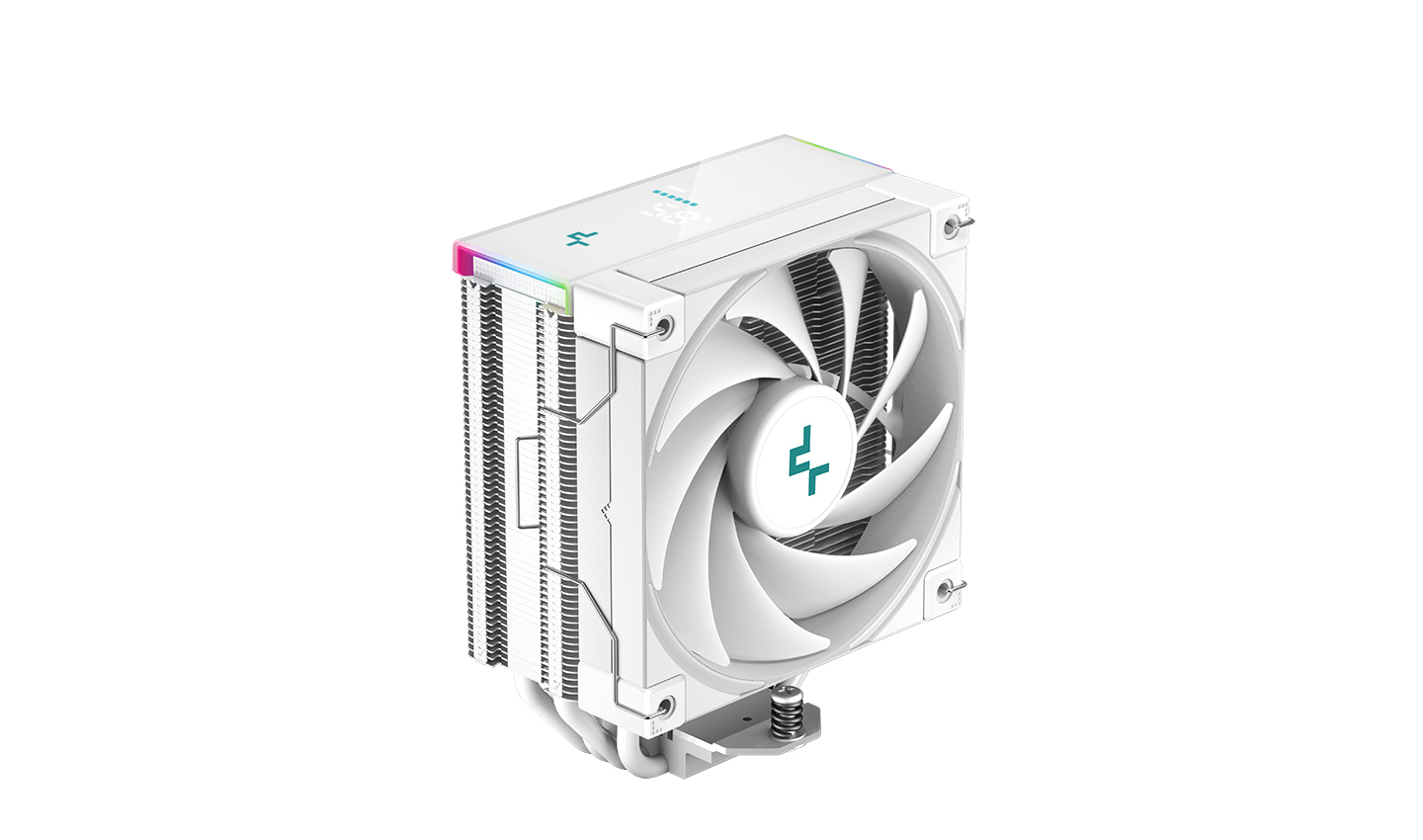

The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK400 DIGITAL WH. Everything you loved about the original AK400 WH, but with a sleek low-profile status display and ARGB LED strips.
MODEL
AK400 DIGITAL WH
WELCOME TO THE DIGITAL ERA

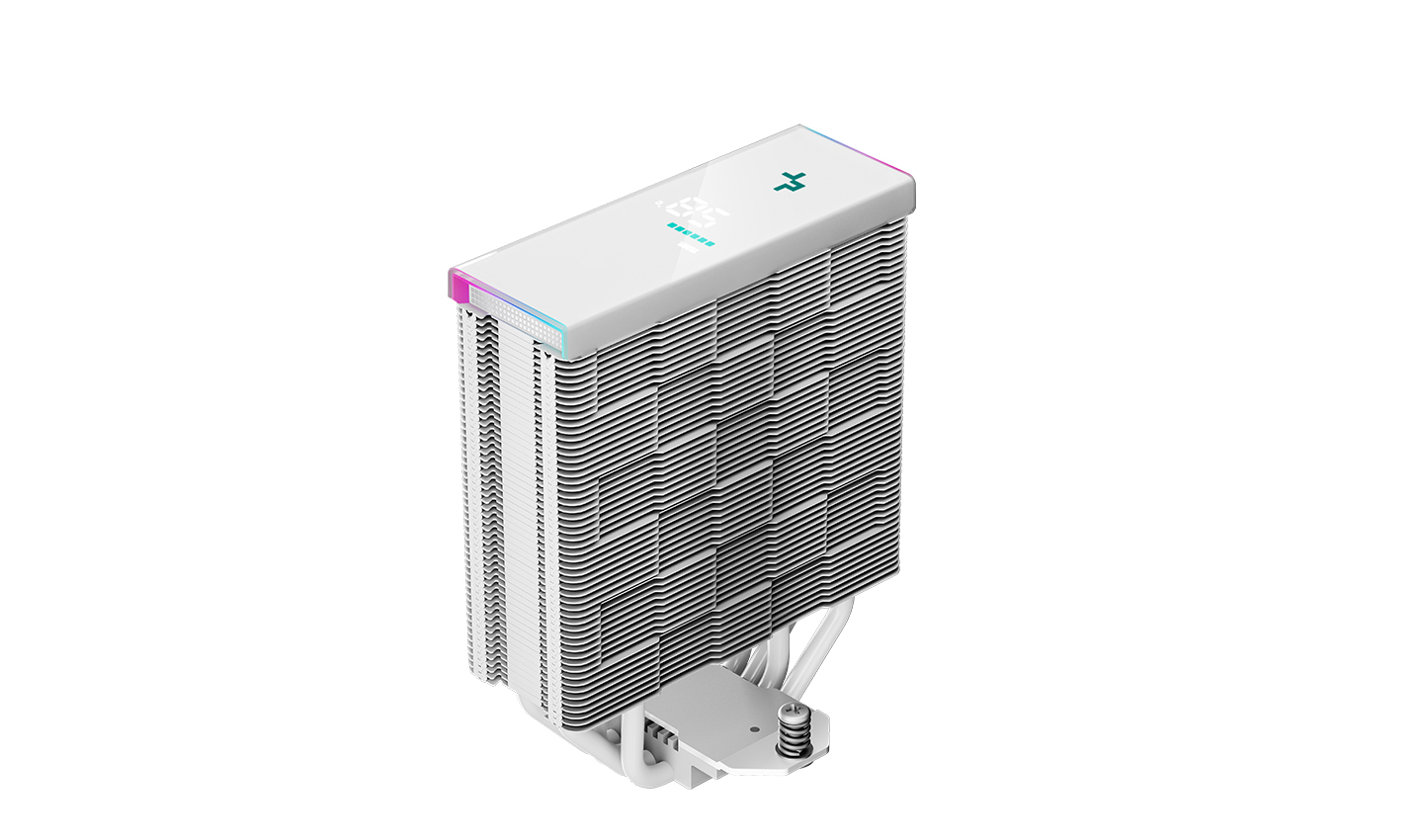

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
℉
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PROVEN AK WH DESIGN

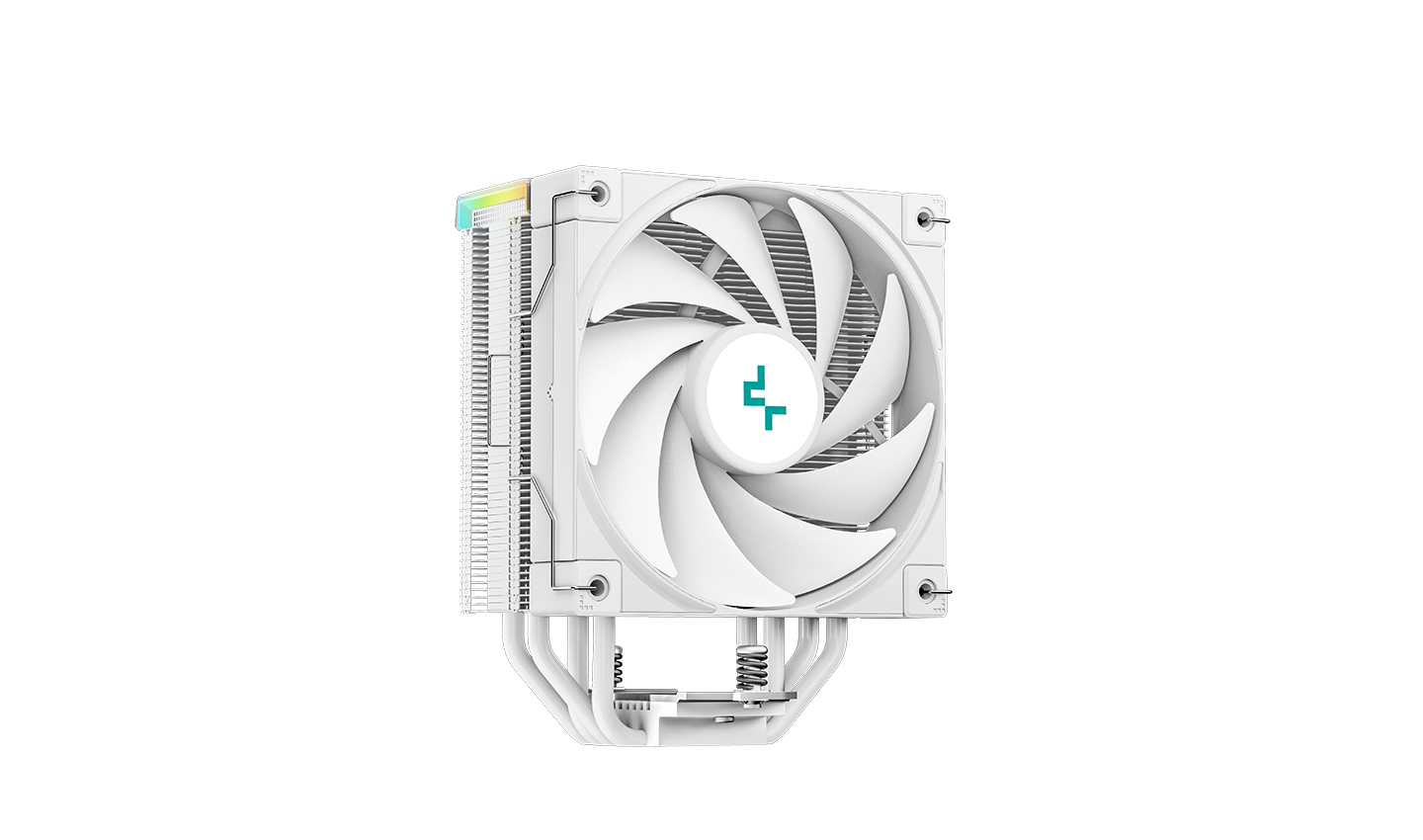

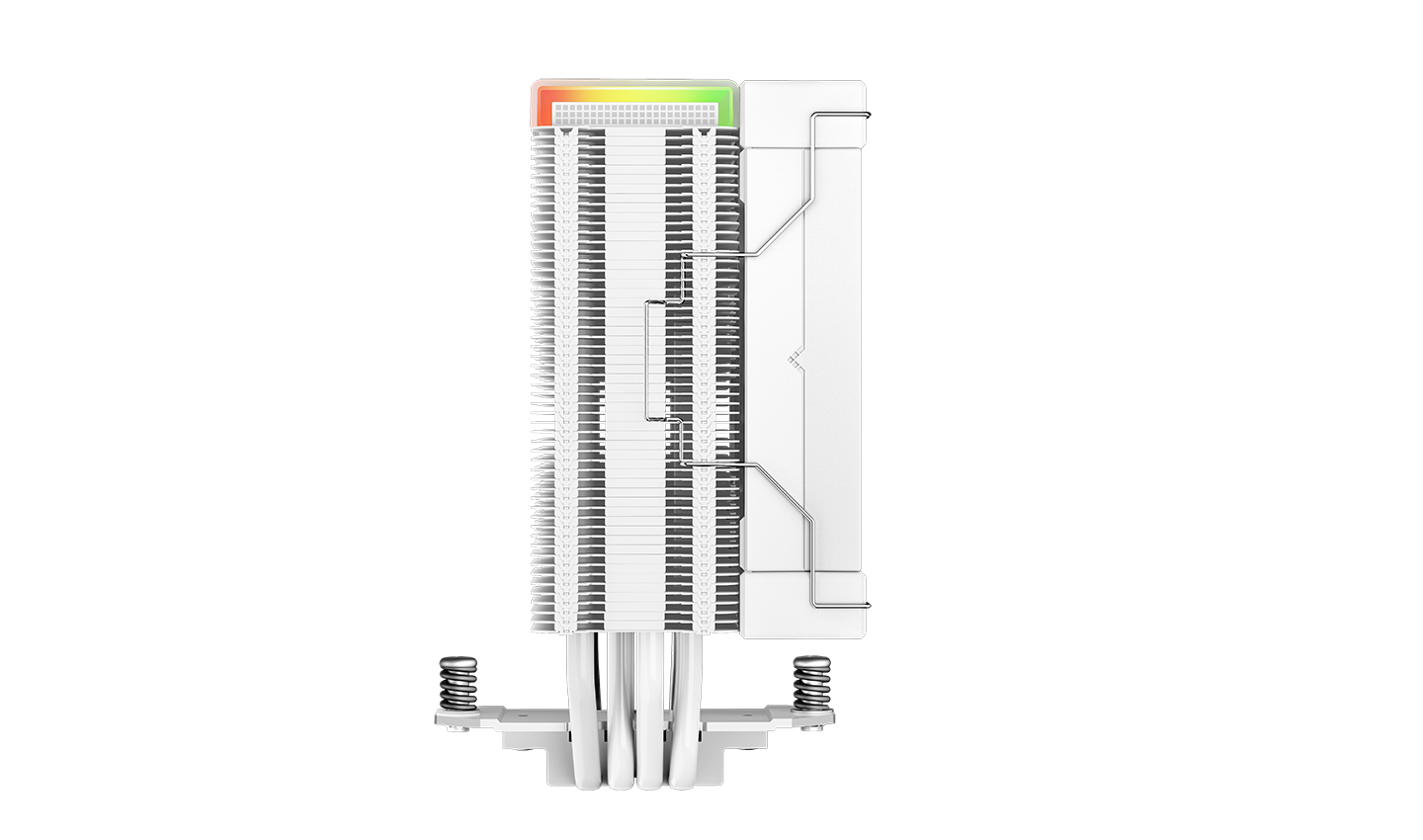

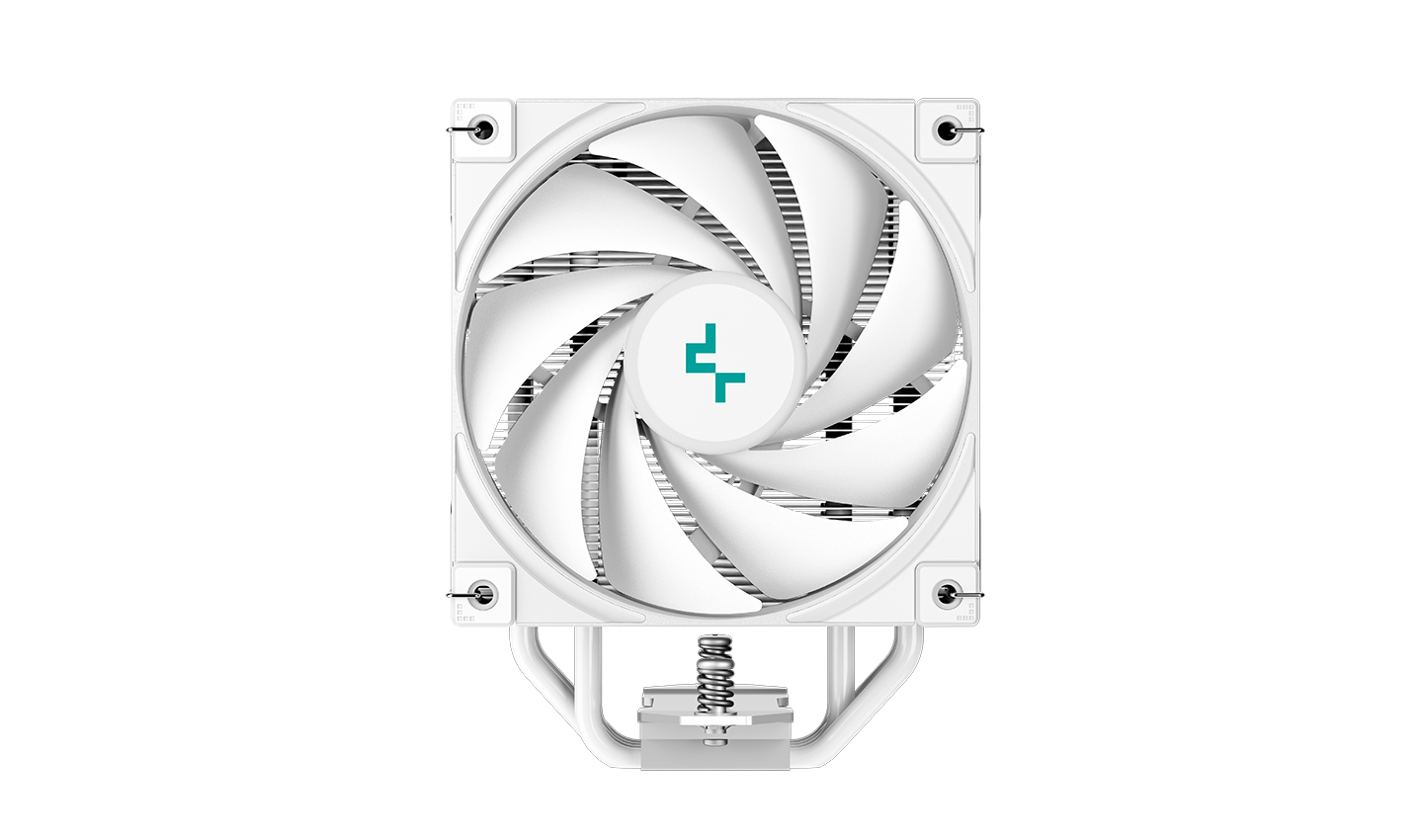

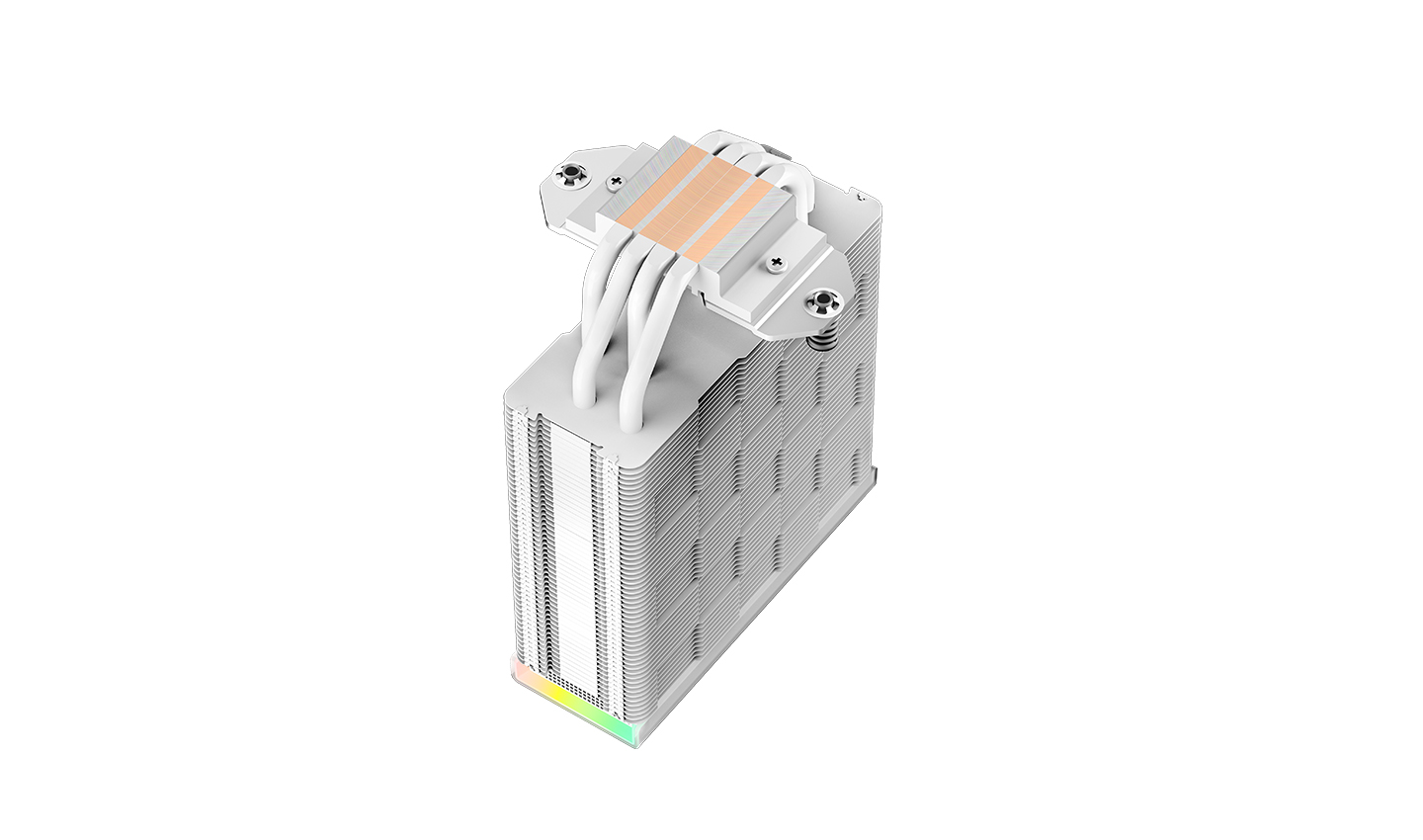

An all-white variant of our highly compatible AK400 CPU cooler featuring a direct touch, four heat pipe tower layout with a unique white matrix fin design and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
PREMIUM COMPATIBILITY
The exceptional cooling performance of the AK400 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.

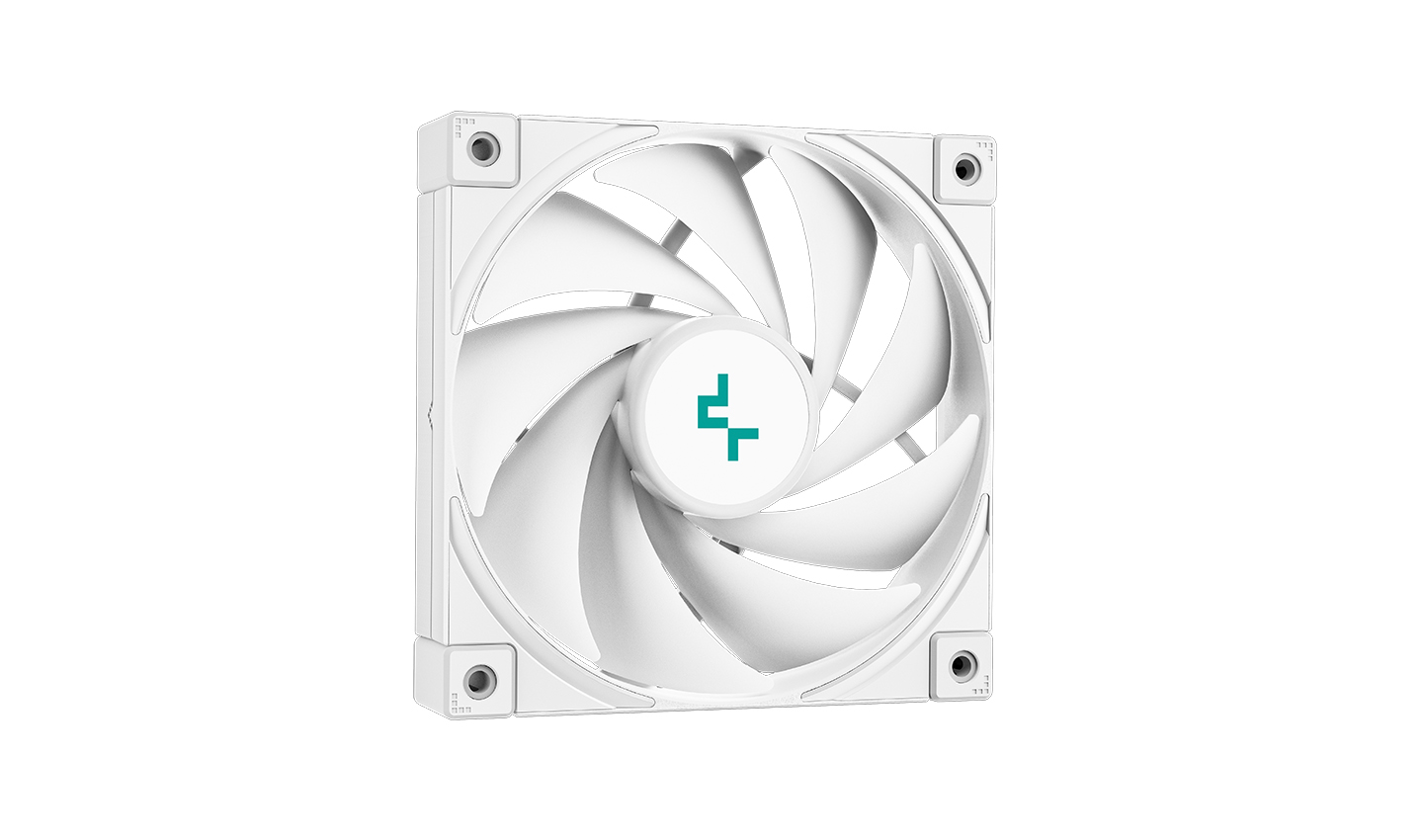

FLUID DYNAMIC BEARING FAN
Achieve high-performance cooling with minimal noise levels thanks to the high-performance FDB FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
SIMPLE AND SECURE INSTALLATION

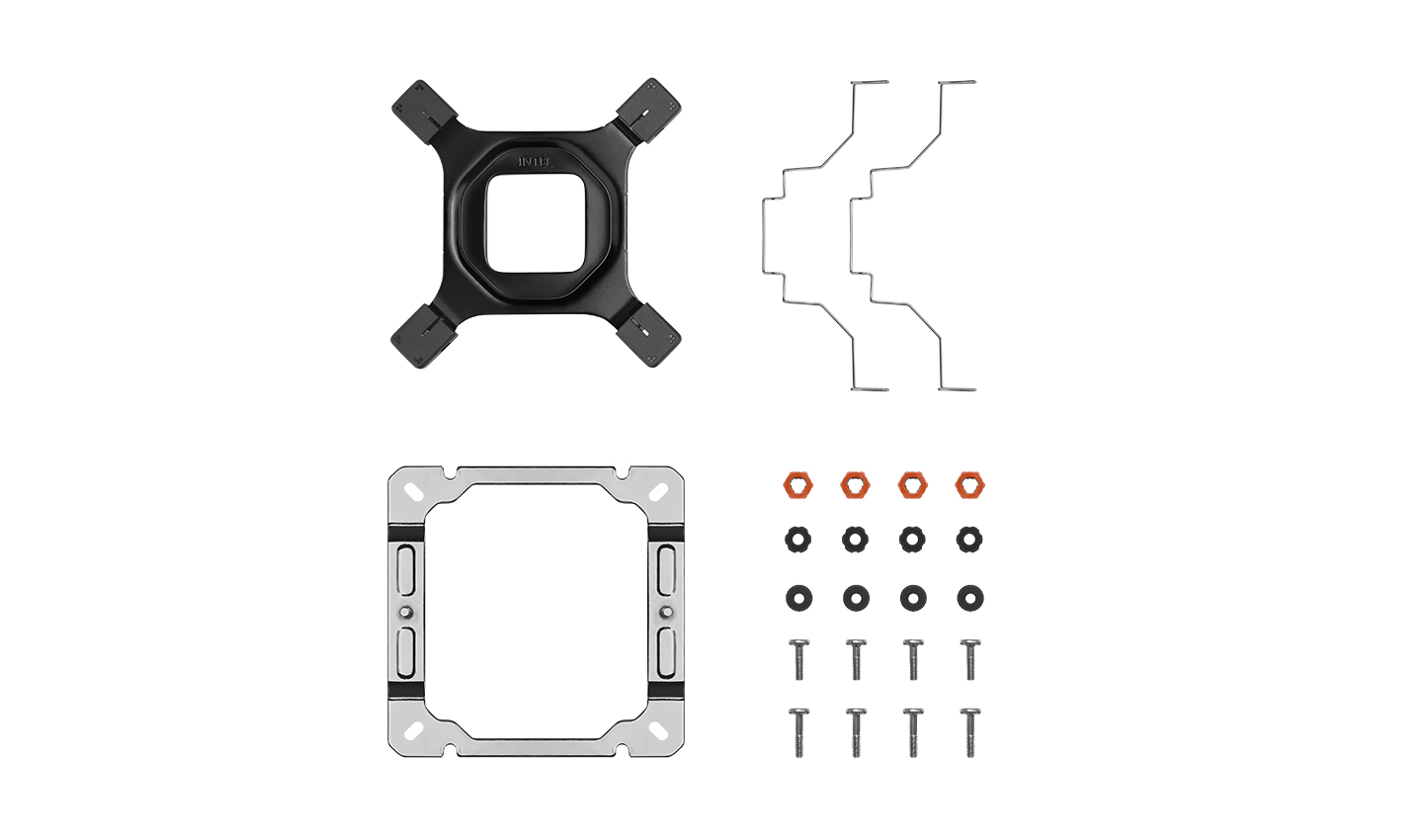

The improved installation method is made easy with a sturdy all-metal mounting bracket and a quick five-step process to safely fasten your cooler on multiple platforms supporting the latest from Intel and AMD.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions126×97×156 mm(L×W×H)
Heatsink Dimensions120×60×152 mm(L×W×H)
Net Weight695 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1850 RPM±10%
Fan Airflow68.99 CFM
Fan Air Pressure2.19 mmAq
Fan Noise≤28 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.12 A
Fan Power Consumption1.44 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage5 VDC
LED Power Consumption3 W
EAN6933412728214
P/NR-AK400-WHADMN-G
Download
AK400 DIGITAL WH Manual.pdf
Download
Download
DeepCool-DIGITAL Setup.zip
Download
