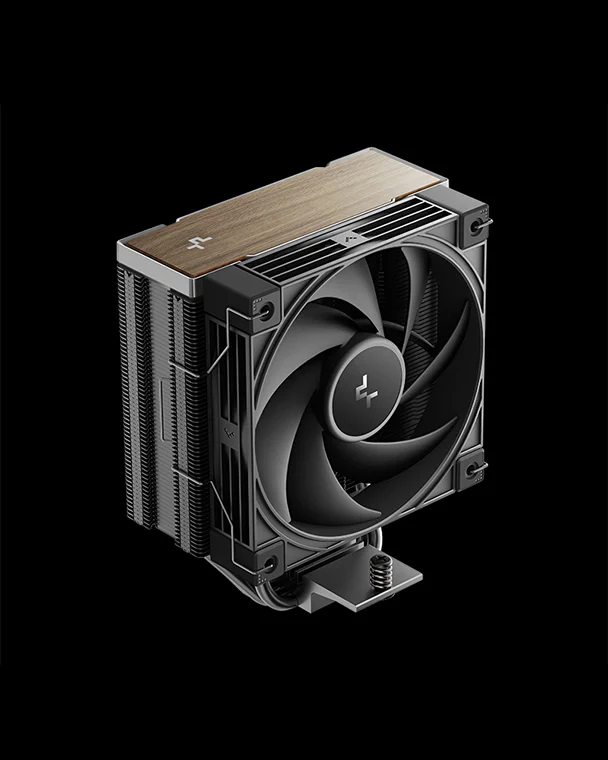

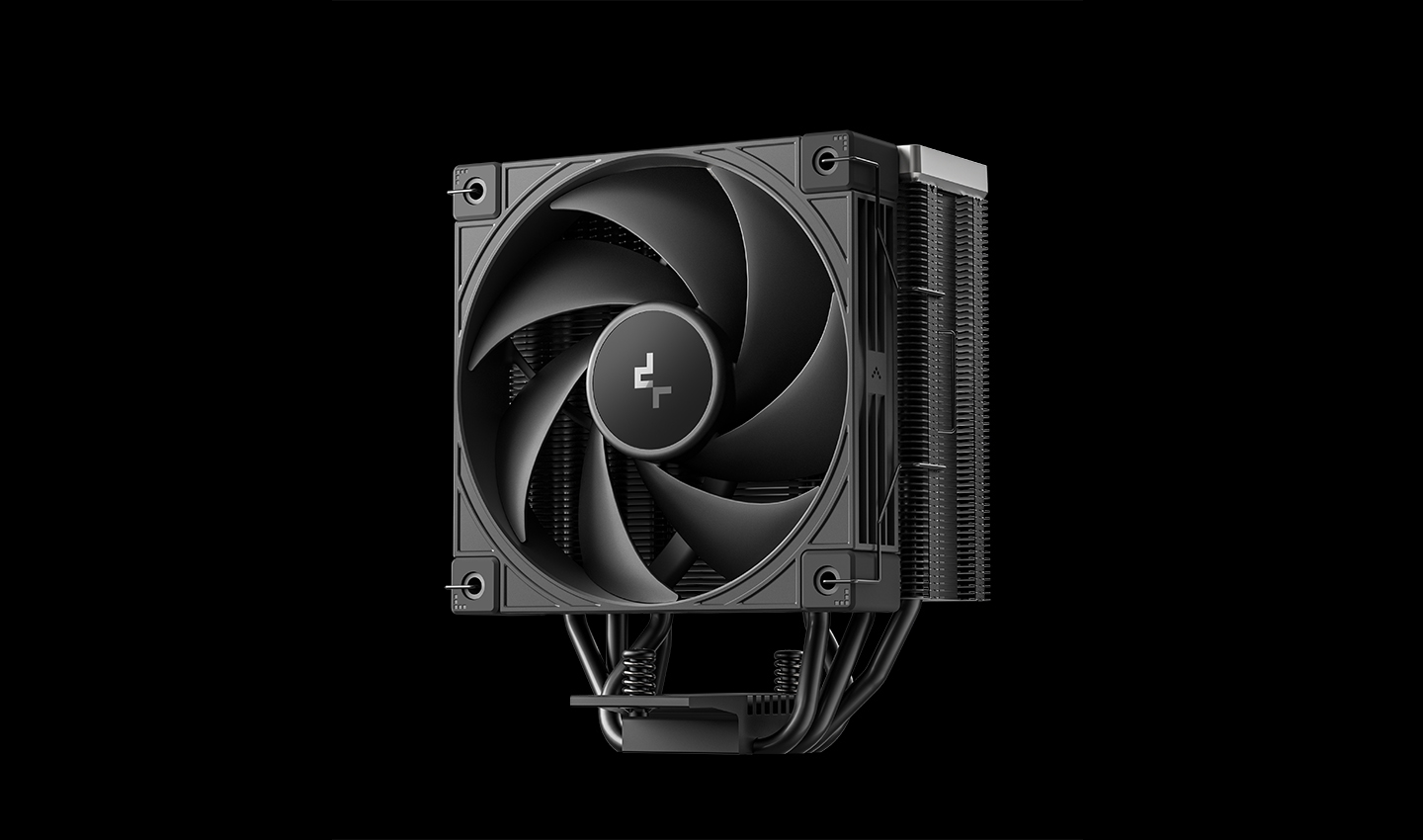

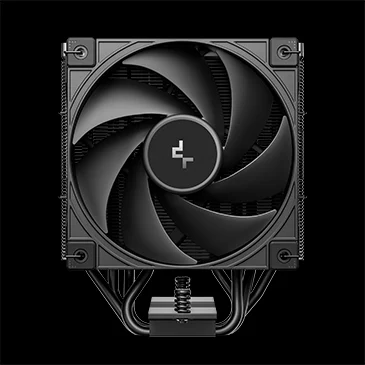

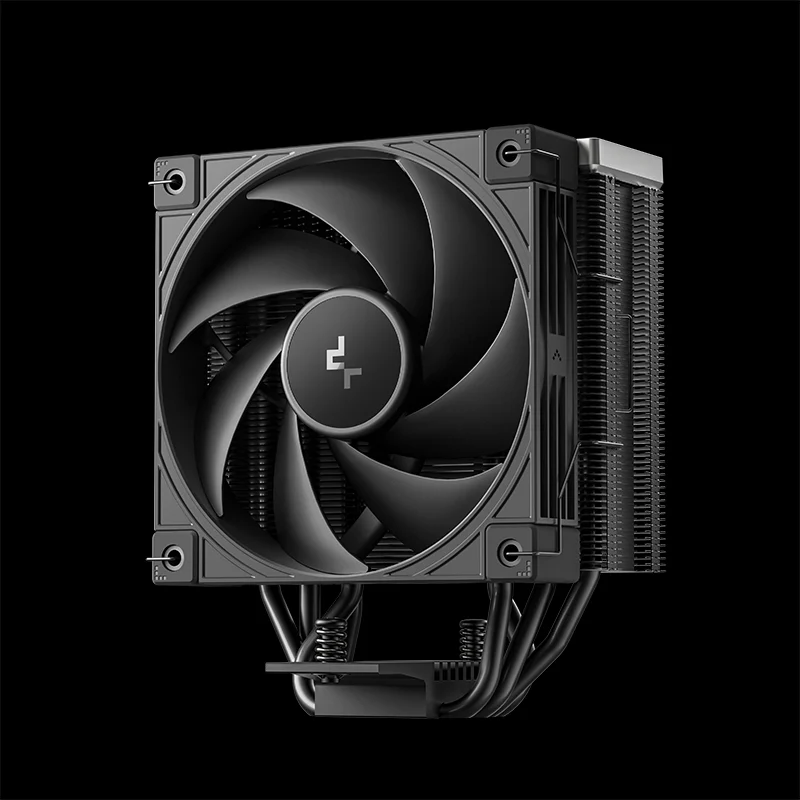

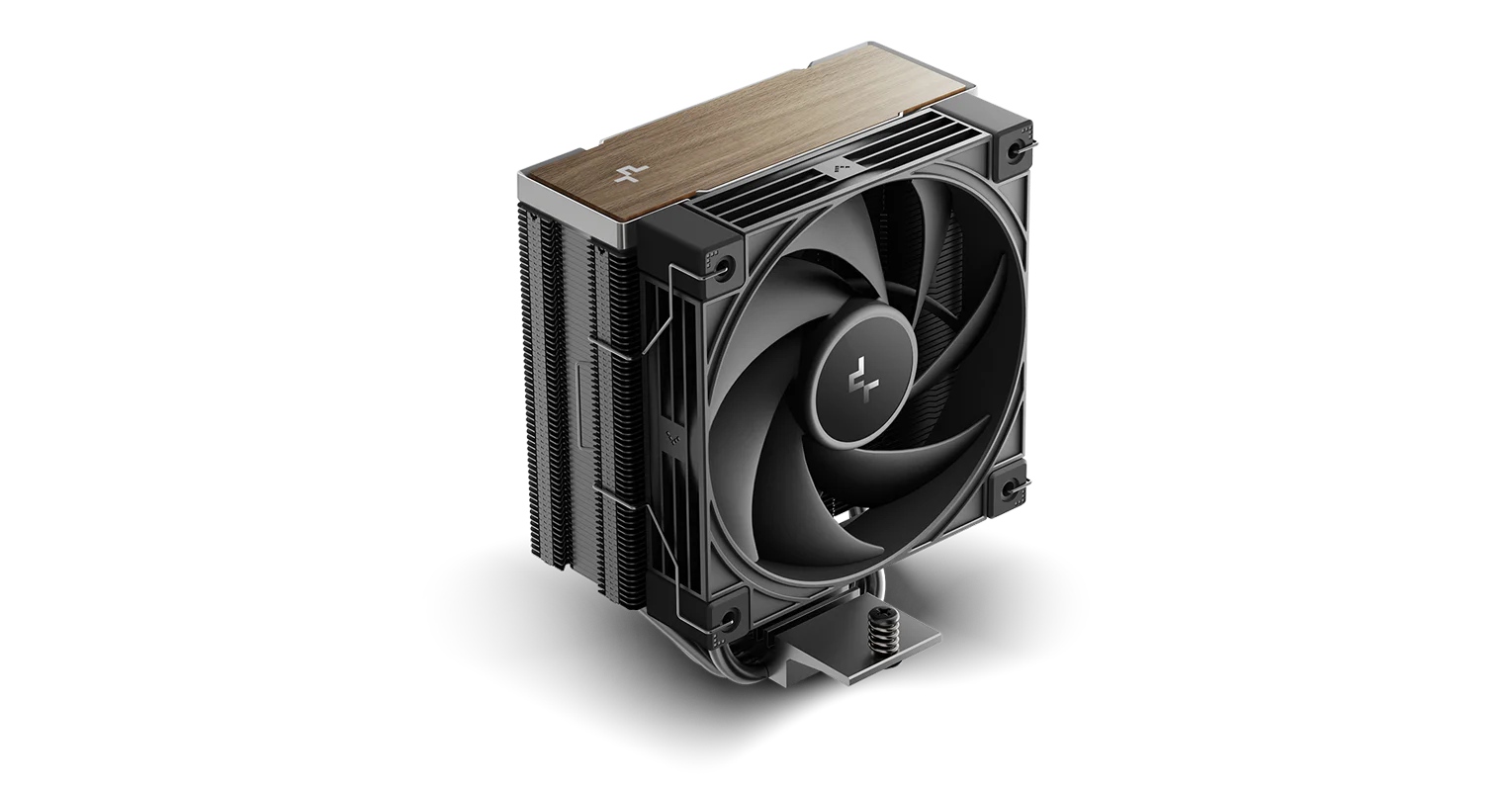

AK400 G2
Further improved second generation of the iconic AK lineup with upgraded performance and a bold new aesthetic. The same premium quality materials featuring four advanced copper heat pipes, a single-tower heat sink, and newly designed silent fan produces a powerful winning formula for high performance cooling in a wood grain design.
MODEL
AK400 G2
CRAFTED TO ELEVATE
NEXT GENERATION PERFORMANCE
Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK400 G2 reaches a bump in cooling performance compared to its predecessor.
PROVEN AK DESIGN

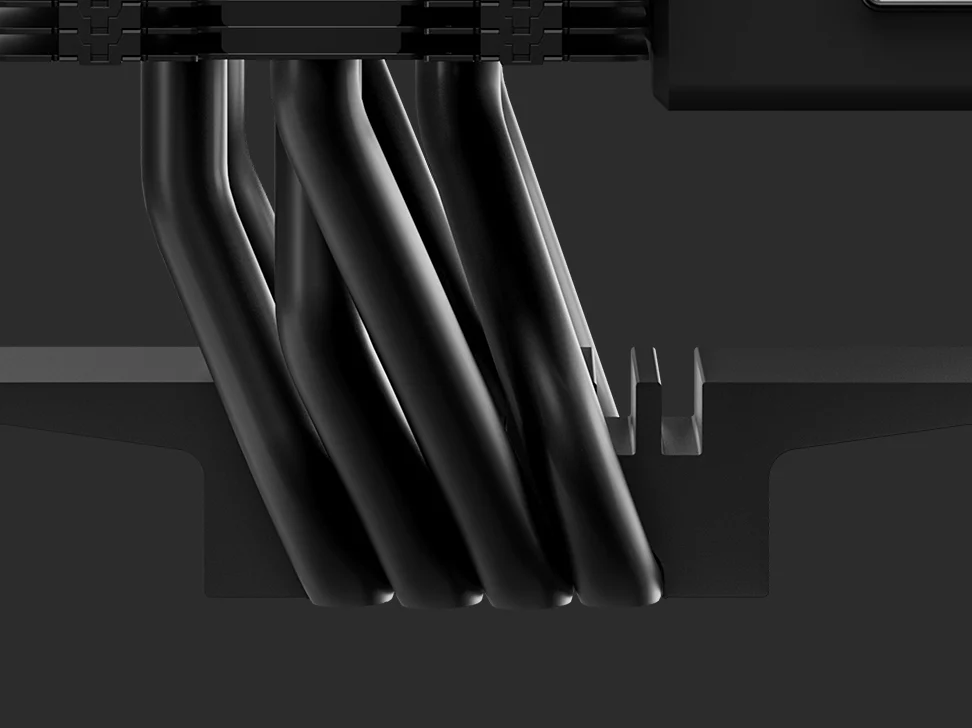

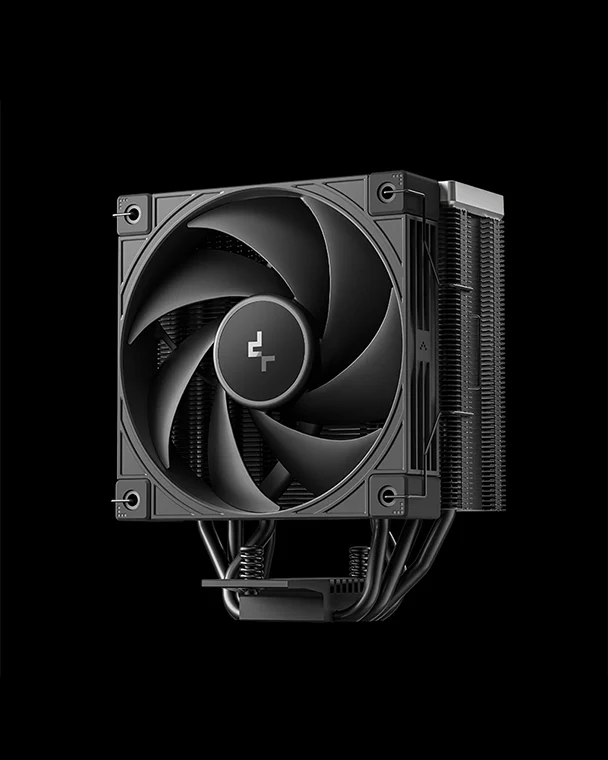

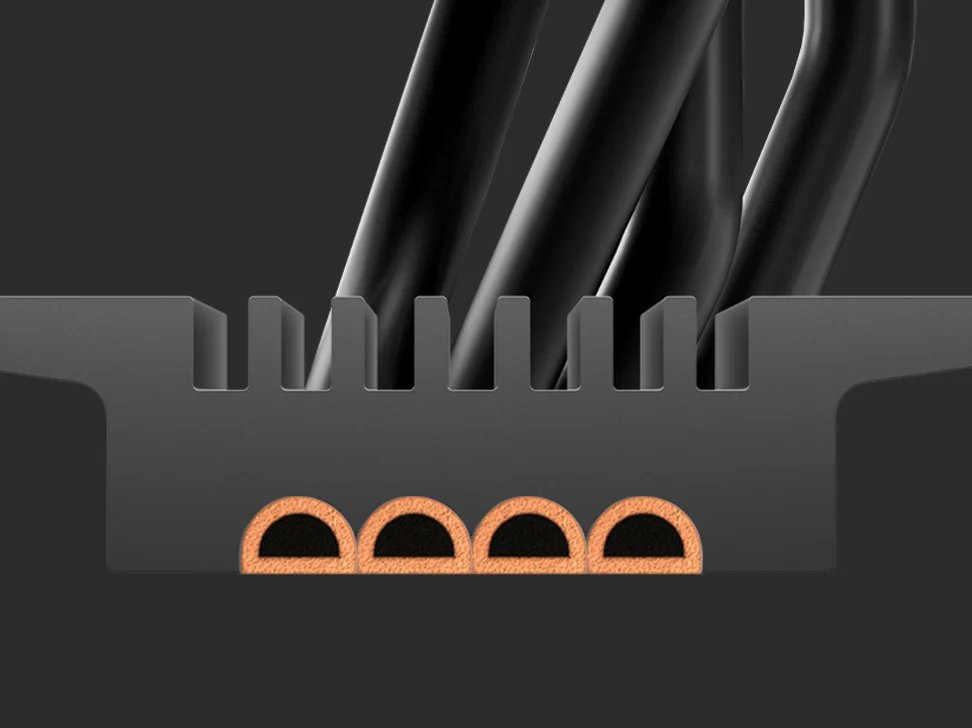

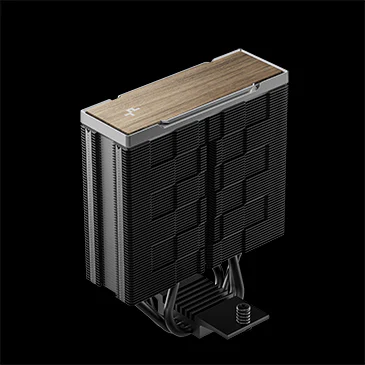

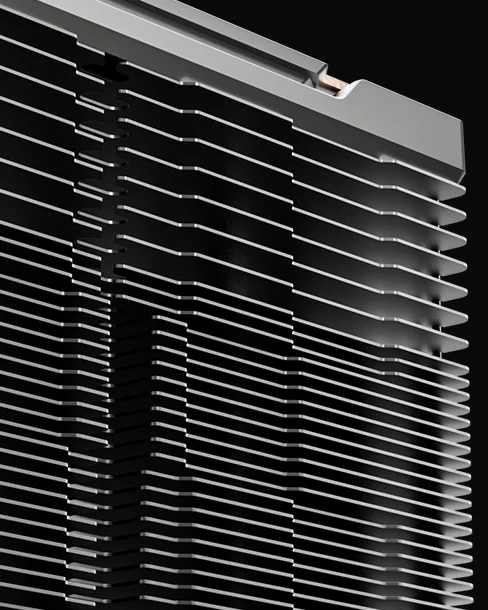

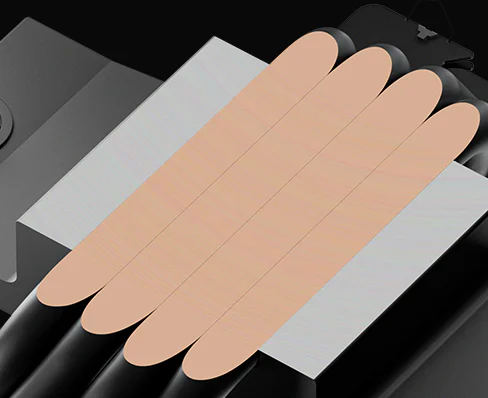

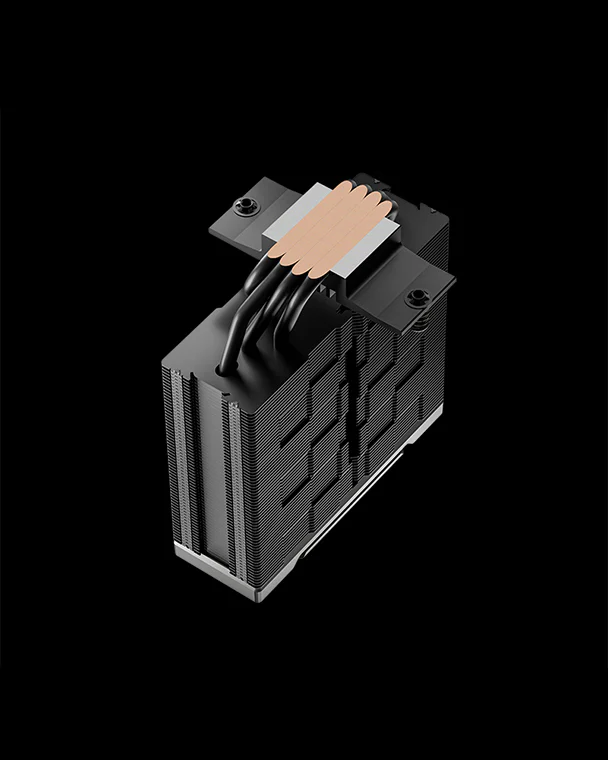

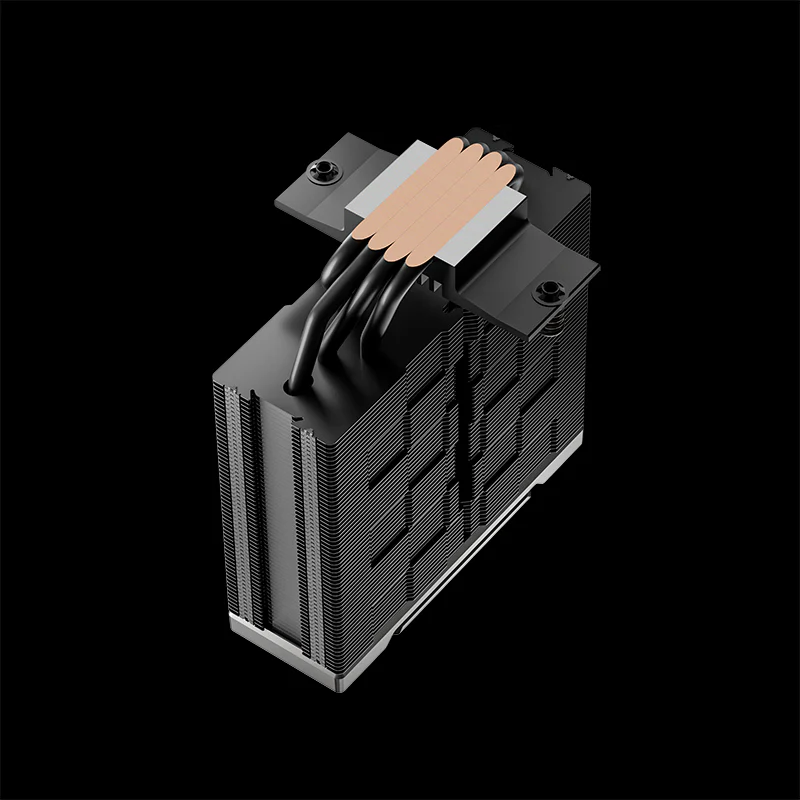

The AK400 G2 continues its legacy by featuring four direct touch copper heat pipes that delivers improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
PREMIUM COMPATIBILITY

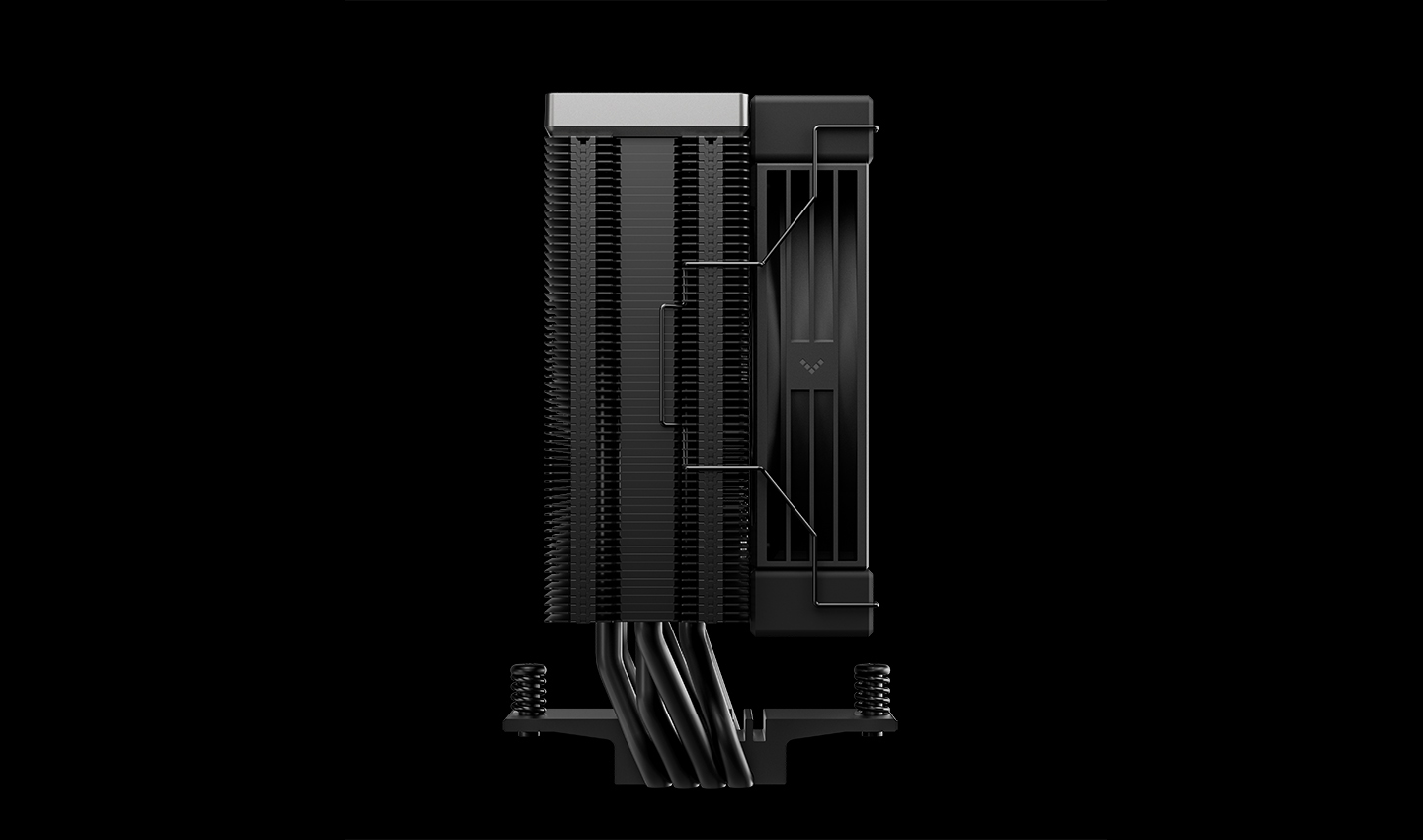

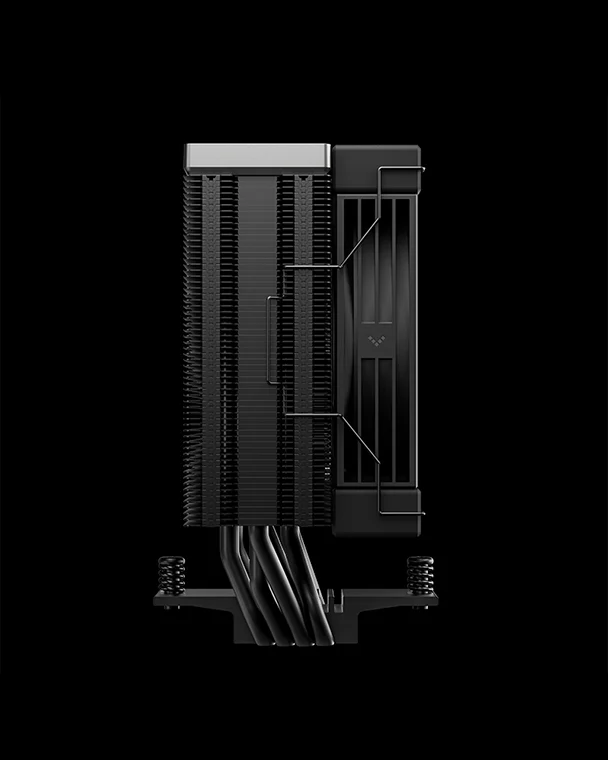

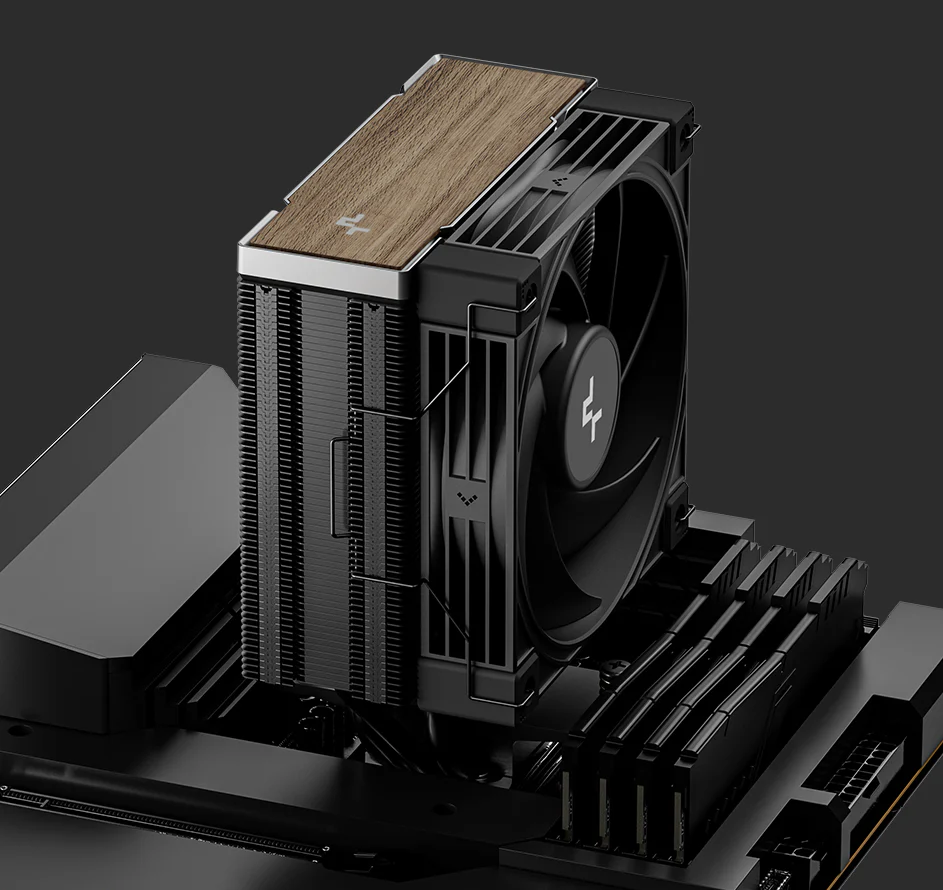

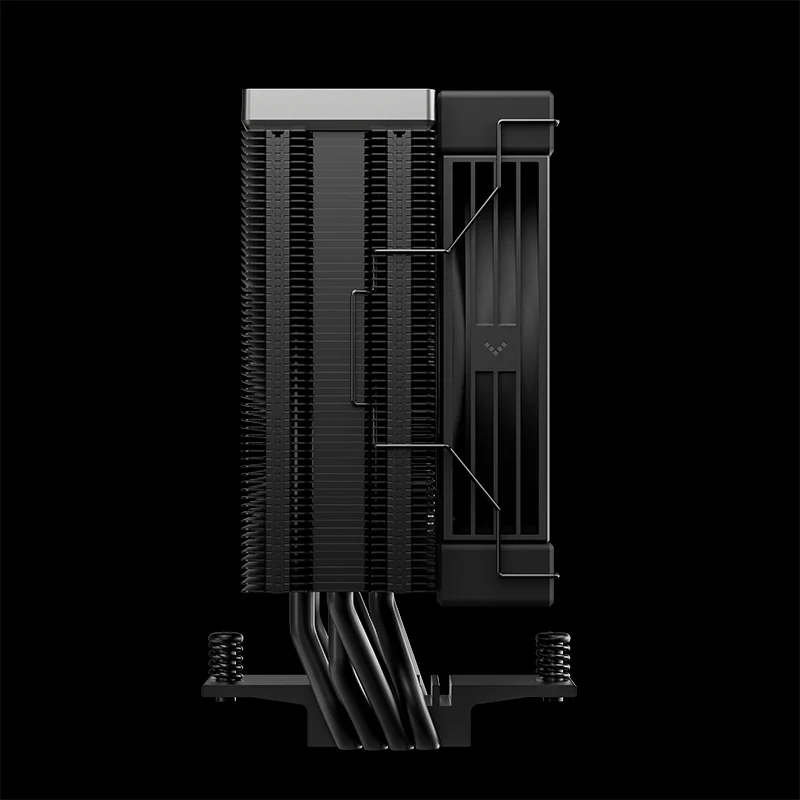

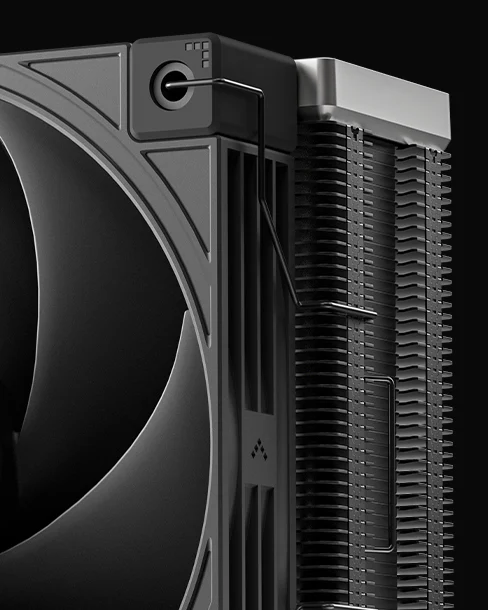

Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

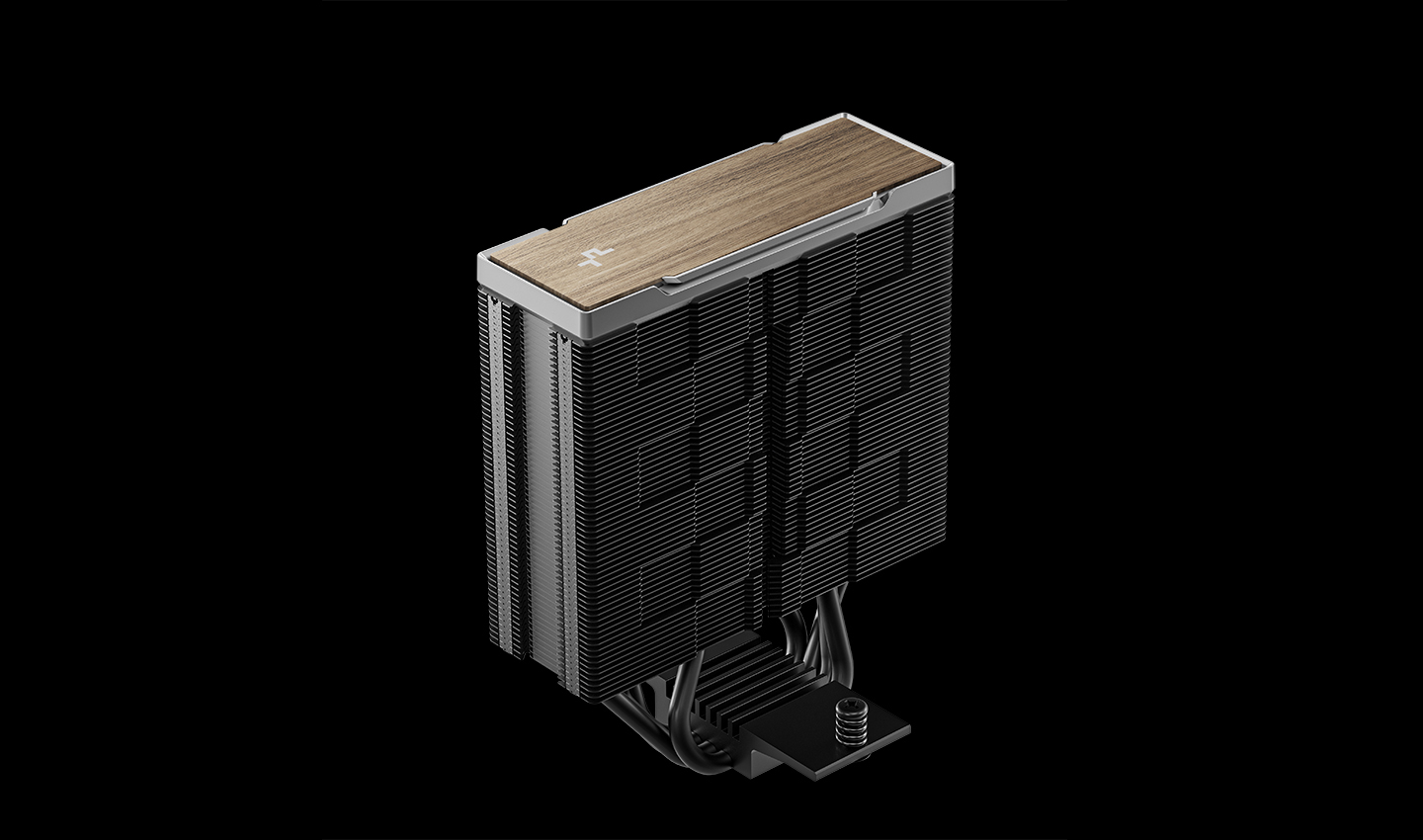

TRANSFORM YOUR COOLING AESTHETIC

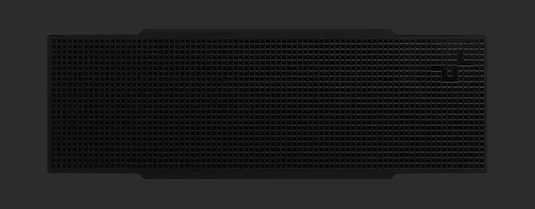

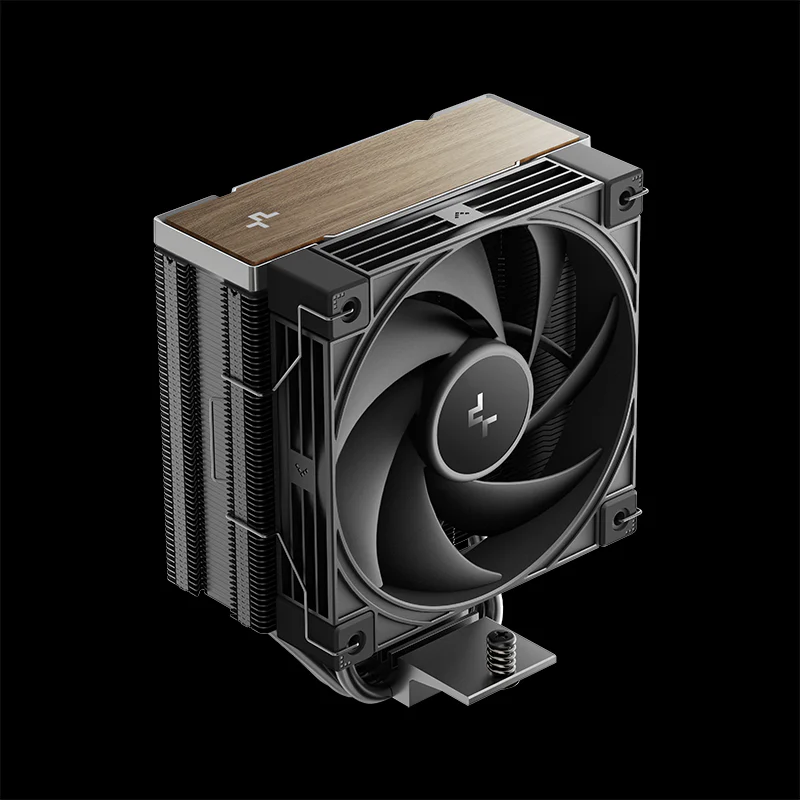

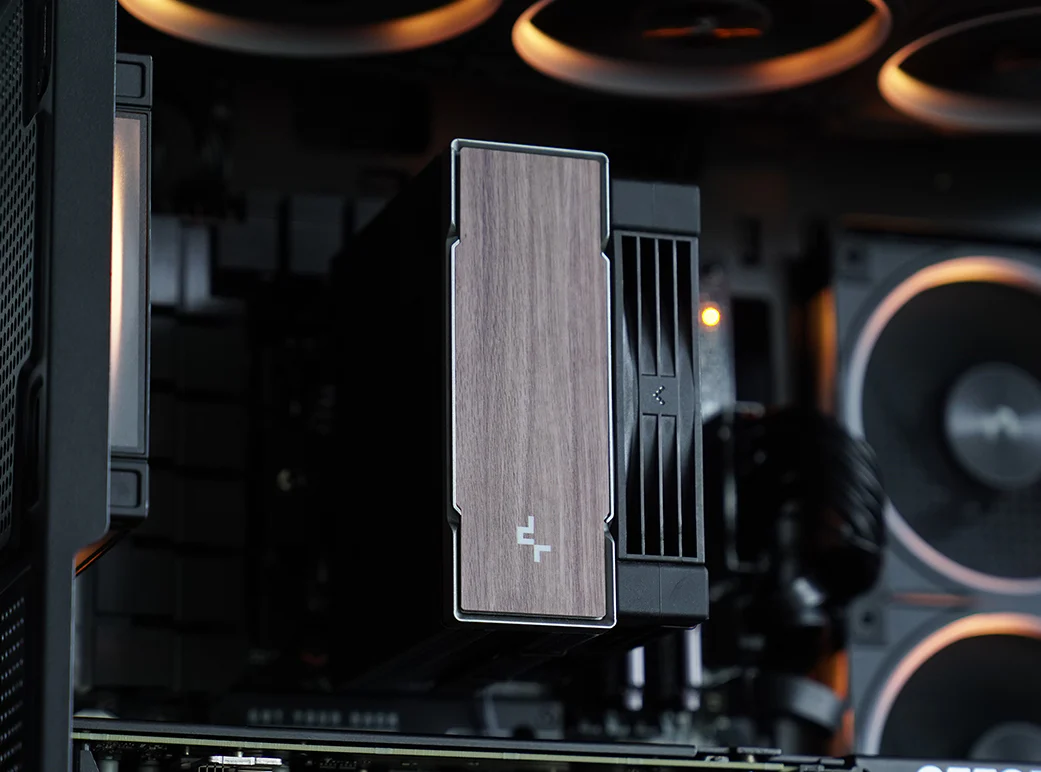

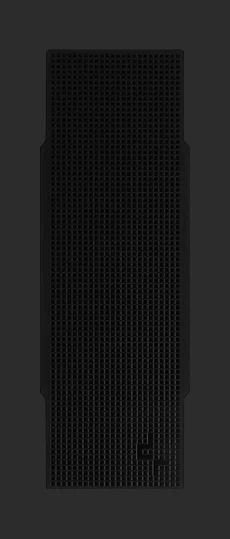

A refined wood-grain top cover that beautifully merges natural elegance with modern performance, while an optional black matrix-style decal offers a customizable aesthetic.

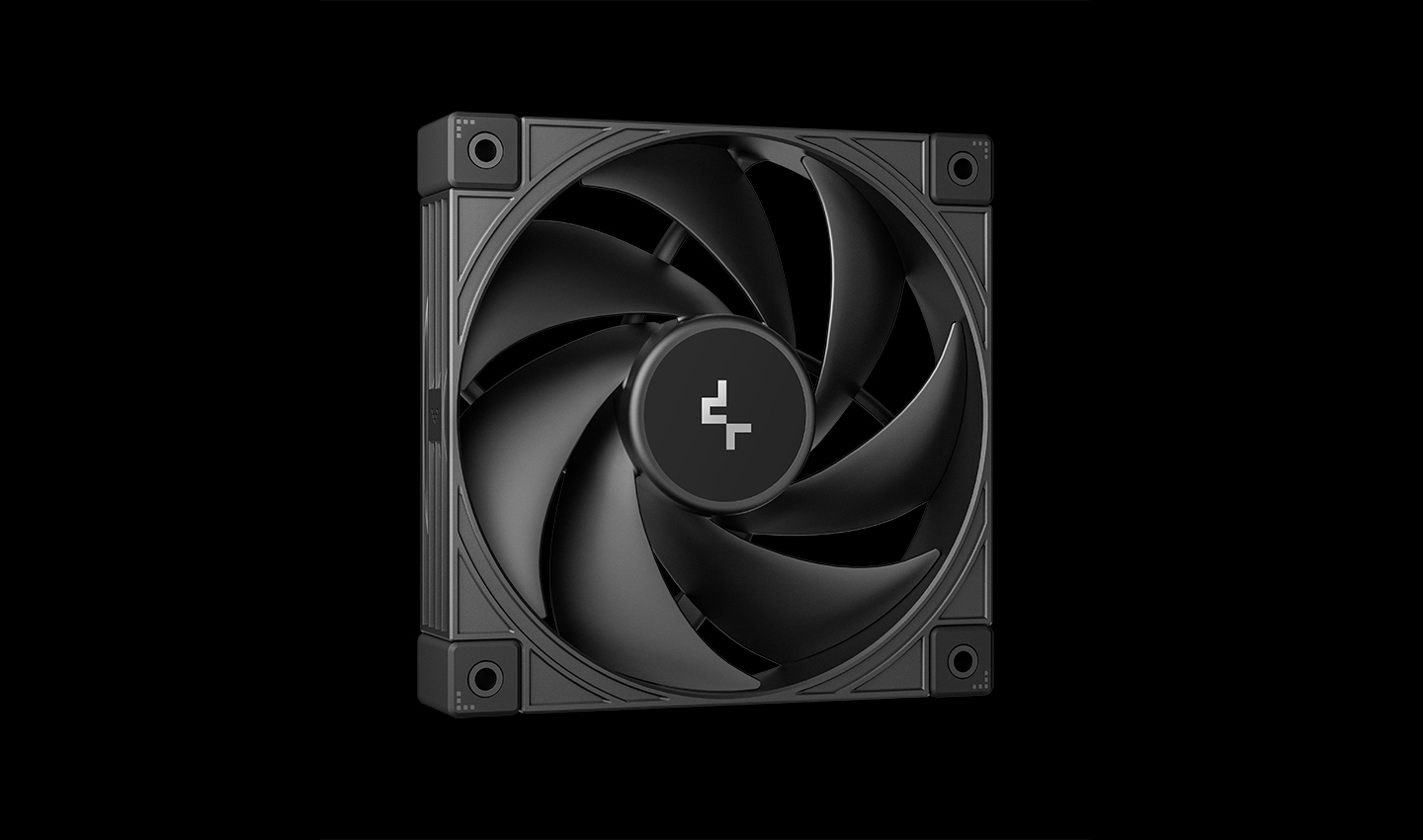

COOL, QUIET, AND POWERFUL

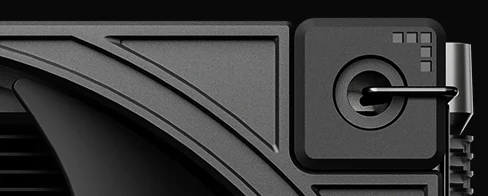

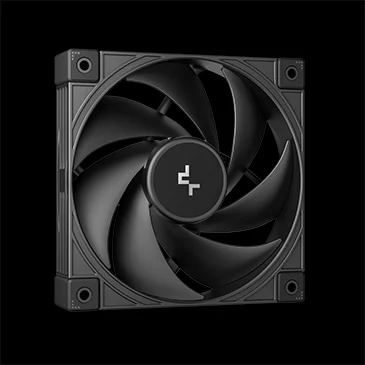

Equipped with high-quality hydraulic bearing and a three-phase, six-slot, four-pole motor, the AK400 G2's fan operates smoothly and quietly.
1. 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.

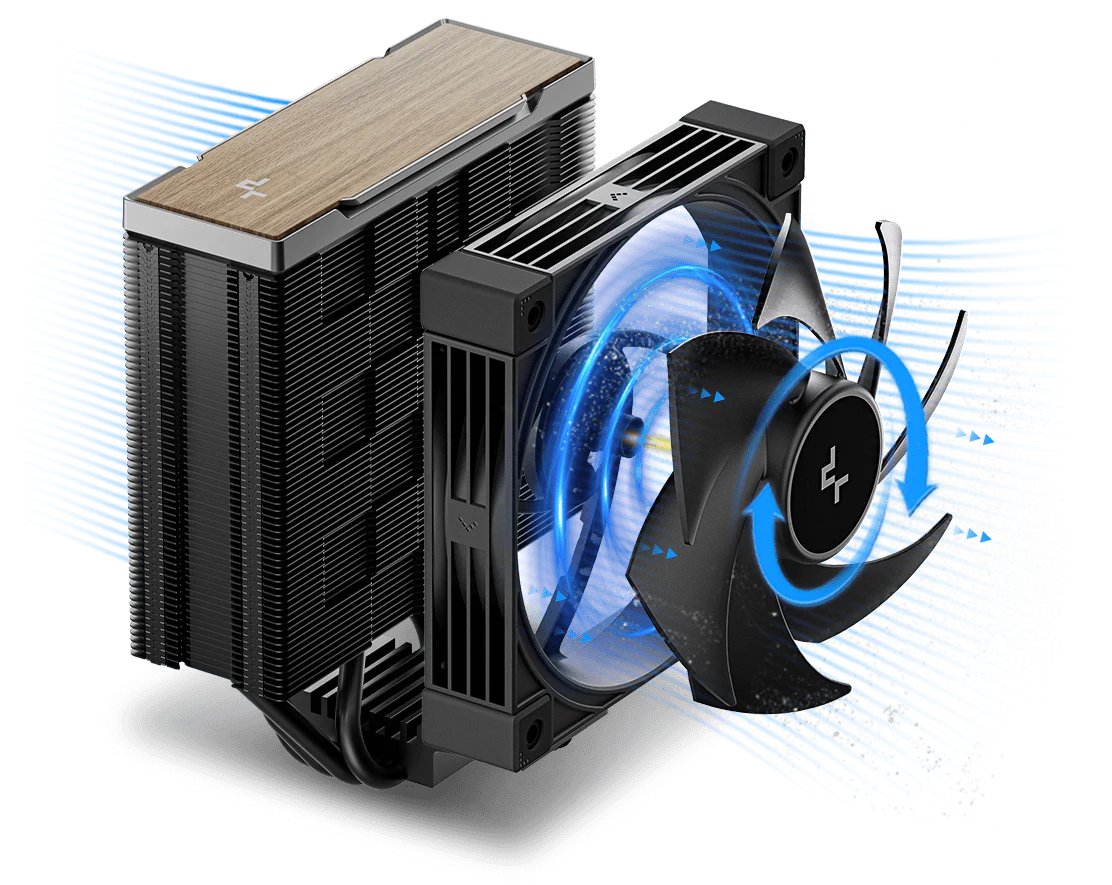

2. Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
31.45 dBA
Full load noise
2200±10%PRM
Fan Speed
0 RPM＜5% PWM
Dynamic PWM Range
3 Years
Limited Warranty Coverage
MULTI-PLATFORM PERFORMANCE

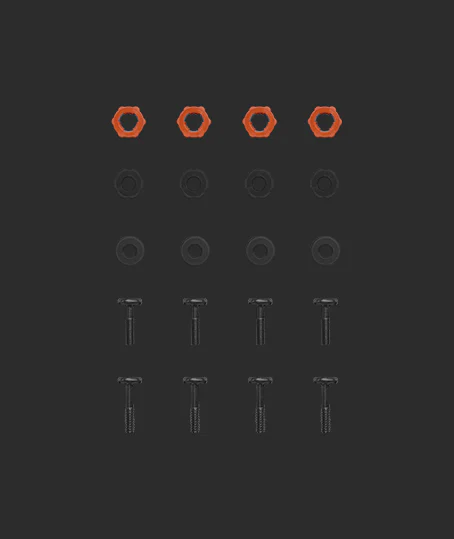

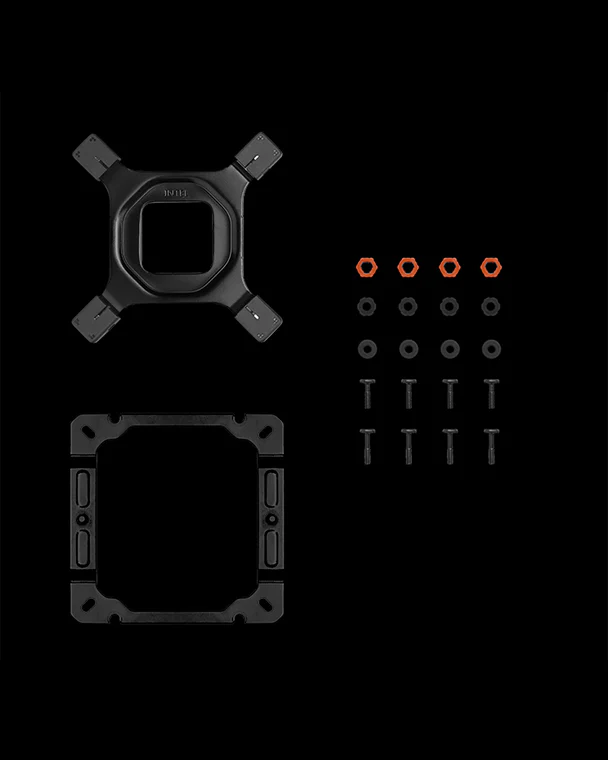

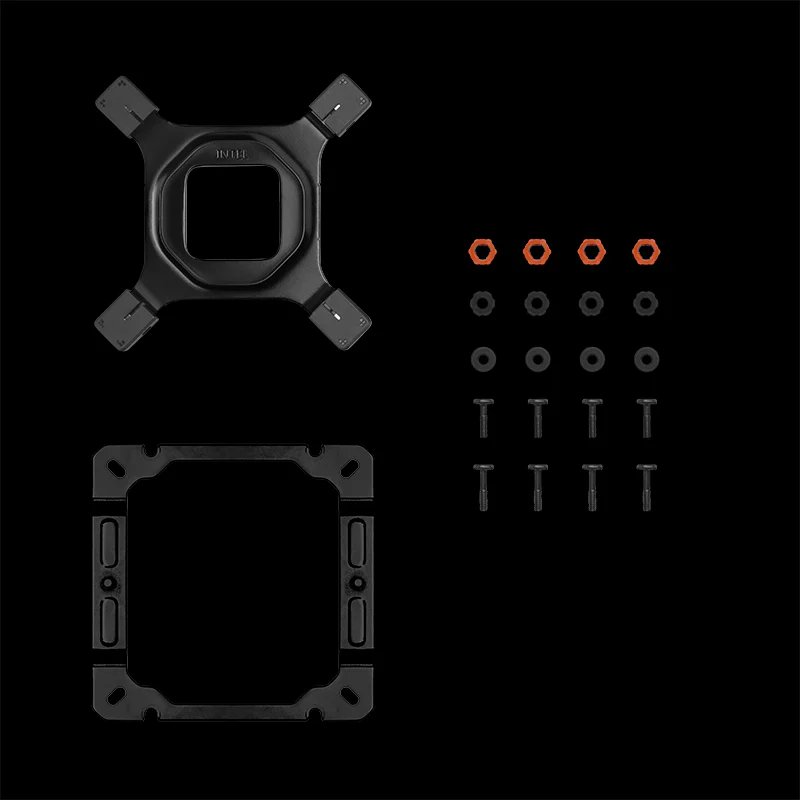

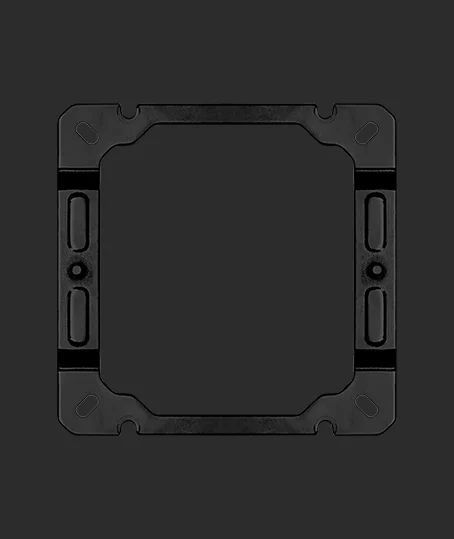

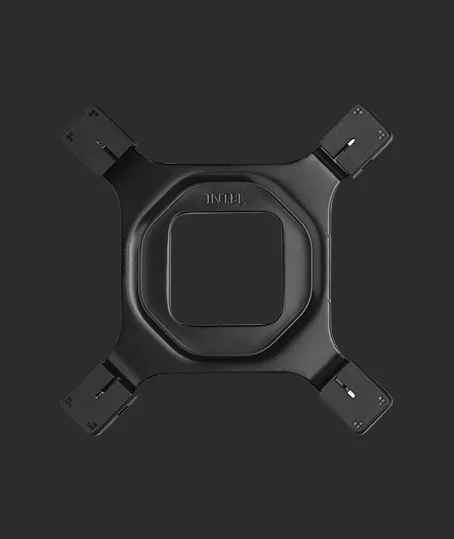

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Application For
Intel
LGA1851/1700/1200/115X
AMD
AM5/AM4
Technical Spec
Product Dimensions132×92×156 mm(L×W×H)
Heatsink Dimensions130×92×151 mm(L×W×H)
Net Weight950 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed2200±10% RPM(max)
Fan Airflow63.4 CFM
Fan Air Pressure3.33 mmAq
Fan Noise≤31.45 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.25 A
Fan Power Consumption3 W
EAN6933412729655
P/NR-AK400G2-BKNNMN-GJD
Download
AK400 G2 Manual.pdf
