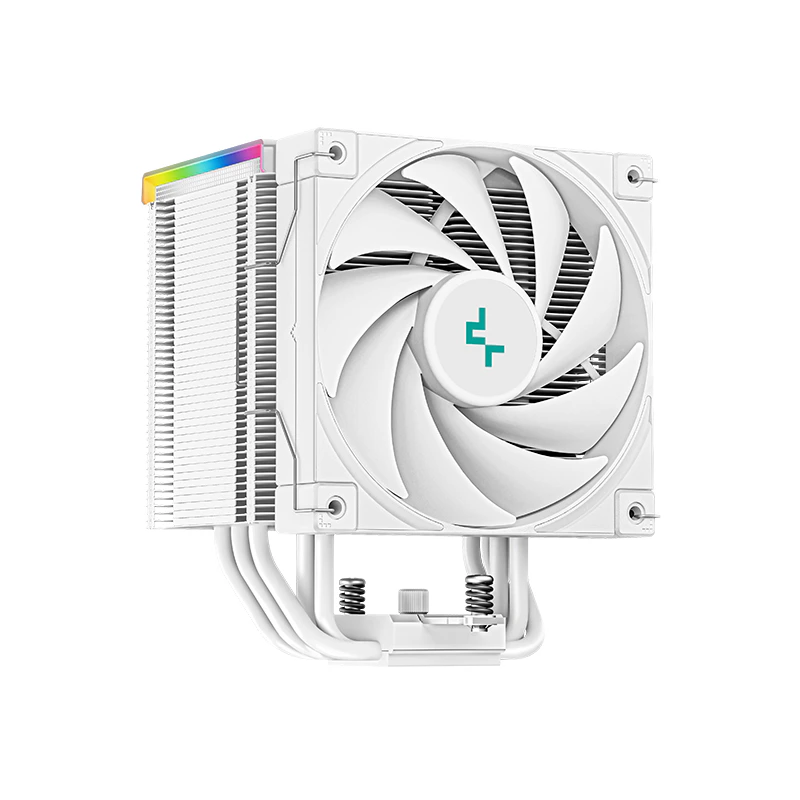

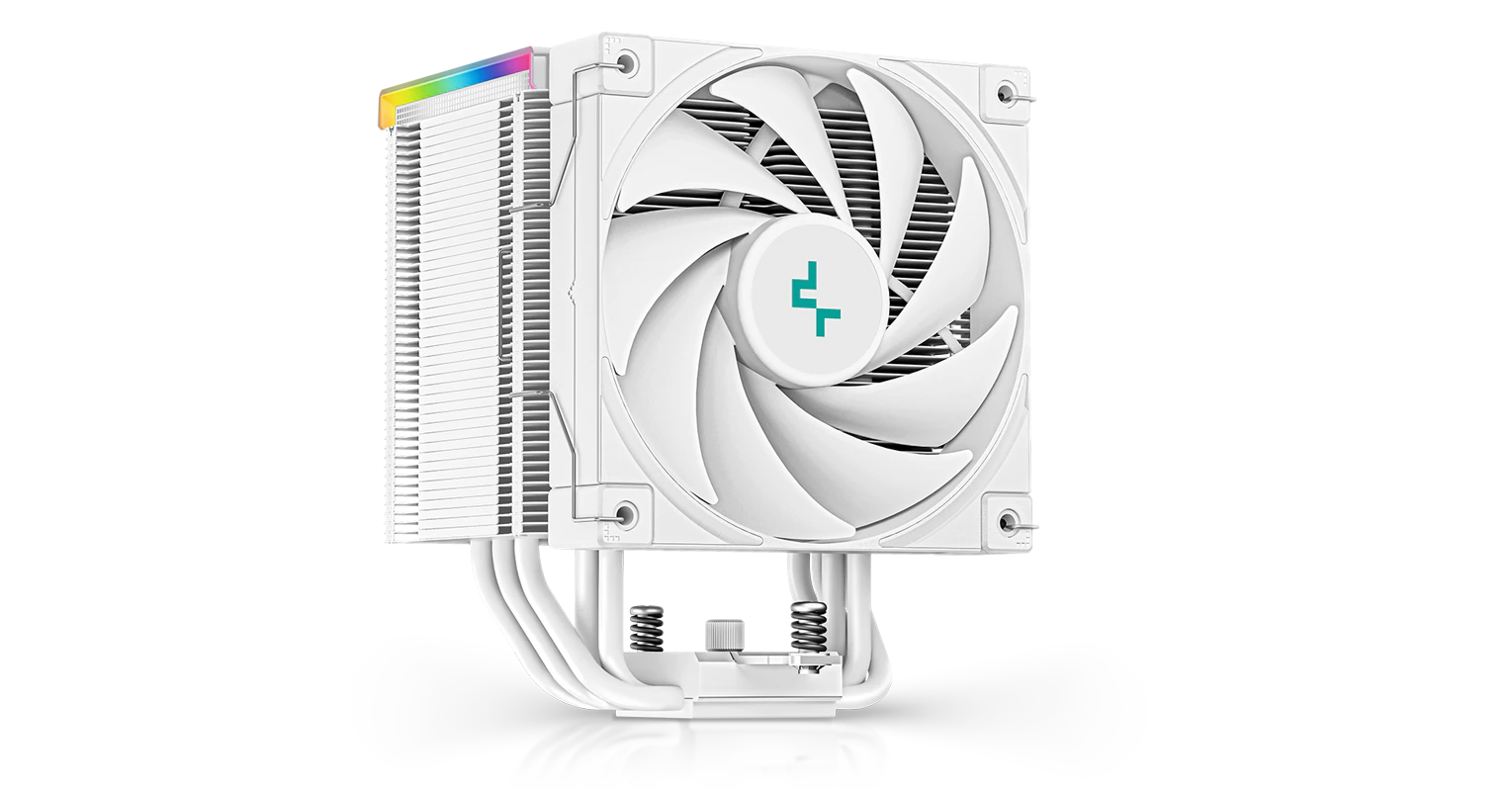

AK500 DIGITAL WH

WELCOME TO THE DIGITAL ERA

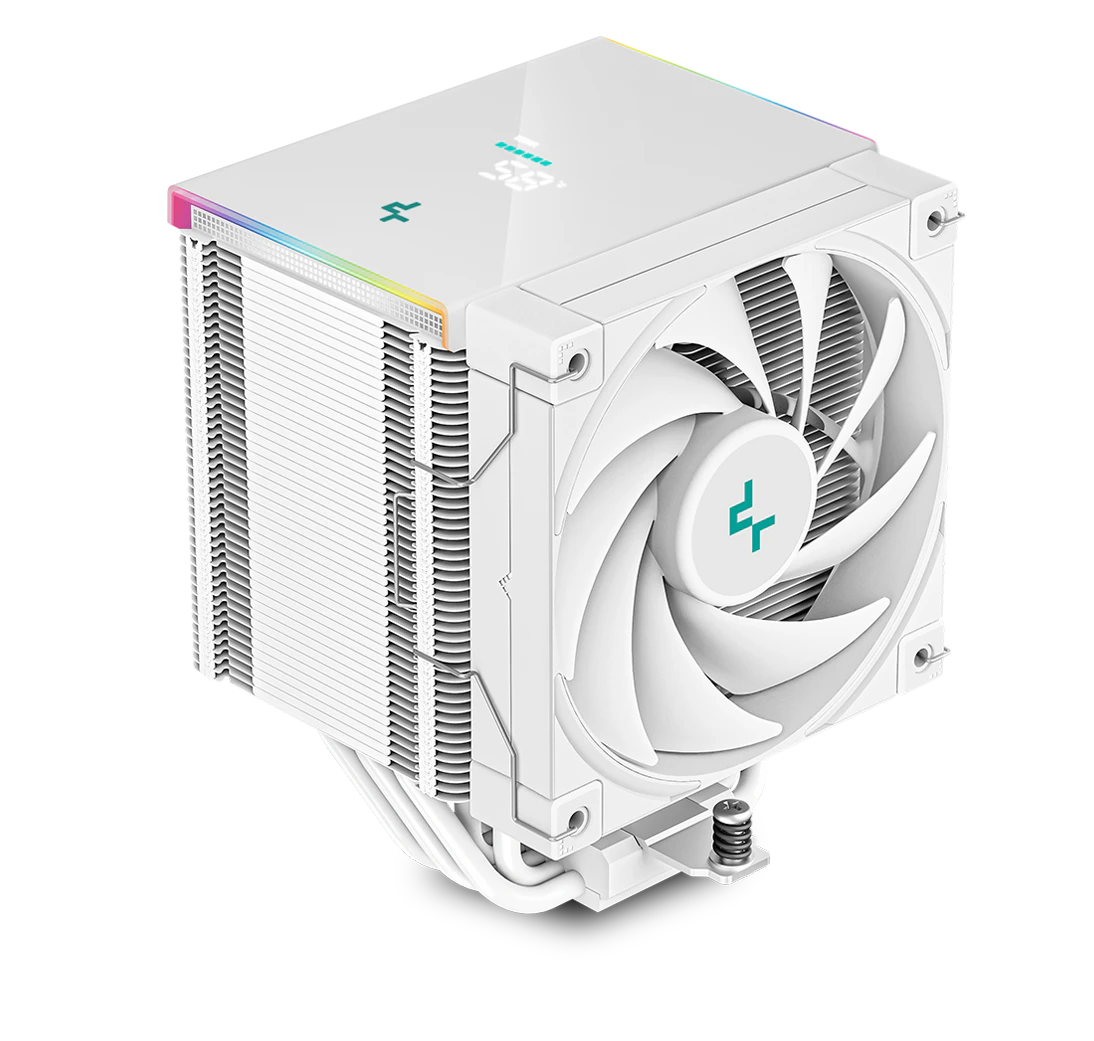

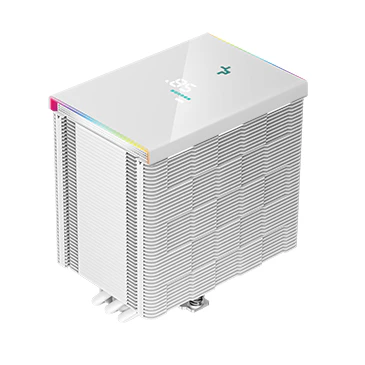

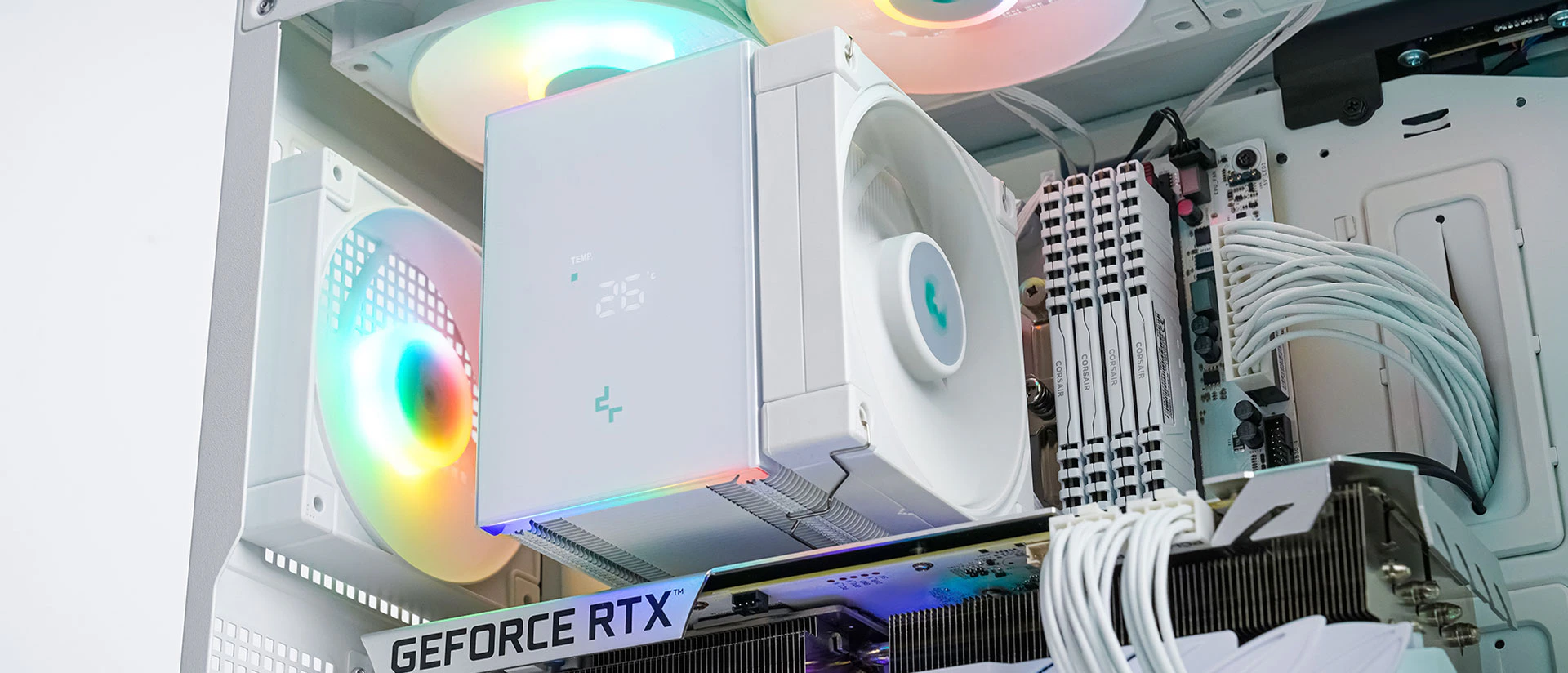

REAL-TIME STATUS SCREEN

The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.

℃

℉

Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

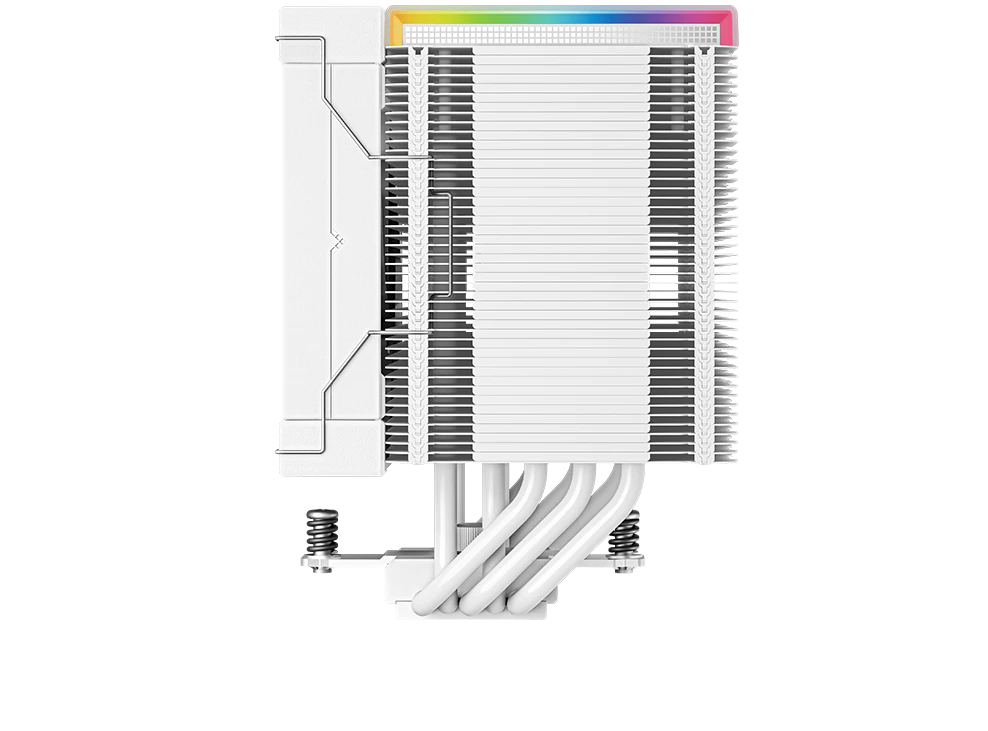

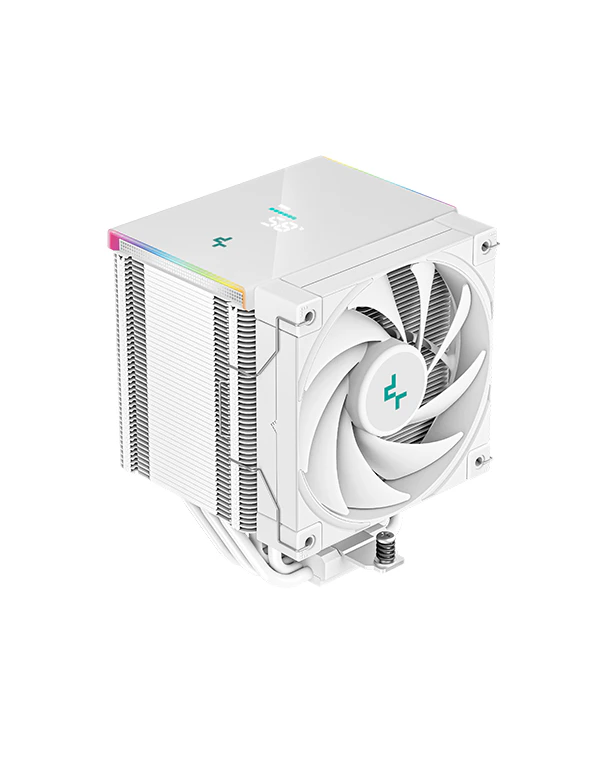

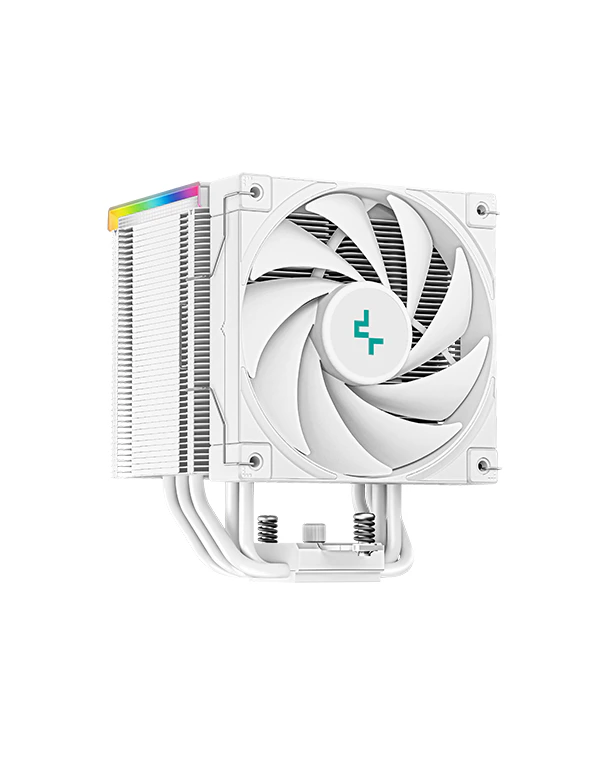

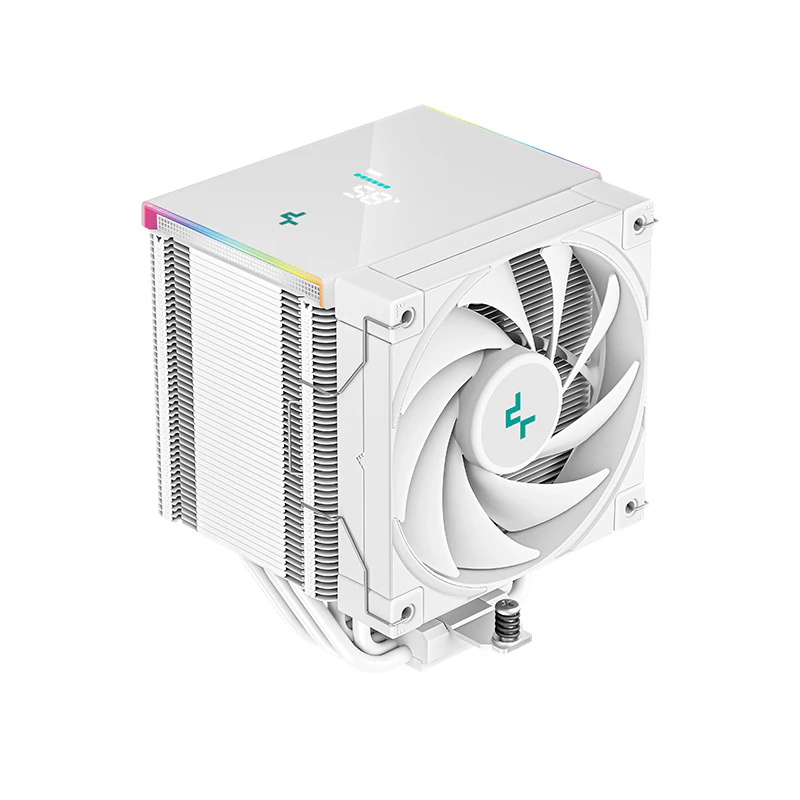

PROVEN AK WH DESIGN

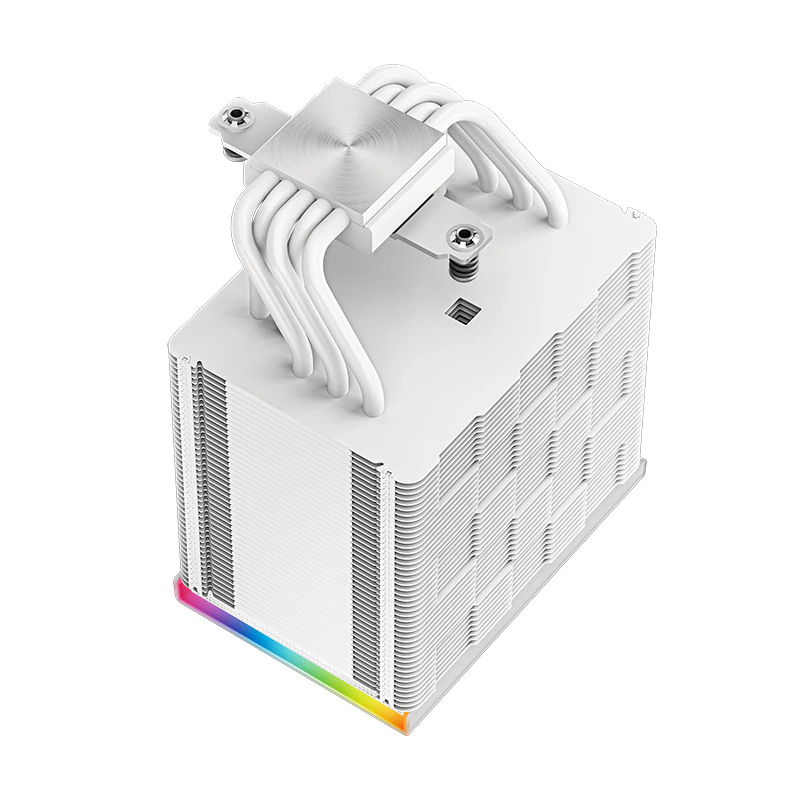

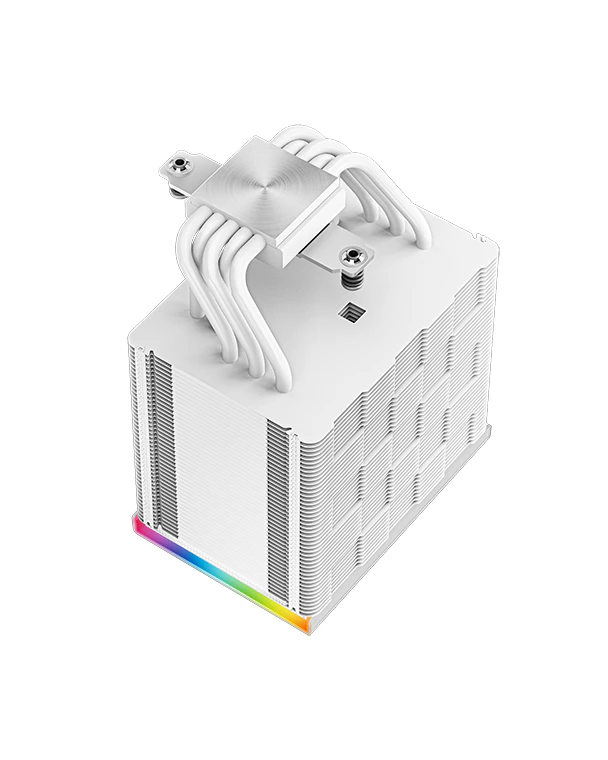

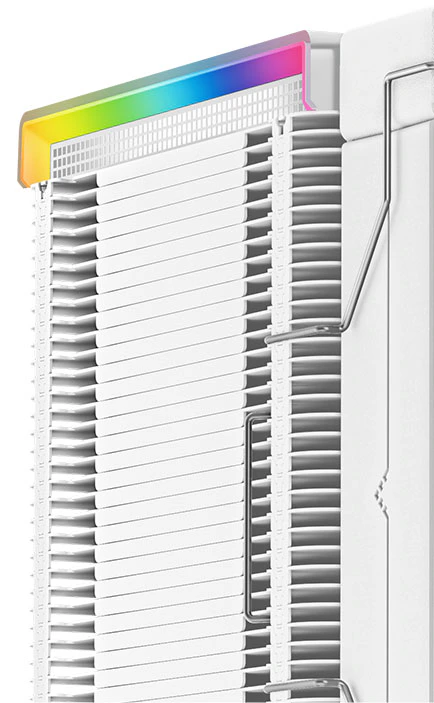

An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.

STELLAR COOLING

The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.

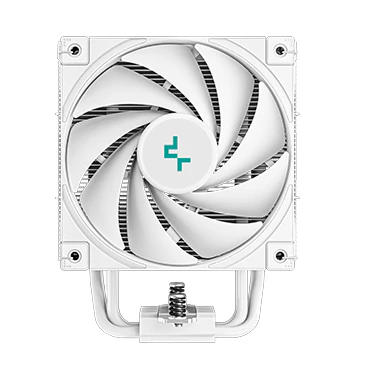

COOL, QUIET, AND POWERFUL

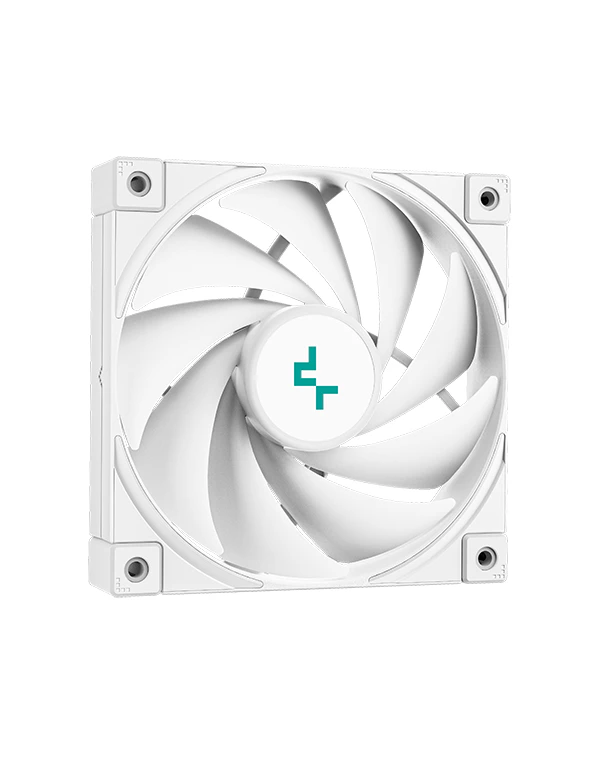

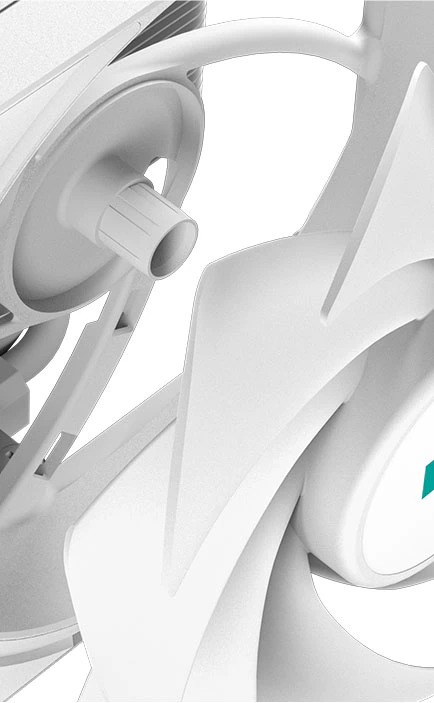

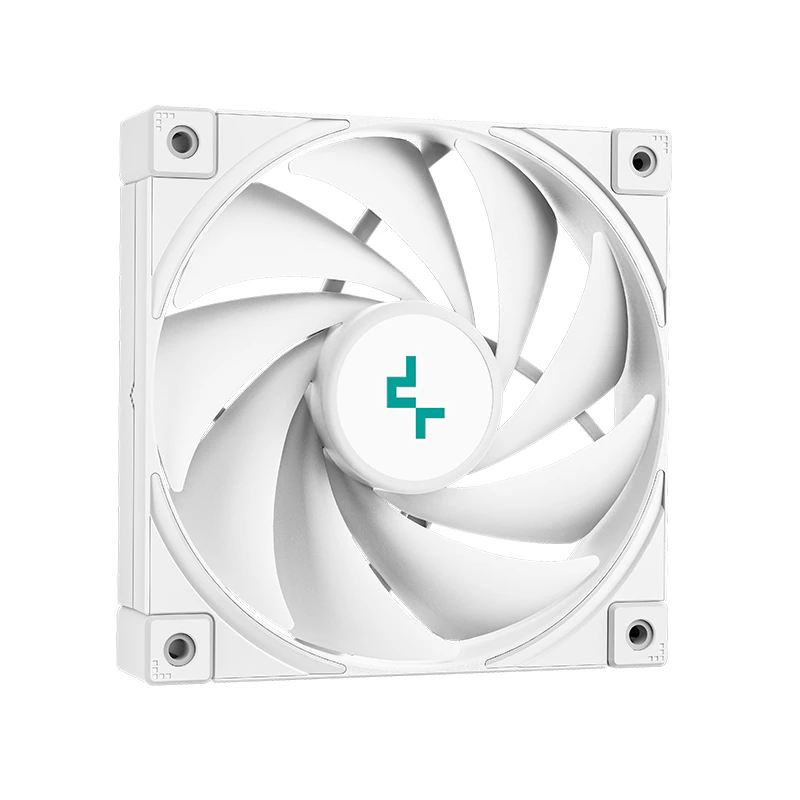

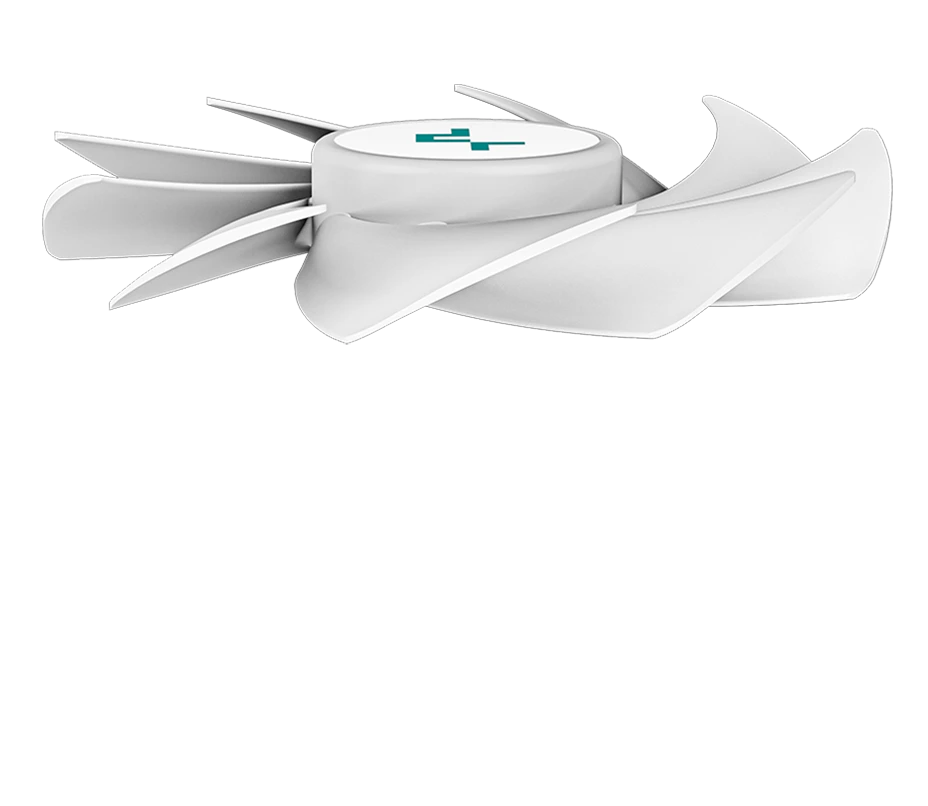

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.

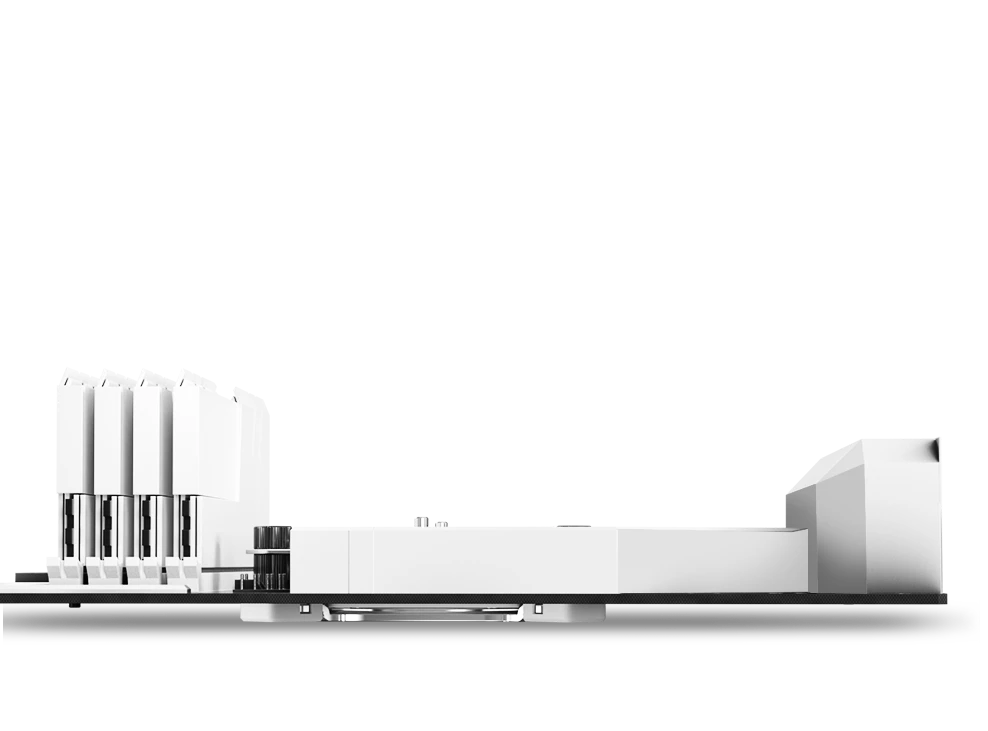

PREMIUM DRAM COMPATIBILITY

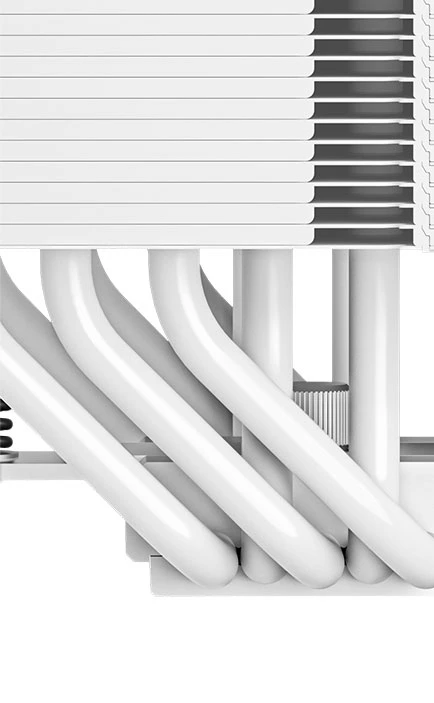

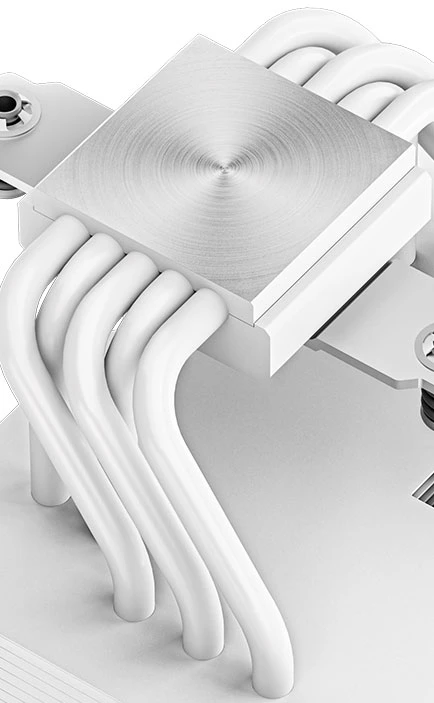

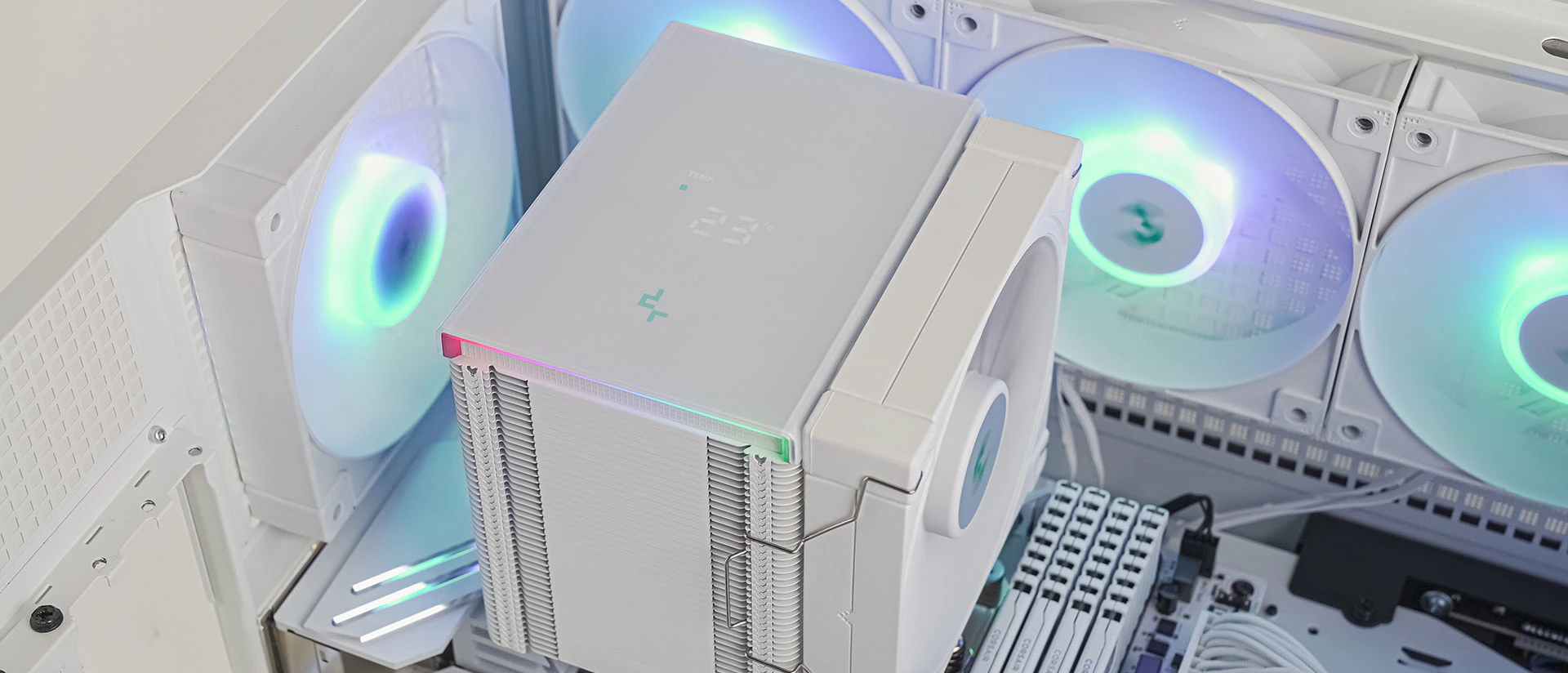

The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.

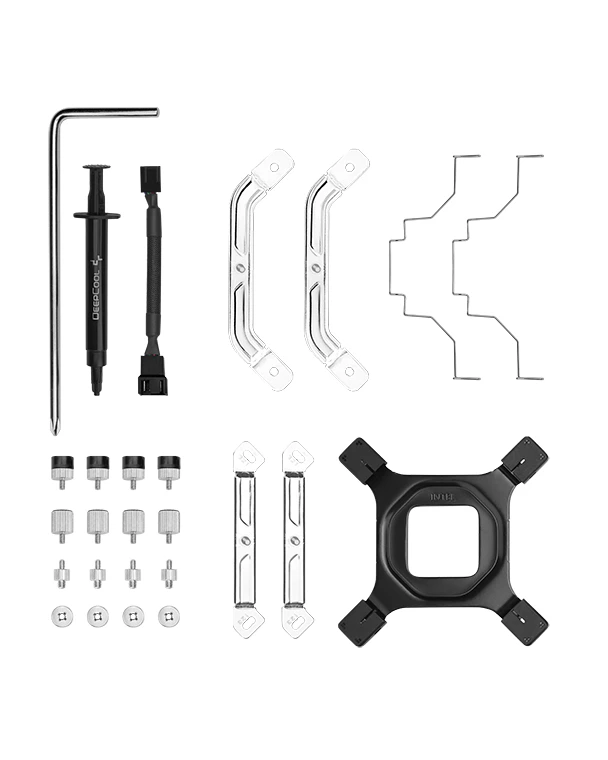

SIMPLE AND SECURE INSTALLATION

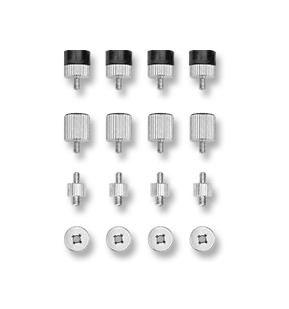

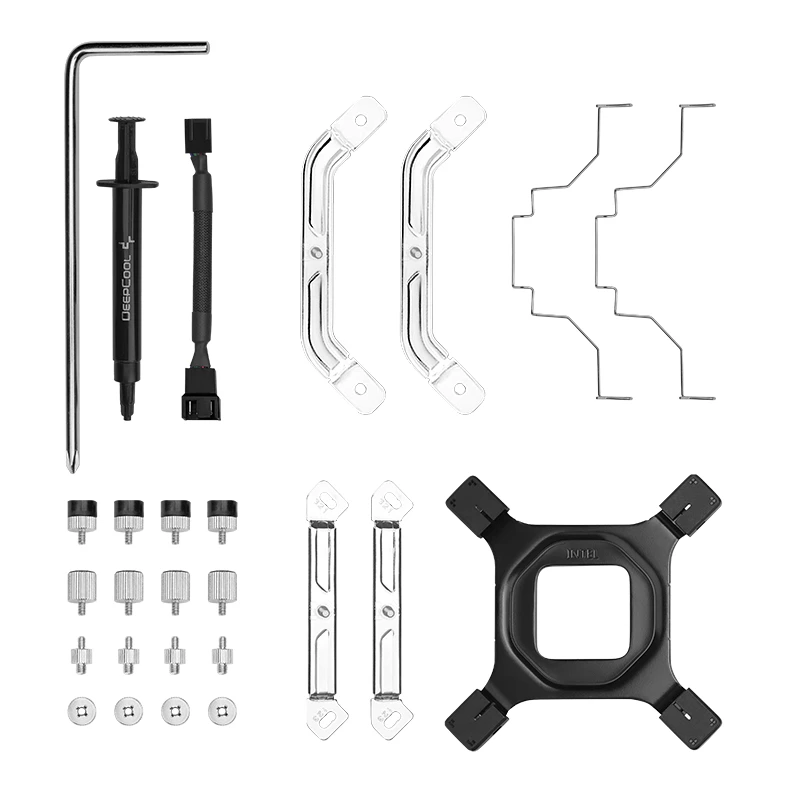

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Application For

Intel

LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	127×117×160 mm(L×W×H)
Heatsink Dimensions	127×92×156 mm(L×W×H)
Net Weight	1291 g
Heatpipe	Ø6 mm×5 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1850 RPM±10%
Fan Airflow	68.99 CFM
Fan Air Pressure	2.19 mmAq
Fan Noise	≤28 dB(A)
Fan Speed (with LSP)	500~1550 RPM±10%
Fan Airflow (with LSP)	52.24 CFM
Fan Air Pressure (with LSP)	1.2 mmAq
Fan Noise (with LSP)	≤25.9 dB(A)

Fan Connector	4-pin PWM

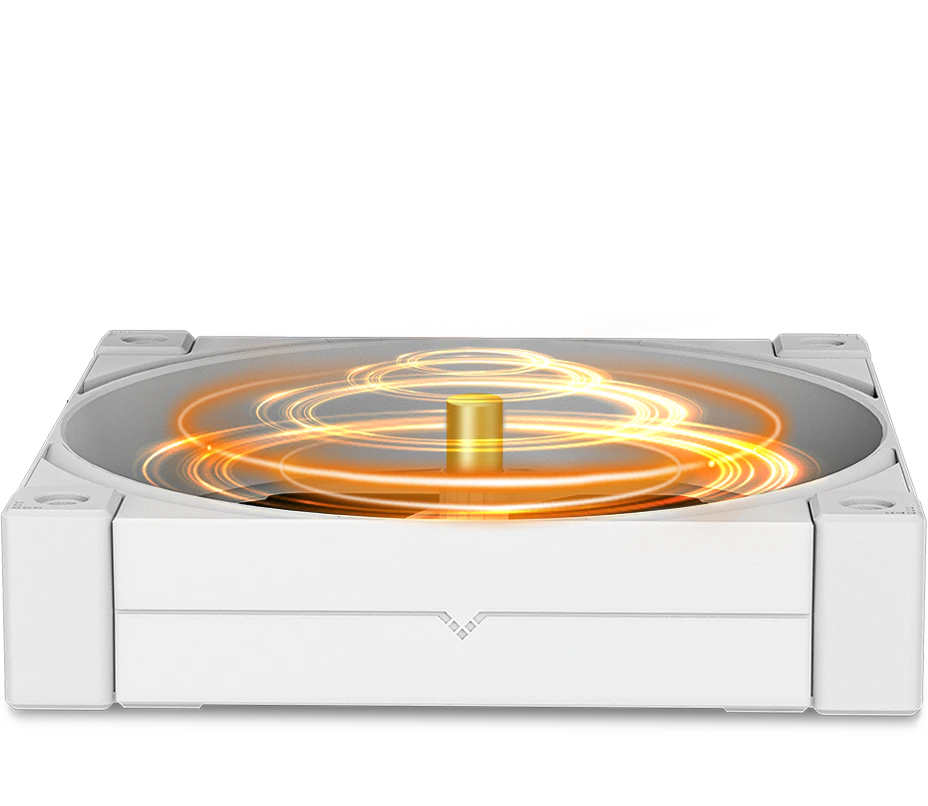

Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.12 A
Fan Power Consumption	1.44 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage	5 VDC
LED Power Consumption	4.5 W
EAN	6933412728276
P/N	R-AK500-WHADMN-G
