AK700 VC

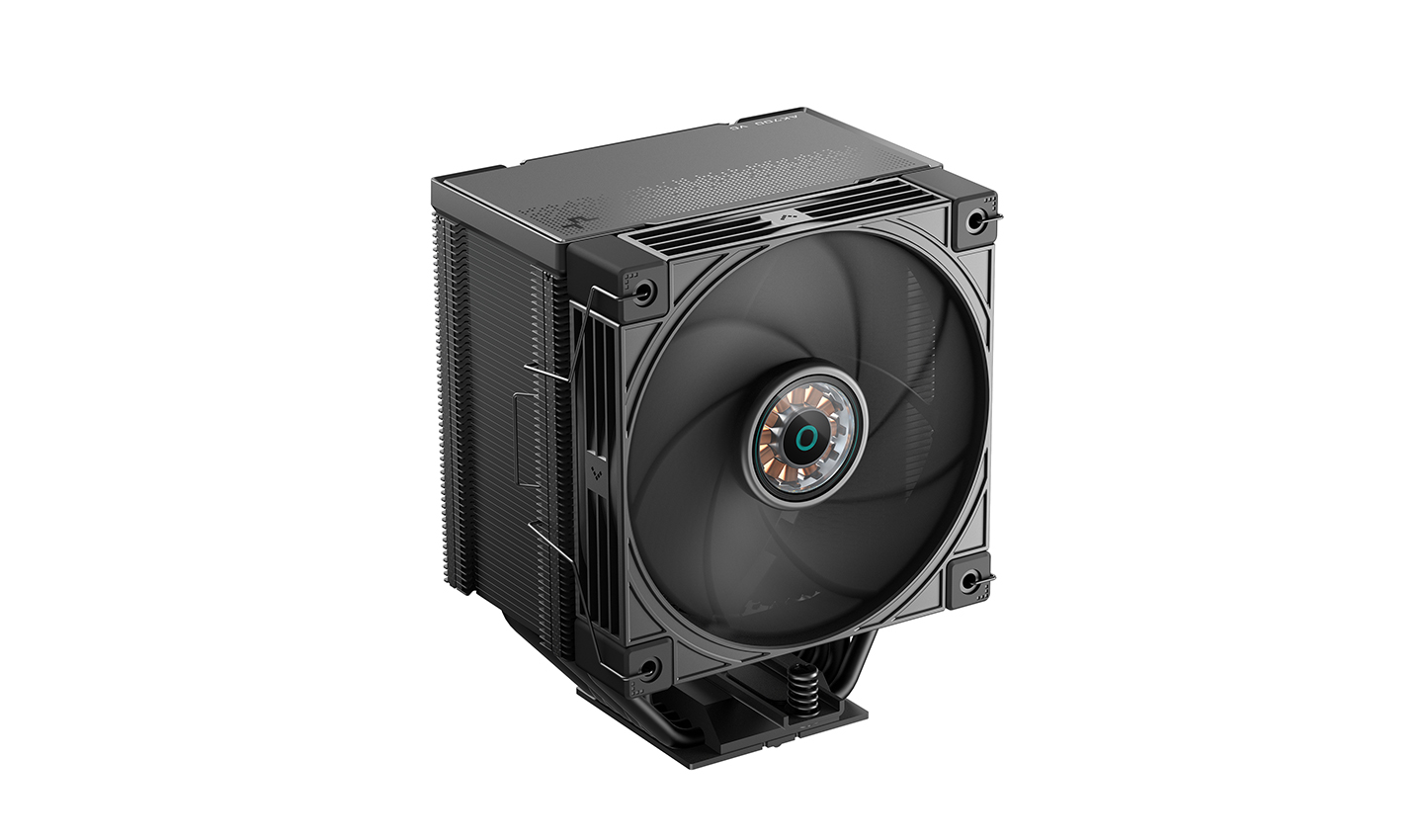

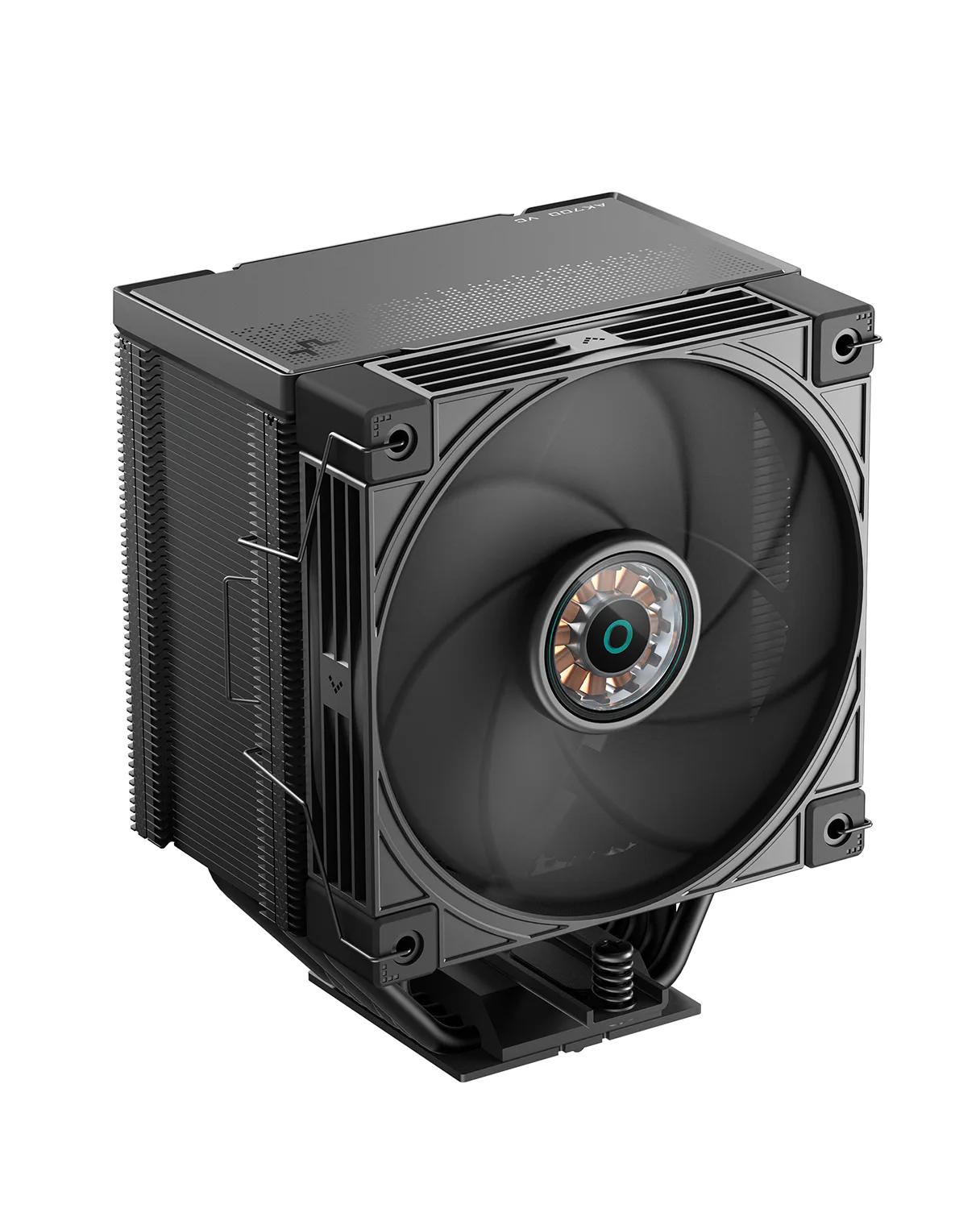

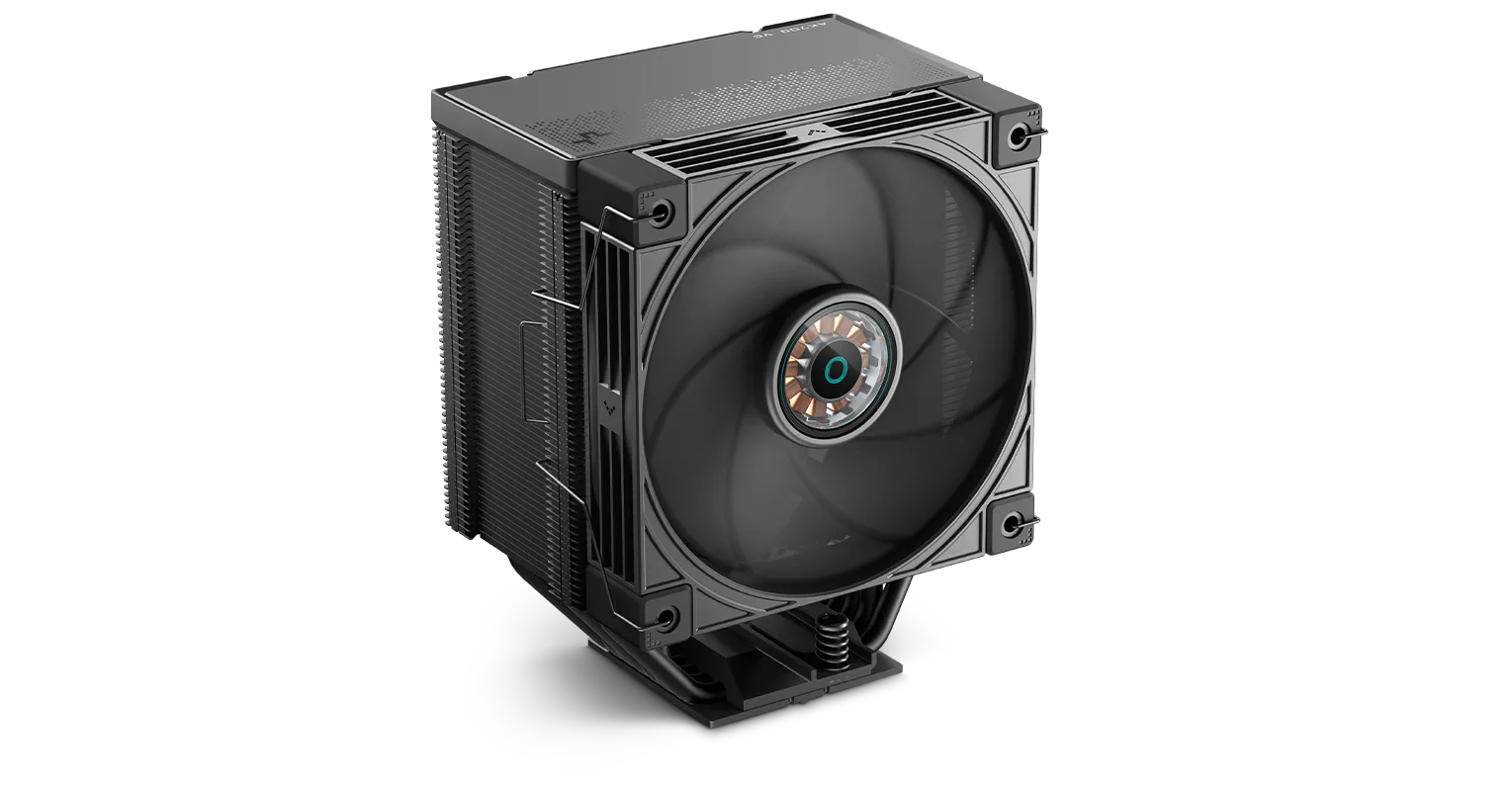

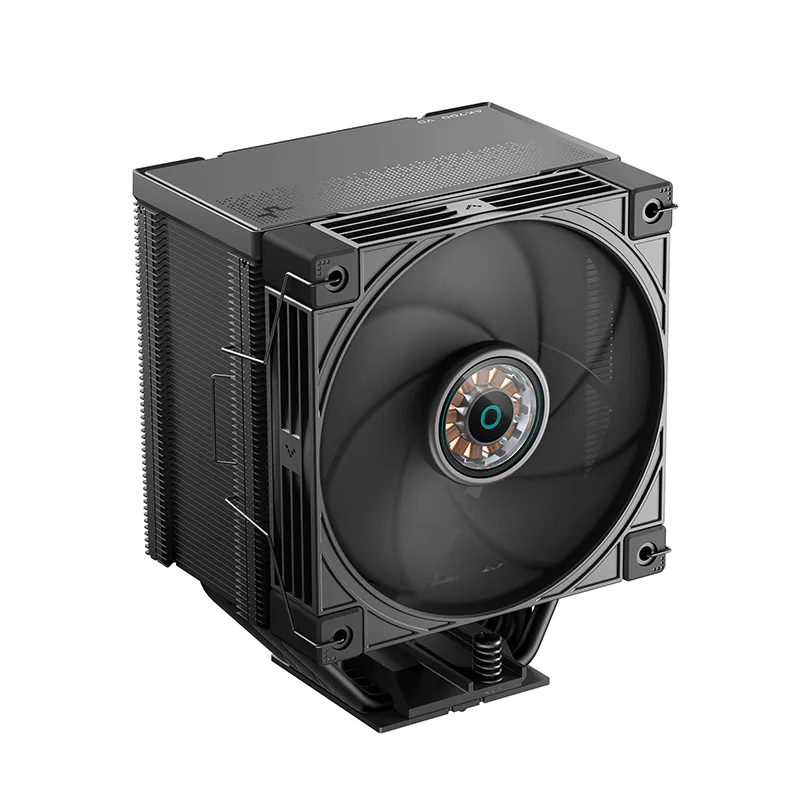

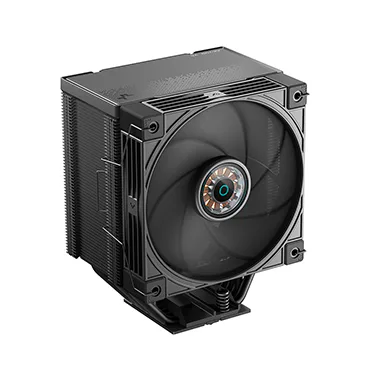

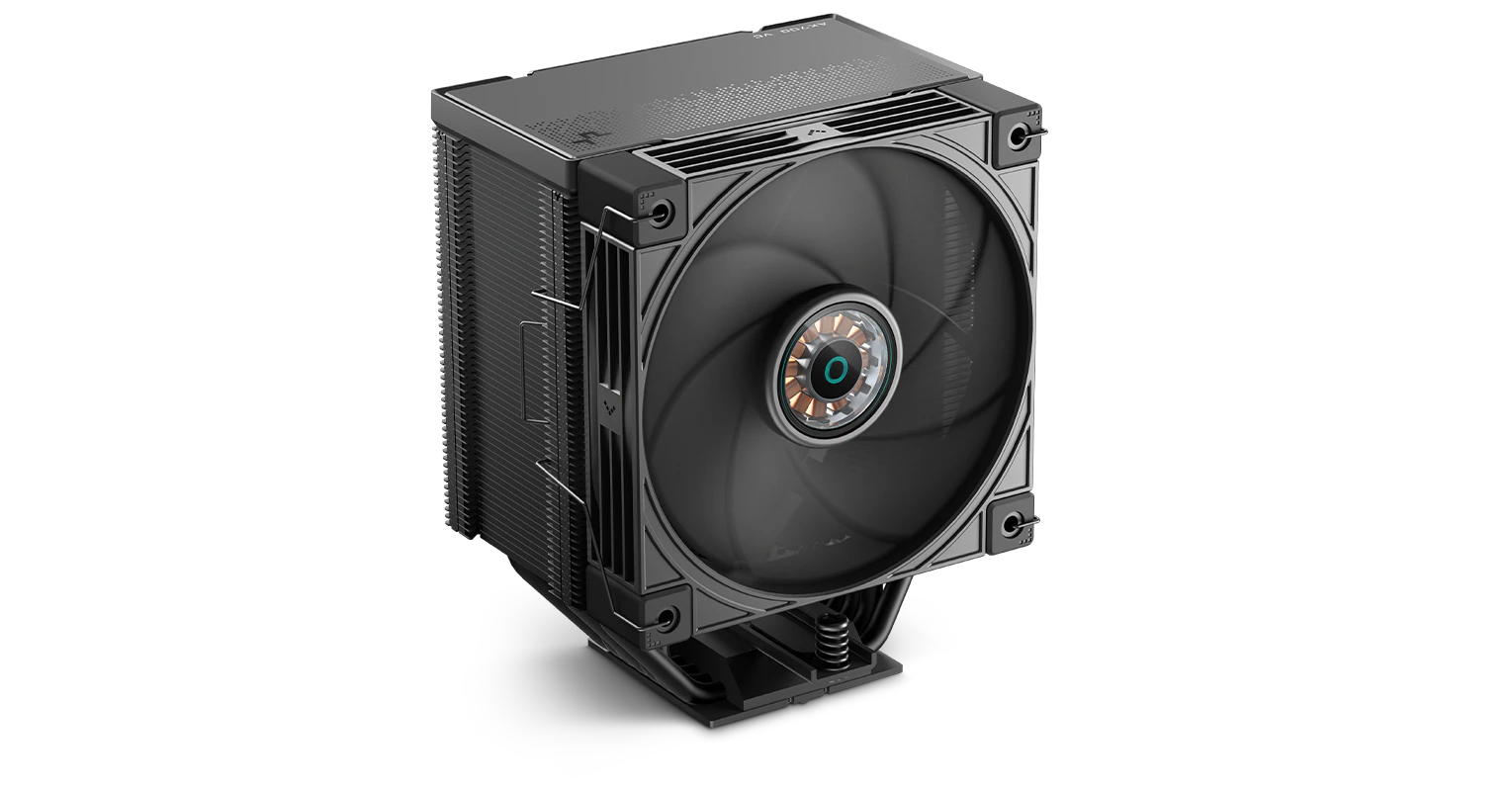

The AK700 VC pushes the legendary AK series to the next level. Armed with the second generation of vapor chamber base, seven advanced copper heat pipes, and a dense single-tower heatsink, it delivers enhanced heat transfer and greater cooling capacity for today’s most demanding CPUs.
MODEL
AK700 VC
PERFORMANCE UNBOUND
NEXT-GEN VAPOR CHAMBER POWER

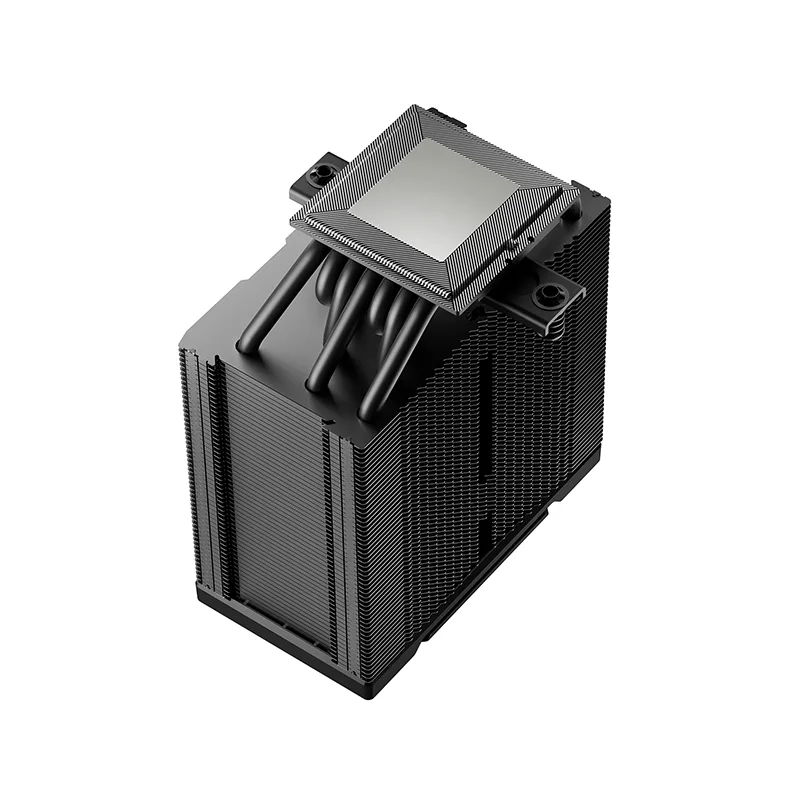

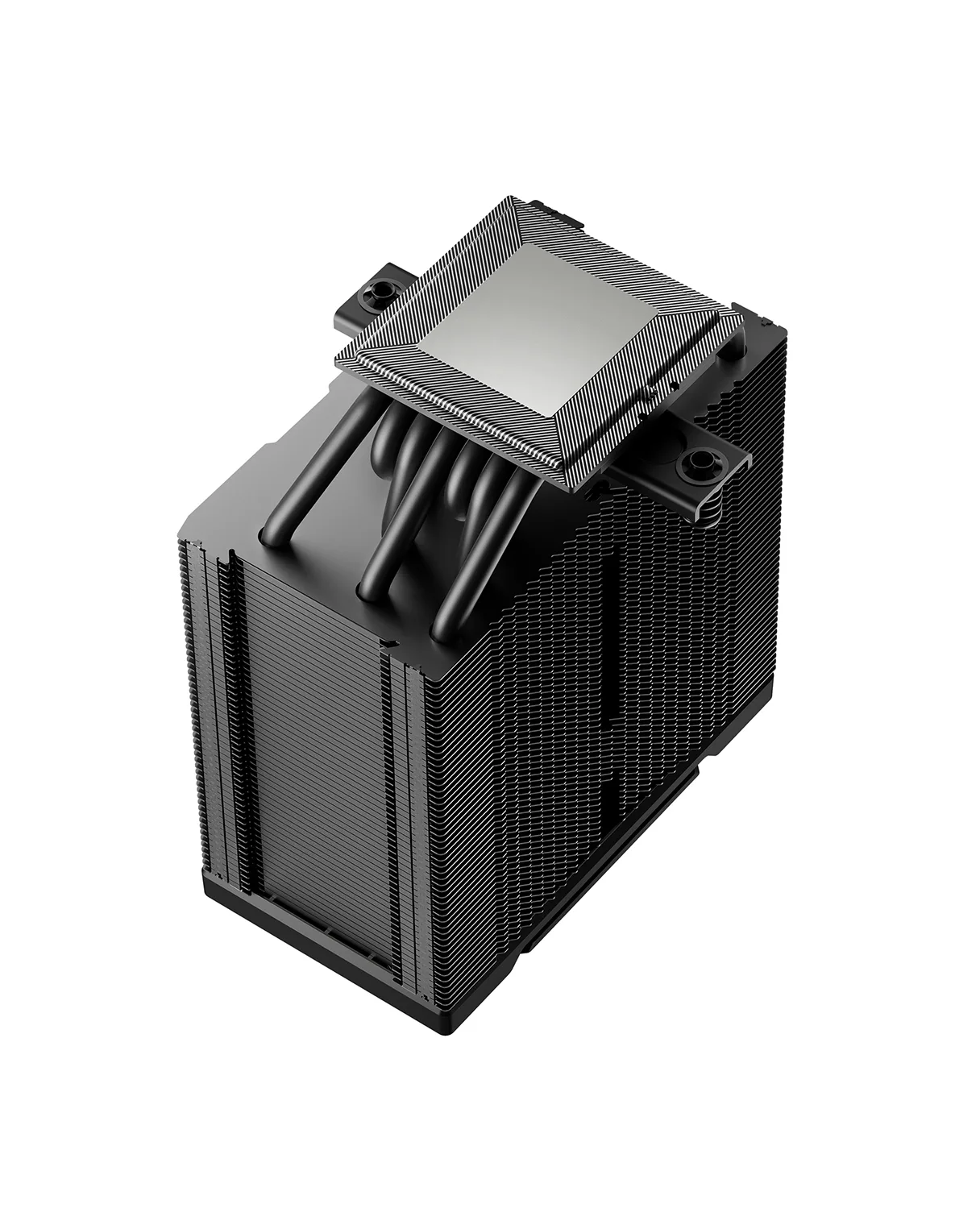

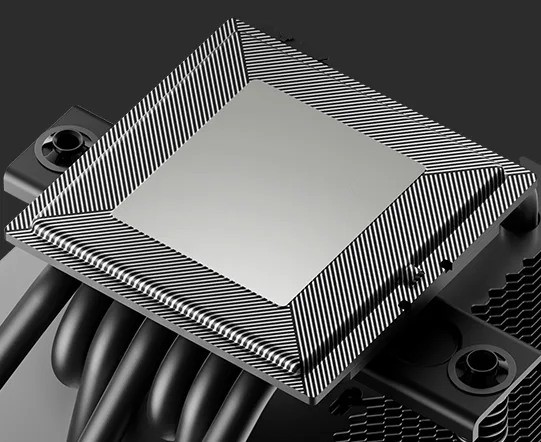

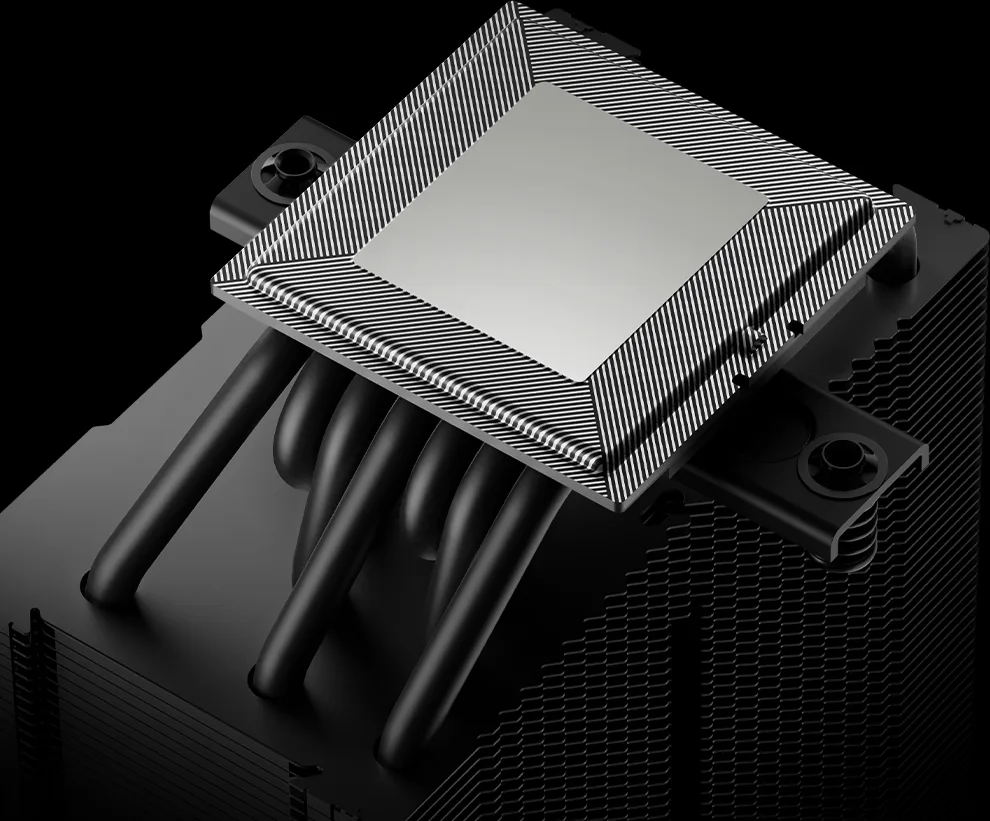

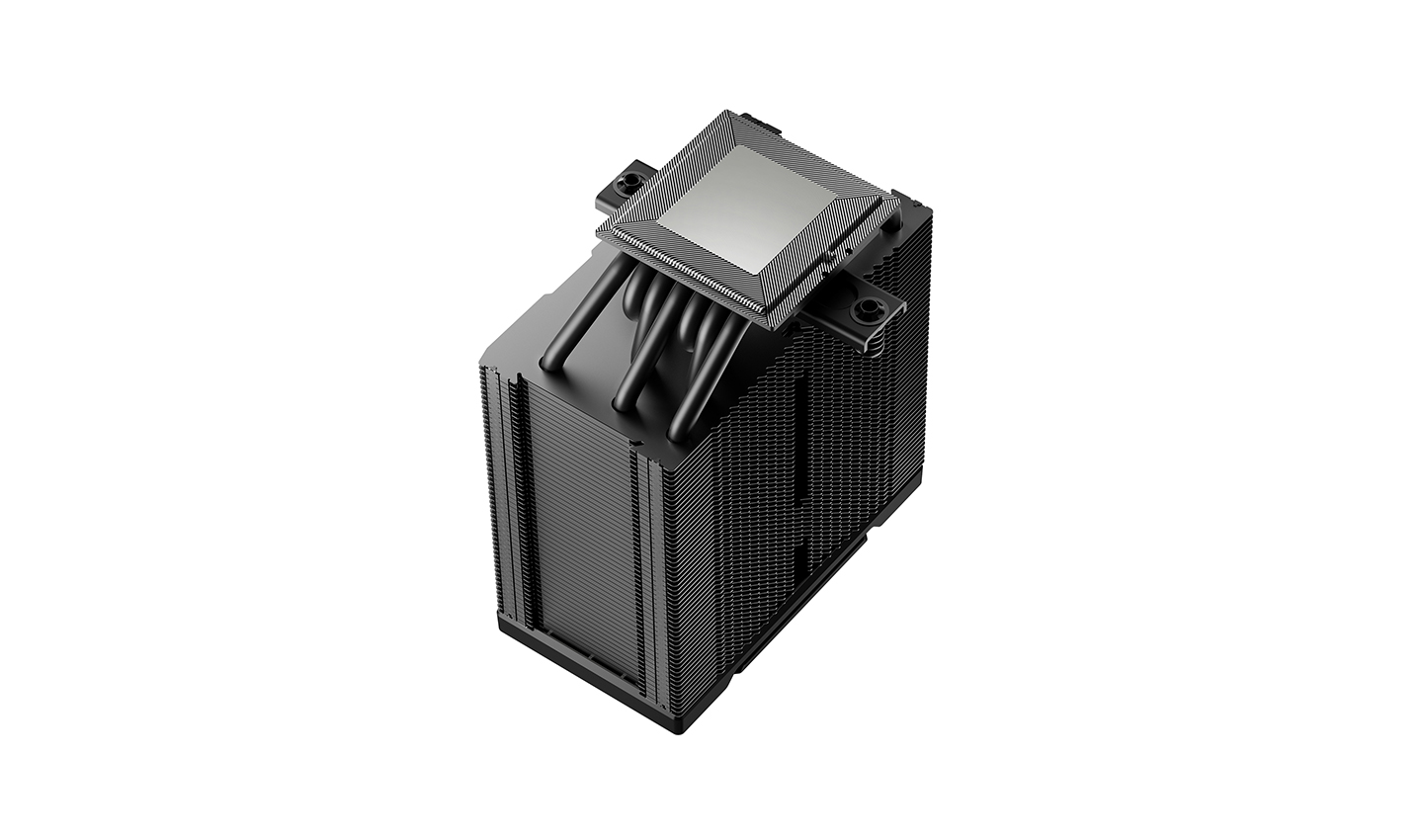

The AK700 VC features a next-generation vapor chamber base engineered to elevate thermal performance. With an expanded CPU contact surface, heat is absorbed more efficiently and spread evenly across the chamber, accelerating thermal transfer into the heat pipes and fin stack. This upgraded design brings stronger, more consistent cooling performance, enabling the AK700 VC to handle demanding workloads with greater stability and sustained efficiency.
ZERO INTERFERENCE!

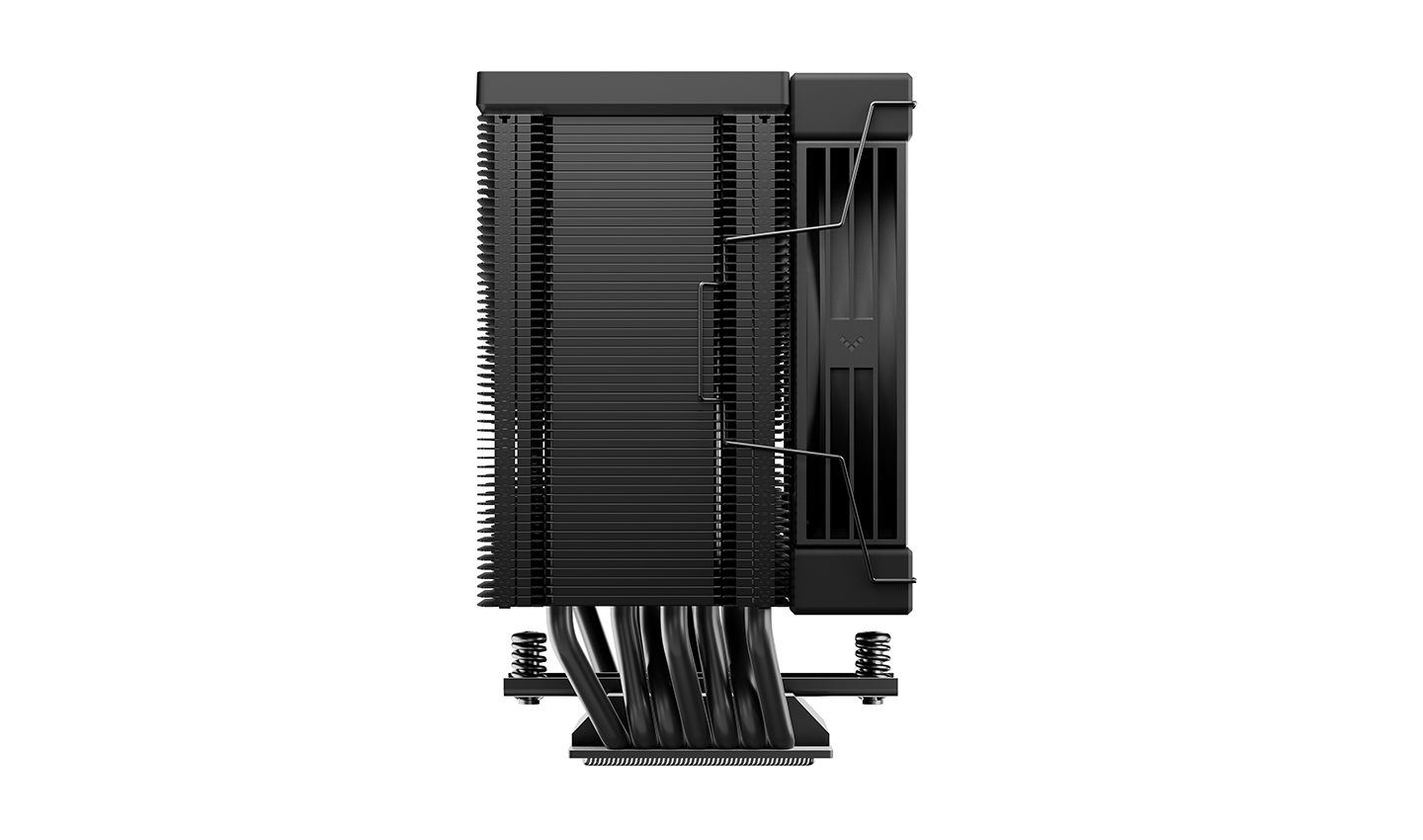

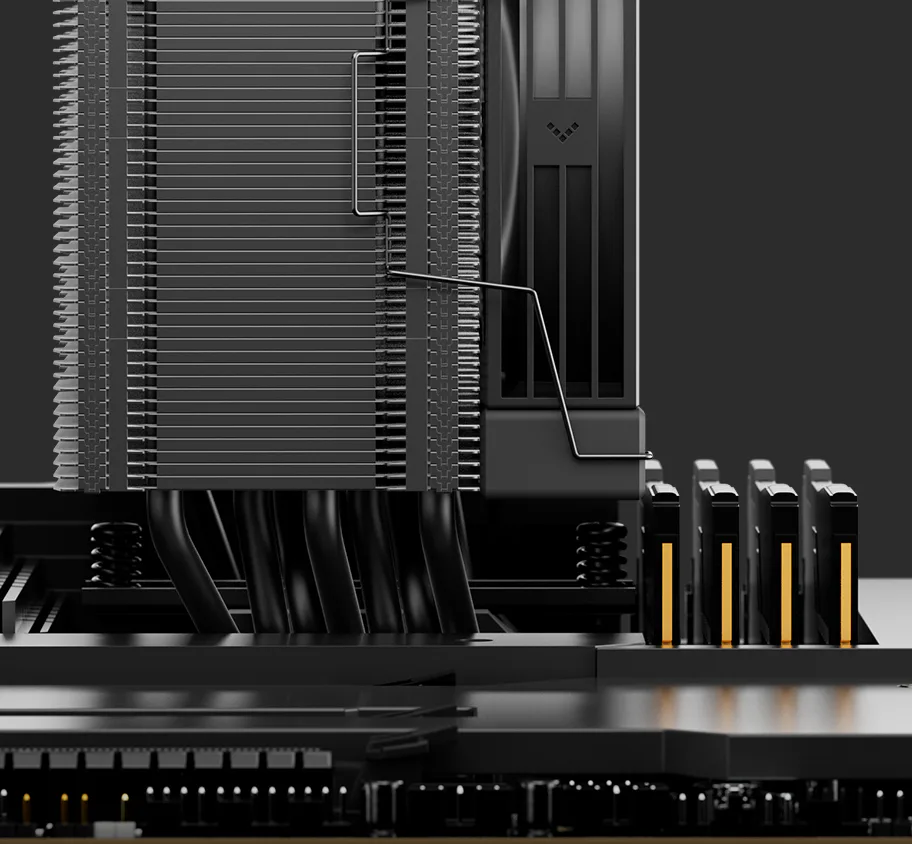

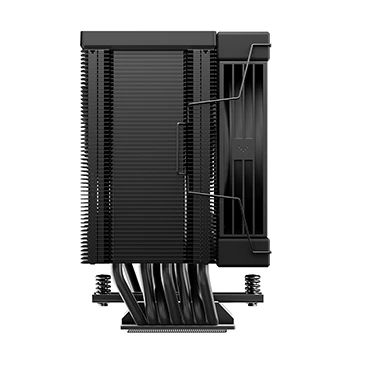

Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

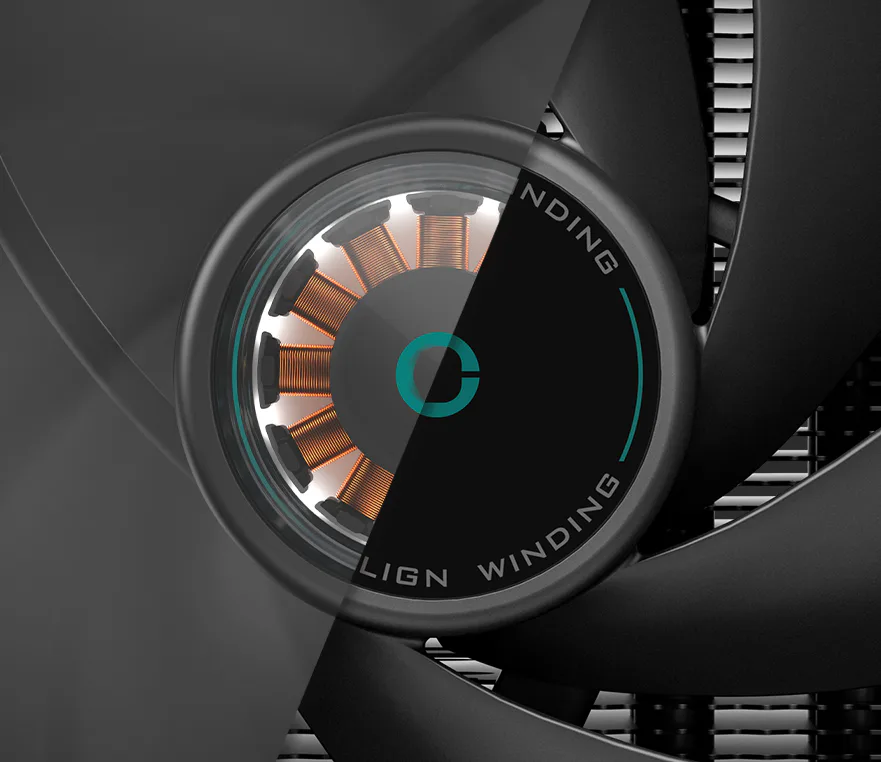

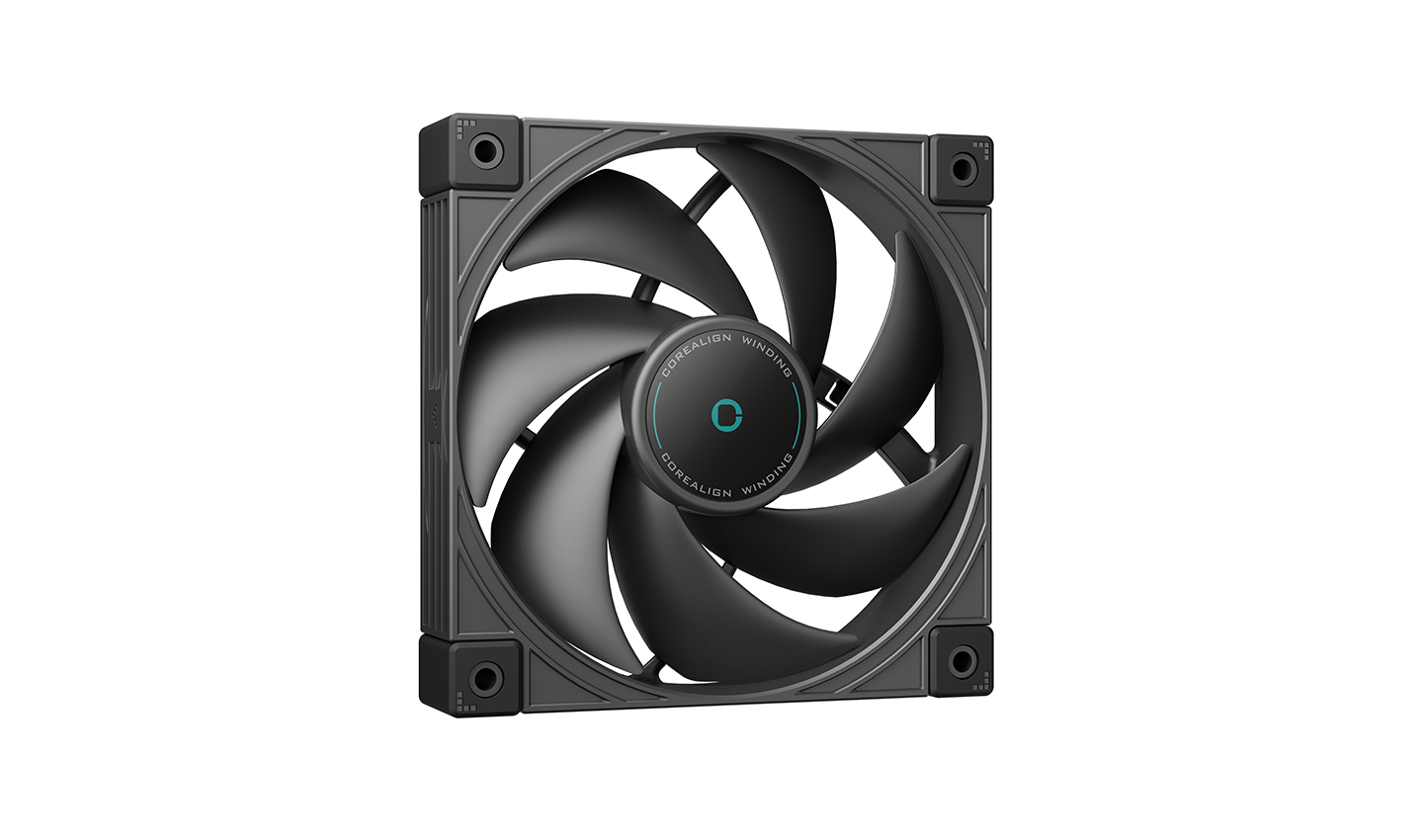

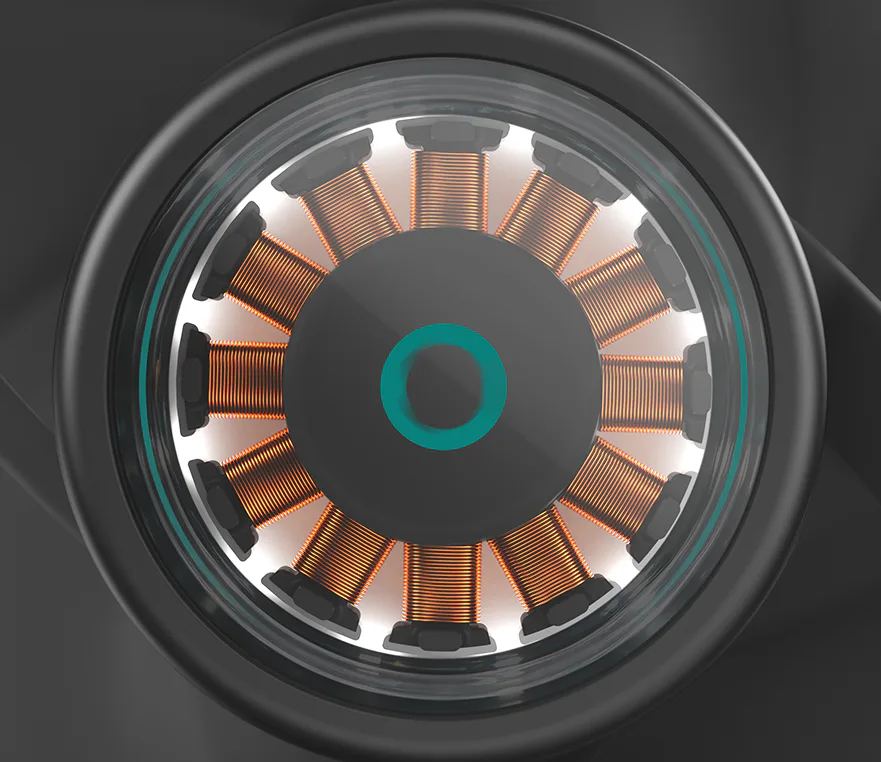

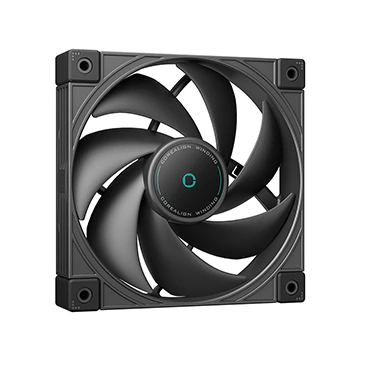

1. CoreAlign Winding for higher efficiency and reduced resonance

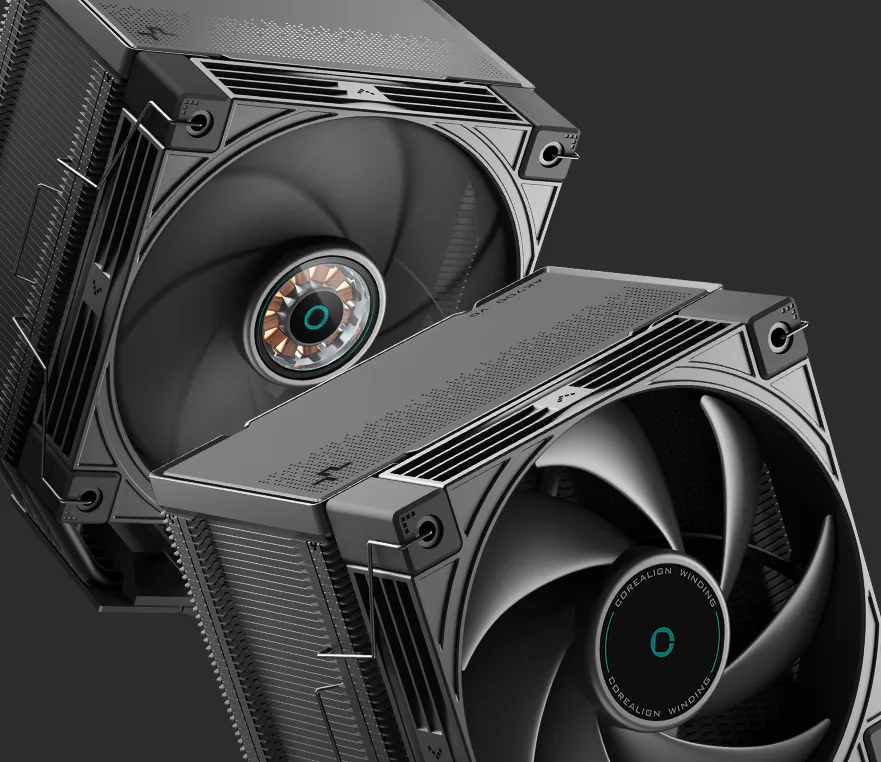

2. Mirror-to-Transparent Hub with dynamic visual transition
3. 12 White LEDs reveal internal motor detail
4. 0-RPM Startup/Stop for silent idle operation
PRECISION ENGINEERED SILENCE

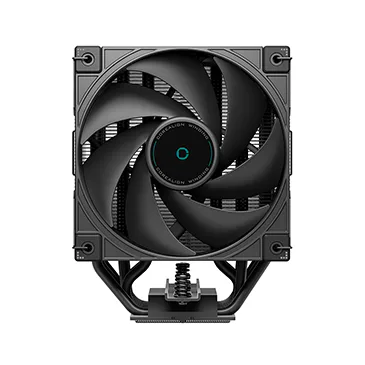

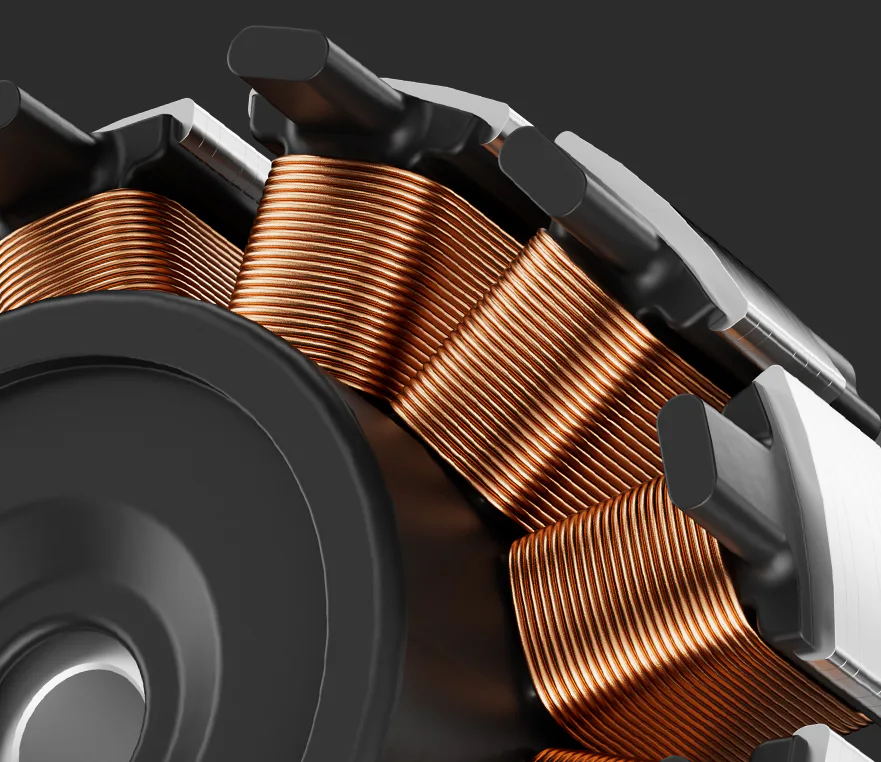

A key factor behind the AK700 VC’s refined acoustic performance is its advanced 3-phase, 10-pole, 12-slot fan motor, delivering smoother rotational torque, reduced vibration, and higher efficiency. Each fan meets ISO 1940 G6.3 balance standards and undergoes high-precision dynamic balancing tuning, ensuring exceptionally stable rotation, reduced resonance, and long-term reliability.
2700±10% RPM(max)
Fan Speed
80.37 CFM
Fan Airflow
4.98 mmAq
Fan Air Pressure
36.0 dB(A)
Fan Noise
EXCEPTIONAL BY DESIGN

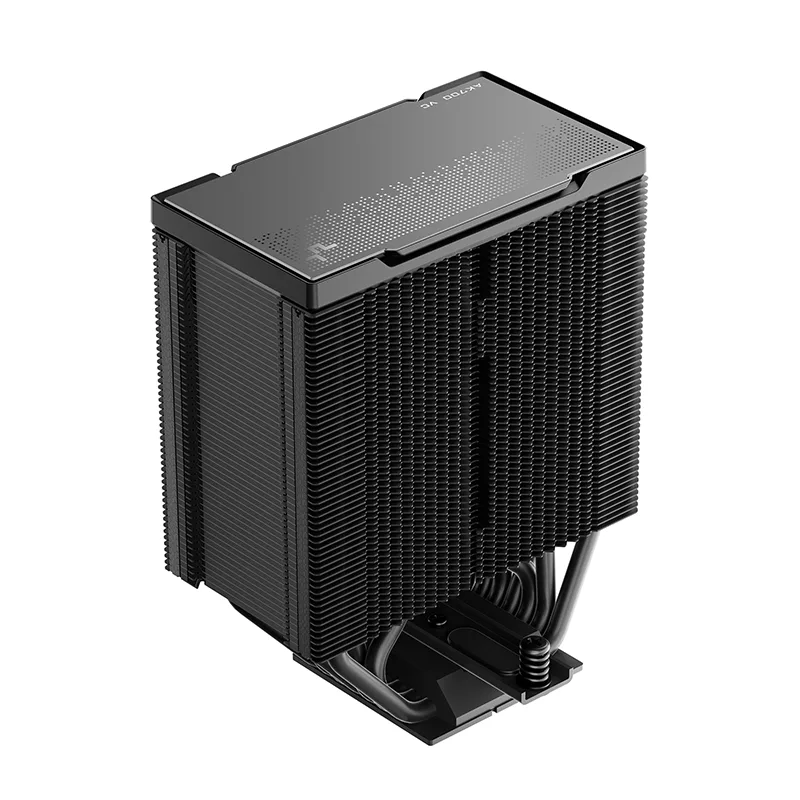

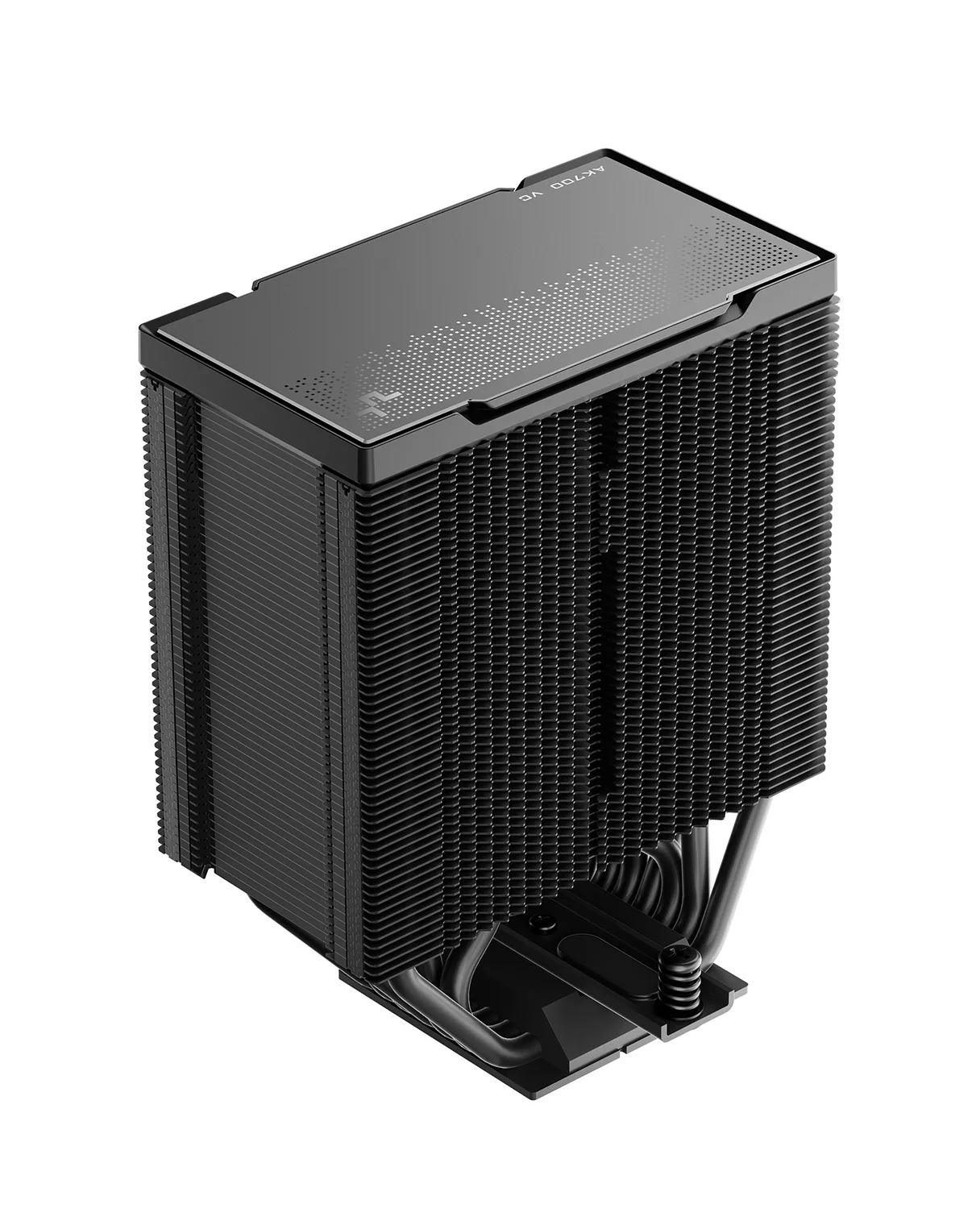

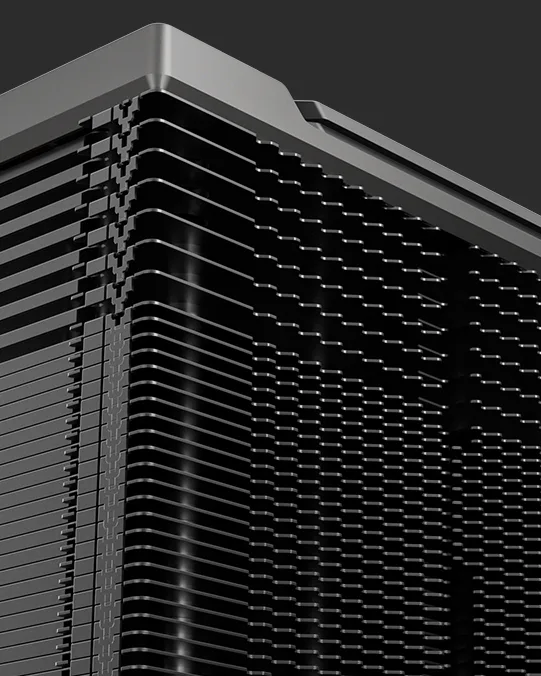

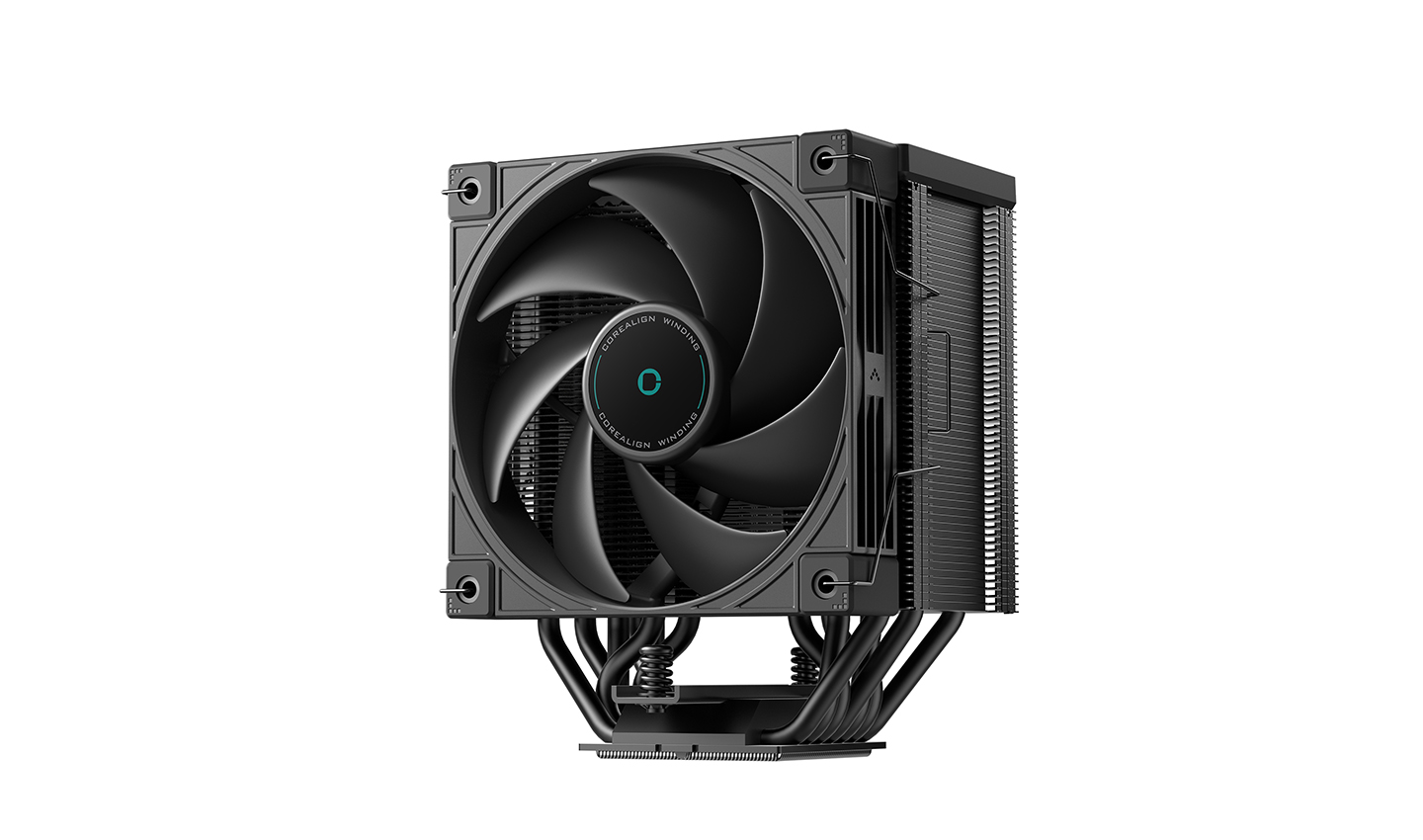

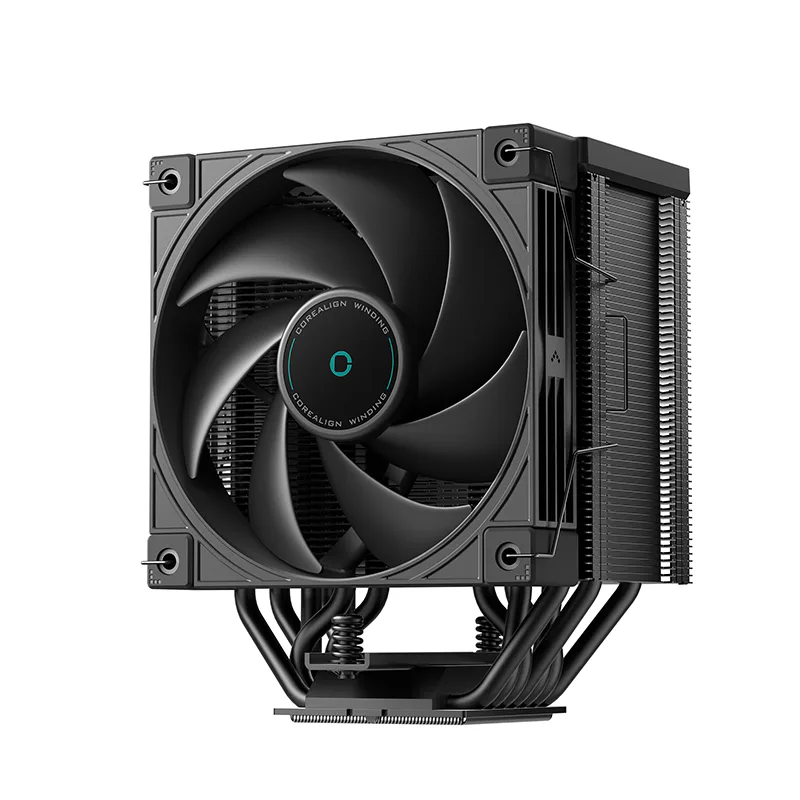

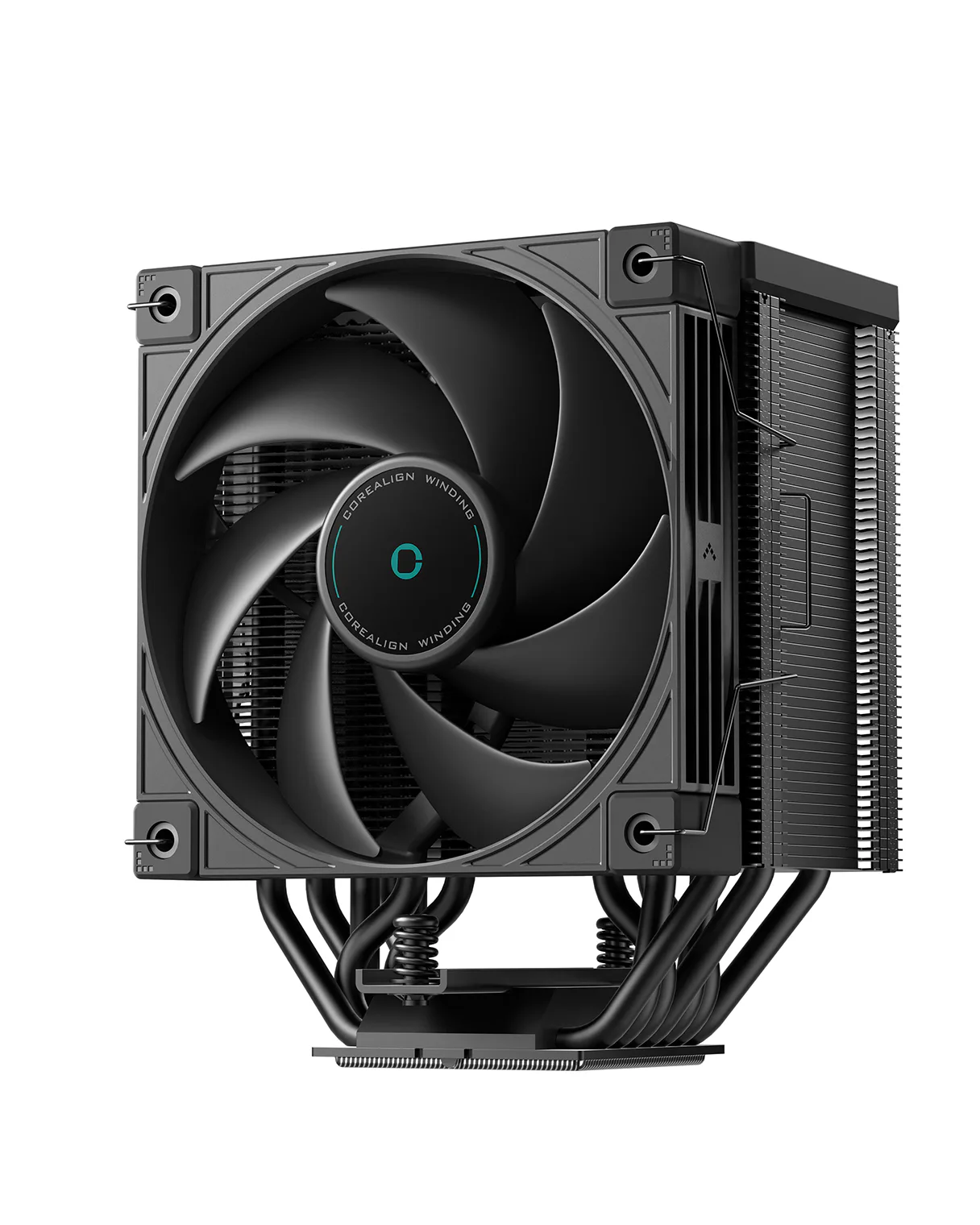

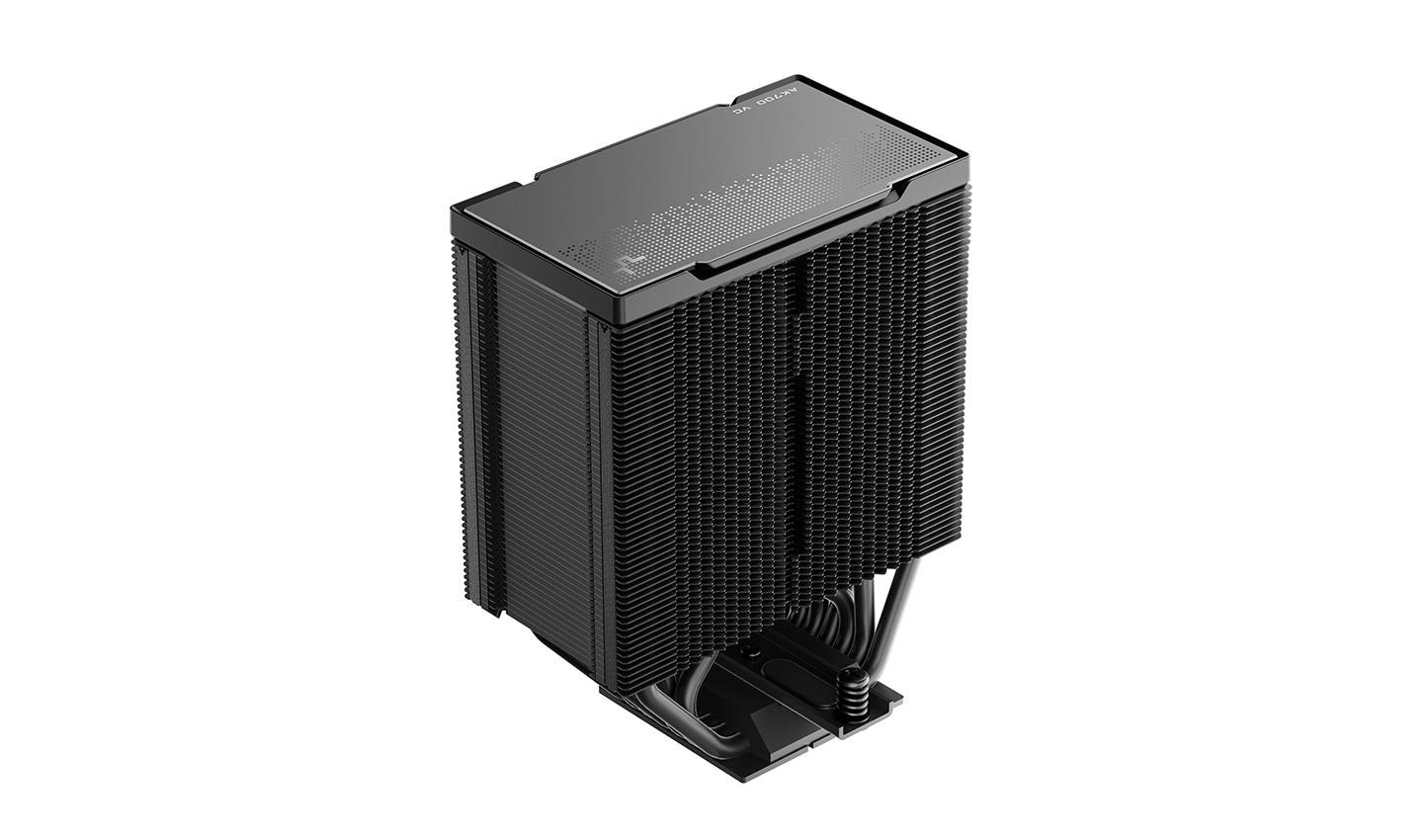

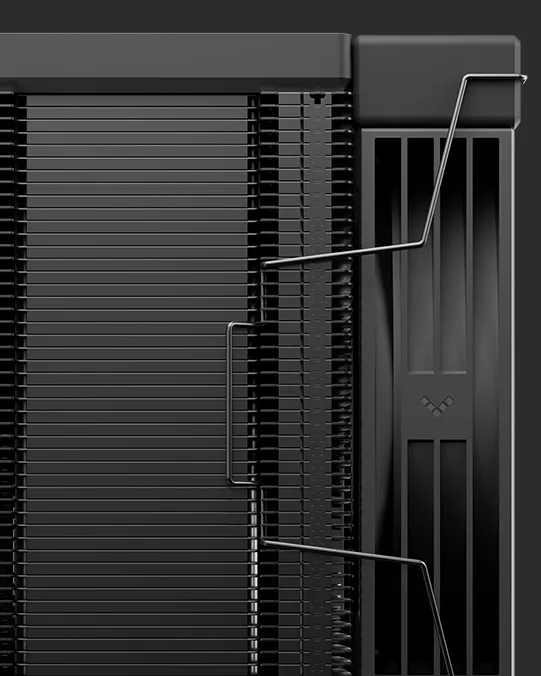

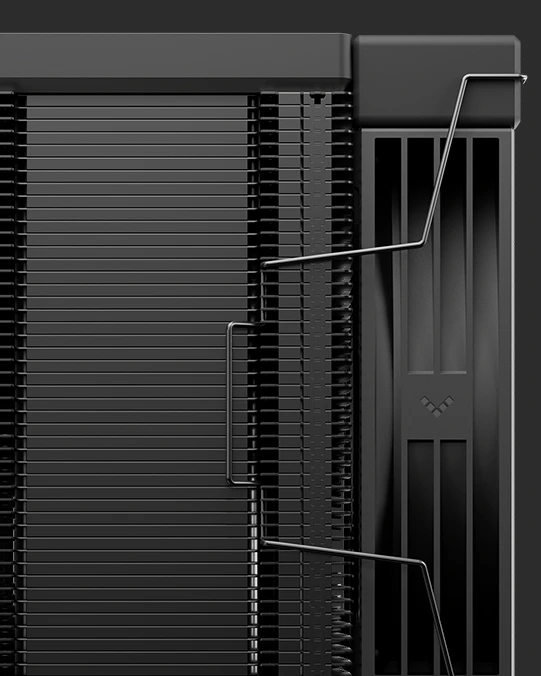

Driven by a second-generation vapor chamber and seven heat pipes, the AK700 VC delivers exceptional heat transfer through a dense single black-coated fin tower. Topped with a CNC precision-machined anodized aluminum cover, it combines high-performance cooling with a distinctly premium, elevated design.
STREAMLINED INSTALLATION

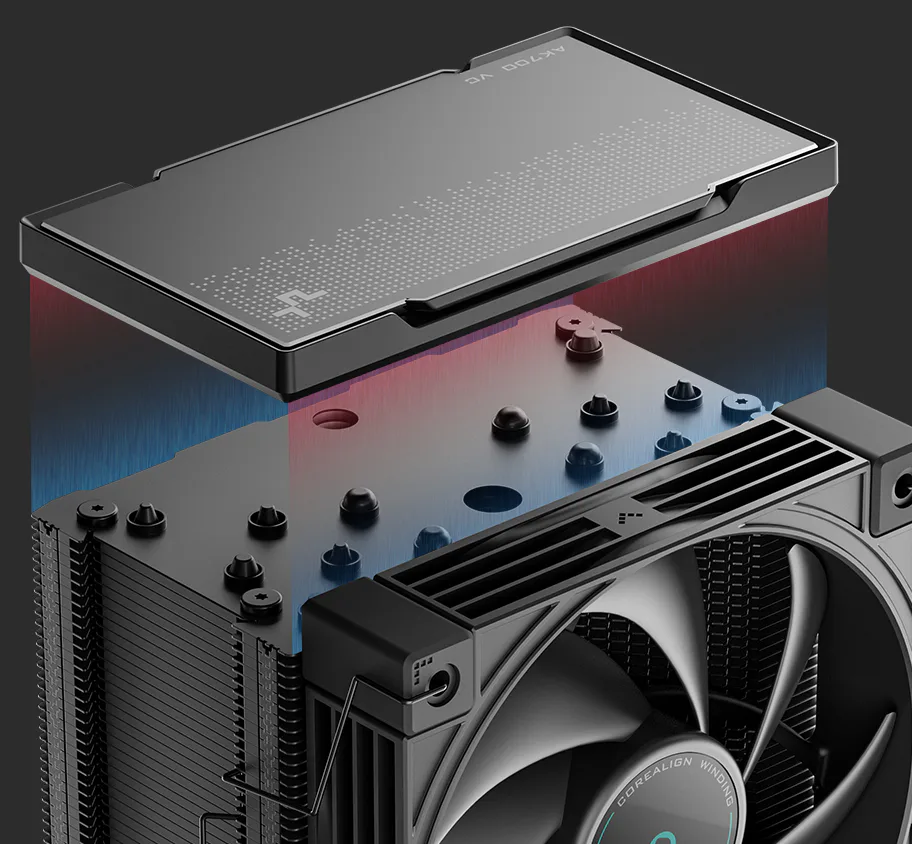

The AK700 VC features a magnetic top cover that makes installation easier and more convenient, allowing users to quickly access and secure the cooler without extra hassle.
MULTI-PLATFORM PERFORMANCE

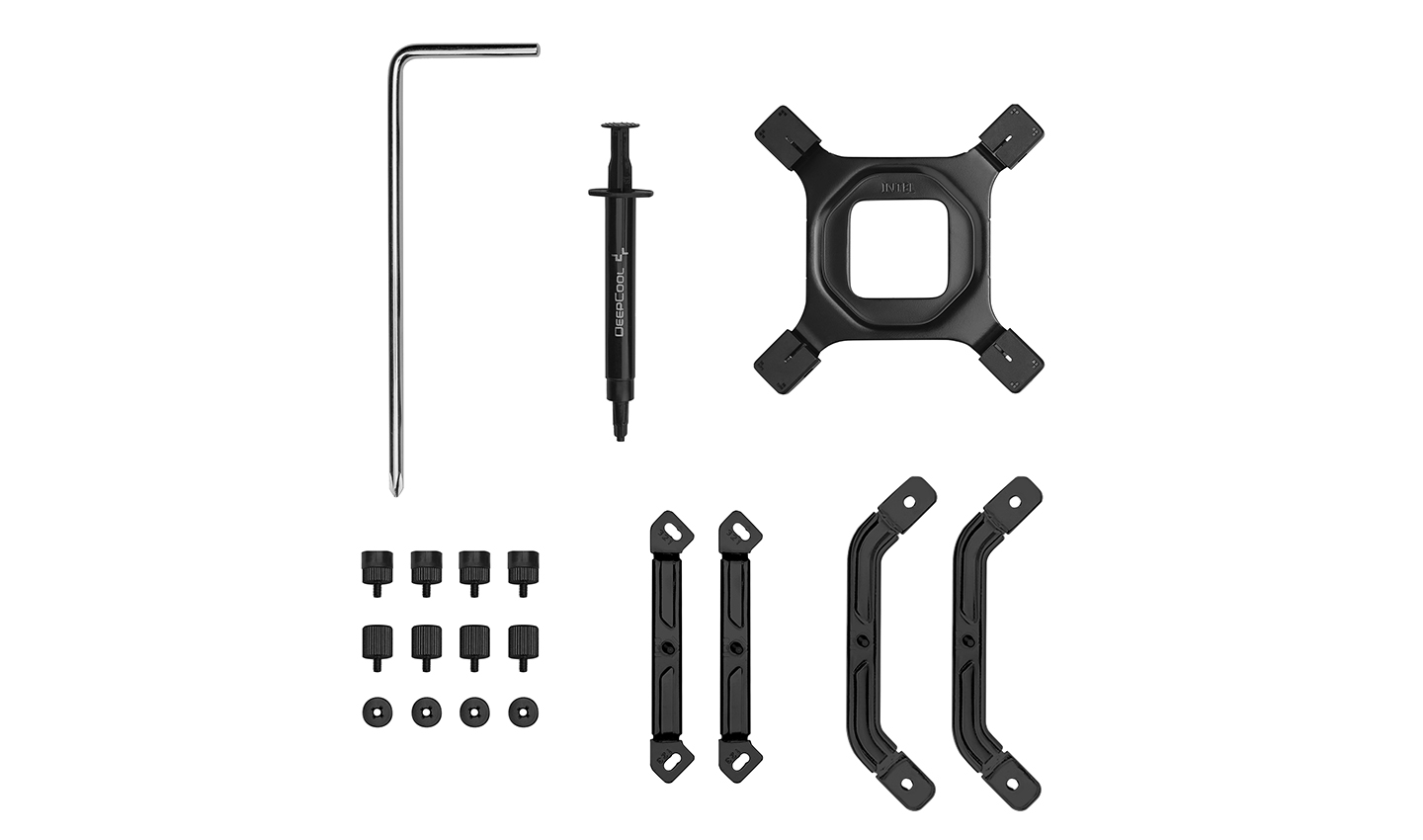

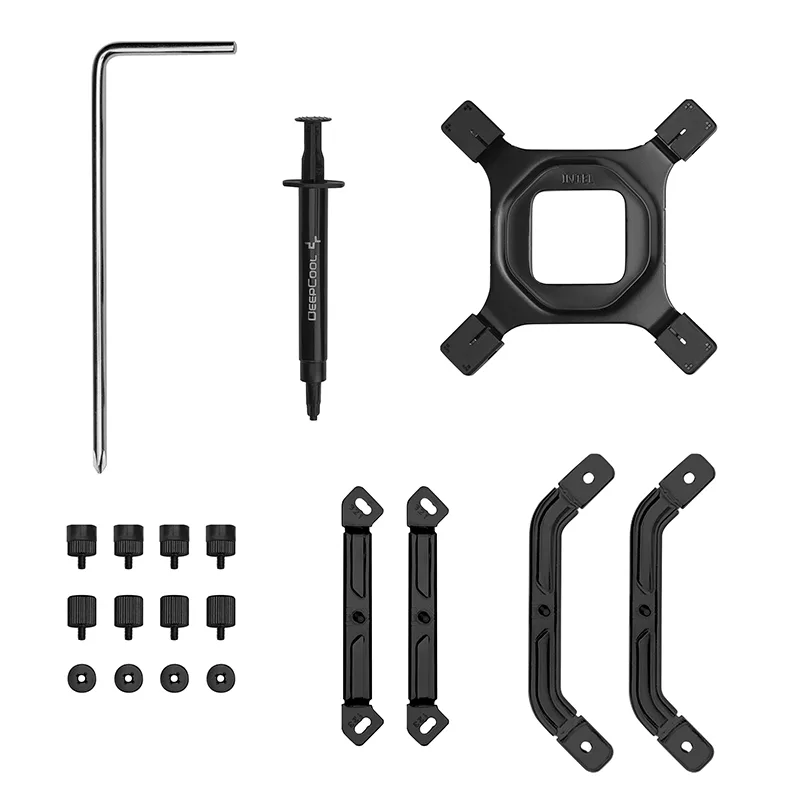

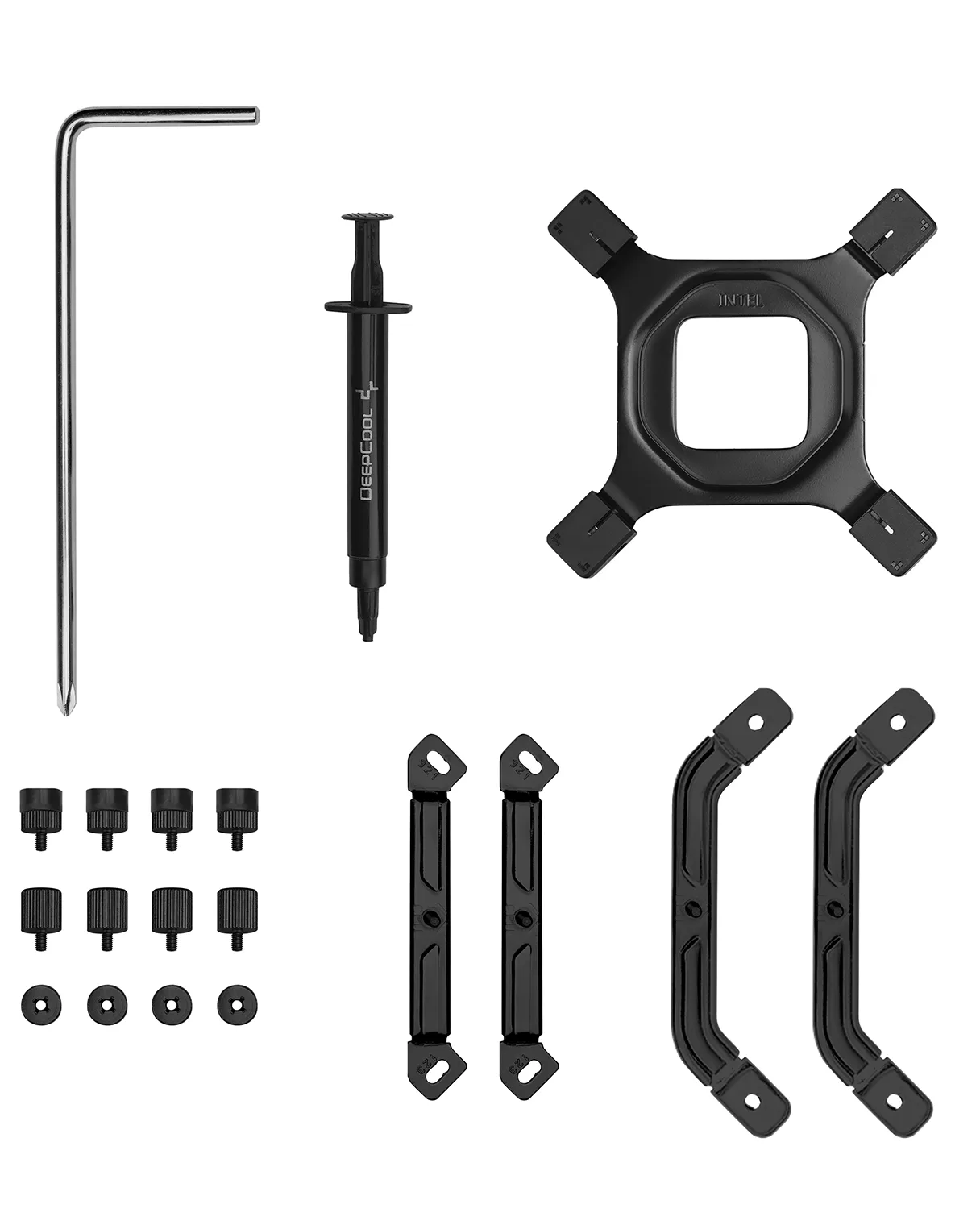

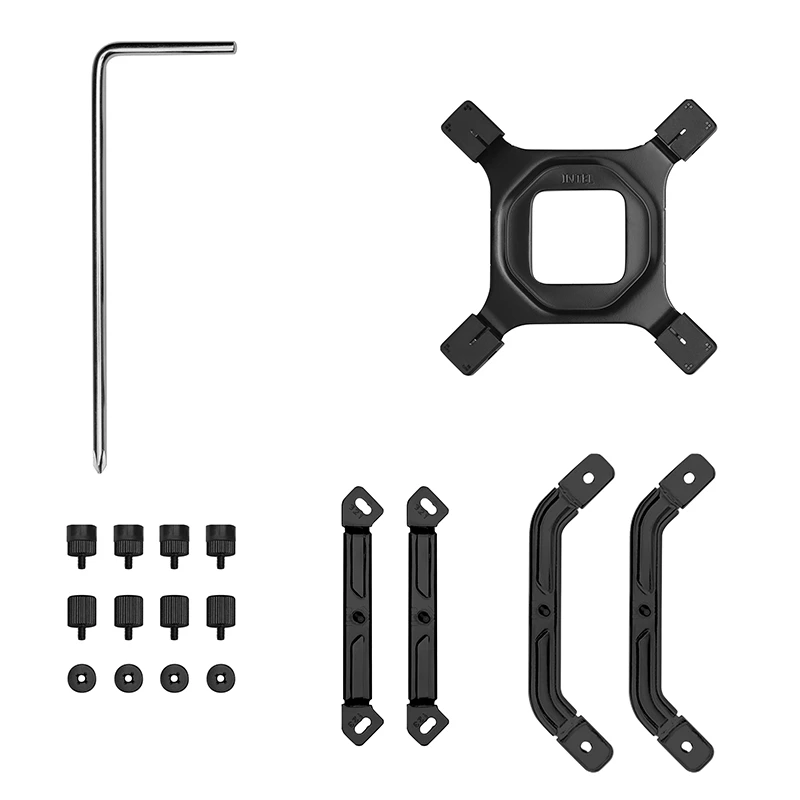

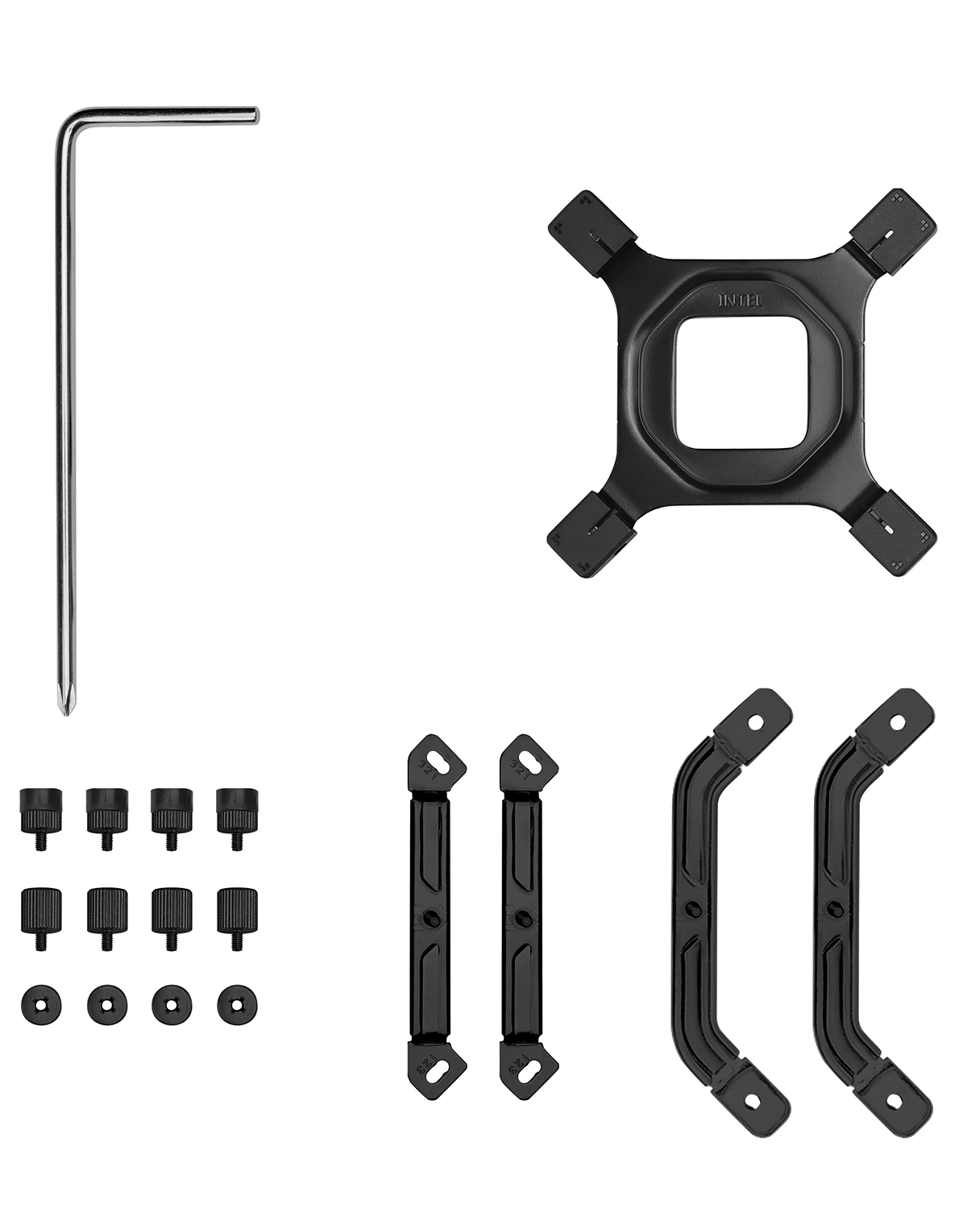

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Intel: LGA1851/1700/1200/115X
AMD: AM5/AM4
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions126×98×157 mm(L×W×H)
Heatsink Dimensions124×76×151 mm(L×W×H)
Net Weight1248 g
HeatpipeØ6 mm×7 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed2700±10% RPM(max)
Fan Motor3-phase，12-slot，10-pole
Fan Airflow80.37 CFM
Fan Air Pressure4.98 mmAq
Fan Noise36.0 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.41 A
Fan Power Consumption4.92 W
EAN6933412730385
P/NR-AK700VC-BKNNMN-GJD
Download
AK700 VC Manual.pdf
