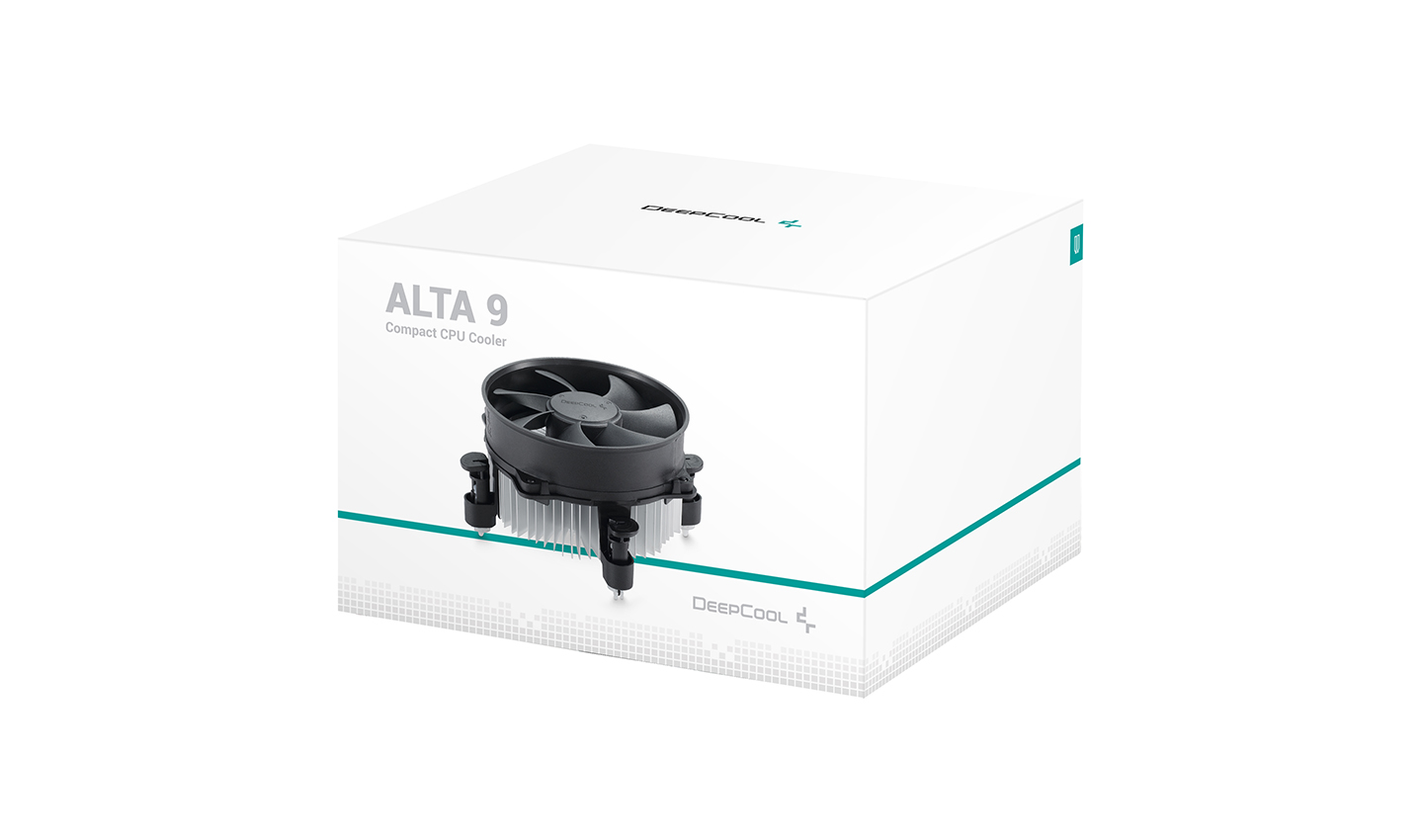

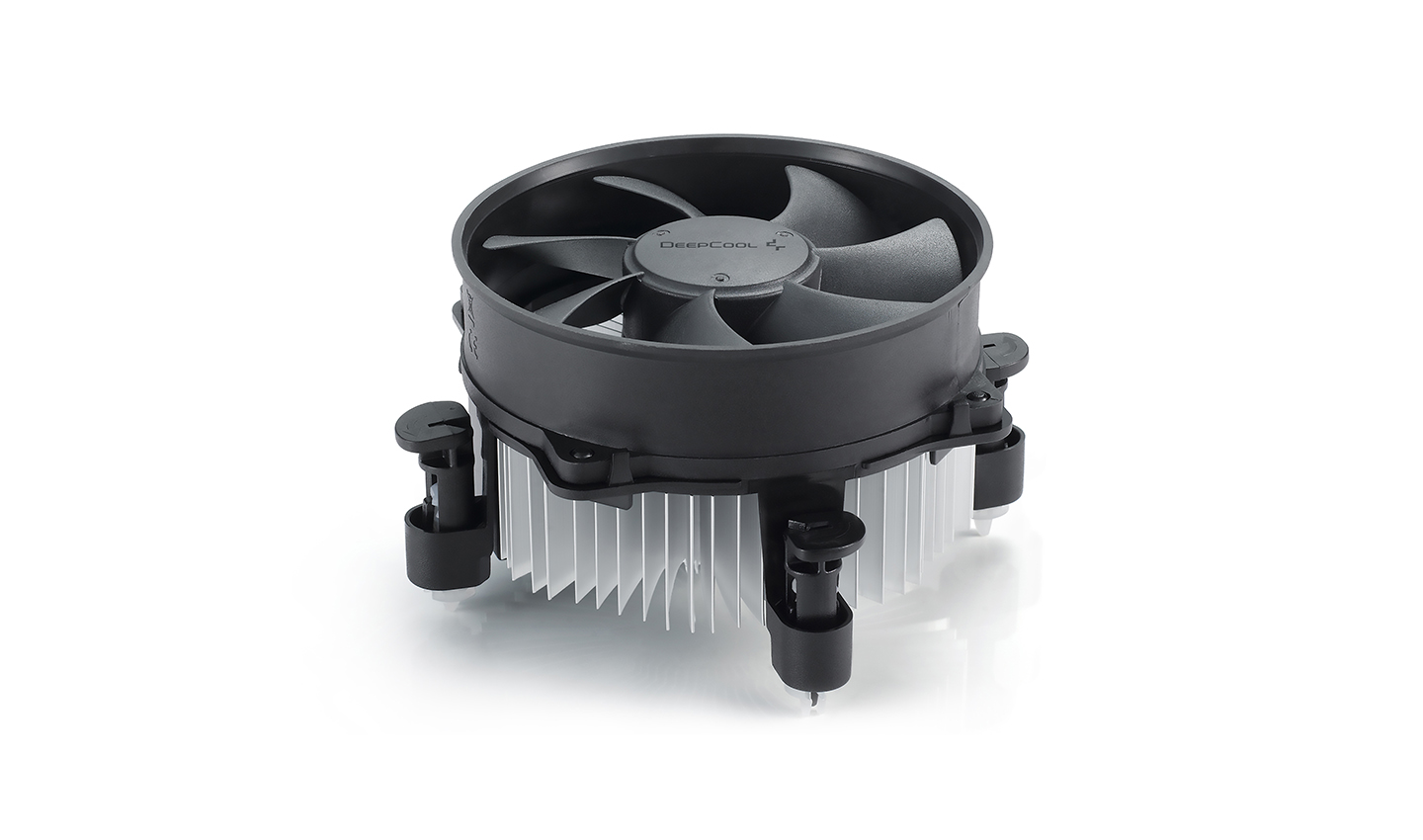

ALTA 9
MODEL
Ideal thermal solution for Intel LGA775, LGA1155 and LGA1156.

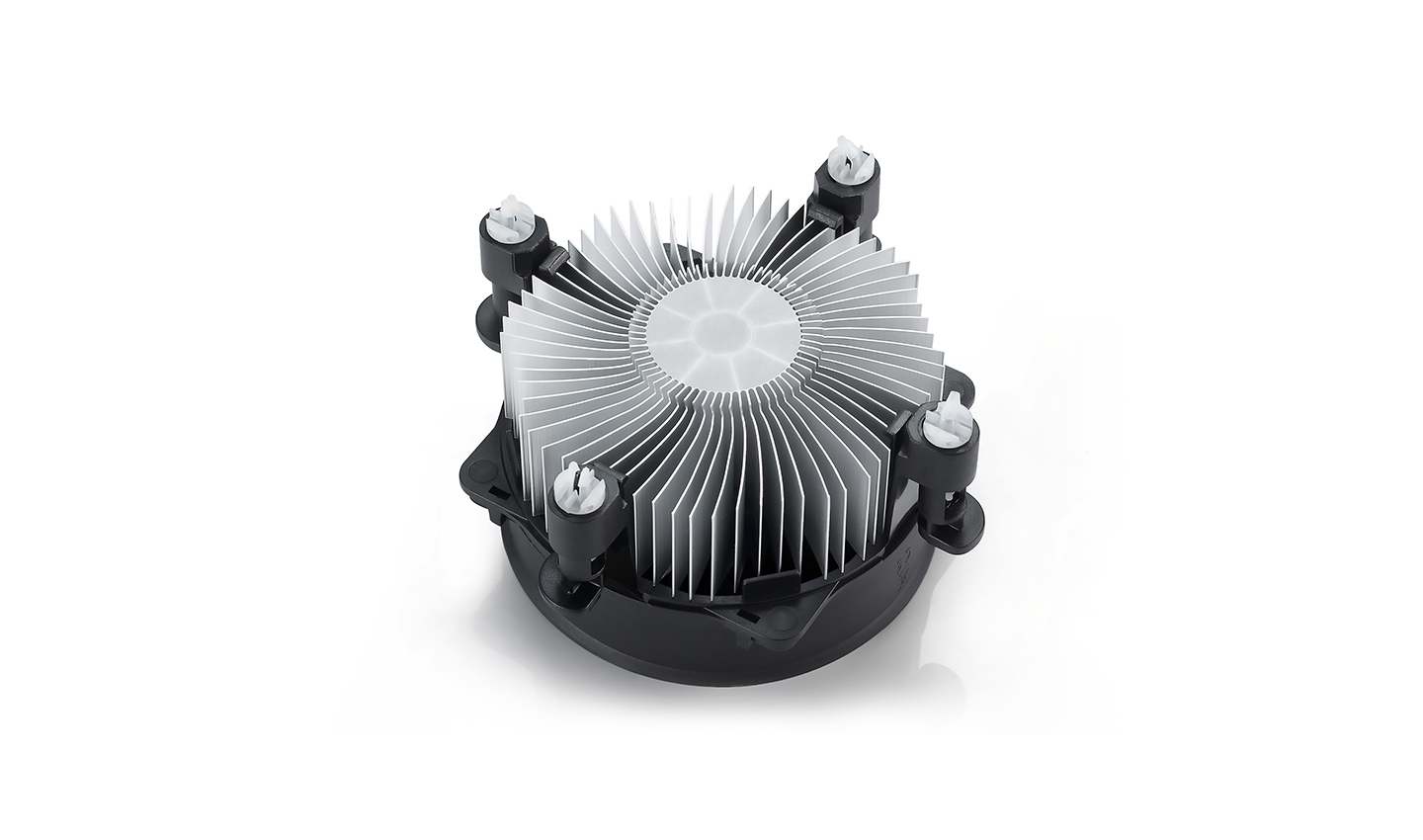

Radial heatsink with Ф92 mm fans for highly efficient heat dissipation.
Push-pins for easy installation.
Application For
Intel
LGA1200/1151/1150/1155/775
Technical Spec
Overall Dimension 113X113X58.5 mm(L×W×H)
Fan Dimension Ф92X25 mm
Net Weight 208g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.20±10%A
Power Input 2.4W
Fan Speed 2200±10%RPM
Max. Air Flow 42.35CFM
Noise 26.3dB(A)
