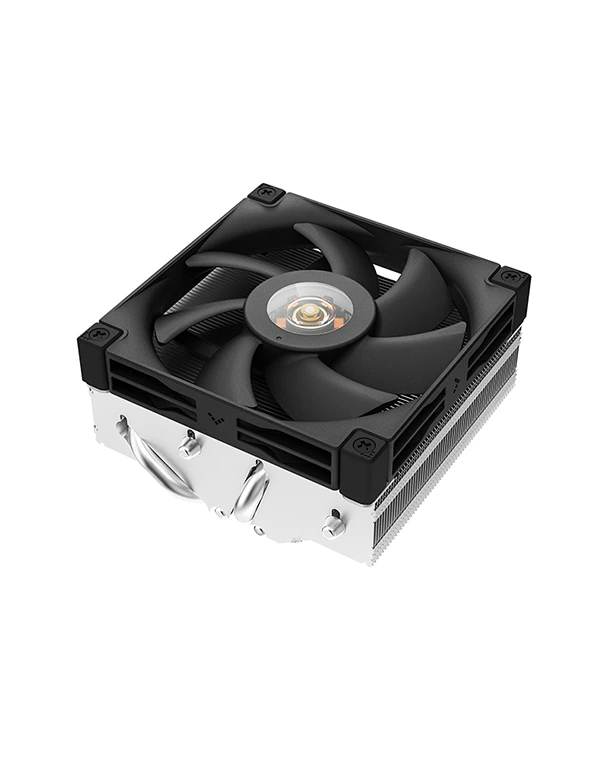

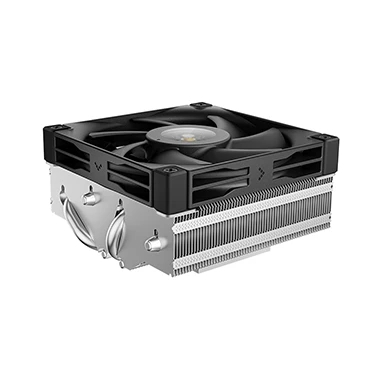

AN400

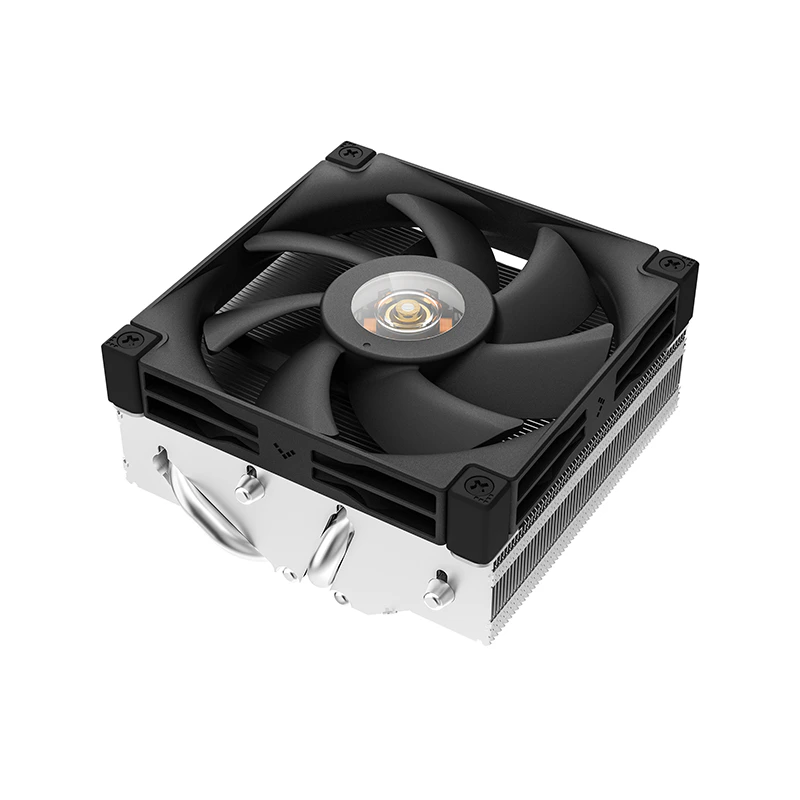

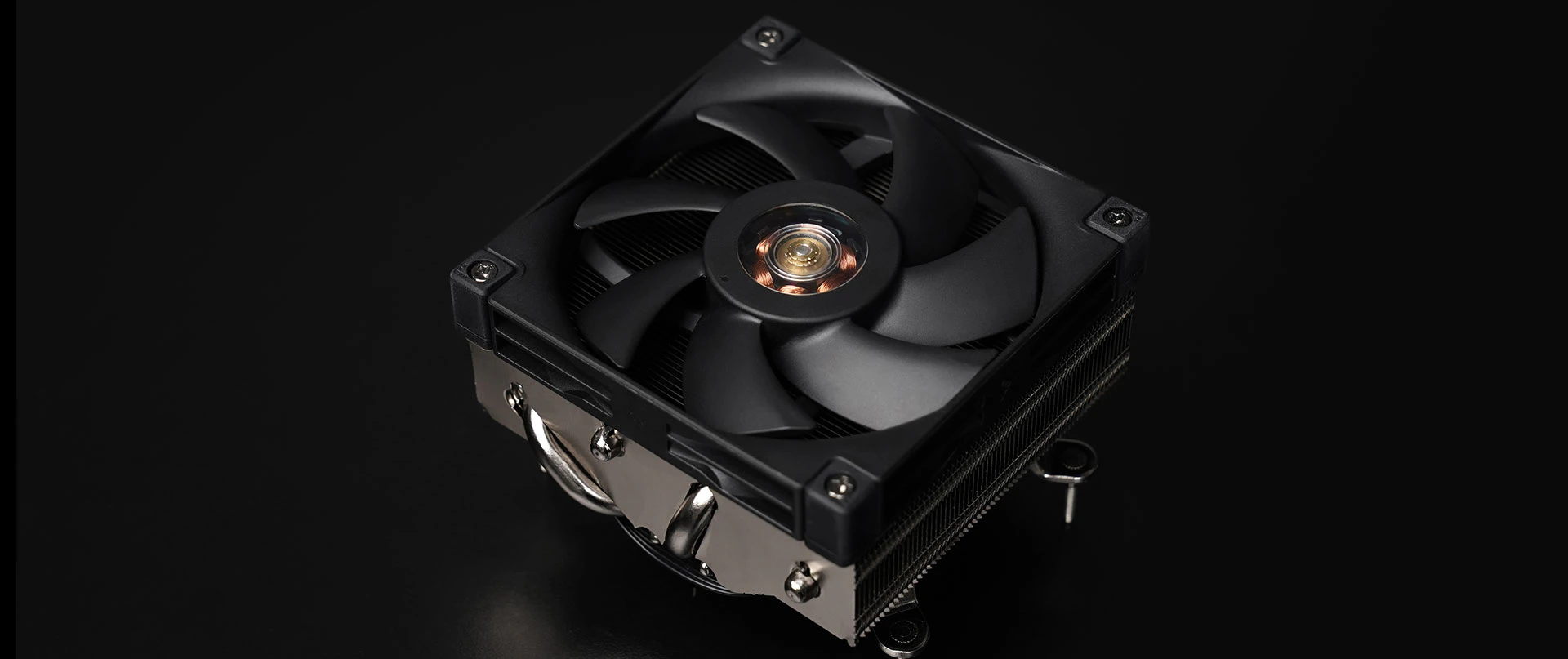

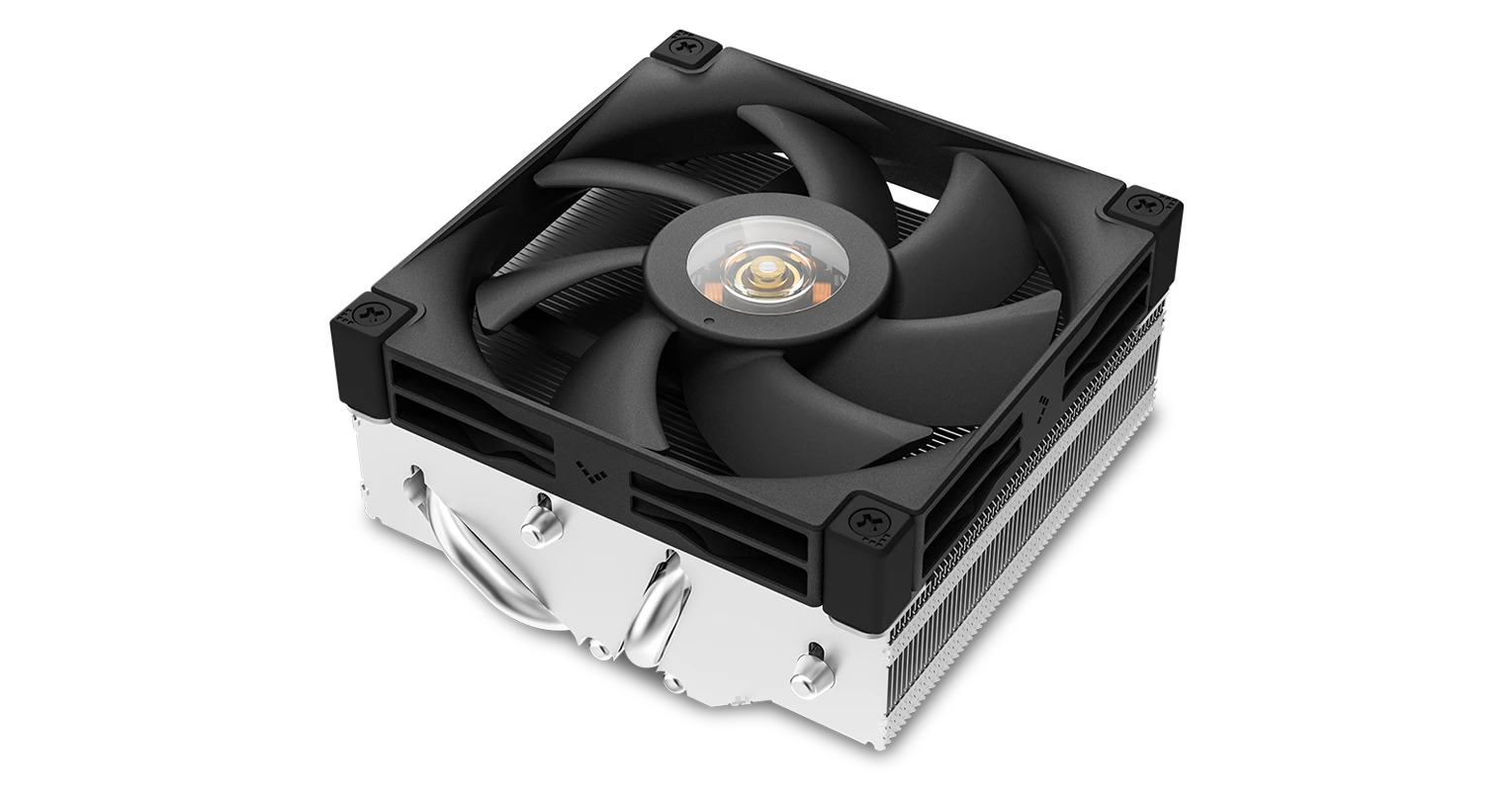

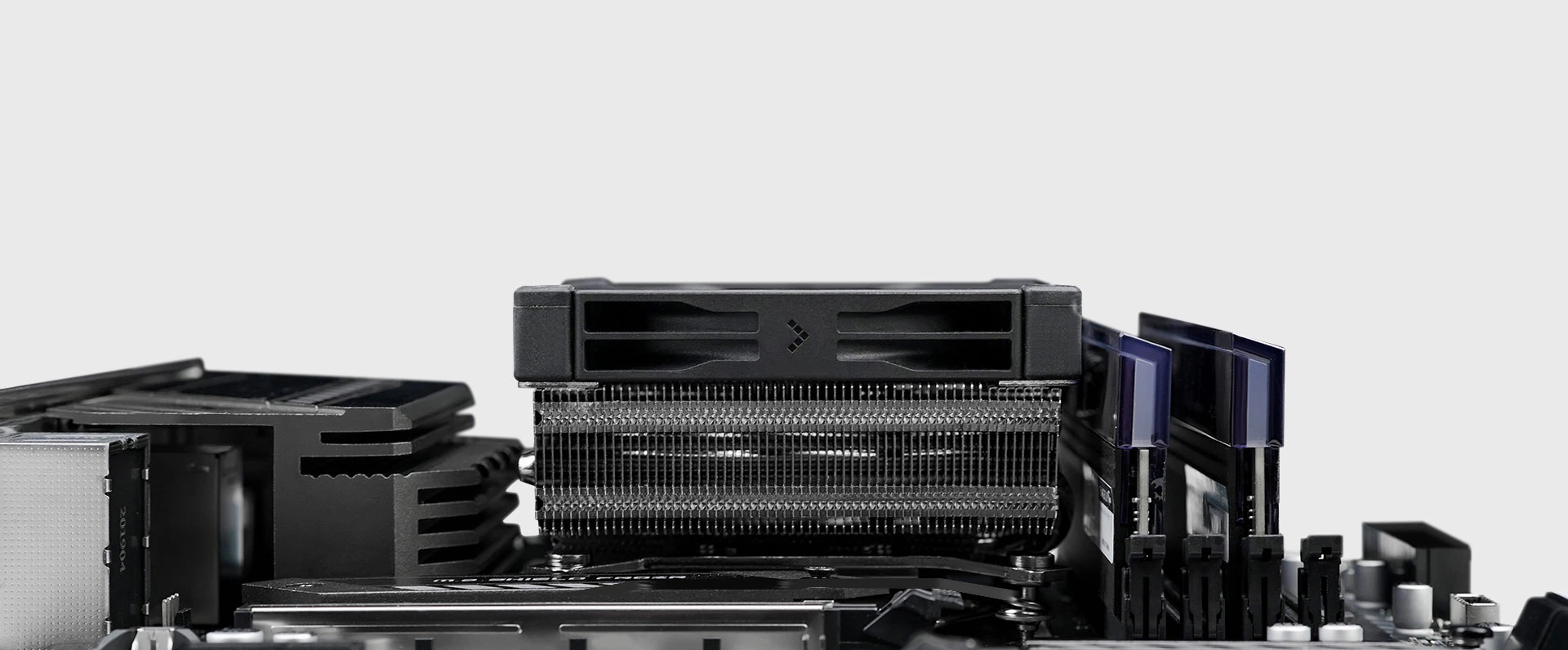

The AN400 is a 4-heatpipe low-profile air cooler that provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM modules, and a top-down air flow, the AN400 is a great option for everything down to small ITX builds.
MODEL
AN400
Top Flow Low Profile Cooler
Compact And Feature Rich

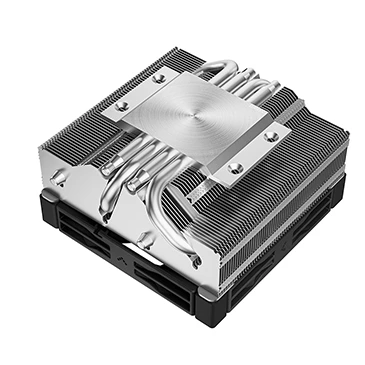

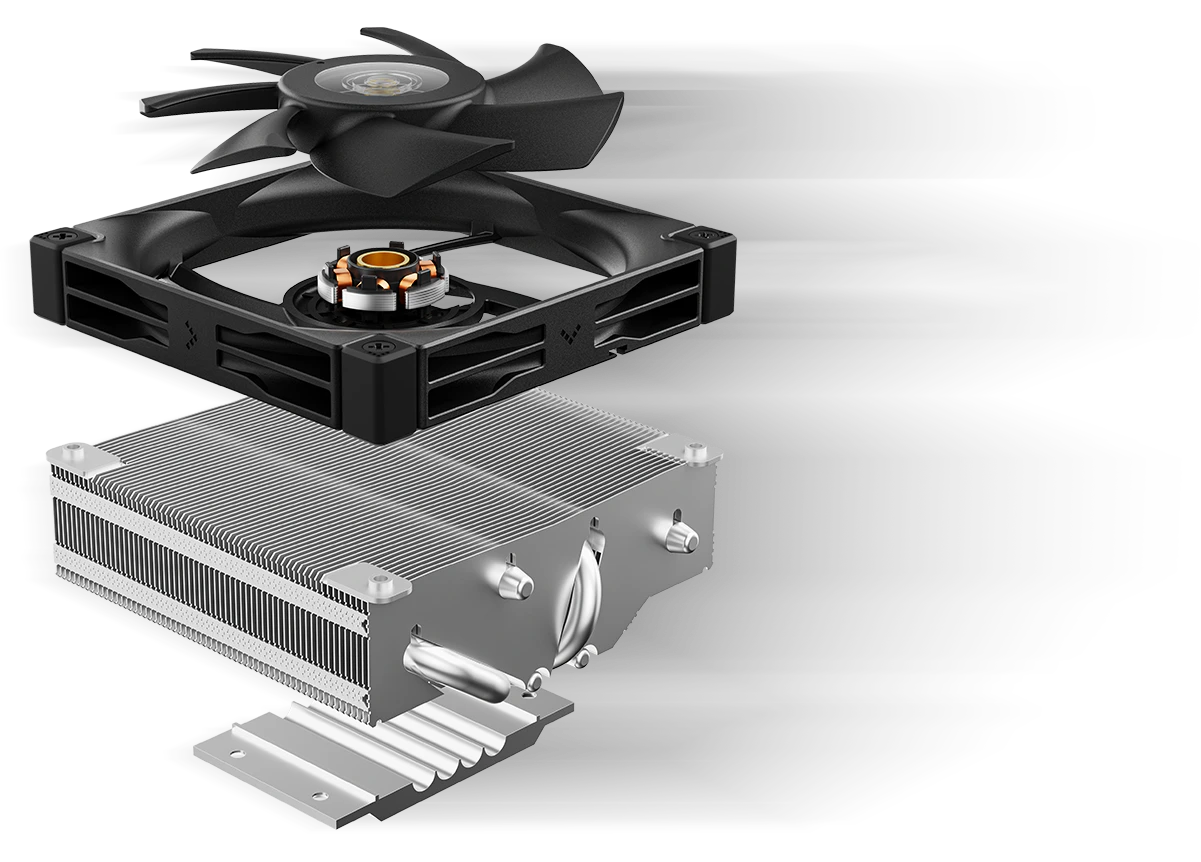

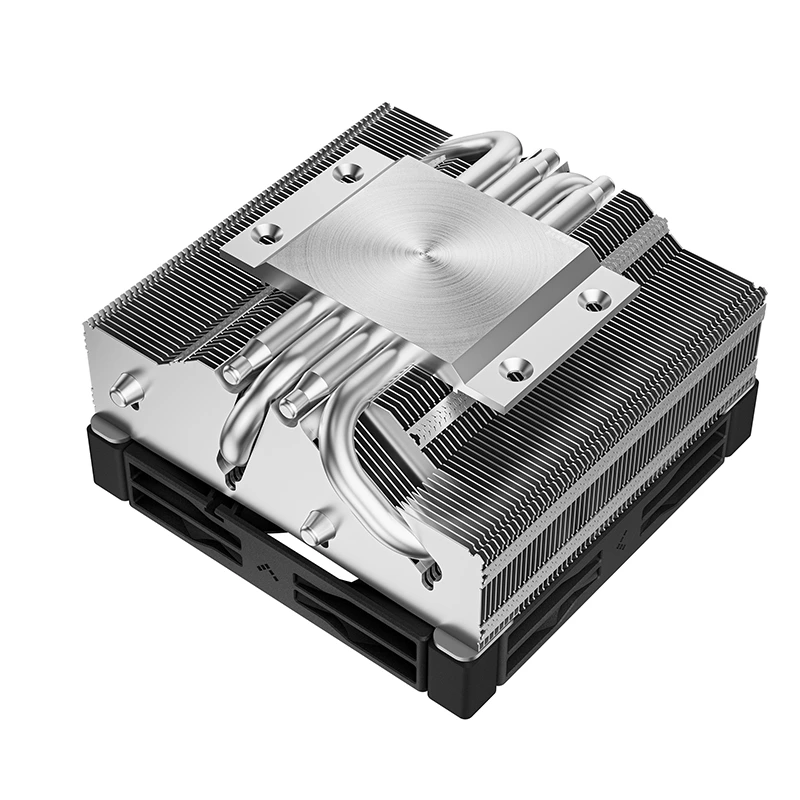

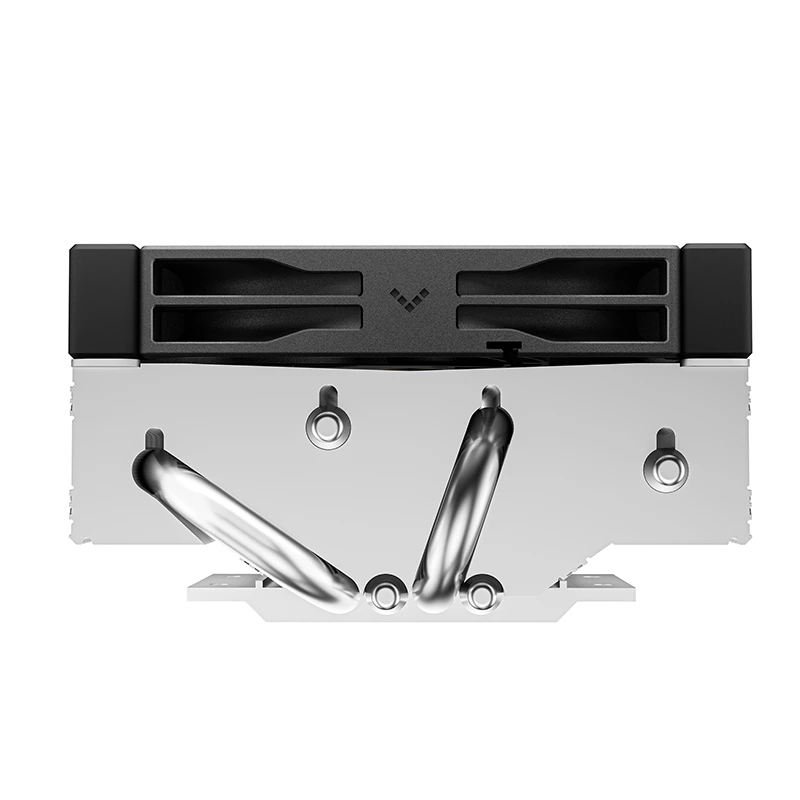

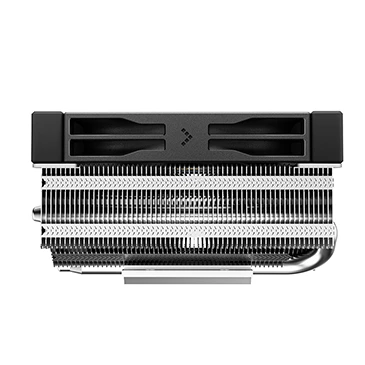

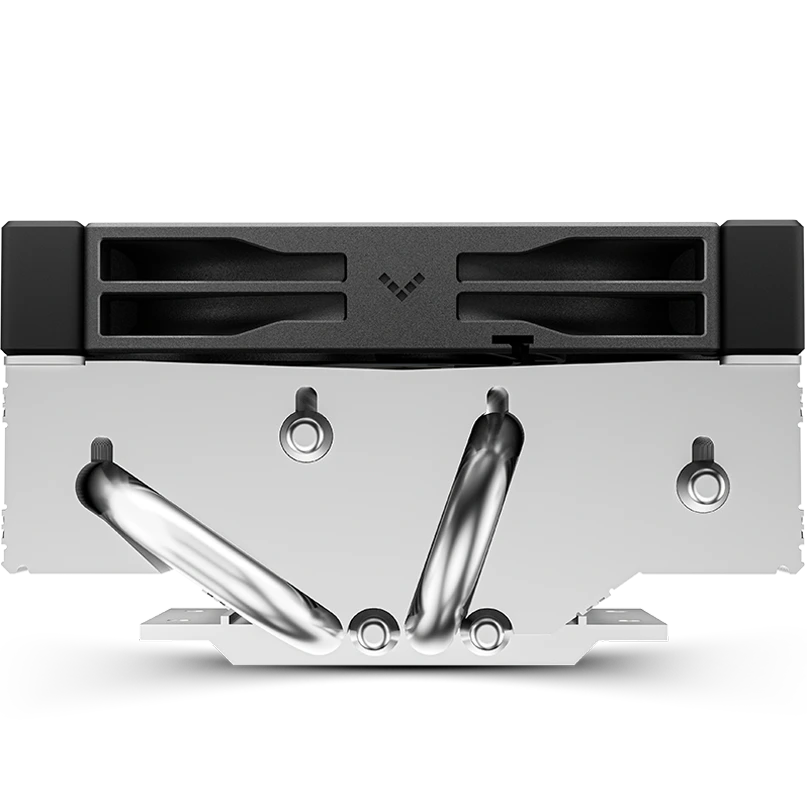

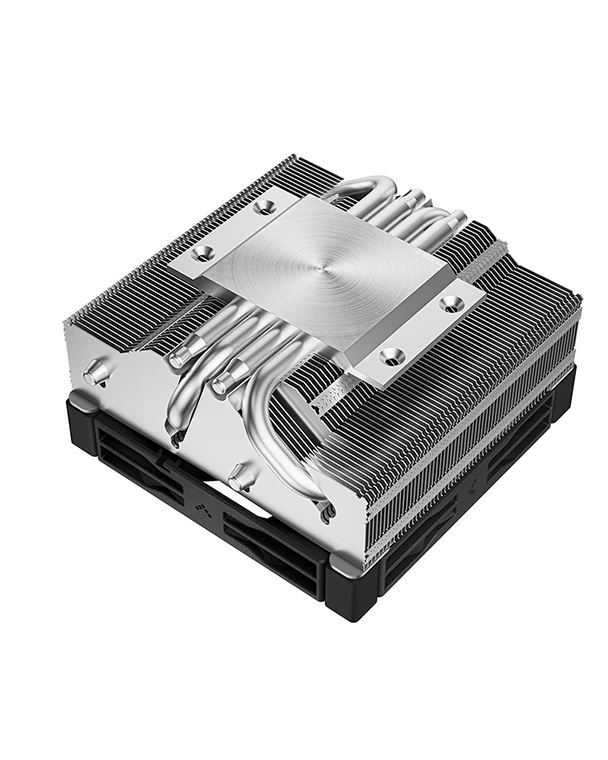

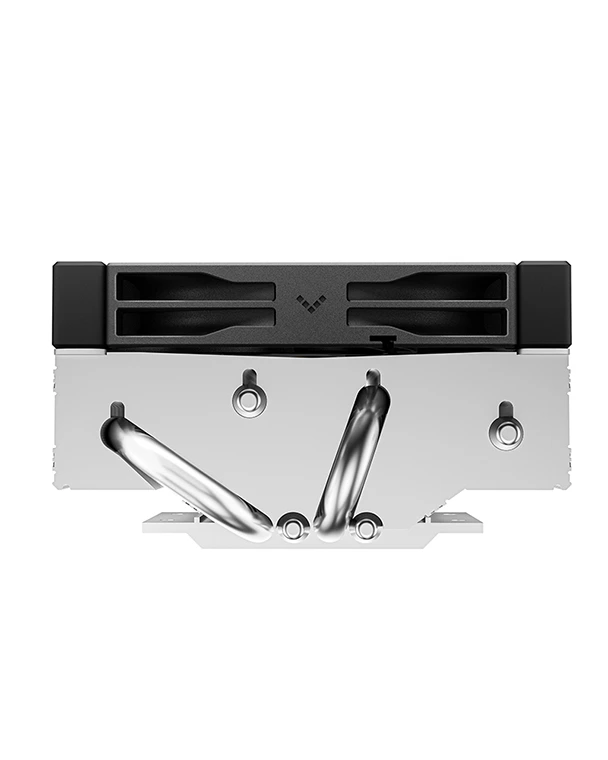

With 62 nickel-plated aluminum fins, 4 optimized heatpipes, and a raised copper coldplate, the AN400 packs a lot of cooling potential in a small 53mm tall CPU cooler.
Small But Capable

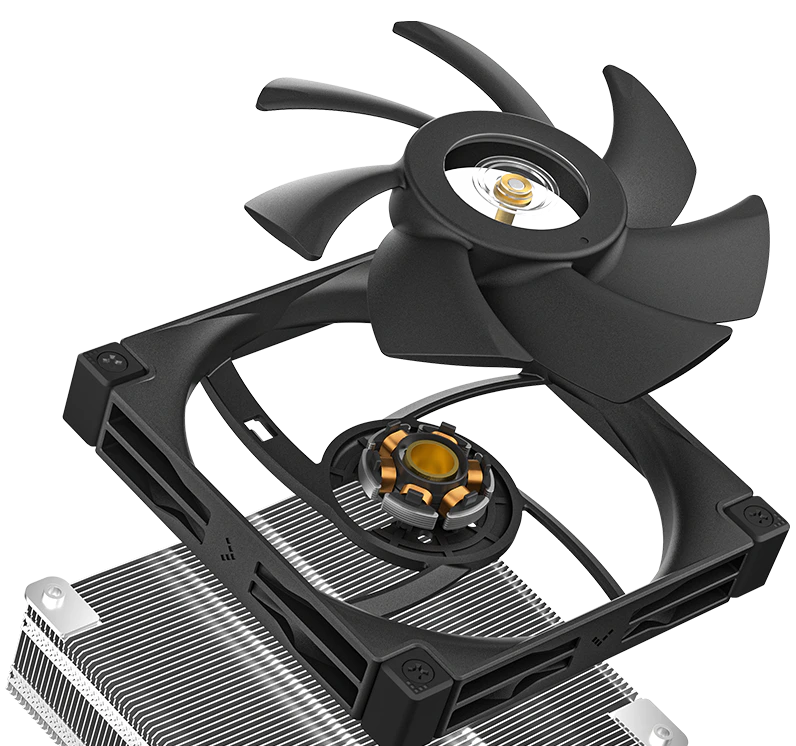

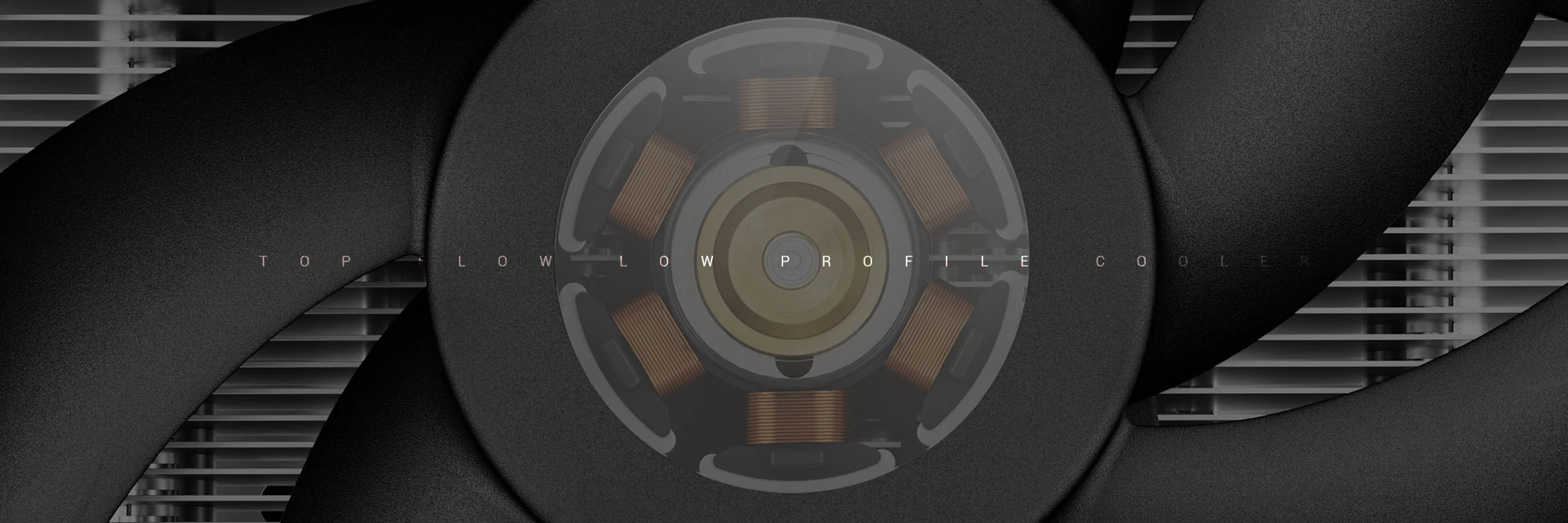

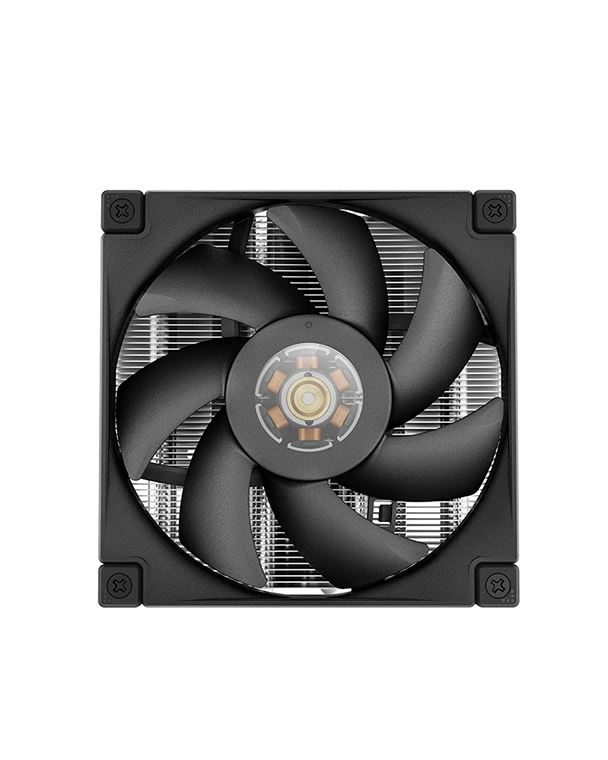

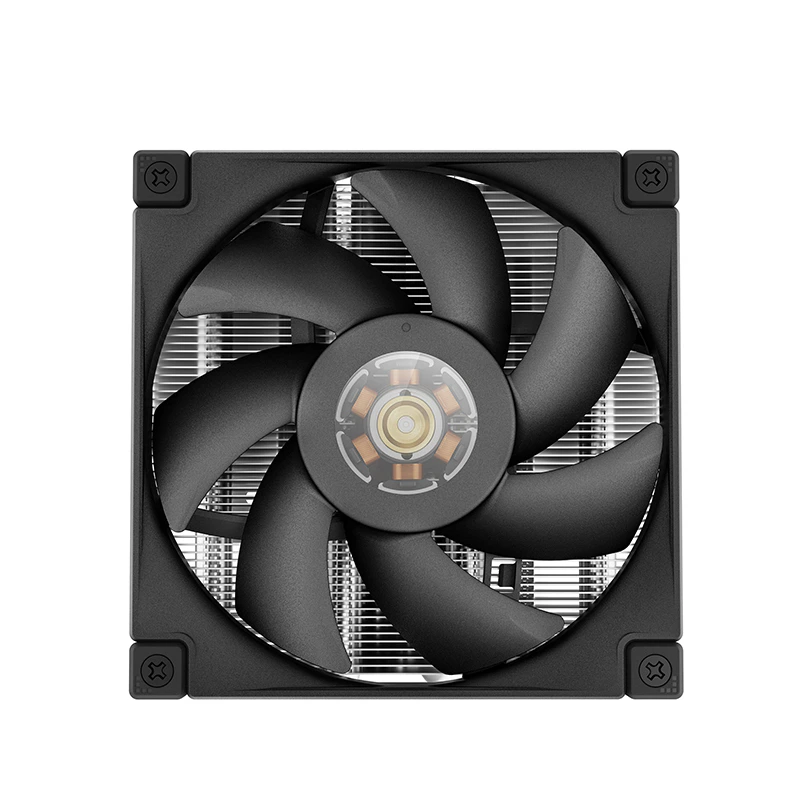

Equipped with a slim 92mm PWM-enabled FDB fan and a visible 3-phase 6-slot 4-pole motor, the AN400 can spin up to a staggering 2950 RPM while staying below 23.2 dB(A).

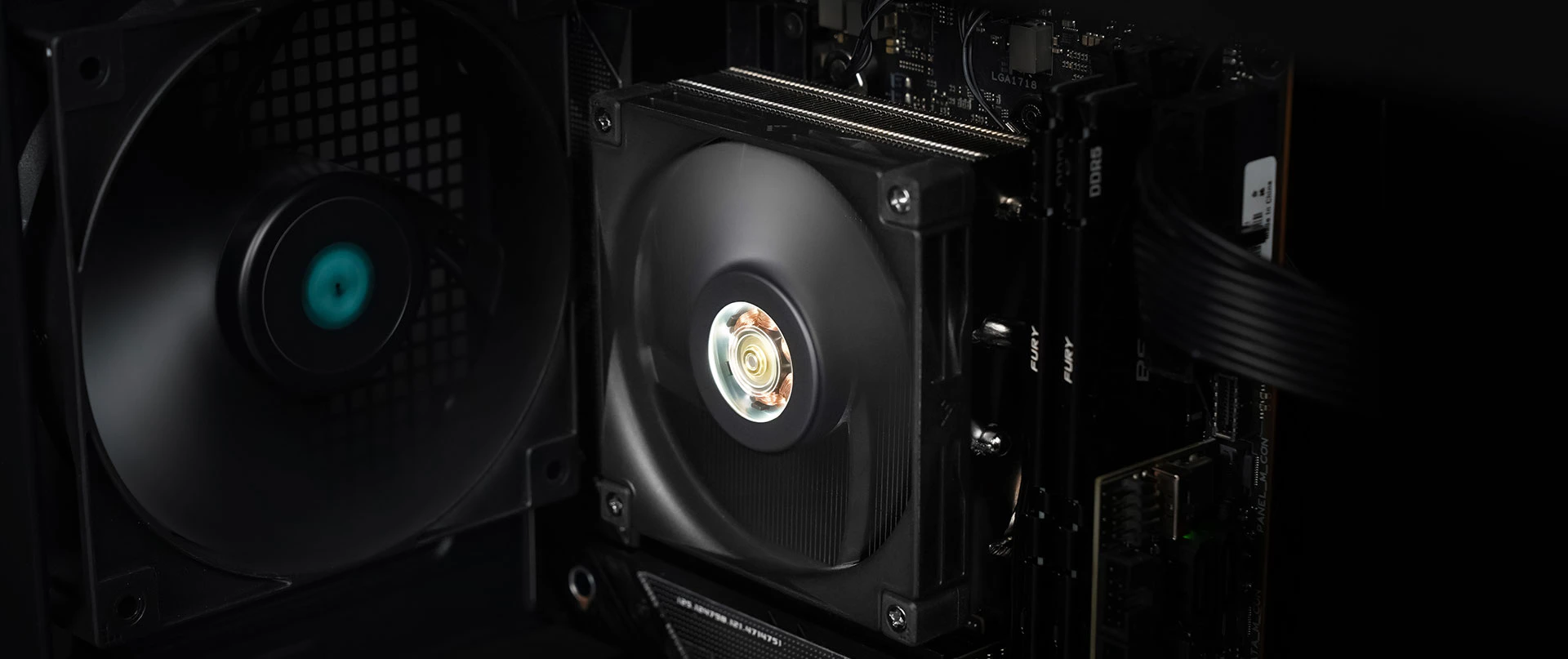

Passive Airflow

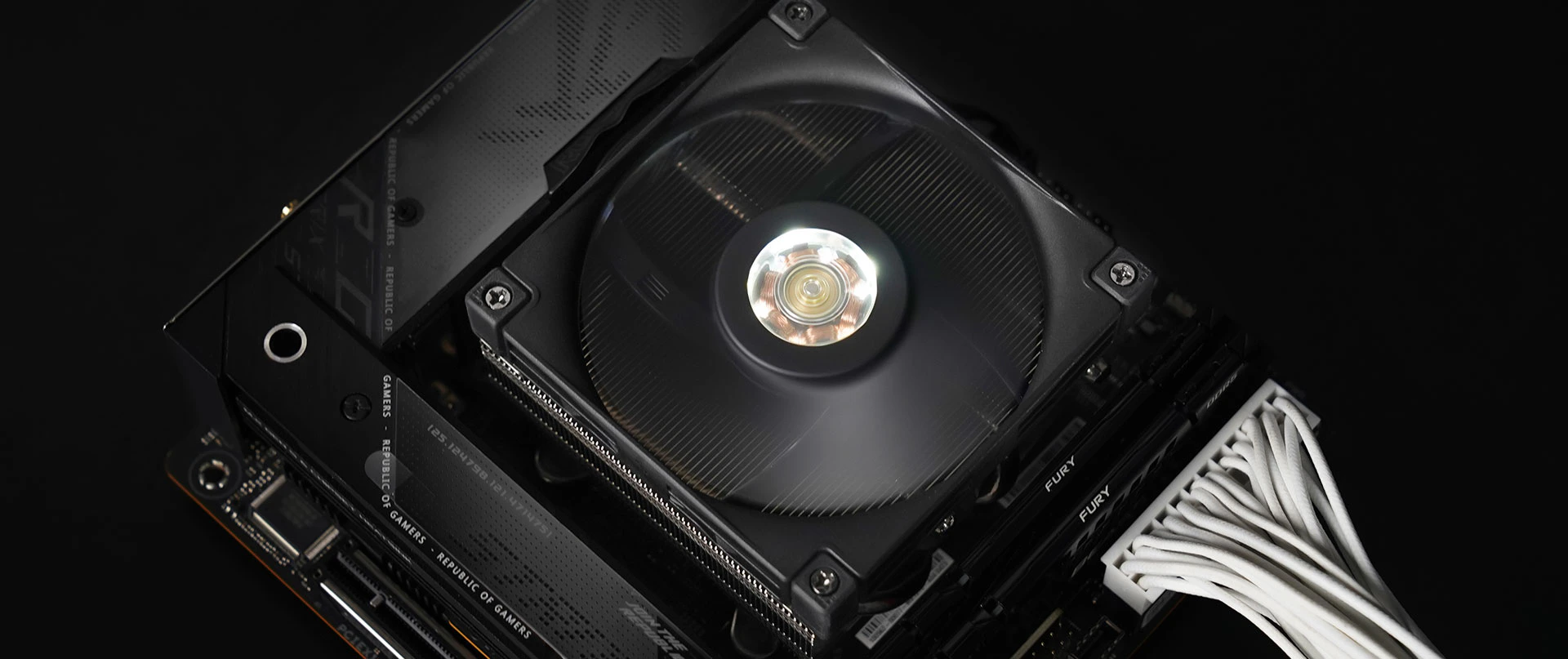

The top-down design has the added benefit of providing passive airflow to the surrounding VRMs around the CPU.

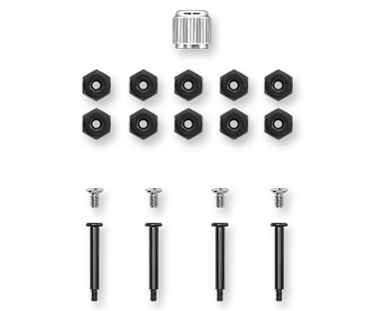

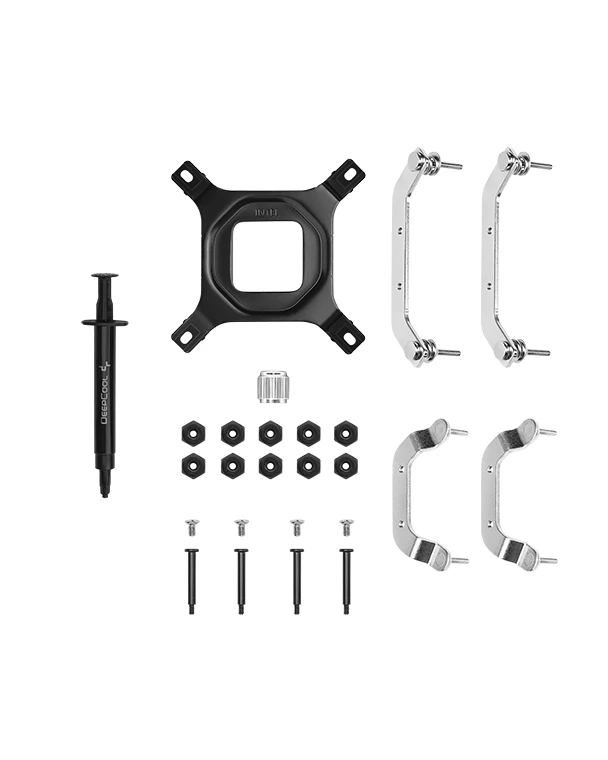

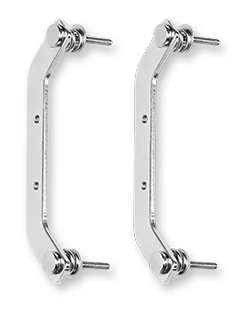

Simplified Support

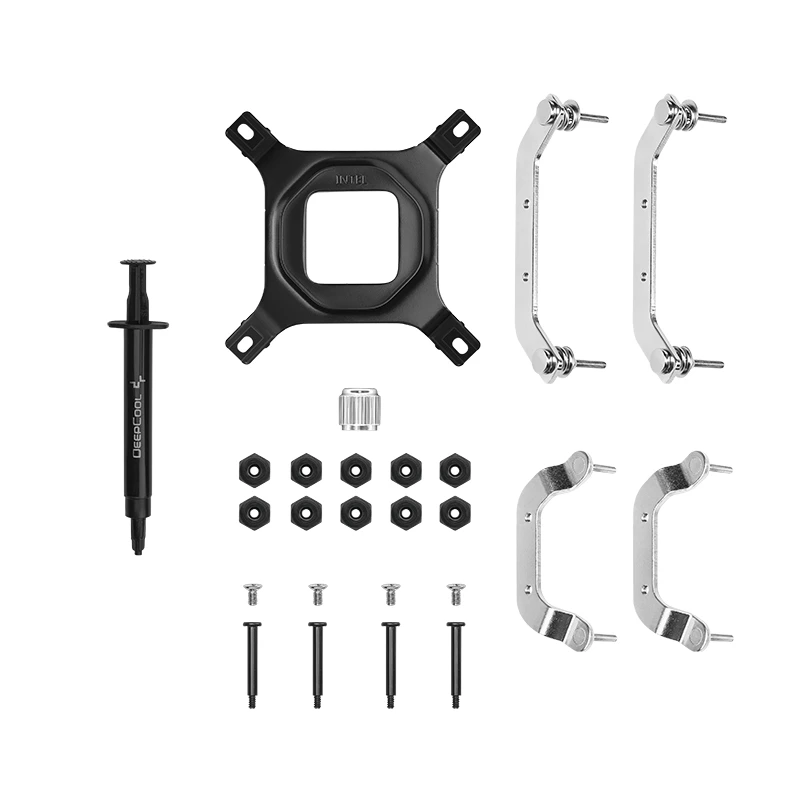

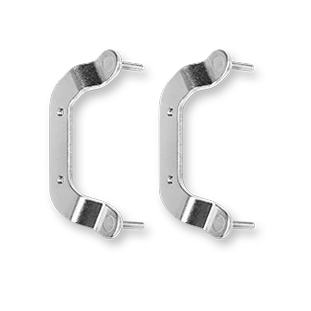

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Simplified Support
The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Application
INTEL: LGA1851/1700/1200/1151/1150/1155
AMD: AM5/AM4
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions92×92×52.5 mm(L×W×H)
Heatsink Dimensions94×57×38 mm(L×W×H)
Net Weight431.4 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions92×92×15 mm(L×W×H)
Fan Speed500~2950 RPM±10%
Fan Airflow31.18 CFM
Fan Air Pressure4.8 mmAq
Fan Noise≤23.2 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.45 A
Fan Power Consumption5.4 W
LED TypeWhite LED
EAN6933412728788
P/NR-AN400-SRWNMN-G
Download
AN400 Manual.pdf
