AN600

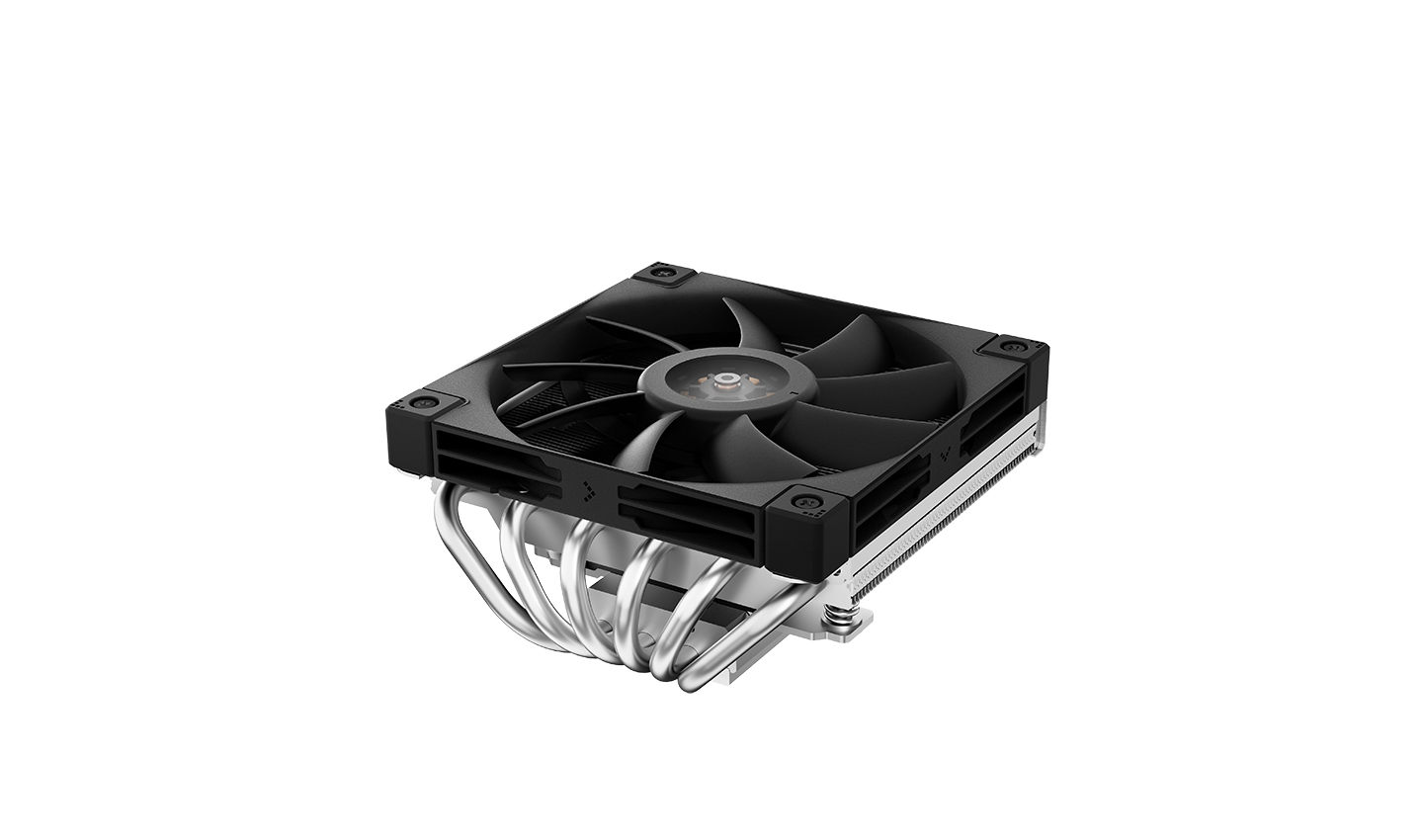

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
MODEL
AN600
Top Flow Low Profile Cooler
Keeping Things Cool

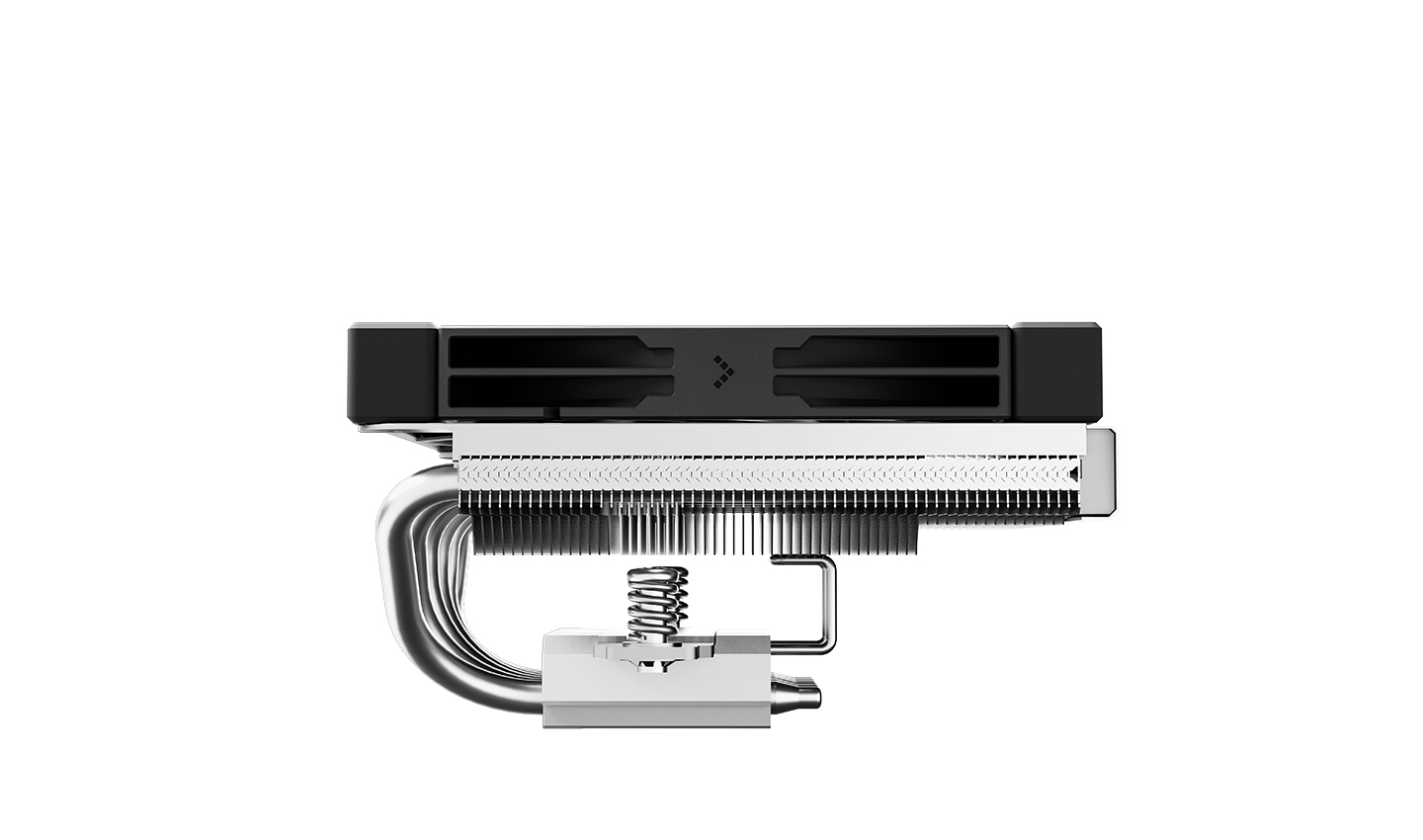

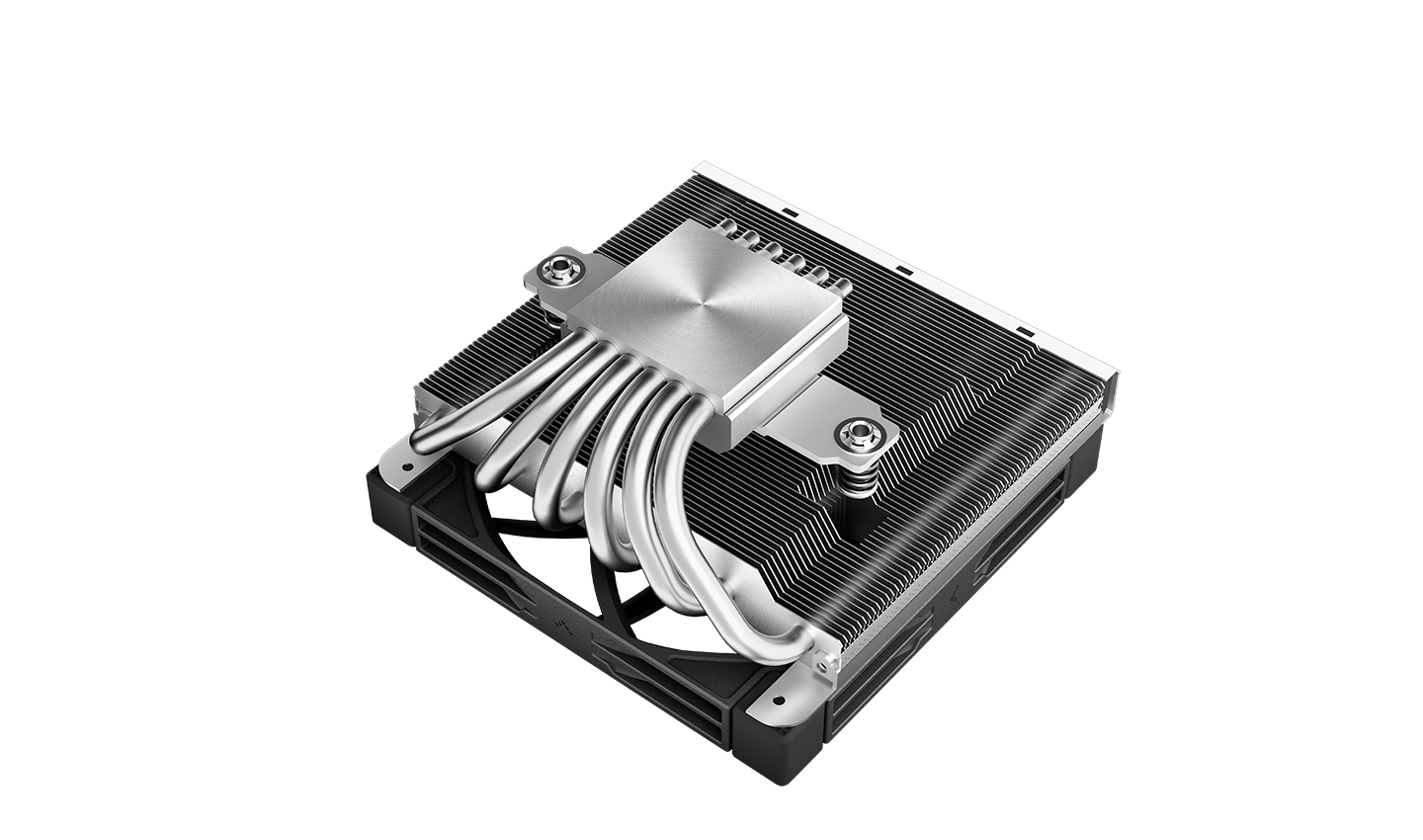

Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
More Than
A CPU Cooler

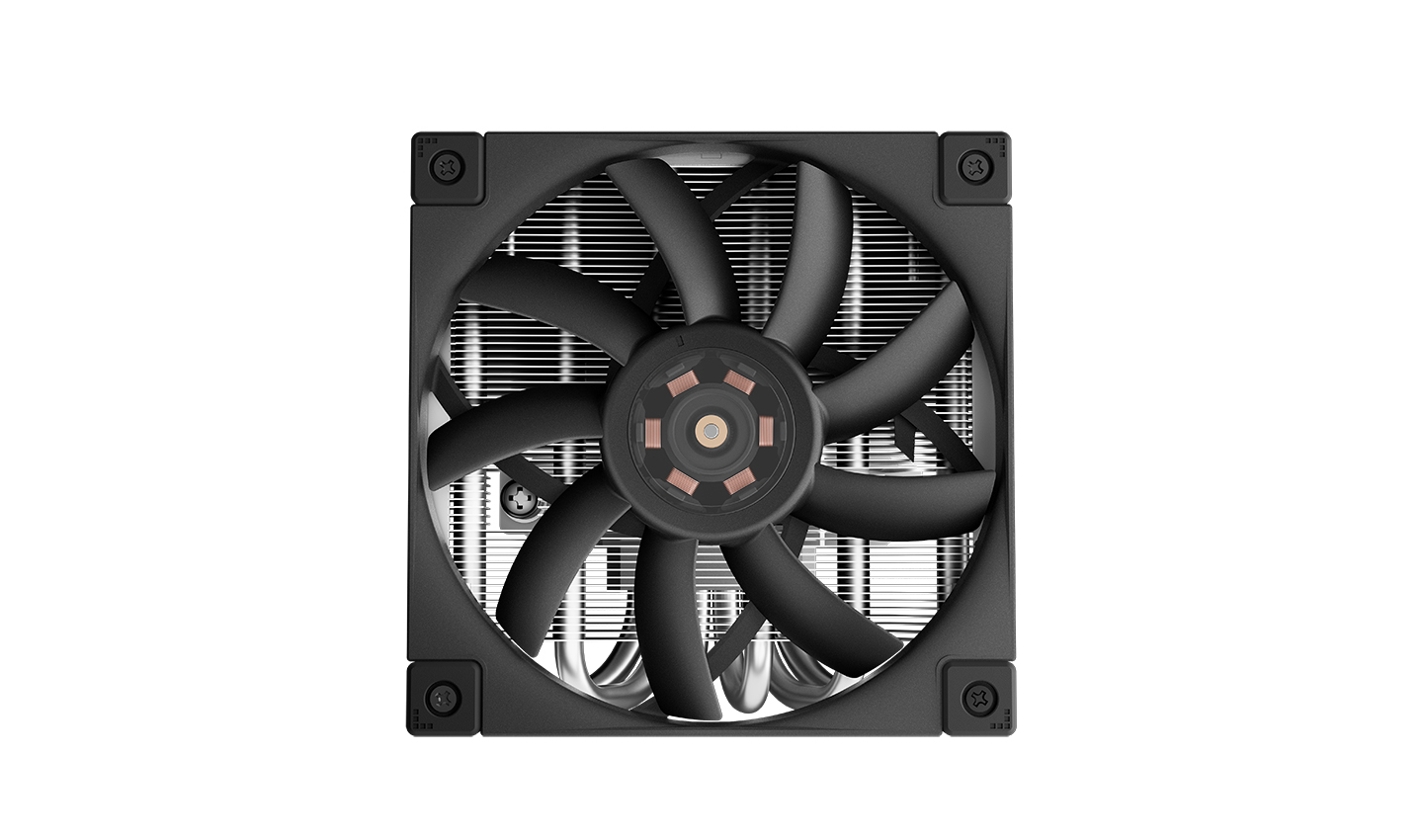

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6 stators ensure all of this is accomplished while staying under 24.4 dB(A). A low-noise adapter cable is included.
Simplified Support

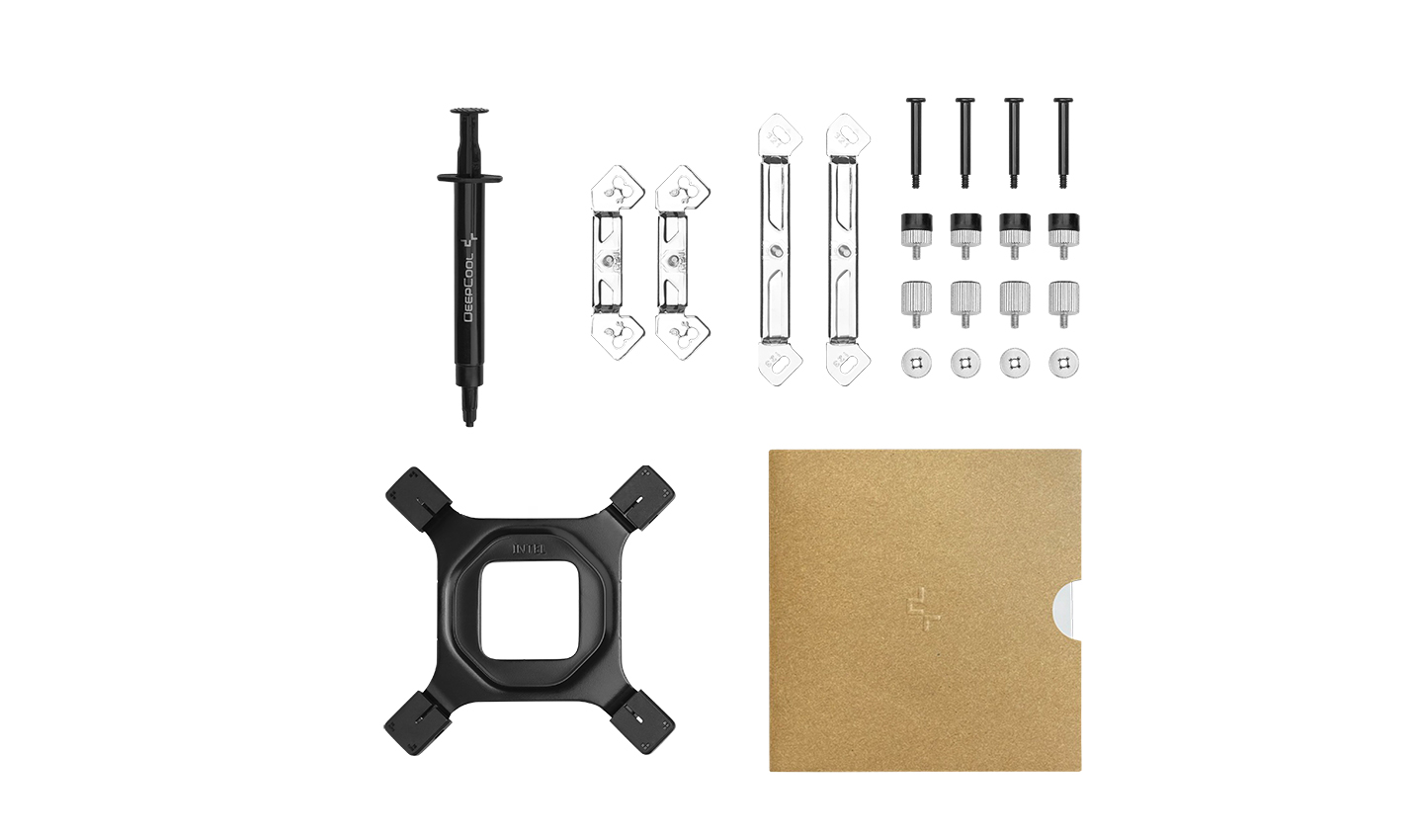

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Application
INTEL: LGA1700/1200/1151/1150/1155
AMD: AM5/AM4
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions122×120×67 mm(L×W×H)
Heatsink Dimensions121×120×52 mm(L×W×H)
Net Weight628 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×15 mm(L×W×H)
Fan Speed500~1850 RPM±10%
Fan Airflow61.56 CFM
Fan Air Pressure1.97 mmAq
Fan Noise≤24.4 dB(A)
Fan Speed (with LSP)500~1250 RPM±10%
Fan Airflow (with LSP)41.51 CFM
Fan Air Pressure (with LSP)1.19 mmAq
Fan Noise (with LSP)≤20 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.27 A
Fan Power Consumption3.24 W
LED TypeWhite LED
EAN6933412728146
P/NR-AN600-BKNNMN-G
Download
AN600 Manual.pdf
