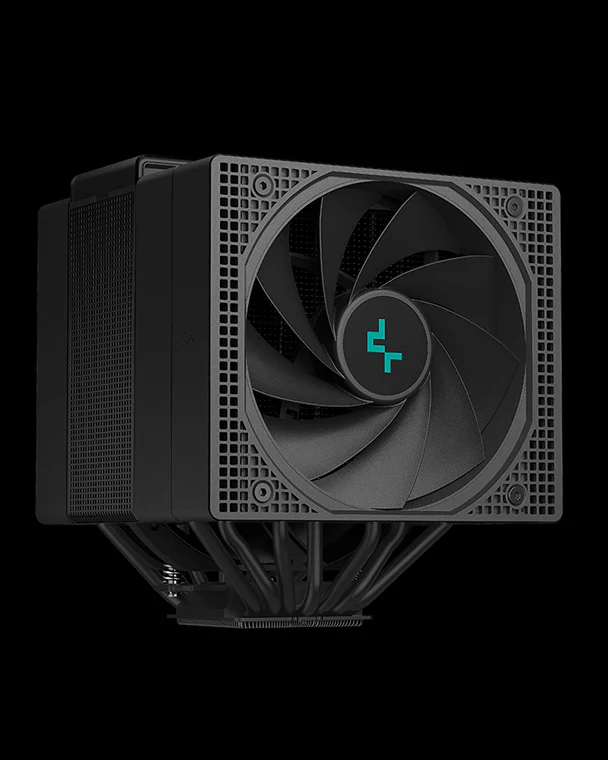

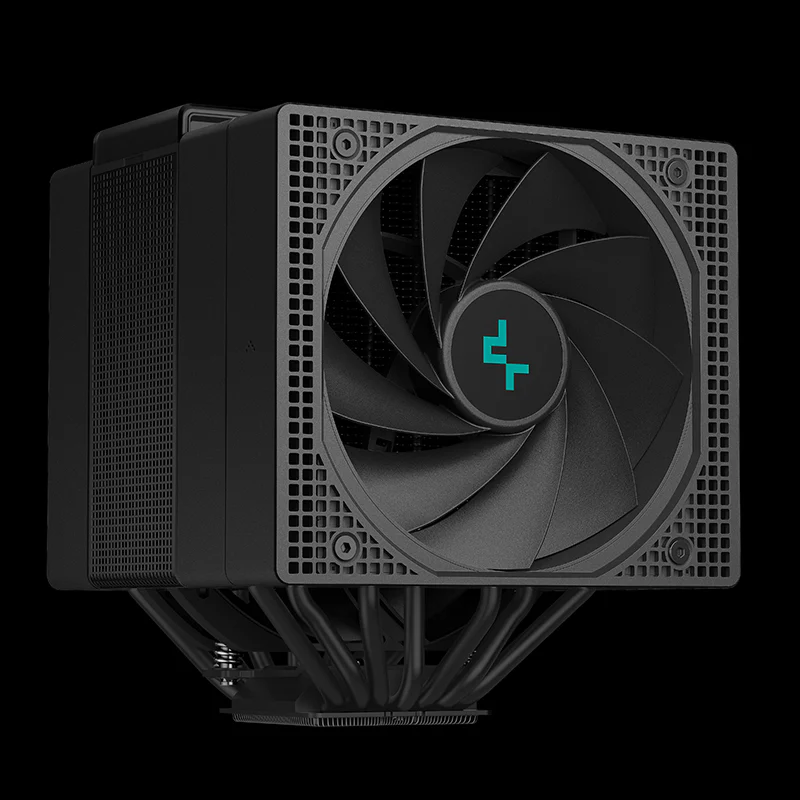

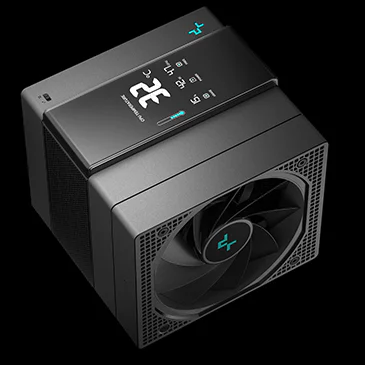

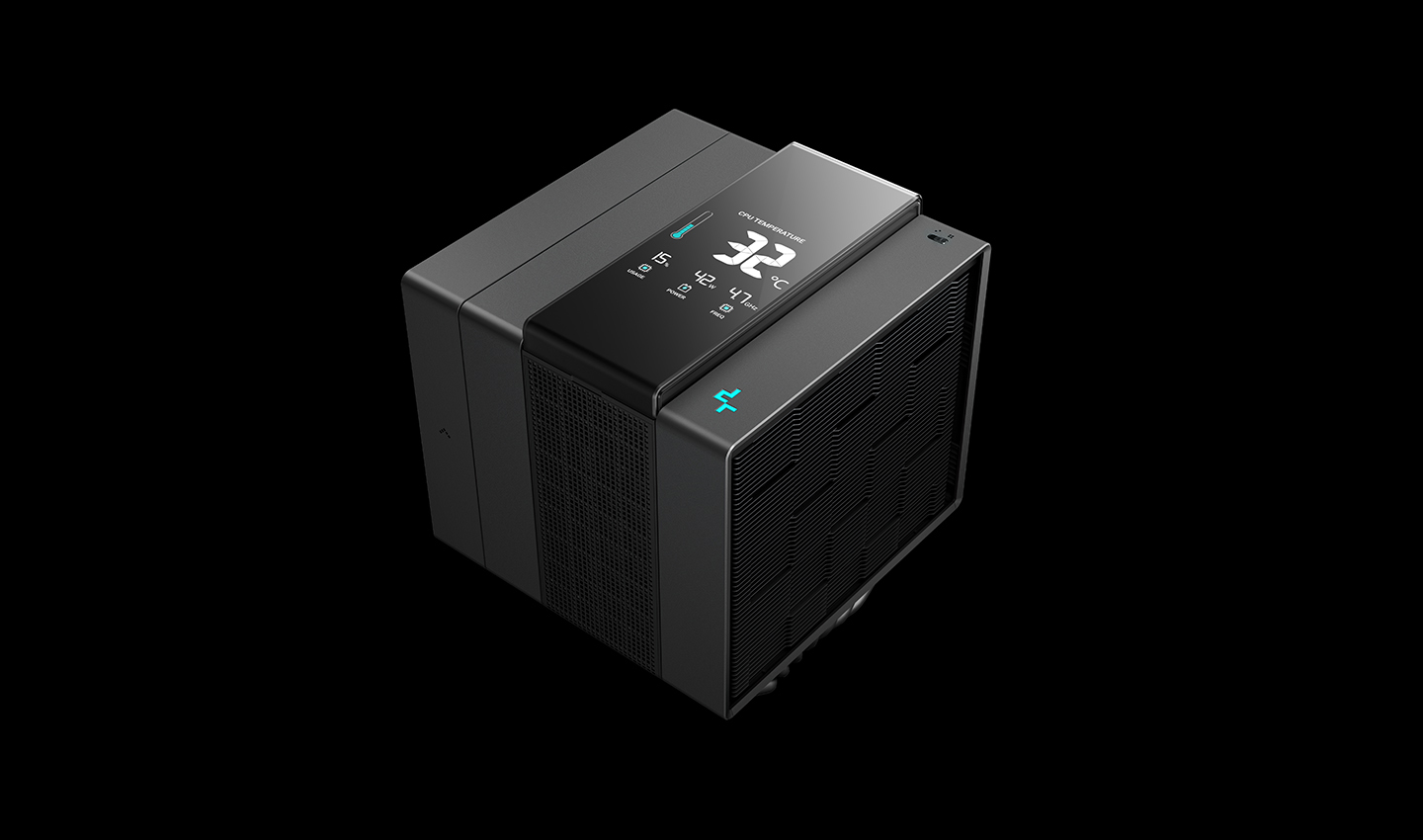

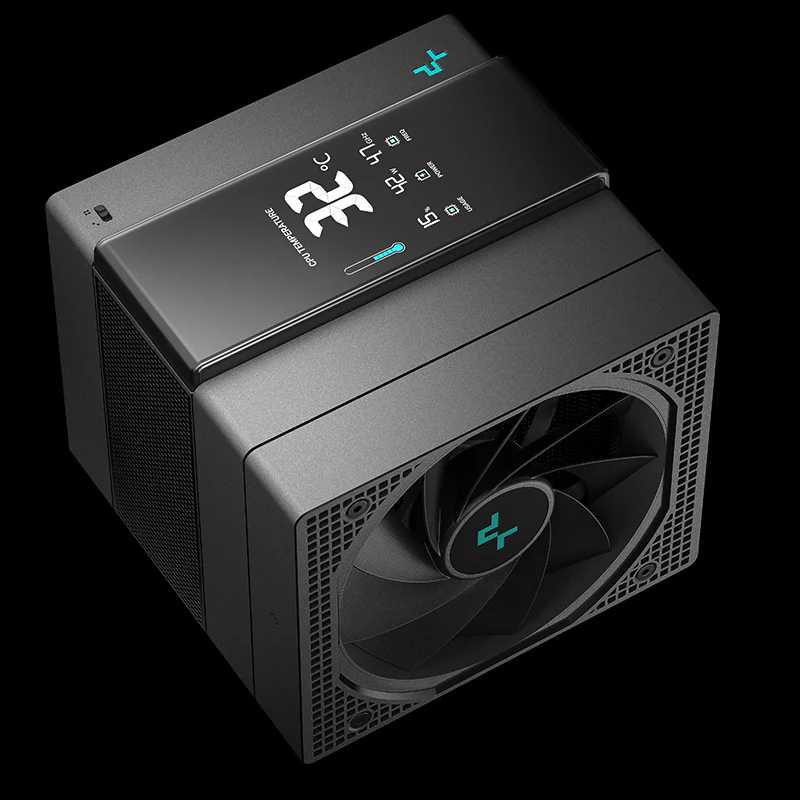

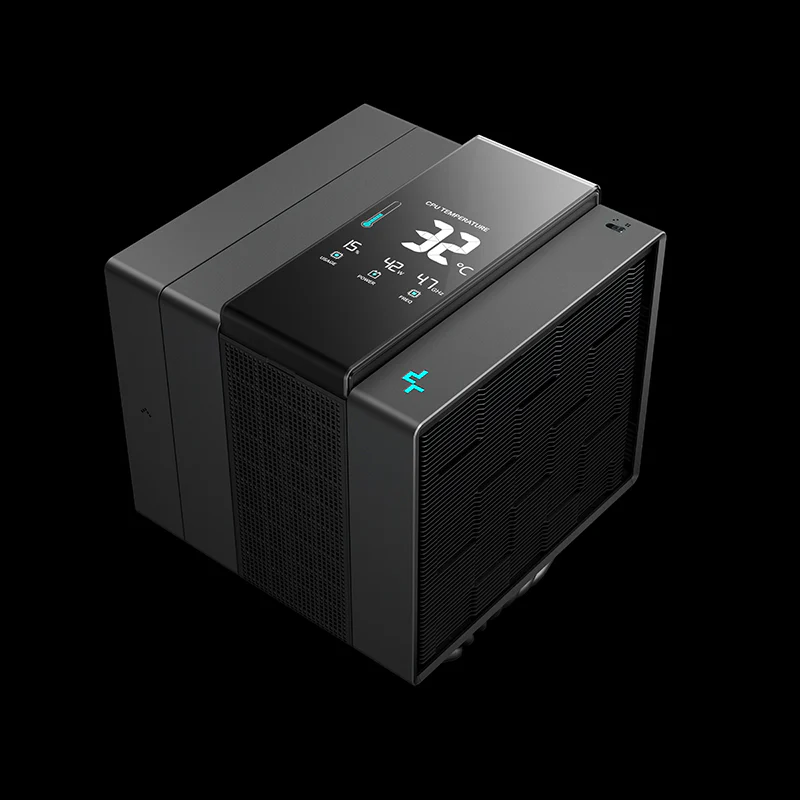

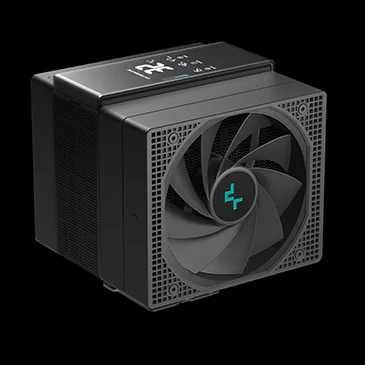

ASSASSIN IV VC VISION

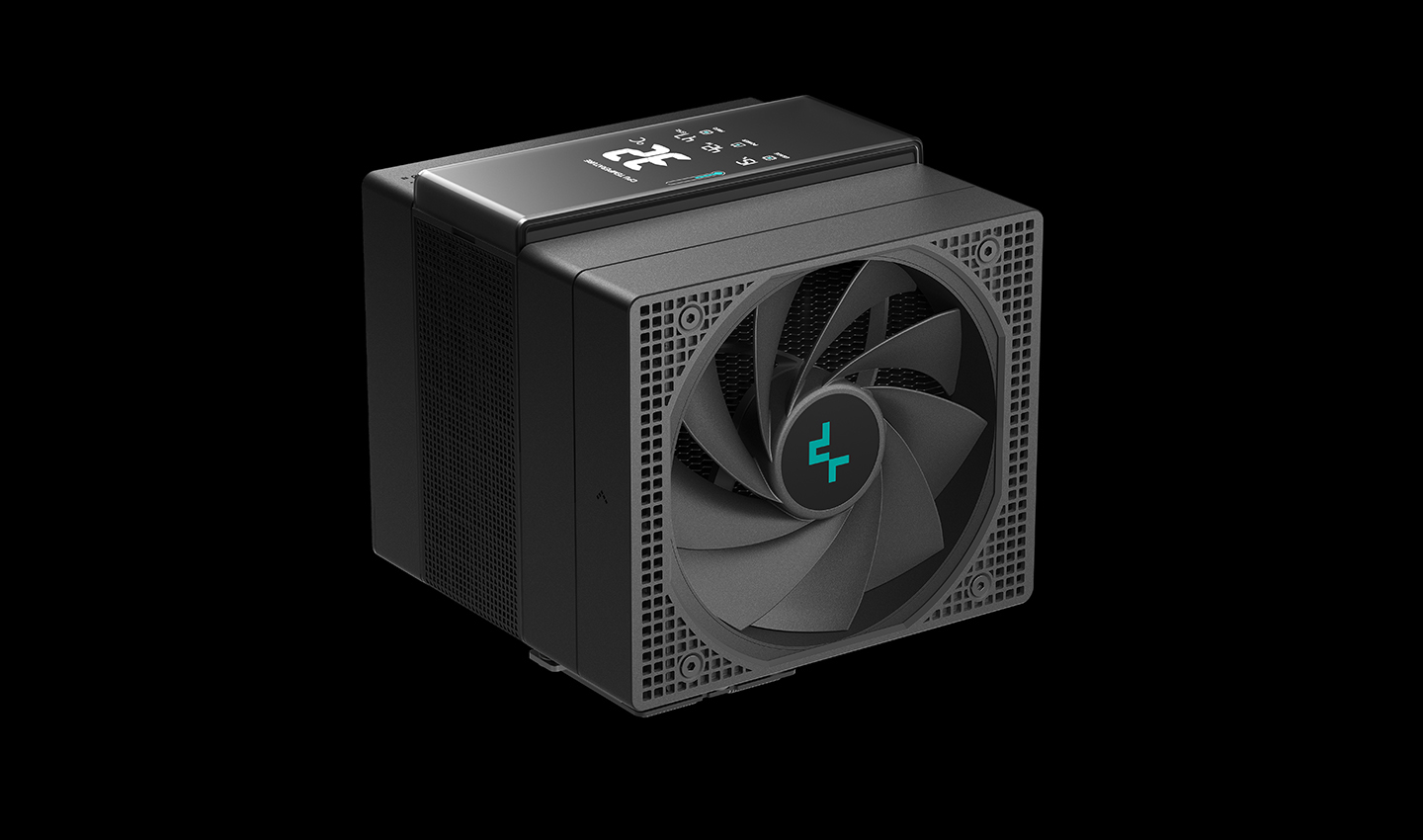

DeepCool's flagship air cooler series gets a drastic addition in the form of the ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don't stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.
MODEL
ASSASSIN IV VC VISION
DIGITAL ELEGANCE
VAPOR CHAMBER-ENHANCED

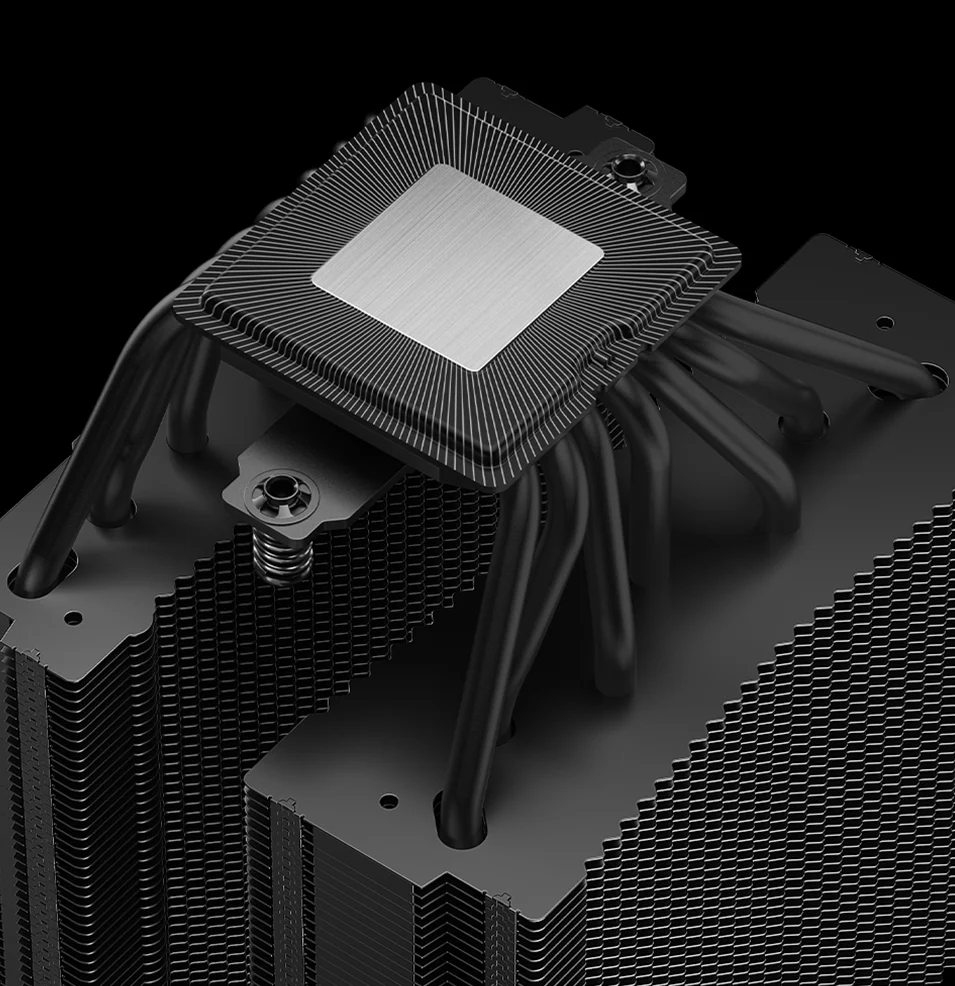

Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

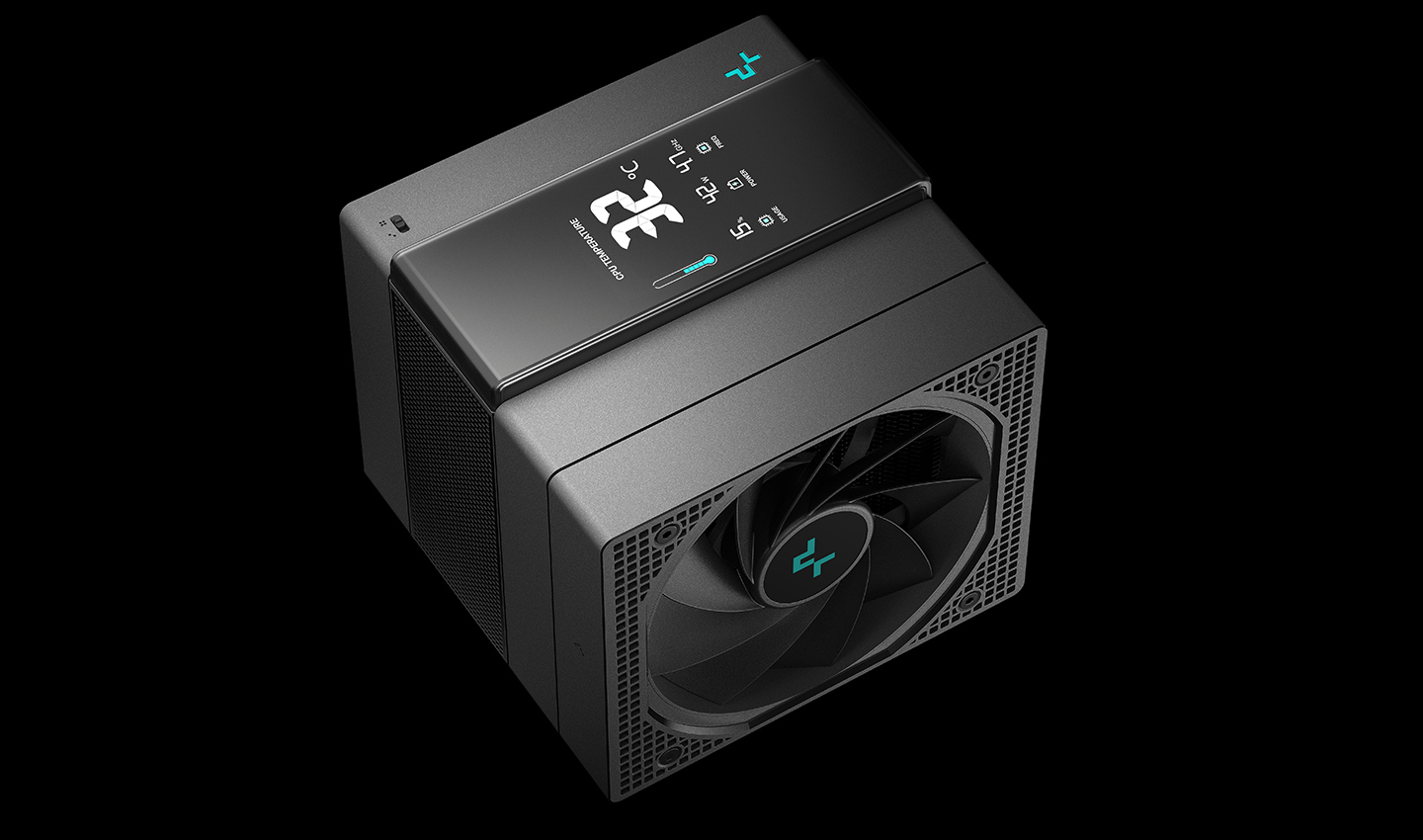

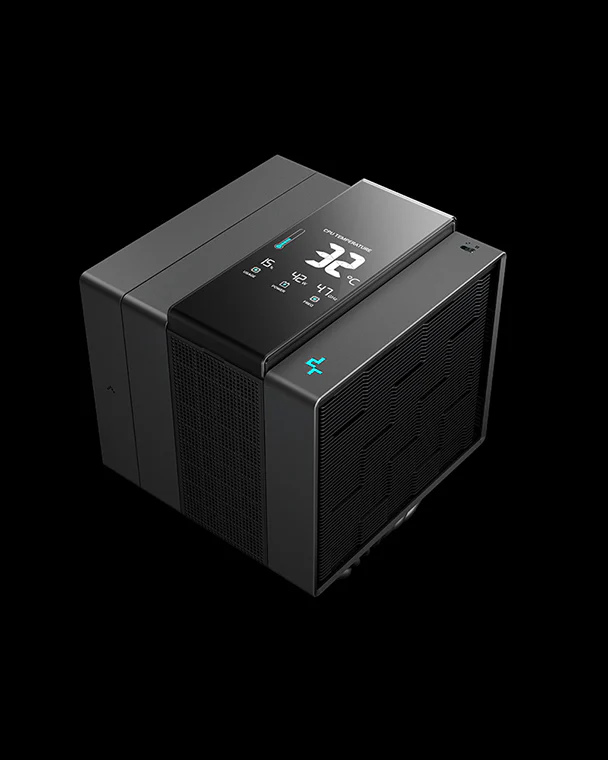

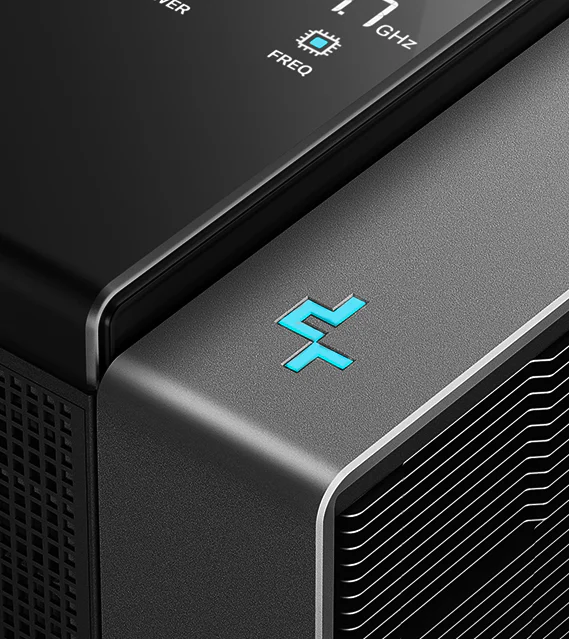

THE DIGITAL TOUCH

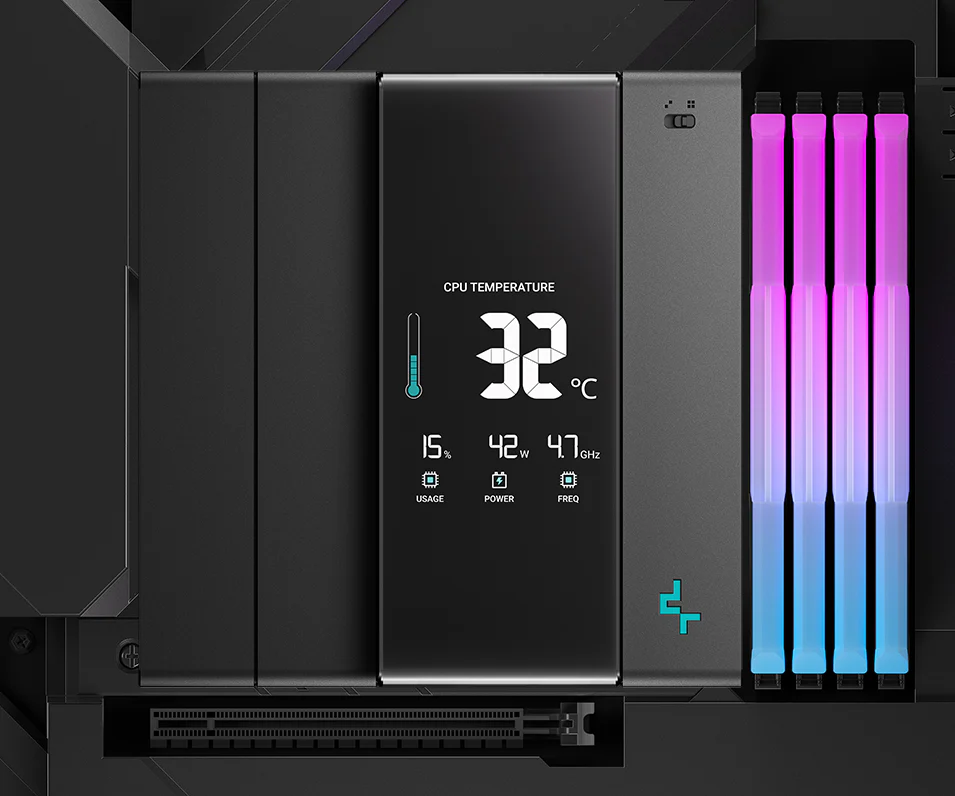

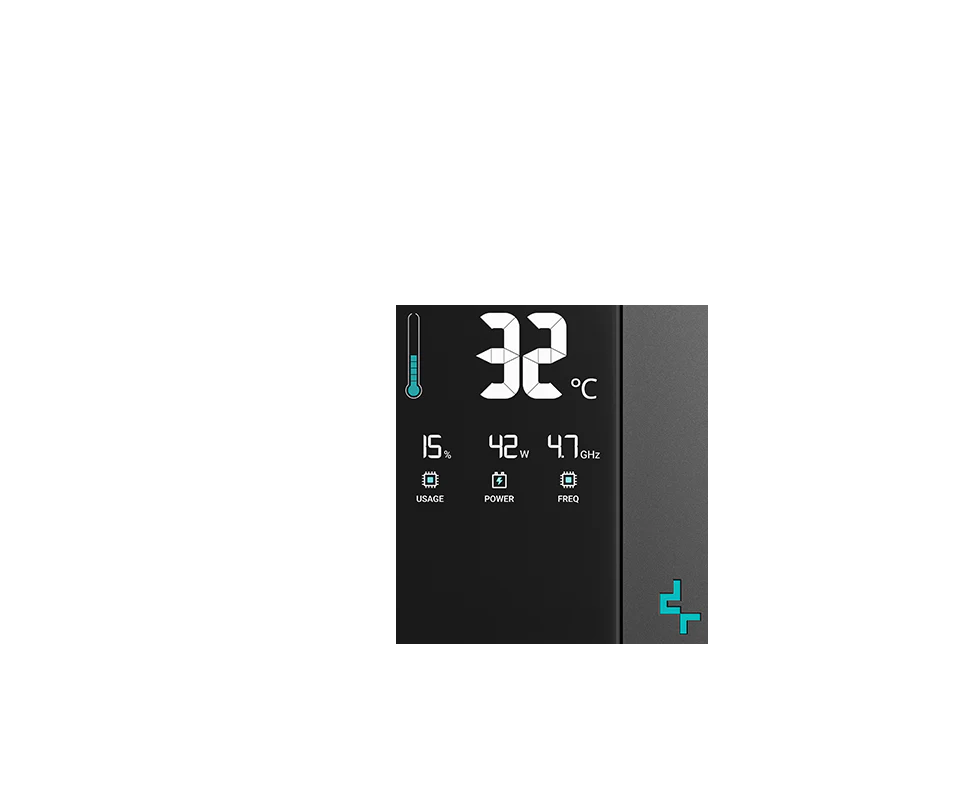

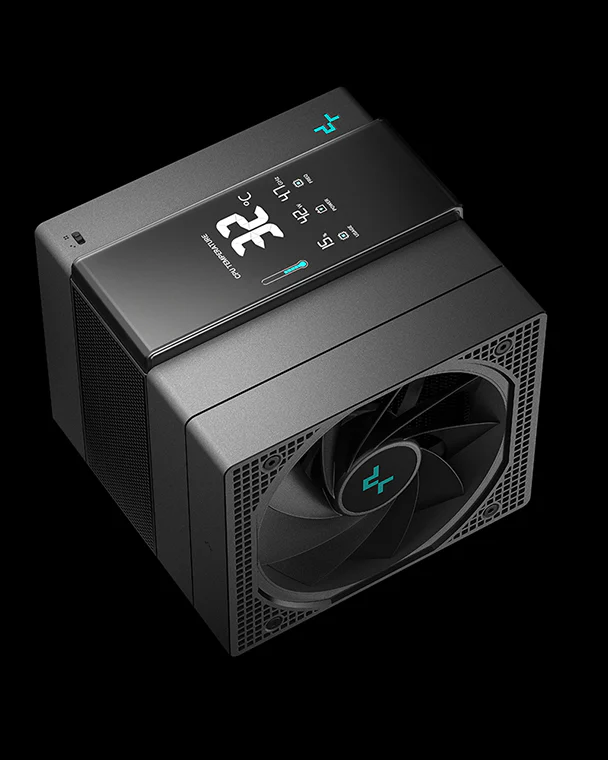

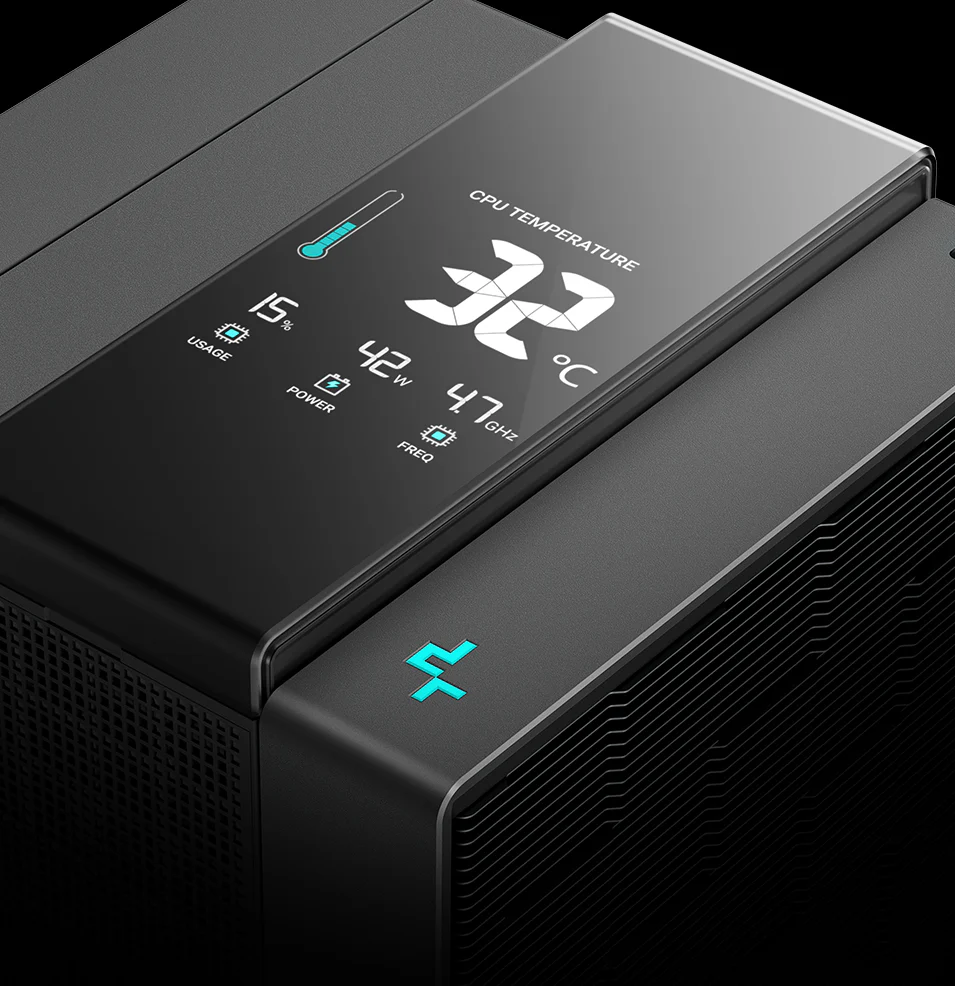

The standout addition of the ASSASSIN IV VC VISION is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The digital panel is magnetized, so installation and adjustments are extremely simple. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
℃
℉
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
VISUAL TEMPERATURE ALERTS
A temperature warning alert system has been integrated with a color-coded visual thermometer indicator: under 80 °C, the indicator will stay green; between 80 °C and 90 °C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

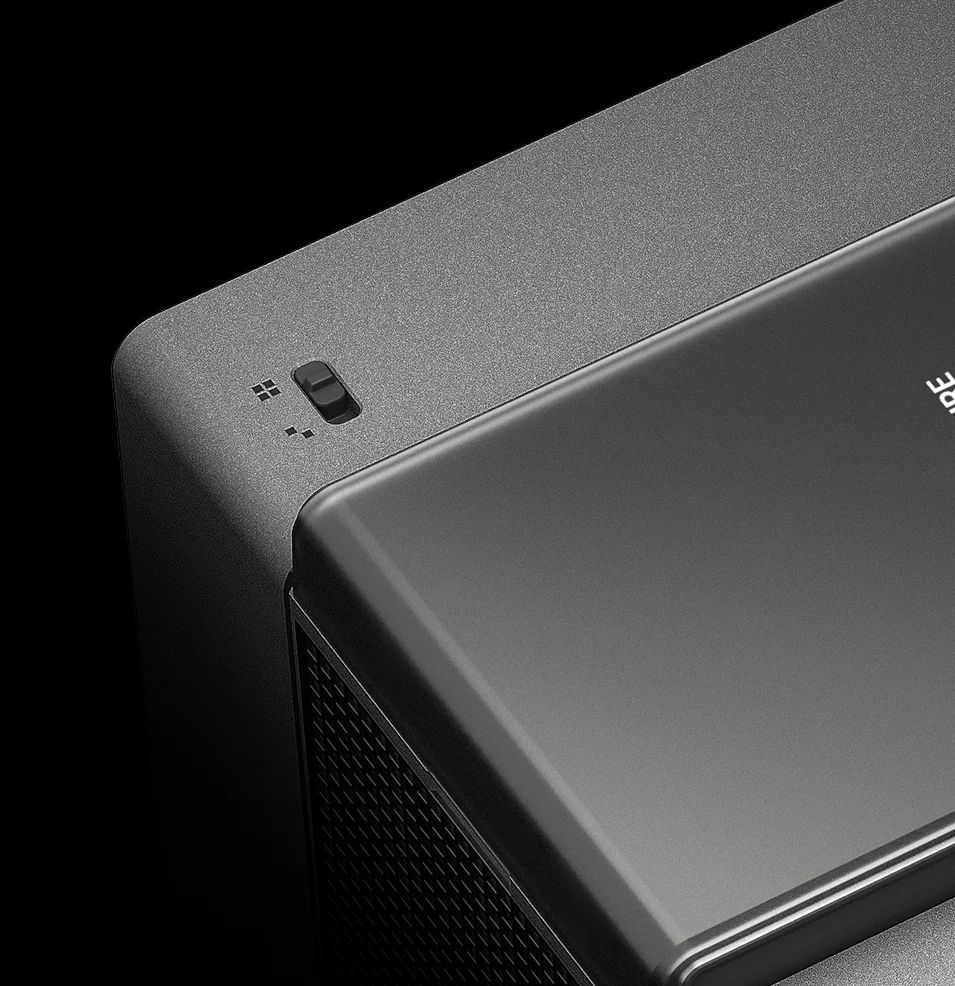

IN QUIET OR PERFORMANCE MODE

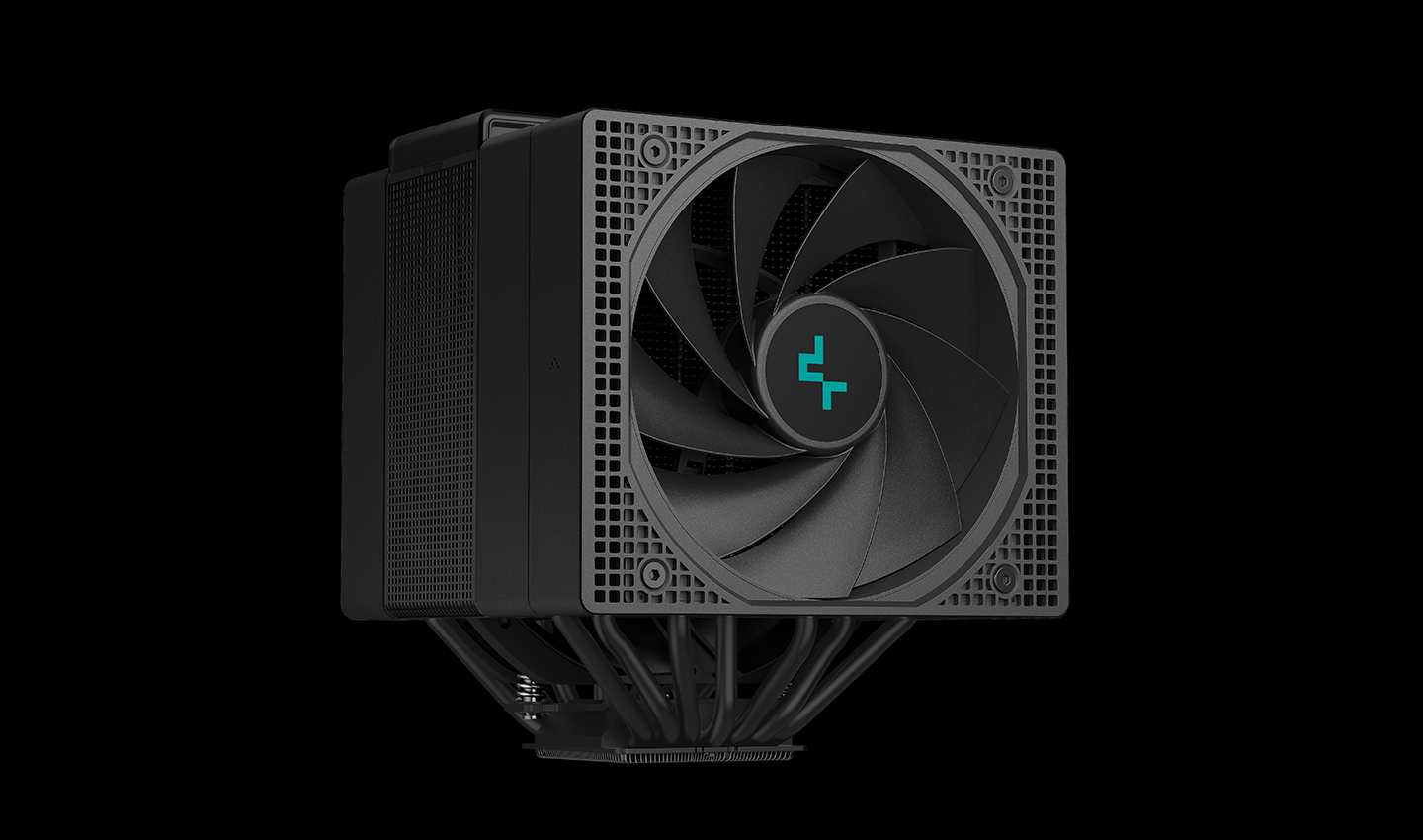

With a simple slide of a switch, the ASSASSIN IV VC VISION can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.

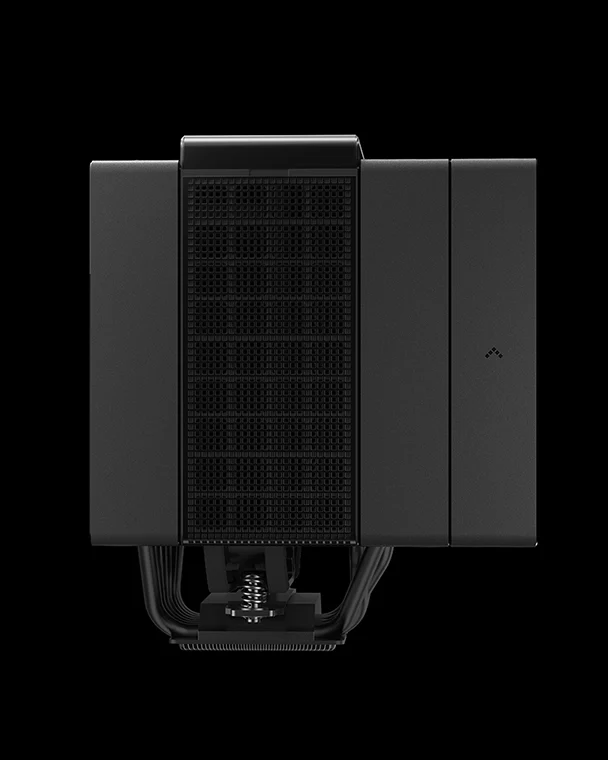

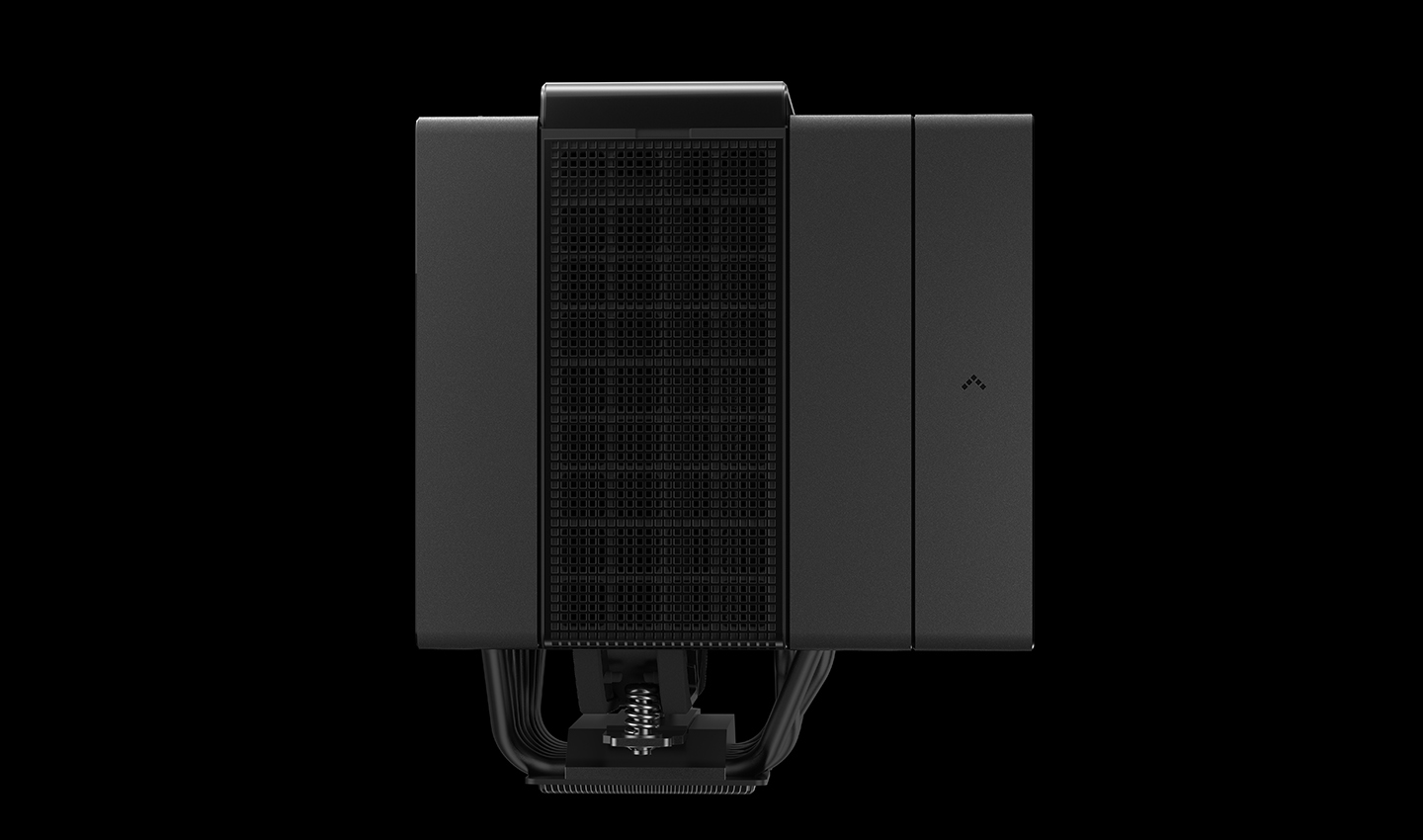

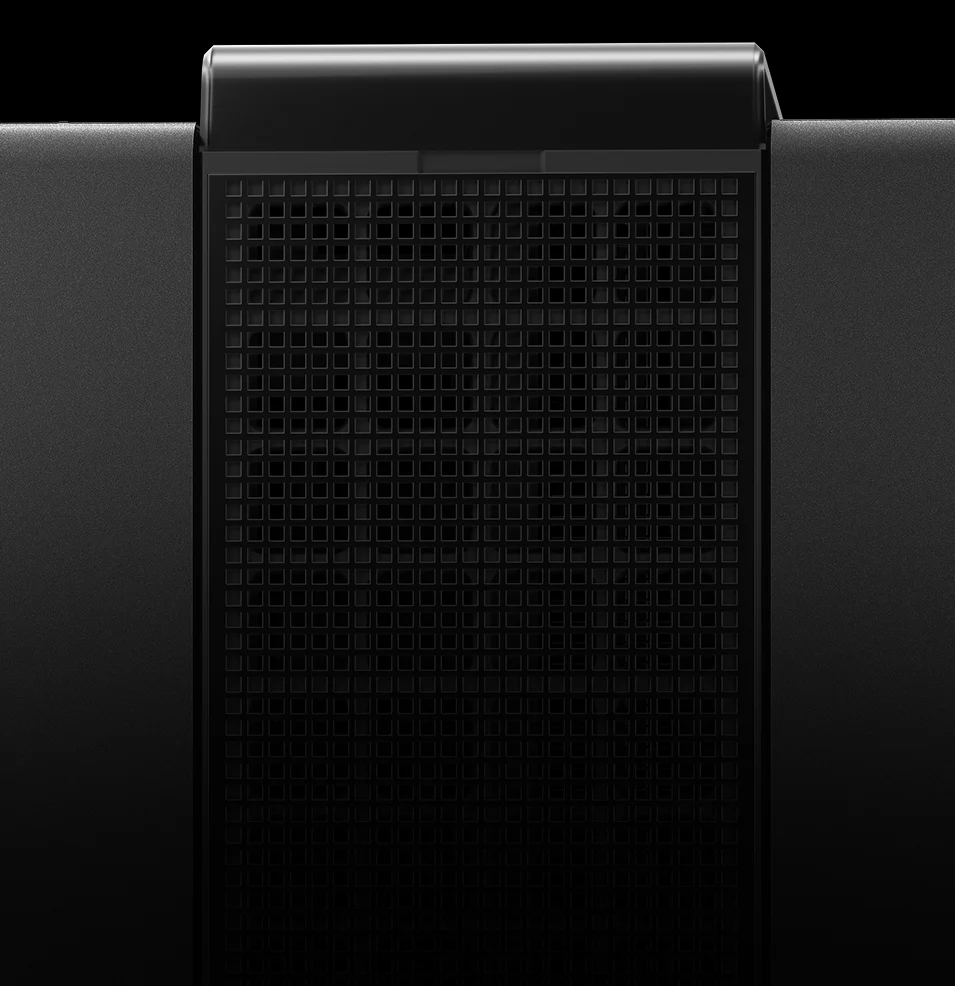

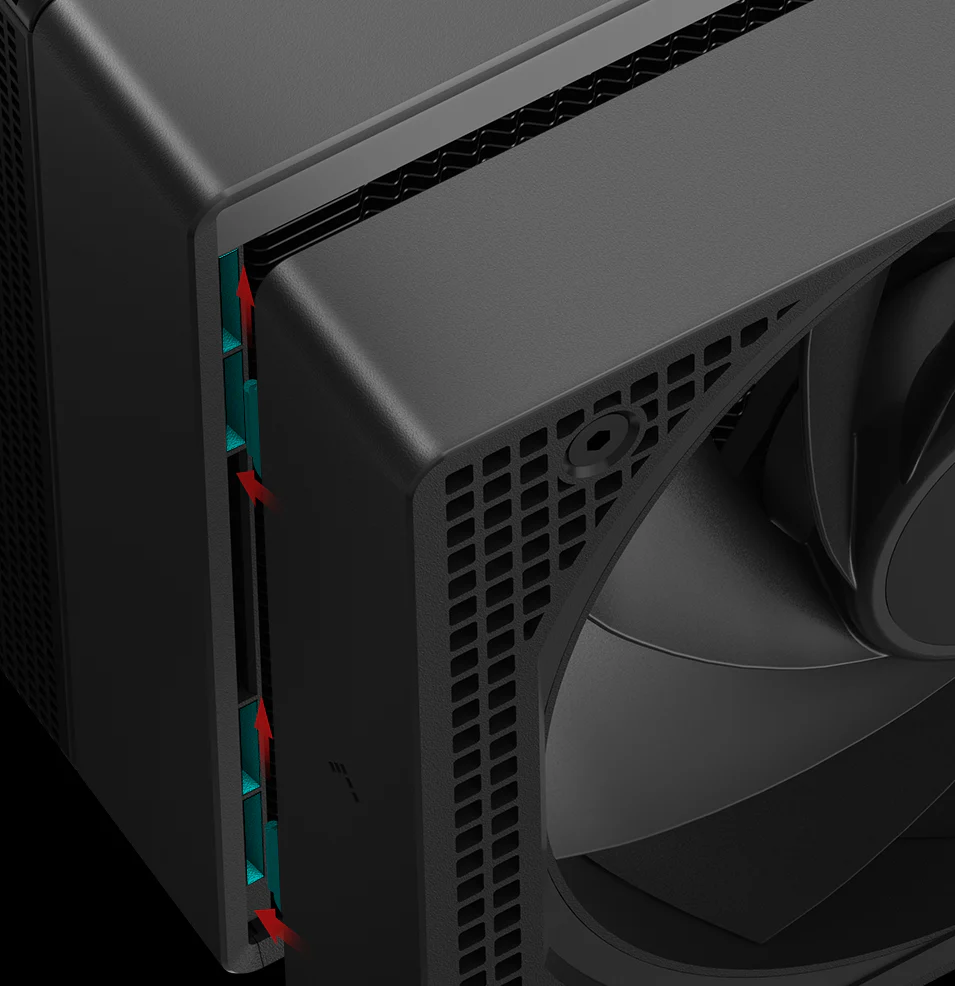

ALL CLEAR!

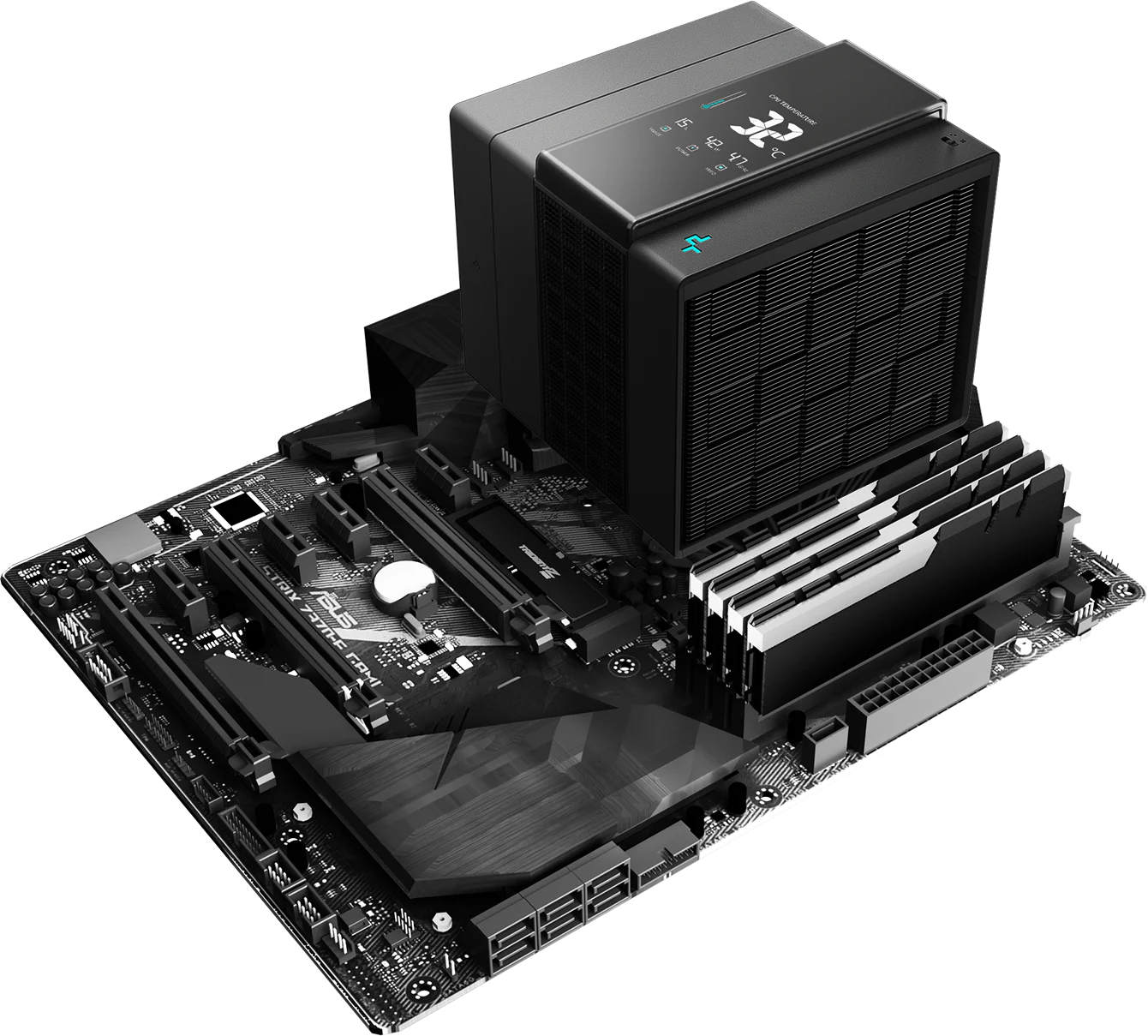

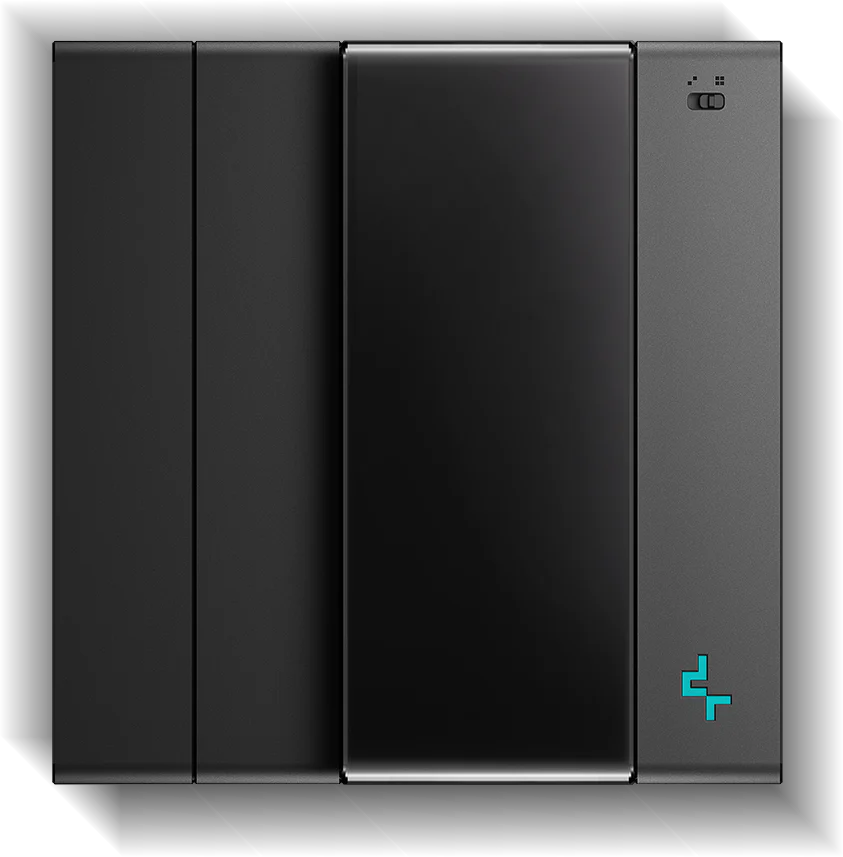

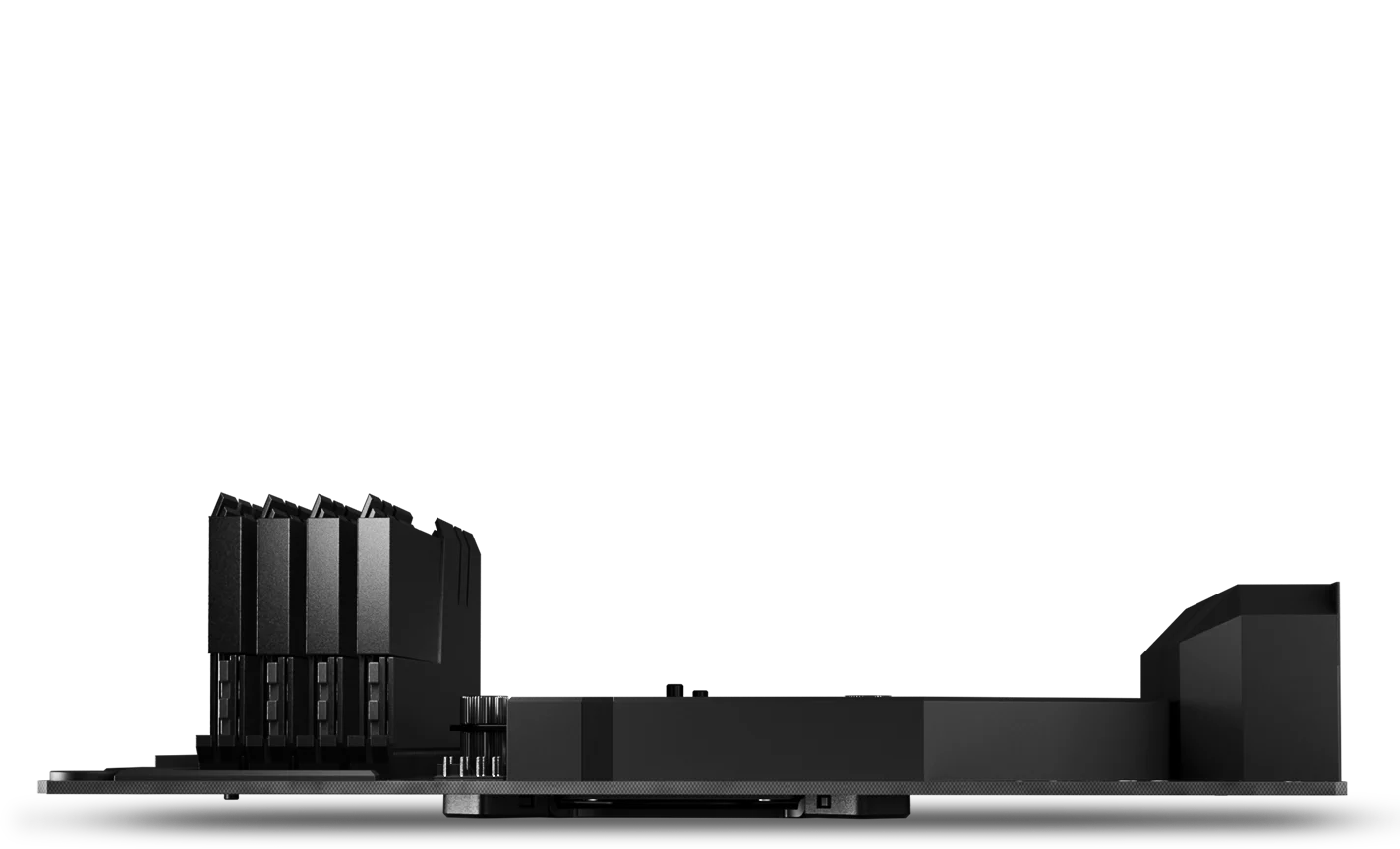

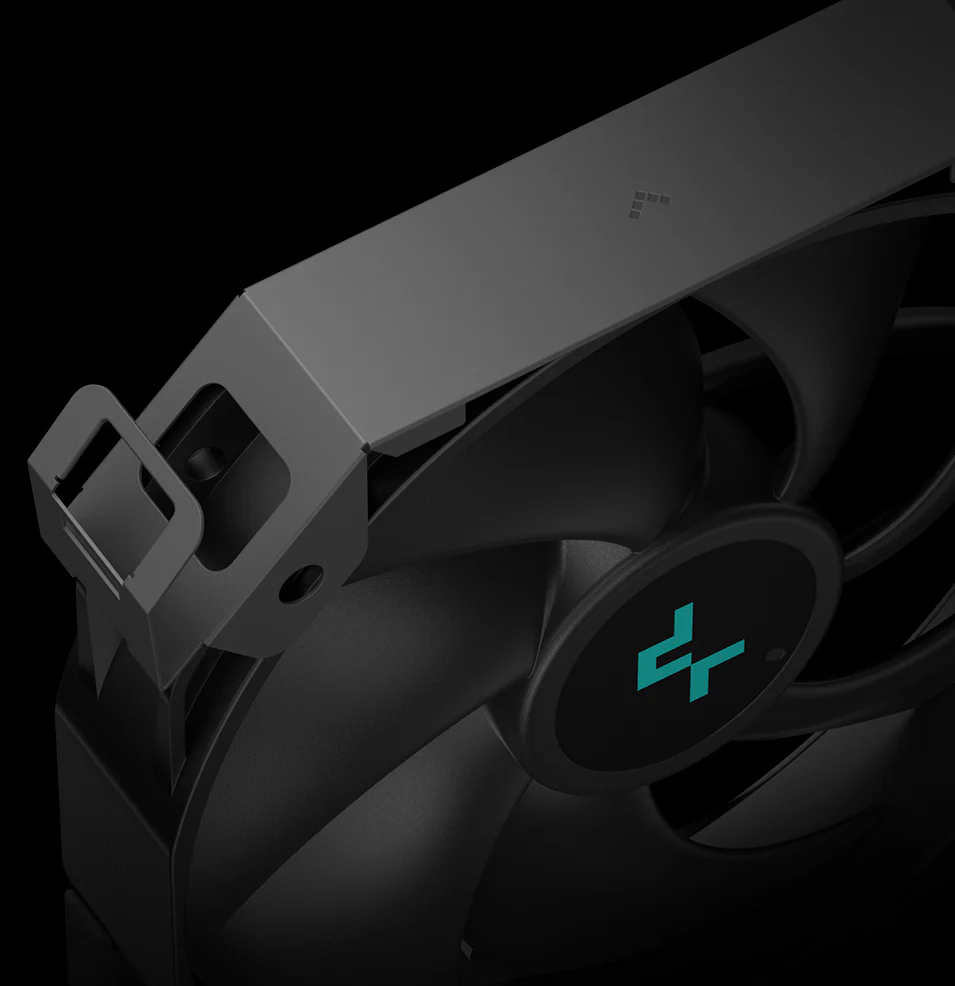

The ASSASSIN IV VC VISION's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
RAM Clearance
Intel LGA1851/1700/1200/115X: Unobstructed
Intel LGA20XX: 63mm
AMD: AM4/AM5: Unobstructed
BE COOL, BE CALM

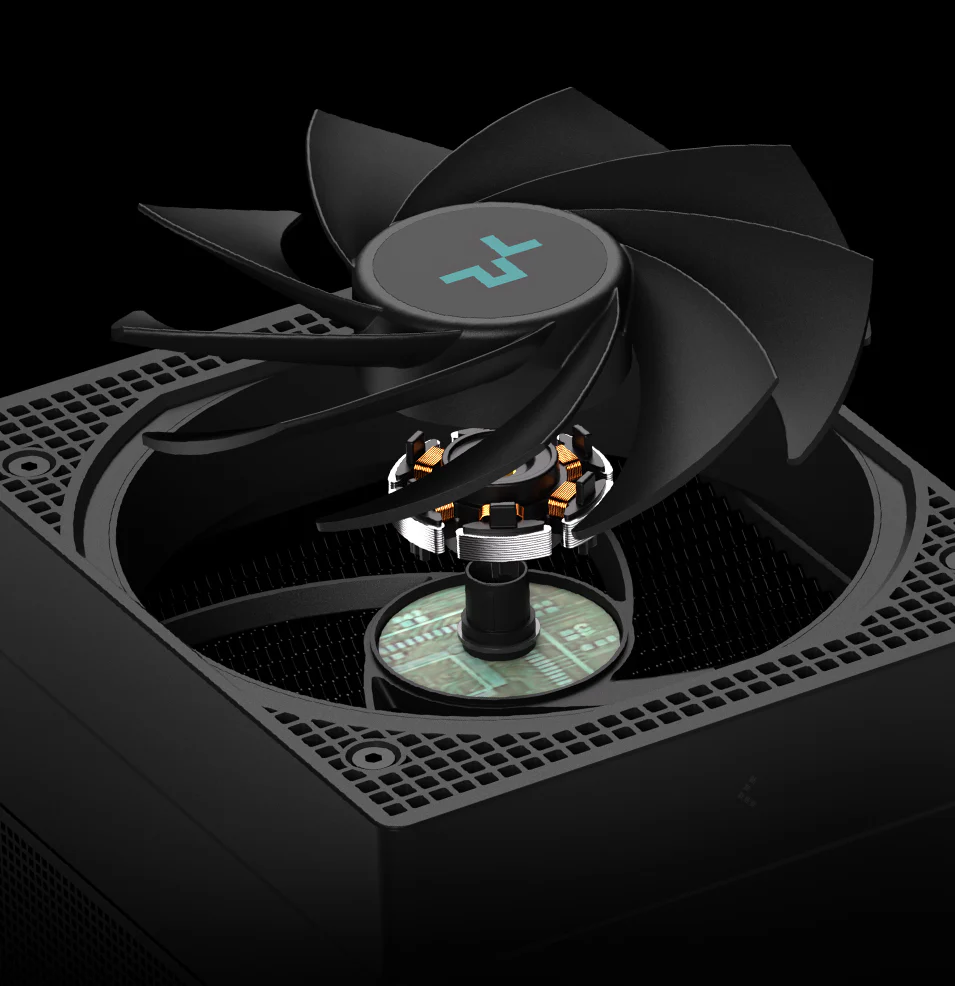

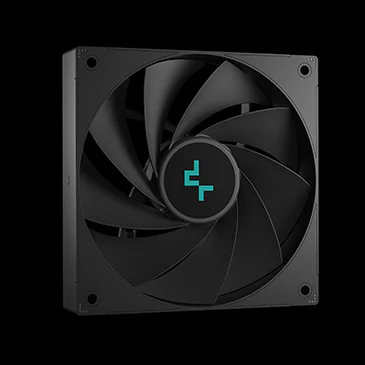

A key factor in the ASSASSIN IV VC VISION's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN IV VC VISION comes with 6 years of limited warranty coverage!
120mm (Performance / Quiet):
500~1700 RPM±10% / 500-1350 RPM+10%
Dynamic RPM Range
58.06 CFM / 46.75 CFM
Air Volume
≤22.5 dB(A)    /≤19.9 dB(A)
Noise Level

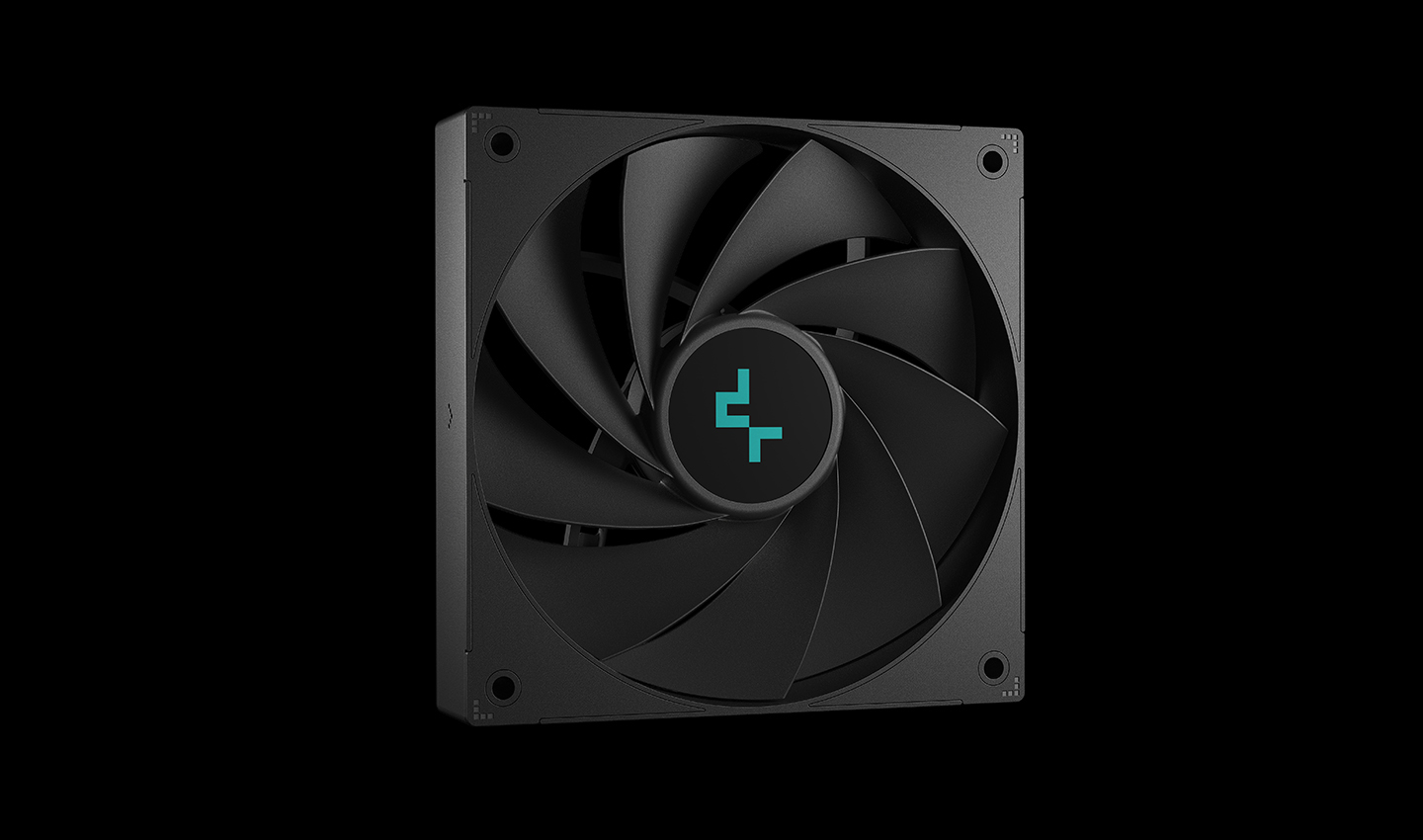

140mm (Performance / Quiet):
500~1800 RPM±10% / 500~1450 RPM+10%
Dynamic RPM Range
61.25 CFM / 48.55 CFM
Air Volume
≤23.7 dB(A) /≤20.5 dB(A)
Noise Level
120
140

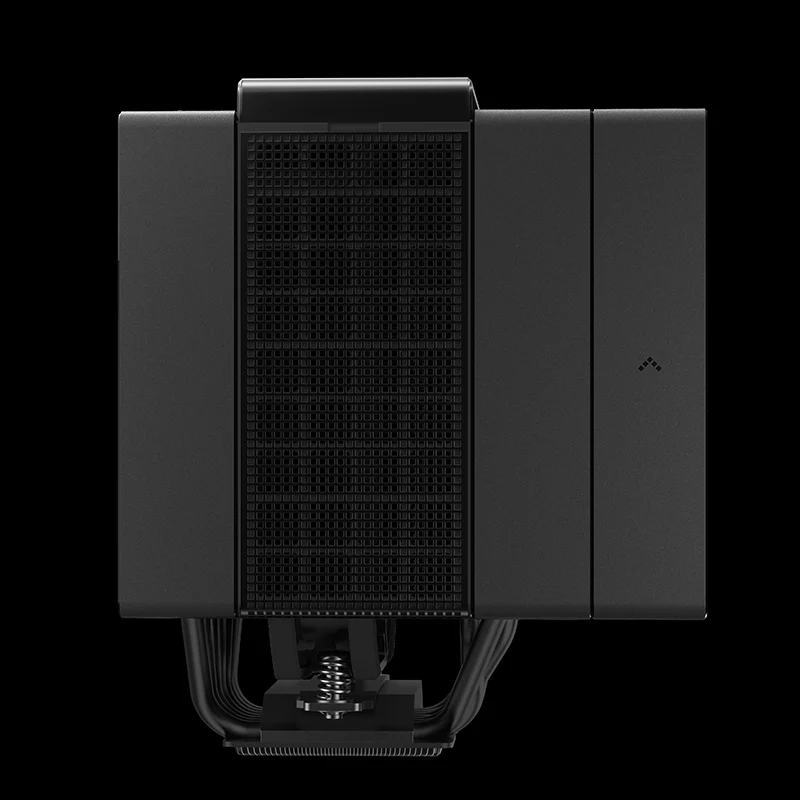

EXCEPTIONAL BY DESIGN

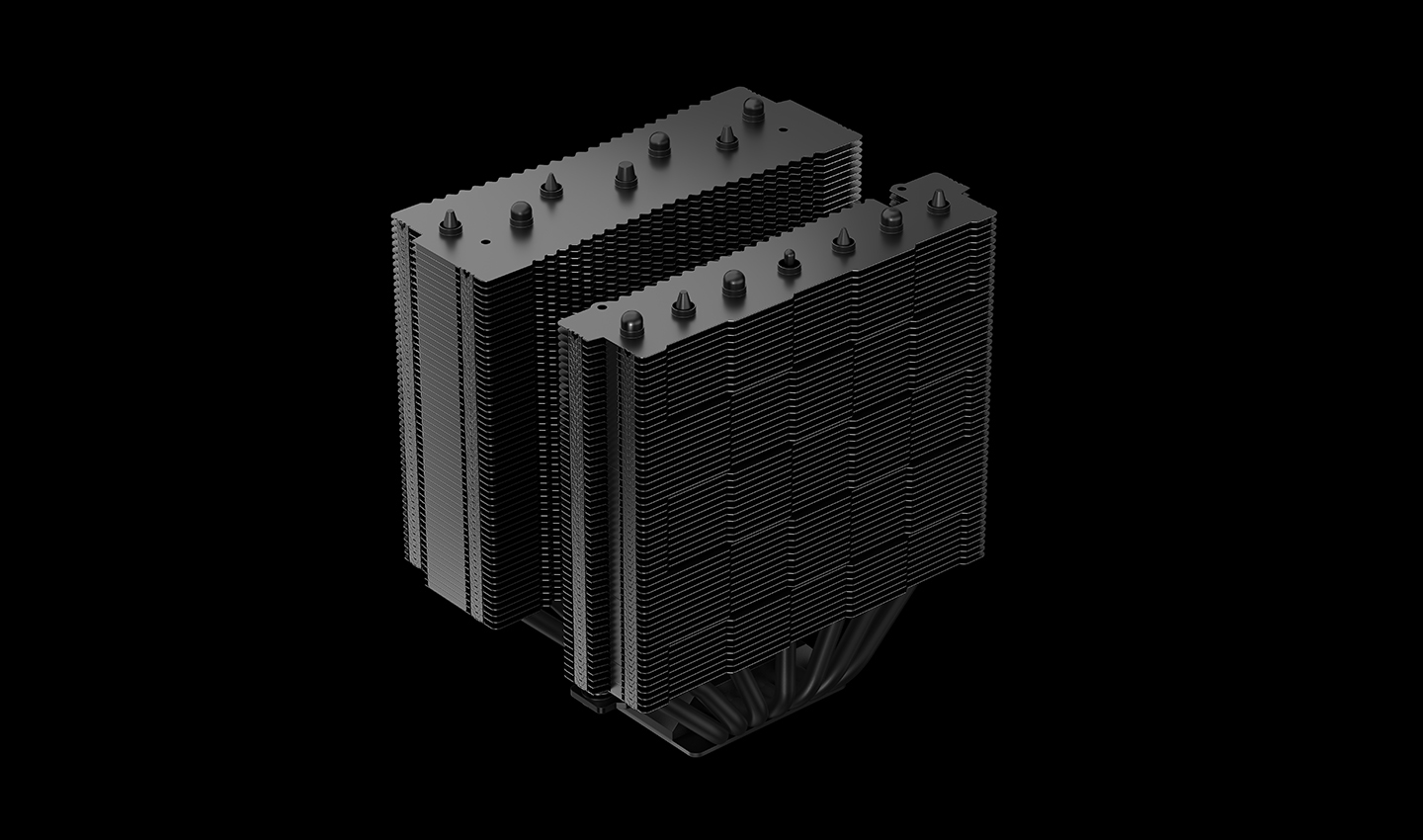

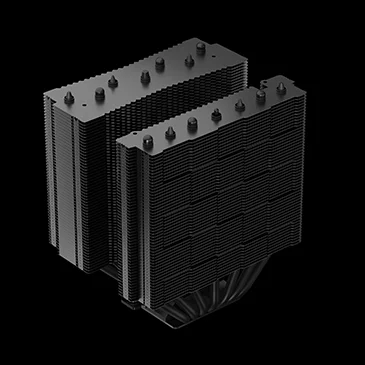

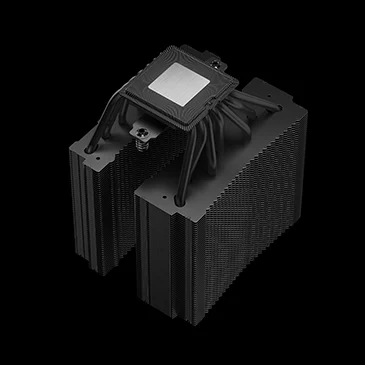

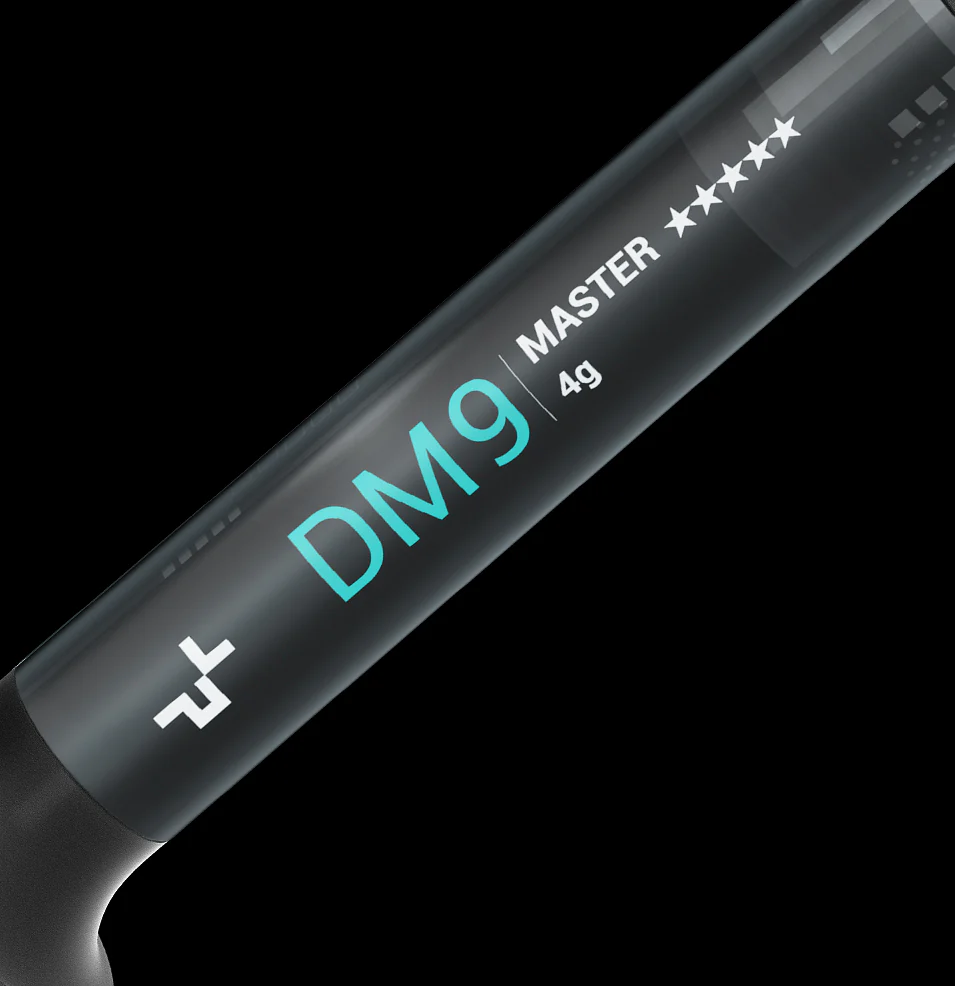

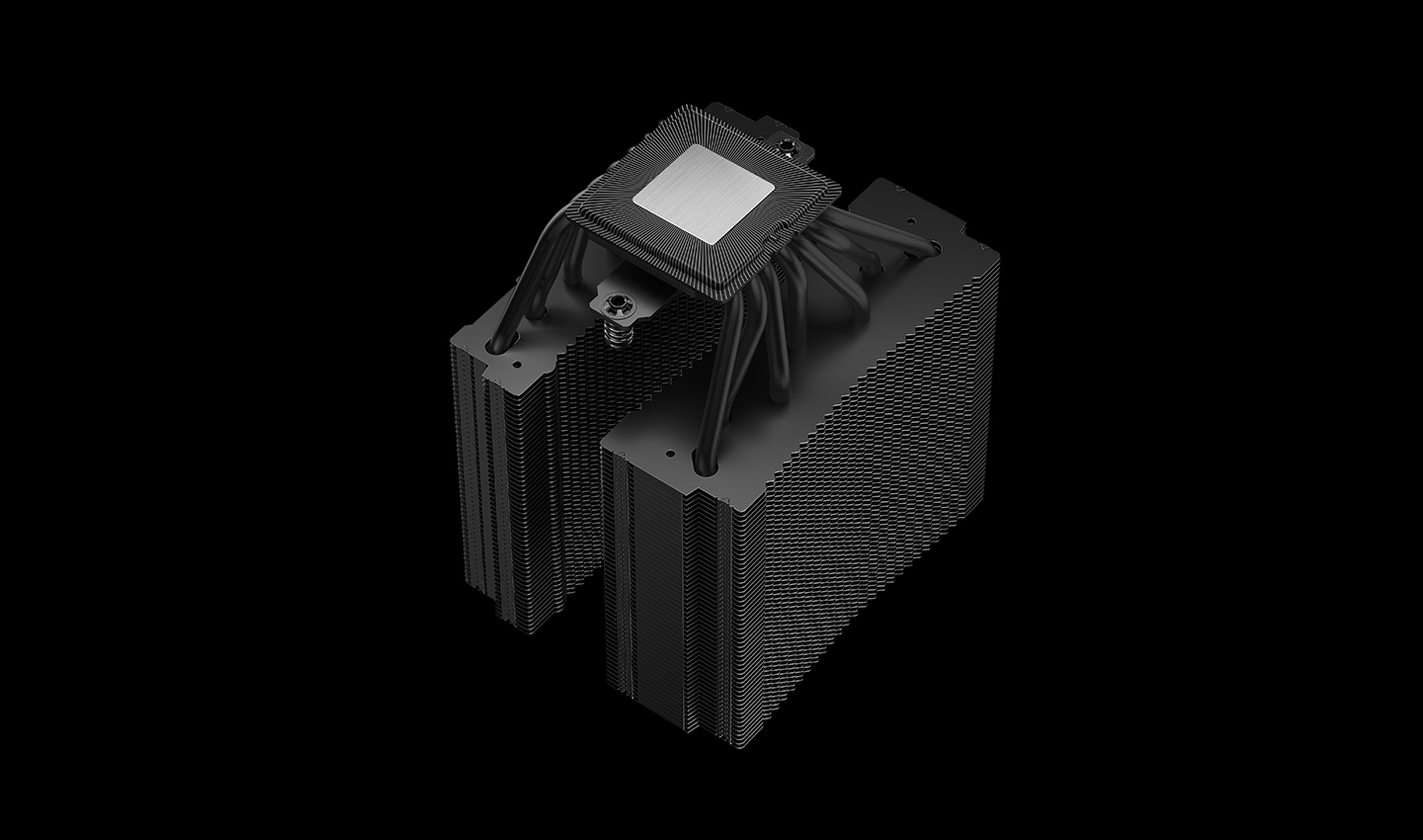

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissapation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Vapor Chamber Enhanced Base
Quad-Segmented Digital Display
Elegant Black Cooler Shroud

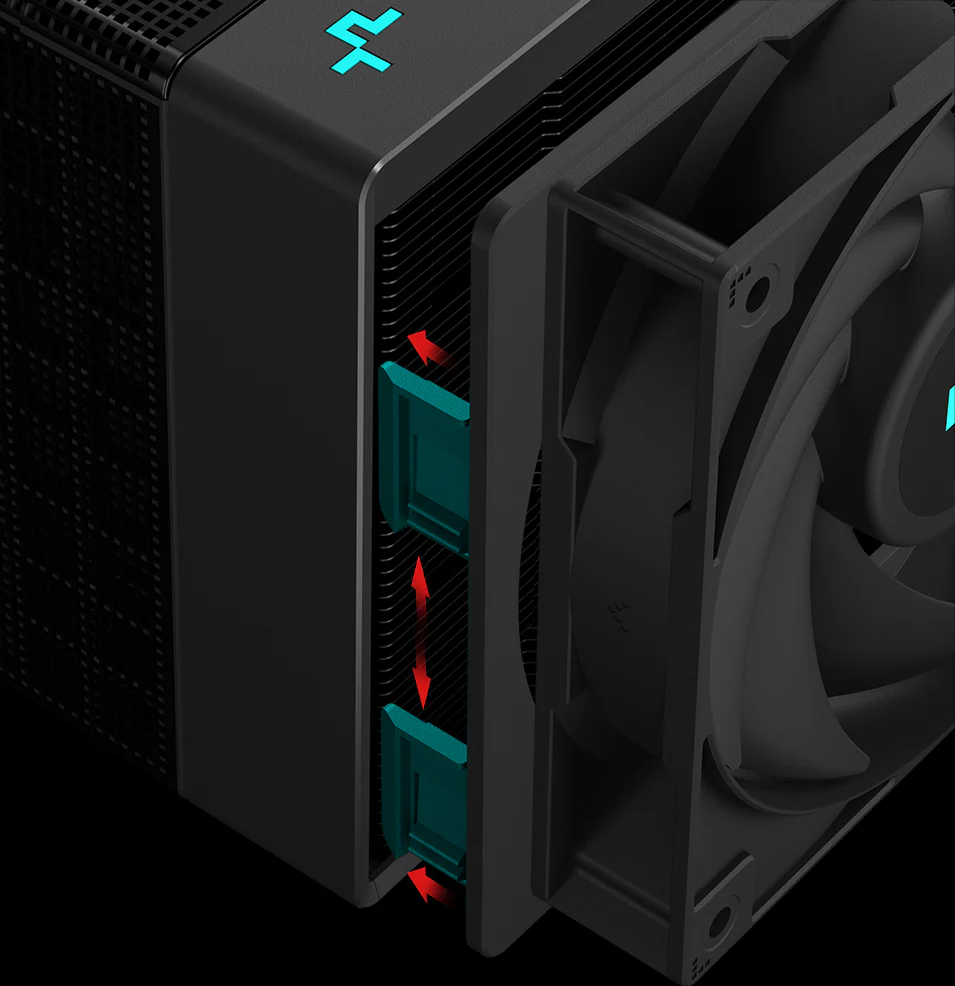

Snap in relocatable 120mm fan frame (two height levels)
140mm True FDB Main Fan
120mm True FDB Rear Fan
Mode Selector

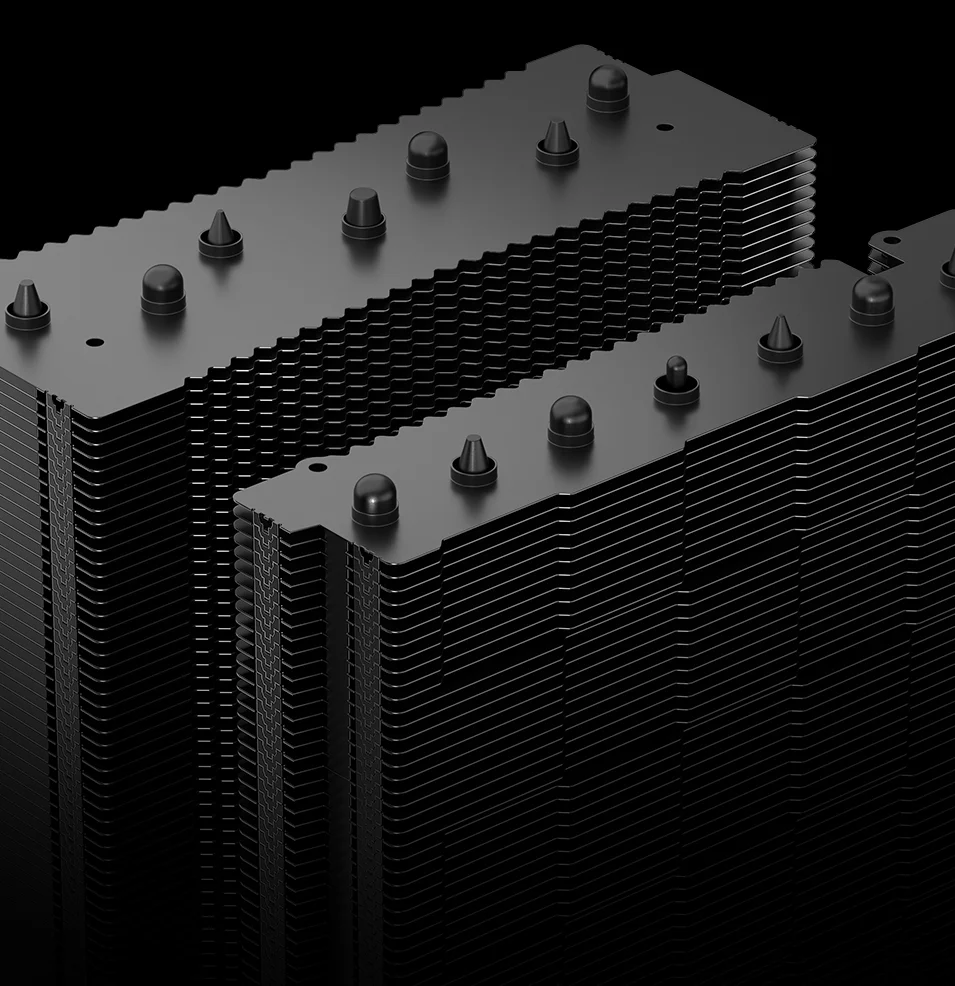

Dual Black Coated Fin Towers
Optional 3rd fan bracket included (multiple height adjustability)
Industrial grade thermal paste
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN IV VC VISION, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.

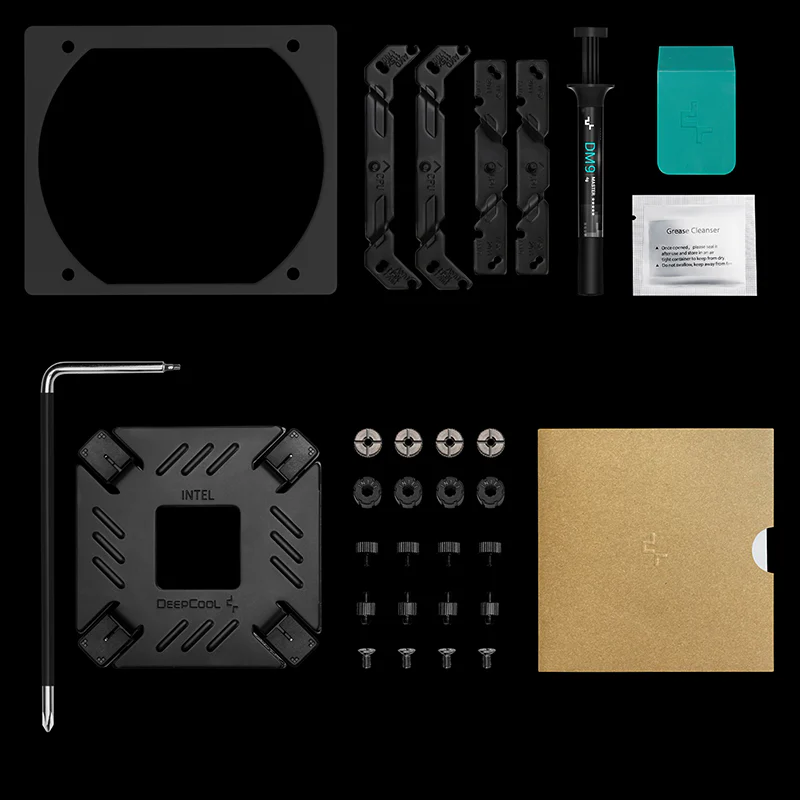

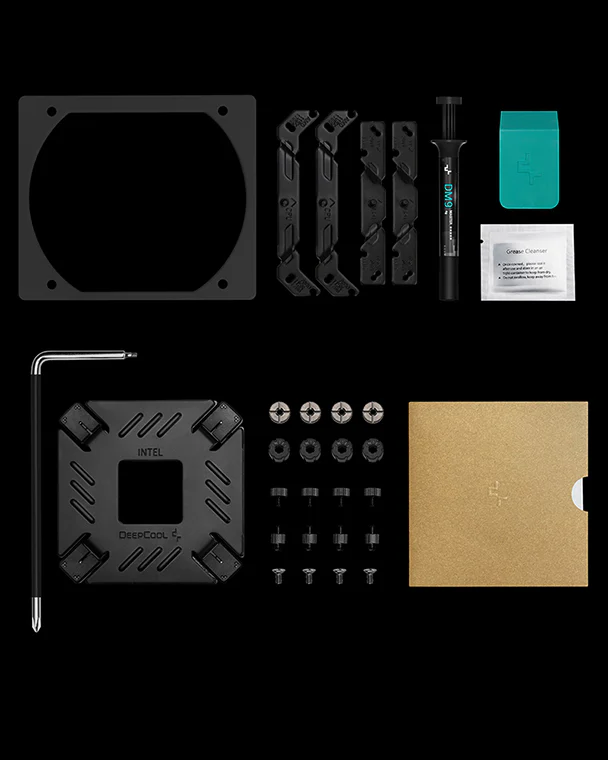

STREAMLINED INSTALLATION
Installing larger air coolers can be difficult, which is a prime reason the hardware and installation were designed to be extremely user-friendly with the 172mm tall ASSASSIN IV VC VISION. Even the magnetic display panel and main fan sliding design were crafted with ease of installation in mind.
WIDE RANGE OF MODERN
CPU SOCKET COMPATIBILITY
The ASSASSIN IV VC VISION supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1700 and AM5.
Intel: LGA20XX/1851/1700/1200/115X
AMD: AM5/AM4
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions147×144×172 mm(L×W×H)
Heatsink Dimensions140×110×160 mm(L×W×H)
Net Weight1780 g
HeatpipeØ6 mm×7 pcs
Fan Dimensions140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode)500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)≤29.3 dB(A)
Fan Speed (Quiet Mode)500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode)48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)≤22.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.2 A / 0.2 A
Fan Power Consumption2.4W / 2.4 W
Rated Voltage12 VDC
Power Consumption(Performance Mode)4.8 W
Power Consumption(Quiet Mode)3.6 W
Display Module Rated Voltage0.08 A±10%
Display Module Rated Current5 VDC
Display Module Power Consumption0.4 W
Display Area44.6x53.6 mm
EAN6933412729136
P/NR-ASN4-BKNVMD-G
