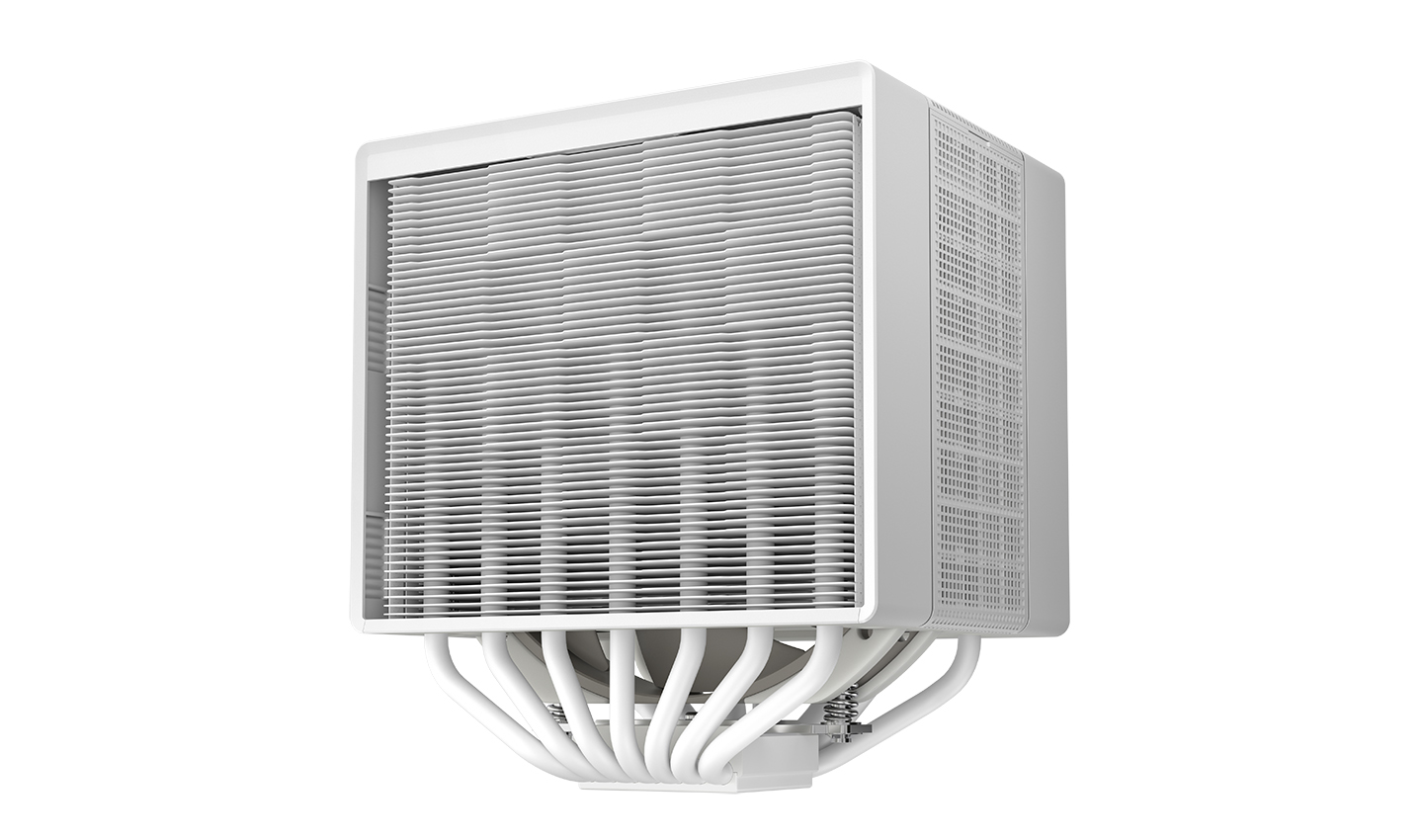

ASSASSIN 4S WH
The ASSASSIN 4S WH provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler. The white and gray aesethic blend in perfectly with that all-white system.
MODEL
ASSASSIN 4S WH
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY
The elegant white design of the ASSASSIN 4S WH is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
BEAUTY IN SIMPLICITY
The elegant white design of the ASSASSIN 4S WH is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S WH can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!
The shell of ASSASSIN 4S WH is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN 4S WH's extremely silent operation is the use of three-phase, six-slot, four pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S WH comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN

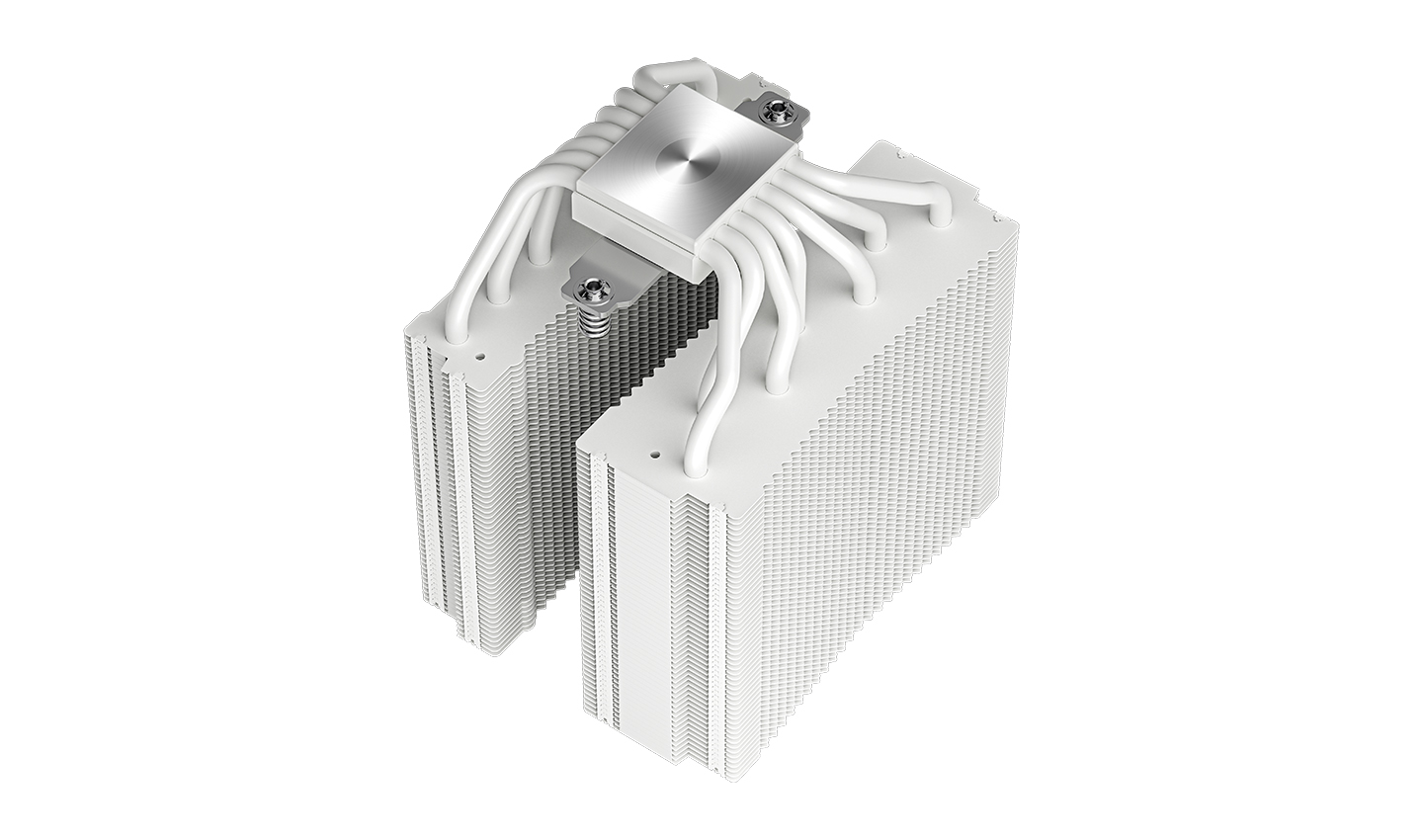

Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

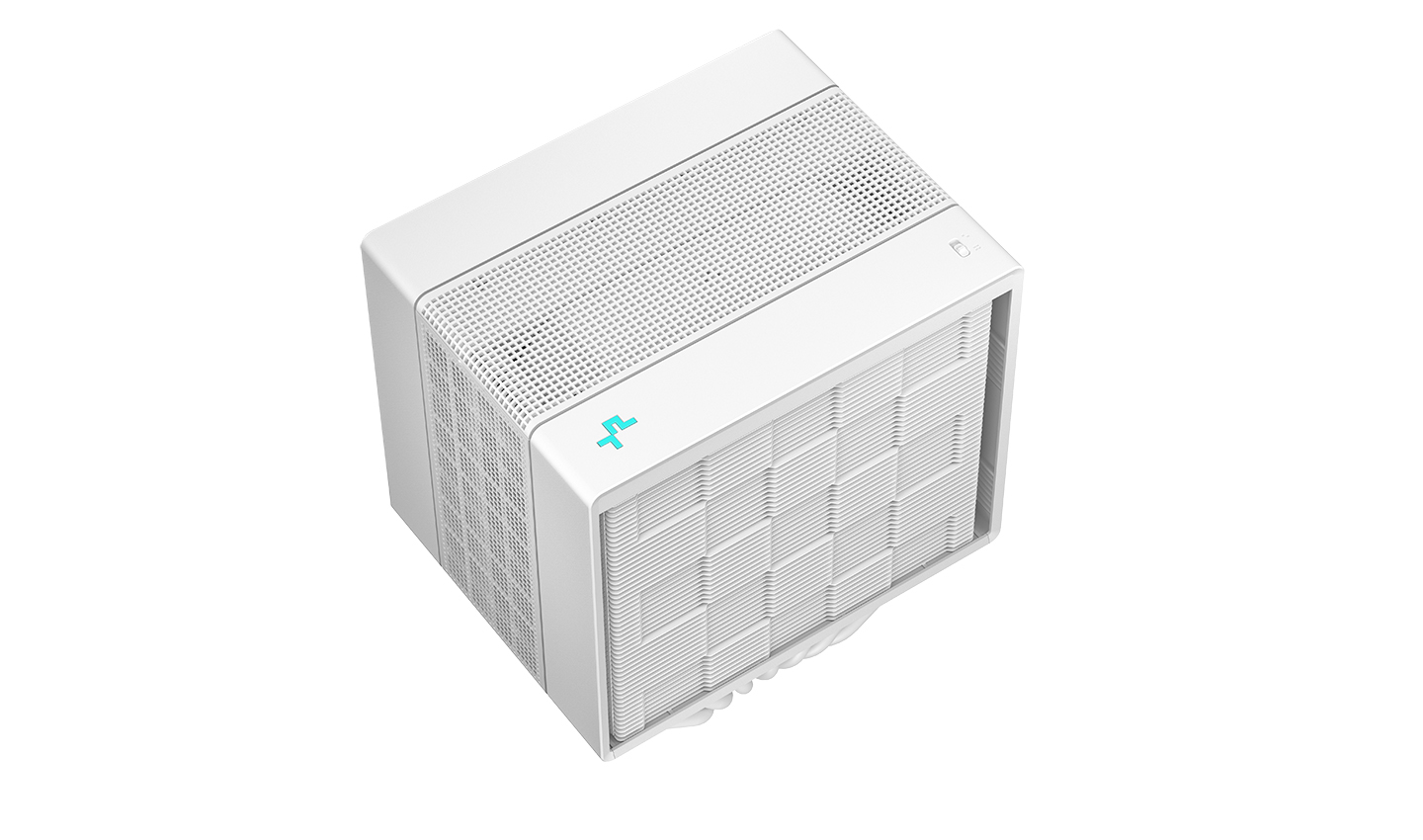

Elegant White Cooler Shroud

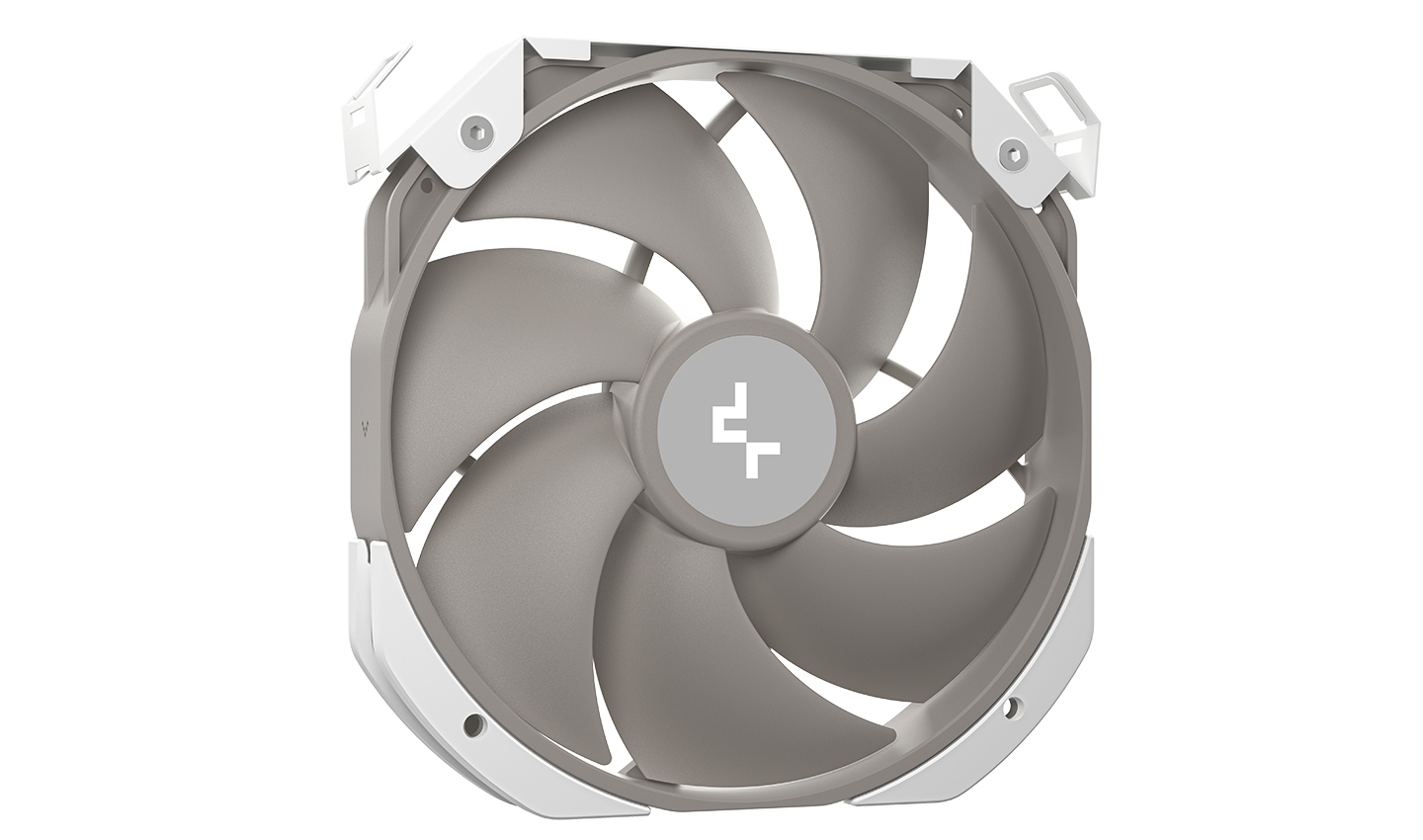

140mm true FDB Fan
Mode Selector
Dual White Coated Fin Towers
Industrial grade thermal paste
  • 1 ━━
  • 2 ━━
  • 3 ━━
  • 4 ━━
  • 5 ━━
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN 4S WH, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.

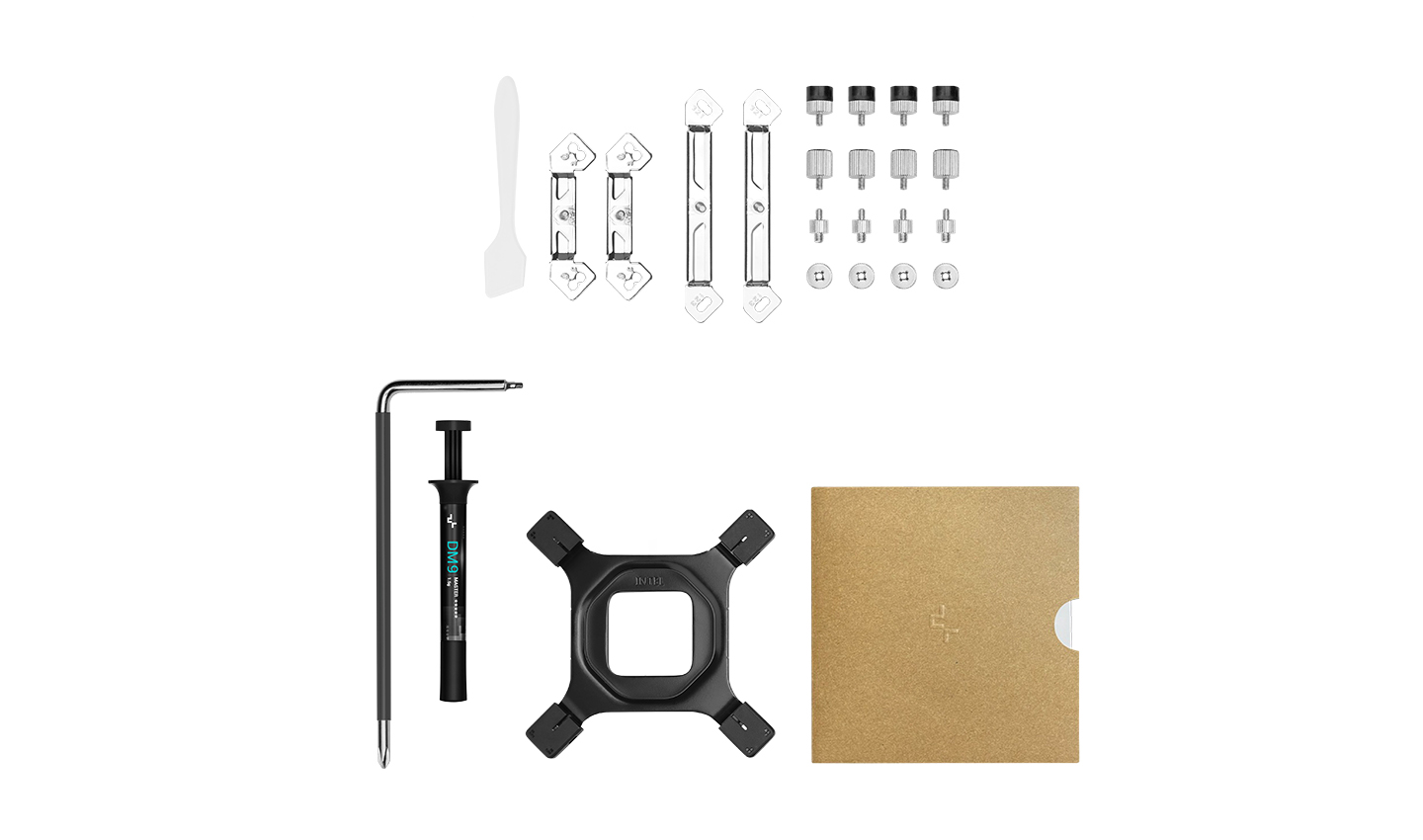

STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions116×147×164 mm(L×W×H)
Heatsink Dimensions140×110×160 mm(L×W×H)
Net Weight1380 g
HeatpipeØ6 mm×7 pcs
Fan Dimensions140×140×25 mm(L×W×H)
Fan Speed (Performance Mode)500~1800 RPM±10%
Fan Airflow (Performance Mode)61.25 CFM
Fan Air Pressure (Performance Mode)3.76 mmAq
Overall Noise (Performance Mode)≤29.3 dB(A)
Fan Speed (Quiet Mode)500~1450 RPM±10%
Fan Airflow (Quiet Mode)48.55 CFM
Fan Air Pressure (Quiet Mode)2.46 mmAq
Overall Noise (Quiet Mode)≤22.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.2 A
Fan Power Consumption2.4 W
Rated Voltage12 VDC
Power Consumption(Performance Mode)3.6 W
Power Consumption(Quiet Mode)2.4 W
EAN6933412728702
P/NR-ASN4S-WHGPMN-G
Download
ASSASSIN 4S WH Manual.pdf
