ASSASSIN IV WH
The ASSASSIN returns with a new white aesthetic and efficient cooling capacity. The ASSASSIN IV WH provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
MODEL
ASSASSIN IV WH
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY
The elegant white design of the ASSASSIN IV WH is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN QUIET OR PERFORMANCE MODE,
THE ASSASSIN IV WH IS THE OBVIOUS CHOICE
With a simple slide of a switch, the ASSASSIN IV WH can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!
The ASSASSIN IV WH's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
RAM Clearance
Intel LGA1700/1200/115X: Unobstructed
Intel LGA20XX: 63mm
AMD: AM4/AM5: Unobstructed
Due to differences in motherboard layouts, the following motherboards are not compatible with the ASSASSIN IV WH: ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, ROG CROSSHAIR X670E GENE, MSI MEG Z790 ACE, ASUS TUF GAMING B760M-PLUS WIFI, ROG STRIX B760-G GAMING WIFI, ASUS ROG STRIX Z690-F GAMING WIFI, ROG STRIX X670E-I GAMING WIFI, and ASUS ROG STRIX Z790-I GAMING WIFI.
BE COOL, BE CALM
A key factor in the ASSASSIN IV WH's extremely silent operation is the use of three-phase, six-slot, four pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV WH comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Elegant White Cooler Shroud
Snap in relocatable 120mm fan frame (two height levels)

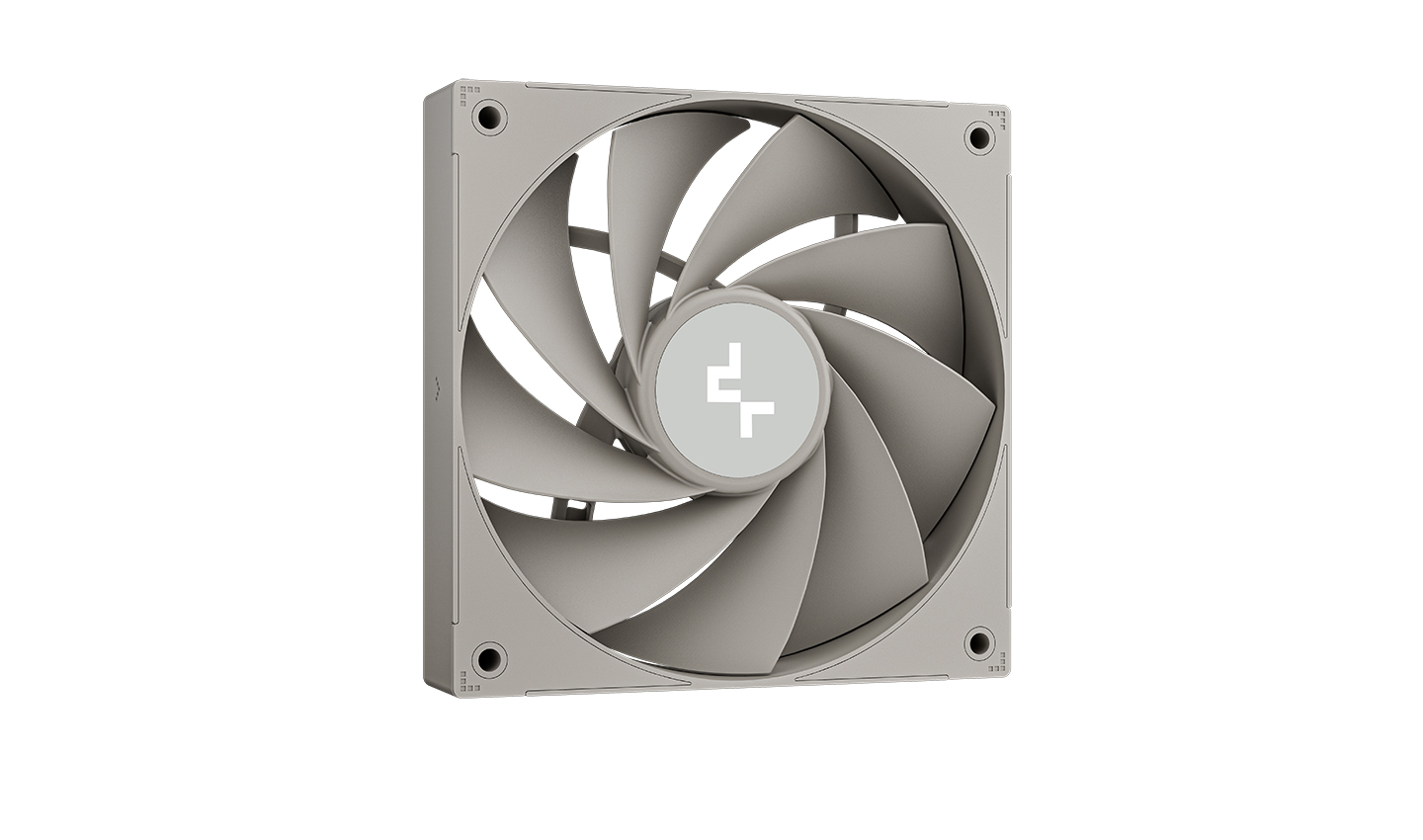

120mm true FDB Fan
140mm true FDB Fan
Mode Selector
Dual White Coated Fin Towers
Optional 3rd fan bracket included (multiple height adjustability)
Industrial grade thermal paste
  • 1 ━━
  • 2 ━━
  • 3 ━━
  • 4 ━━
  • 5 ━━
  • 6 ━━
  • 7 ━━
  • 8 ━━
Streamlined Installation
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions144×147×164 mm(L×W×H)
Heatsink Dimensions140×110×160 mm(L×W×H)
Net Weight1575 g
HeatpipeØ6 mm×7 pcs
Fan Dimensions140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode)500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)≤29.3 dB(A)
Fan Speed (Quiet Mode)500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode)48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)≤22.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.2 A / 0.2 A
Fan Power Consumption2.4W / 2.4 W
Rated Voltage12 VDC
Power Consumption(Performance Mode)4.8 W
Power Consumption(Quiet Mode)3.6 W
EAN6933412728382
P/NR-ASN4-WHNNMT-G
Download
ASSASSIN IV WH Manual.pdf
