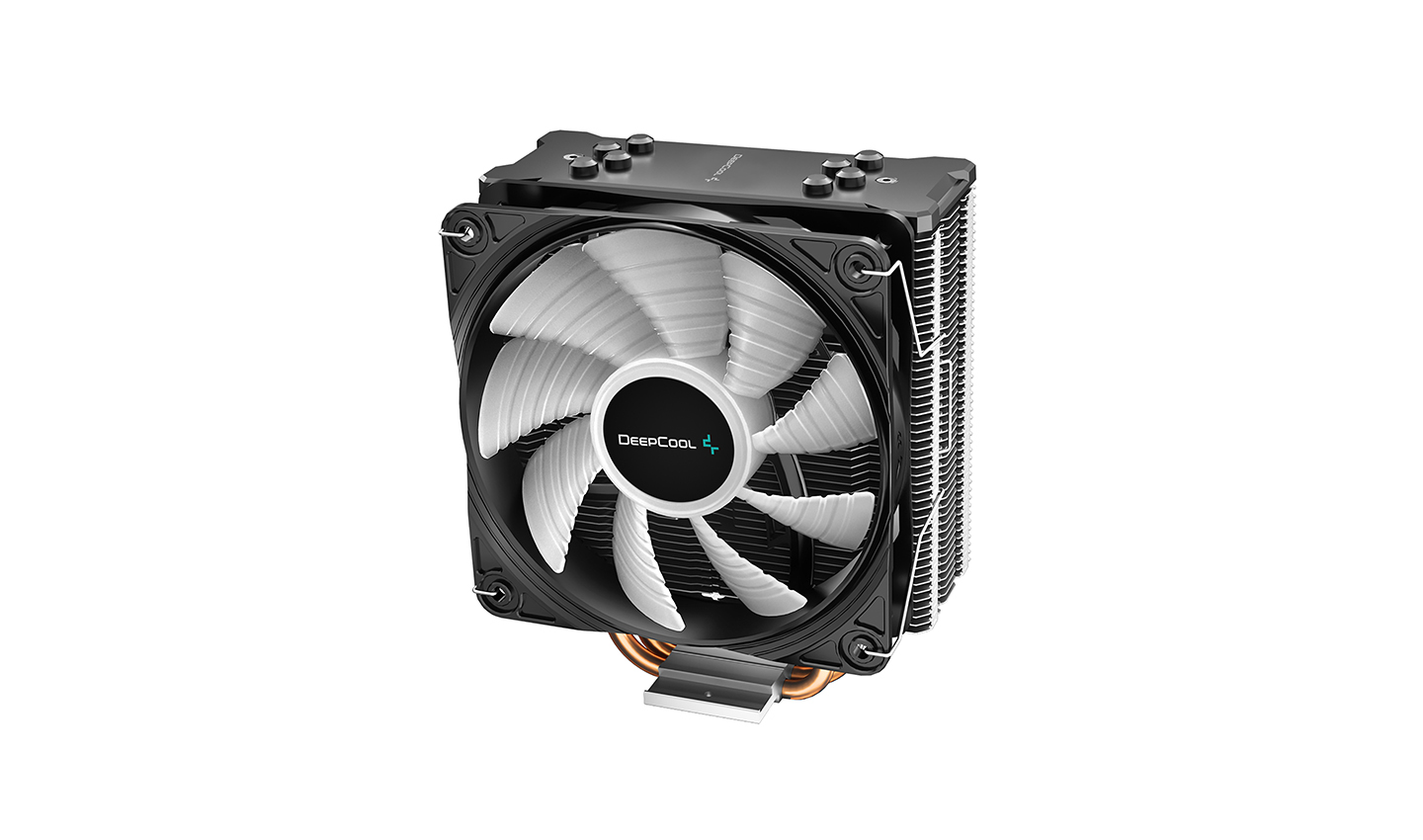

GAMMAXX GTE V2
The GAMMAXX GTE V2 features 4 direct-contact heat pipes and a 120mm PWM fan with an upgraded mounting kit for easy installation.
MODEL
GAMMAXX GTE V2
Legendary Cooling
With an upgraded PWM & RGB fan, and the new mounting tools, GAMMAXX GTE V2 is apt to provide better and safer cooling performance.

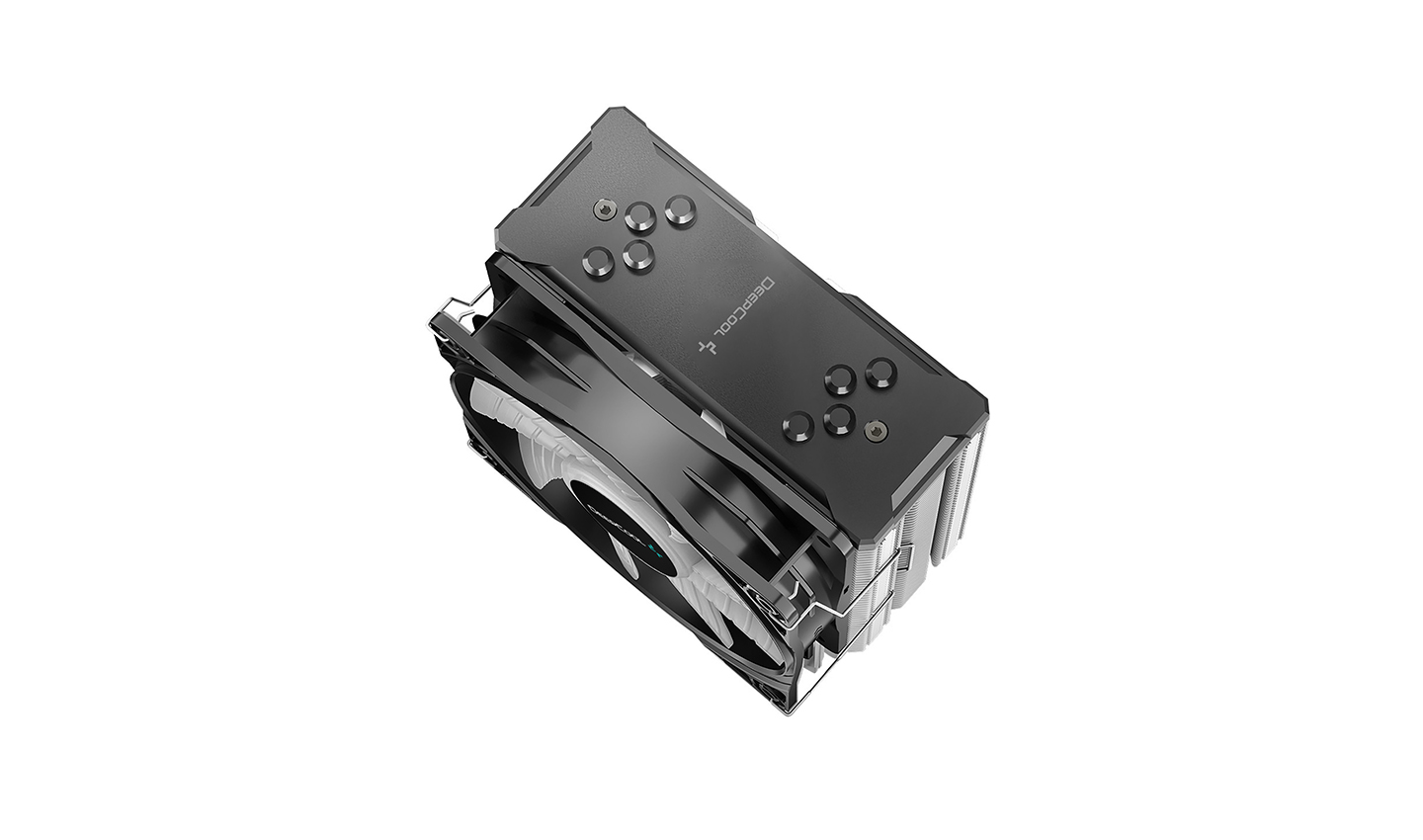

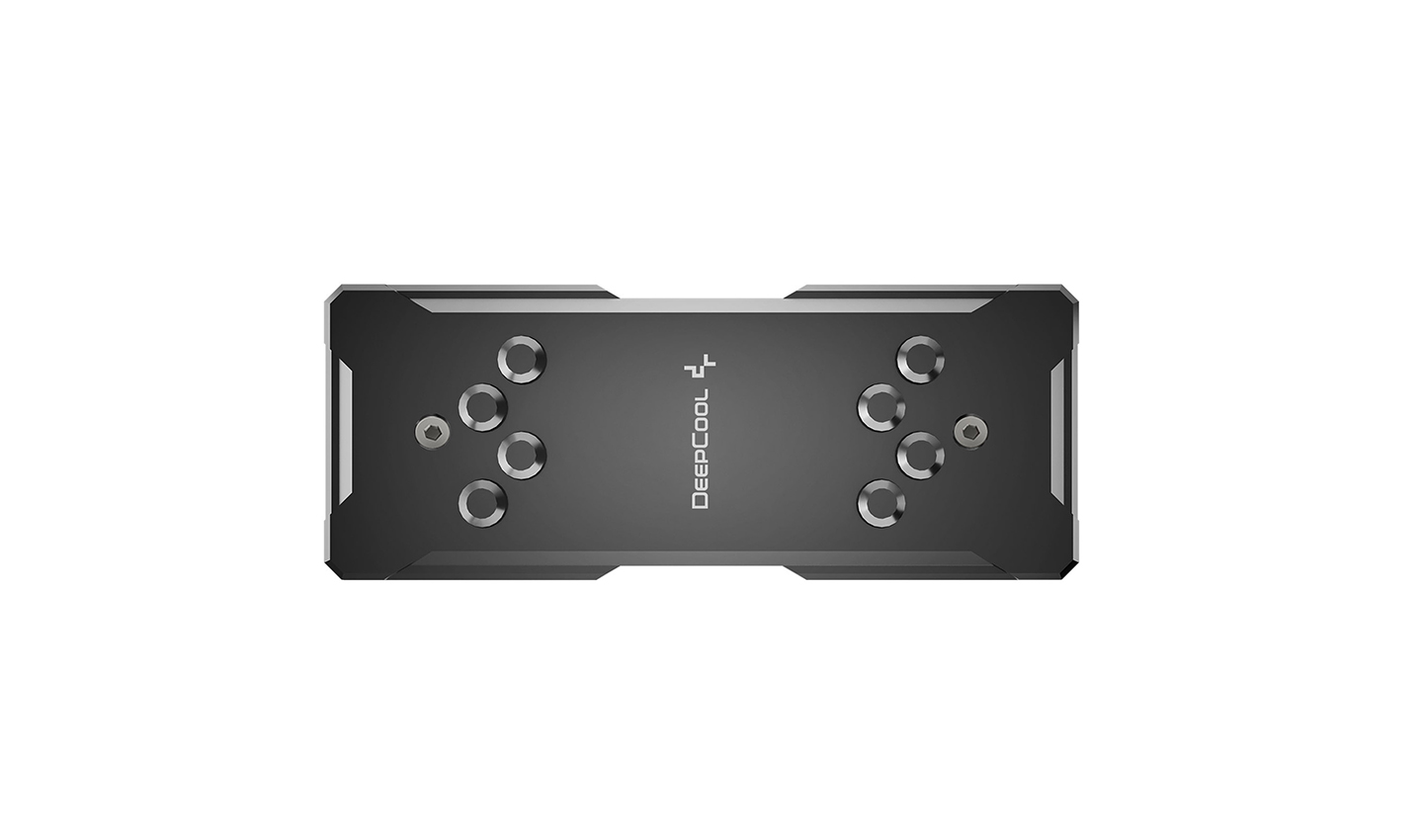

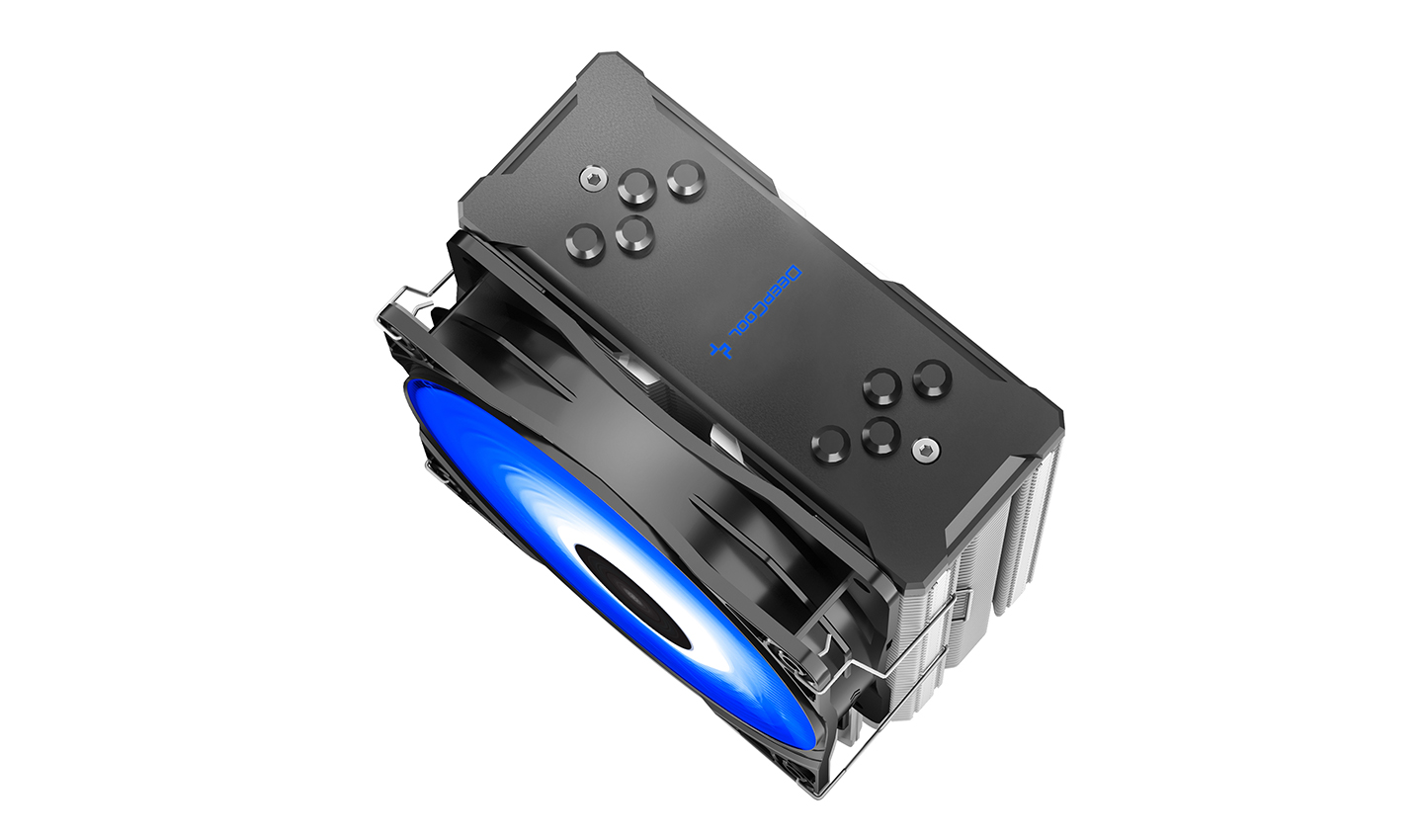

DARK TOP COVER
A dark top cover gives a quality premium touch for a clean aesthetic.

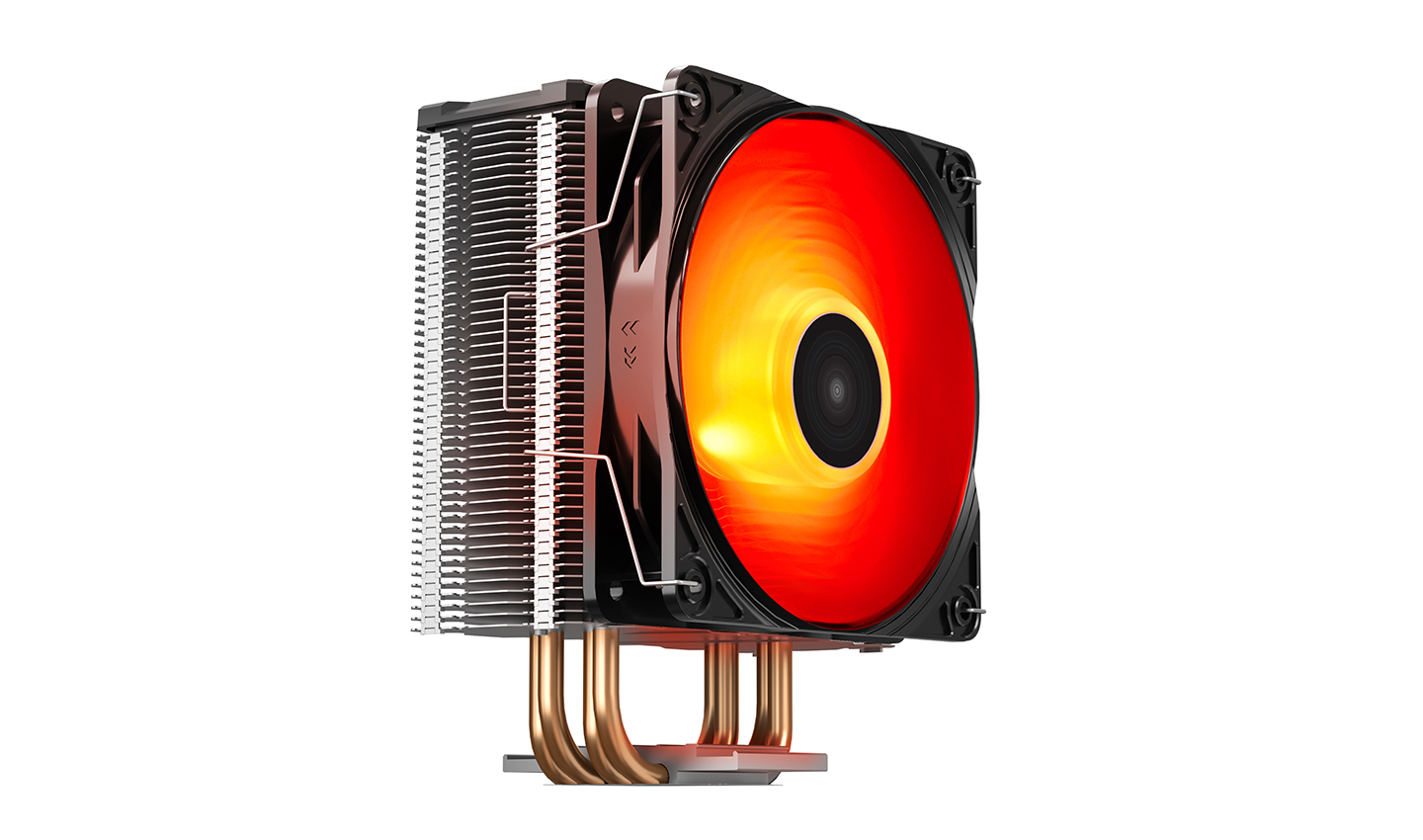

CONVENIENT RGB CONTROL
An included extension cable connects via a 4-pin 12V RGB header on the supported motherboards.
NEW PROCESS, BETTER DISSIPATION
A new fin-mounting process ensures smoother ventilation and more efficient heat dissipation.

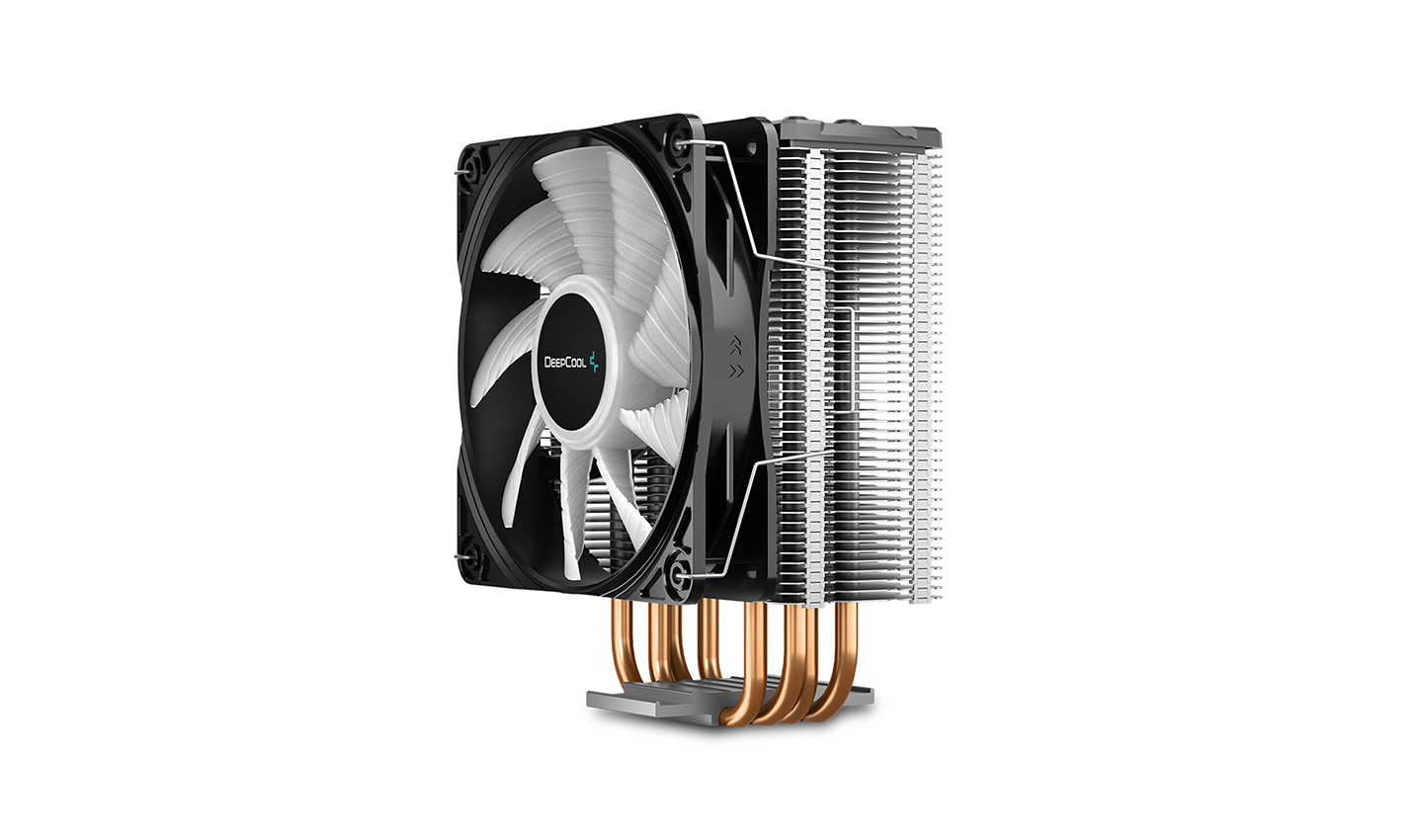

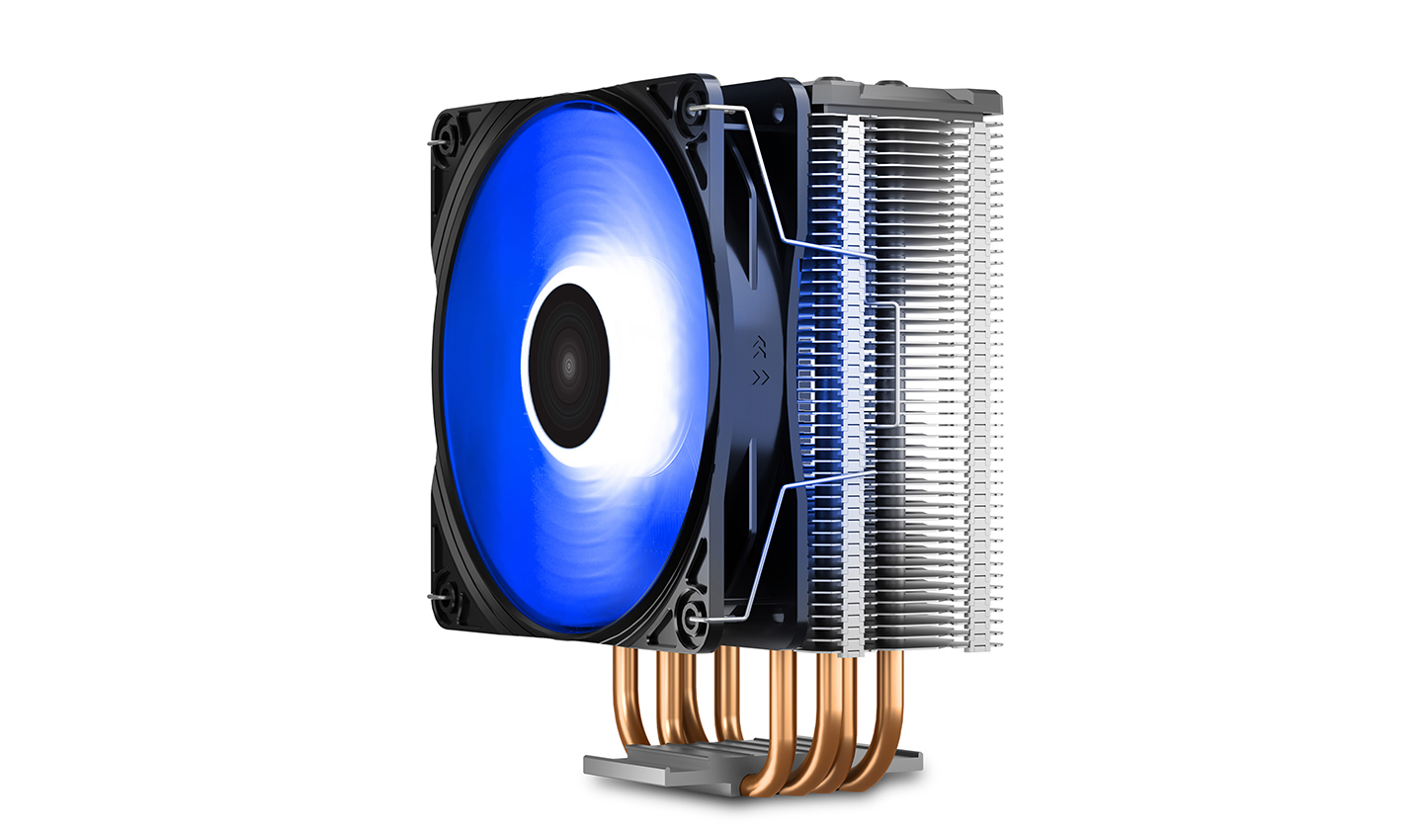

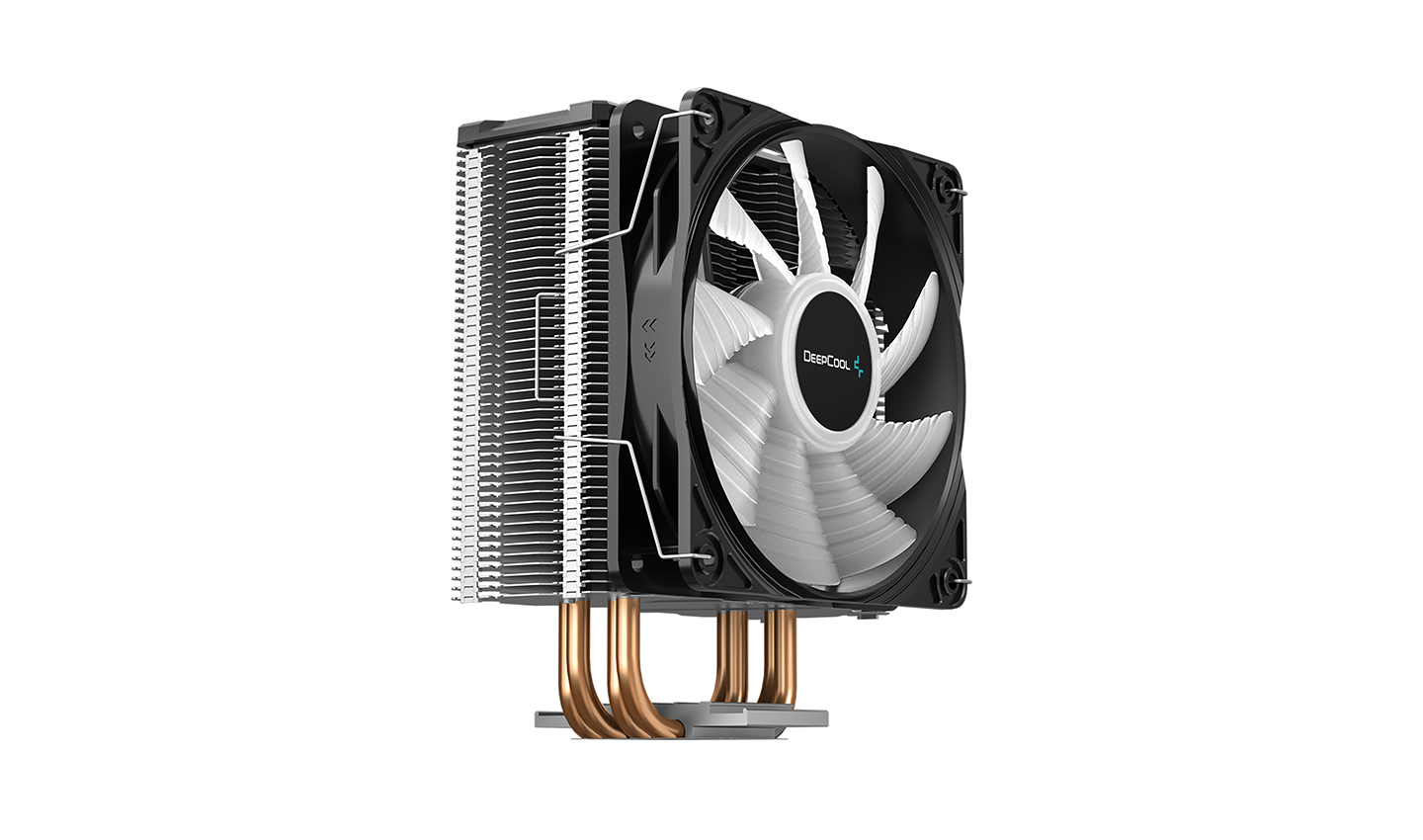

UPGRADED HEAT PIPES
4 Copper heat pipes help dissipate CPU heat with high efficiency.
UPGRADED HEAT PIPES
4 Copper heat pipes help dissipate CPU heat with high efficiency.

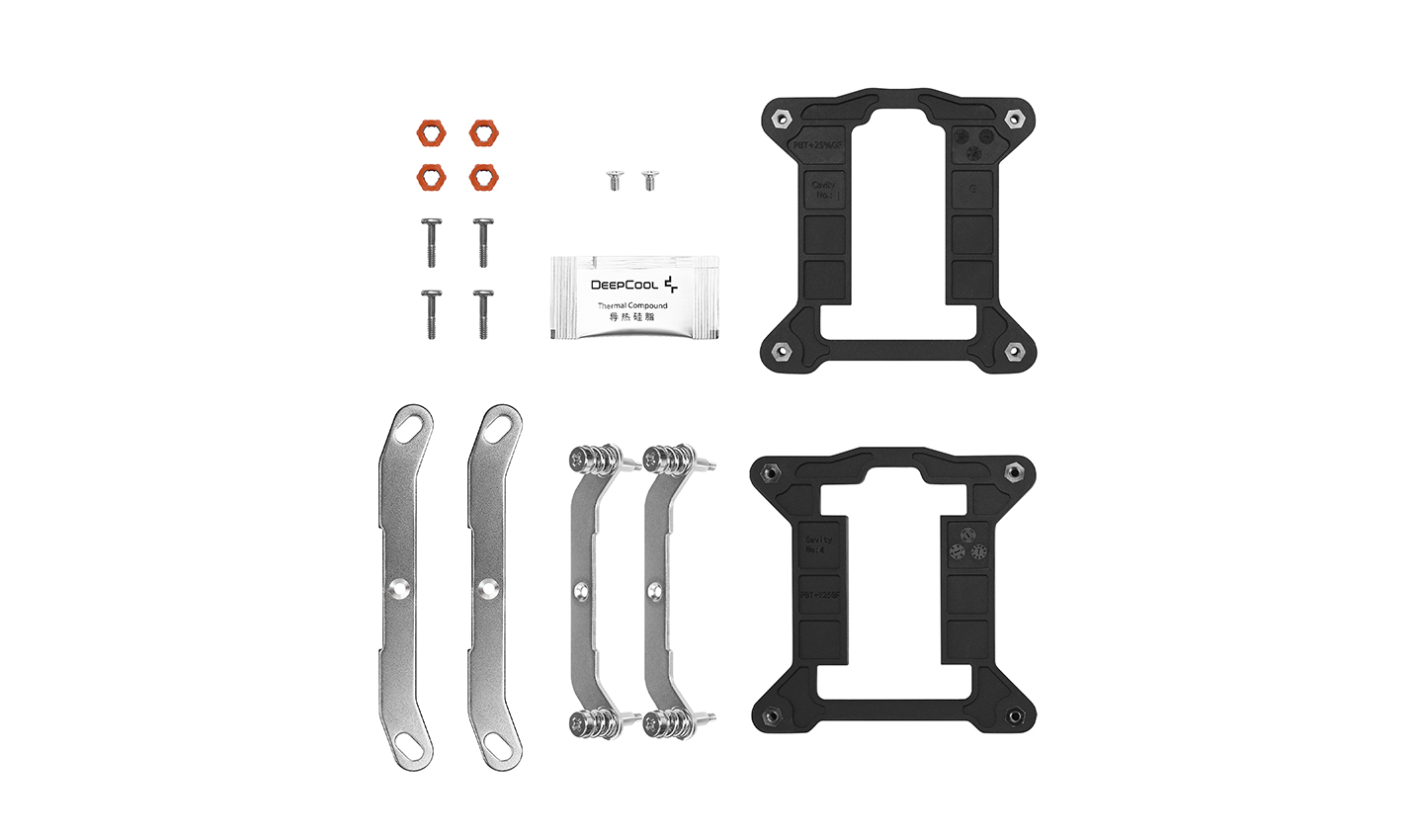

EASY TO INSTALL
The brand-new foolproof mounting kit supports mainstream chipsets and makes it easier to install.
EASY TO INSTALL
The brand-new foolproof mounting kit supports mainstream chipsets and makes it easier to install.

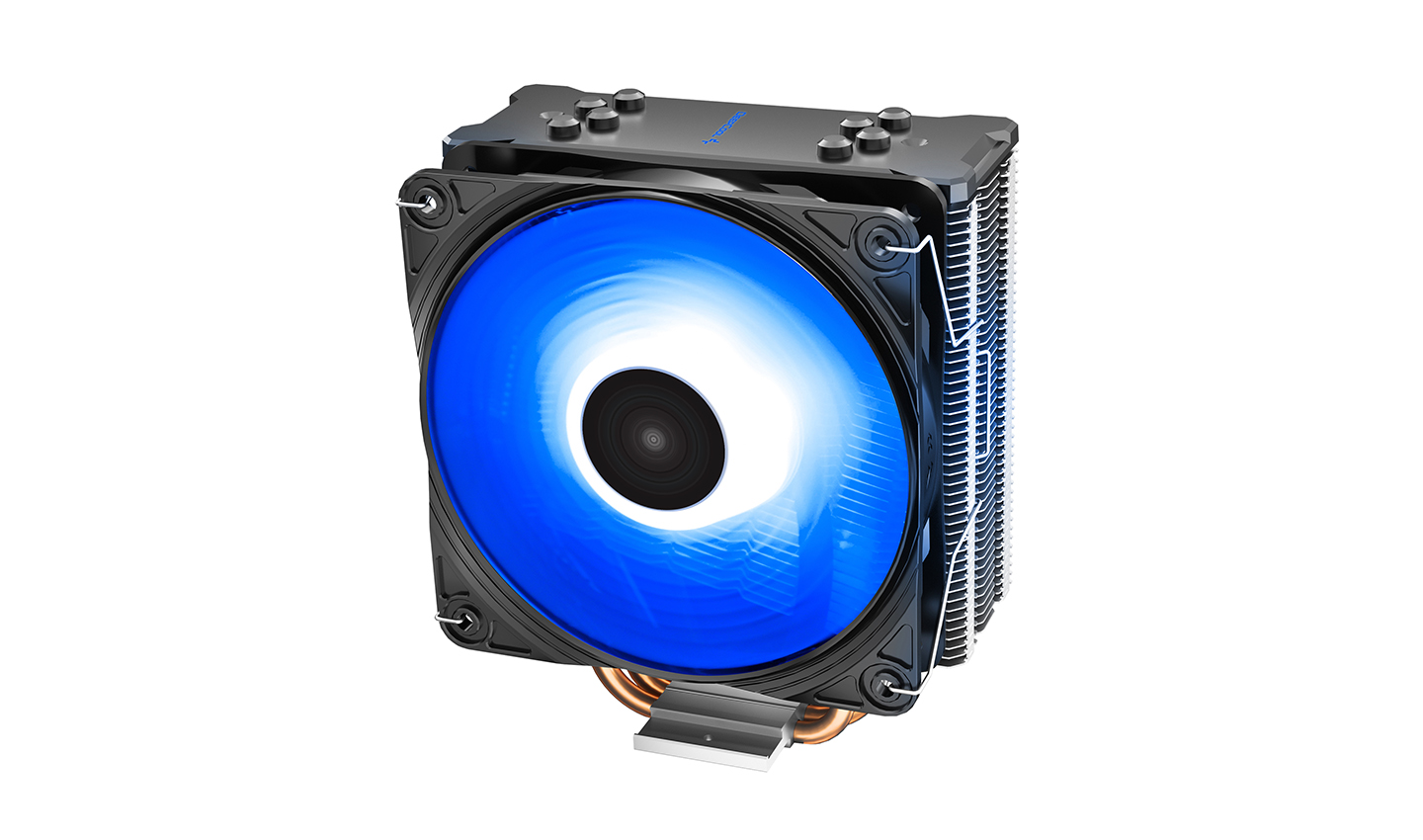

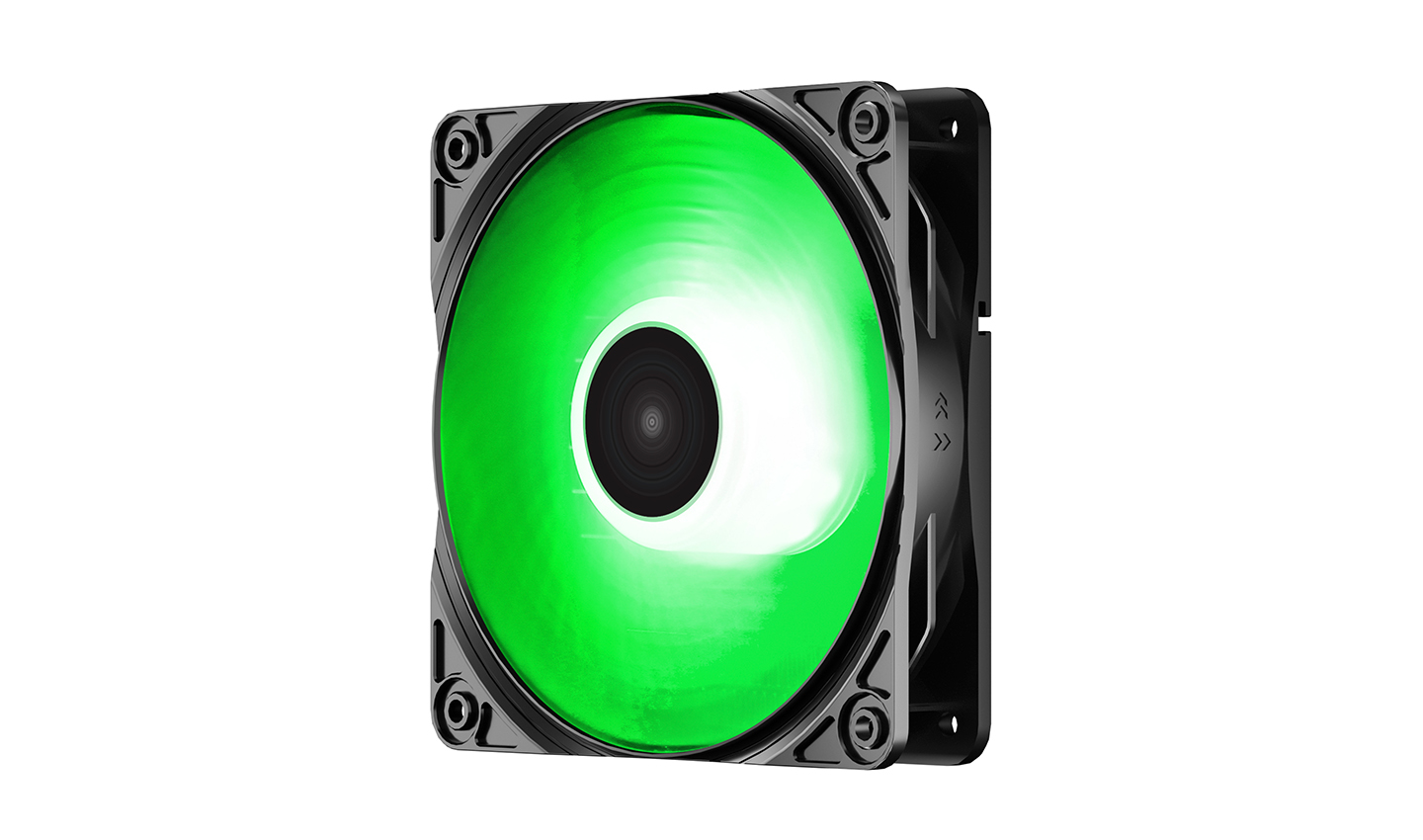

PWM & RGB FAN
The 120mm PWM RGB fan is fine tuned for better noise-performance balance.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×77×157.5 mm(L×W×H)
Heatsink Dimensions127×50×155 mm(L×W×H)
Net Weight 650 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1650 RPM±10%
Fan Airflow 64.5 CFM
Fan Air Pressure 2.1 mmAq
Fan Noise ≤27.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.14 A
Fan Power Consumption 1.68 W
LED Type RGB LED
LED Connector 4-pin(+12V-G-R-B)
LED Rated Voltage 12 VDC
LED Power Consumption 1.56W
EAN 6933412726906
P/N DP-MCH4-GMX-GTEV2
