THETA 20 PWM 1700

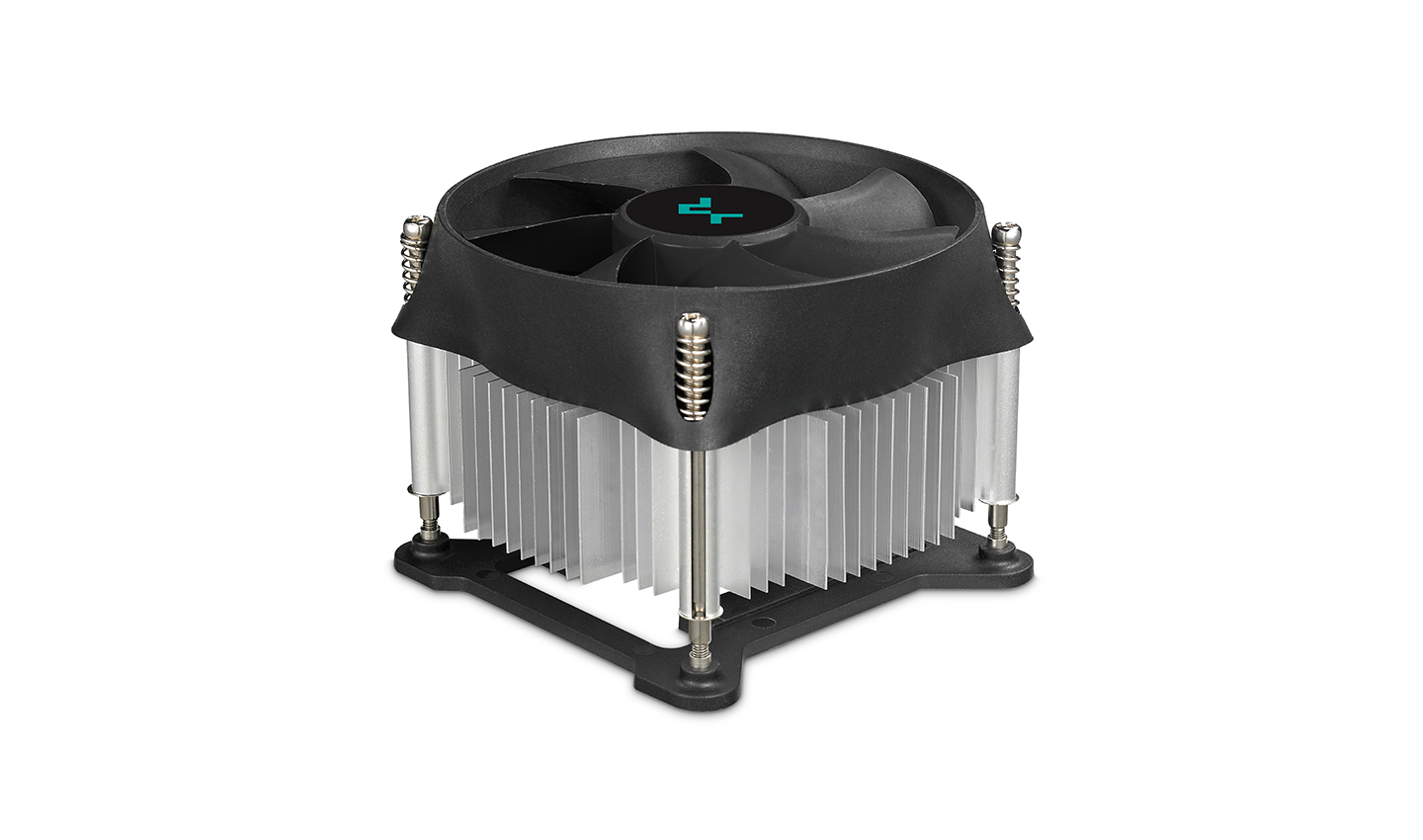

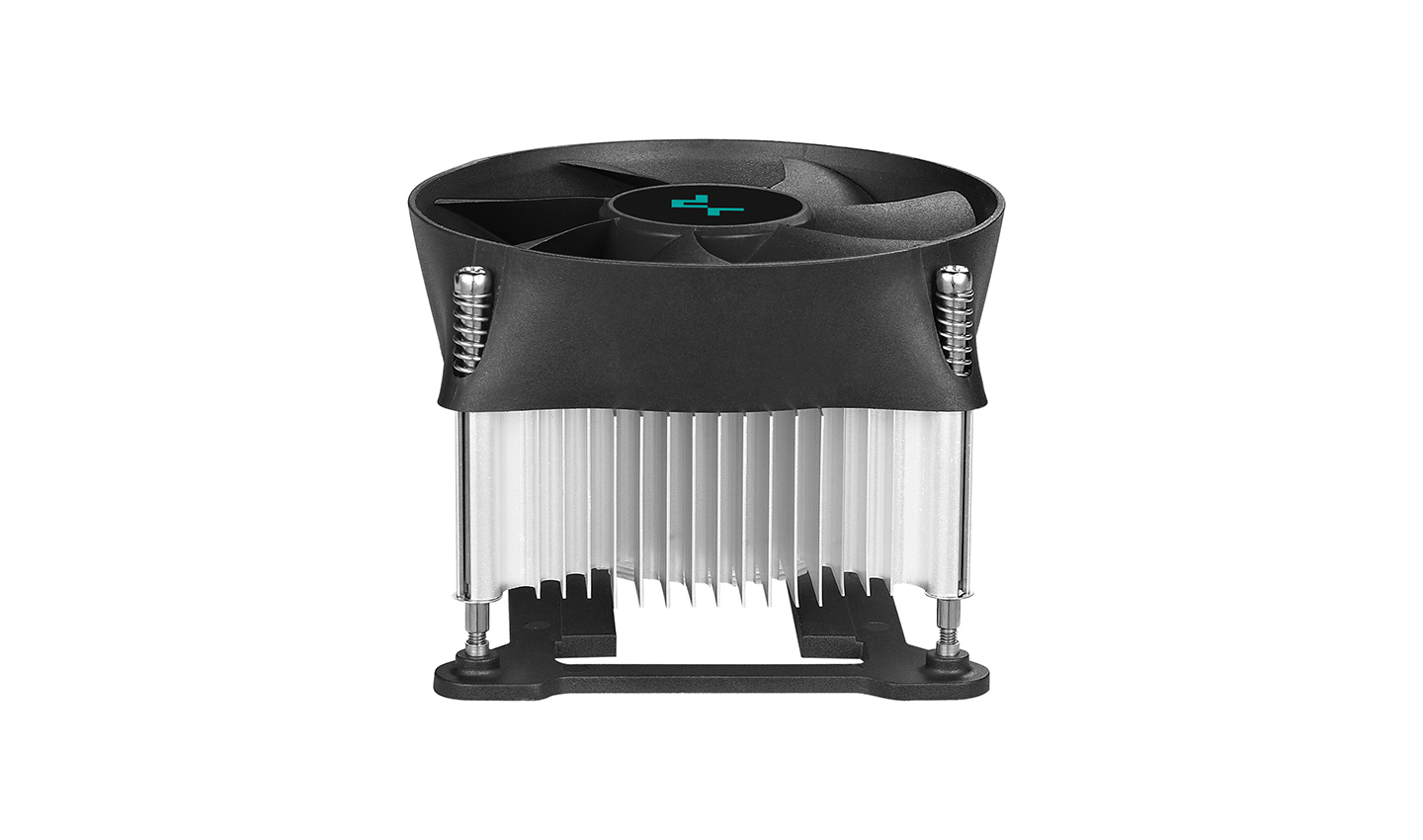

The DeepCool Theta 20 PWM 1700 standard CPU cooler provides highly effective cooling performance designed for Intel LGA 1851/1700 systems with a radial aluminum heatsink and a 100x25mm PWM fan.

MODEL

Compact Performance for LGA 1851/1700
Theta 20 PWM 1700 continues the high standards of DeepCool thermal solutions for efficient and effective CPU cooling now for LGA 1851/1700 systems. The compact size and simple design make it ideal for medium workloads while providing proper heat dissipation with its radial aluminum heatsink. The 100x25mm PWM fan perfectly balances strong airflow and low noise for optimal efficiency. The easy-to-install mounting bracket is safe and secure.

Application For

Intel

LGA1851/1700

Technical Spec

Product Dimensions	98×98×66 mm(L×W×H)
Heatsink Dimensions	92×92×35 mm(L×W×H)
Net Weight	355 g
Fan Dimensions	Φ100×25 mm
Fan Speed	500~2400 RPM±10%
Fan Airflow	36.97 CFM
Fan Air Pressure	2.5 mmAq
Fan Noise	≤31.1 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.1 A
Fan Power Consumption	1.2 W
EAN	6933412727675
P/N	DP-ICAS-T20P-17
