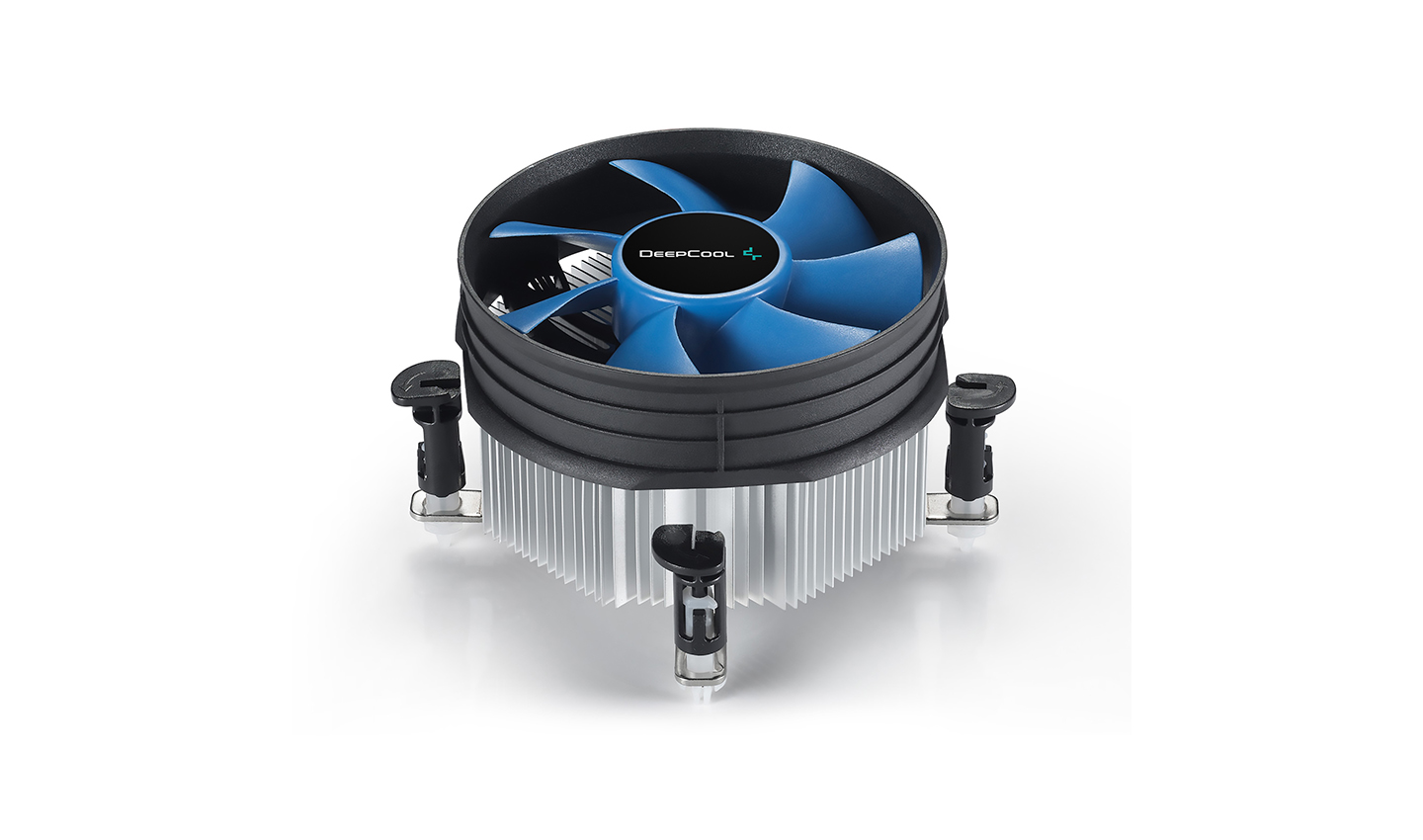

THETA 21 PWM
MODEL
Ф92 X 25 mm PWM-capable fan offers a perfect balance between airflow and noise.
Radial aluminum heatsink providing highly effective cooling performance.
Push-pin clips for easy installation.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension 100X100X60.5 mm(L×W×H)
Fan Dimension Ф92X25 mm
Net Weight 370g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.13±10%A(MAX)
Power Input 1.56W
Fan Speed 900±150~2400±10%RPM
Max. Air Flow 45.91CFM
Noise 17.8~33.4dB(A)
