THETA 31 PWM
MODEL

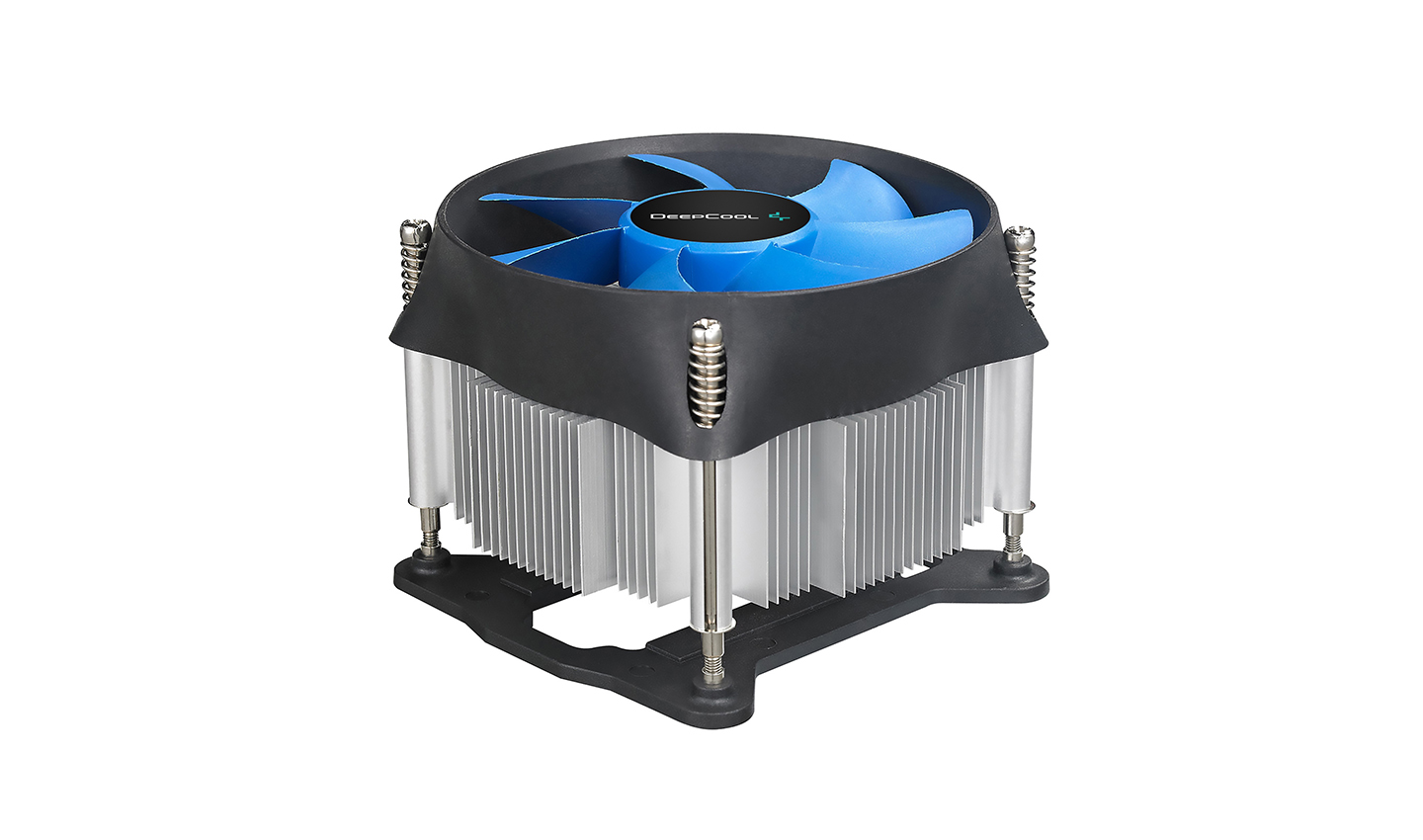

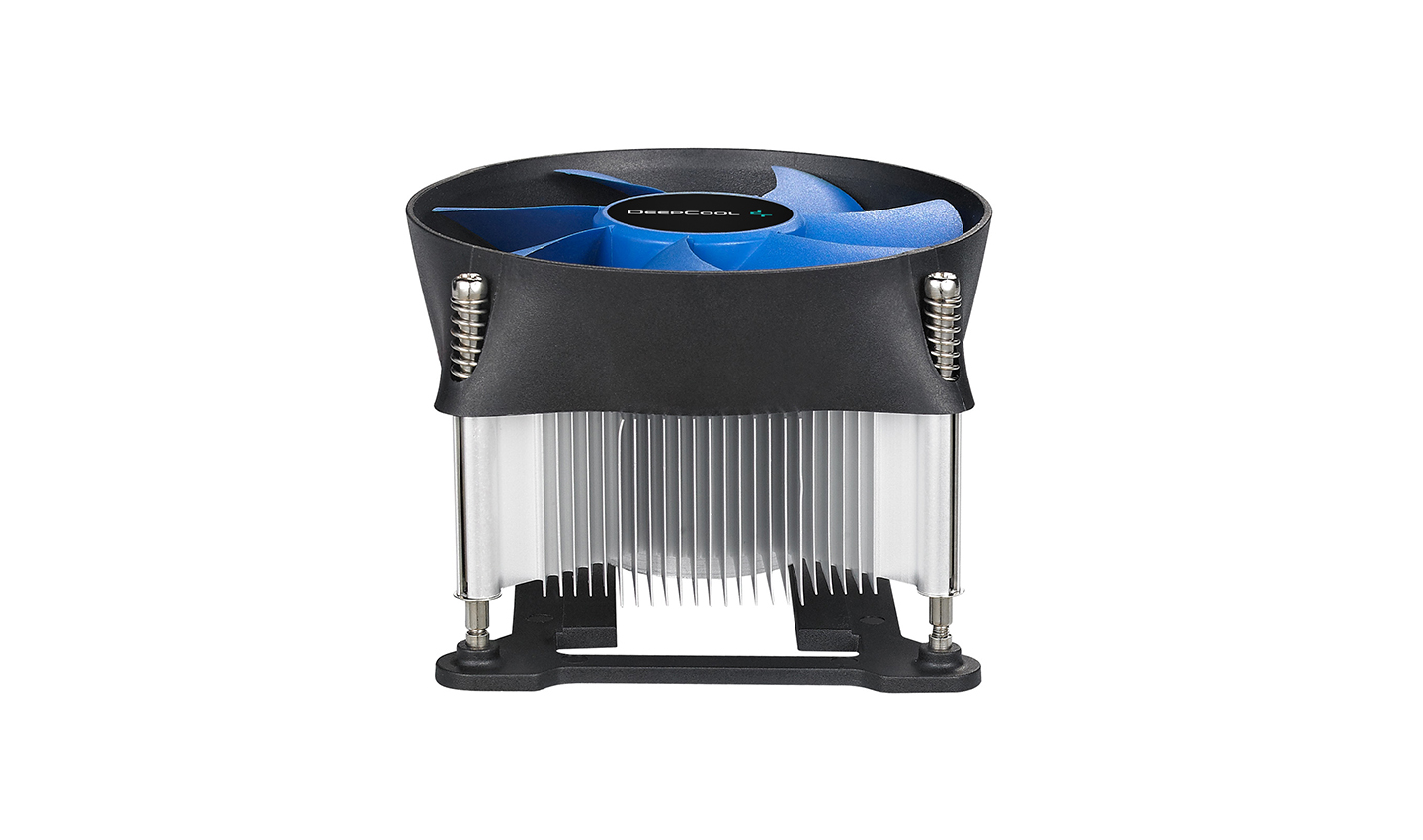

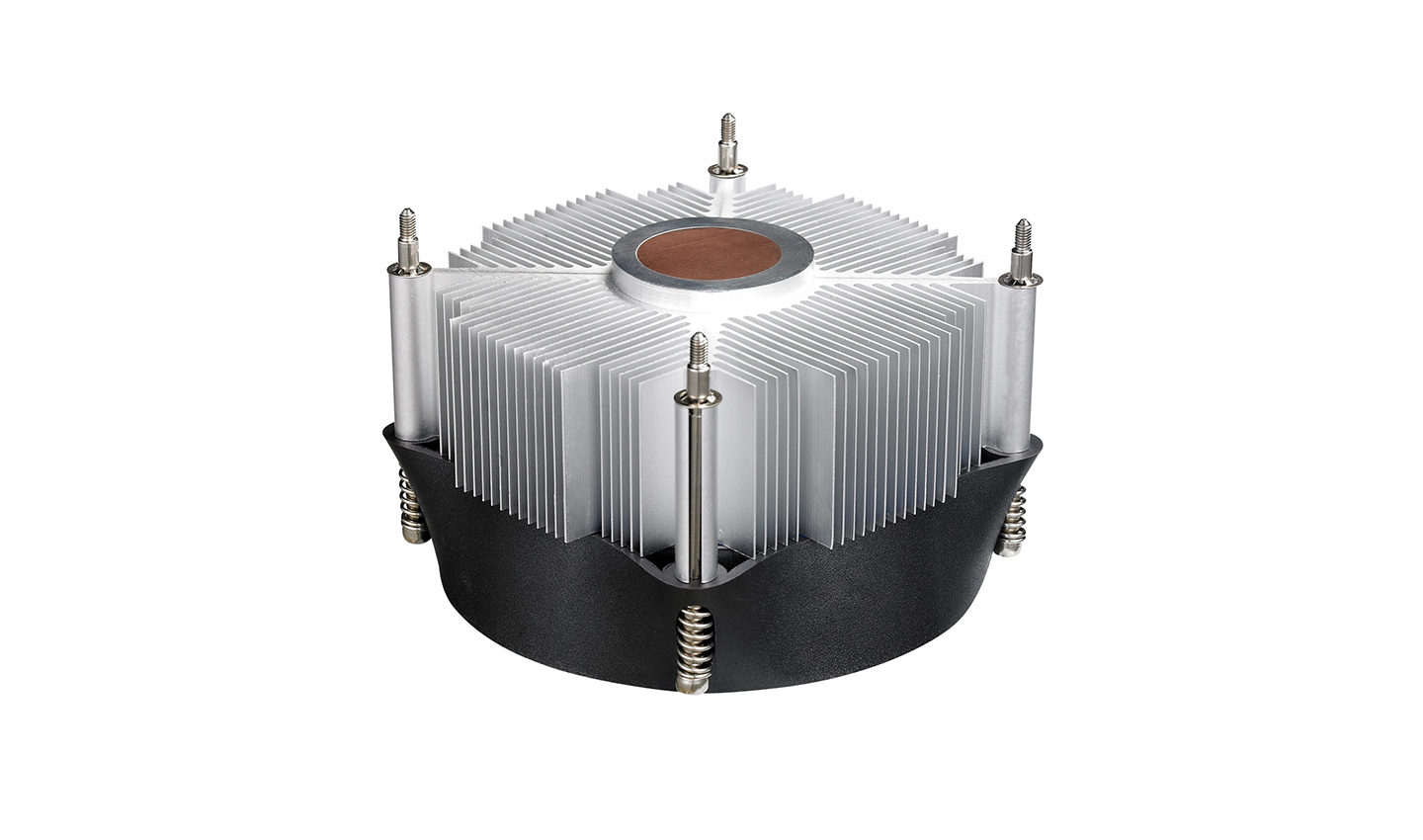

Radial aluminum heatsink with copper insertions for excellent heat dissipation.
Ф100 X 25 mm PWM-capable fan provides a perfect balance between airflow and noise.
Screw and Back Plate installation provides a safe and secure mounting.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension 97.5X97.5X60 mm(L×W×H)
Fan Dimension Ф100X25 mm
Net Weight 450g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.13±10%A(MAX)
Power Input 1.56W
Fan Speed 900±150~2400±10%RPM
Max. Air Flow 42.76CFM
Noise 17.8~32.5dB(A)
