THETA 9 PWM 1700

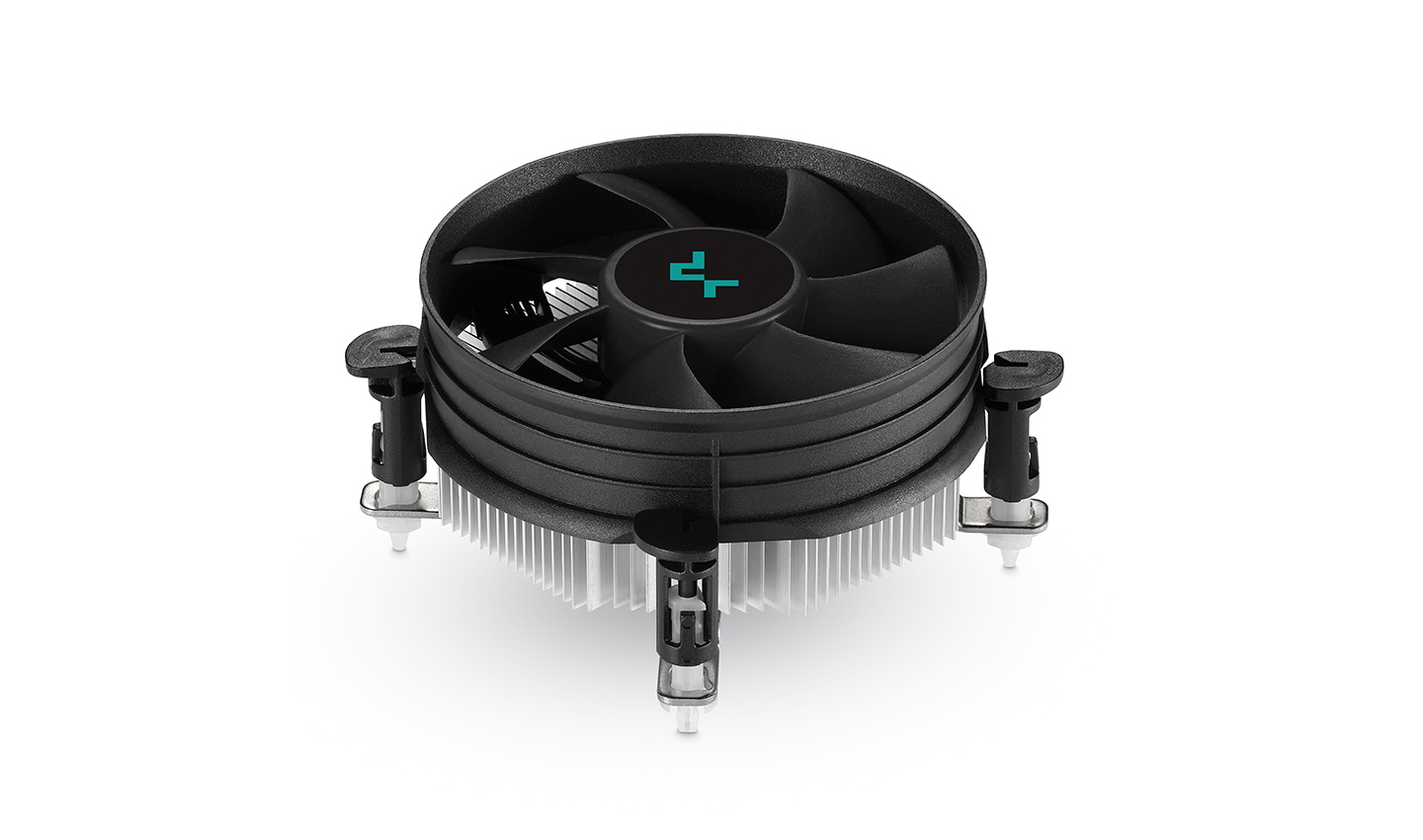

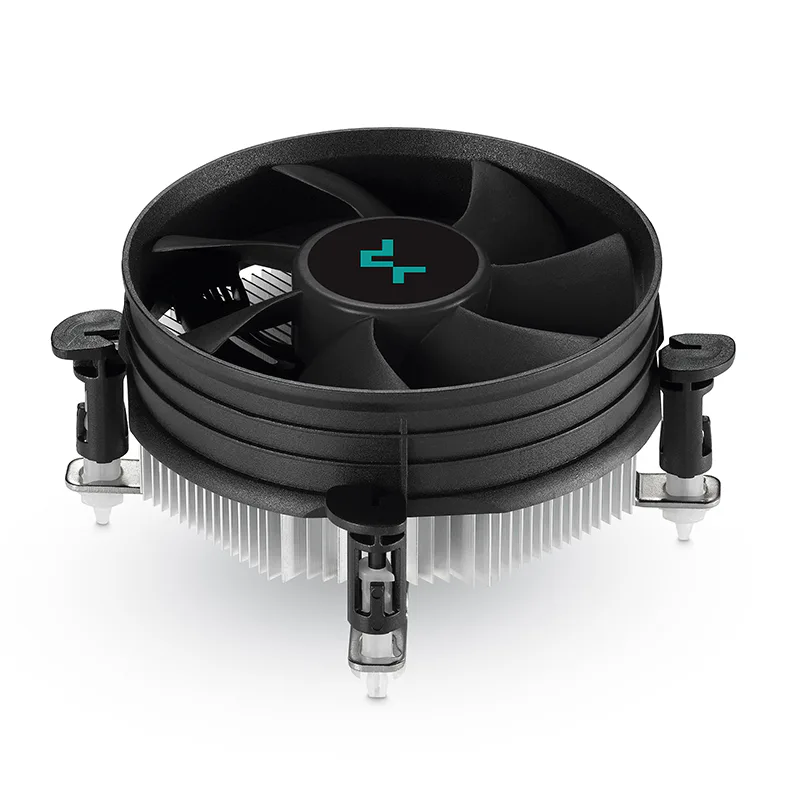

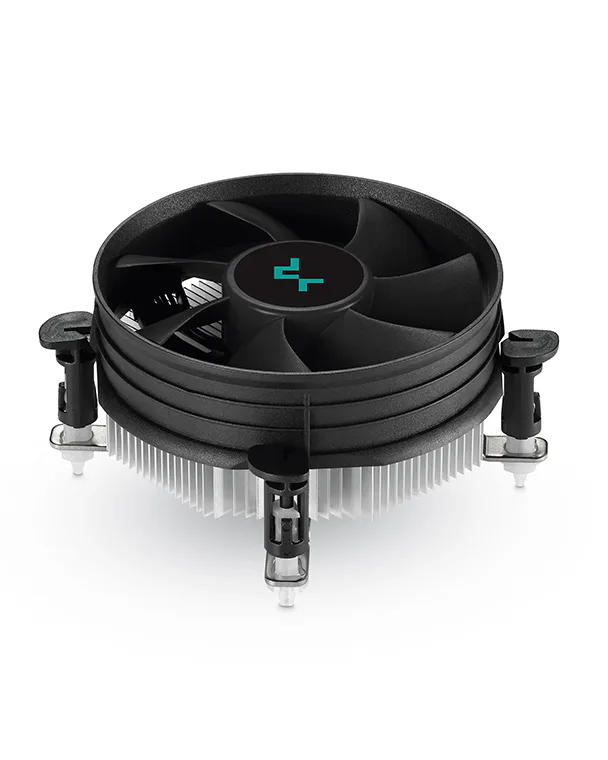

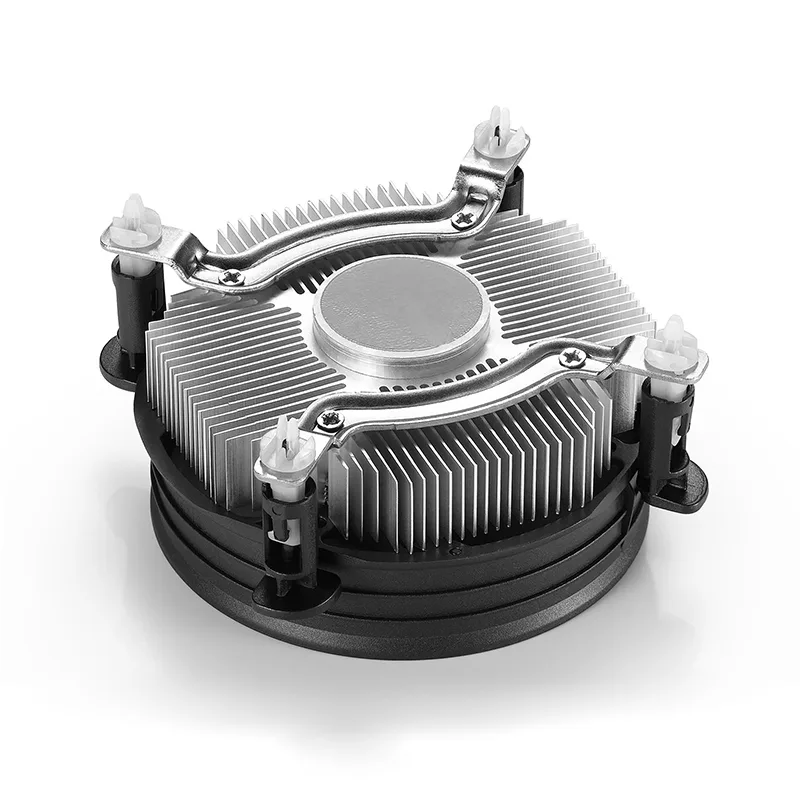

The DeepCool Theta 9 PWM 1700 mini low-profile CPU cooler provides efficient cooling performance designed for Intel LGA 1851/1700 systems with an aluminum heatsink and a 92x25mm PWM fan.

MODEL

Compact Performance for LGA 1851/1700

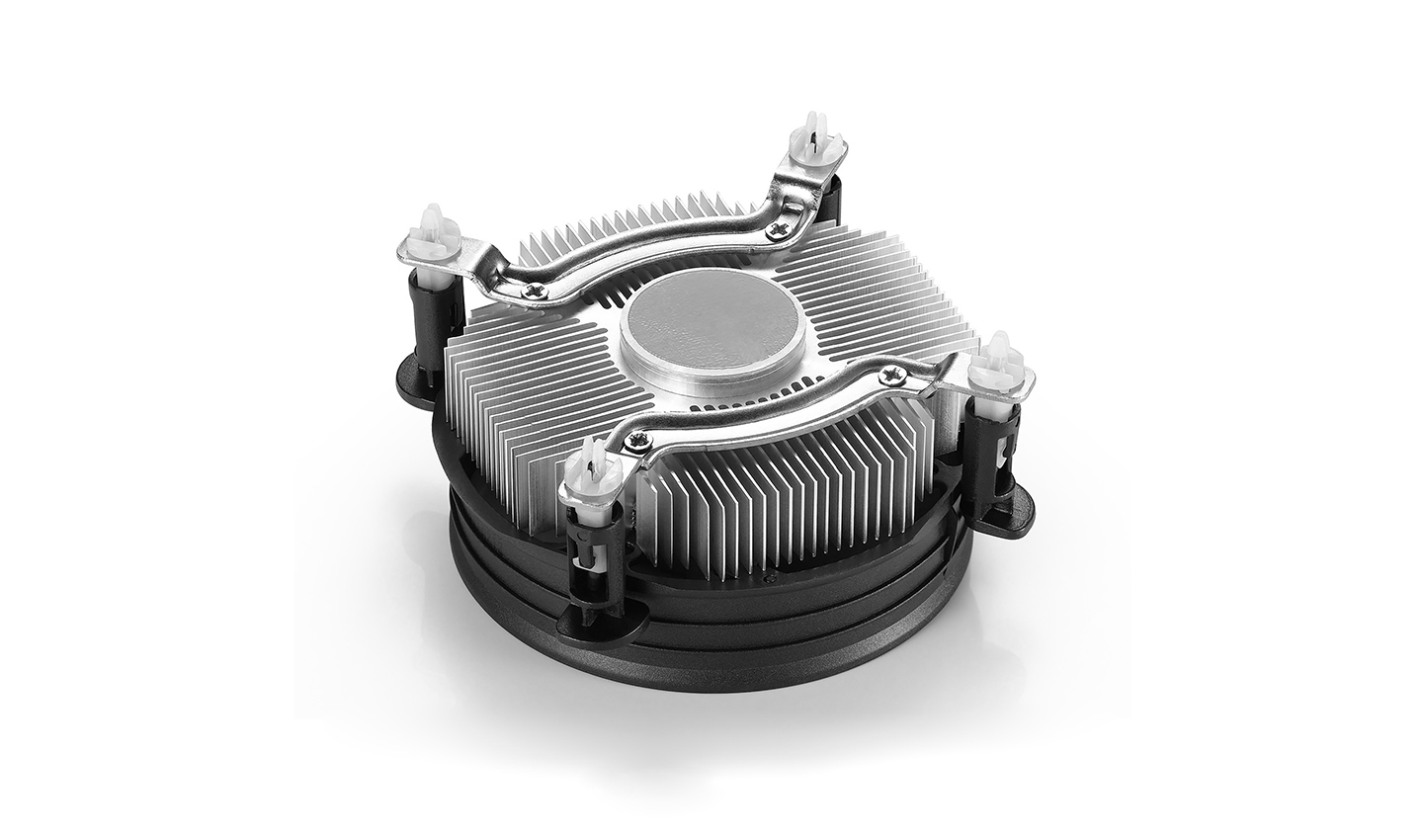

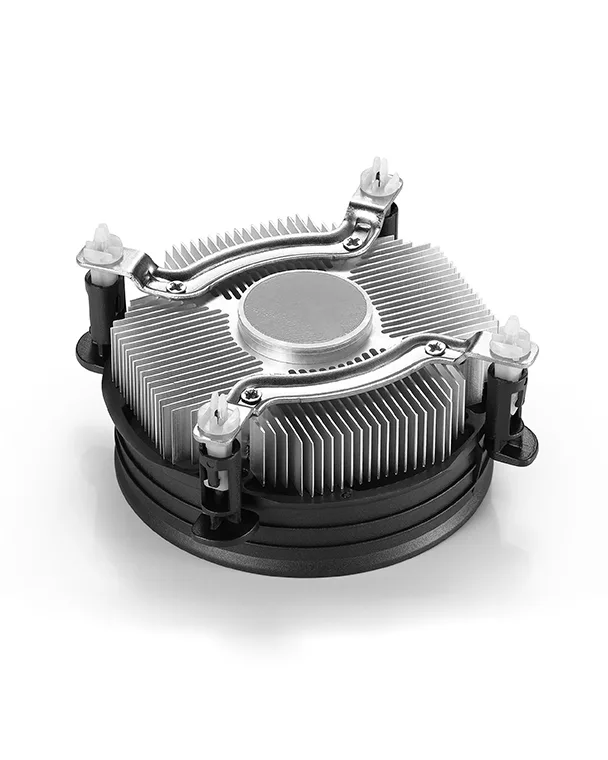

Theta 9 PWM 1700 continues the high standards of DeepCool thermal solutions for efficient and effective CPU cooling now for LGA 1851/1700 systems. The tiny size and low-profile design make it ideal for smaller computers while providing proper heat dissipation with its aluminum heatsink. The 92x25mm PWM fan perfectly balances strong airflow and low noise for optimal efficiency. The push-pin mounting process is extremely quick and easy for installation.

Application For

Intel

LGA1851/1700

Technical Spec

Product Dimensions	100×100×58 mm(L×W×H)
Heatsink Dimensions	89×89×21 mm(L×W×H)
Net Weight	256 g
Fan Dimensions	Ø92×25 mm
Fan Speed	500~3200 RPM±10%
Fan Airflow	49.2 CFM
Fan Air Pressure	4.1 mmAq
Fan Noise	≤40.1 dB(A)
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.23 A
Fan Power Consumption	2.76 W
EAN	6933412727699
P/N	DP-ICAP-T9P-17
