THETA 9 PWM - DeepCool

Low profile heatsink that easily fits into SFF enclosures.

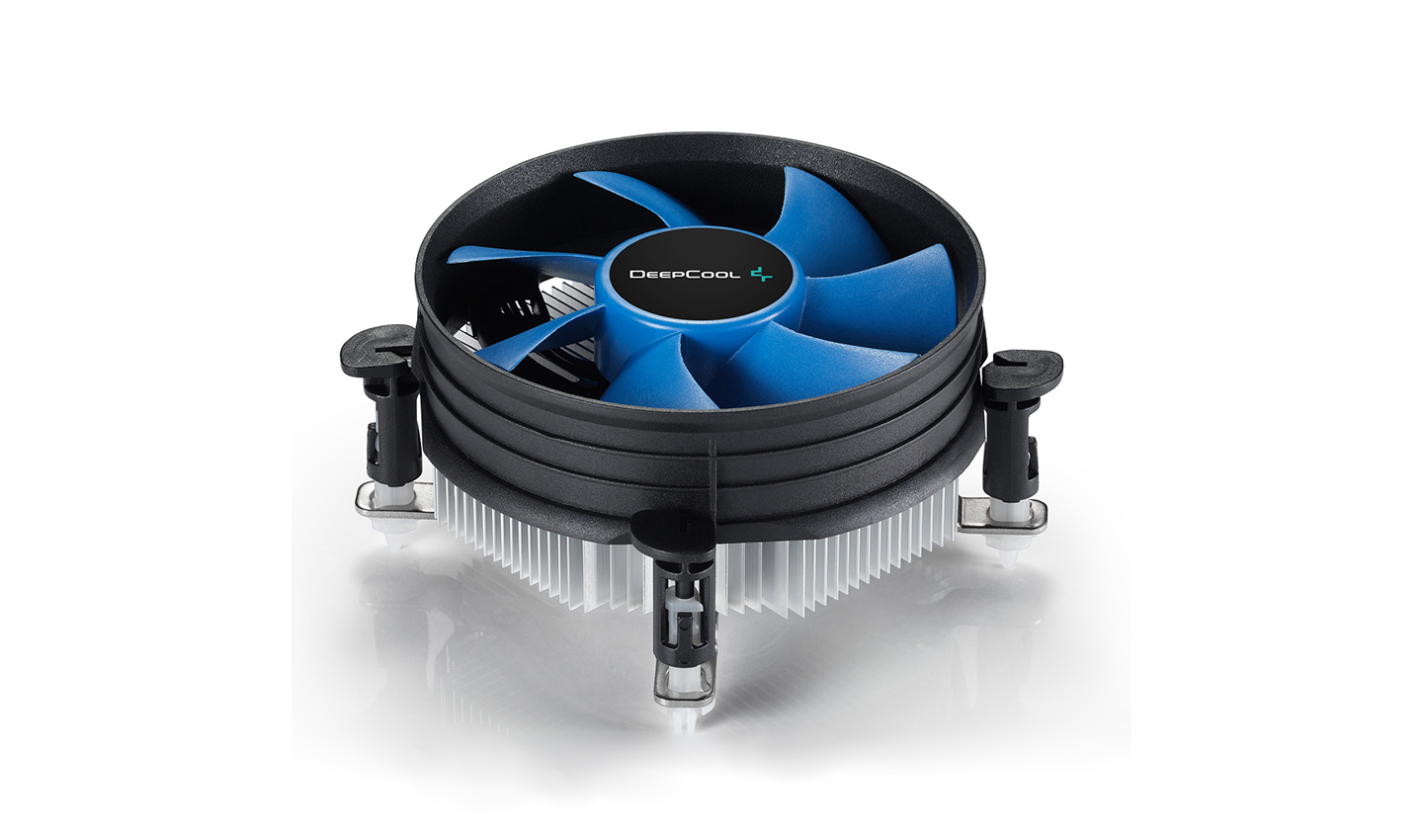

Ф92 X 25 mm PWM-capable fan offers a perfect balance between airflow and noise.

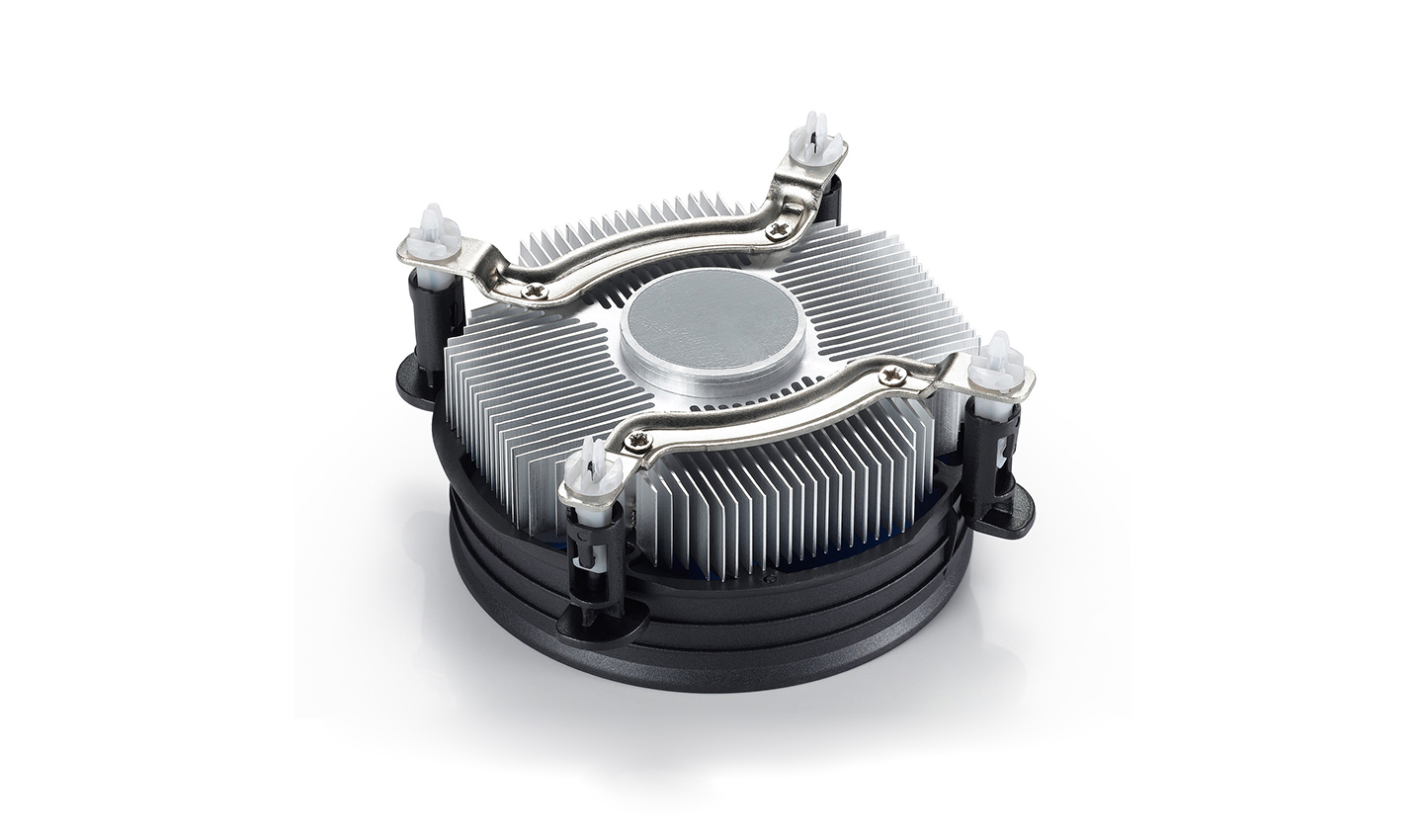

Radial aluminum heatsink providing highly effective cooling performance.
Push-pin clips for easy installation.

Application For

Intel

LGA1200/1151/1150/1155

Technical Spec

Overall Dimension	100X100X46.5 mm(L×W×H)
Fan Dimension	Ф92X25 mm(L×W×H)
Net Weight	268.5g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Operating Voltage	10.8～13.2VDC
Started Voltage	7VDC
Rated Current	0.26±10%A
Power Input	3.12W
Fan Speed	1100±15%~3200±10%RPM
Max. Air Flow	58.06CFM
Noise	17.8~41.3dB(A)
EAN	6933412705260
P/N	DP-ICAP-T9P
