UD551

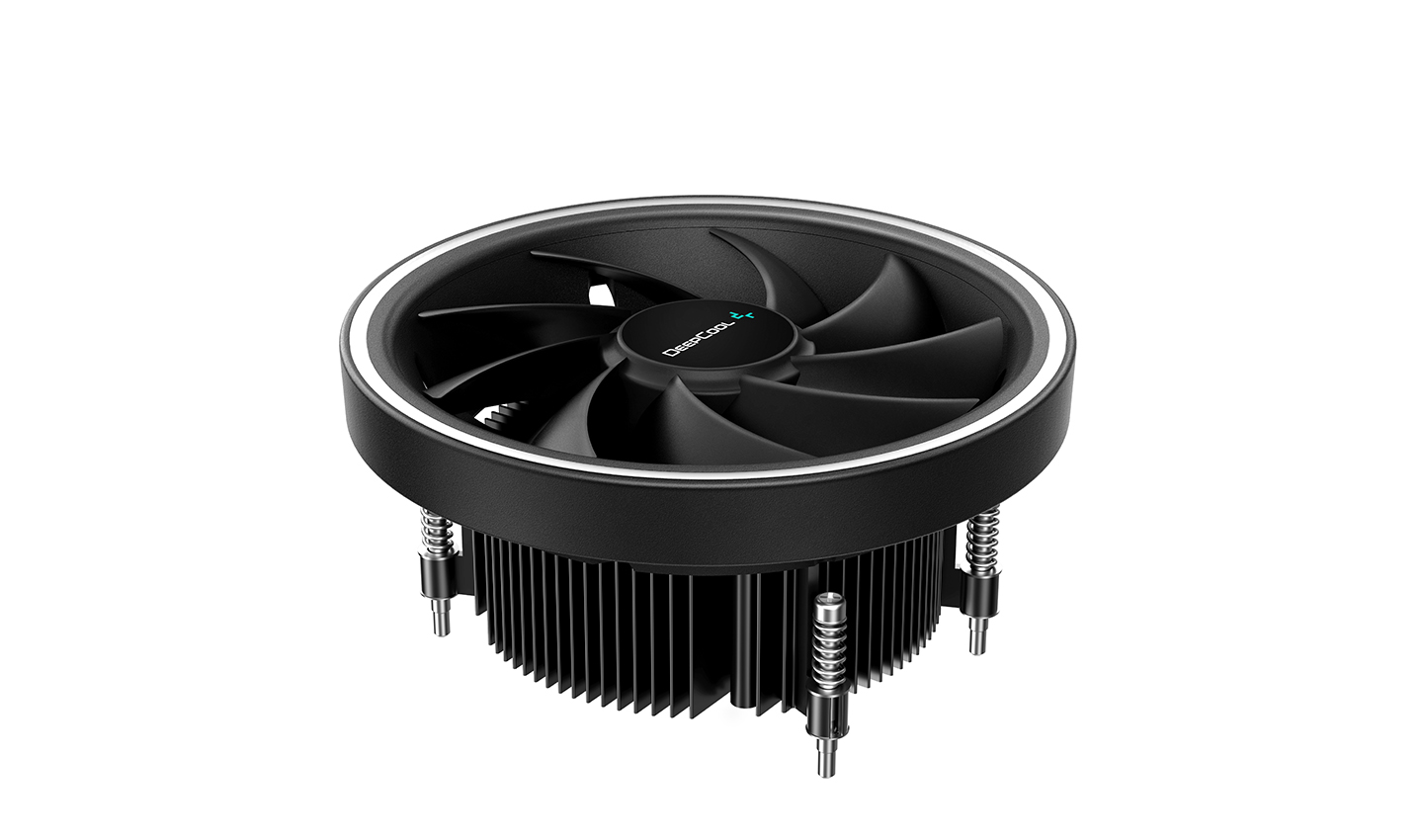

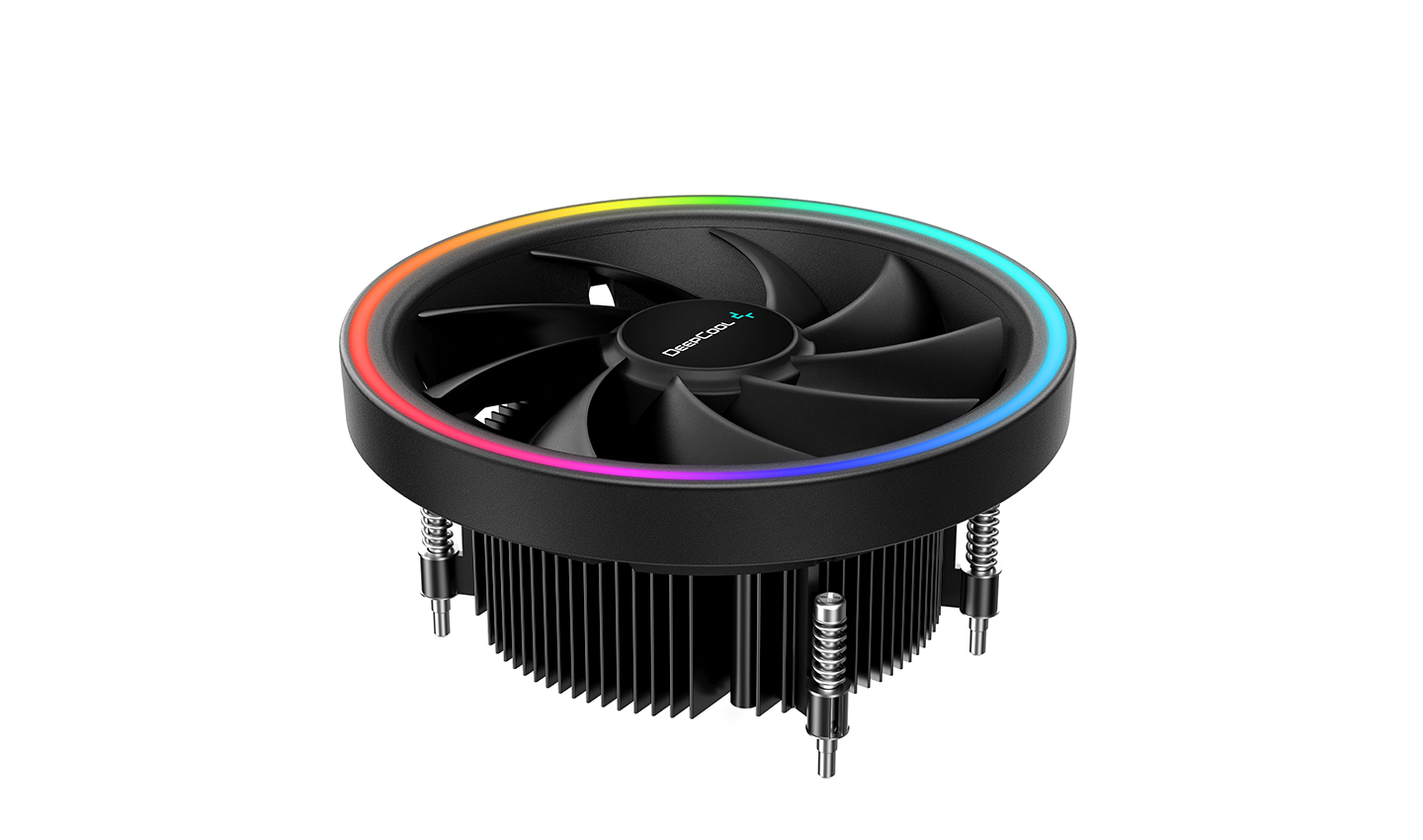

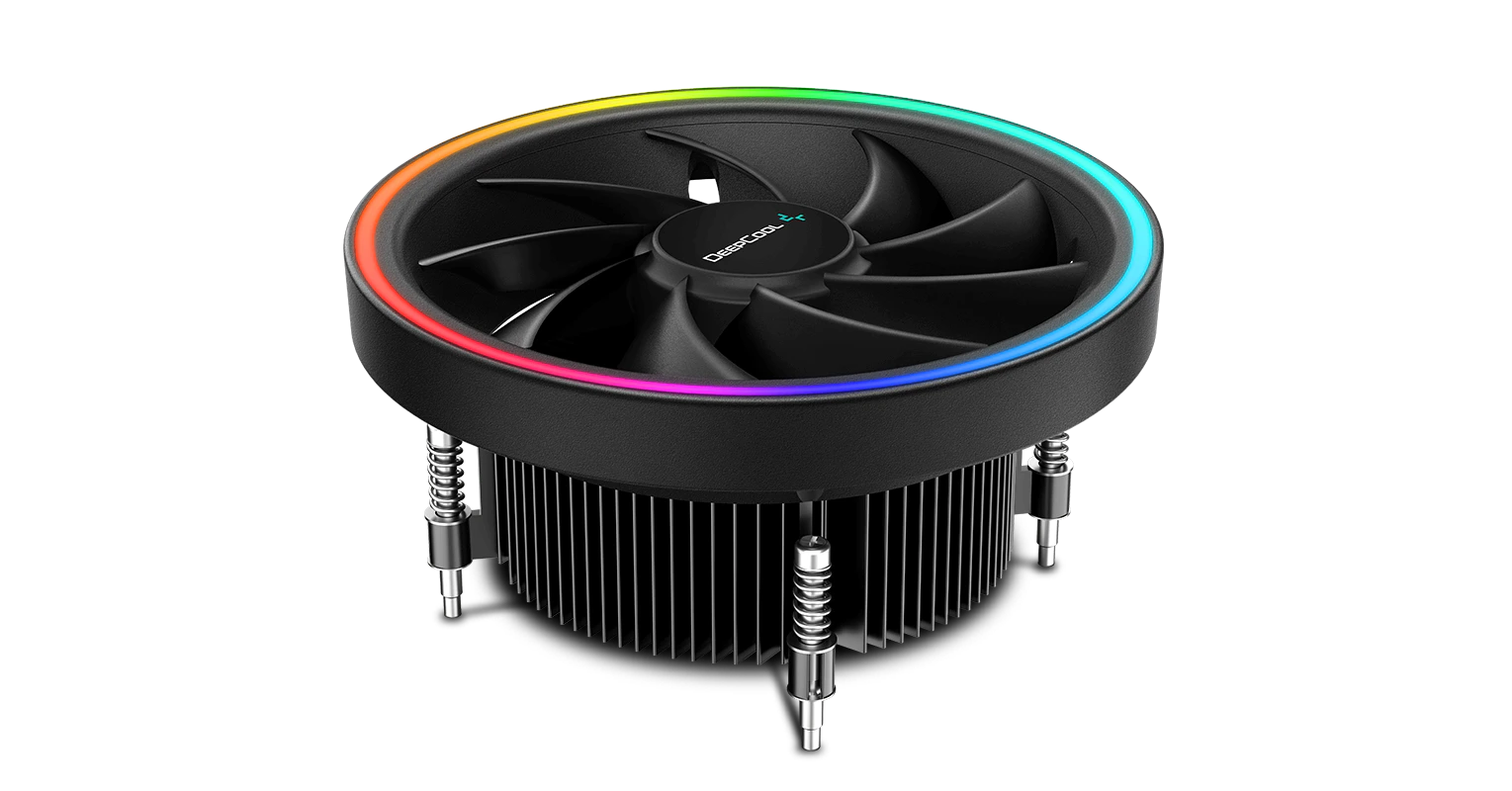

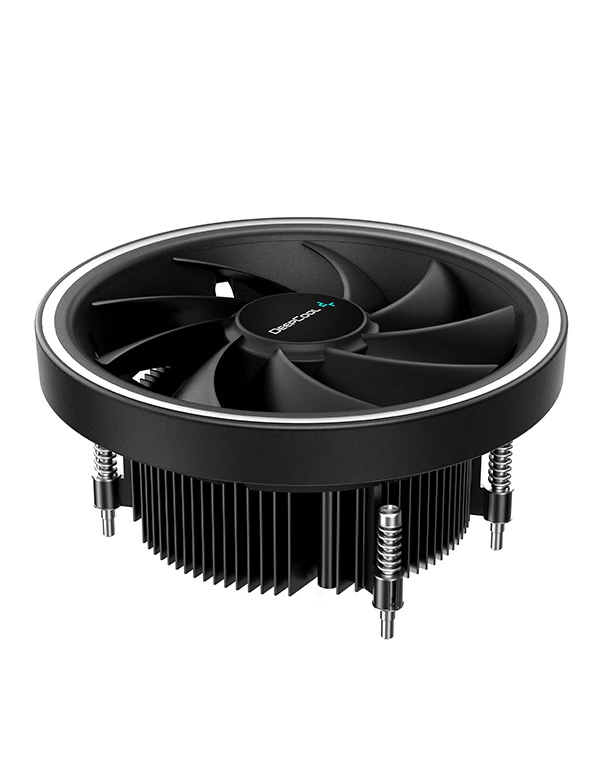

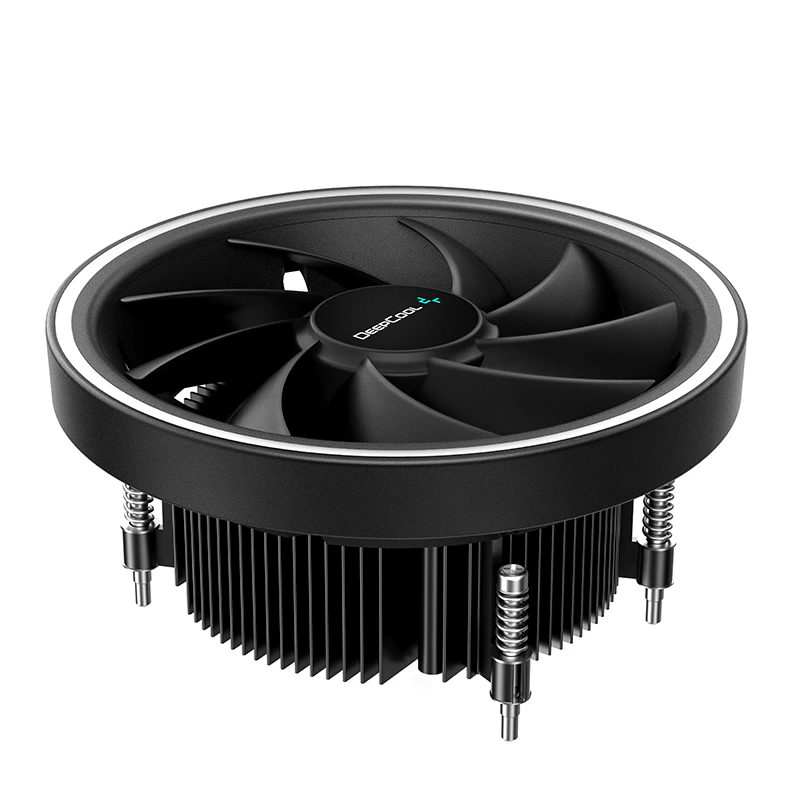

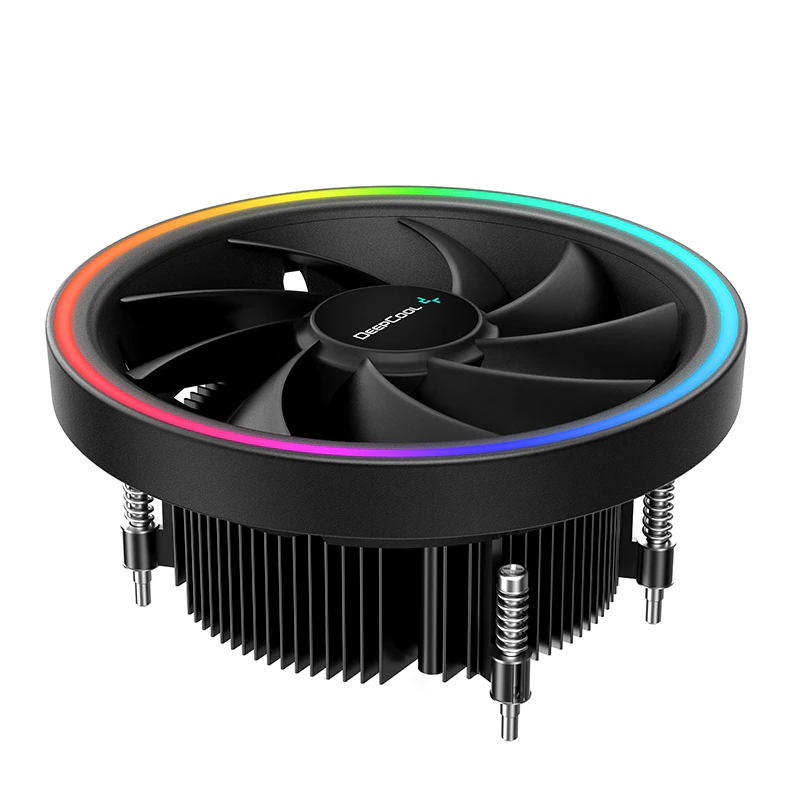

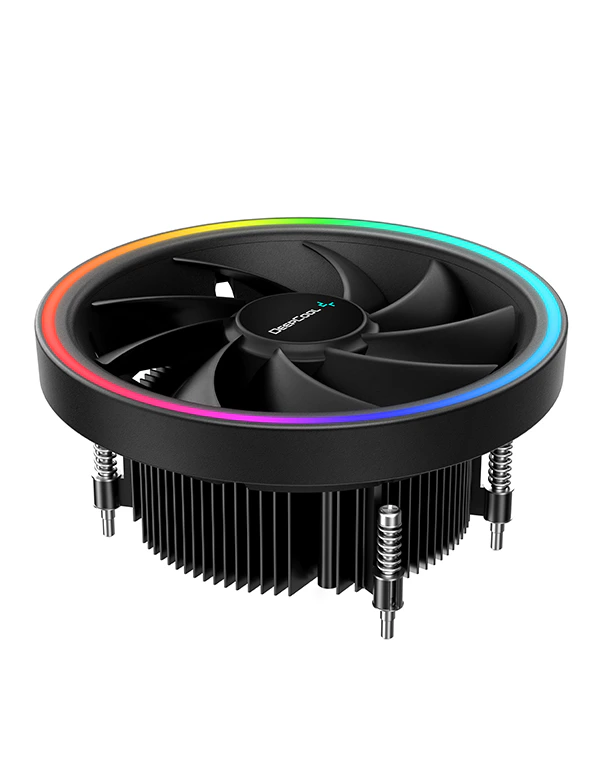

The DeepCool UD551 ARGB CPU Cooler is an efficient top flow cooling solution for AMD sockets equipped with a high performance 136mm fan and an ARGB LED ring with motherboard sync support.
MODEL
UD551
ARGB CPU Cooler

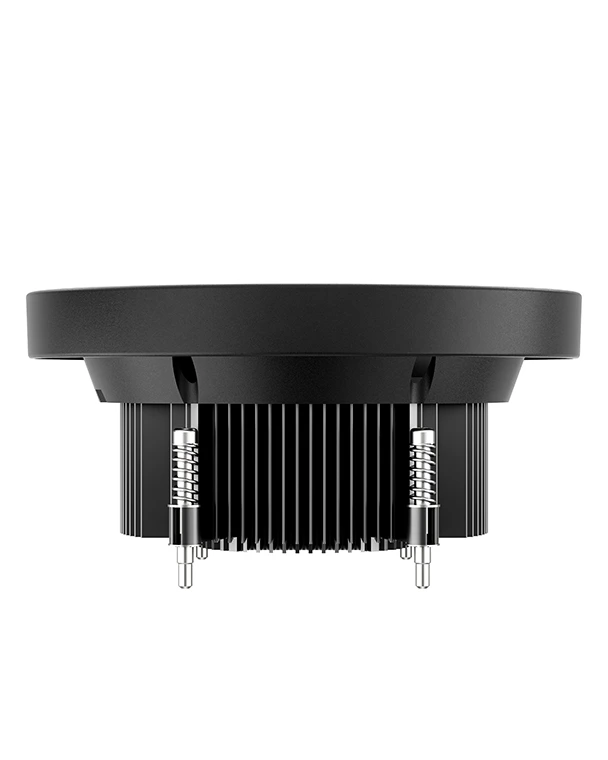

Top Flow Design
Cooling with a fan mounted top-down quickly dissipates heat directly over the heat sink covering the CPU which also introduces additional airflow over motherboard components surrounding the socket such as the VRM and RAM.
Best Matching Fan
Optimal in performance and noise, the 136mm PWM cooling fan balances the best of both worlds to ensure your system is at its best.
(fan specs)
500-1800 RPM
44.31 CFM
≤26.8 dB(A)

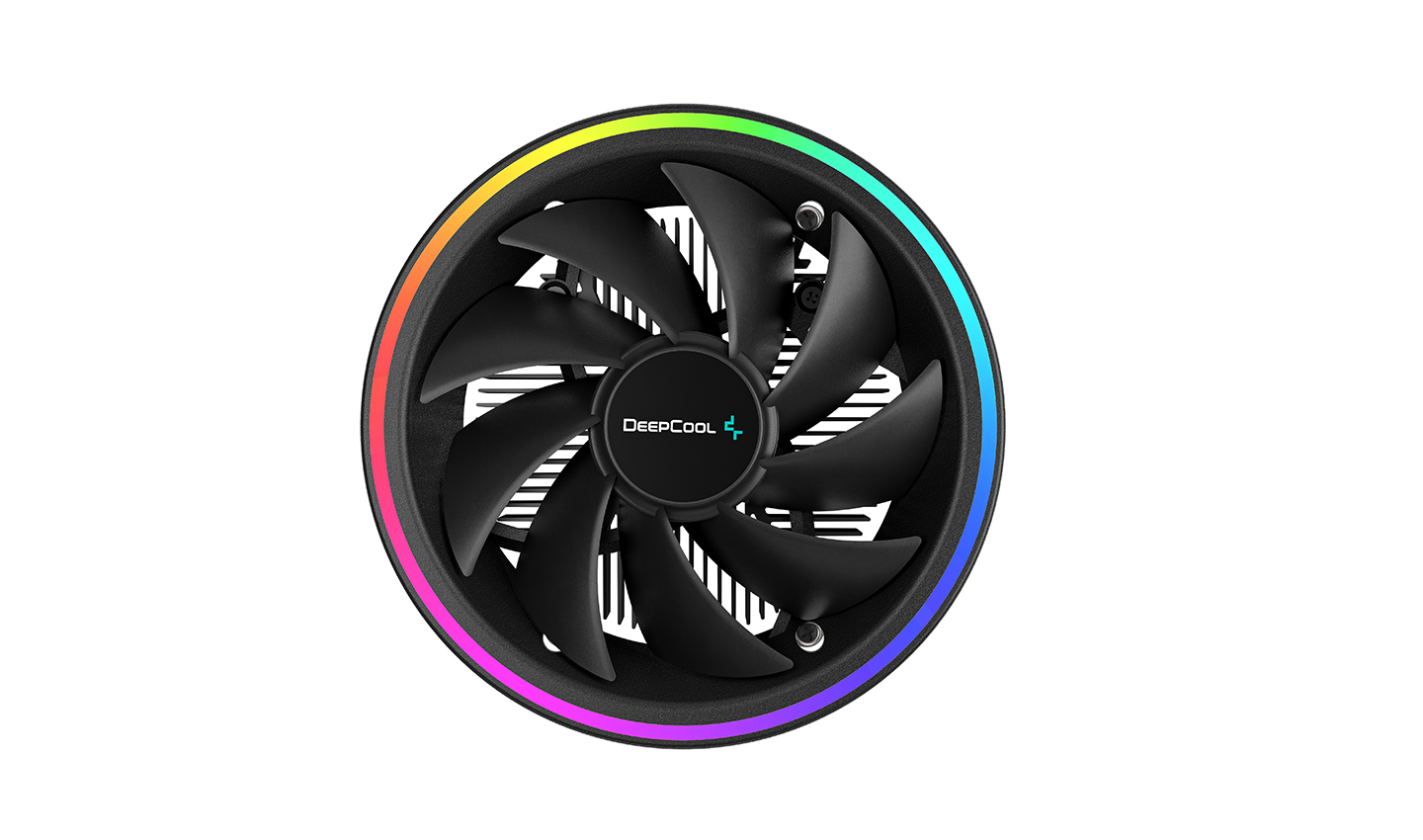

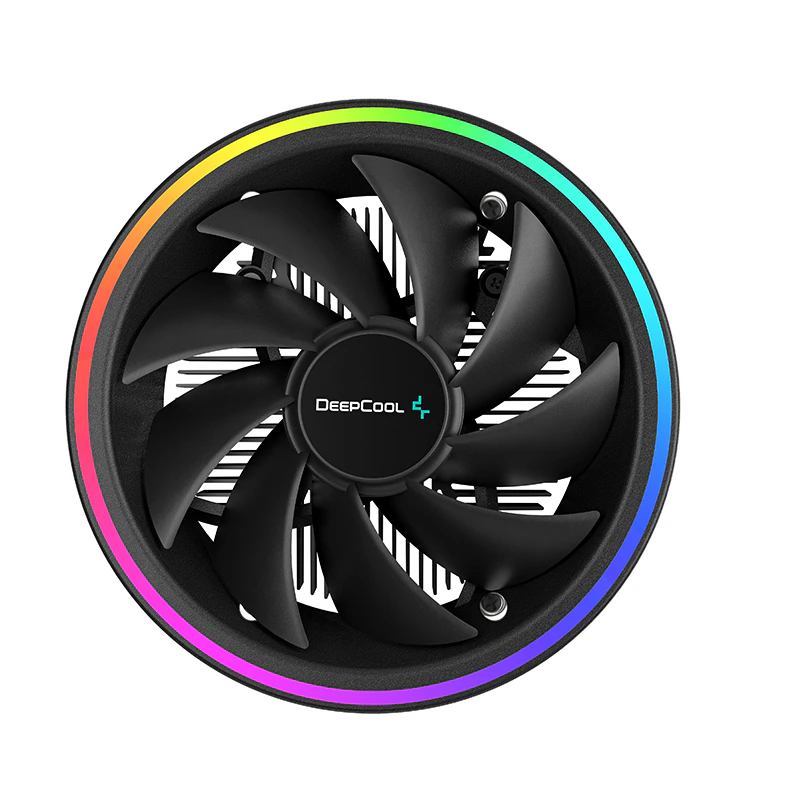

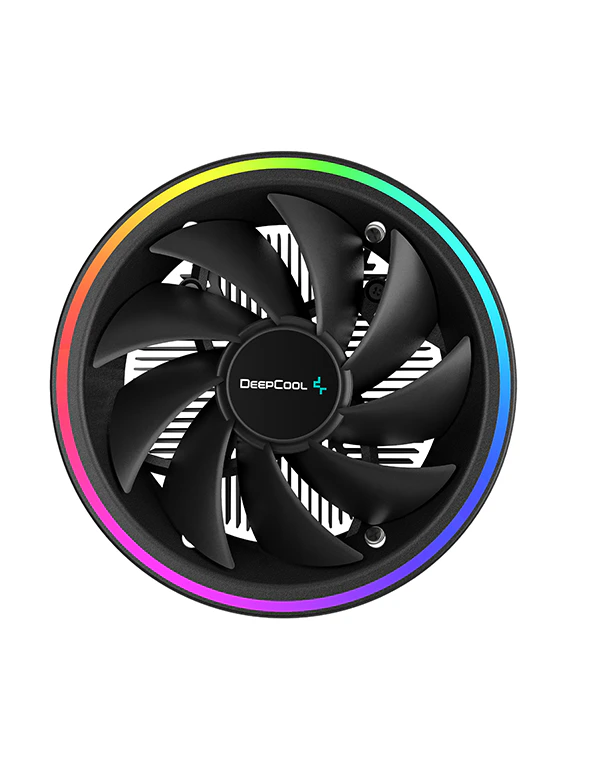

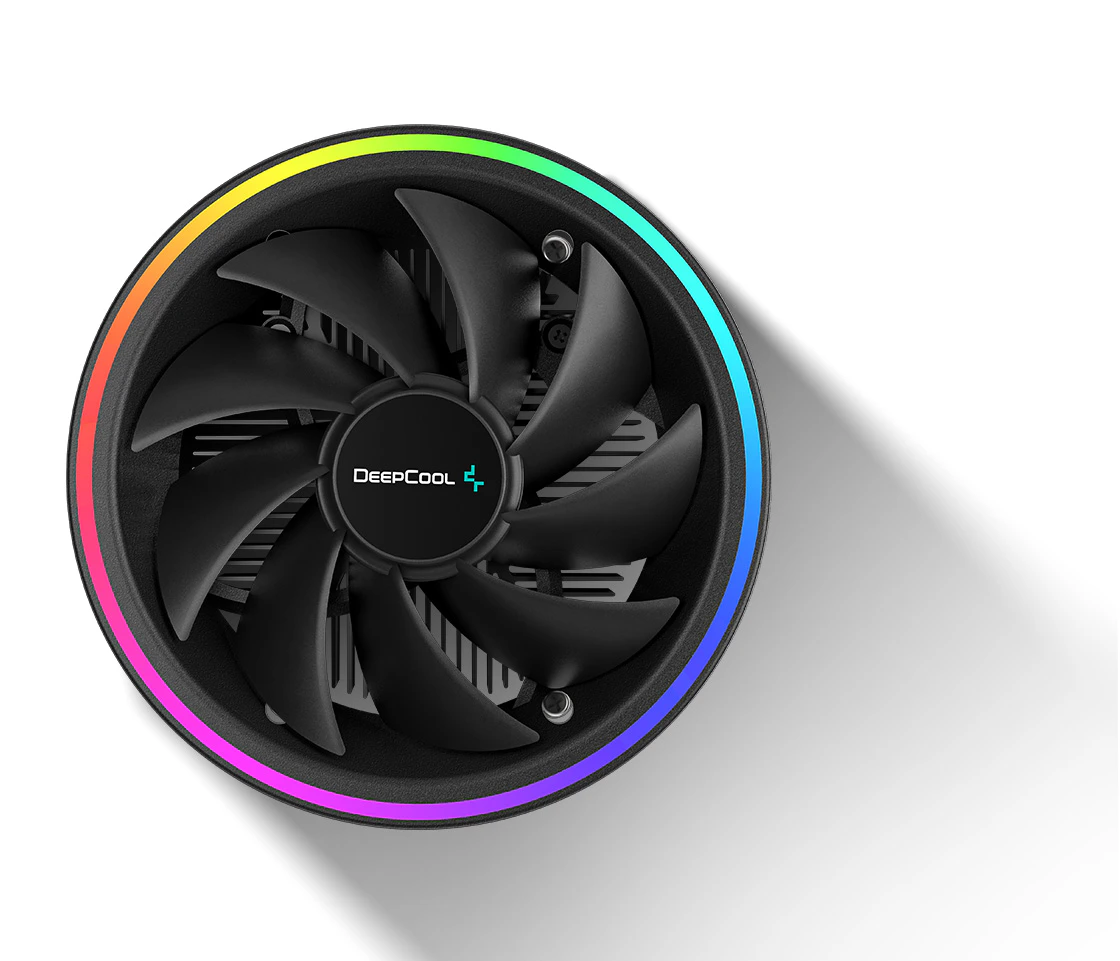

Glamourous Ring Light
Customize and control the addressable RGB LEDs with 16.8 million color options that best fit your style and setup. Fine tune your settings and synchronize with supported motherboard software through the 3-pin 5V ARGB connector. Enjoy a colorful cooling combination in this classic form factor.

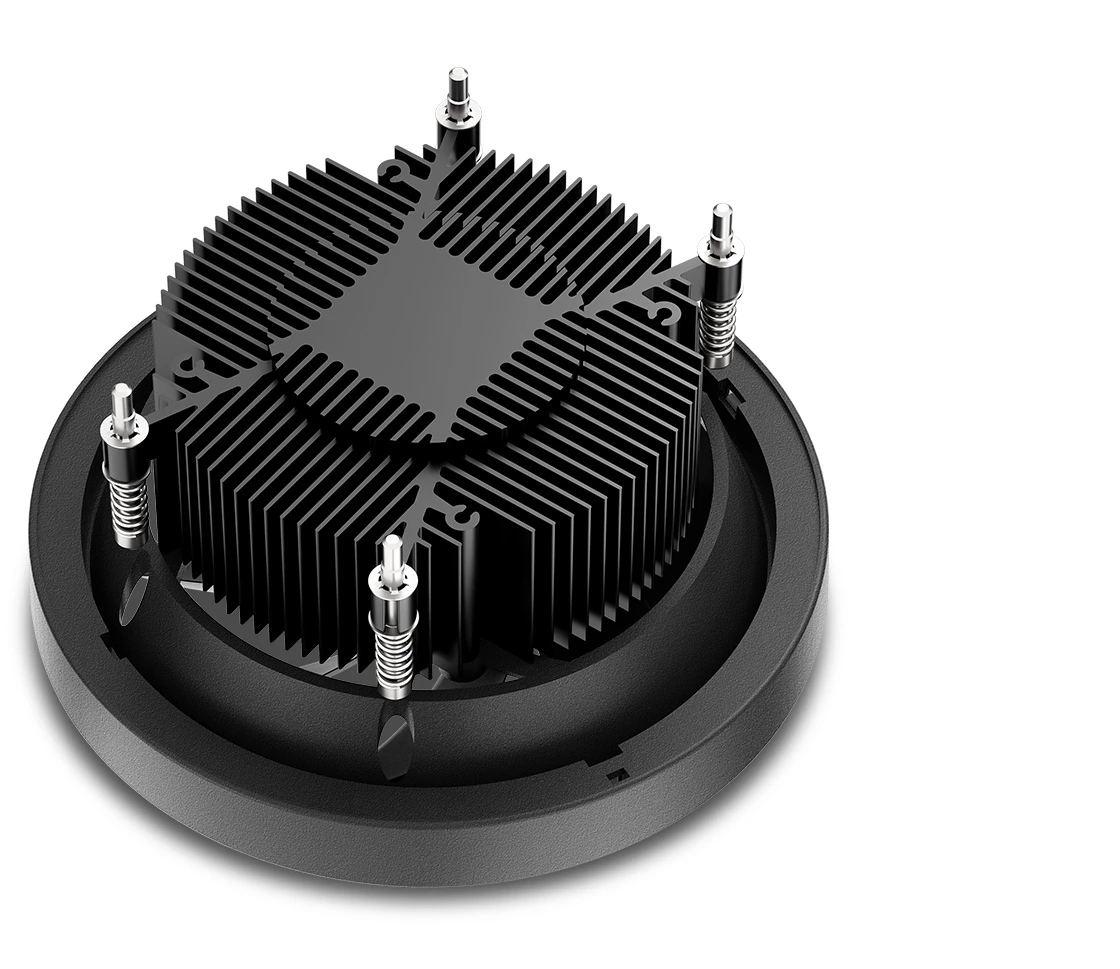

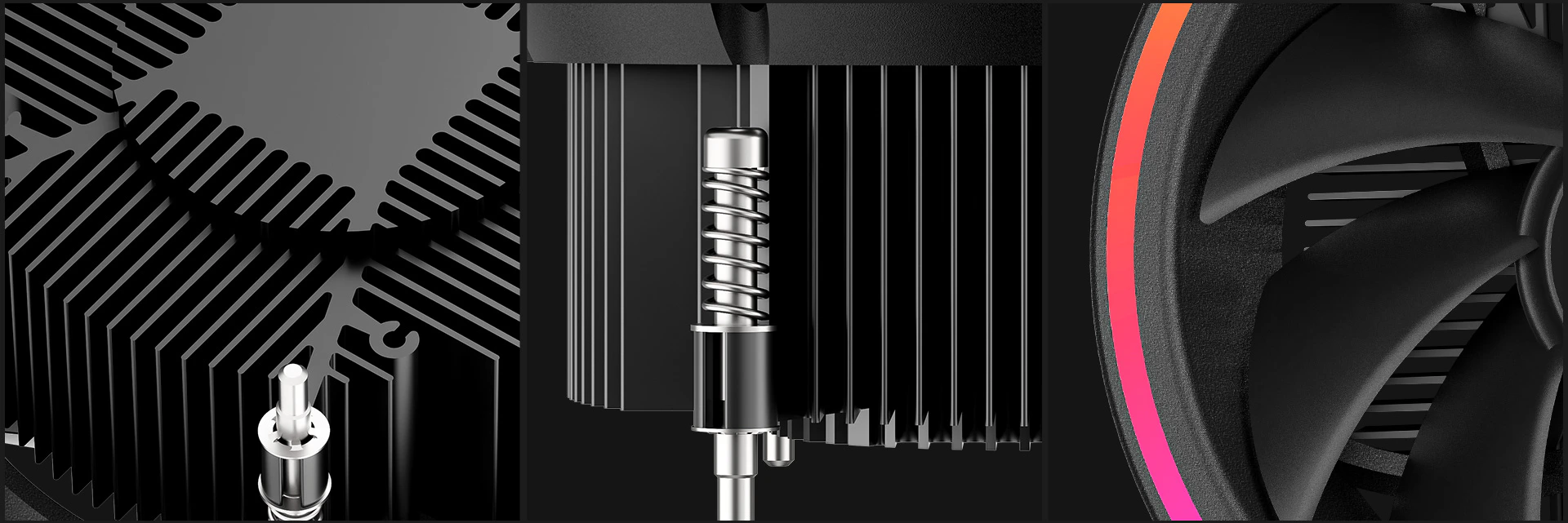

Quick Install
An easy-to-use mounting process makes setup and installation quick and hassle-free.
*The UD551 is designed for AMD sockets only. For Intel socket mount, a corresponding UL551 model is available.
Application For
AMD
AMD AM4
Technical Spec

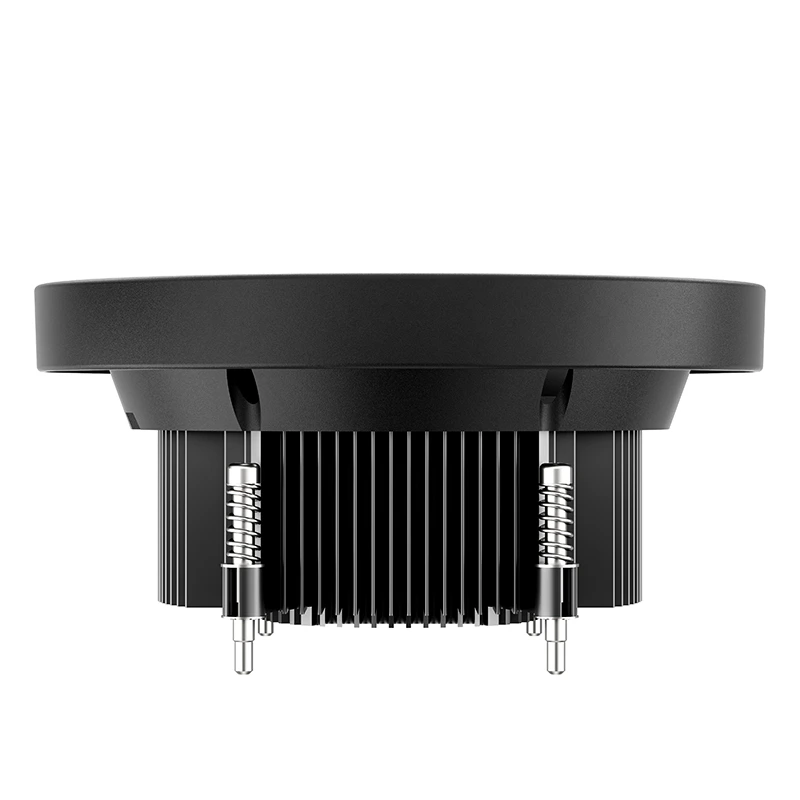

Product Dimensions 136×136×69 mm

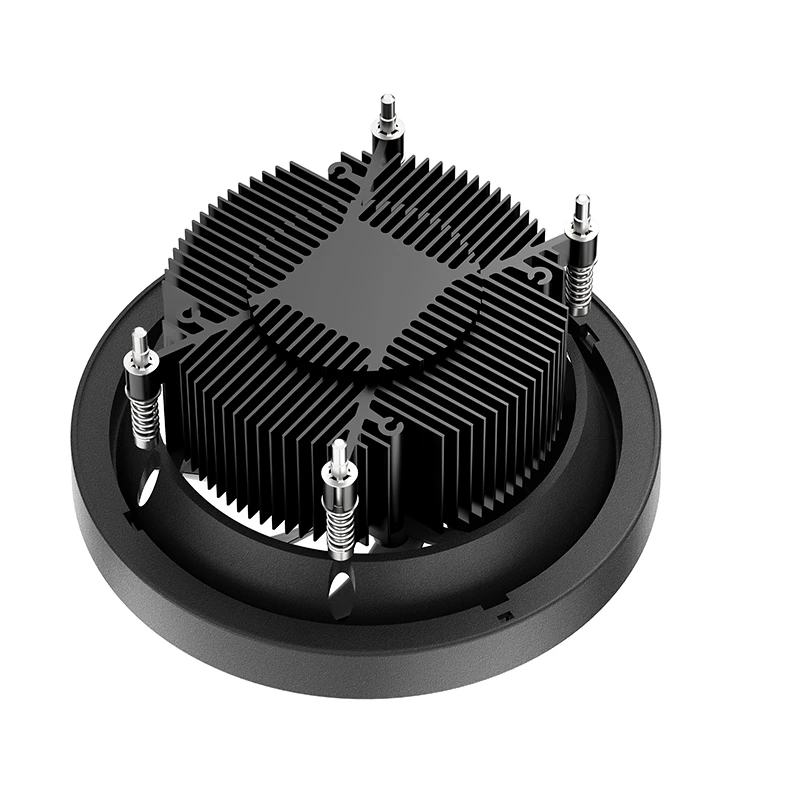

Heatsink Dimensions 97×90×36 mm
Net Weight 378 g
Fan Dimensions Φ 136×27mm
Fan Speed 500~1800 RPM±10%
Fan Airflow 44.31 CFM
Fan Air Pressure 1.65 mmAq
Fan Noise ≤26.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.1 A
Fan Power Consumption 1.2 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.2 W
EAN 6933412727361
P/N R-UD551-BKAMAB-G-1
