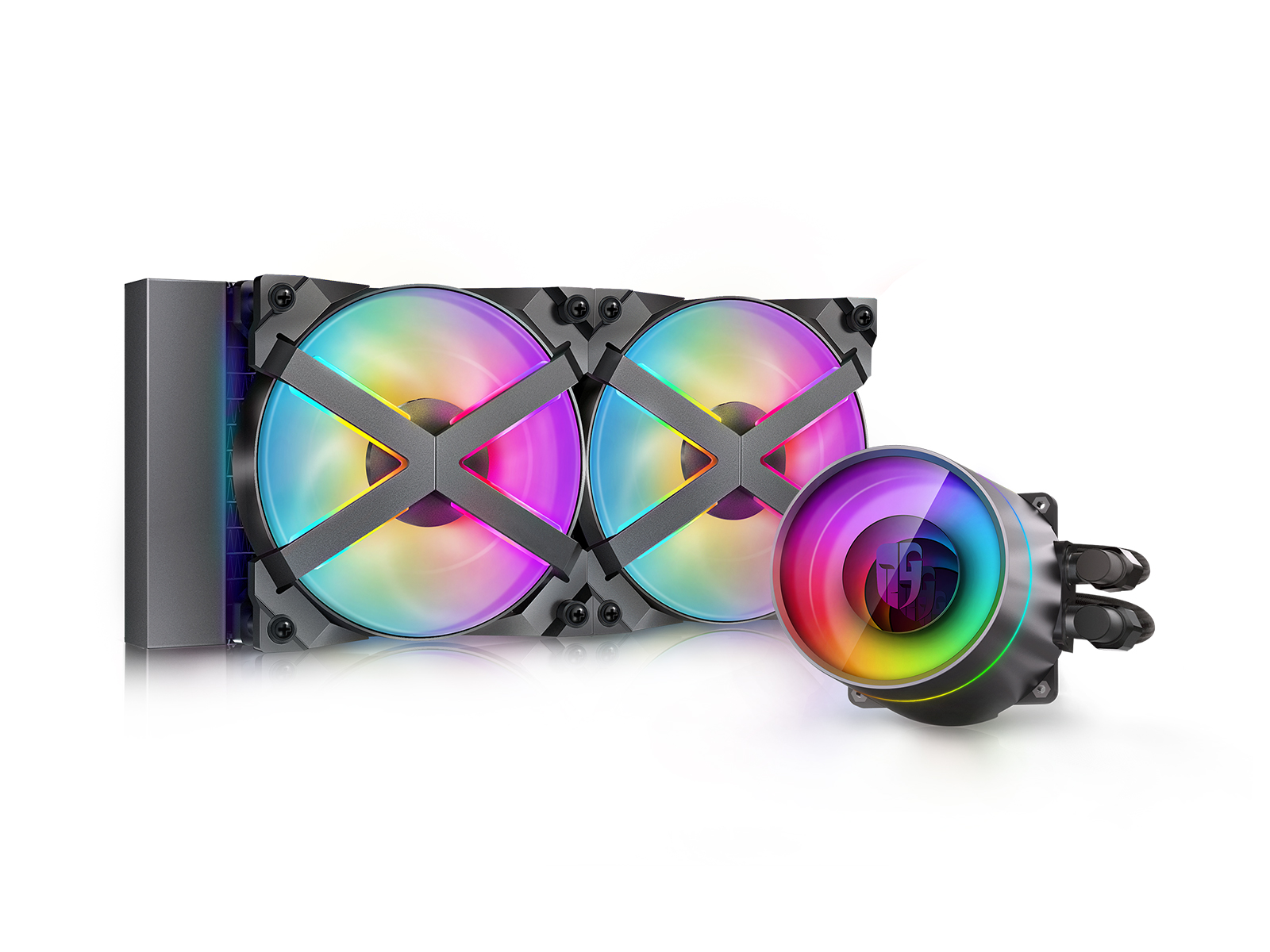

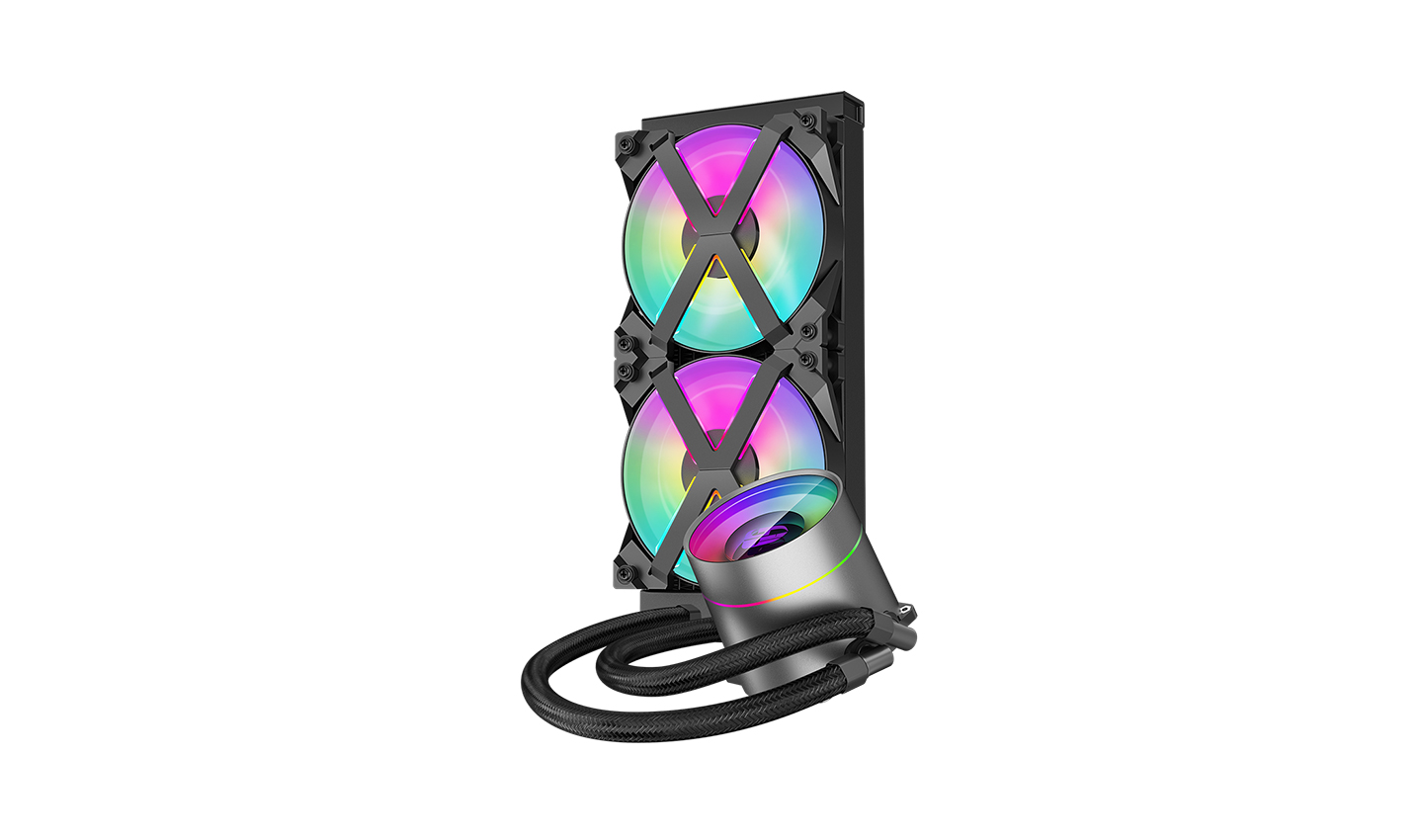

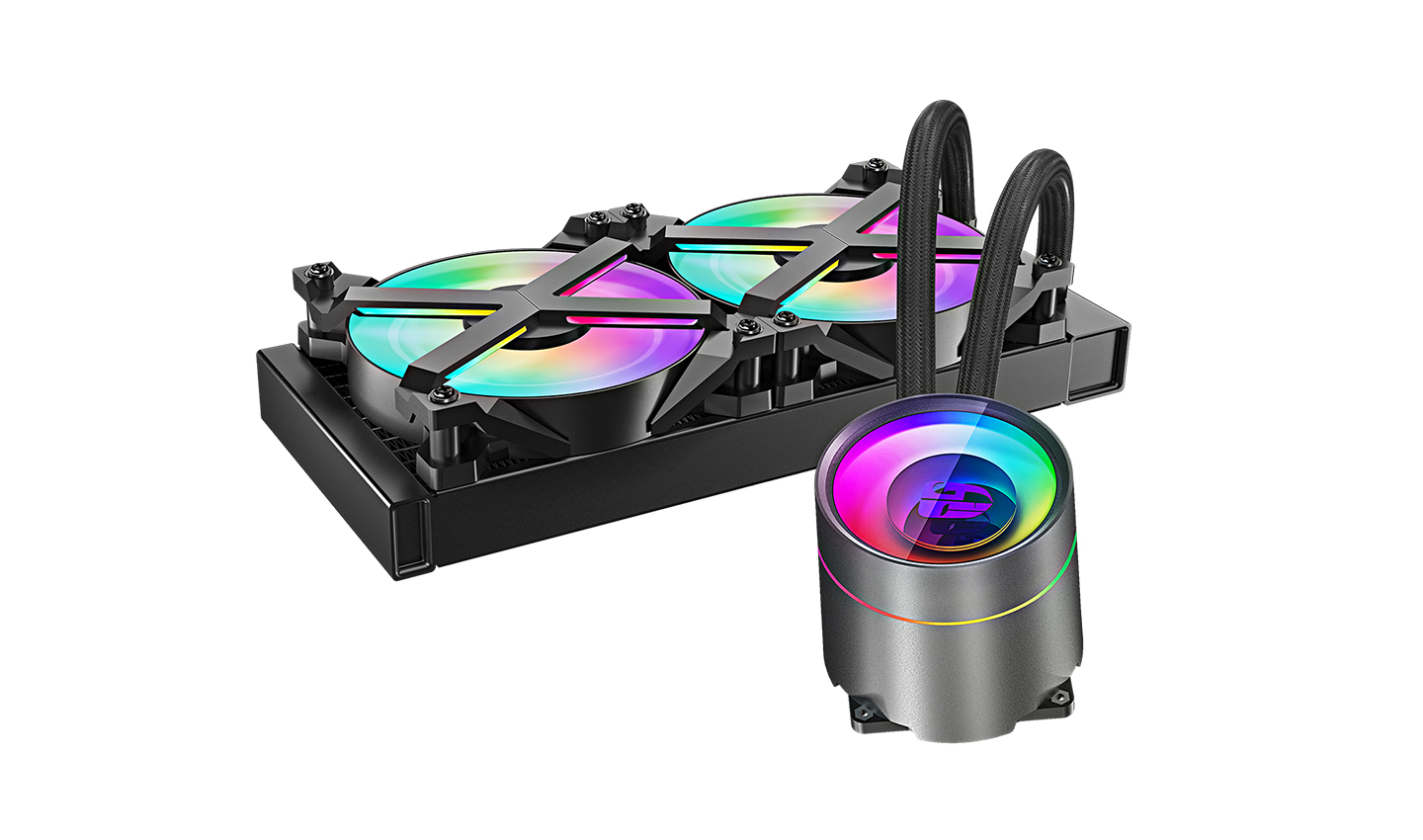

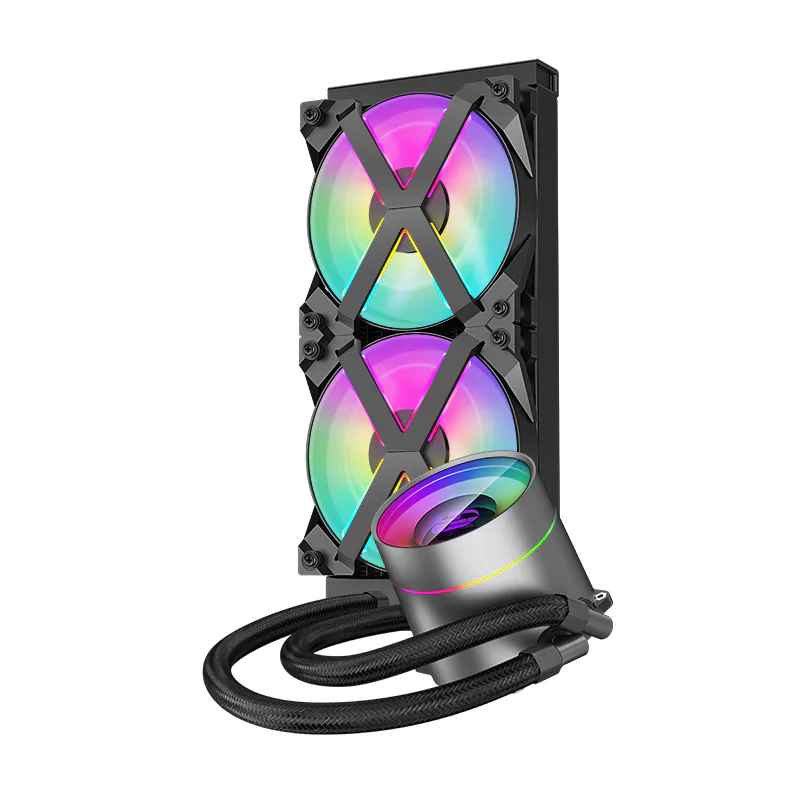

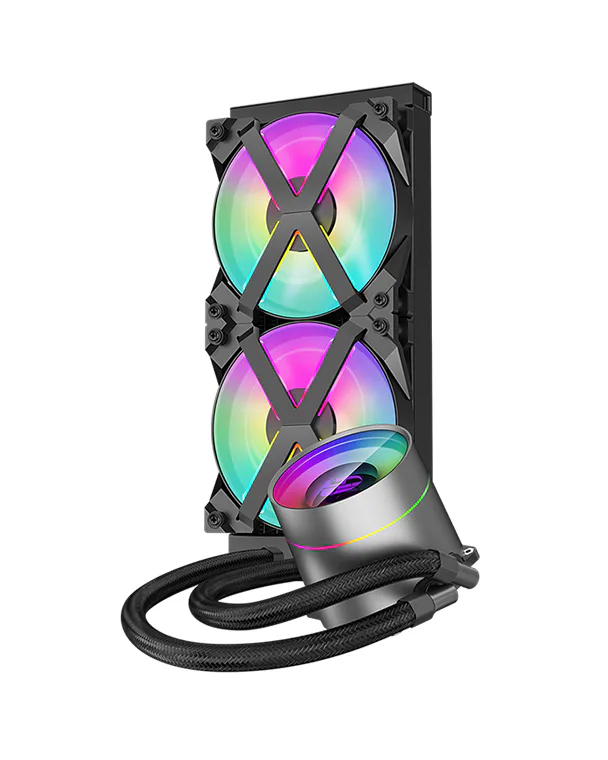

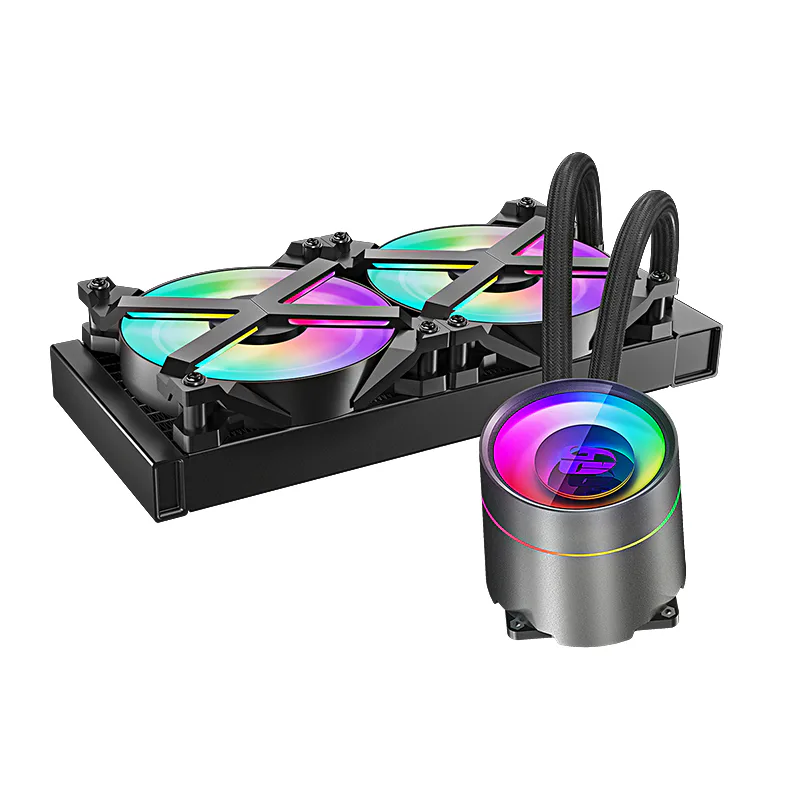

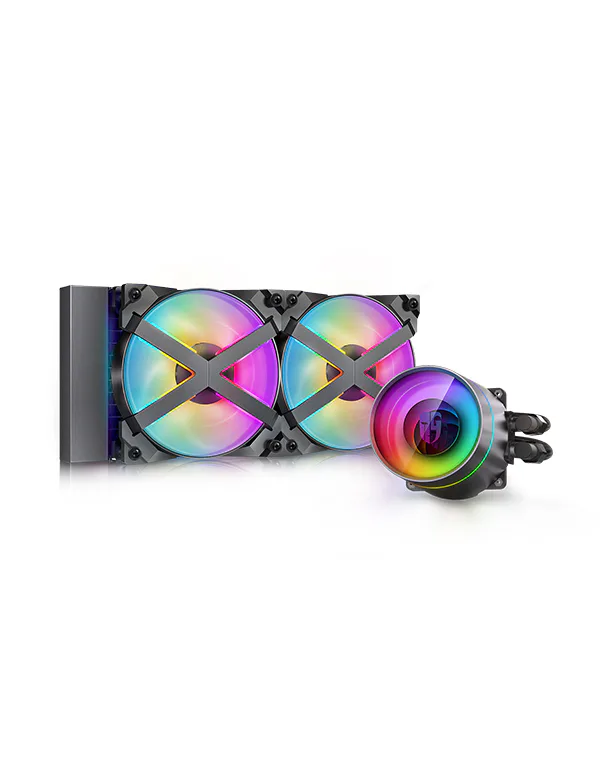

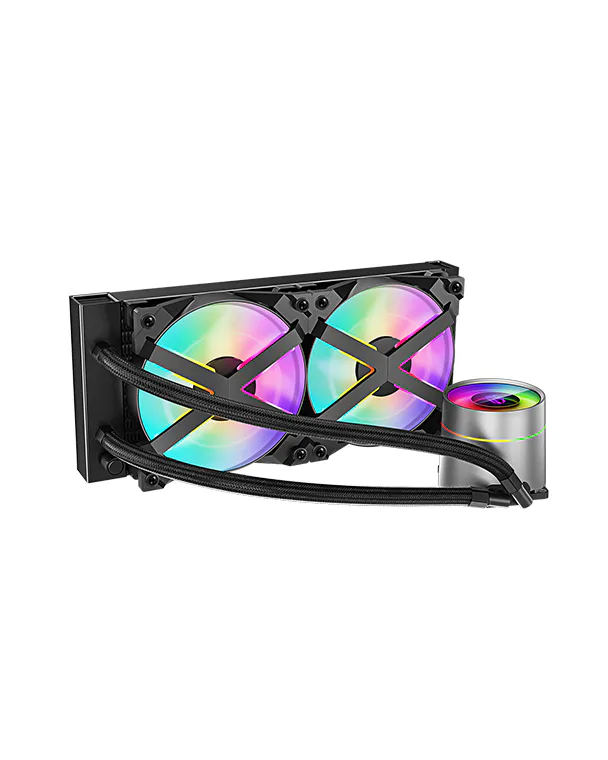

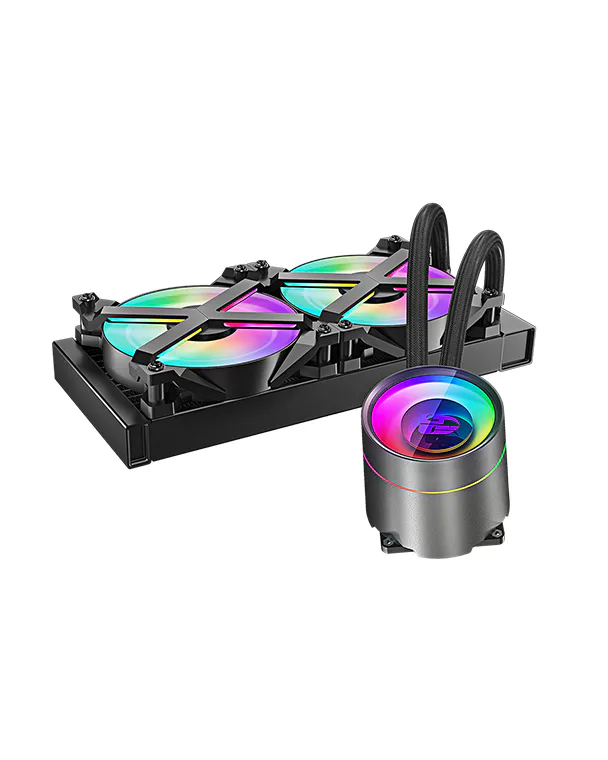

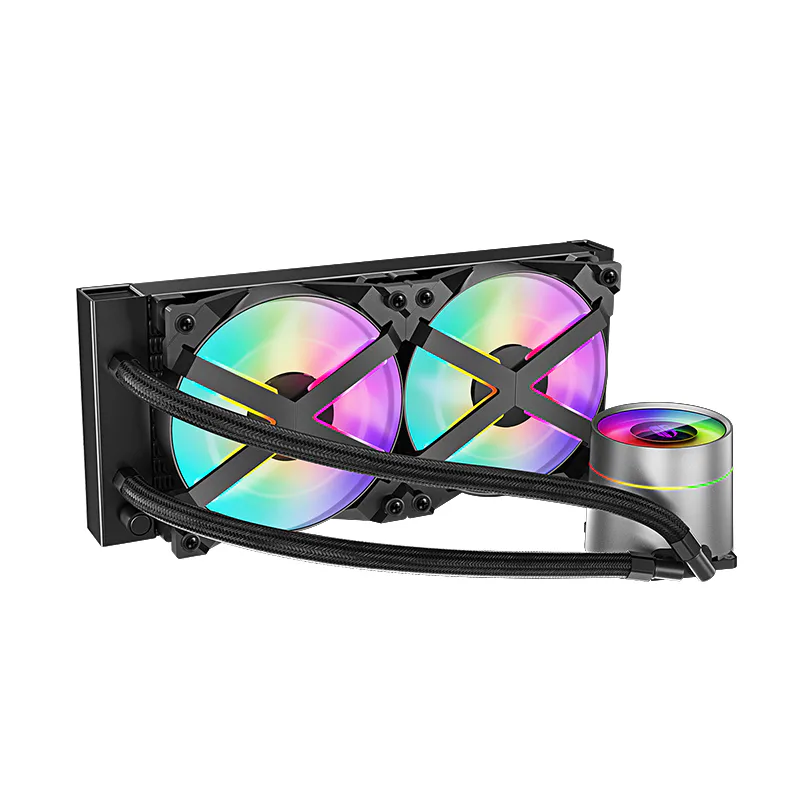

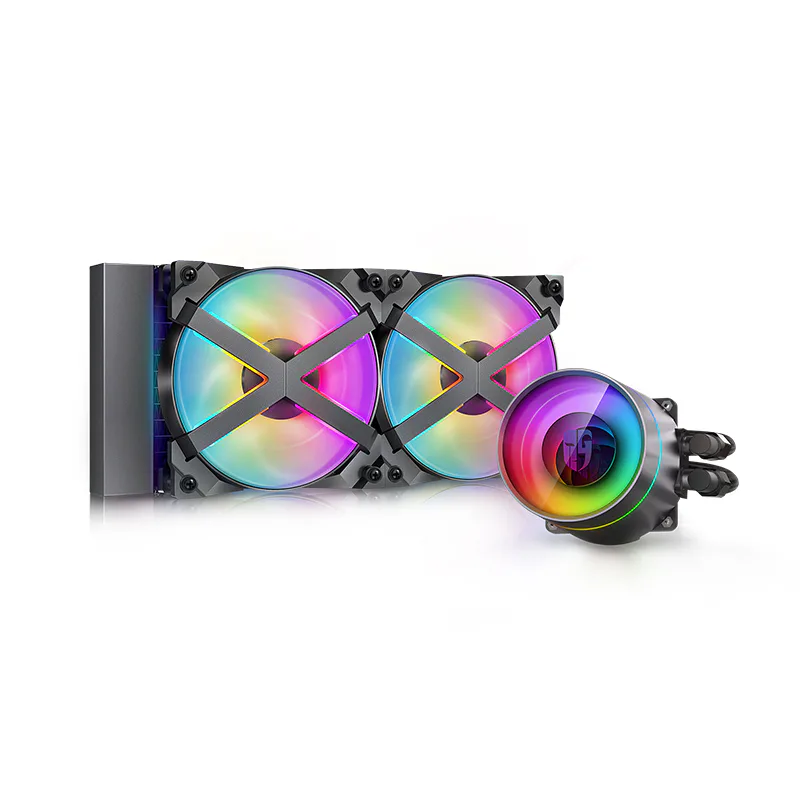

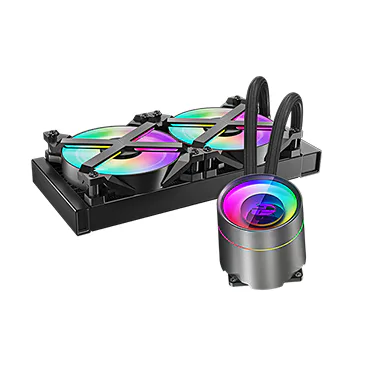

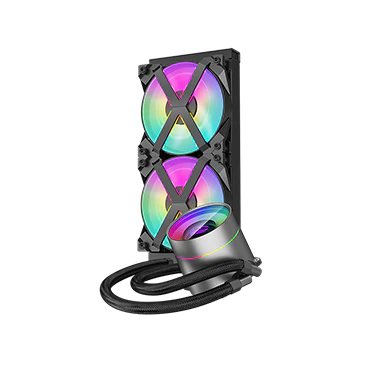

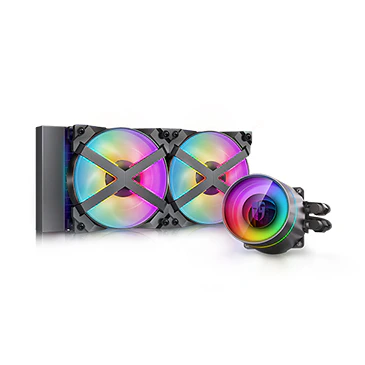

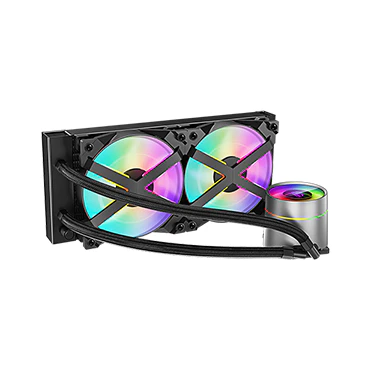

CASTLE 240EX RGB

Radiant performance

Protect what’s yours

After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.
This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.

The X Factor

―

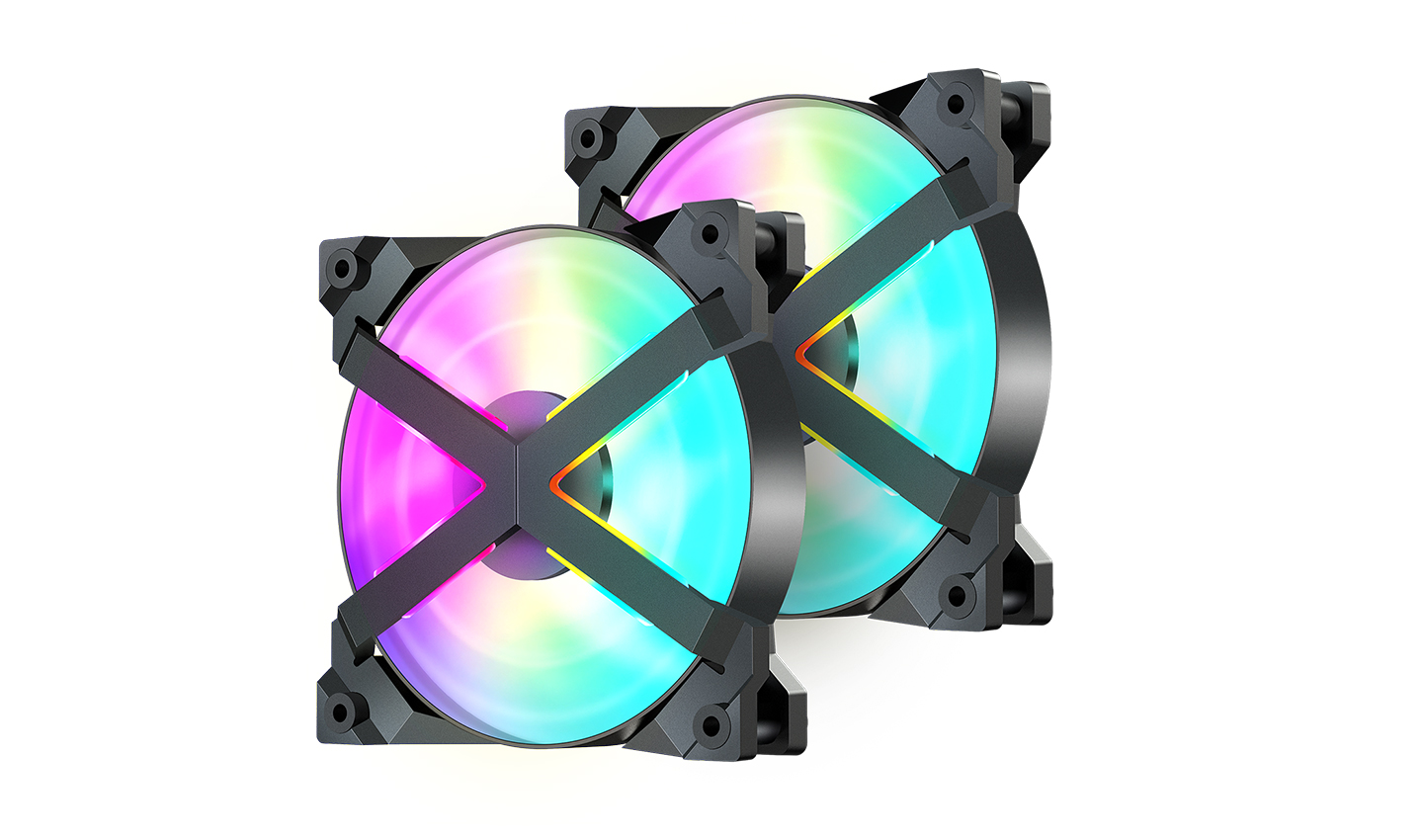

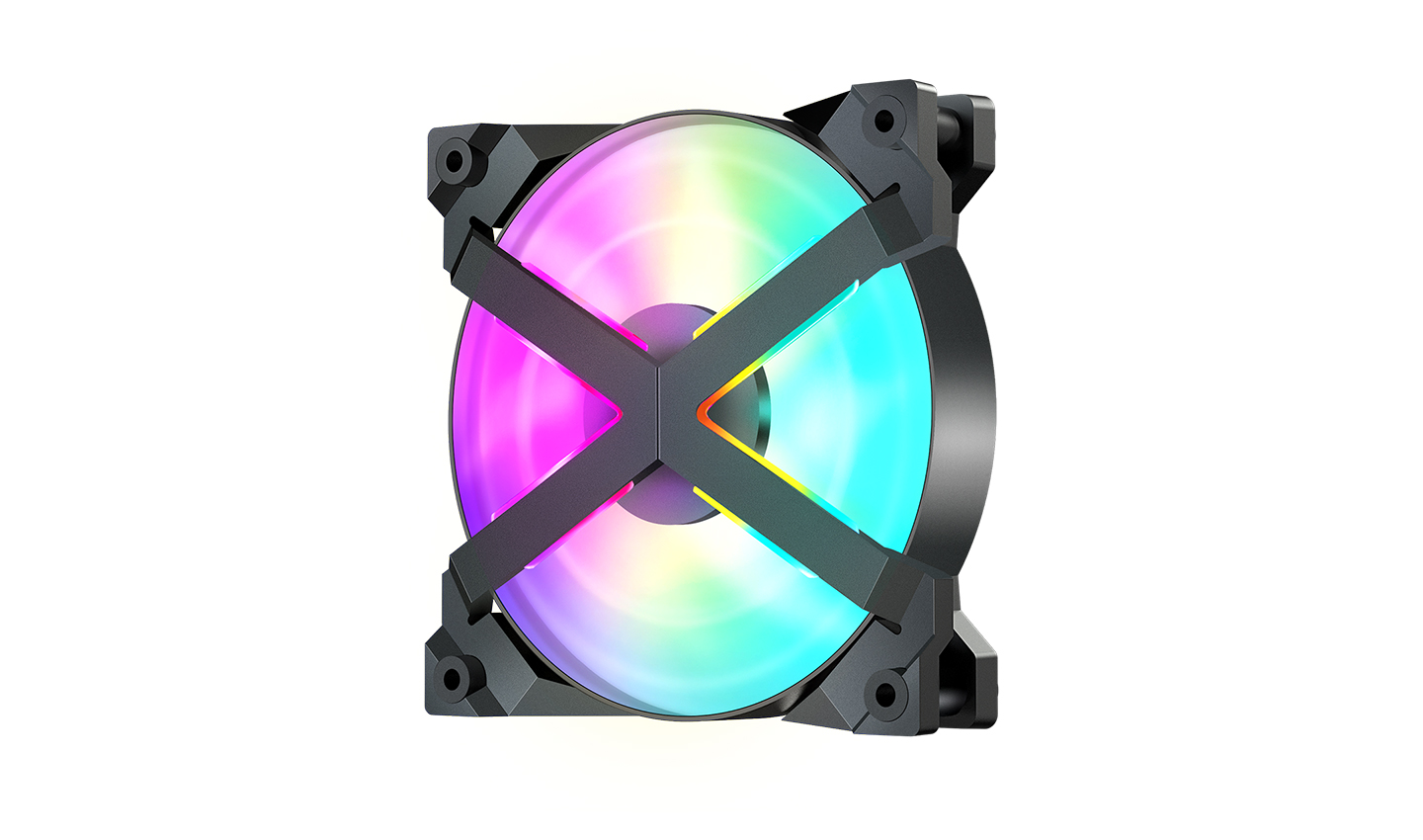

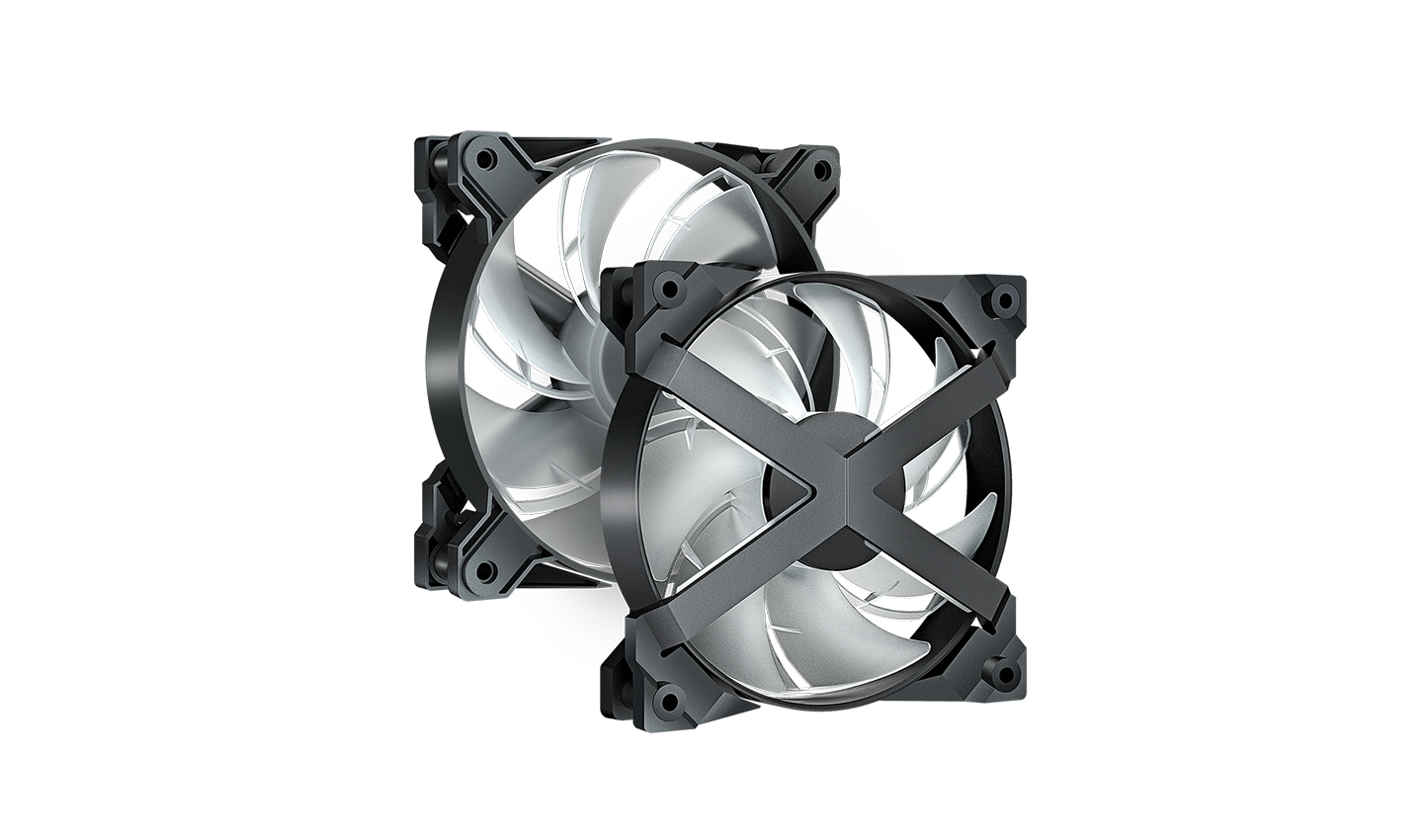

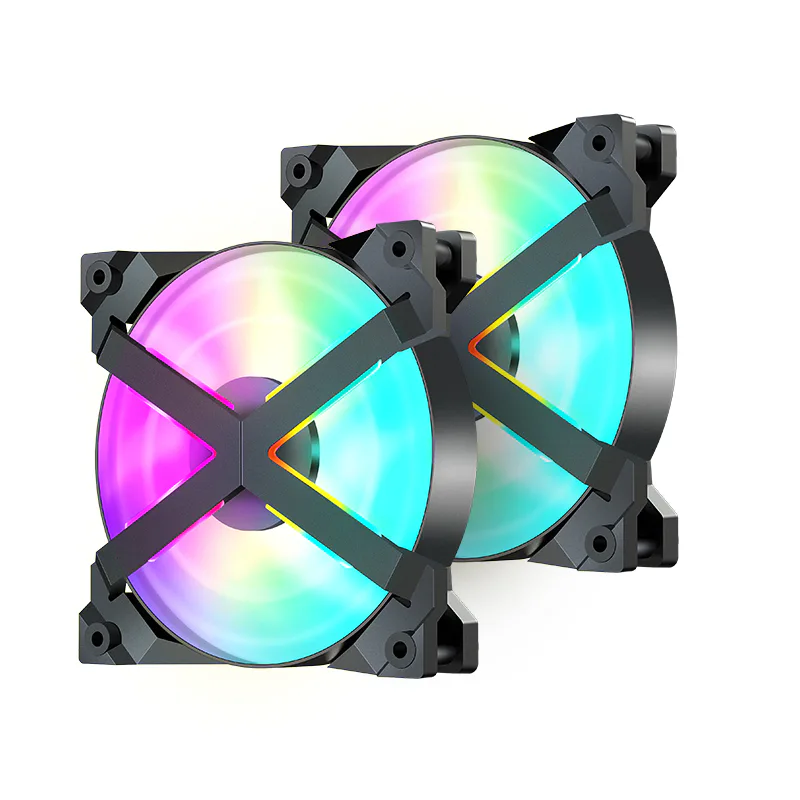

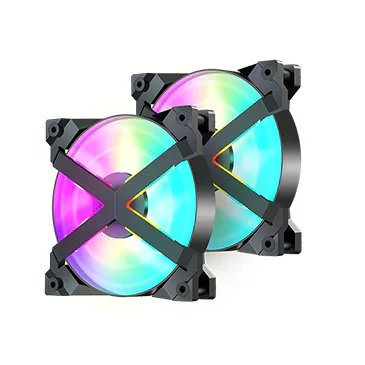

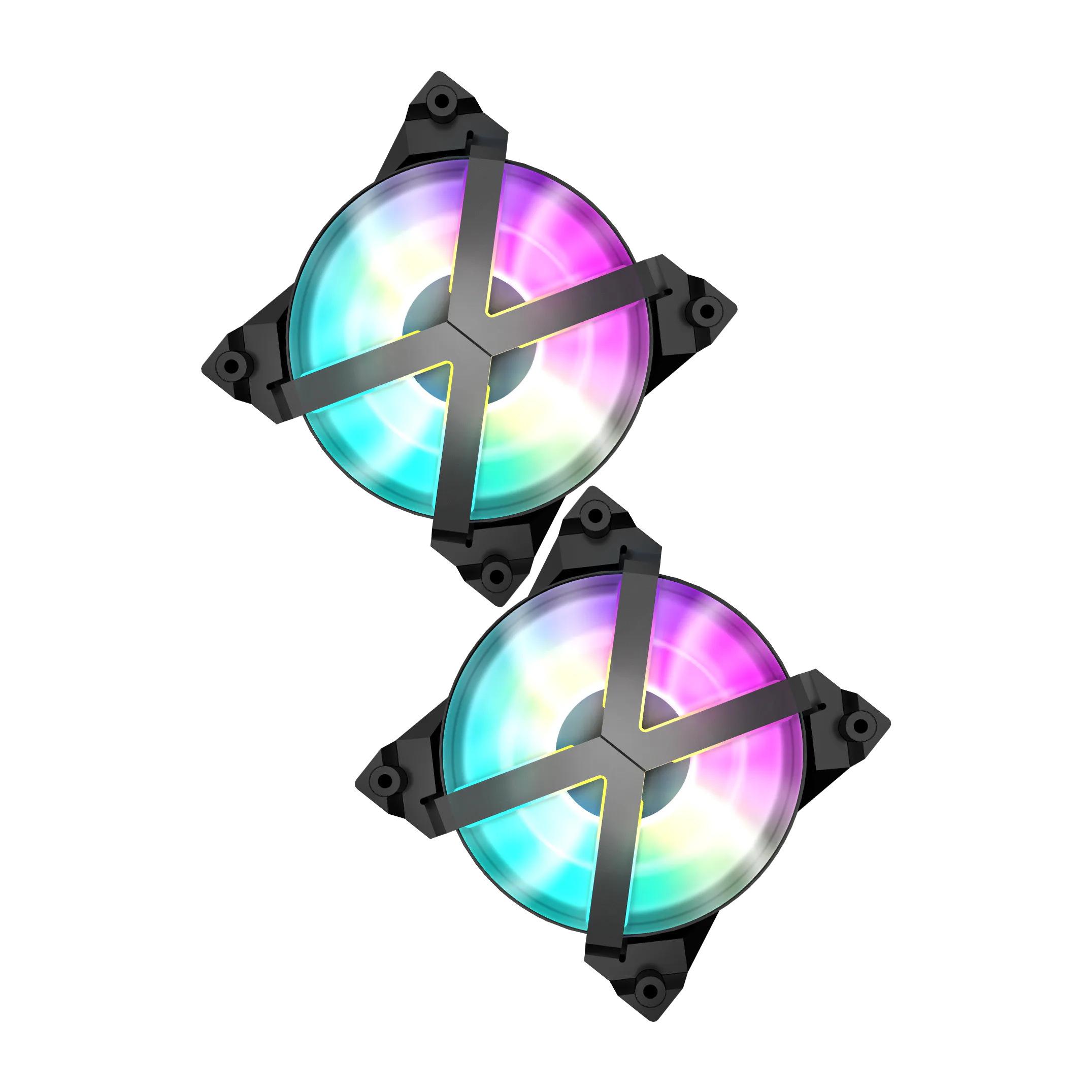

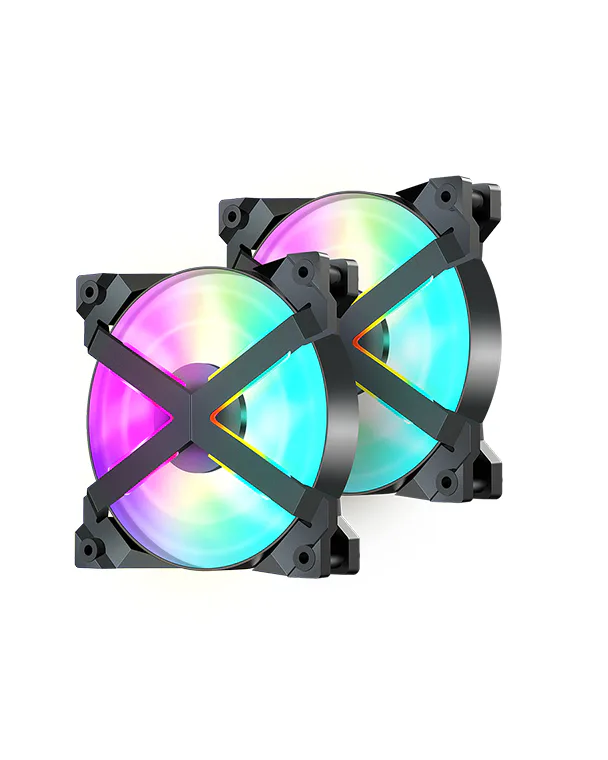

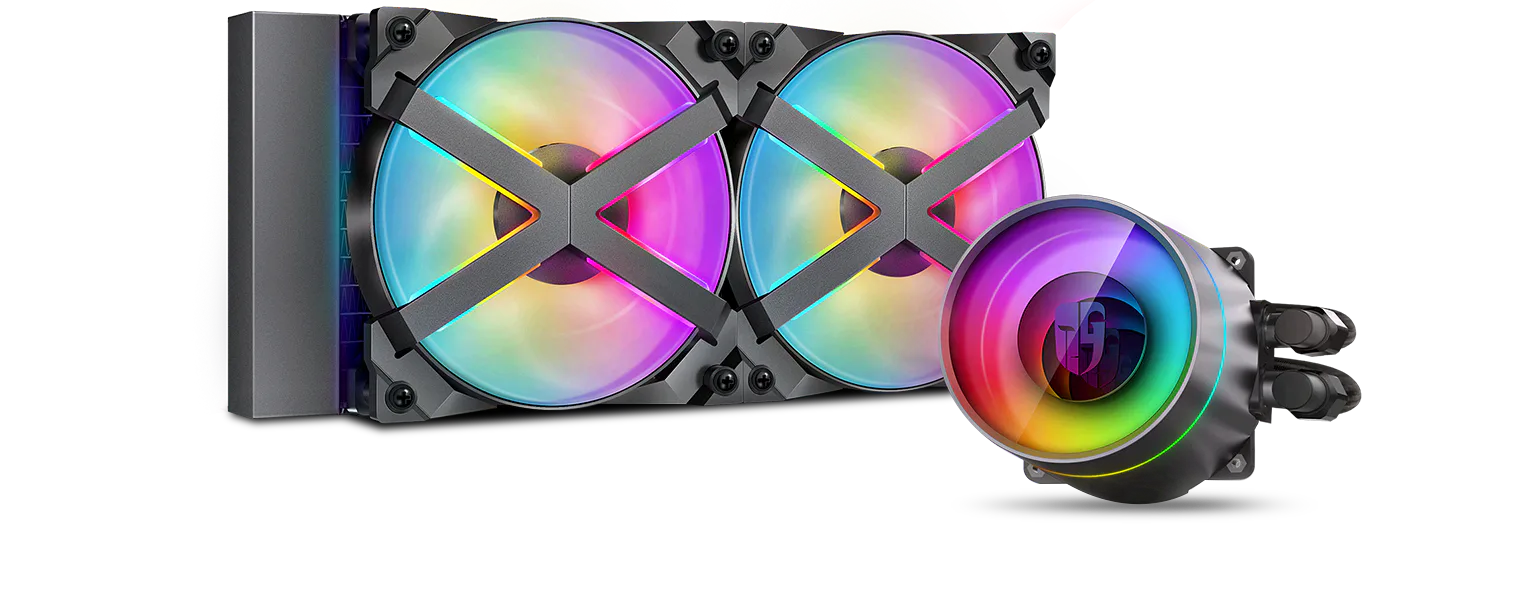

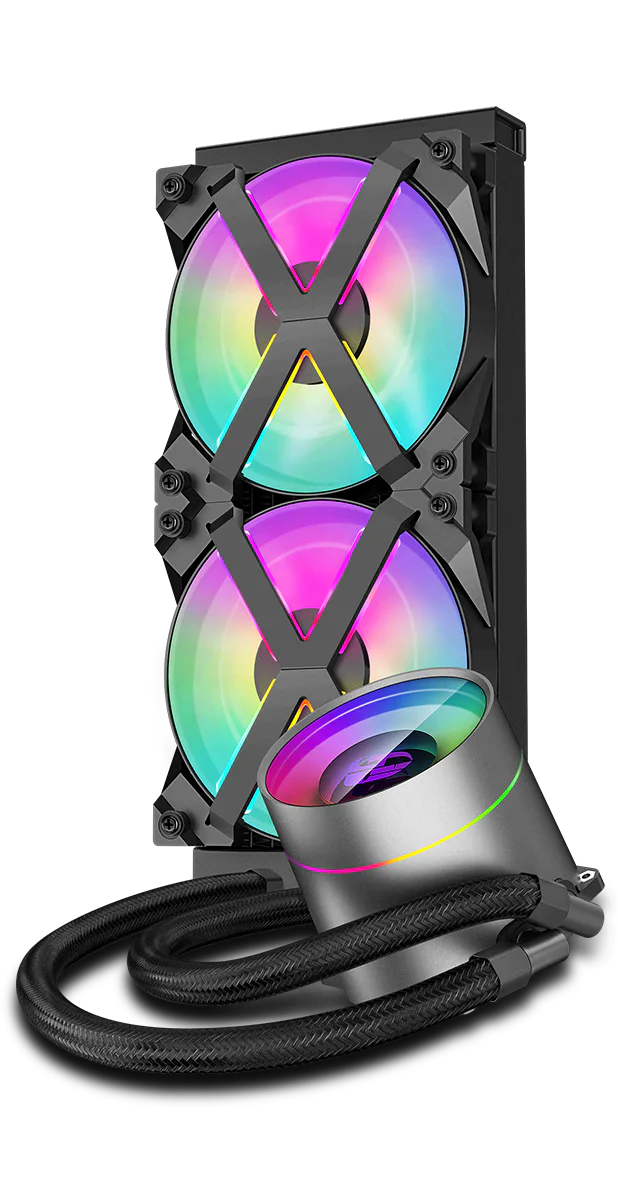

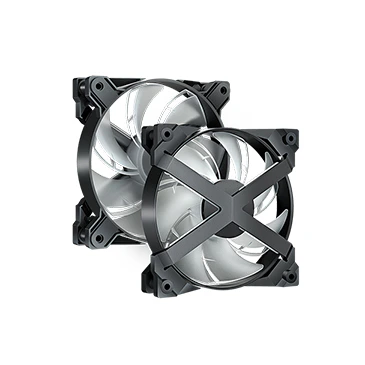

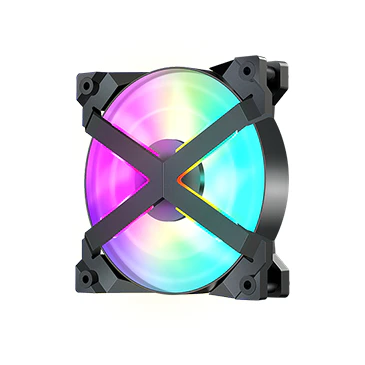

Two MF120 GT PWM fans provide vivid A-RGB lighting effects across a unique X-Frame for striking look in any build.

500~1800 RPM±10%

Wide Speed Range

60.6 CFM

Ultra Airflow

The X Factor

―

Two MF120 GT PWM fans provide vivid A-RGB lighting effects across a unique X-Frame for striking look in any build.

500~1800 RPM±10%

Wide Speed Range

60.6 CFM

Ultra Airflow

Powerful and quiet

―

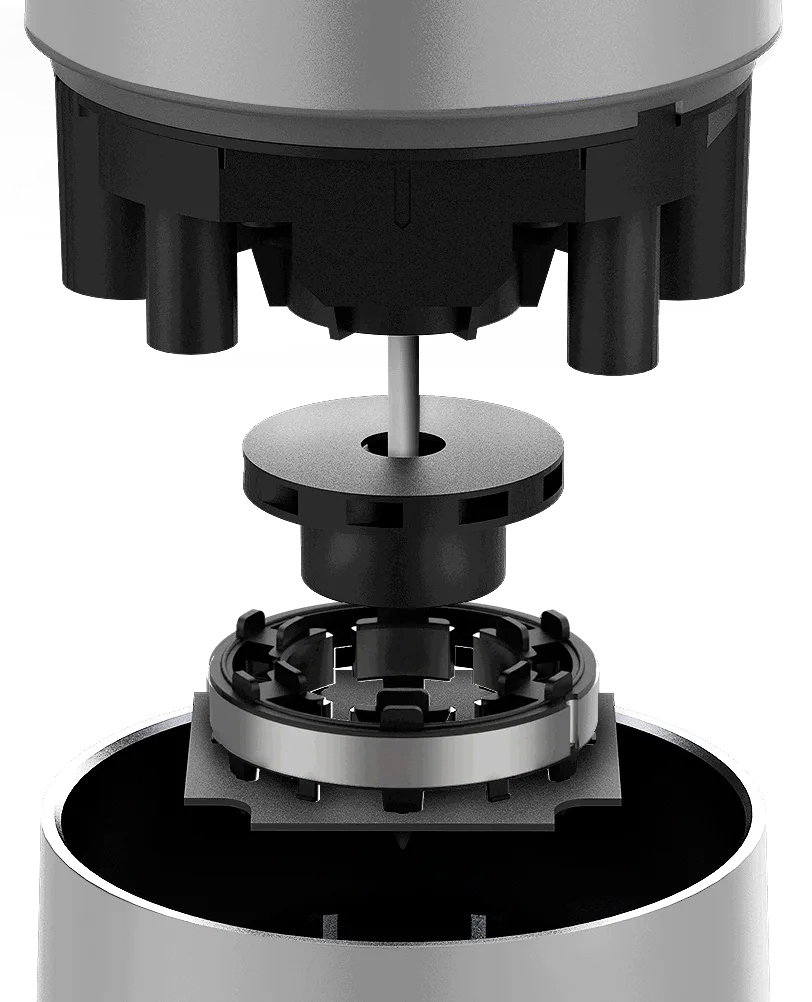

A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

Efficient cooling

―

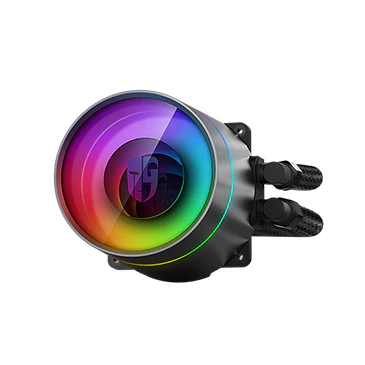

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

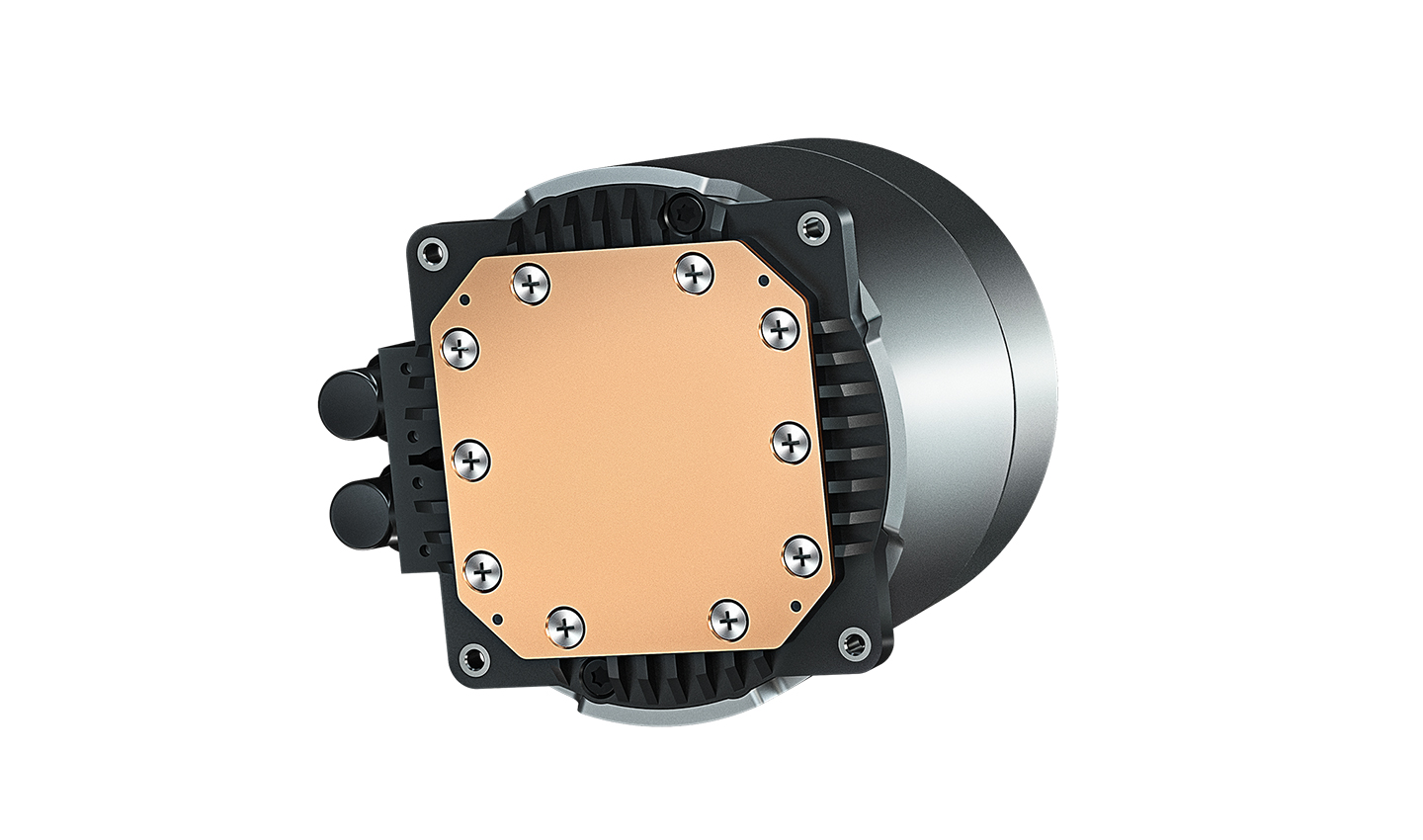

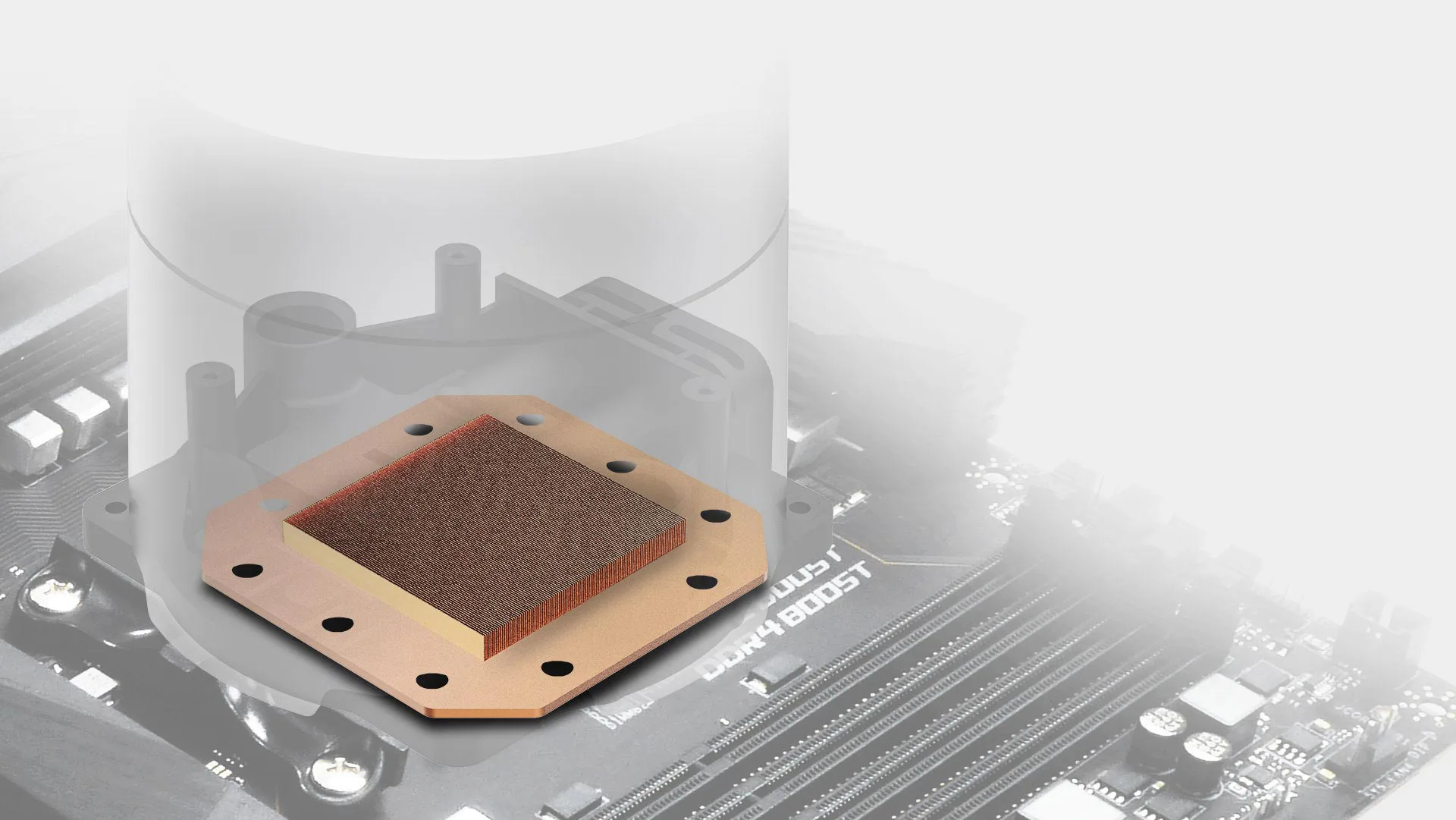

More surface area

―

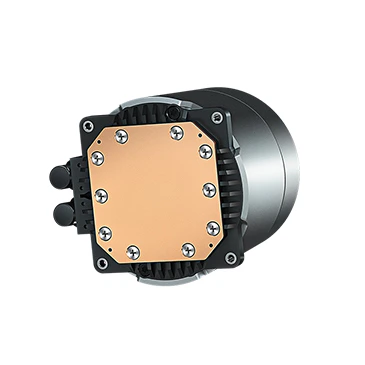

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.　　

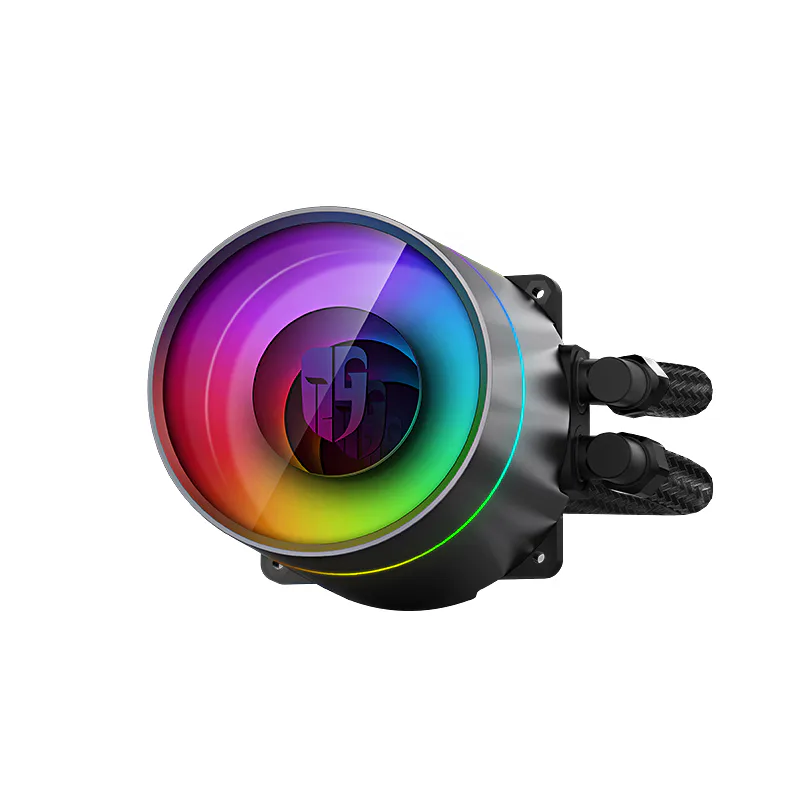

Customize your look

―

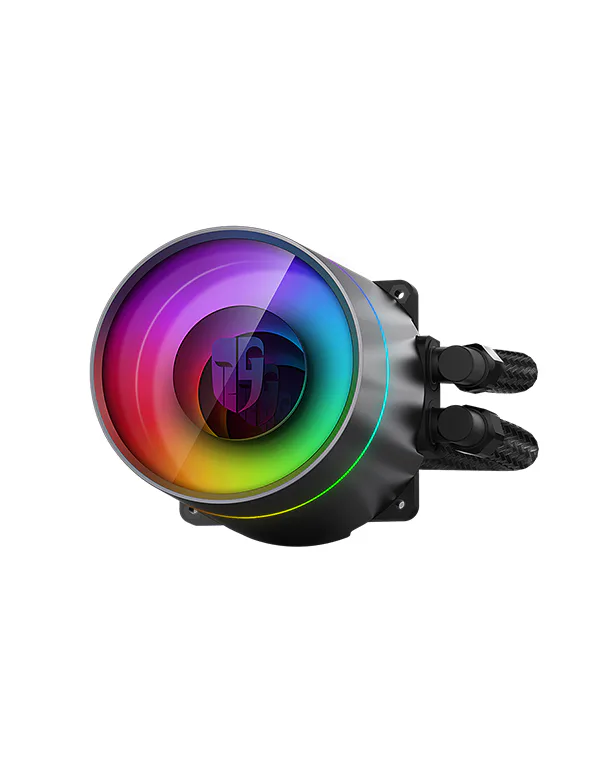

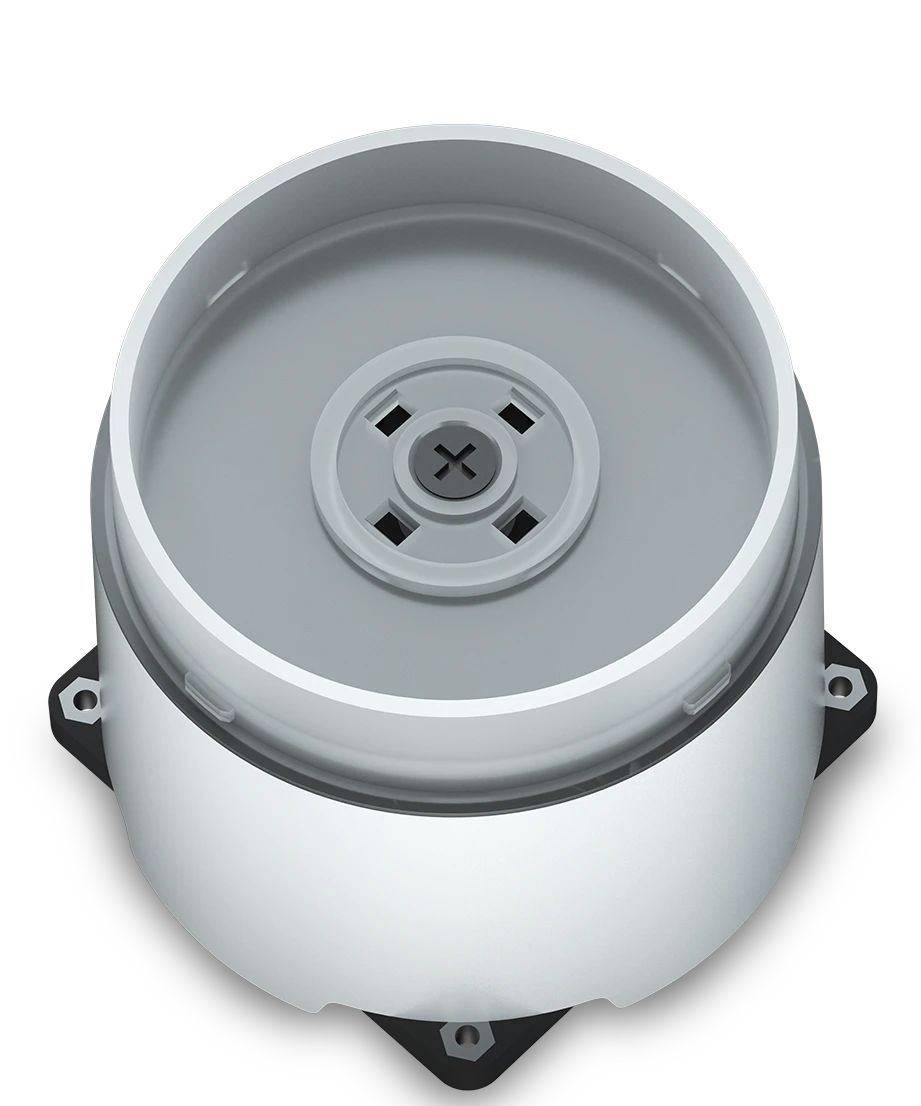

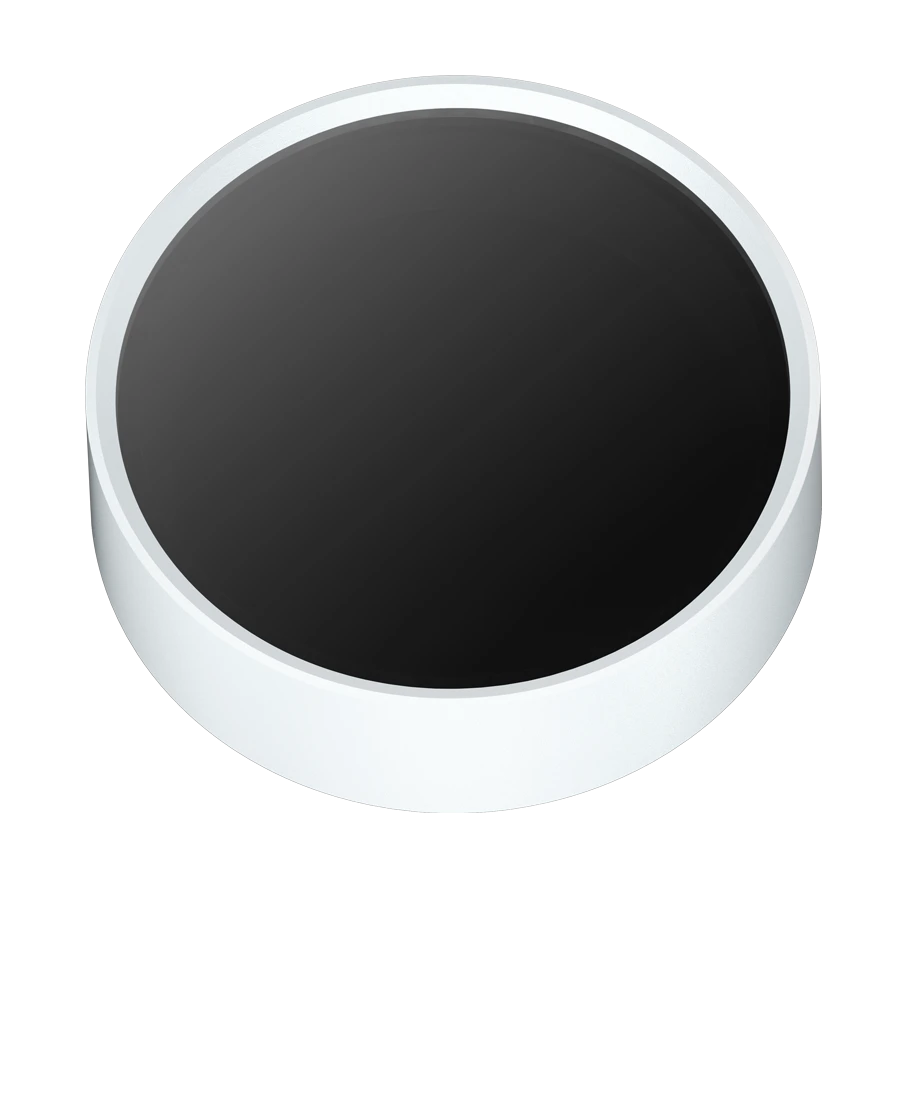

Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.Take it to the next level with your own custom design using the included extra logo chip!

Mode +

Speed (Hold for 3 seconds to switch　　 on/off)

Mode -

Choose your style

―

Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

Dynamic

Static

Breathing

Comet

Fashion Collision

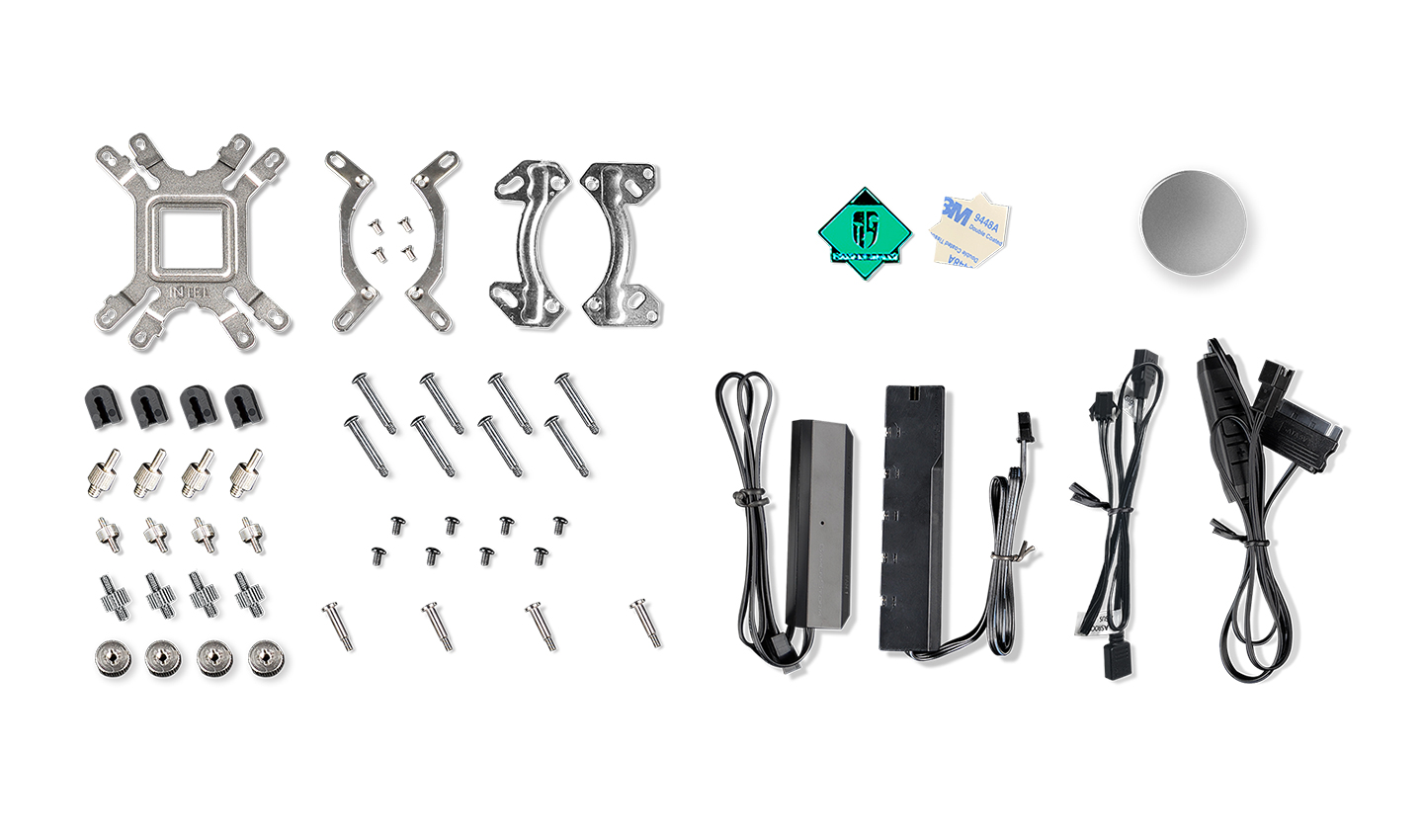

Application For

Intel

LGA2066/2011-v3/2011/1200/1151/1150/1155/1366

AMD

TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Technical Spec

Net Weight	1430 g

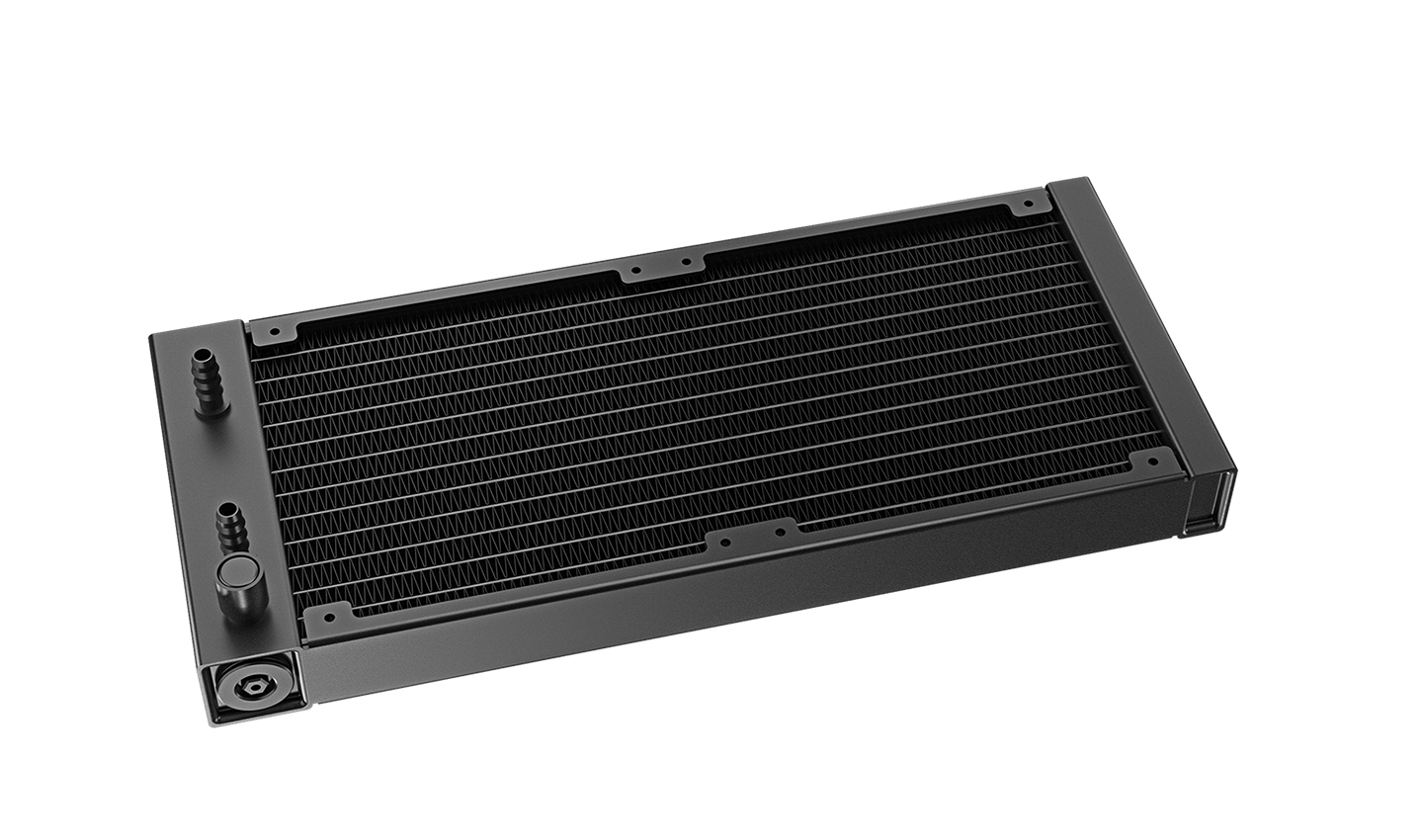

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	380 mm(L×W×H)
Pump Dimensions	86 ×75×71 mm(L×W×H)
Pump Speed	2550 RPM±10%
Pump Noise	17.8 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.2 A
Pump Power Consumption	2.4 W
Fan Dimensions	120×120×28 mm(L×W×H)
Fan Speed	500~1800 RPM±10%
Fan Airflow	60.6 CFM
Fan Air Pressure	1.73 mmAq
Fan Noise	≤35 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.12 A
Fan Power Consumption	1.44 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.25 W（PUMP） / 7.4 W（FAN×2）
EAN	6933412727132
P/N	DP-GS-H12-CSL240EX-RGB

Product Dimension
