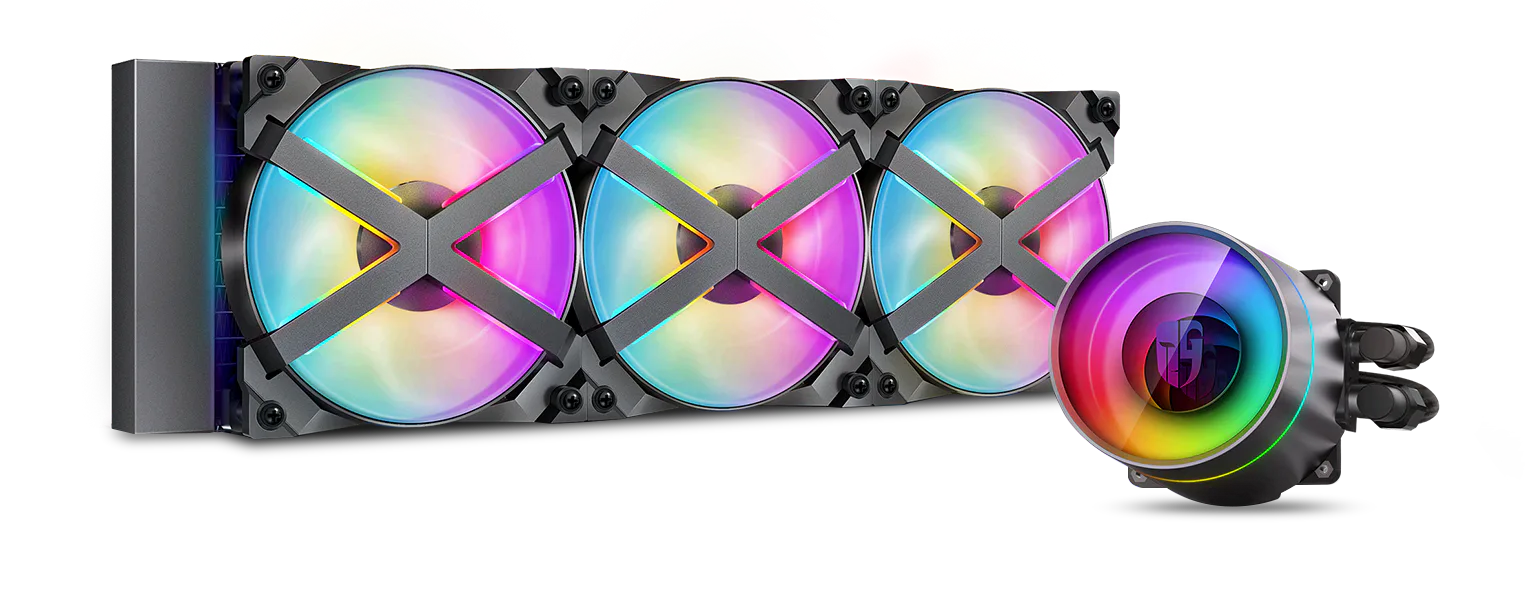

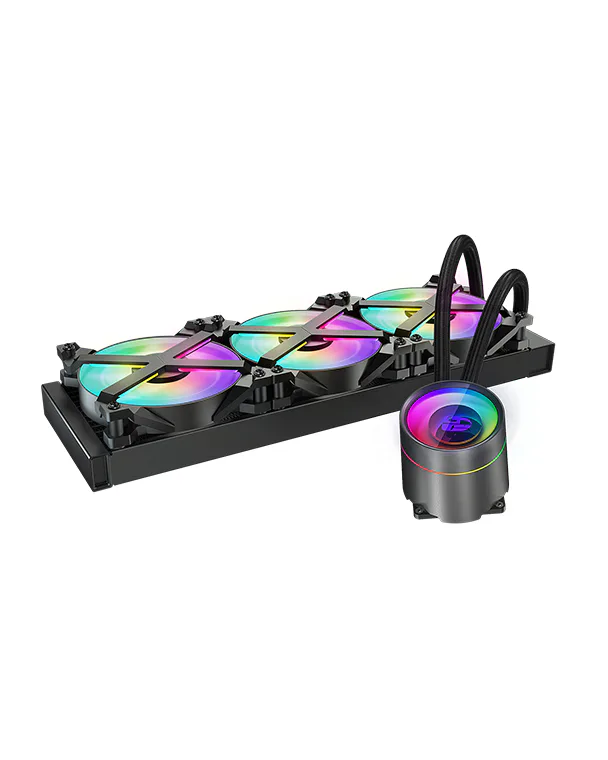

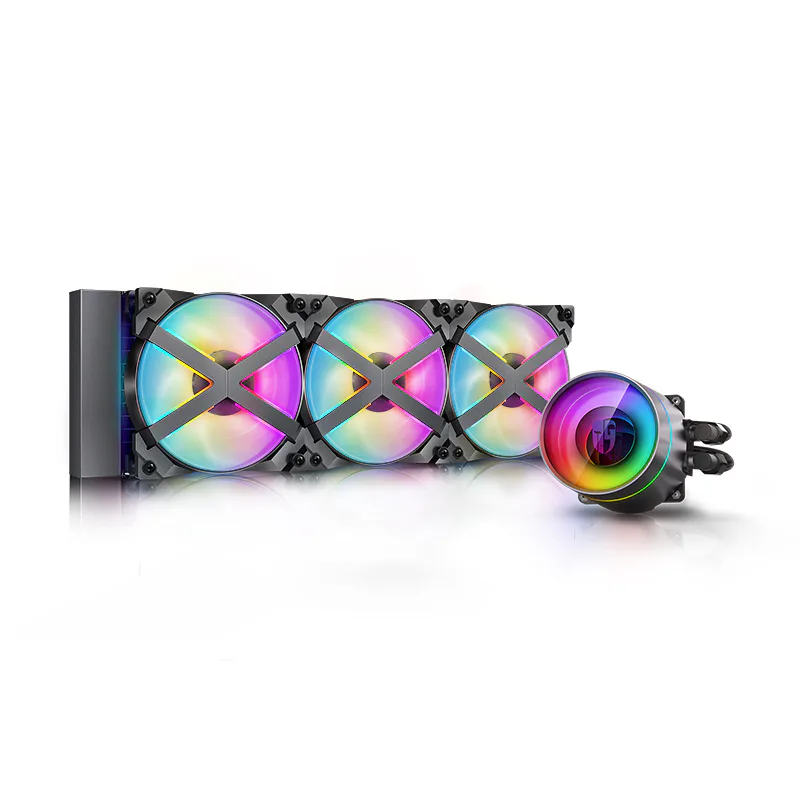

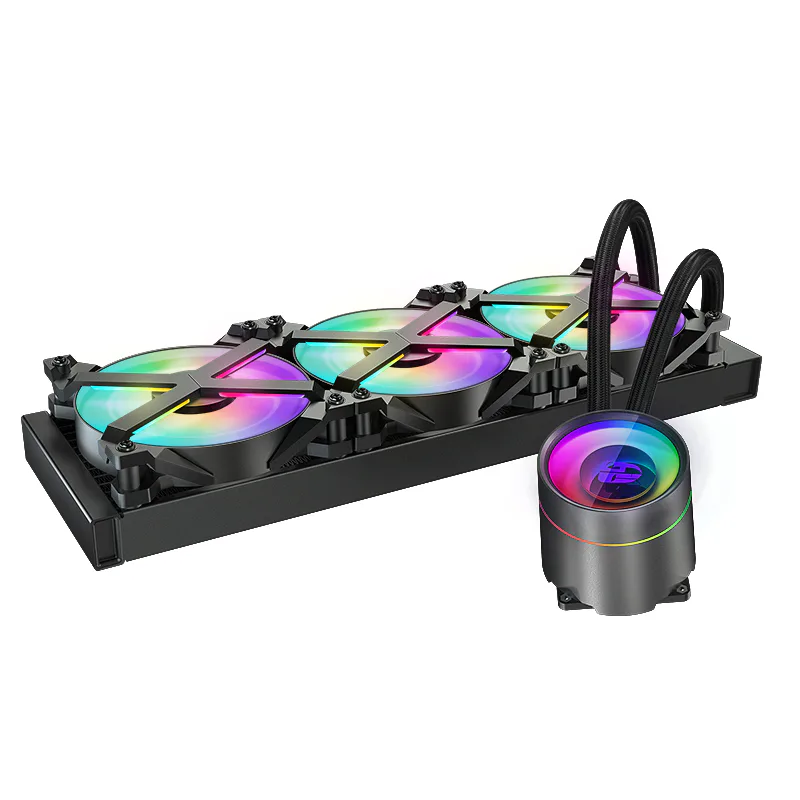

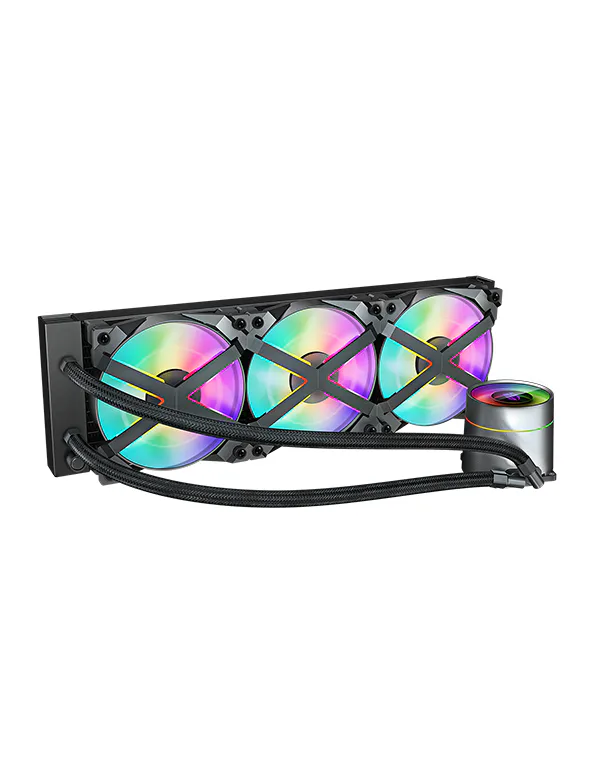

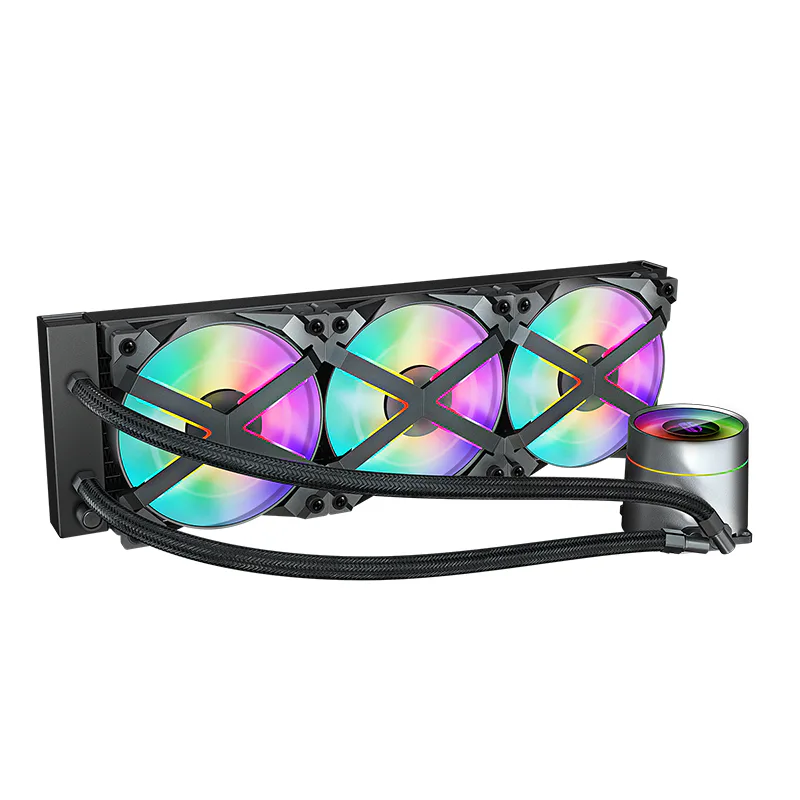

CASTLE 360EX RGB

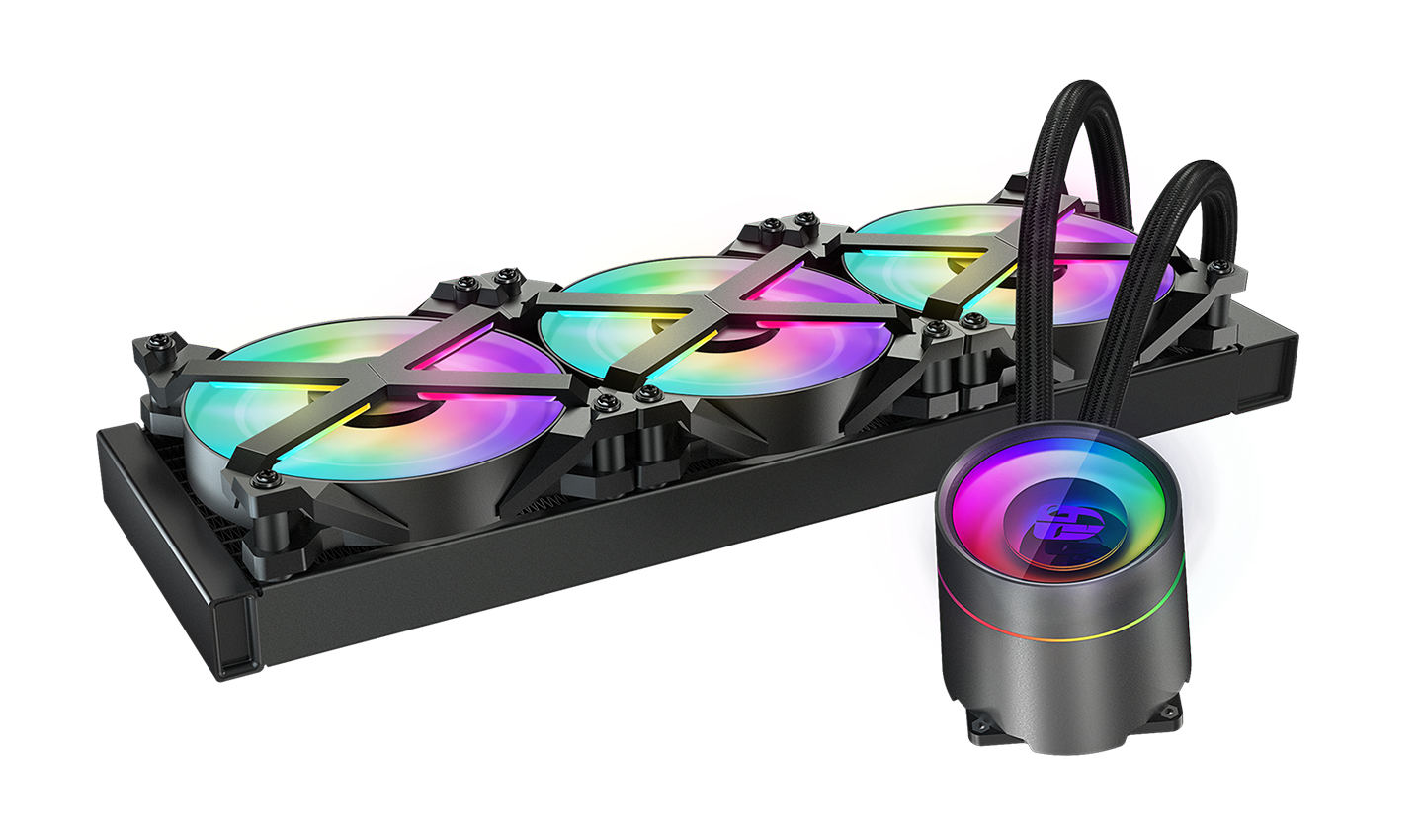

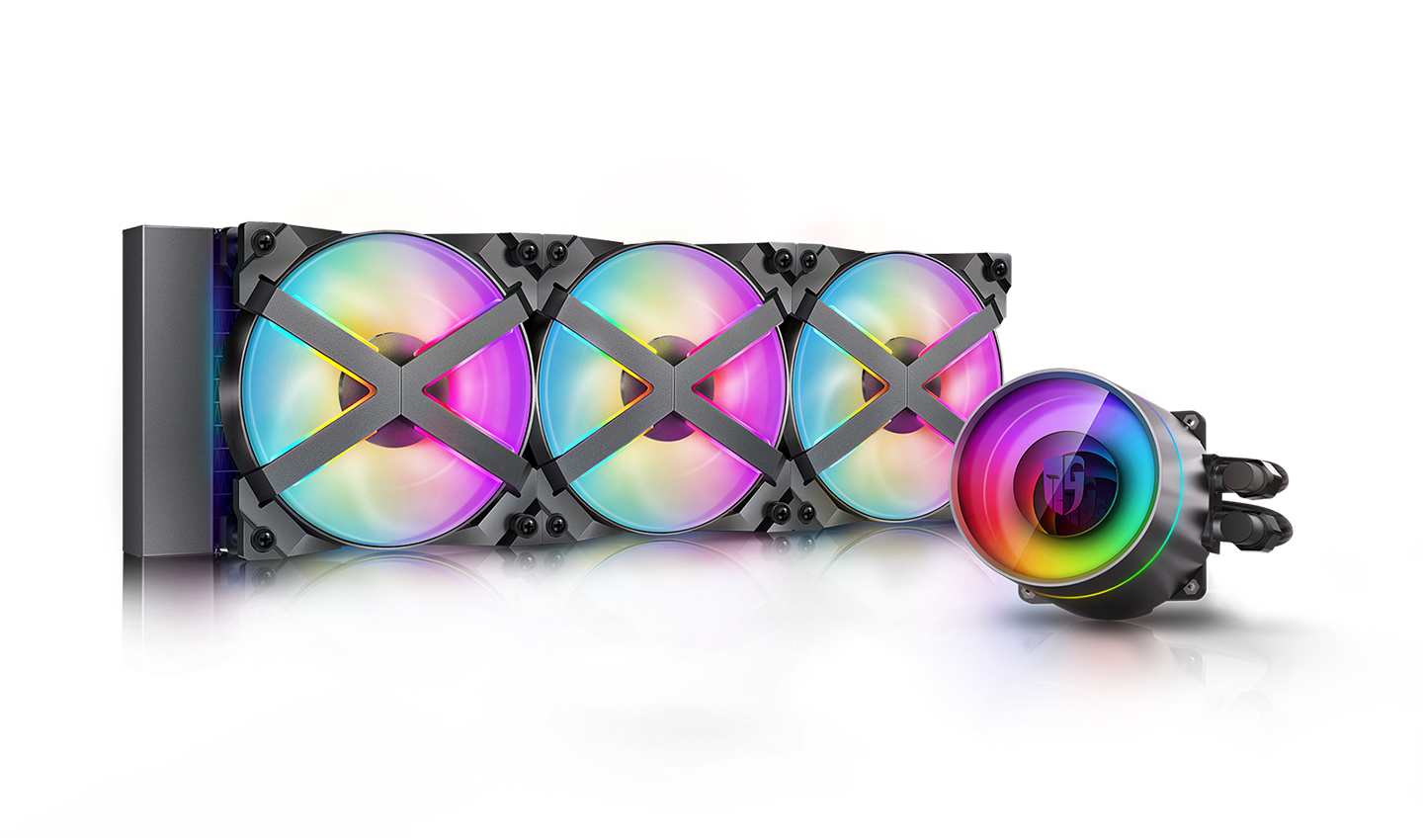

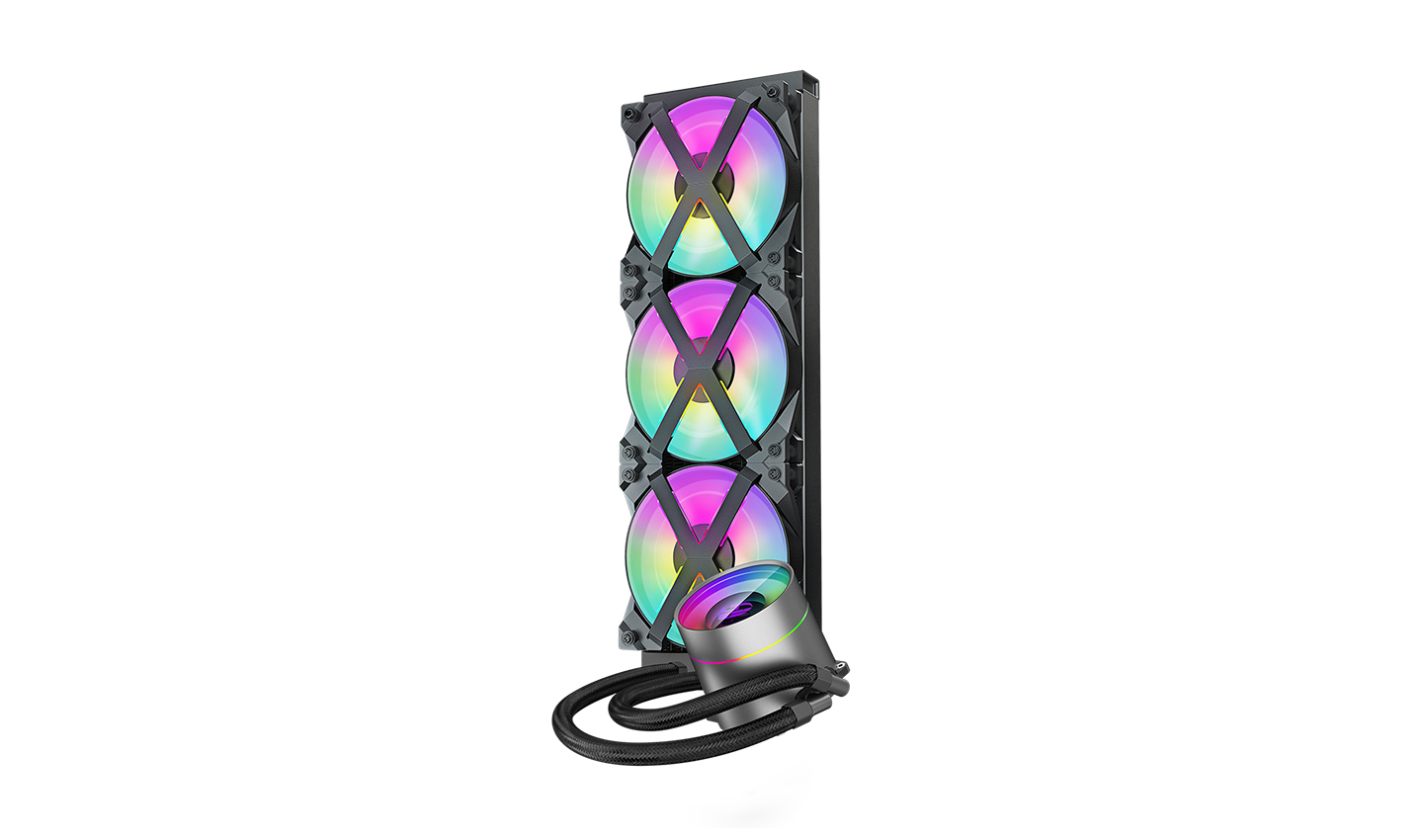

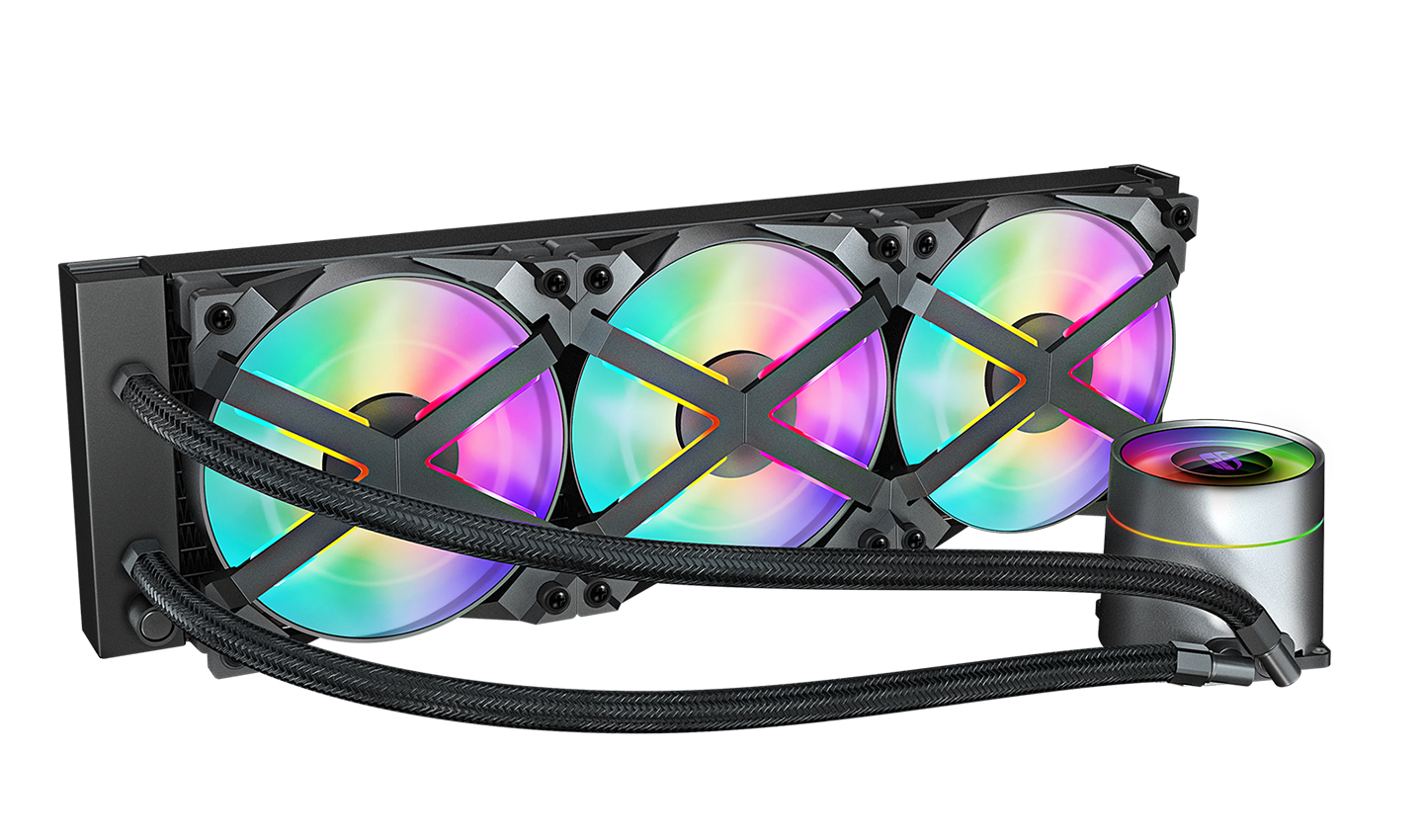

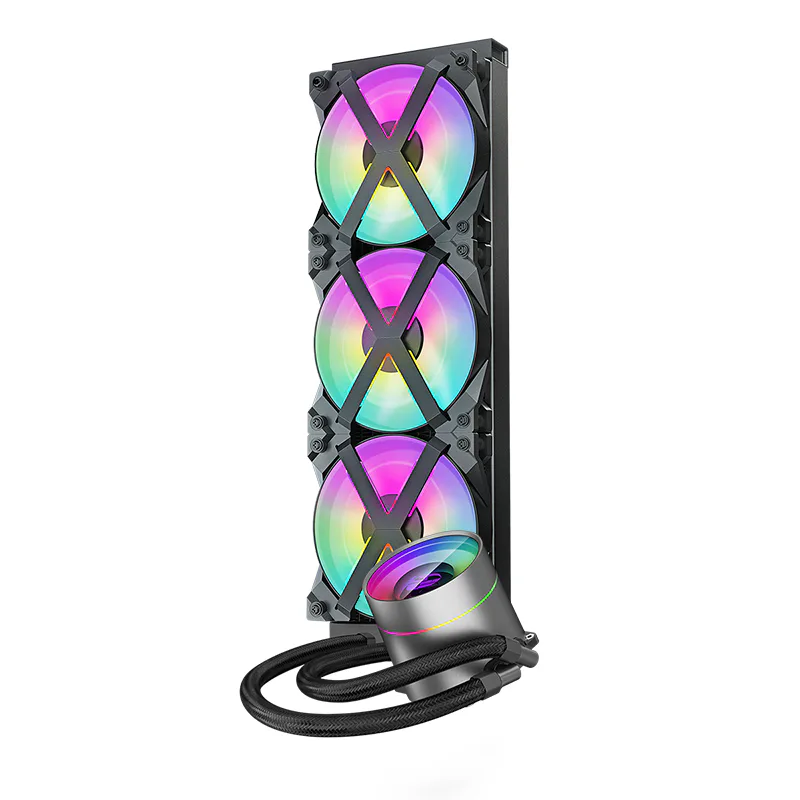

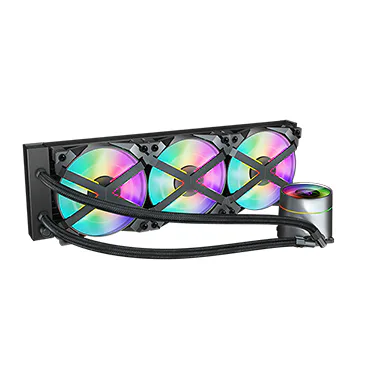

The CASTLE 360EX RGB AIO liquid CPU cooler provides high performance cooling with long-lasting durability and radiant RGB lighting featuring Anti-Leak technology and three premium MF120 GT fans.
COLOR
black
MODEL
CASTLE 360EX RGB
Radiant performance
Protect what’s yours
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology. This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.

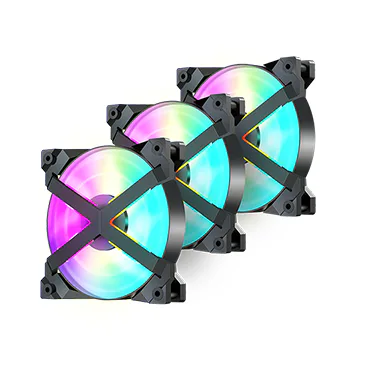

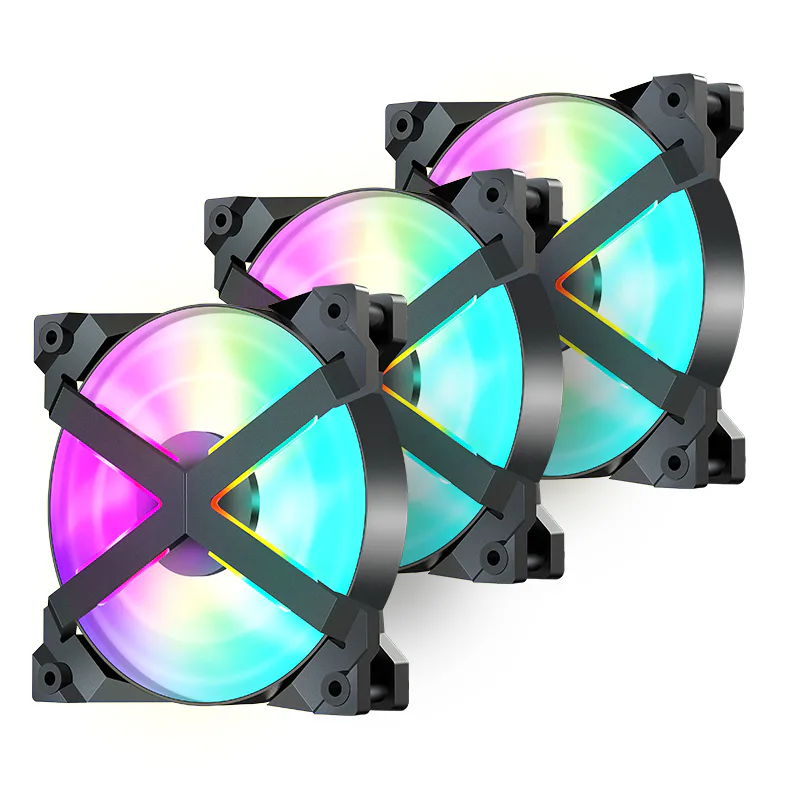

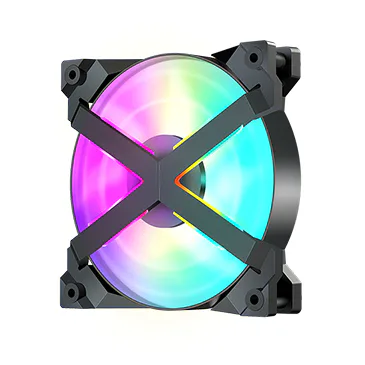

The X Factor
―

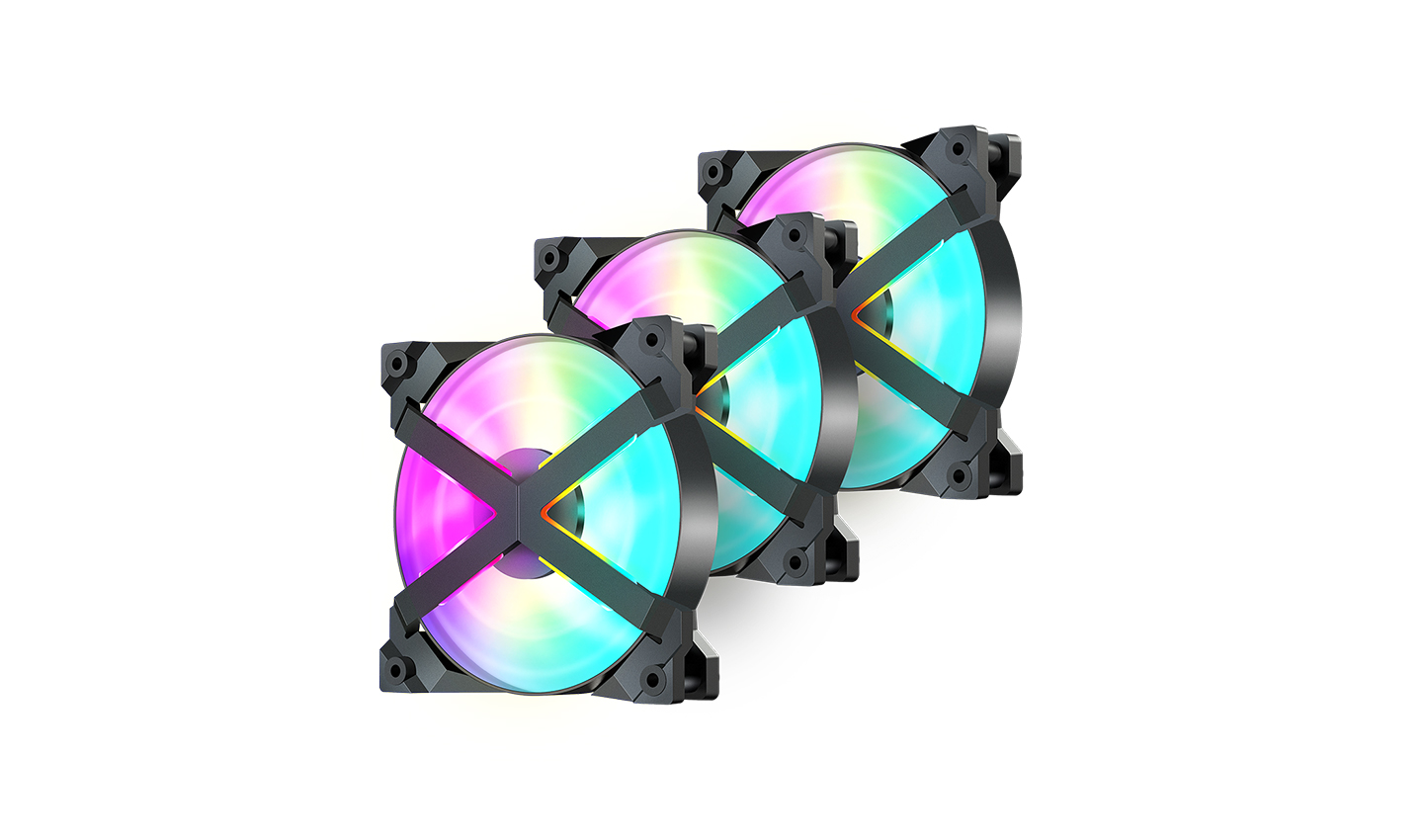

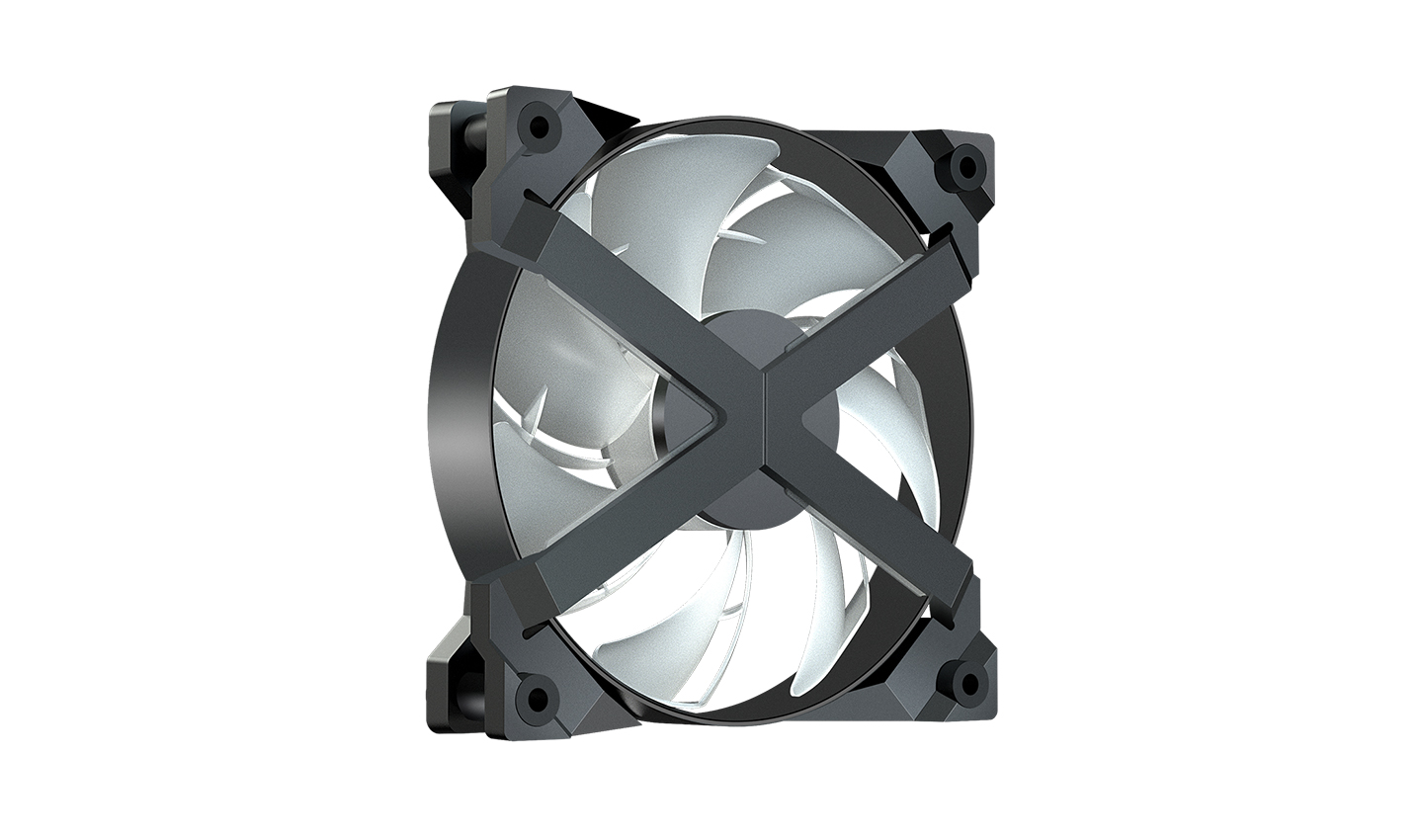

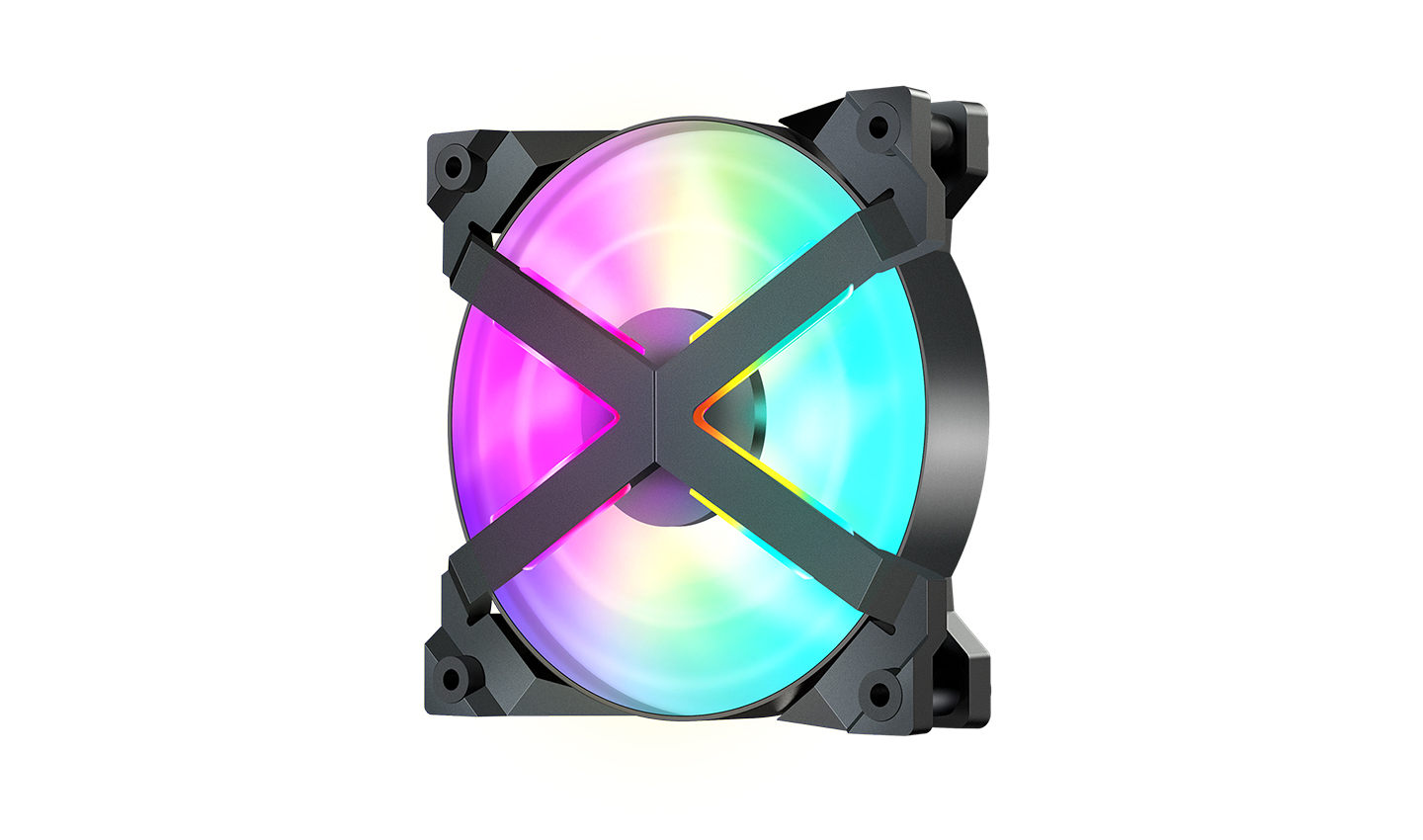

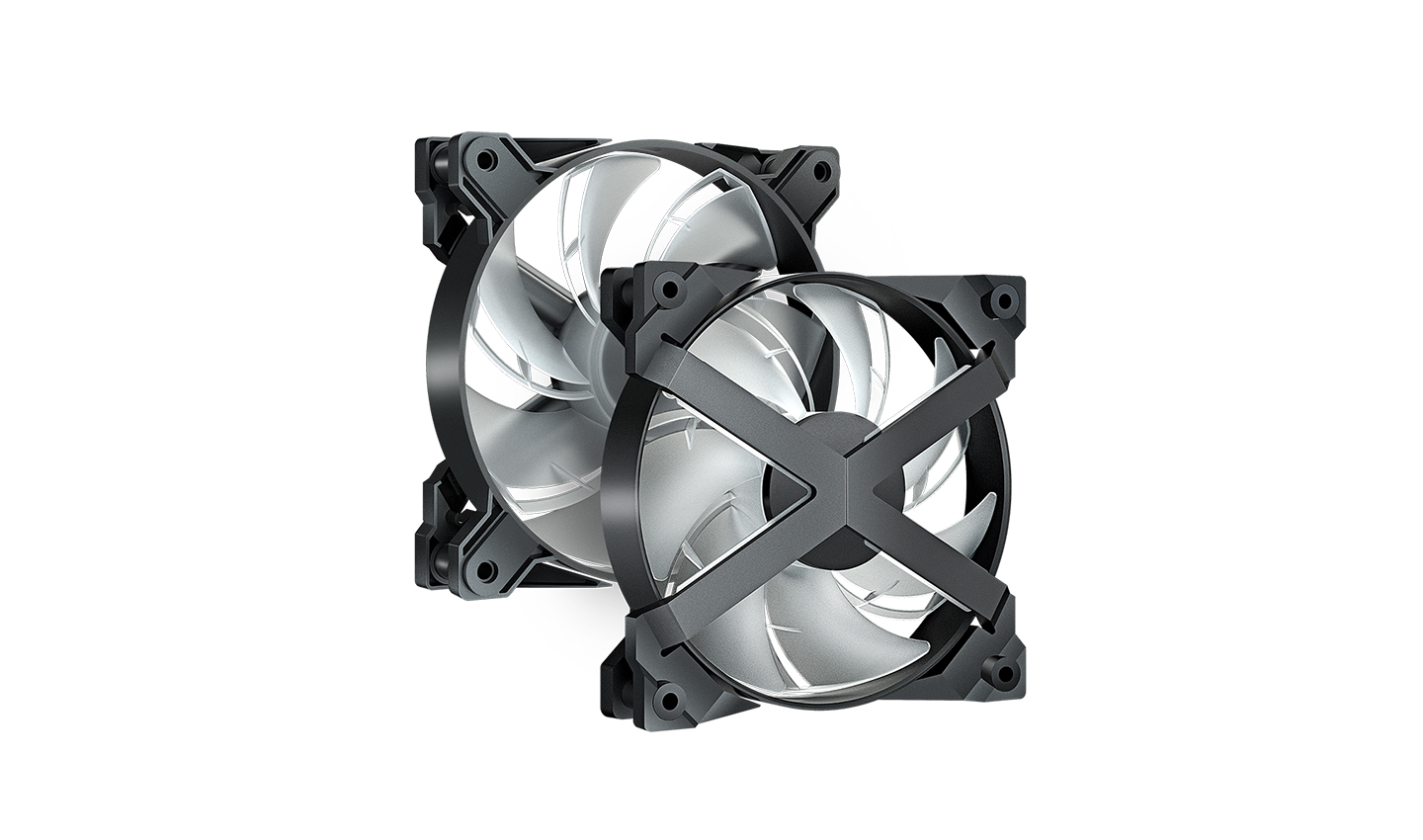

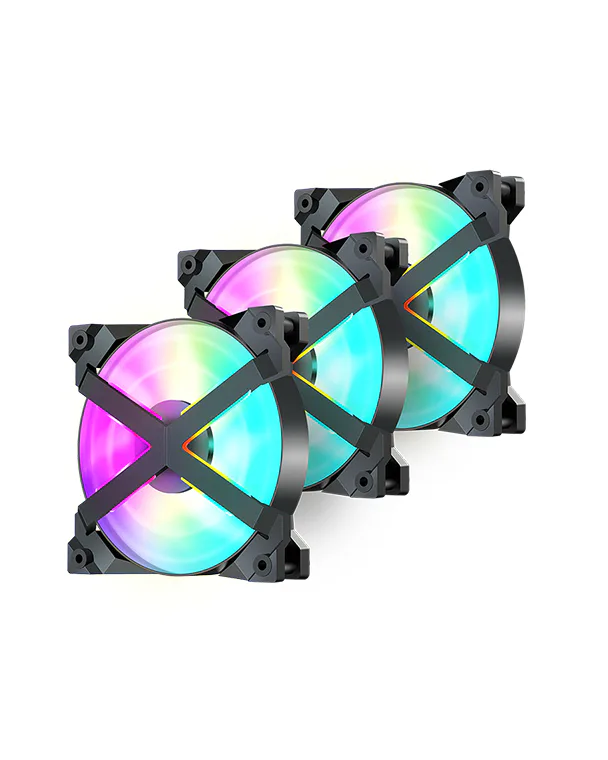

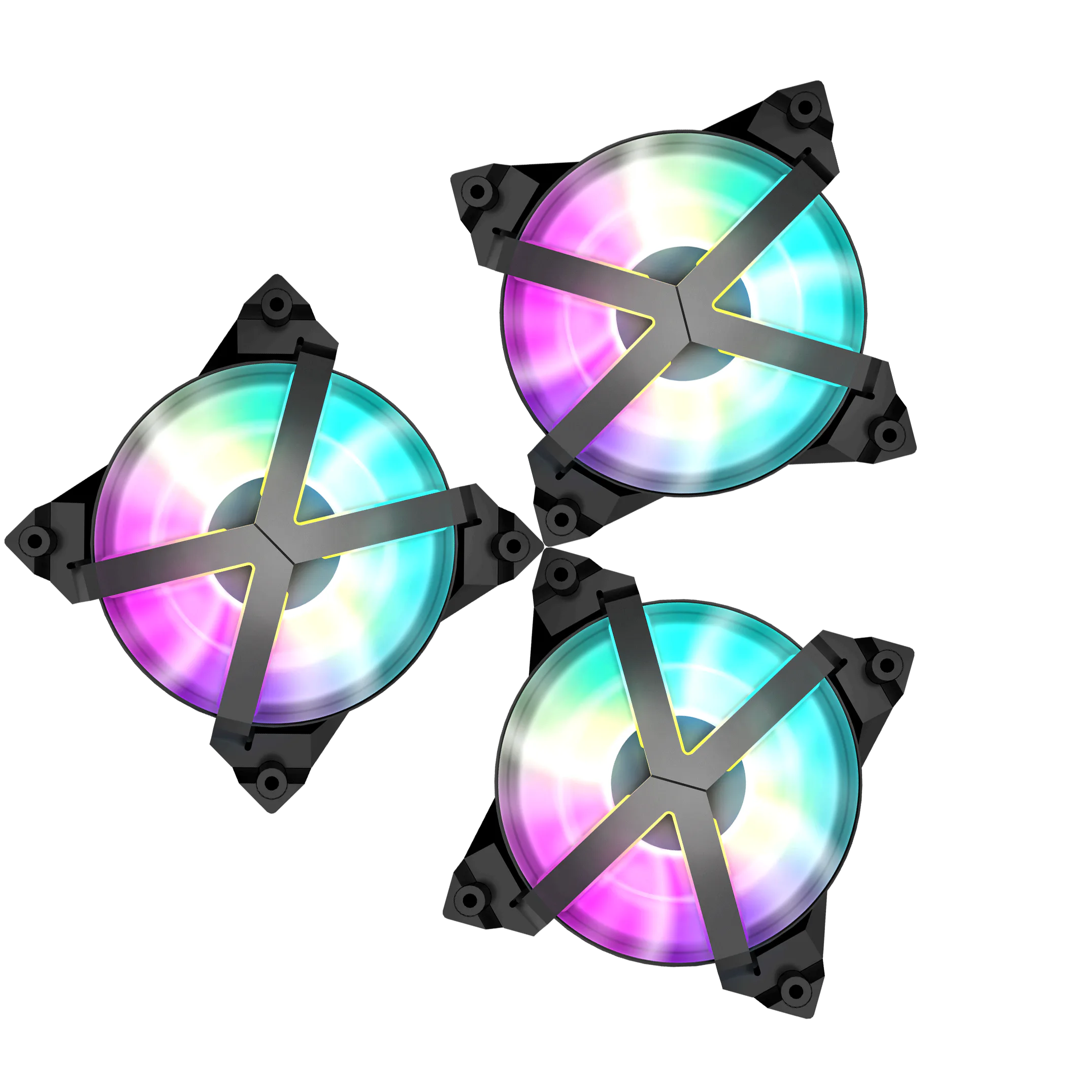

Three MF120 GT PWM fans provide vivid A-RGB lighting effects across a unique X-Frame for striking look in any build.
500~1800 RPM±10%
Wide Speed Range
60.6 CFM
Ultra Airflow
The X Factor
―
Three MF120 GT PWM fans provide vivid A-RGB lighting effects across a unique X-Frame for striking look in any build.
500~1800 RPM±10%
Wide Speed Range
60.6 CFM
Ultra Airflow

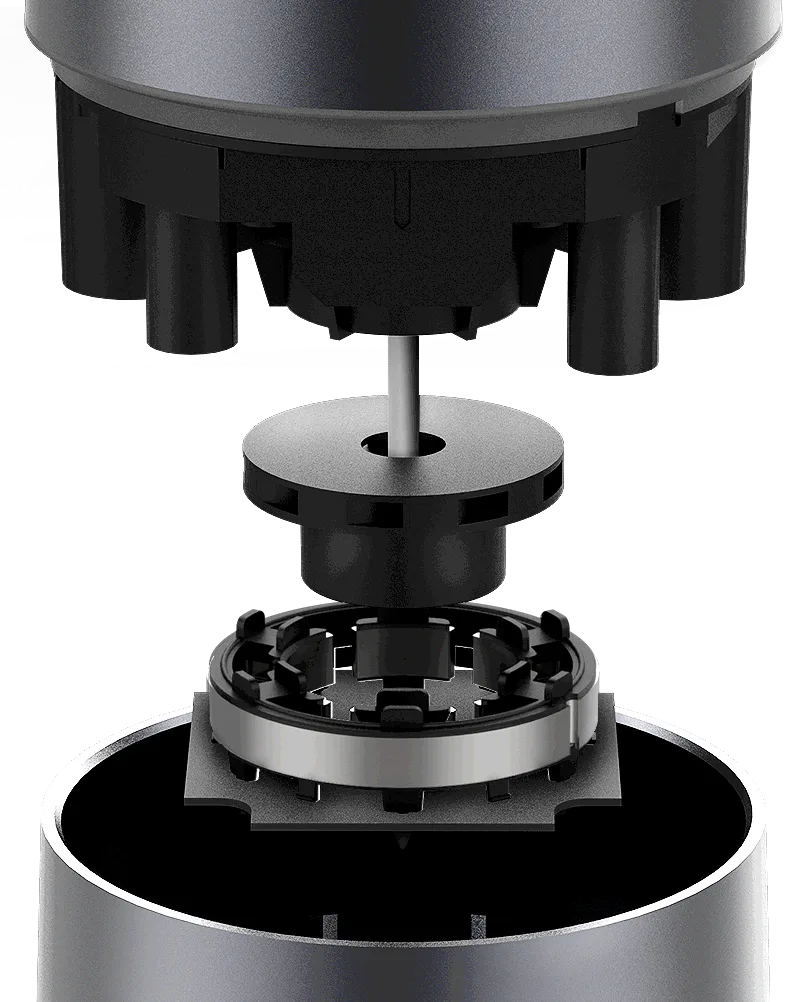

Powerful and quiet
―
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low

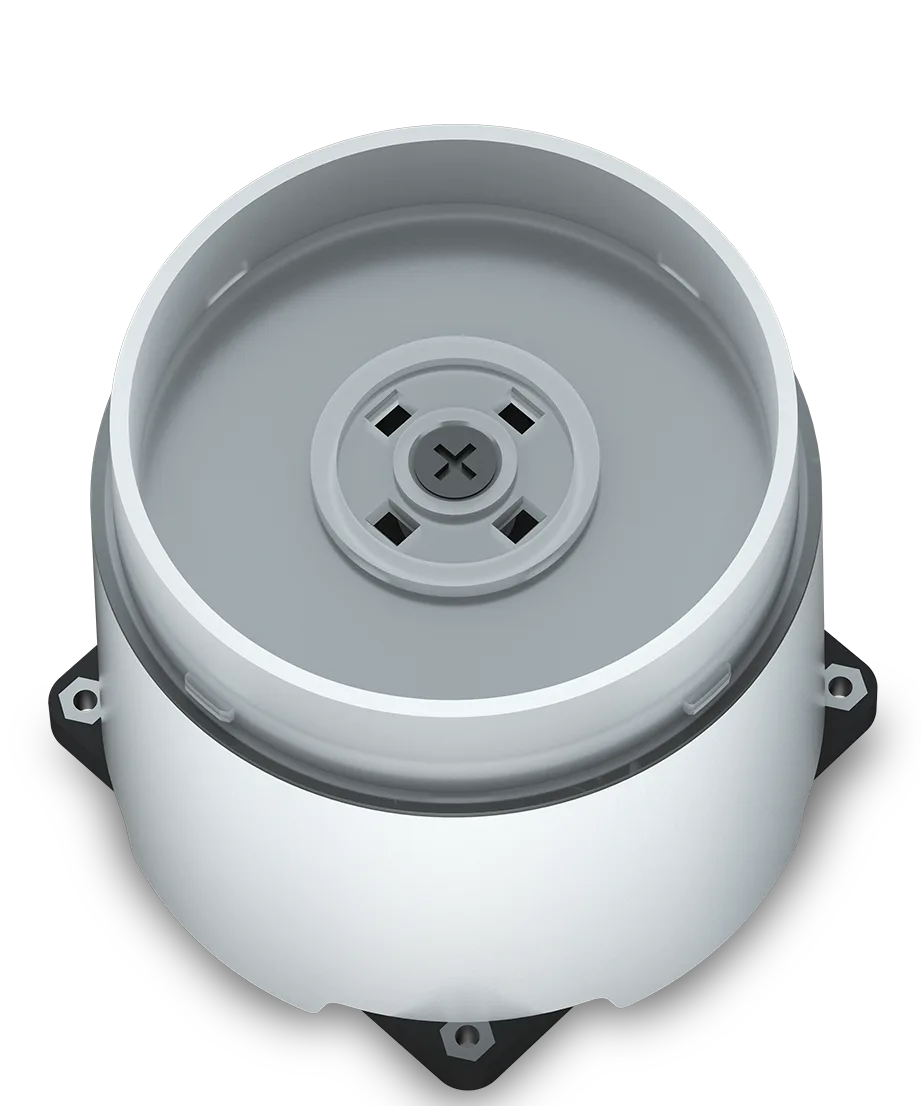

Efficient cooling
―
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

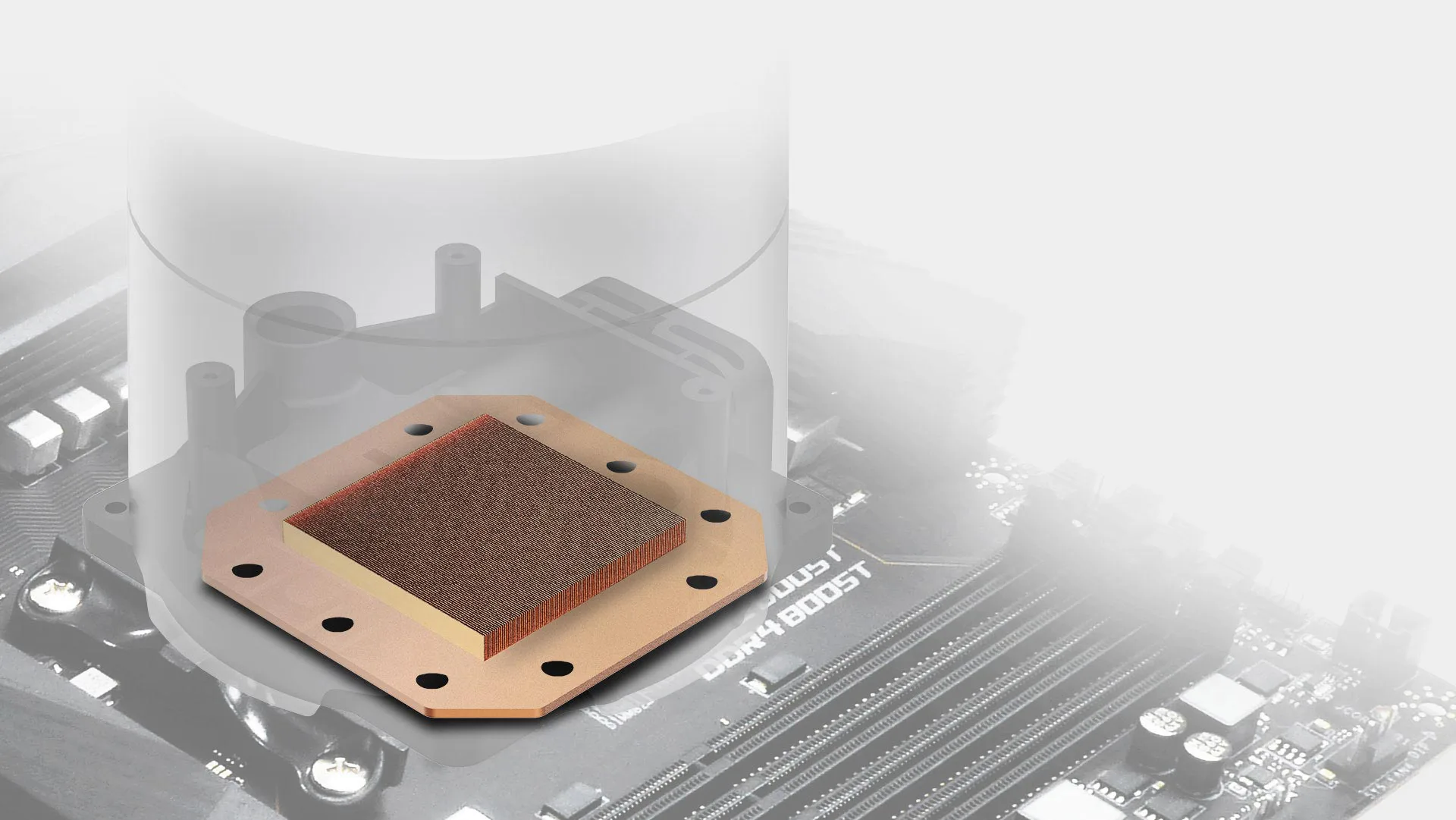

More surface area
―

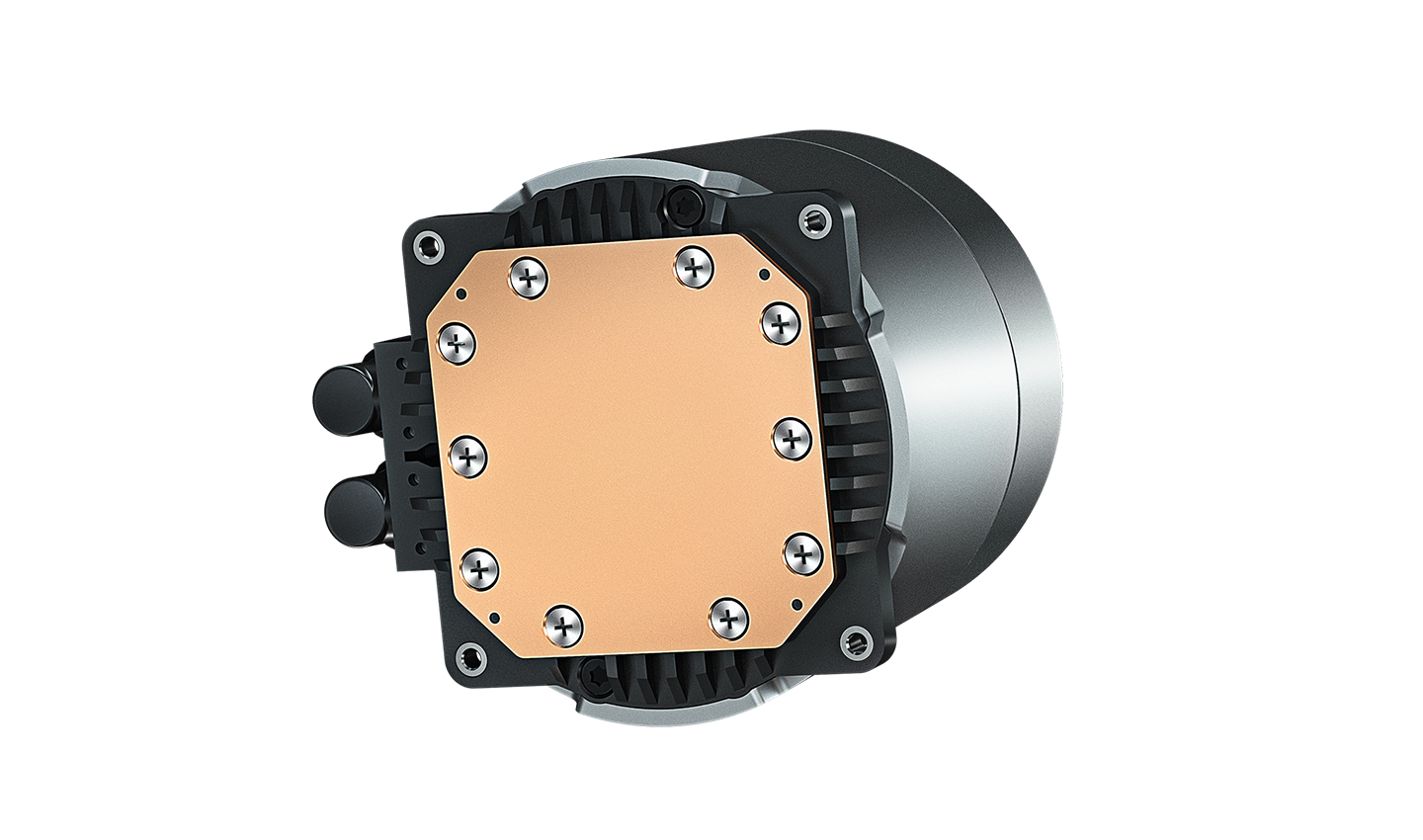

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

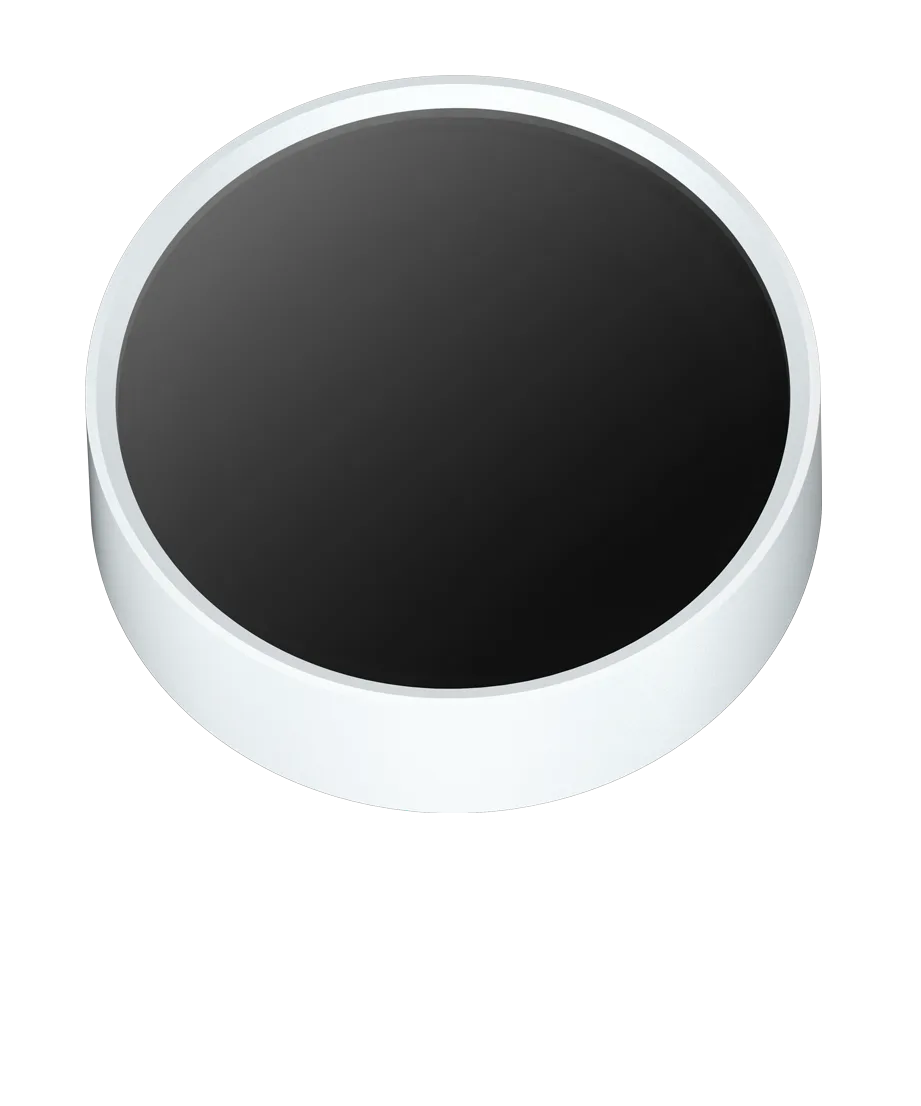

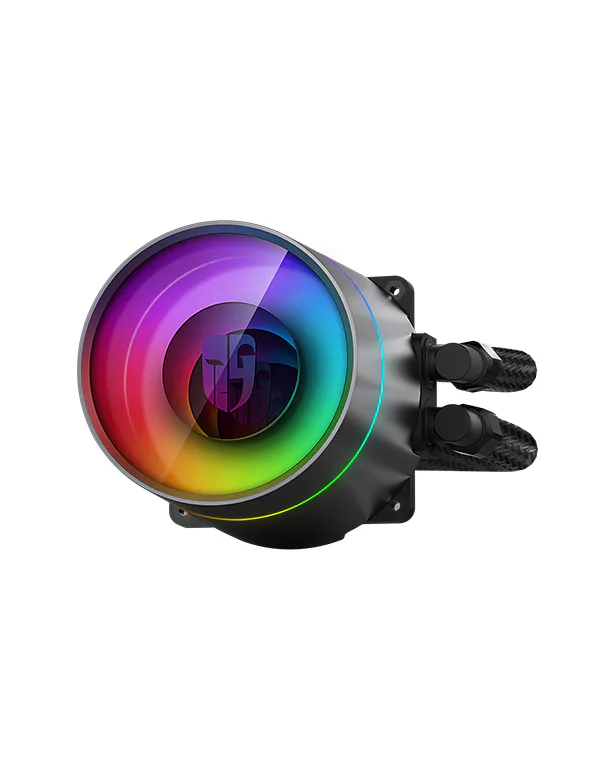

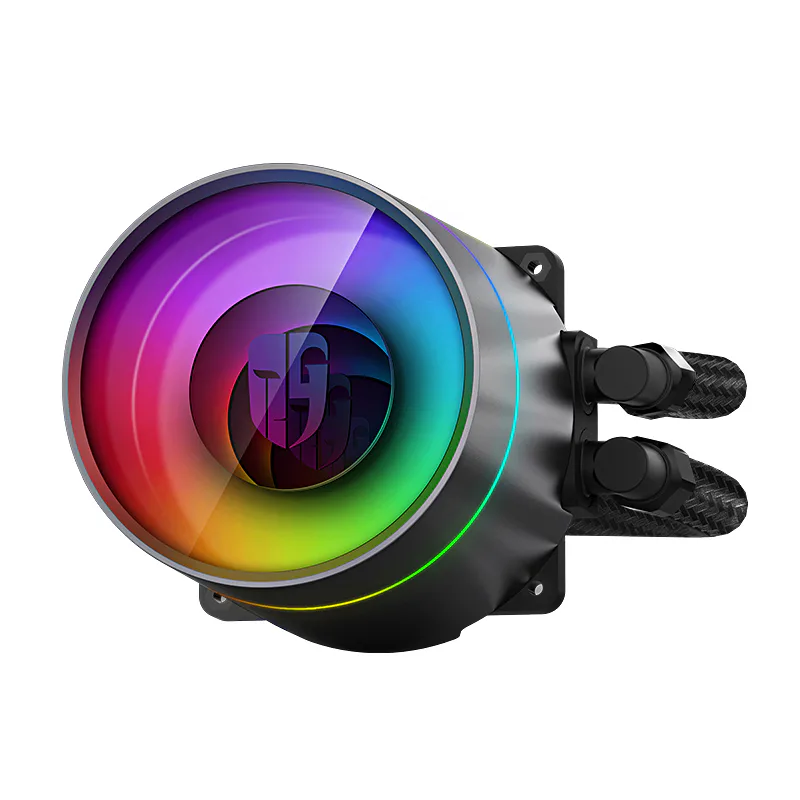

Customize your look
―

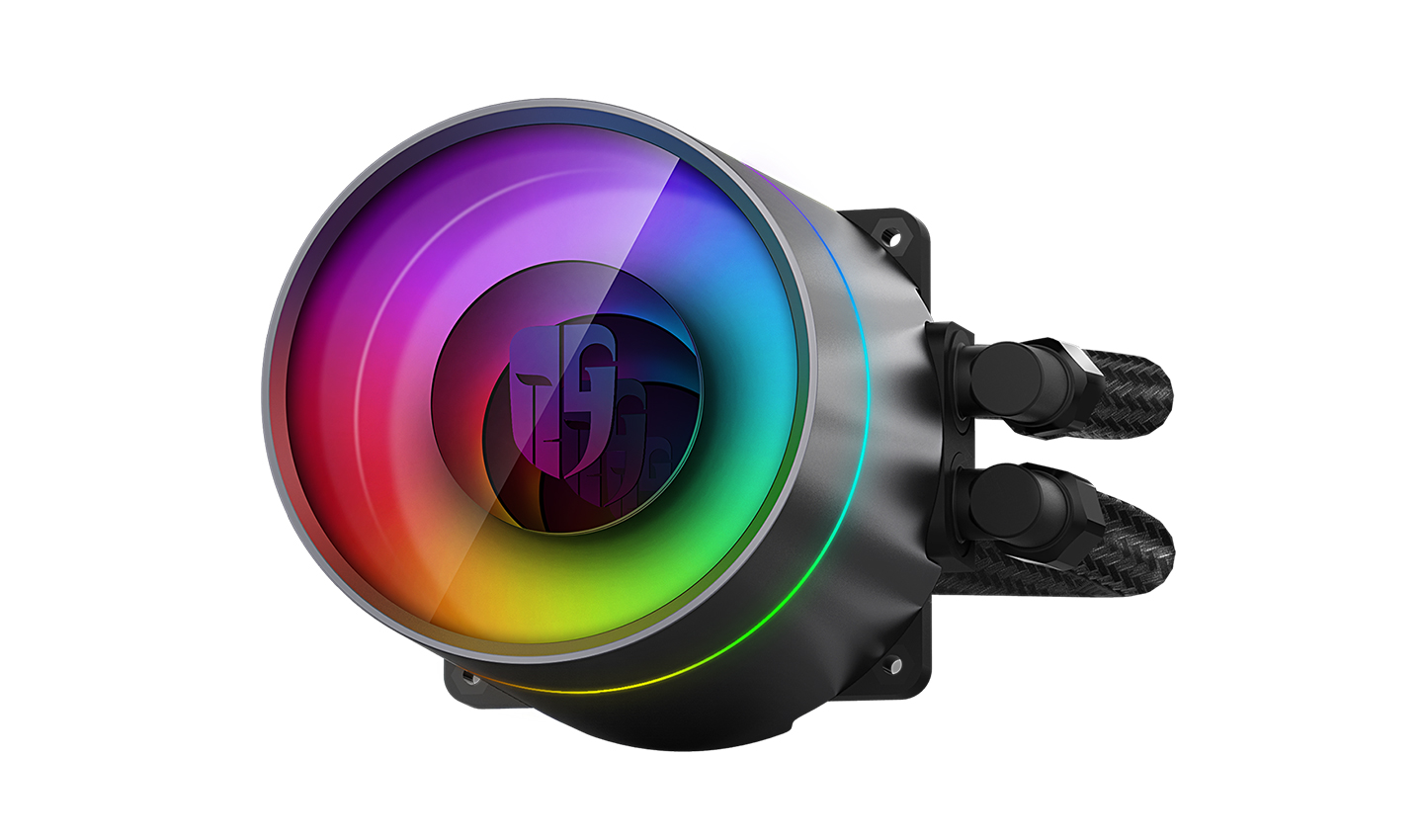

Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.Take it to the next level with your own custom design using the included extra logo chip!
Mode +
Speed (Hold for 3 seconds to switch on/off)
Mode -

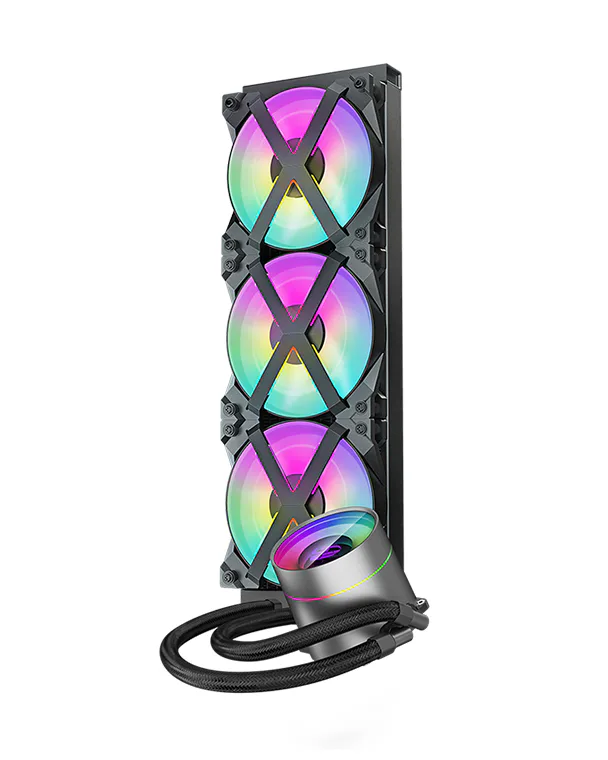

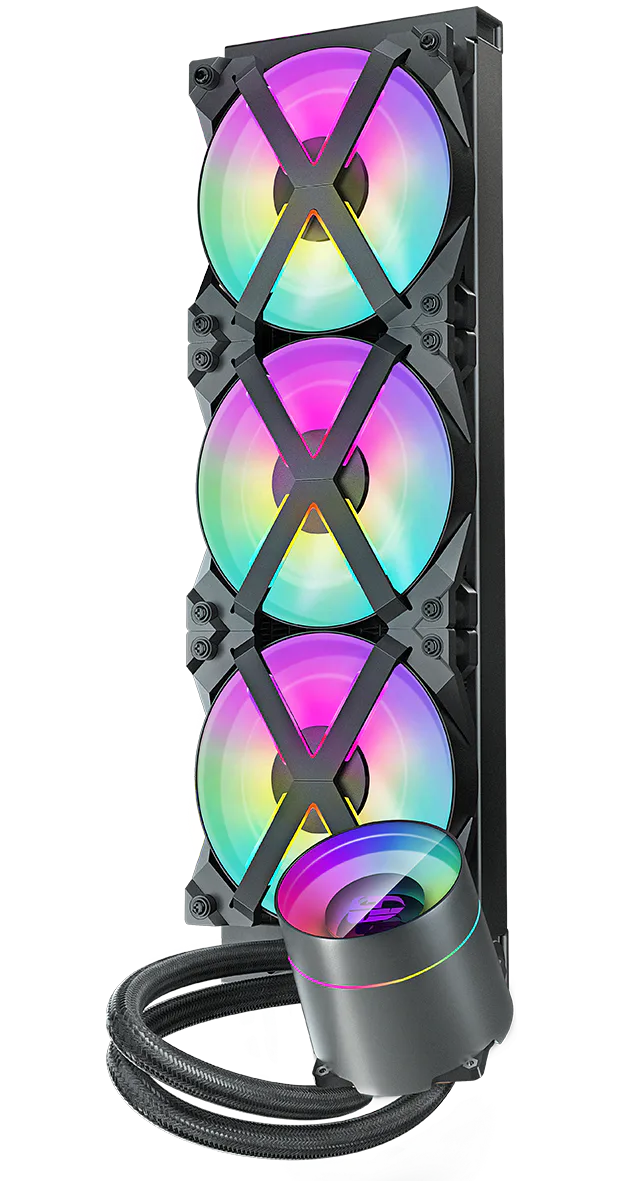

Choose your style
―
Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
Dynamic
Static
Breathing
Comet
Fashion Collision
Application For
Intel
LGA2066/2011-v3/2011/1200/1151/1150/1155/1366
AMD
TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec

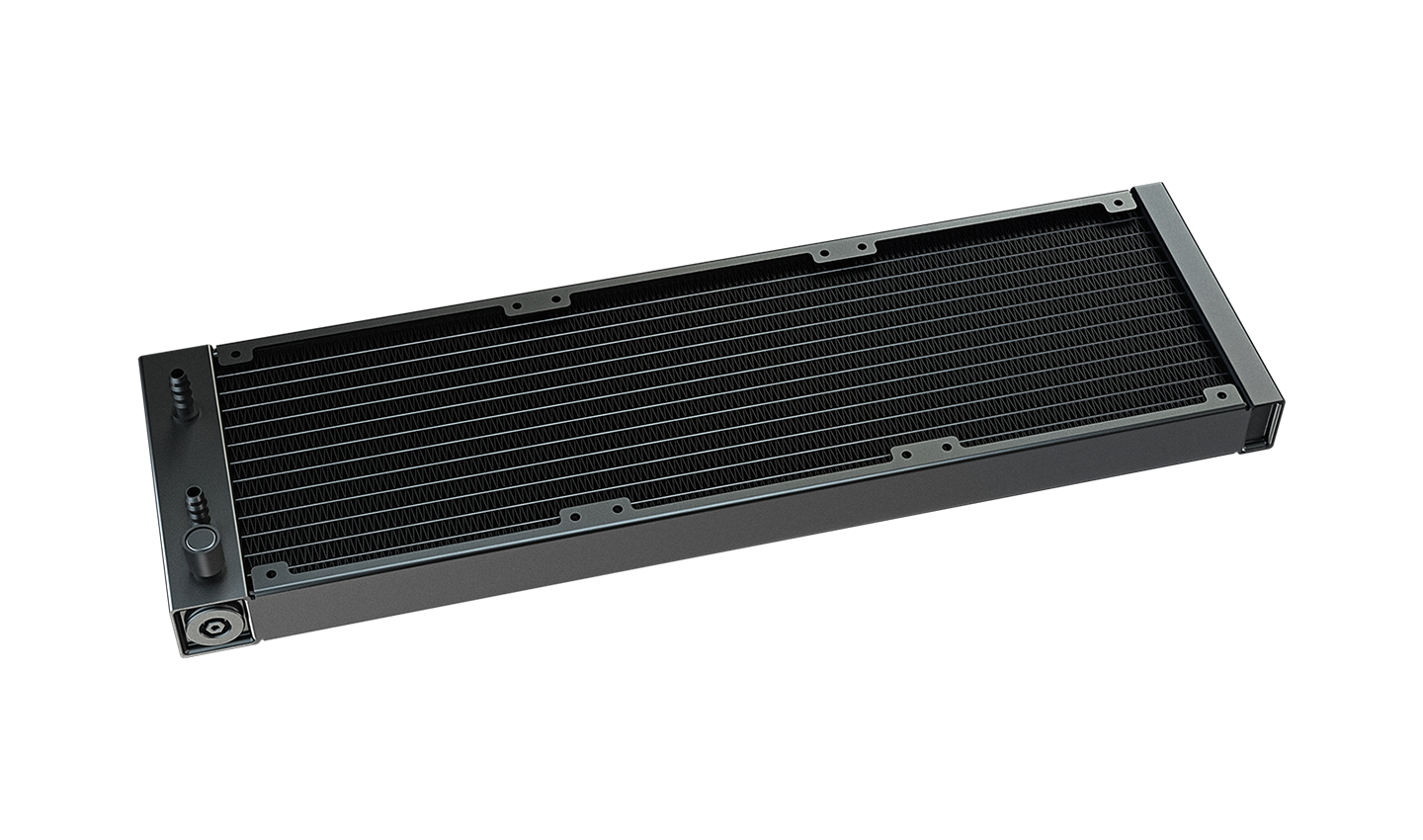

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator Material Aluminum
Net Weight 1765 g
Tube length 465 mm(L×W×H)
Pump Dimensions86×75×71 mm(L×W×H)
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions120×120×27 mm(L×W×H)
Fan Speed 500~1800 RPM±10%
Fan Airflow 60.6 CFM
Fan Air Pressure 1.73 mmAq
Fan Noise ≤35 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.12 A
Fan Power Consumption 1.44 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W（PUMP）/ 11.1 W(FAN×3)
Product Dimension
