CAPTAIN 240X - DeepCool

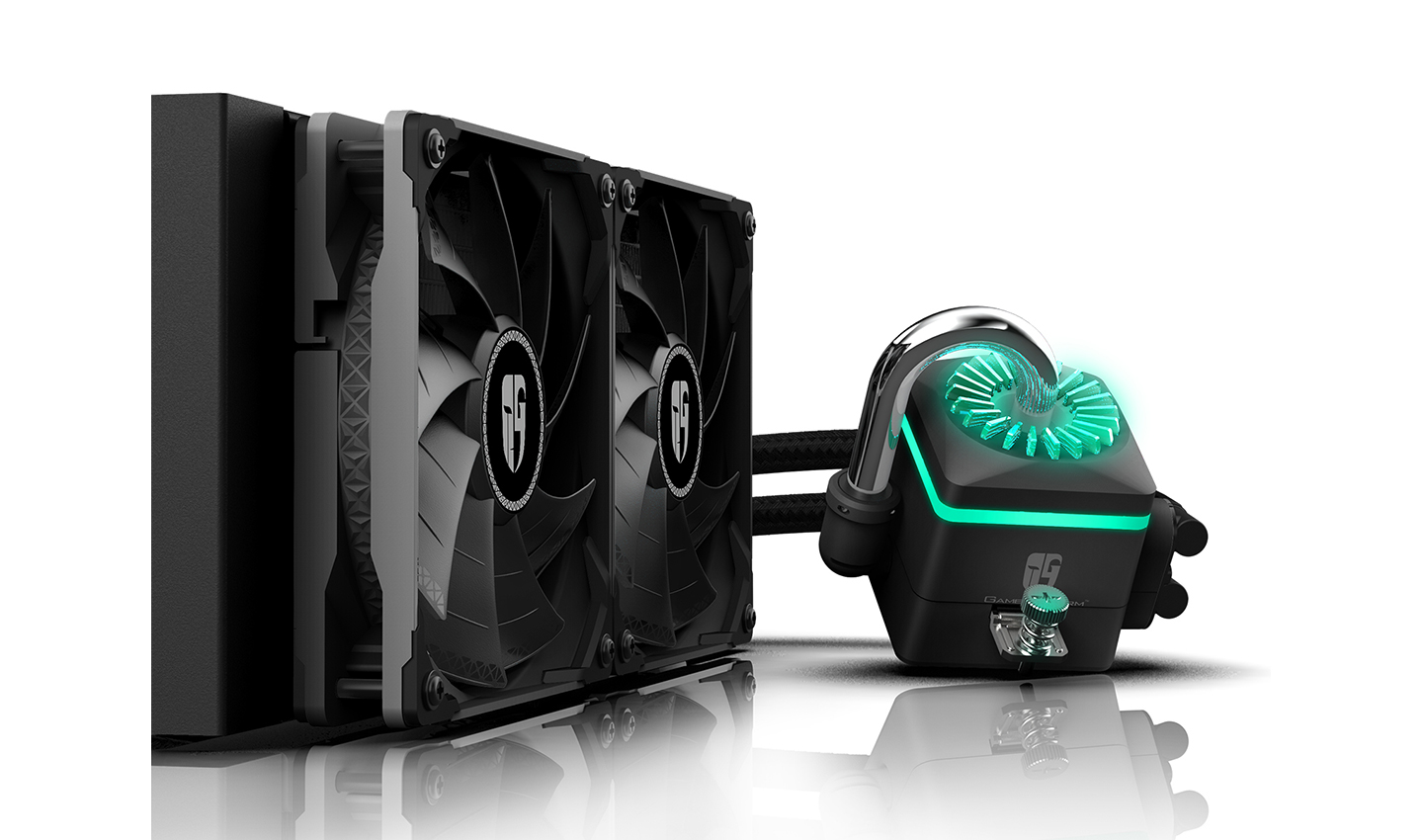

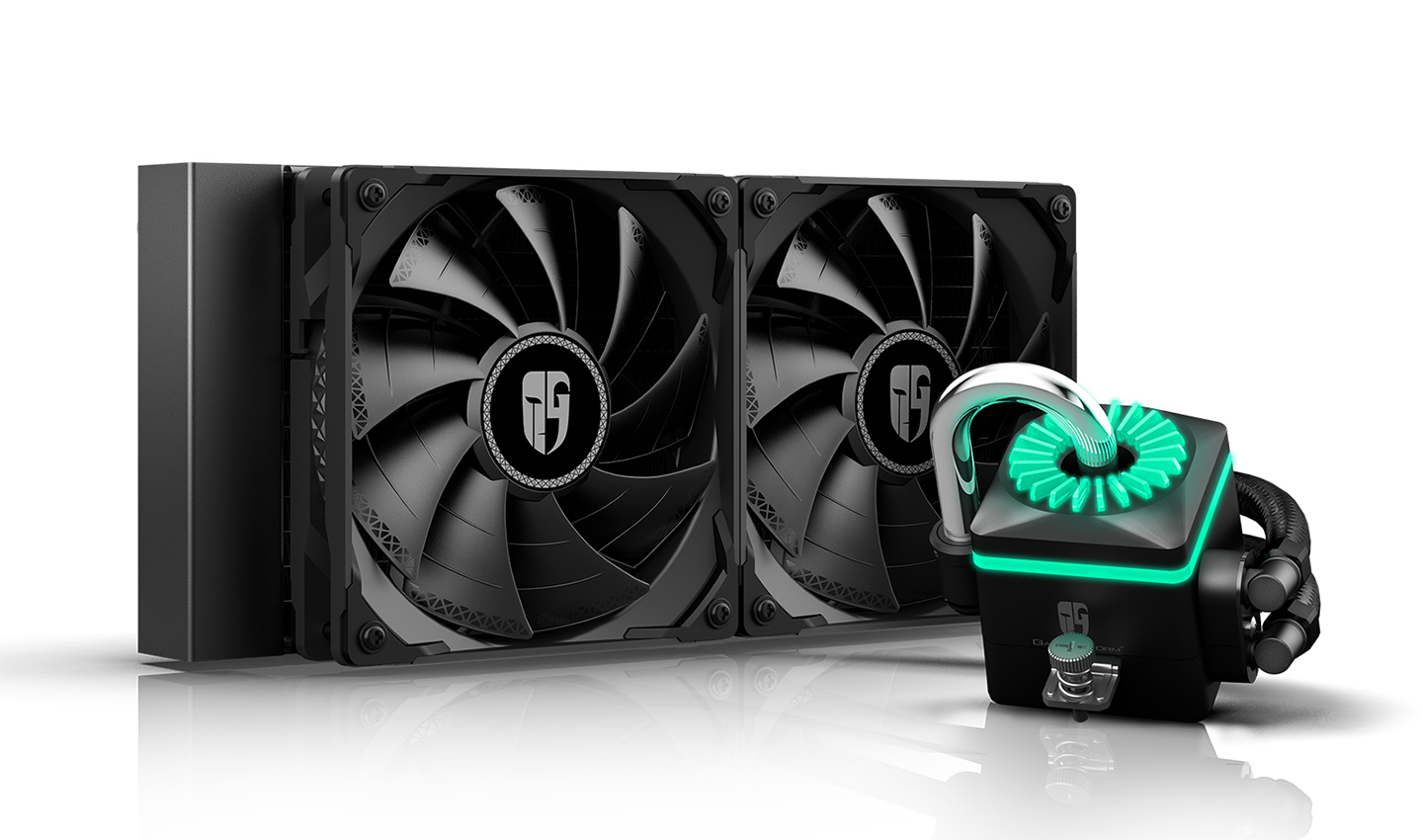

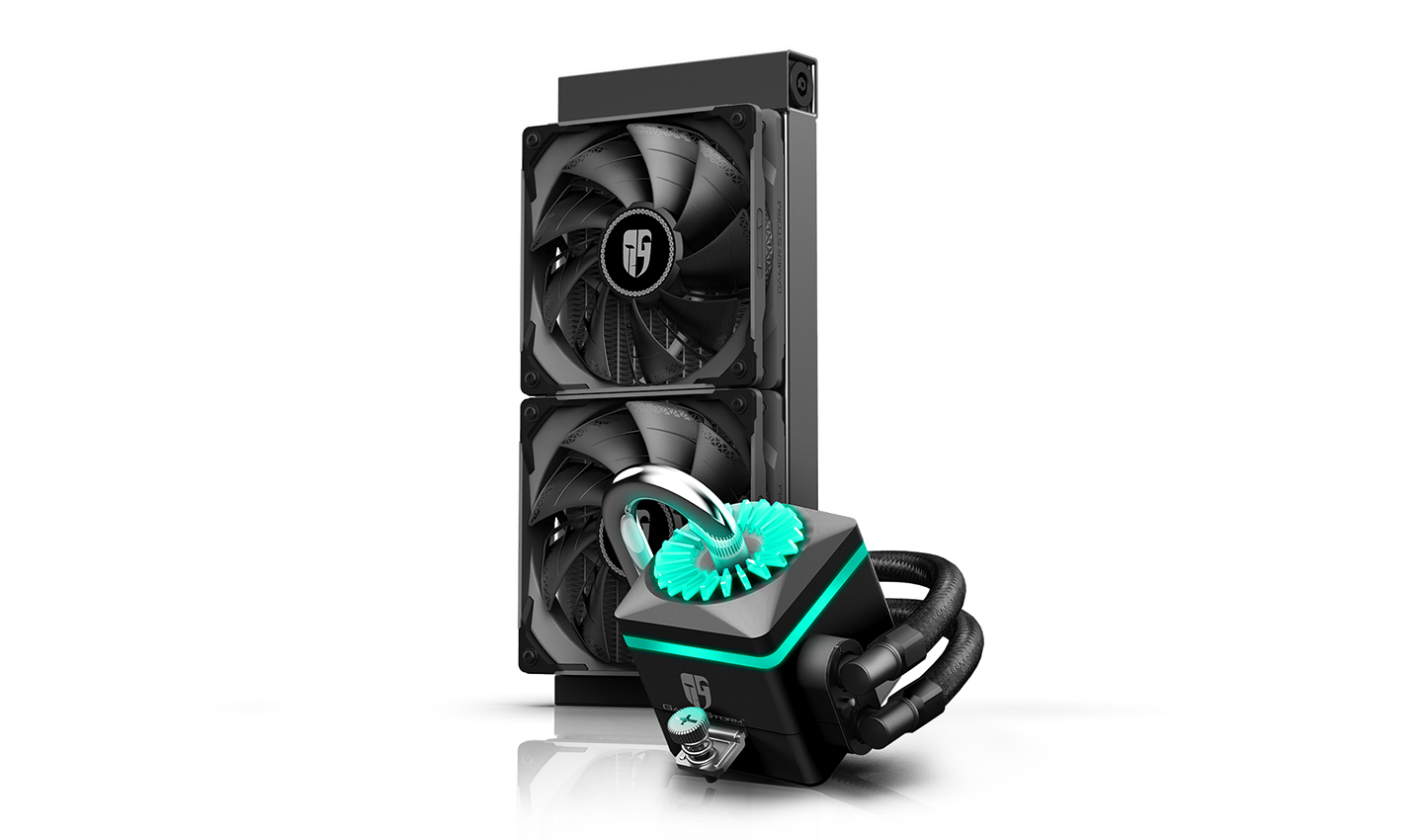

CAPTAIN 240X

Leading the way

ANTI-LEAK TECH INSIDE

CAPTAIN 240X is equipped with DeepCool’s exclusive Anti-leak Technology. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.

Learn more about Anti-leak Tech Inside

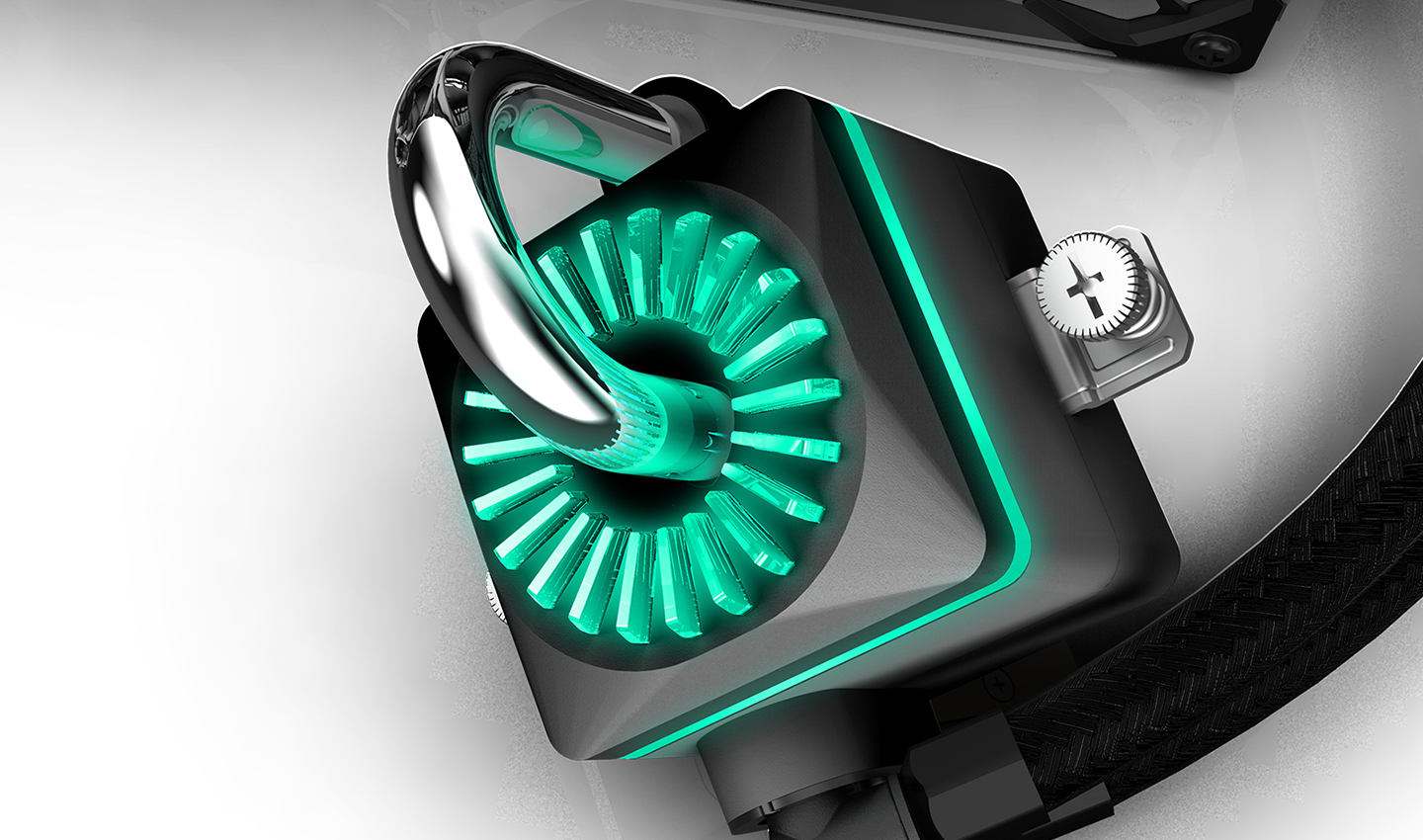

STAINLESS STEEL PIPE

CAPTAIN 240X upgraded its U-shape pipe from glass to stainless steel, gaining extra sturdiness and machinery-like aesthetics.

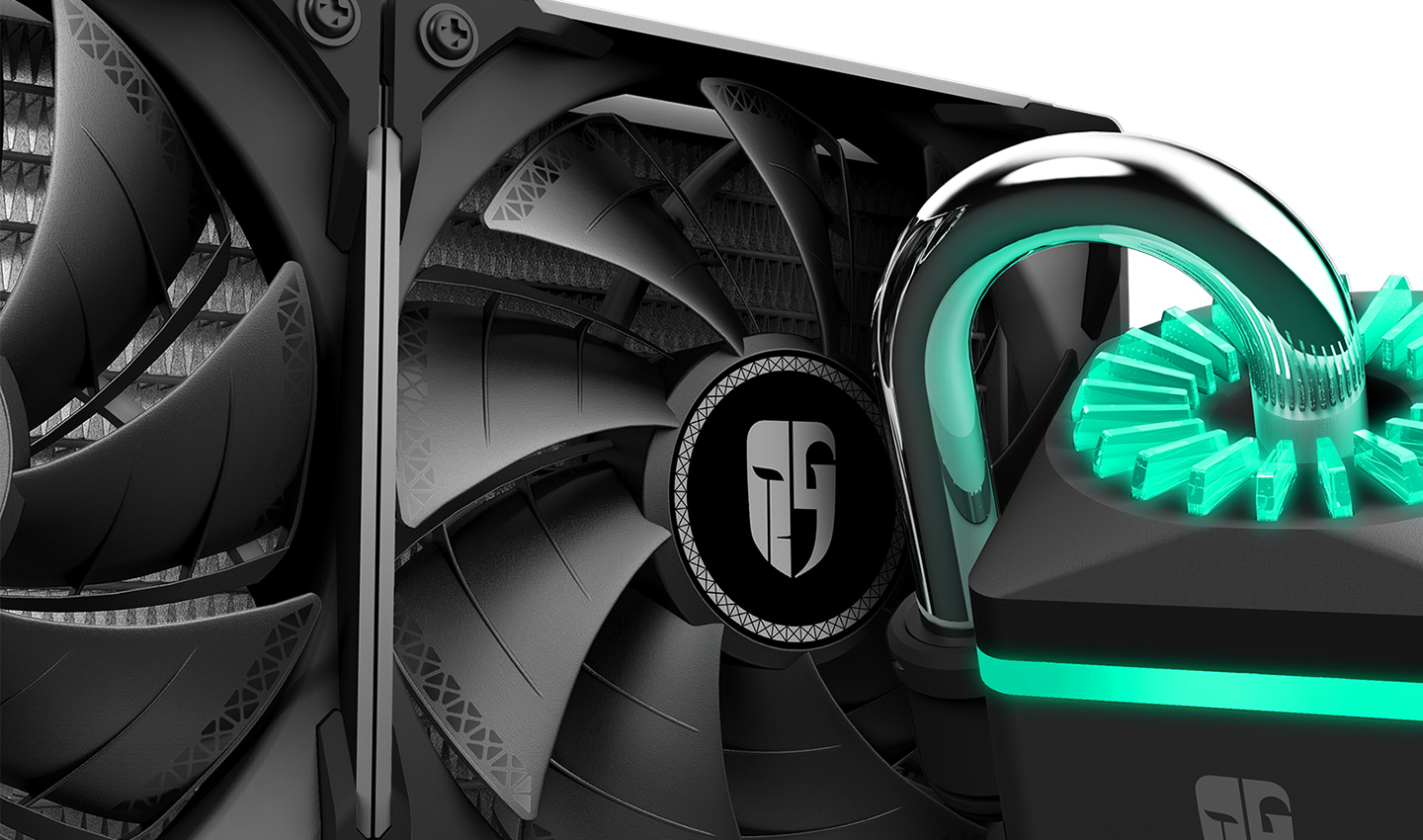

FIERCE FANS

2 specially tuned TF120 S fans are included (in matching the radiator’s properties).
The fans are also equipped with patented two-layer fan blades, as well as flow-amplifying and noise-canceling frames.

STRONG HEART

The powerful 3 phase motor boosts the TDP of CAPTAIN 240X up to 250W, and makes the cooler a perfect partner of all flagship CPUs like Intel i9 series, Ryzen 3000 series, etc .

EASY TO INSTALL

Unique pre-installed spring screws make the installation on motherboard super convenient.

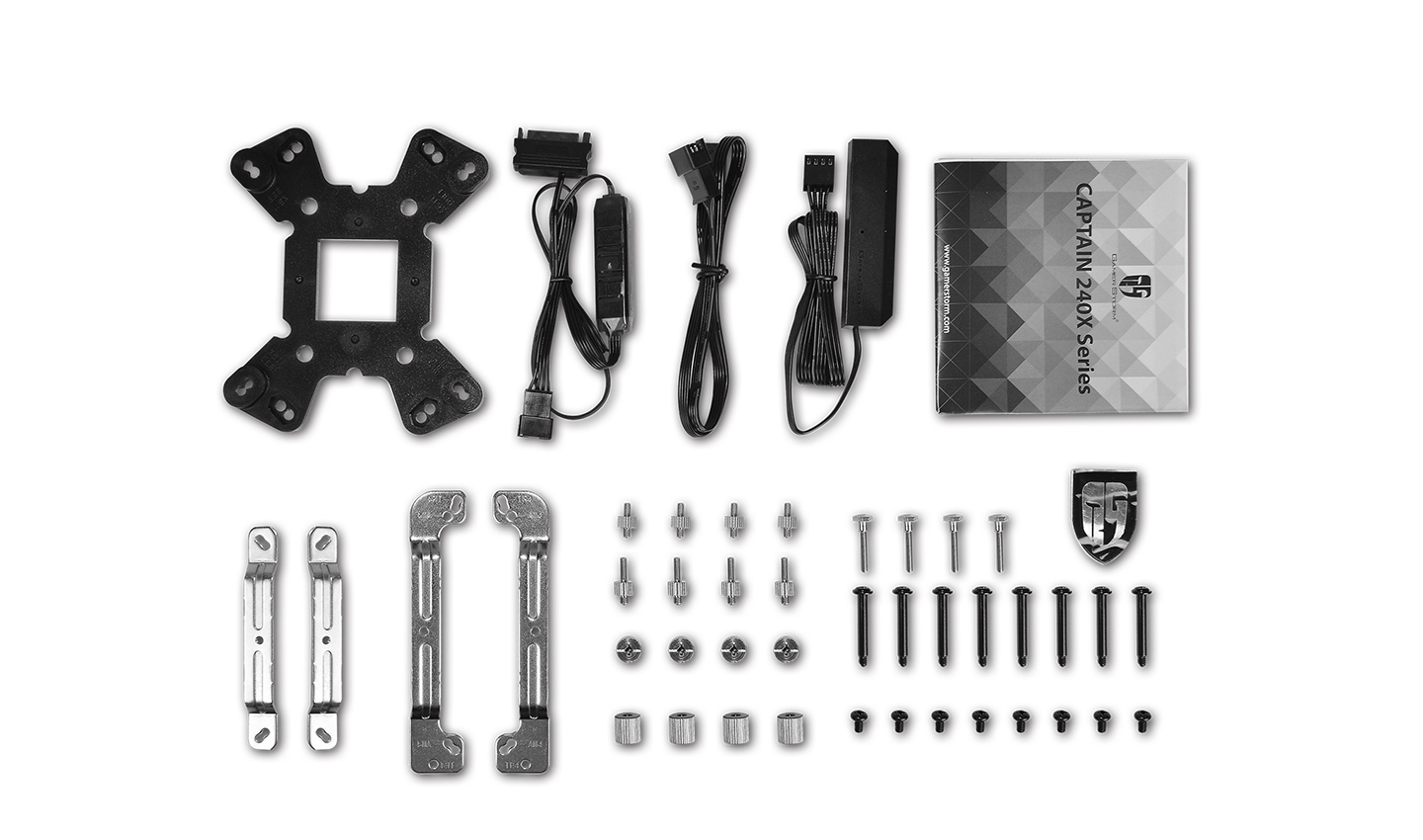

Accessories like PWM hub and RGB extension cable also allows easy RGB and PWM control.

1Stainless Steel Pipe

2Zirconia Ceramic Bearings and Axis

3One Pump, Two Chambers

1Stainless Steel Pipe

2Zirconia Ceramic Bearings and Axis

3One Pump, Two Chambers

4Three-phase Winding Motor

5Micro Water Passages

4Three-phase Winding Motor

5Micro Water Passages

Mode+

Speed （Hold for 3 seconds to switch on/off）

Mode-

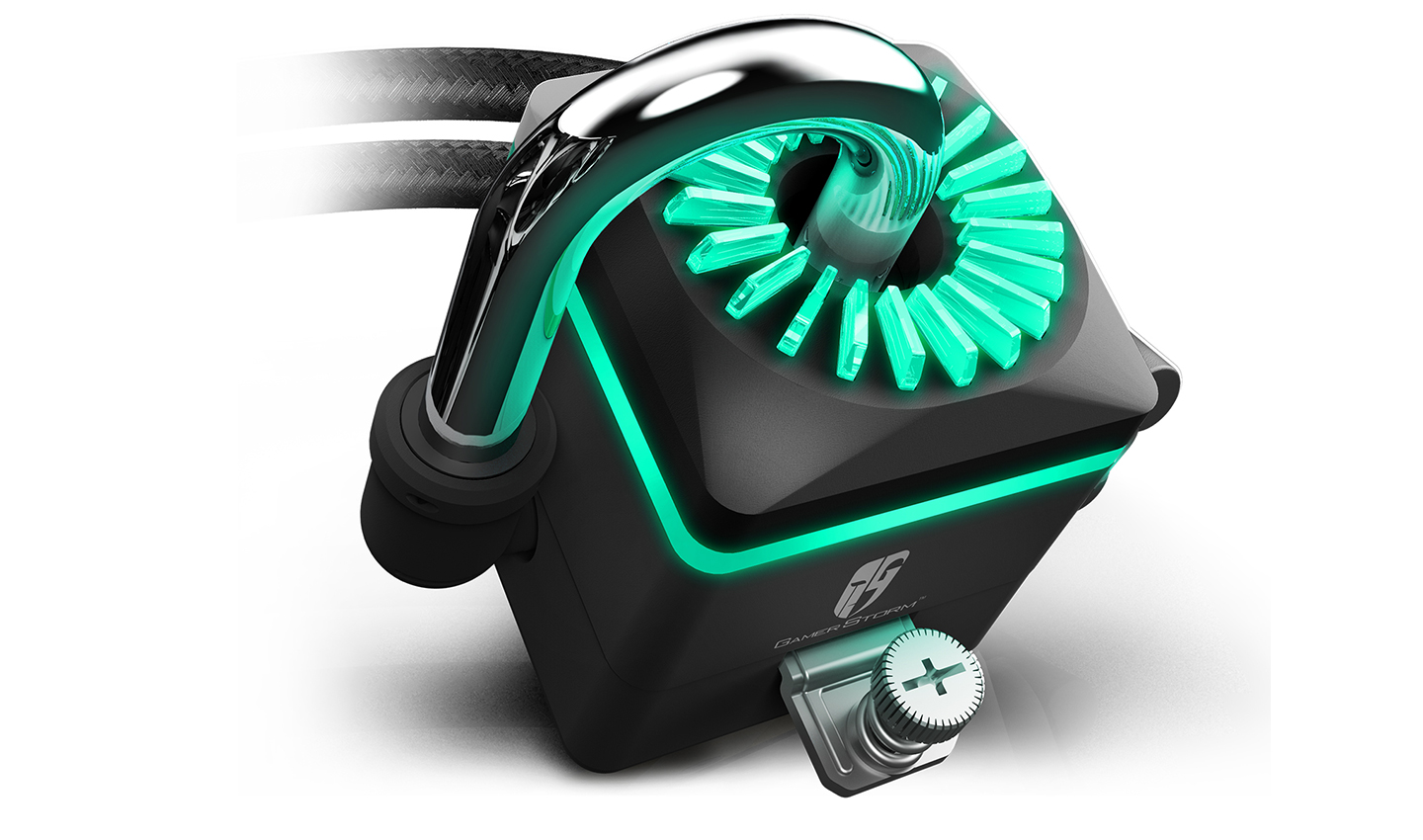

The water block 12V RGB lighting system fulfills your aesthetic desires and supports synchronized lighting control by either mainstream motherboards or included controller.

Dynamic

Static

Breathing

Application For

Intel

LGA2066/2011-v3/2011/LGA1200/1151/1150/1155/1366

AMD

TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Technical Spec

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Net Weight	1624 g
Tube length	380 mm(L×W×H)
Pump Dimensions	93.7×93×85 mm(L×W×H)
Pump Speed	2200 RPM±10%
Pump Noise	17.8 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.13 A
Pump Power Consumption	1.56 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1800 RPM±10%
Fan Airflow	64.4 CFM
Fan Air Pressure	2.33 mmAq
Fan Noise	≤32.1 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.15 A
Fan Power Consumption	1.8 W
LED Type	RGB LED
LED Connector	4-pin(+12V-G-R-B)
LED Rated Voltage	12 VDC
LED Power Consumption	1.56 W（PUMP）
EAN	6933412726692
P/N	DP-GS-H12B-CT240XR
