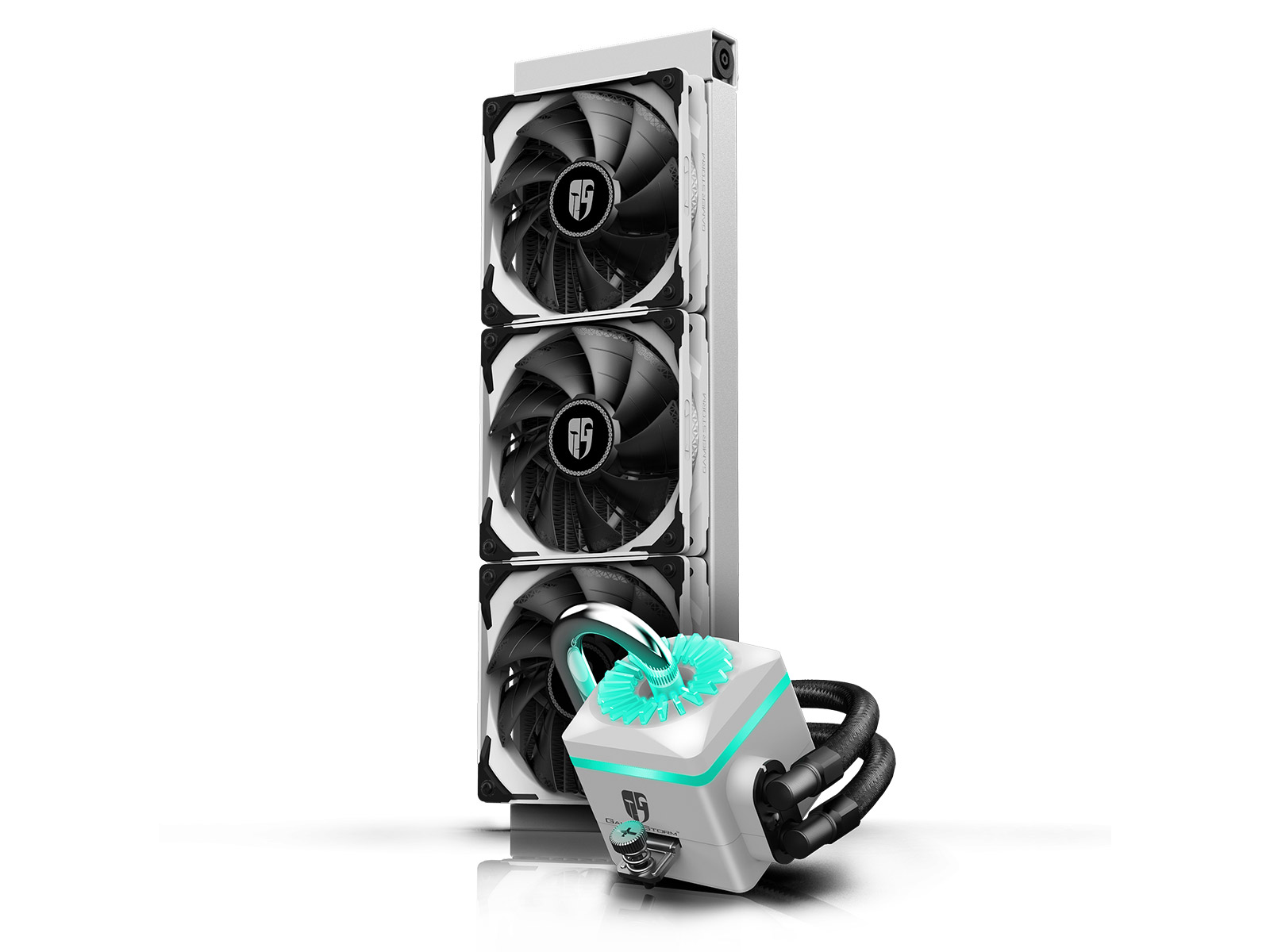

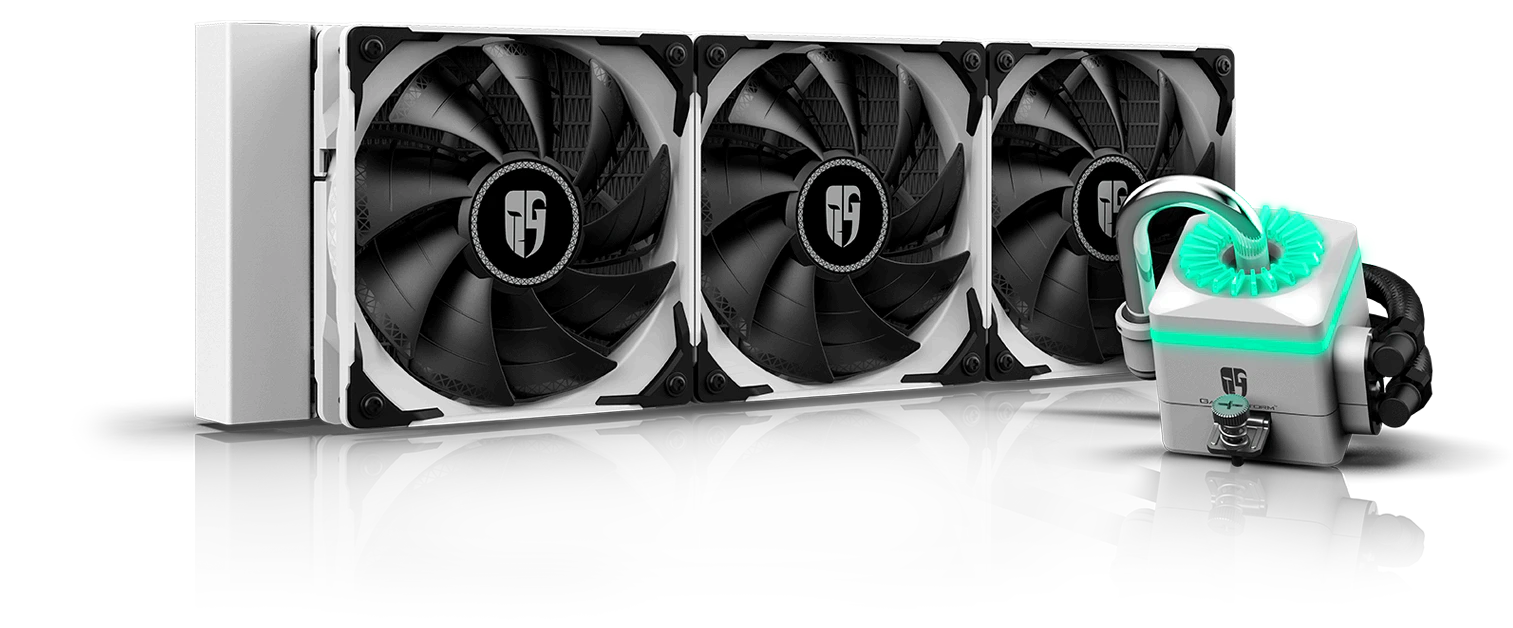

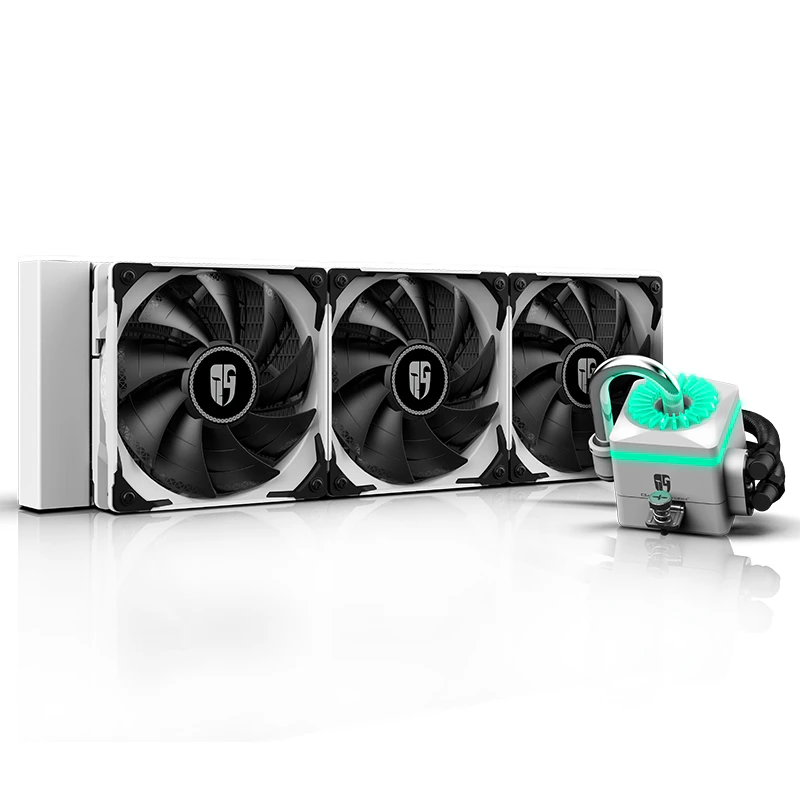

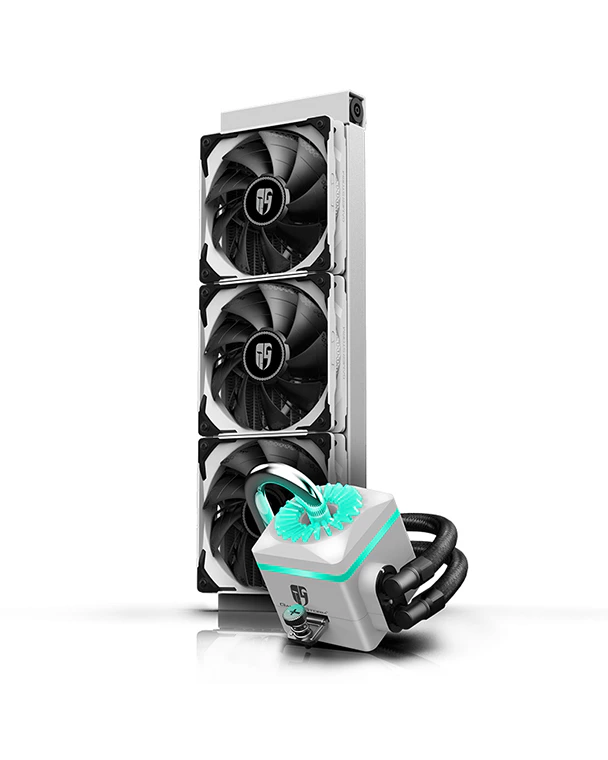

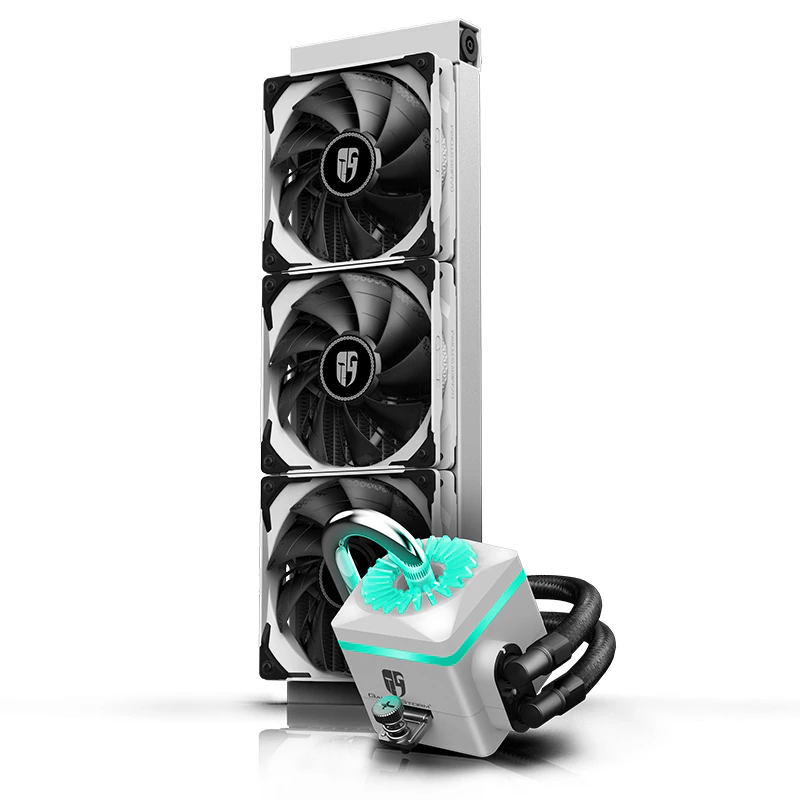

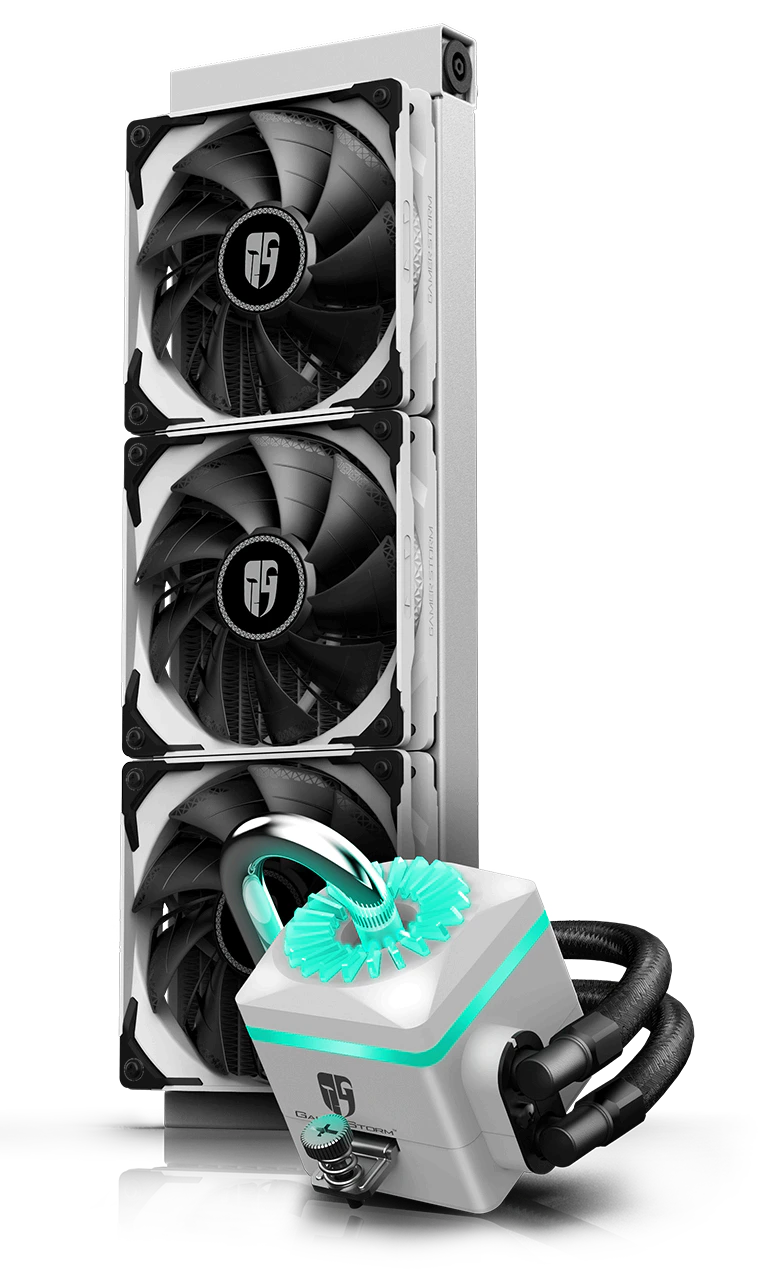

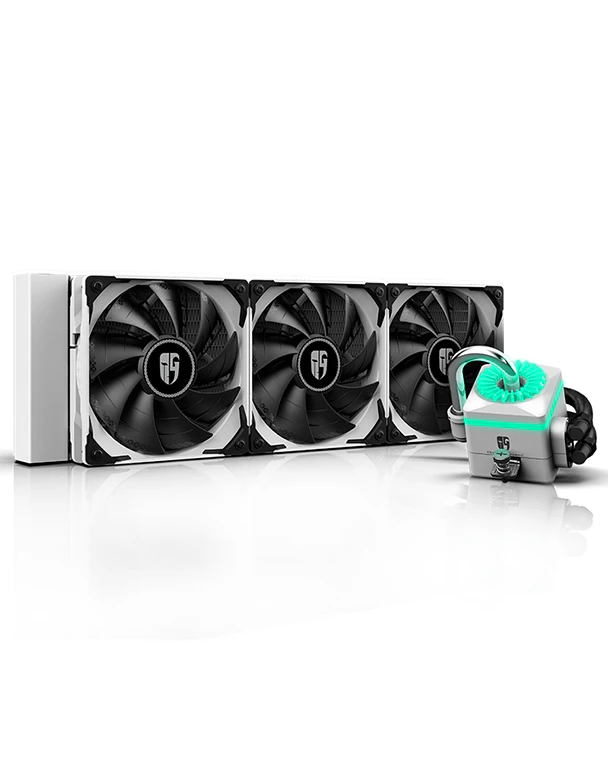

CAPTAIN 360X WHITE
The CAPTAIN 360X White AIO liquid CPU cooler is built with Anti-leak technology for better reliability and features an upgraded stainless steel pipe on the water block design with RGB lighting in a white enclosure.
COLOR
white
MODEL
CAPTAIN 360X WHITE
Leading the way
ANTI-LEAK TECH INSIDE
CAPTAIN 360X WHITE is equipped with DeepCool’s exclusive Anti-leak Technology. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.

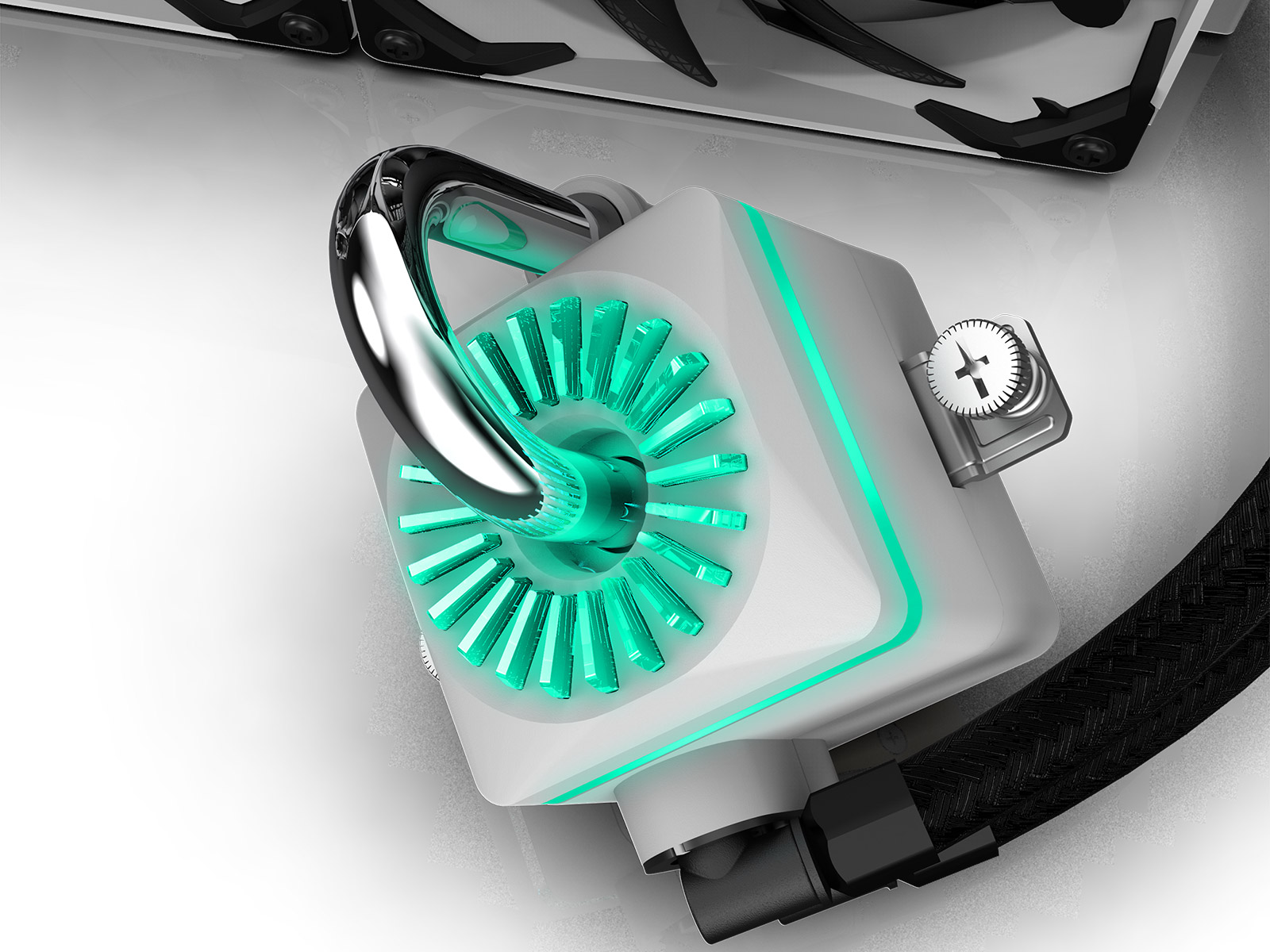

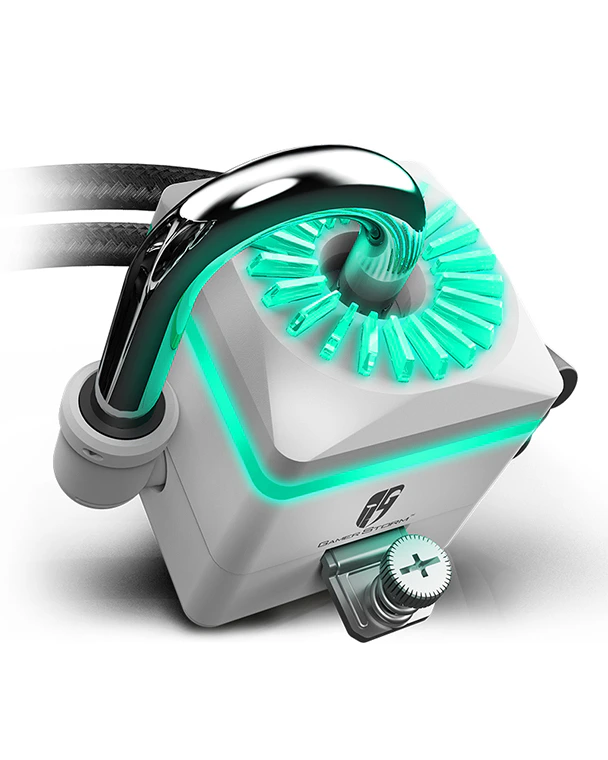

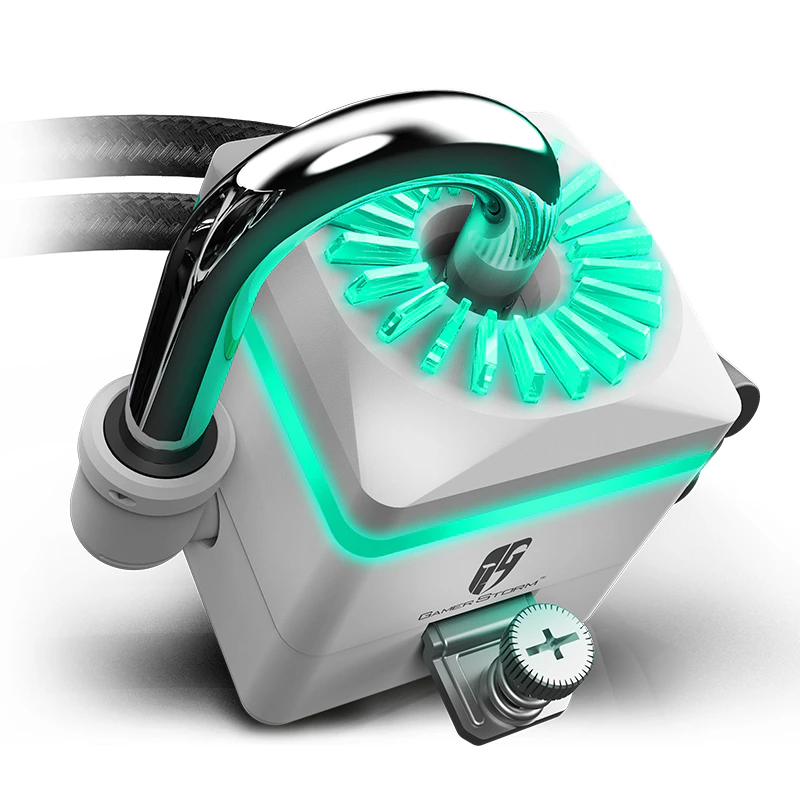

STAINLESS STEEL PIPE
CAPTAIN 360X WHITE upgraded its U-shape pipe from glass to stainless steel, gaining extra sturdiness and machinery-like aesthetics.

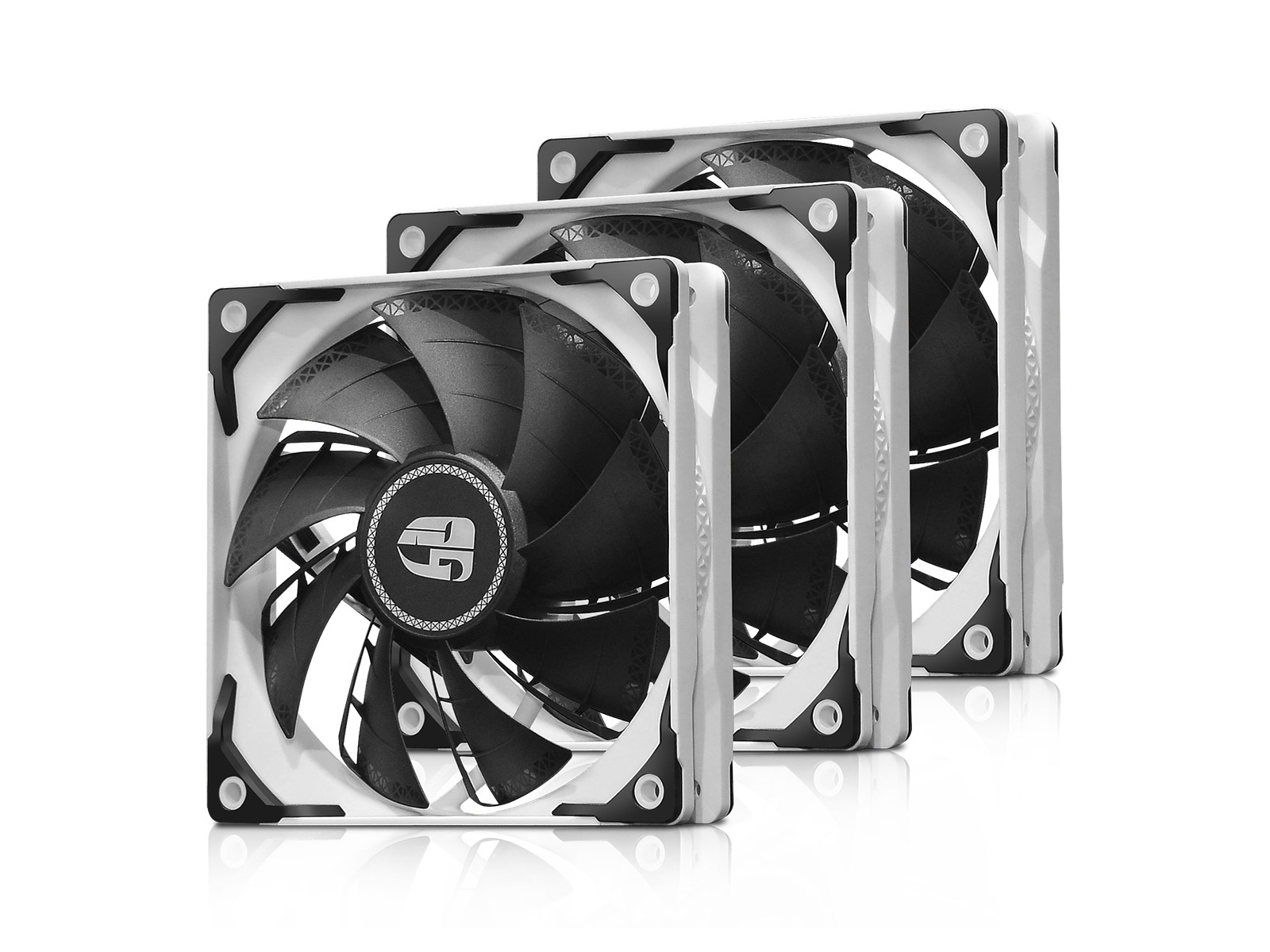

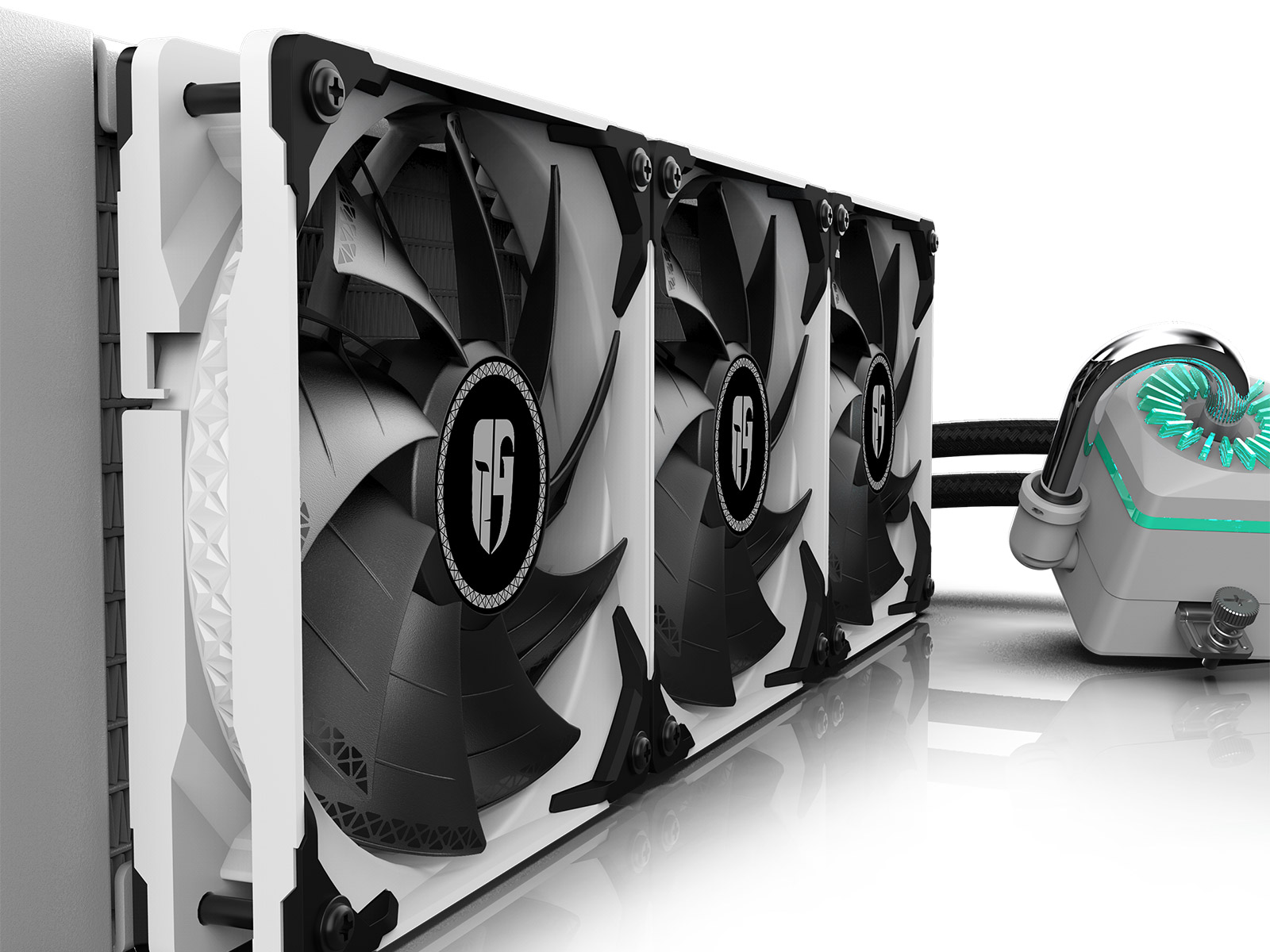

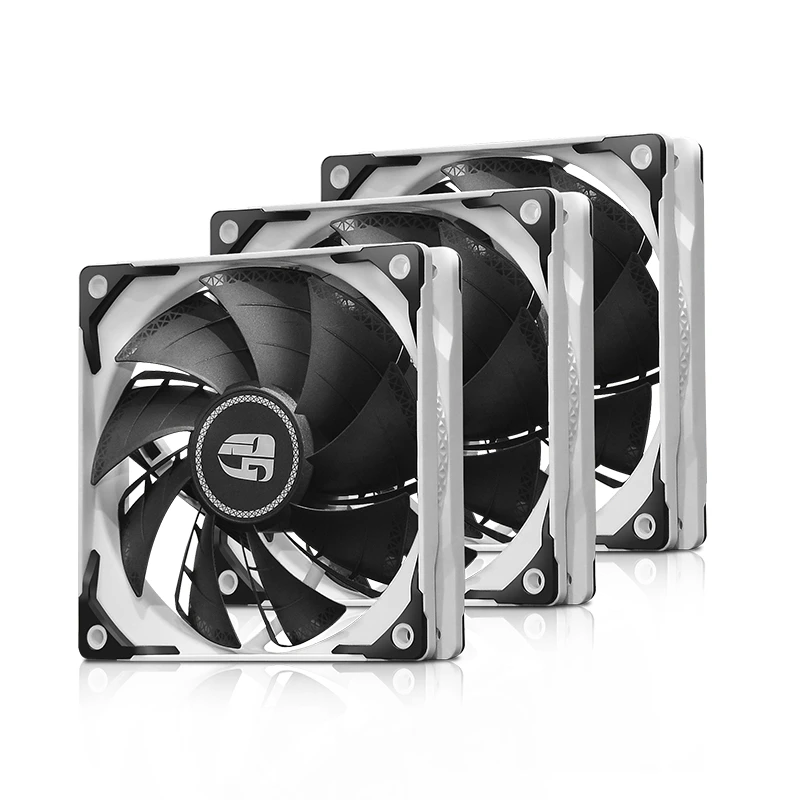

FIERCE FANS

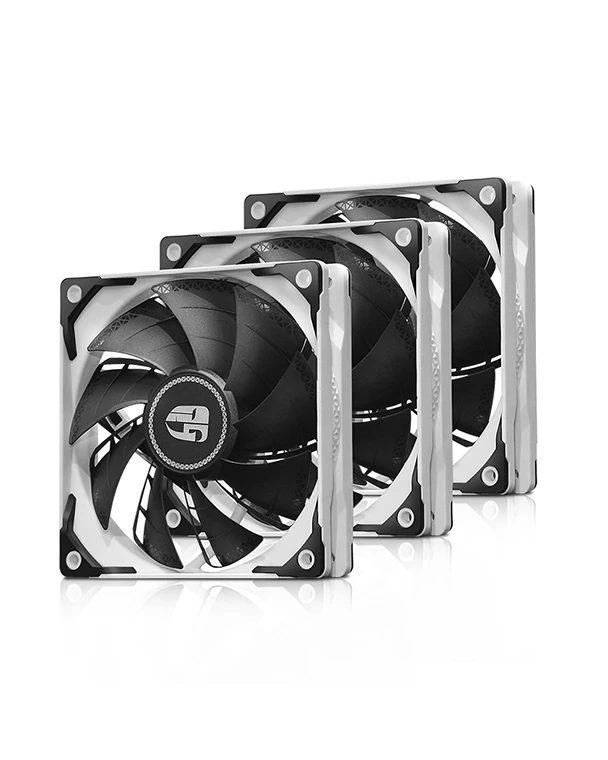

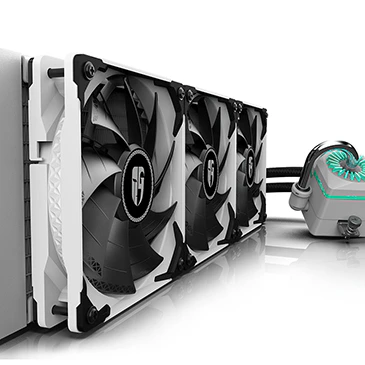

3 specially tuned TF120 S fans are included (in matching the radiator’s properties).
The fans are also equipped with patented two-layer fan blades, as well as flow-amplifying and noise-canceling frames.
STRONG HEART
The powerful 3 phase motor boosts the TDP of CAPTAIN 360X WHITE up to 280W, and makes the cooler a perfect partner of all flagship CPUs like Intel i9 series, Ryzen 3000 series, etc .
EASY TO INSTALL
Unique pre-installed spring screws make the installation on motherboard super convenient.

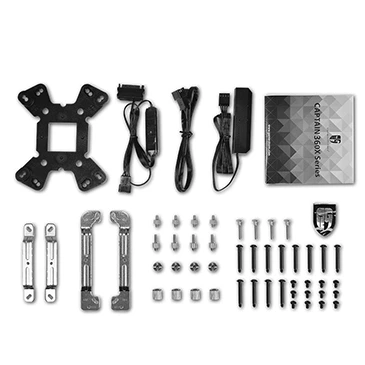

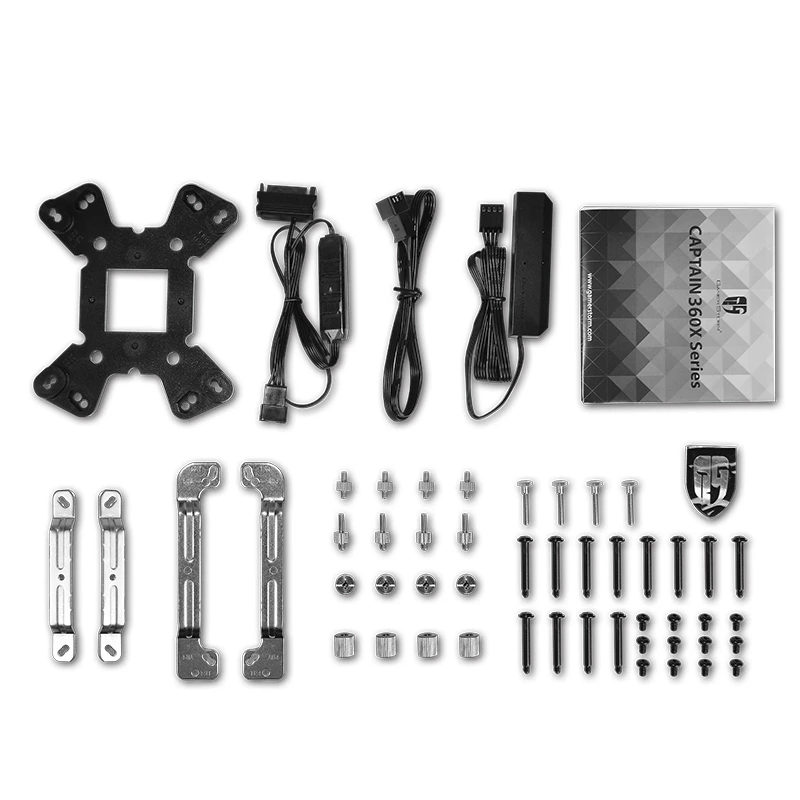

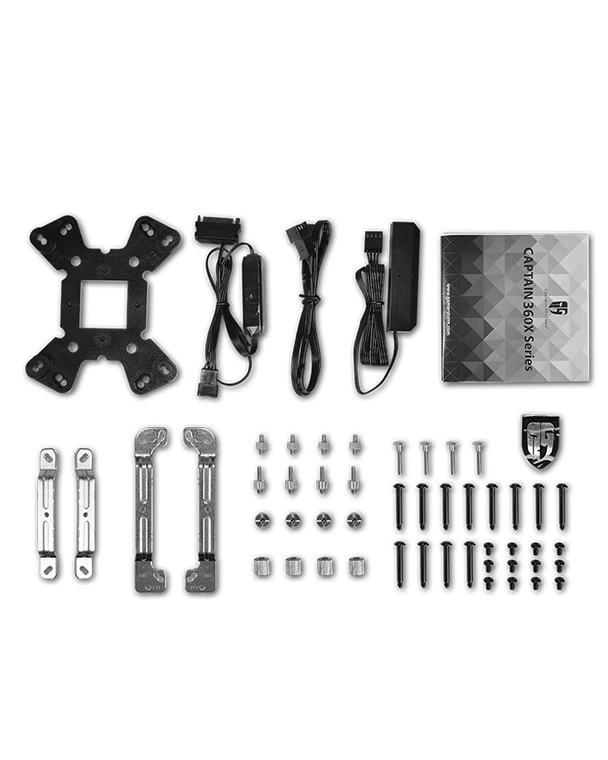

Accessories like PWM hub and RGB extension cable also allows easy RGB and PWM control.
1Stainless Steel Pipe
2Zirconia Ceramic Bearings and Axis
3One Pump, Two Chambers
1Stainless Steel Pipe
2Zirconia Ceramic Bearings and Axis
3One Pump, Two Chambers
4Three-phase Winding Motor
5Micro Water Passages
4Three-phase Winding Motor
5Micro Water Passages
Mode+
Speed (Hold for 3 seconds to switch on/off)
Mode-

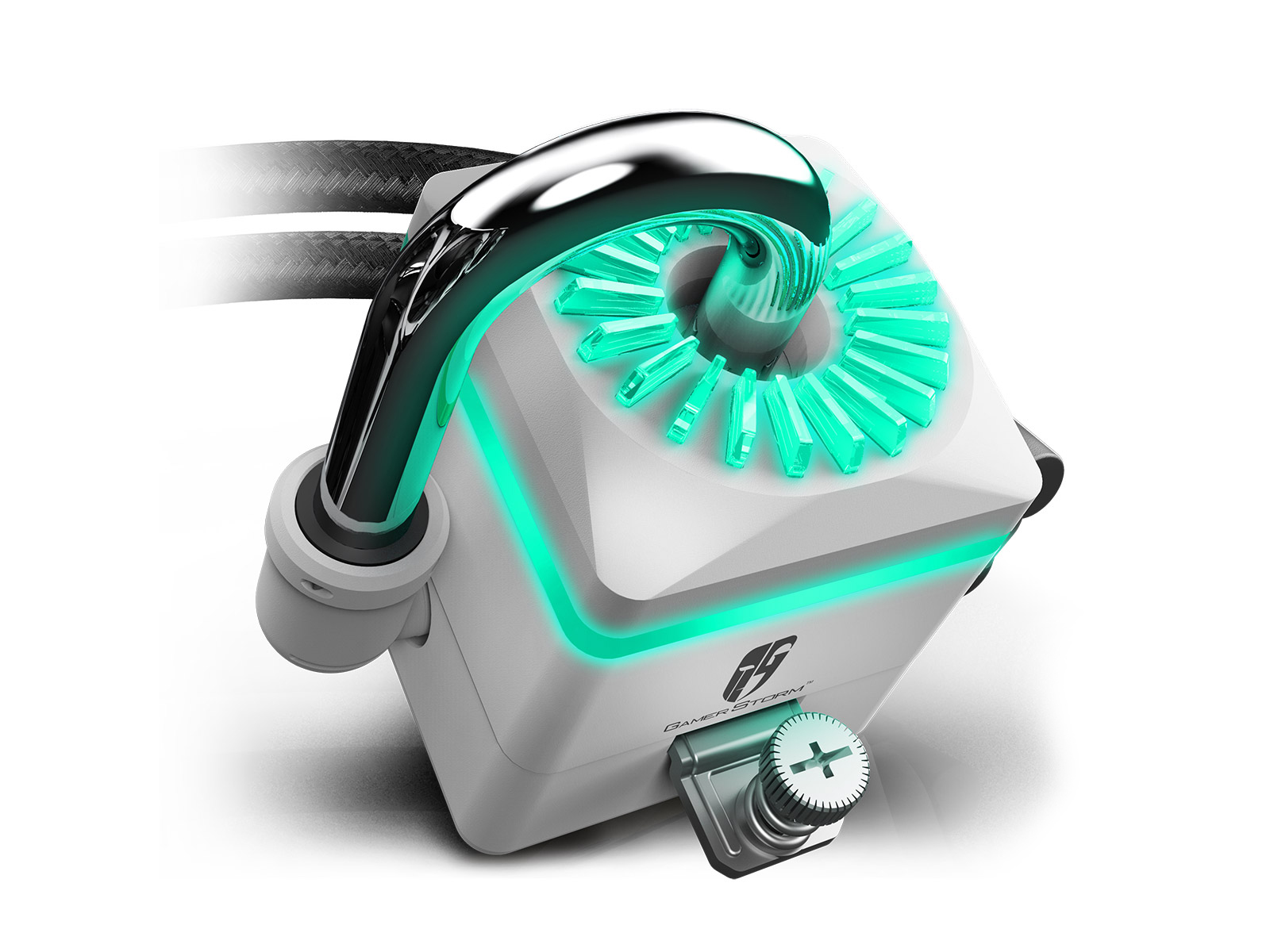

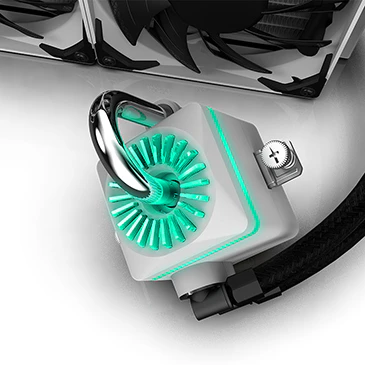

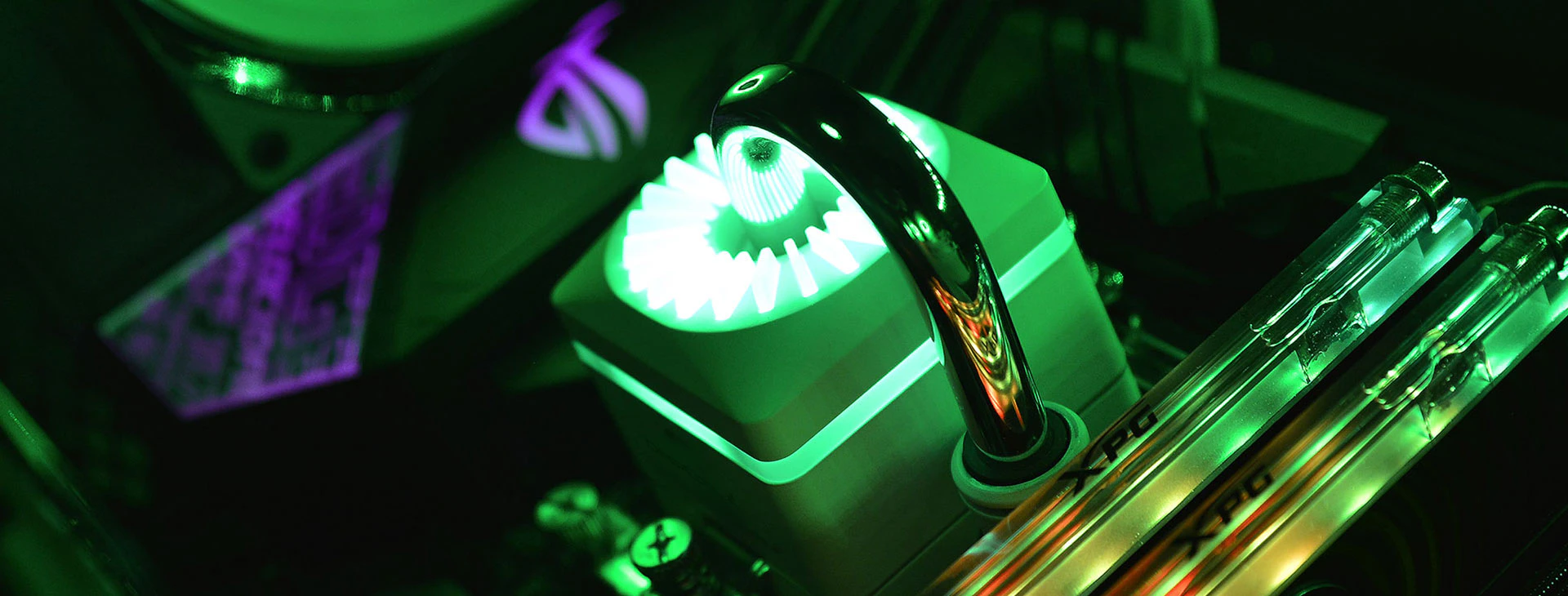

The water block 12V RGB lighting system fulfills your aesthetic desires and supports synchronized lighting control by either mainstream motherboards or included controller.
Dynamic
Static
Breathing
Application For
Intel
LGA2066/2011-v3/2011/LGA1200/1151/1150/1155/1366
AMD
TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Product Dimensions126X134X158 mm(L×W×H)
Heatsink Dimensions120X108X158 mm(L×W×H)
Net Weight 1000 g
Heatpipe Ø6 mm×6 pcs
Fan Dimensions120X120X25 mm(L×W×H)
Fan Speed 900~1500 RPM±10% | 1300 PWM±10%
Fan Airflow 74.34 CFM | 65.16 CFM
Fan Air Pressure 1.53 mmAq | 1.18 mmAq
Fan Noise ≤30 dB(A) | ≤26.1 dB(A)
Fan Connector 4-pin PWM | 3-pin
Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.19 A | 0.2 A
Fan Power Consumption 2.28 W | 2.4 W
LED Type Blue LED
EAN 6933412726166
P/N DP-MCH6-NT-NTAM4
Product Dimension
Download
CASTLE 360X WH Manual.pdf
