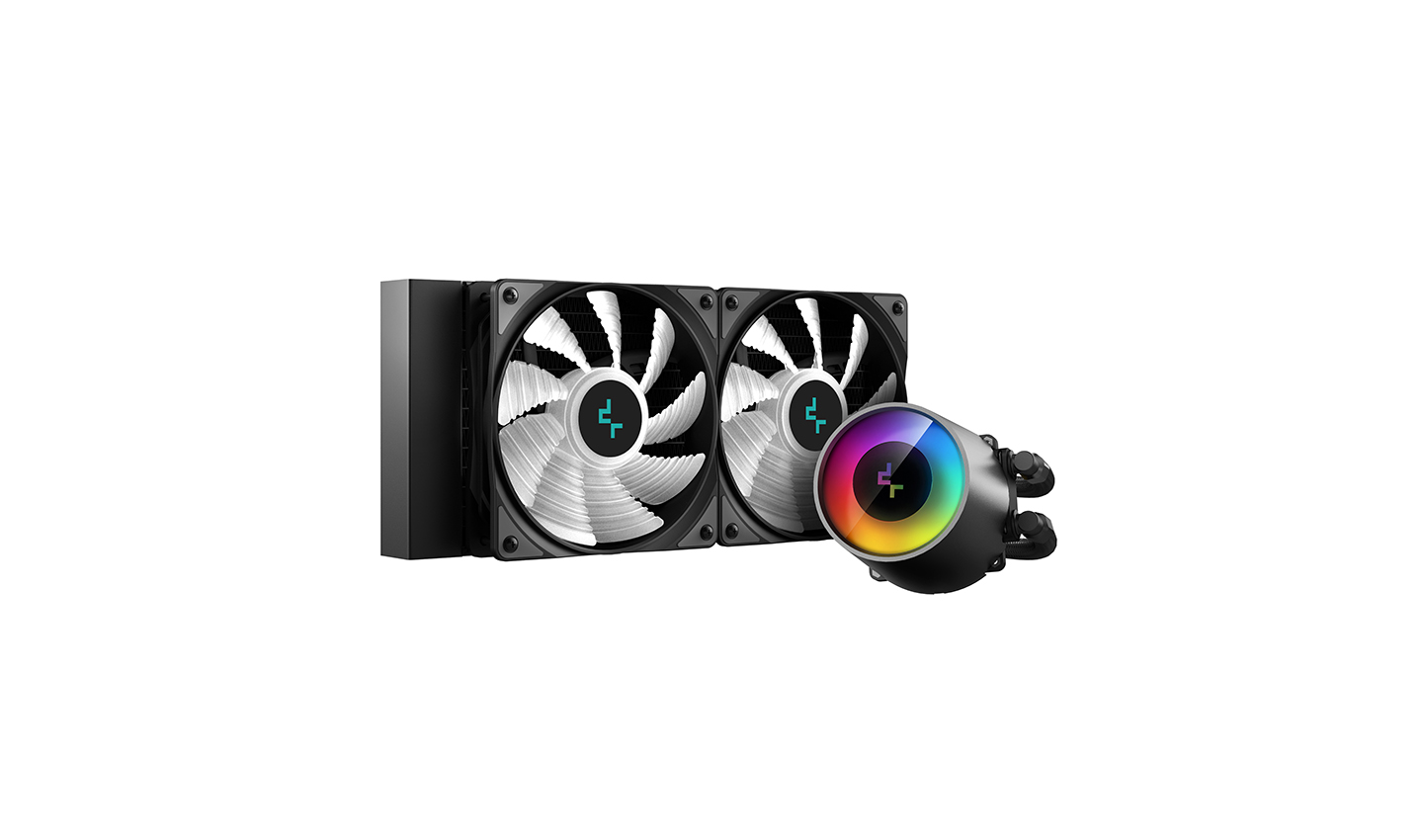

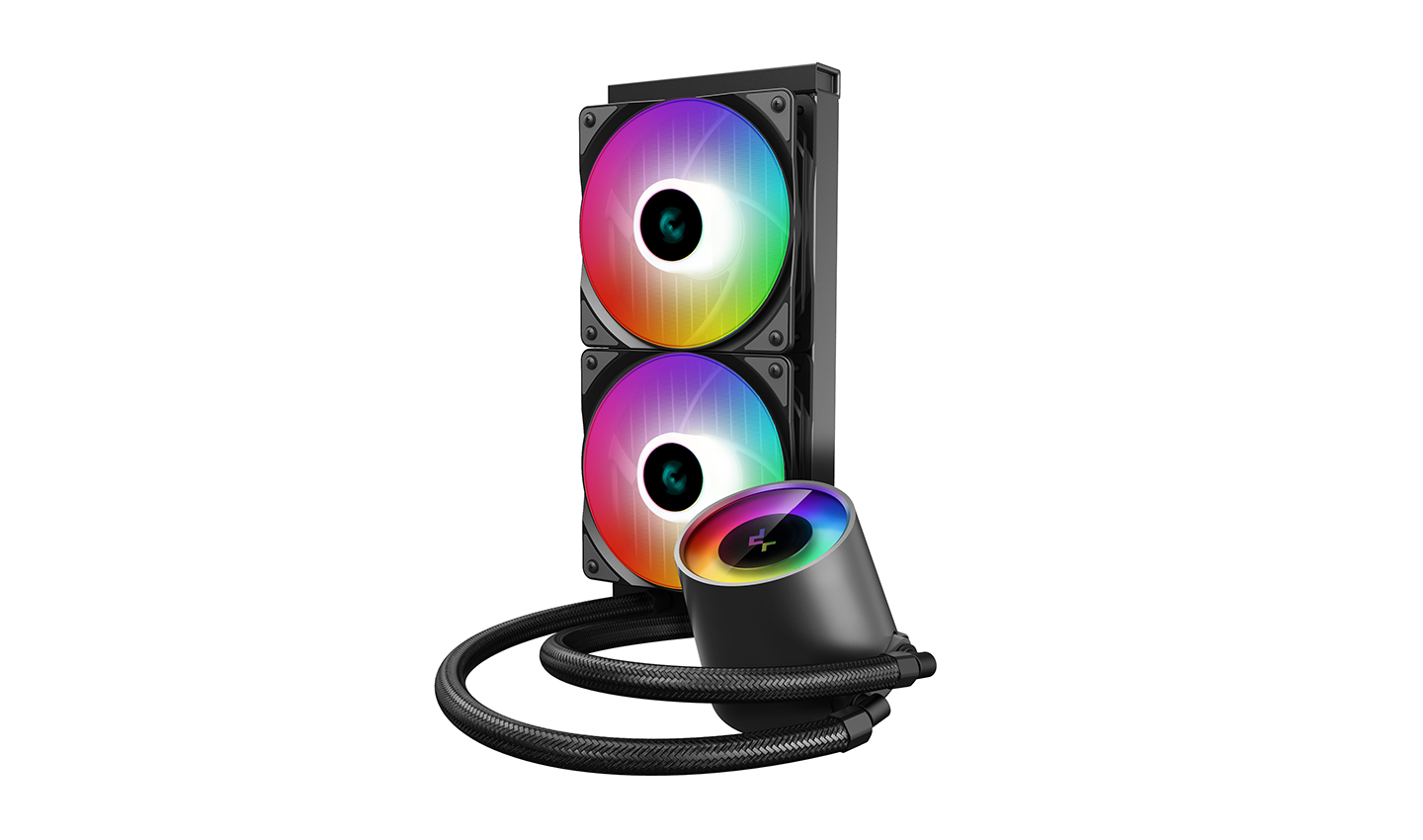

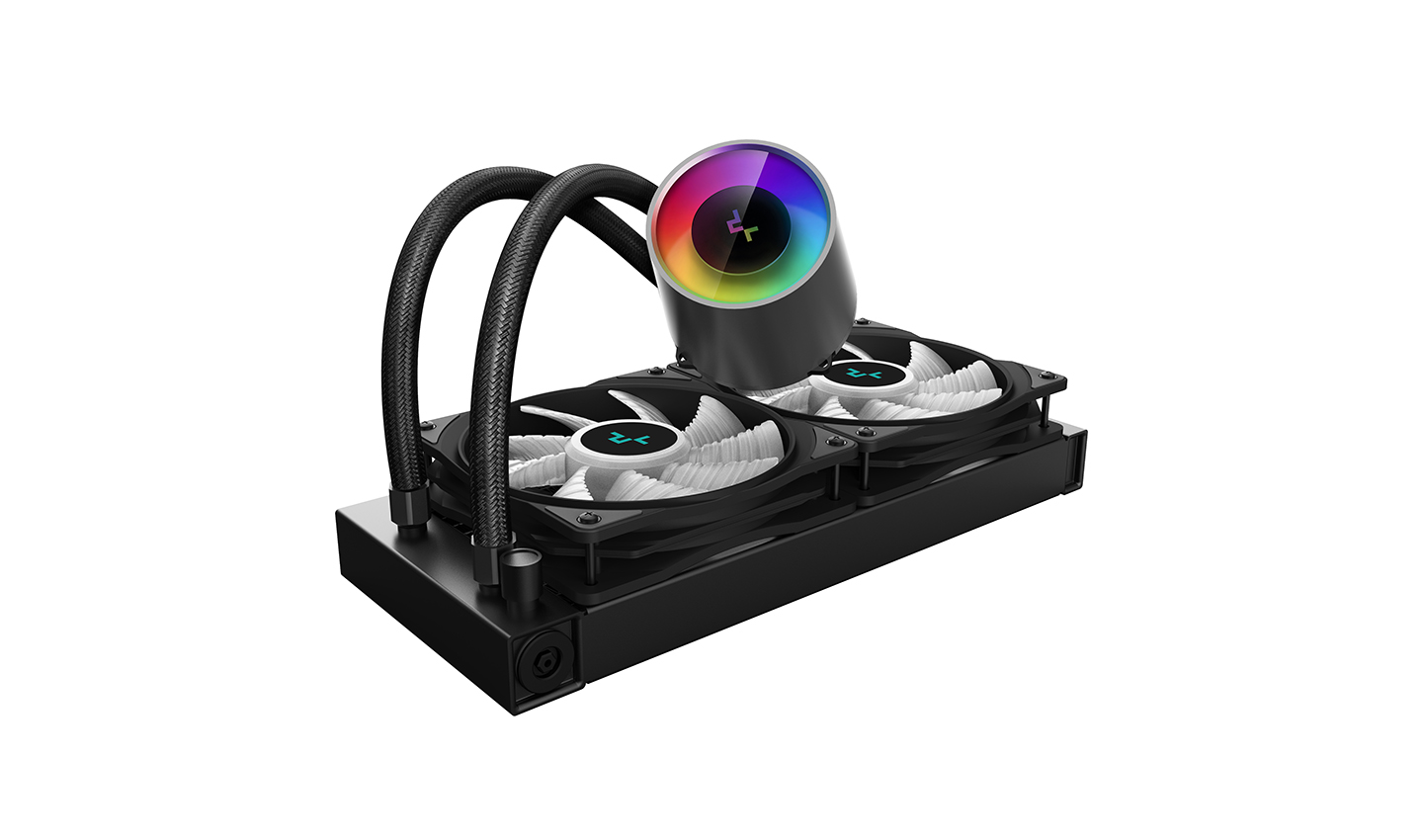

CASTLE 240RGB V2
COLOR
black
MODEL
CASTLE 240RGB V2
ANTI-LEAK Tech & Fabulous Aesthetics Inside
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Fabulous Aesthetics Inherited

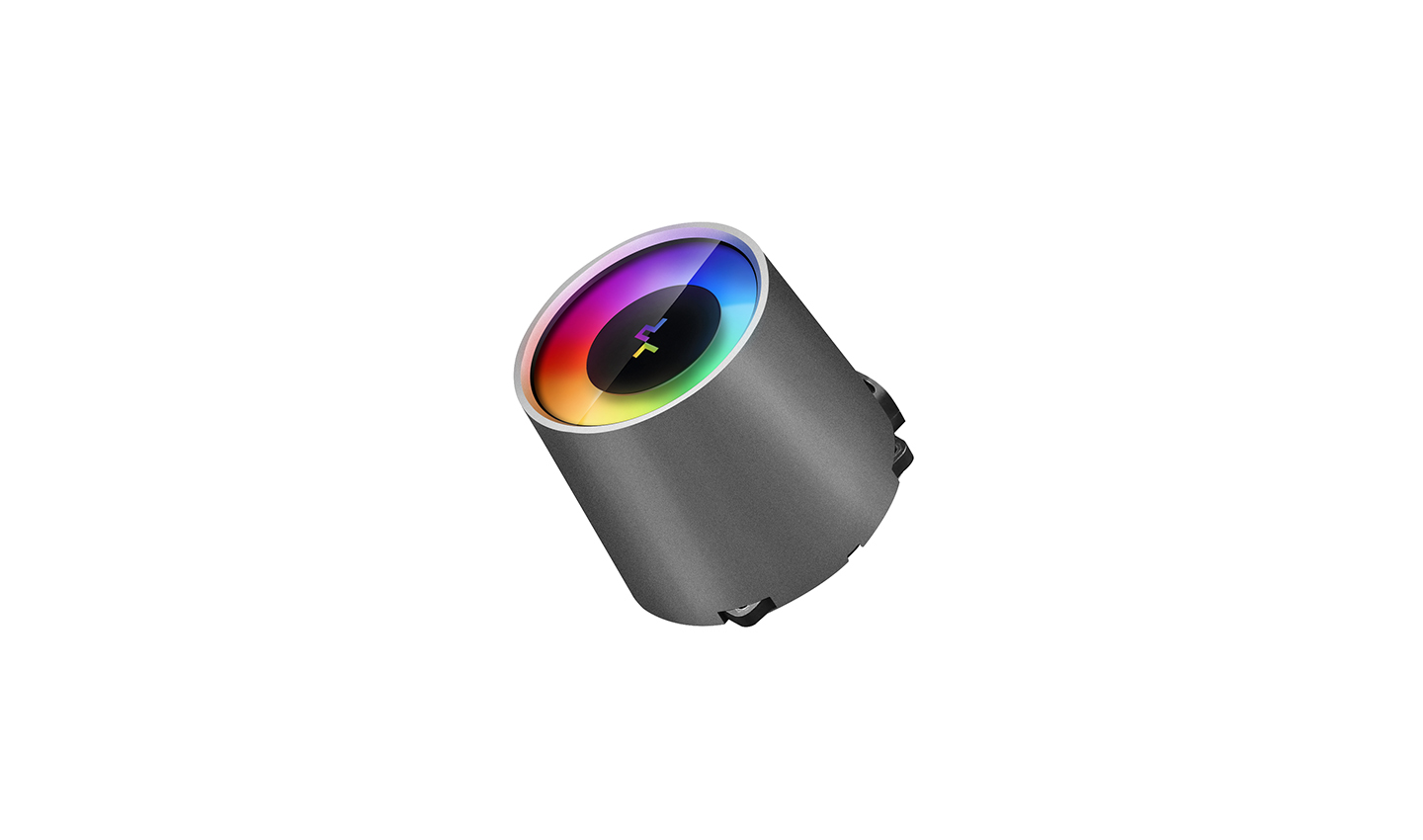

From its original version, CASTLE 240RGB V2 inherited the mirror finish and immersive ambient lighting on the pump, thereby pushing your rig’s aesthetics to next level.
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-
The 16.7M true color flowing RGB system can be easily synchronized and controlled by the included wired controller.
The lighting system has 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) and 36 interchangeable lighting modes. It also supports SYNC control by motherboards*.
Dynamic
Static
Breathing
Comet
Fashion Collision
Support Motherboard 3 Pin Addressable RGB
Software Control
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: Closed impellers are designed to enhance liquid pressure.
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: Closed impellers are designed to enhance liquid pressure.
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
It seamlessly supports the TR4/AM4 and mainstream Intel & AMD socket types.
The optimized E-shaped micro water channel design effectively enhances heat circulation efficiency and enlarges heat contact areas.

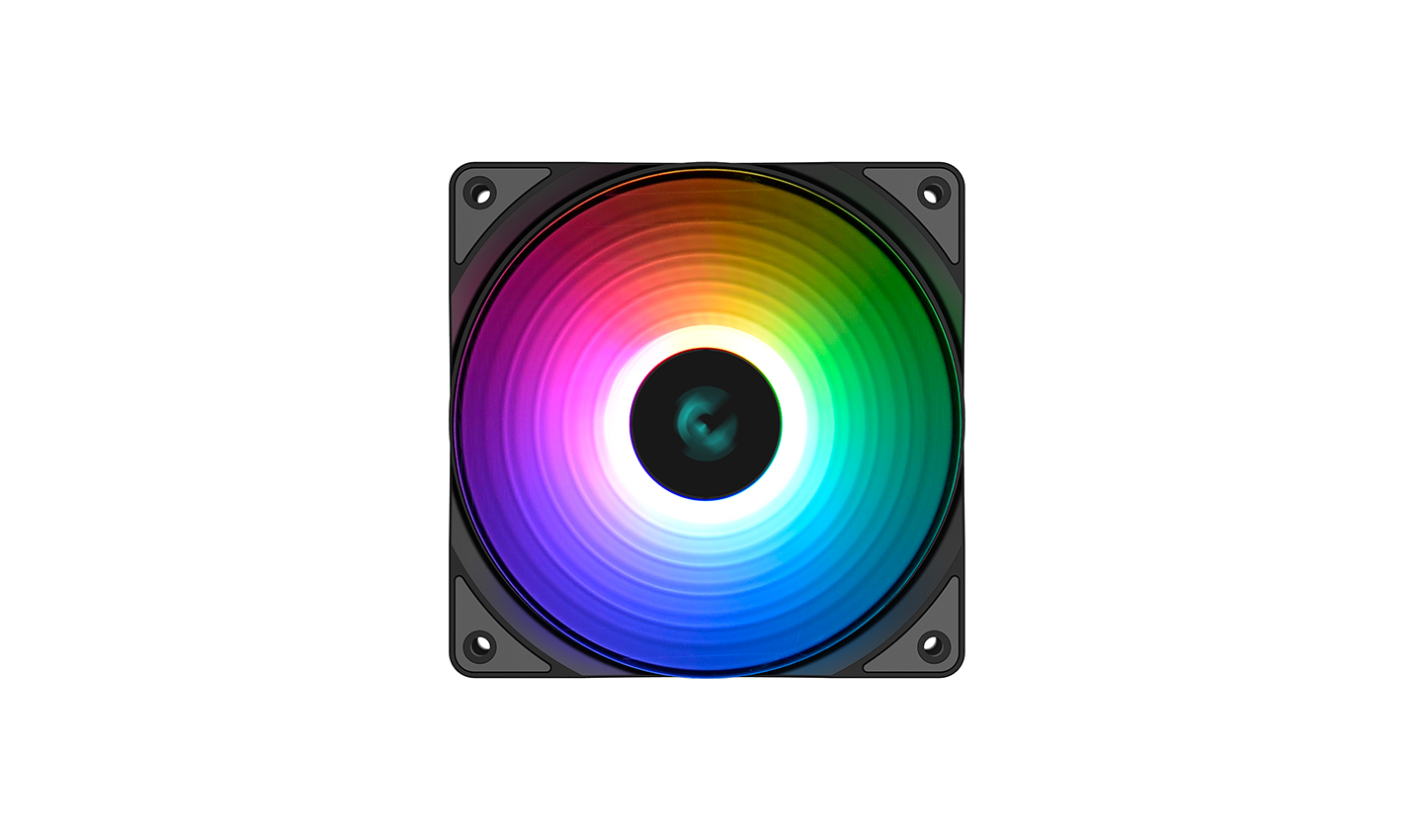

The 2 included CF 120 fans are 120mm ADD-RGB fans with flowing lighting effects.
The exhaustive damping technologies on the fans can vastly lower noise while maximizing airflow.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Pump Dimensions91×79×71 mm(L×W×H)

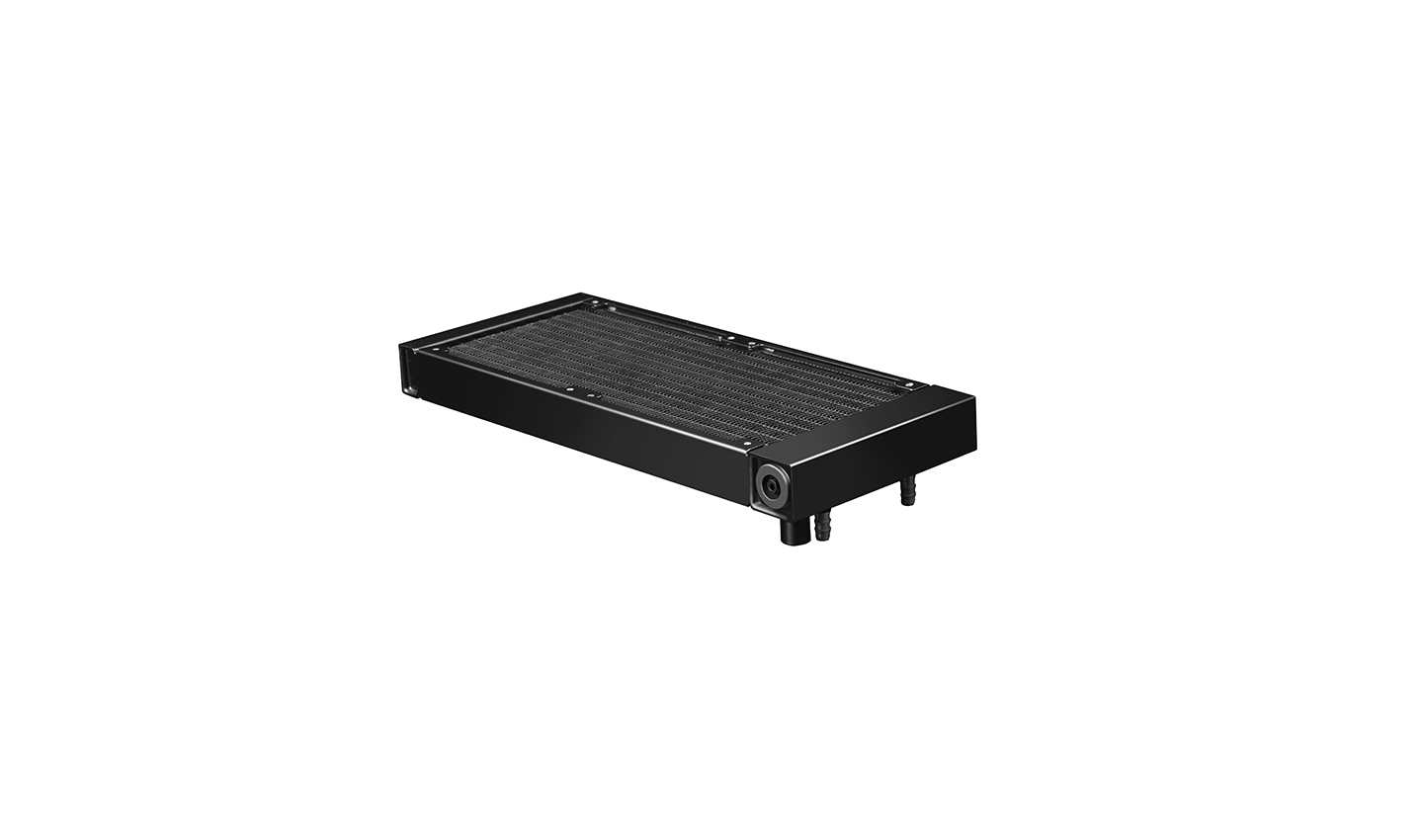

Radiator Dimensions282×120×27 mm(L×W×H)
Radiator Material Aluminum
Net Weight 1446 g
Tube length 380 mm
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.21 A
Pump Power Consumption 2.52 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Power Consumption 2.04 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W（PUMP）/ 4.4 W（FAN×2）
EAN 6933412726609
P/N DP-GS-H12AR-CSL240V2
Product Dimension
Download
CASTLE 240RGB V2 Manual.pdf
Download
