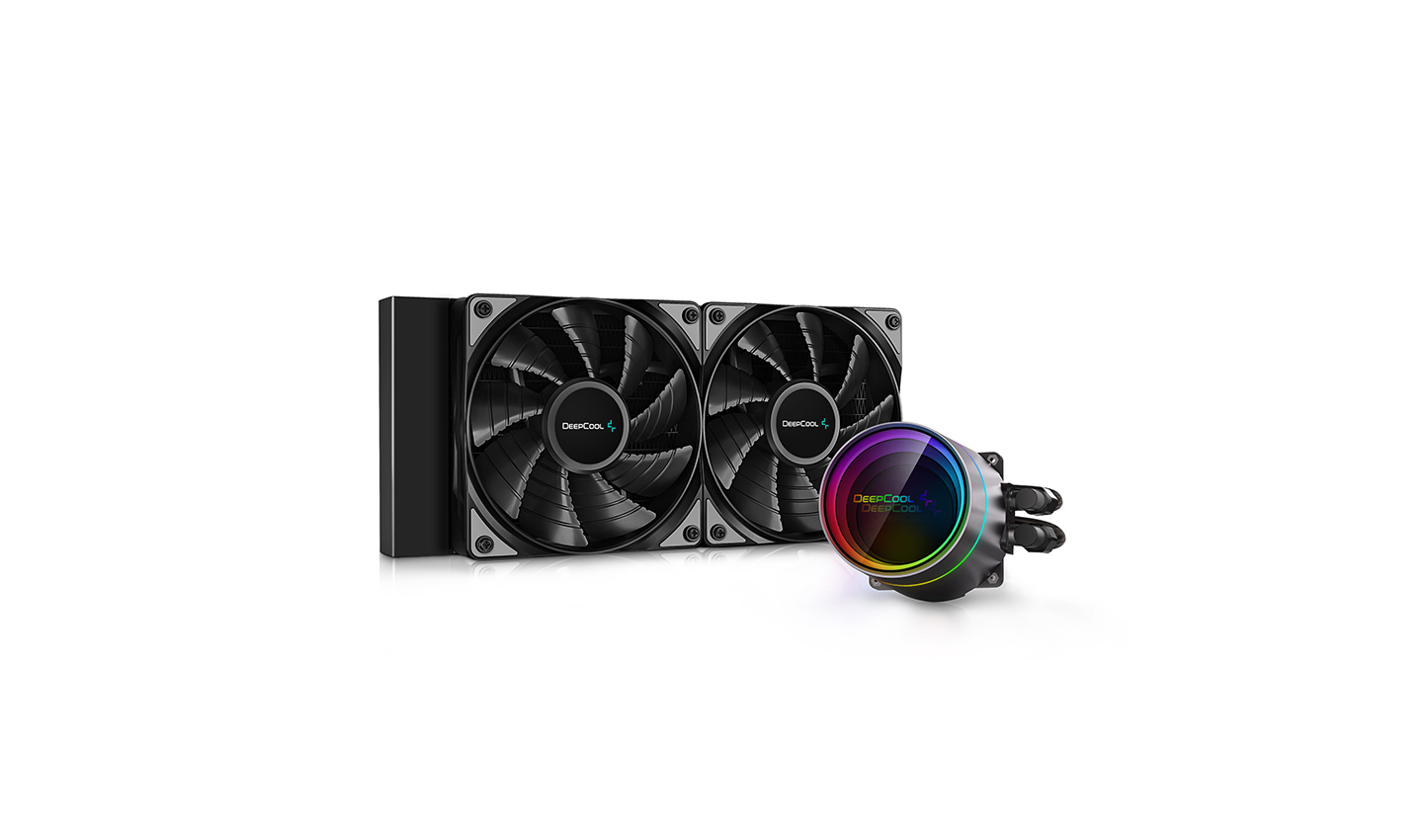

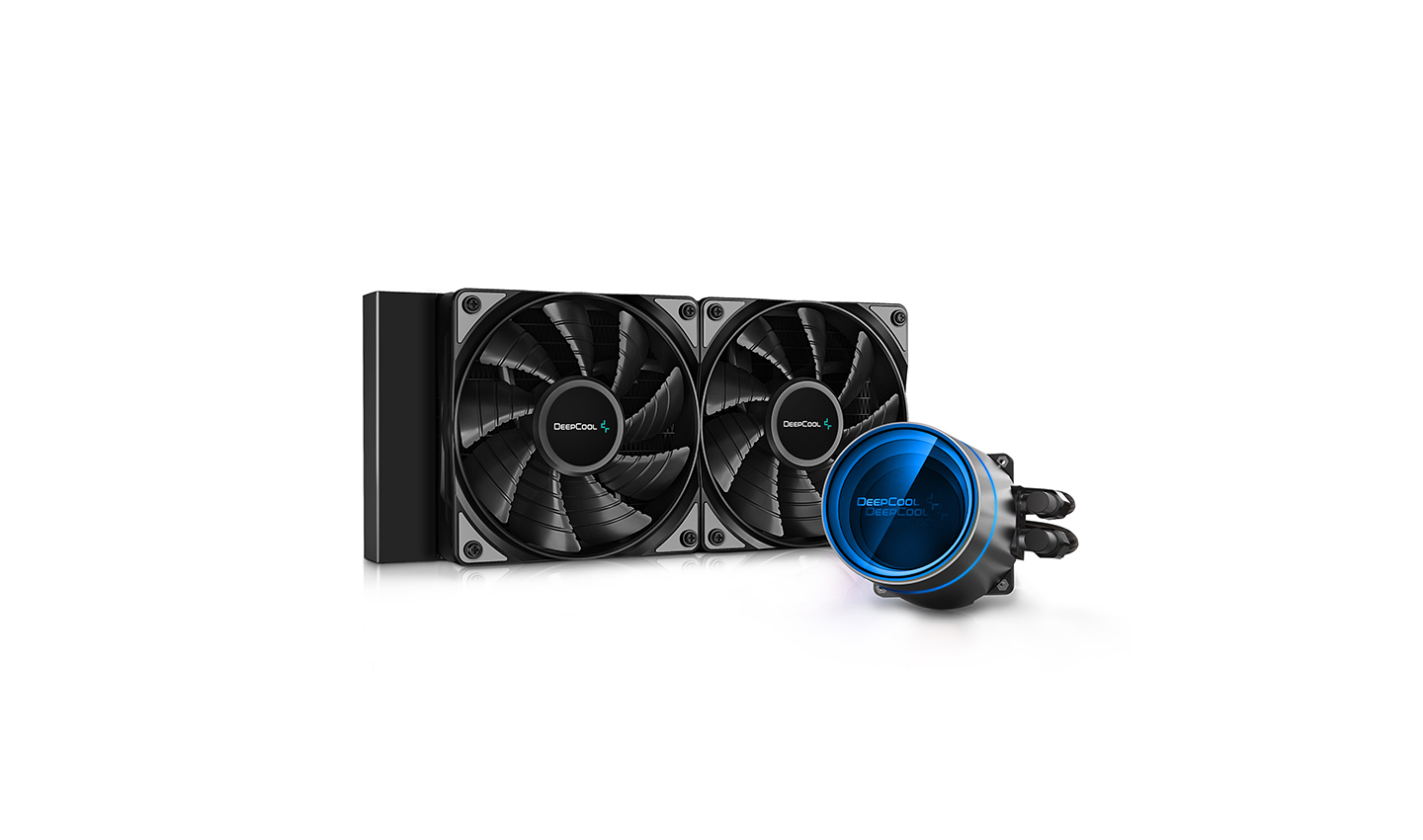

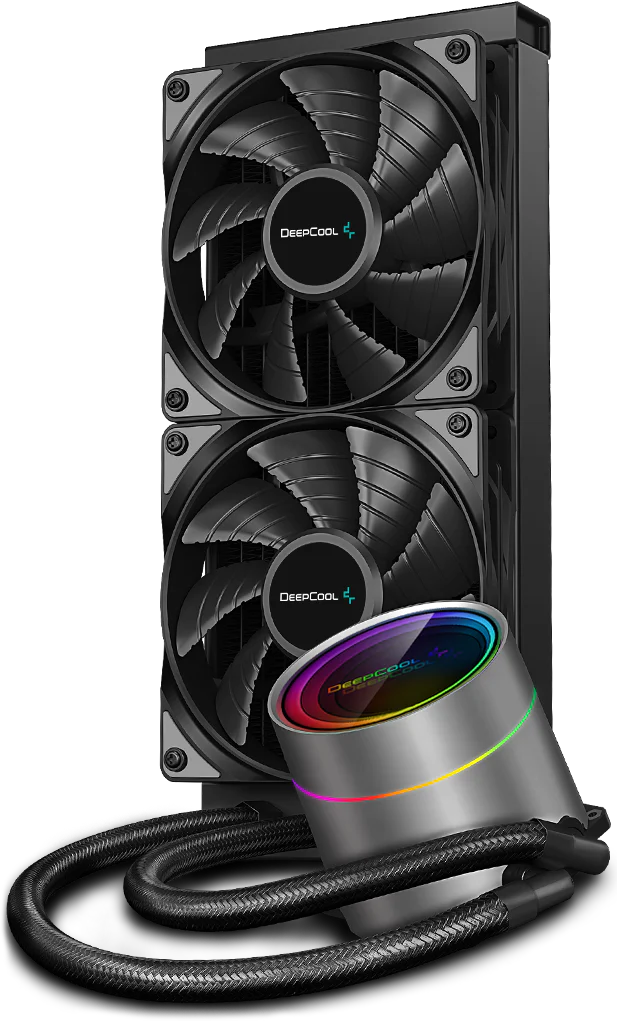

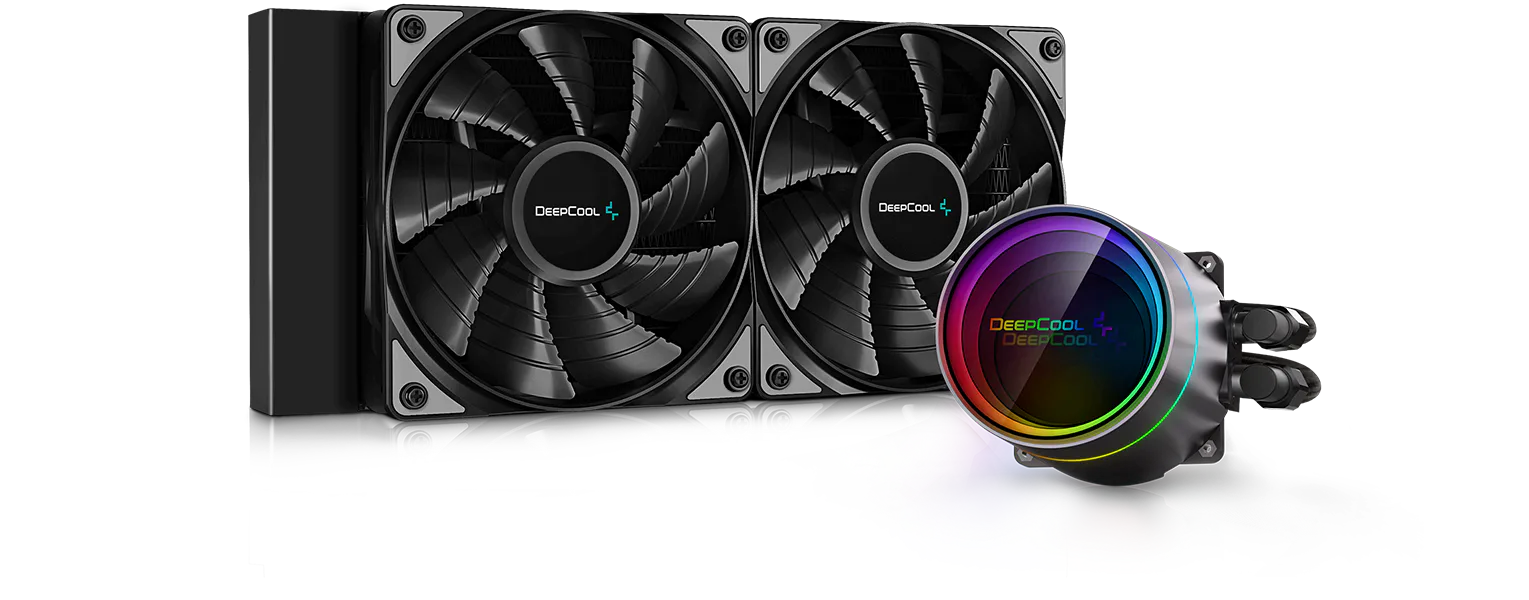

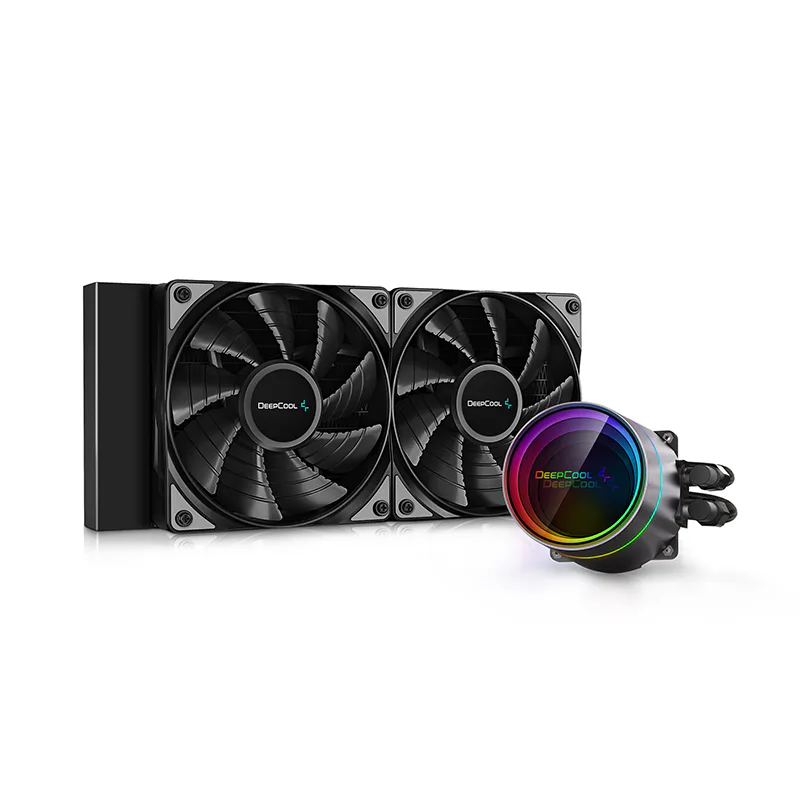

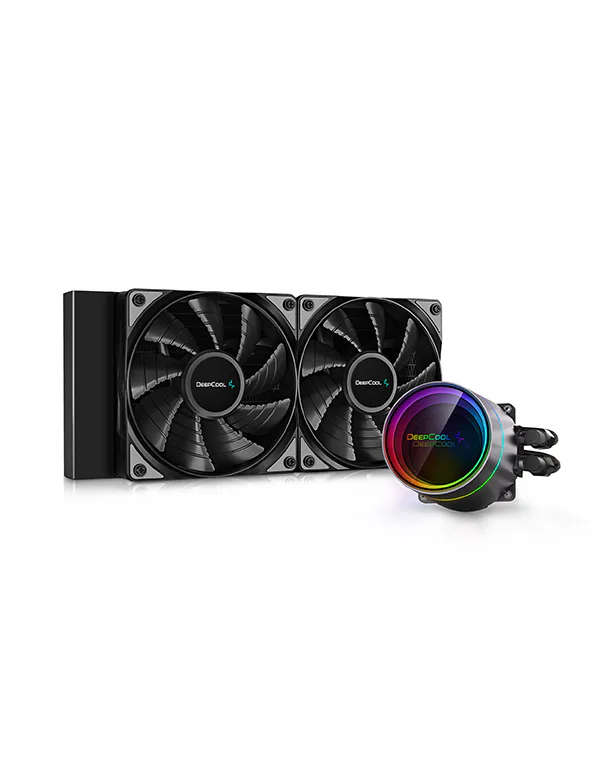

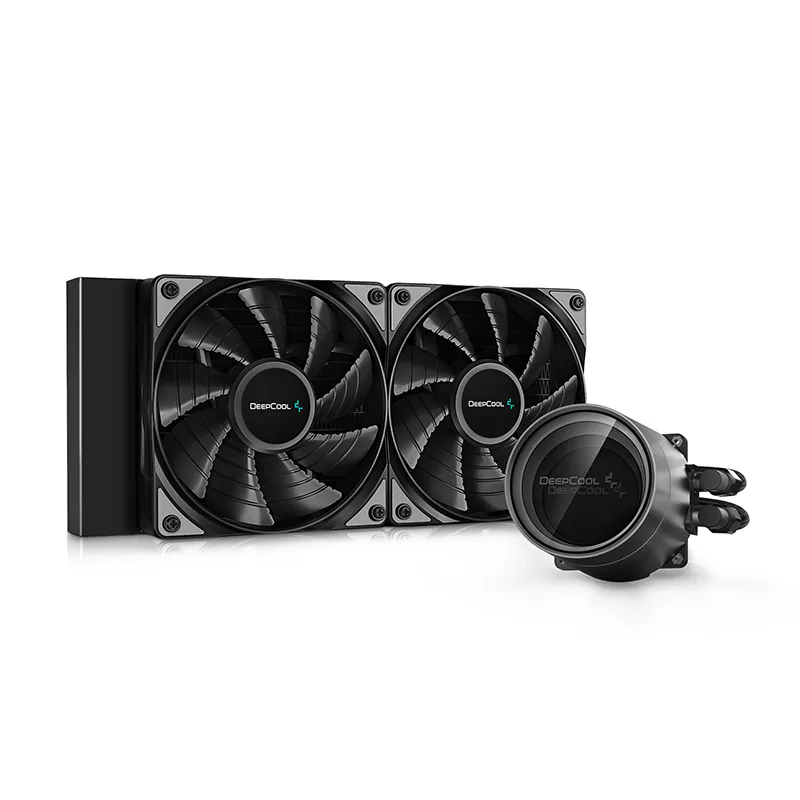

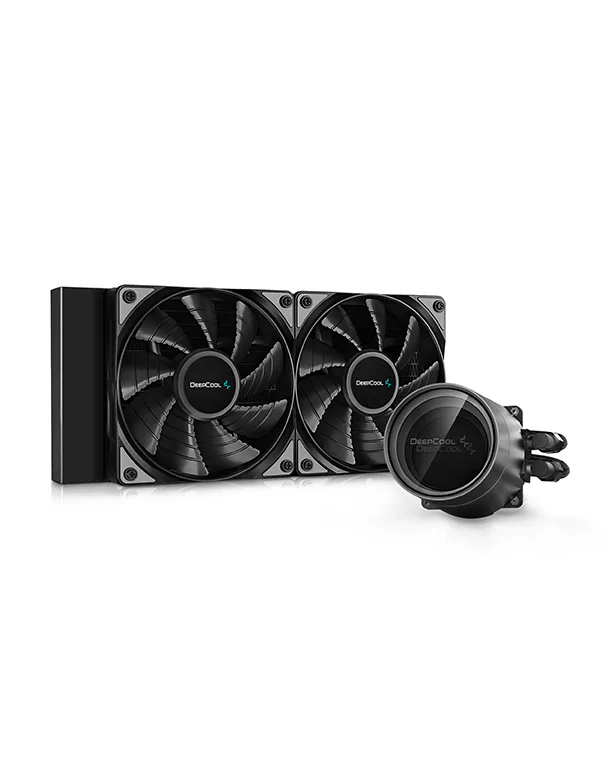

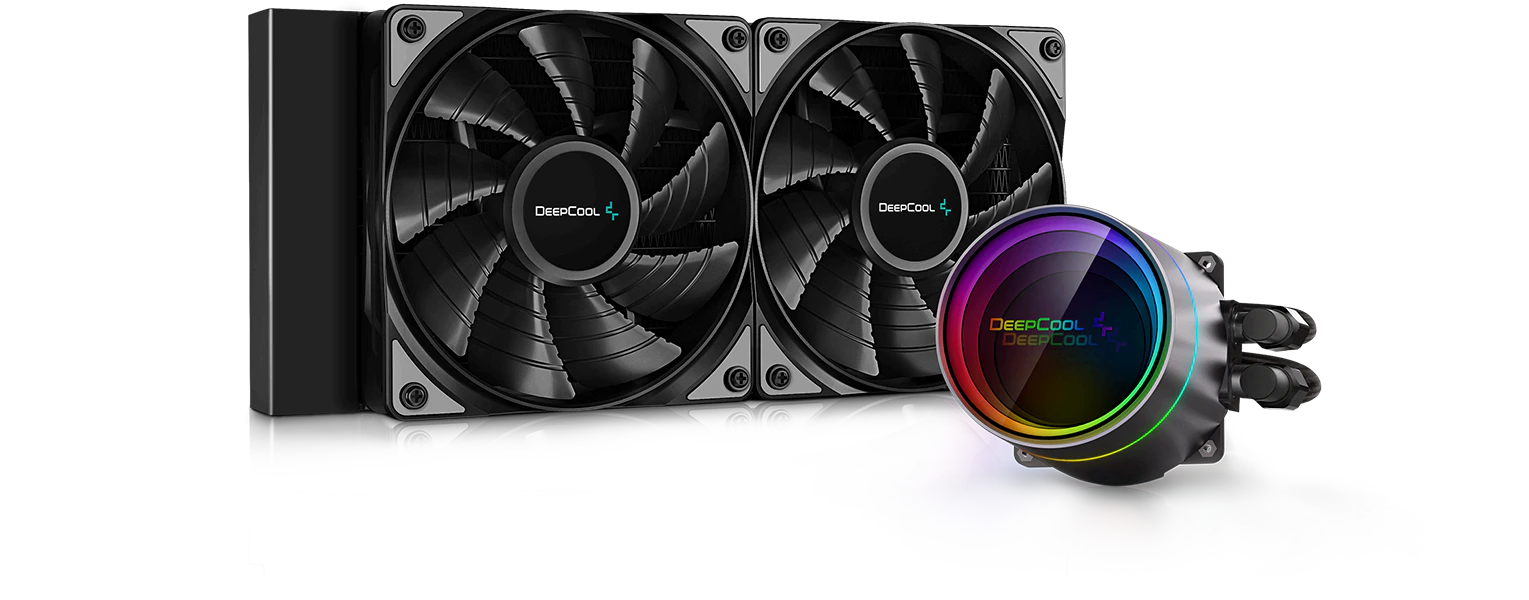

CASTLE 240PRO

Anti-leak Tech and Fabulous Aesthetics Inside

About Anti-leak Tech Inside

After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.

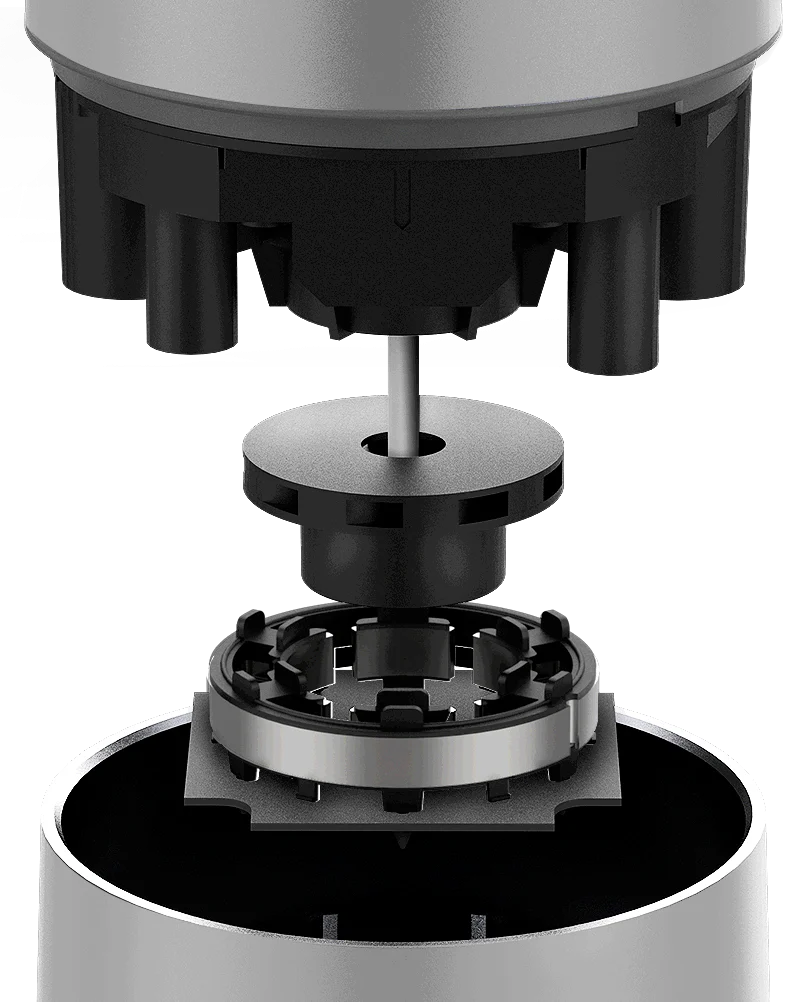

Powerful and quiet

―

A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

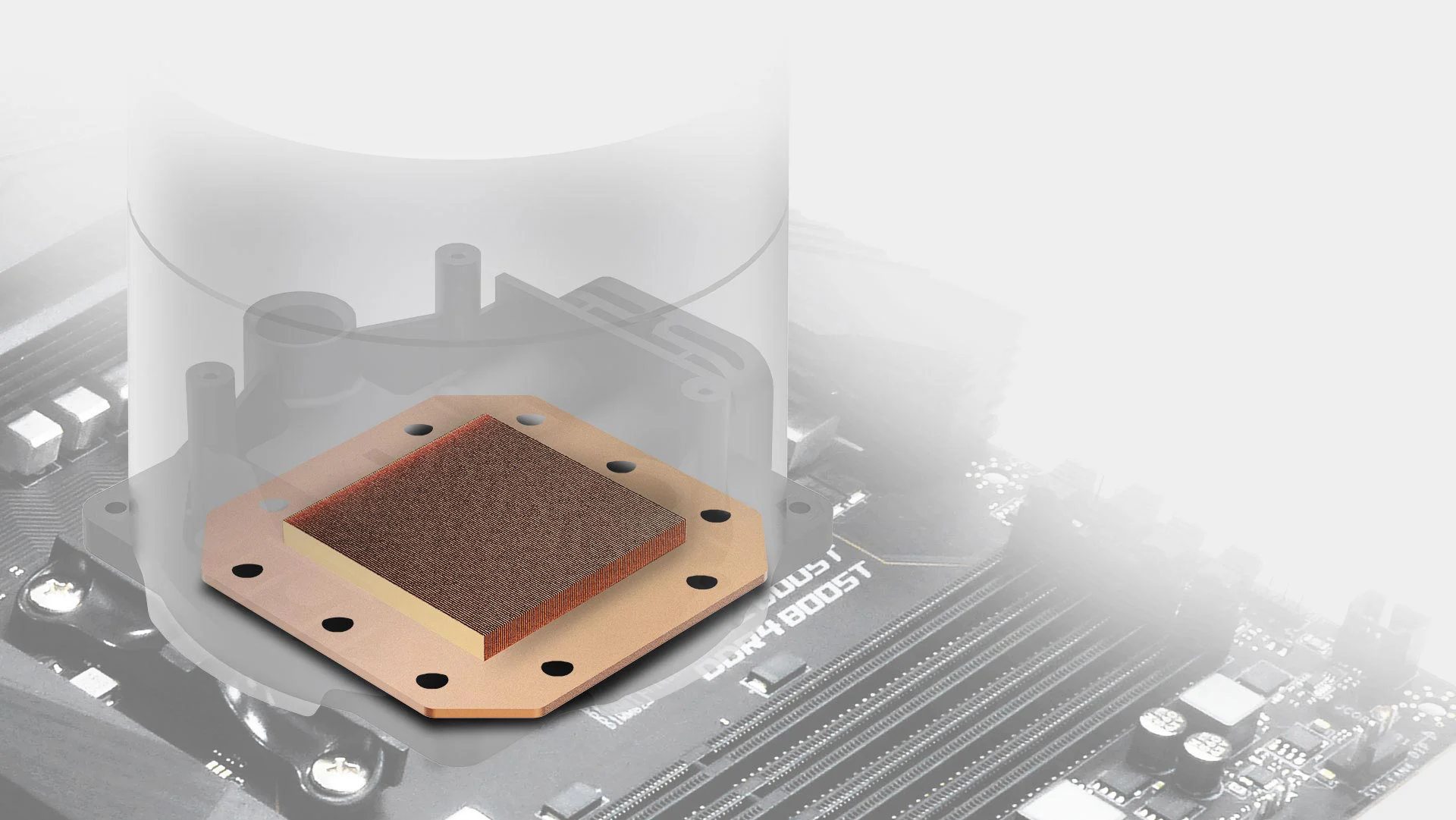

Efficient cooling

―

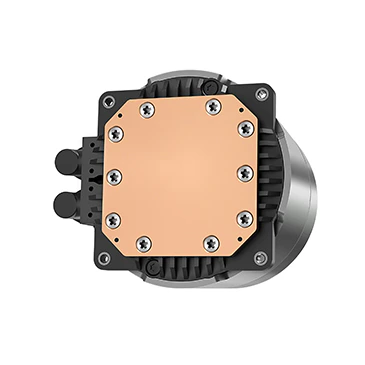

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange. With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

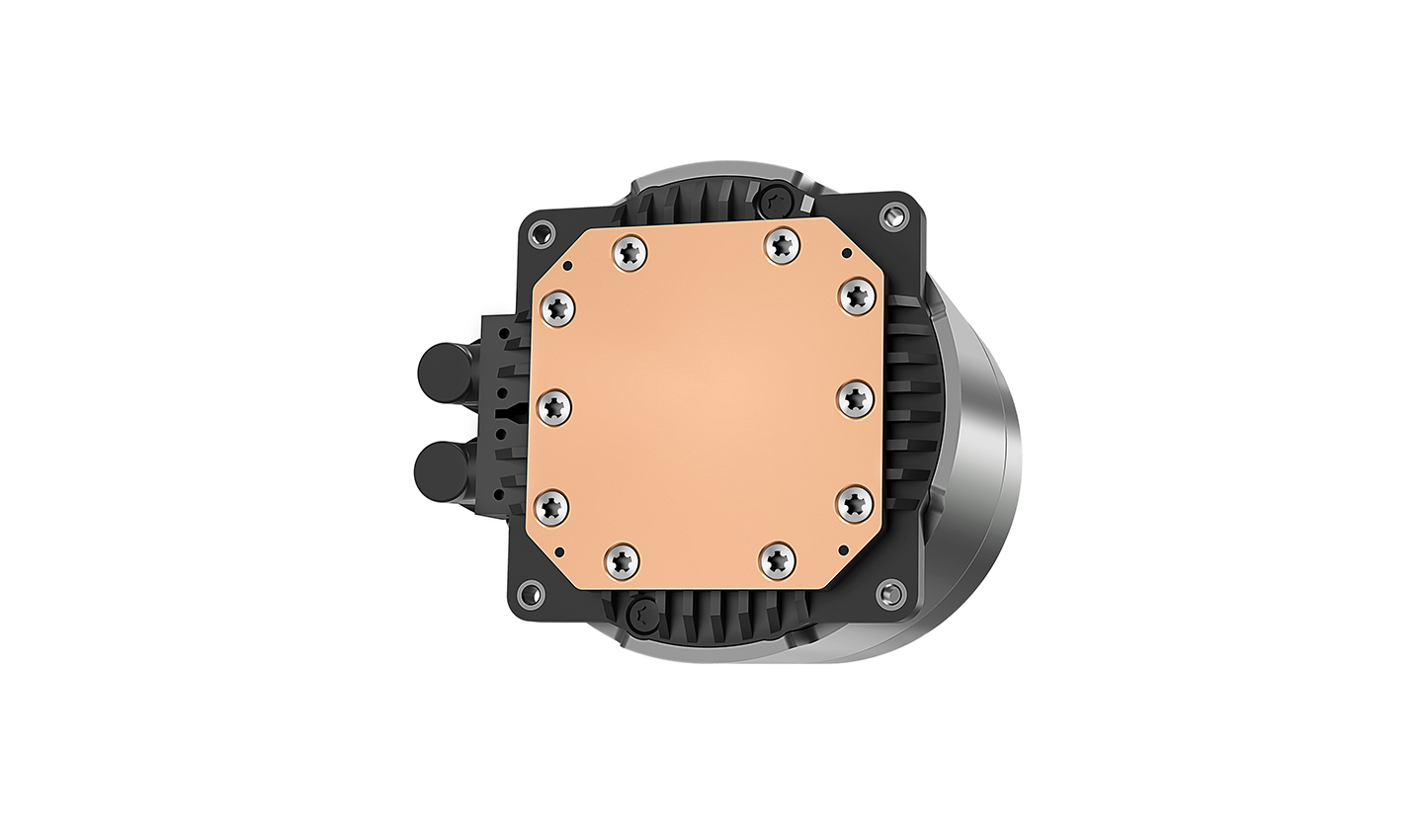

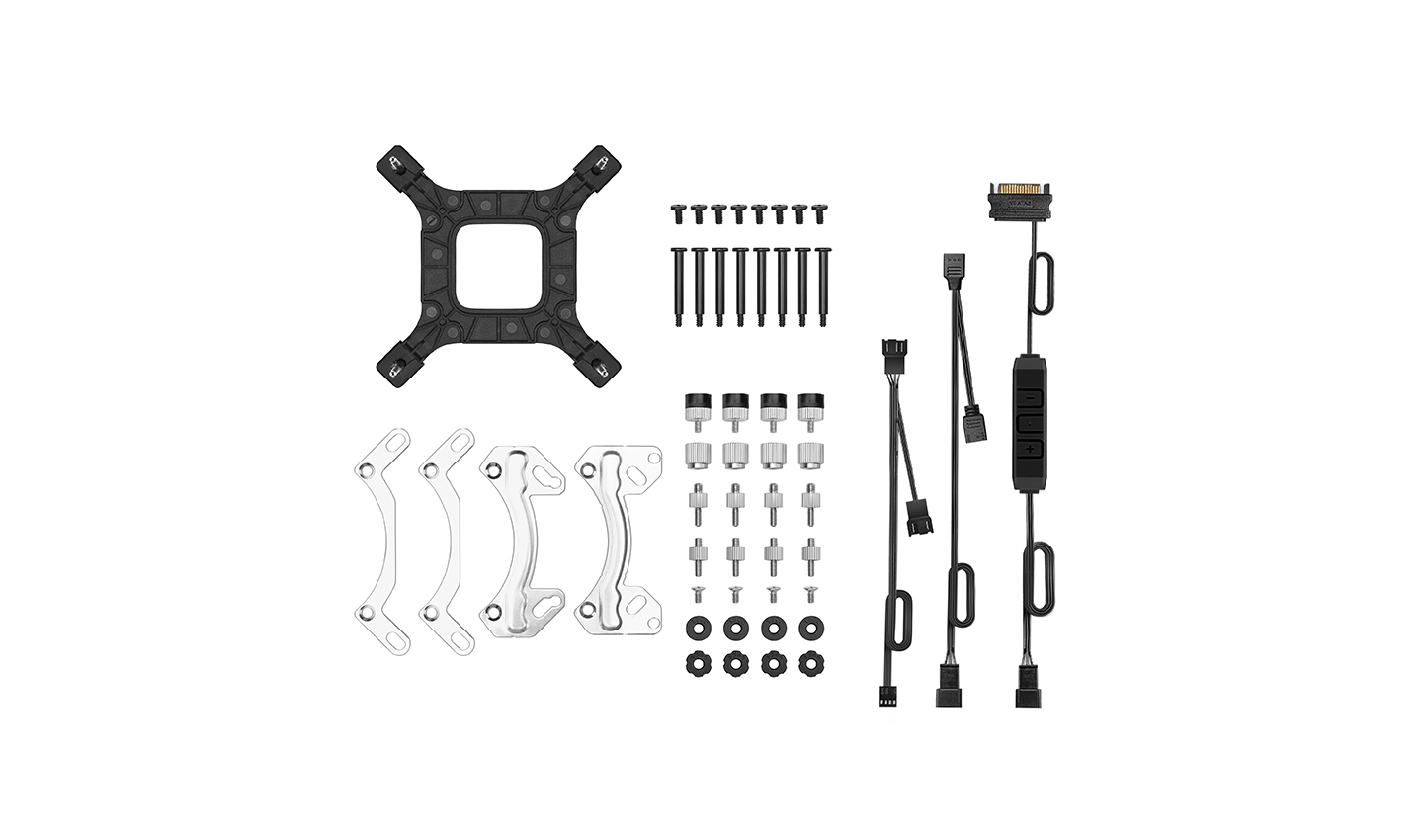

Ultra compatibility

―

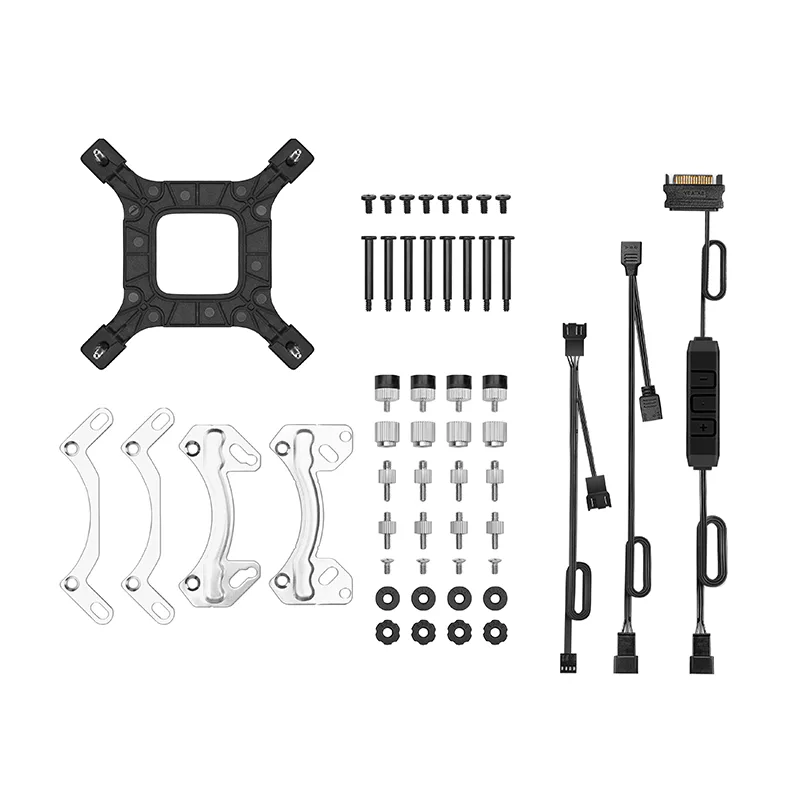

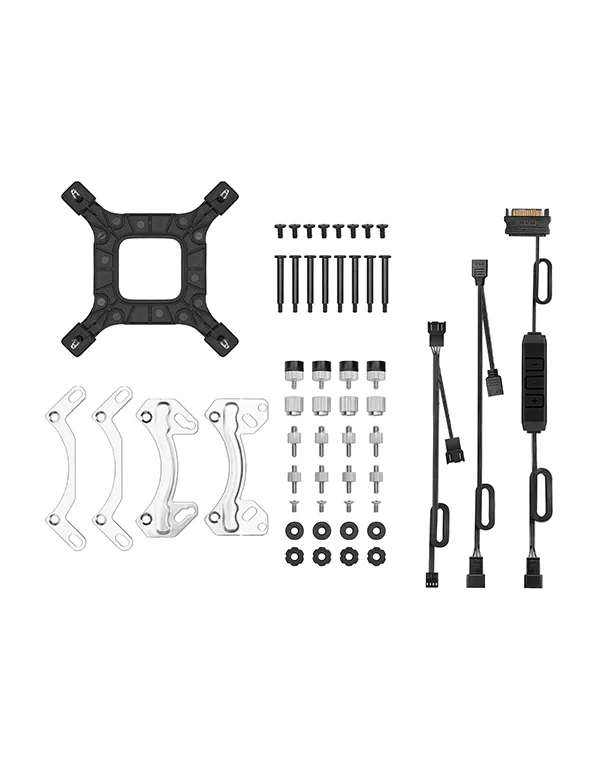

The gigantic copper base supports the TR4/AM4 and mainstream Intel & AMD socket types.

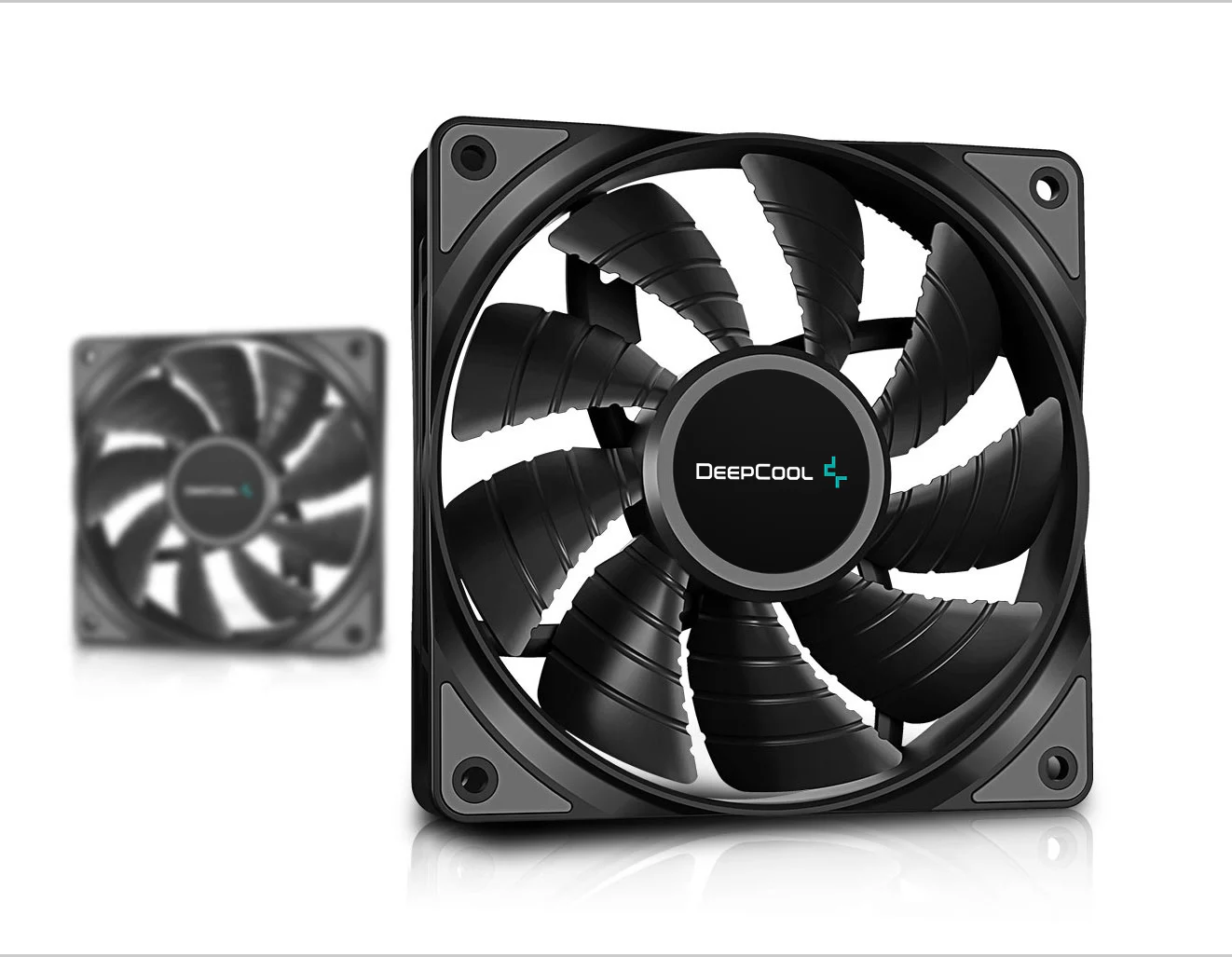

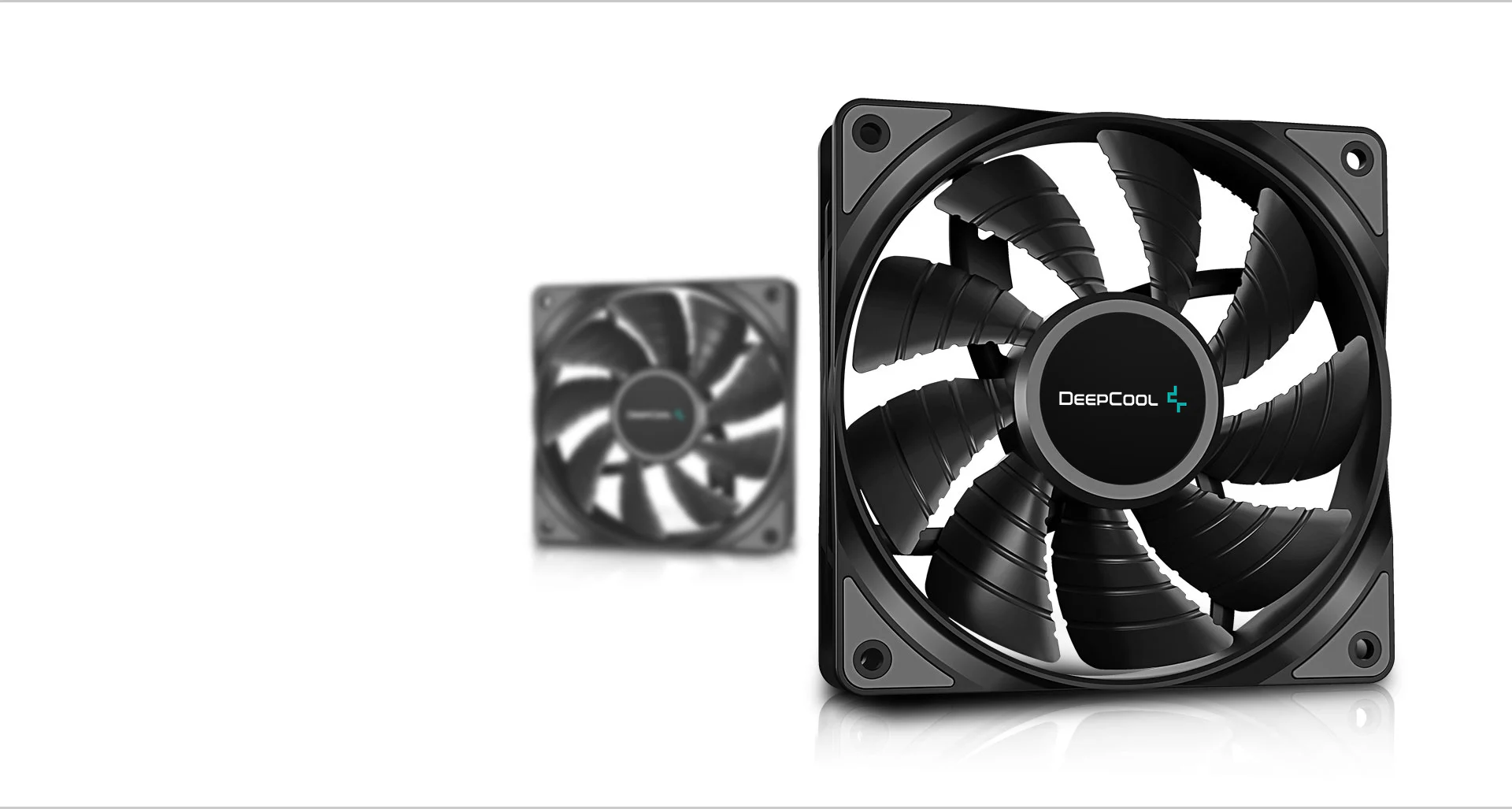

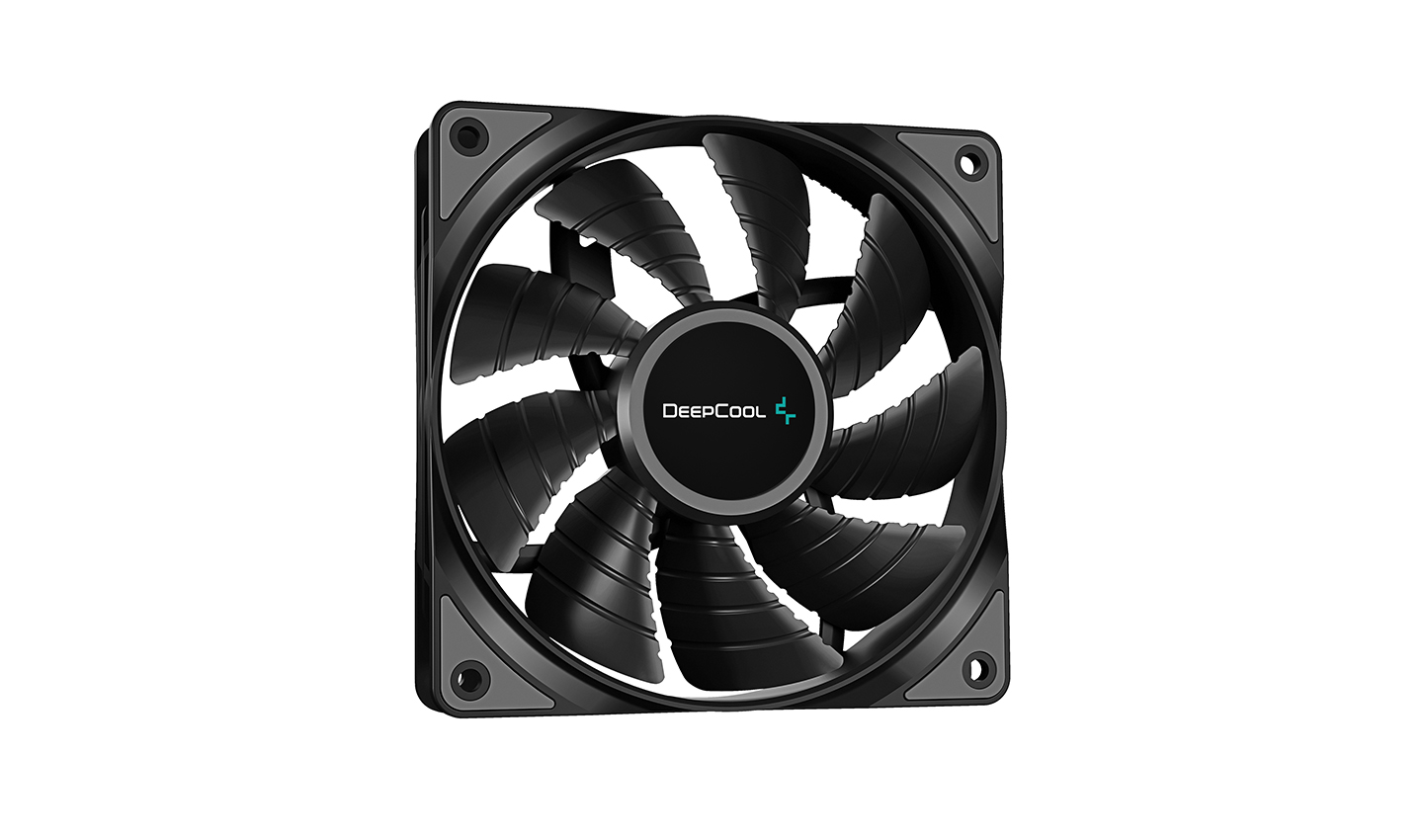

Best matching fans

―

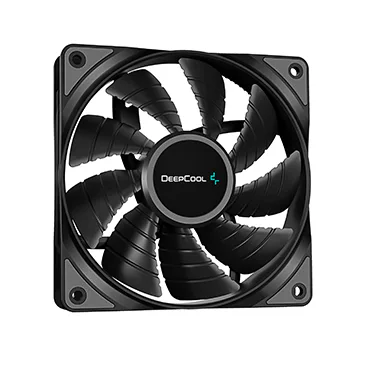

Two 120mm high-performance fans are included. The damping pads and the PWM function of the fans can vastly lower noise while maximizing airflow.

Best matching fans

―

Two 120mm high-performance fans are included. The damping pads and the PWM function of the fans can vastly lower noise while maximizing airflow.

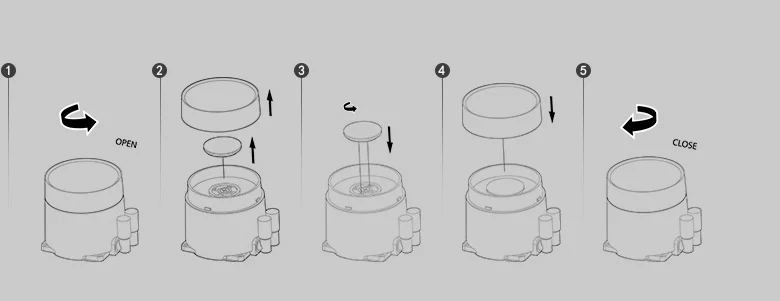

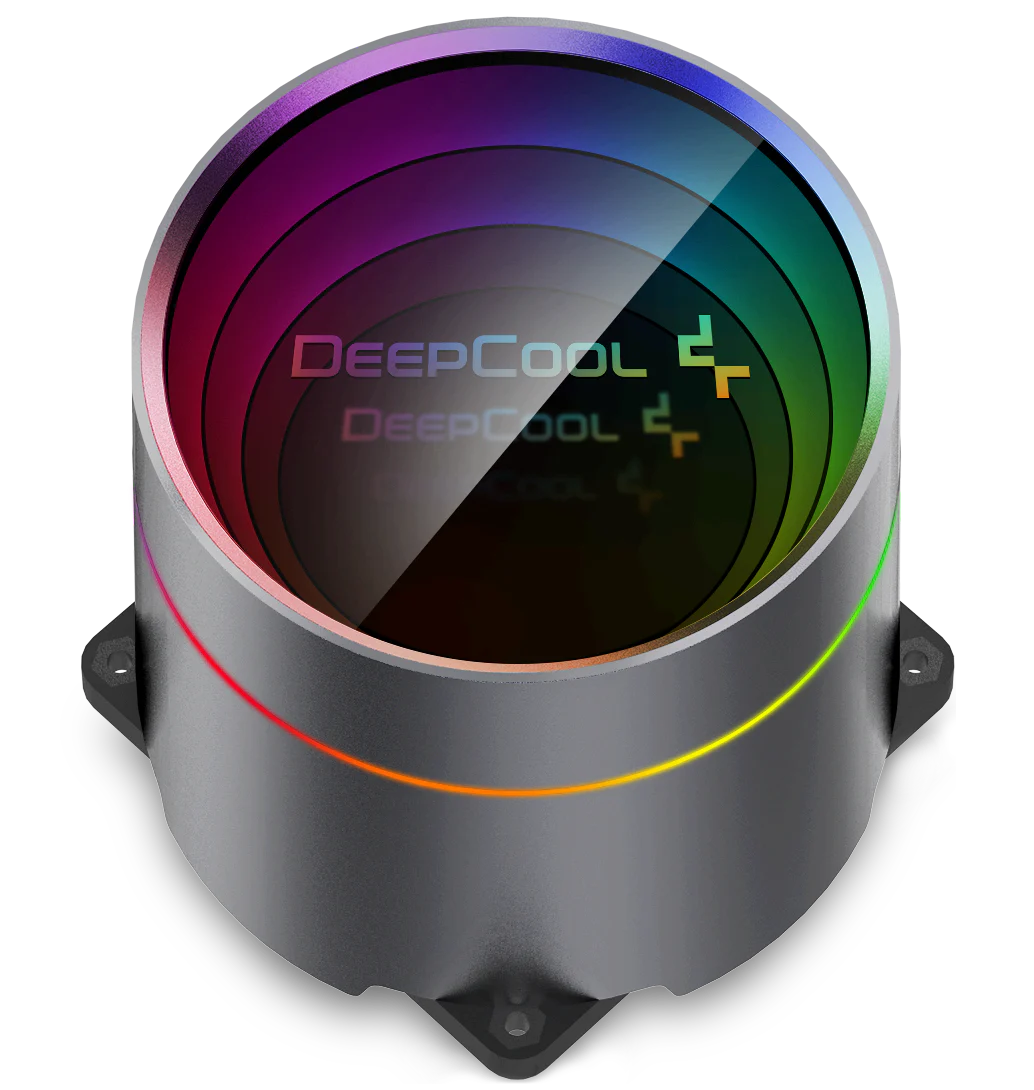

Customize your look

―

Easily change orientation by twisting off the pump face to adjust the logo.Take it to the next level with your own custom design using the included extra logo chip!

Mode +

Speed （Hold for 3 seconds to switch on/off）

Mode -

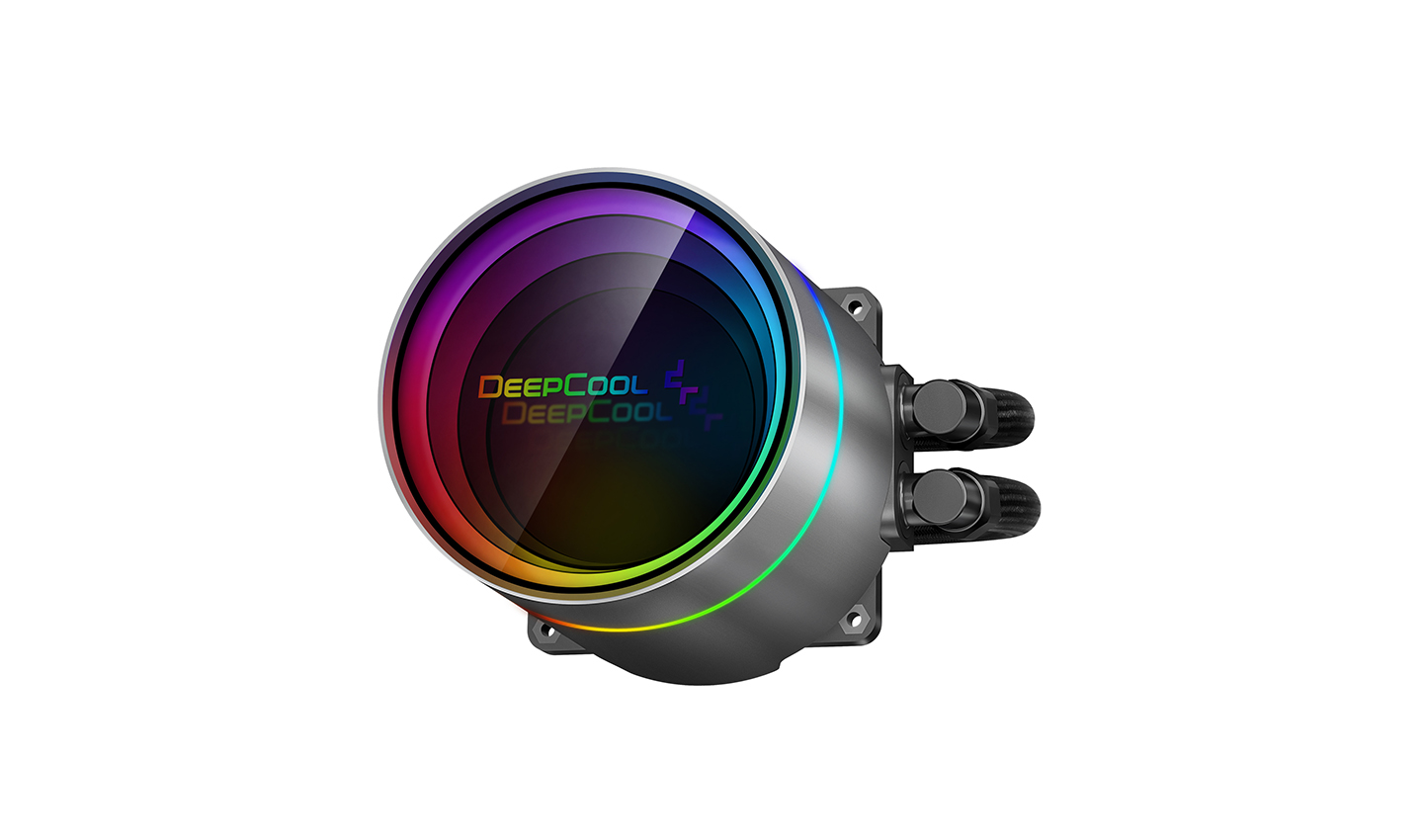

ADDRESSABLE RGB

―

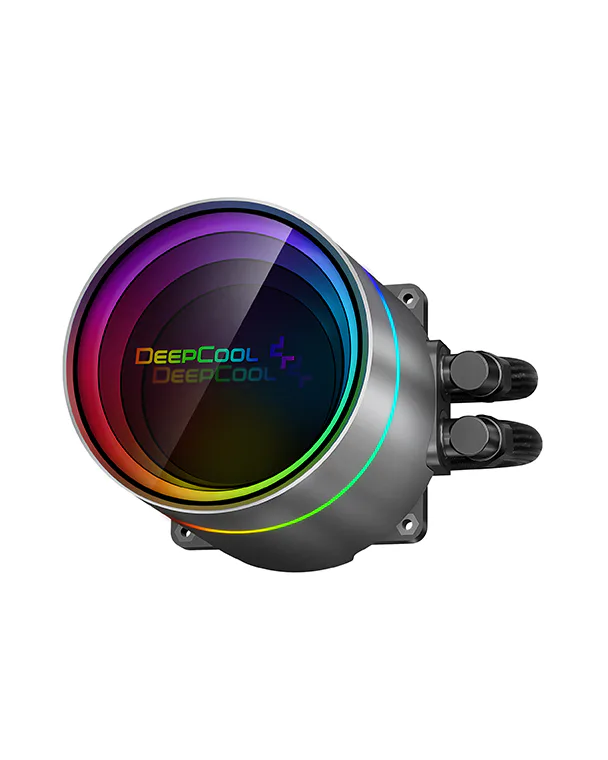

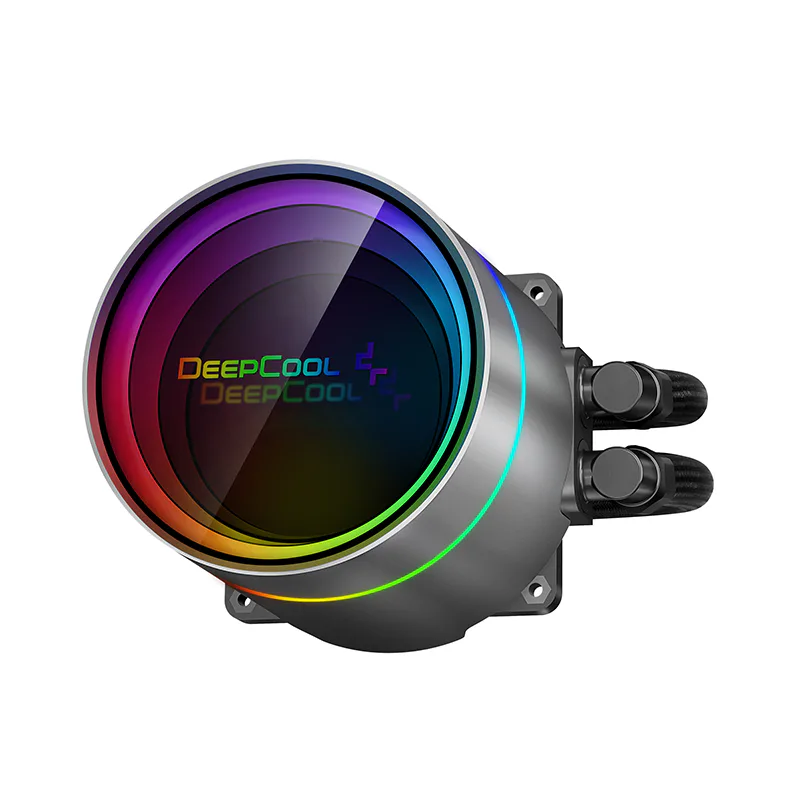

Equipped with a mirror finish, , immersive lighting and infinitive visual effects, CASTLE 240PRO inherited its familial fabulous appearance. Its Addressable RGB lighting is adjustable through the 5V motherboard SYNC function or through an included controller.

Dynamic

Static

Breathing

Comet

Fashion Collision

Application For

Intel

LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

sTRX4/sTR4/AM4

Technical Spec

Net Weight	1368 g

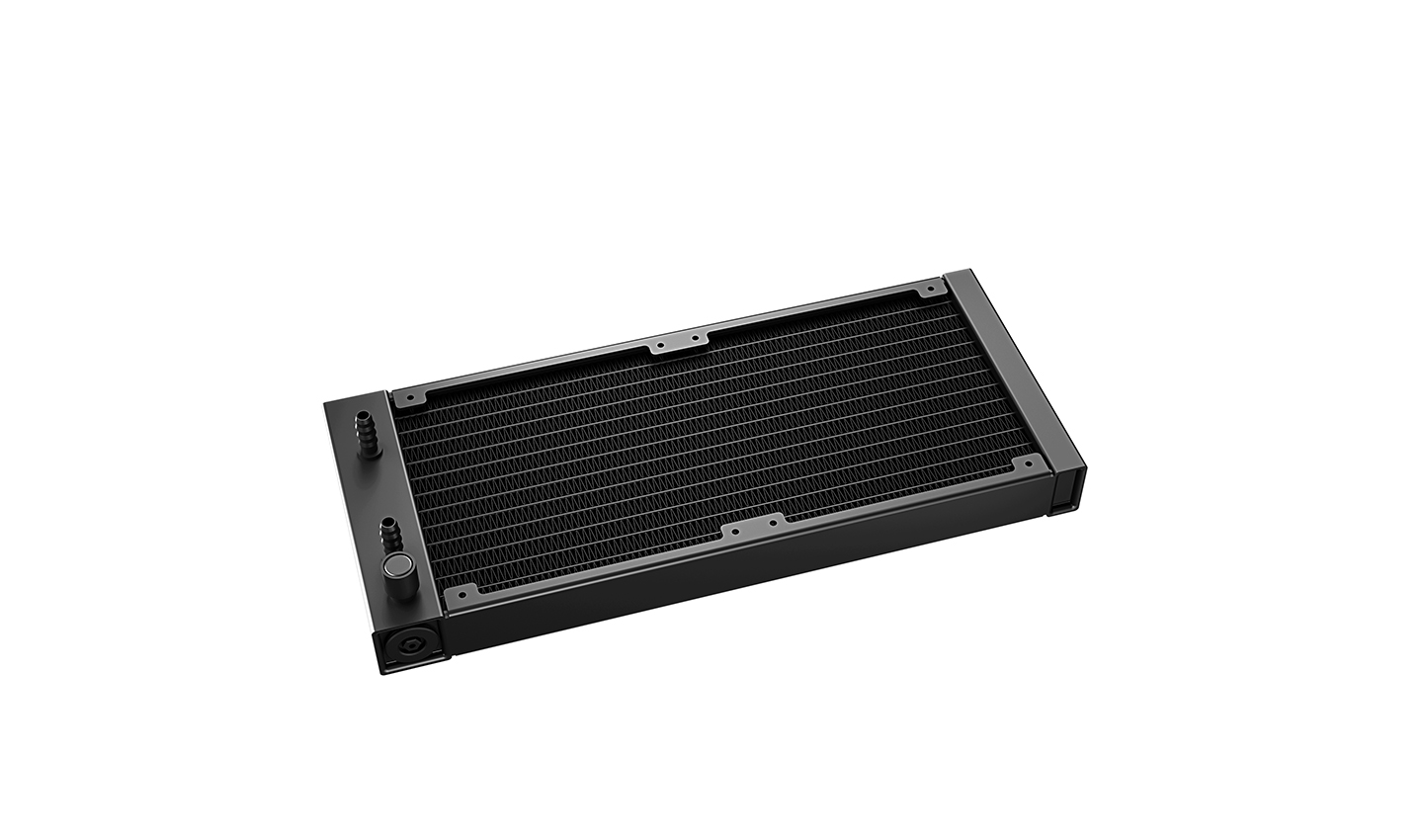

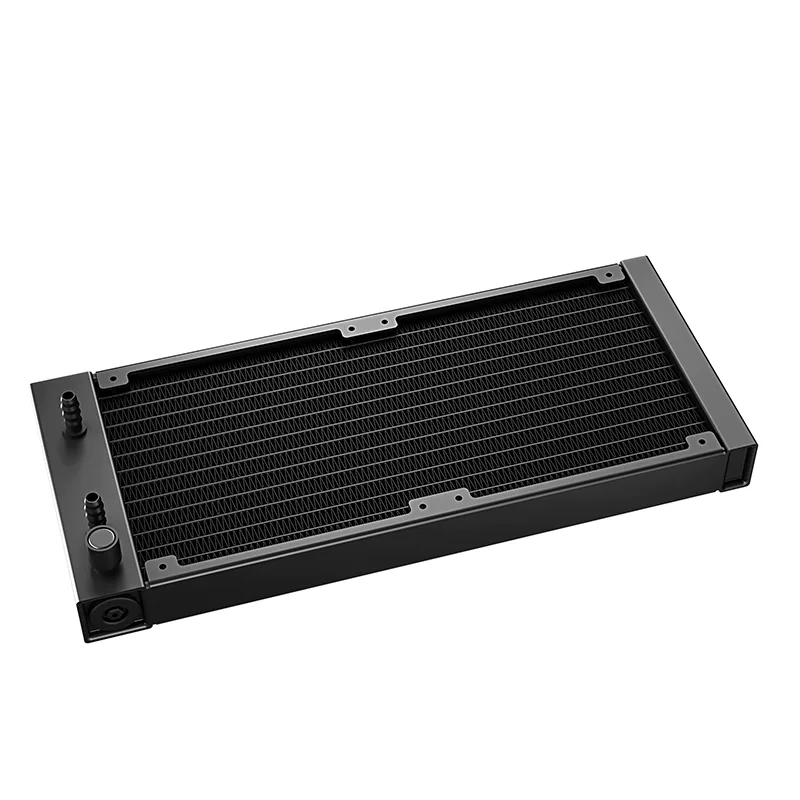

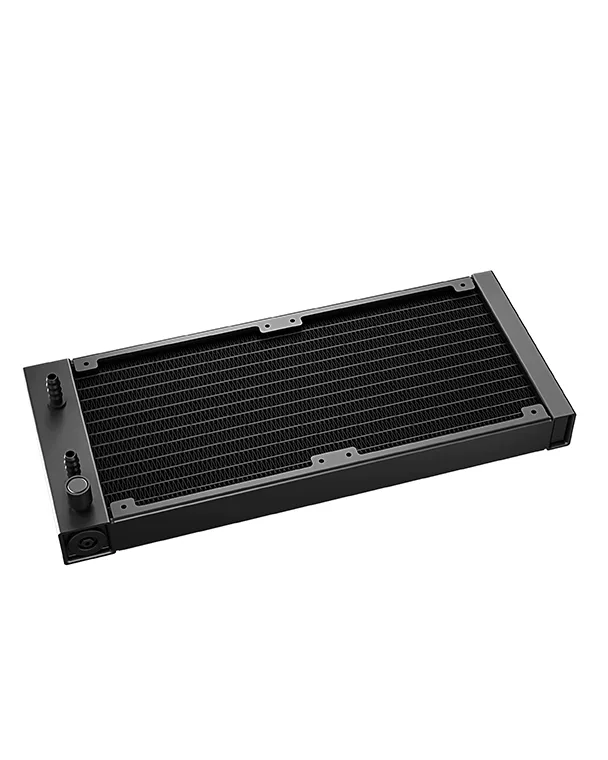

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	380 mm
Pump Dimensions	86 ×75×71 mm(L×W×H)
Pump Speed	2550 RPM±10%
Pump Noise	17.8 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.2 A
Pump Power Consumption	2.4 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1800 RPM±10%
Fan Airflow	69.34 CFM
Fan Air Pressure	2.42 mmAq
Fan Noise	≤30 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.17 A
Fan Power Consumption	2.04 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.25 W（PUMP）
EAN	6933412726418
P/N	DP-GS-H12-CSL240-PRO

Product Dimension
