GAMMAXX L360 V2

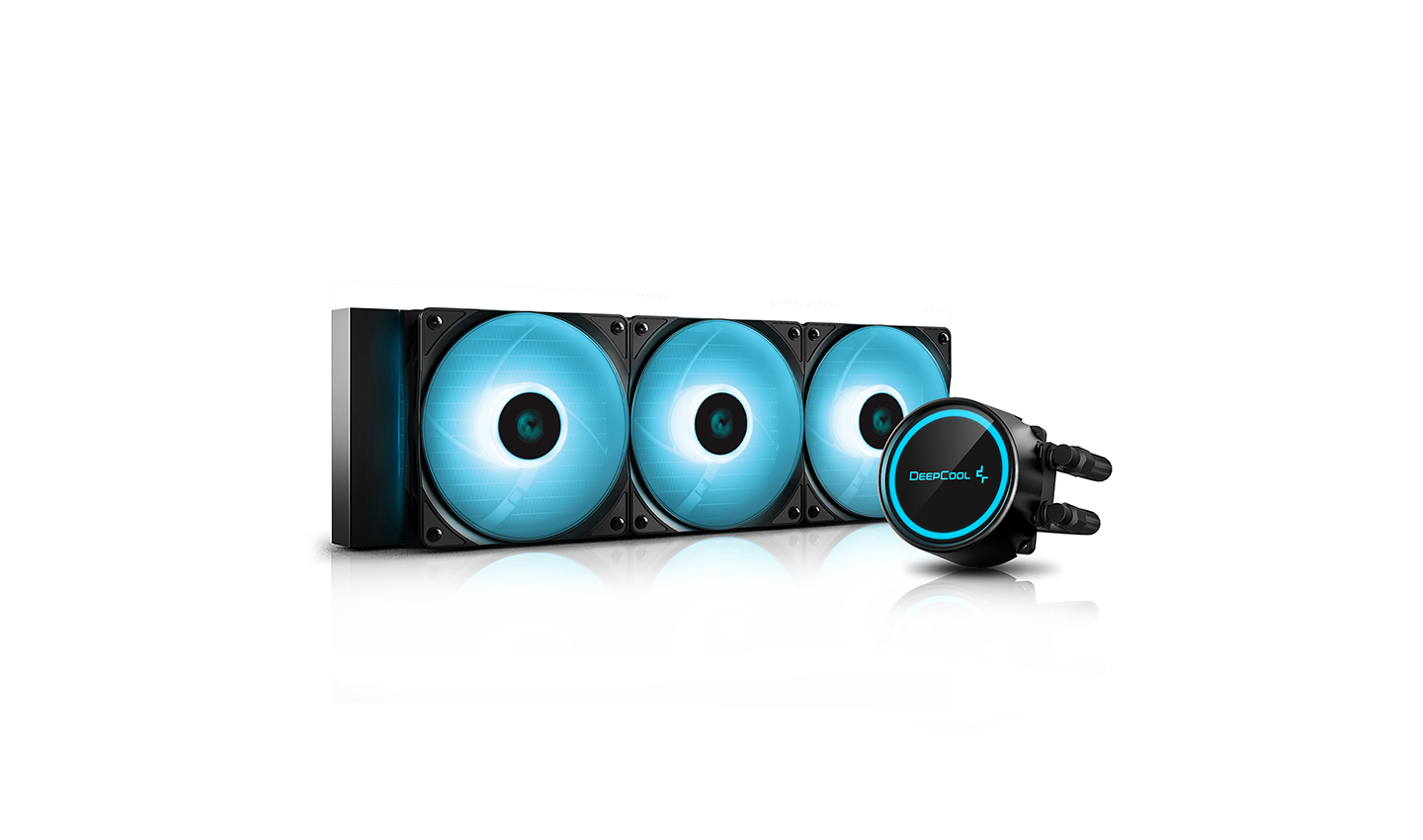

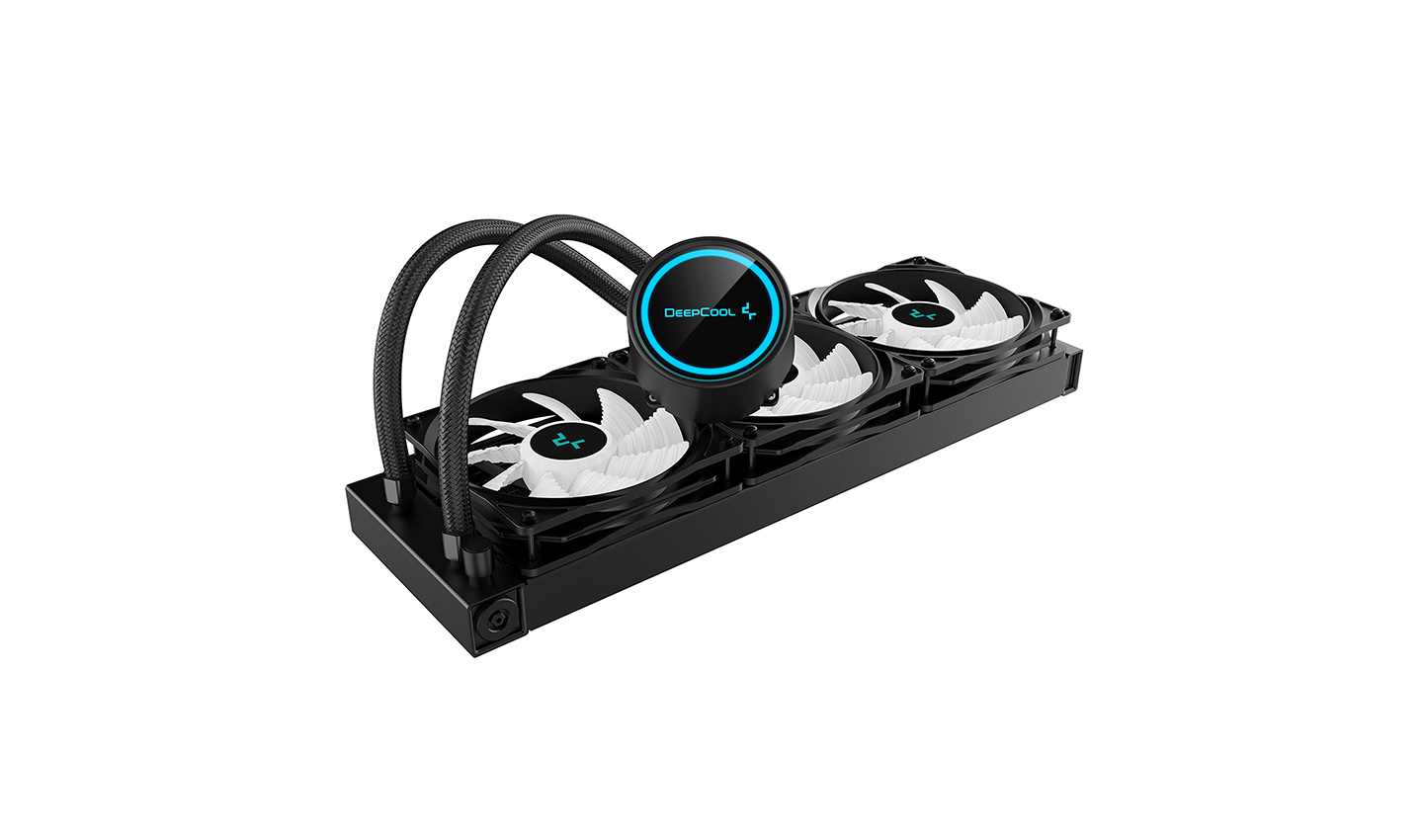

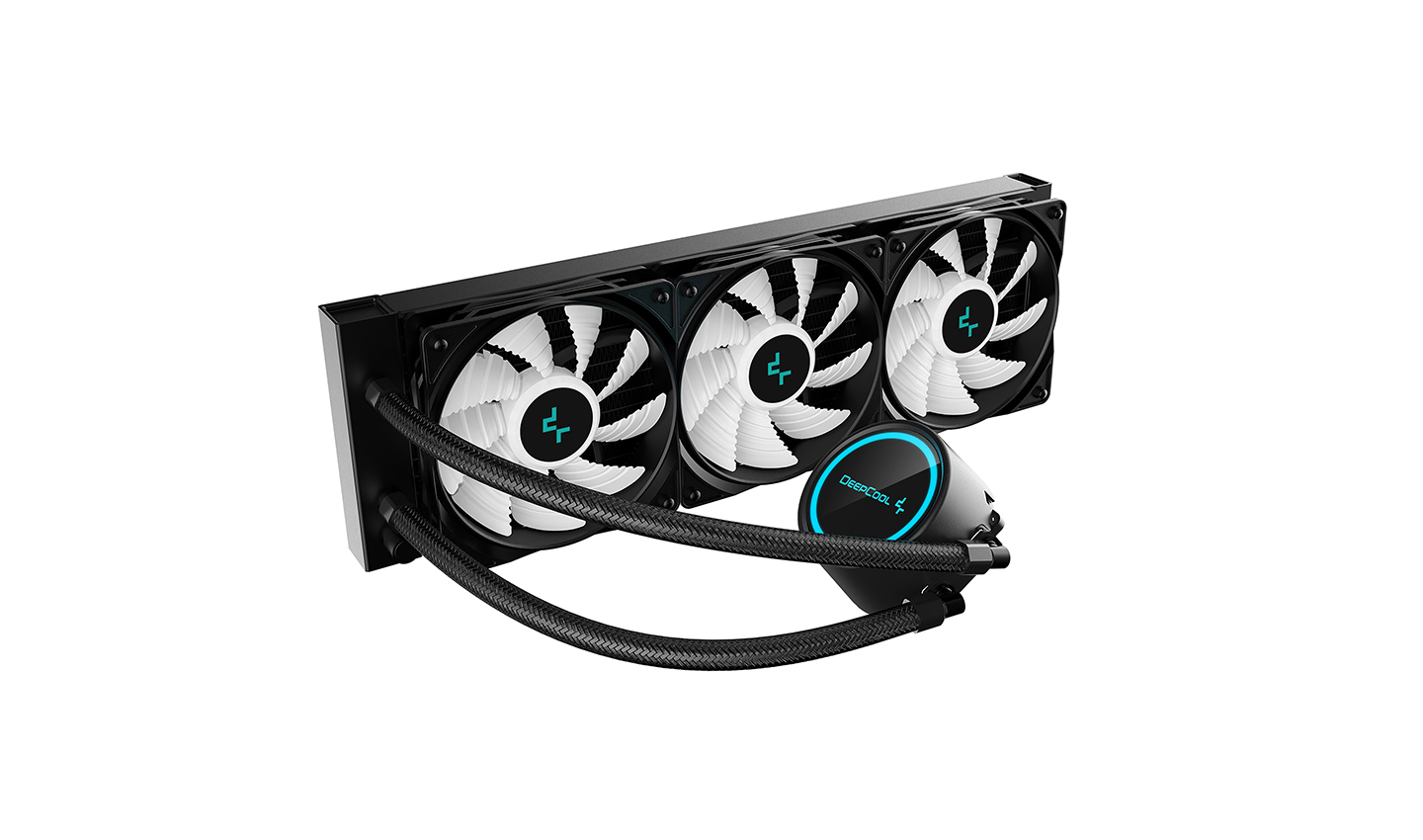

GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L360 V2 upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
COLOR
black
MODEL
GAMMAXX L360 V2
Reliable & Viable

GAMMAXX L360 V2
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L360 V2 upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Learn more about Anti-leak Tech Inside
Optimized Micro Water-channel
>E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
Mode +
Speed（Hold for 3 seconds to switch on/off）
Mode -
RGB System Control
The brand new water block and fans built-in 12V RGB lighting system fulfill your aesthetic desires and supports synchronized lighting control by mainstream motherboards or included controller.
Support Mainstream Intel & AMD Socket

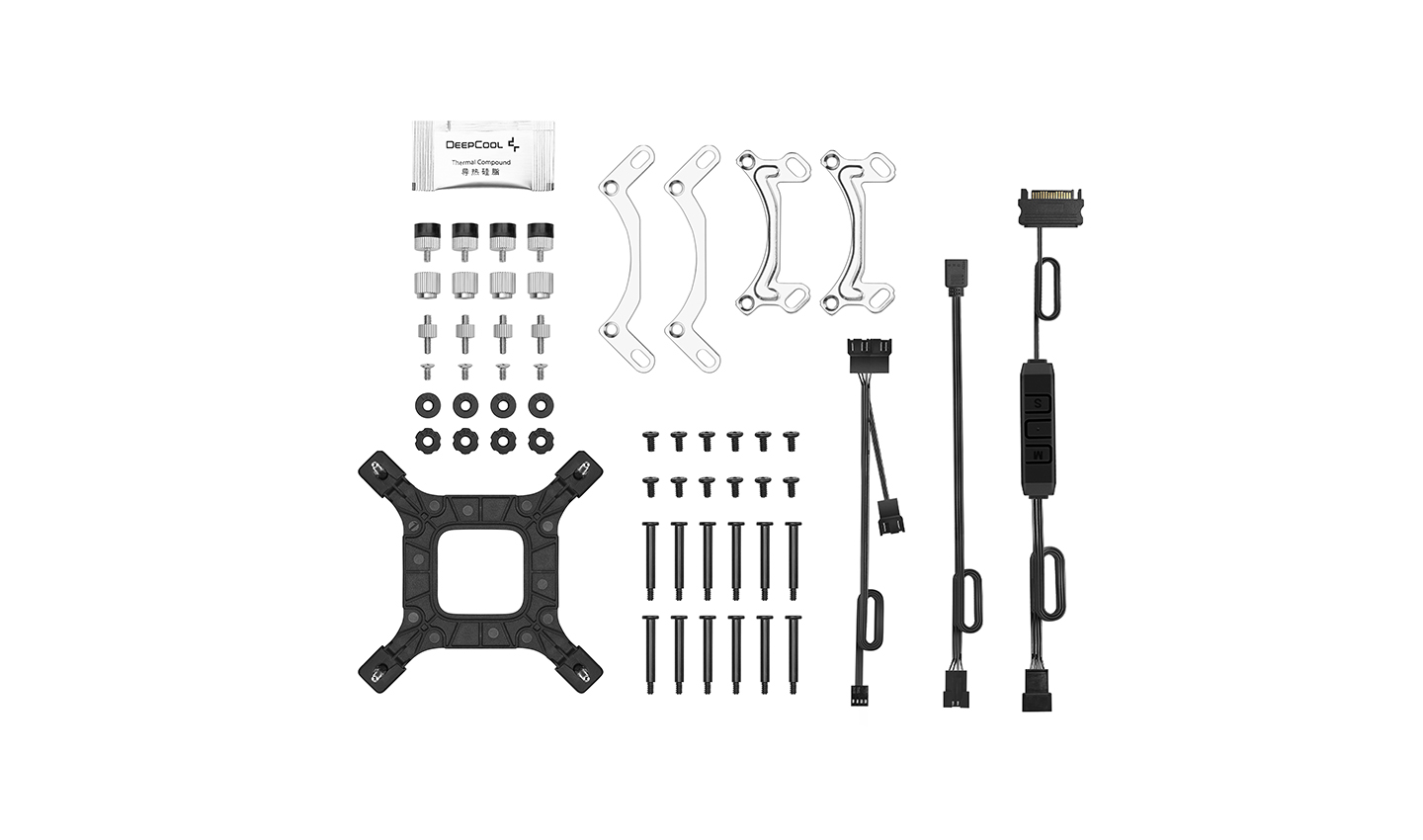

Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.

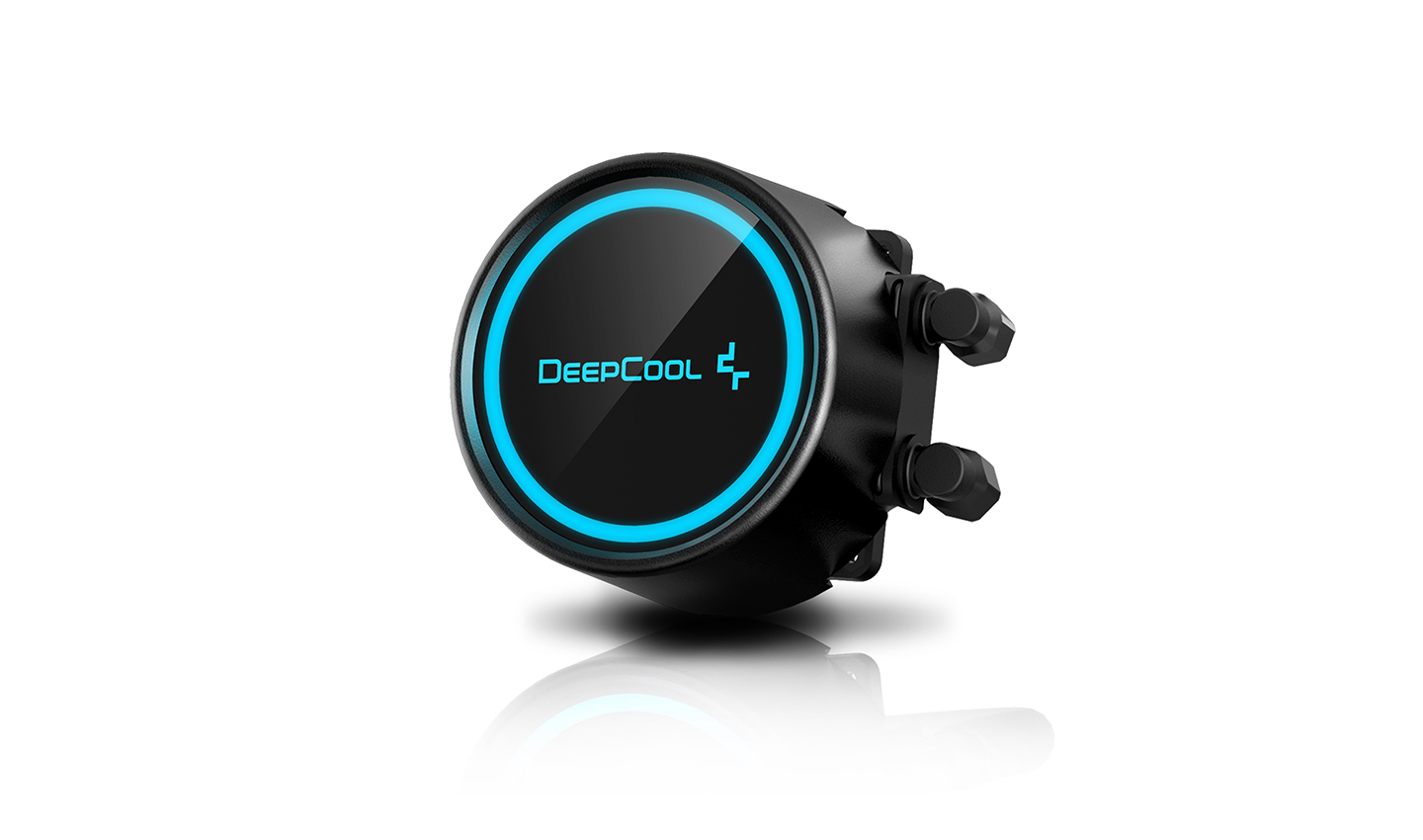

1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: Closed impellers are designed to enhance liquid pressure.
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: Closed impellers are designed to enhance liquid pressure.
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPU of any size.
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPU of any size.

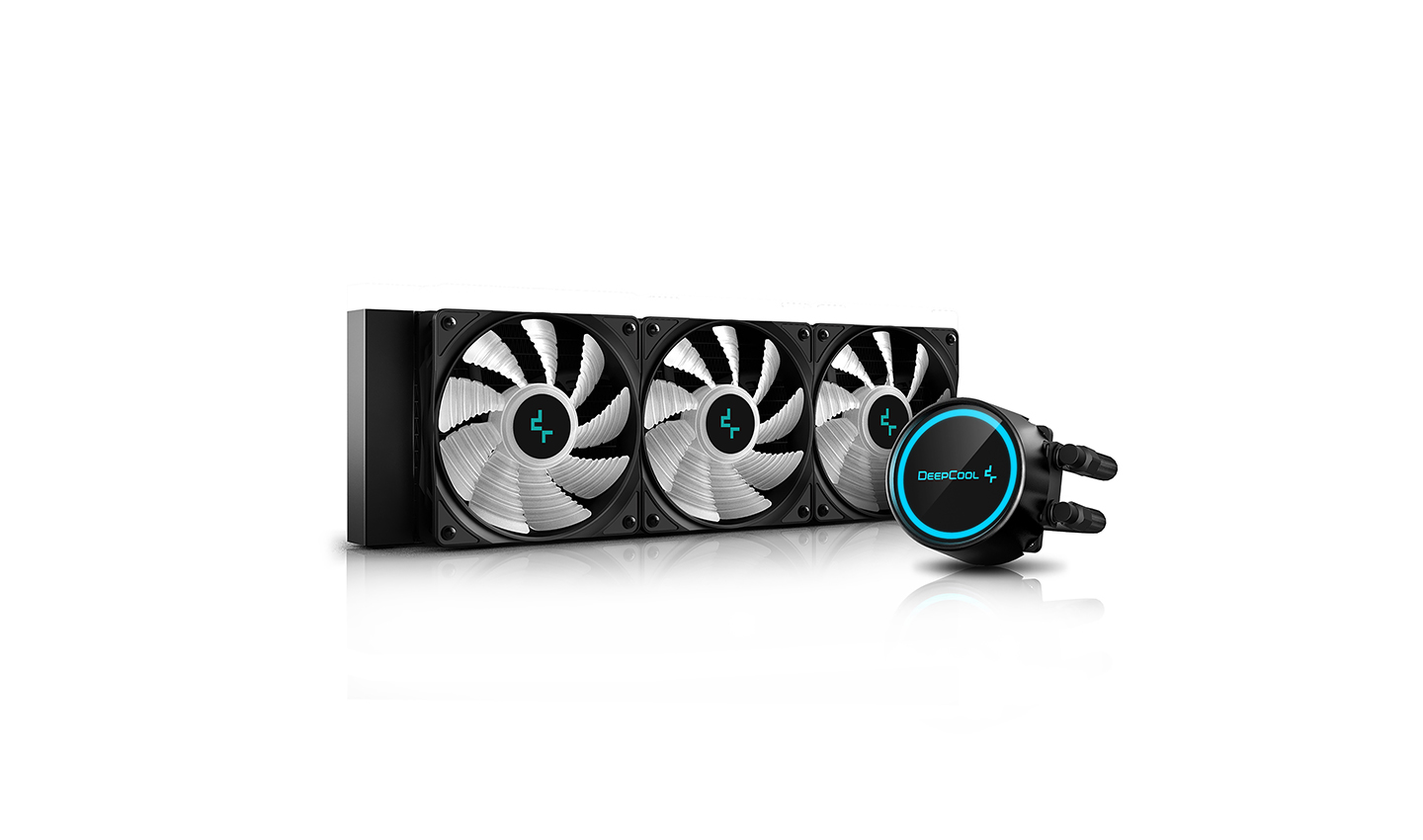

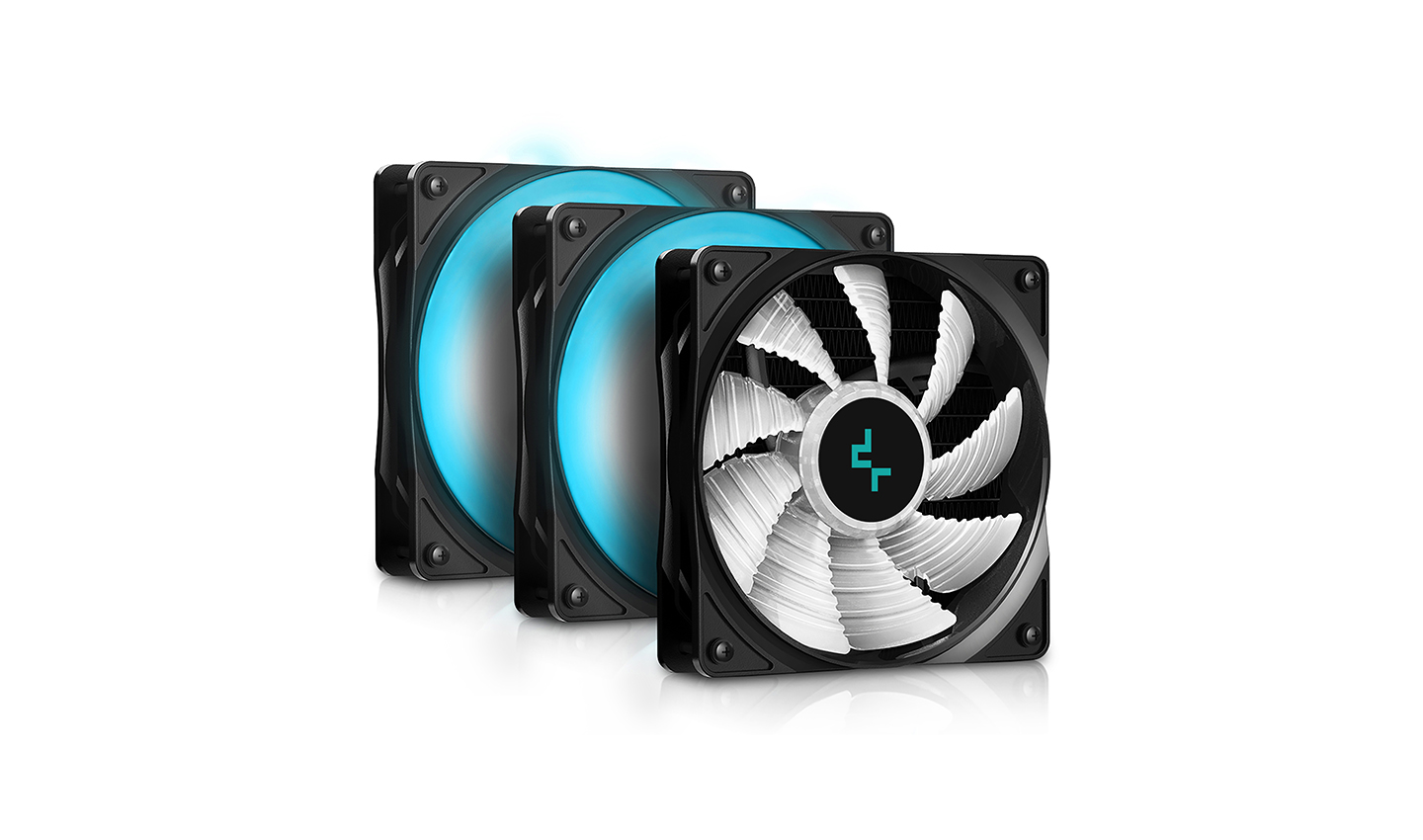

The 3 included 120mm RGB fans come with 6 ultra-bright RGB LED lights, 3 in-built RGB effects (constant light, breathing and meteor) and PWM control with super silent performance.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1696 g

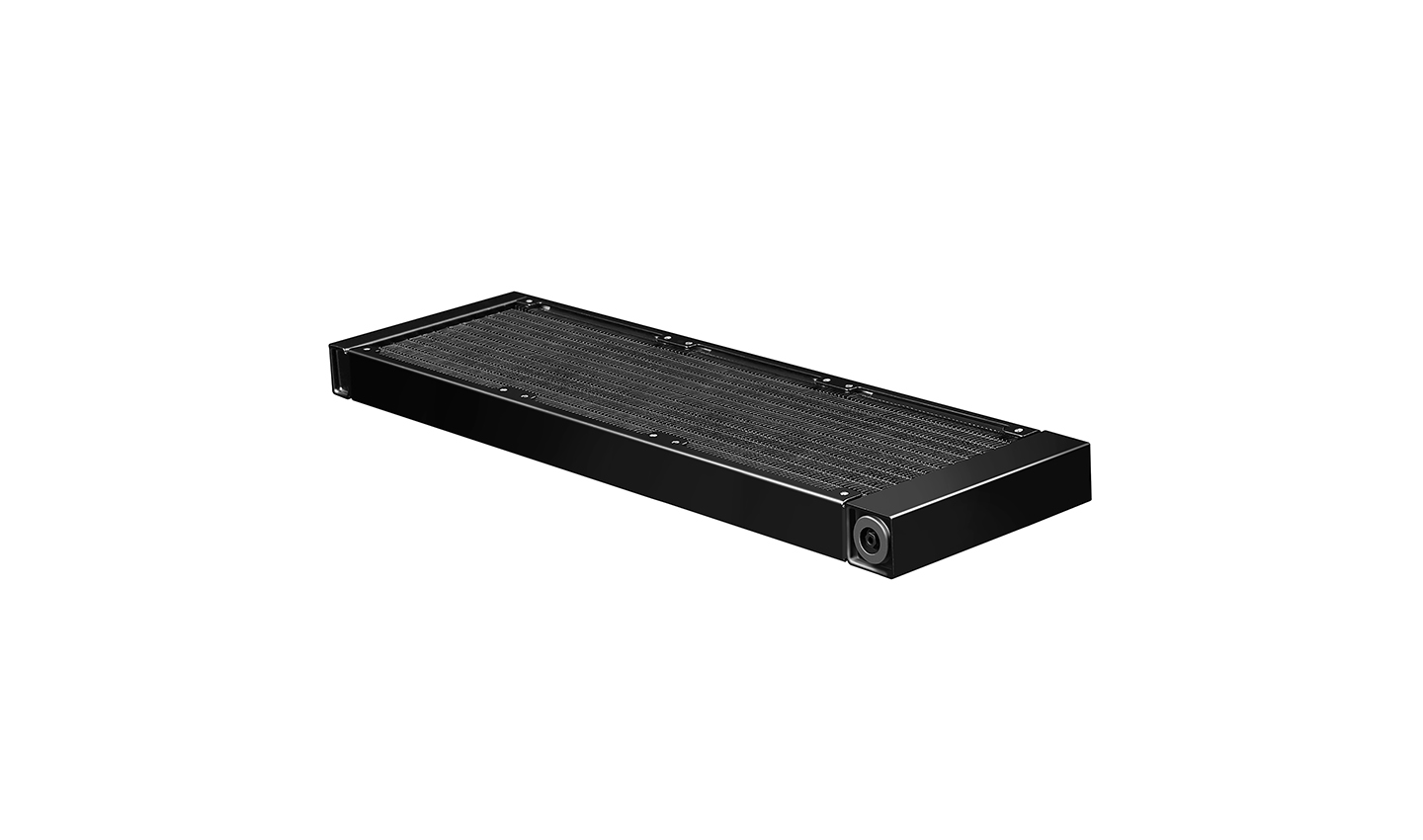

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube Length465 mm(L×W×H)
Pump Dimensions91×79×47 mm(L×W×H)
Pump Speed2550 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.21 A
Pump Power Consumption2.52 W
Fan Dimension120×120×25 mm(L×W×H)
Fan Speed500-1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17 A
Fan Power Consumption2.04 W
LED TypeRGB LED
LED Connector4-pin(+12V-G-R-B)
LED Rated Voltage12 VDC
LED Power Consumption0.84 W（PUMP）/ 4.32 W（FAN×3）
EAN6933412726777
P/NDP-H12RF-GL360V2C
Product Dimension
Download
GAMMAXX L360 V2 Manual.pdf
