GAMMAXX L120 V2
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L120 V2 upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
COLOR
black
MODEL
GAMMAXX L120 V2
Reliable & Viable

GAMMAXX L120 V2
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L120 V2 upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Learn more about Anti-leak Tech Inside
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
Motherboard RGB Control
The brand new water block and fan built-in 12V RGB lighting system fulfill your aesthetic desires and supports mainstream motherboards with synchronized lighting control.
Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.
1 Motor : High efficient induction motors deliver stronger liquid flow and pressure.
2 Impeller : Closed impellers are designed to enhance liquid pressure.
1 Motor : High efficient induction motors deliver stronger liquid flow and pressure.
2 Impeller : Closed impellers are designed to enhance liquid pressure.
3 Axle : The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4 Copper Base : An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
3 Axle : The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4 Copper Base : An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.

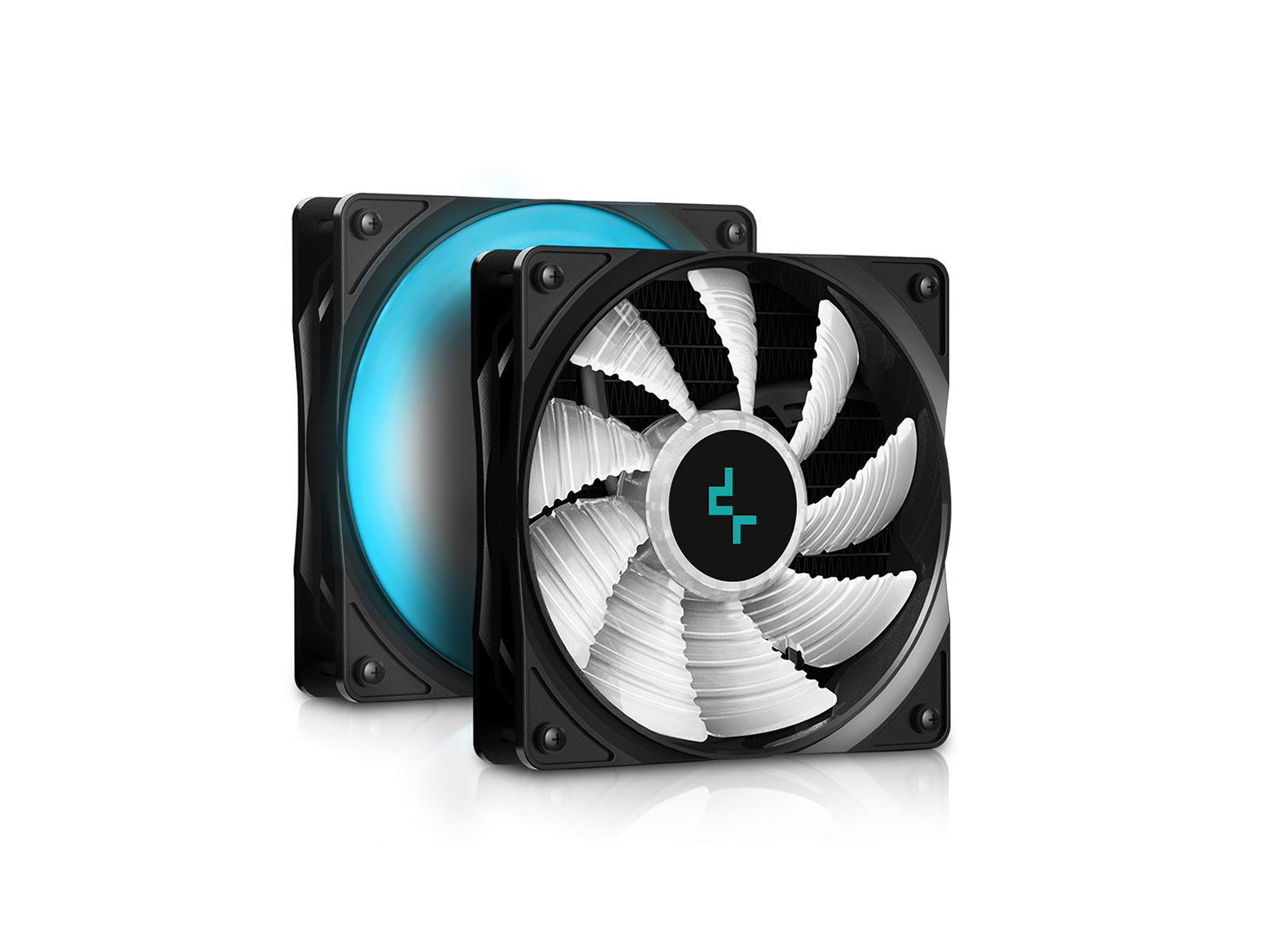

The included 120mm RGB fan comes with 6 ultra-bright RGB LED lights and PWM control with super silent performance.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight 990 g
Radiator Dimensions159×120×27 mm(L×W×H)
Radiator Material Aluminum
Tube Length 310 mm
Pump Dimensions91×79×47 mm(L×W×H)
Pump Speed 2400 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimension120×120×25 mm(L×W×H)
Fan Speed 500-1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
LED Type RGB LED
LED Connector 4-pin(+12V-G-R-B)
LED Rated Voltage 12 VDC
LED Power Consumption 0.84 W（PUMP）/ 1.44 W（FAN）
EAN 6933412726647
P/N DP-H12RF-GL120V2
Product Dimension
Download
GAMMAXX L120 V2 Manual.pdf
