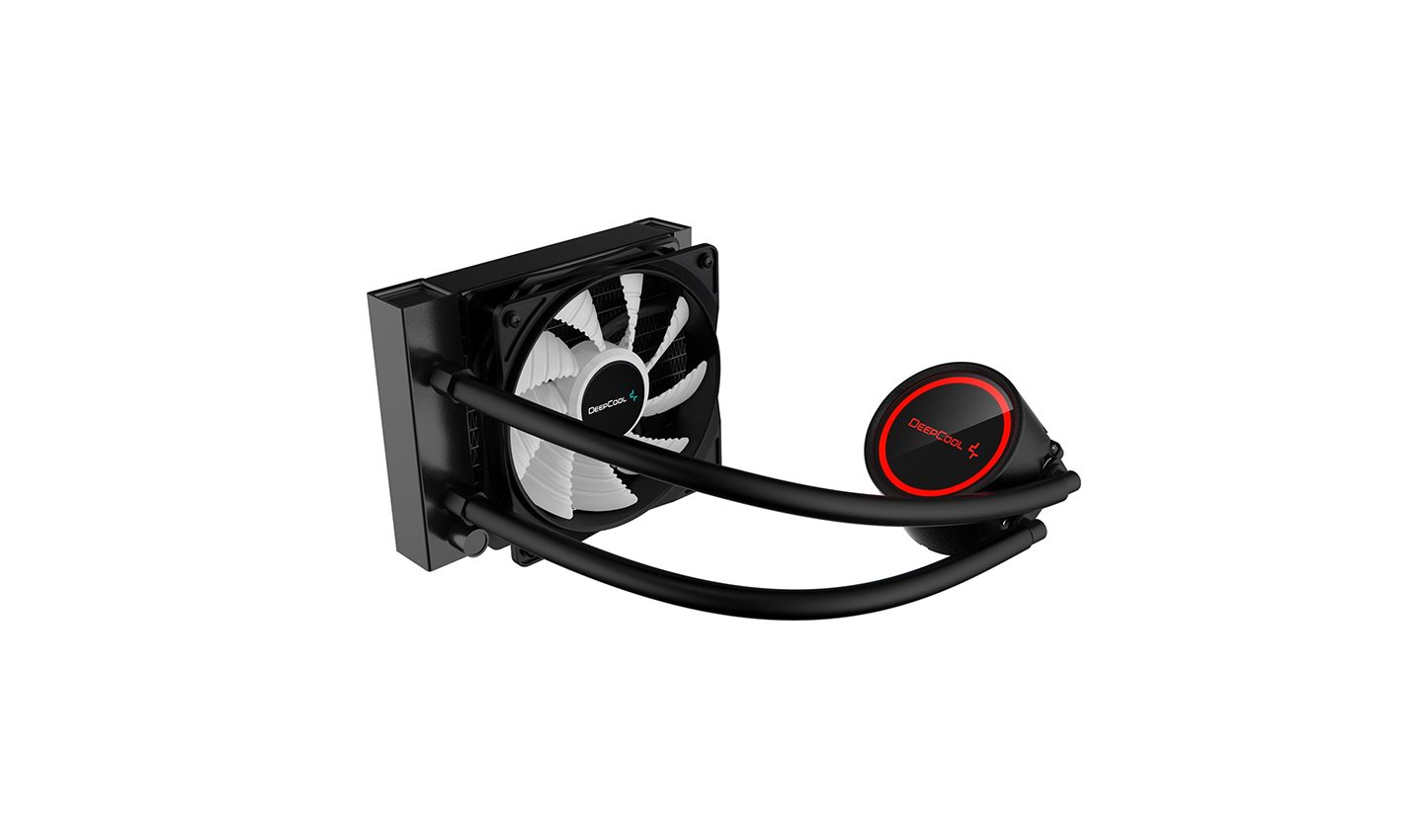

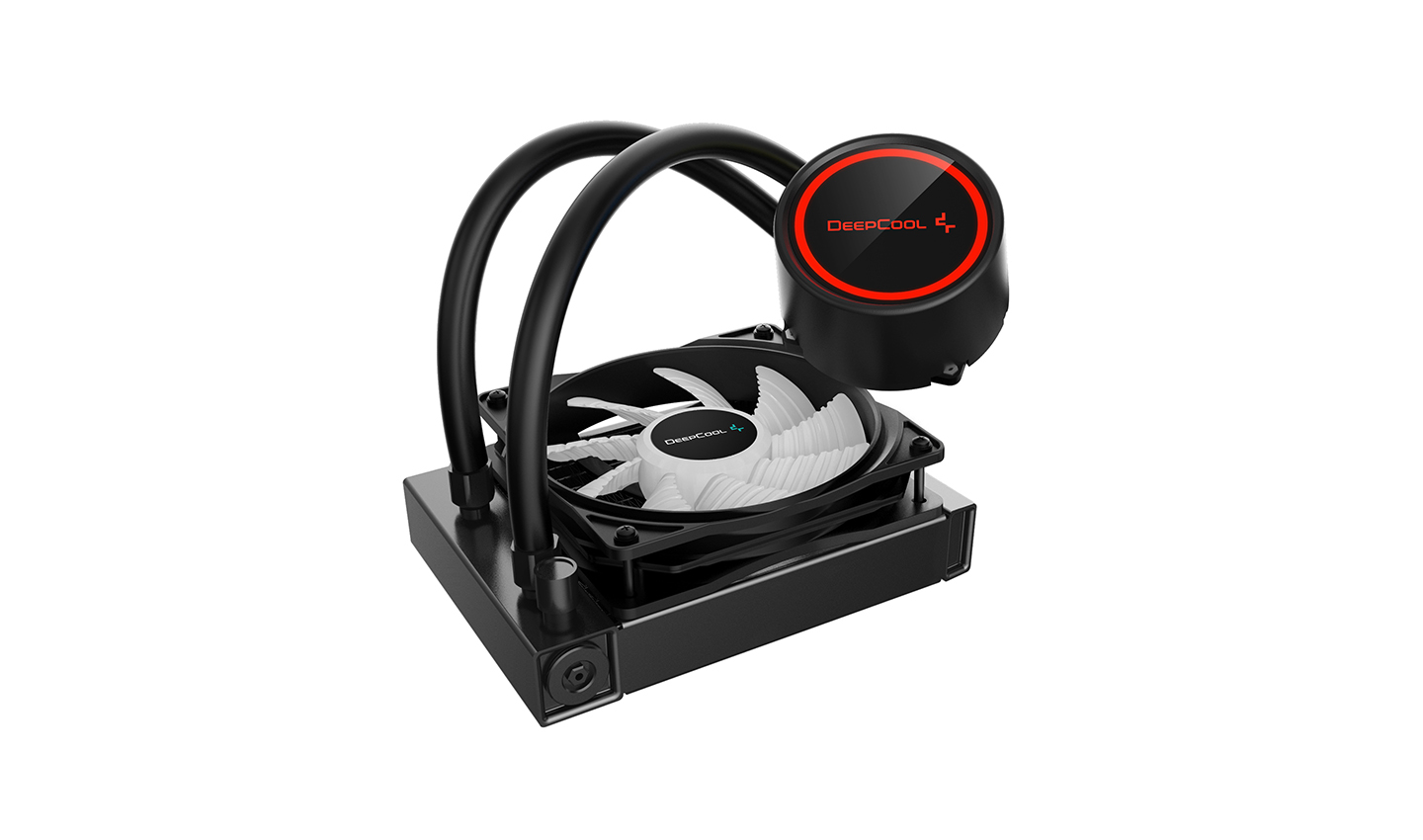

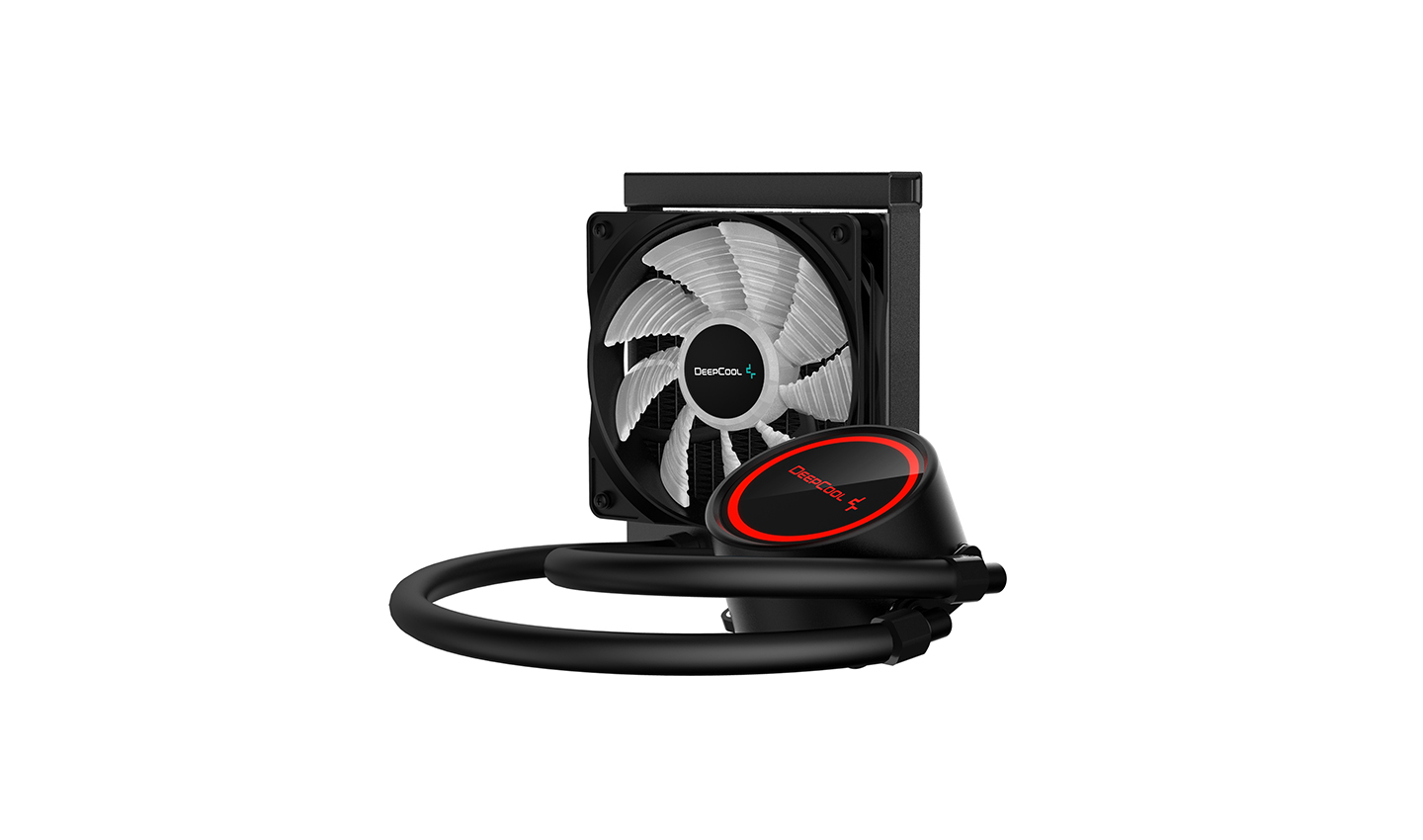

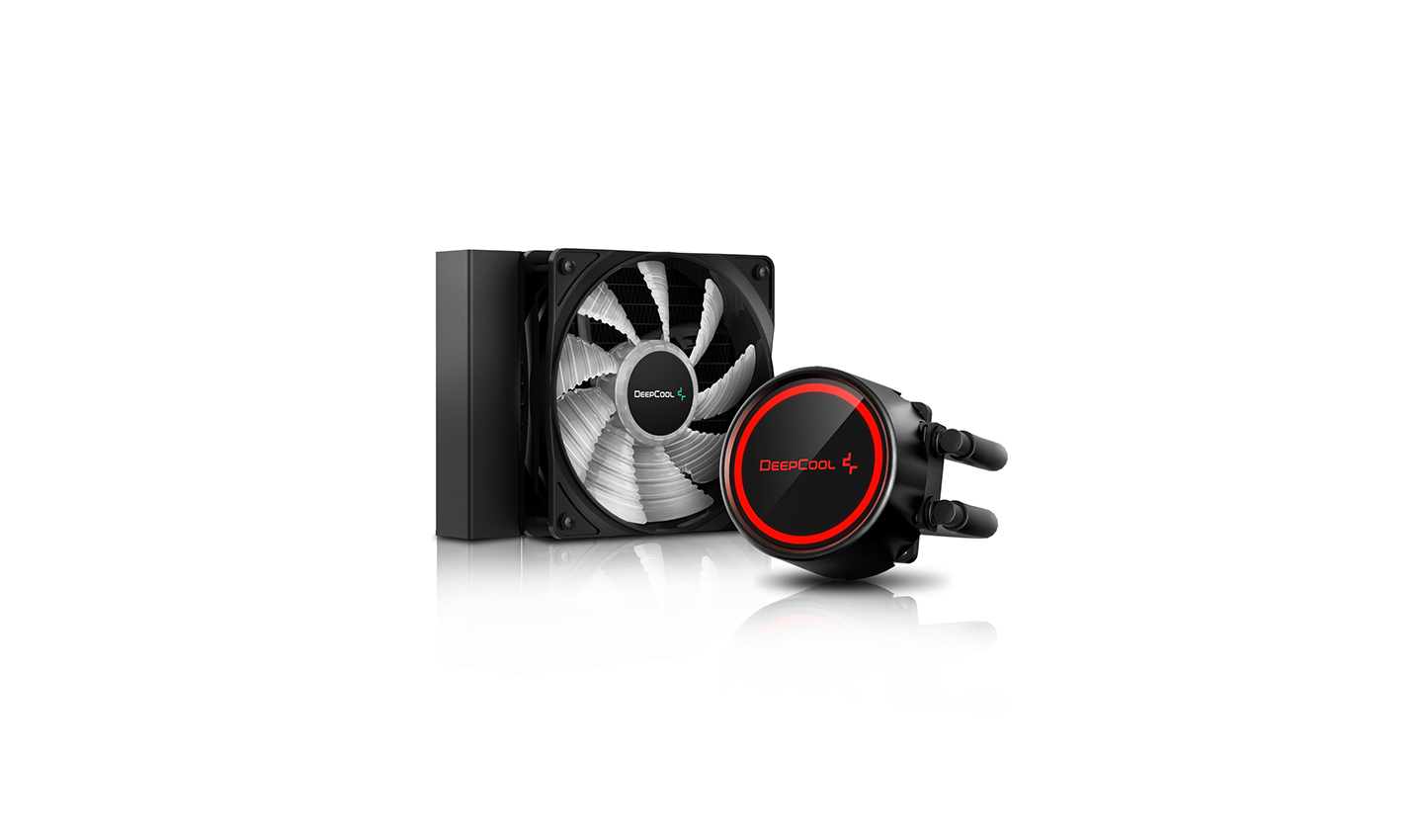

GAMMAXX L120T RED
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency. The GAMMAXX L120T RED upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
COLOR
red
MODEL
GAMMAXX L120T RED
Reliable & Viable
GAMMAXX L120T RED
GAMMAXX L series AIO coolers are known for their powerful performance, neat appearance, and tempting cost efficiency.
The GAMMAXX L120T RED upgraded its reliability with “Anti-leak Tech Inside” system, so users can enjoy extreme processor performance without any leakage concerns.
About Anti-leak Tech Inside
After 3 years of R&D, DeepCool launched the new standard of liquid cooling system - The Anti-leak Tech.
The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Learn more about Anti-leak Tech Inside
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.

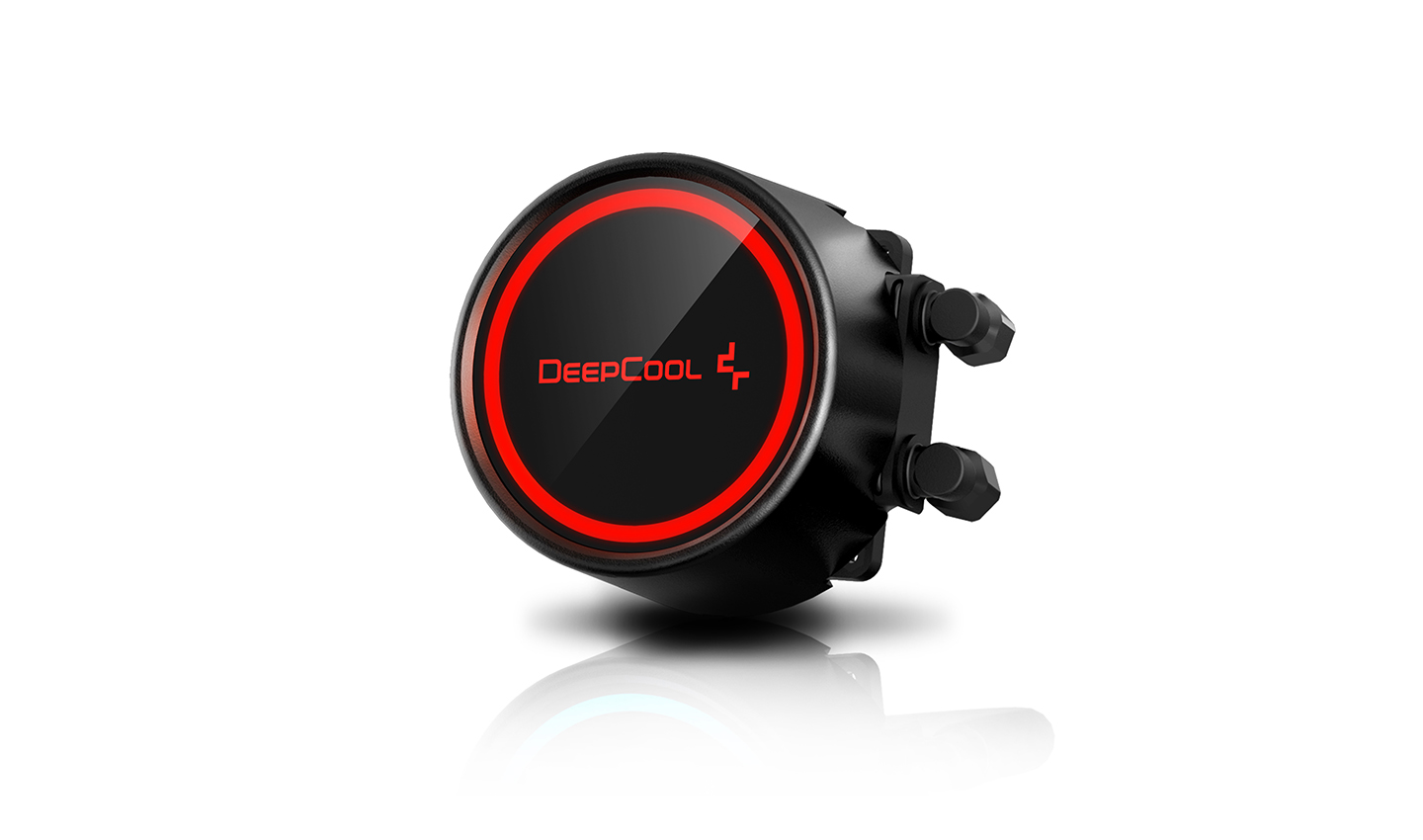

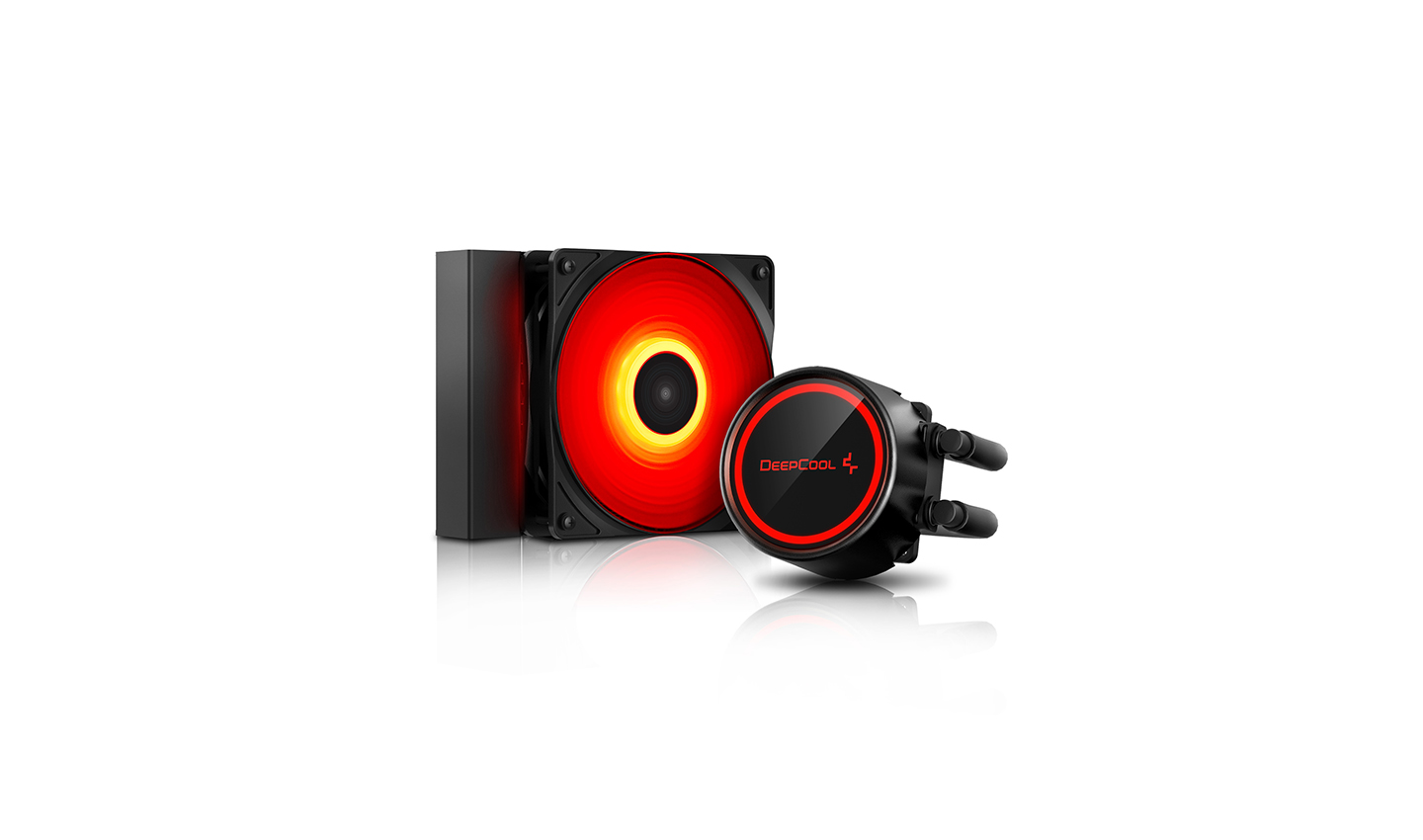

Red LED Lighting
The brand new water block and fans are illuminated by static red LEDs that powered by a 4pin PWM header.
Support Mainstream Intel & AMD Socket

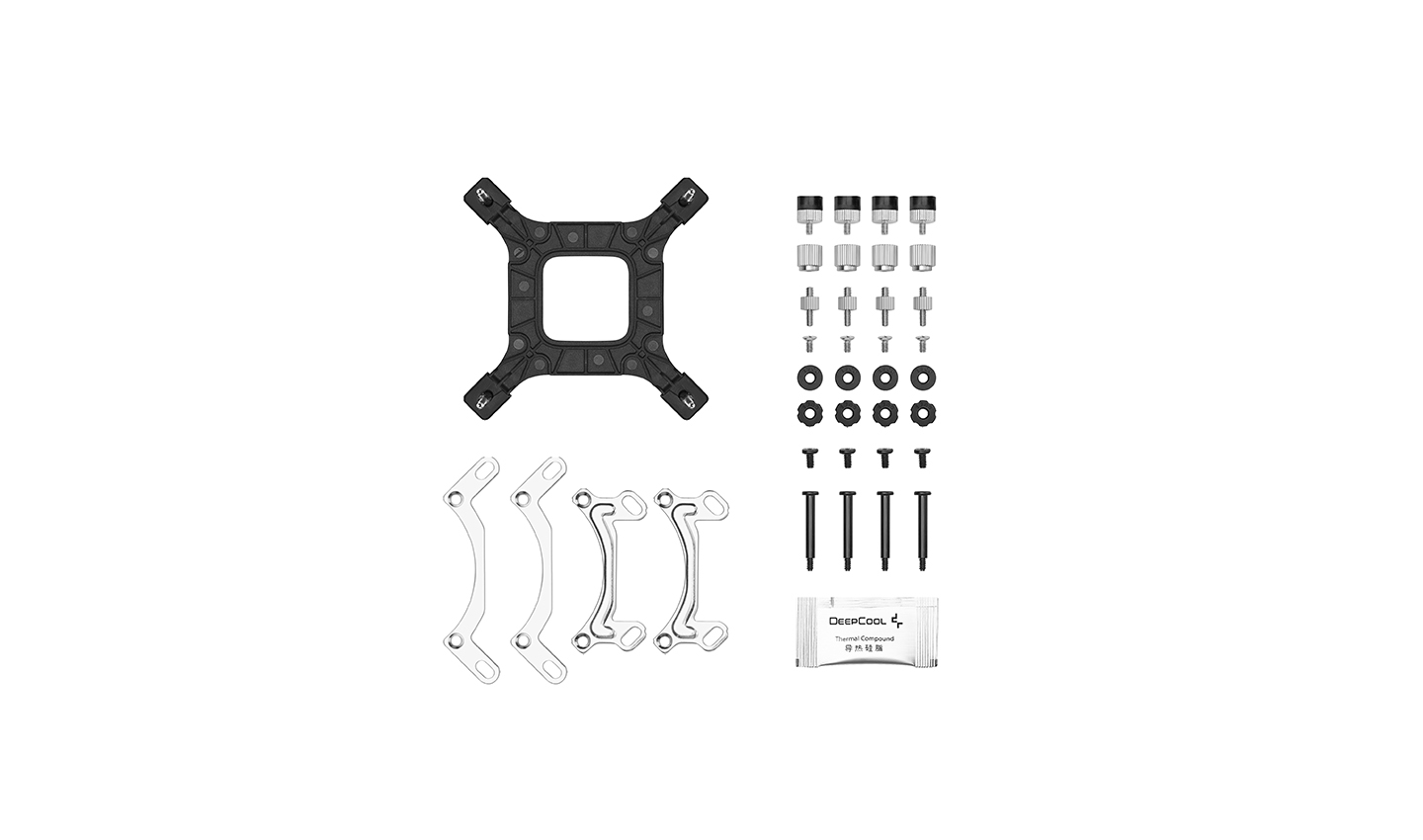

Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: Closed impellers are designed to enhance liquid pressure.
1Motor: High efficient induction motors deliver stronger liquid flow and pressure.
2Impeller: Closed impellers are designed to enhance liquid pressure.
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
3Axle: The ceramic axle bearings and axle cores guarantee an ultra-long service life.
4Copper Base: An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.

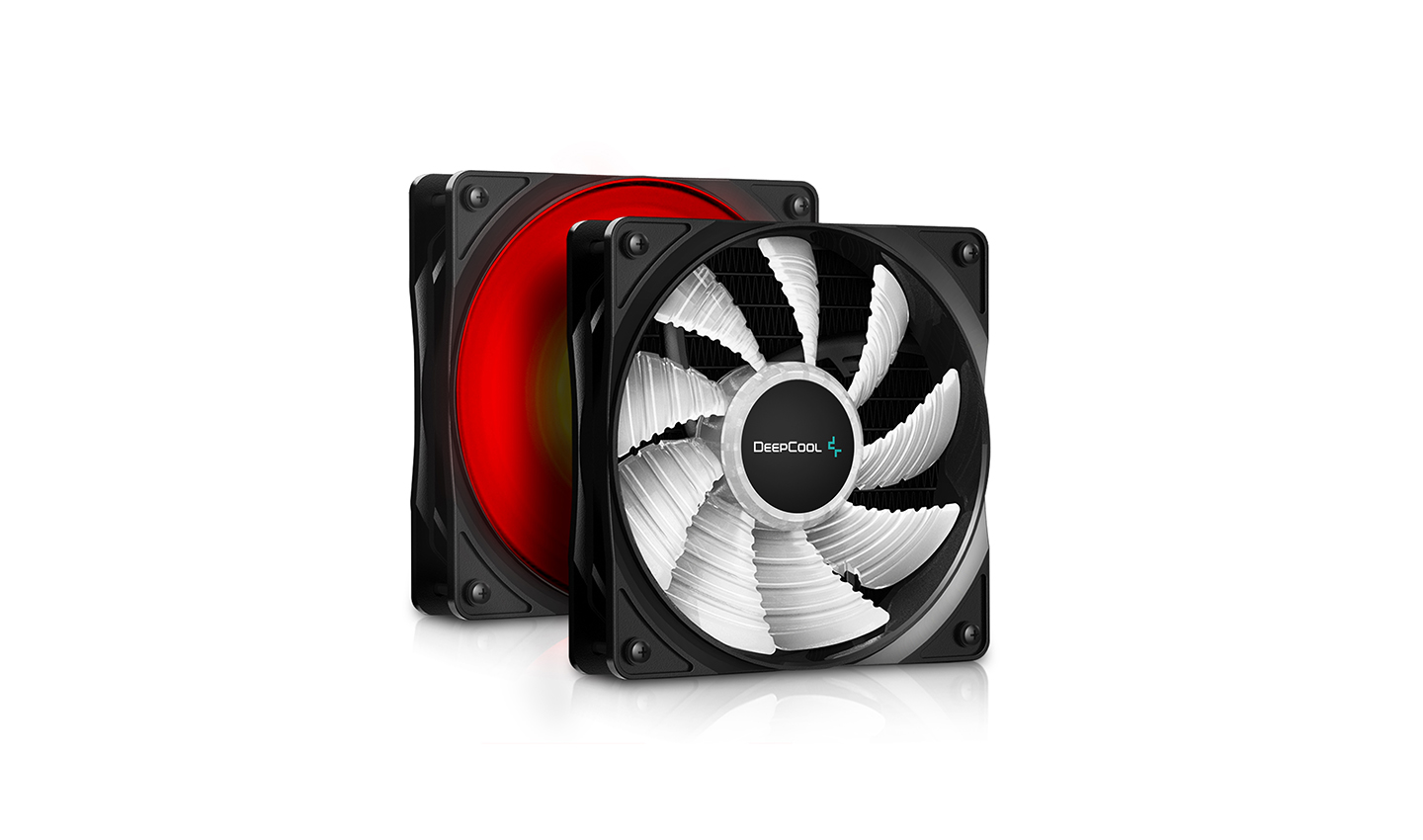

One 120mm PWM fans with powerful performance and low noise level are included.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM4
Technical Spec
Net Weight945 g
Radiator Dimensions159×120×27 mm(L×W×H)

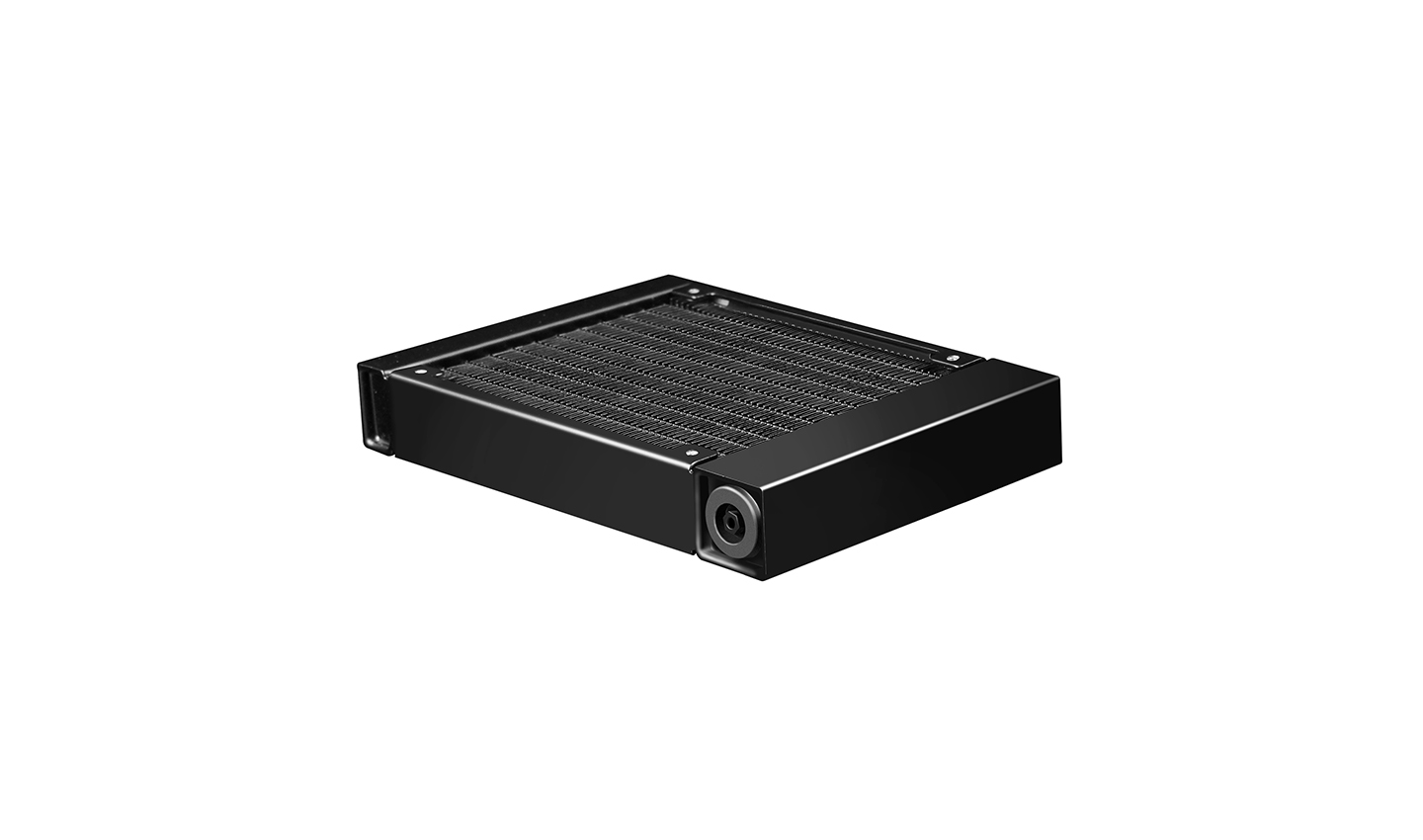

Radiator MaterialAluminum
Tube Length315 mm(L×W×H)
Pump Dimensions91×79×47 mm(L×W×H)
Pump Speed2400 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.21 A
Pump Power Consumption2.52 W
Fan Dimension120×120×25 mm(L×W×H)
Fan Speed500-1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64 W
LED TypeRED LED
EAN6933412726715
P/NDP-H12RF-GL120TR
Product Dimension
Download
GAMMAXX L120T RED Manual.pdf
