CASTLE 240EX A-RGB

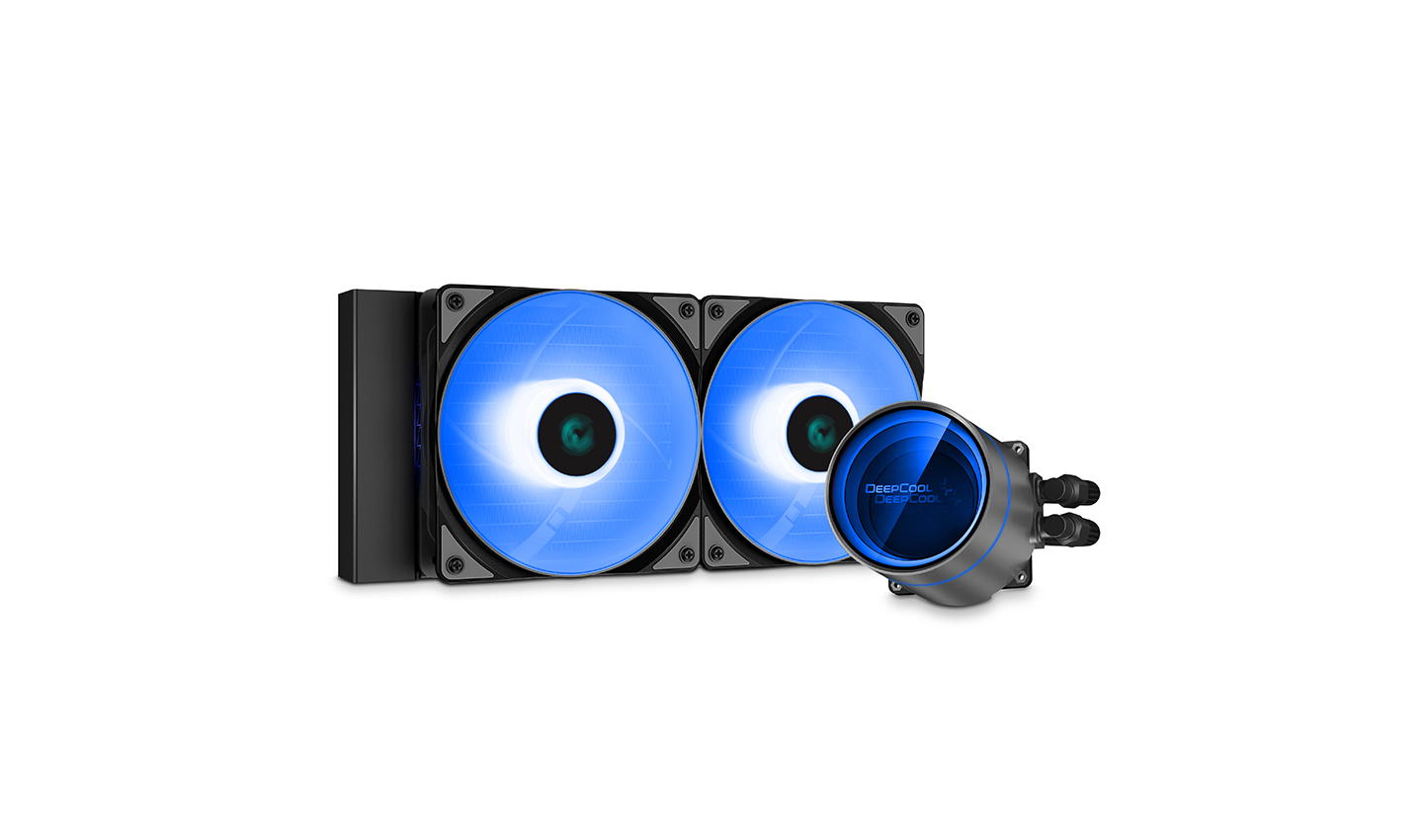

The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.
COLOR
black
MODEL
CASTLE 240EX A-RGB
Show Your True Colors
The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.
Better by design
―

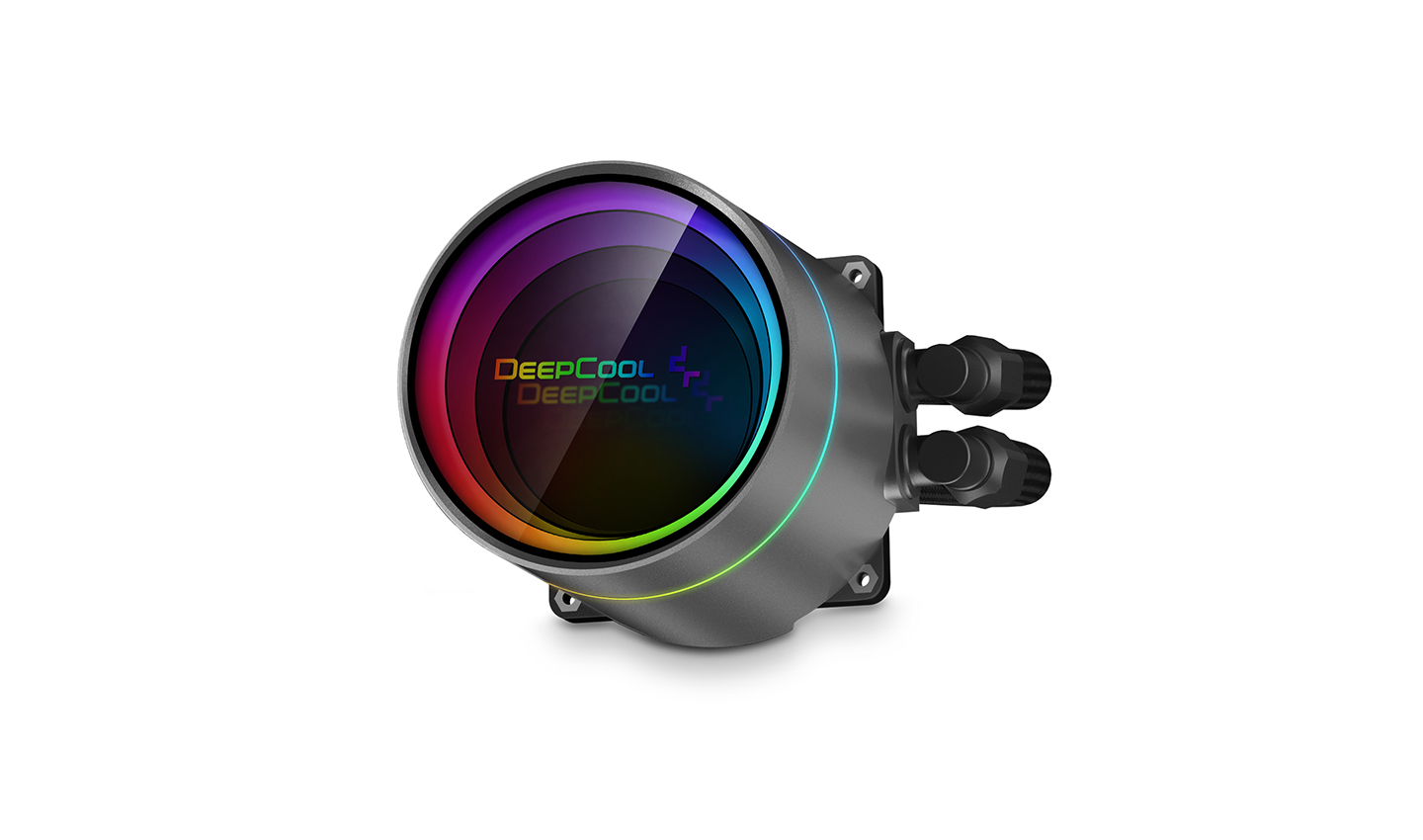

The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-
Shine on
―

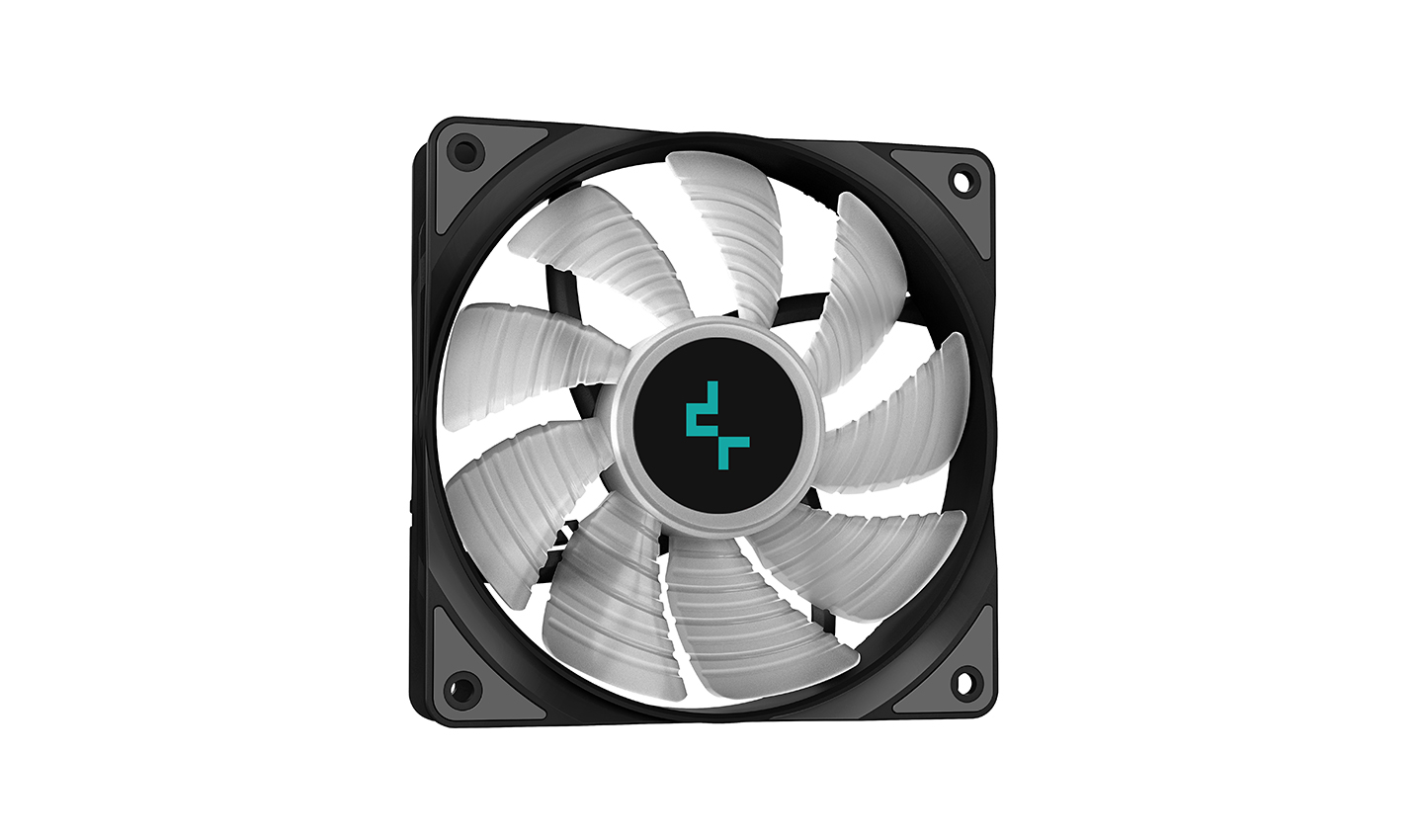

Two DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.
*Sync lighting with 5V A-RGB motherboard compatibility or the included controller.
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-
Shine on
―
Two DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.
*Sync lighting with 5V A-RGB motherboard compatibility or the included controller.
Efficient cooling
―
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
Efficient cooling
―
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
Powerful and quiet
―
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
More surface area

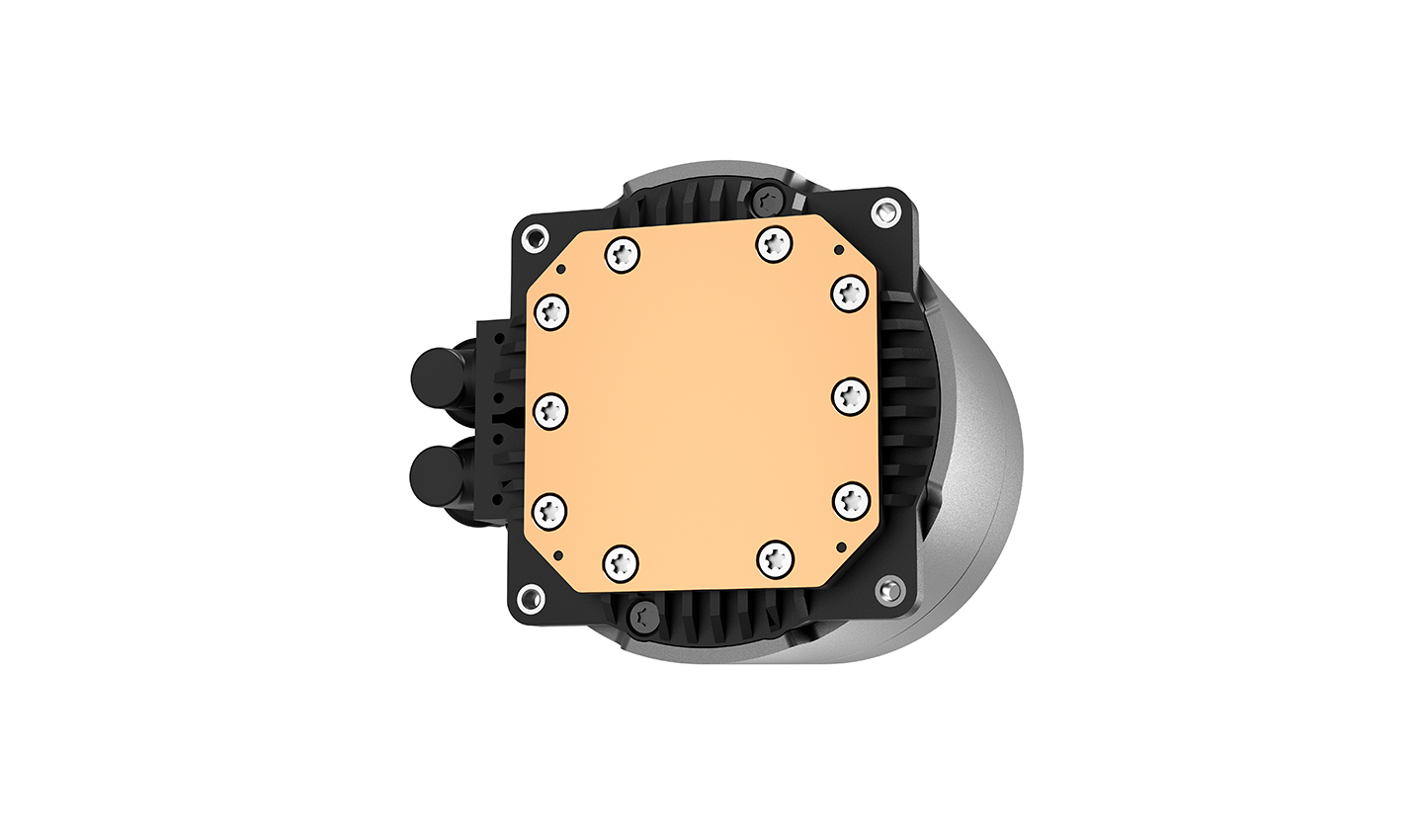

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
More surface area
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
Protect what’s yours
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.
This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.
Learn more about Anti-leak Tech Inside
Protect what’s yours
After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.
This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.
Learn more about Anti-leak Tech Inside
Customize your look
―
Easily change orientation by twisting off the pump face to adjust the logo.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Net Weight 1380 g

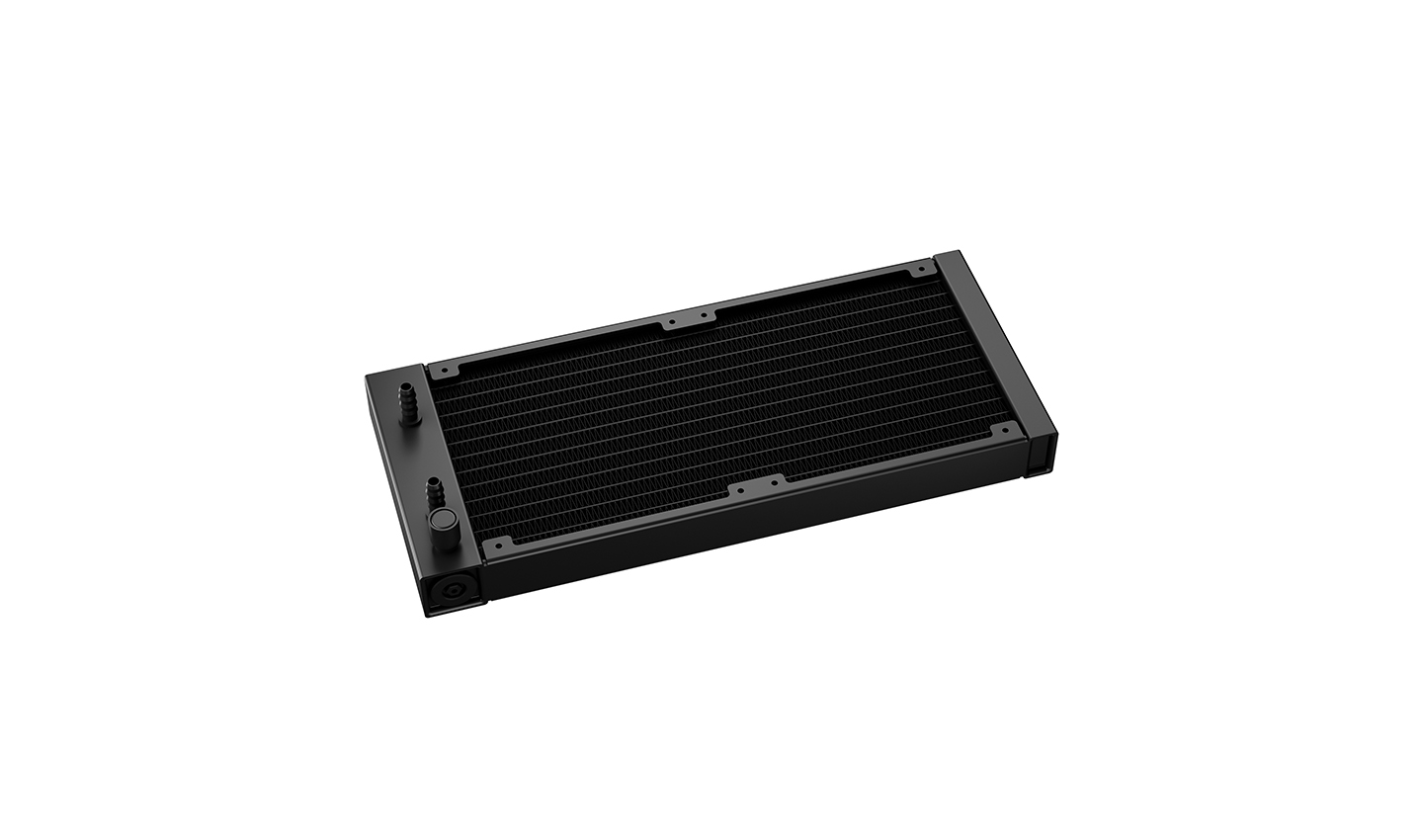

Radiator Dimensions282×120×27 mm(L×W×H)
Radiator Material Aluminum
Tube length 380 mm
Pump Dimensions86 ×75×71 mm(L×W×H)
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W（PUMP）/ 4.4 W（FAN×2）
EAN 6933412727262
P/N DP-GS-H12W-CSL240EX-AR
Product Dimension
Download
CASTLE 240EX A-RGB Manual.pdf
Download
