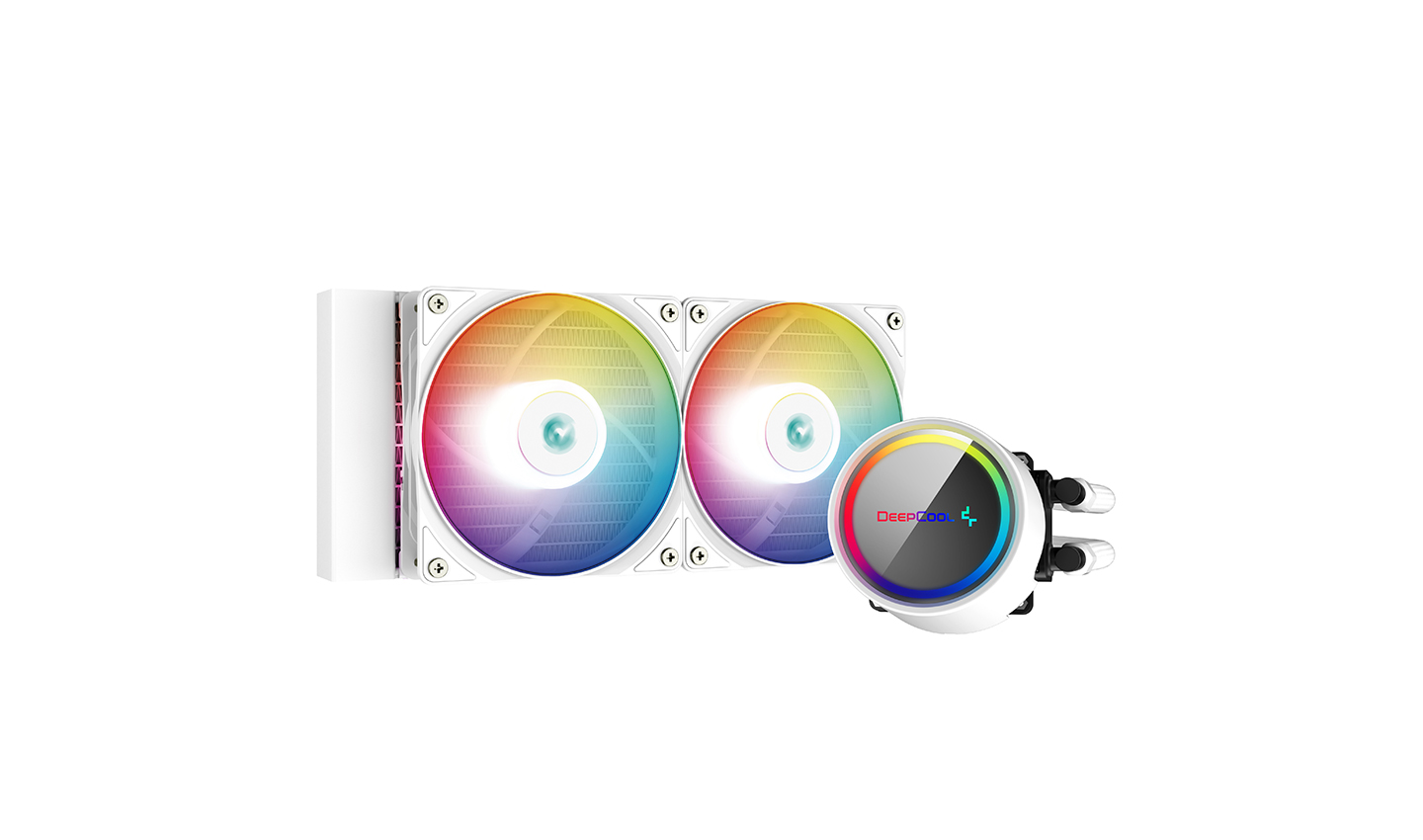

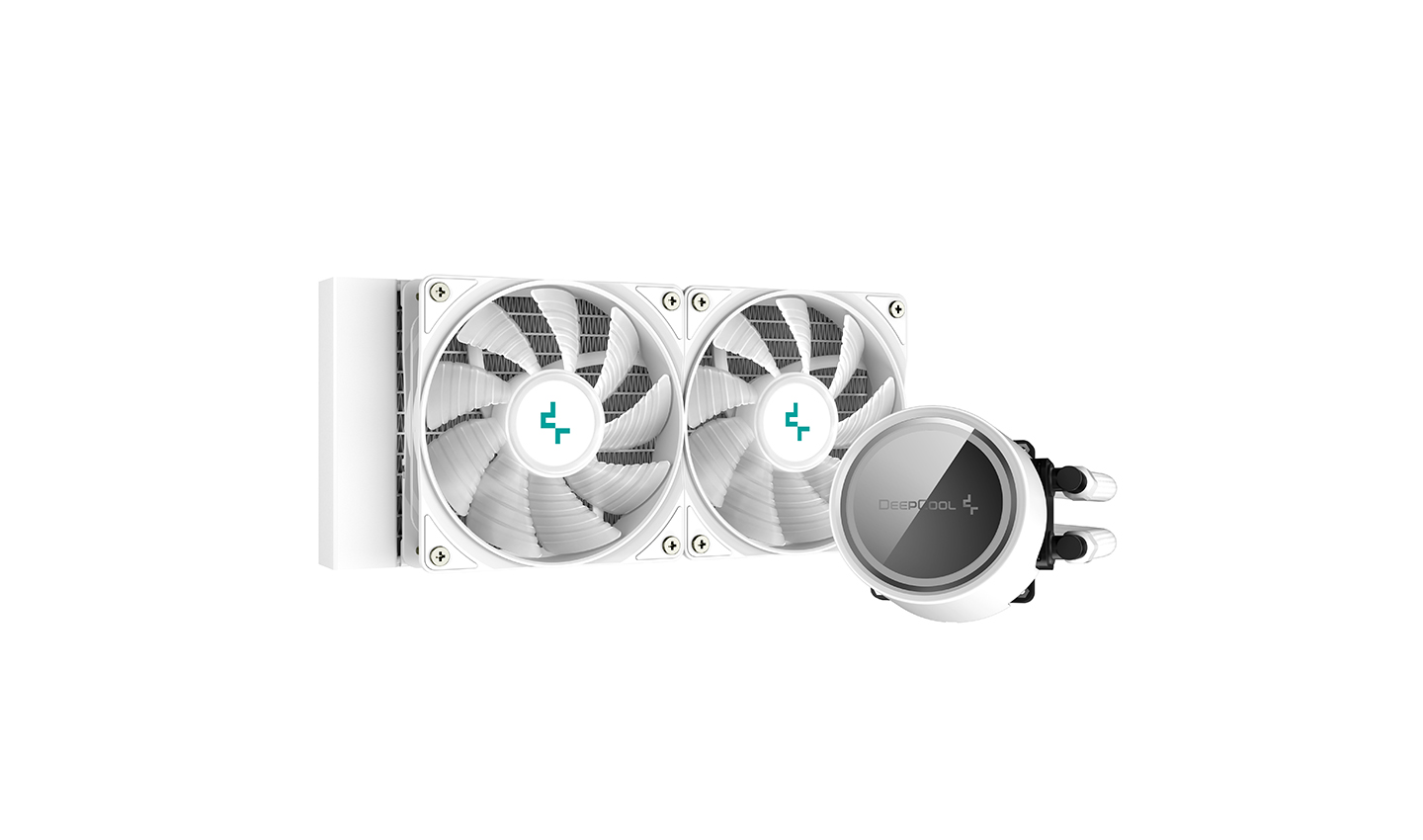

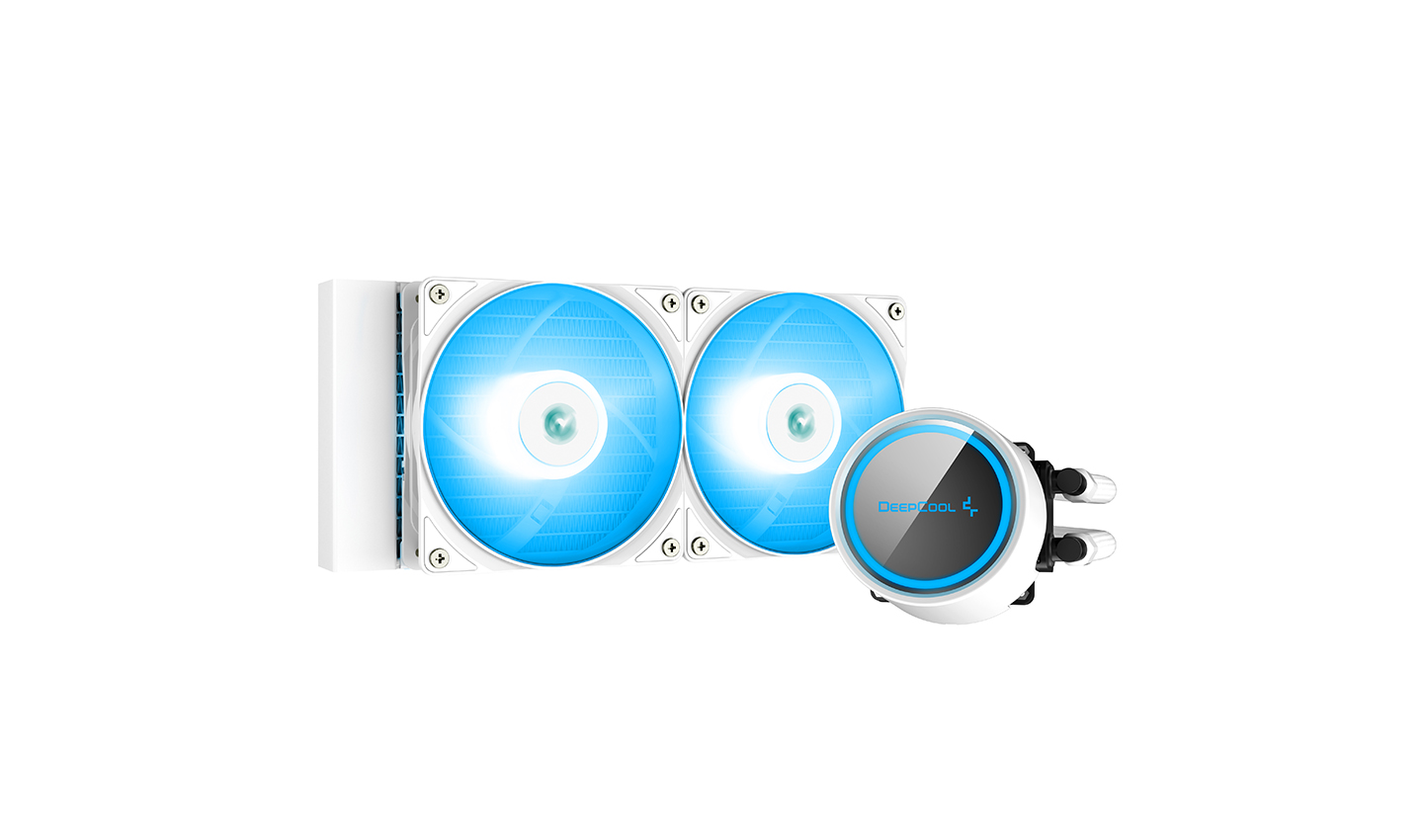

GAMMAXX L240 A-RGB WH
In keeping safety first, GAMMAXX L240 A-RGB WH is equipped with DeepCool’s new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage risk.
COLOR
white
MODEL
GAMMAXX L240 A-RGB WH
Fabulous Performance
Protect what’s yours
In keeping safety first, GAMMAXX L240 A-RGB WH is equipped with DeepCool’s new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage risk.
EFFICIENT COOLING

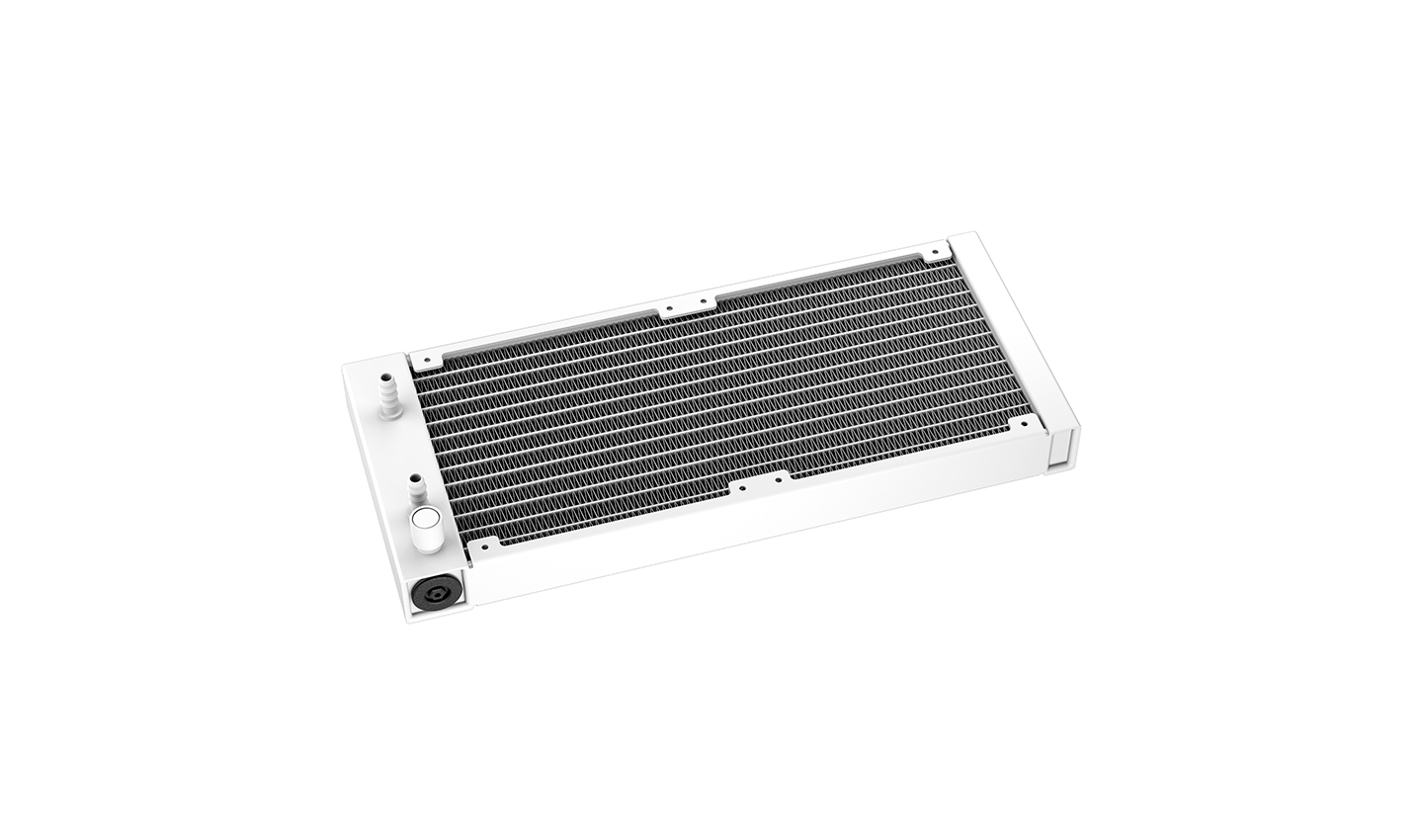

The E-shaped micro water channel design effectively enhances heat transfer efficiency and circulation throughout the radiator.
ULTRA COMPATIBILITY

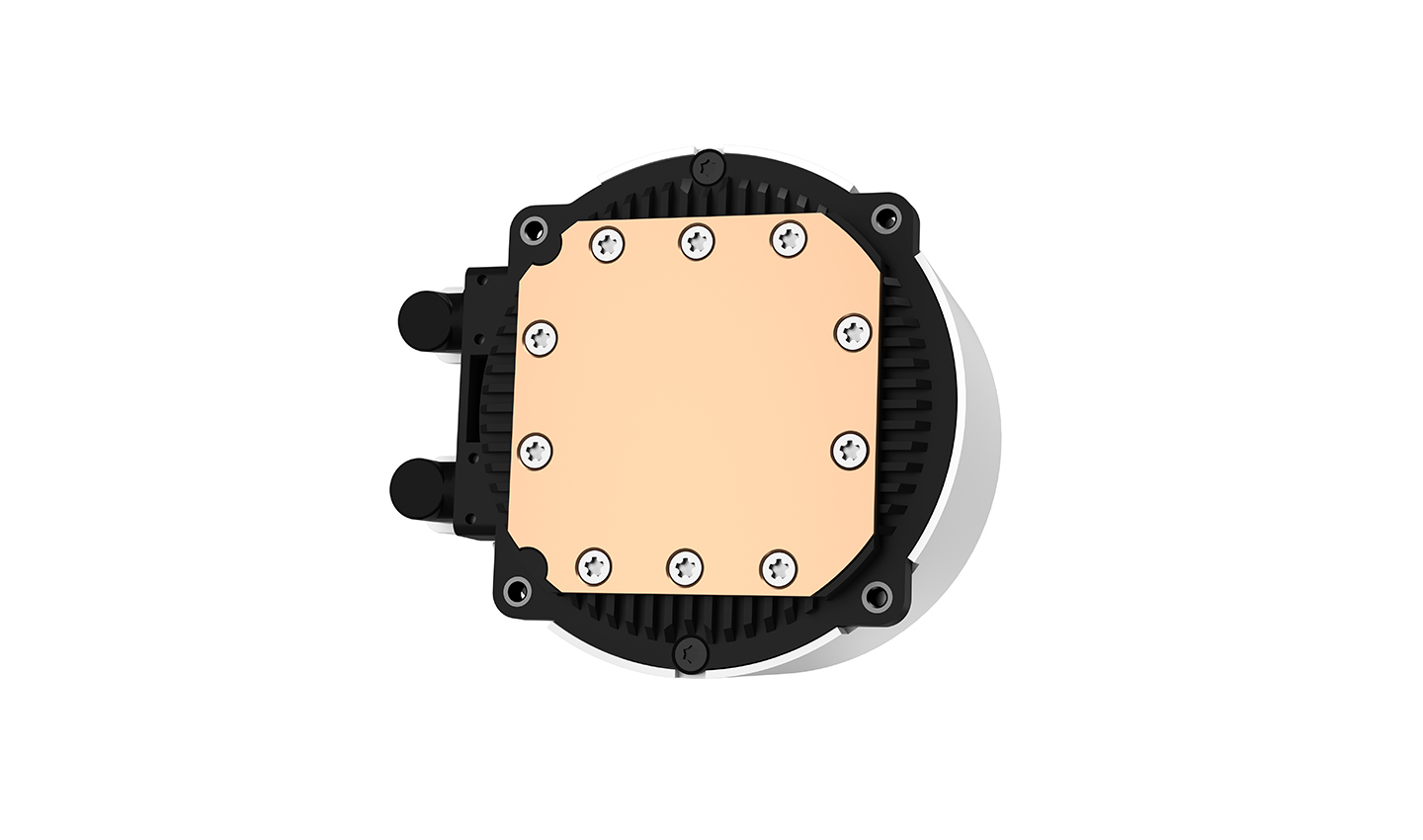

The large copper base provides more contact with CPU and supports mainstream Intel & AMD socket types.

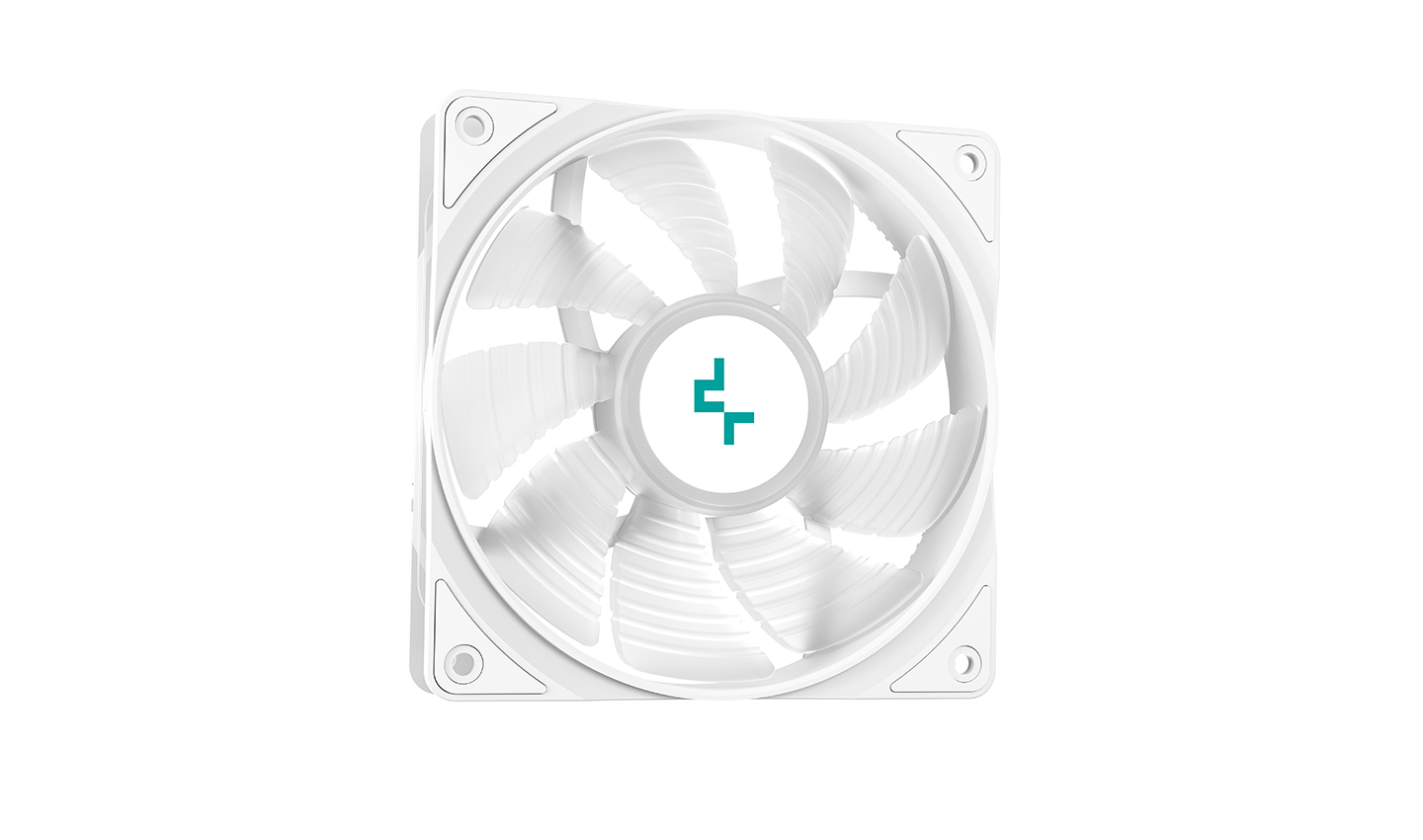

A-RGB & PWM FANS
Two A-RGB fans are included with exceptional performance and minimum noise level. The fans come with noise damping pads and support PWM control; its A-RGB lighting can also be synchronized with the waterblock.
A-RGB & PWM FANS
Two A-RGB fans are included with exceptional performance and minimum noise level. The fans come with noise damping pads and support PWM control; its A-RGB lighting can also be synchronized with the waterblock.
CHOOSE YOUR STYLE

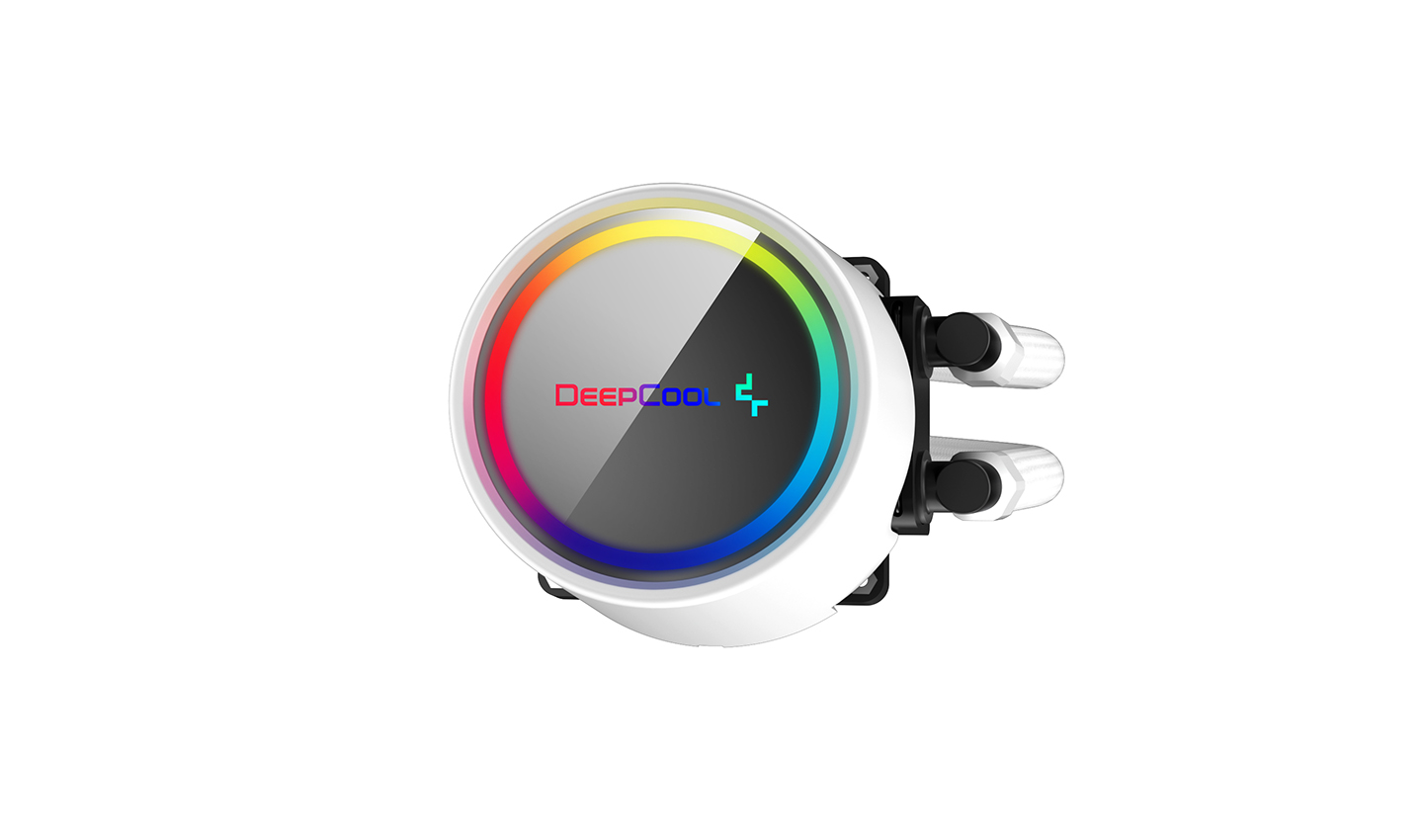

5V A-RGB lighting is embedded on the waterblock. Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
CHOOSE YOUR STYLE
5V A-RGB lighting is embedded on the waterblock. Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

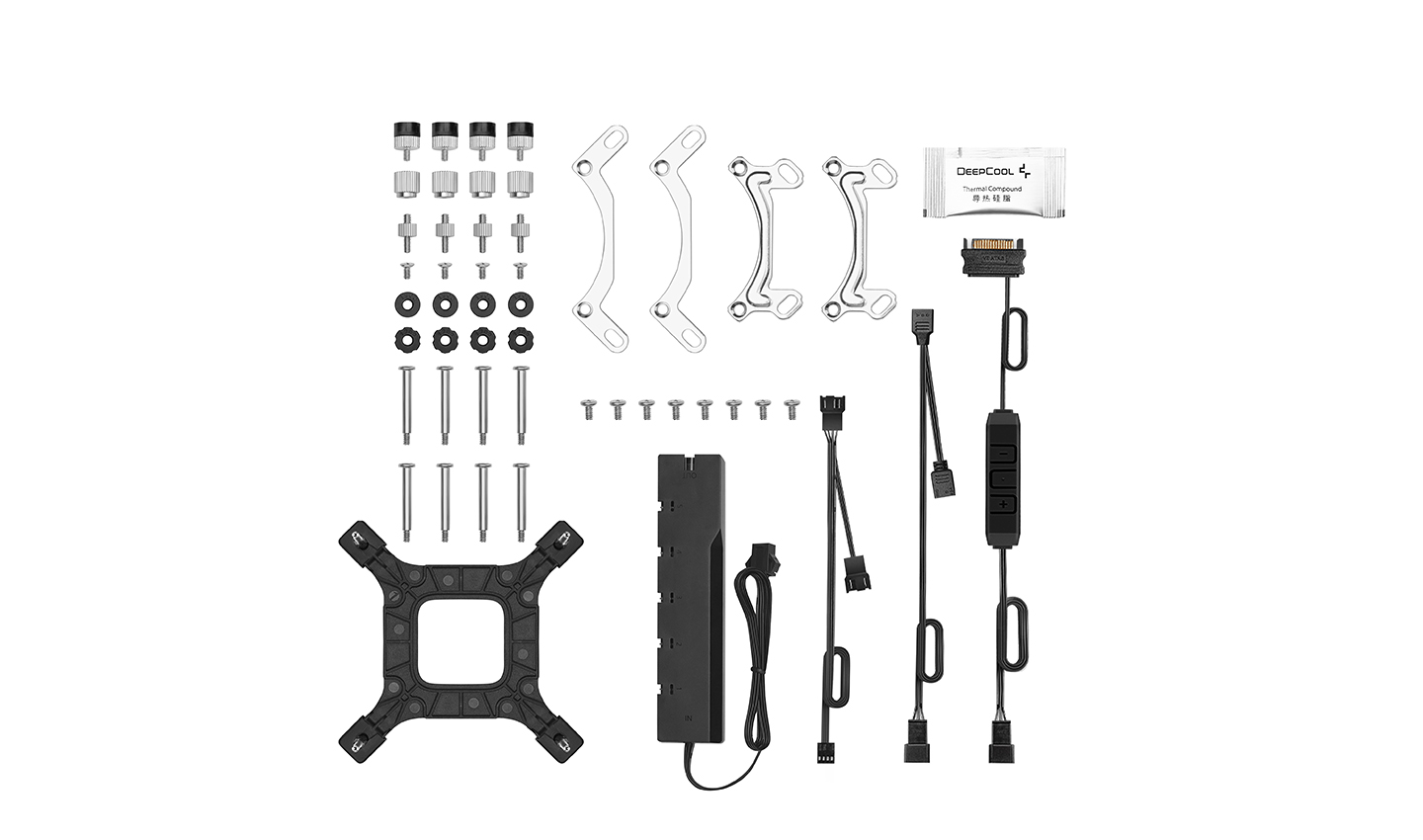

CONVENIENT MOUNTING TOOLS
Installation on mainstream Intel & AMD is quick and easy even for beginner PC builders.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1330 g
Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length380 mm(L×W×H)
Pump Dimensions91×79×47 mm(L×W×H)
Pump Speed2400 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.2 A
Pump Power Consumption2.4 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1800 RPM±10%
Fan Airflow69.34 CFM
Fan Air Pressure2.42 mmAq
Fan Noise≤30 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17 A
Fan Power Consumption2.04 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W（PUMP）/ 4.4 W（FAN×2）
EAN6933412727514
P/NDP-H12CF-GL240-ARGB-WH
Product Dimension
Download
GAMMAXX L240 A-RGB WH Manual.pdf
