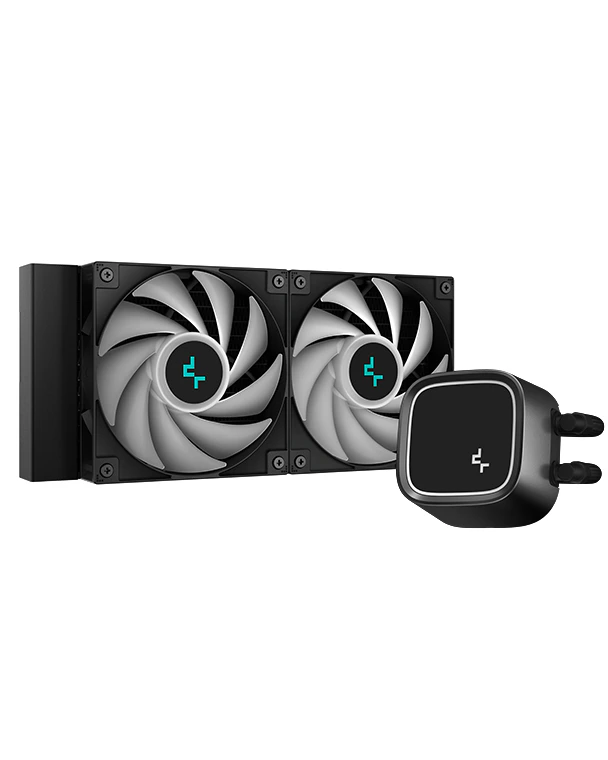

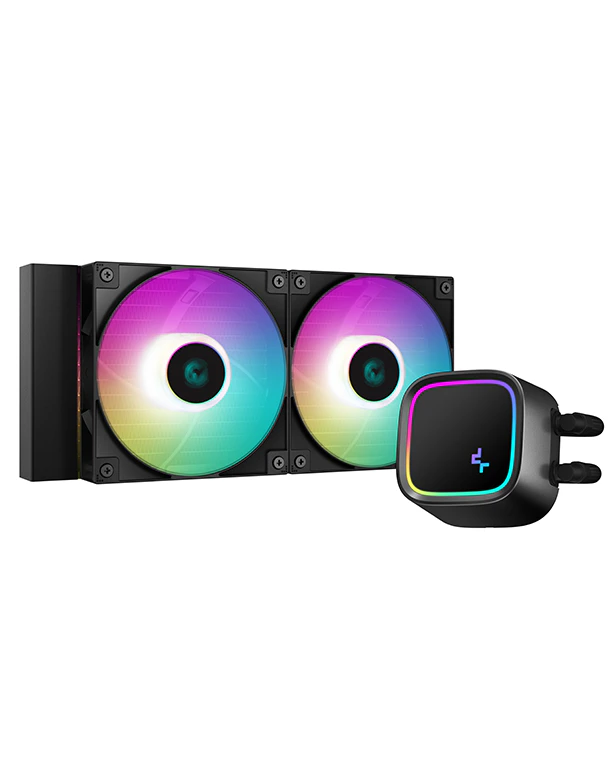

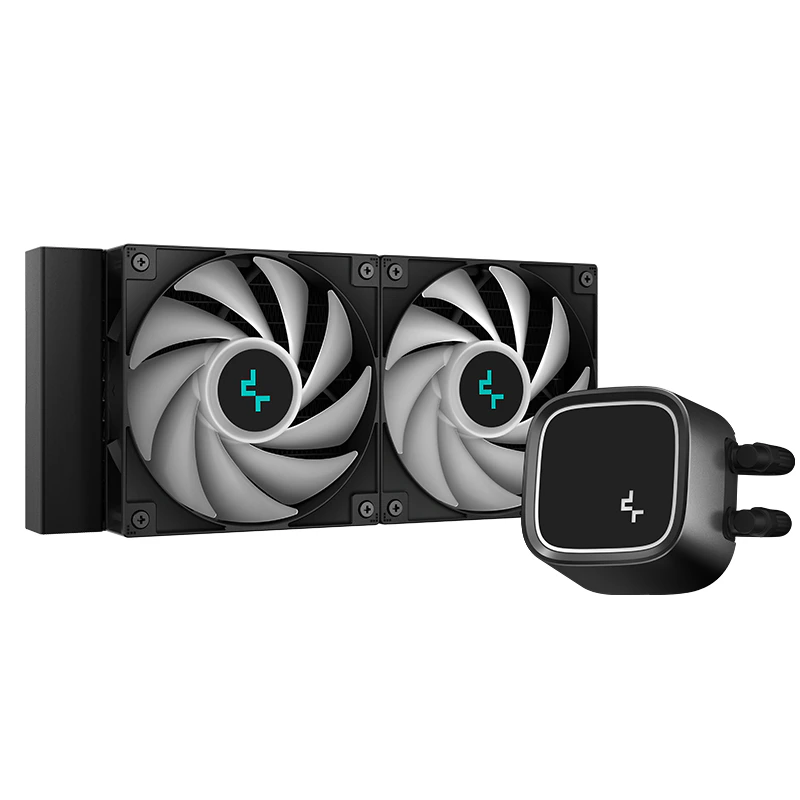

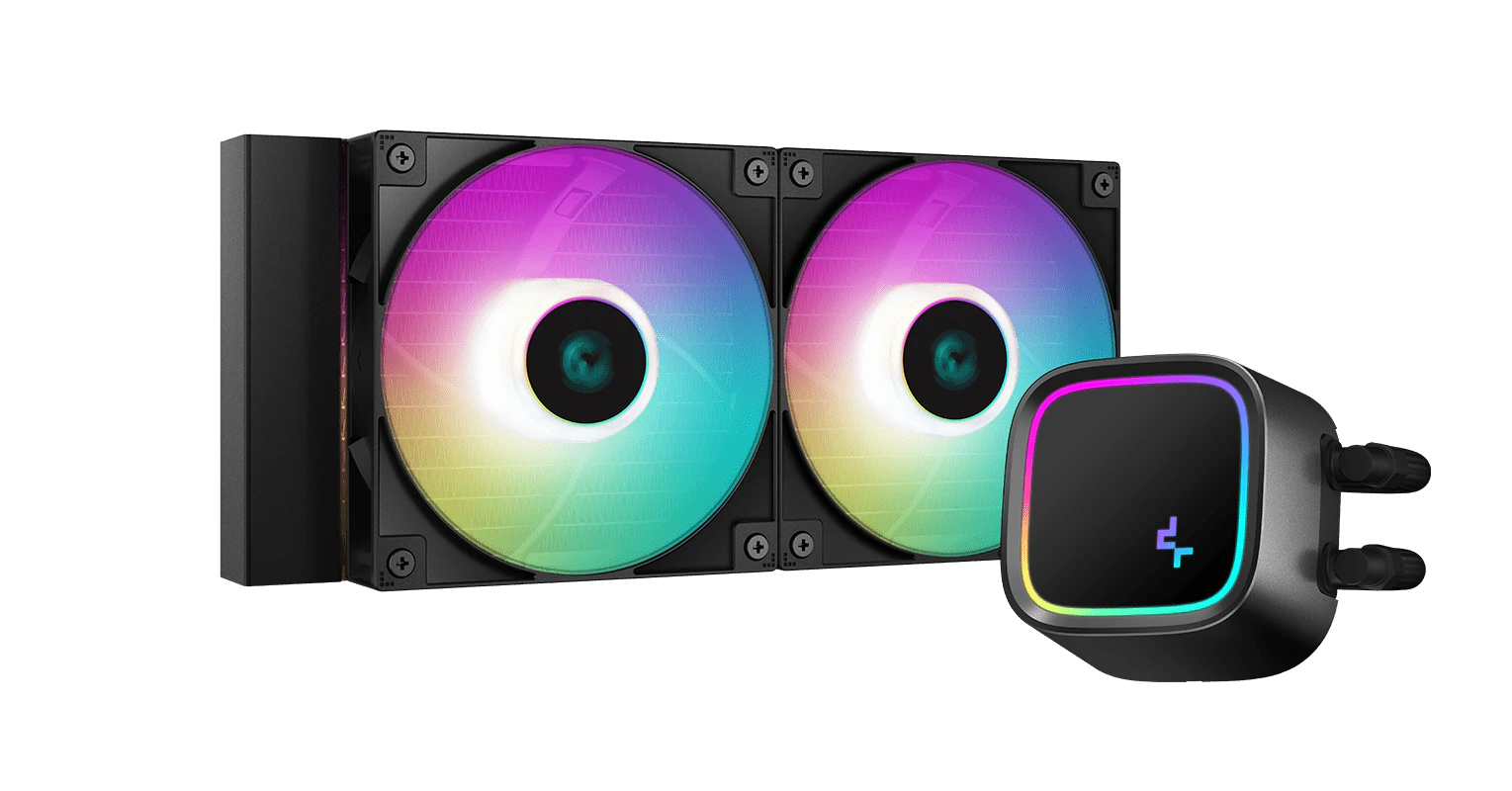

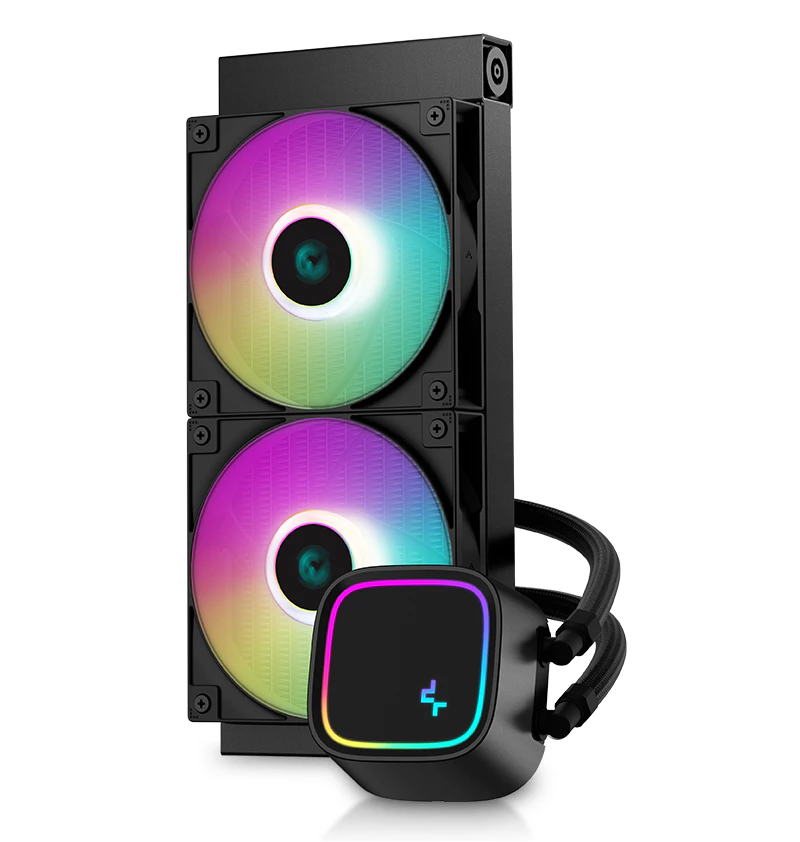

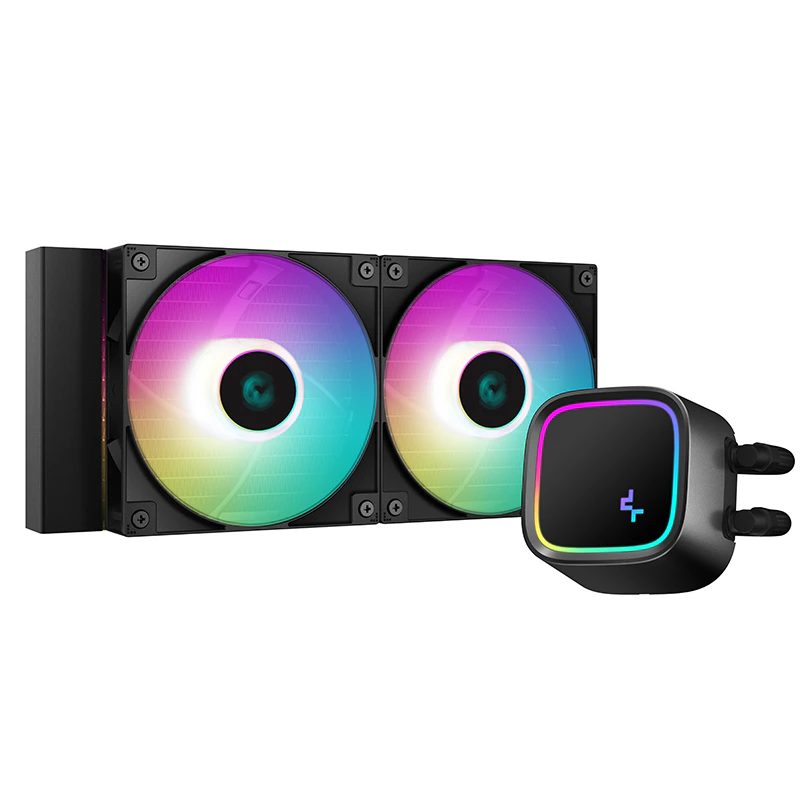

LE520
The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.
COLOR
black
MODEL
LE520
240mm ARGB Liquid Cooler

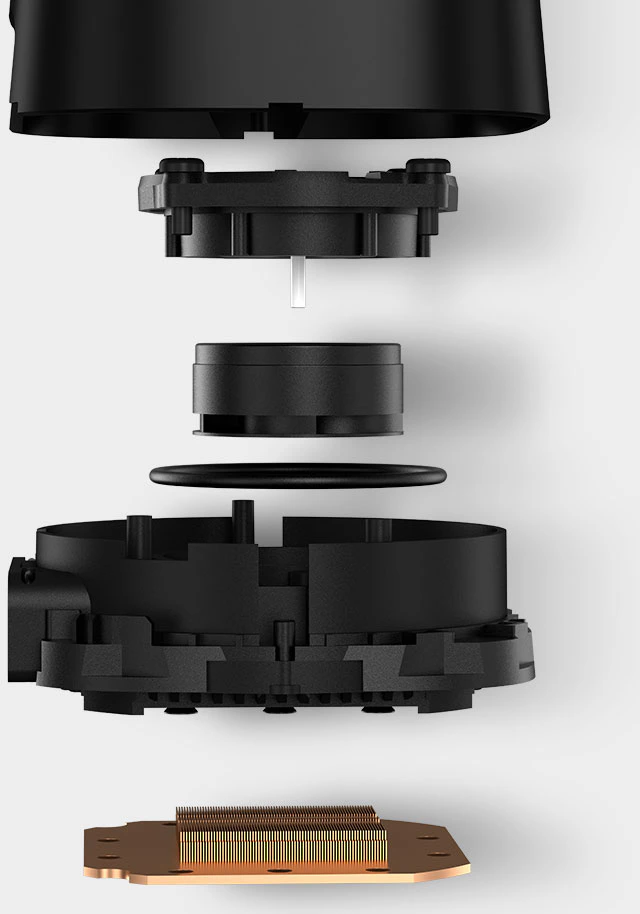

POWERFUL HEAT DISSIPATION

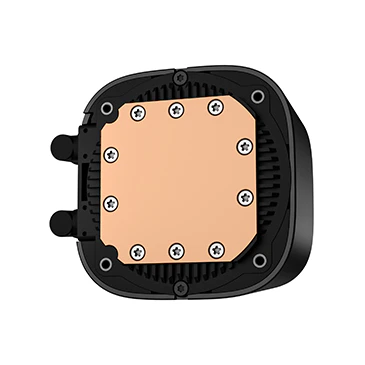

Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
POWERFUL HEAT DISSIPATION
Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

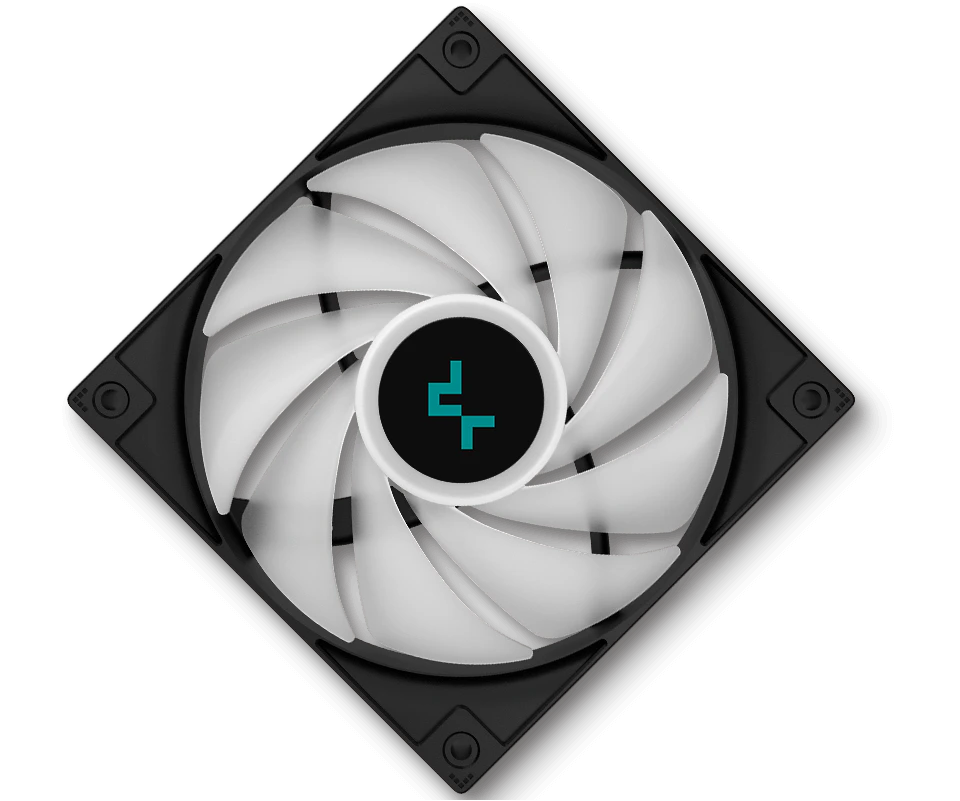

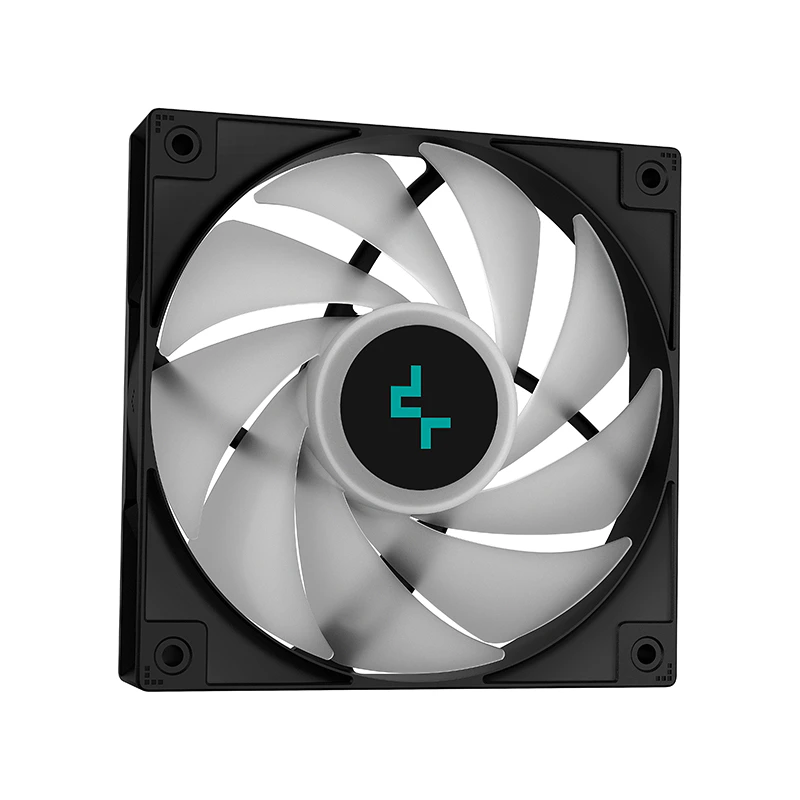

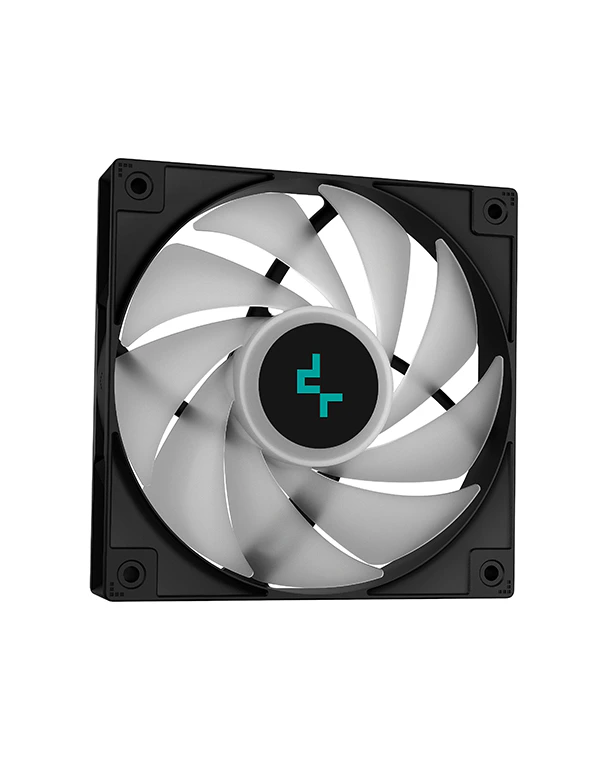

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.

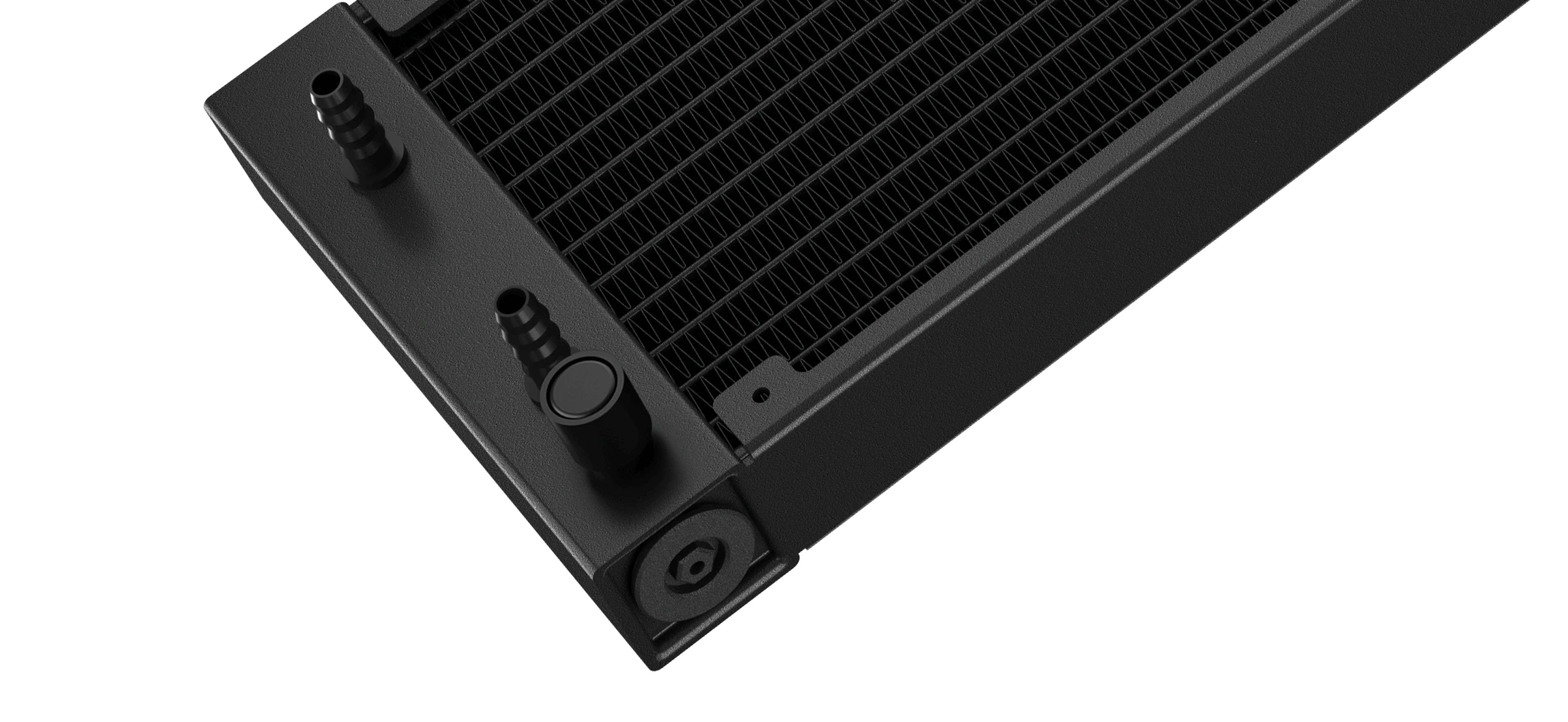

Anti-leak Technology
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

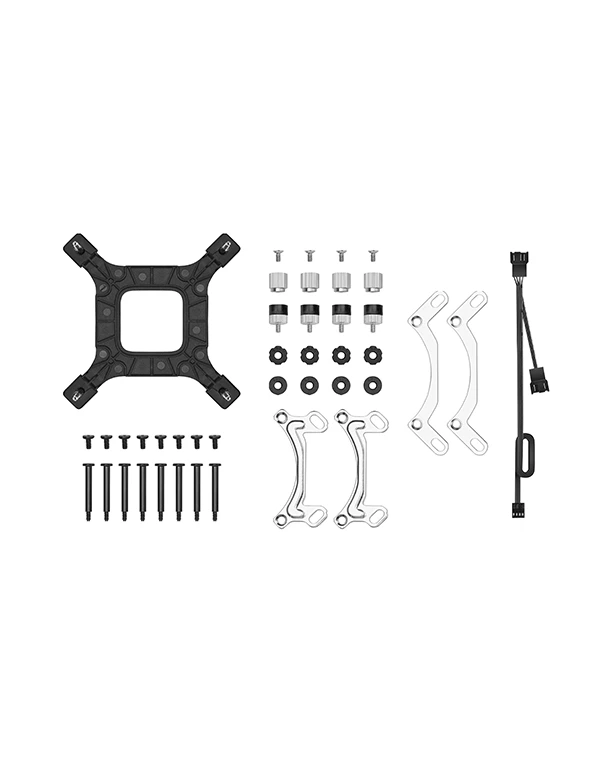

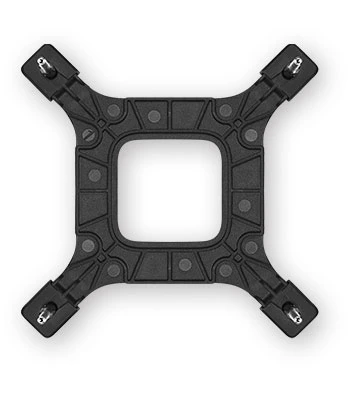

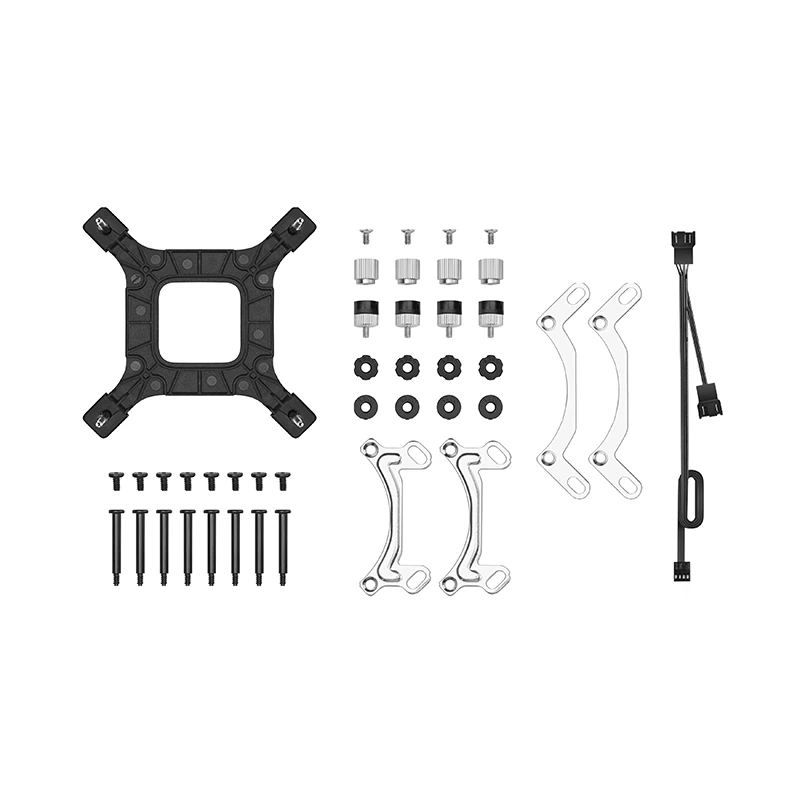

Simple and Secure
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1238 g

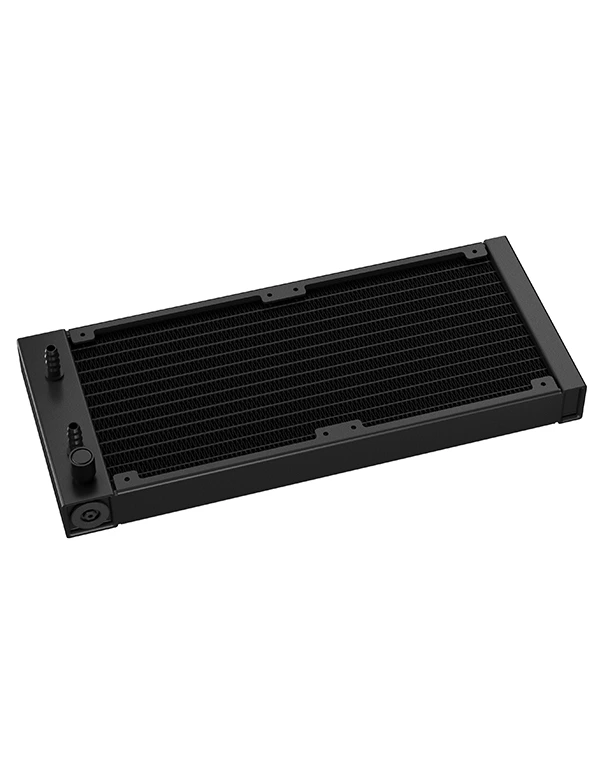

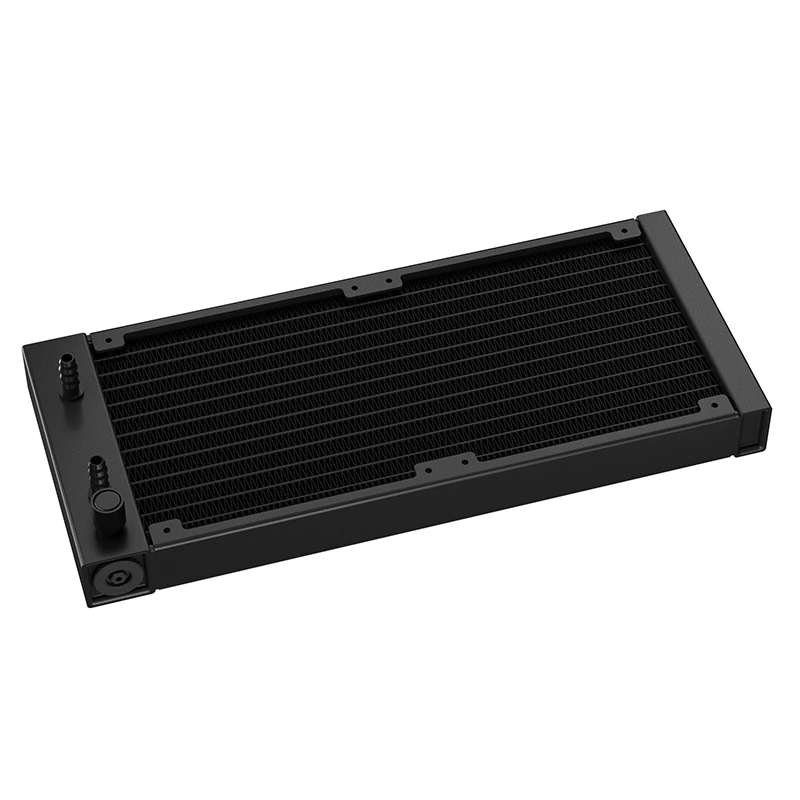

Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm(L×W×H)
Pump Dimensions91×80×52 mm(L×W×H)
Pump Speed2400 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.2 A
Pump Power Consumption2.4 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2250RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.25 A
Fan Power Consumption3.0 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W（PUMP）/ 2.1 W（FAN×2）
EAN6933412728047
P/NR-LE520-BKAMMN-G-1
Product Dimension
Download
LE520 Manual.pdf
