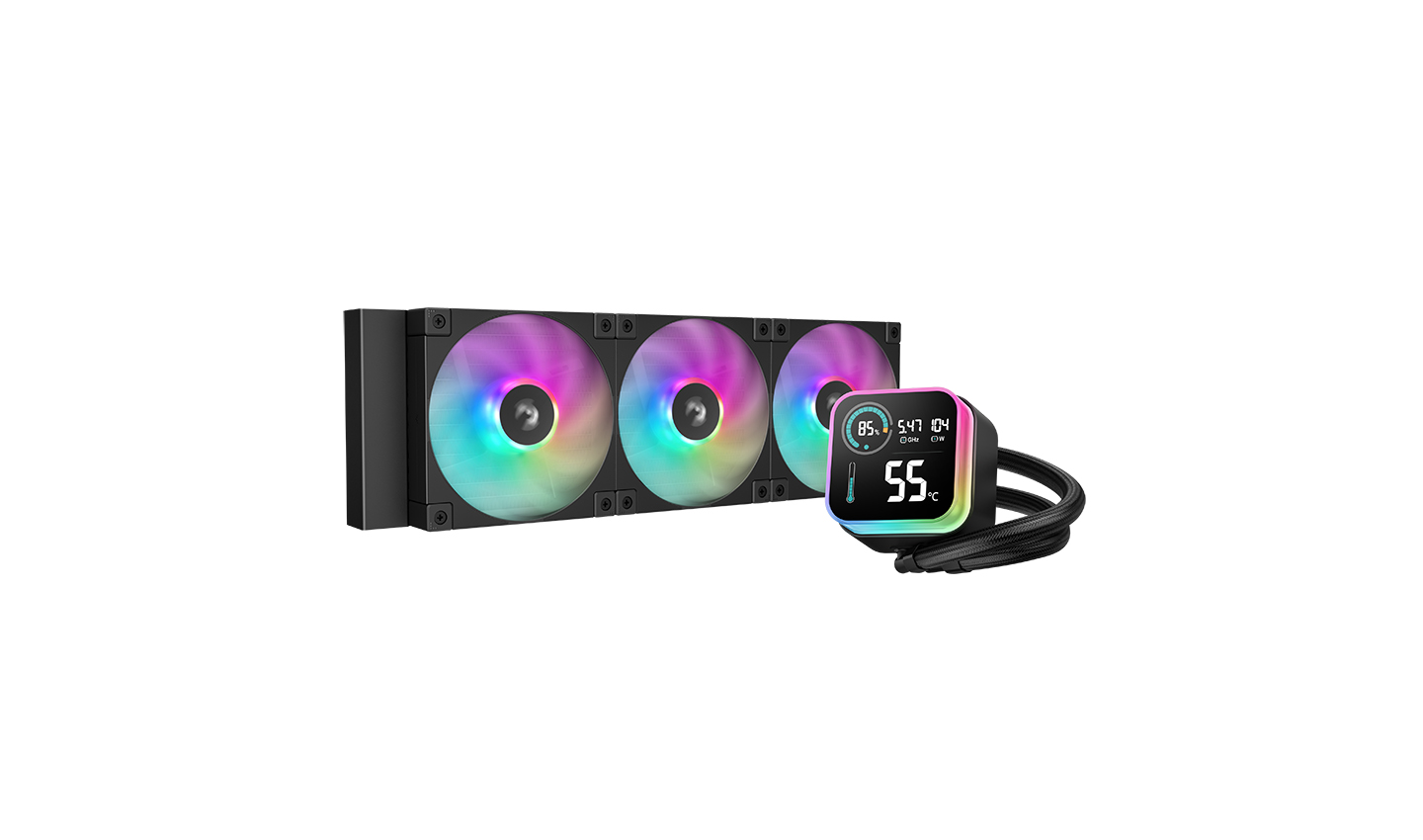

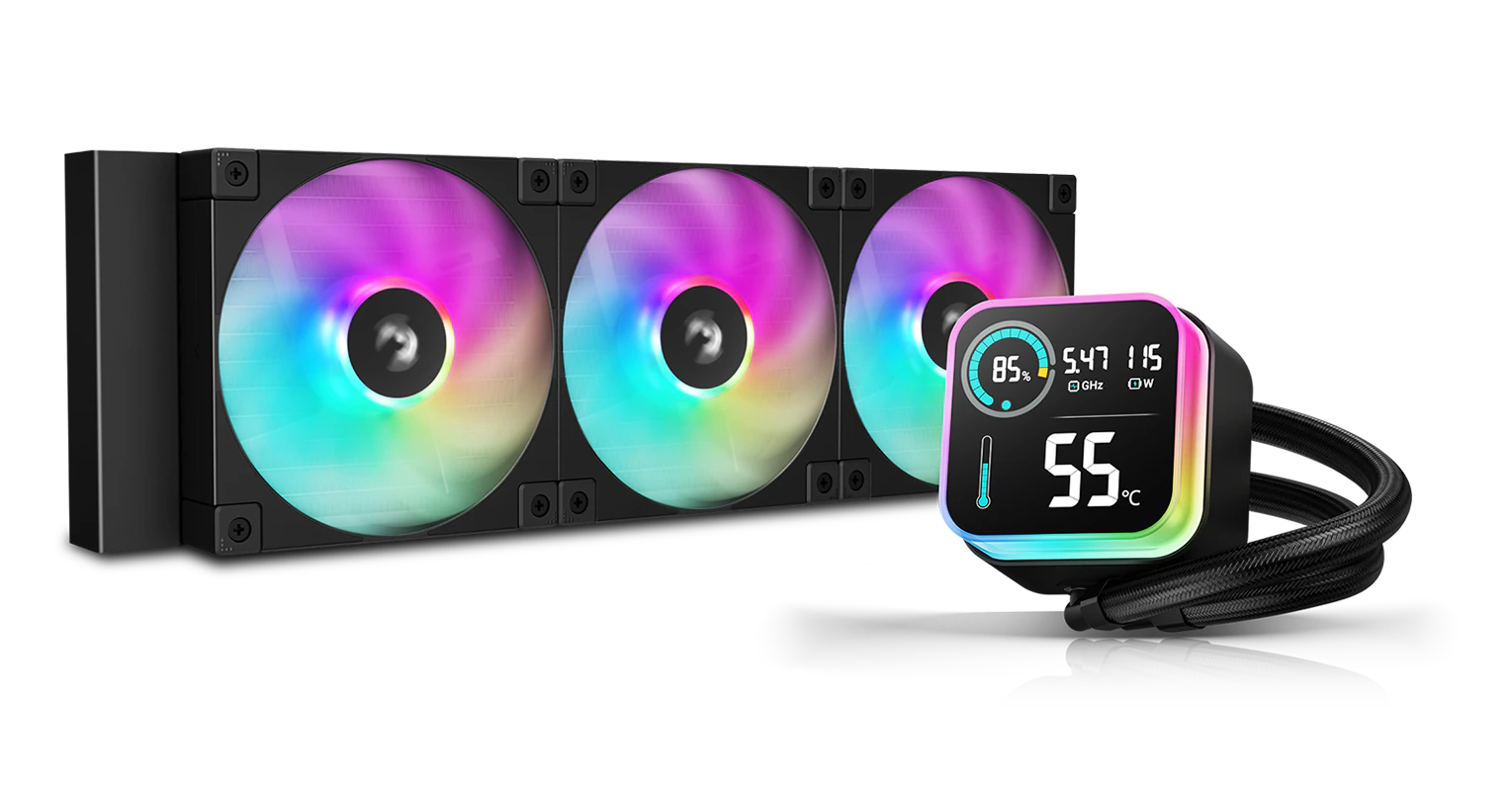

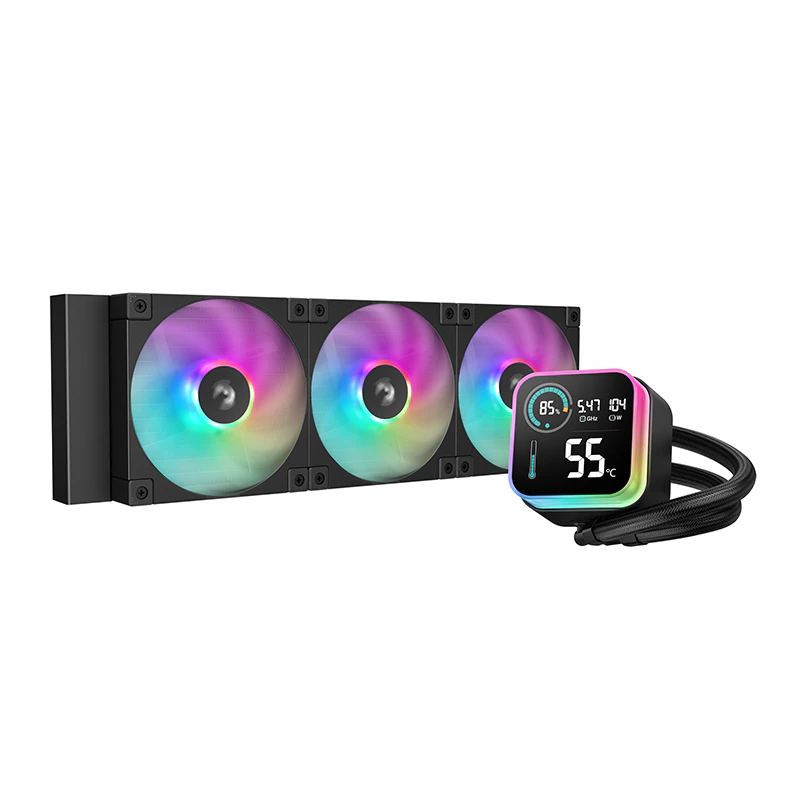

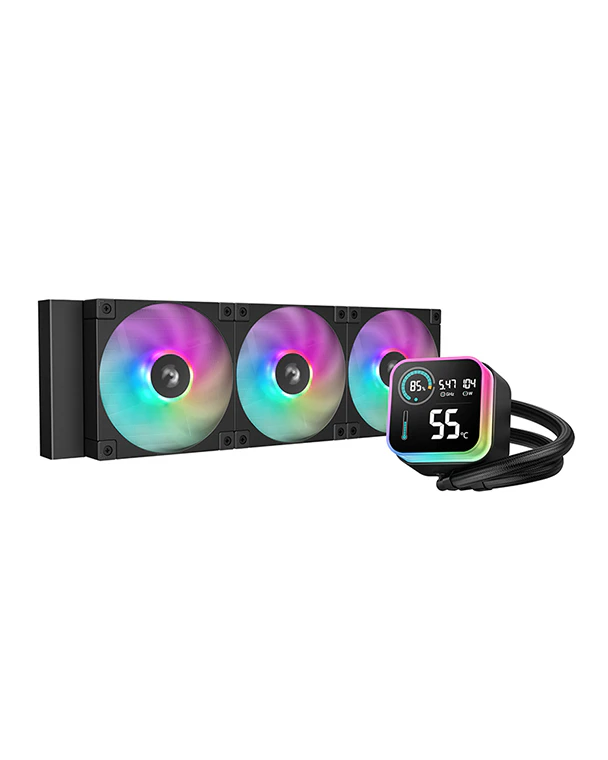

LQ360

SEGMENT LCD SCREEN ERA

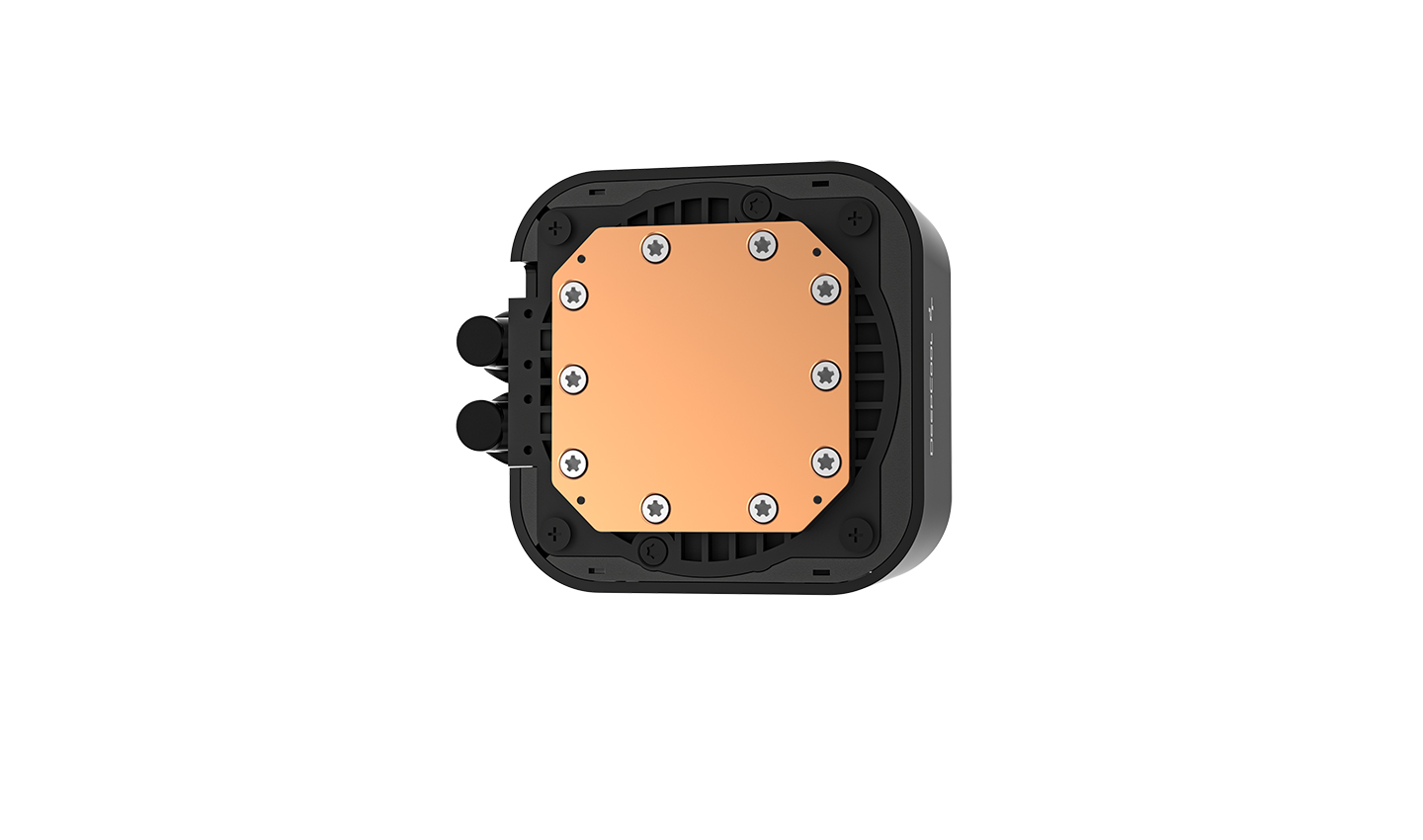

5TH GENERATION PUMP

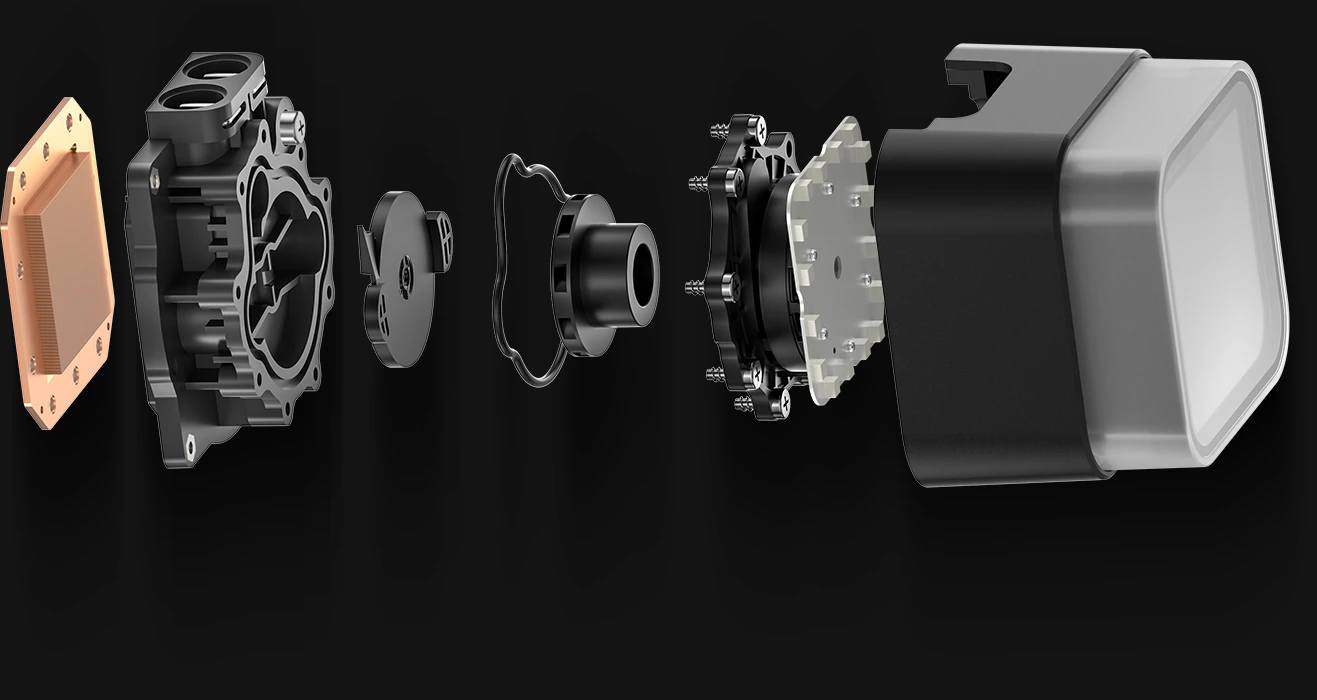

Built on DeepCool's optimized 5th generation high-performance water pump, the LQ360 brings cooling modern power-hungry CPUs to a new level with its FOC (Field Oriented Control) Closed-Loop Control. The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.

DeepCreative: THE CONTROL CENTER

Bring all of the great features of the LQ coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have Halo ARGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

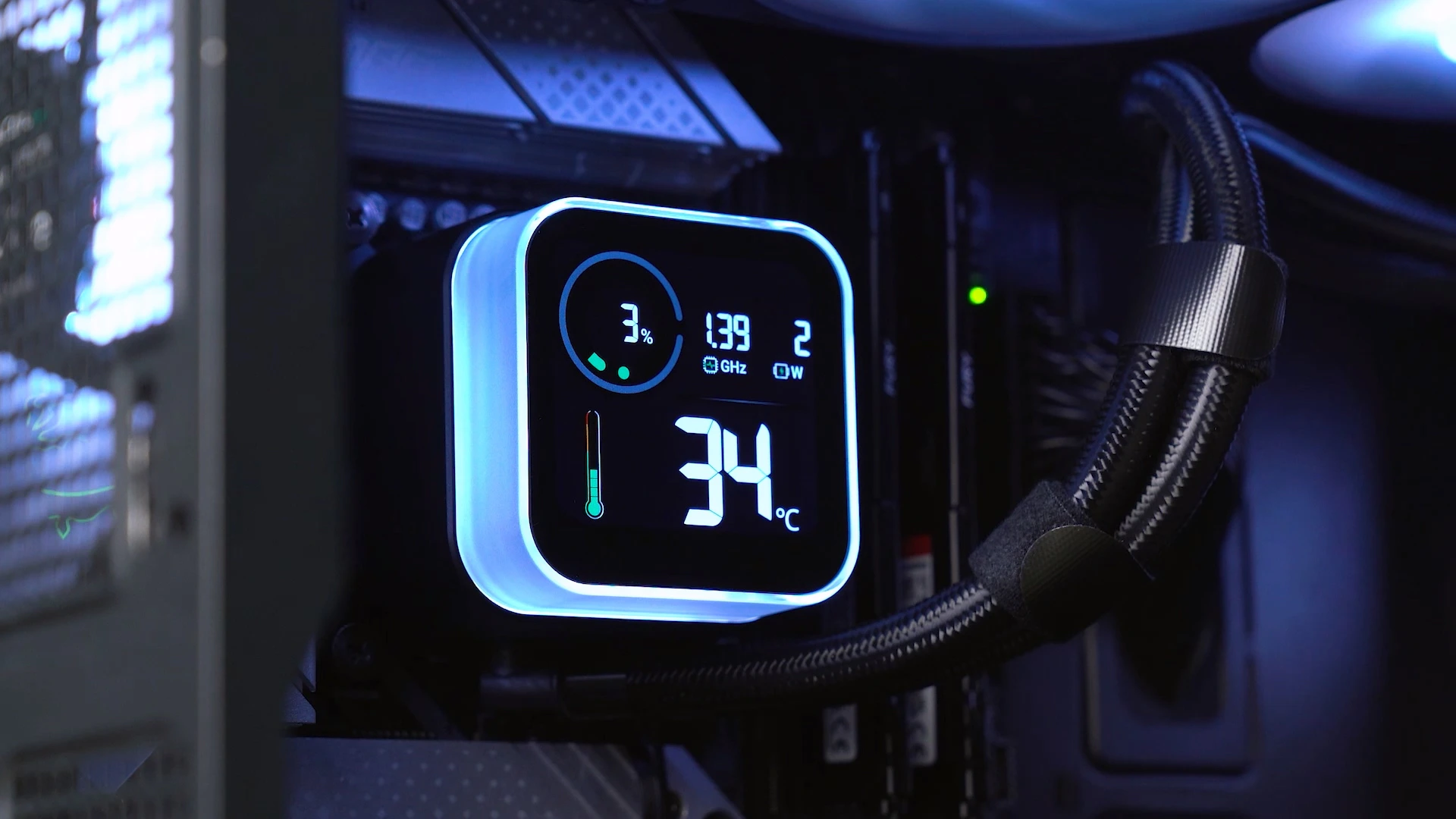

CPU Usage + Multi Color Circular Status Panel

CPU Frequency GHz

CPU TDP Wattage

CPU Temperature Status with Color Indicator in ℃/℉

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

SYNC UP YOUR SETUP

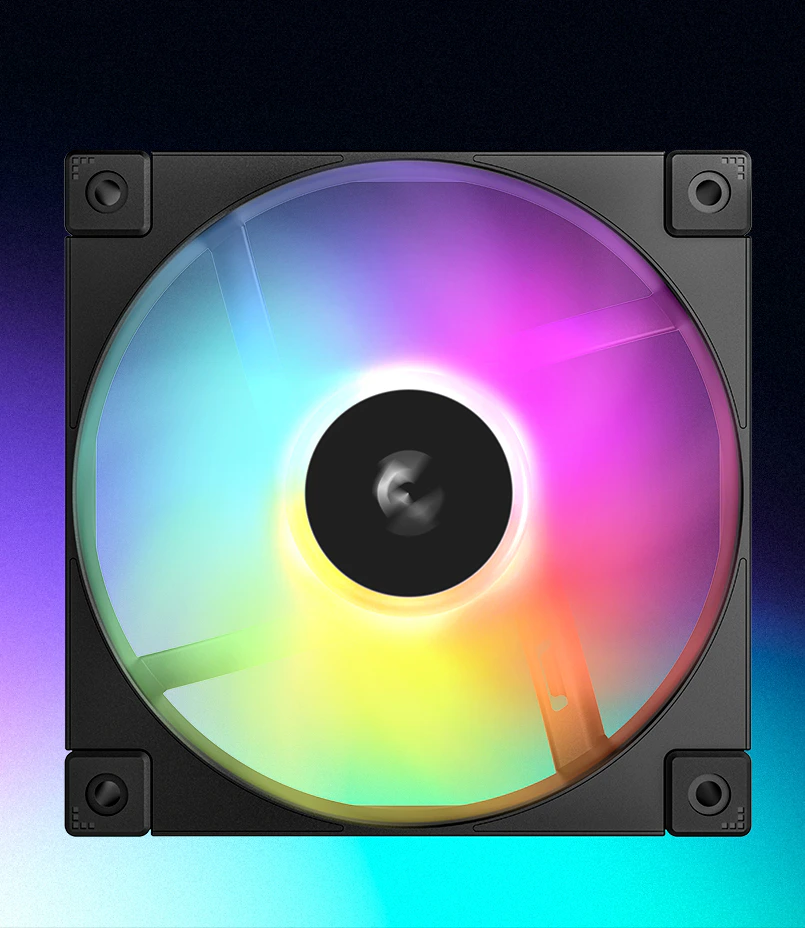

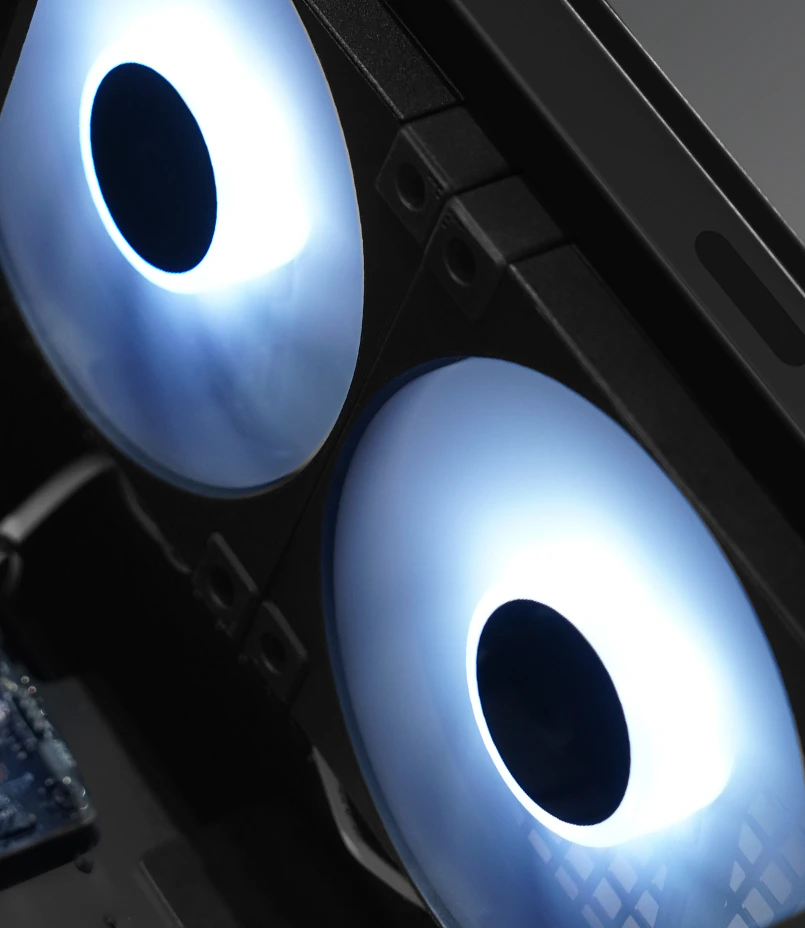

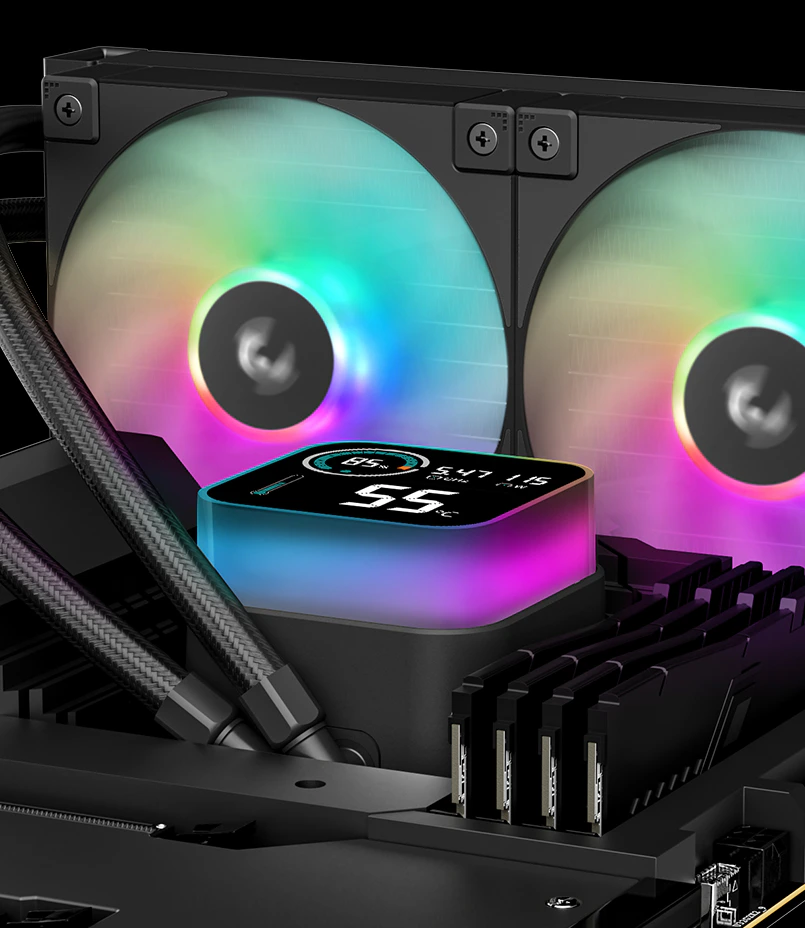

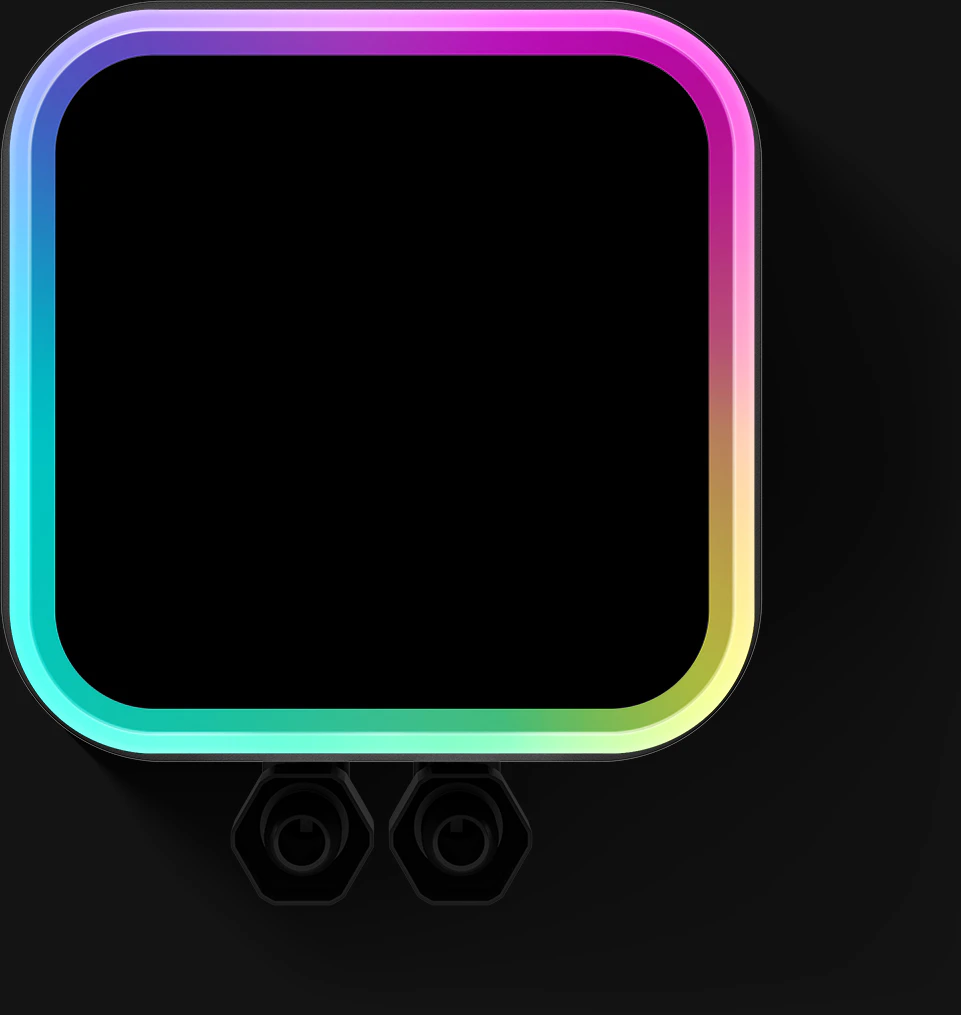

The ARGB Halo pump head along with a trio of FD12 ARGB Fans on the LQ360 adds a vibrant glow, transforming your build into a visual masterpiece. With full customization at your fingertips, you can easily control and synchronize the RGB lighting effects through compatible motherboards and controllers.

Efficient Connectivity:

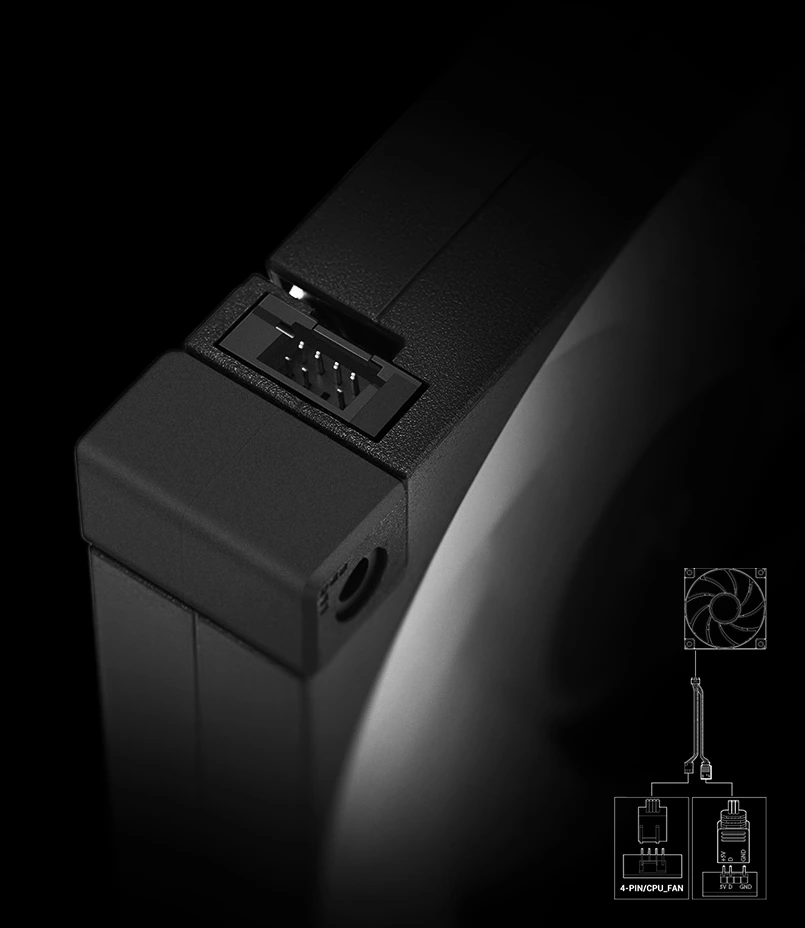

Utilize the 8-PIN one-for-three cable for streamlined connections.

High-Performance Cooling:

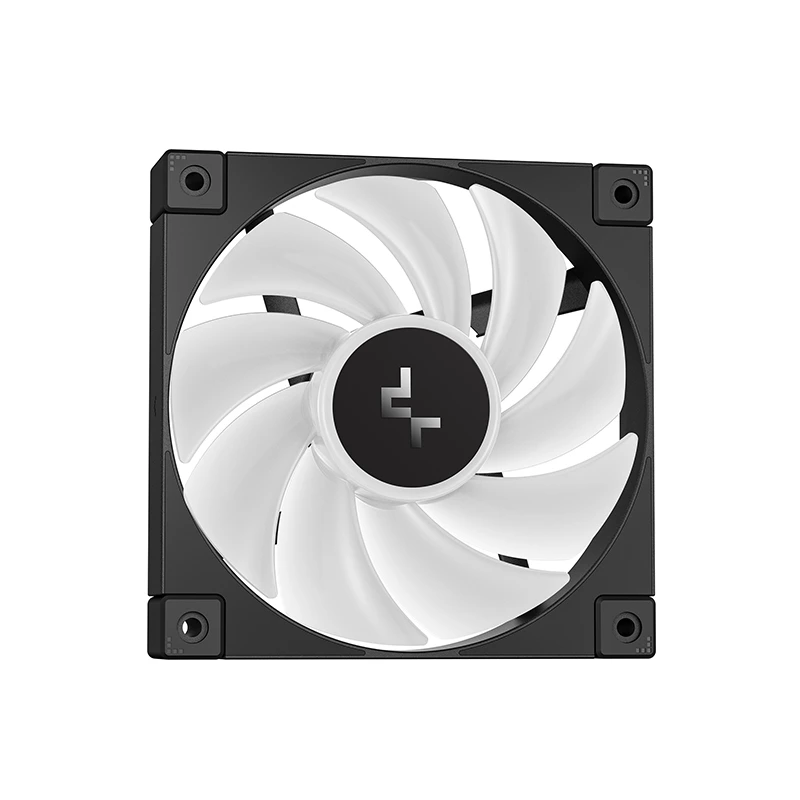

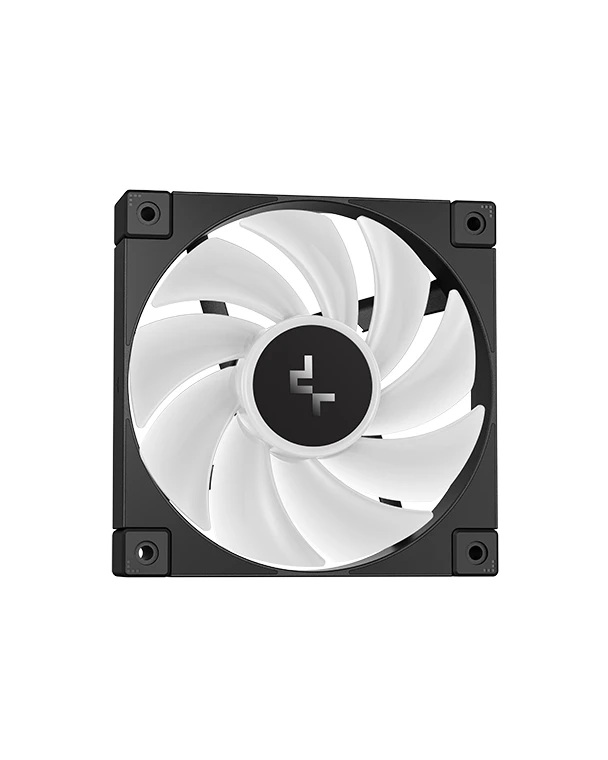

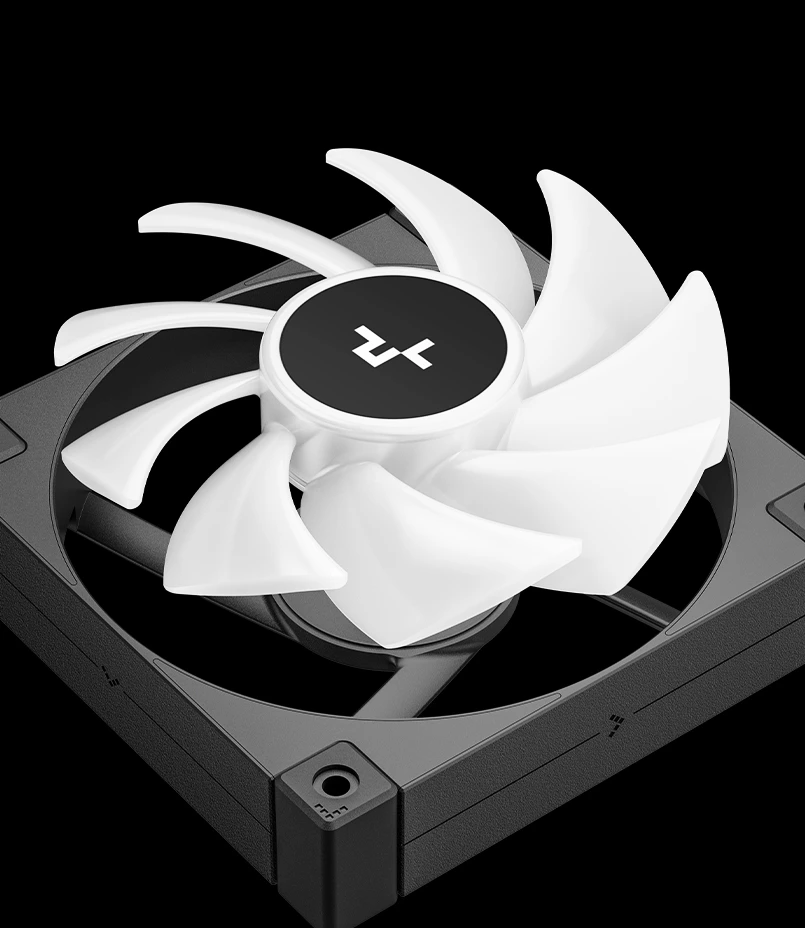

Equipped with triple FD12 ARGB Fans, ensuring optimal airflow and cooling efficiency.

Advanced Bearing Technology:
Features a Hydro Bearing for smooth and quiet operation.

Fan Speed:
Operates at 600~2400 RPM with a tolerance of ±10%.

Airflow:
Delivers a powerful 72.04 CFM.

Static Pressure:
Achieves 3.48 mmAq for enhanced cooling performance.

Noise Level:
Maintains a maximum noise level of ≤38.71 dB(A), ensuring a quiet computing experience.

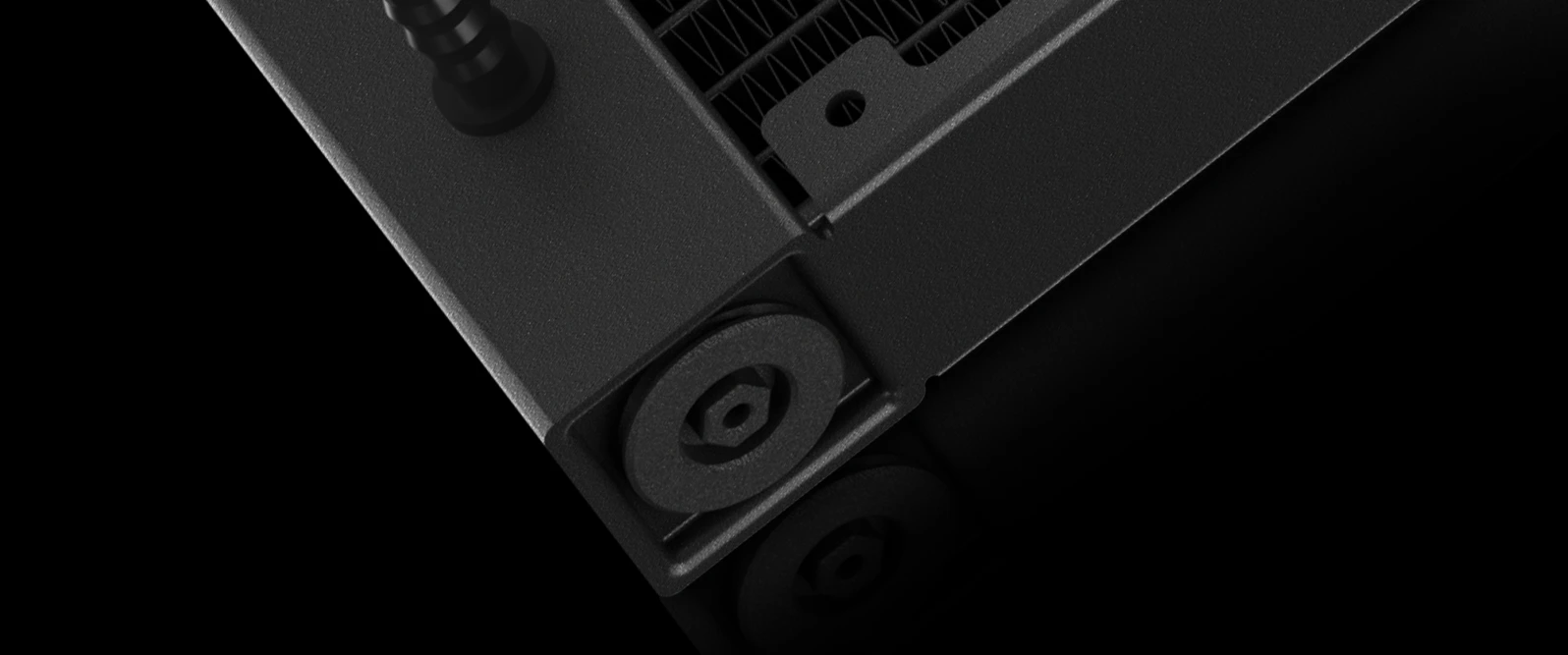

ANTI-LEAK TECHNOLOGY

Incorporating DeepCool's patented Anti-Leak Technology, this system is designed to enhance the longevity and reliability of the AIO. The internal valve actively regulates pressure, releasing excess pressure when it surpasses atmospheric levels. This innovative feature not only extends the lifespan of the AIO but also significantly reduces the risk of leaks.

SIMPLIFIED INSTALLATION

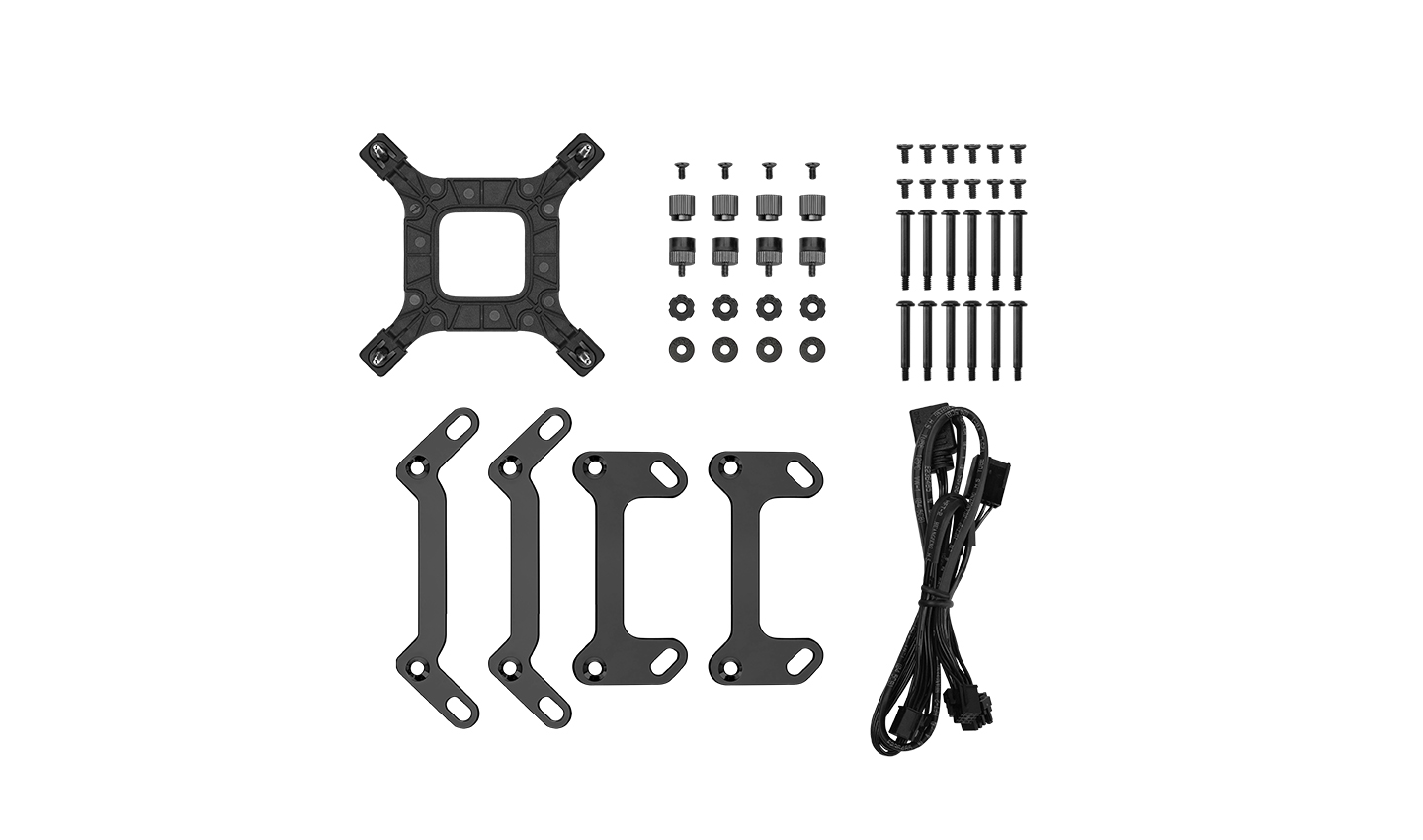

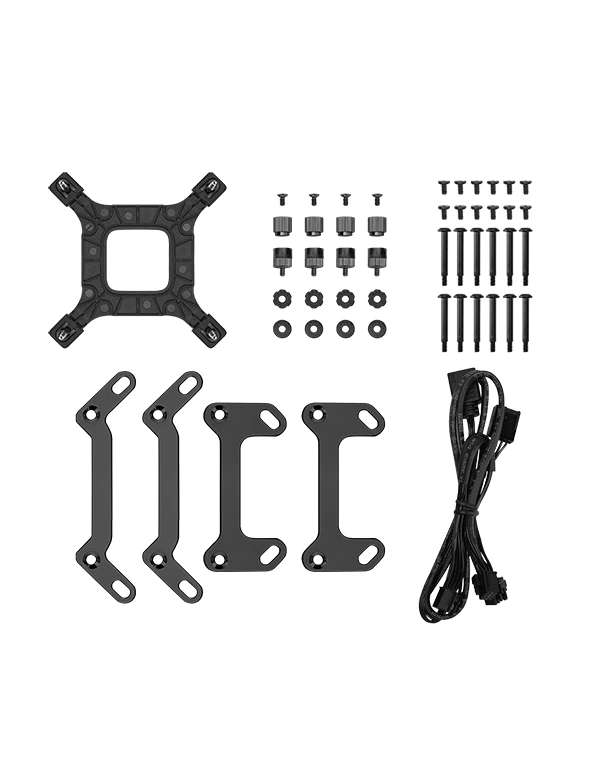

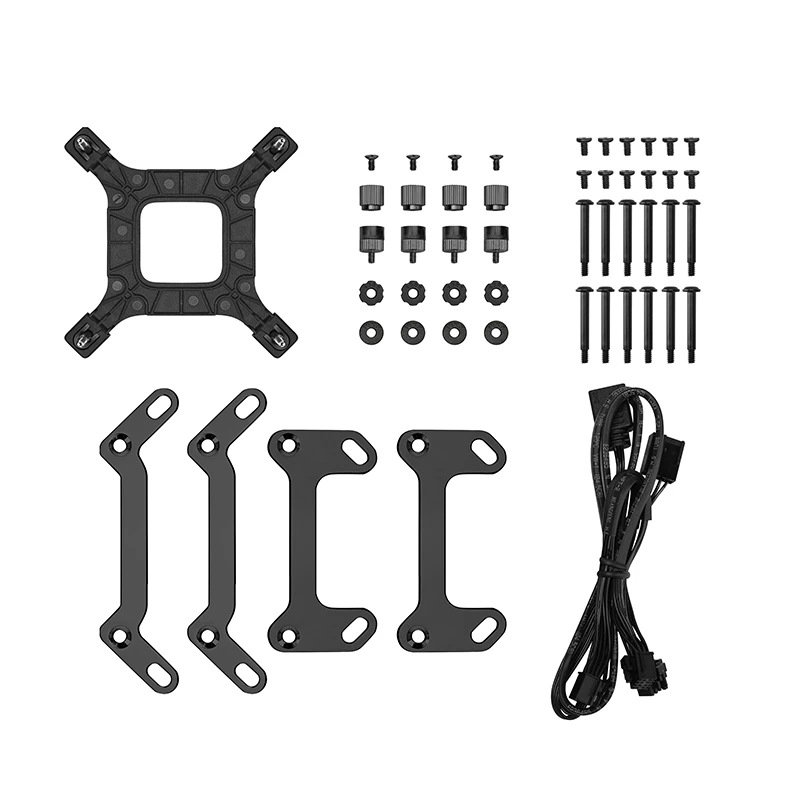

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LQ360 to the latest mainstream CPUs is included in the box, so you are ready to go.

Intel LGA1851/1700/1200/1151/1150/1155
AMD AM5/AM4

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1840 g

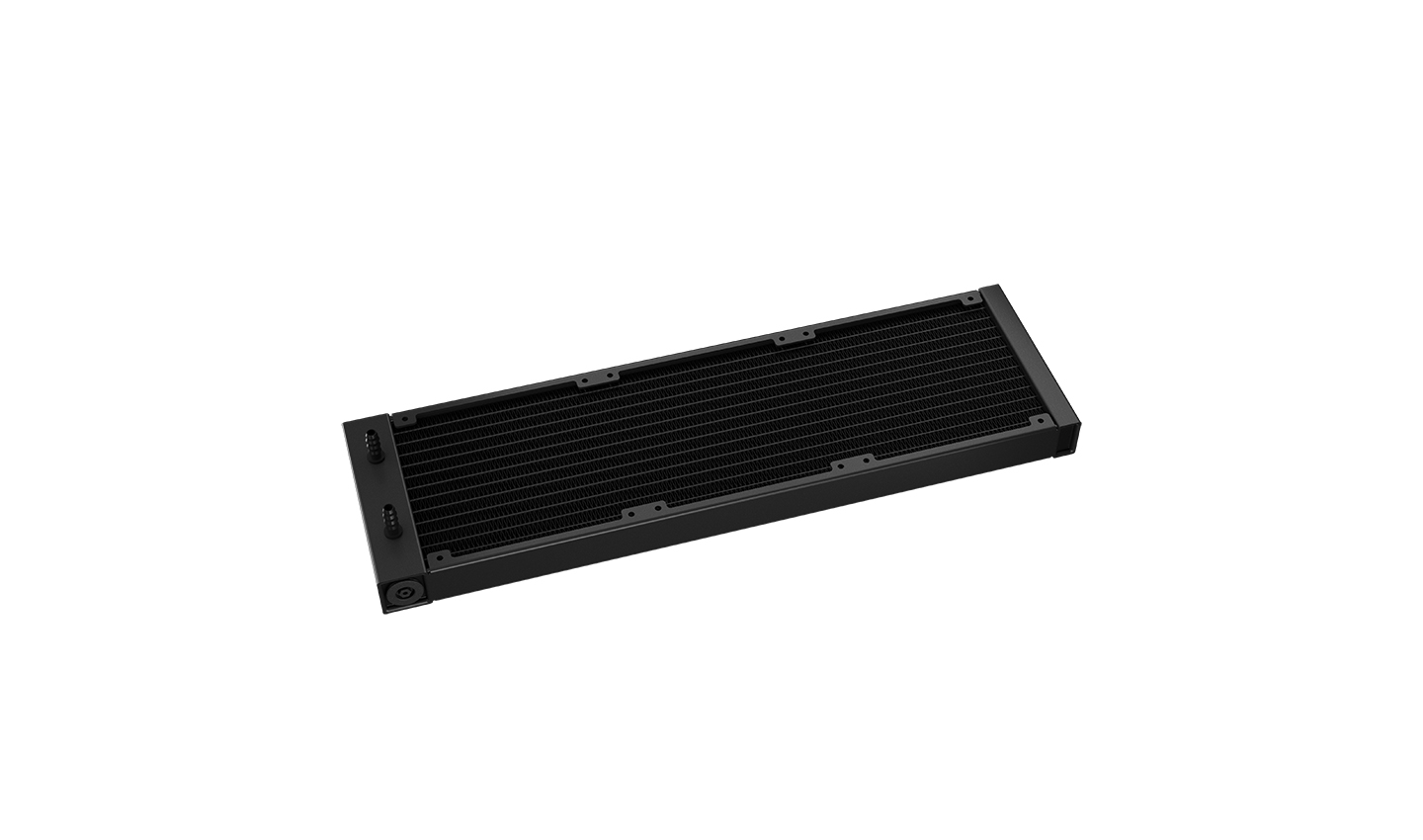

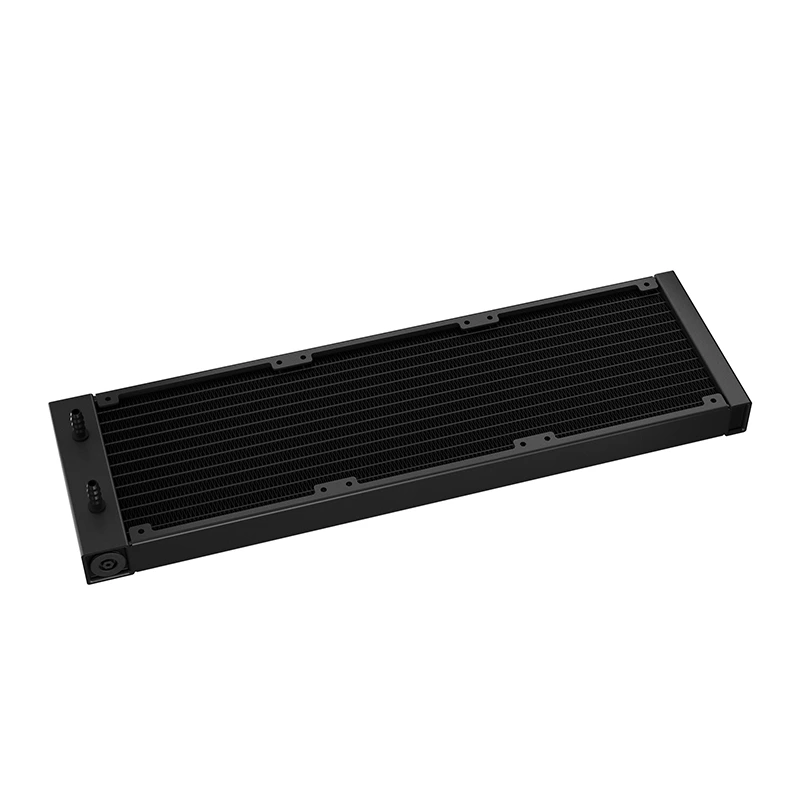

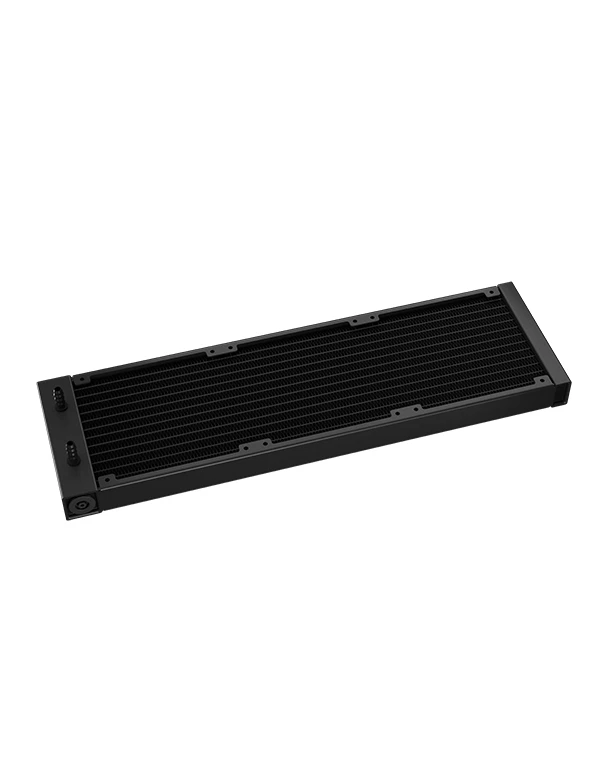

Radiator Dimensions	402×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm

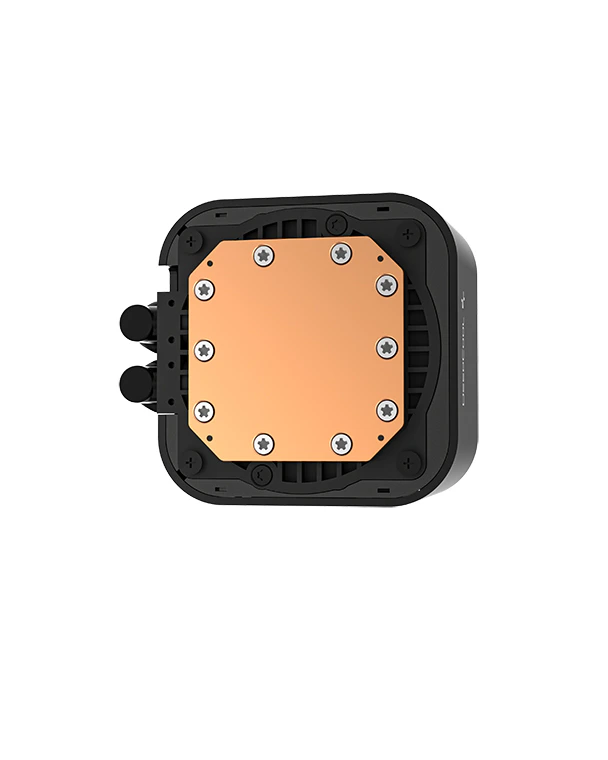

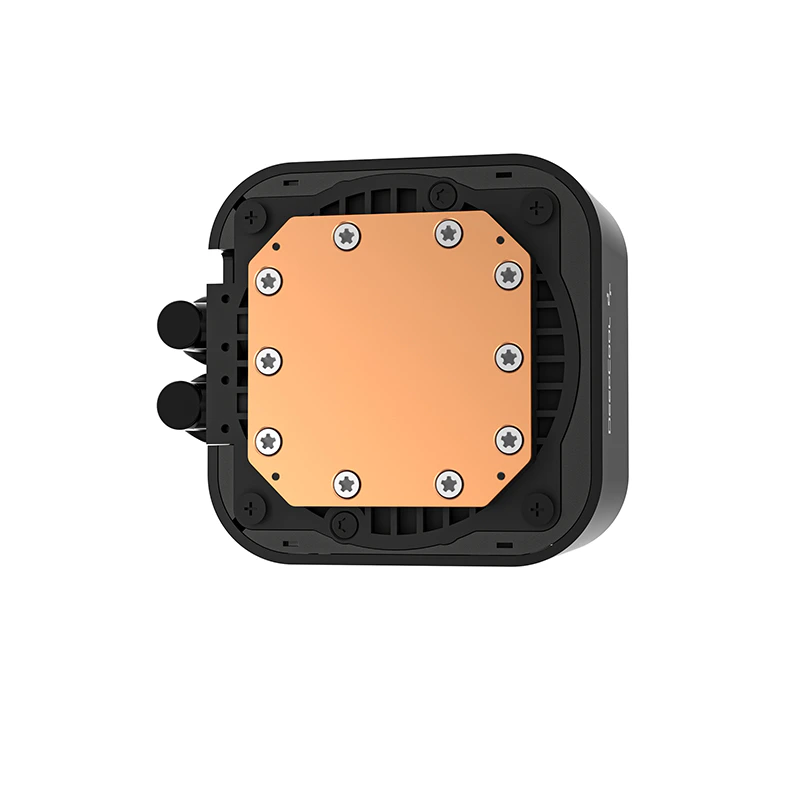

Pump Dimensions	89×76×64 mm(L×W×H)
Pump Speed	3400 RPM±10%
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.35 A
Pump Power Consumption	4.2 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	600~2400 RPM±10%
Fan Airflow	72.04 CFM
Fan Air Pressure	3.48 mmAq
Fan Noise	≤38.71 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.22 A
Fan Power Consumption	2.64 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.4 W（PUMP）/ 3.15 W（FAN×3）
Display Type	LED Digital Display
Display Module Rated Voltage	0.08 A±10%
Display Module Rated Current	5 VDC
Display Module Power Consumption	0.4 W
Display Area	53.9x49.15 mm
EAN	6933412729167
P/N	R-LQ360-BKLSMW-G-1
