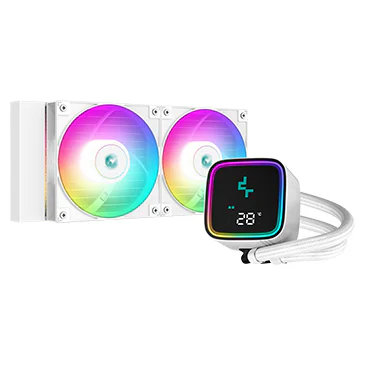

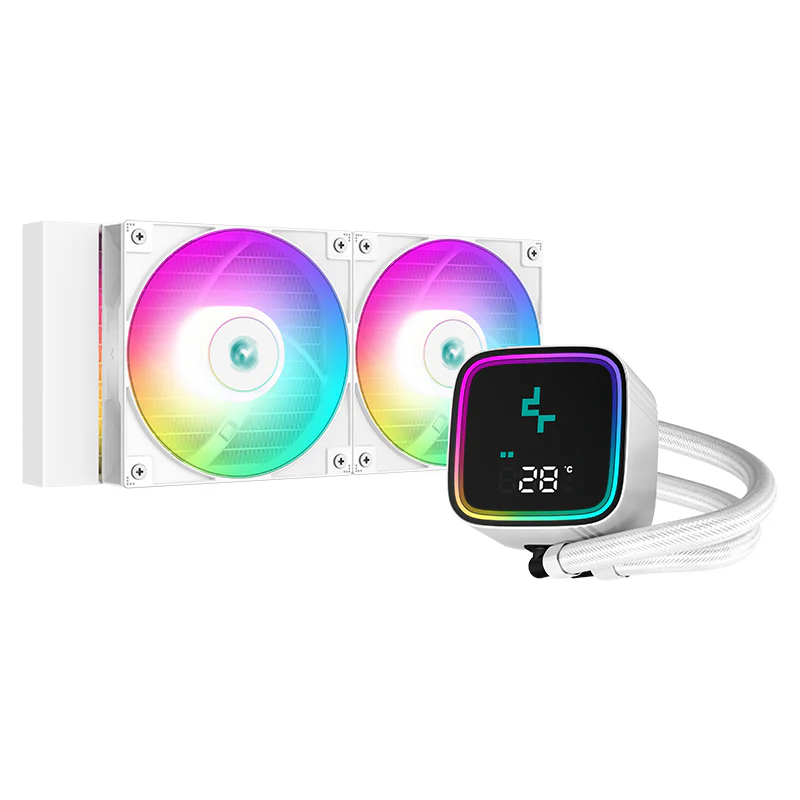

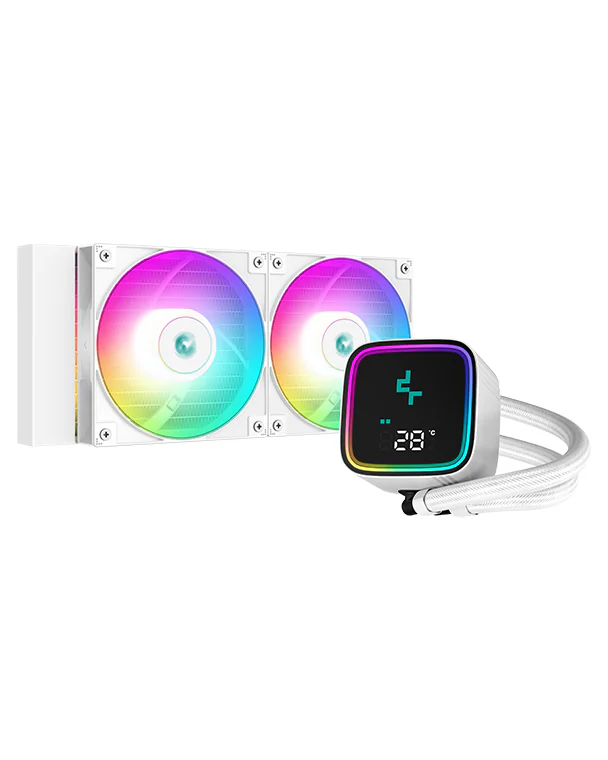

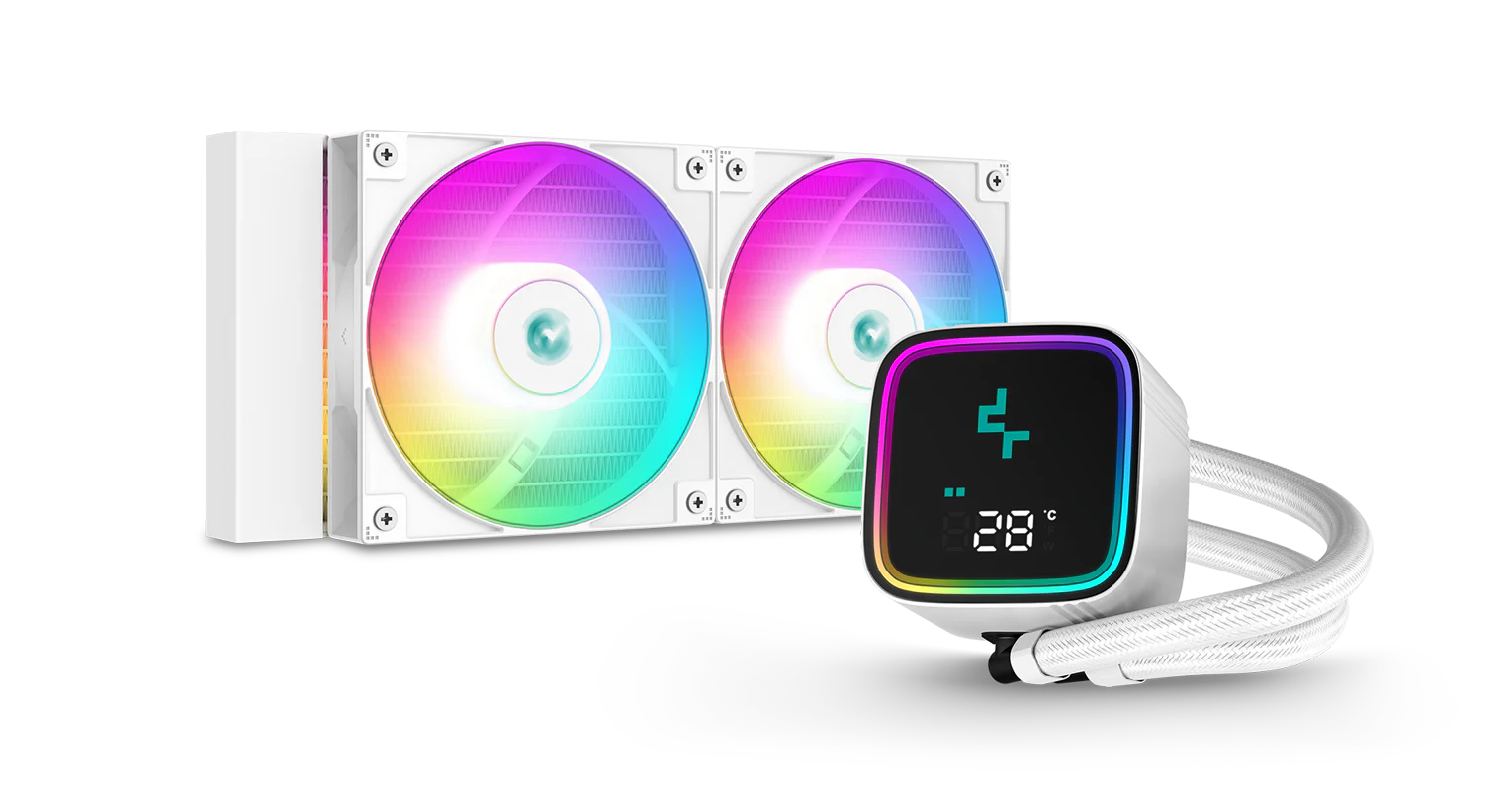

LS520 SE DIGITAL WH

EXTRAORDINARY COOLING THAT CAN BE SEEN

REAL-TIME

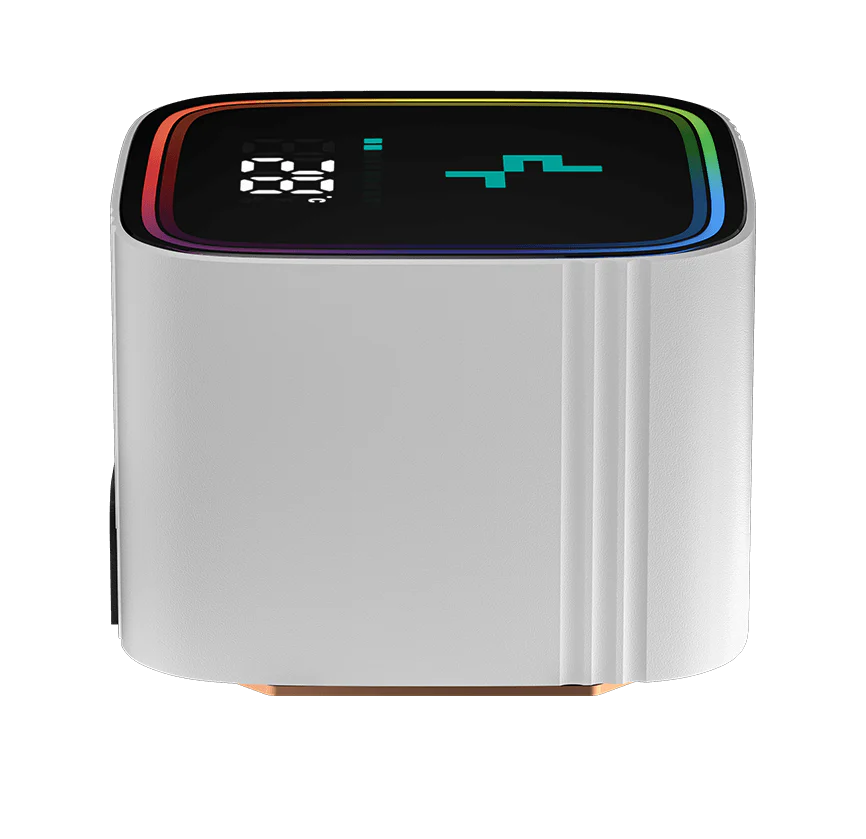

CPU STATUS SCREEN

The status screen displays the temperature, usage, or power consumption of your system's CPU in real time, with the option to automatically switch between all the read outs in 5 second intervals. A visual gauge bar will indicate the level of utilization for each metric, and a high temperature warning indicator will flash when the CPU temperature exceeds the 90°C mark.

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

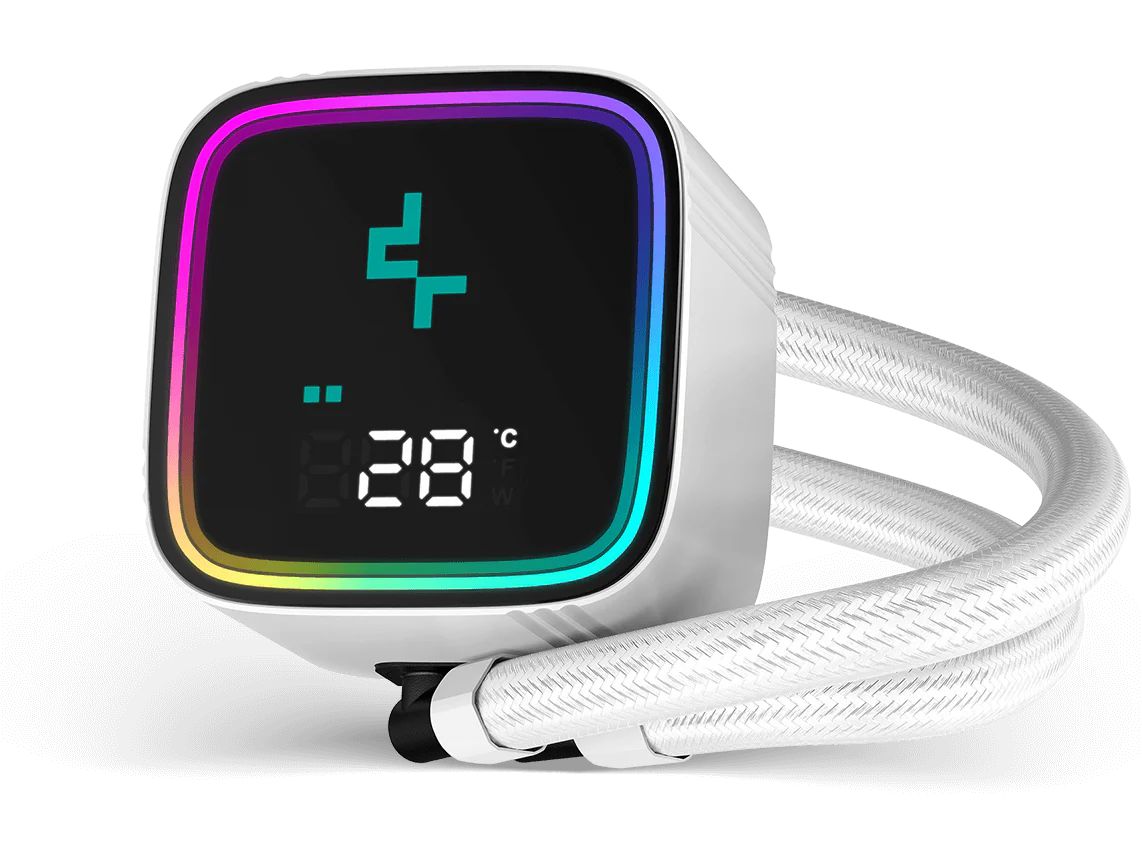

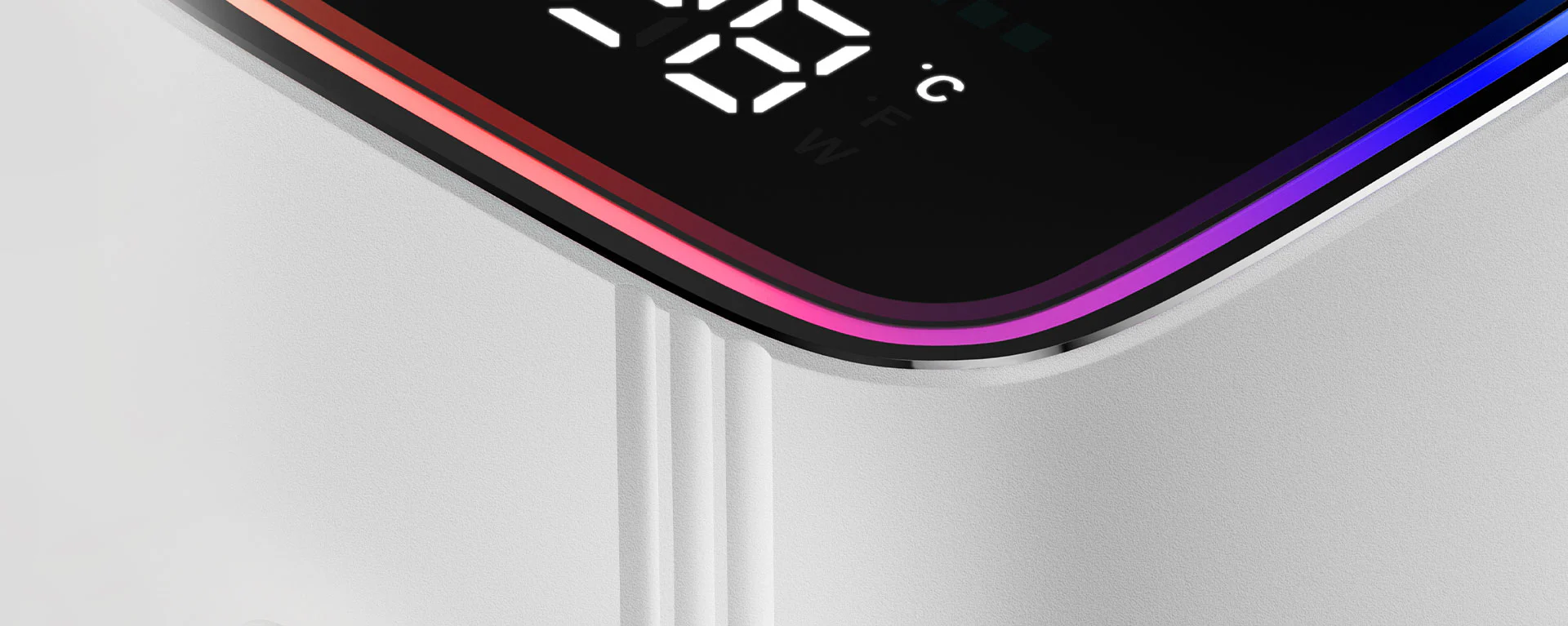

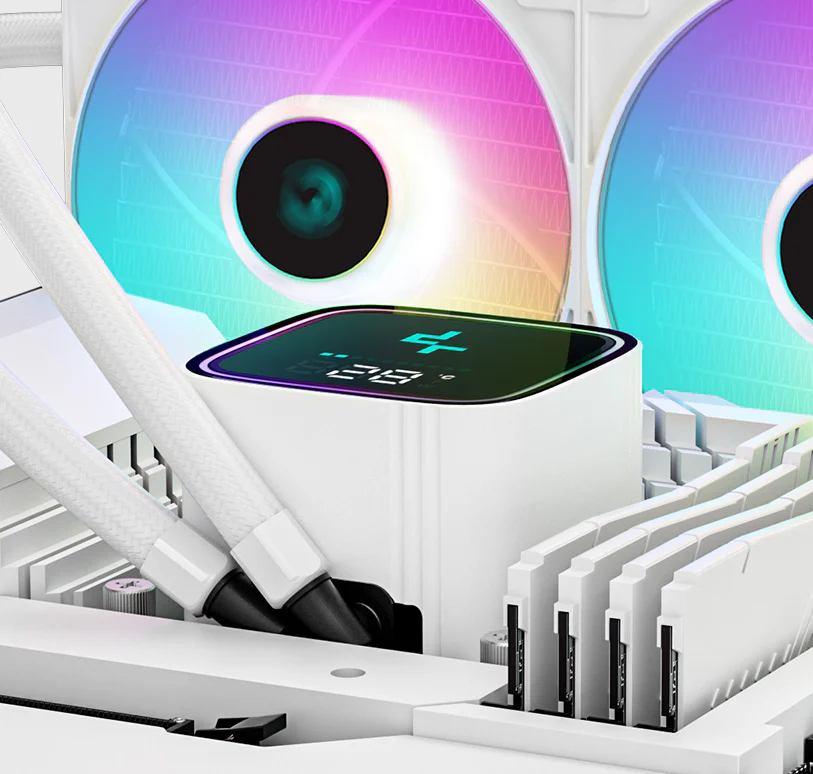

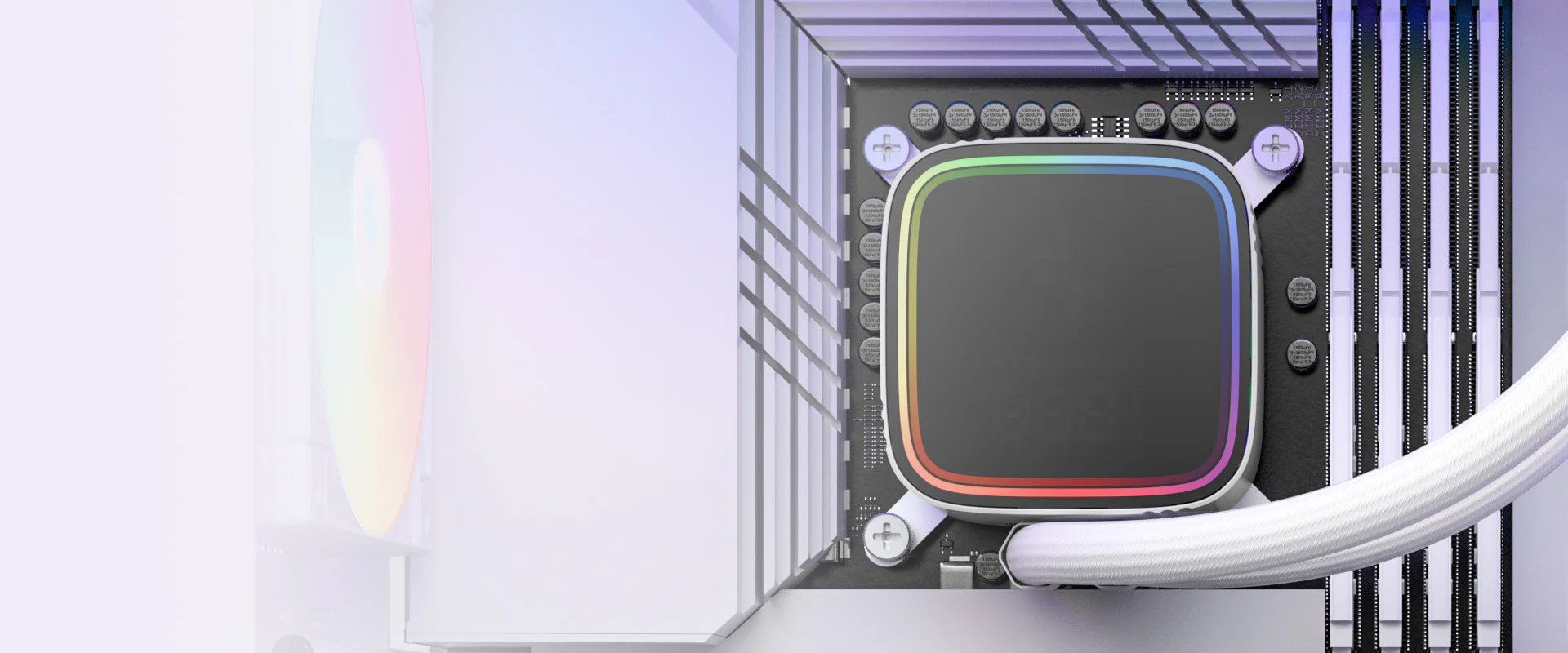

LARGE MIRROR WITH ARGB HALOS

The signature large mirror plate of the LS SE series is unmistakable, but the LS SE DIGITAL coolers also utilize a bright gradient ARGB double halo effect that encapsulates the premium aesthetics of the LS SE DIGITAL pump design: beautifully bright as well as being functional. The ARGB of the entire cooler can be easily synced to ARGB headers on compatible motherboards.

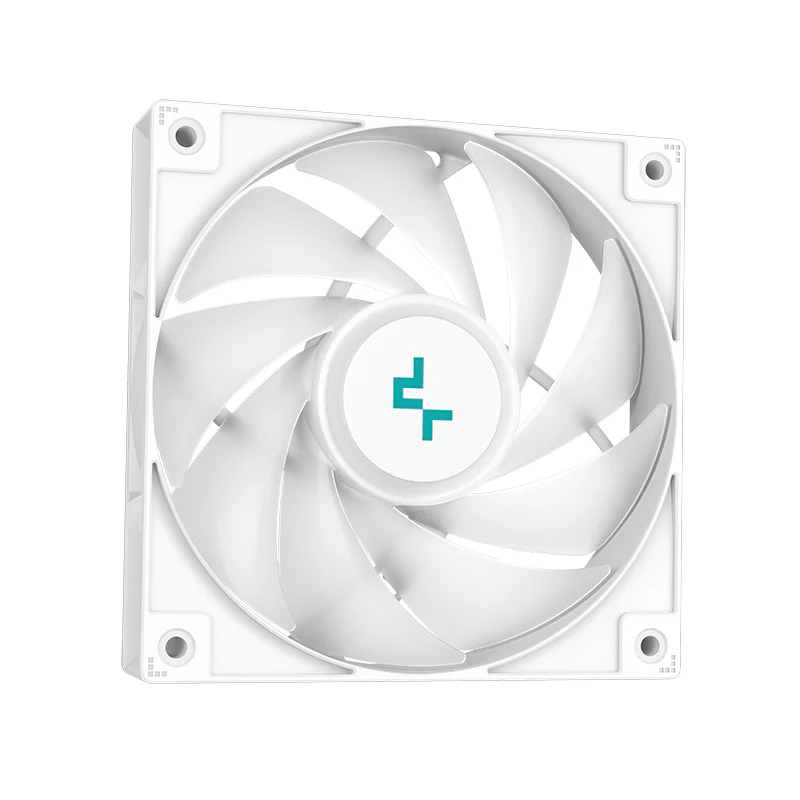

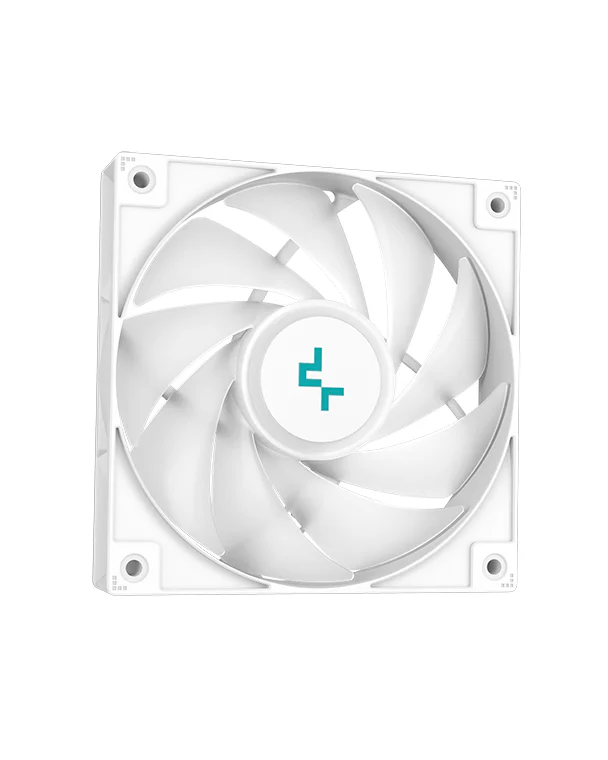

EFFICIENT ARGB FANS

Optimized ARGB PWM fans are included with the LS520 SE DIGITAL WH and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydrodro bearing. The LS520 SE DIGITAL WH includes two of these specialized fans, which have an easy-to-manage 7-pin cable.

EFFICIENT ARGB FANS

KEEPING IT SIMPLE

Full control of the real-time status screen is provided via a simple-to-use application. Once installed, the entire application is found in the Notification Center of the taskbar, where you can switch what metrics you would like to monitor, switch between languages, and choose between Celsius and Fahrenheit. The only interface that will be required is a connection to a USB 2.0 header on the motherboard.

DeepCool-DIGITAL Setup.zip

SLEEK, CLEAN,
AND STRONG

Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large mirror, gradient ARGB halos, and status screen add the finishing touch.

ANTI-LEAK TECHNOLOGY

The LS SE DIGITAL liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.

ANTI-LEAK TECHNOLOGY

QUICK AND EASY

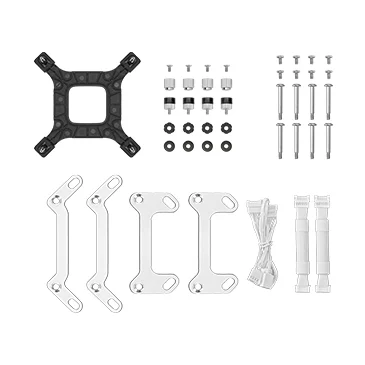

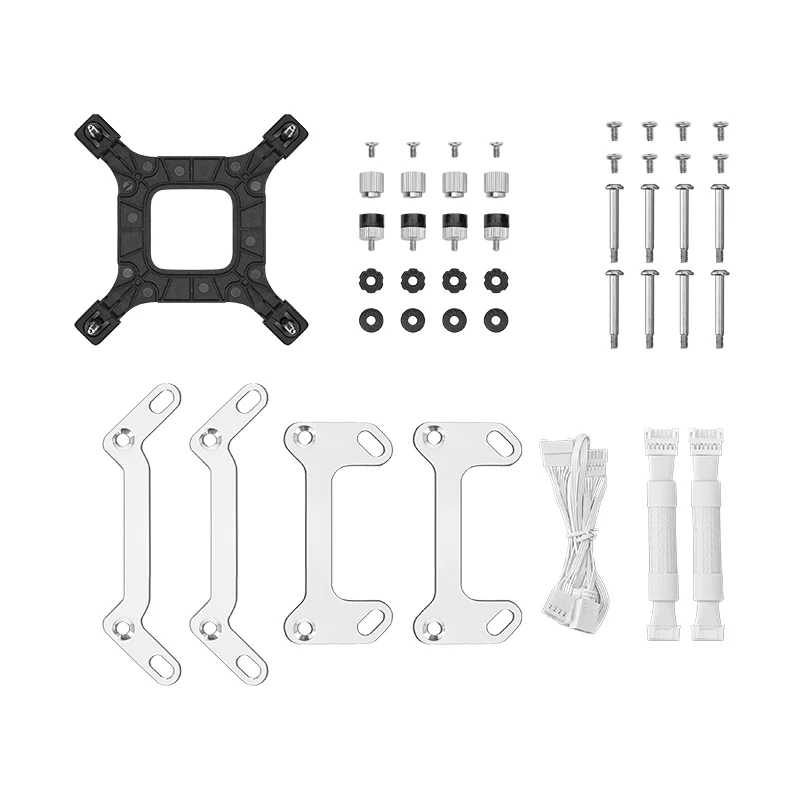

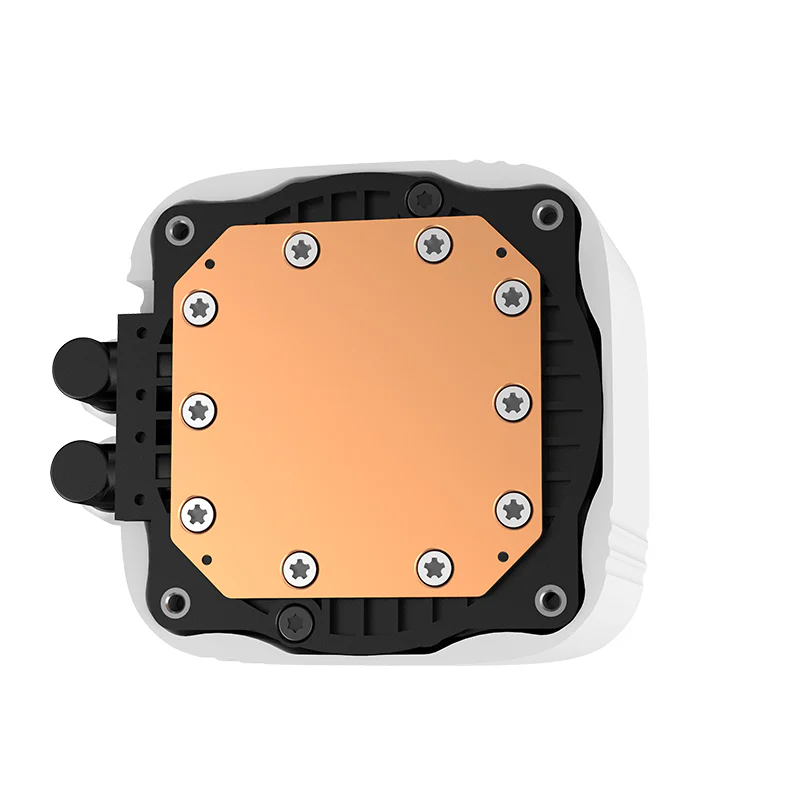

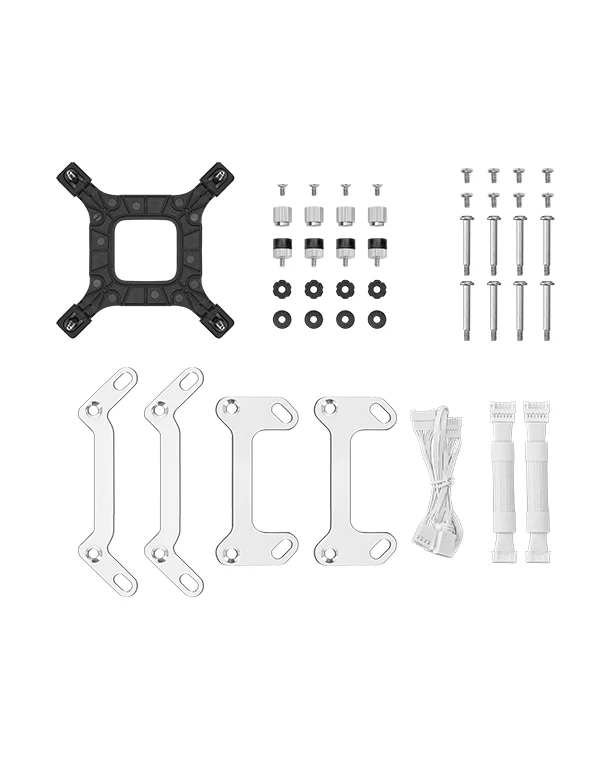

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS SE DIGITAL to the latest mainstream CPUs is included in the box, so you are ready to go.

*High thermal resistance paste is pre-applied

Application For

Intel

LGA1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1394g

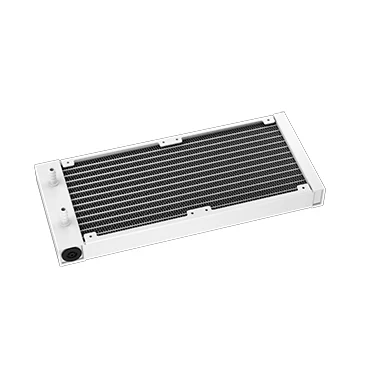

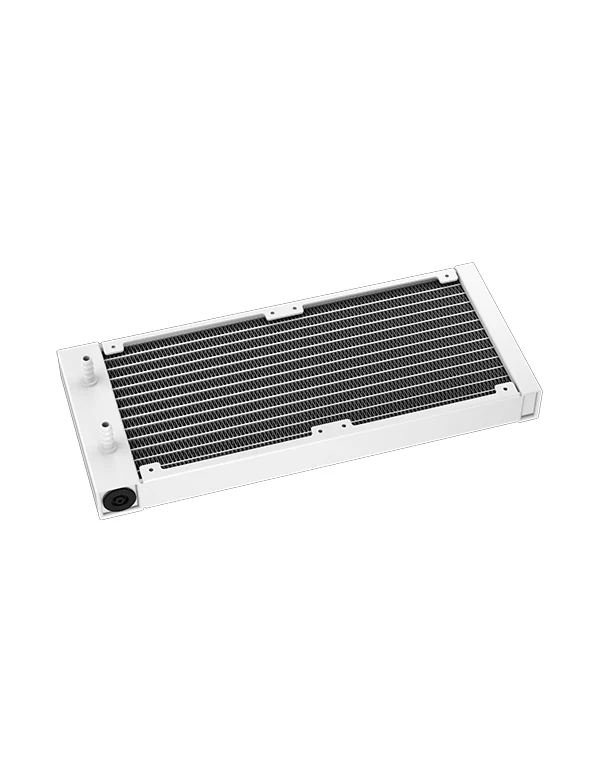

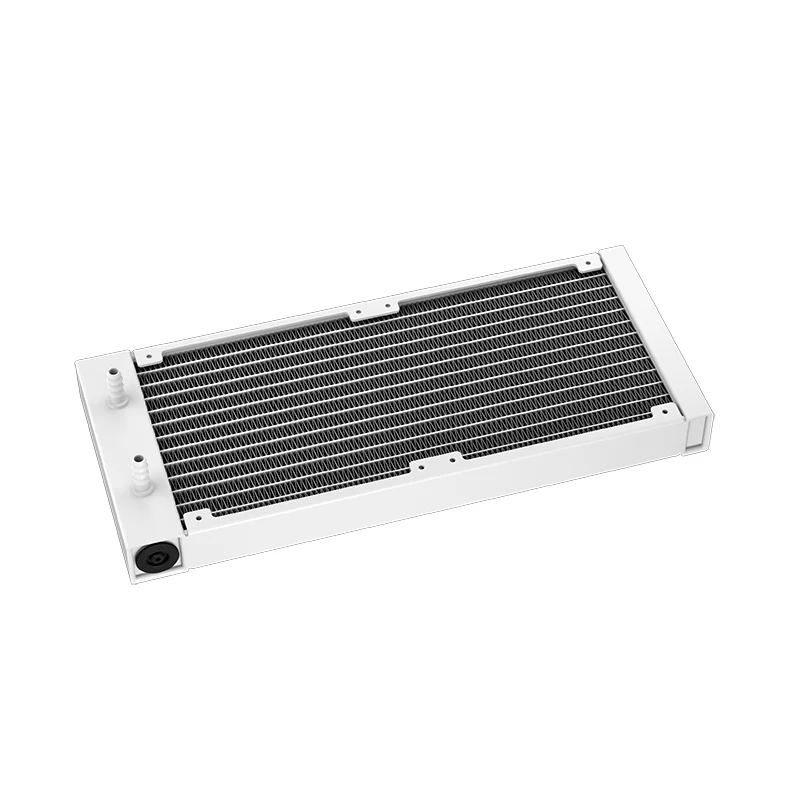

Radiator Dimensions	282×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm
Pump Dimensions	85×73×55 mm(L×W×H)
Pump Speed	3100 RPM±10%
Pump Noise	19 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.35A
Pump Power Consumption	4.2W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2250 RPM±10%
Fan Airflow	85.85 CFM
Fan Air Pressure	3.27 mmAq
Fan Noise	≤32.9 dB(A)
Fan Speed (with LSP)	500~1600 RPM±10%
Fan Airflow (with LSP)	60.85 CFM
Fan Air Pressure (with LSP)	1.65 mmAq
Fan Noise (with LSP)	≤28.2 dB(A)
Fan Connector	7-pin
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.25 A
Fan Power Consumption	3.0 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.7 W（PUMP）/ 2.1 W（FAN×2）
Display Type	LED Digital Display
EAN	6933412728351
P/N	R-LS520-WHAMMD-G-1
