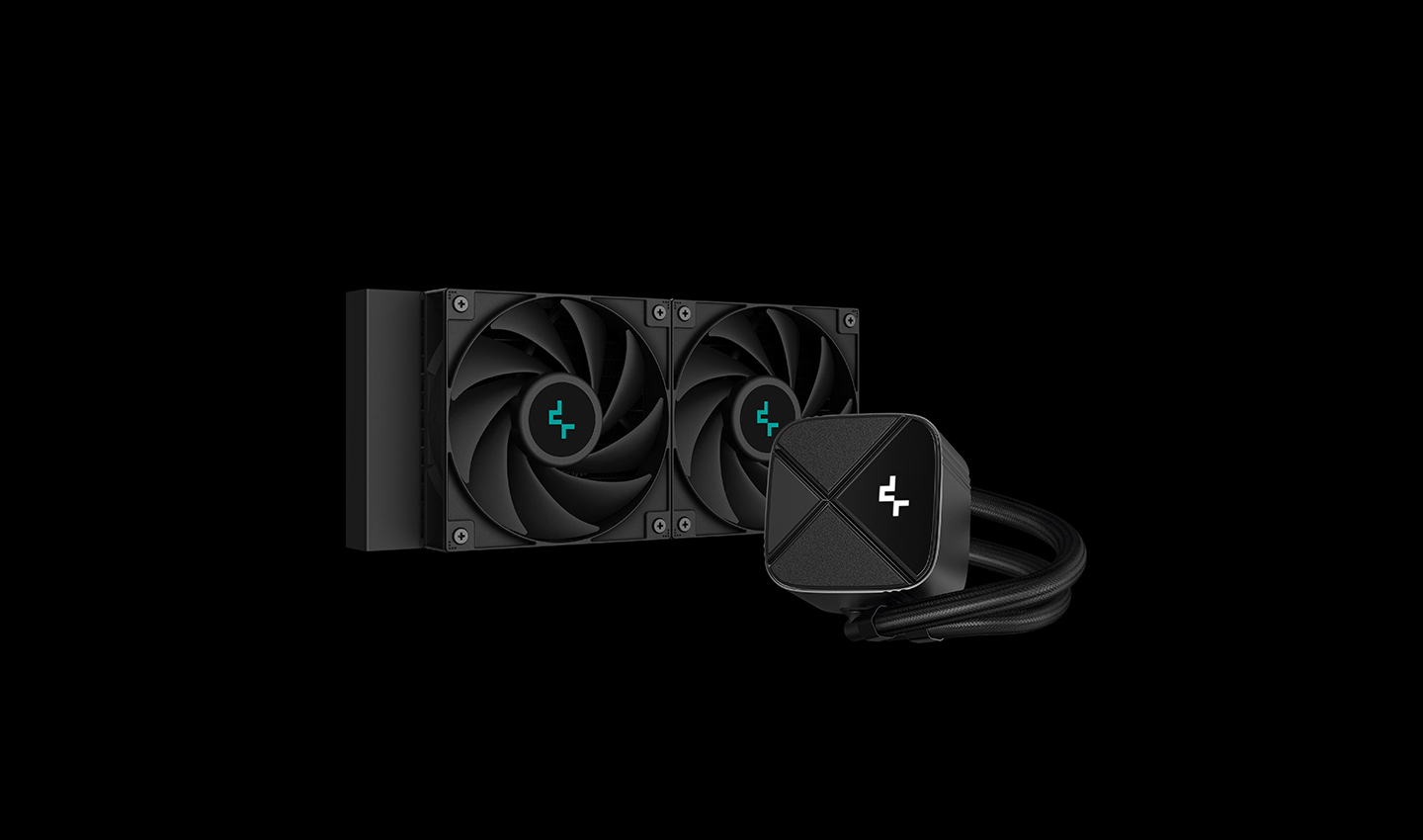

LS520S ZERO DARK
The ZERO DARK theme has spread into DeepCool's acclaimed LS line of liquid coolers. The all-blacked out design of the LS520S ZERO DARK has all the performance that you would expect from our 240mm 4th generation pump powered AIOs, but with minimal lighting. The perfect component for those ultra sleek stealth or professional builds.
COLOR
black
MODEL
LS520S ZERO DARK
Let The Darkness Take Control
EMBRACE THE DARKNESS
There is something about premium systems with little to no lighting. The LS520S ZERO DARK is the perfect liquid solution for cooling higher end processors that emphasizes the actual components. RGB need not apply.
BUILT STRONG!
Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large pump cover is rotatable, and easy to adjust.
4th GENERATION PUMP
Built on our 4th Generation high-performance water pump design that maximizes cooling performance featuring:
1 Optimized microchannels ensure efficient coolant flow.
2 Powerful three-phase drive motor rotates up to 3100 RPM.

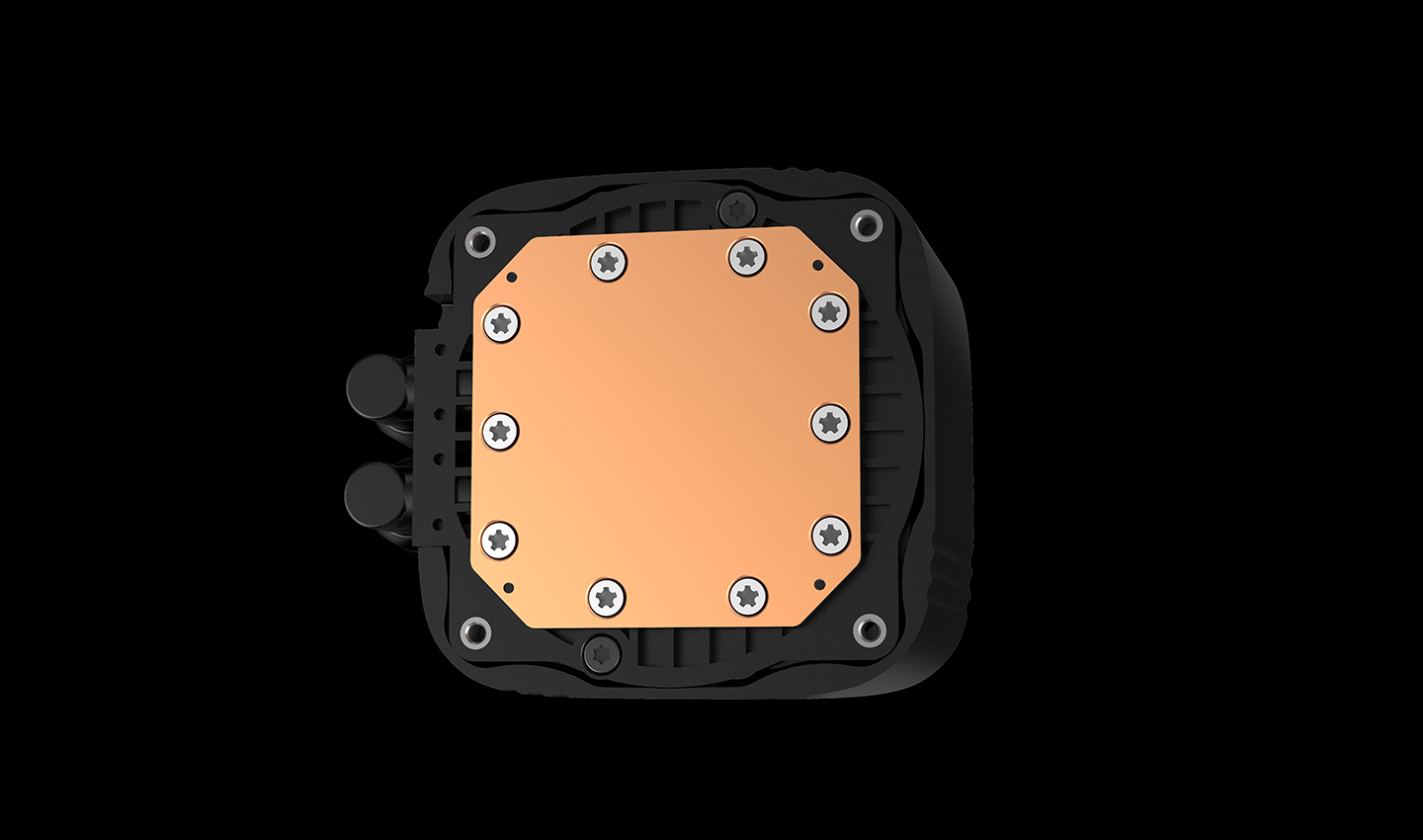

3 Thick solid copper coldplate.

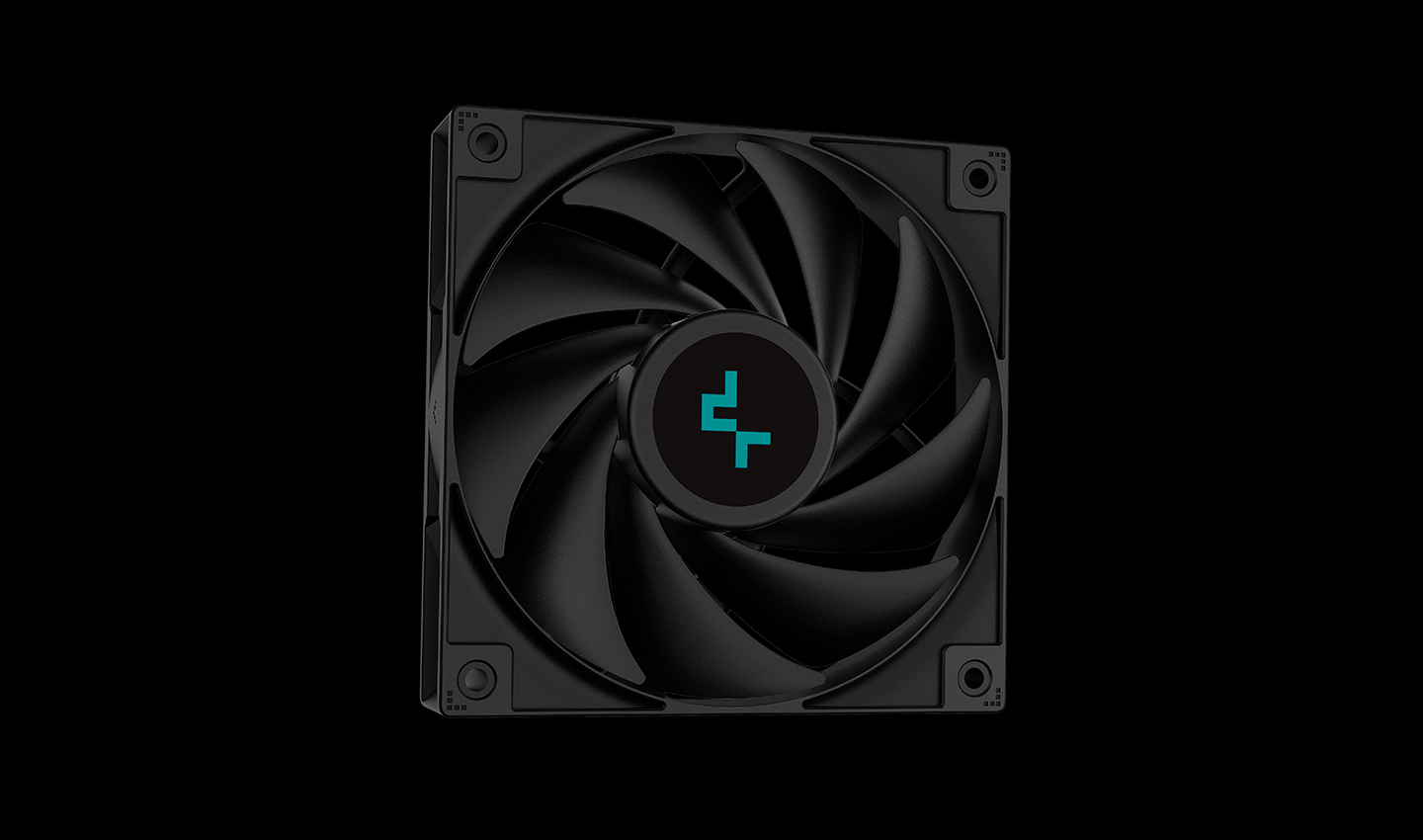

HIGHLY EFFICIENT FANS
Optimized PWM fans are included with the LS520S ZERO DARK and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydro bearing. The LS520S ZERO DARK will include three of these specialized PWM fans.
500~2250 RPM
Dynamic PWM Range
85.85 CFM
Supreme Airflow
3.27 mmAq
Air Pressure
≤32.9 dB(A)
Full Load Noise
ANTI-LEAK TECHNOLOGY
The LS520S ZERO DARK liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.
SIMPLIFIED INSTALLATION

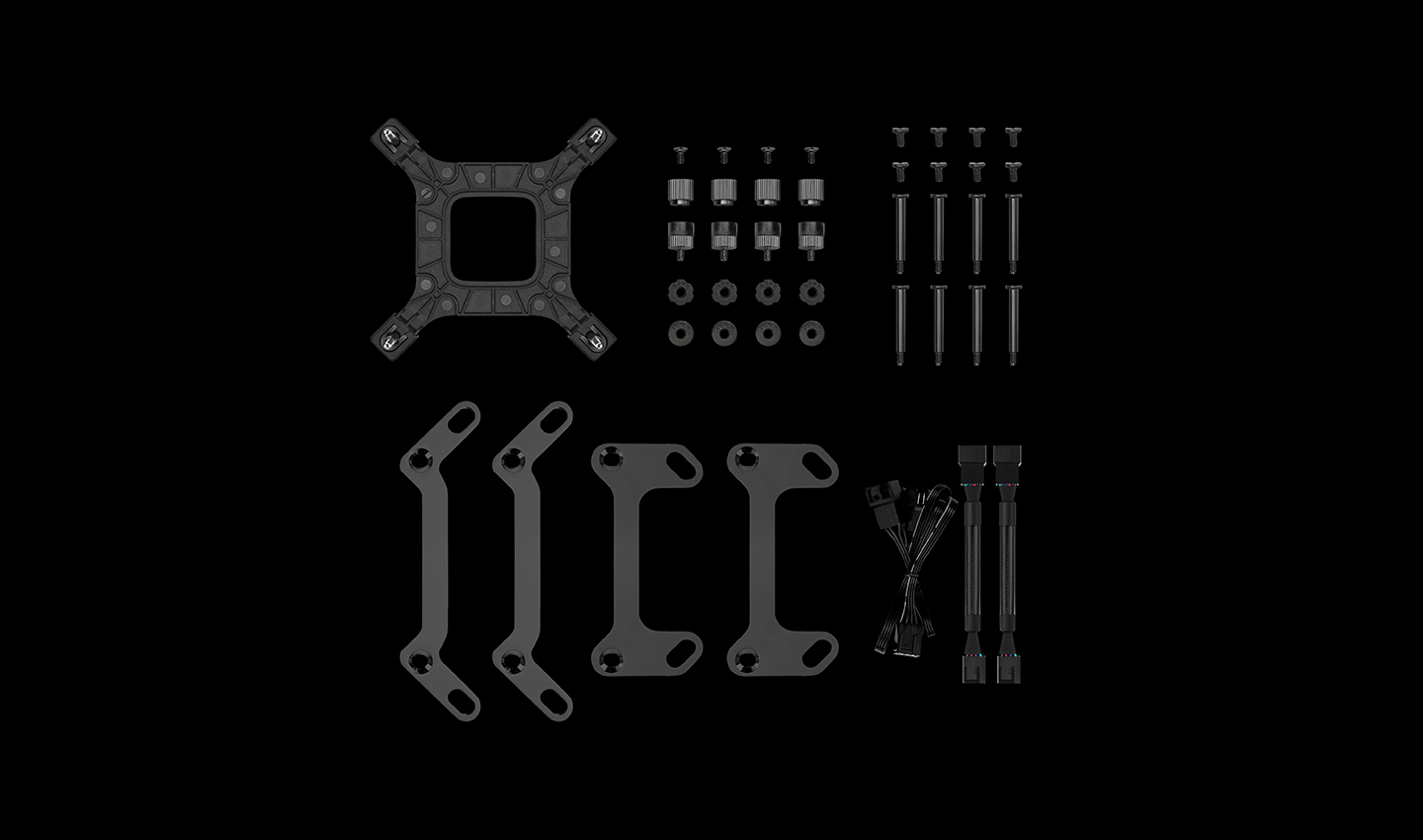

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS520S ZERO DARK to the latest mainstream CPUs is included in the box, so you are ready to go.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1346 g
Radiator Dimensions282×120×27 mm(L×W×H)

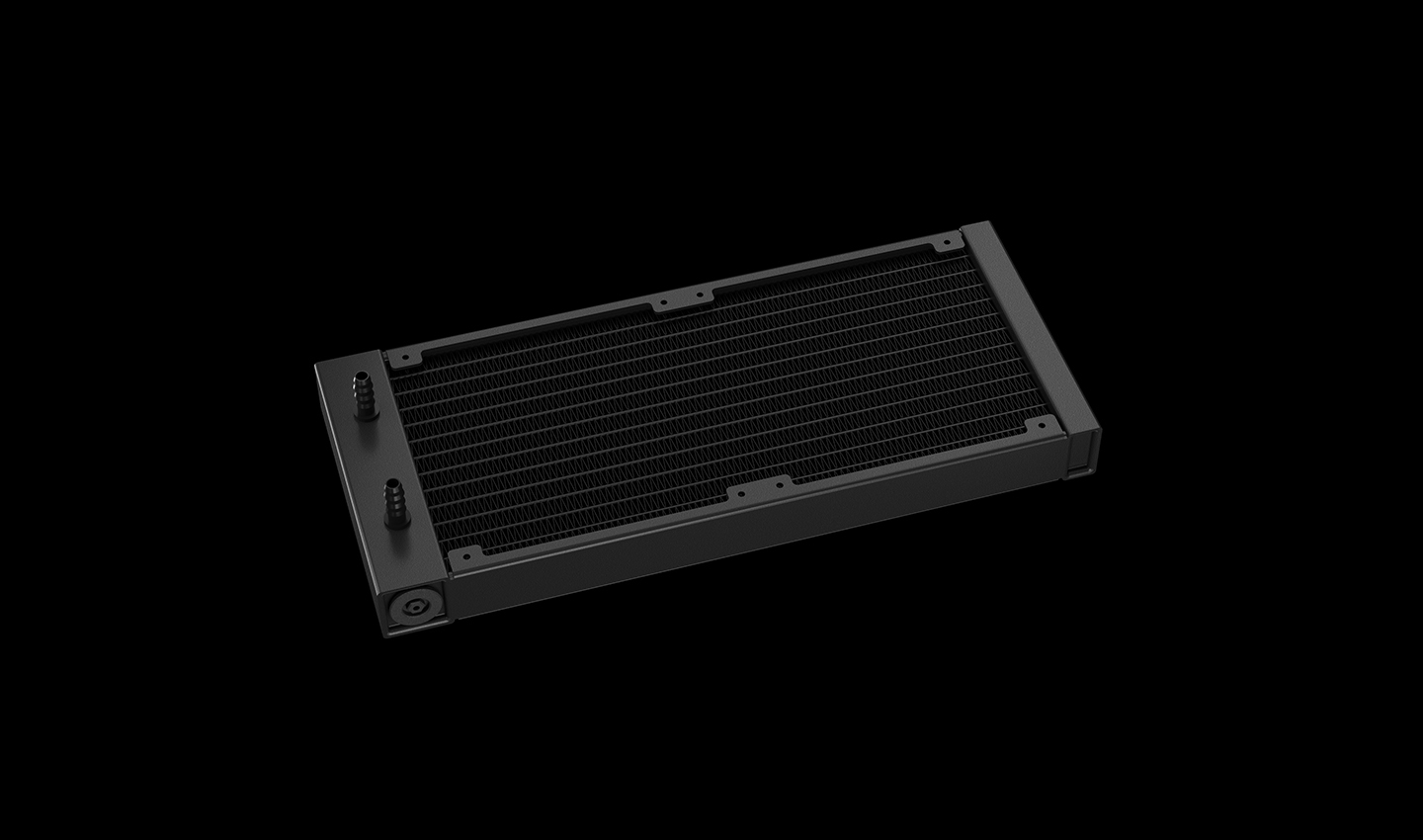

Radiator MaterialAluminum
Tube length410 mm
Pump Dimensions85×73×55 mm(L×W×H)
Pump Speed3100 RPM±10%
Pump Noise19 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.5A
Pump Power Consumption6W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2250 RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Speed (with LSP)500~1600 RPM±10%
Fan Airflow (with LSP)60.85 CFM
Fan Air Pressure (with LSP)1.65 mmAq
Fan Noise (with LSP)≤28.2 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.25 A
Fan Power Consumption3.0 W
LED TypeWhite LED
EAN6933412728429
P/NR-LS520-BKNNMM-G-1
Product Dimension
