LS720

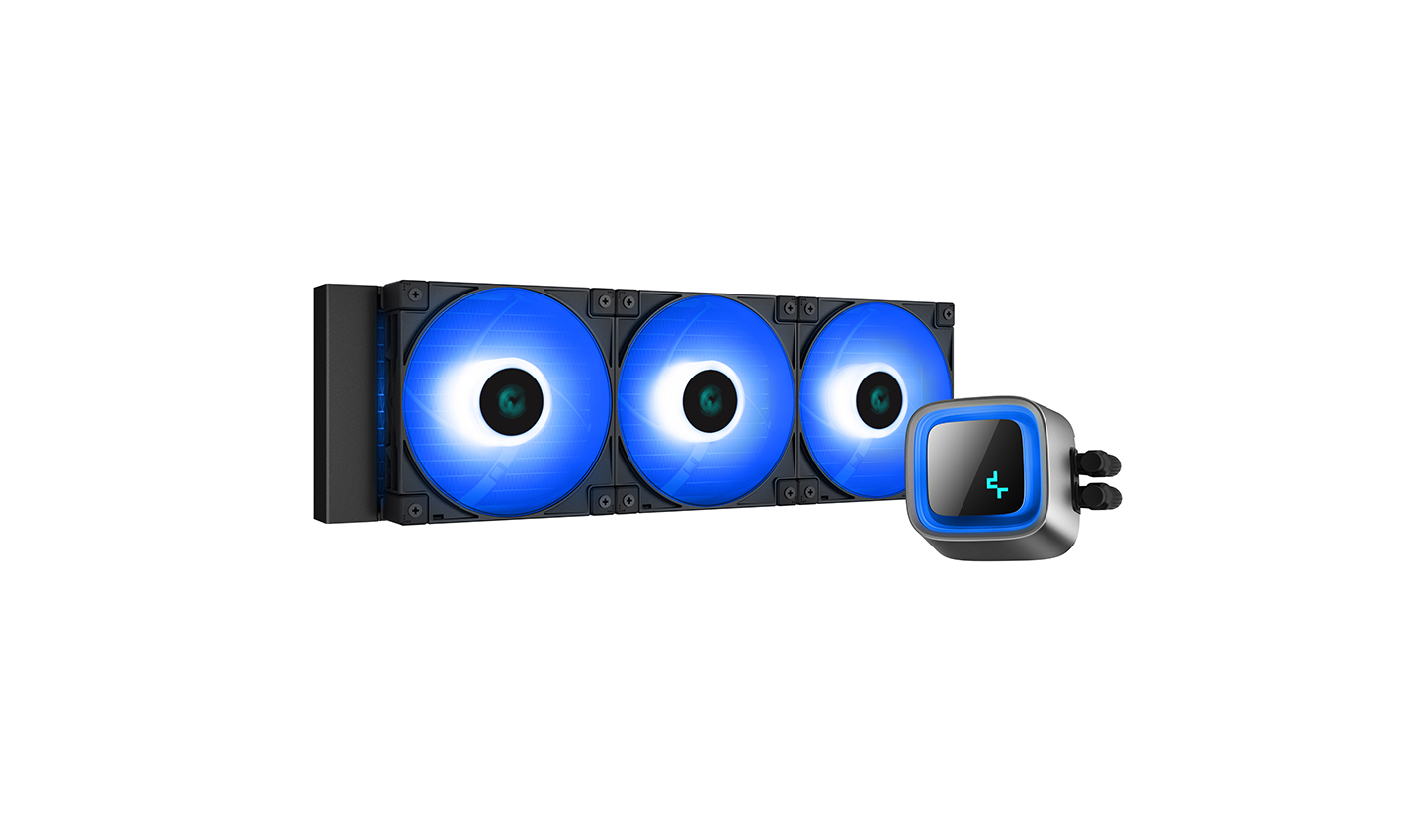

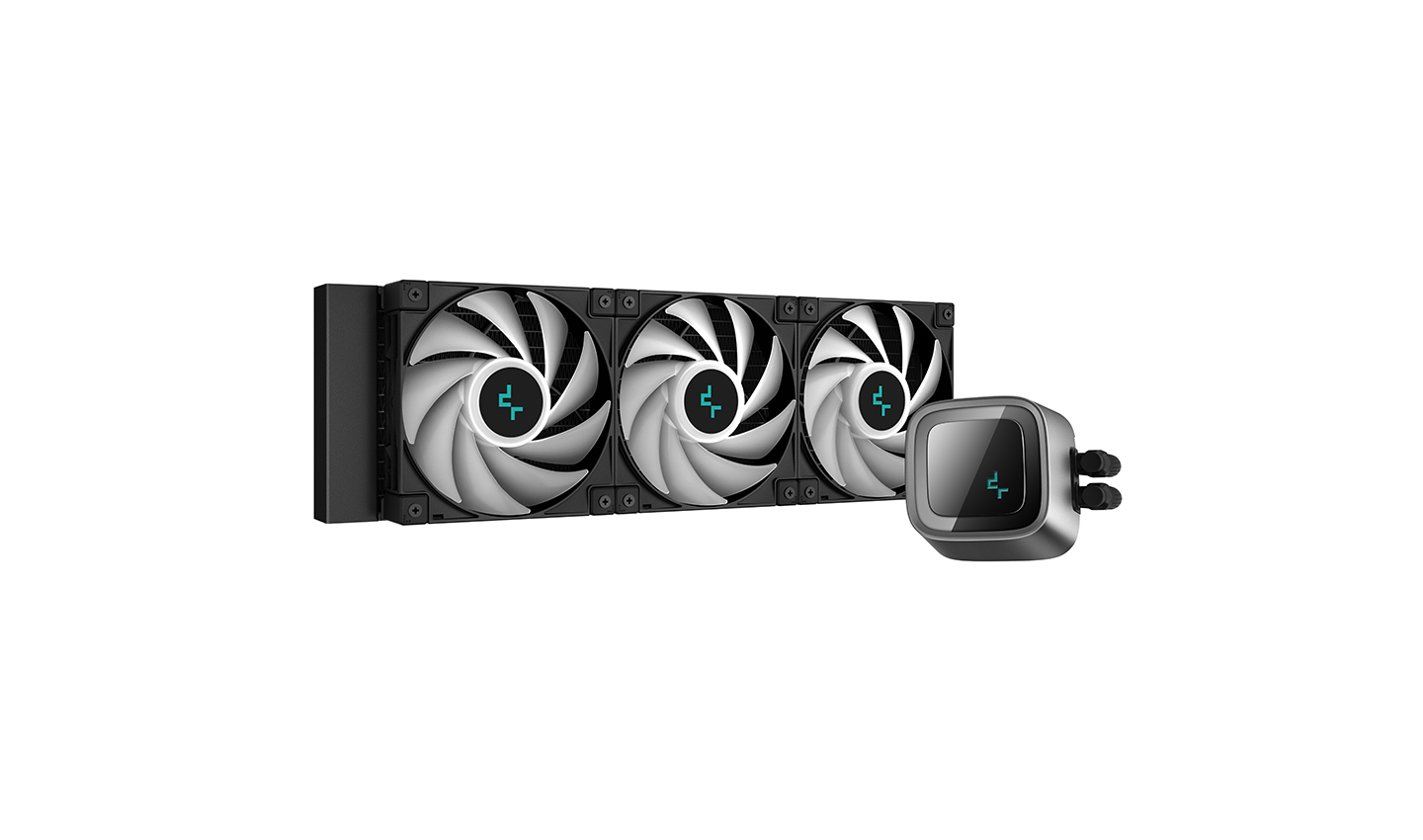

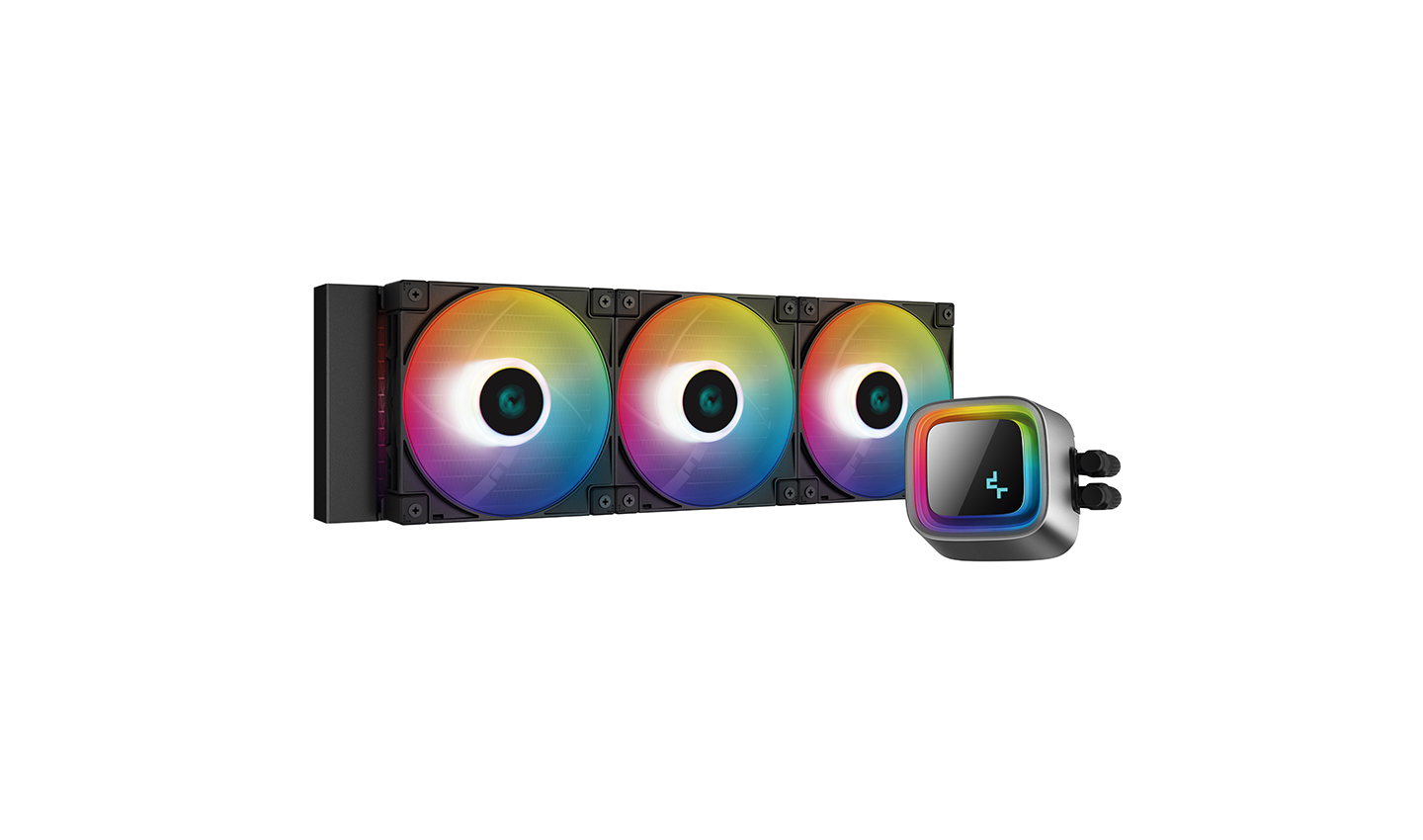

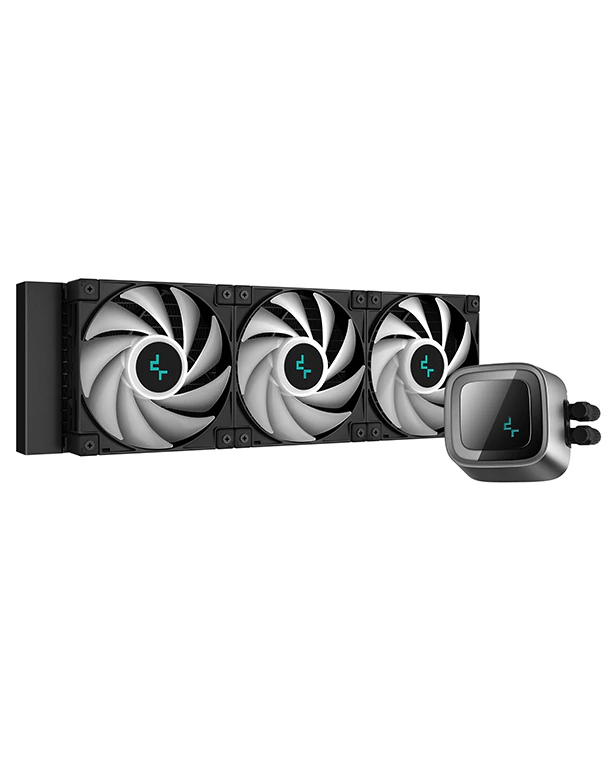

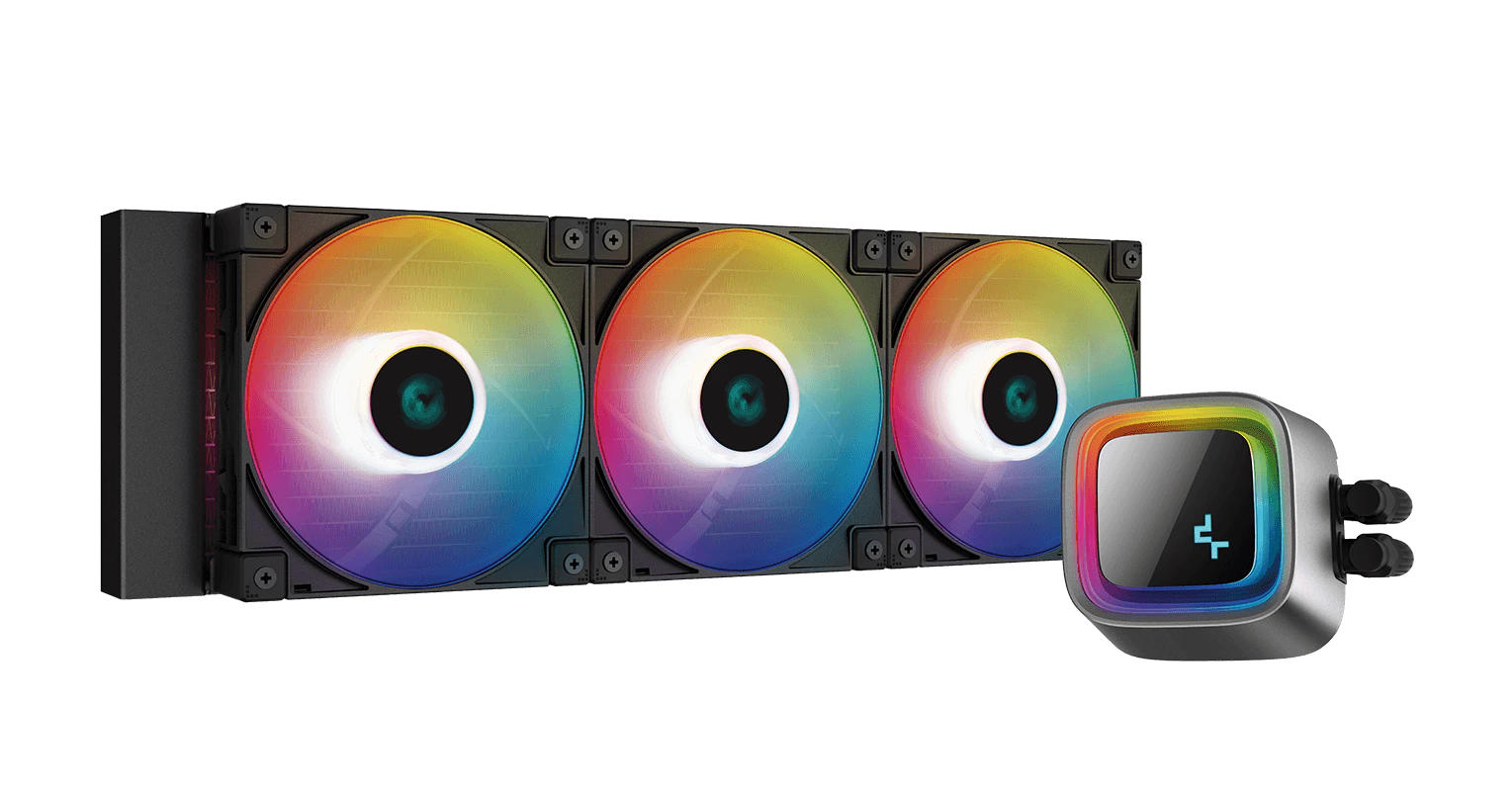

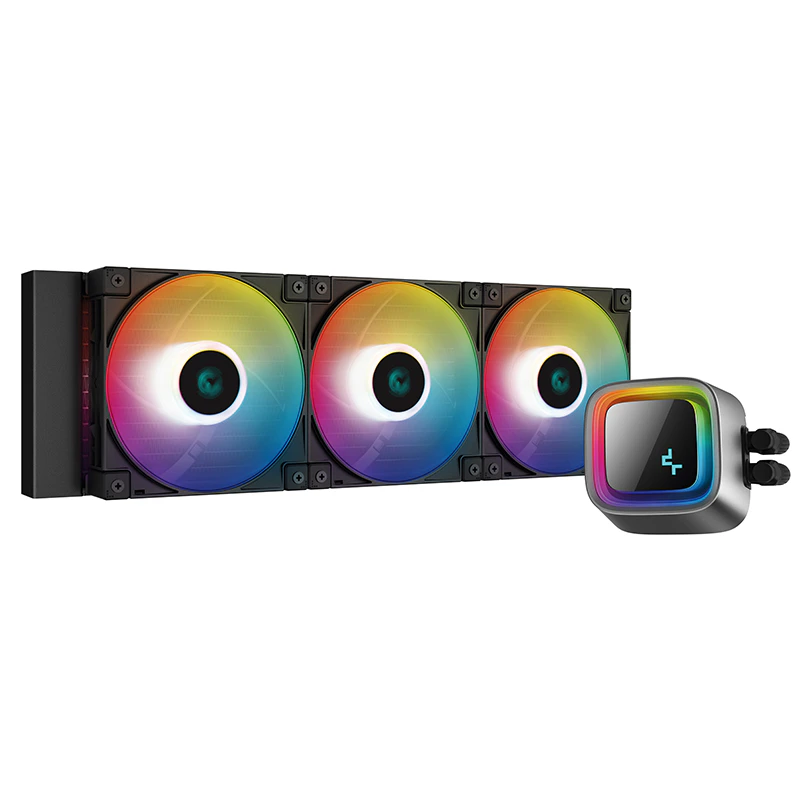

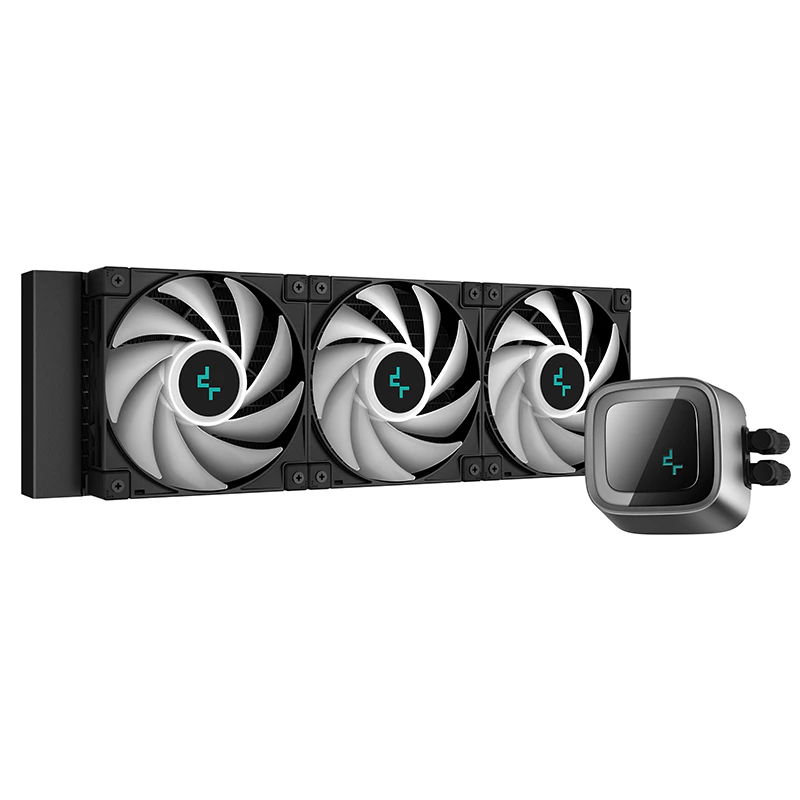

The DeepCool LS720 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 360mm radiator, three FC120 A-RGB PWM fans, and an infinity mirror cap design.
COLOR
black
MODEL
LS720
Elite performance
The DeepCool LS720 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 360mm radiator, three FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of DeepCool

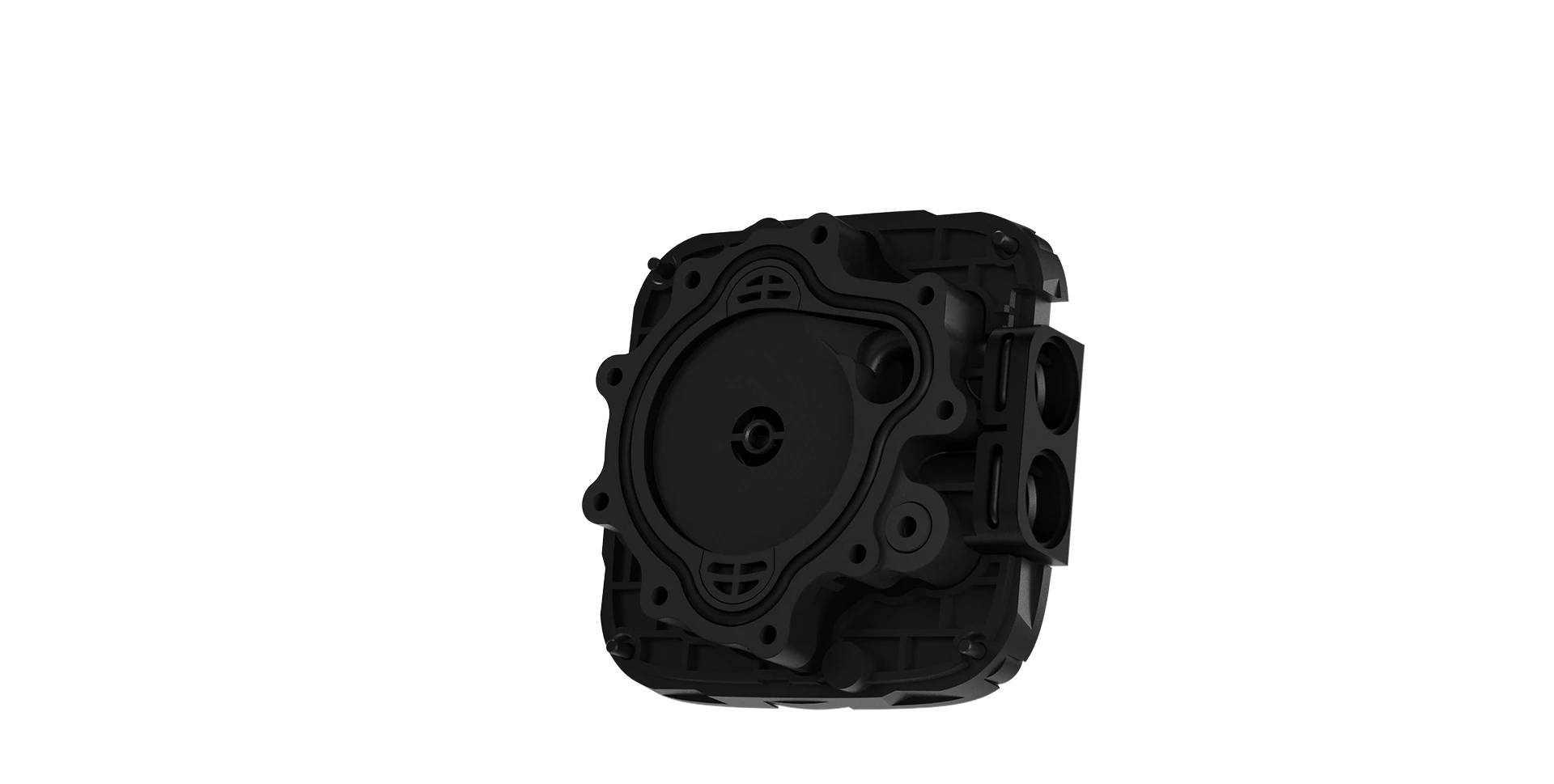

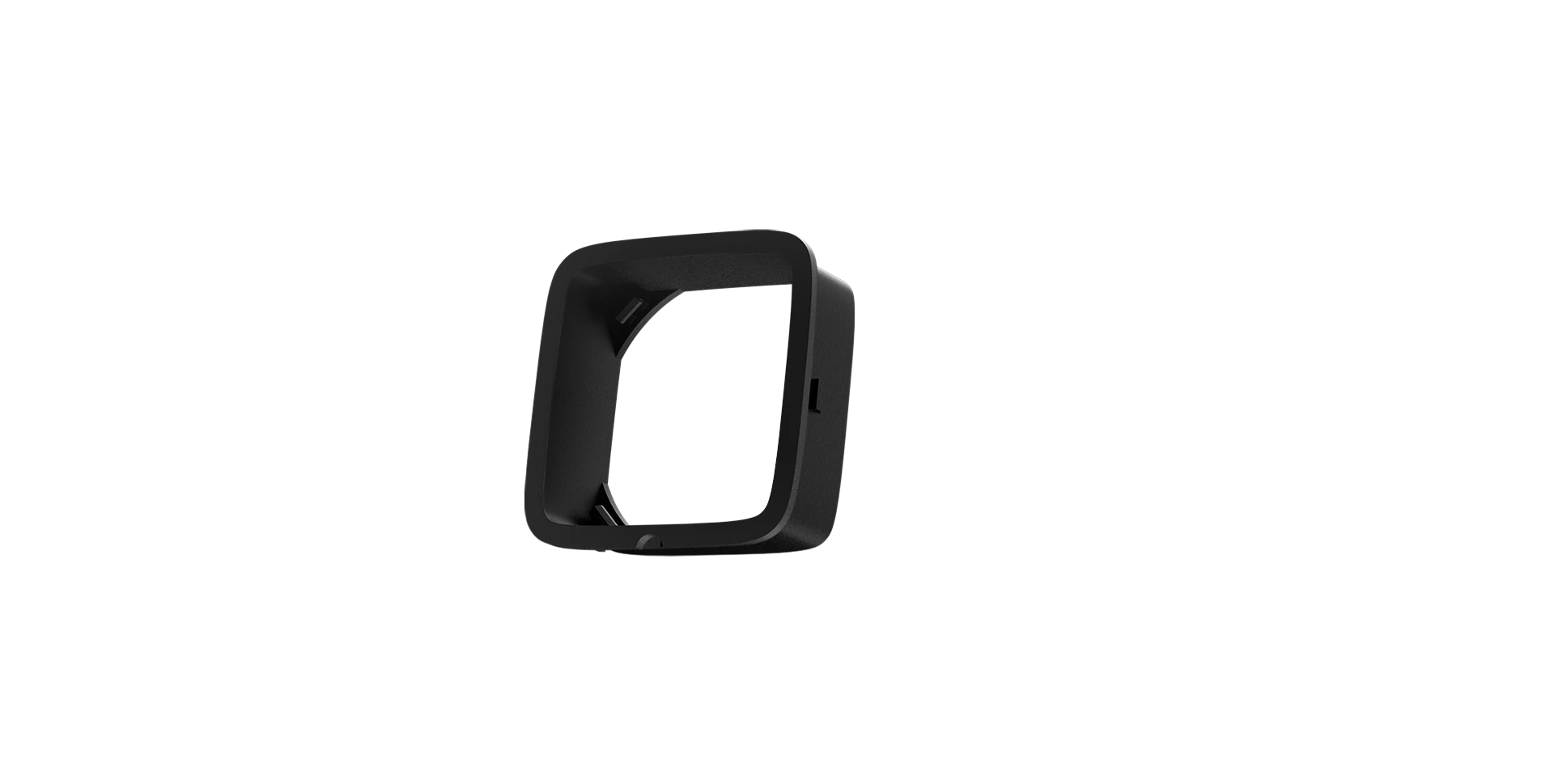

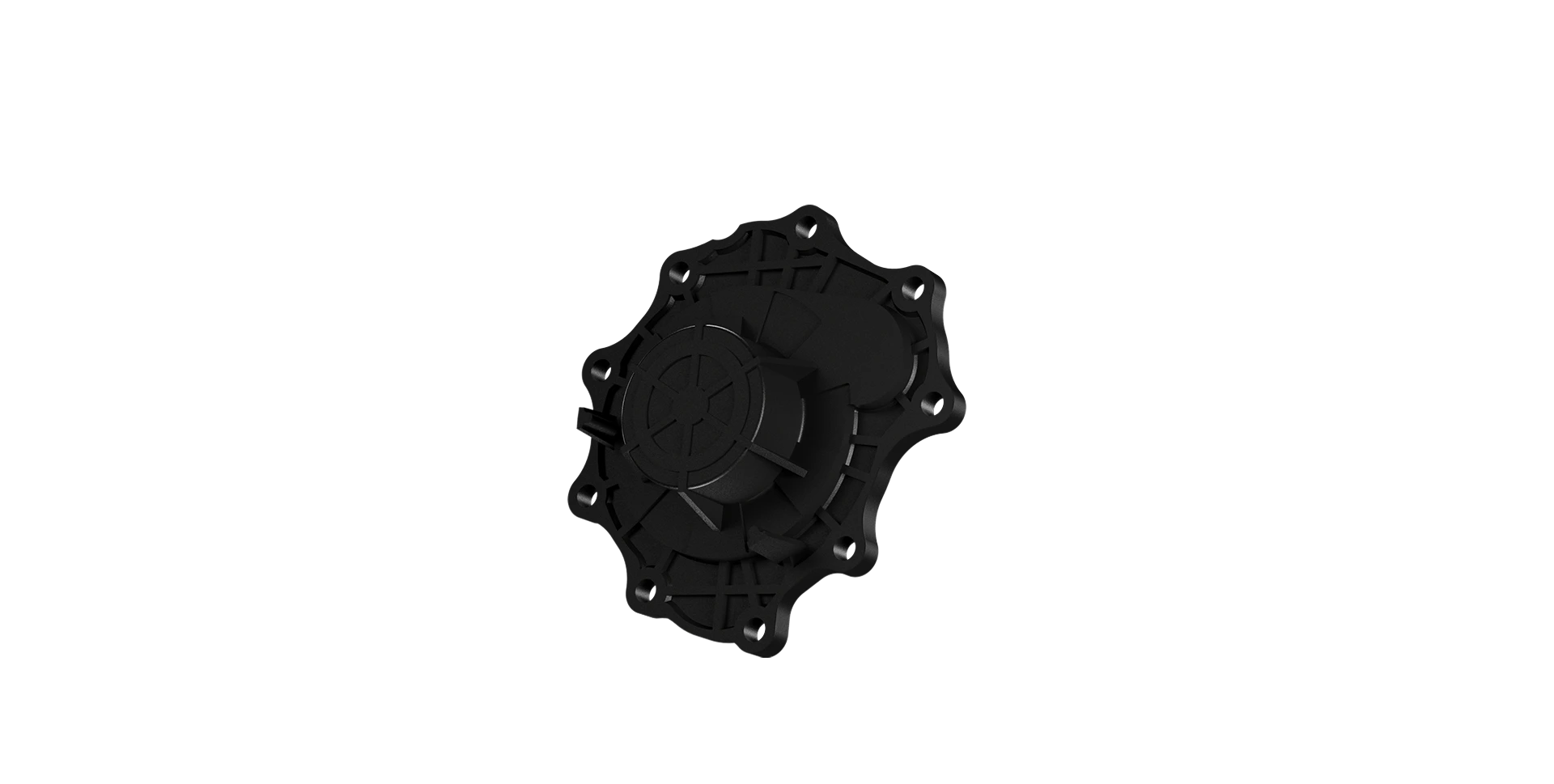

Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1 Improved microchannel design
ensures optimal coolant flow.
2 Powerful three-phase drive
motor up to 3100 RPM.

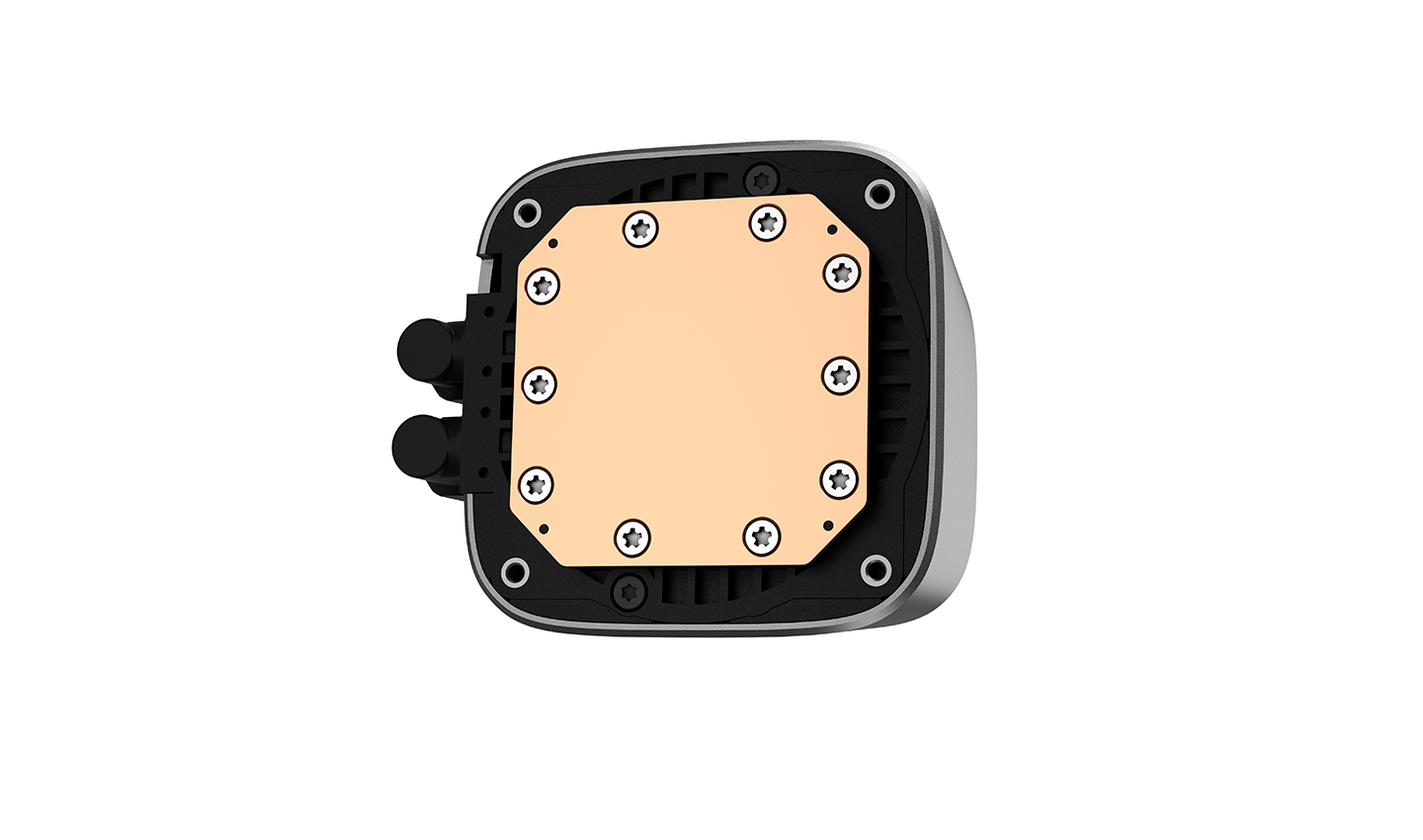

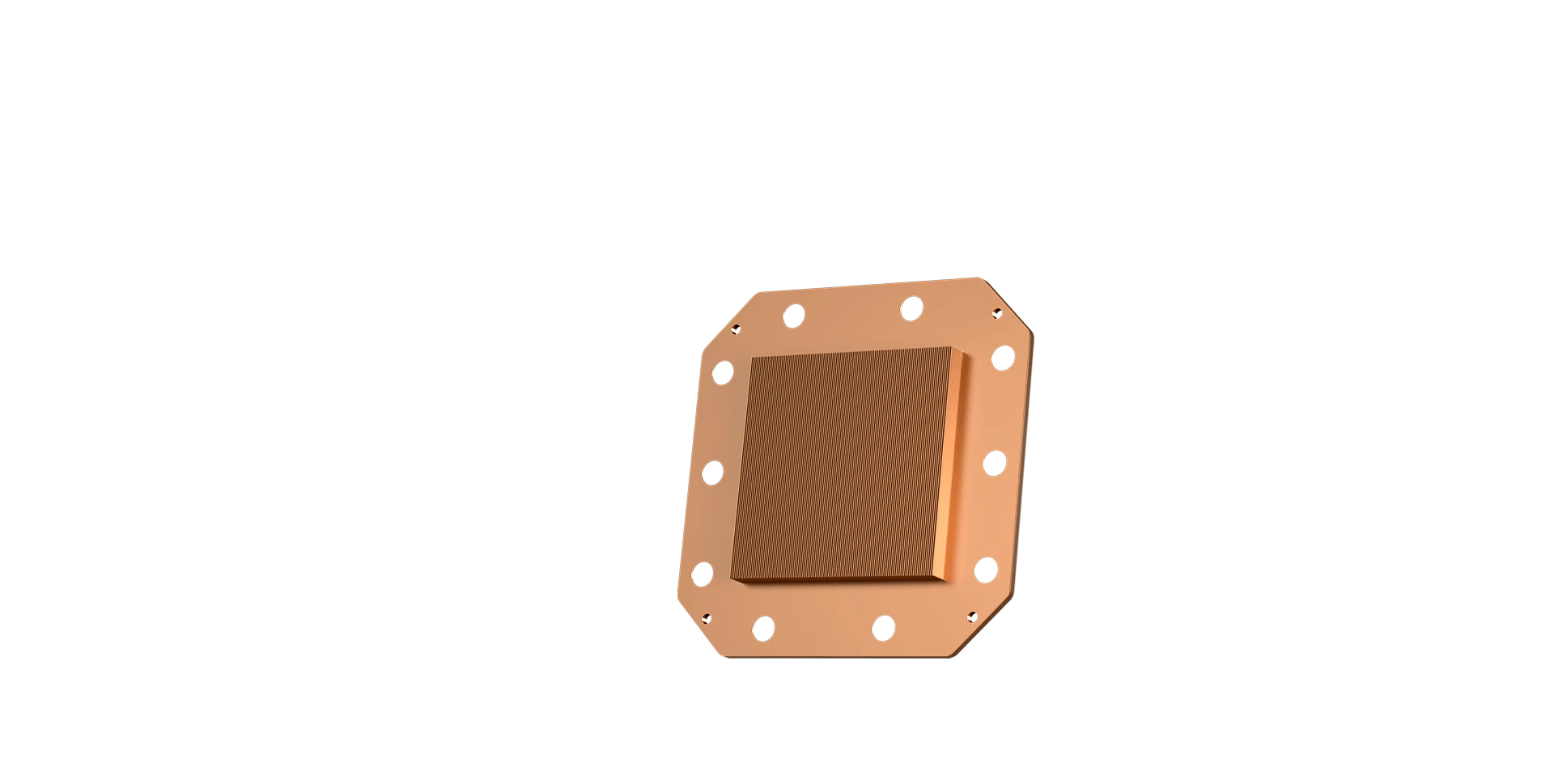

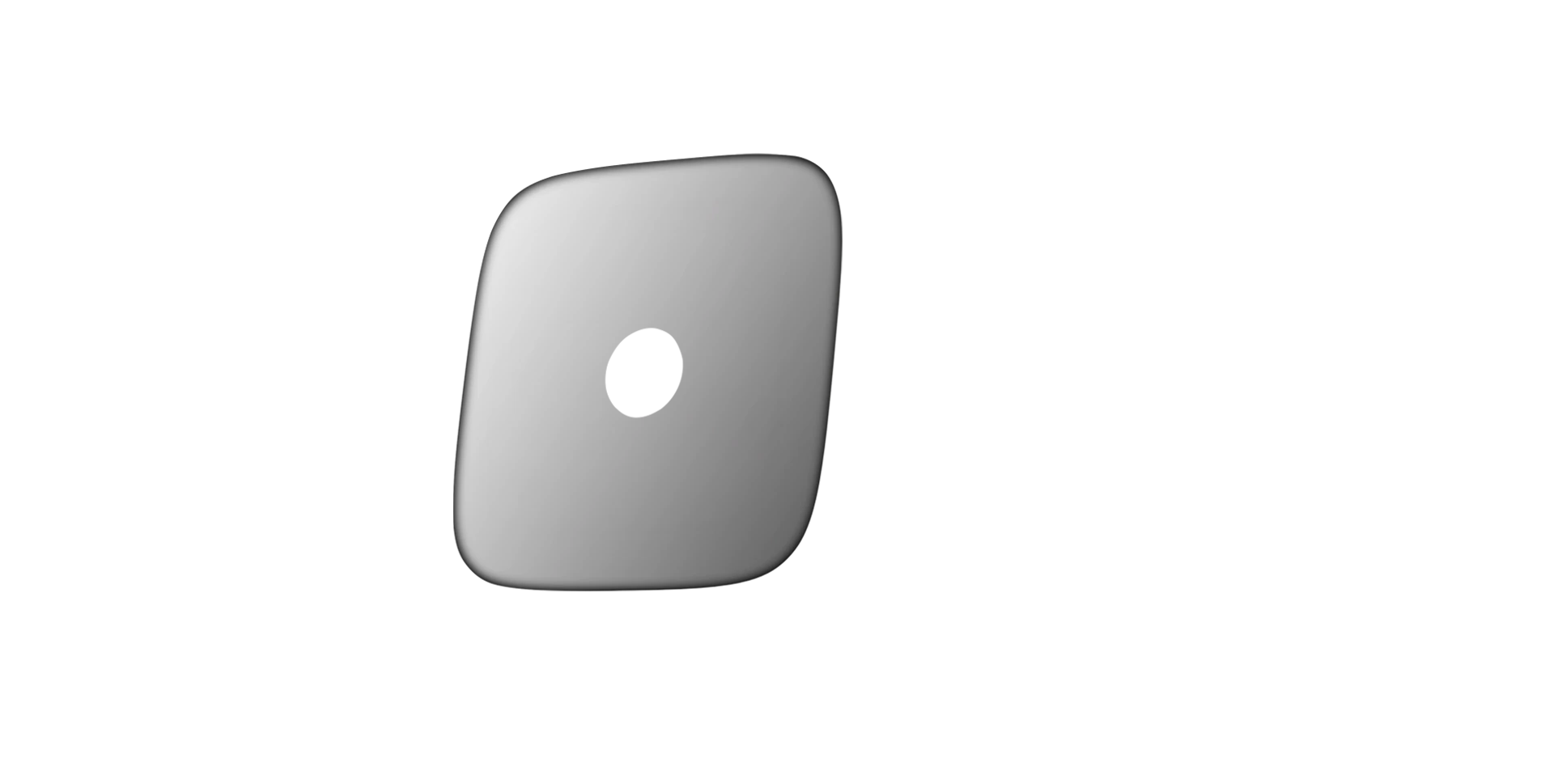

3 Thick solid copper base
with a seamless match.
Cool and Quiet

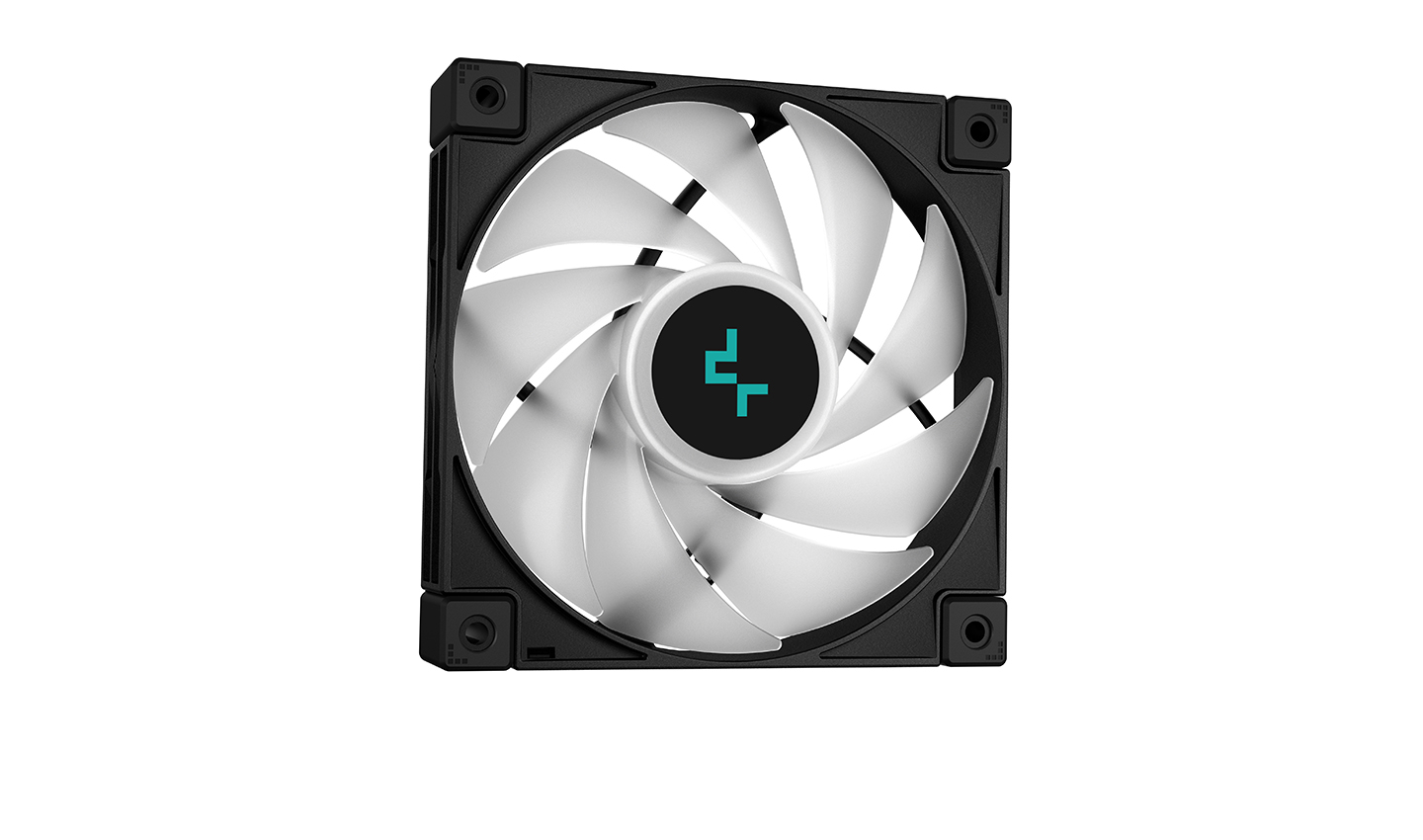

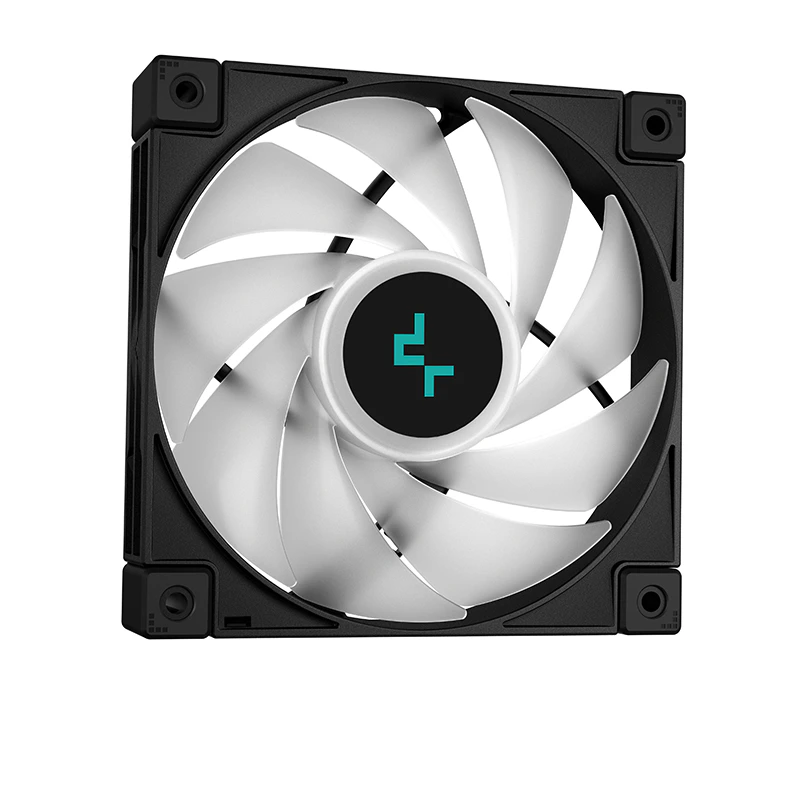

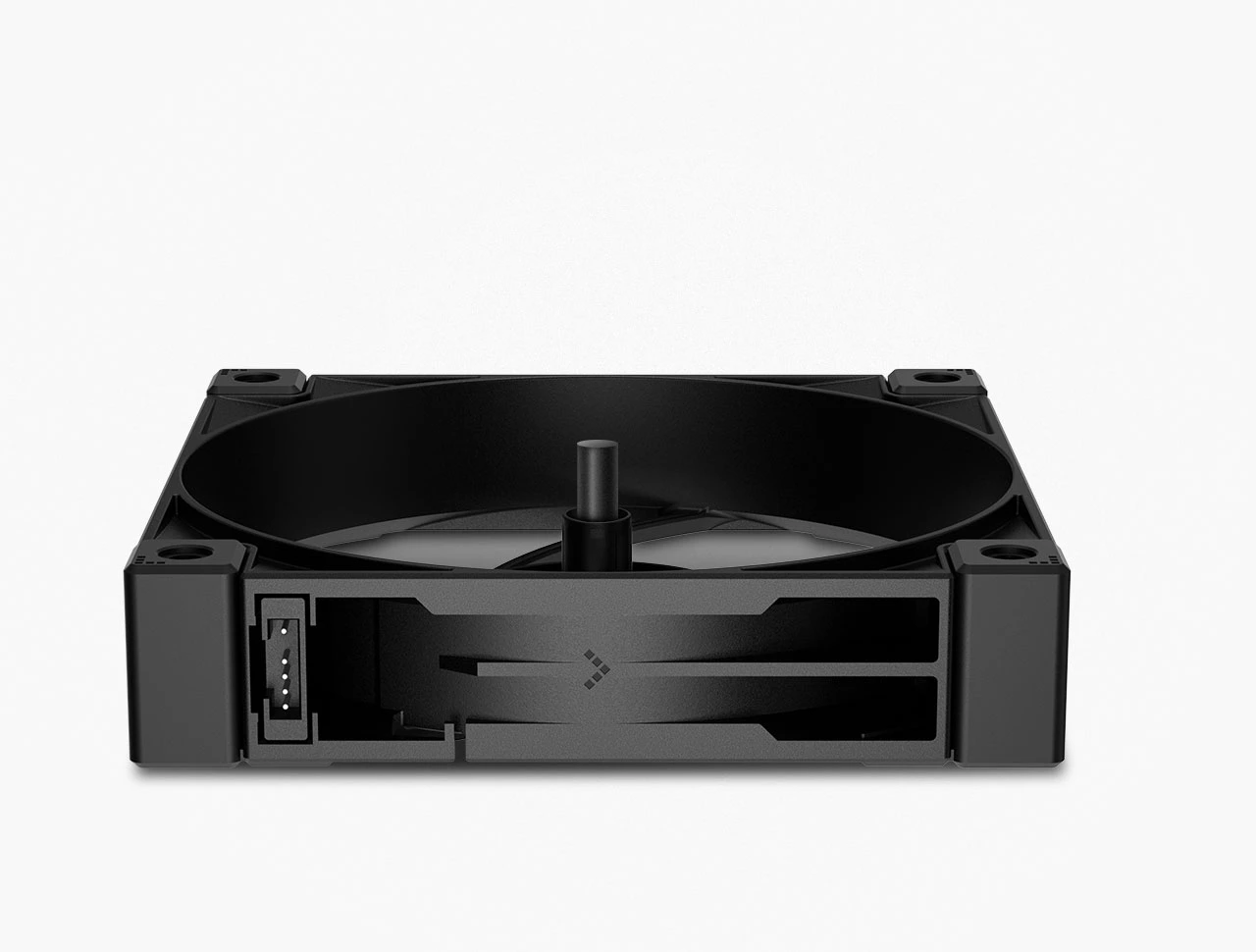

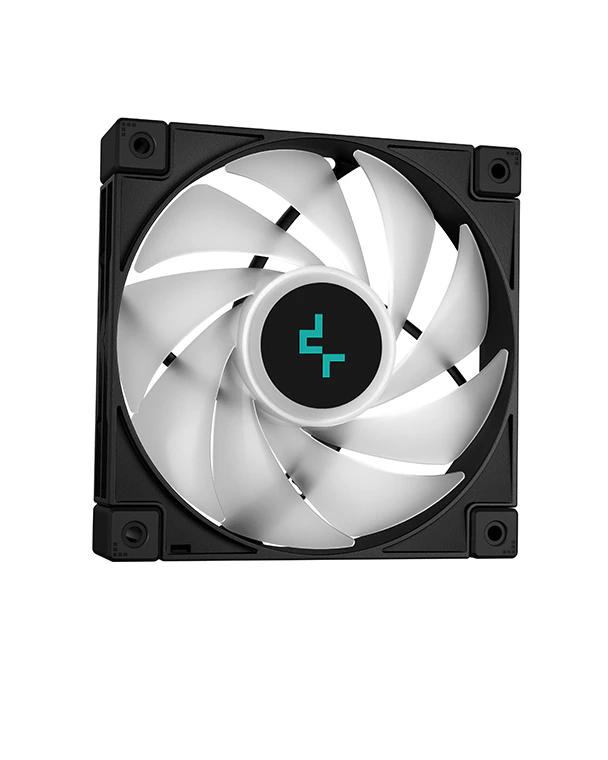

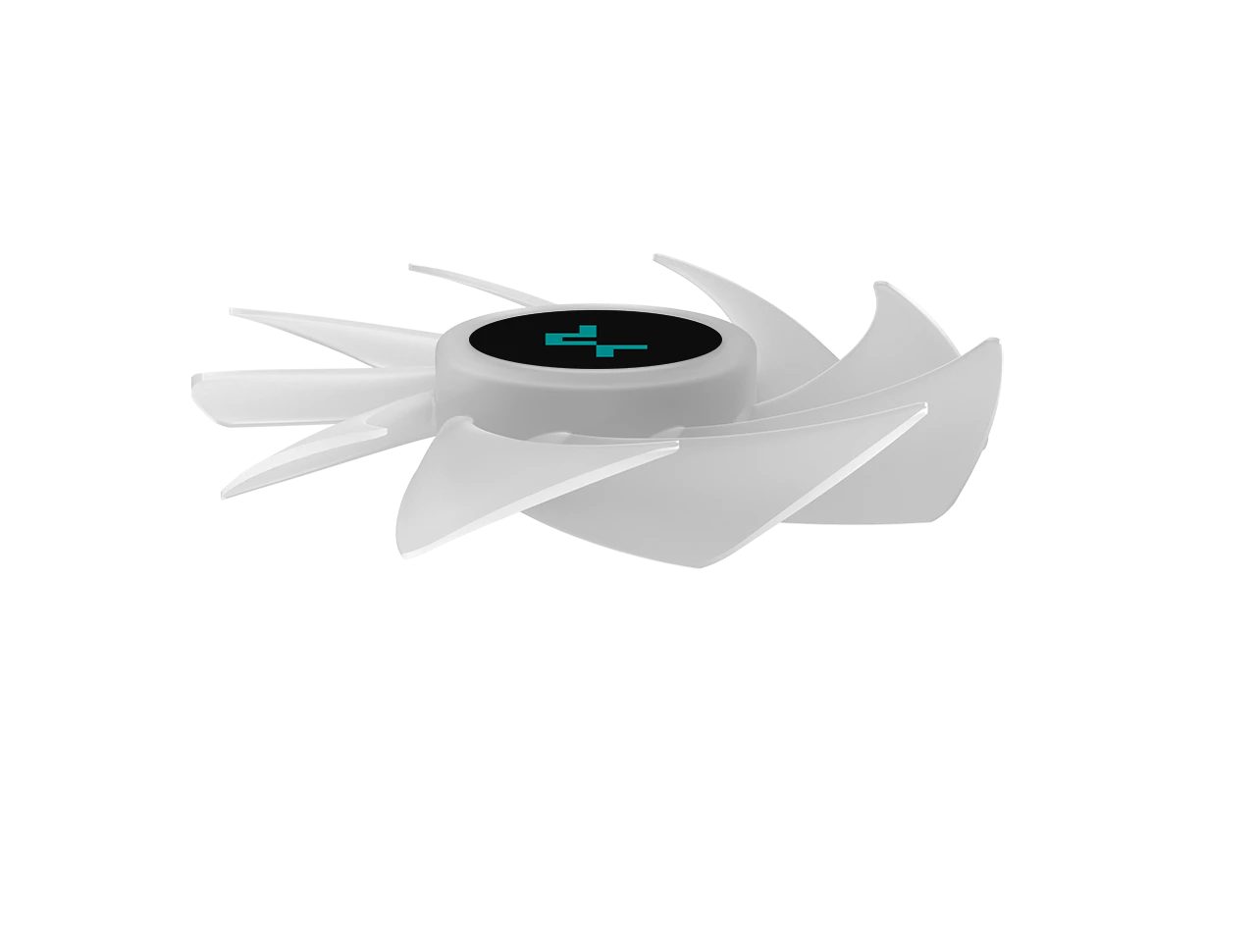

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
500~2250 RPM *
Dynamic PWM Range
85.85 CFM
Supreme Airflow
≤32.9 dB(A)
Full Load Noise
50,000 Hours
Long Operational Lifespan
* The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.
Simple and Secure

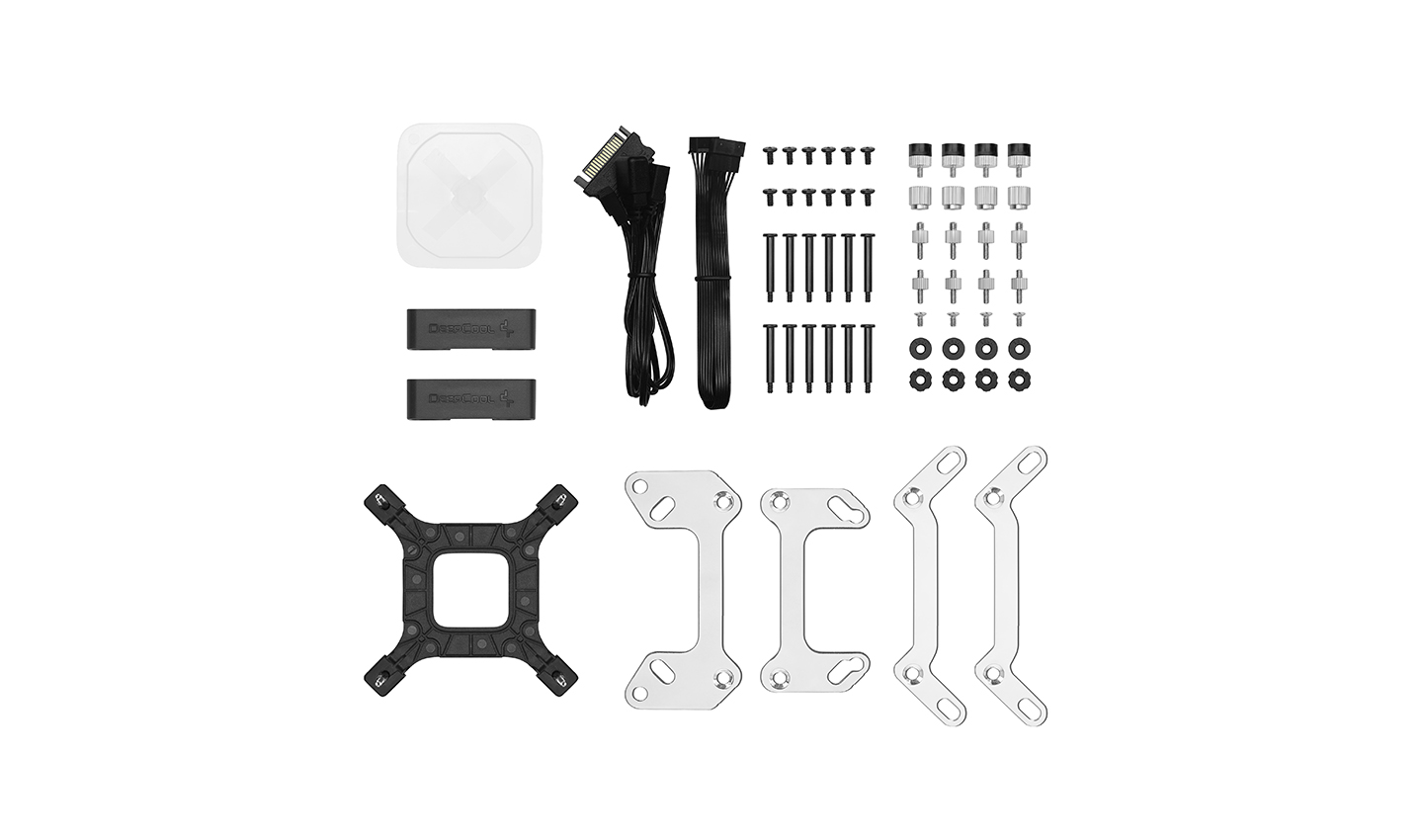

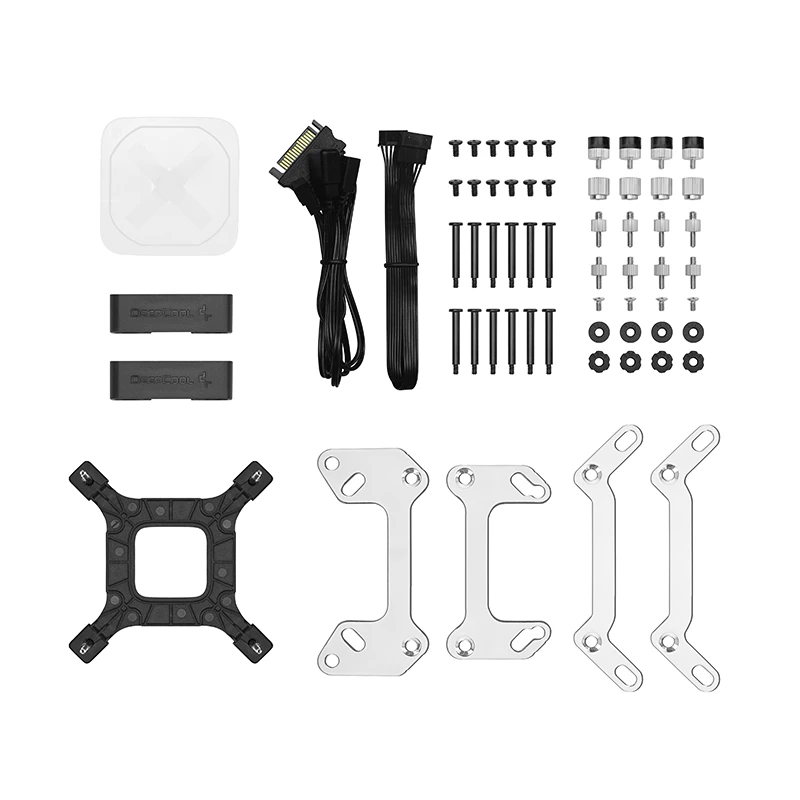

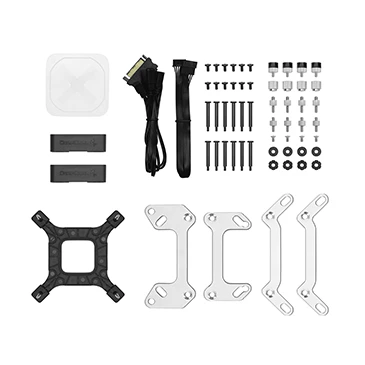

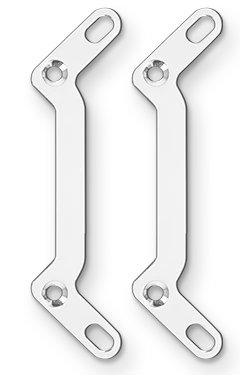

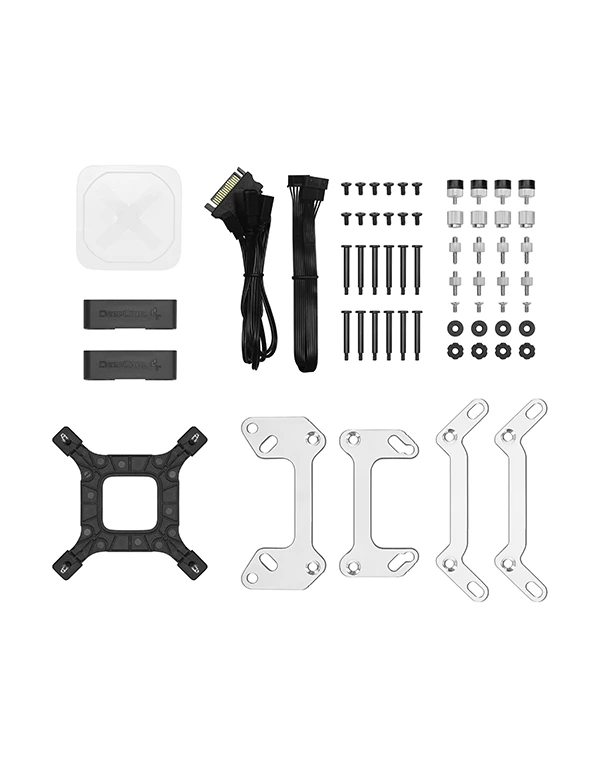

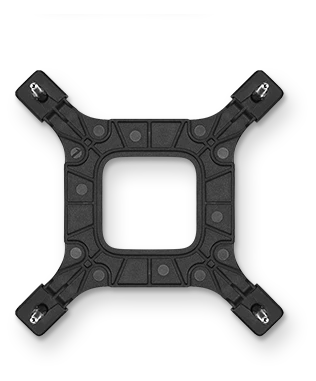

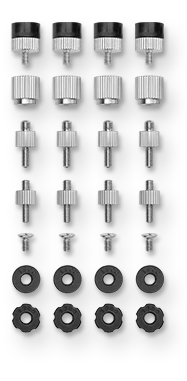

Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
INTEL
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Customize Your Look

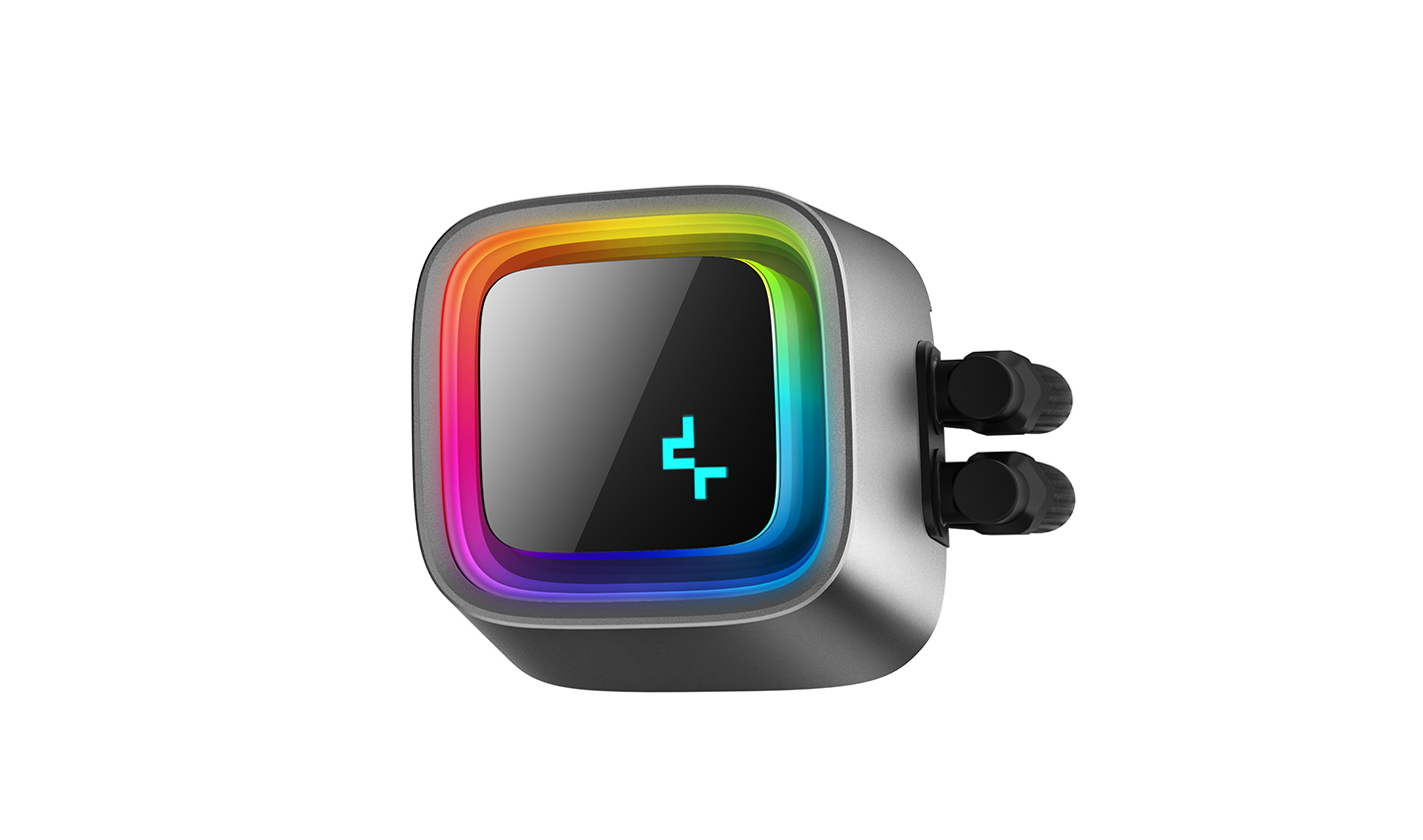

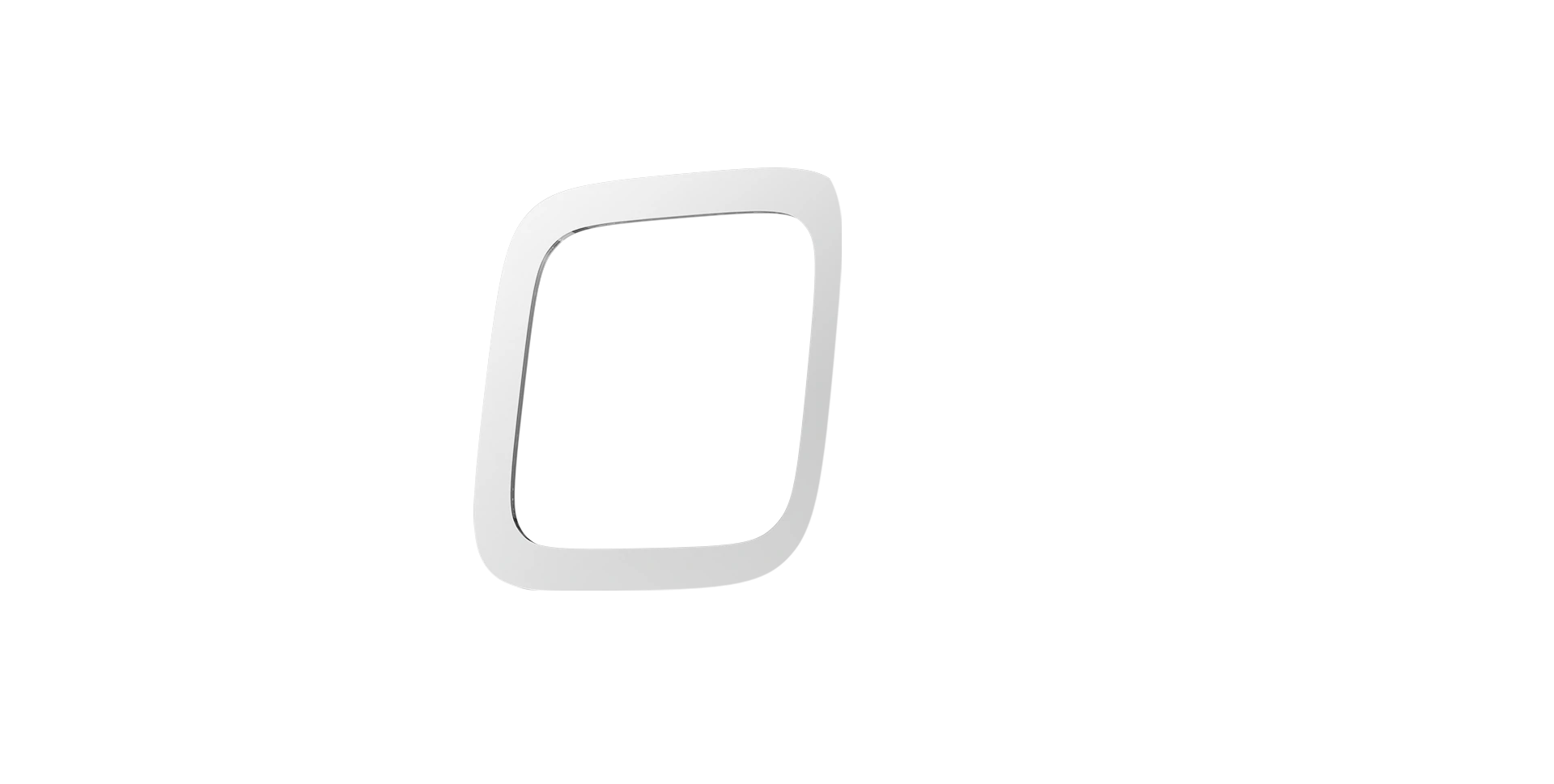

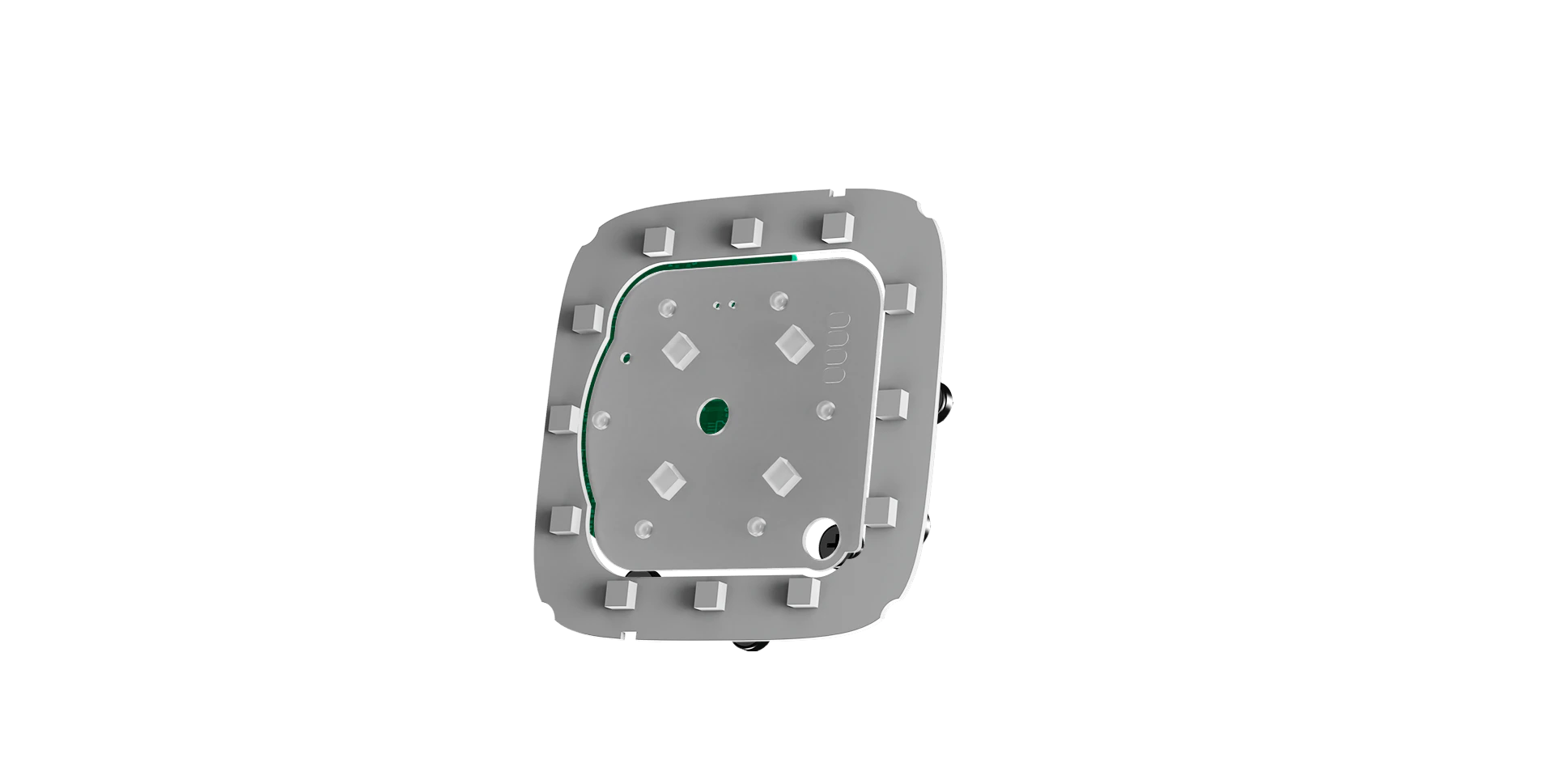

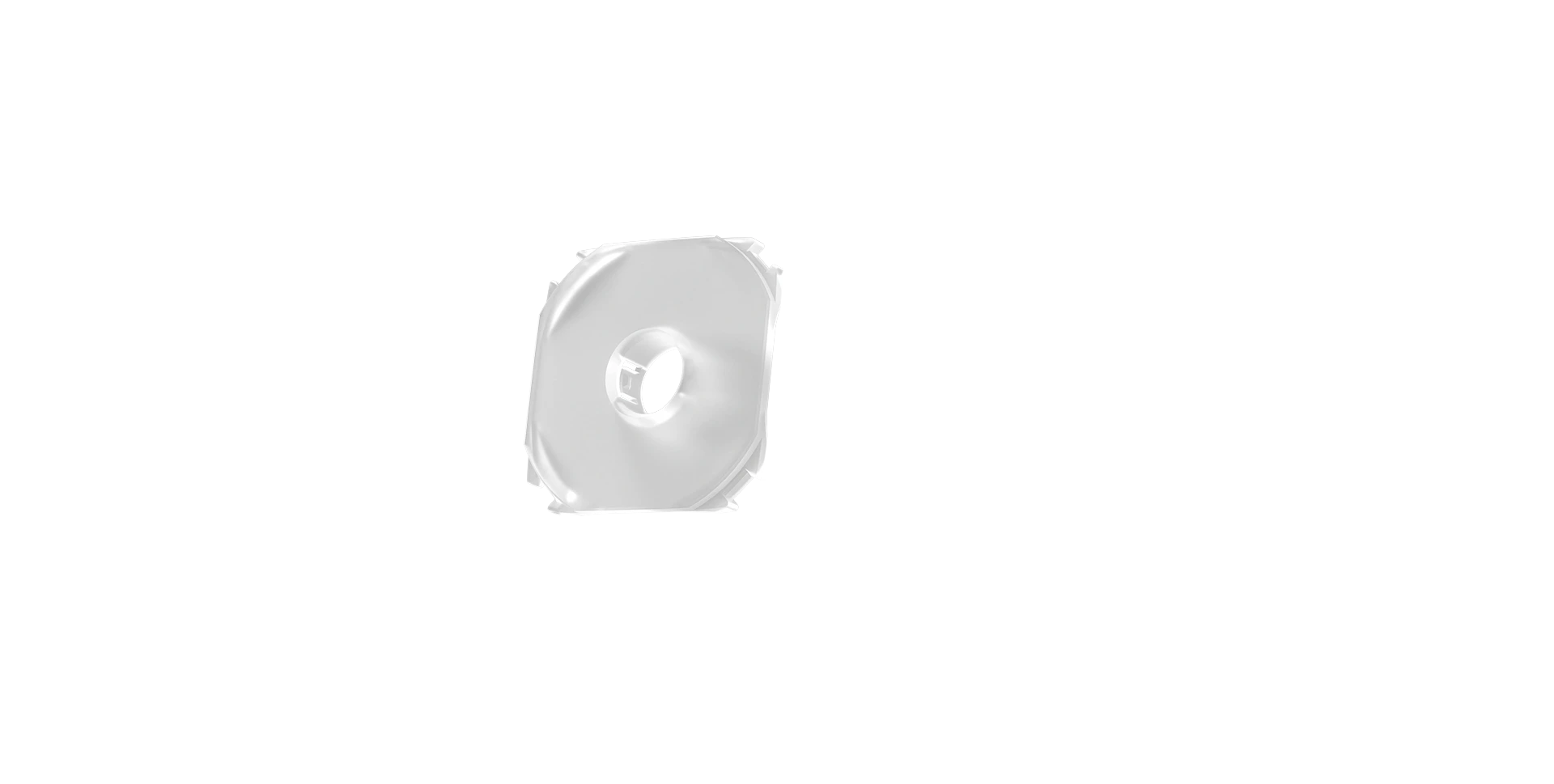

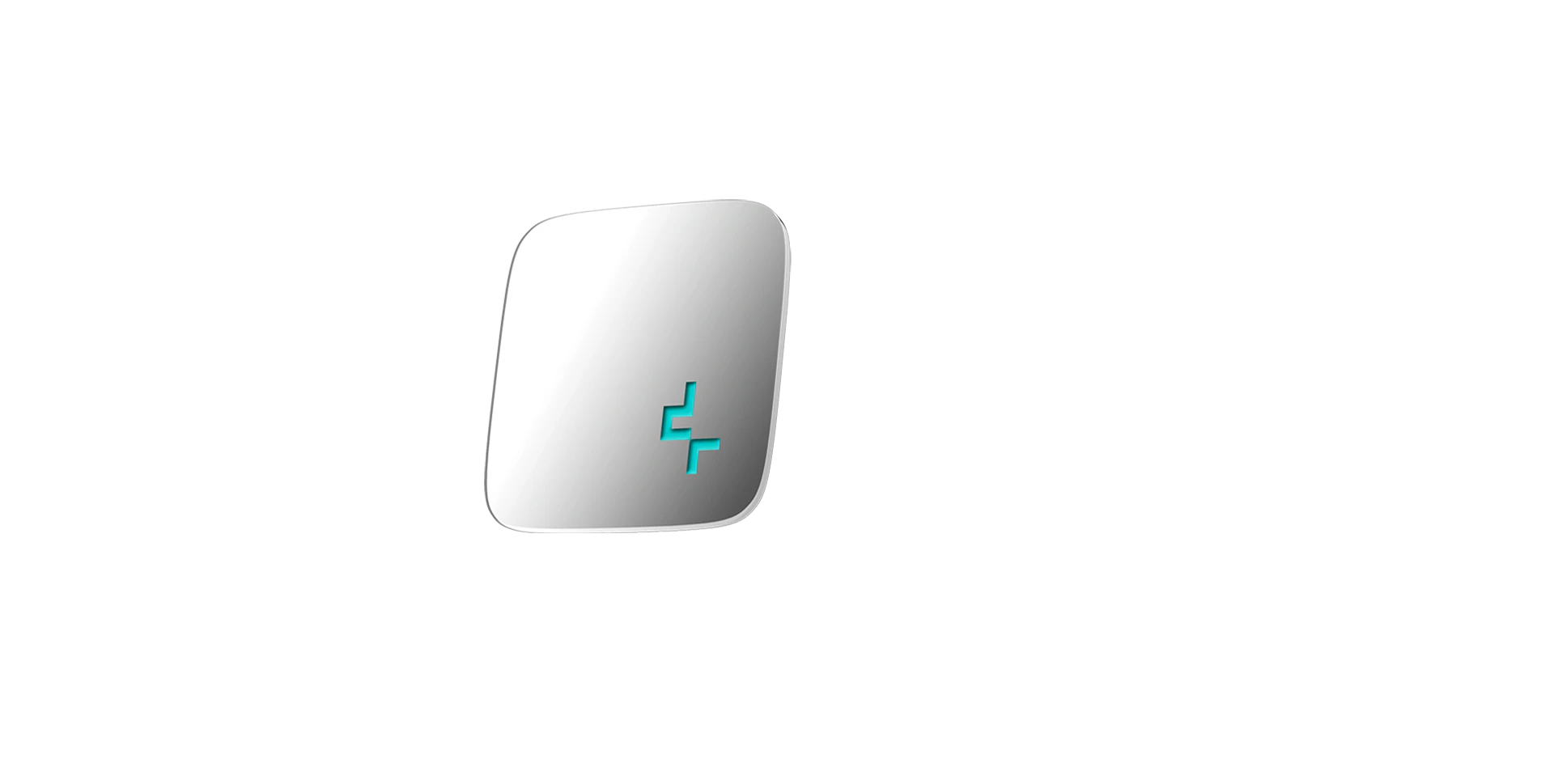

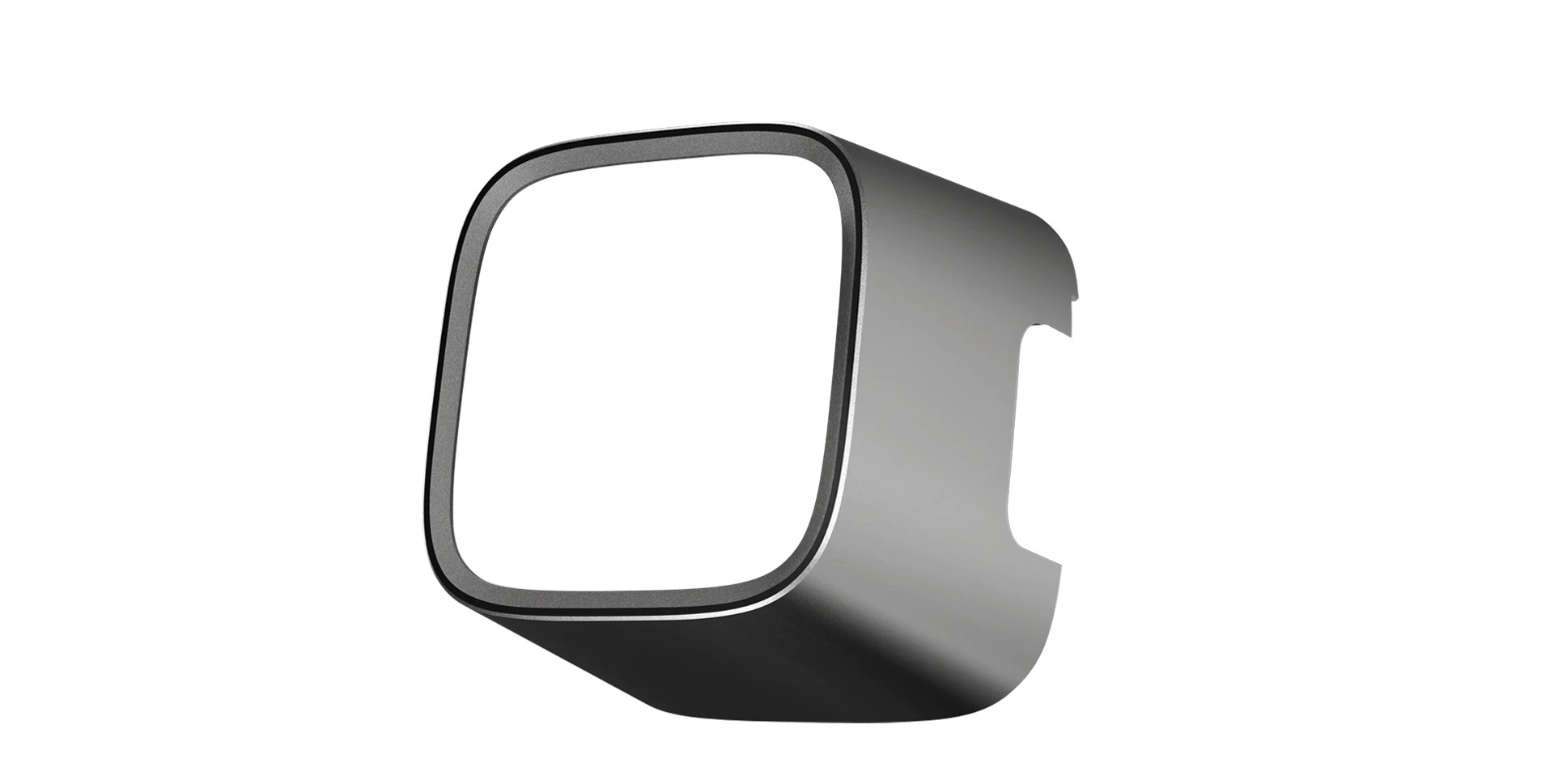

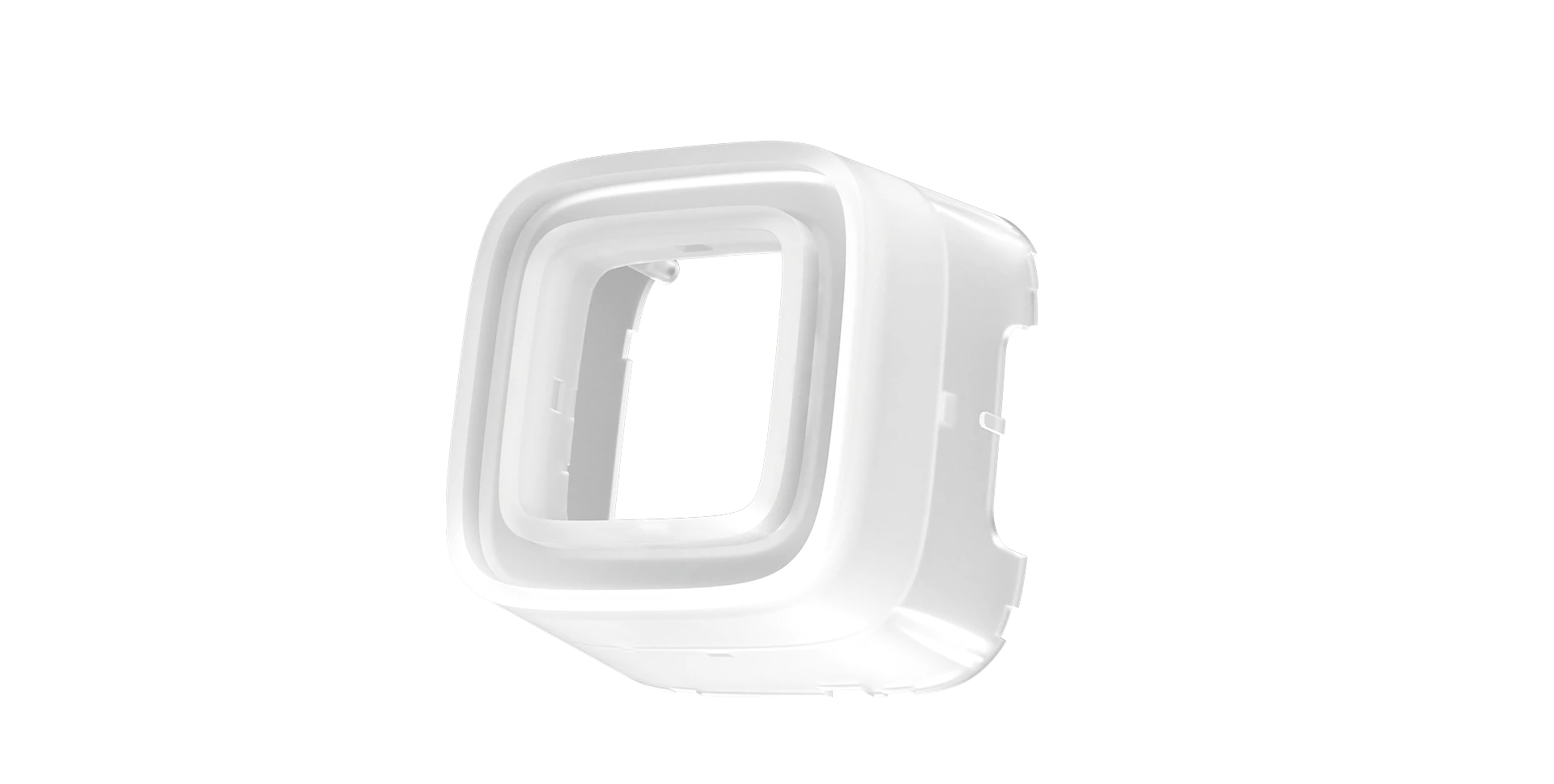

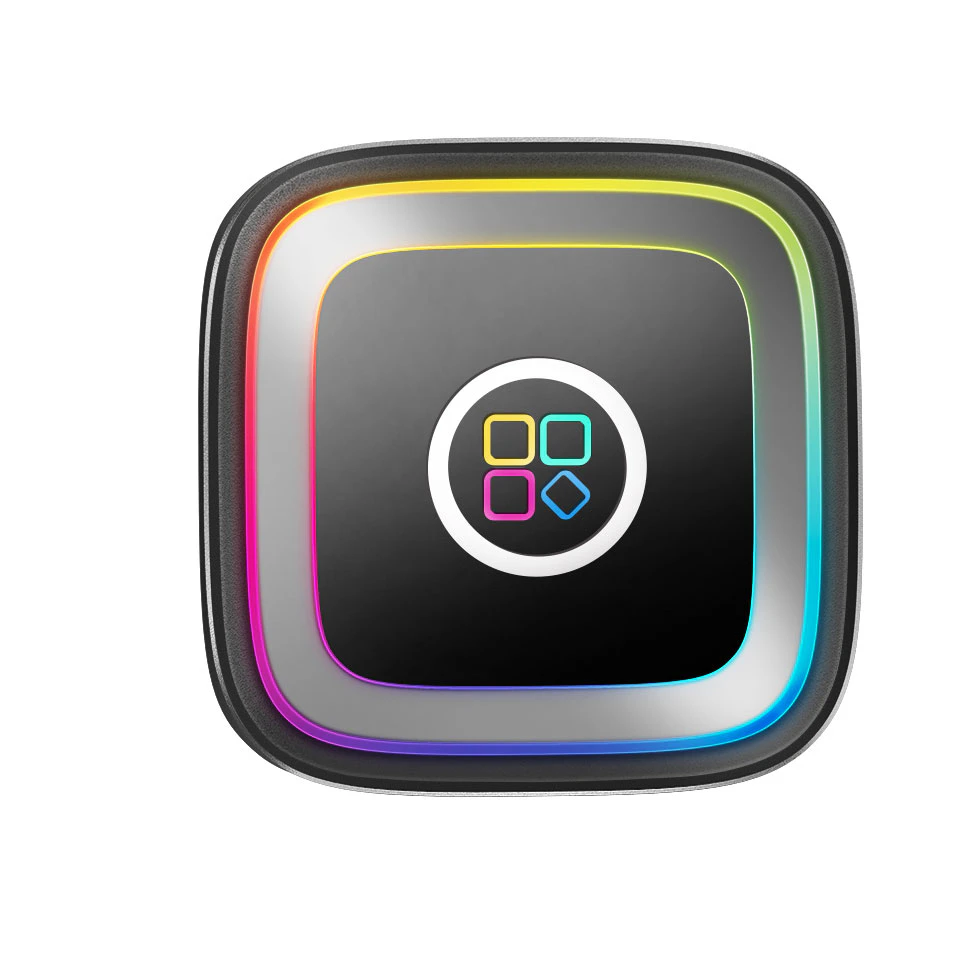

The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
DIY-LOGO

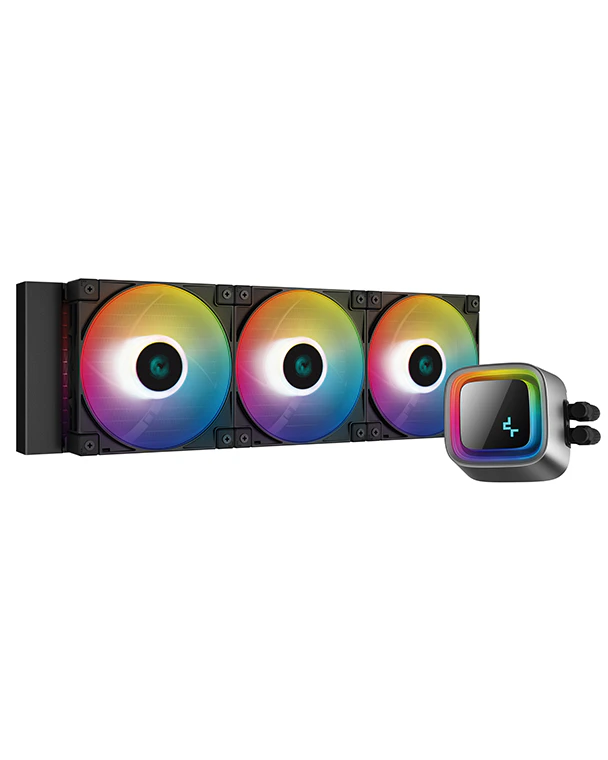

Synchronize Your Setup with RGB lighting effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
* 6 O'Clock mounting position is the official DeepCool recommended mounting method for optimal performance.
Synchronize Your Setup with RGB lighting effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
* 6 O'Clock mounting position is the official DeepCool recommended mounting method for optimal performance.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Net Weight1607 g

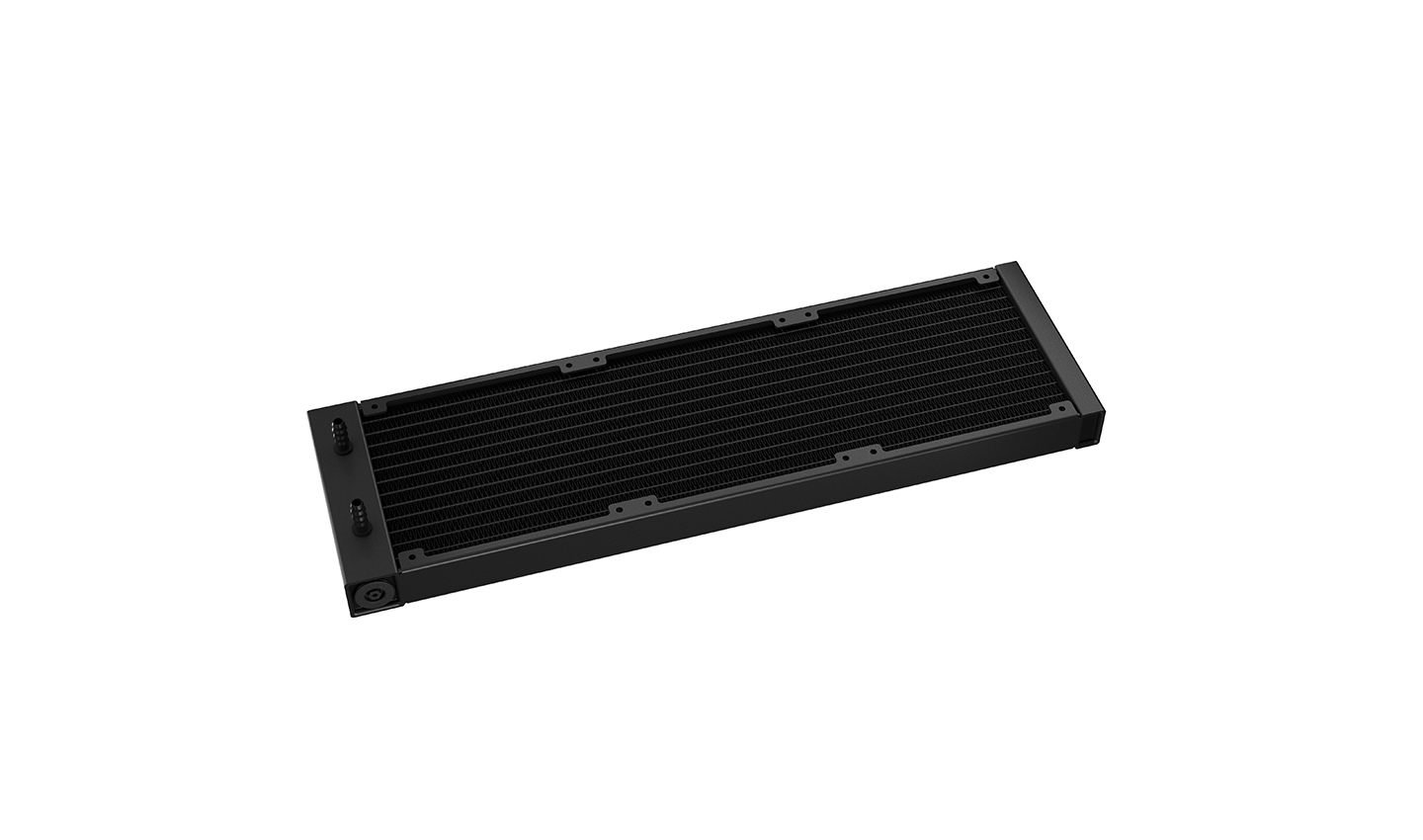

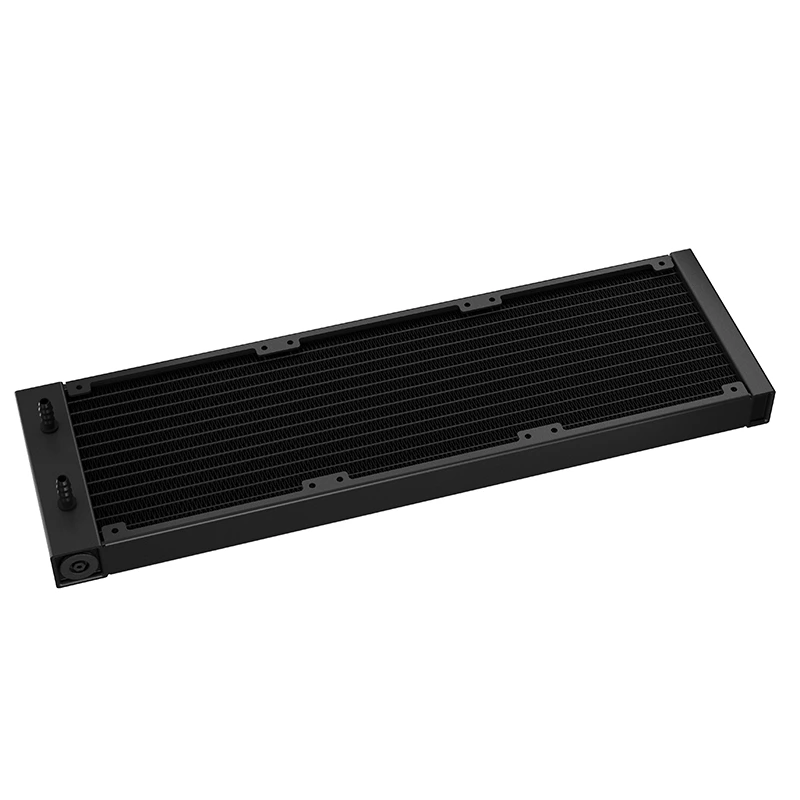

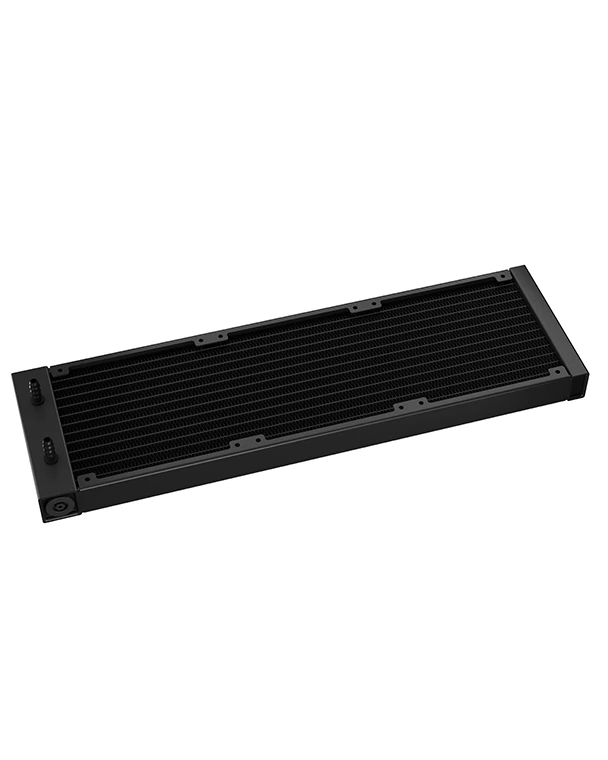

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm(L×W×H)
Pump Dimensions86×74×57 mm(L×W×H)
Pump Speed3100 RPM±10%
Pump Noise19 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.47 A
Pump Power Consumption5.64 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2250 RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.29 A
Fan Power Consumption3.48 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.2 W(PUMP)/ 5.4 W(FAN×3)
EAN6933412727477
P/NR-LS720-BKAMNT-G-1
Product Dimension
Download
LS720 Manual.pdf
