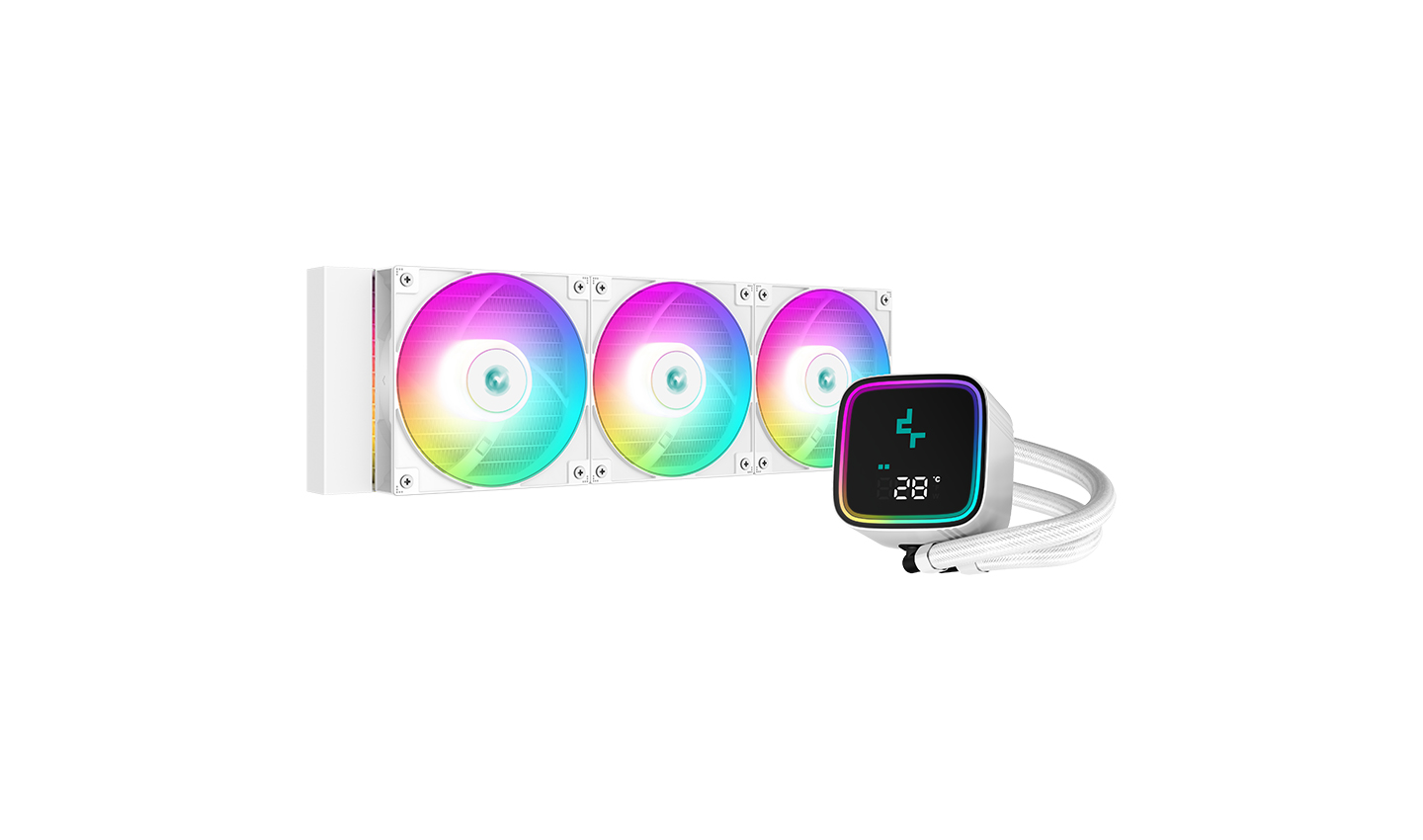

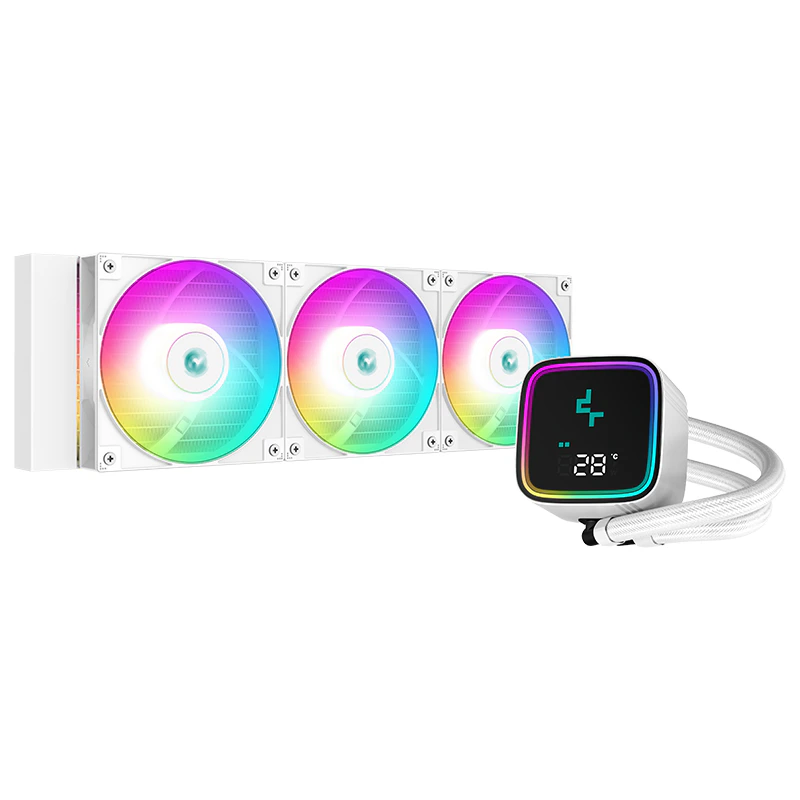

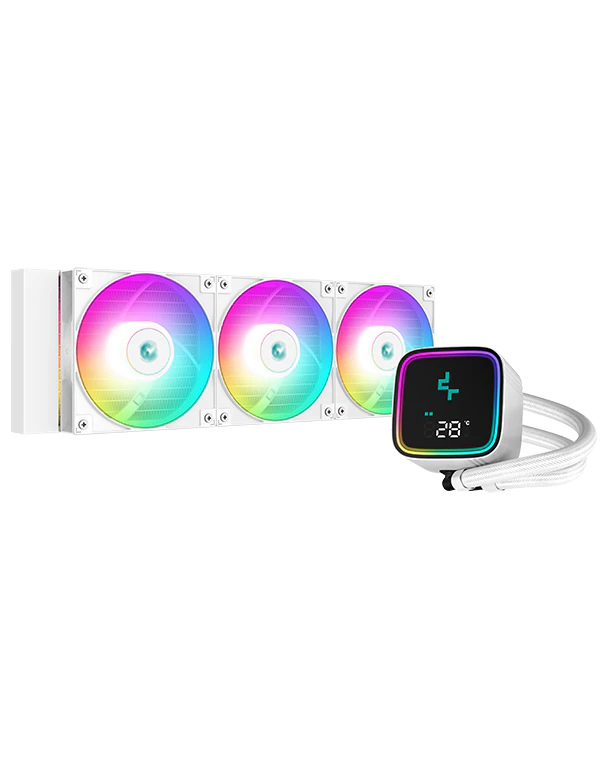

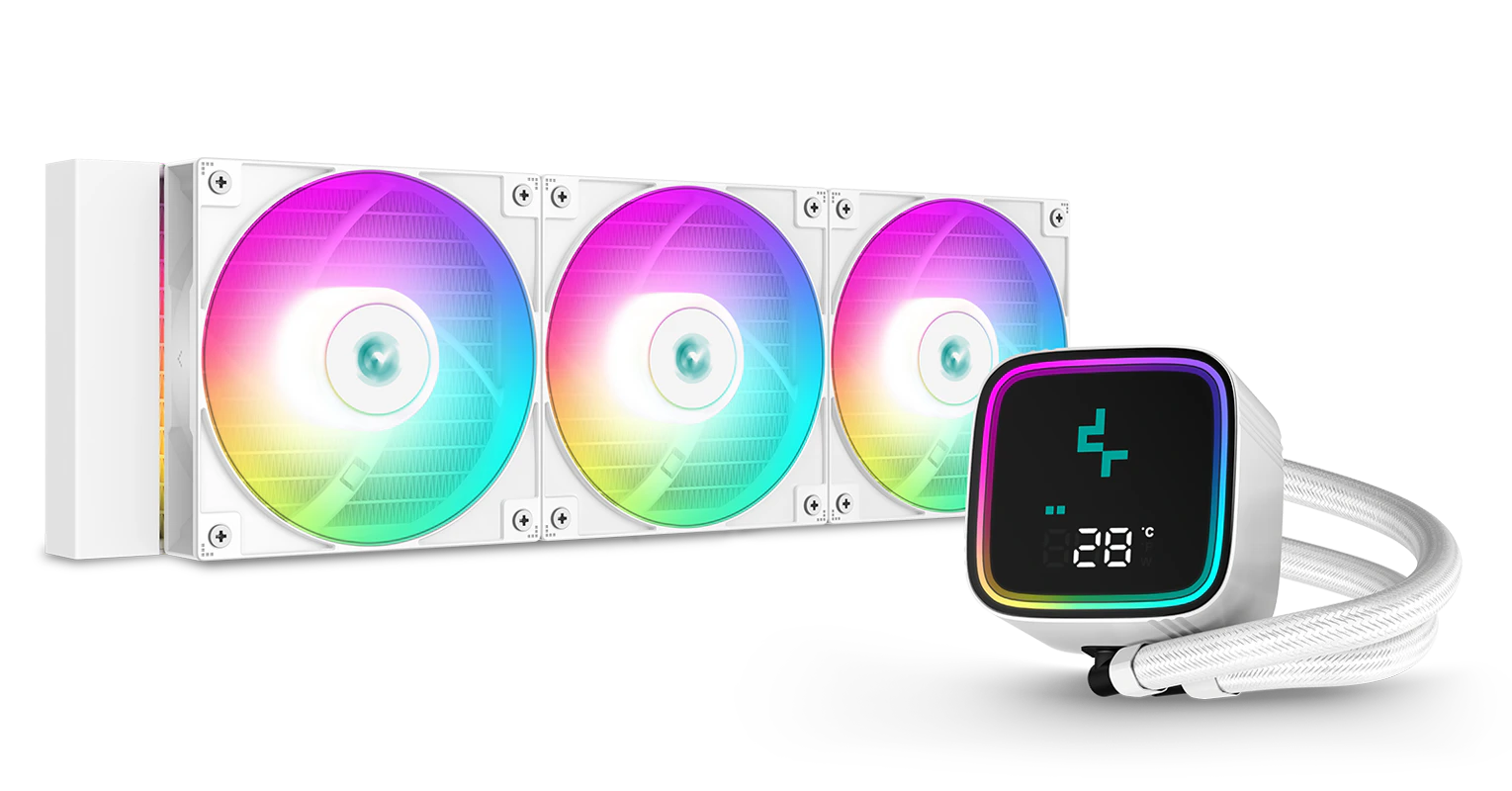

LS720 SE DIGITAL WH
The LS720 SE DIGITAL WH cooler is an upgraded version of DeepCool's LS SE liquid coolers. Everything you love from DeepCool AIOs, but with the inclusion of a CPU status screen! Clear up precious room on your desktop by moving the CPU monitoring software off your monitor and onto the pump in your computer tower.
COLOR
white
MODEL
LS720 SE DIGITAL WH
EXTRAORDINARY COOLING THAT CAN BE SEEN
REAL-TIME
CPU STATUS SCREEN

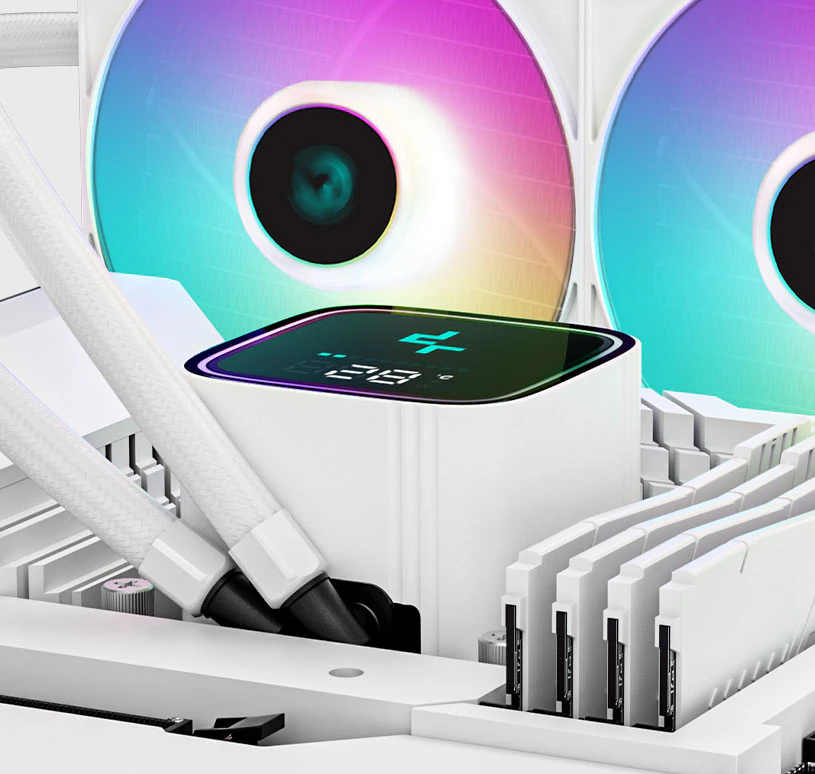

The status screen displays the temperature, usage, or power consumption of your system's CPU in real time, with the option to automatically switch between all the read outs in 5 second intervals. A visual gauge bar will indicate the level of utilization for each metric, and a high temperature warning indicator will flash when the CPU temperature exceeds the 90°C mark.
W
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
LARGE MIRROR WITH ARGB HALOS
The signature large mirror plate of the LS SE series is unmistakable, but the LS SE DIGITAL coolers also utilize a bright gradient ARGB double halo effect that encapsulates the premium aesthetics of the LS SE DIGITAL pump design: beautifully bright as well as being functional. The ARGB of the entire cooler can be easily synced to ARGB headers on compatible motherboards.

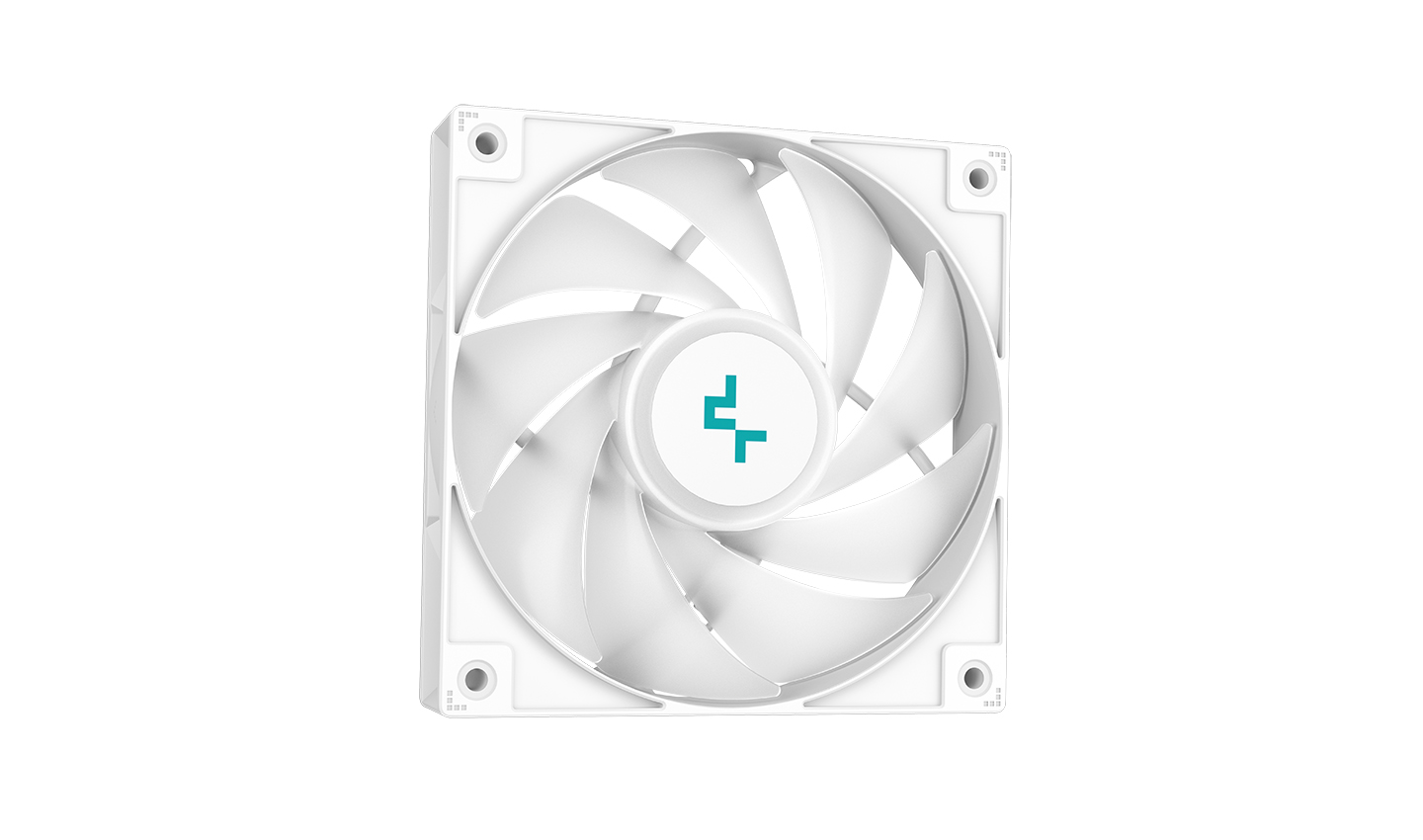

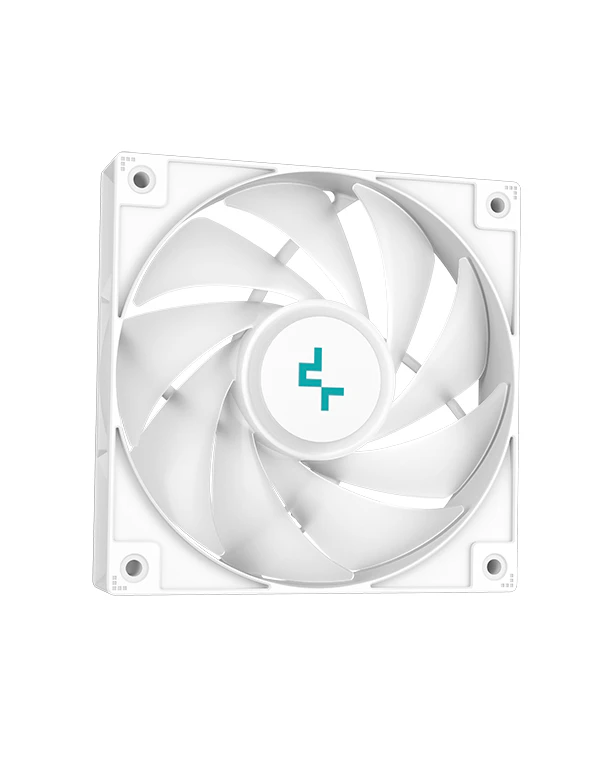

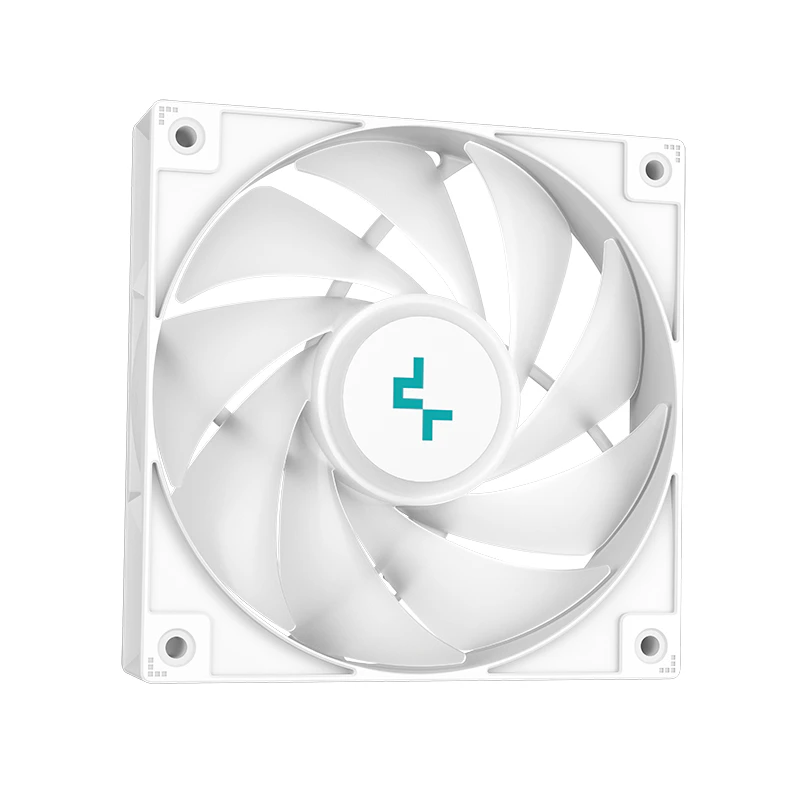

EFFICIENT ARGB FANS
Optimized ARGB PWM fans are included with the LS720 SE DIGITAL WH and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydrodro bearing. The LS720 SE DIGITAL WH includes two of these specialized fans, which have an easy-to-manage 7-pin cable.
EFFICIENT ARGB FANS
Optimized ARGB PWM fans are included with the LS720 SE DIGITAL WH and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydrodro bearing. The LS720 SE DIGITAL WH includes two of these specialized fans, which have an easy-to-manage 7-pin cable.
KEEPING IT SIMPLE
Full control of the real-time status screen is provided via a simple-to-use application. Once installed, the entire application is found in the Notification Center of the taskbar, where you can switch what metrics you would like to monitor, switch between languages, and choose between Celsius and Fahrenheit. The only interface that will be required is a connection to a USB 2.0 header on the motherboard.
DeepCool-DIGITAL Setup.zip
SLEEK, CLEAN,
AND STRONG

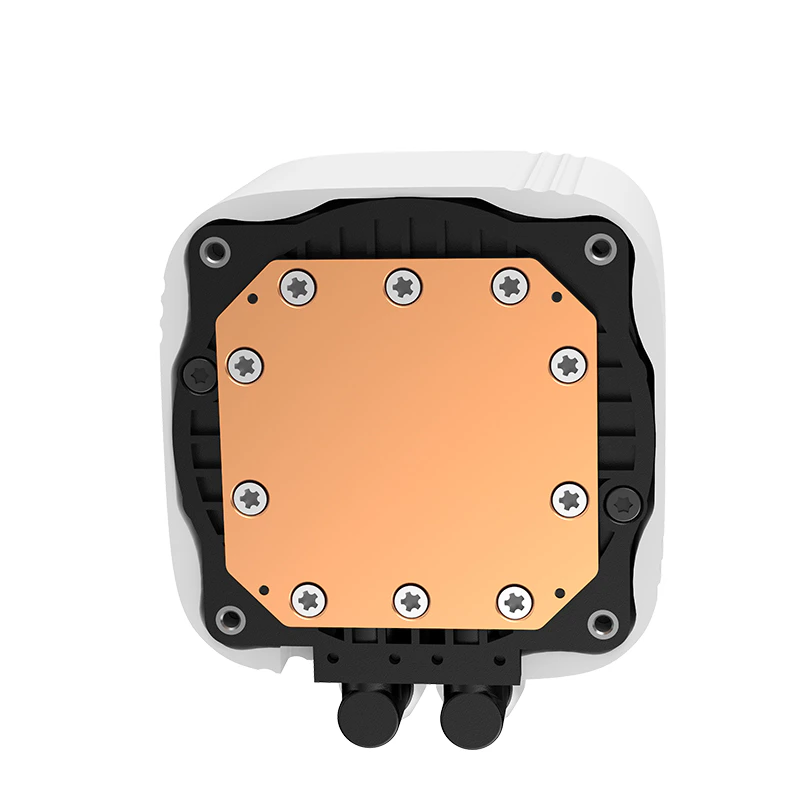

Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large mirror, gradient ARGB halos, and status screen add the finishing touch.
ANTI-LEAK TECHNOLOGY
The LS SE DIGITAL liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.
ANTI-LEAK TECHNOLOGY
The LS SE DIGITAL liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.

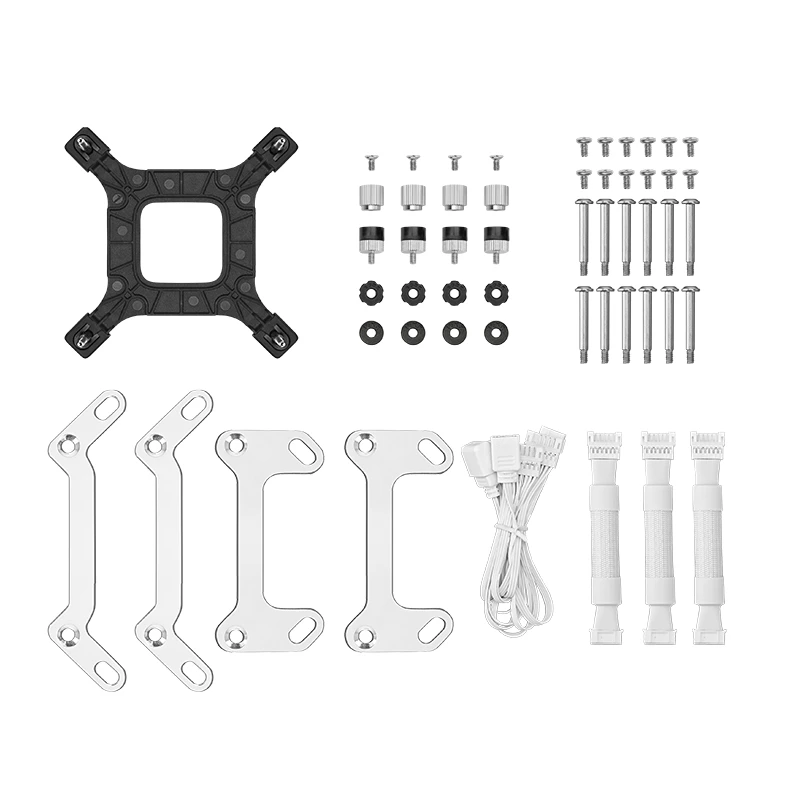

QUICK AND EASY

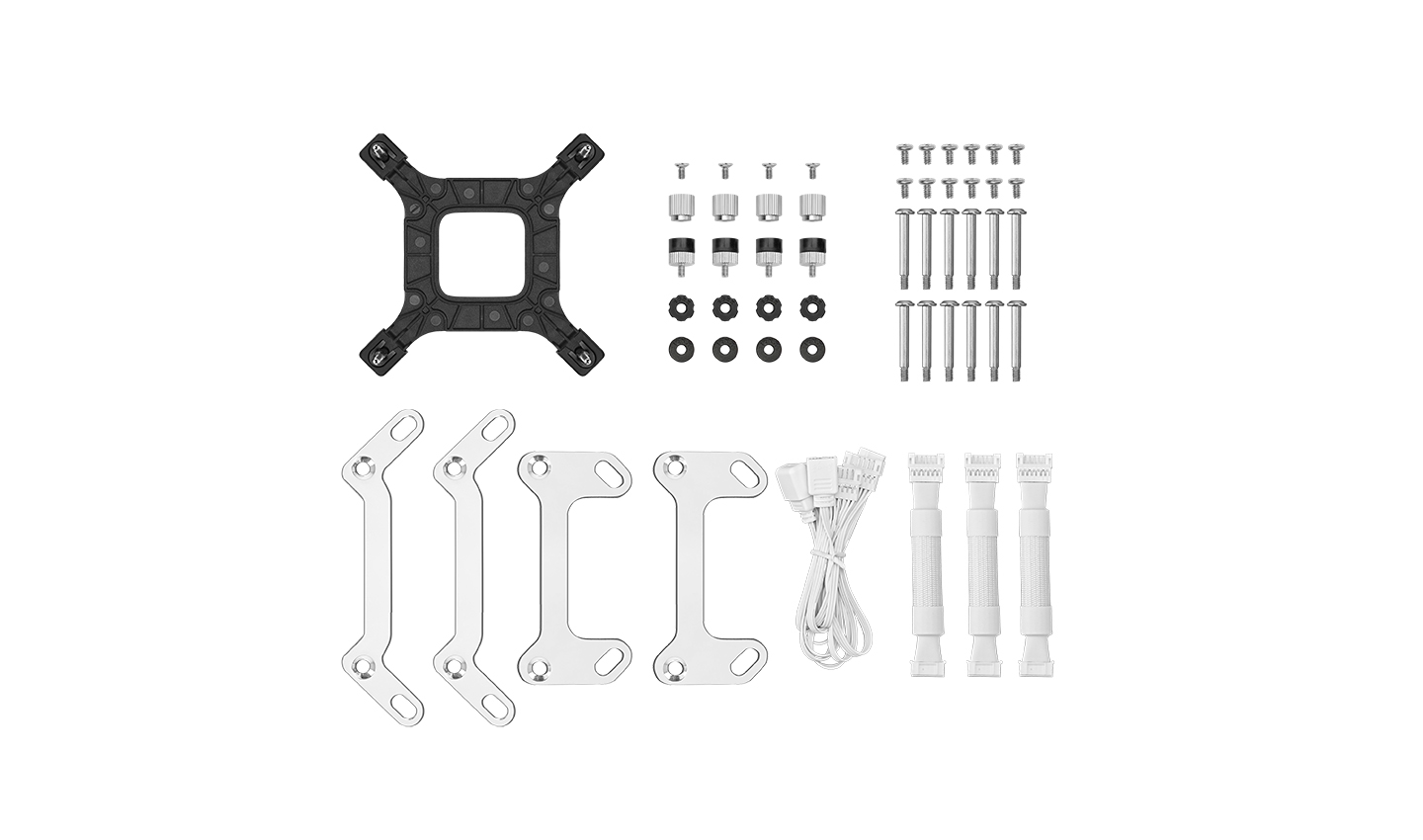

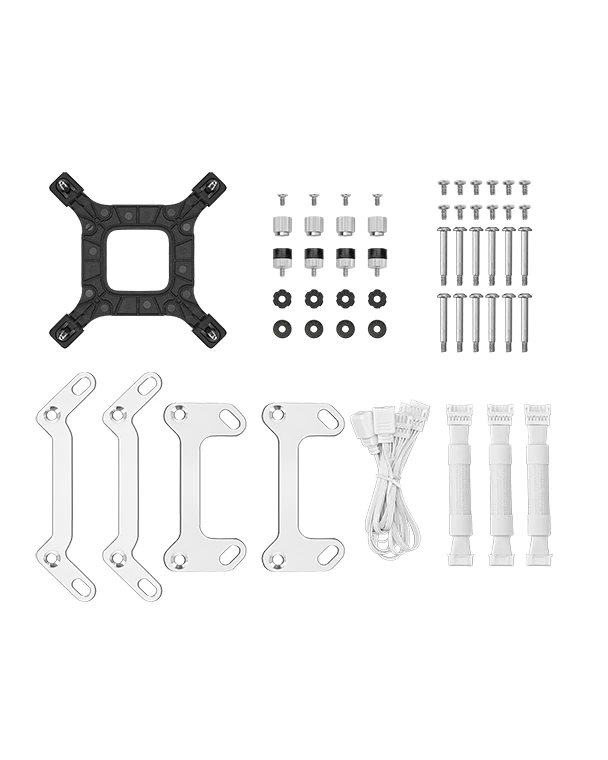

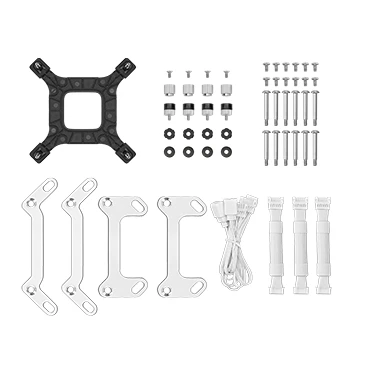

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS SE DIGITAL to the latest mainstream CPUs is included in the box, so you are ready to go.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1694g

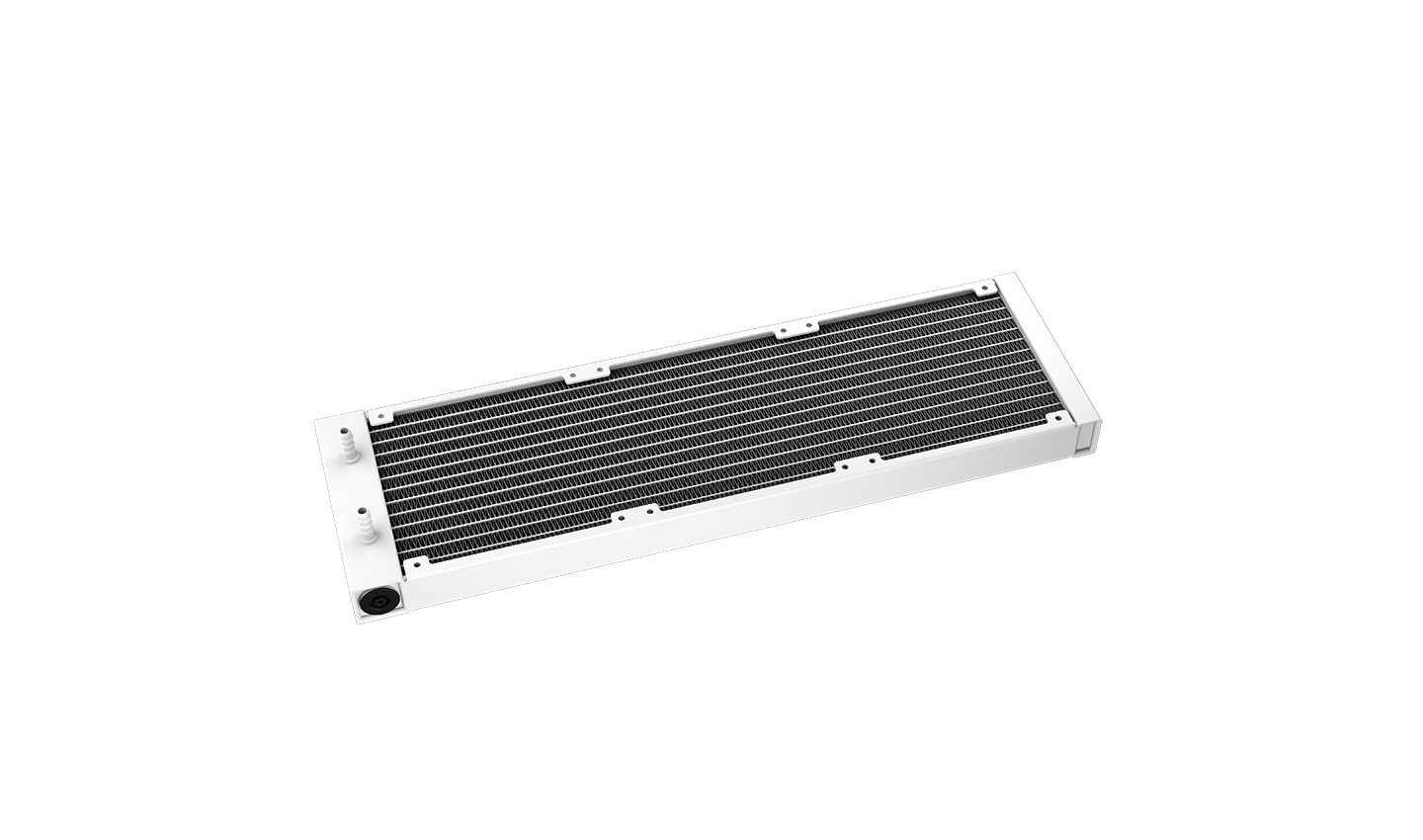

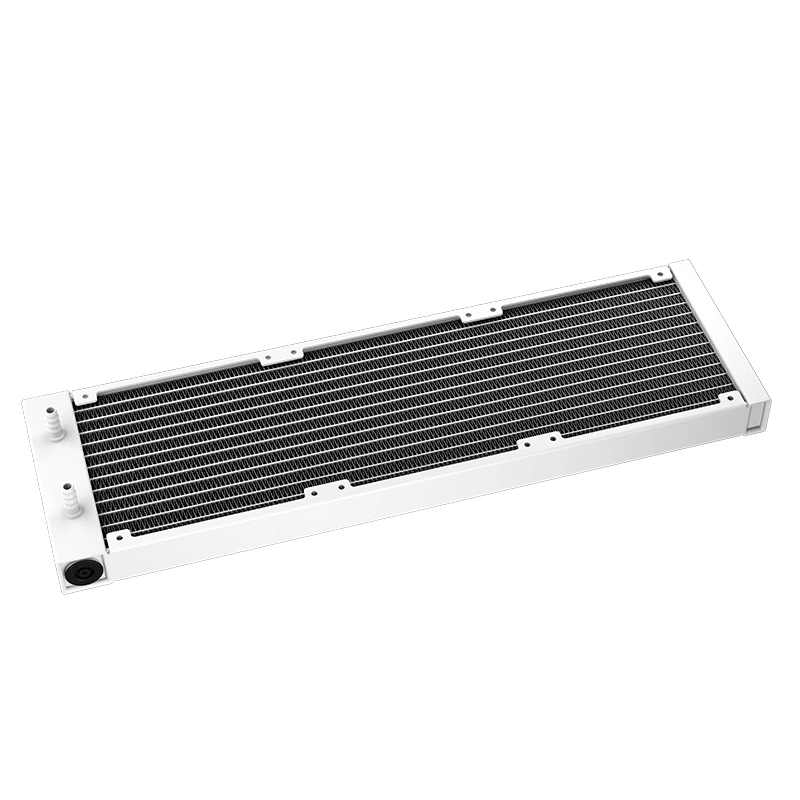

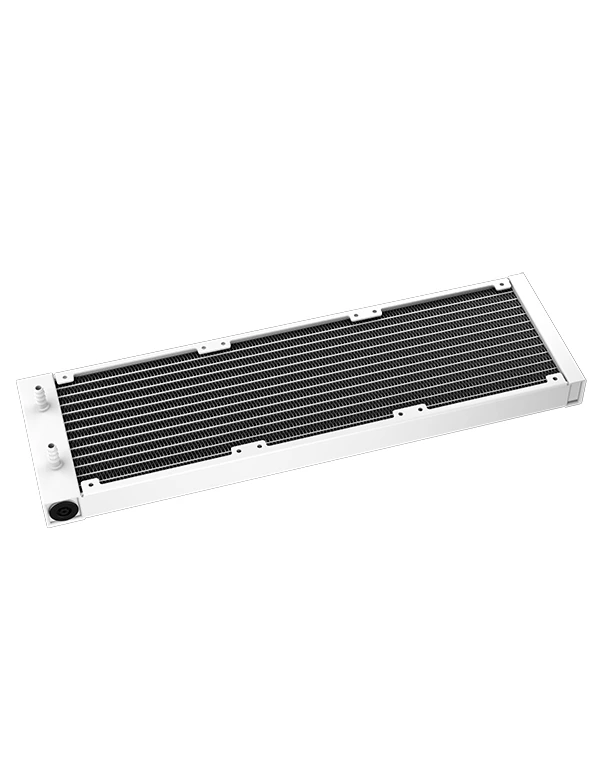

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm

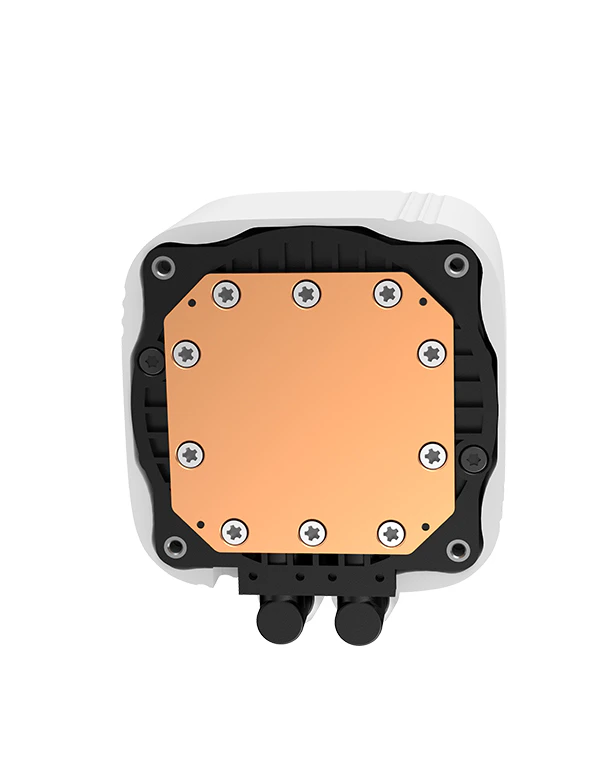

Pump Dimensions85×73×55 mm(L×W×H)
Pump Speed3100 RPM±10%
Pump Noise19 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.35A
Pump Power Consumption4.2W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2250 RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Speed (with LSP)500~1600 RPM±10%
Fan Airflow (with LSP)60.85 CFM
Fan Air Pressure (with LSP)1.65 mmAq
Fan Noise (with LSP)≤28.2 dB(A)
Fan Connector7-pin
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.25 A
Fan Power Consumption3.0 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.7 W (PUMP)/ 3.15 W(FAN×3)
Display TypeLED Digital Display
EAN6933412728337
P/NR-LS720-WHAMMD-G-1
