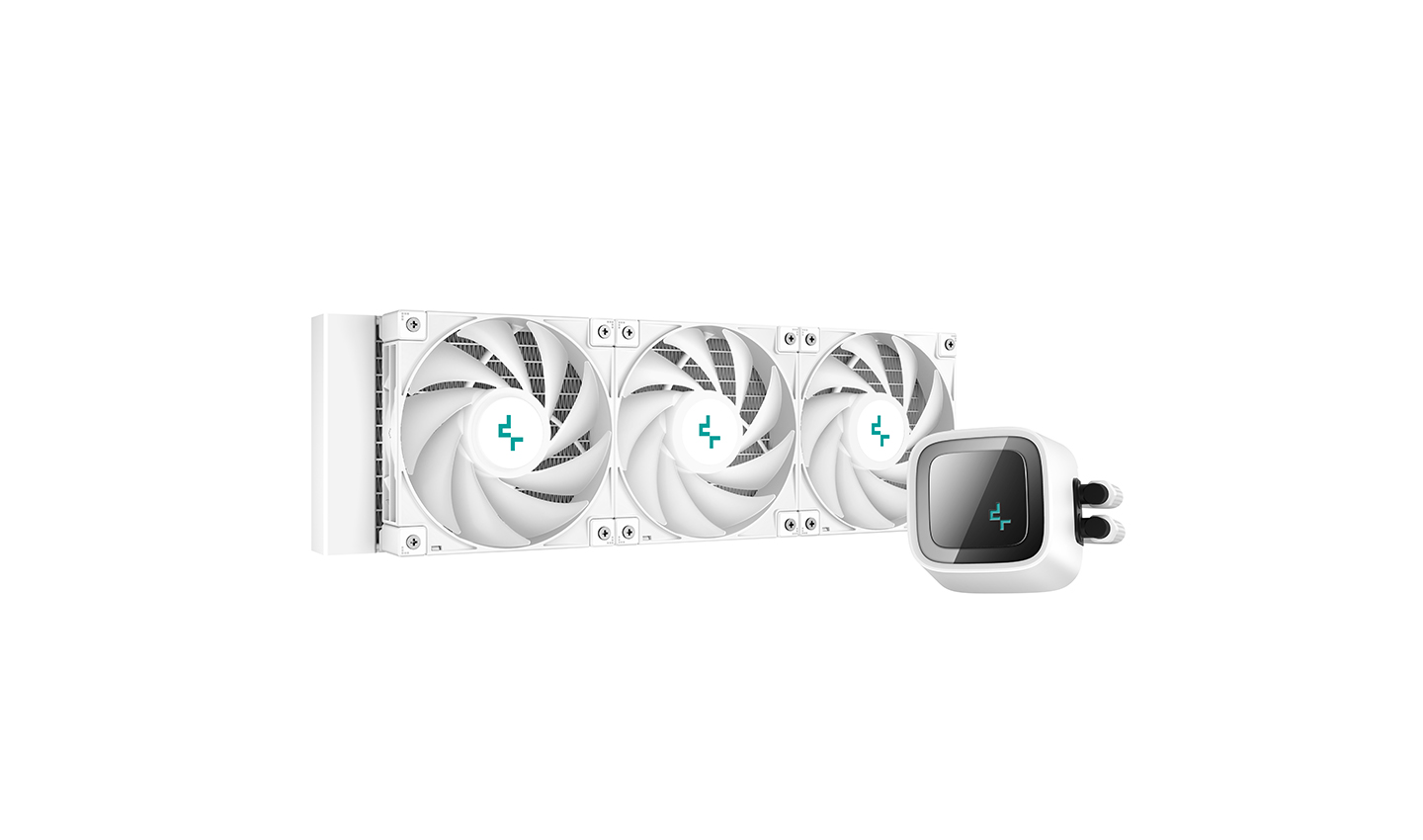

The DeepCool LS720 WH premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 360mm radiator, three FC120 A-RGB PWM fans, and an infinity mirror cap design.
COLOR
white
MODEL
A New Era of DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1 Improved microchannel design
ensures optimal coolant flow.
2 Powerful three-phase drive
motor up to 3100 RPM.

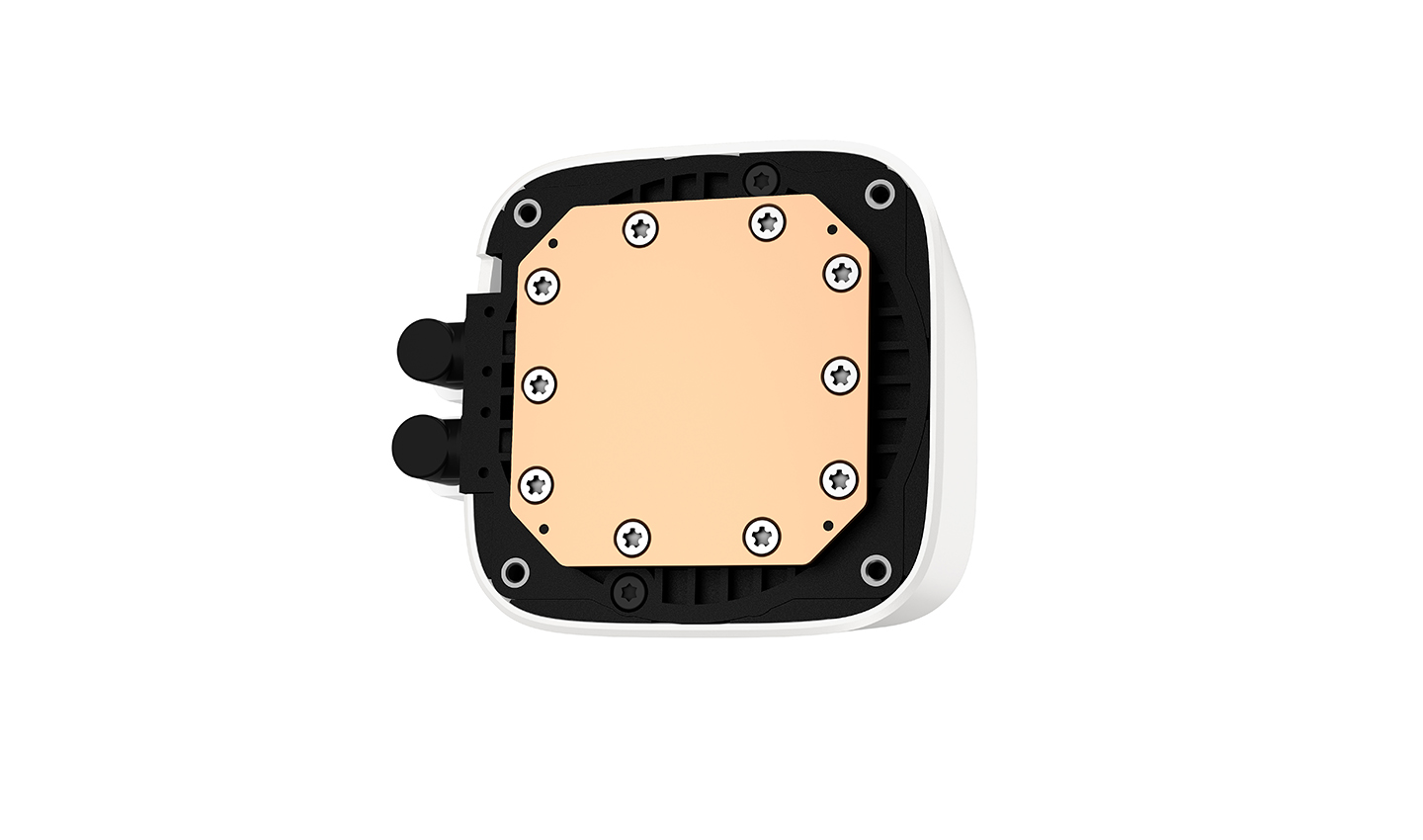

3 Thick solid copper base
with a seamless match.
Cool and Quiet

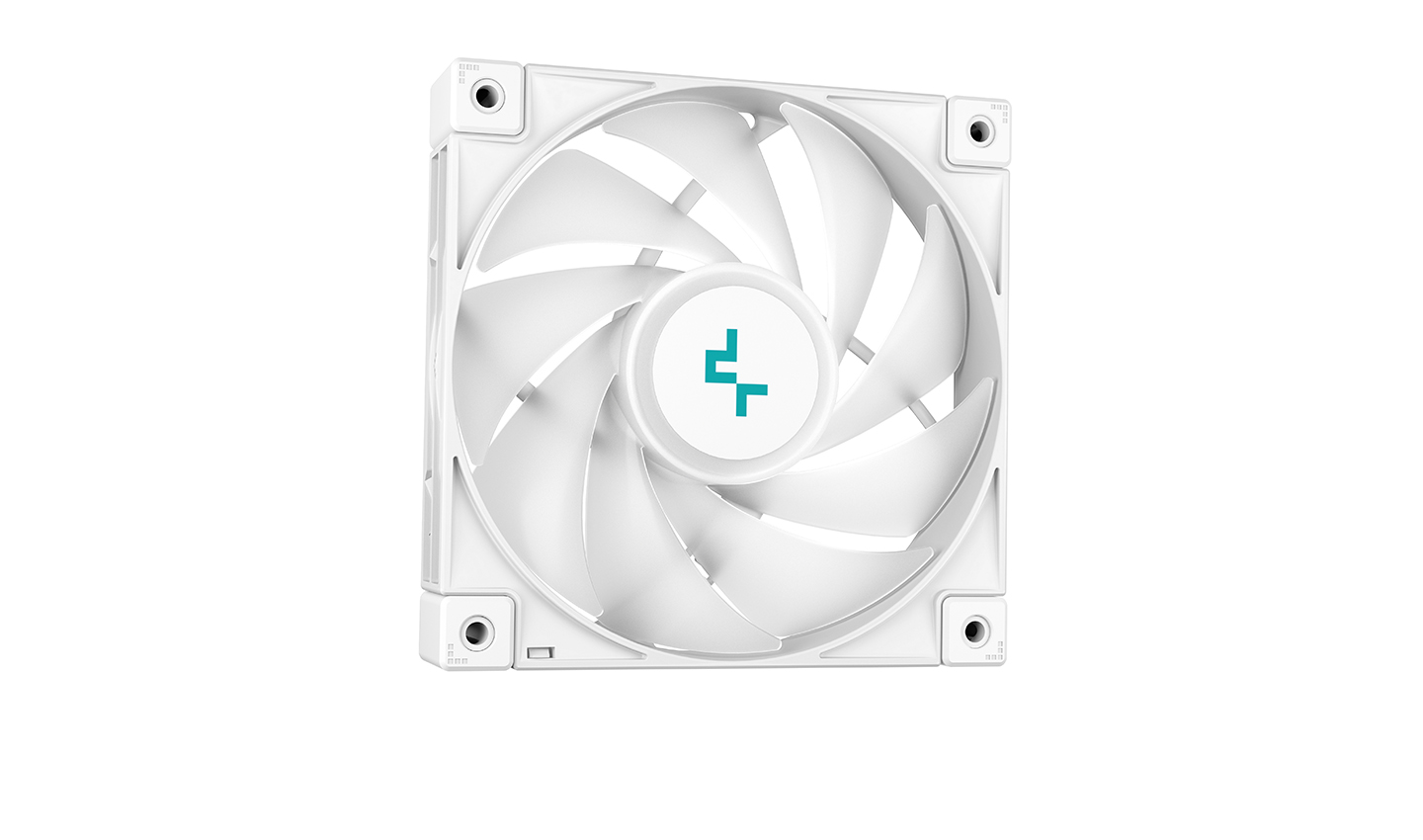

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
500~2250 RPM *
Dynamic PWM Range
85.85 CFM
Supreme Airflow
≤32.9 dB(A)
Full Load Noise
Simple and Secure

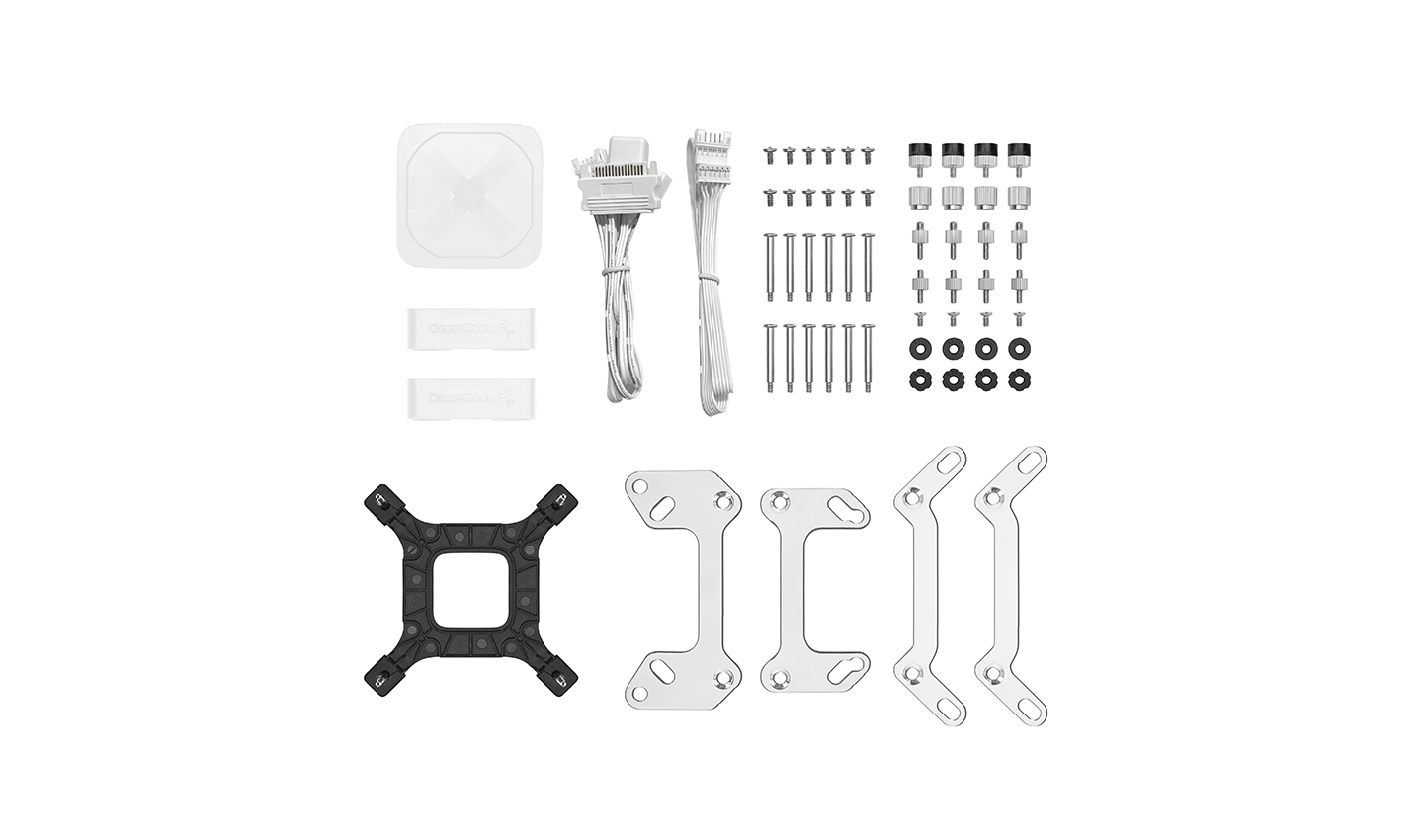

Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
INTEL
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
*High thermal resistance paste is pre-applied
Customize Your Look
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
DIY-LOGO
Synchronize Your Setup with RGB lighting effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
* 6 O'Clock mounting position is the official DeepCool recommended mounting method for optimal performance.
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Net Weight1607 g

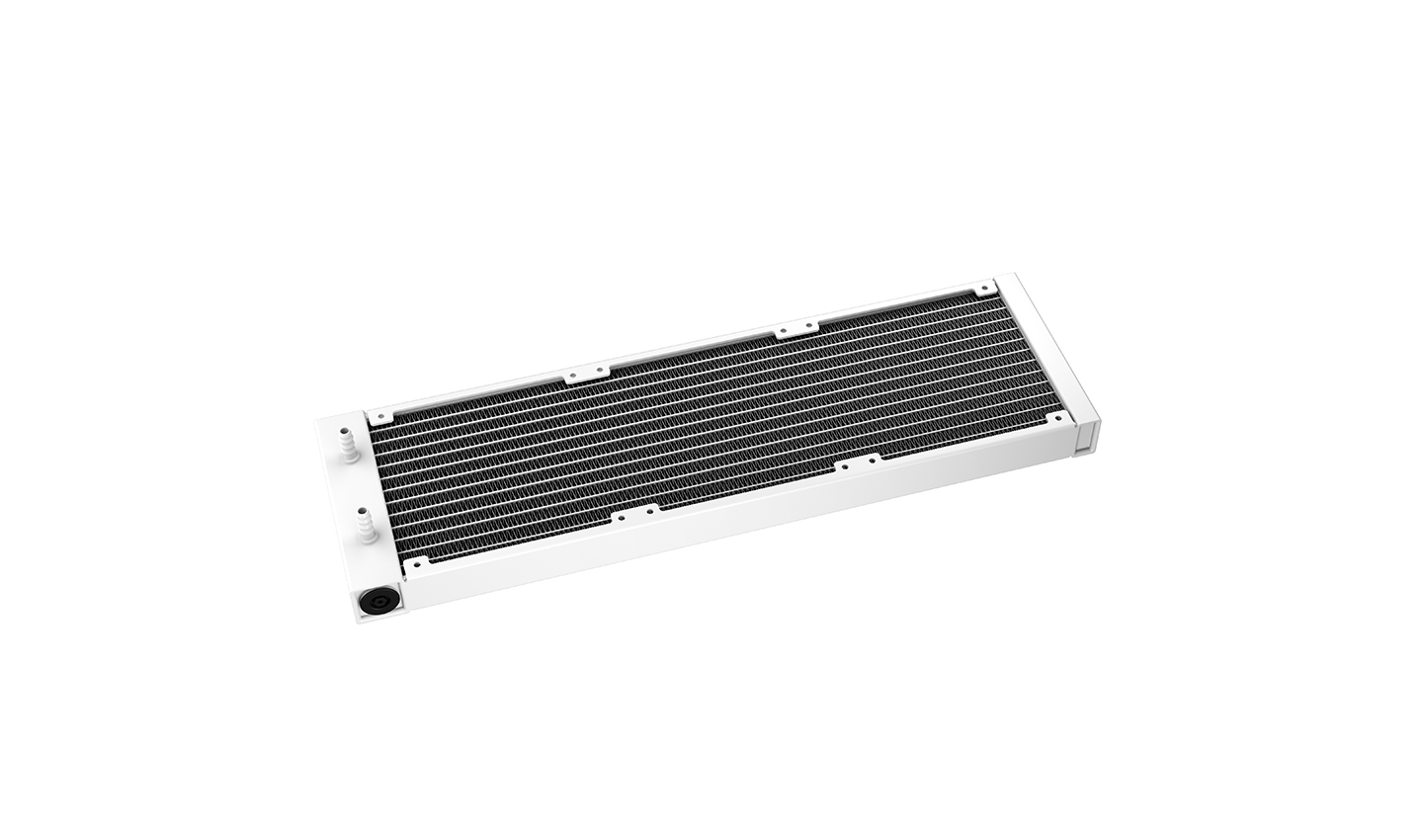

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm(L×W×H)
Pump Dimensions86×74×57 mm(L×W×H)
Pump Speed3100 RPM±10%
Pump Noise19 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.47 A
Pump Power Consumption5.64 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2250 RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.29 A
Fan Power Consumption3.48 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.2 W(PUMP)/ 5.4 W(FAN×3)
EAN6933412727644
P/NR-LS720-WHAMNT-G-1
