LT520

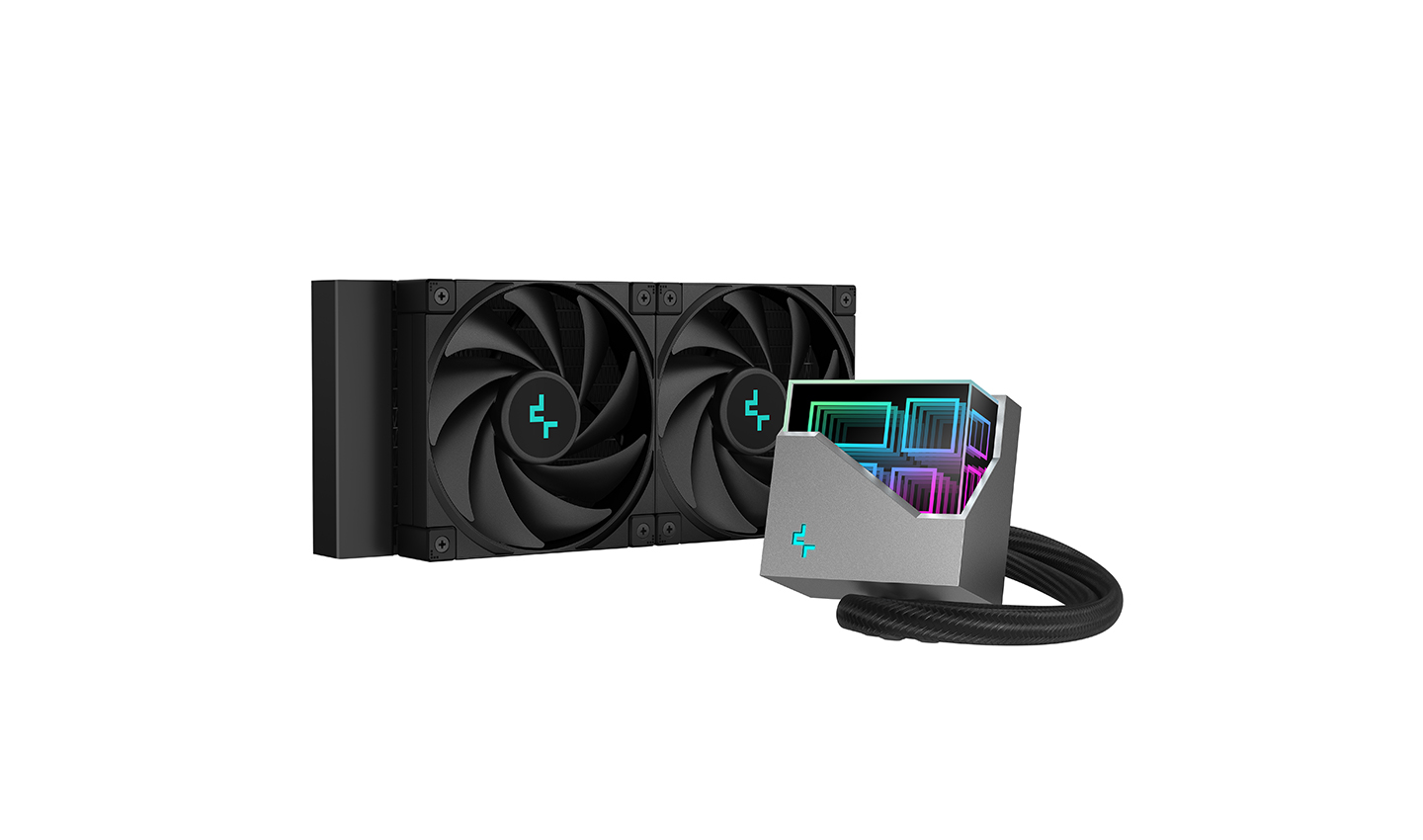

The DeepCool LT520 high-performance liquid CPU cooler provides strong heat dissipation power with a 240mm radiator, two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap.
COLOR
black
MODEL
LT520
240mm High-Performance Liquid CPU Cooler
Break Open Another Dimension
A three-dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi-faceted geometric reflection.
Break Open Another Dimension
A three-dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi-faceted geometric reflection.
A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1
Improved microchannel design ensures optimal coolant flow.
2
Powerful three-phase drive motor up to 3100 RPM.
3

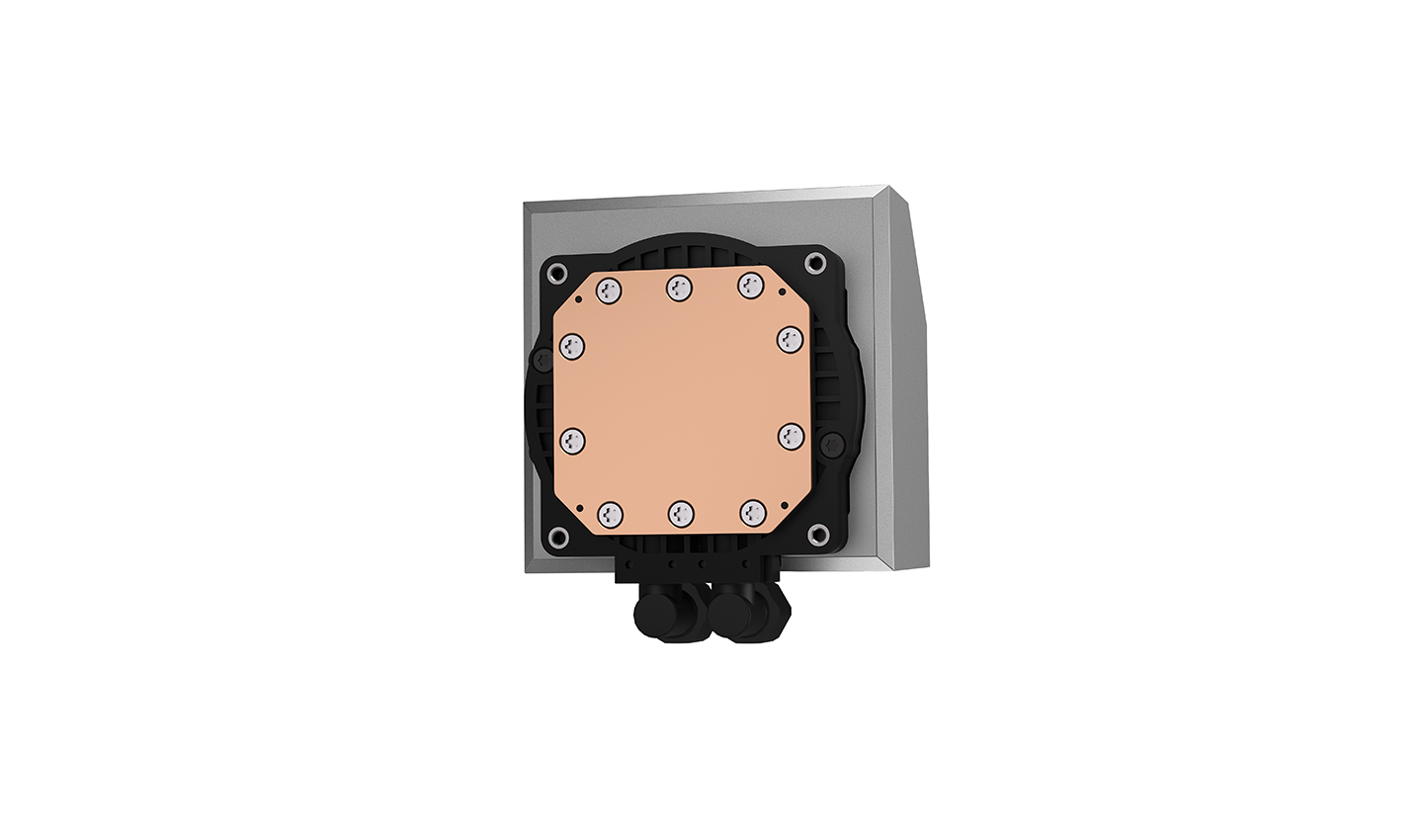

Thick solid copper base with a seamless match.
Extremely Powerful

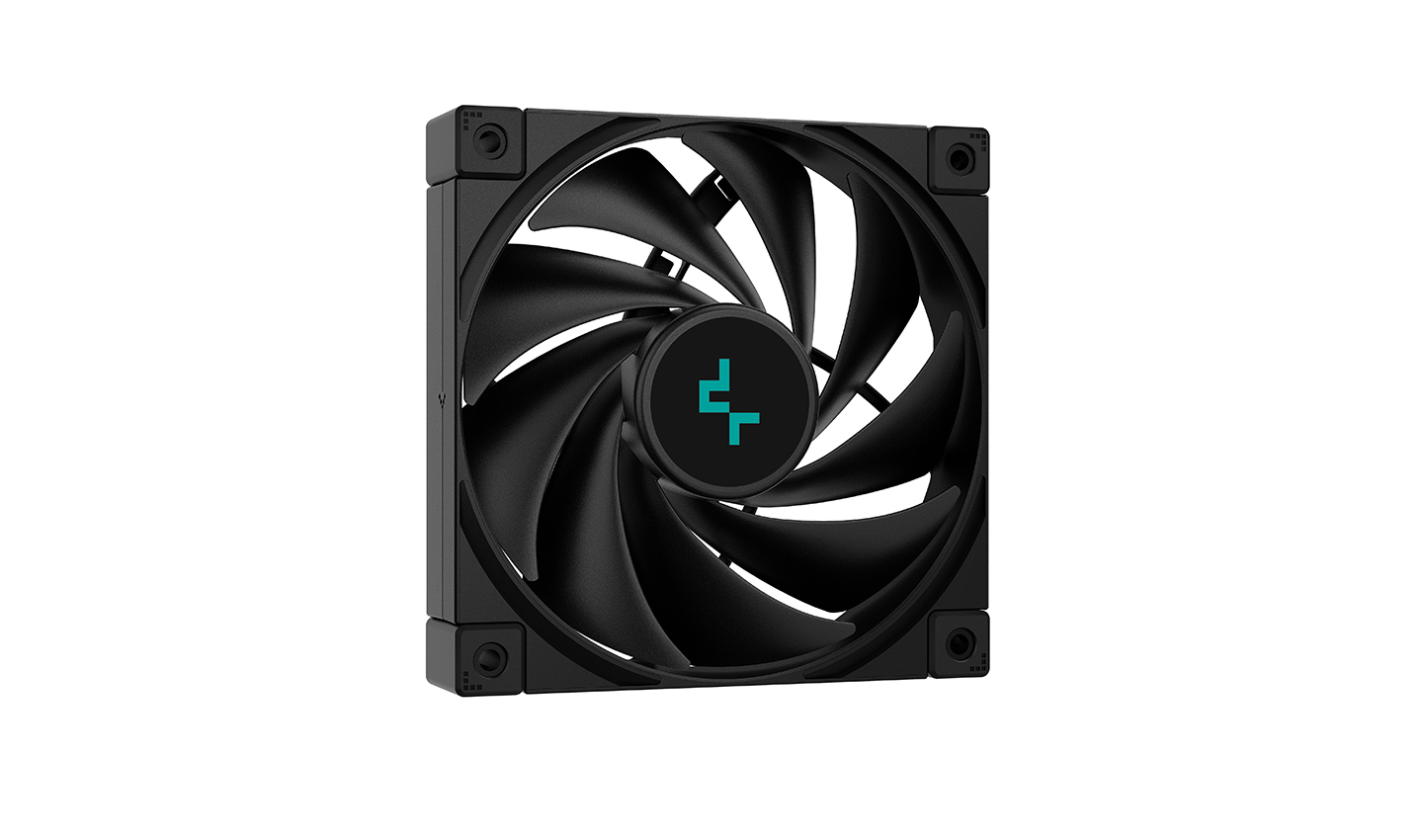

Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.
500-2250 RPM
Dynamic PWM Range
85.85 CFM
Supreme Airflow
3.27 mmAq
High Static Pressure
≤32.9 dB(A)
Full Load Noise
Synchronize Your Setup with RGB lighting effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.
Simple and Secure

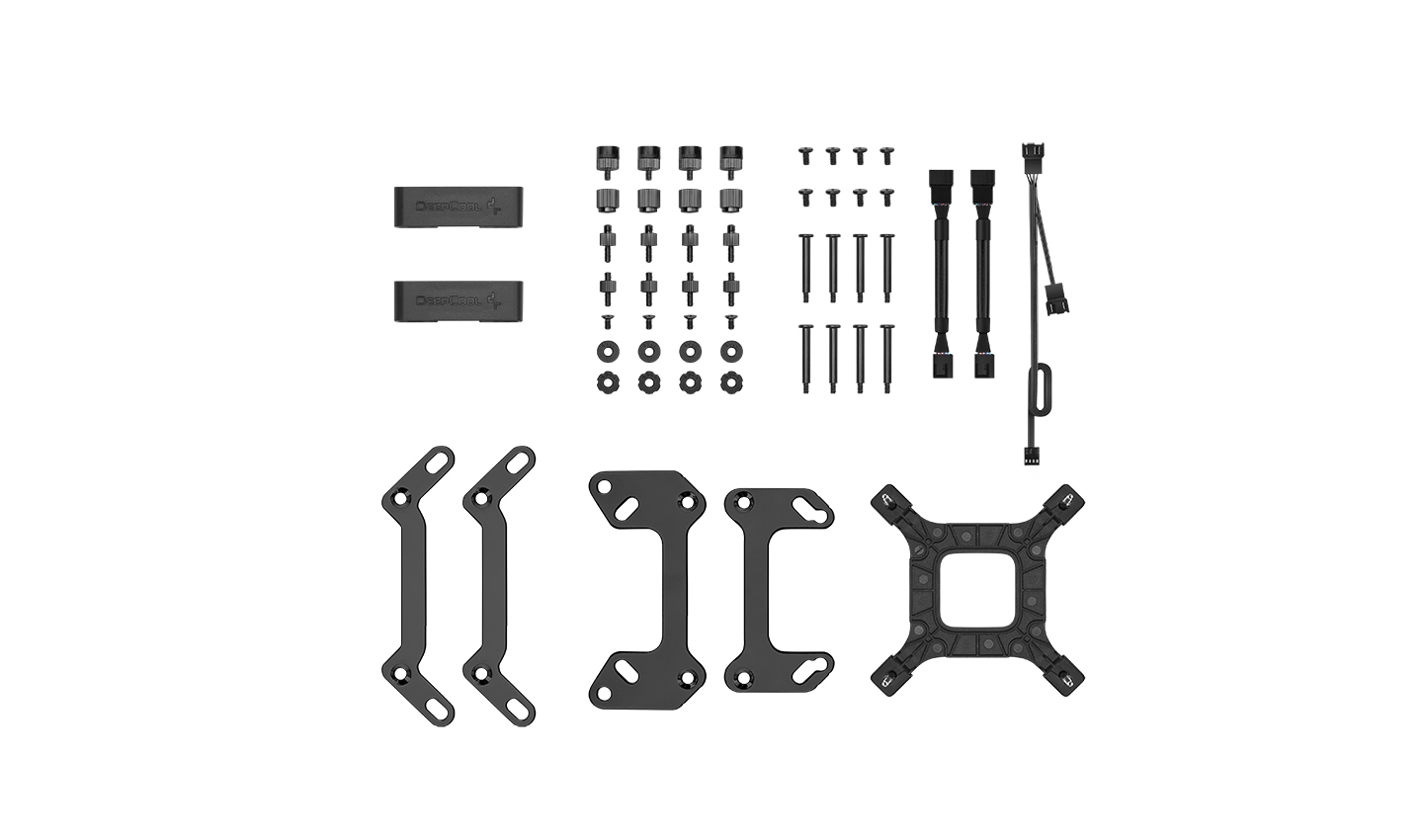

The installation process is intuitive and simple to use ensuring a proper fit and pressure match on any platform. The newly designed brackets are blacked out and stealthy hidden when installed into your system.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Net Weight1504 g
Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm(L×W×H)
Pump Dimensions94×80×68 mm(L×W×H)
Pump Speed3100 RPM±10%
Pump Noise19 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.38 A
Pump Power Consumption4.56 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2250 RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption3.15 W(PUMP)
EAN6933412727910
P/NR-LT520-BKAMNF-G-1
Product Dimension
