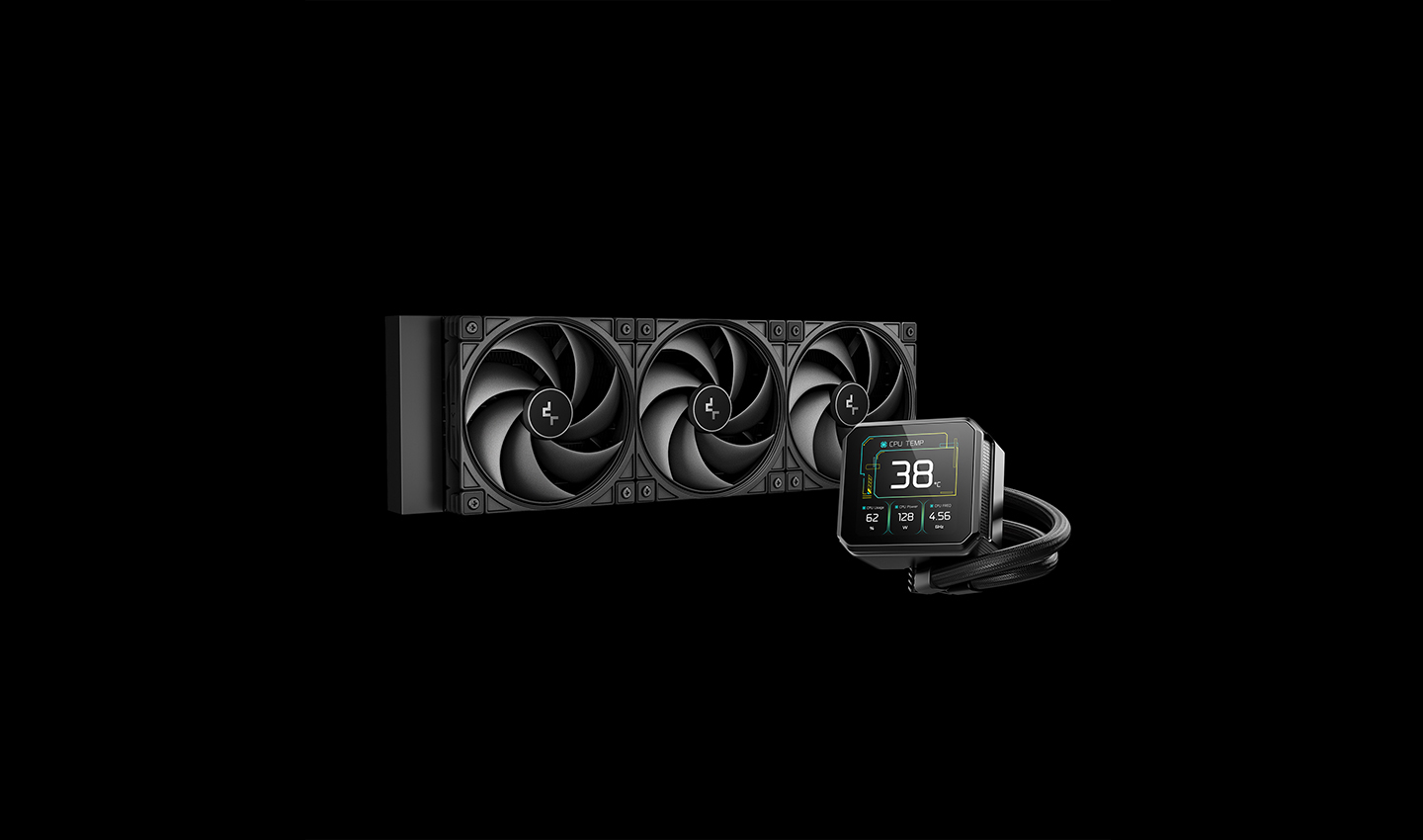

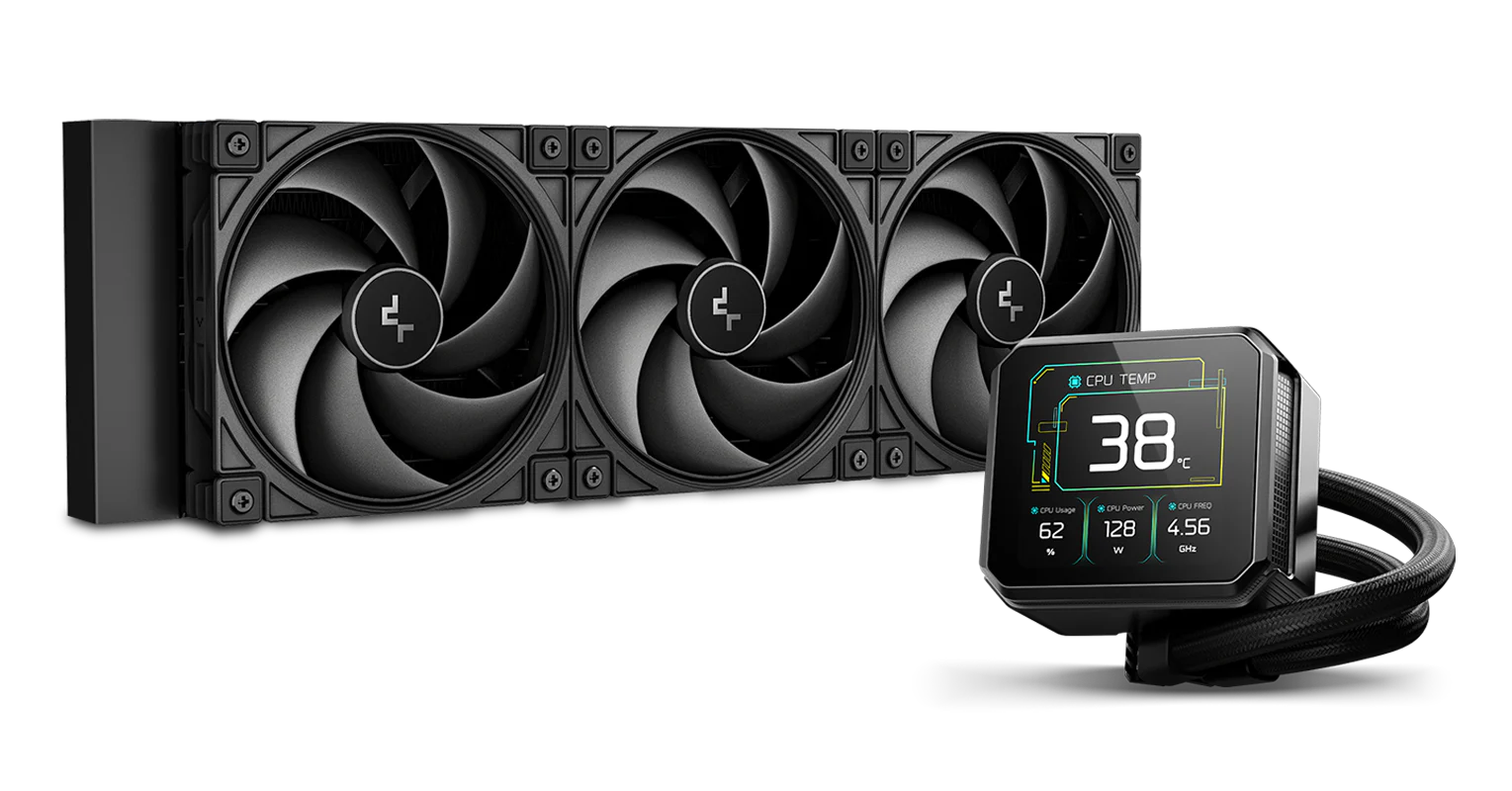

SPARTACUS 360

A NEW SCALE OF VISION

A FORM THAT SPEAKS

With a precision-crafted design and refined metal finish, SPARTACUS 360 reflects DeepCool's commitment to modern aesthetics and build quality. The pump cap attaches magnetically for easy removal, and precision pogo pin contacts ensure a stable and reliable connection.

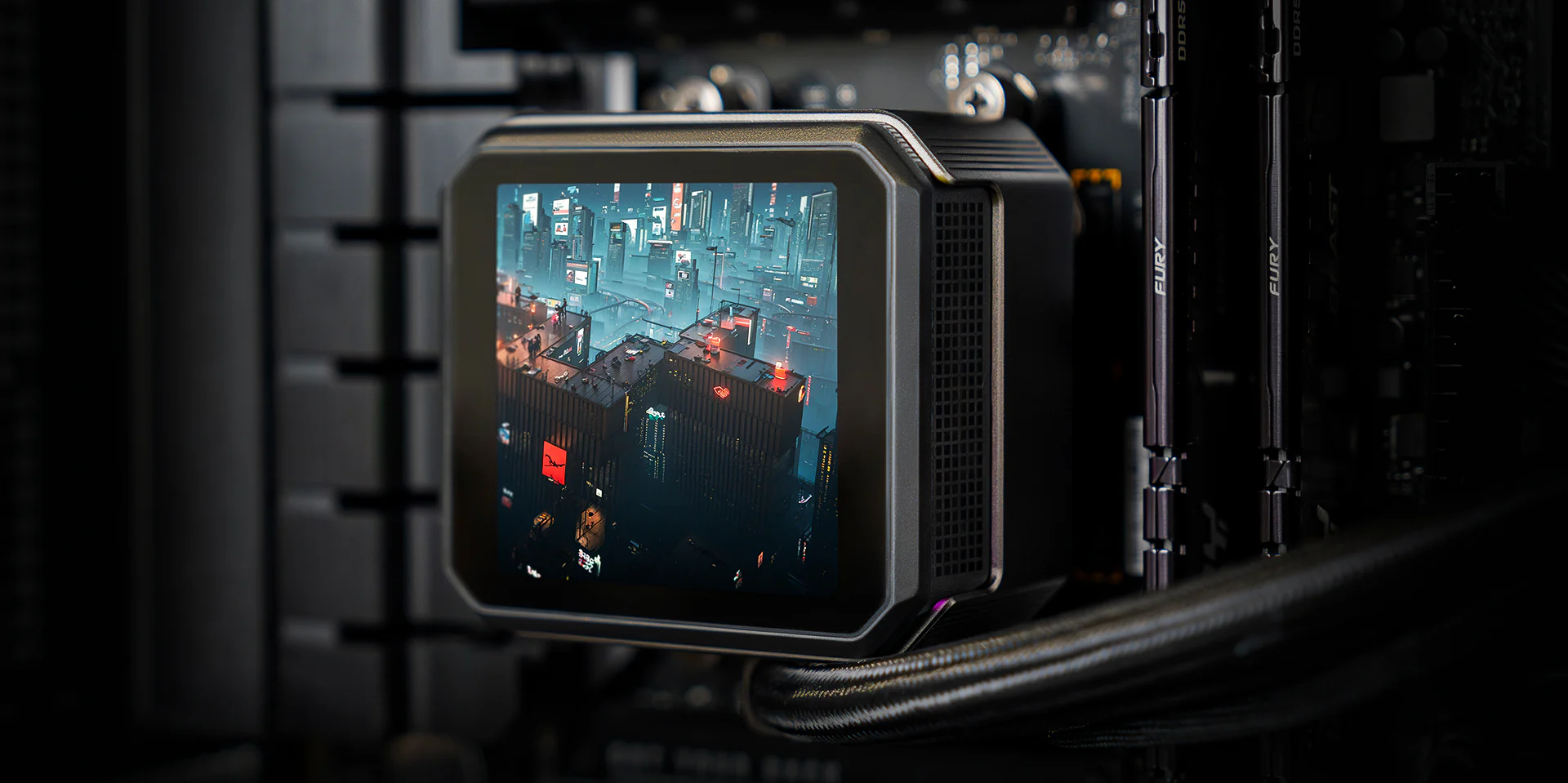

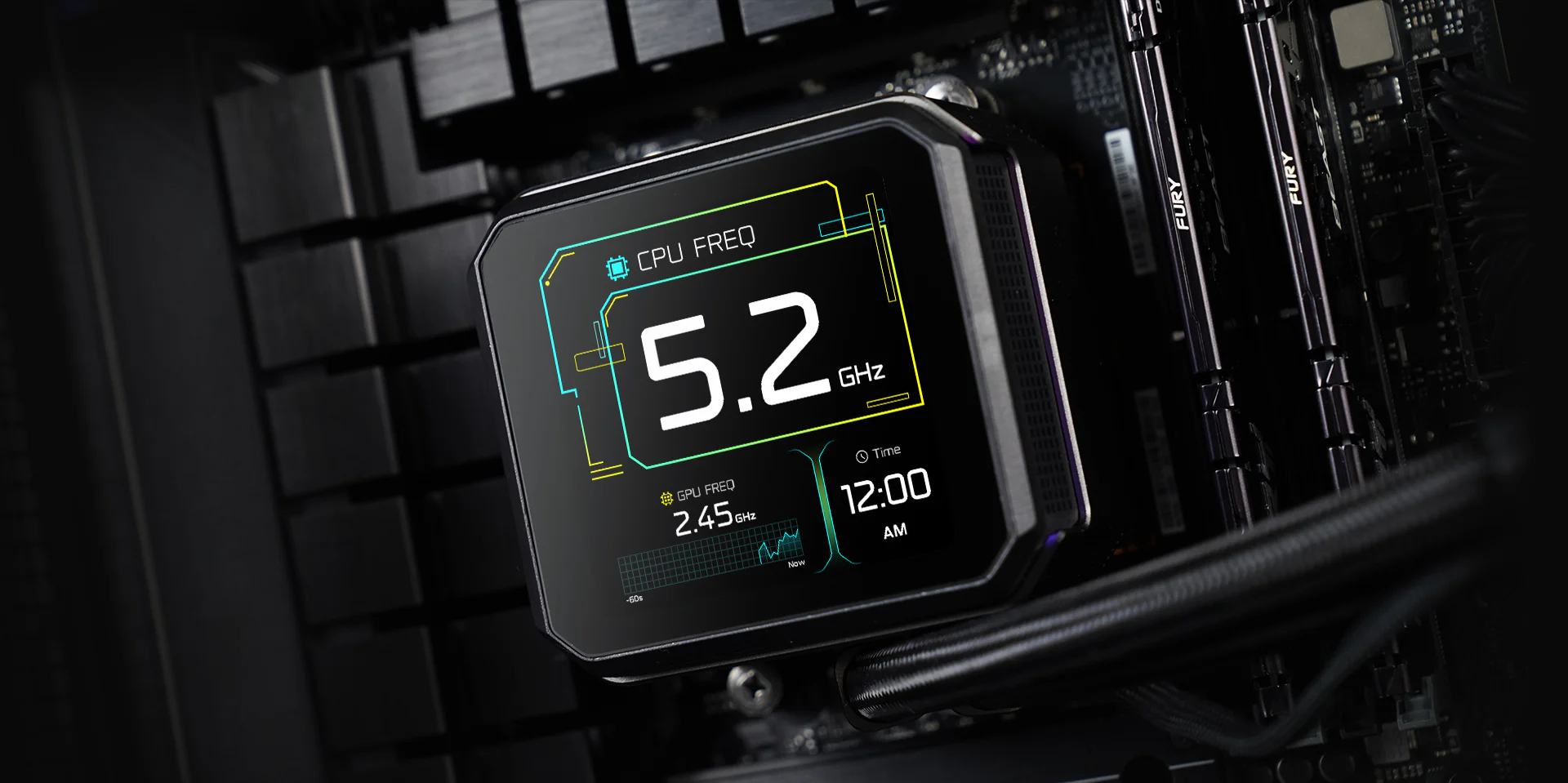

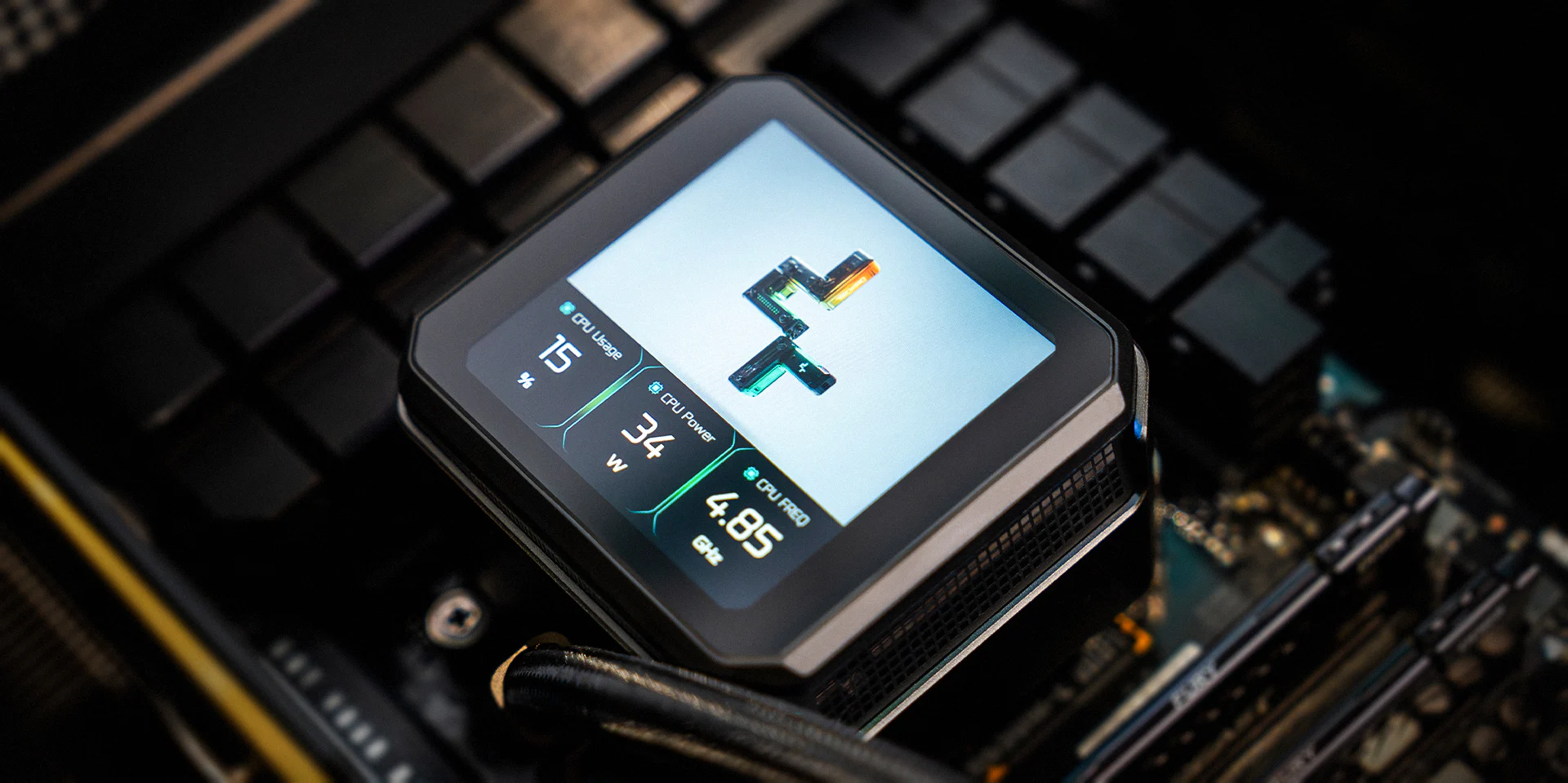

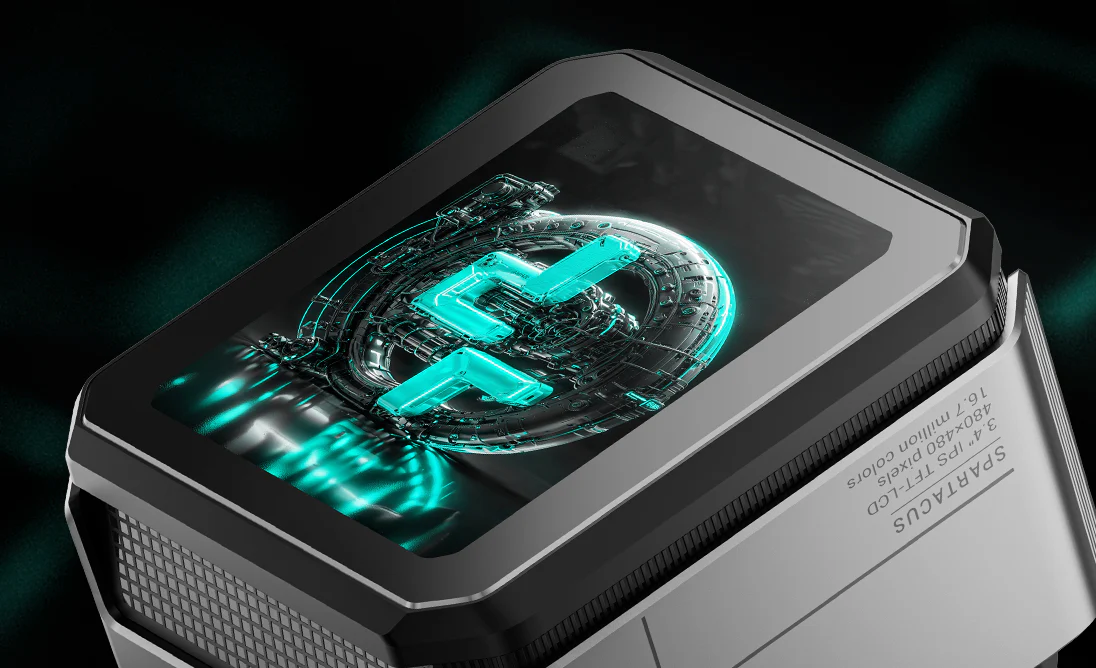

VIVIDLY FLUID 3.4" LCD

A 3.4" IPS display opens a new screen experience, featuring 480×480 resolution and support for 16.7 million colors. Content is structured in modular blocks, enabling a flexible visual layout tailored to individual preferences.

Brightness 750 nits

Resolution 480 × 480

Color Depth 16.7M Colors

Refresh Rate 30Hz

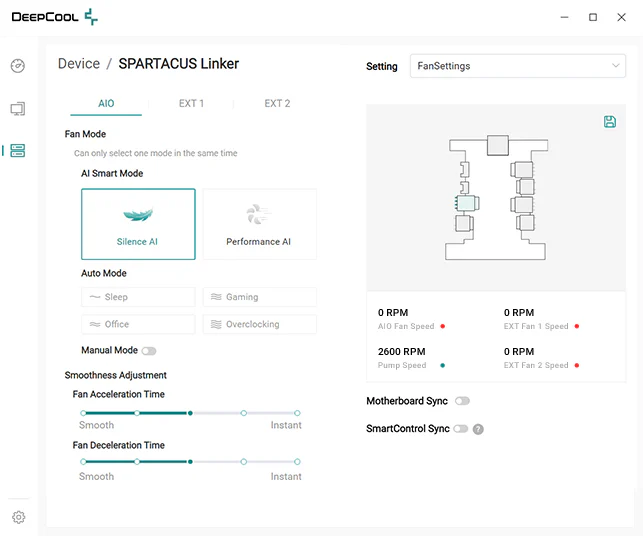

AI-TUNED CHILL. POWERED BY DeepCreative

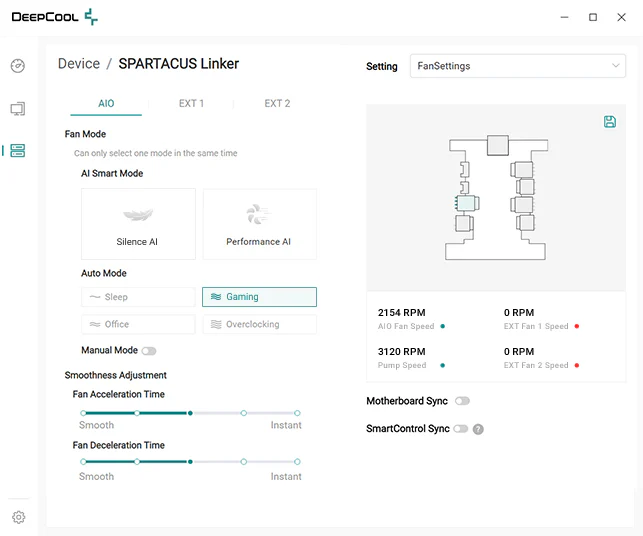

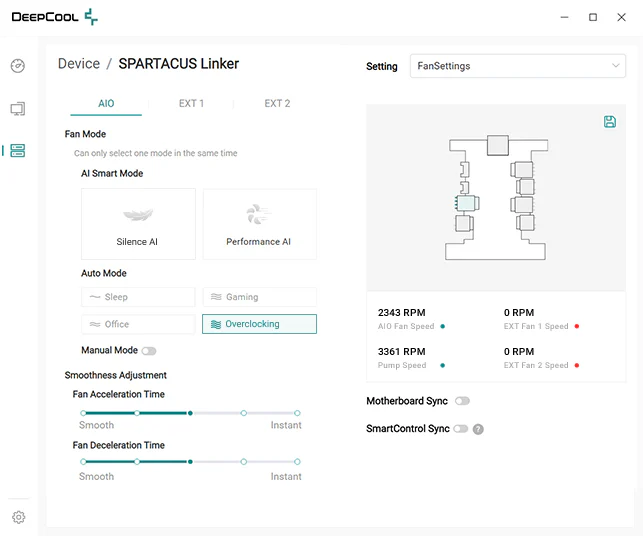

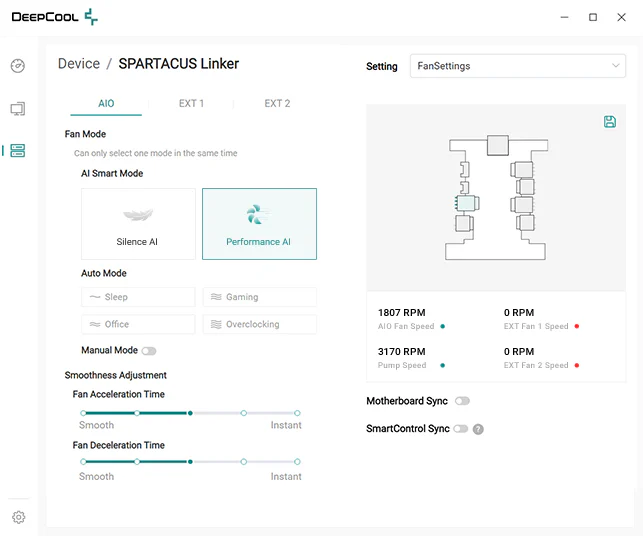

With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time and coordinates both fan and pump speeds to match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.

*Fans instantly shift to full speed when the CPU hits above 80 °C, crushing heat without delay.
Fans automatically revert to preset mode once the CPU temp drops below 80 °C.

Silence AI Mode:
Maintains quiet cooling for steady, low-noise performance

Performance AI Mode:
Delivers maximum cooling for peak system performance

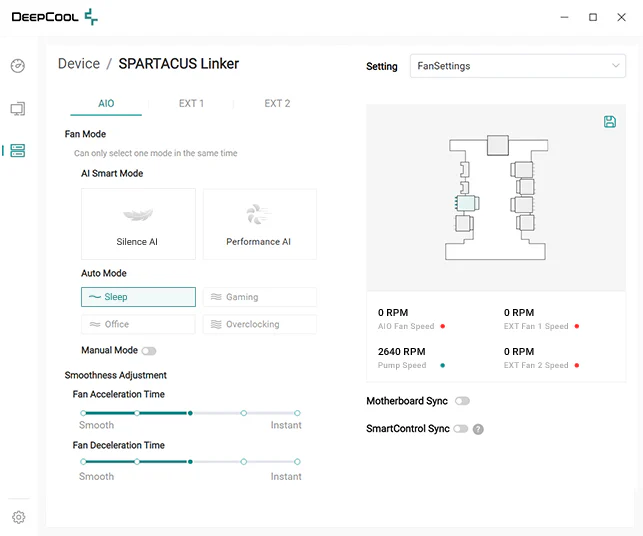

Sleep Mode:
Ultra-quiet for noise-sensitive environments

Office Mode:
Silent-focused for productivity

Gaming Mode:
Balanced performance and sound

Overclocking Mode:
Unlocks the full potential of your system

DeepCreative: THE CONTROL CENTER

Unlock a deeply visual experience with the SPARTACUS cooler through DeepCreative software. Monitor real-time system stats, customize your display with flexible block layouts, and switch between multiple modes as needed. When performance takes priority, Zen Mode reduces update frequency to minimize system load while keeping critical data visible.

Display Options:

MONITORING

MEDIA

GRAPH

ZEN

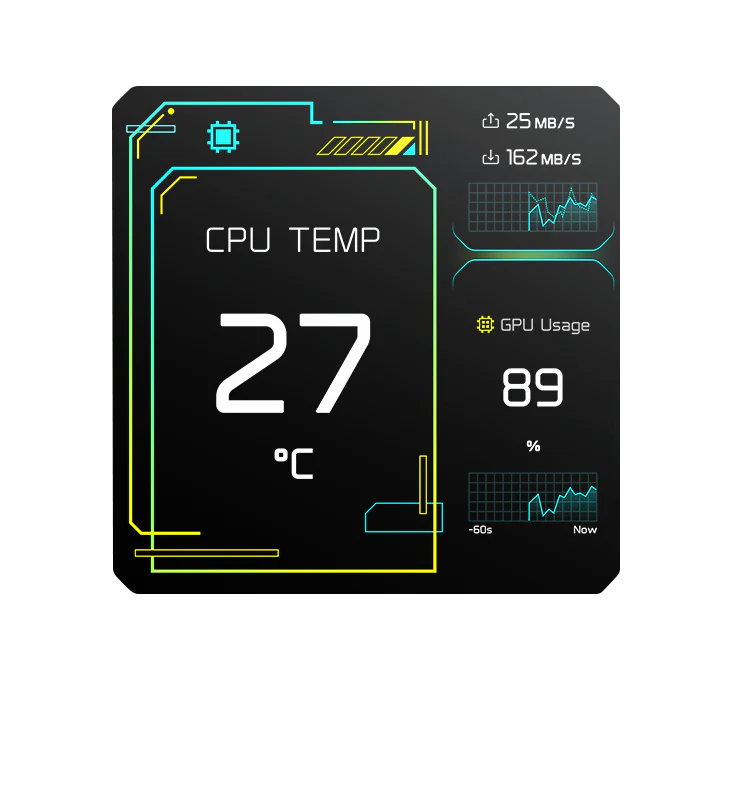

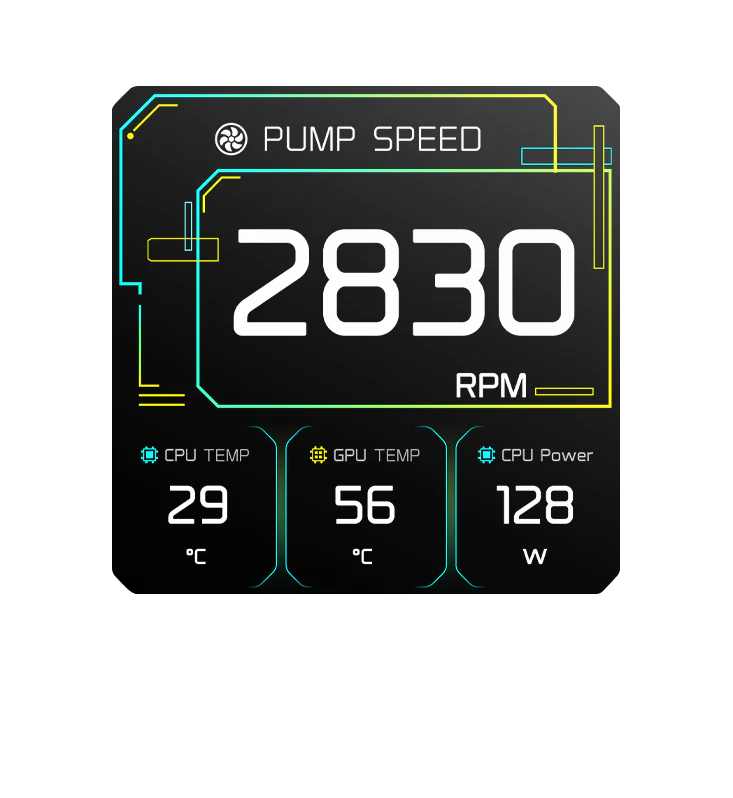

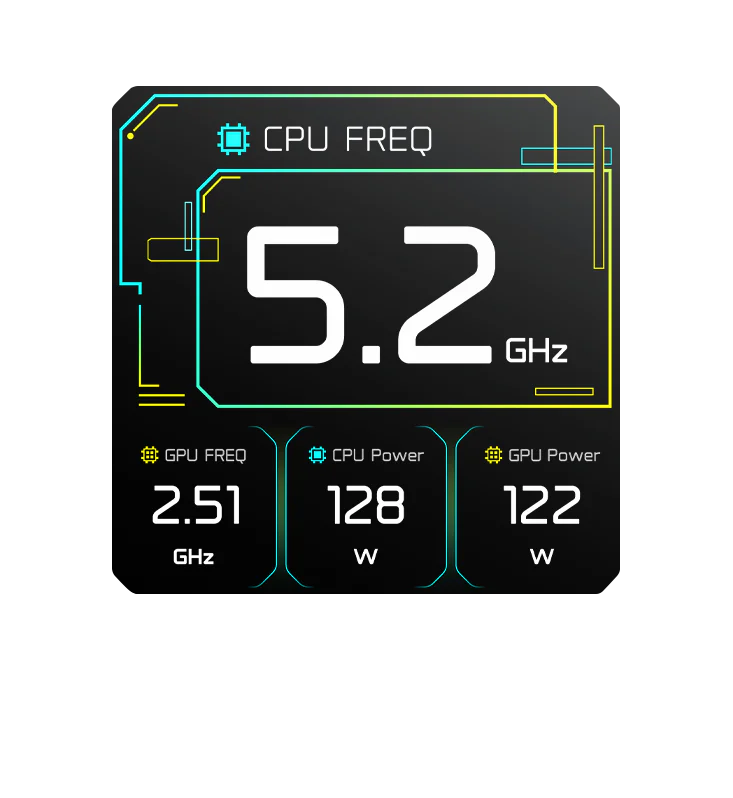

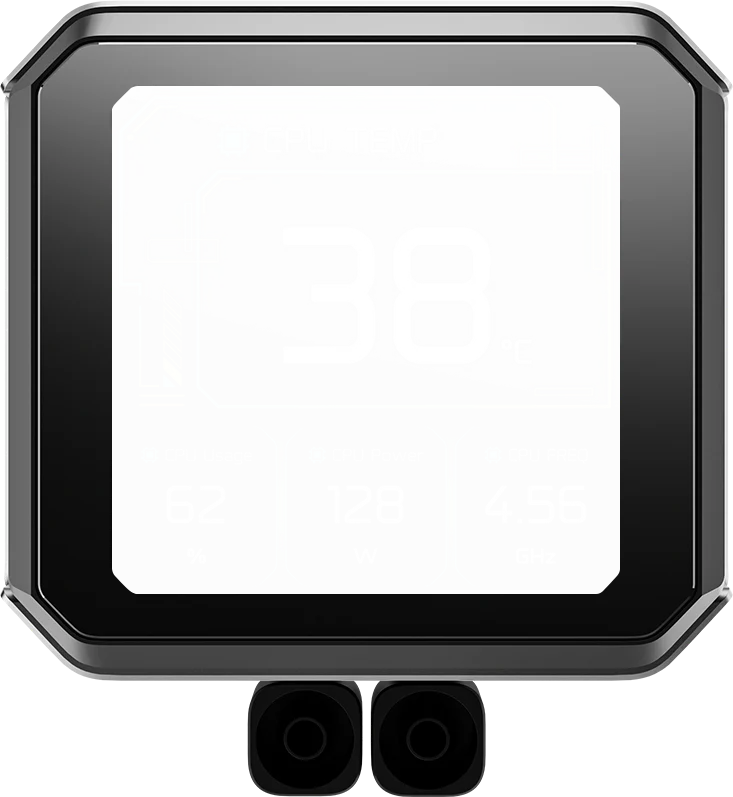

Keep track of essential system data, including CPU temperature, usage, frequency, and pump speed. Depending on what's shown in the main block, the secondary blocks can display options like GPU power, network speeds, or RAM usage.

System View

Performance View

Cooling View

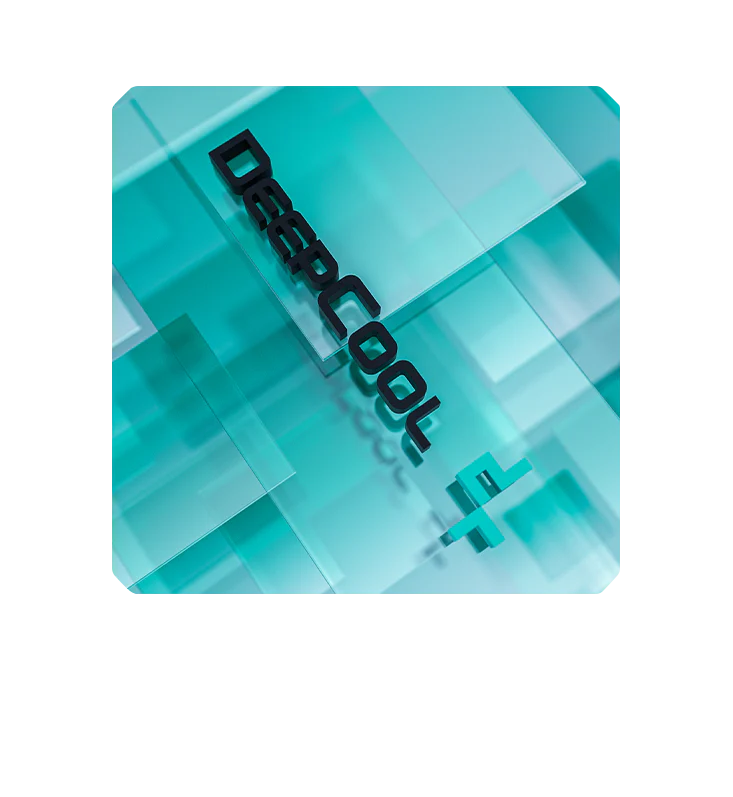

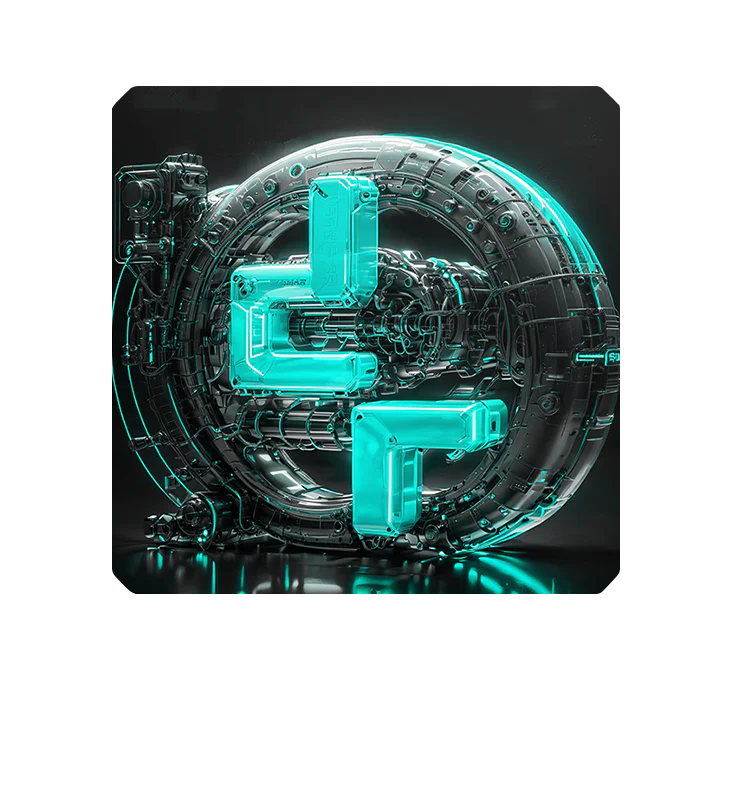

Showcase images, animated GIFs, or MP4 videos on screen, or add rhythm and motion to your setup with music spectrum effects.

Visualize system trends with dynamic graph blocks, including CPU and GPU usage, frequency, and network traffic. Data updates every second and supports multiple layout sizes.

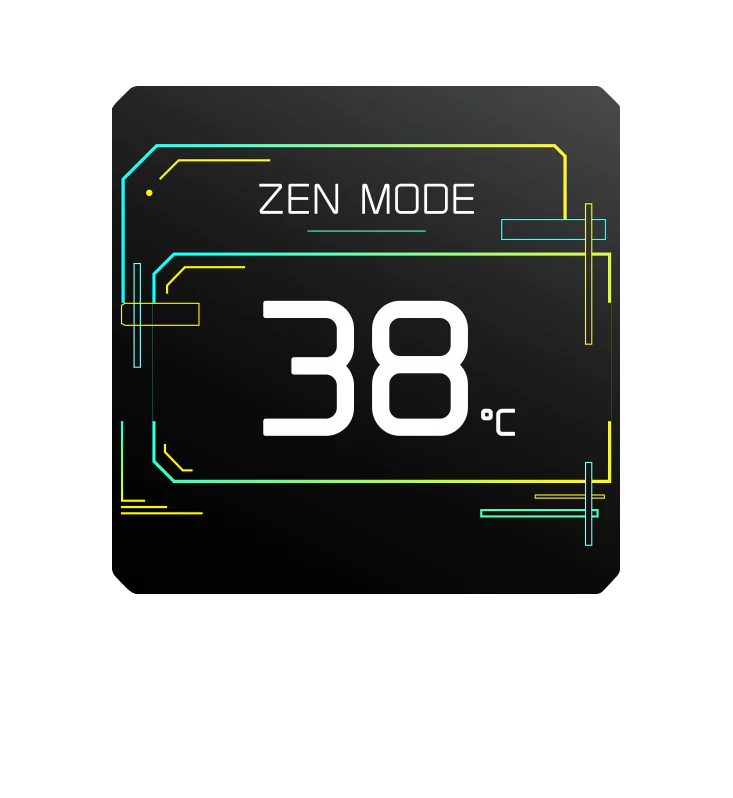

Automatically reduces update frequency under high system loads to minimize resource usage and help you stay focused.

DRIVEN BY THE GEN 6 PUMP

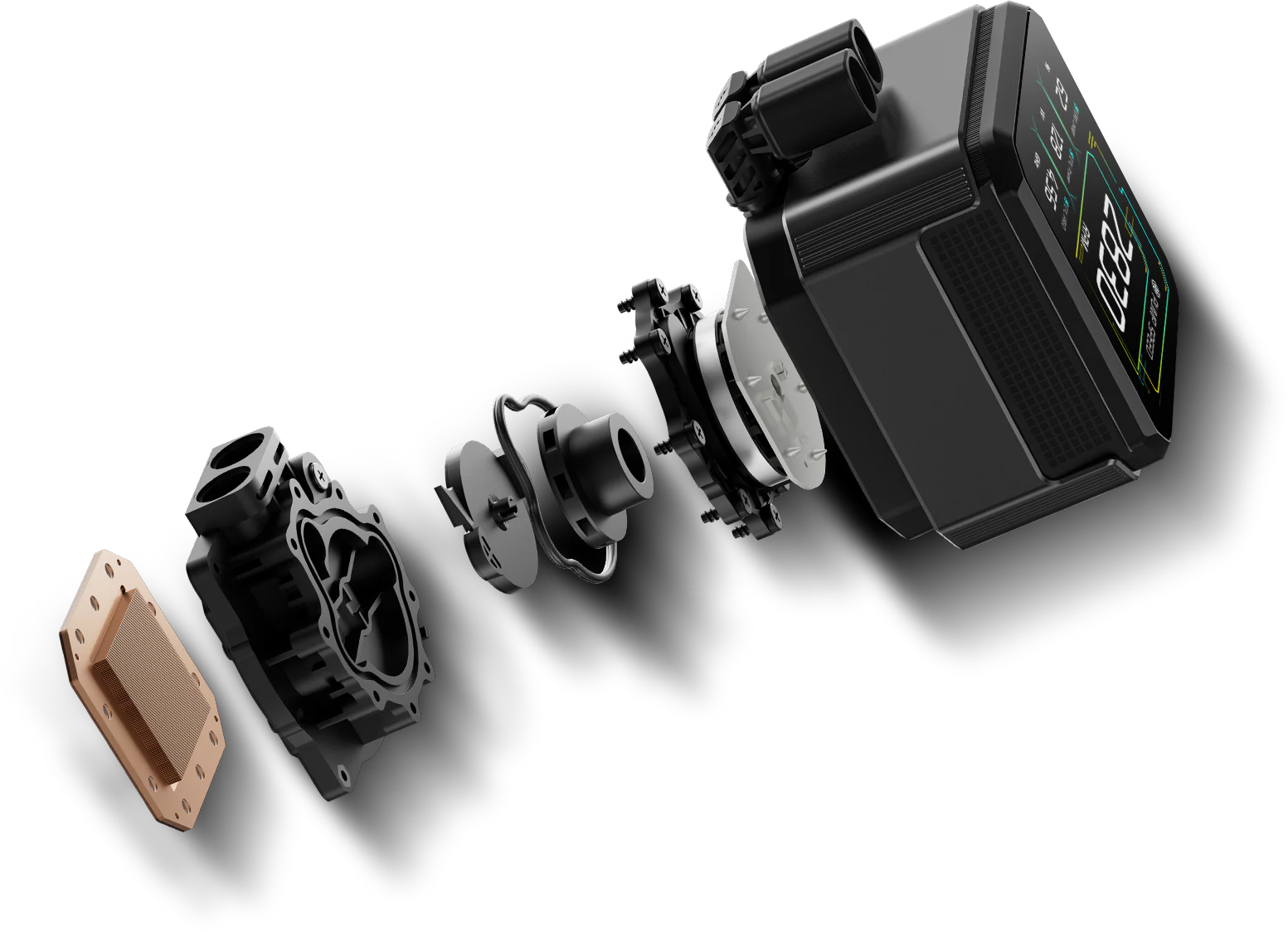

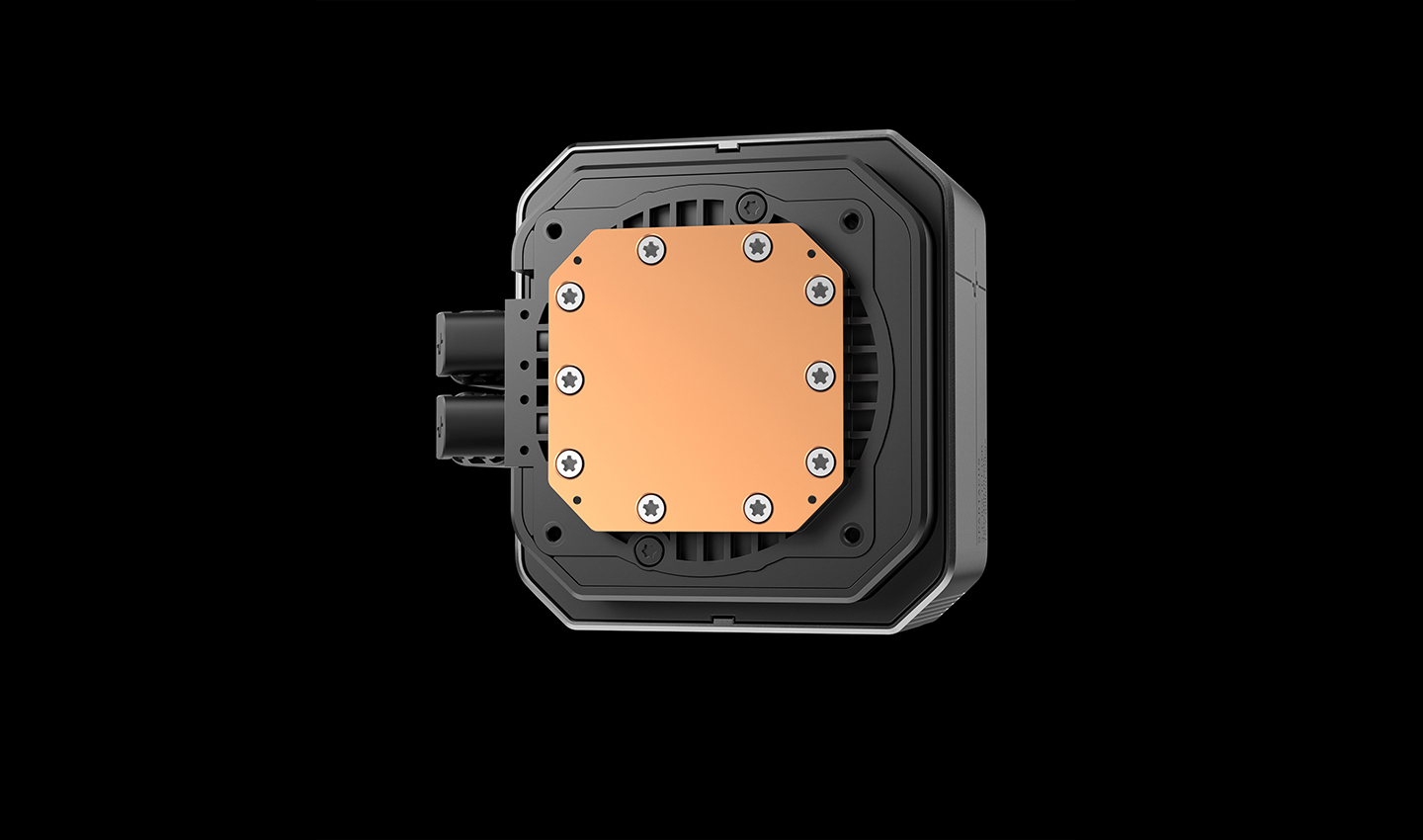

The 6th-generation pump features a 3-phase, 6-slot, 4-pole motor with FOC control, delivering smoother and more efficient operation across a PWM-adjustable range of 2,500 to 3,400 RPM. The expanded copper base and fine-tuned microfin geometry help maximize thermal transfer, enabling up to 320W of heat dissipation with low noise and long-term reliability.

500-2500 RPM ±10%
0 RPM (PWM duty < 5%)

Fan Speed

79.89 CFM

Airflow

3.30 mmAq

Static Pressure

≤32.23 dB(A)

Fan Noise

STABILITY IN EVERY SPIN

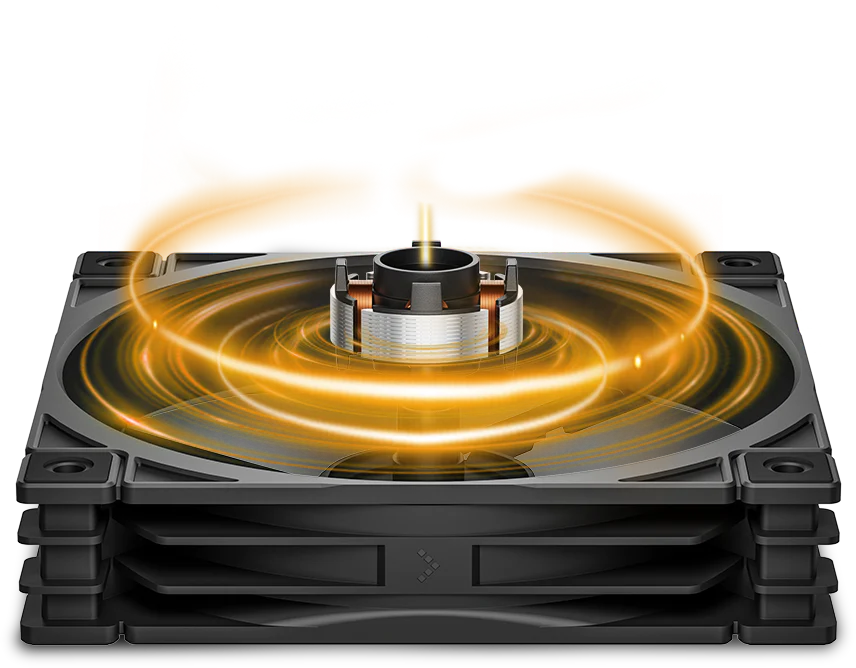

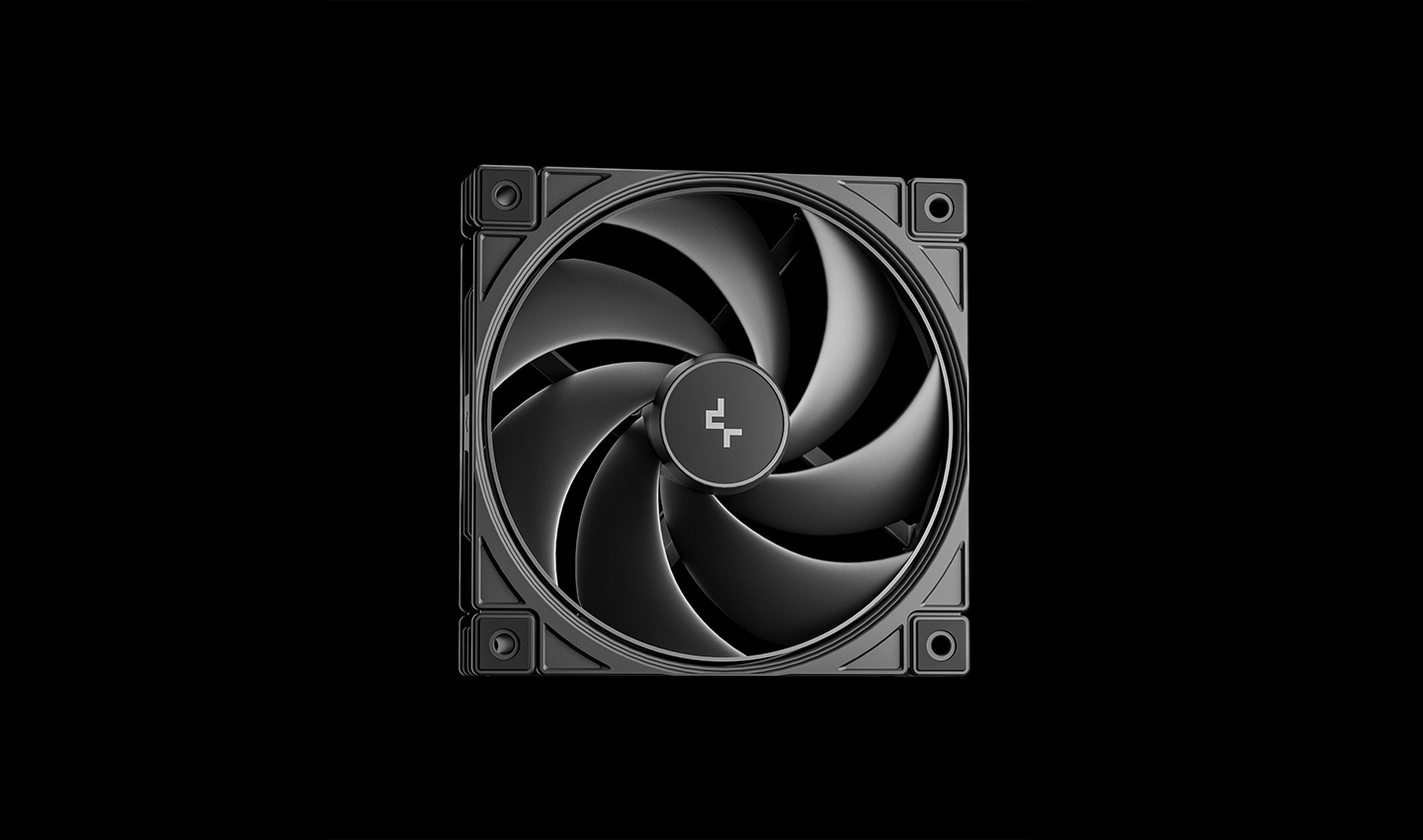

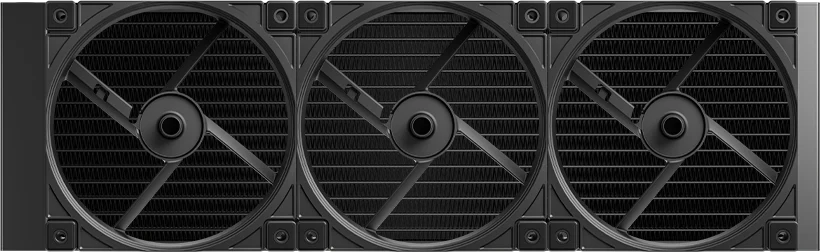

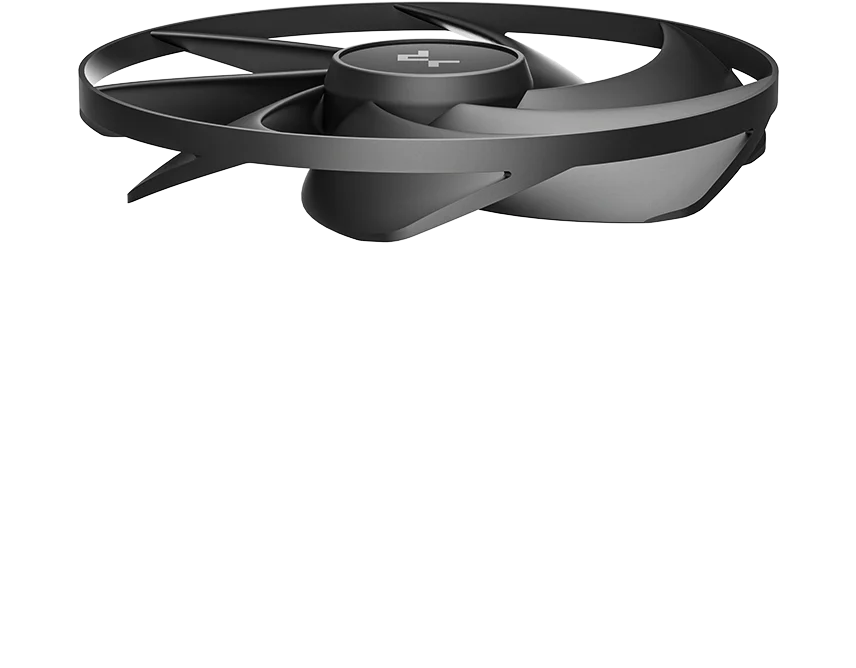

SPARTACUS 360 is equipped with three high-performance 120mm fans featuring an enclosed blade-ring design that maintains structural integrity at high speeds, ensuring stable airflow and low noise. Durable hydraulic bearings provide long-term reliability, and the hidden connector layout keeps cables neatly out of sight.

SINGLE CONNECTION, TOTAL CONTROL

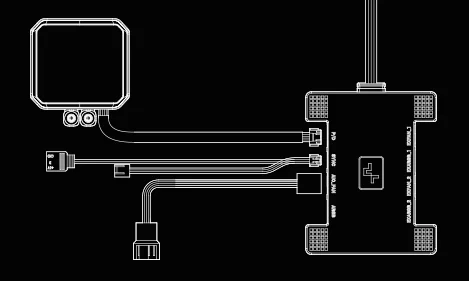

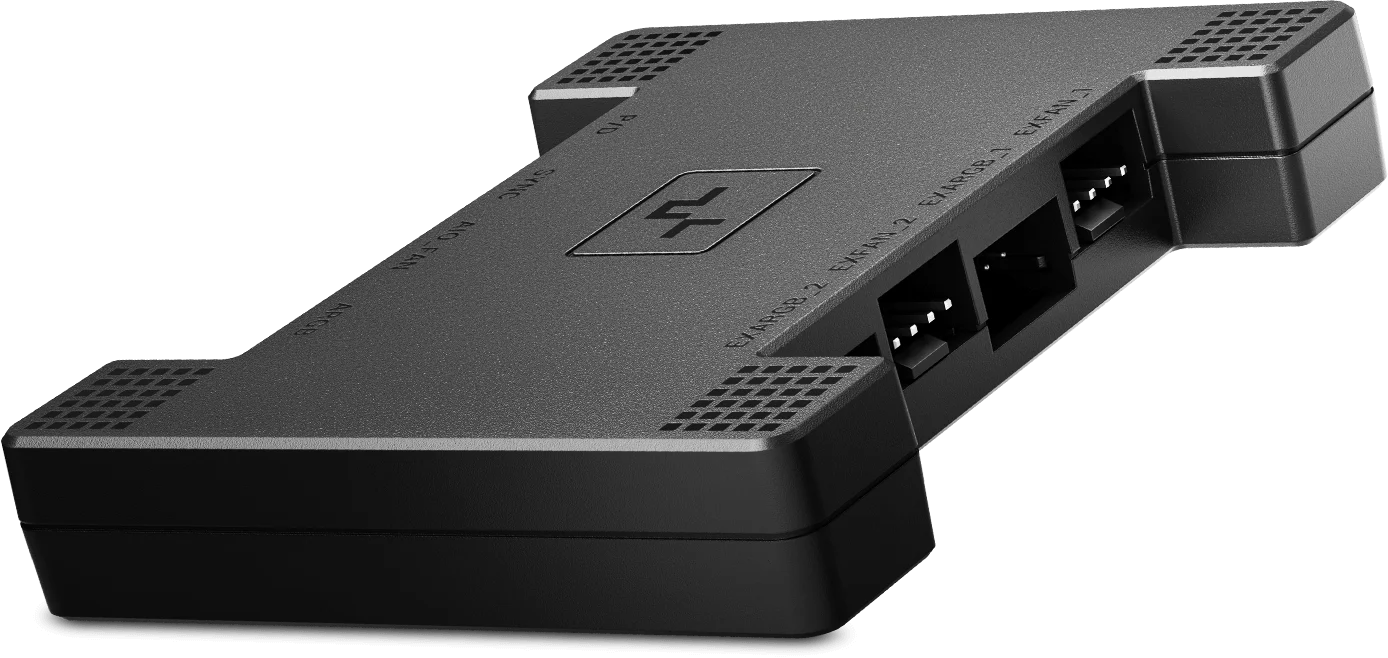

The unique 10-pin connector integrates power and signal for both pump and screen, eliminating cable clutter with a single, streamlined connection. Control is centralized through a compact hub, allowing independent adjustment of fan speeds and ARGB lighting per channel, with magnetic and screw mounting options for flexible installation.

PRECISION COOLING ALIGNMENT

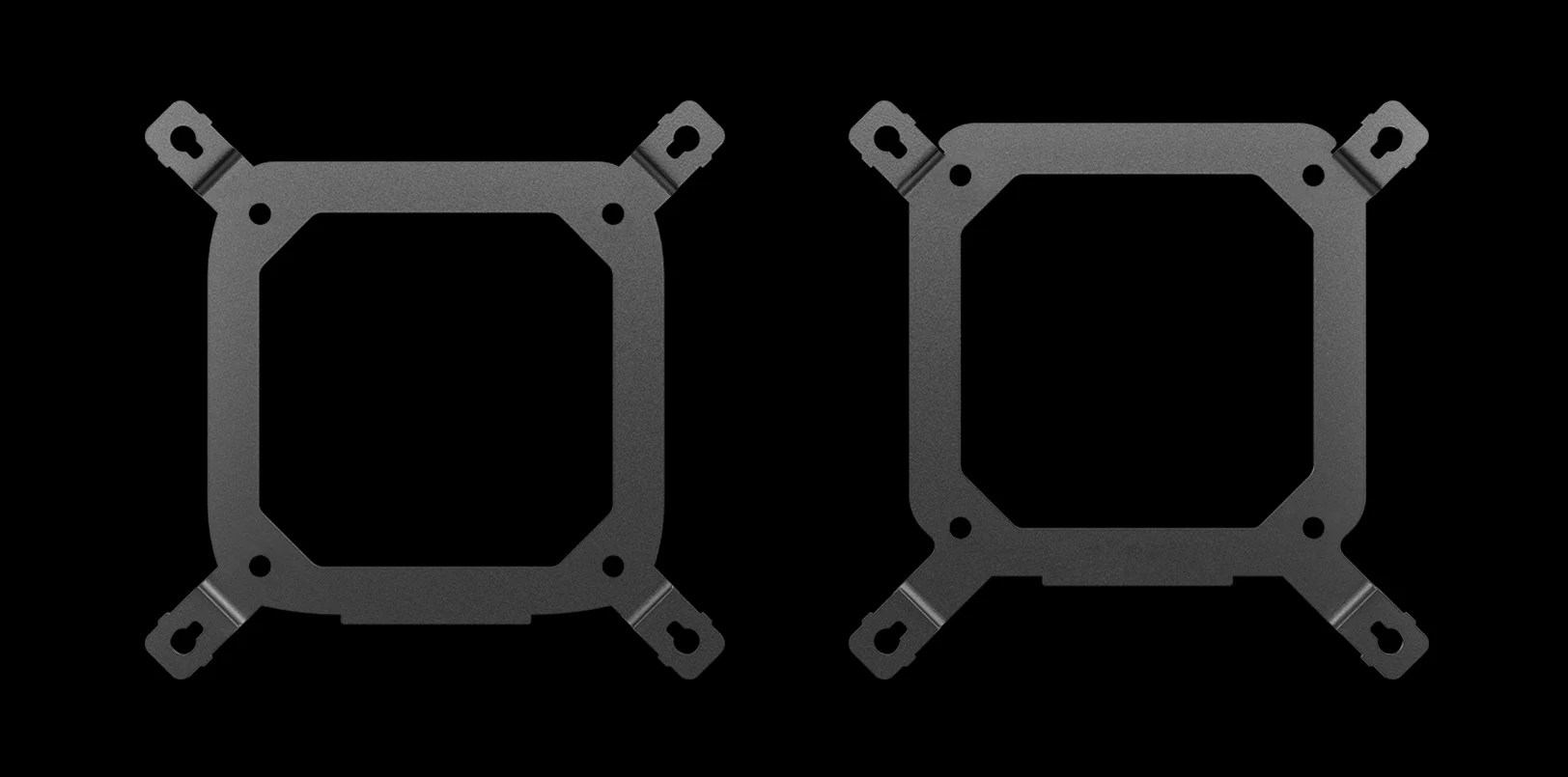

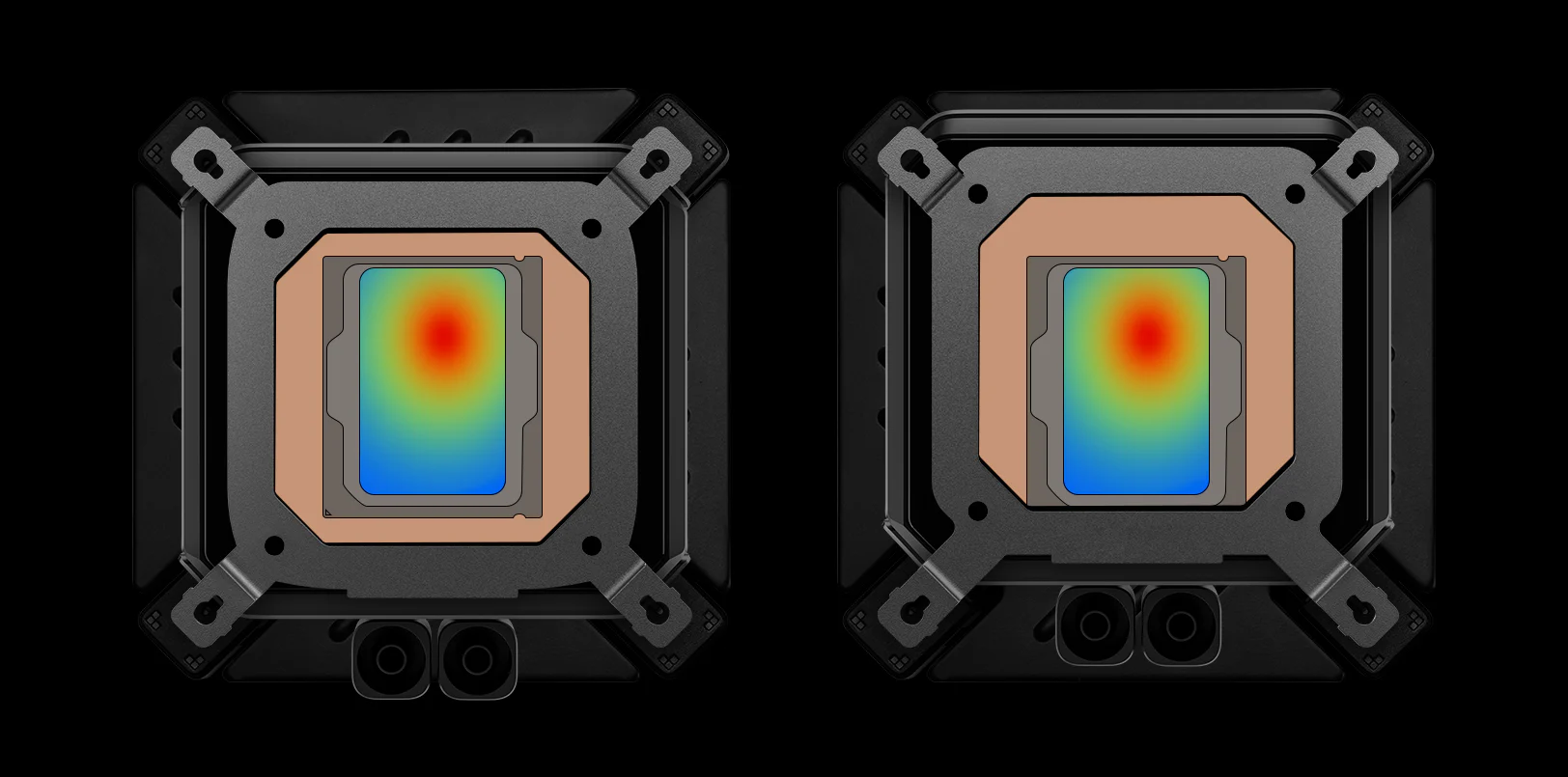

SPARTACUS 360 features a newly engineered offset bracket optimized for Intel 24- or 20-core LGA1851 CPUs (such as the Core Ultra 9 285K or Core Ultra 7 265K). By offsetting the cold plate upward, it aligns precisely with the CPU’s hotspot and reduces temperatures by 1-3°C*.

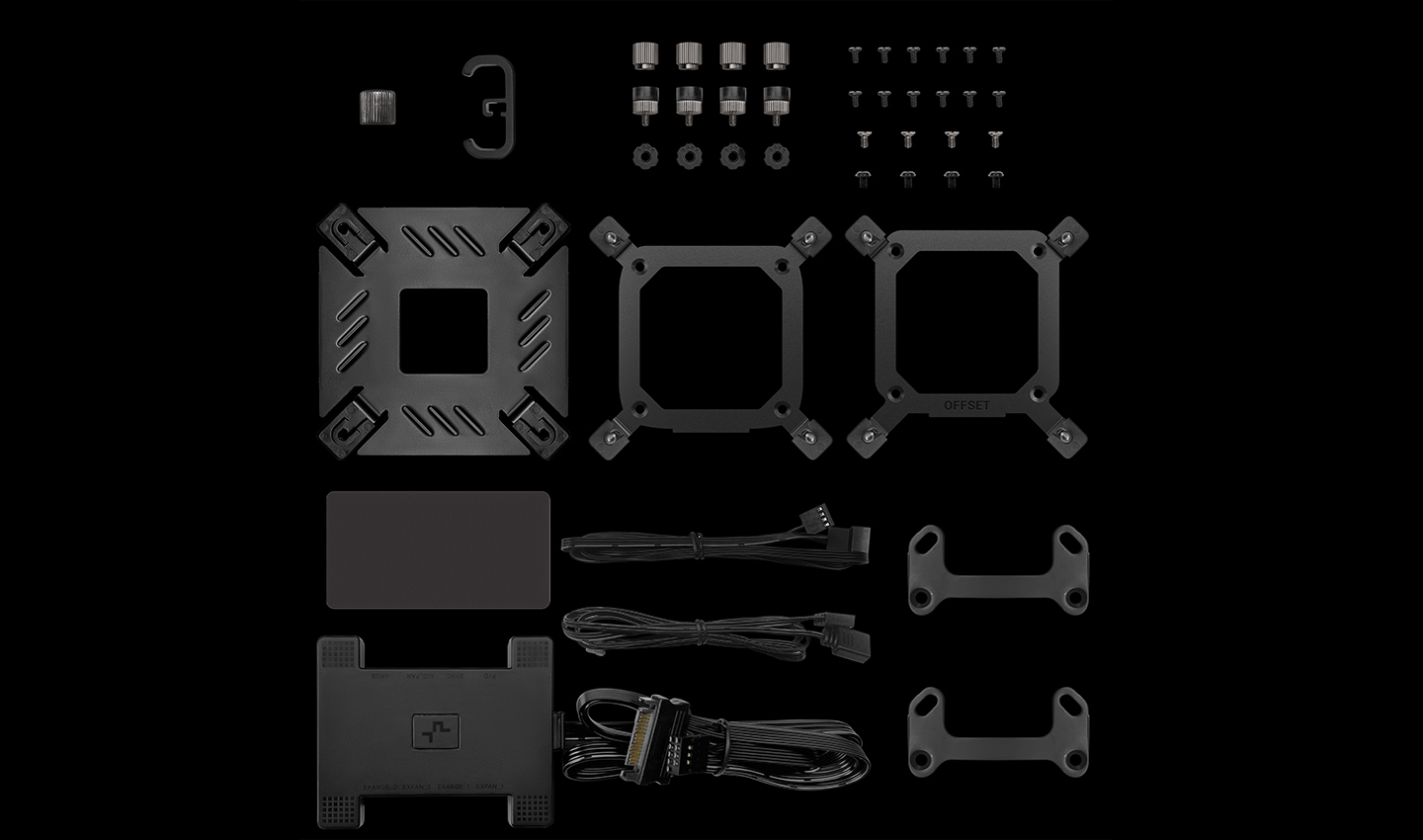

Other Intel and AMD platforms remain fully supported with standard mounting hardware.

*Data comes from DeepCool Lab.

REAR-LOCK MOUNTING

The rear-mounted locking system allows front-side installation without screws, streamlining the process and resulting in a cleaner build.

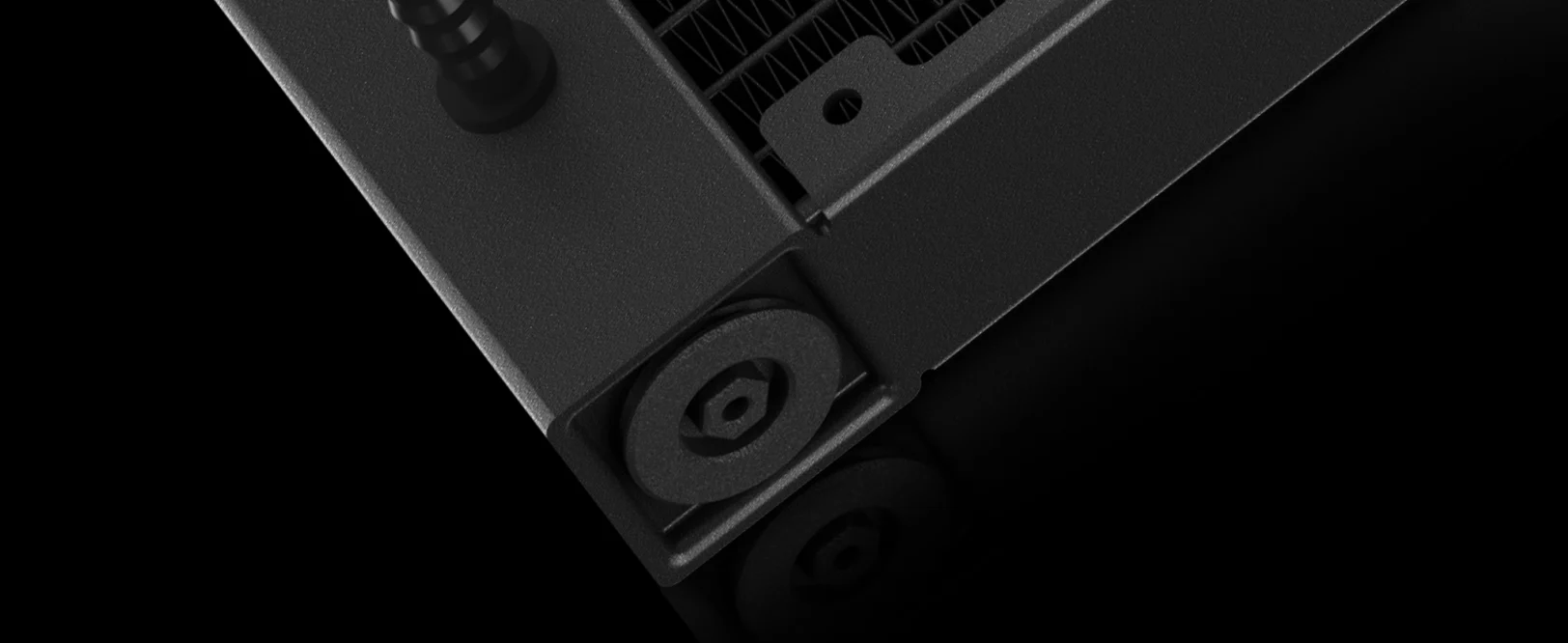

ANTI-LEAK TECHNOLOGY

The SPARTACUS liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and purges it when internal pressure exceeds atmospheric pressure, extending the cooler's lifespan and reducing the risk of leaks.

Application For

Intel

LGA1851/1700

AMD

AM5/AM4

Technical Spec

Net Weight	2073 g

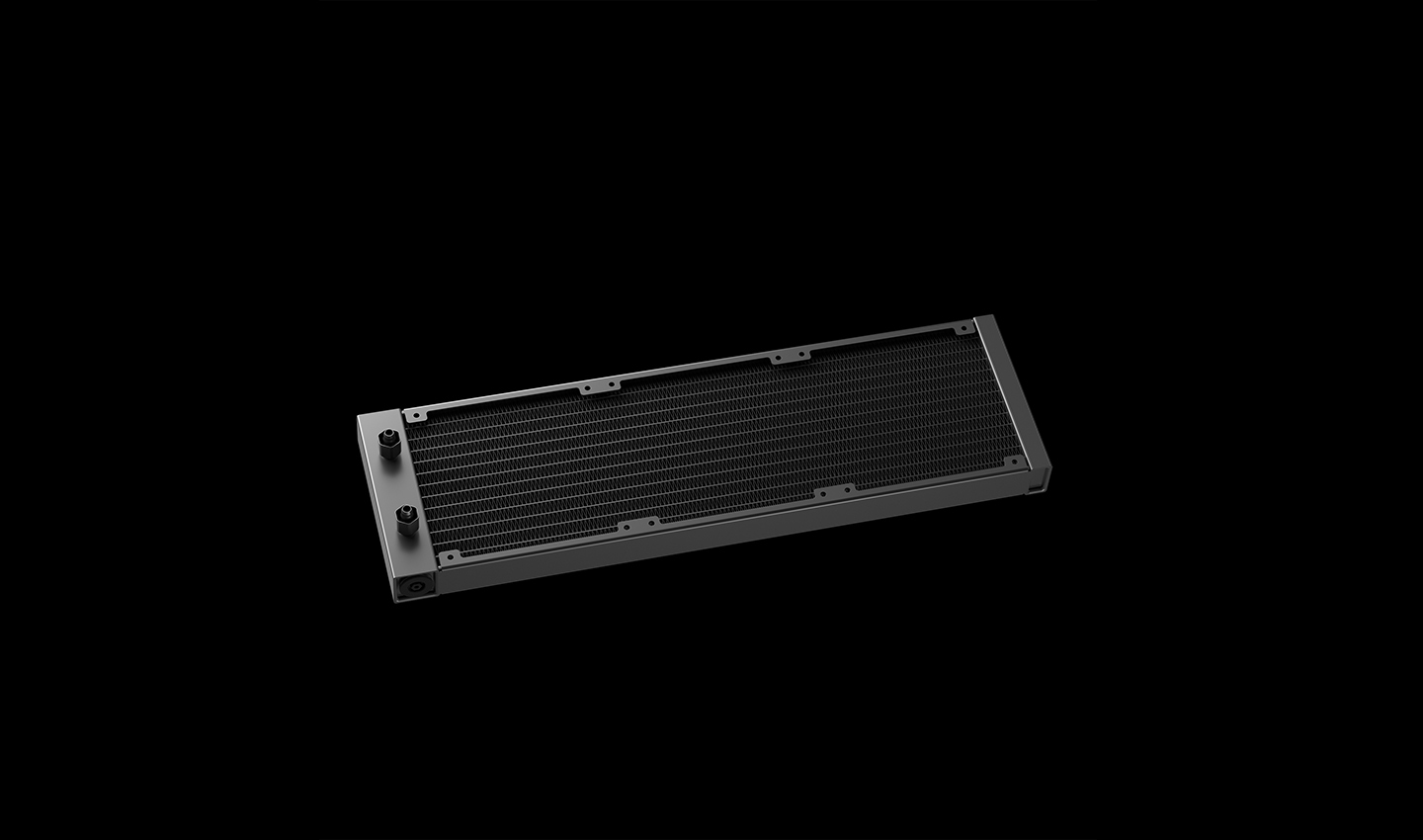

Radiator Dimensions	402×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm
Pump Dimensions	99×91×65 mm(L×W×H)
Pump Speed	2500~3400 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2500 RPM±10% 0 RPM (PWM duty < 5%)
Fan Airflow	79.89 CFM
Fan Air Pressure	3.30 mmAq
Fan Noise	≤32.23 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.24 A
Fan Power Consumption	2.88W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.0 W（PUMP）
Display Specifications	3.4 inch 480×480 TFT LCD
EAN	6933412729631
P/N	R-SPT360-BKDSMP-G-1
