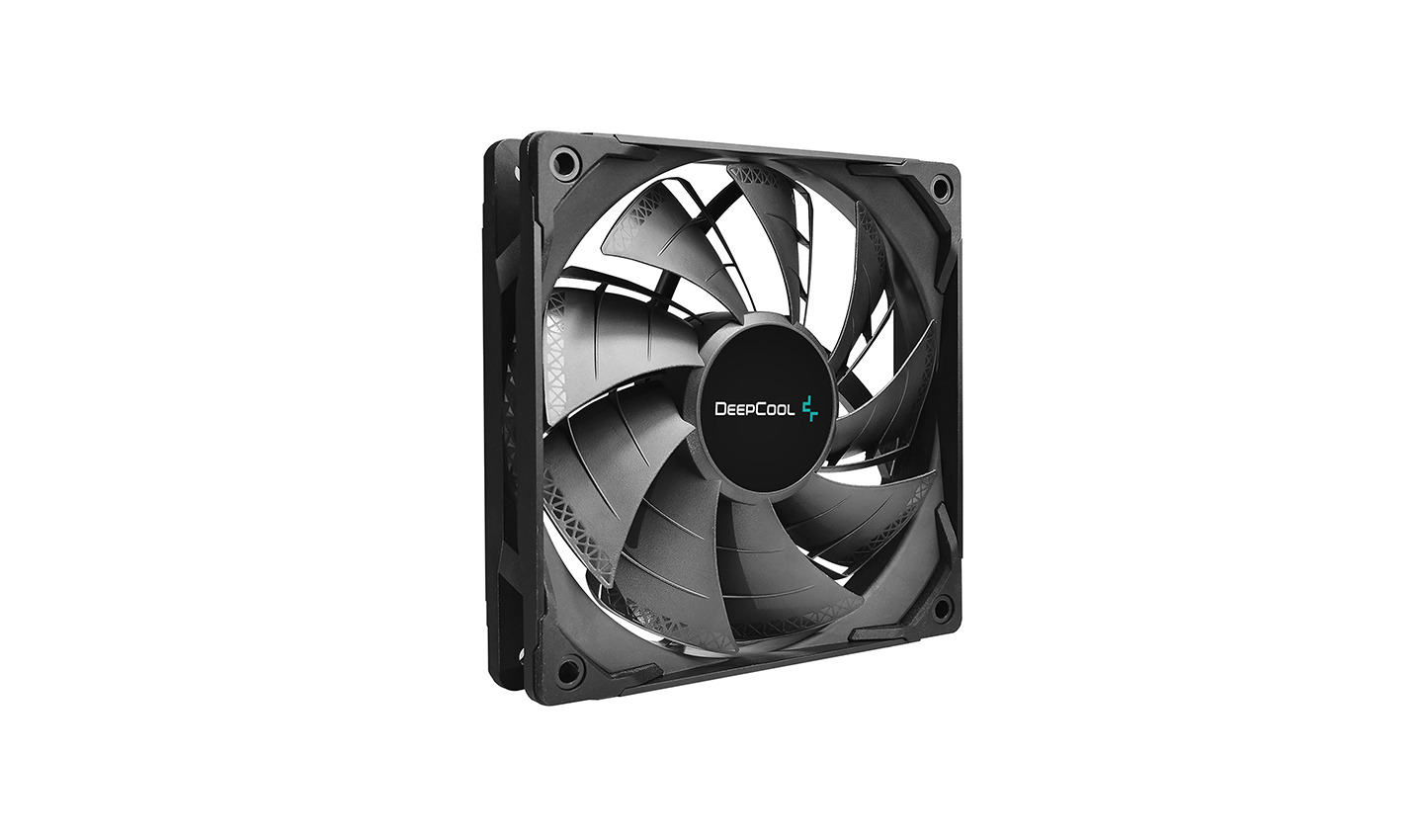

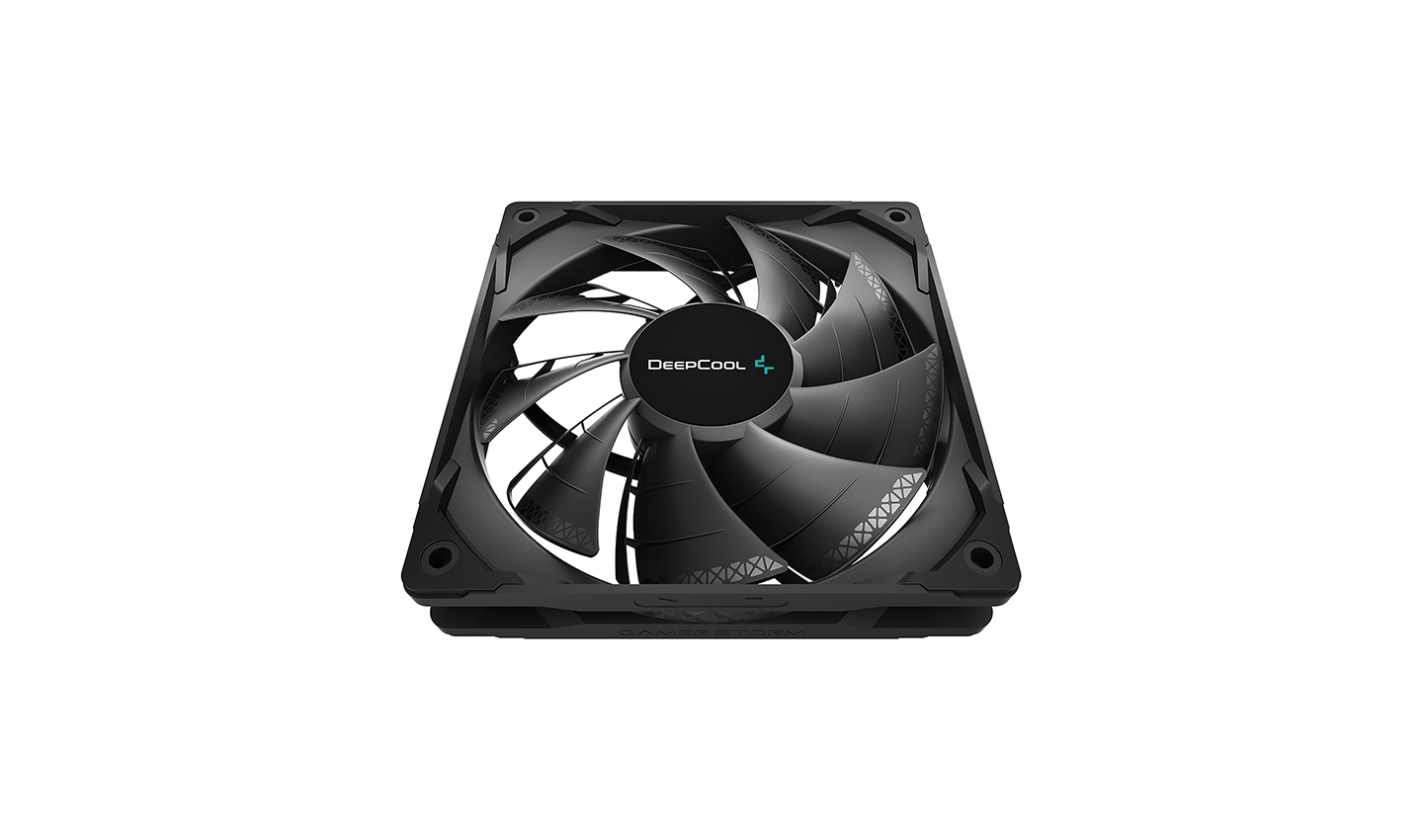

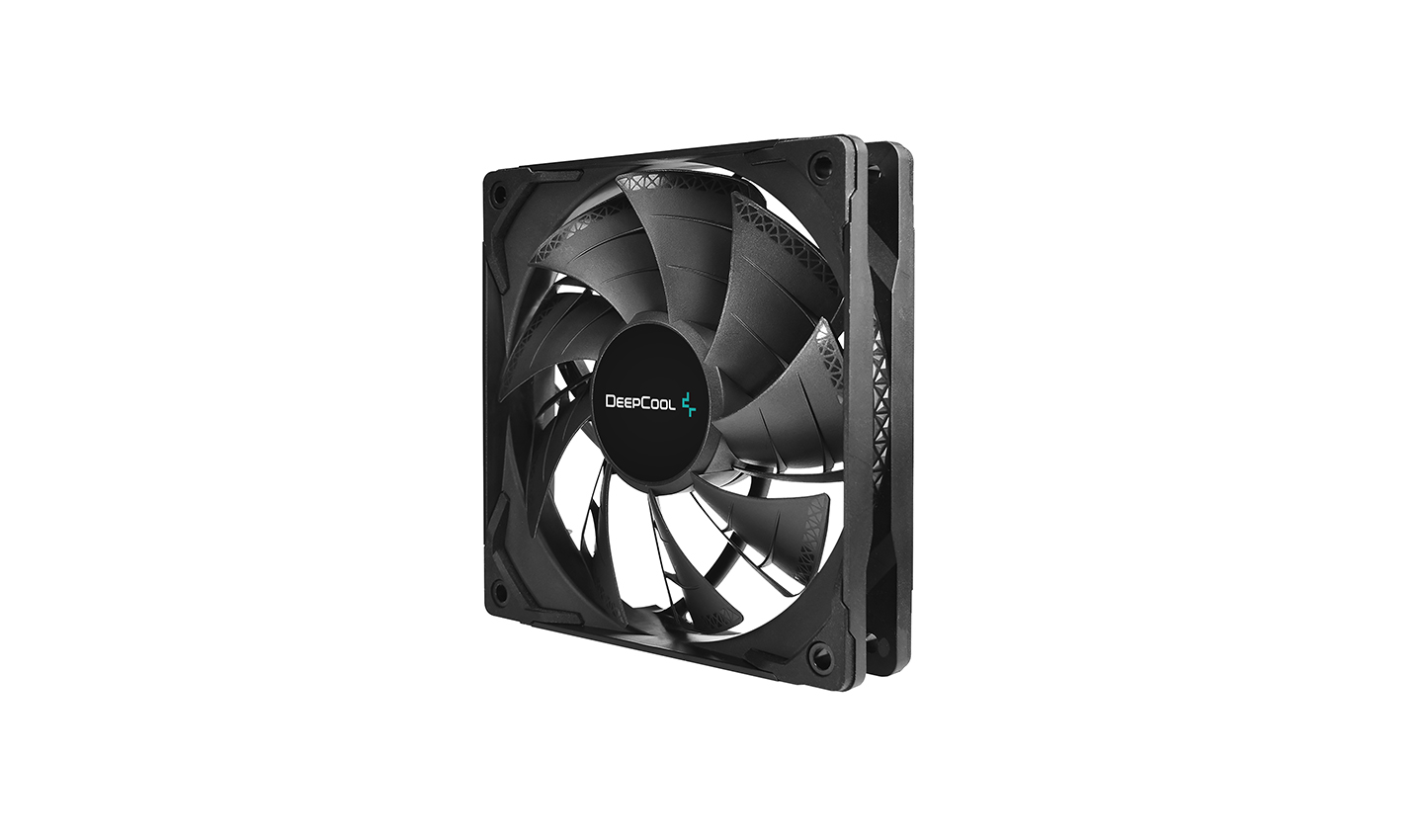

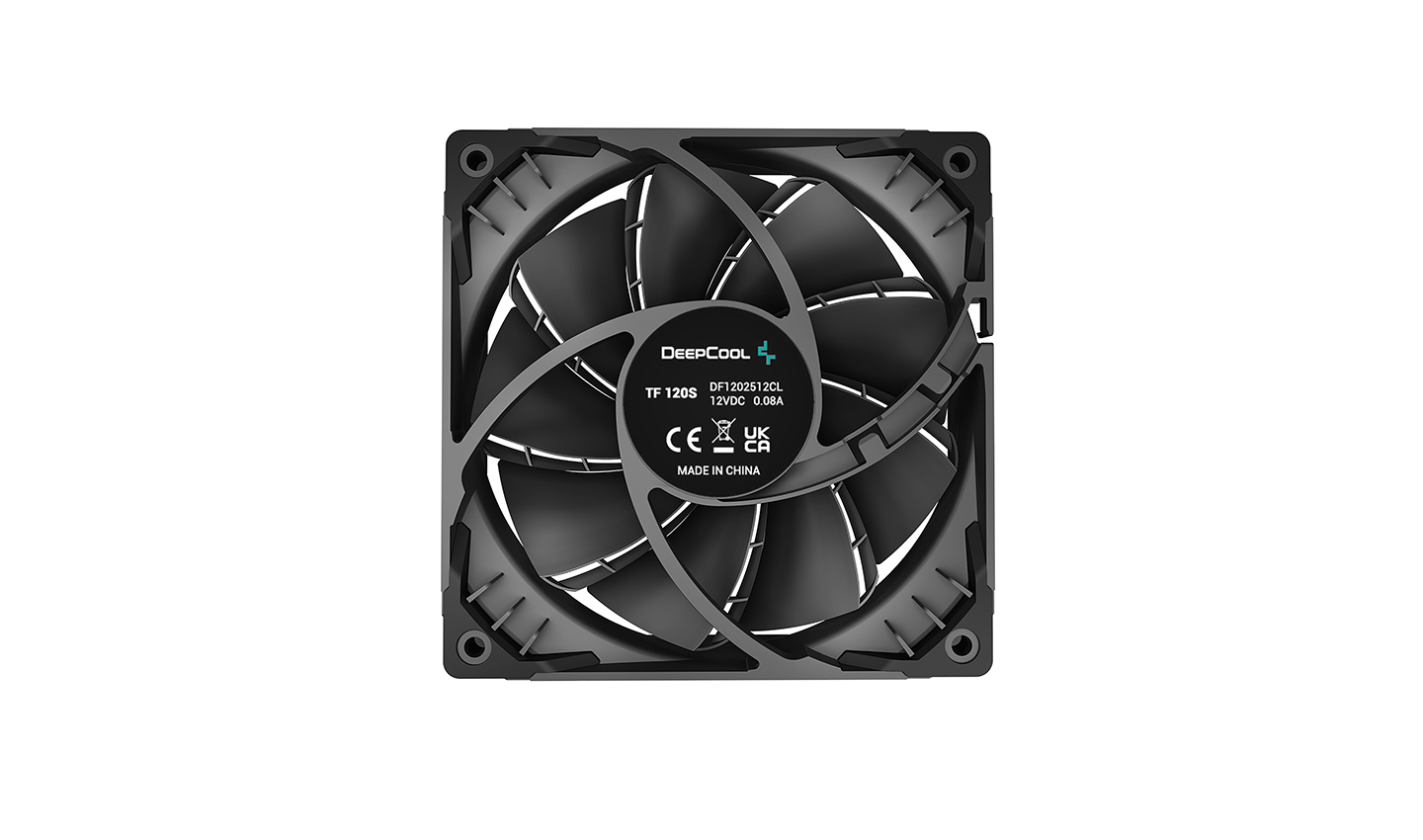

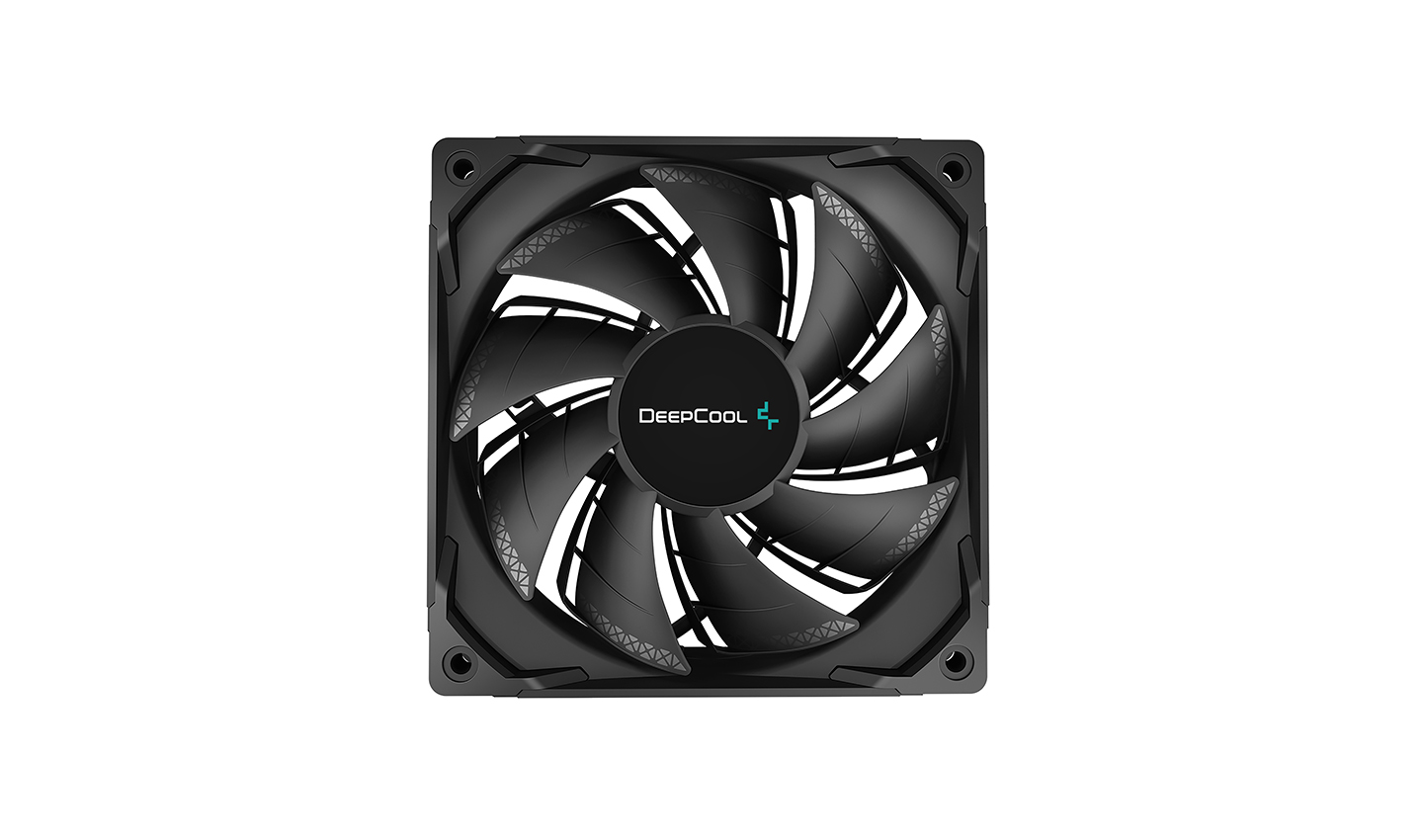

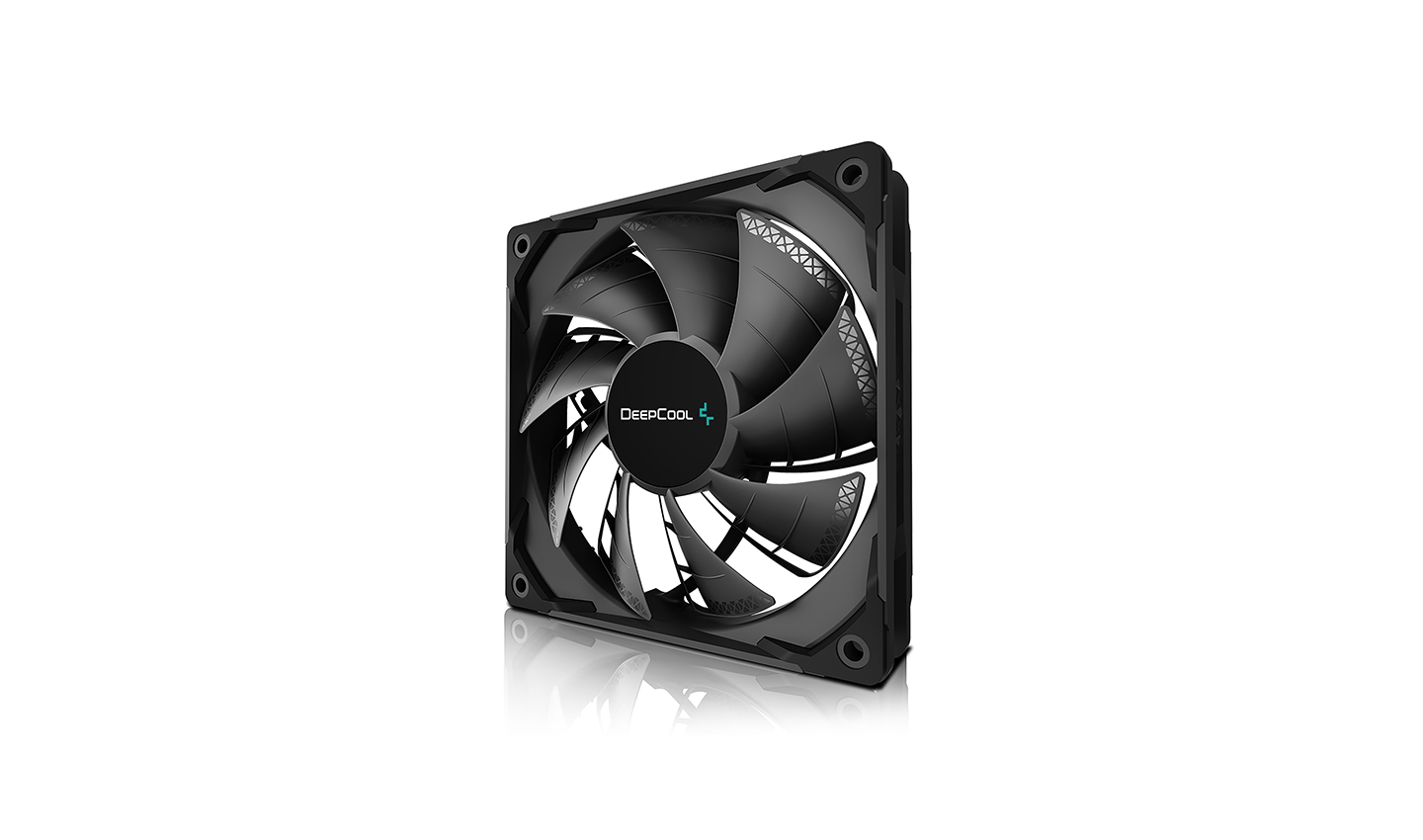

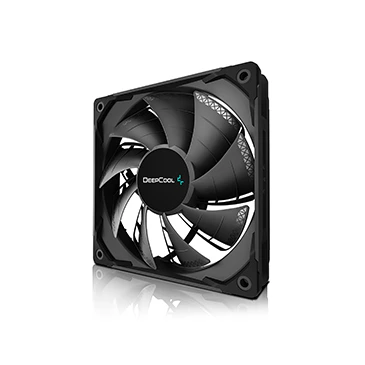

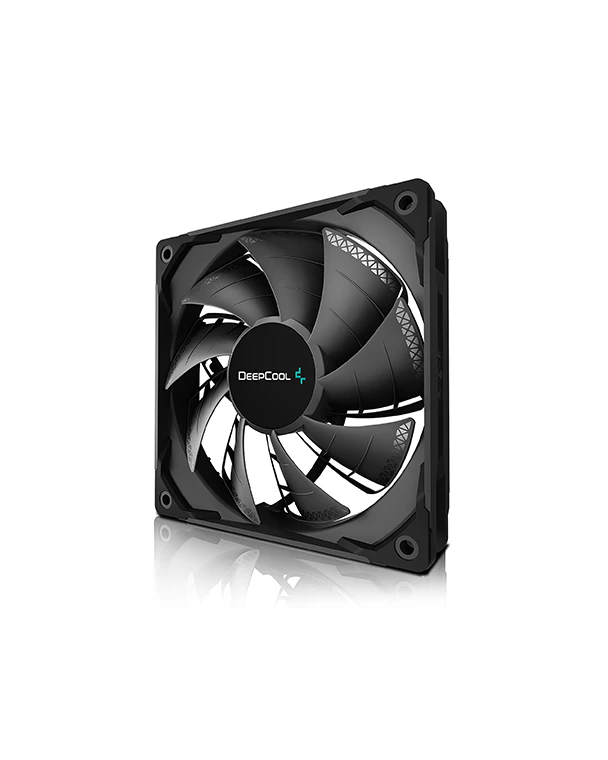

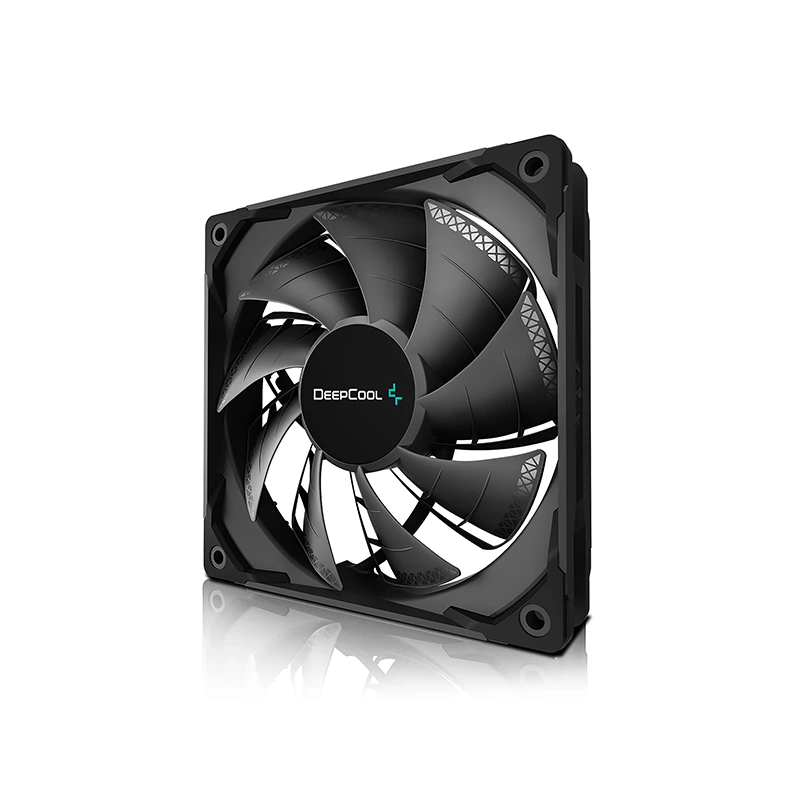

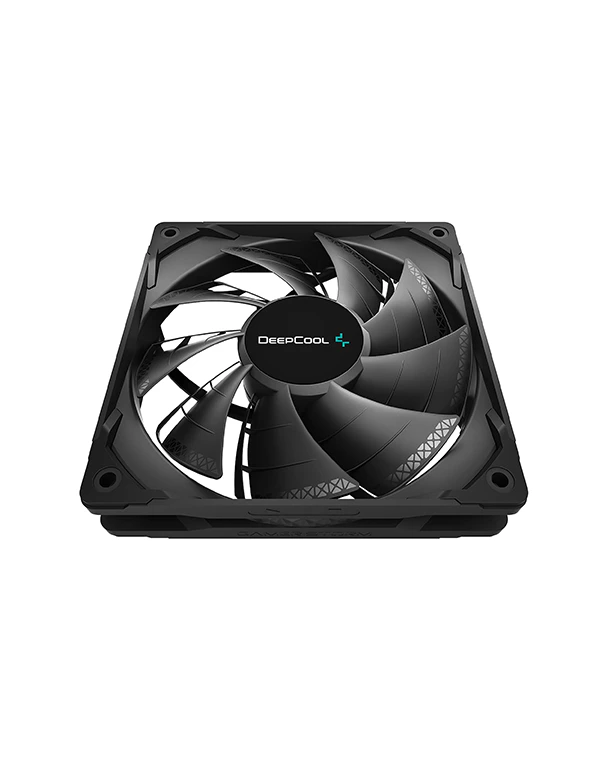

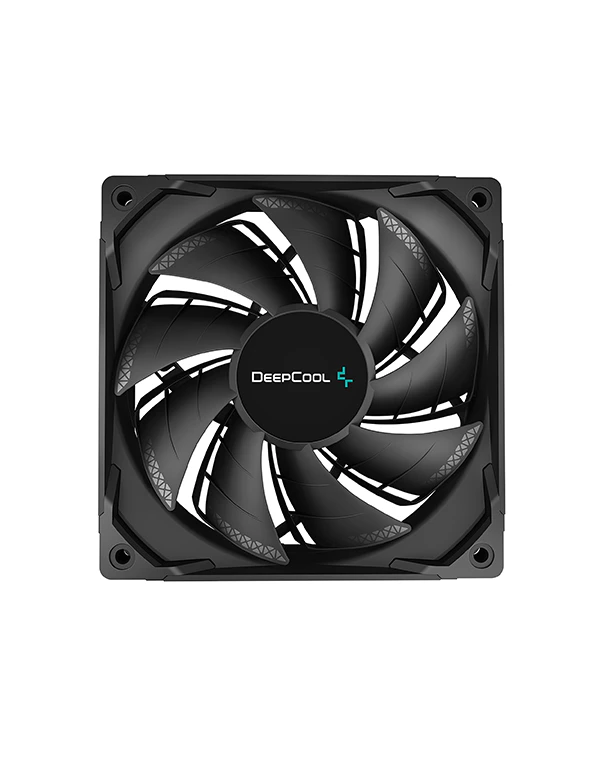

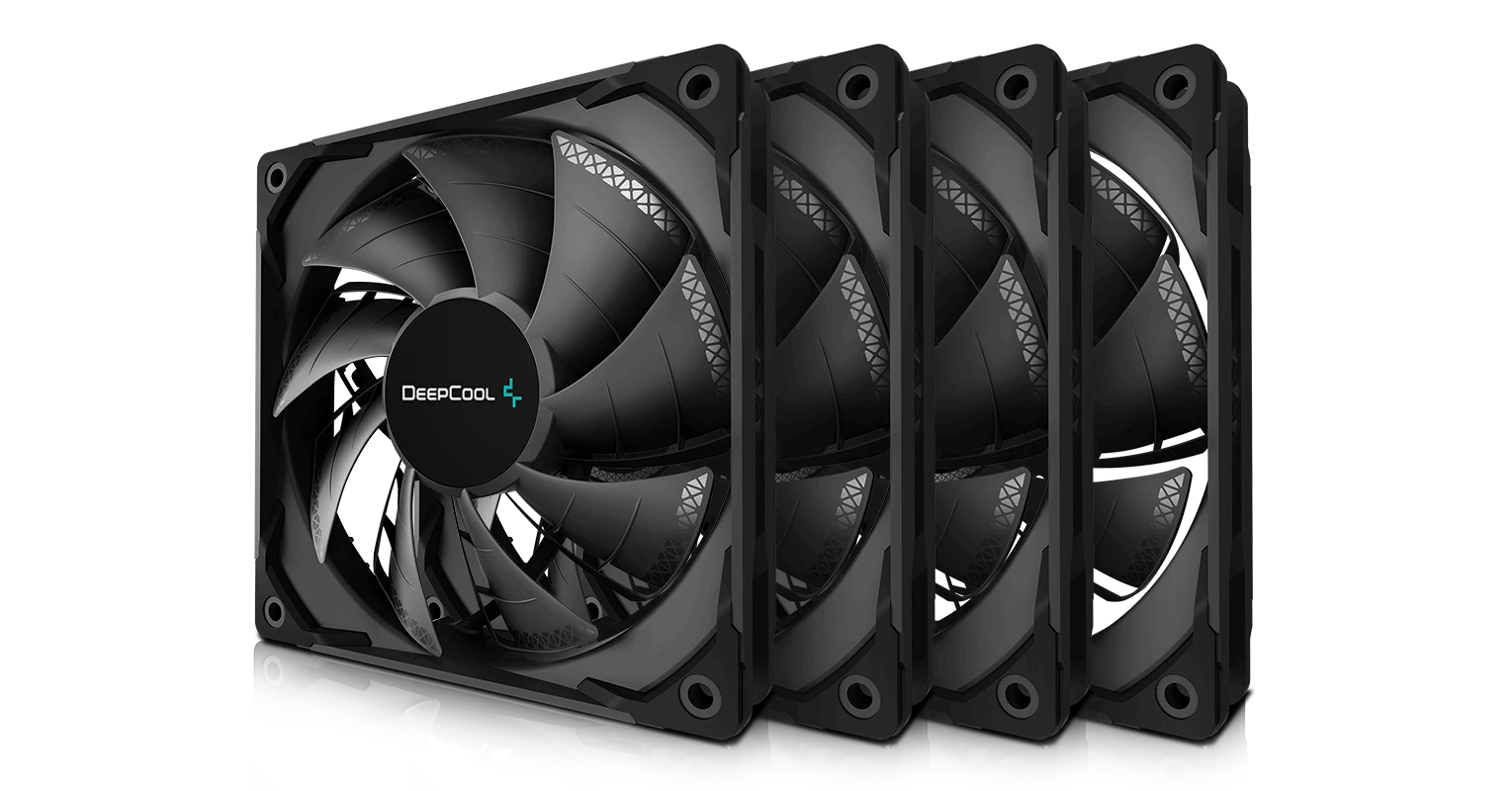

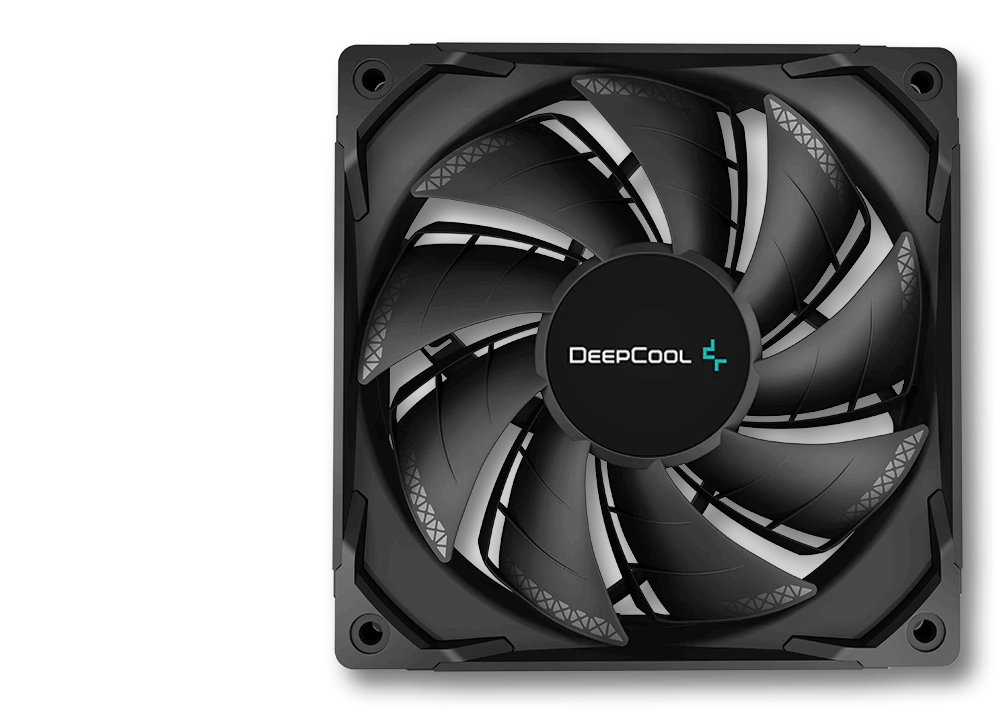

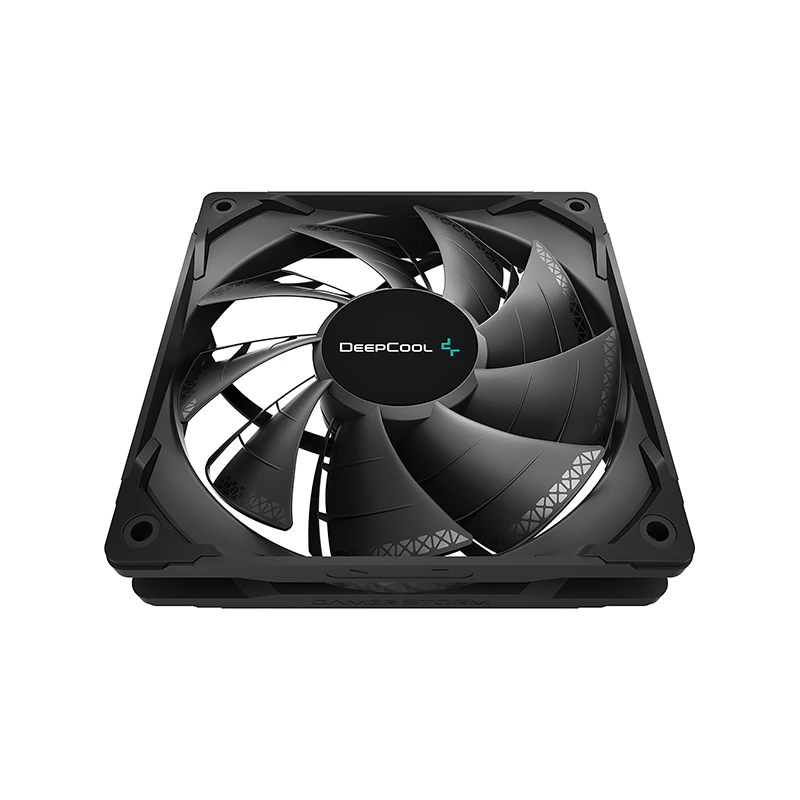

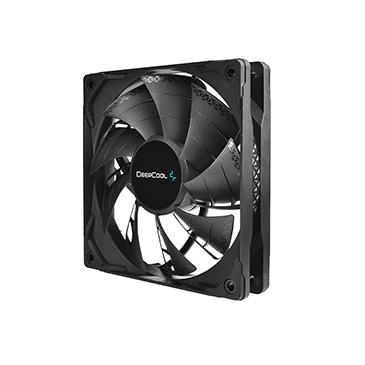

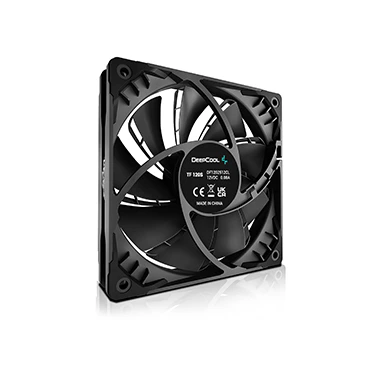

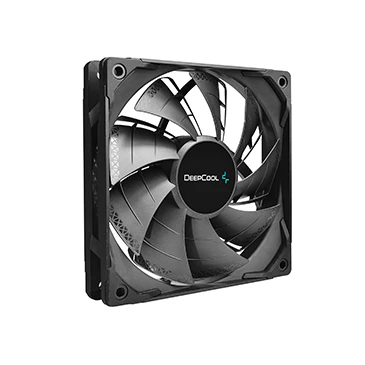

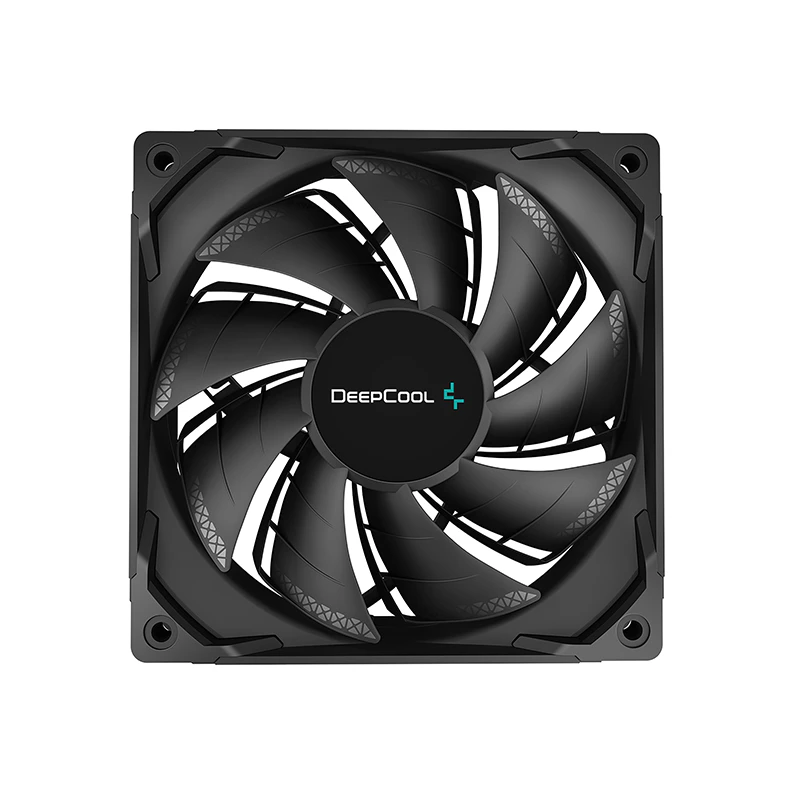

TF120S-4 IN 1

THE BEAST-UNLEASHING RADIATOR FAN

STRONGER PERFORMANCE

Compared to average fans, TF120S wields 10% higher maximum air pressure, and 15% higher maximum airflow.
Installing TF120S can improve the performance of your radiator by an average of 10%.

SCIENTIFIC BASIS

The max. air pressure determines fans’ penetrating power; the max. airflow determines fans’ air transmission ability;
an elevation in both parameters can improve the fans’ performance comprehensively.

The higher the max. air pressure is, the easier it is to blow through radiators.

The greater the max. airflow is, the more heat can be removed from the radiator.

HIGH-PERFORMANCE DESIGNS

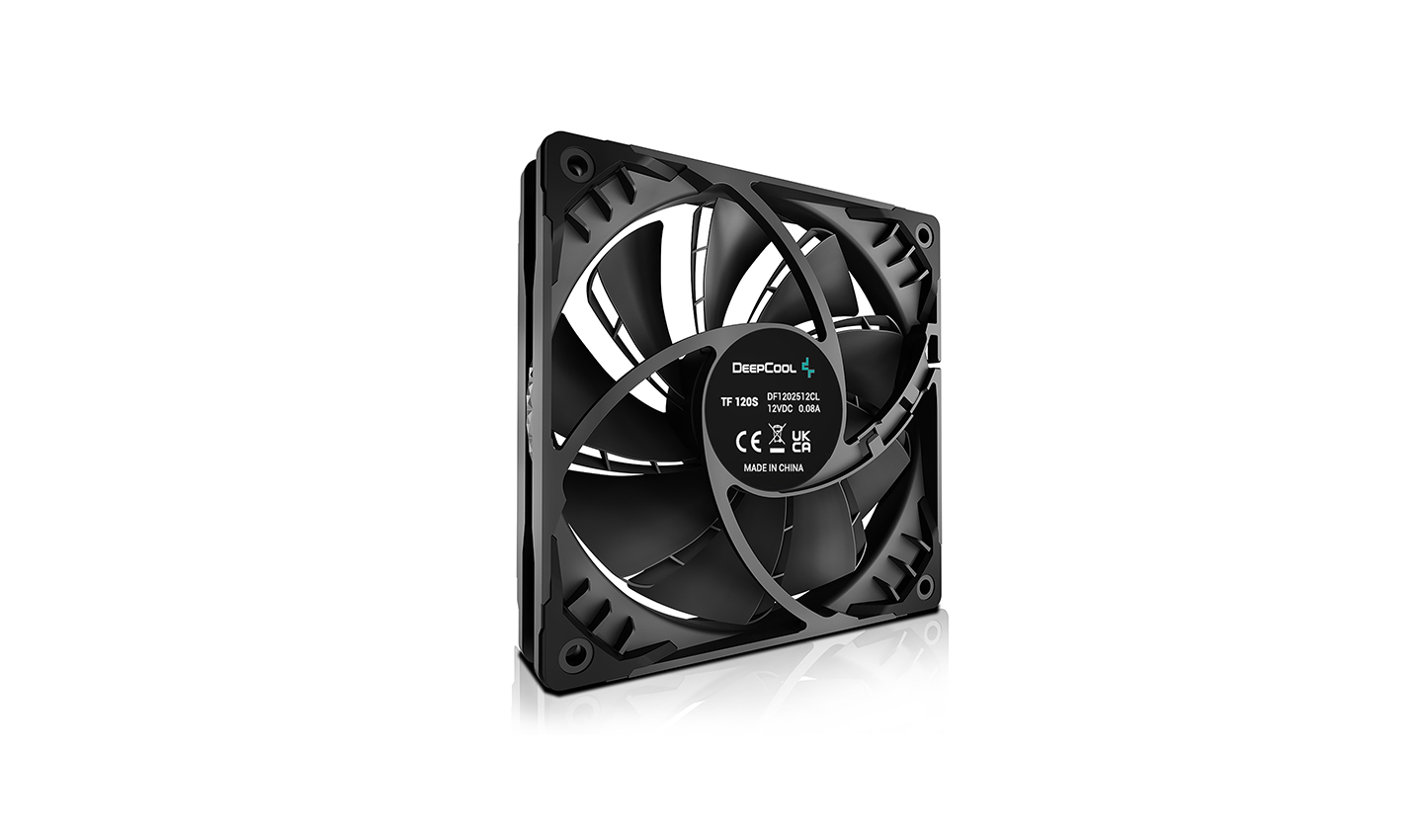

The unique wasp waist fan frame design can effectively elevate max. air pressure.

LOW-NOISE DESIGNS

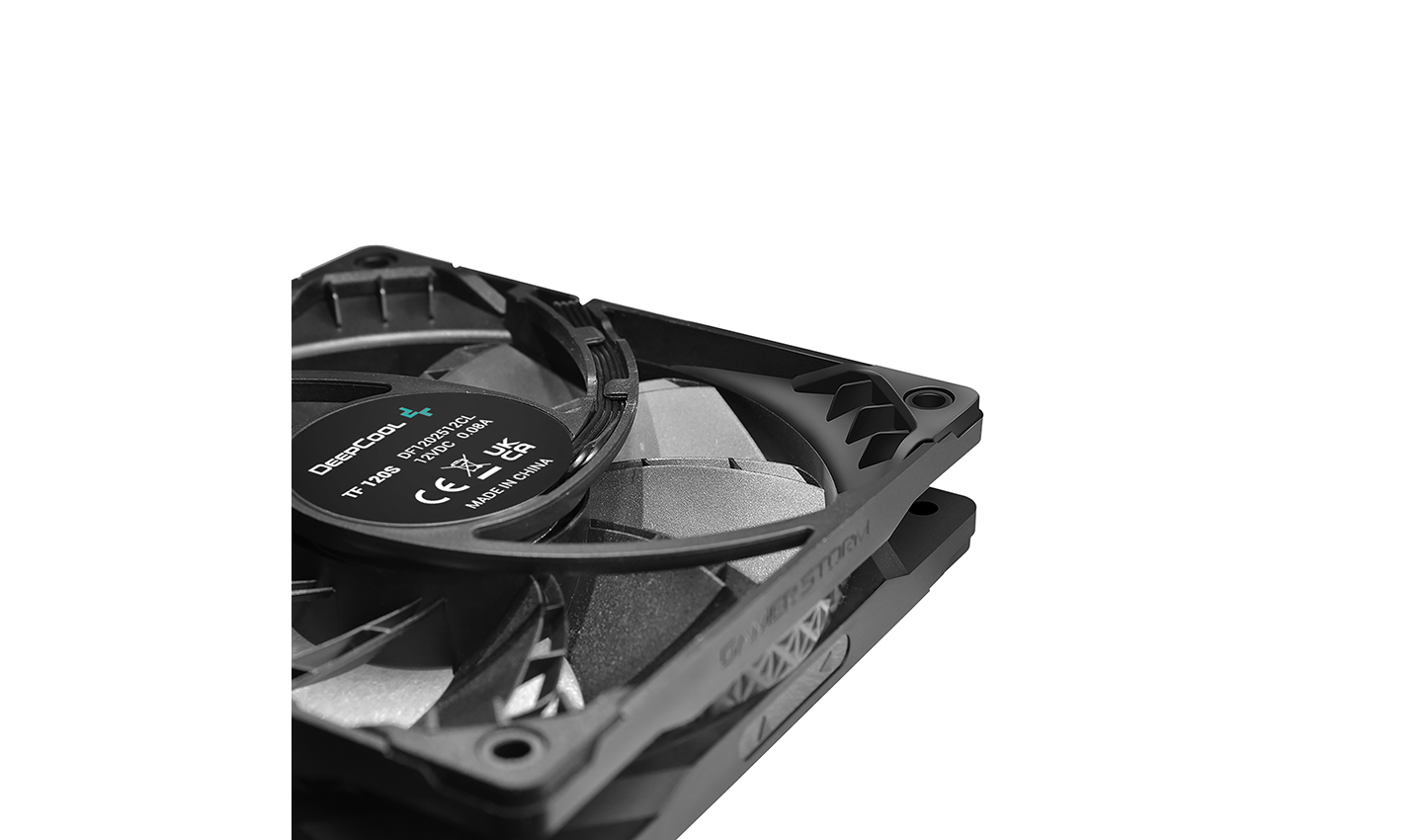

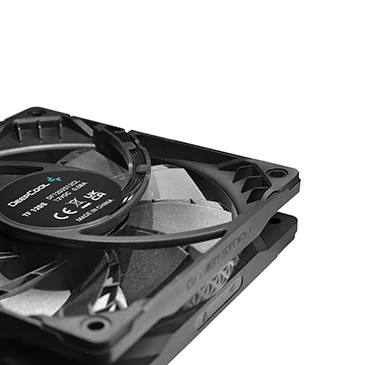

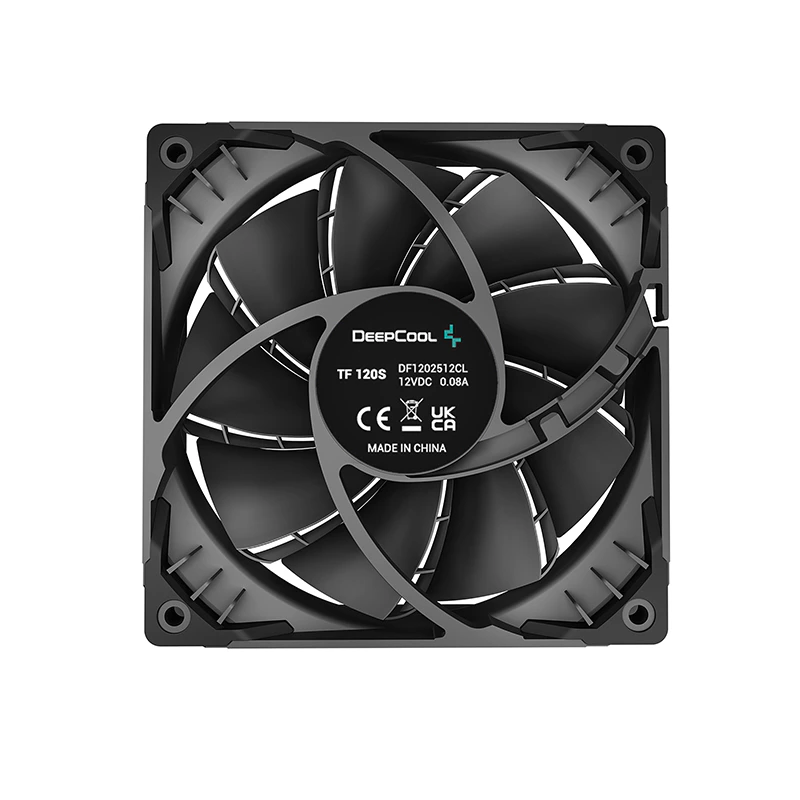

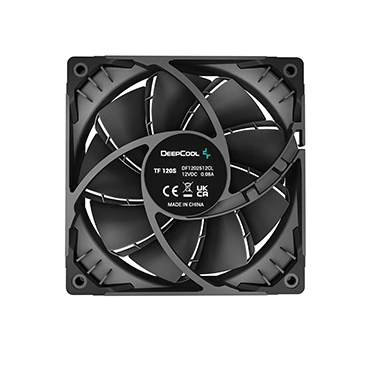

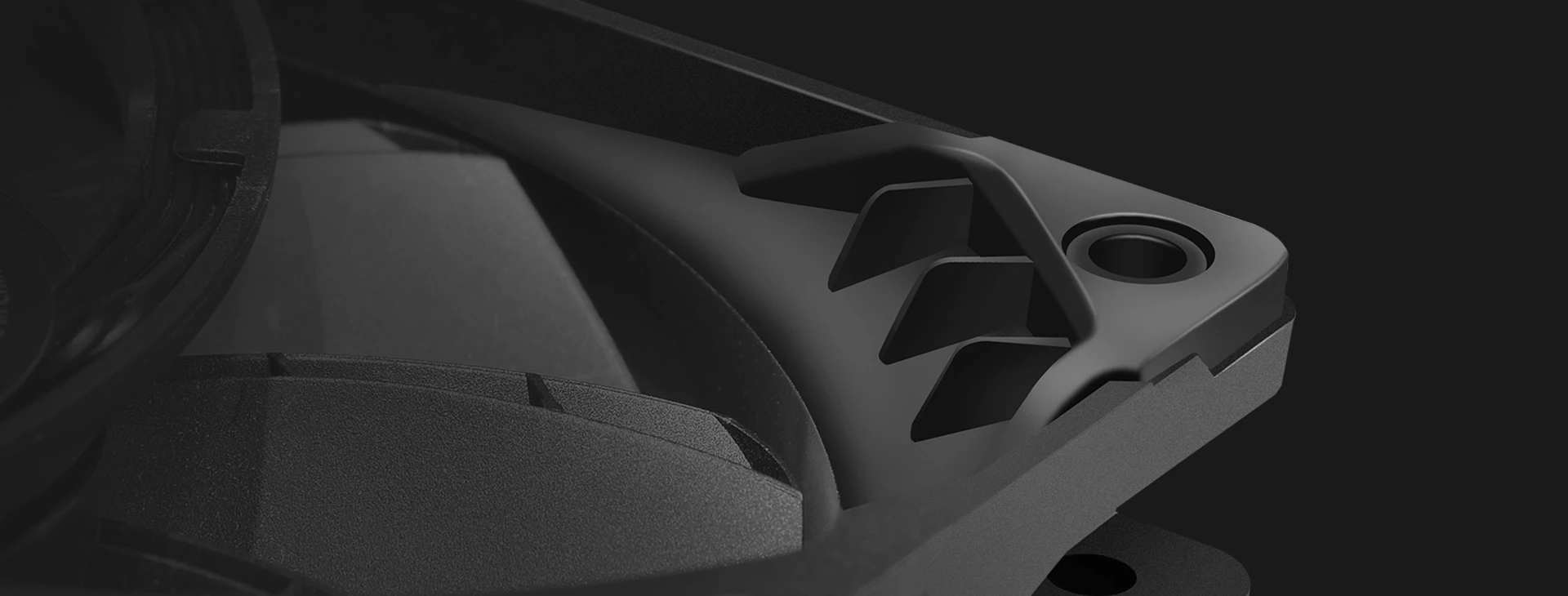

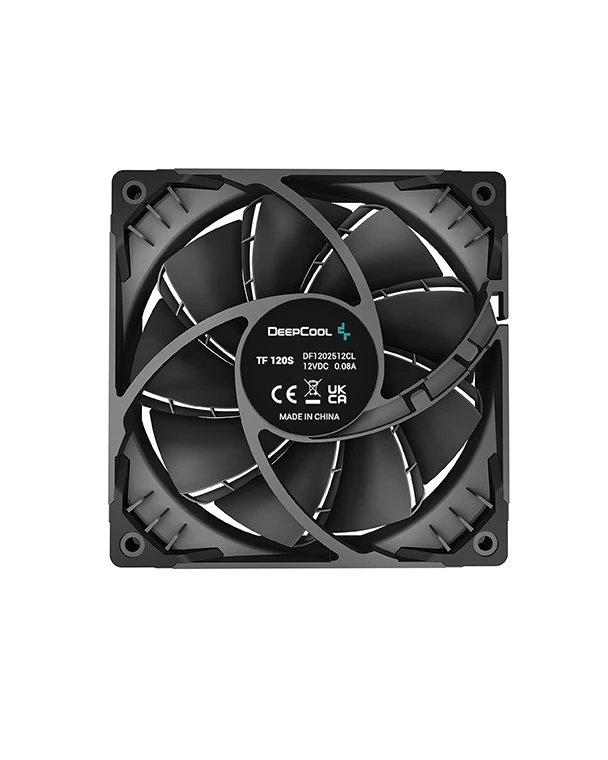

Turbulator teeth are placed on the exhaust side of the frame, which can significantly lower the noise and vibration caused by the airflow.
In addition, 8 rubber pads are attached on the corners of frames to further absorb vibration.

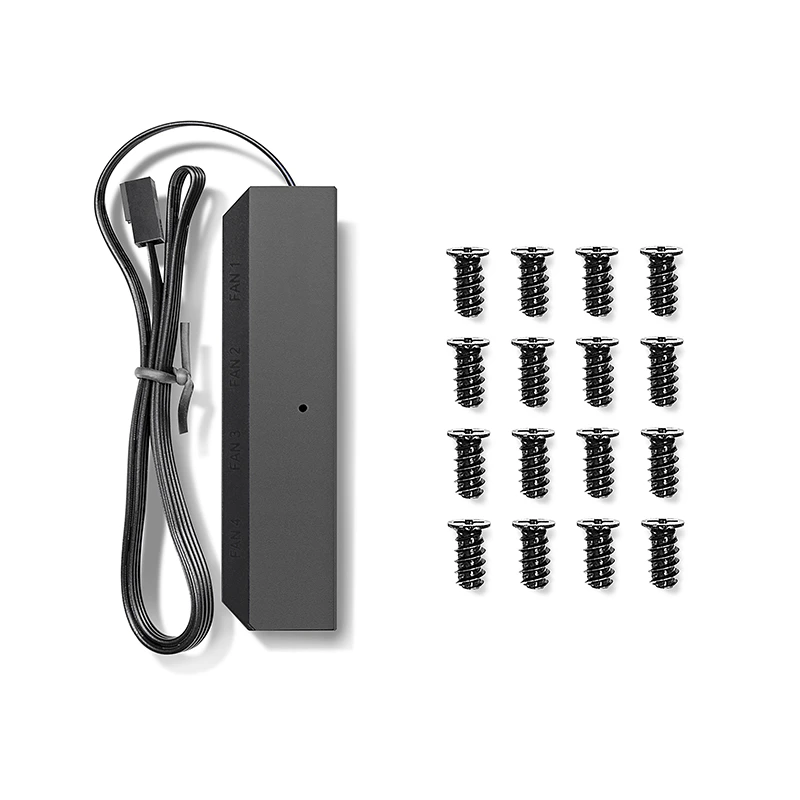

FAN HUB INCLUDED

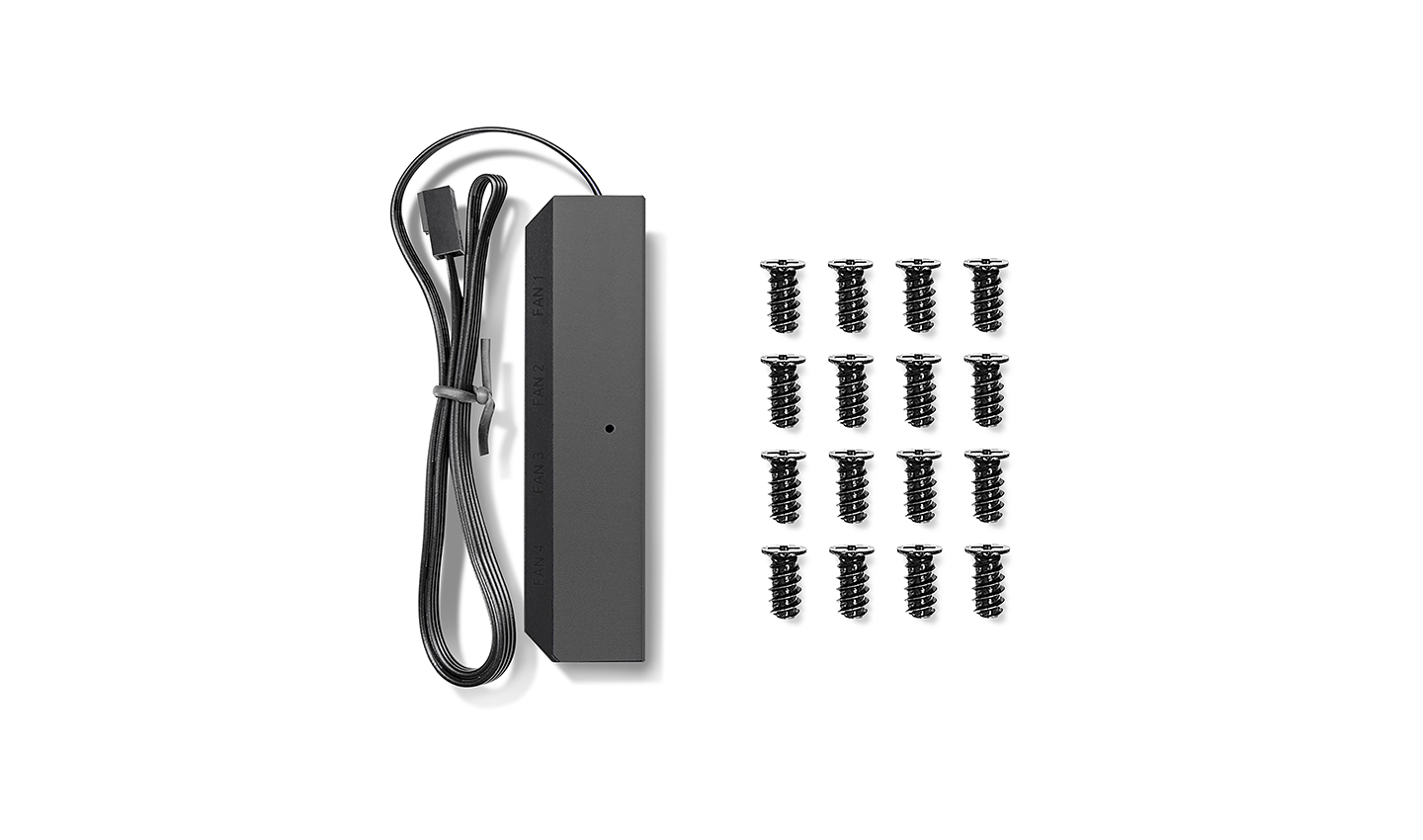

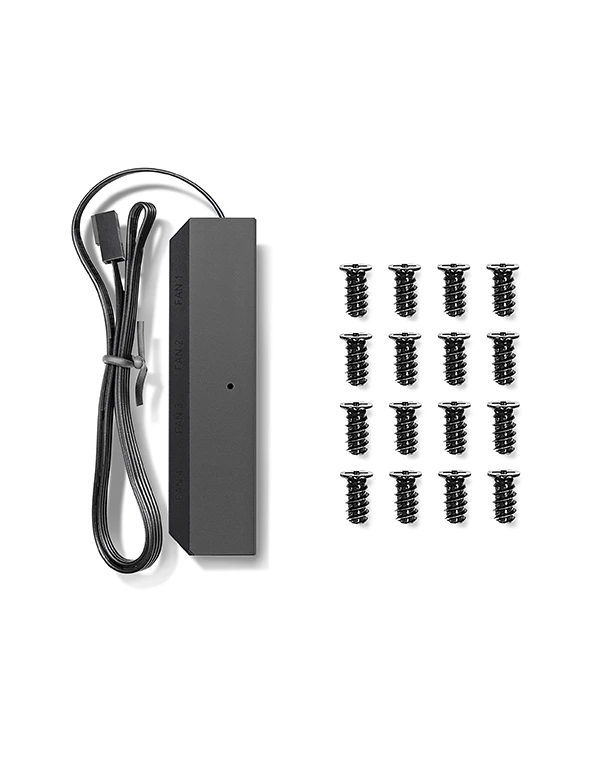

TF120S includes a 4-port PWM hub to make fan speed control convenient.

Technical Spec

Fan Dimensions	120×120×25 mm(L×W×H)
Net Weight	610g
Fan Speed	500~1800 RPM±10%
Fan Airflow	64.4 CFM
Fan Air Pressure	2.33 mmAq
Fan Noise	≤32.1 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.15 A±10%
Fan Power Consumption	1.8 W
EAN	6933412710486
P/N	DP-GS-FTF120S-B4
