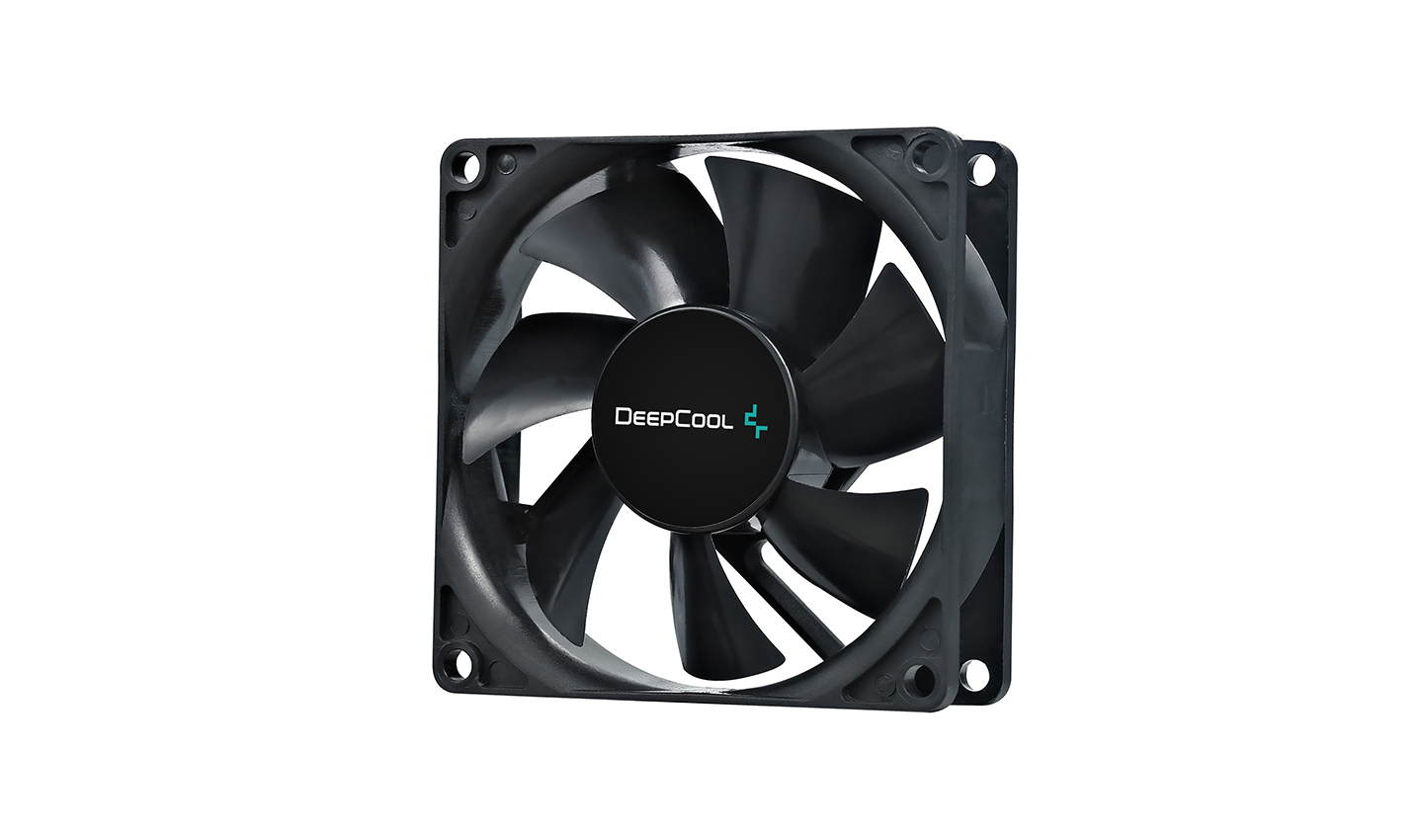

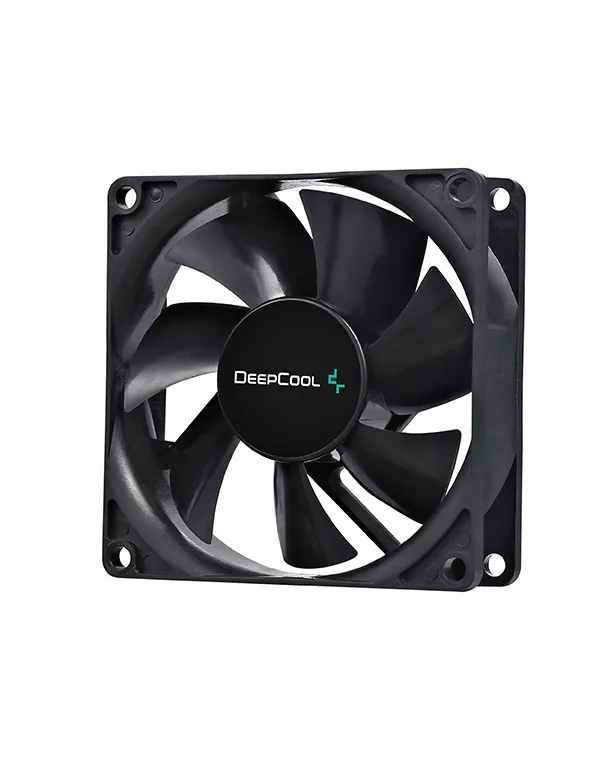

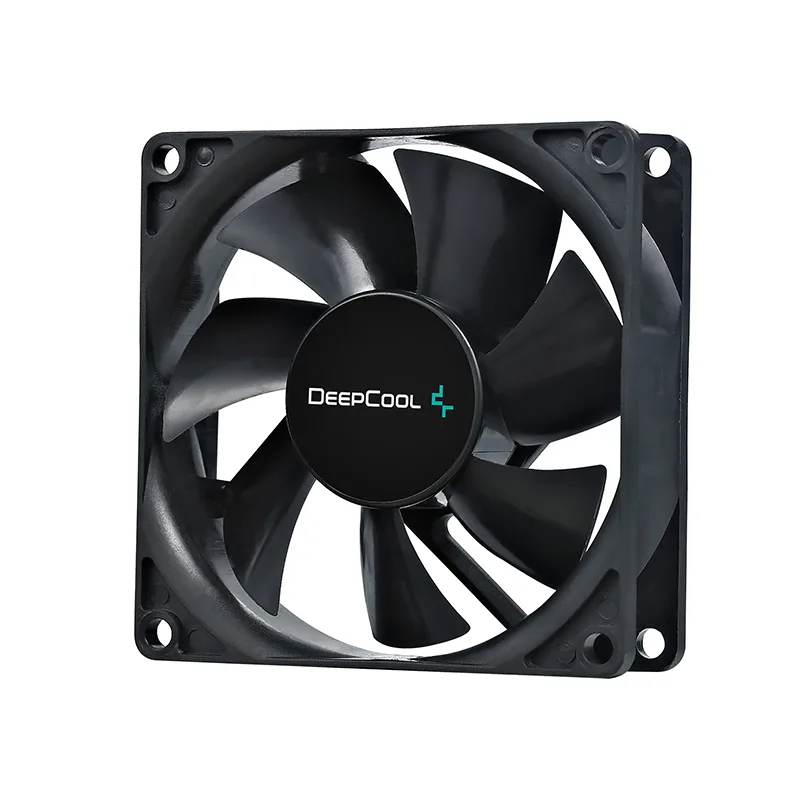

XFAN 80
High quality 80 mm black material fan.
COLOR
black
MODEL
High quality black material fan structure.
Low RPM for quiet operations.
Technical Spec
Overall Dimension80X80X25 mm(L×W×H)
Fan Dimension80X80X25 mm(L×W×H)
Net Weight 82g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.08±10%A
Power Input 0.96W
Fan Speed 1800±10%RPM
Max. Air Flow 21.8CFM
Noise 20.3dB(A)
EAN 6933412703242
P/N DP-FDC-XF80
