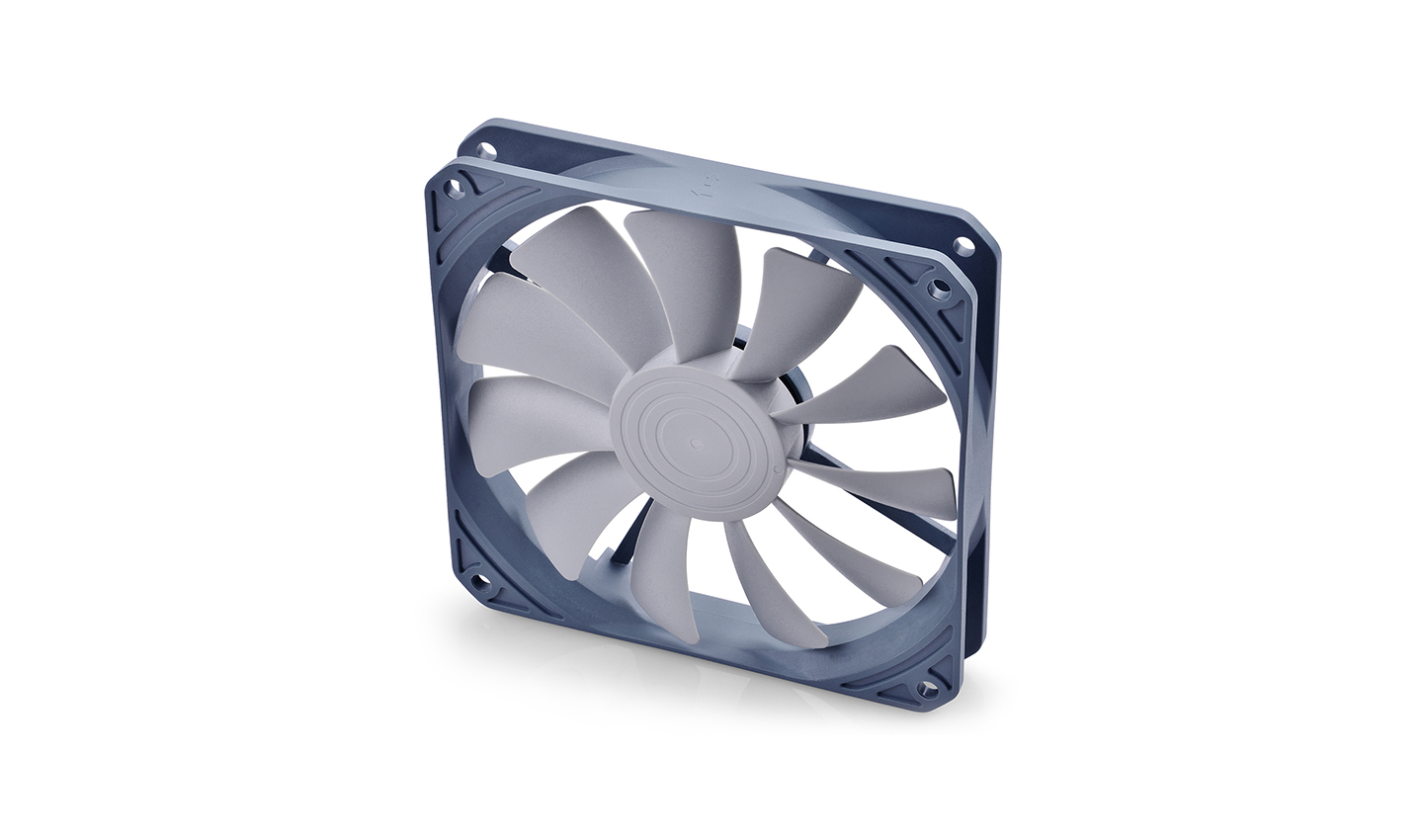

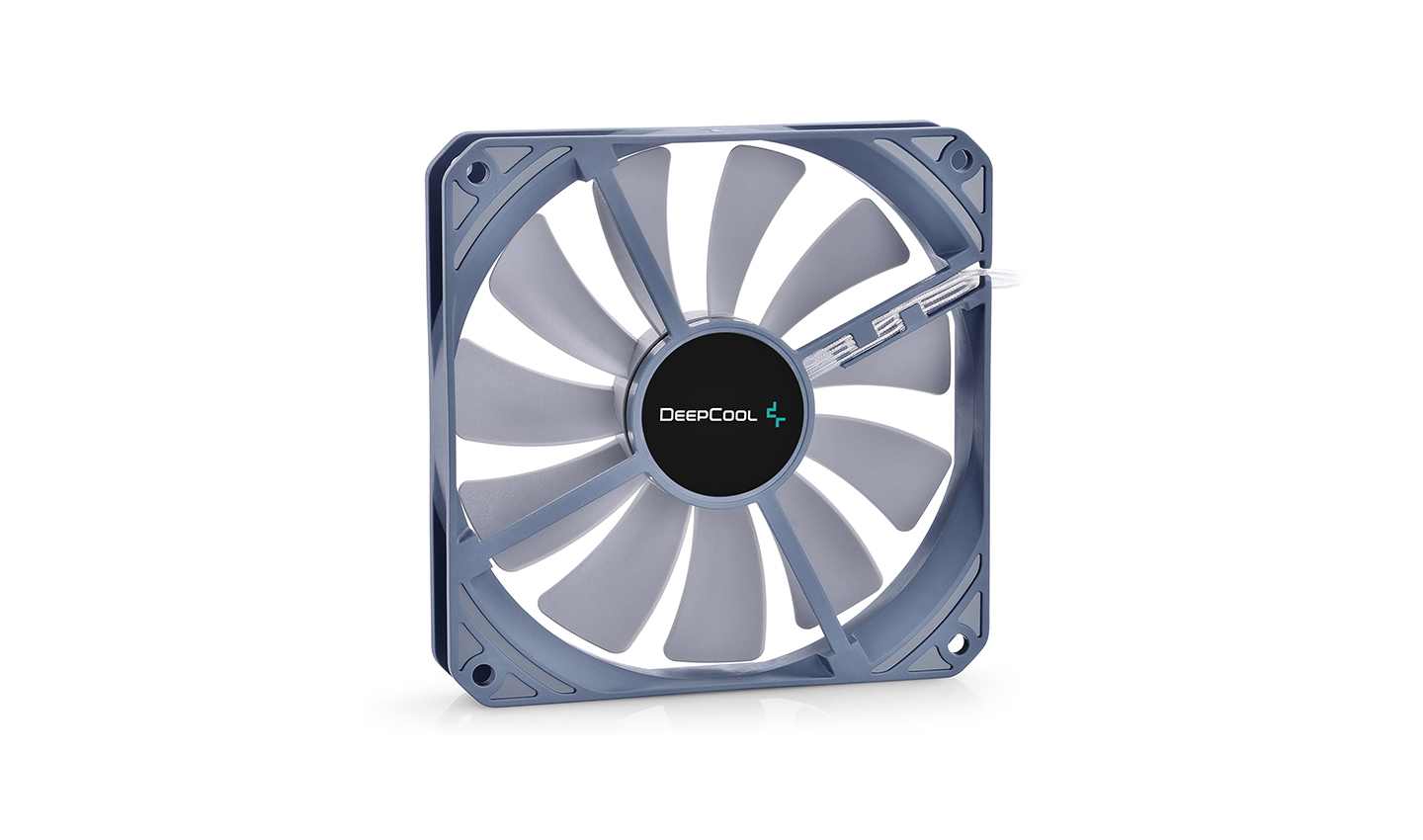

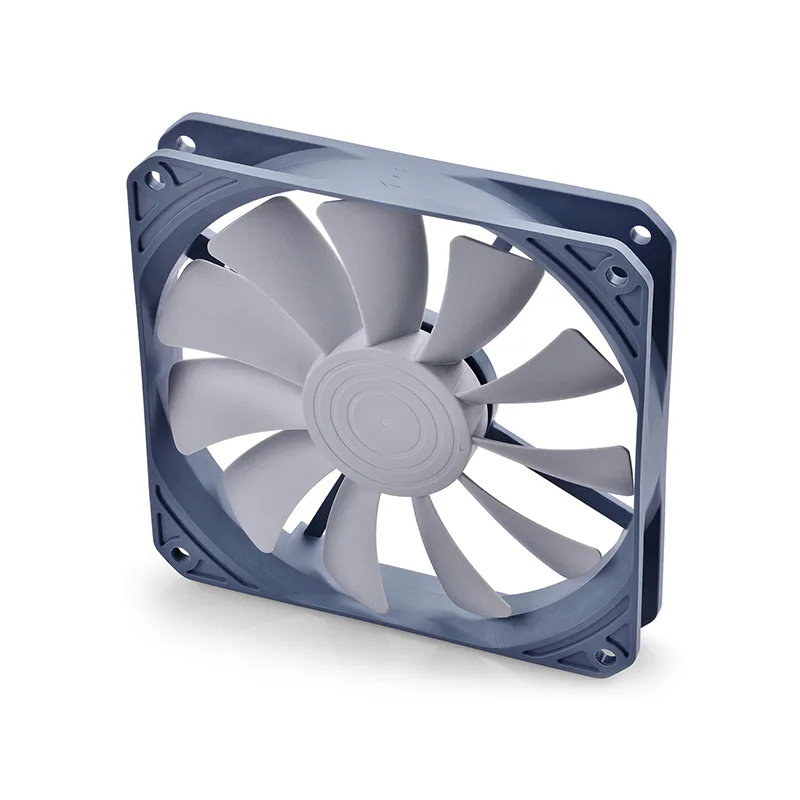

GS120
Despite its 20-mm thick construction, GS120 delivers just as much airflow as standard 25-mm thick fans. This provides an additional 5 mm of space that will really count if you're trying to add a side panel fan when a tower CPU heatsink is already installed. This 5-mm space will be essential if your tower CPU heatsink is in the way of your memory slots. GS120 is designed for such scenarios.
COLOR
white
MODEL
GS120

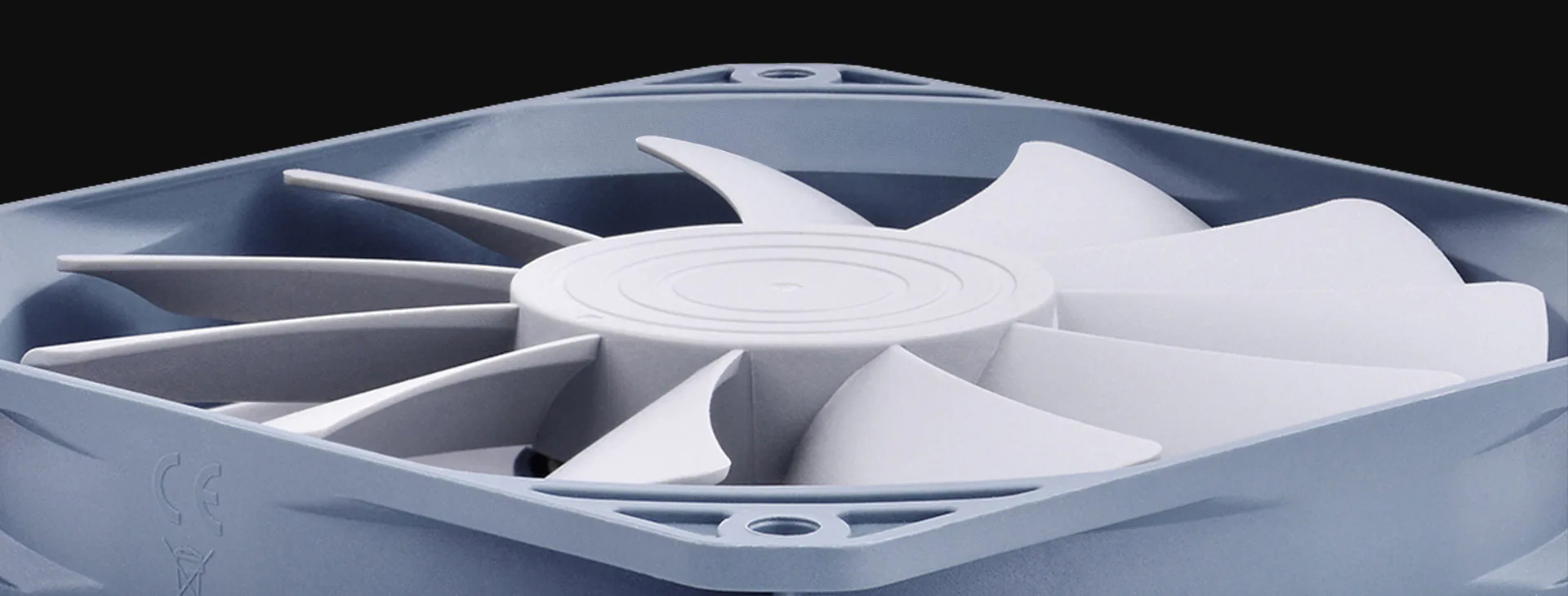

Compatibility Matters ! Slimness Helps !
Despite its 20-mm thick construction, GS120 delivers just as much airflow as standard 25-mm thick fans. This provides an additional 5 mm of space that will really count if you're trying to add a side panel fan when a tower CPU heatsink is already installed. This 5-mm space will be essential if your tower CPU heatsink is in the way of your memory slots. GS120 is designed for such scenarios.
Built for Silence

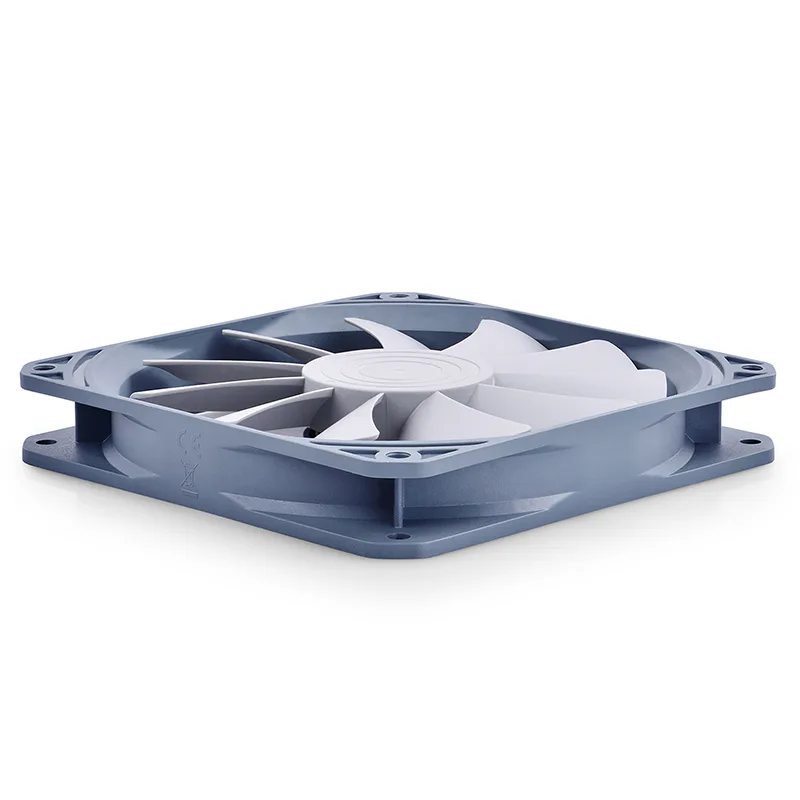

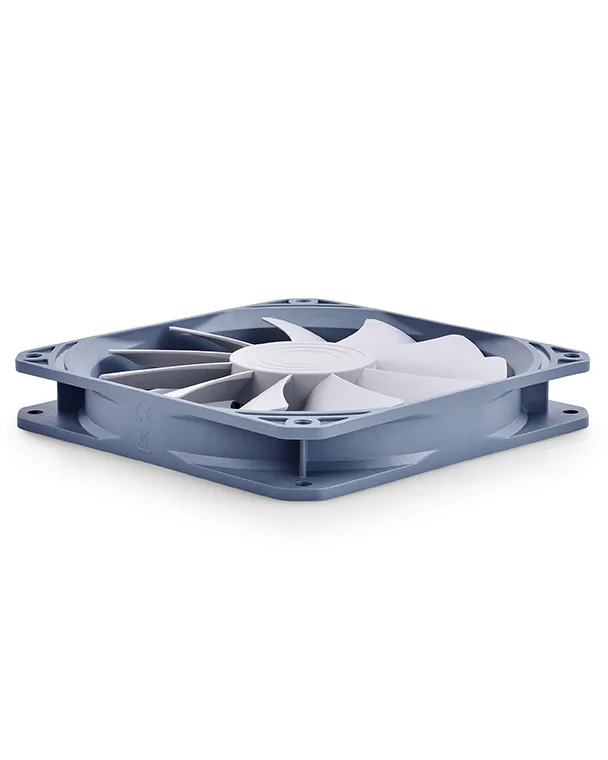

Slim and Space-Saving

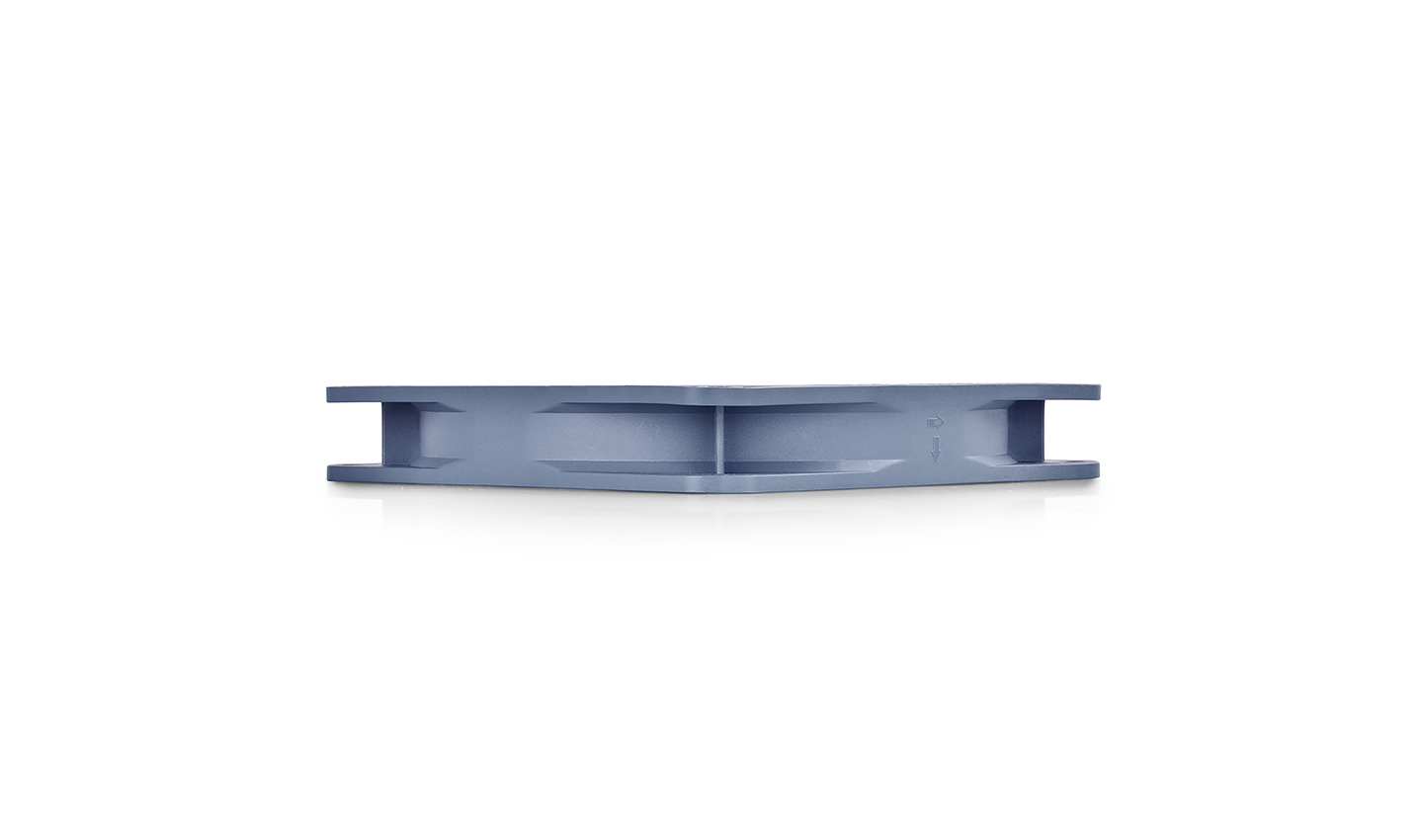

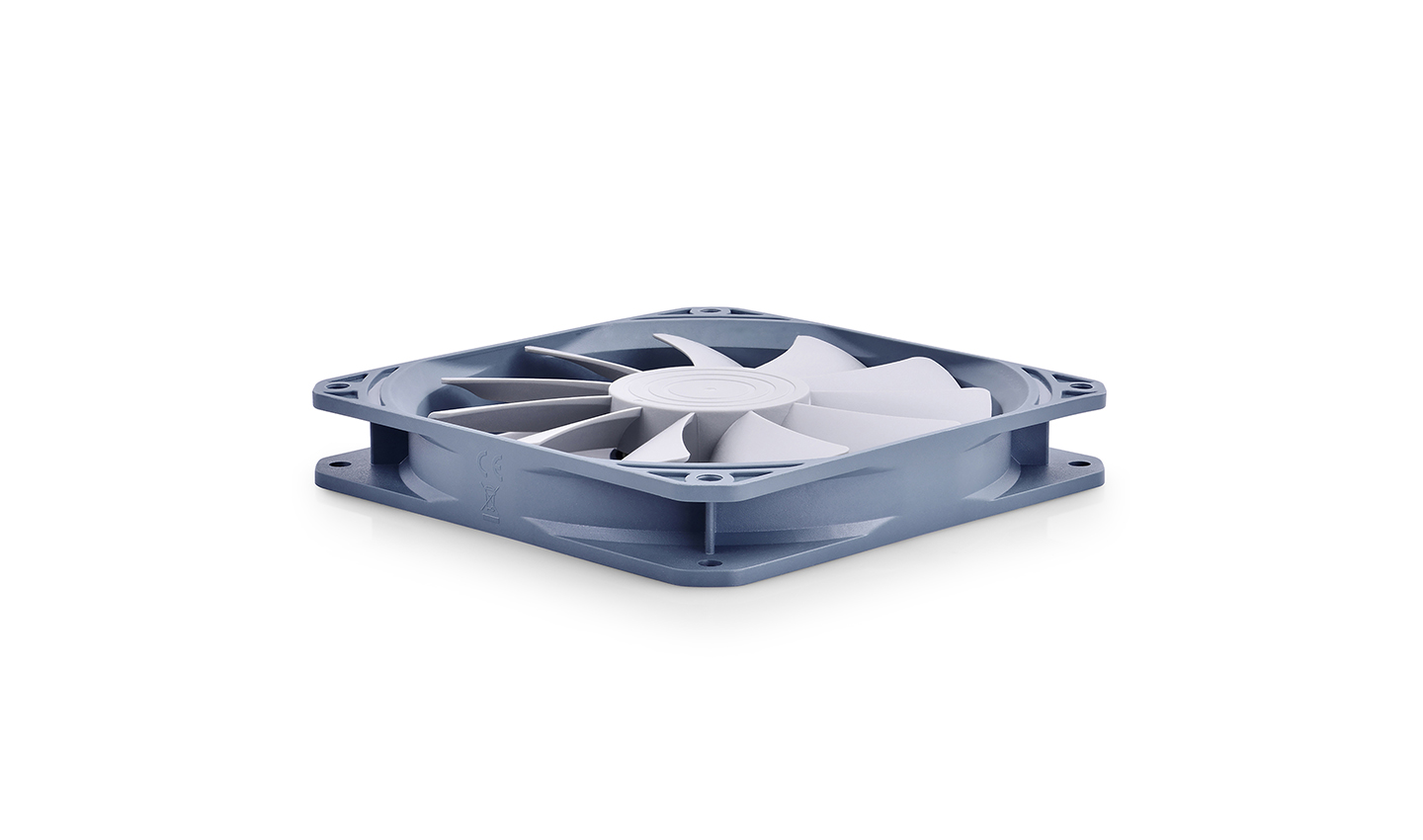

20-mm thickness frees up more space within the space. This allows easy mounting of bigger and taller heatsinks you need.
PWM-Capable Bearing Stand
The 4-pin PWM connector allows GS120 to reduce fan speed when the system is idling.

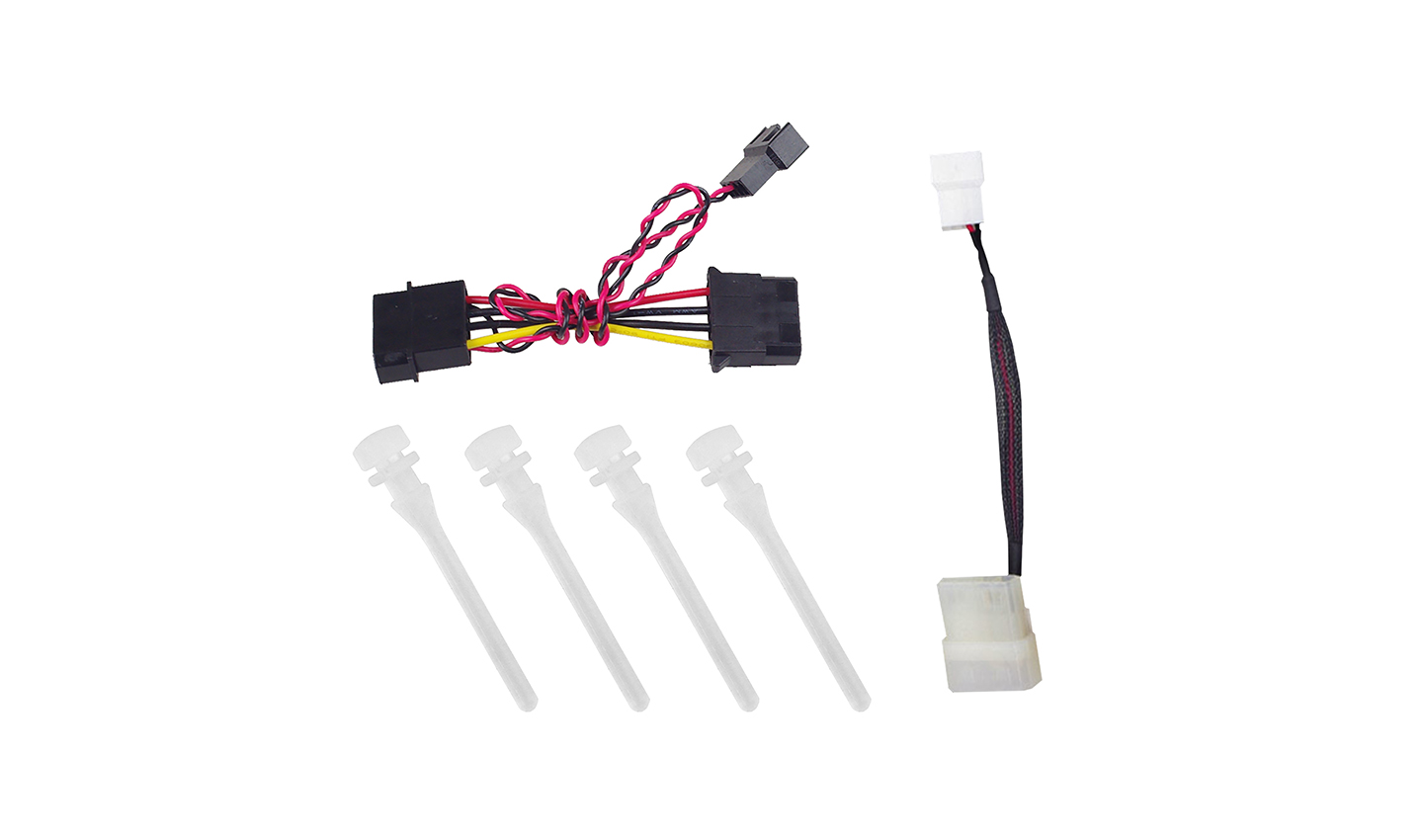

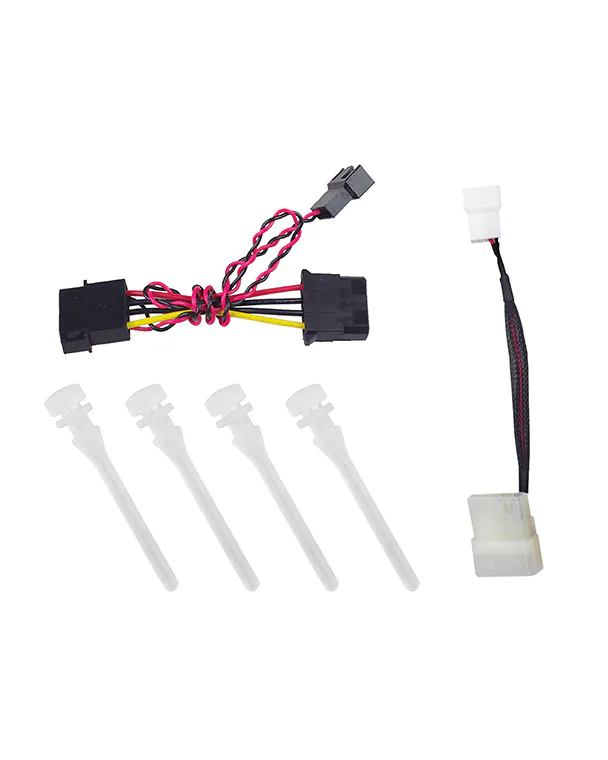

7V Low-noise Adapter
When not running at full capacity, the system can easily use this low-noise adapter to reduce input voltage.

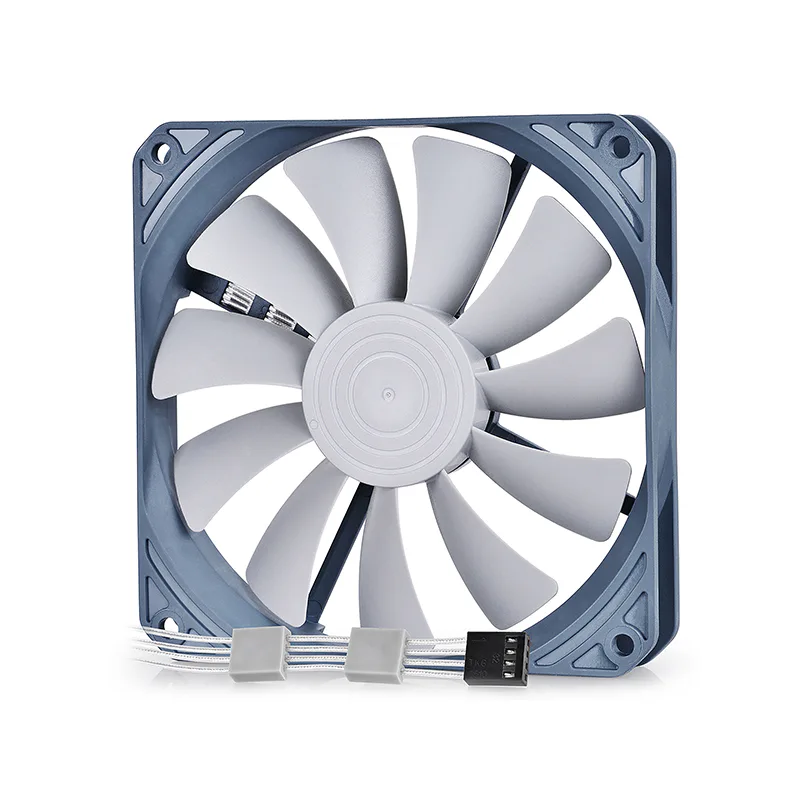

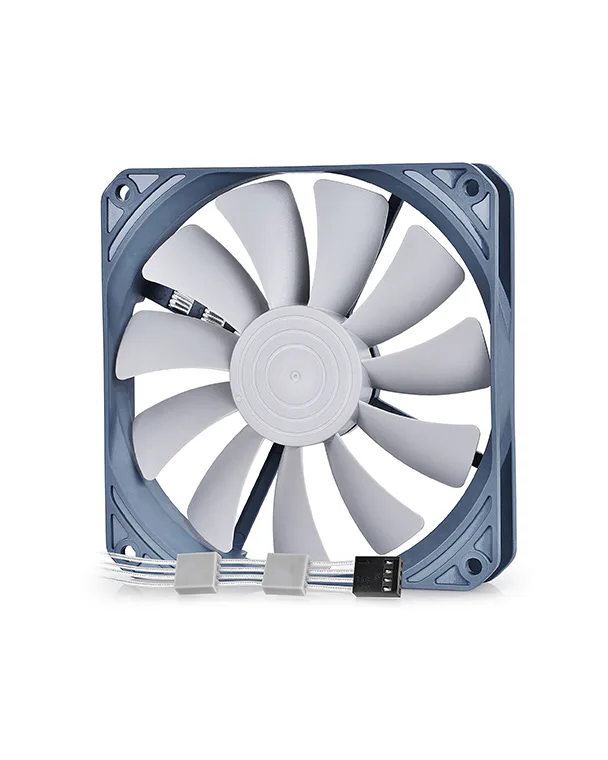

Rubber Cable Ties for Tidiness

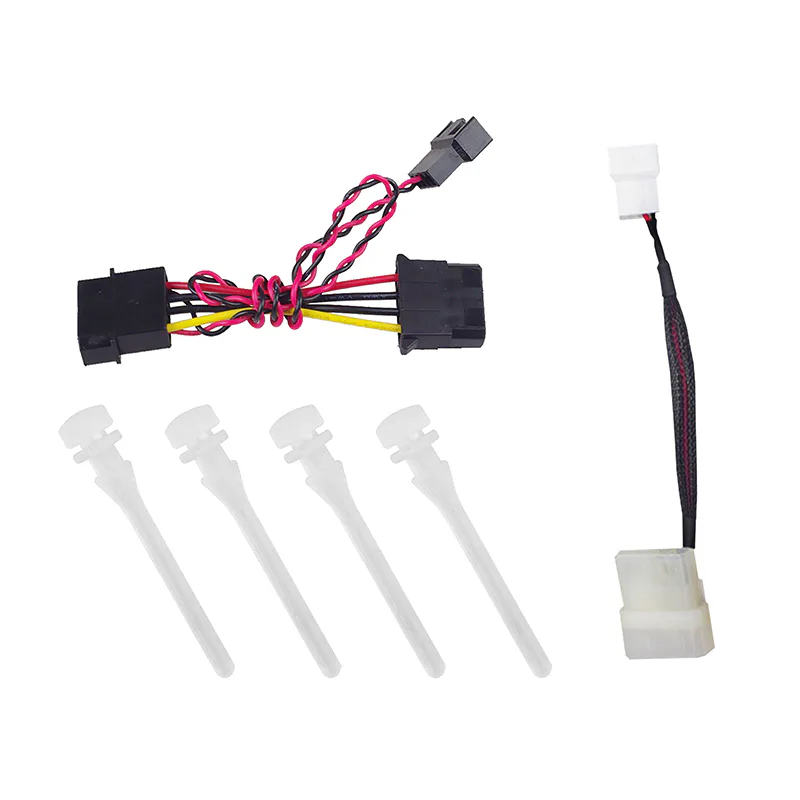

4 rubber screws for installation. Rubber-based material allows easy and quick mounting while maximizing vibration absorption to eliminate noise that could be generated by standard metal screws.
Endurable Teflon Fan Cable
The PTFE (polytetrafluoroethylene) fan cable is capable of withstanding high temperature and heavy-duty usage, ensuring long product lifespan.
Rubber Cable Ties for Tidiness
2 rubber cable ties are provided on the fan cable for better spatial management within the case. This provides a cleaner looking case and improved ventilation.
Technical Spec
Overall Dimension120×120×20 mm(L×W×H)
Net Weight 110g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Starting Voltage 7VDC
Rated Current 0.13±10%A(MAX)
Power Input 1.56W
FAN Speed 900±150-1800±10%RPM

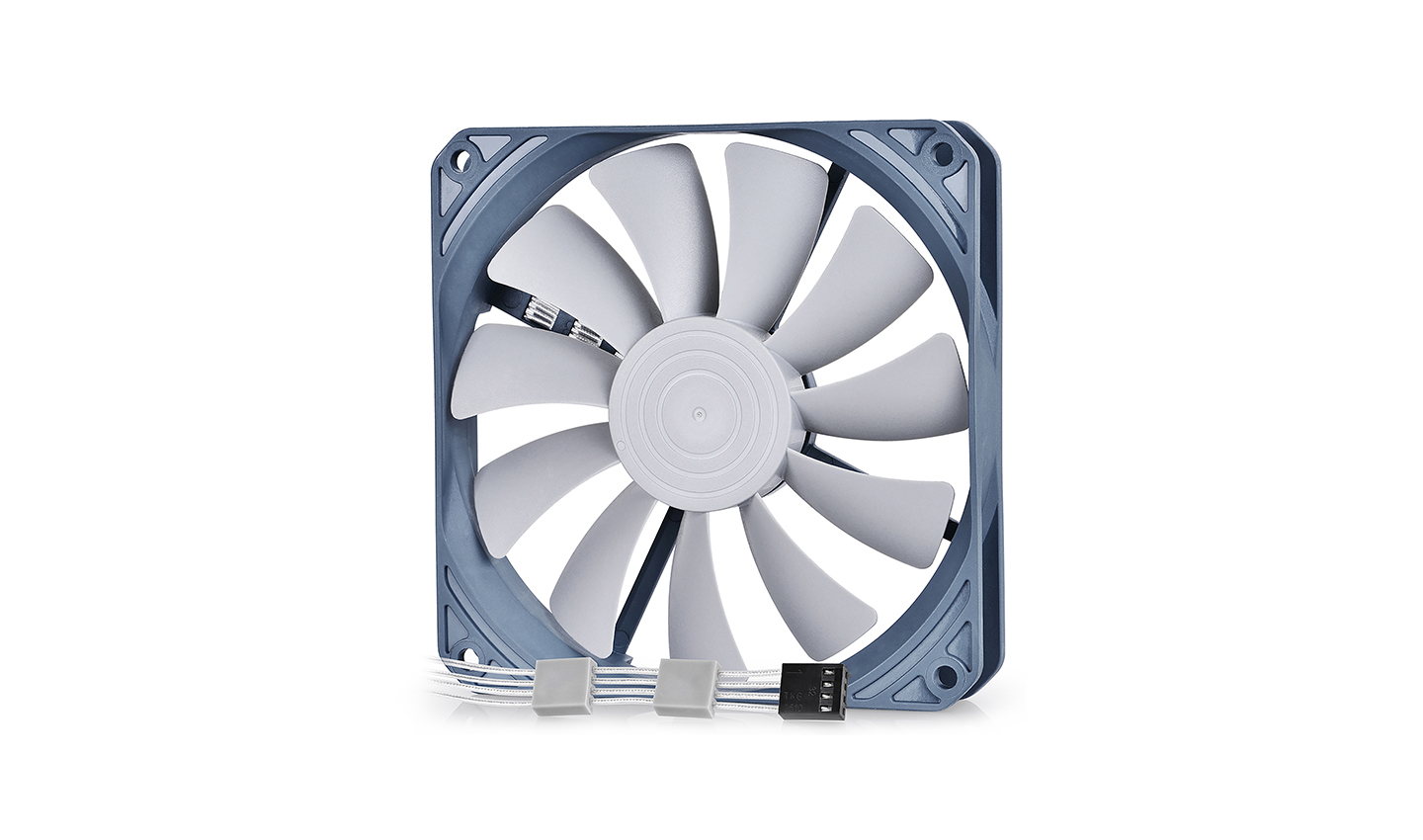

Fan Connectors 4-pin for motherboard & 4-pin for PSU
MAX.Air Flow 61.93CFM
Noise 18.2～32.4dB(A)
EAN 6933412712176
P/N DPGS-FGS-GS120
Download
GS120 Manual.pdf
