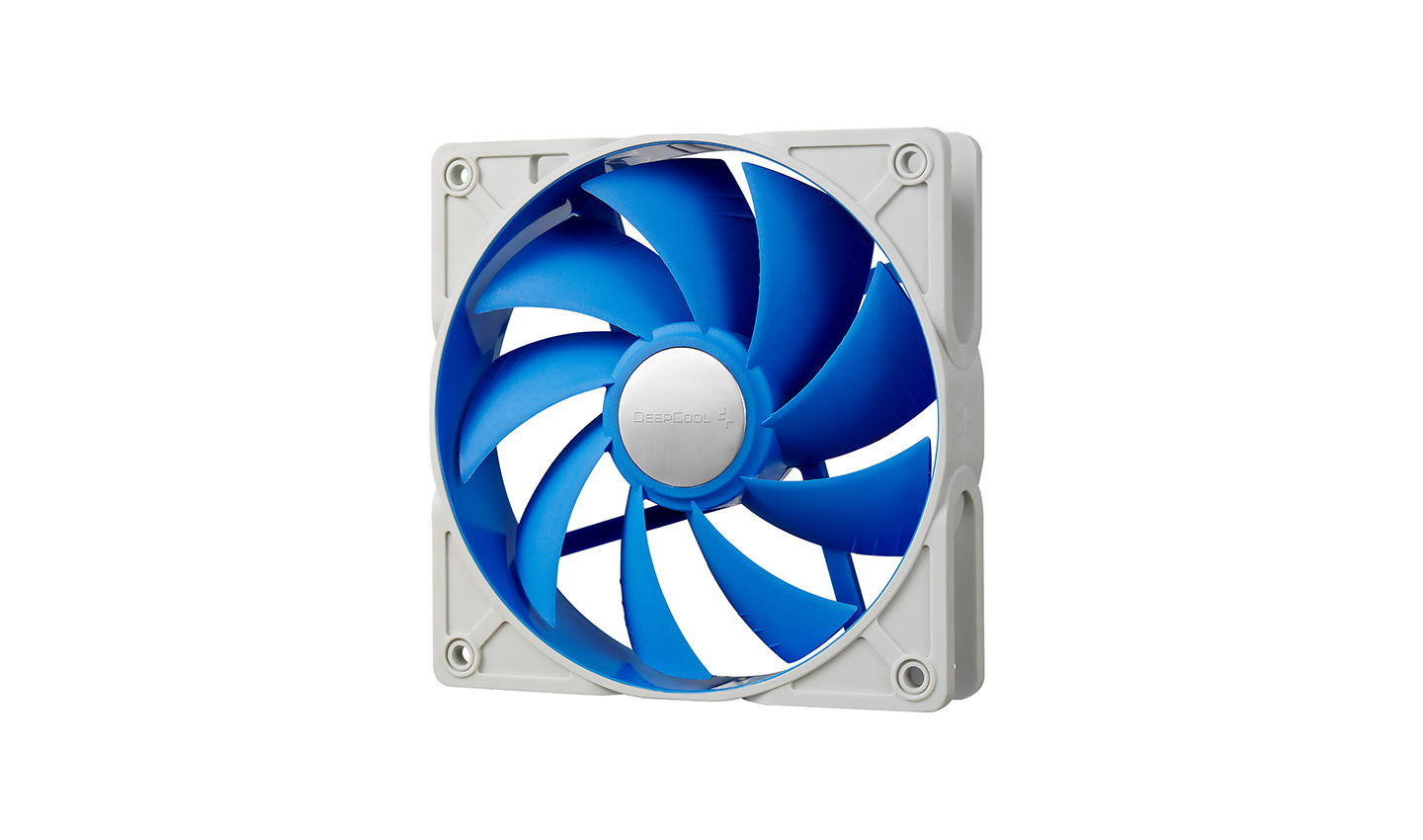

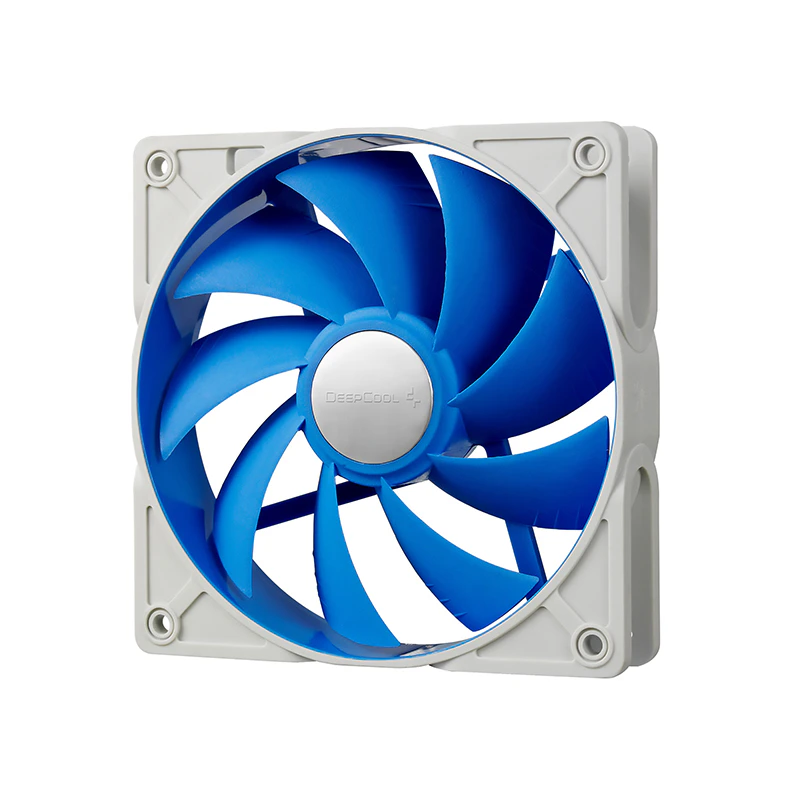

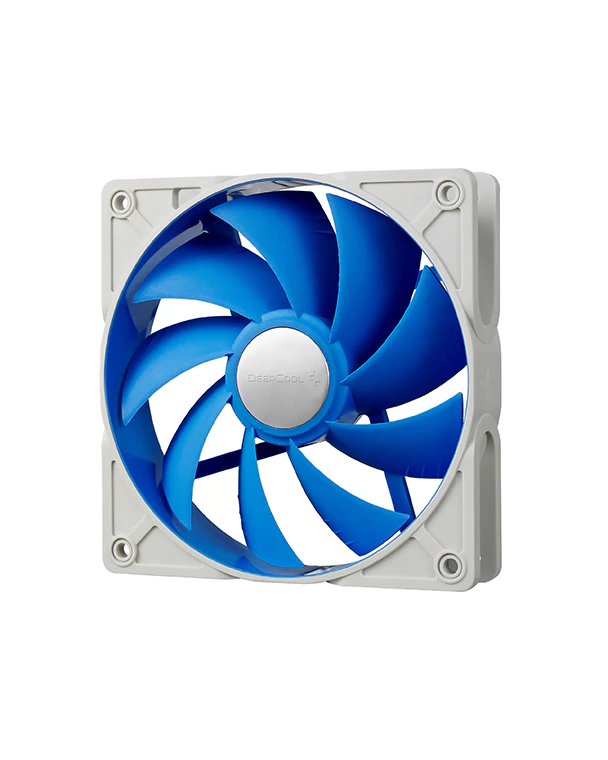

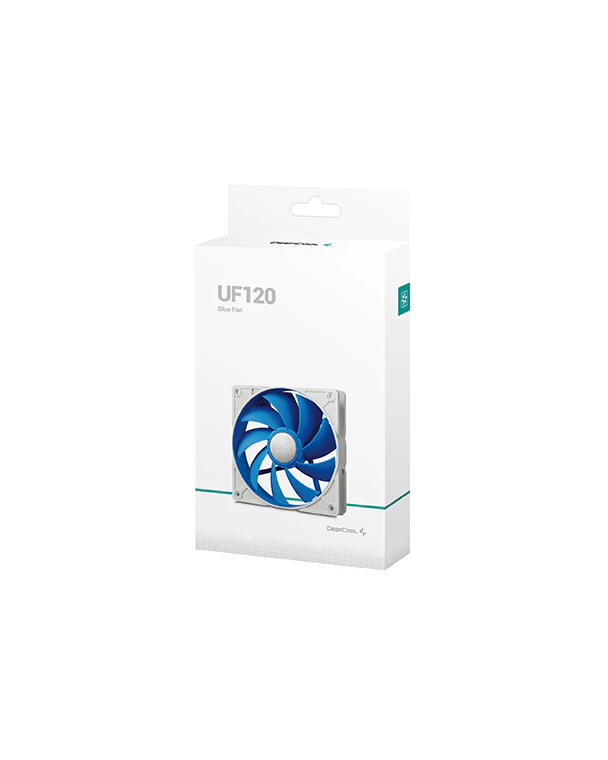

UF120
COLOR
white
MODEL

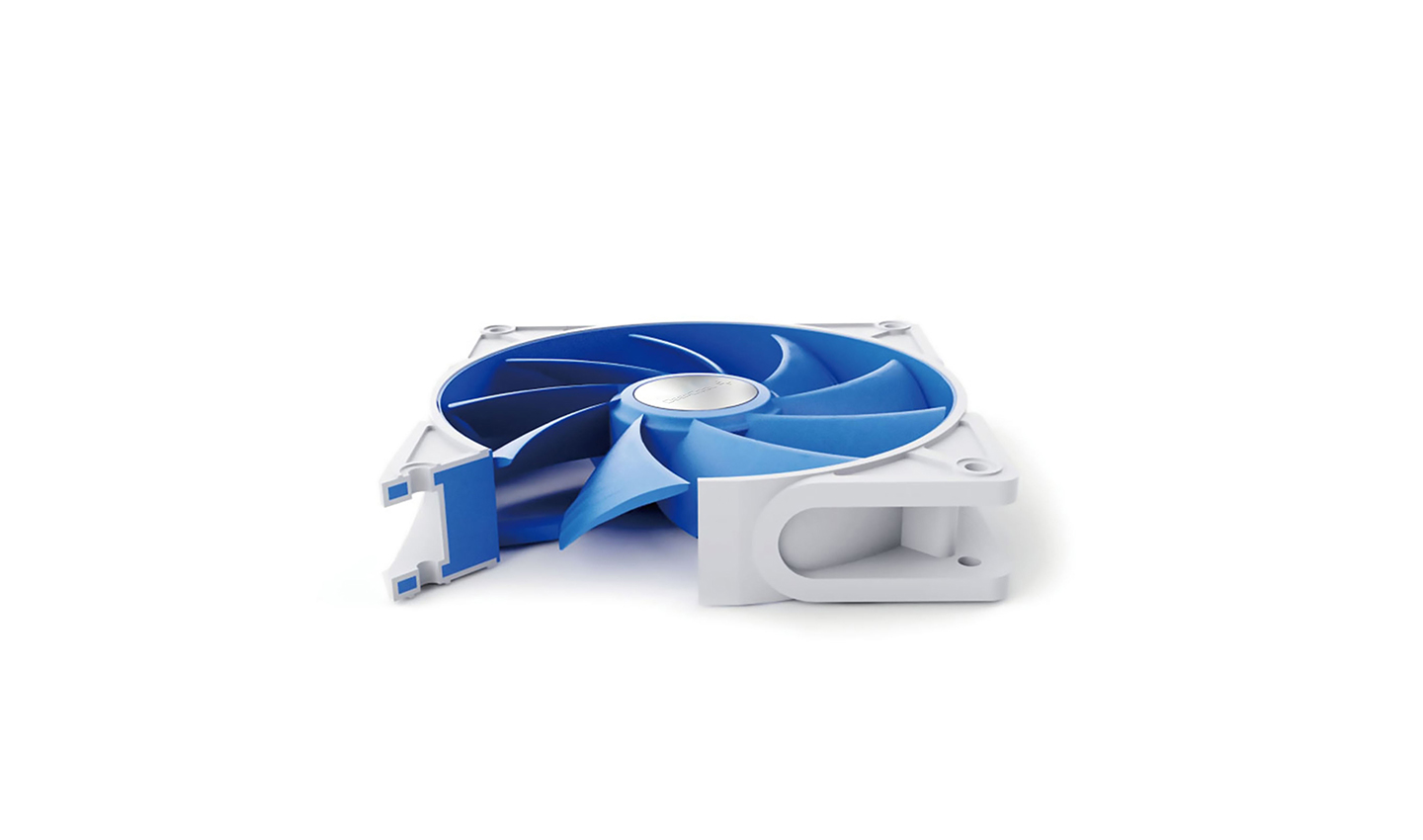

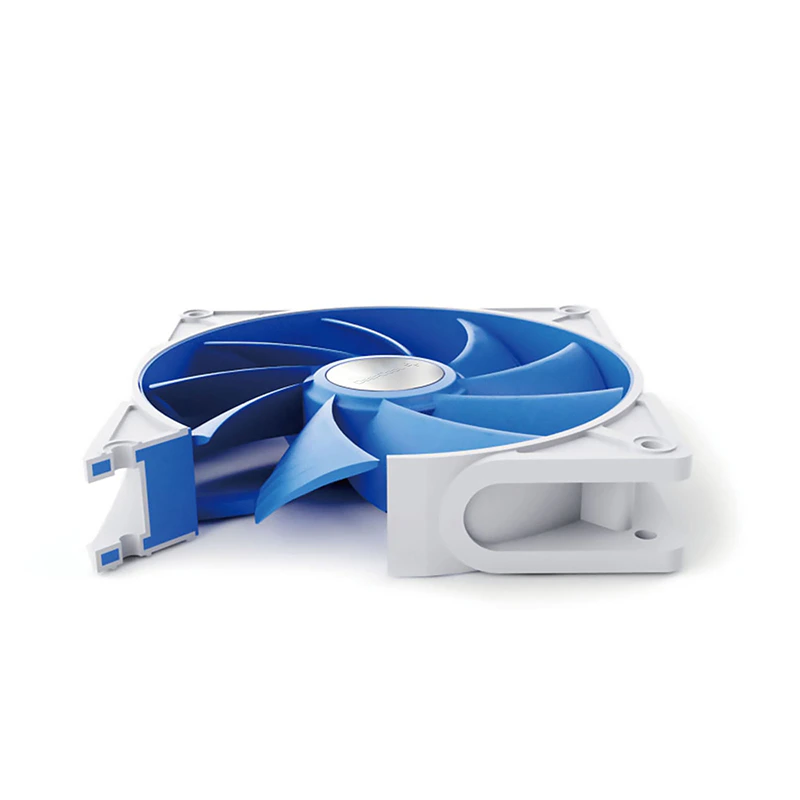

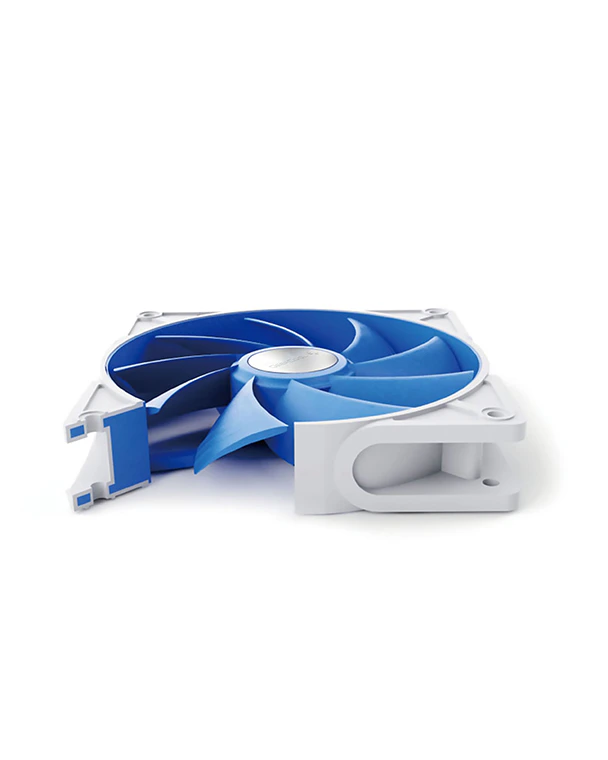

Strong plastic casing with soft, elastic TPE cover to maximize vibration absorption.
Specialized fan blade design that offers unique visuals when running.
2 durable ball bearings for smooth rotations and long lifespan.
Super silent and high-volume airflow.
Technical Spec
Overall Dimension120X120X26 mm(L×W×H)
Net Weight 172g
Bearing Type Ball Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.13±10%A(MAX)
Power Input 1.56W
Fan Speed 500±200~1500±10%RPM
Max. Air Flow 74.34CFM
Noise 17.8~30dB(A)
EAN 6933412707493
P/N DP-FUF-UF120
Download
UF120 Manual.pdf
