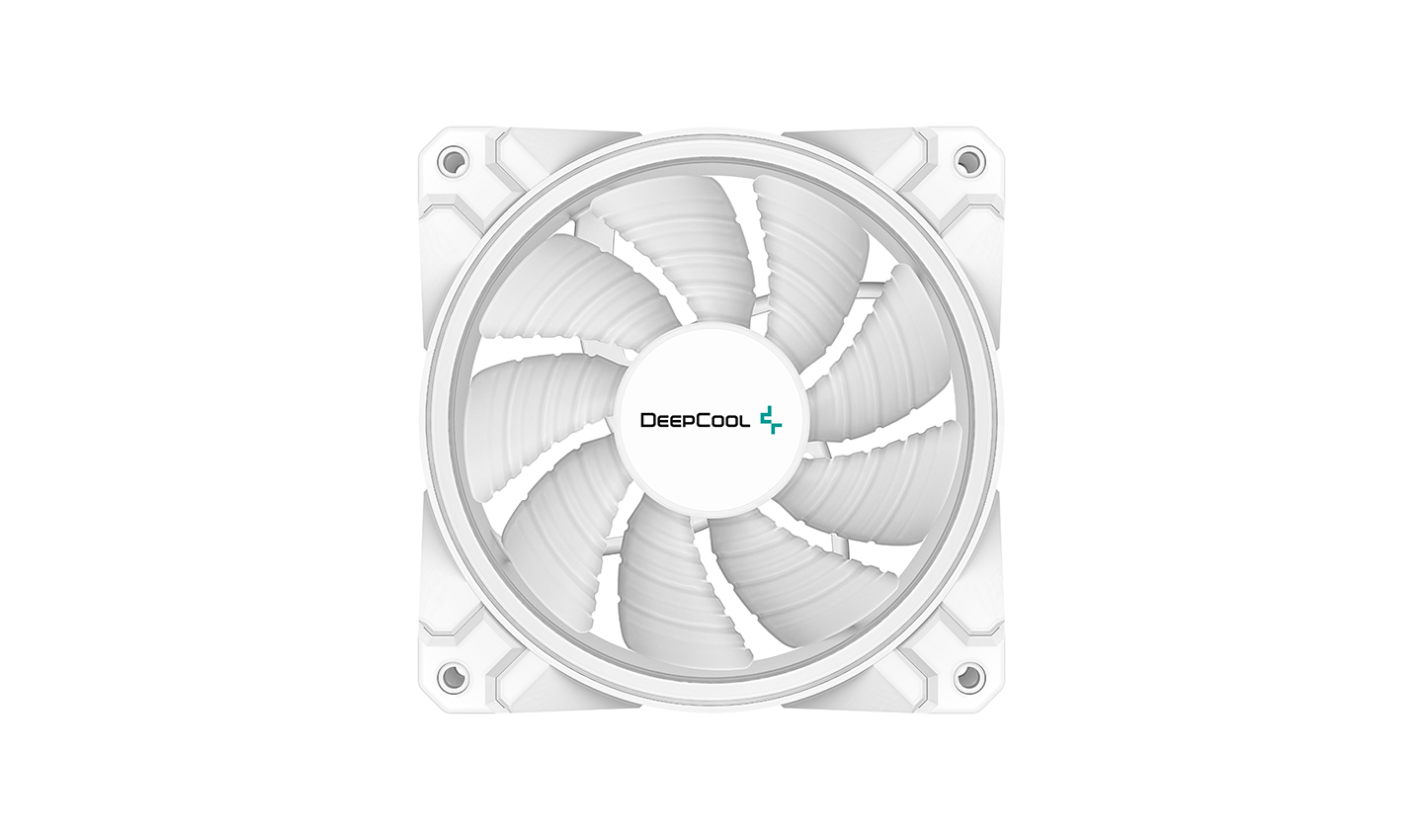

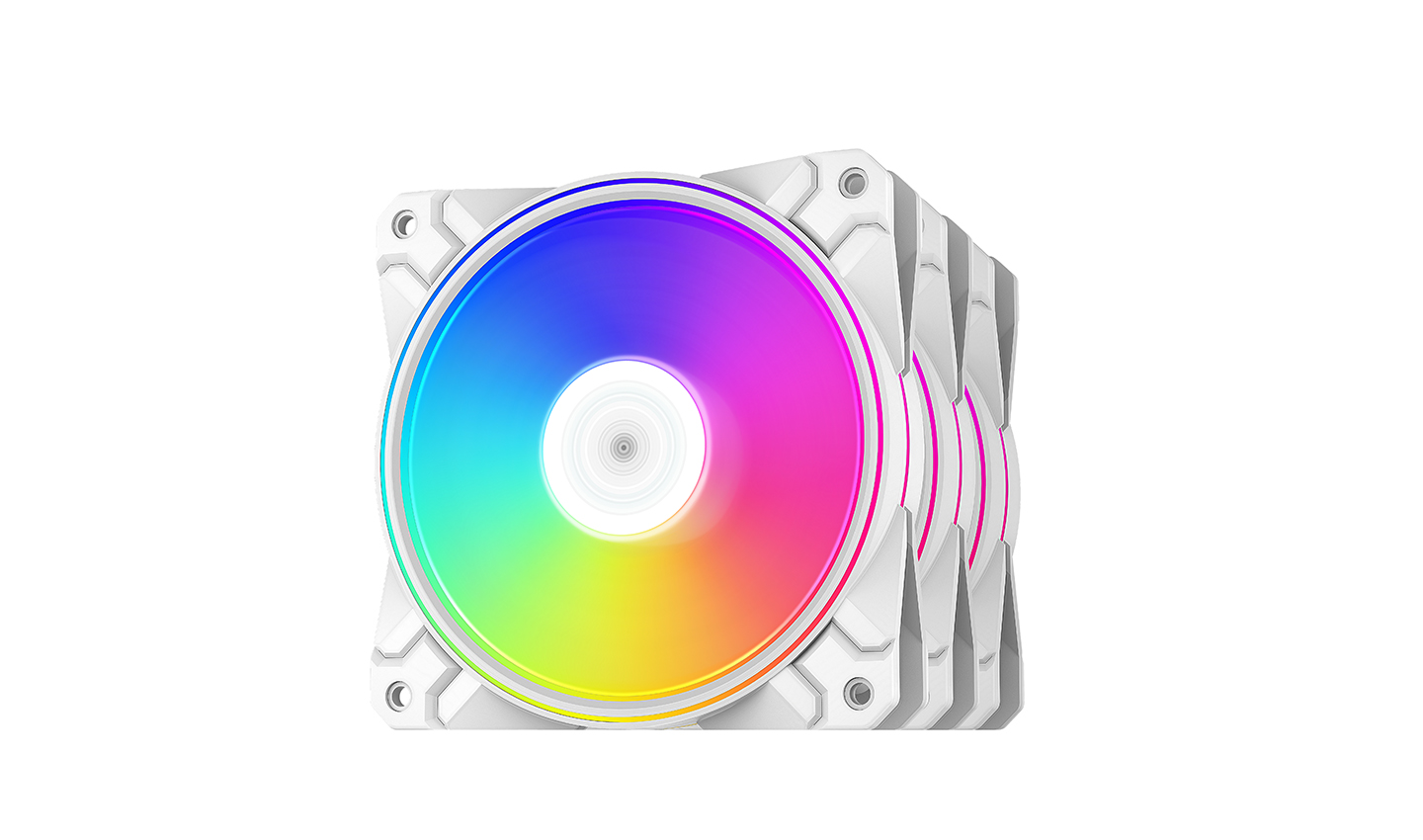

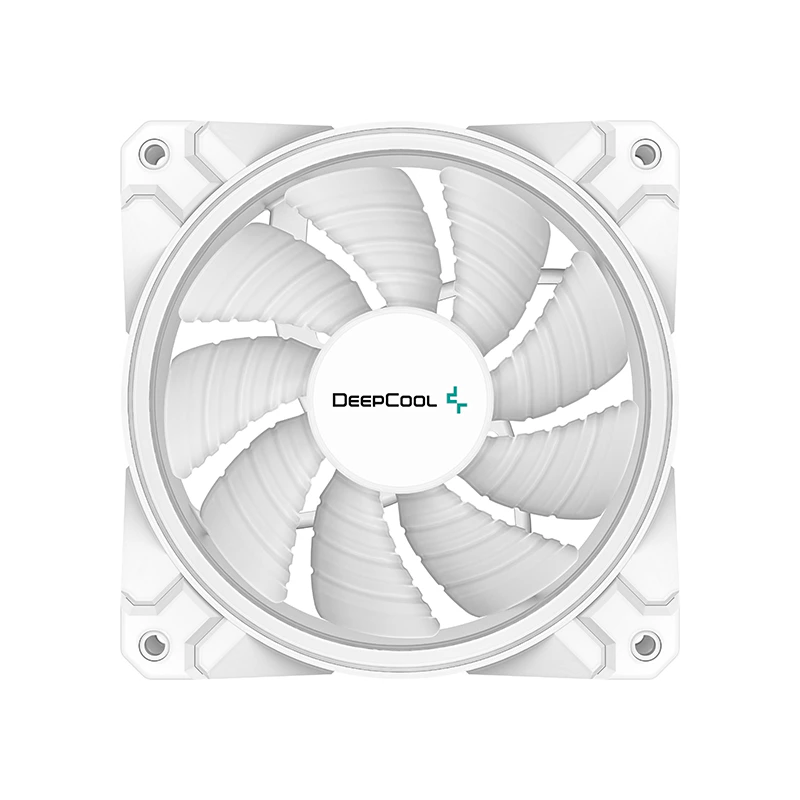

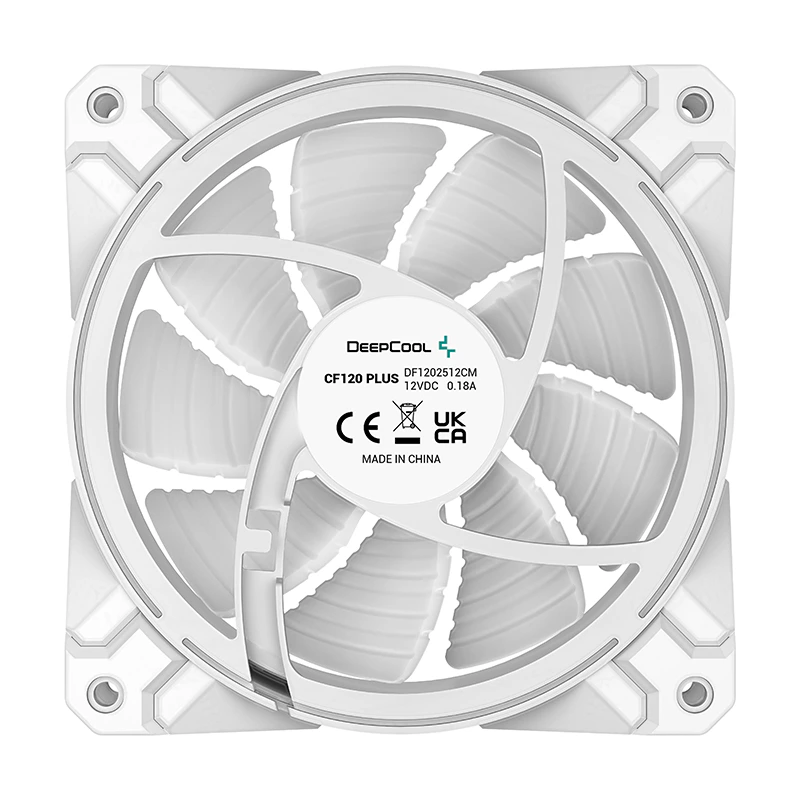

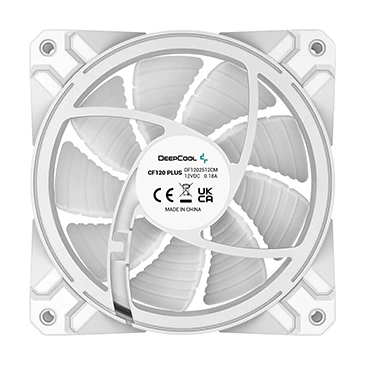

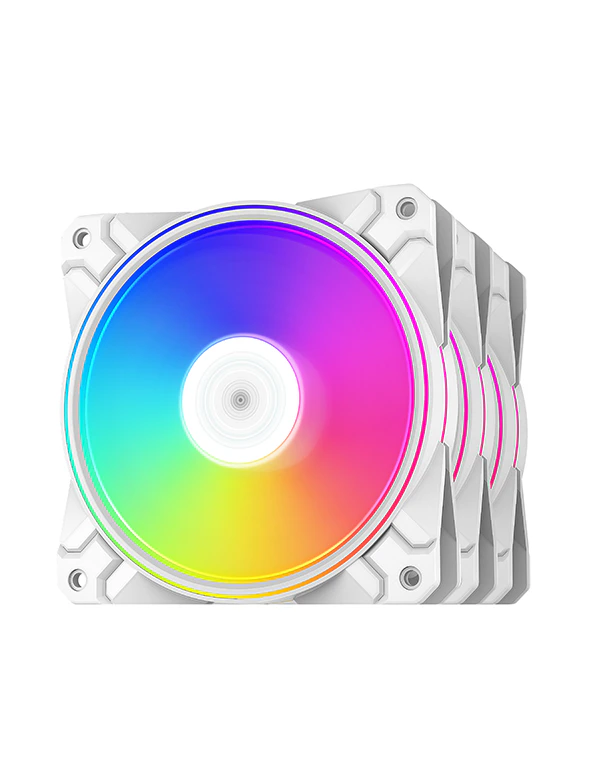

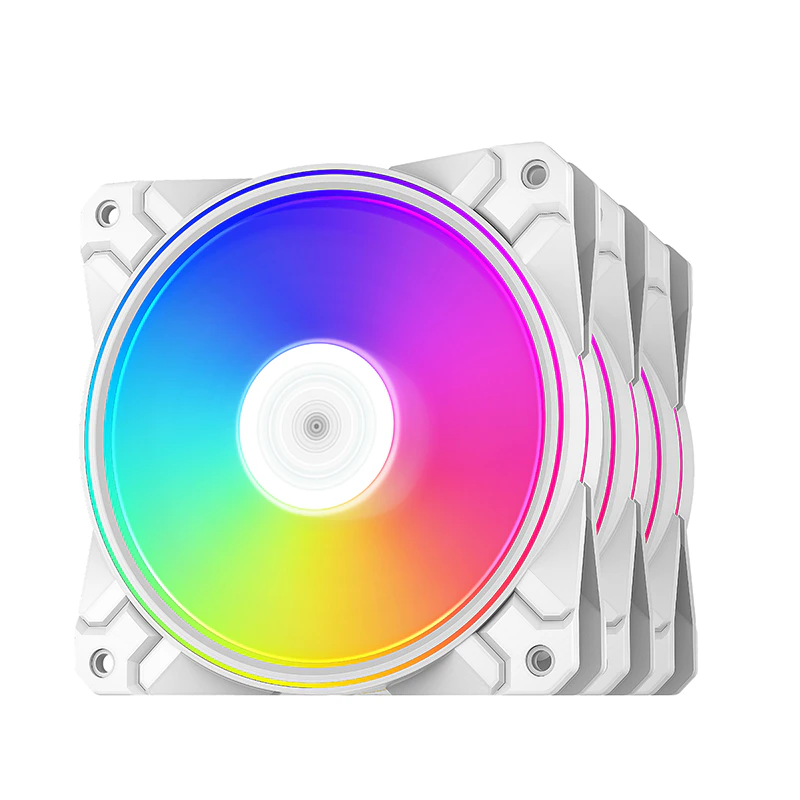

CF120 PLUS WH-3 IN 1

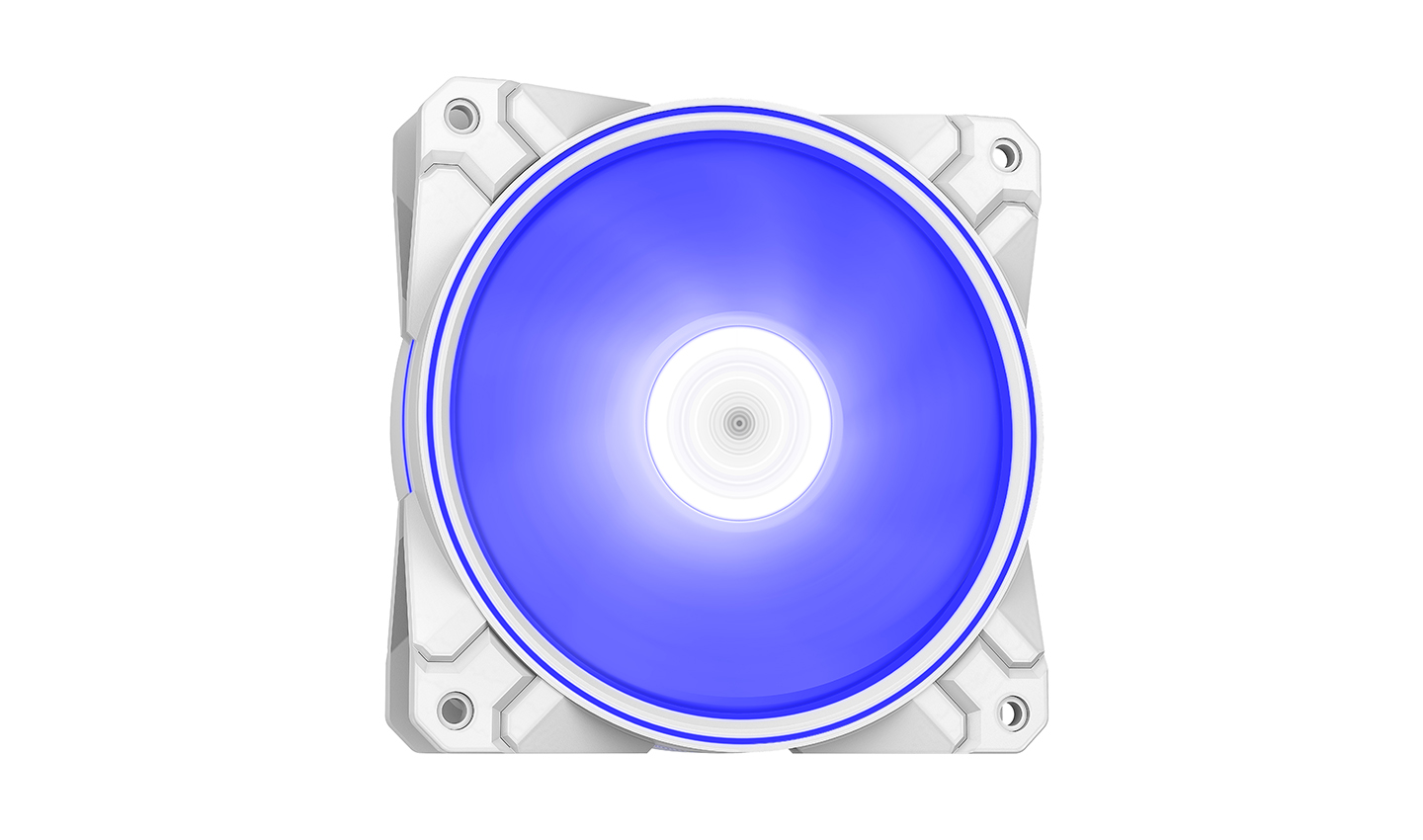

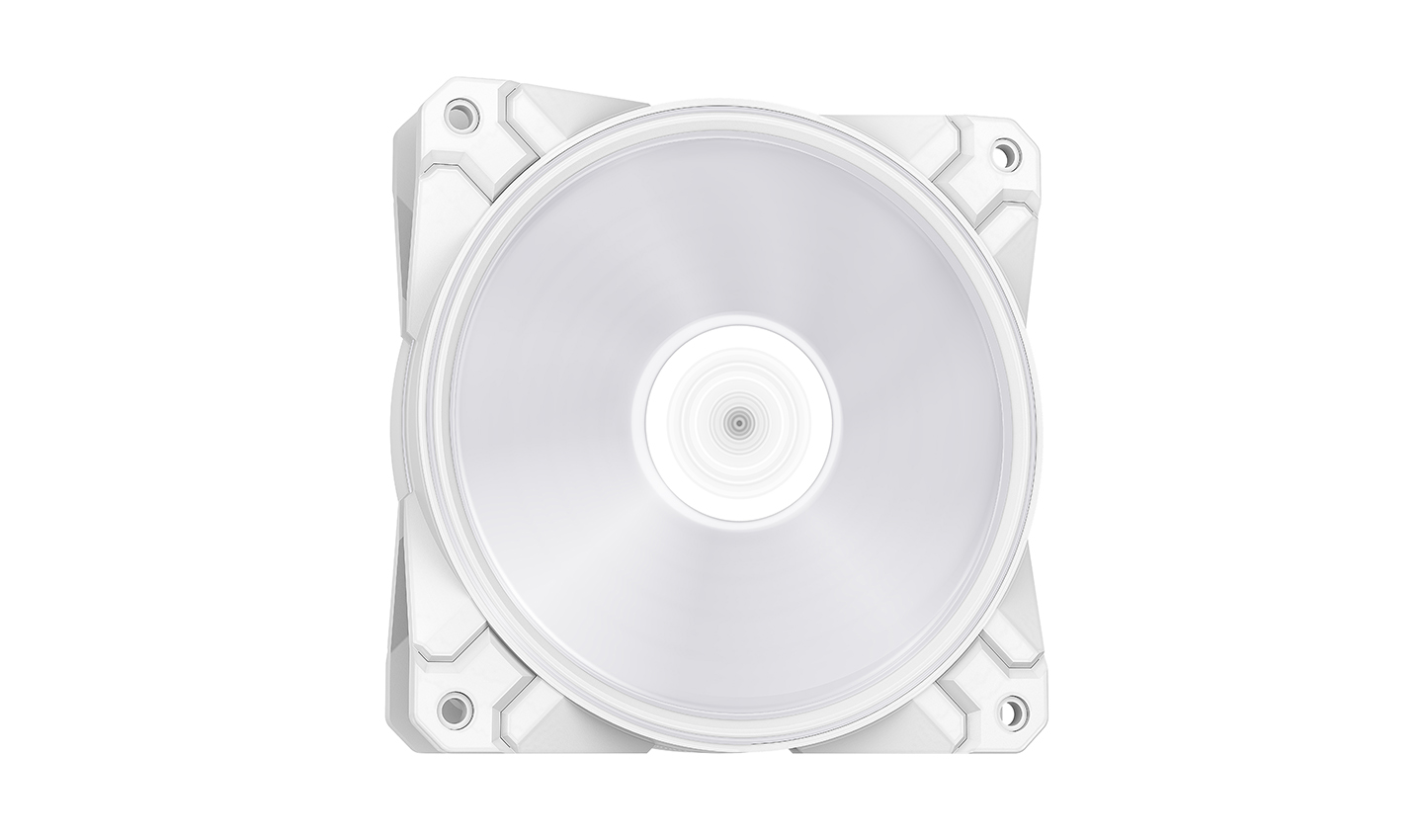

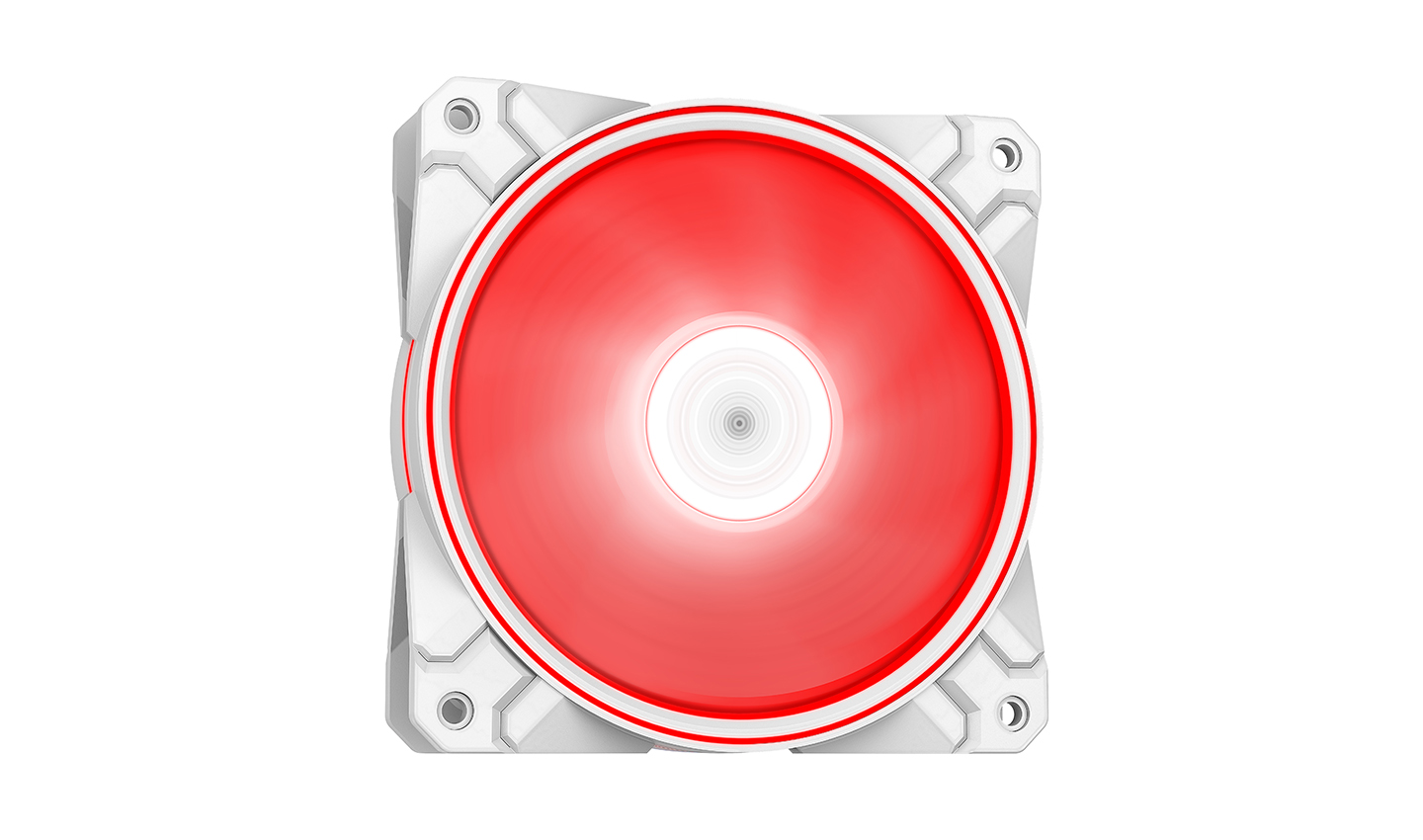

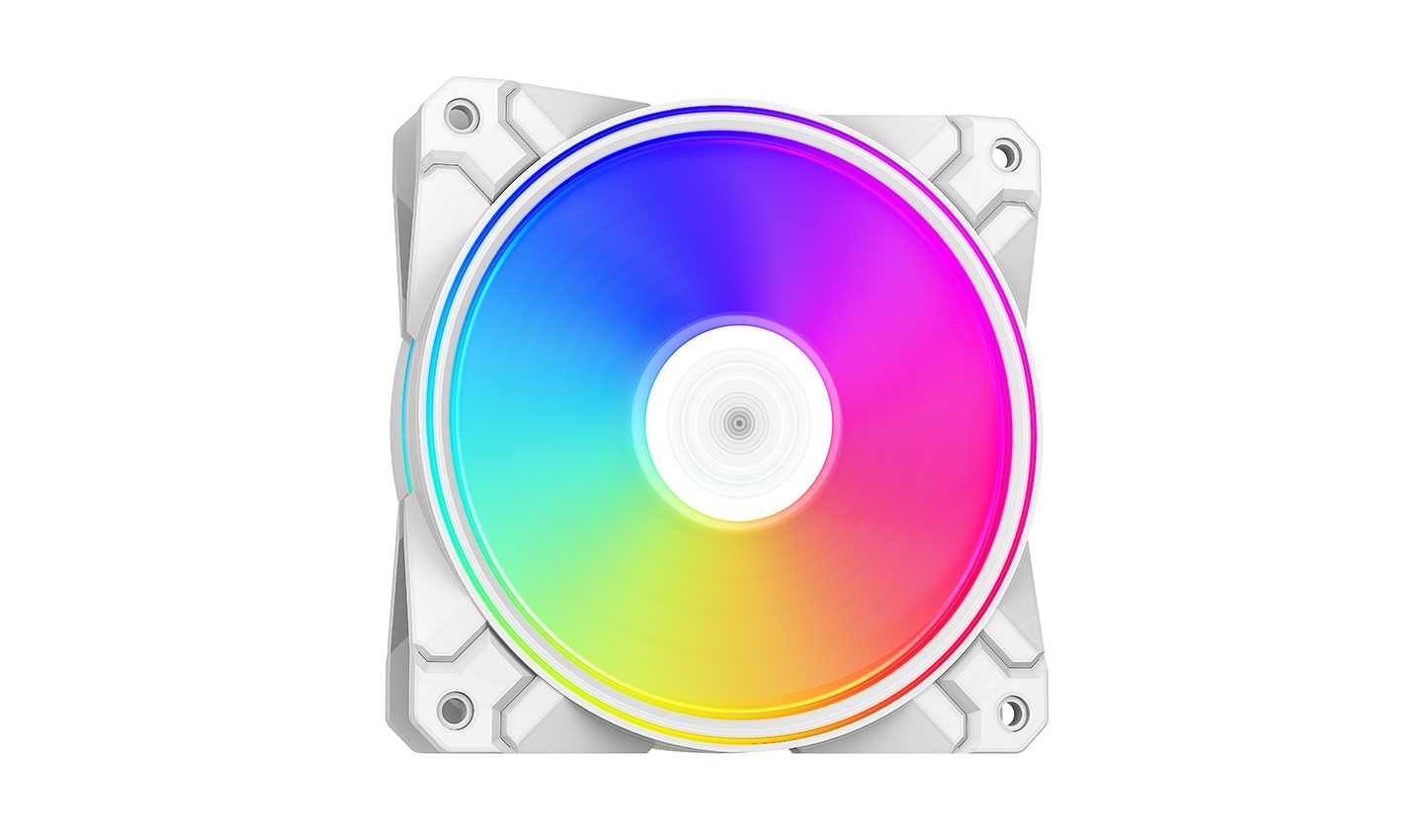

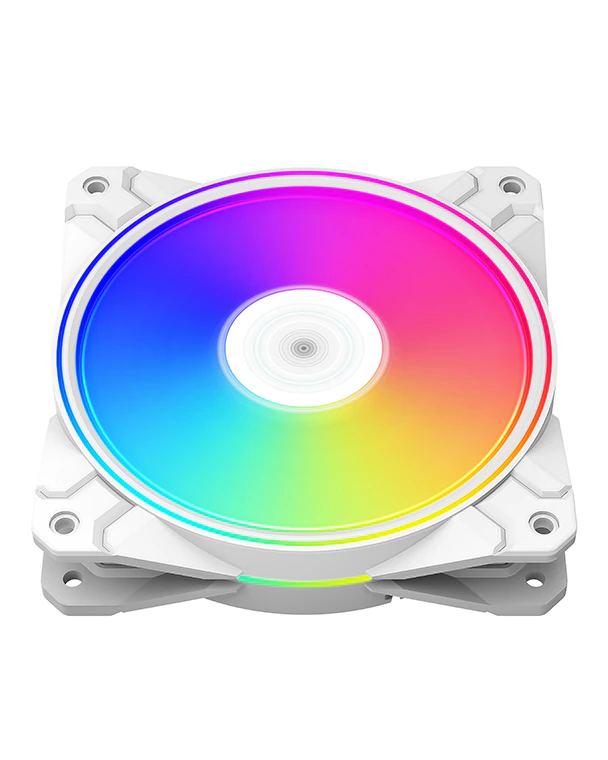

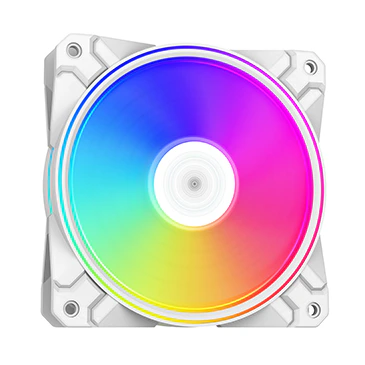

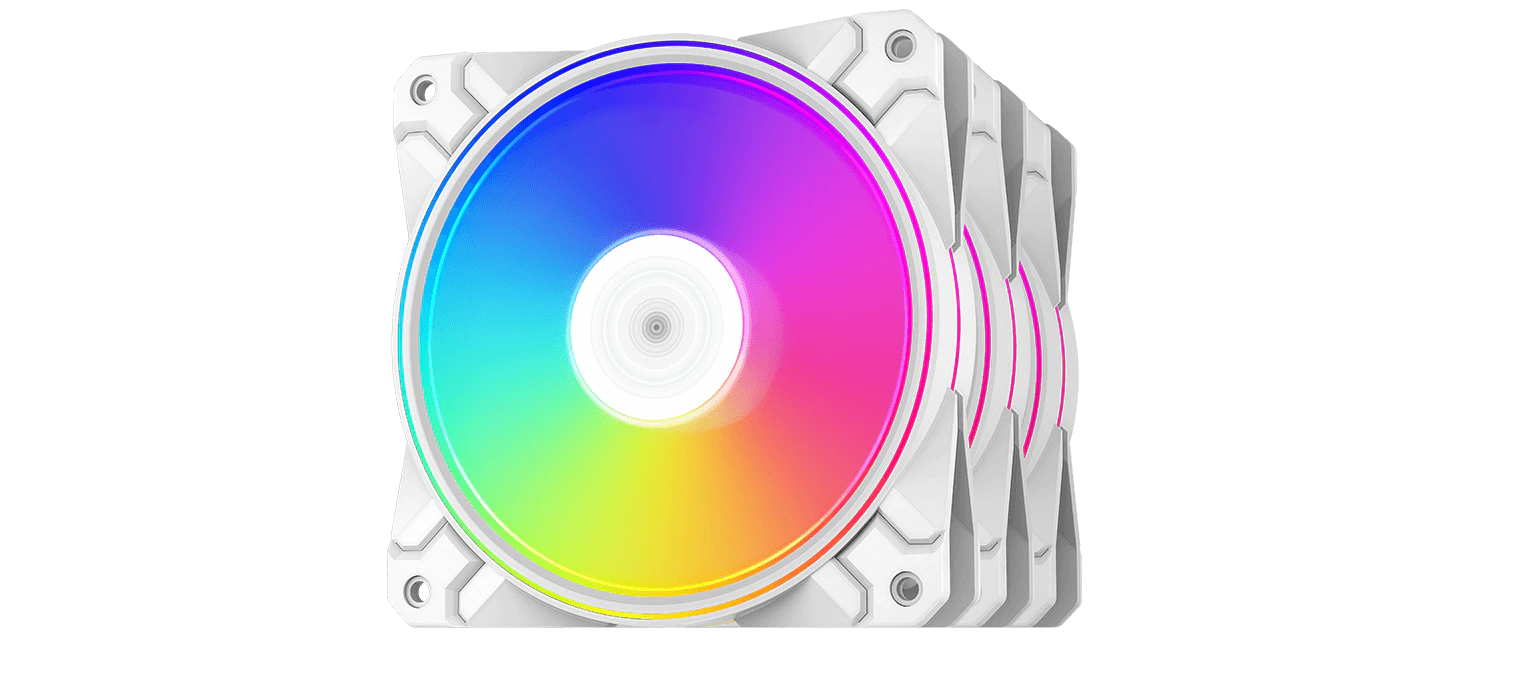

The CF120 PLUS WH-3 IN 1 case fan fits 18 individual addressable RGB LEDs across the fan blades and housing to create vibrant lighting effects in a layered design.
COLOR
white
MODEL
CF120 PLUS WH-3 IN 1

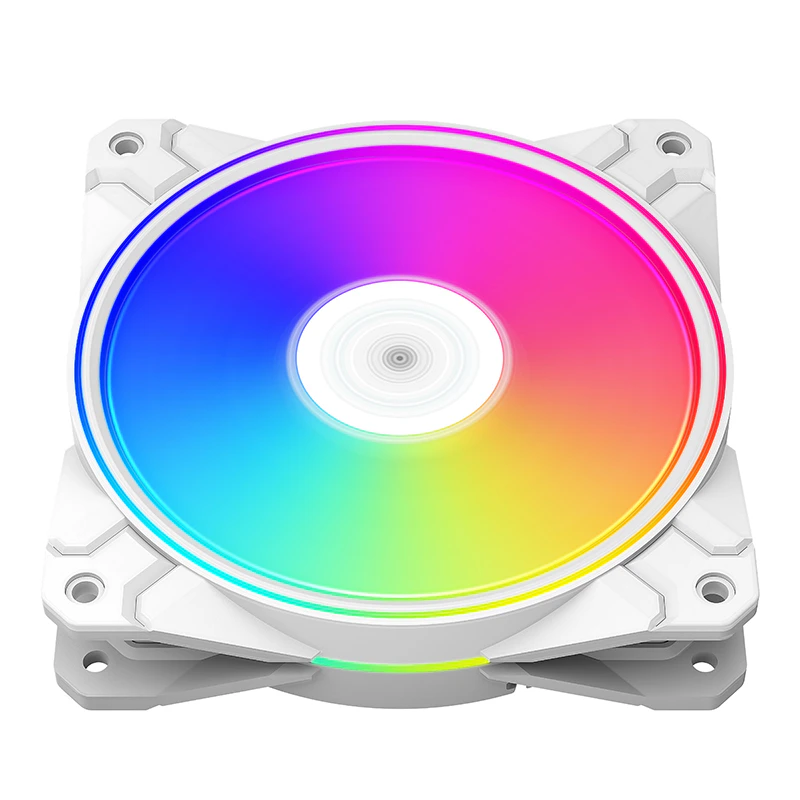

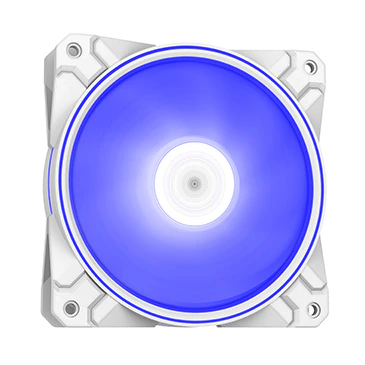

Overflowing Light
LIGHT UP YOUR BUILD
The CF120 PLUS WH-3 IN 1 case fan fits 18 individual addressable RGB LEDs across the fan blades and housing to create vibrant lighting effects in a layered design.

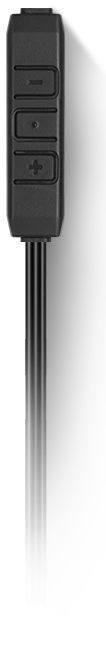

RGB CONTROLLER

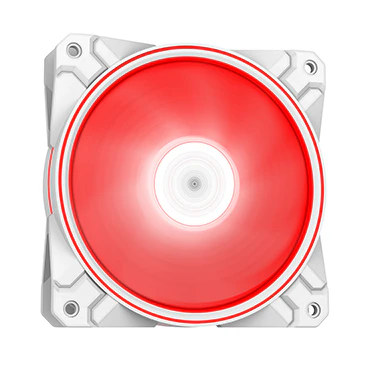

Easily switch between 6 preset lighting effects with the included RGB controller. Customize to fit with your color settings.
Double Click to Switch
-Full RGB/ Halo Only
Hold for 3 seconds to Switch
-RGB ON/Off
MOTHERBOARD RGB SYNC
Sync with your motherboard for direct control using RGB software, including Chroma.
MOTHERBOARD RGB SYNC
Sync with your motherboard for direct control using RGB software, including Chroma.
KEEPING THINGS COOL
Maximize cooling efficiency with powerful fan speeds and PWM fan control to quickly lower system temperatures when needed and staying quiet under light loads.
500~1800 RPM±10%
Wide Speed Range
52.5 CFM
Ultra Airflow
≤28.8 dB(A)
Super Silent

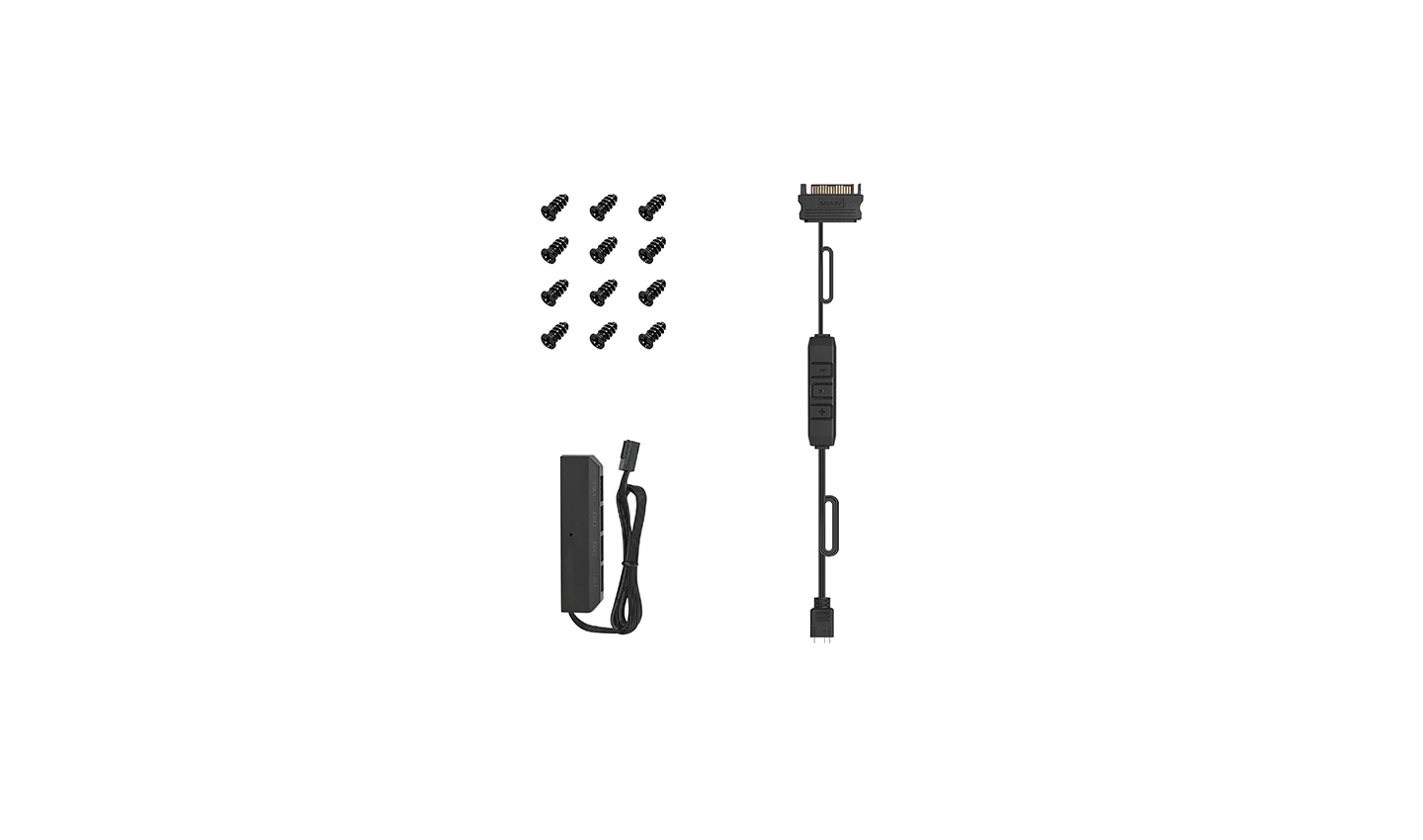

WHAT’S IN THE BOX
  • 5V A-RGB Wire Controller

  • 4 Ports PWM Hub

  • Screws

Technical Spec
Fan Dimension120×120×26.5 mm(L×W×H)
Net Weight 569 g
FAN Speed 500~1800 RPM±10%
Fan Air Flow 52.5 CFM
Fan Air Pressure 2.08 mmAq
Fan Noise Level ≤28.8 dB(A)
Fan Connector 4-Pin PWM
FAN Rated Voltage 12VDC
FAN Rated Current 0.18A
FAN Power Consumption 2.16W
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.63A
LED Rated Power 3.15W
LED Connector 3-pin(+5V-D-G)
EAN 6933412710608
P/N DP-F12-AR-CF120P-WH-3P
