CF120

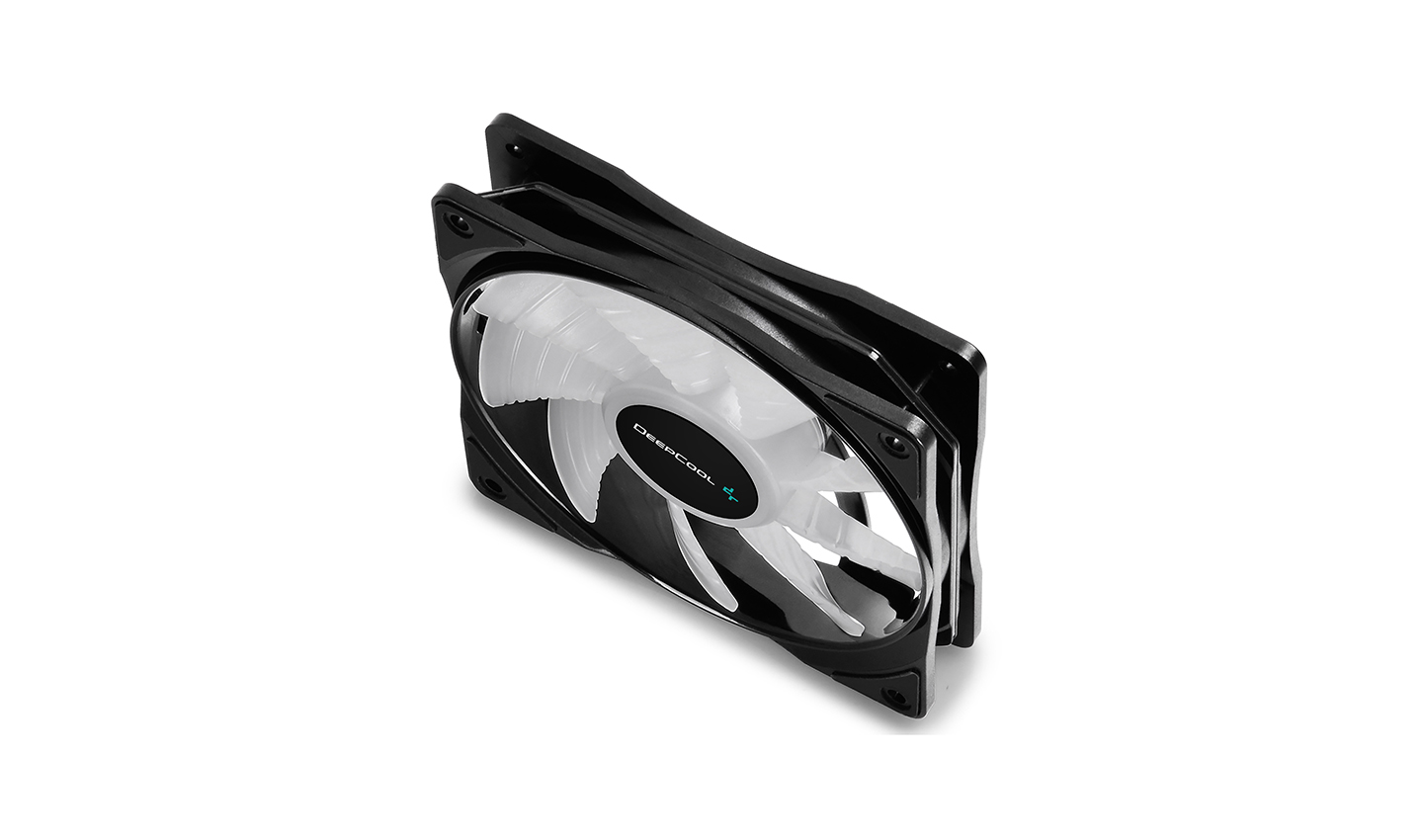

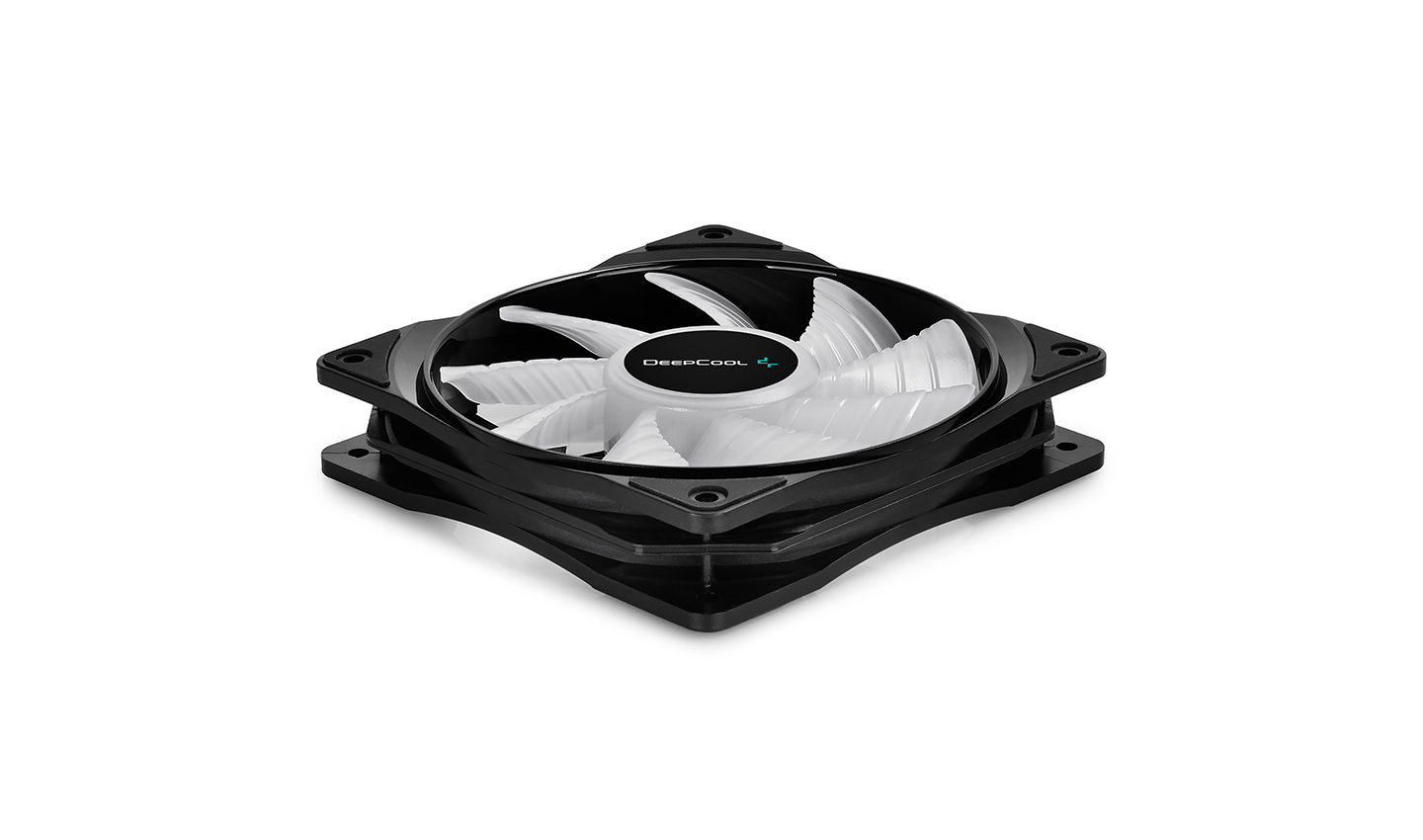

MB Controlled 120mm A-RGB LED Case Fan

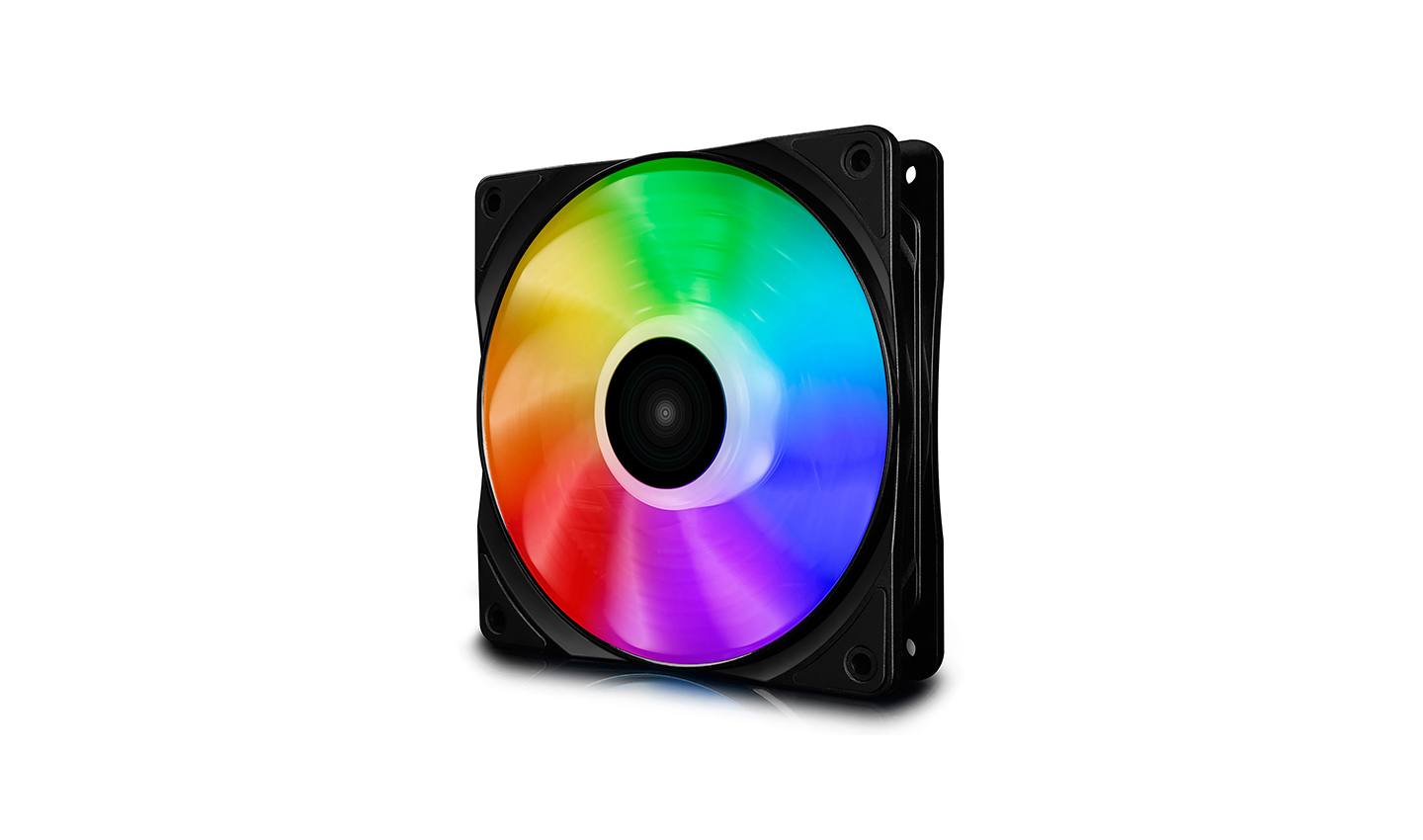

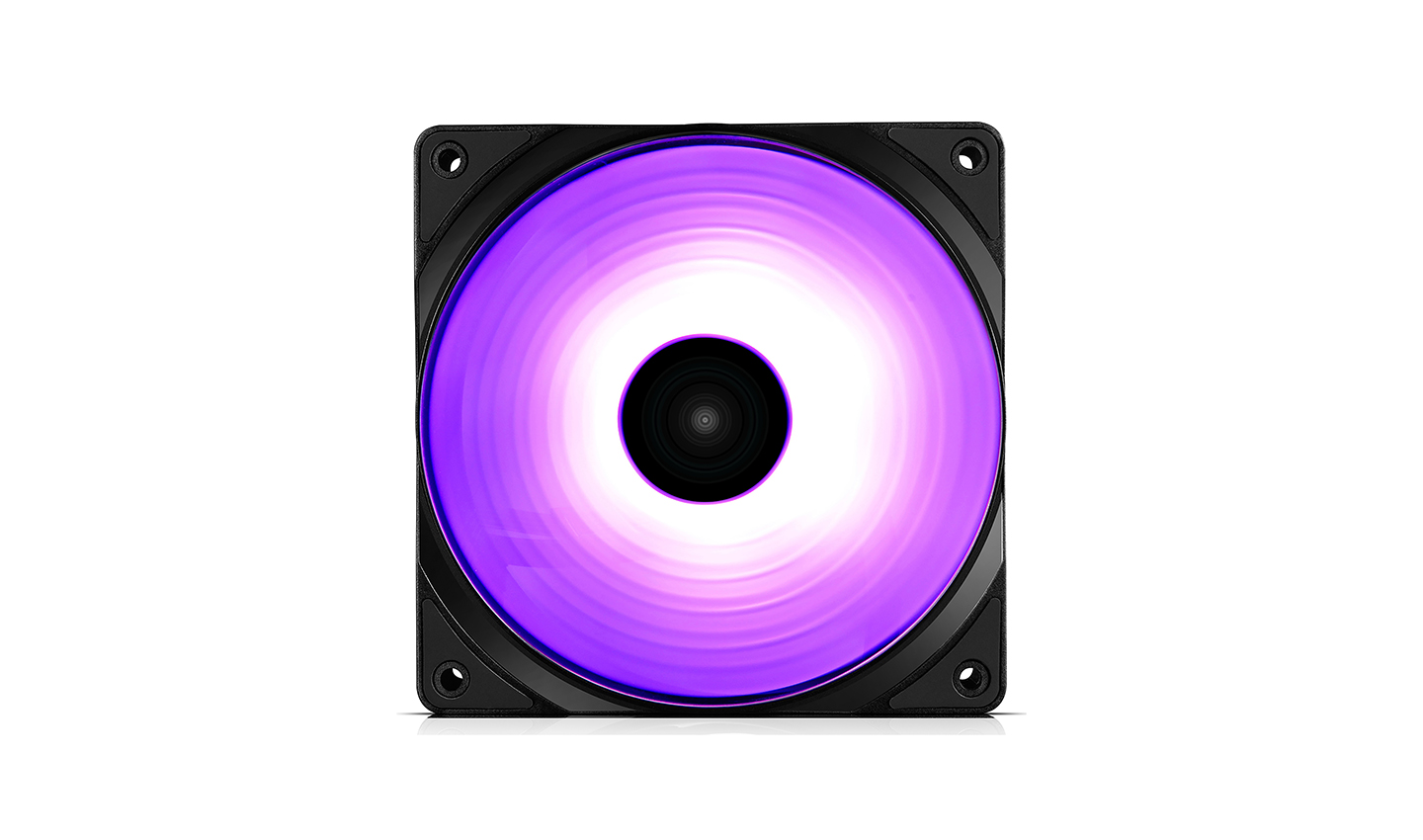

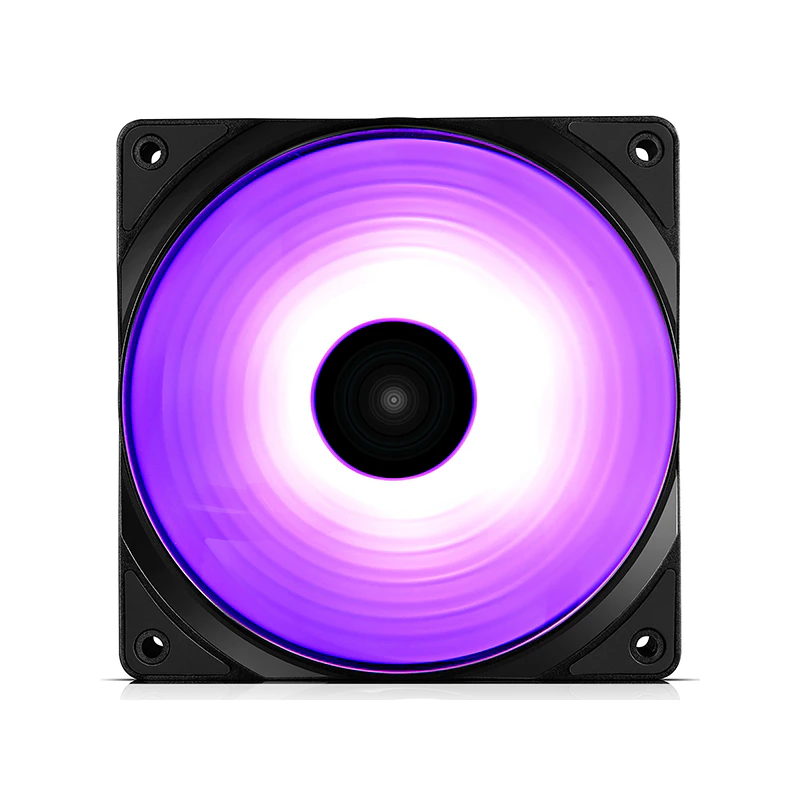

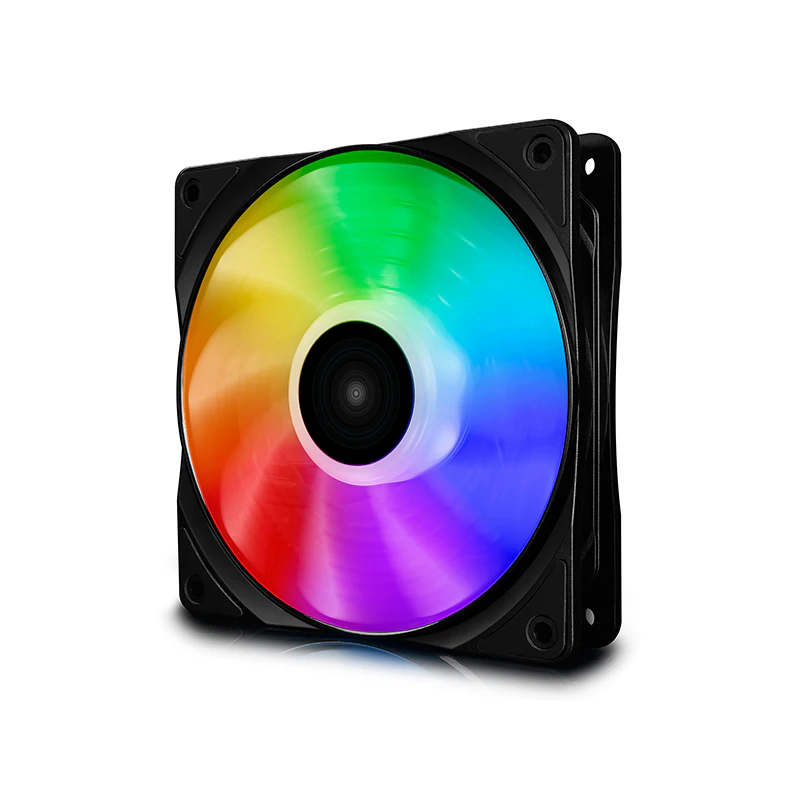

Customizable Addressable RGB LED Lighting

Utilize 12pcs of independently programmable RGB LED lights, CF120 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 6 different colors to choose from

Synchronized Control via 5V A-RGB Header on MB

Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices

Better Balance on Performance & Low Noise

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan

PWM Control

Super Silent

ADD-RGB LED

PWM Intelligent Control

Fan speed can be intelligently controlled by MB in accordance with temperature

Technical Spec

Fan Dimension	120×120×25 mm(L×W×H)
Net Weight	159g
FAN Speed	500±200～1500±10%RPM
Fan Air Flow	56.5CFM
Fan Air Pressure	1.63mmH2O
Fan Noise Level	17.8~27dB(A)
Fan Connector	4Pin
FAN Rated Voltage	12VDC
FAN Operating Voltage	10.8～13.2VDC
FAN Rated Current	0.11A
FAN Power Input	1.32W
Bearing Type	Hydro Bearing
LED Type	Addressable RGB LED
LED Rated Voltage	5VDC
LED Rated Current	0.48A
LED Rated Power	2.4W
LED Connector	3pin（+5V-D-G）
EAN	6933412710325
P/N	DP-FA-RGB-CF120-1

Product Dimension

Download

CF120 Manual.pdf
