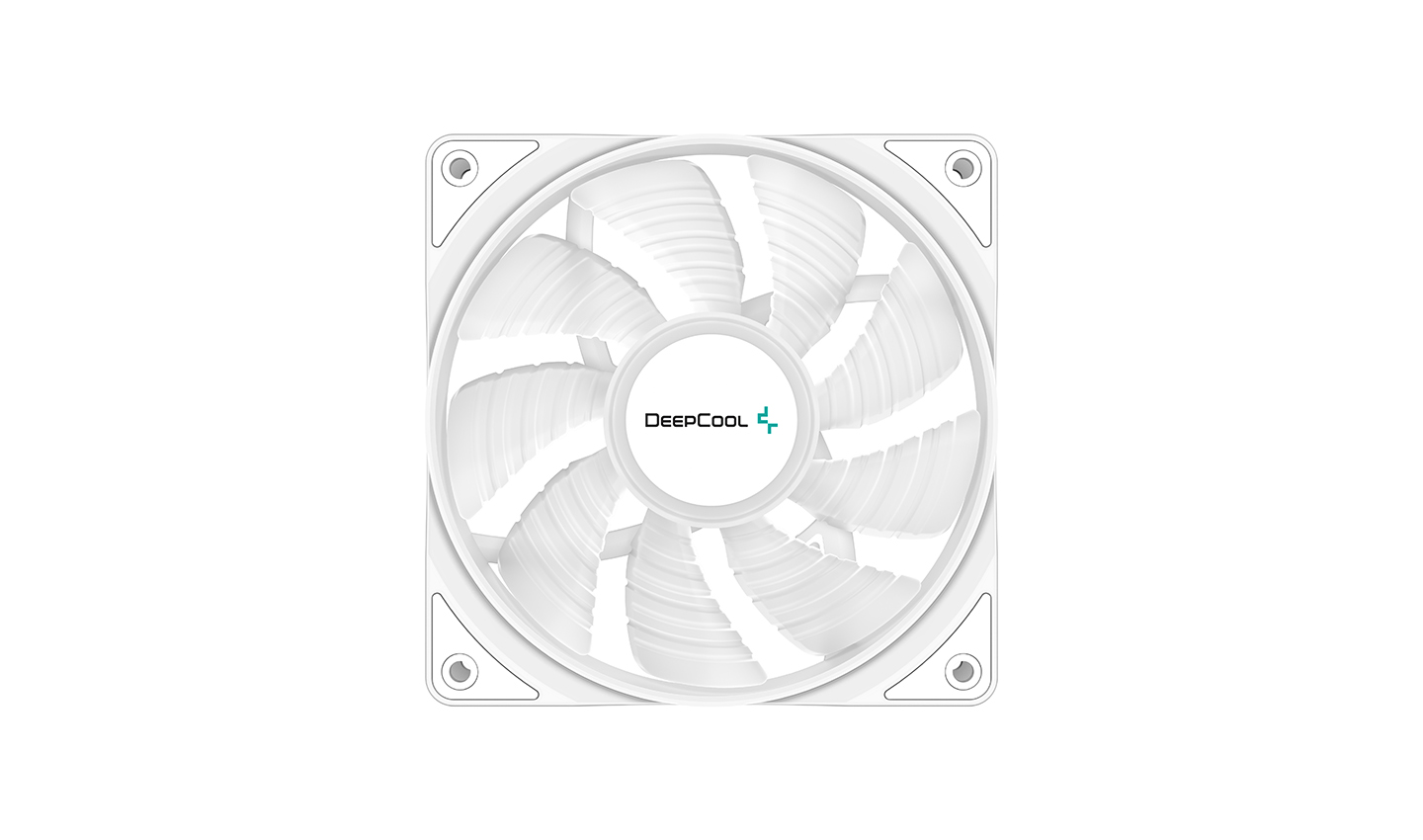

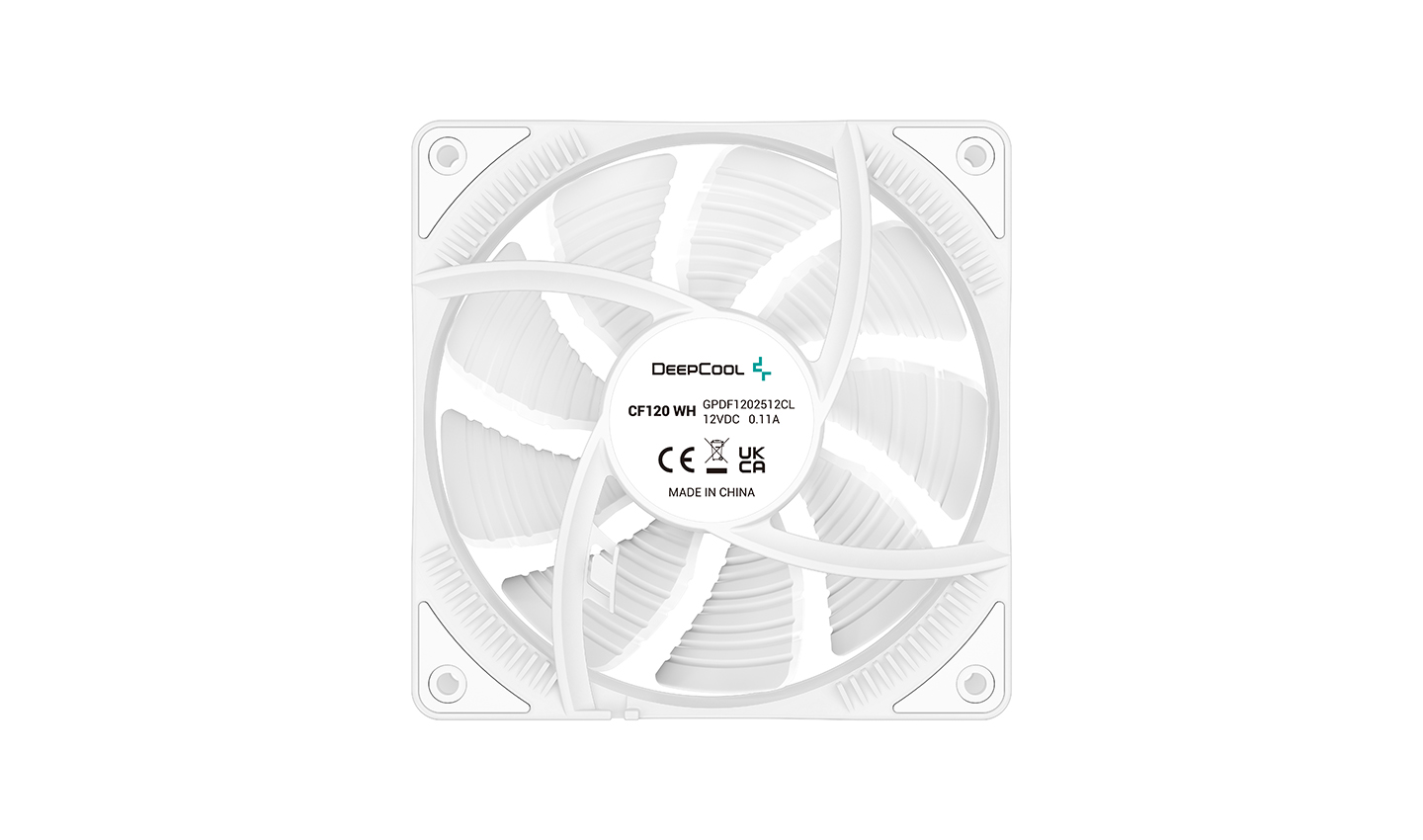

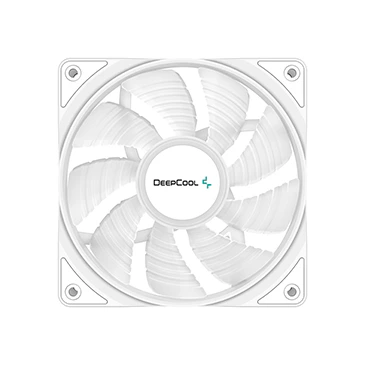

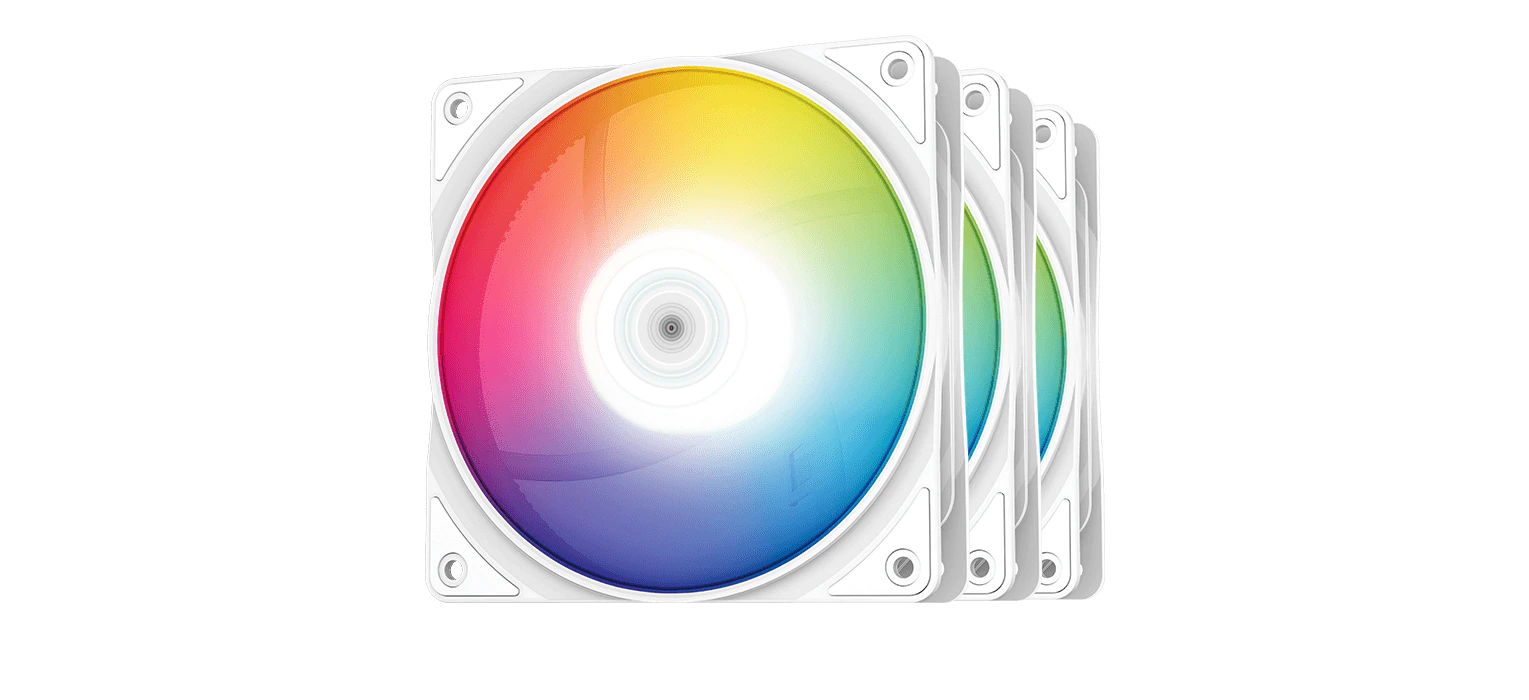

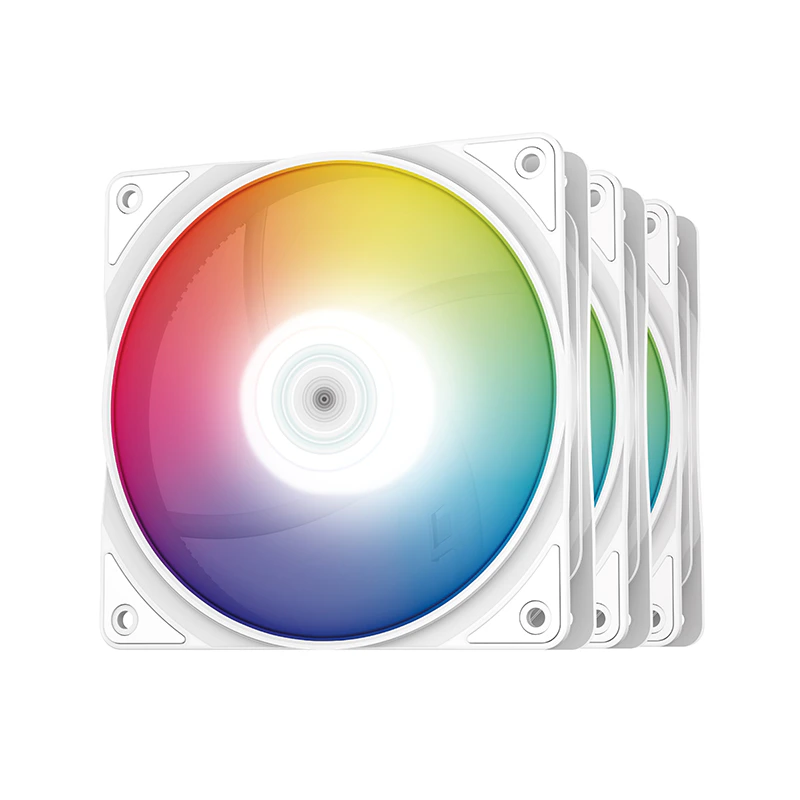

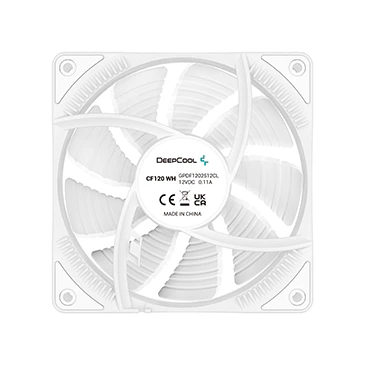

CF120 WH-3 IN 1

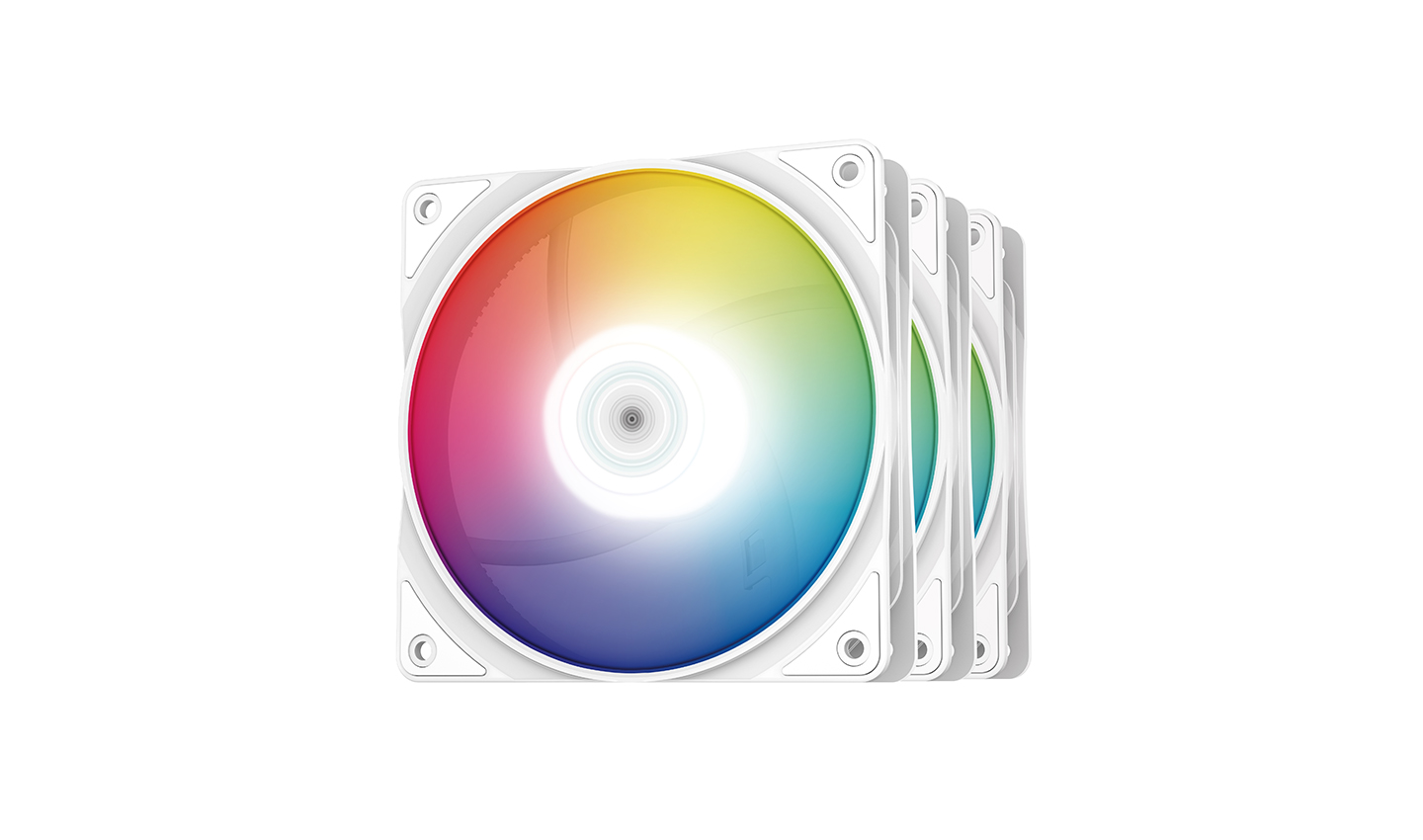

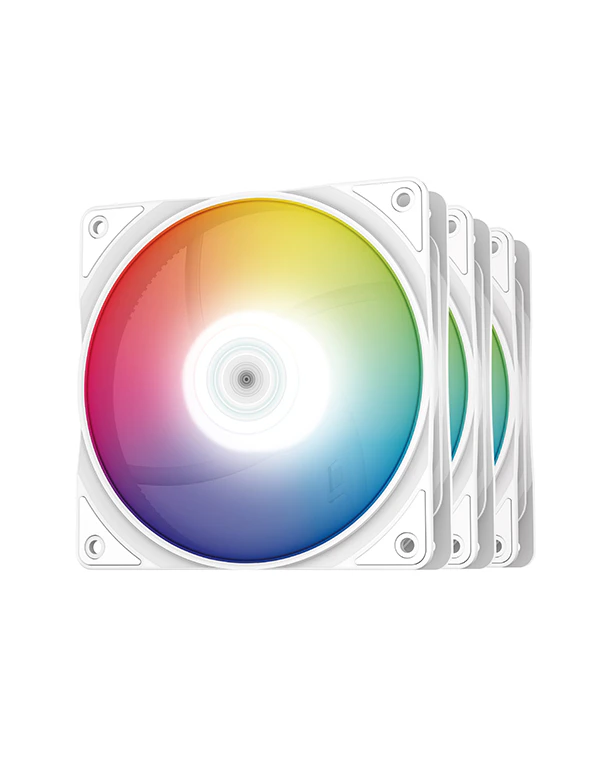

The DeepCool CF120 WH-3 IN 1 triple PWM fan kit features 36 independently addressable RGB LEDs with 12 LEDs on each fan for brilliant lighting effects and performance cooling.
COLOR
white
MODEL
CF120 WH-3 IN 1
A-RGB LED Case Fans
CUSTOMIZABLE ADDRESSABLE RGB LED LIGHTING
Utilize 12pcs of independently programmable RGB LED lights, CF120 WH-3 IN 1 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 6 different colors to choose from
Synchronized Control via 5V A-RGB Header on MB
Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices

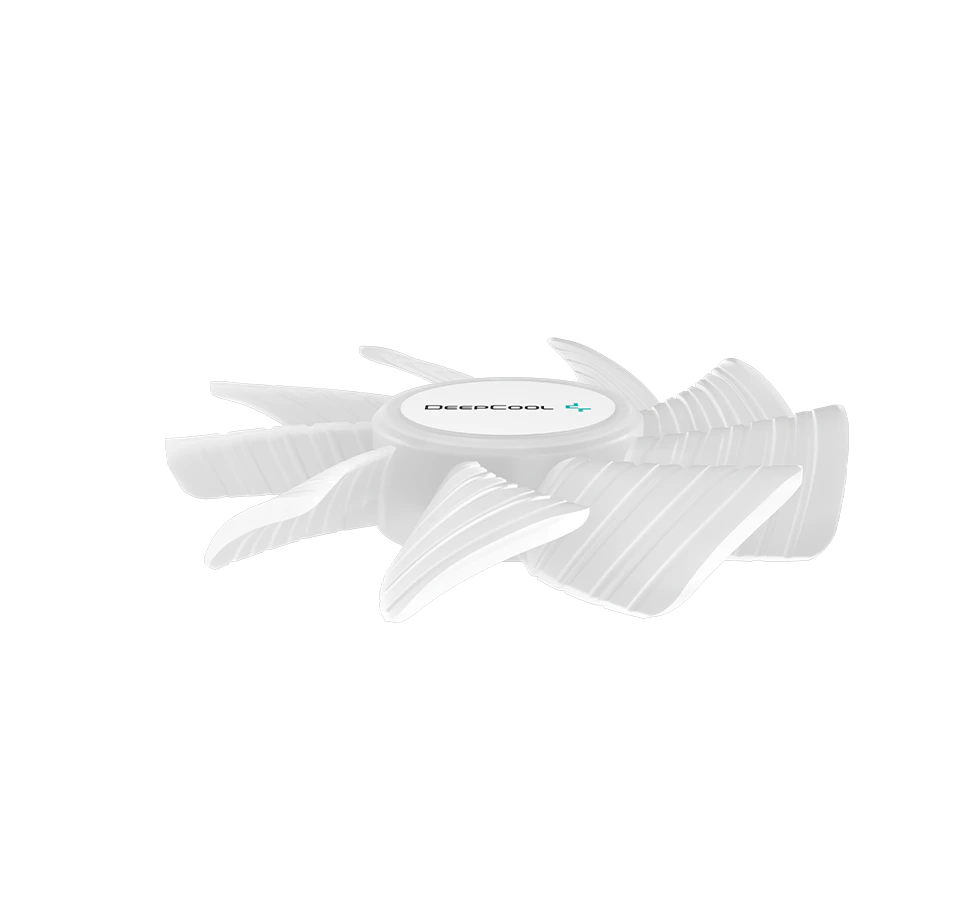

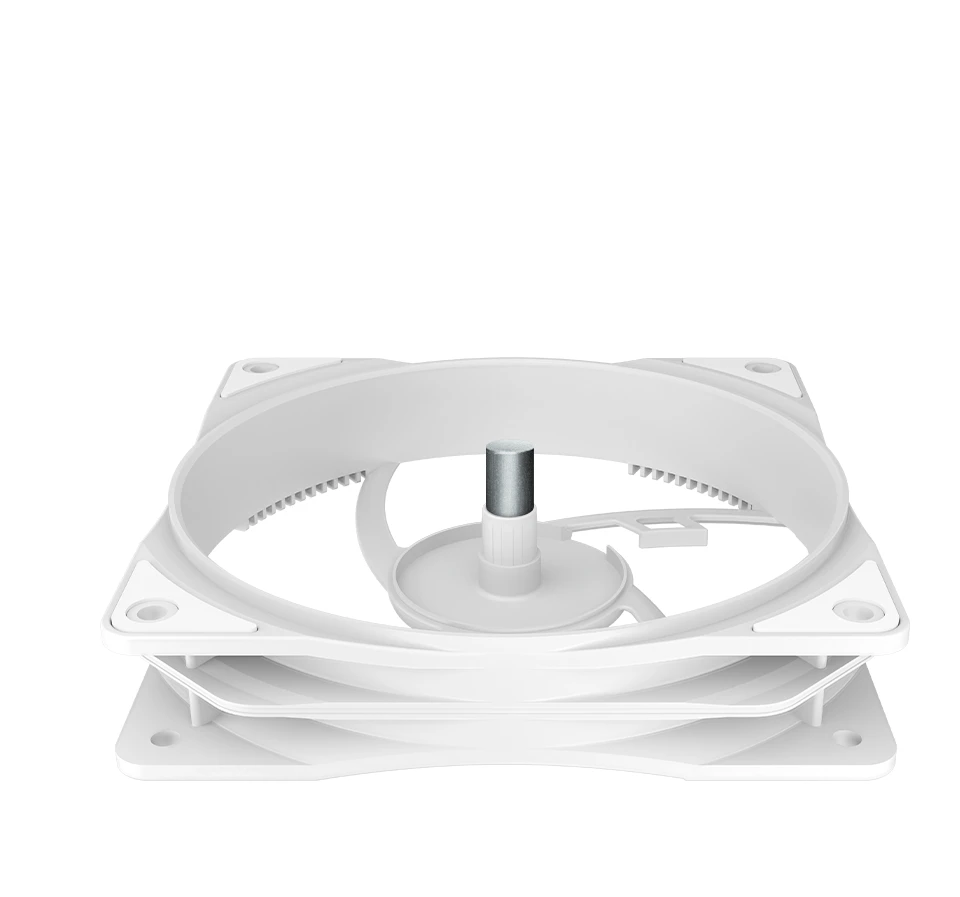

Better Balance on Performance & Low Noise

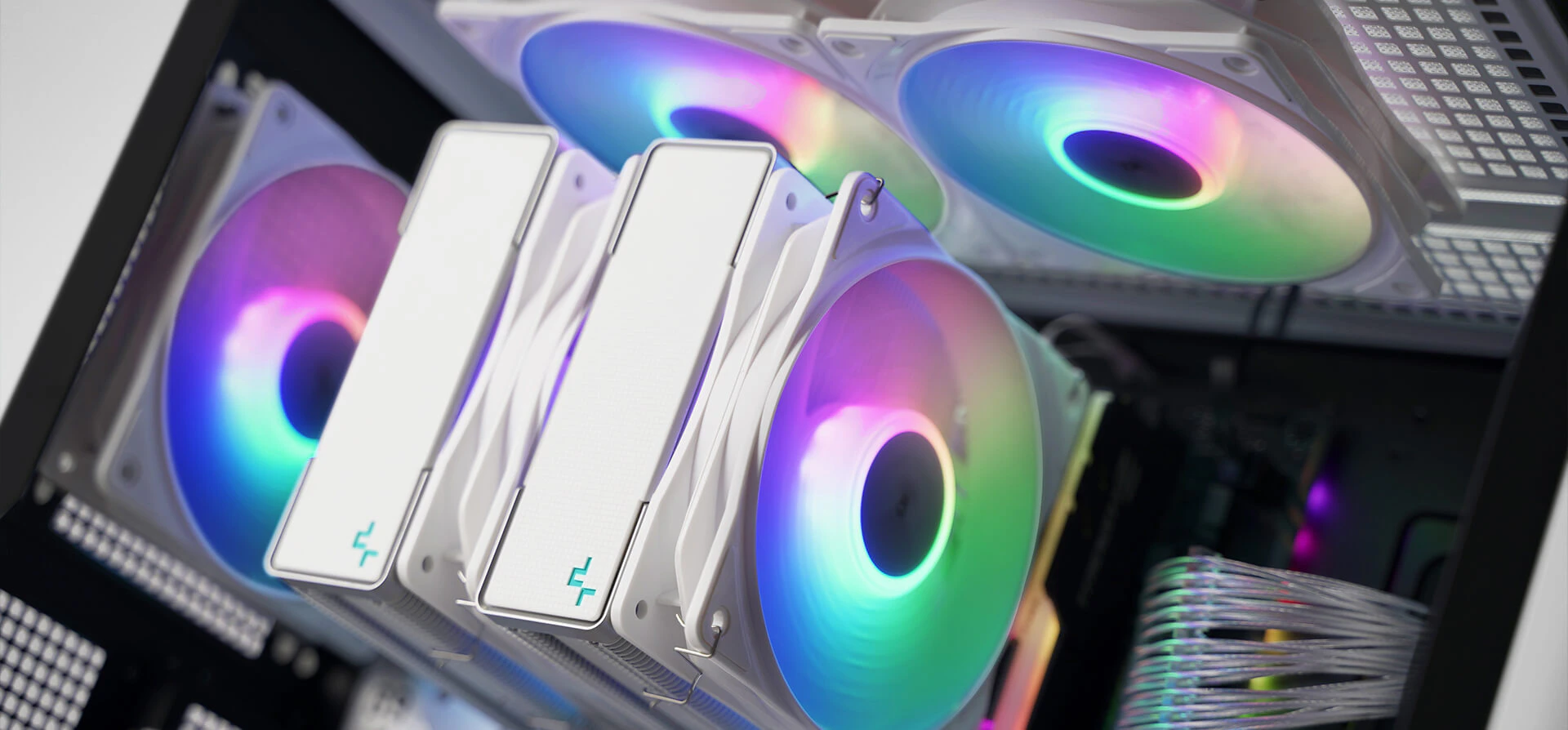

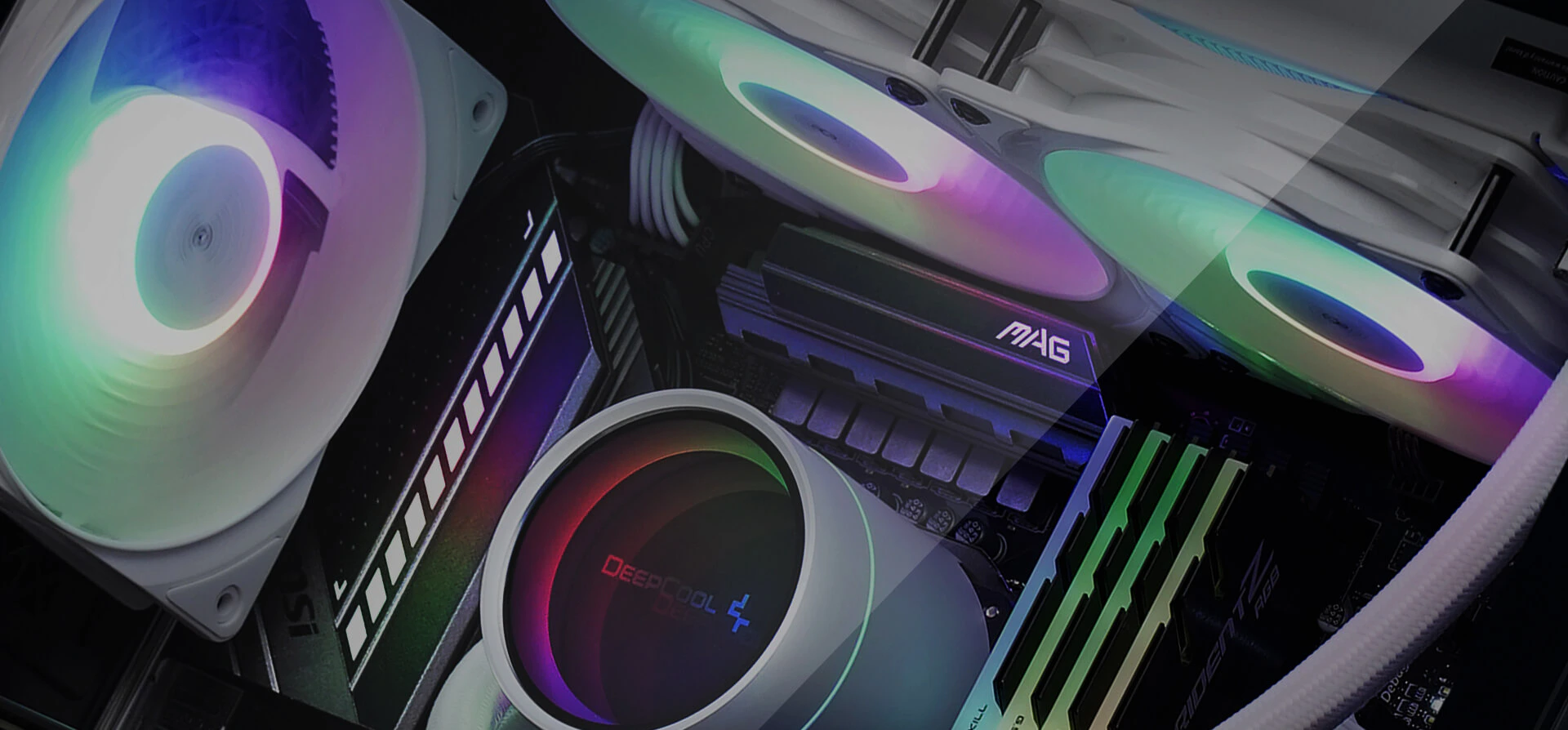

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
Super Silent
ADD-RGB LED
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature
PWM Control

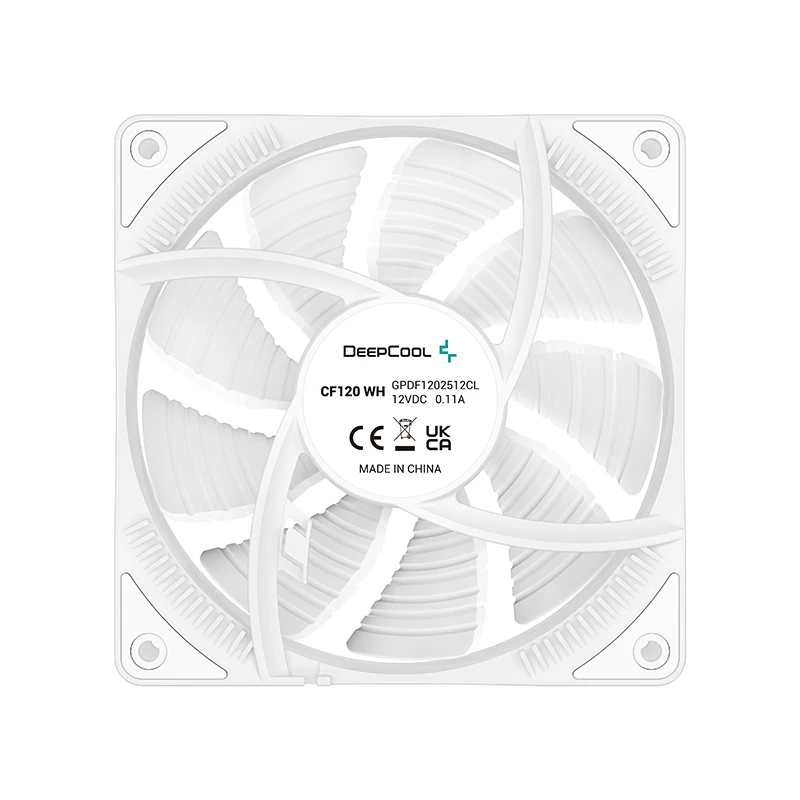

Technical Spec
Fan Dimensions120×120×25 mm(L×W×H)
Net Weight496 g
Fan Speed500~1500 RPM±10%
Fan Airflow57.28 CFM
Fan Air Pressure1.61 mmAq
Fan Noise28.5 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12VDC
Fan Rated Current0.11A
Fan Power Consumption1.32W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5VDC
LED Power Consumption2.2 W
EAN6933412710646
P/NDP-FA-RGB-CF120WH-3

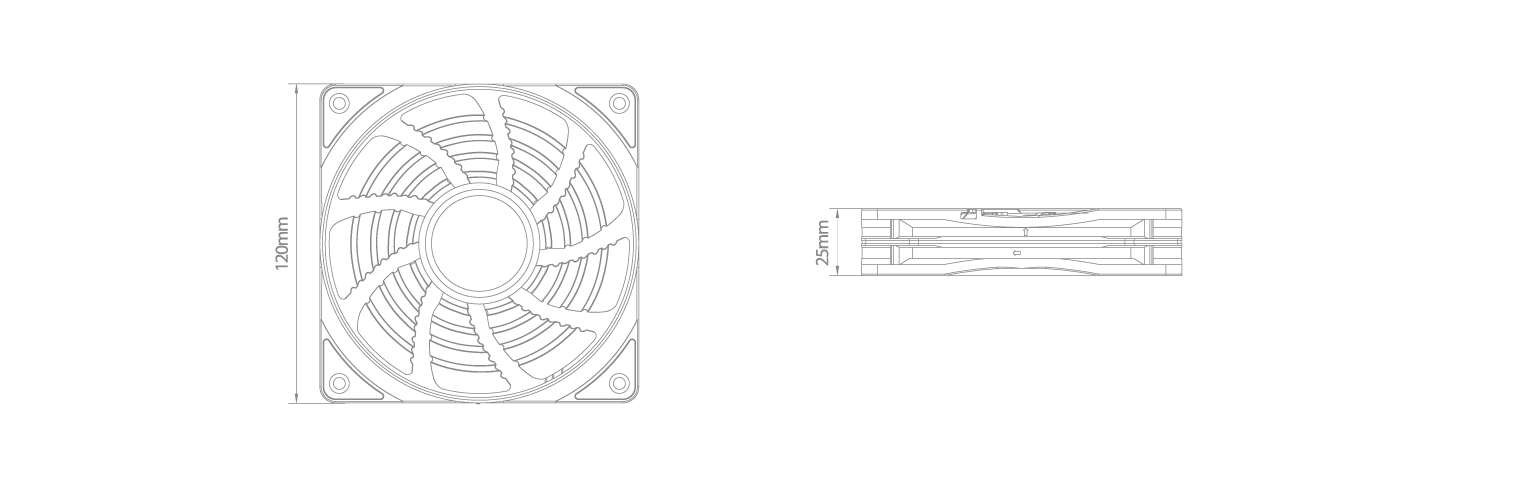

Product Dimension
Download
CF120 WH-3 IN 1 Manual.pdf
