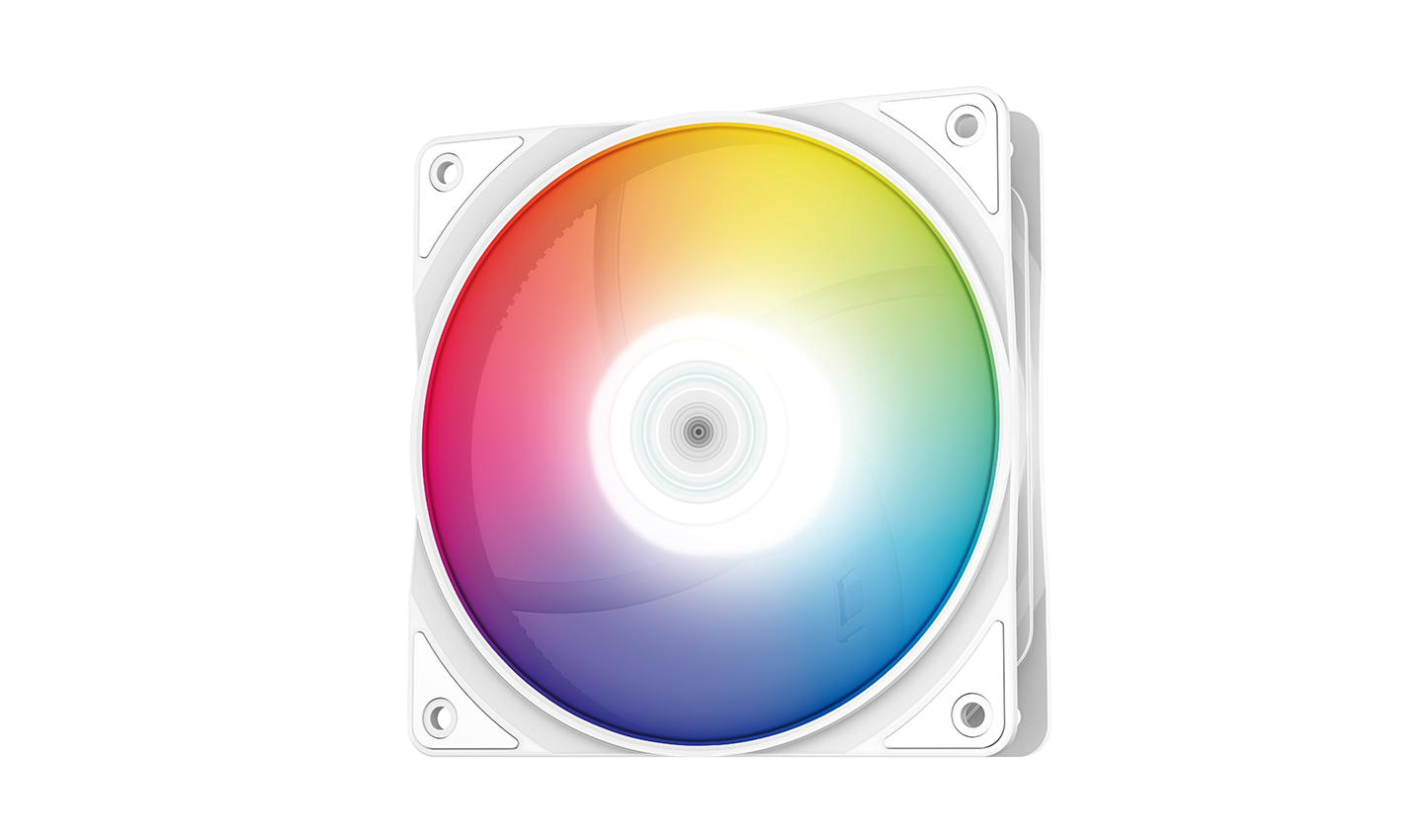

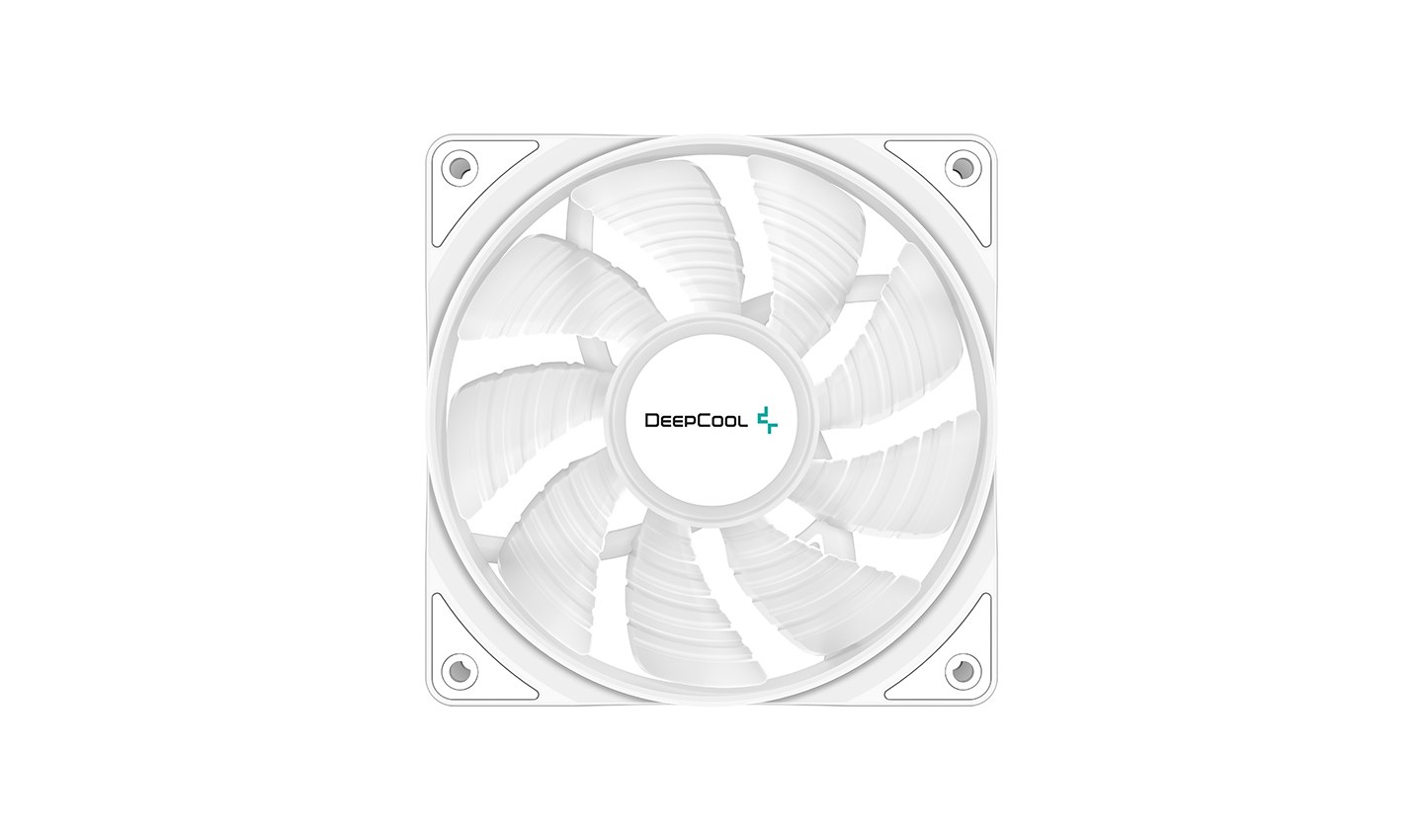

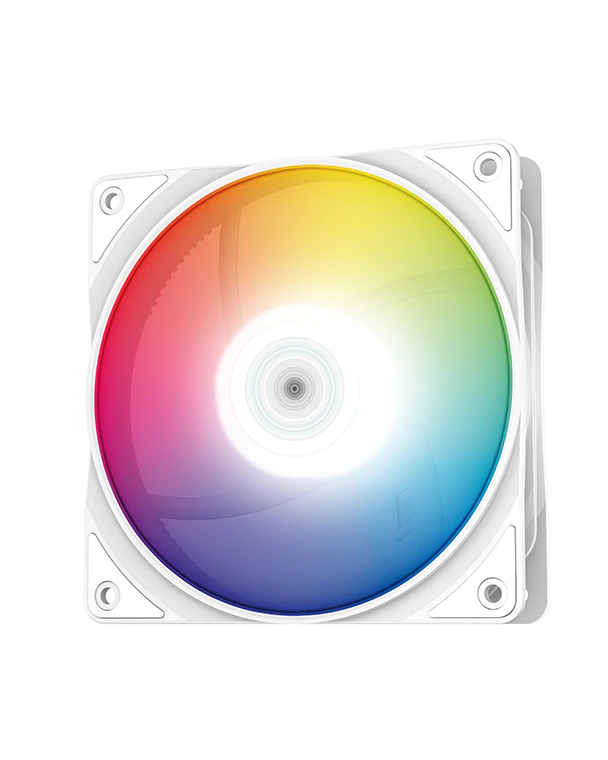

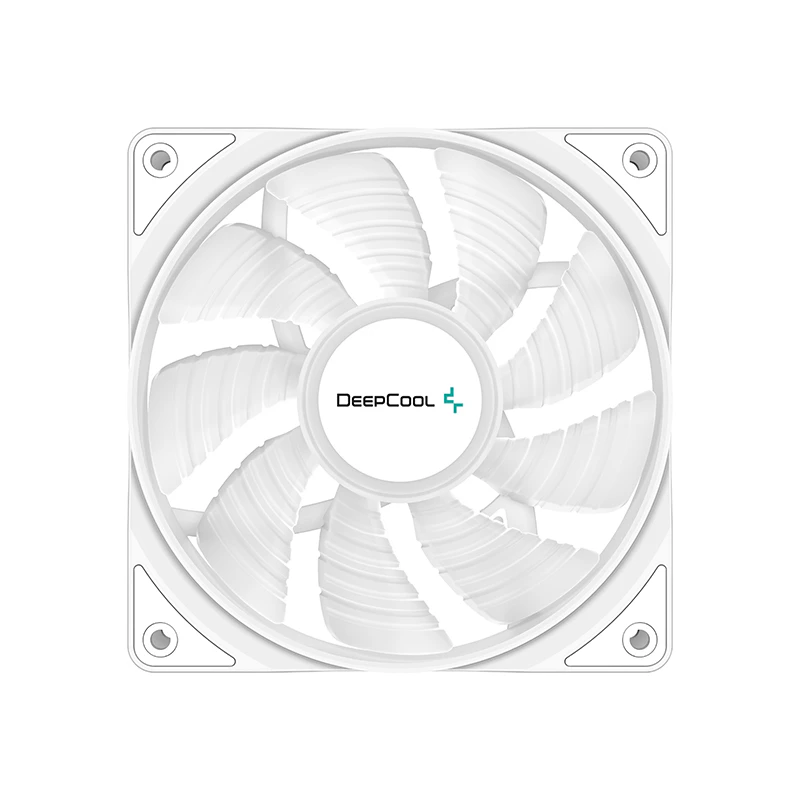

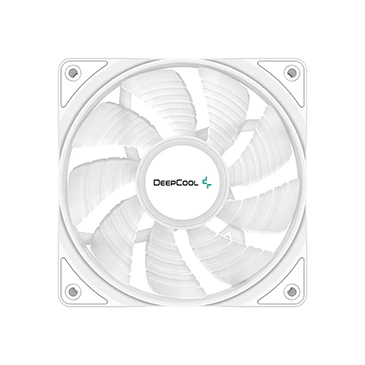

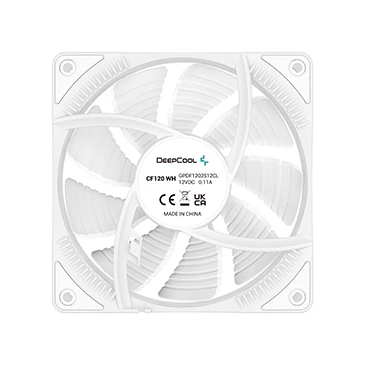

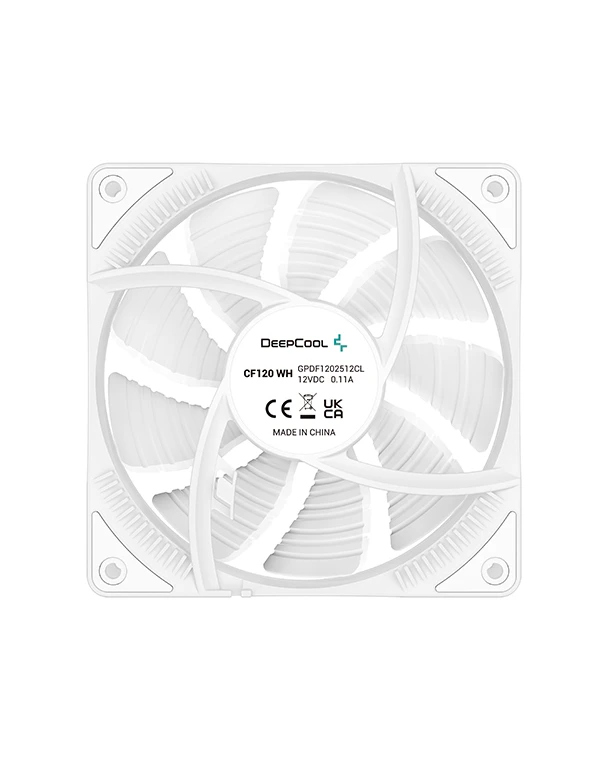

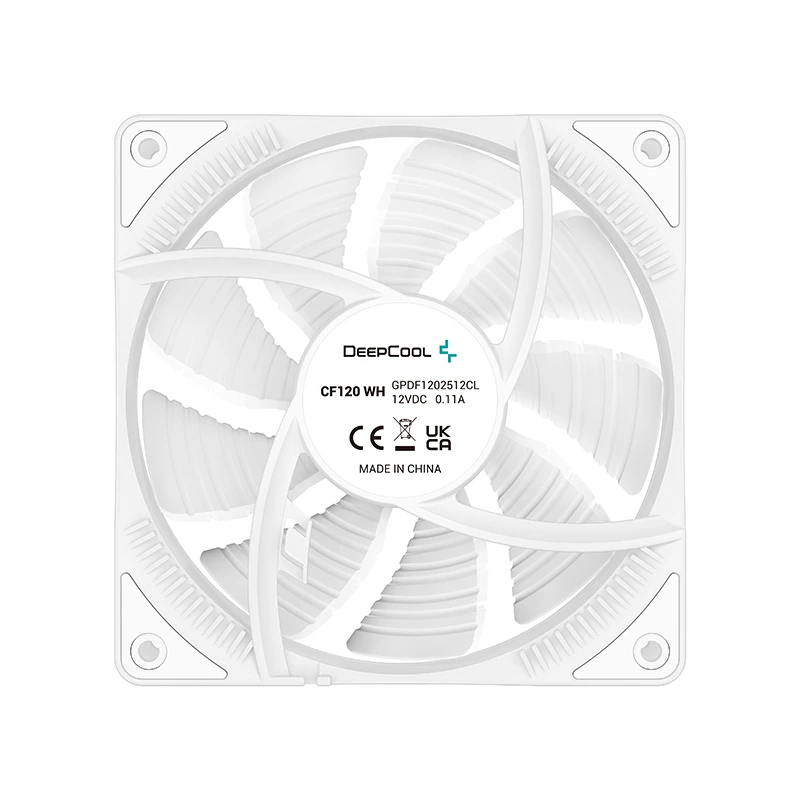

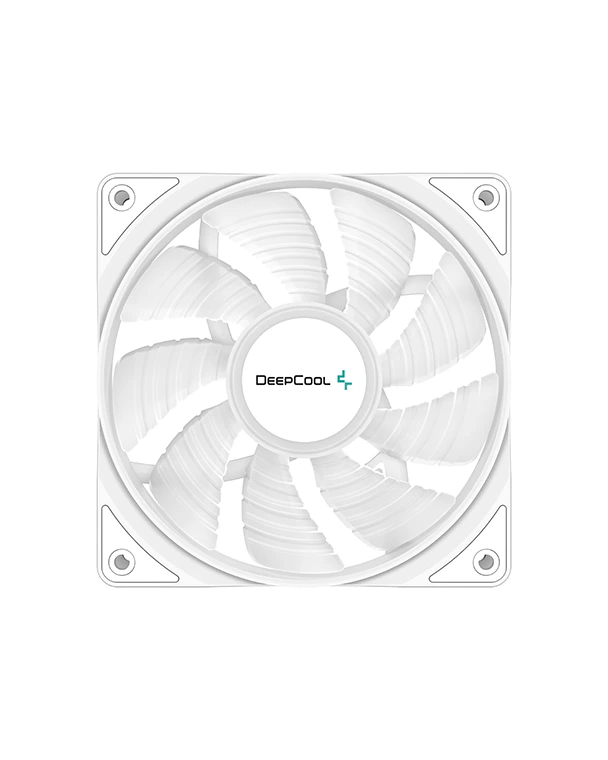

CF120 WH

MB Controlled 120mm A-RGB LED Case Fan

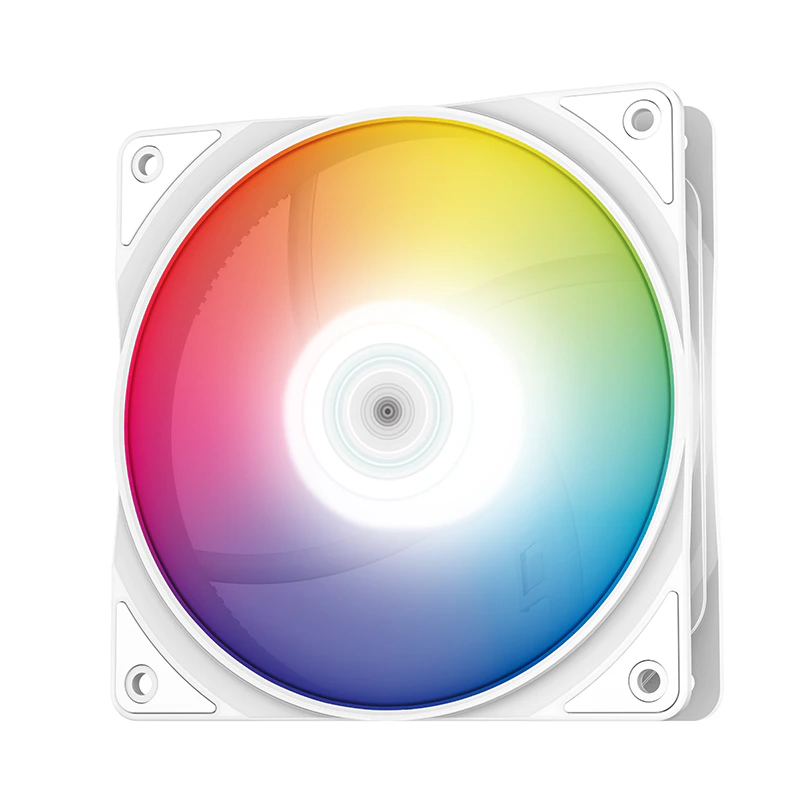

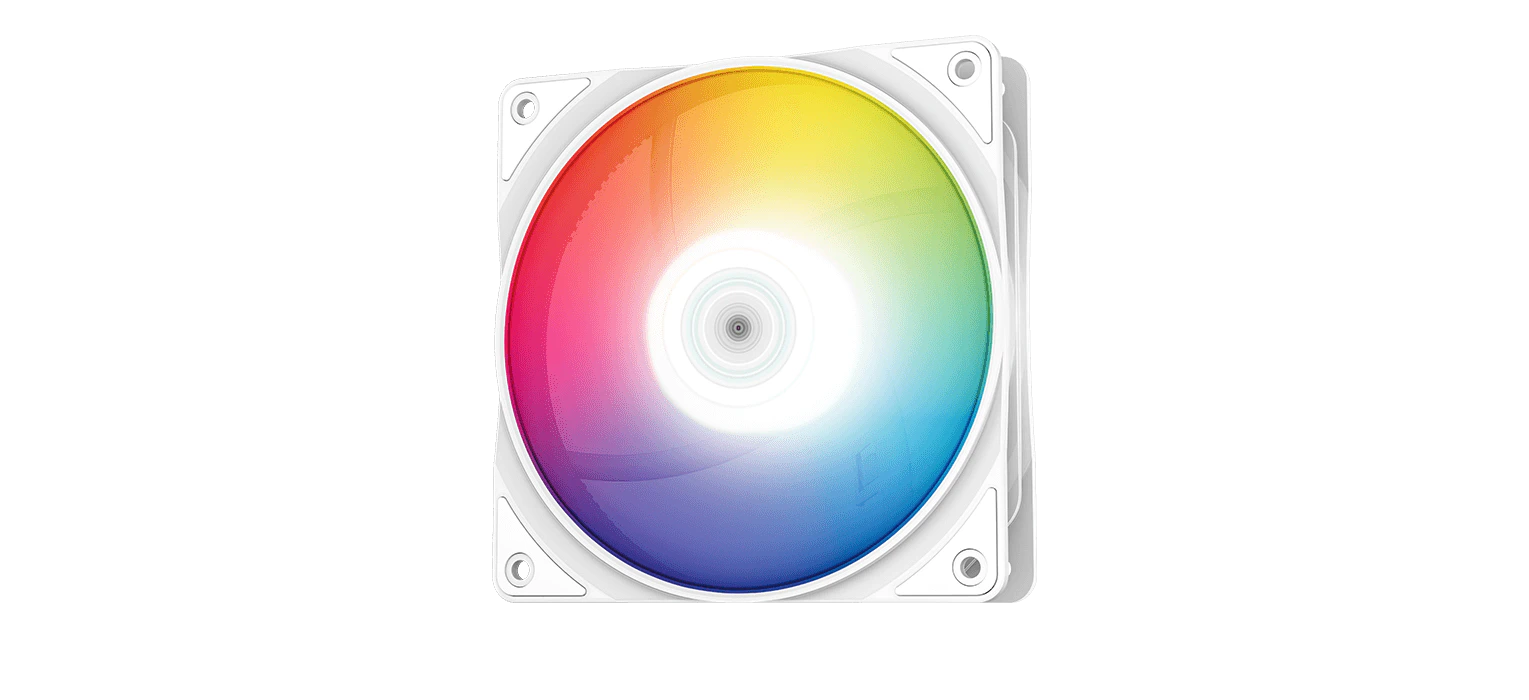

CUSTOMIZABLE ADDRESSABLE RGB LED LIGHTING

Utilize 12pcs of independently programmable RGB LED lights, CF120 WH provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 6 different colors to choose from

Synchronized Control via 5V A-RGB Header on MB

Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices

Better Balance on Performance & Low Noise

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan

Super Silent

ADD-RGB LED

PWM Intelligent Control

Fan speed can be intelligently controlled by MB in accordance with temperature

PWM Control

Technical Spec

Fan Dimensions	120×120×25 mm(L×W×H)
Net Weight	148 g
Fan Speed	500~1500 RPM±10%
Fan Airflow	57.28 CFM
Fan Air Pressure	1.61 mmAq
Fan Noise	28.5 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12VDC
Fan Rated Current	0.11A
Fan Power Consumption	1.32W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5VDC
LED Power Consumption	2.2 W
EAN	6933412710639
P/N	DP-FA-RGB-CF120WH-1

Product Dimension

Download

CF120 WH Manual.pdf
