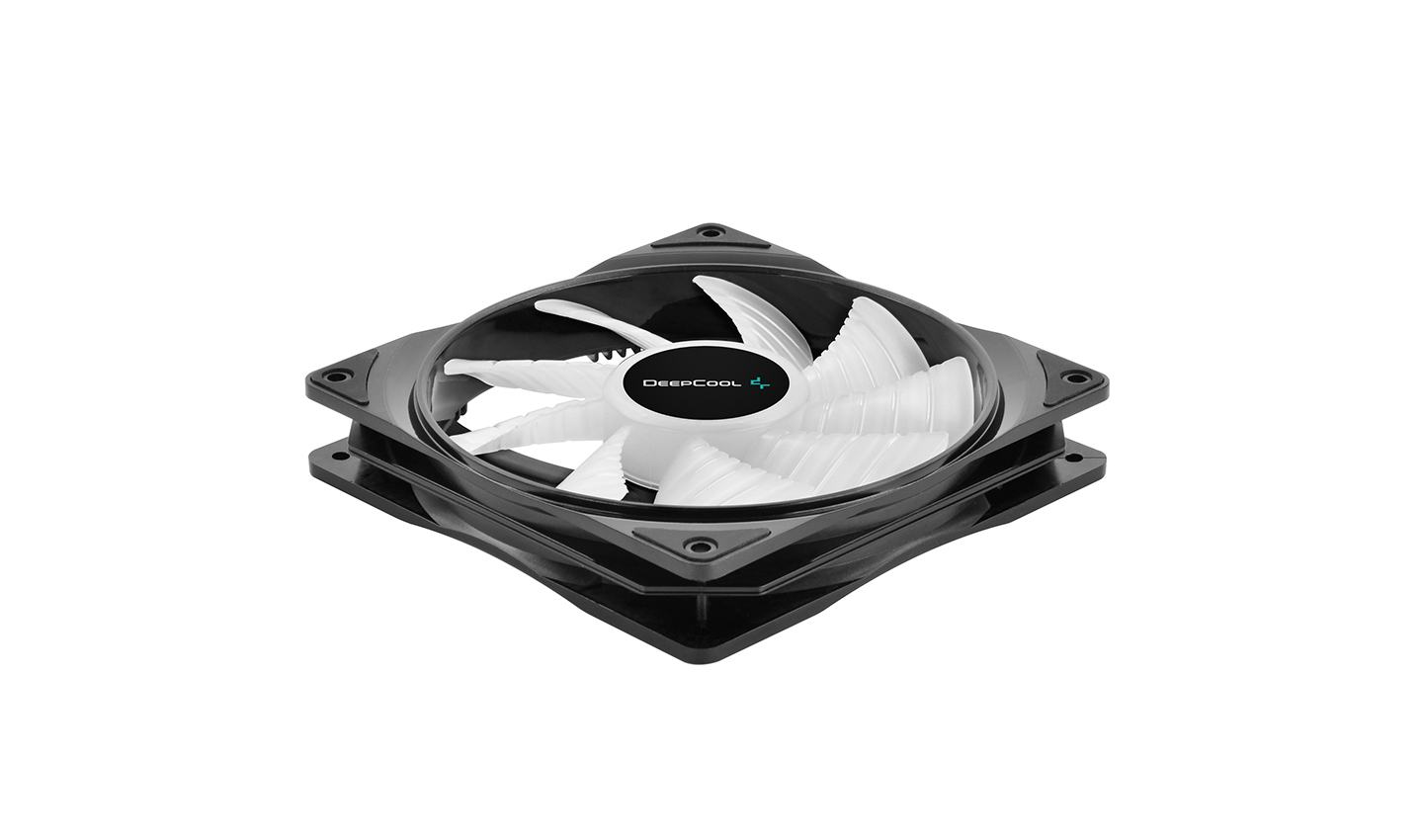

CF140-2 IN 1

A-RGB LED Case Fans

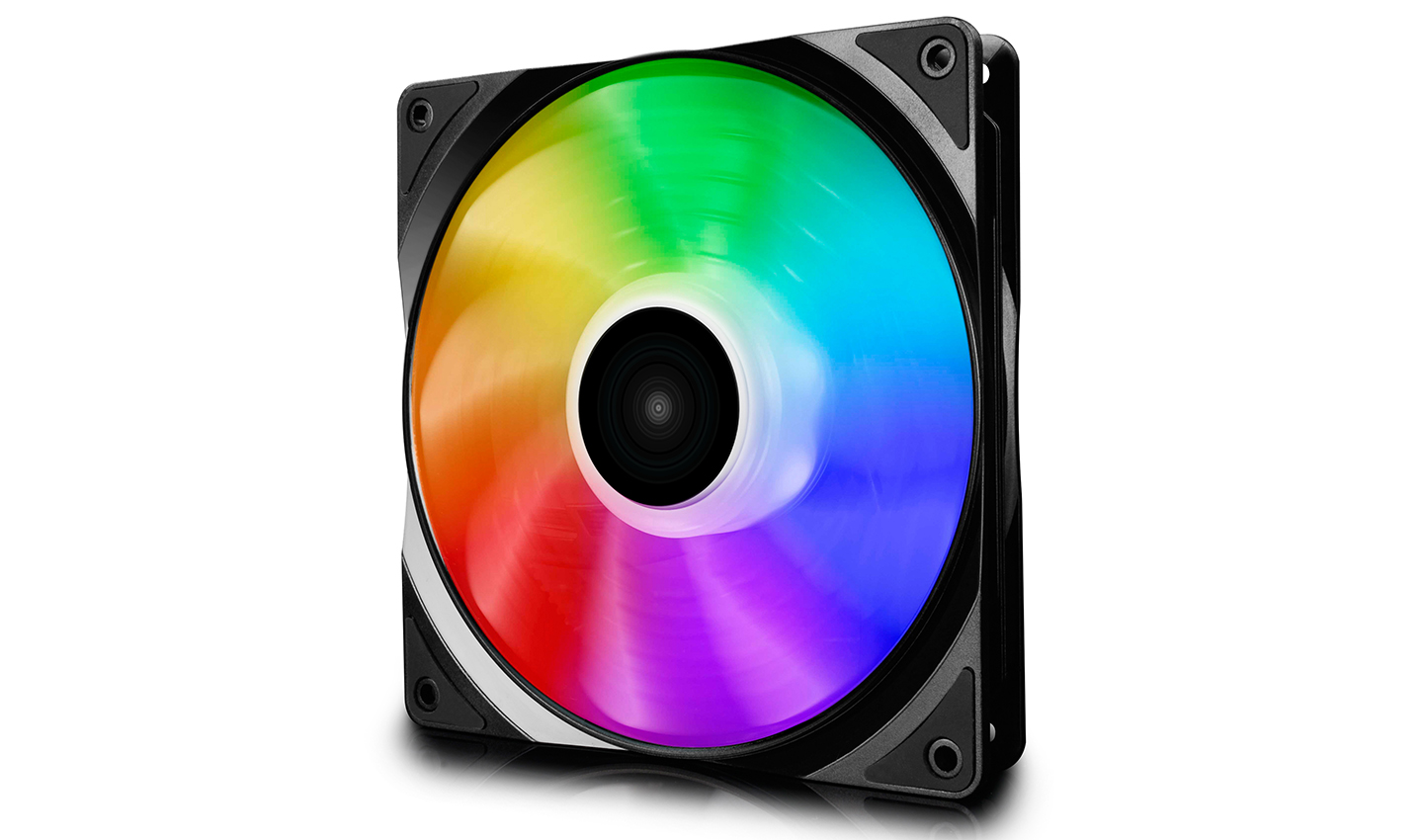

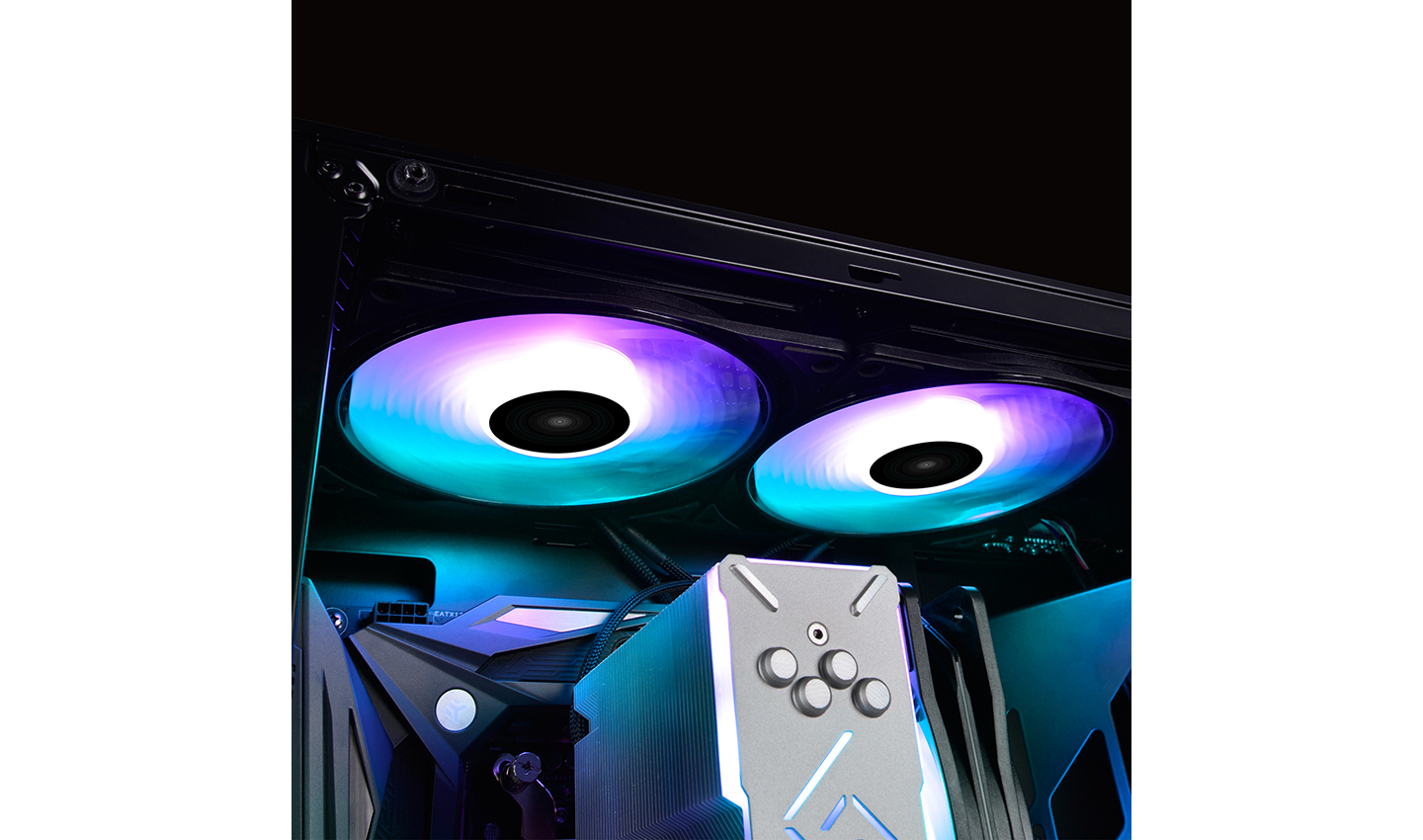

Customizable Addressable RGB LED Lighting

Utilize 12pcs of independently programmable RGB LED lights, CF140 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from

Synchronized Control via 5V A-RGB Header on MB

Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices

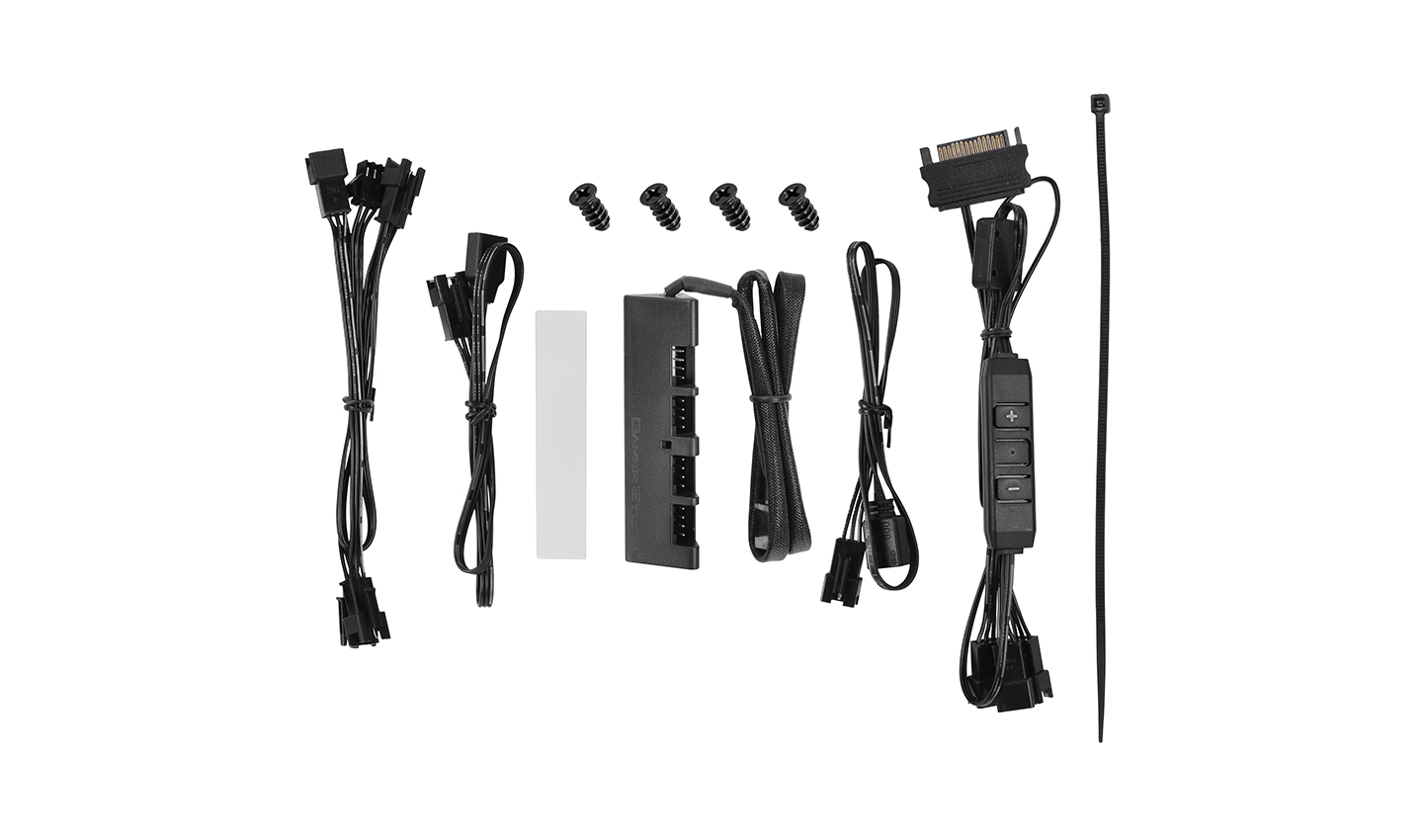

Control by Using the Included A-RGB Controller

Use the included A-RGB Controller to control multiple DeepCool RGB devices, up to 6pcs

Mode+

Speed （Hold for 3 seconds to switch on/off）

Mode-

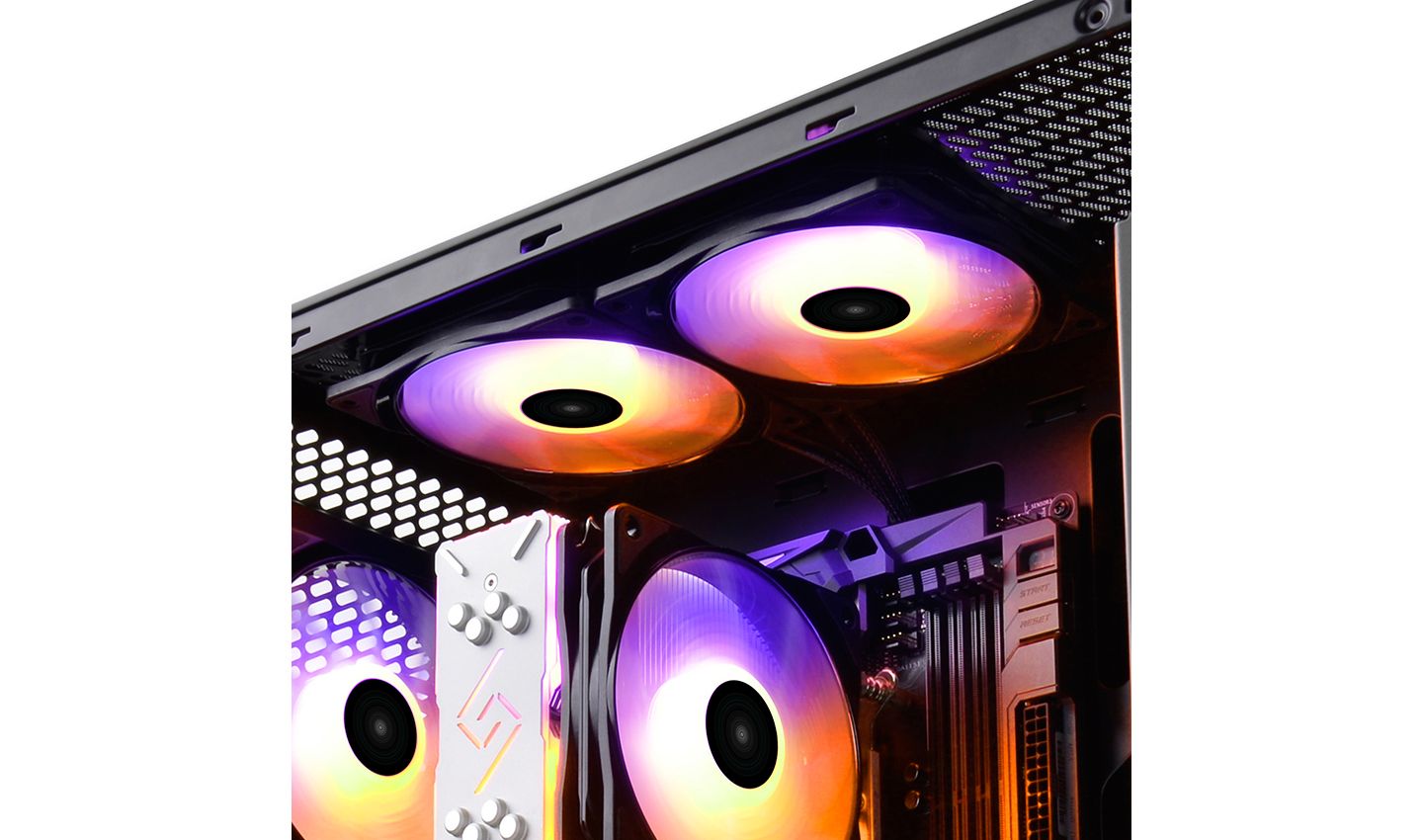

Better Balance on Performance & Low Noise

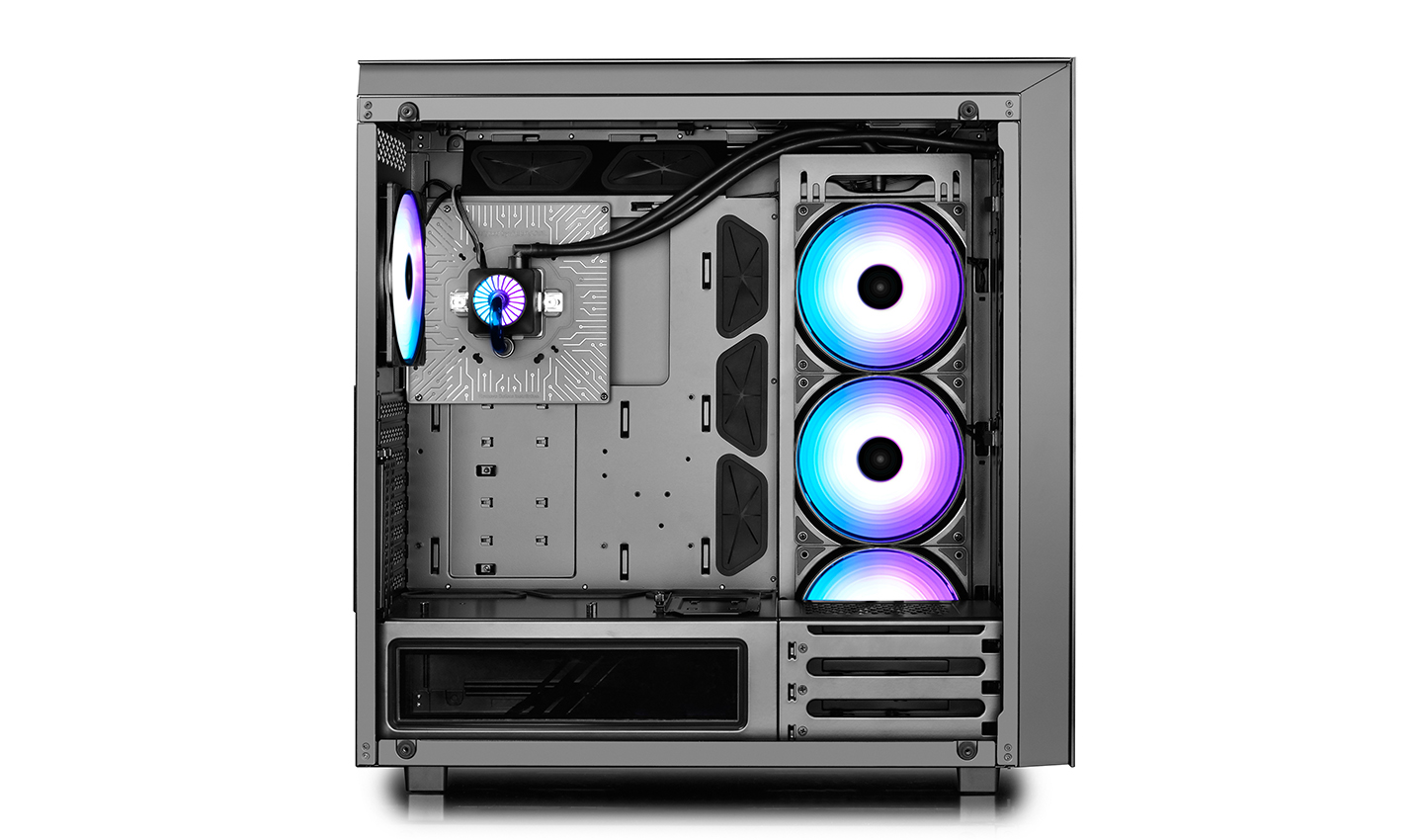

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan

PWM Control

Super Silent

ADD-RGB LED

PWM Intelligent Control

Fan speed can be intelligently controlled by MB in accordance with temperature

Technical Spec

Fan Dimension	140X140X26 mm(L×W×H)
Net Weight	436g
Fan Speed	500±200 -1200±10%RPM
Fan Air Flow	64.13CFM
Fan Air Pressure	1.09mmH2O
Fan Noise Level	19.8~24dB(A)
Fan Connector	4Pin
FAN Rated Voltage	12VDC
FAN Operating Voltage	10.8～13.2VDC
FAN Starting Voltage	7VDC
FAN Rated Current	0.02±15%A-0.09±10%A
FAN Power Input	1.08W
Bearing Type	Hydro Bearing
LED Type	Addressable RGB LED
LED Rated Voltage	5VDC
LED Rated Current	0.48±10%A
LED Rated Power	2.4W
LED Connector	3pin（+5V-D-G）
LED Control	M/B with 5V ADD-RGB Header
EAN	6933412710356
P/N	DP-FA-RGB-CF140-2

Product Dimension

Download

CF140-2 IN 1 Manual.pdf
