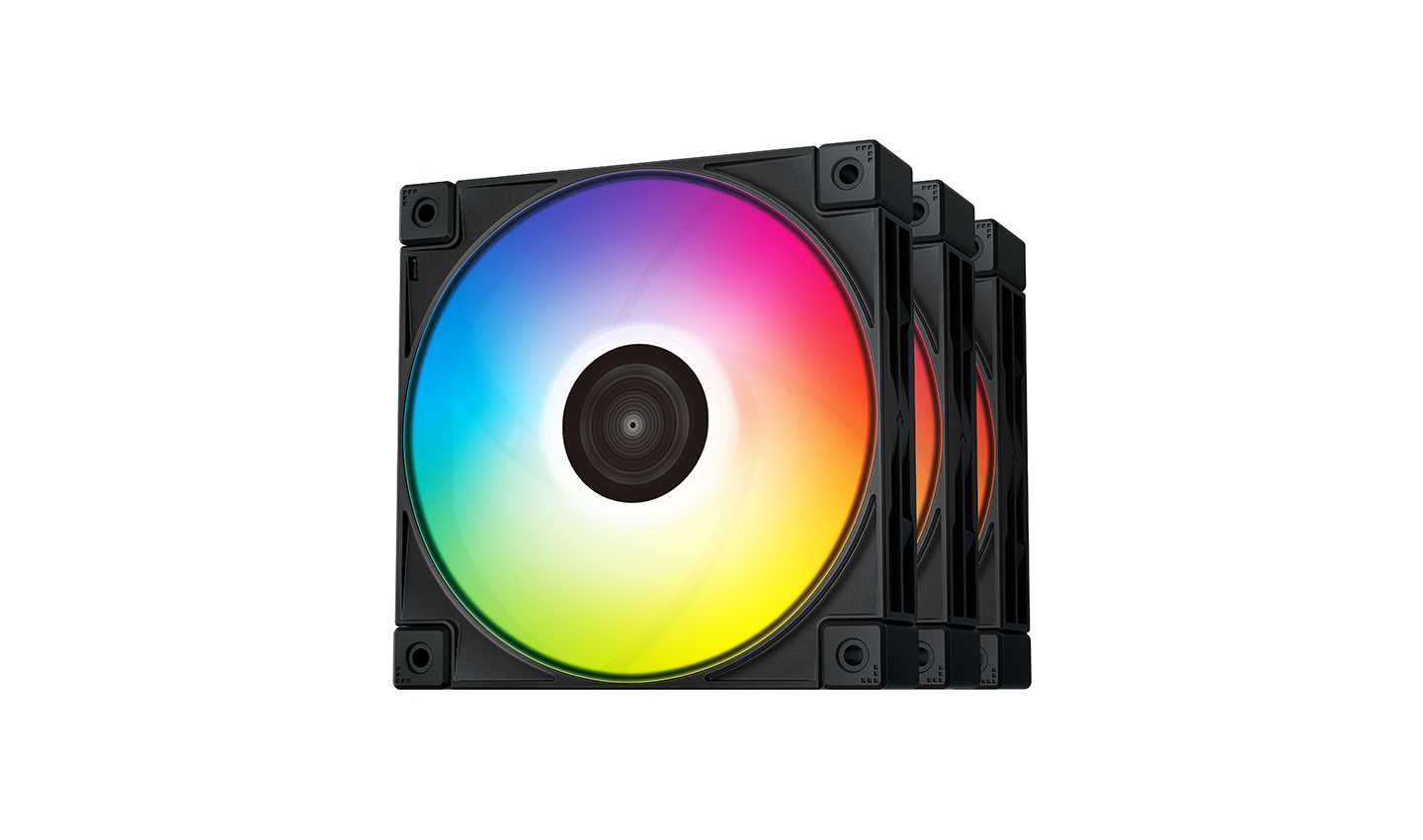

FC120-3 IN 1
The DeepCool FC120 performance A-RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both A-RGB and power functions that interconnects between fans and reduces cable clutter.
COLOR
black
MODEL
FC120-3 IN 1
Colorful Cooling Simplified
Performance A-RGB PWM Fan
The DeepCool FC120 performance A-RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both A-RGB and power functions that interconnects between fans and reduces cable clutter.
A-RGB Power Interconnect

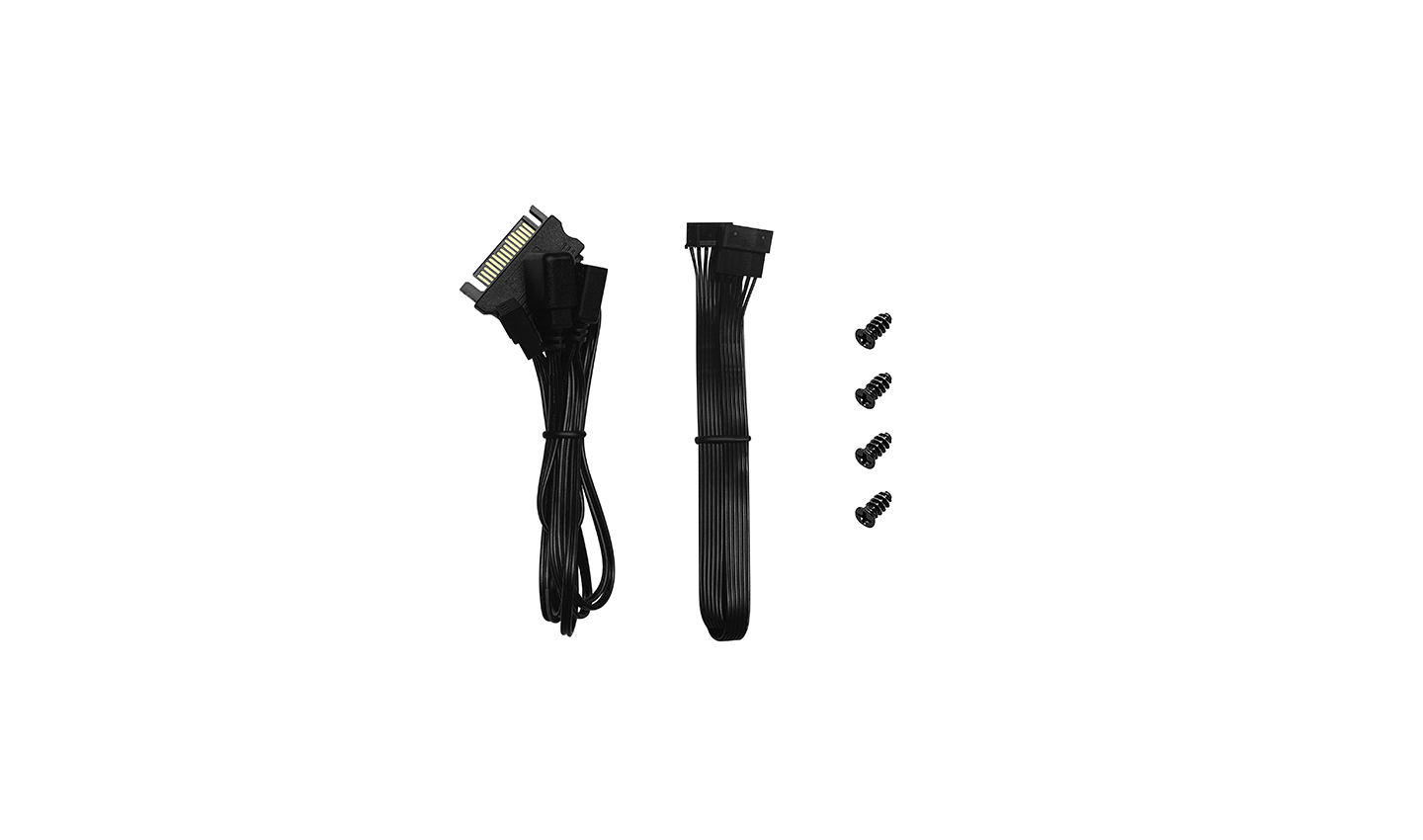

Each FC120 fan features a single cable that transmits both power and A-RGB data signals that can be daisy-chained in a series of fans to reduce cable clutter. The fan interconnect system removes the need for a hub and makes it easy to synchronize control of PWM and A-RGB for up to 4 fans.
Lighting Luminosity

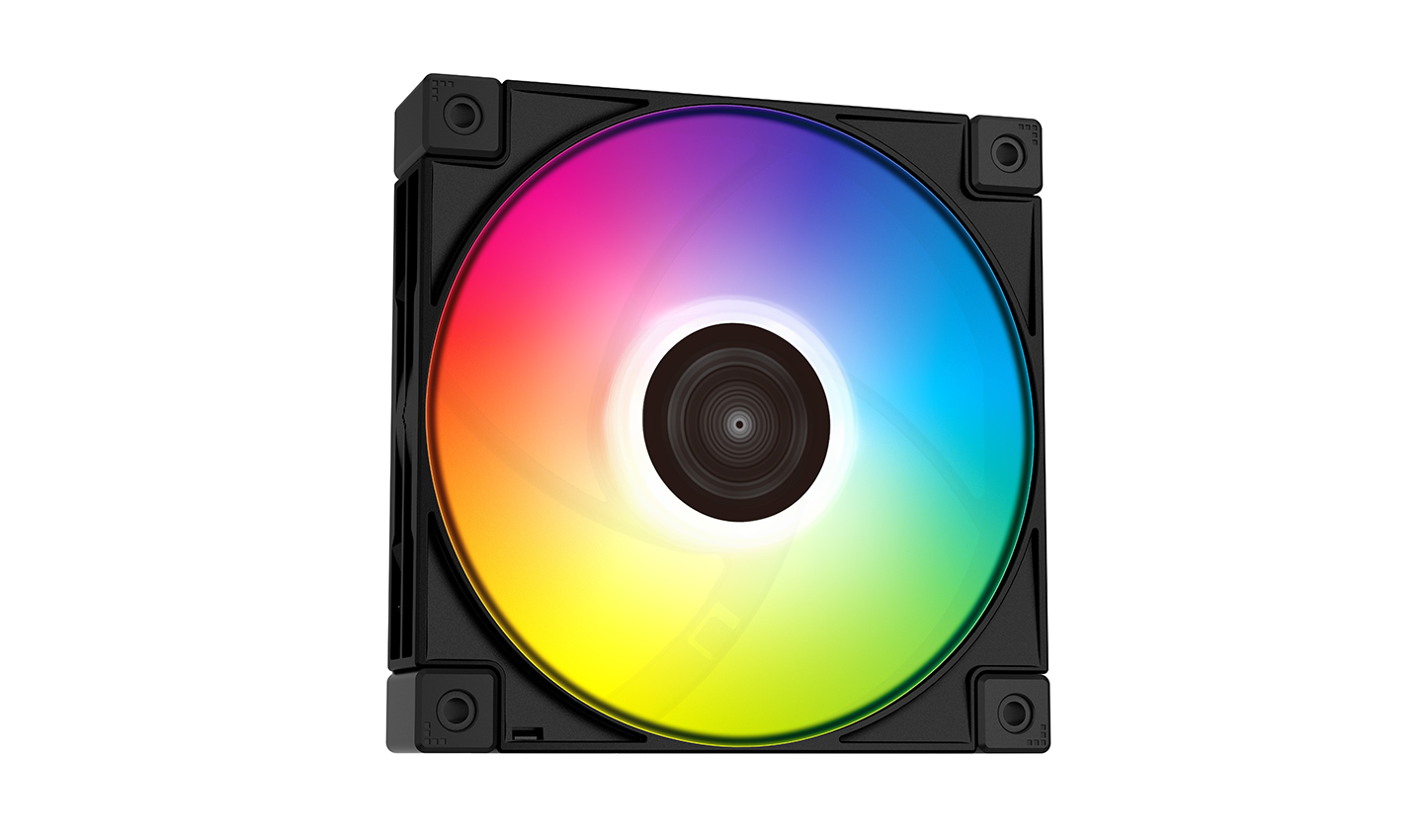

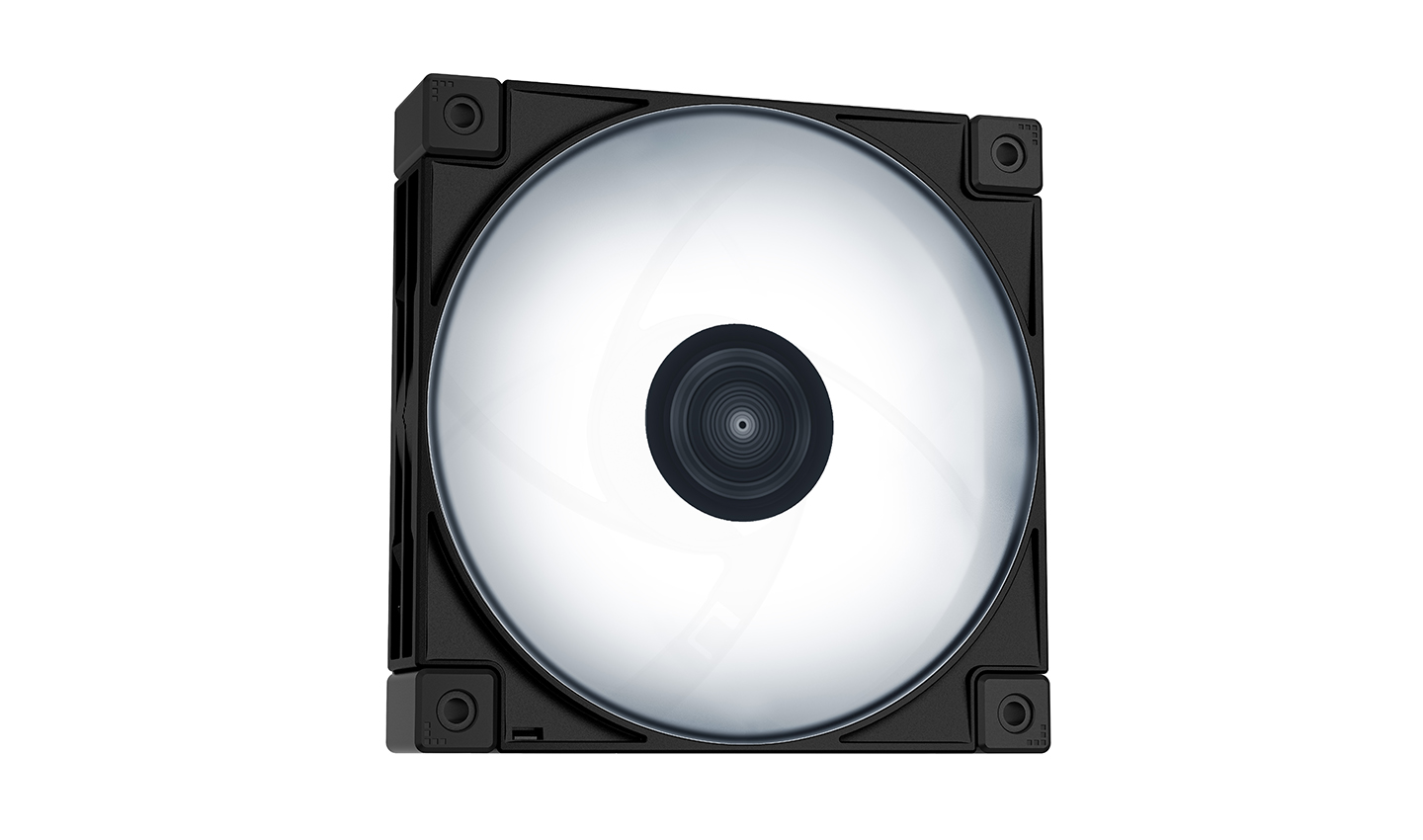

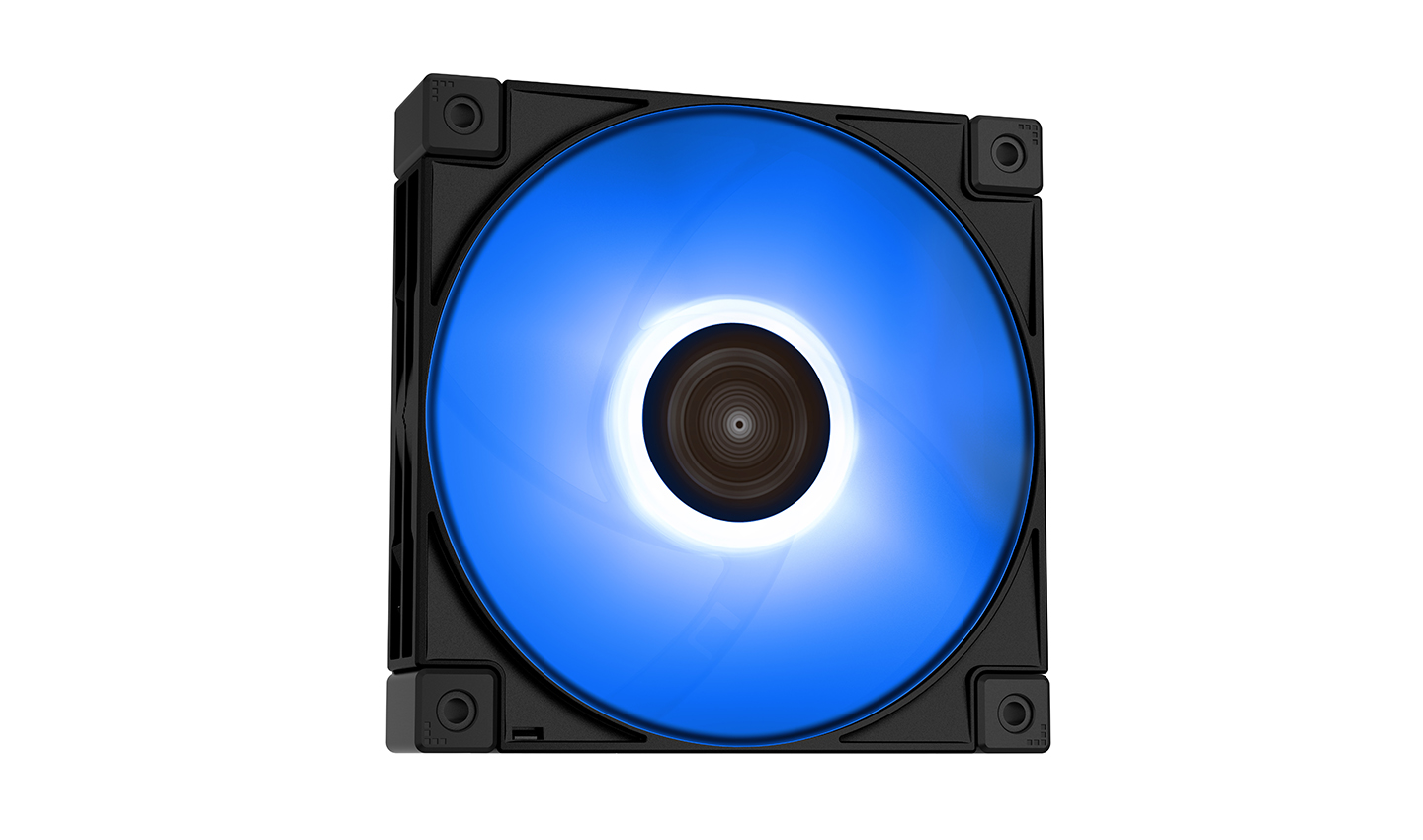

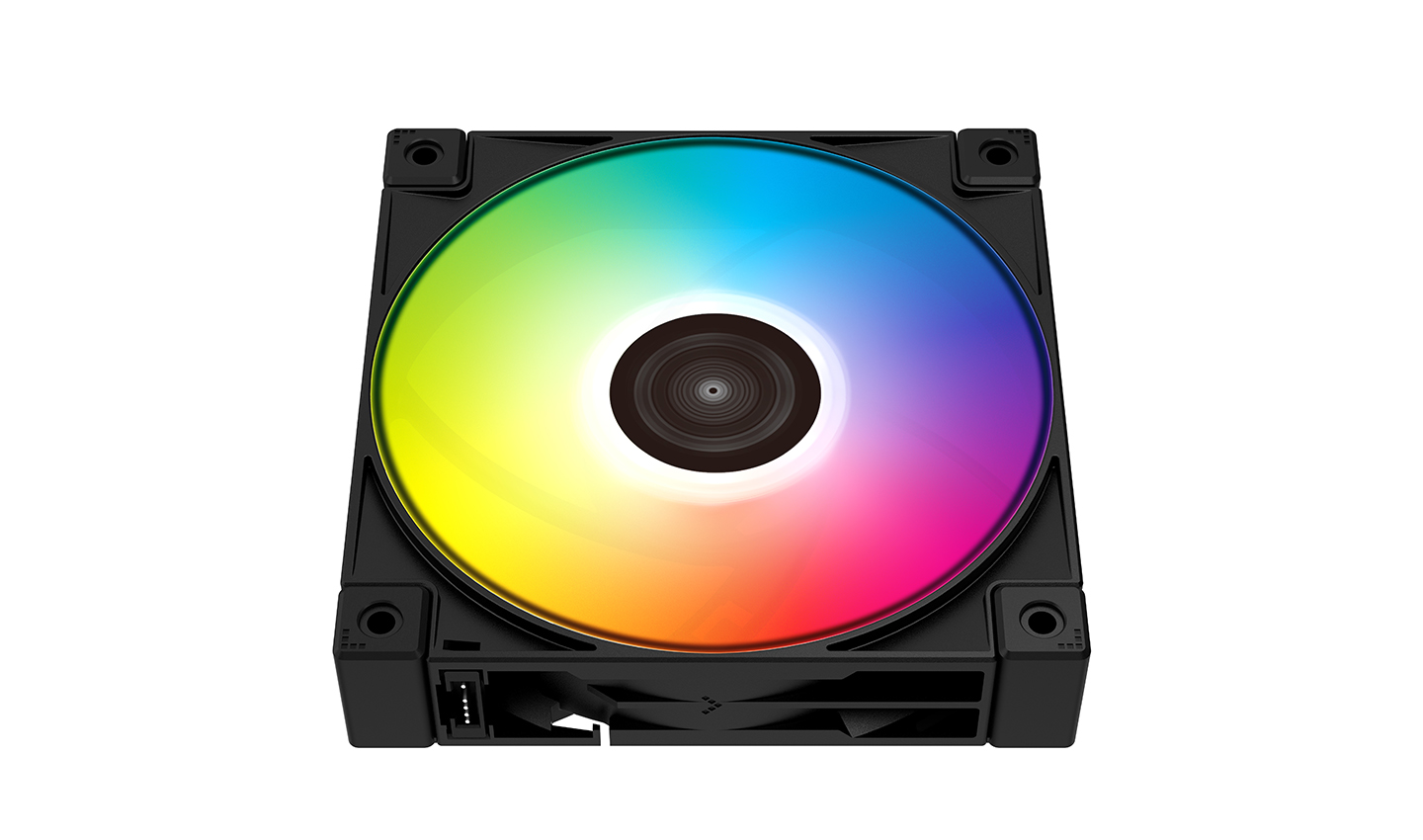

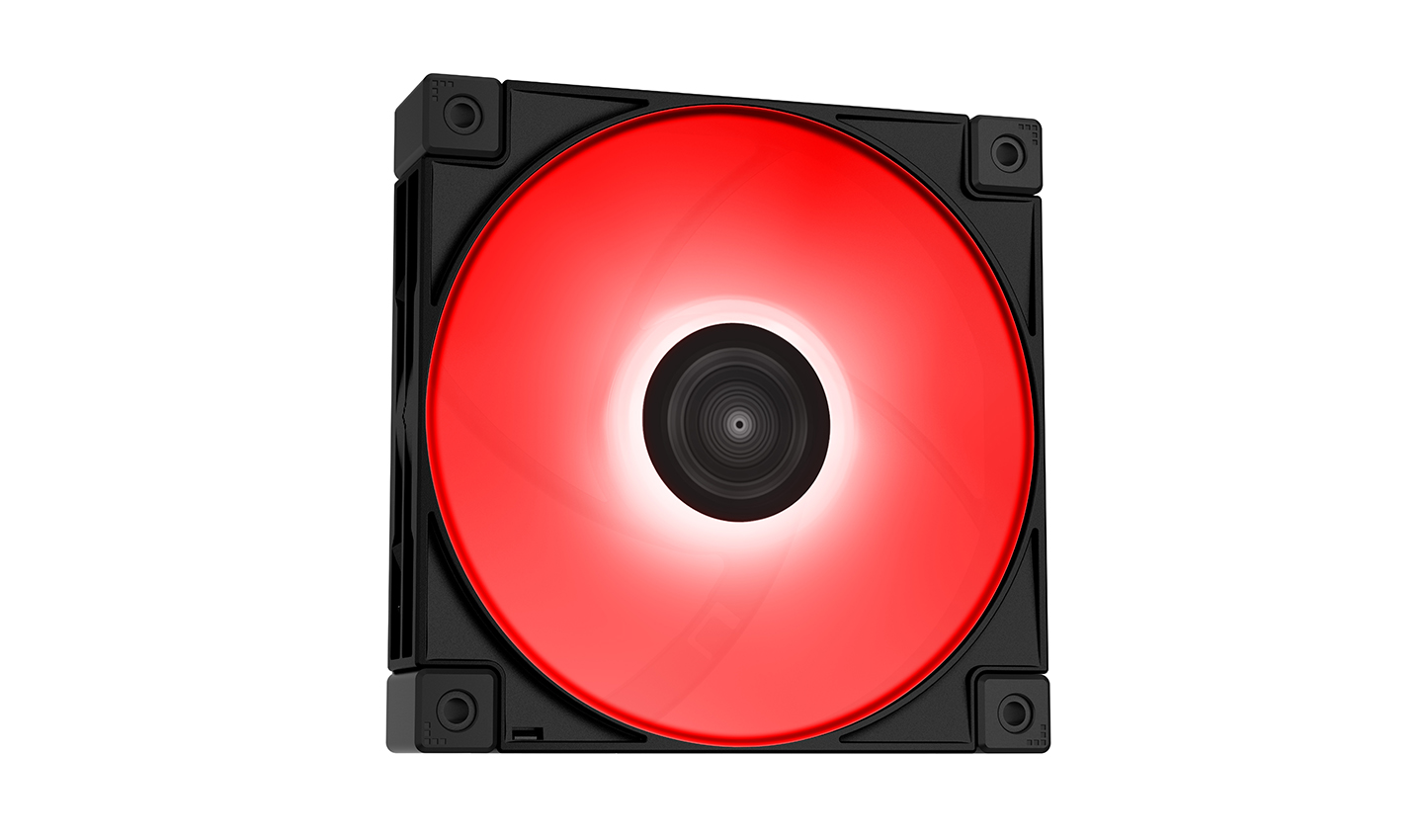

Individually addressable A-RGB LEDs surround the center hub and illuminate each translucent fan blade for a classic lighting effect with high luminosity. The FC120 also features a default onboard lighting effect without needing software or a dedicated controller for fast and easy setup.
For full system A-RGB harmony, easily coordinate with other components through supported motherboard A-RGB software control.
Performance Excellence
Designed with precision, the FC120 features enhanced static pressure and concentrated airflow for outstanding cooling performance. The narrow frame bezel provides an increased area for the fan blades and delivers higher efficiency.
500~1800 RPM±10%

Fan Speed

61.91 CFM

Fan Airflow

≤28 dB(A)

Fan Noise Level

Performance Excellence
Designed with precision, the FC120 features enhanced static pressure and concentrated airflow for outstanding cooling performance. The narrow frame bezel provides an increased area for the fan blades and delivers higher efficiency.
500~1800 RPM±10%

Fan Speed

61.91 CFM

Fan Airflow

≤28 dB(A)

Fan Noise Level

Details Make the Difference

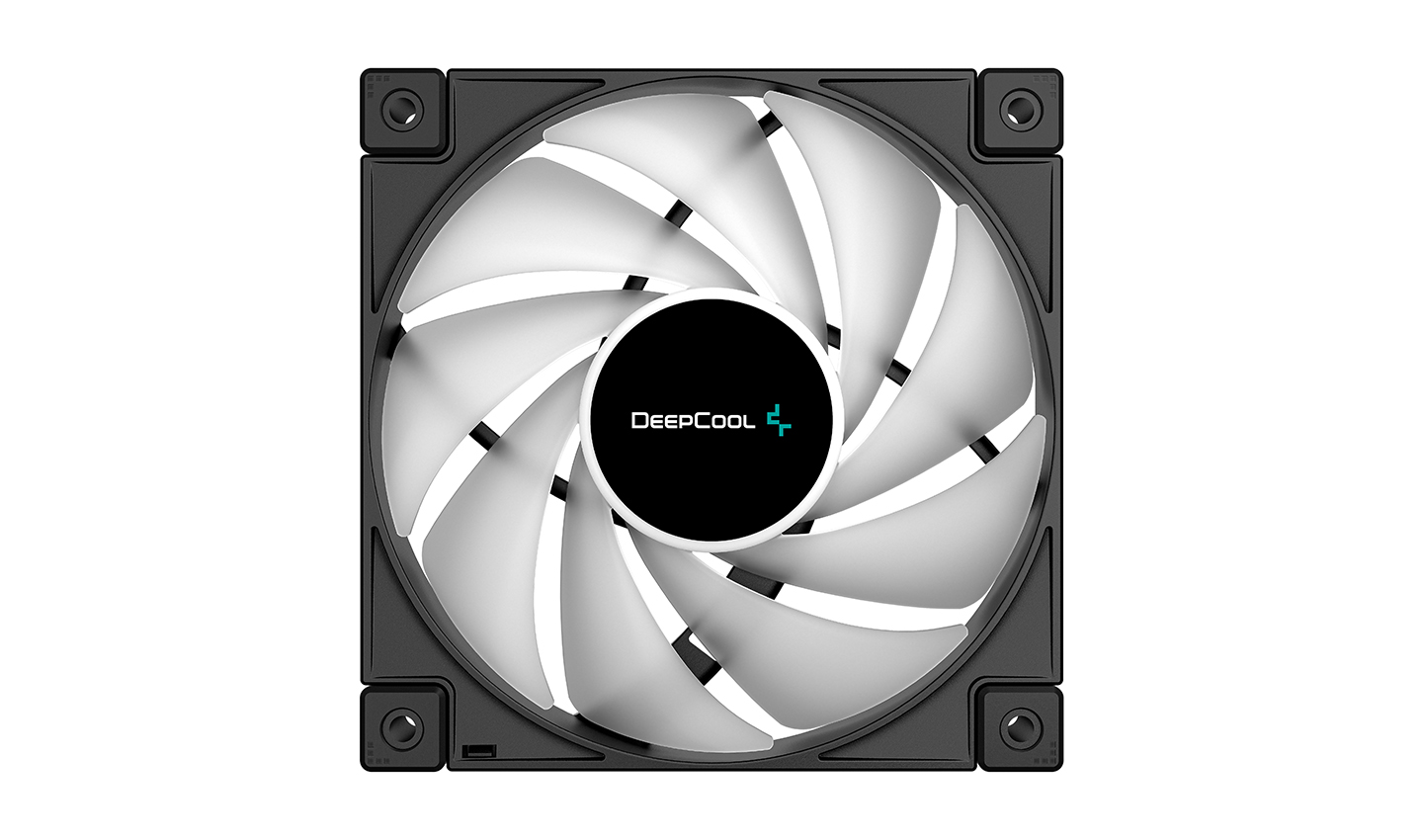

Built with high-quality polybutylene terephthalate (PBT) for increased durability and wear resistance, the fan blades maintain high tensile strength and stiffness to minimize unwanted vibrations.
Details Make the Difference
Built with high-quality polybutylene terephthalate (PBT) for increased durability and wear resistance, the fan blades maintain high tensile strength and stiffness to minimize unwanted vibrations.
Technical Spec
Fan Dimensions120×120×25 mm(L×W×H)
Net Weight 452 g
Fan Speed 500~1800 RPM±10%
Fan Airflow 61.91 CFM
Fan Air Pressure 1.83 mmAq
Fan Noise ≤28 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.13 A
Fan Power Consumption 1.56 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 1.05 W
EAN 6933412710561
P/N R-FC120-BKAMN3-G-1
Product Dimension
Download
FC120-3 IN 1 Manual.pdf
